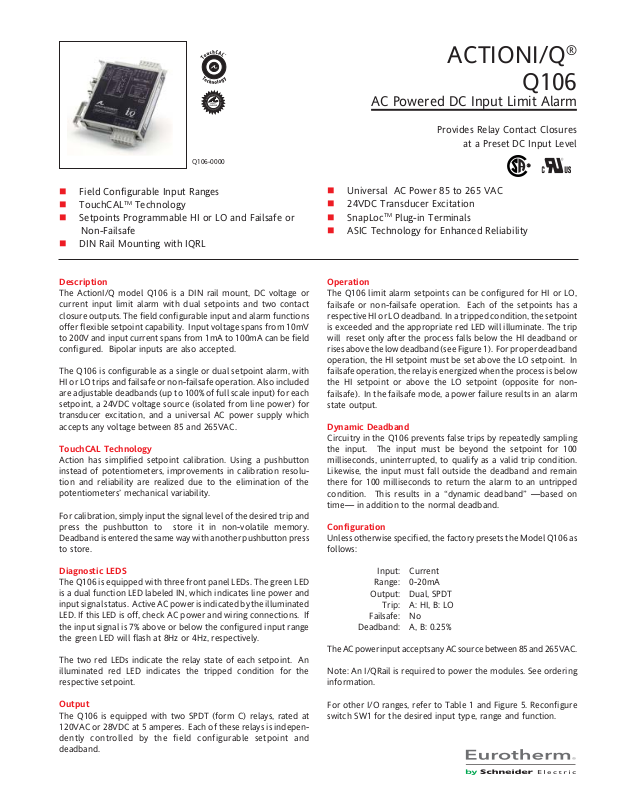

ACTIONI/Q
®
Q106
AC Powered DC Input Limit Alarm
Provides Relay Contact Closures
at a Preset DC Input Level
Field Configurable Input Ranges
TouchCALTM Technology
Setpoints Programmable HI or LO and Failsafe or
Non-Failsafe
DIN Rail Mounting with IQRL
Description
The ActionI/Q model Q106 is a DIN rail mount, DC voltage or
current input limit alarm with dual setpoints and two contact
closure outputs. The field configurable input and alarm functions
offer flexible setpoint capability. Input voltage spans from 10mV
to 200V and input current spans from 1mA to 100mA can be field
configured. Bipolar inputs are also accepted.
The Q106 is configurable as a single or dual setpoint alarm, with
HI or LO trips and failsafe or non-failsafe operation. Also included
are adjustable deadbands (up to 100% of full scale input) for each
setpoint, a 24VDC voltage source (isolated from line power) for
transducer excitation, and a universal AC power supply which
accepts any voltage between 85 and 265VAC.
TouchCAL Technology
Action has simplified setpoint calibration. Using a pushbutton
instead of potentiometers, improvements in calibration resolution and reliability are realized due to the elimination of the
potentiometers’ mechanical variability.
For calibration, simply input the signal level of the desired trip and
press the pushbutton to store it in non-volatile memory.
Deadband is entered the same way with another pushbutton press
to store.
Universal AC Power 85 to 265 VAC
24VDC Transducer Excitation
SnapLocTM Plug-in Terminals
ASIC Technology for Enhanced Reliability
Operation
The Q106 limit alarm setpoints can be configured for HI or LO,
failsafe or non-failsafe operation. Each of the setpoints has a
respective HI or LO deadband. In a tripped condition, the setpoint
is exceeded and the appropriate red LED will illuminate. The trip
will reset only after the process falls below the HI deadband or
rises above the low deadband (see Figure 1). For proper deadband
operation, the HI setpoint must be set above the LO setpoint. In
failsafe operation, the relay is energized when the process is below
the HI setpoint or above the LO setpoint (opposite for nonfailsafe). In the failsafe mode, a power failure results in an alarm
state output.
Dynamic Deadband
Circuitry in the Q106 prevents false trips by repeatedly sampling
the input. The input must be beyond the setpoint for 100
milliseconds, uninterrupted, to qualify as a valid trip condition.
Likewise, the input must fall outside the deadband and remain
there for 100 milliseconds to return the alarm to an untripped
condition. This results in a “dynamic deadband” —based on
time— in addition to the normal deadband.
Configuration
Unless otherwise specified, the factory presets the Model Q106 as
follows:
Diagnostic LEDS
The Q106 is equipped with three front panel LEDs. The green LED
is a dual function LED labeled IN, which indicates line power and
input signal status. Active AC power is indicated by the illuminated
LED. If this LED is off, check AC power and wiring connections. If
the input signal is 7% above or below the configured input range
the green LED will flash at 8Hz or 4Hz, respectively.
The two red LEDs indicate the relay state of each setpoint. An
illuminated red LED indicates the tripped condition for the
respective setpoint.
Output
The Q106 is equipped with two SPDT (form C) relays, rated at
120VAC or 28VDC at 5 amperes. Each of these relays is independently controlled by the field configurable setpoint and
deadband.
Input:
Range:
Output: Dual, SPDT
Failsafe: No
Deadband: A, B: 0.25%
The AC power input accepts any AC source between 85 and 265VAC.
Note: An I/QRail is required to power the modules. See ordering
information.
For other I/O ranges, refer to Table 1 and Figure 5. Reconfigure
switch SW1 for the desired input type, range and function.
Current
0-20mA
Trip: A: HI, B: LO
Page 2
4. Deadband "A": For minimum deadband (approximately 0.25%),
press and hold the CAL button for 4 seconds. For high setpoints,
lower the input level to the desired deadband point and push the
CAL button. For low setpoints increase the input level (green LED
turns off) to the desired deadband level and push the CAL button.
The green LED will be on and the red Relay "B" LED will be flashing.
5. Setpoint “B”: Input the desired trip level for Relay “B” and push
the CAL button. The green and the red Relay “B” LED will be
flashing. Note that the green LED will stop flashing when the input
drops below a high setpoint or rises above a low setpoint.

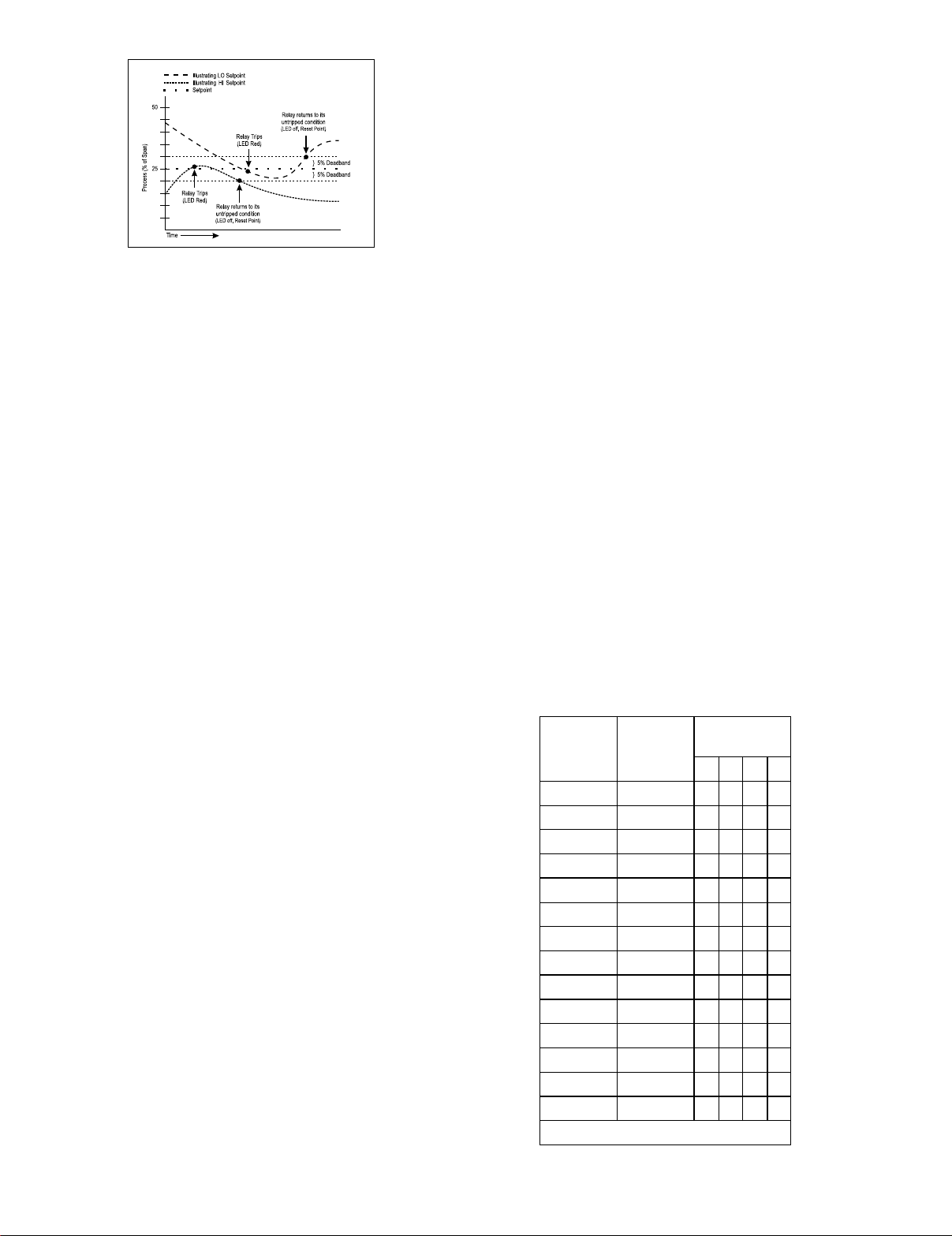

Figure 1: Limit alarm operation and effect of deadband.
WARNING: Do not change switch settings with power applied.
Severe damage will result!
1. With the module removed from the rail and not powered, snap
off the face plate by lifting the right edge away from the heat sink.
Note the input switch (SW1) is located under the face plate. Set
positions 9 & 10 for voltage or current input (see Table 1).
2. Set positions 1 through 4 of input range switch “SW1” for the
desired input range (see Table 1).
3. Set position 5 of input range switch “SW1” to ON (closed) for
unipolar (e.g., zero based, 0-20mA) range or OFF (open) for
bipolar (e.g. -100% offset, -20 to 20mA) range.
4. Set positions 6 and 7 of input range switch “SW1” to ON for a
HI trip setpoint or OFF for a LO trip setpoint.
5. Set position 8 of input range switch “SW1” to ON for non-failsafe
operation or OFF for failsafe operation (e.g., alarm trips on power
failure).
Calibration
1. After configuring the DIP switches, connect the input to a
calibrated DC source and apply power. Refer to the terminal
wiring in the specifications section.
Note: For best results, calibration should be performed in the
operating environment, mounted on a DIN rail, allowing at least
one hour for thermal equilibrium of the system.
2. After applying power to the unit all three LEDs will flash for
approximately 10 seconds. Adjust the input signal level for the
Relay “A” setpoint. The green LED should be on. Press and hold
the CAL button for four seconds (until the red LED starts flashing)
to enter the calibration mode. The green LED will be on and the
red Relay “A” LED will be be flashing.
NOTE: If the green LED is flashing , the input is out of range (i.e. 7%
above or below the configured range). Check to make sure the
input signal is within the DIP switch configuration range. Double
check the DIP switch settings.
3. Setpoint "A": Input the desired trip level for Relay "A" and press
the CAL button. The green LED and the red Relay "A" LED will be
flashing. Note that the green LED will stop flashing when the input
drops below a high setpoint or rises above a low setpoint.
6. Deadband “B”: For minimum deadband (approximately 0.25%),
press and hold the CAL button for 4 seconds. For high setpoints
lower the input level (green LED turns off) to the desired
deadband point and push the CAL button. For low setpoints
increase the input level to the desired deadband level and push
the CAL button. The green LED will be on and both the red LEDs
will be flashing.
7. Press the CAL button once again to exit the calibration mode.
Check the setpoint and deadband to validate calibration.
Relay Protection and EMI Suppression
When switching inductive loads, maximum relay life and transient
EMI suppression is achieved by using external protection (see
Figures 2 and 3). Place all protection devices directly across the load
and minimize lead lengths. For AC inductive loads, place a properly
rated MOV across the load in parallel with a series RC snubber. Use
a 0.01 to 0.1mF pulse film capacitor (foil polypropylene recommended) of sufficient voltage, and a 47 ohm, 1/2W carbon resistor.
For DC inductive loads, place a diode across the load (PRV > DC
supply, 1N4006 recommended) with (+) to cathode and (-) to anode
(the RC snubber is an optional enhancement).
Table 1: Q106 Input Range Switch
egnaRtupnI
1WSrotceleS1WSrotceleS
1WSrotceleS1WSrotceleS
1WSrotceleS
:yeK desolCroNO=1=
egatloVtnerruC
Vm01Am1
Vm02Am2
Vm05Am5
Vm001Am01
Vm002Am02
Vm005Am05
V1Am001
V2
V5
V01
V02
V05
V001
V002
12 34
Page 3

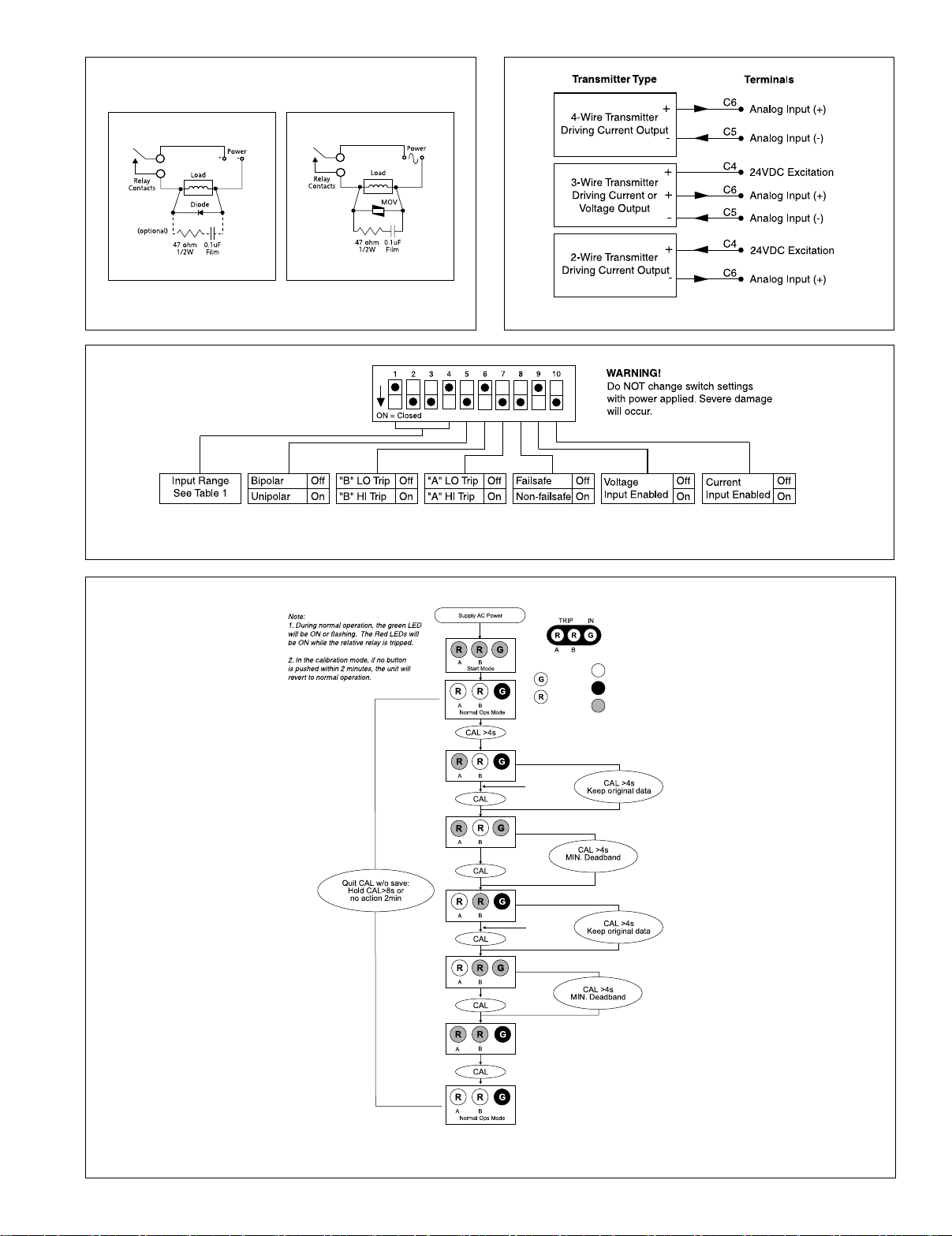

Figure 2: DC Inductive Loads
Figure 5: Q106 Input Range/Function Selection (SW1) Factory Default Settings
Note: For voltage inputs Current Enable must be off. For current inputs Voltage Enable must be off.
Figure 3: AC Inductive Loads
Figure 4: Typical Connections for Voltage or Current for Q106
Green LED
Red LED
Input Trip A
Signal Level
Input Trip B
Signal Level
Off
On
Flashing
Figure 6: Q106 Calibration Flow Chart
Page 4
Specifications
r
Voltage Input:
Range: 10mV to +200V; Impedance: >100K ohms
Overvoltage: 200V rms, max.
Current Input:
Range: 1mA to
+100mA; Impedance: 20 ohms, typical
Overcurrent: 170mA rms, max.
Overvoltage: 60VDC (self-resetting fuse)
Common Mode (Input to Gnd): 1800VDC, max.
LED Indicators:
Input (Green):
>110% input: 8Hz flash
<10% input: 4Hz flash
Setpoint (Red):
Tripped: Solid red
Safe: Off
Limit Differential (Deadband):
>50mV/5mA: 0.25% to 100% of span
<50mV/5mA: 1% to 100% of span
Response Time:
Dynamic Deadband:
Relay status will change when proper setpoint/process condition
exists for 100msec.
Normal Mode (analog filtering): <250mSec, (10-90%)
Setpoints:
Effectivity: Setpoints are adjustable over 100% of the selected input span.
Repeatability (constant temp.):
>50mV/5mA: 0.1% of full scale
<50mV/5mA: 0.2% of full scale
Stability:
Temperature: +0.05% of full scale/°C, max.
Excitation Voltage:
24VDC, 20mA, maximum
Common Mode Rejection:
DC to 60Hz: 120dB
Isolation:
1800VDC between contacts, input and power
ESD & Transient Susceptibility: Meets IEC 801-2, Level 3 (8KV)
Humidity (Non-Condensing):
Operating: 15 to 95% @ 45°C
Soak: 90% for 24hours @ 65°C
Temperature Range:
Operating: 0 to 55°C (32 to 131°F)
Storage: -25 to 70°C (-13 to 158°F)
Power: 2.5W max.,100 to 240VAC +10%, 50Hz -400Hz
Relay Contacts: 2 SPDT (2 form C) Relays; 1 Relay per setpoint
Current Rating (resistive) 120VAC:5A; 240VAC: 2A; 28VDC: 5A
Material: Gold flash over silver alloy
Electrical Life:10
5
operations at rated load
Note: External relay contact protection is required for use with
inductive loads.
Mechanical Life: 107 operations
Wire Terminations: Screw terminations for 12-22 AWG
Weight: 0.56 lbs.
Agency Approvals:
CSA certified per standard C22.2 (File No LR42272)
UL recognized per standard UL508 (File No E99775)
Ordering Information
Models & Accessories
Specify (model number)
1) Q106-0000
2) Specify I/QRail type and quantity (required)
3) Accessories: (see Accessories)
4) Optional Custom Factory Calibration: Specify C620 with desired
input, setpoint and deadband.
Accessories
ActionI/Q series modules mount on standard TS32 (model MD02) or TS35
(model MD03) DIN rail. In addition, the following accessories are available:
MD02 TS32 DIN rail
MD03 TS35 x 7.5 DIN rail
IQRL-2002 2 Position I/QRail & DIN rail
IQRL-2004 4 Position I/QRail & DIN rail
IQRL-2008 8 Position I/QRail & DIN rail
lanimreT Connection
1A .O.N,AyaleR 4C noitaticxECDV42
2A nommoC,AyaleR 5C )-(tupnI
3A .C.N,AyaleR 6C )+(tupnI
4A .O.N,ByaleR 1P )toH(rewoPCA
5A nommoC,ByaleR 2P desUtoN
6A .C.N,ByaleR 3P desUtoN
3C,2C,1C detcennoCyllanretnItoN 4P )lartueN(rewoPCA
Terminal
Connection

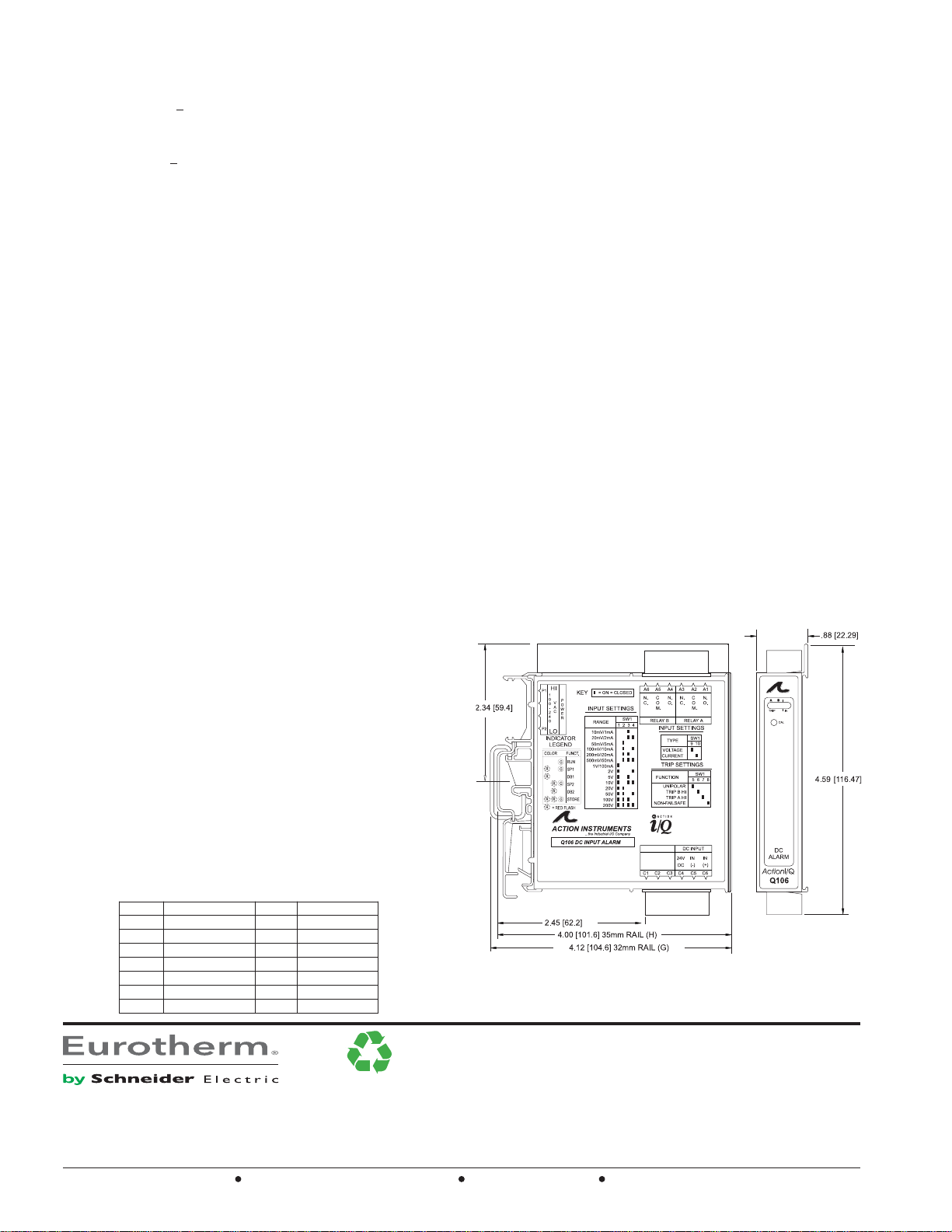

Dimensions
Printed on recycled pape
Action Instruments
Chessell
Eurotherm
Loading...
