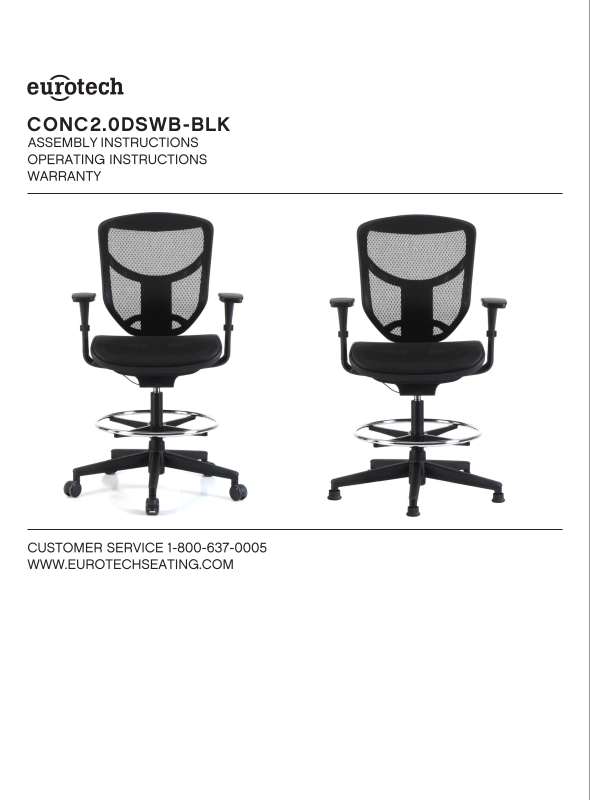

CONC2.0DSWB -BLK
ASSEMBLY INSTRUCTIONS
CONC2.0DSWB -BLK
Part List
Key
A
B
C
D
Description
Backrest
Seat
Armrests
(1 left & 1 right armrest)
Seat Post(Cylinder)
Part
Qty.
1
1
2
1
Spare
E
F
G
H
I
J
K
L
Star Base
Foot Ring
Knob for footring
Glide
Caster
Arm Bolts
(M8 X 17mm)
Back Bolts
(M8 X 15mm)
Washers for Arm Bolts
(Ø6.5*10.5*1.5mm)
1
1
1
5
5
6
3
6
1
1
1
M
Allen Wrench
1
CONC2.0DSWB -BLK
J
H
I
H
Please select either Casters or Glides to use on your new
extended height stool. Press either the Glides (H) or the
Casters (I) into the holes at the end of each leg of the Base (E).
Insert Seat Post (D) into the center hole of the Base (E).
Insert the top of the Seat Post (D) into the center hole of the
Footring (F). Tighten the knob (G) at your desired height (you
will be able to adjust this upon completion).
Please be careful to use the correct Arm Bolts (J), Washers (L)
and Armrests (C) which are marked Left and Right.
For easy assembly, place the Seat Cushion (B) face down on a
flat surface. Attach Armrest (C) to the Seat Cushion (B) as
shown using 6 Arm Bolts (J) with 6 Washers (L).
Tighten the bolts securely with the enclosed Allen Wrench (M).
M
B
K
Please be careful to use the correct Back Bolts (K).
Attach the Backrest (A) to the Seat Cushion (B) using 3
Back Bolts (K) . Tighten the bolts securely with the
enclosed Allen Wrench (M).
M
Now turn the assembled seat upright and locate the
center hole of the Mechanism over the Seat Post. Push
down firmly until the connection is secure.
CONC2.0DSWB -BLK
To raise the back, slowly lift the back up
until you hear a series of 4 to 5 clicks.
Each click represents a position where
the back will lock into place. To lower the
back, raise the back all the way up until
the tension is released. The back will
then return to the lowest position without
stopping. Raise back up to desired position.
There is a 2.6" range of adjustment.
While seated, pull the single rod control
lever upward and hold it while raising or
lowering the seat to reach your desired
seat height. When the lever is released
to its original position, the seat height is
locked. The seat height adjustment range
is approximately 7.5”.
While seated, grasp each armrest and
raise to your desired height. In order to
lower the arm, lift the armrest to its highest
position and it will go back down to the
lowest height. Then repeat to get to your
desired height. The arm height adjustment
range is 2.8”.
While seated, a 15º range can be achieved
by swiveling the arm pads inward or outward.
While seated, push the arm pads
forward or backward to a desired position.
The range of movement is approximately 2”.
F FO OT RING HEIGHT AD JU ST MENT
Loosen footring knob and raise or lower the
footring to your desired height. Tighten knob
to secure footring in the desired position.
OUR PROMISE.
They say with age comes wisdom. And while we’ve learned a lot since we sold
our first office chair in 1979, even then we knew that superior craftsmanship and
design are essential ingredients in delivering real value for our customers. All
these years later, those three simple pillars still stand behind our promise of
exceptional seating with every chair we sell.
DESIGN CRAFTSMANSHIP VALUE
Eur otech. Sit Smarter.
THE EUROTECH WARRANTY
• For all products except for 24/7 chairs (see below), Eurotech warrants to the original
purchaser all components for the life of the product with the exception of upholstery
and foam, which will be warranted for five years.
• For 24/7 chairs, Eurotech warrants to the original purchaser of all 24/7 chairs all components
for 10 years with the exception of upholstery and foam which will be warranted for 2 years.
• Eurotech warrants to the original purchaser that all parts will be free from material defects.
Eurotech will repair or replace, at its option, any unaltered components.
• Eurotech does not warrant any aftermarket hardware that is installed on the product.
• Eurotech’s warranty is limited to the normal use of the product in a forty hour work week
and a 250lb. weight limit unless otherwise noted.
• Eurotech shall NOT be liable for consequential or incidental damage arising from any
product defect.
• Eurotech’s warranty is limited to replacement or repair and does not cover cost of
transportation and labor. There are no other warranties expressed or implied other than
those specifically described.
• Eurotech does not warrant customer’s own material.
This warranty is made as of 9/15/16. Please see http://www.eurotechseating.com/warranty-
information for any updates and/or revisions to this warranty.
