This manual is intended as a quick reference User Guide for the 3GS System.
User Menu
The User Menu, by which the user programs the system, is accessed via the keypad by keying in your User
Code plus the option key Help:
This will allow you to choose one of the menu options available.
Display

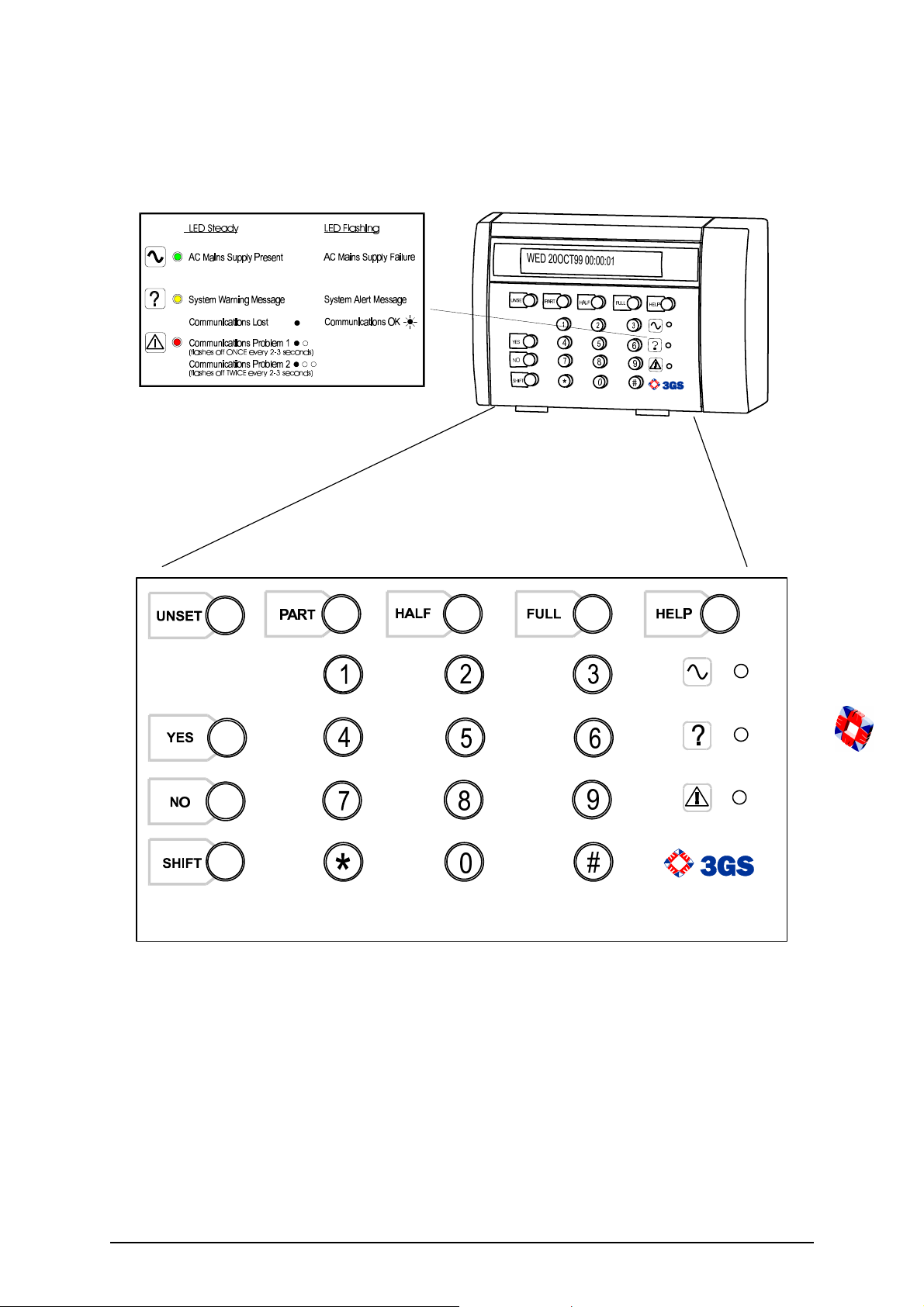

The 3GS system has a two line by 24 character LCD display e.g.
When you are navigating through the
l The first line shows the option
l The second line shows how to directly select the option without using the Help function.
Help menu:
Alert Messages
When in normal operation, the system will display the day, date and time on the first line of the display. The
second line will flash any recent system events or information (such as a fault with one of the fuses or battery,
or an alarm condition).
If the condition continues, e.g. Battery Problem, the message displays steadily instead of flashing. This
message will continue to display until you remove the message (See Accept All Alerts on page 9).
If the system is in Full Set mode (see Full Set on page 12), the message will display steadily and the buzzer will
also sound.
Pressing the key will give information on the areas/zones affected.
These messages can be removed from the display (and the buzzer silenced) using the Alert Accept procedure
(described on page 9).
Keypad Private Mode
The 3GS is designed to allow only one user at a time to operate the system.
If the display shows: when you attempt to use the keypad, this means that a
user is operating the system at another keypad. Wait until the system is free before attempting to use the
keypad again.
Year 2000
All 3GS systems are Year 2000-compliant.
Alarm Duress Code
3GS has an in-built Alarm Duress Code feature, which allow you to trigger a silent Duress alarm by simply
keying in the first 3 digits of your code, and then the fourth digit plus 1. For example, if your code is
then by keying in
sound an alarm, but will send a trigger directly to your central security station.
4 3GS User Guide
1235 you will trigger a Duress alarm, which will not display on the panel and will not
1234,
3GS System Keypad/Display
3GS User Guide
User Guide
3GS System Keypad/Display
5

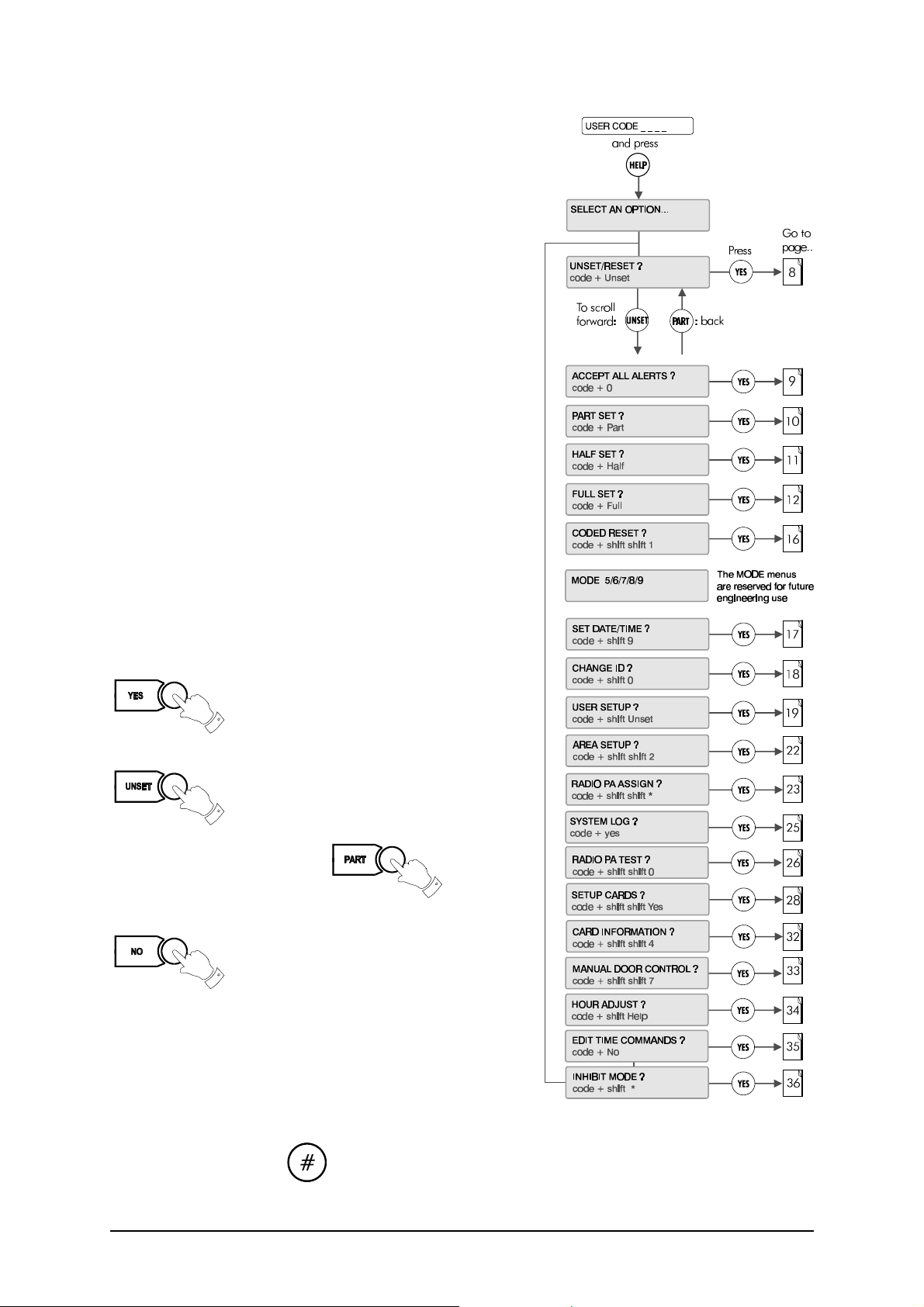

The system is programmed using the Help menu options:
In sequence, you can use these menus to :
l Disarm the system and reset all warning devices
l Remove system display messages and silence the buzzer
l Part set the system/Unset an area
l Half set the system/Set an area
l Full set the system
l Reset the system following an alarm
l Set the system date and time
l Change existing user codes
l Set up new users
l Set up a new area system
l View system log

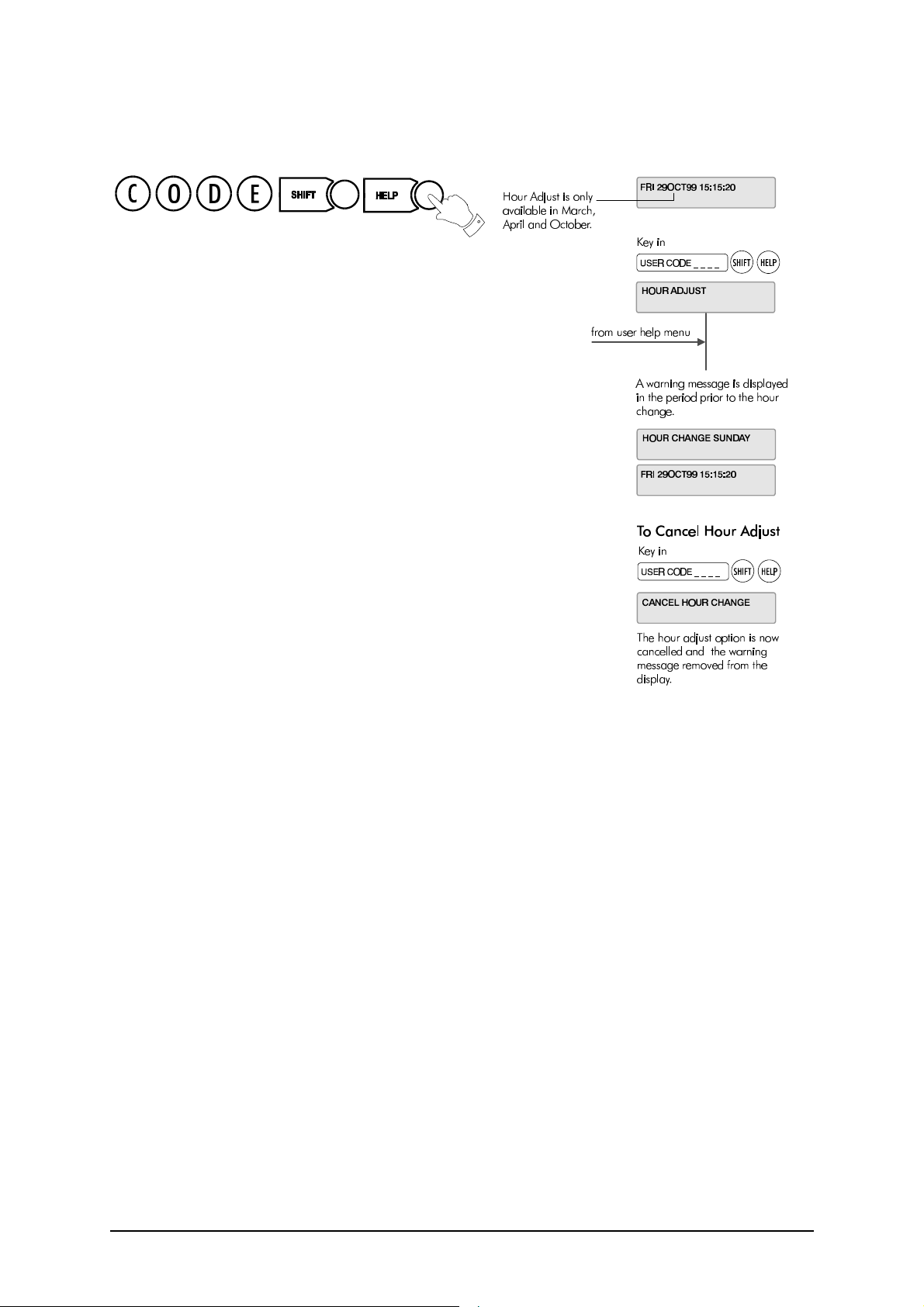

l Adjust the system for summer / winter hour change
(daylight saving time)

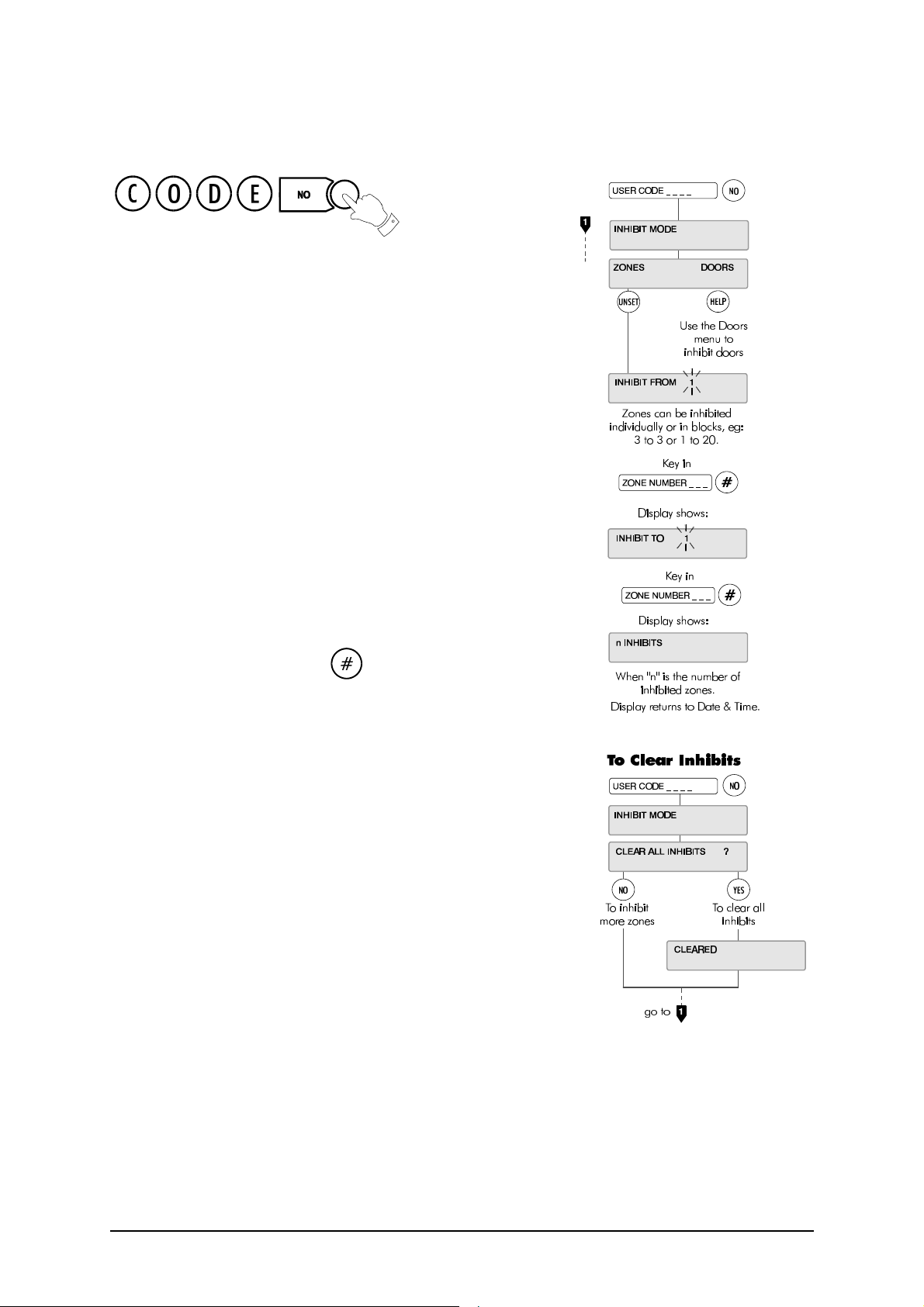

l Isolate a troublesome zone that is, for example, preventing
the system from arming
Menu options
All of these options are accessed by entering your CODE
followed by the HELP key.
Your installer will have configured your own unique CODE,
which will allow you to display and scroll through the options
available to you.
An option is selected by pressing the YES key
.
Use the UNSET key to move to the next option
Use the PART key to move back
To exit without selecting an option, use the NO key
✍ Only options which have been assigned to a user
are displayed. The Master user will have all
options.
Once the help routine is entered a selection must be made
within 90 seconds, otherwise the system will exit from this menu.
✍ The hash button acts as an ENTER key for the keypad.
6 3GS User Guide

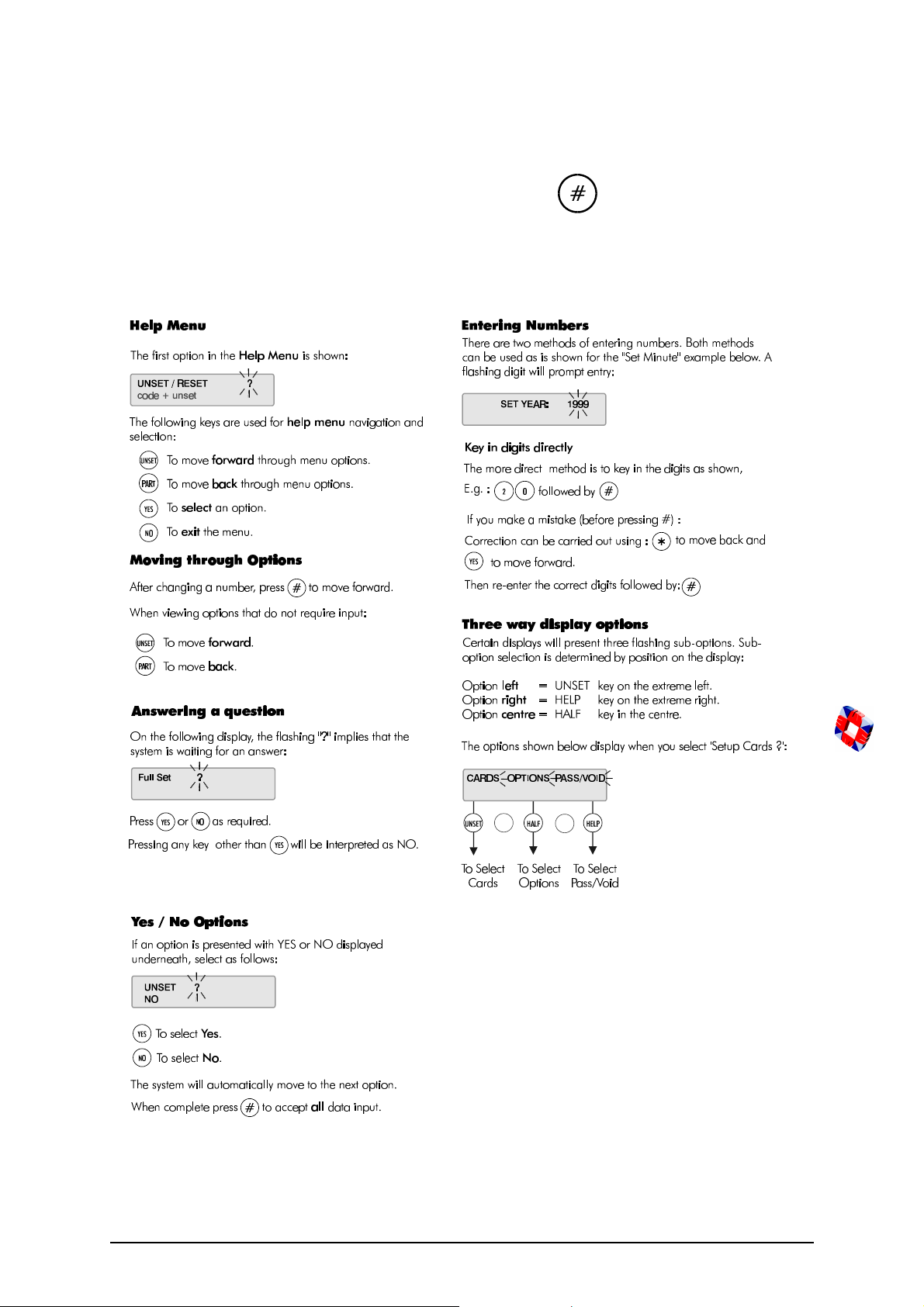

Navigating the Help Menu
3GS User Guide
User Guide
Navigating the Help
To navigate the Help menu options use the UNSET, PART, YES, NO, keys.
Their functions are explained below.
7
Unset/Reset
Unsetting the System

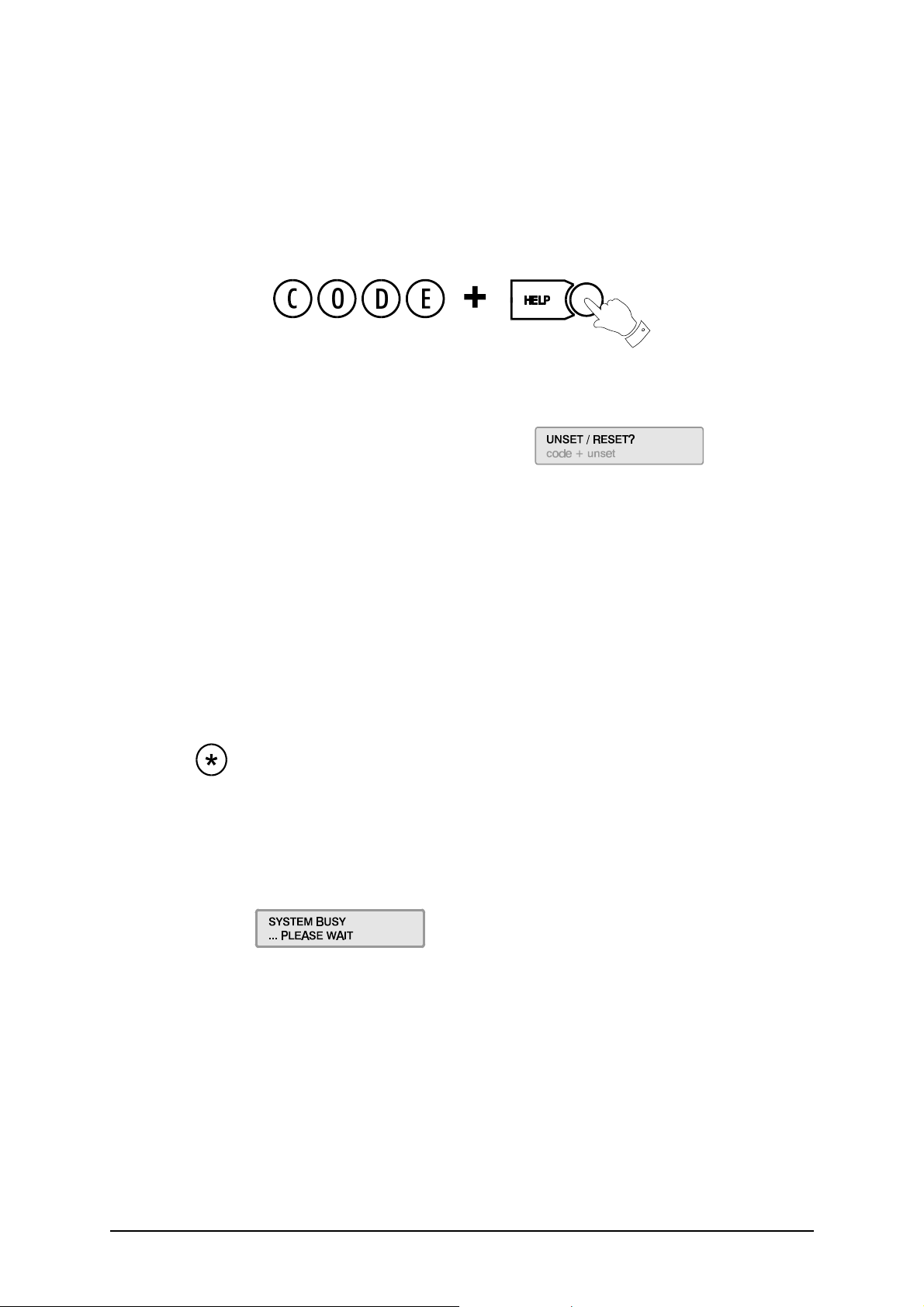

Select the Unset/Reset option to disarm the system when you
enter the premises, or to cancel alarms, bells etc. after an alarm
activation.
This will put the 3GS into Unset mode (i.e. normal daytime
operation). The system alarm outputs (buzzers etc.) which had
been activated are reset to normal.
Unset/Reset
After an Alarm Activation

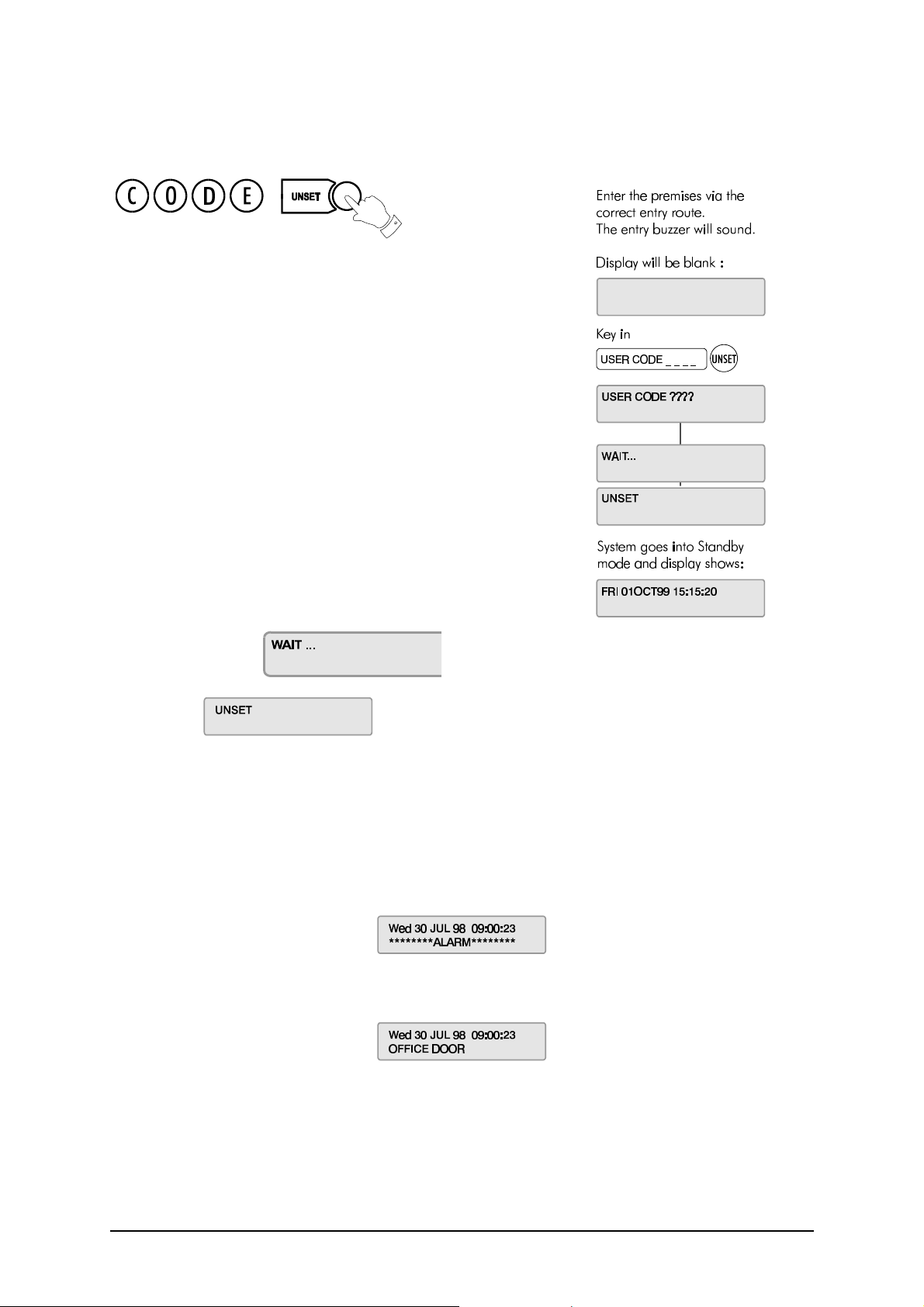

After an alarm activation proceed directly to the control panel
enter the code and press Unset.
The display will show:
Followed by:
followed by the cause of the alarm, i.e. which zone has been opened.
Example:

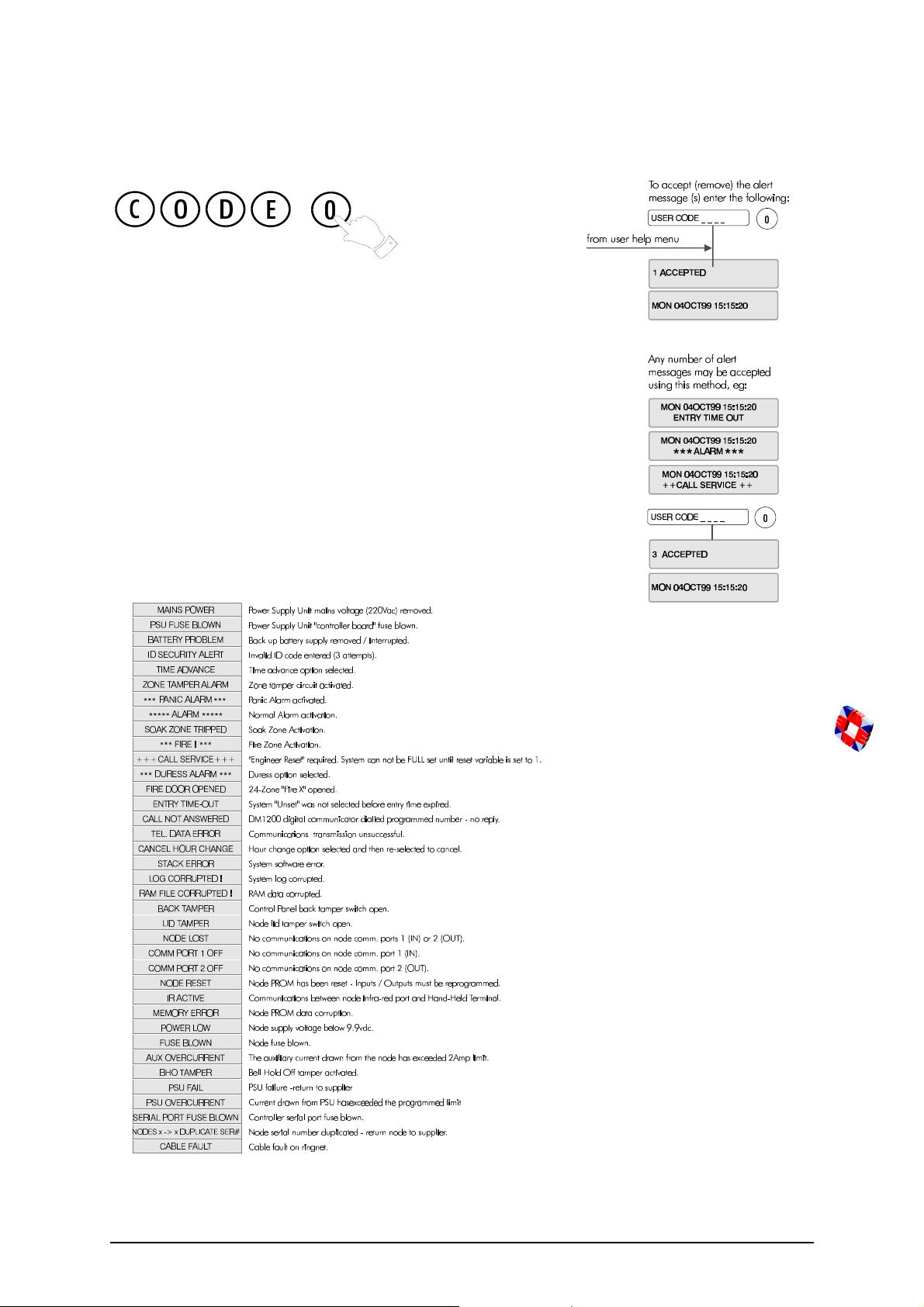

Alarm alert message:
Zone alert message:
These messages will be flashing.
To clear flashing (Alert) messages follow "Accept All Alerts" on page 9.
8 3GS User Guide
Accept all Alerts
3GS User Guide
User Guide
Accept all Alerts
Alert messages are flashing messages displayed to alert the user
that a particular condition exists/existed on the system.
Accepting the alert will remove the message and silence the
buzzer. When the Alert accept option is selected, all alert messages
which are currently displayed are accepted (removed).
If the condition that caused the alert message still exists, a steady
warning message will remain on the display until the condition
indicated no longer exists.
ALERT ACCEPT is logged along with the identity of the user.
Some examples of Alert Messages
9
Part Set/Unset Individual Area (see also page 15)
Part Set/Unset Individual Area (see also page 15)
Your system will be set up as either:
l a standard alarm system with one alarm area, or
l a multi-area system, with up to 32 separate
alarm areas within one.
A standard alarm system is set using the Part, Half,
and Full procedures.
The Part and Half options are used to unset and set
individual areas within the multi-area system.

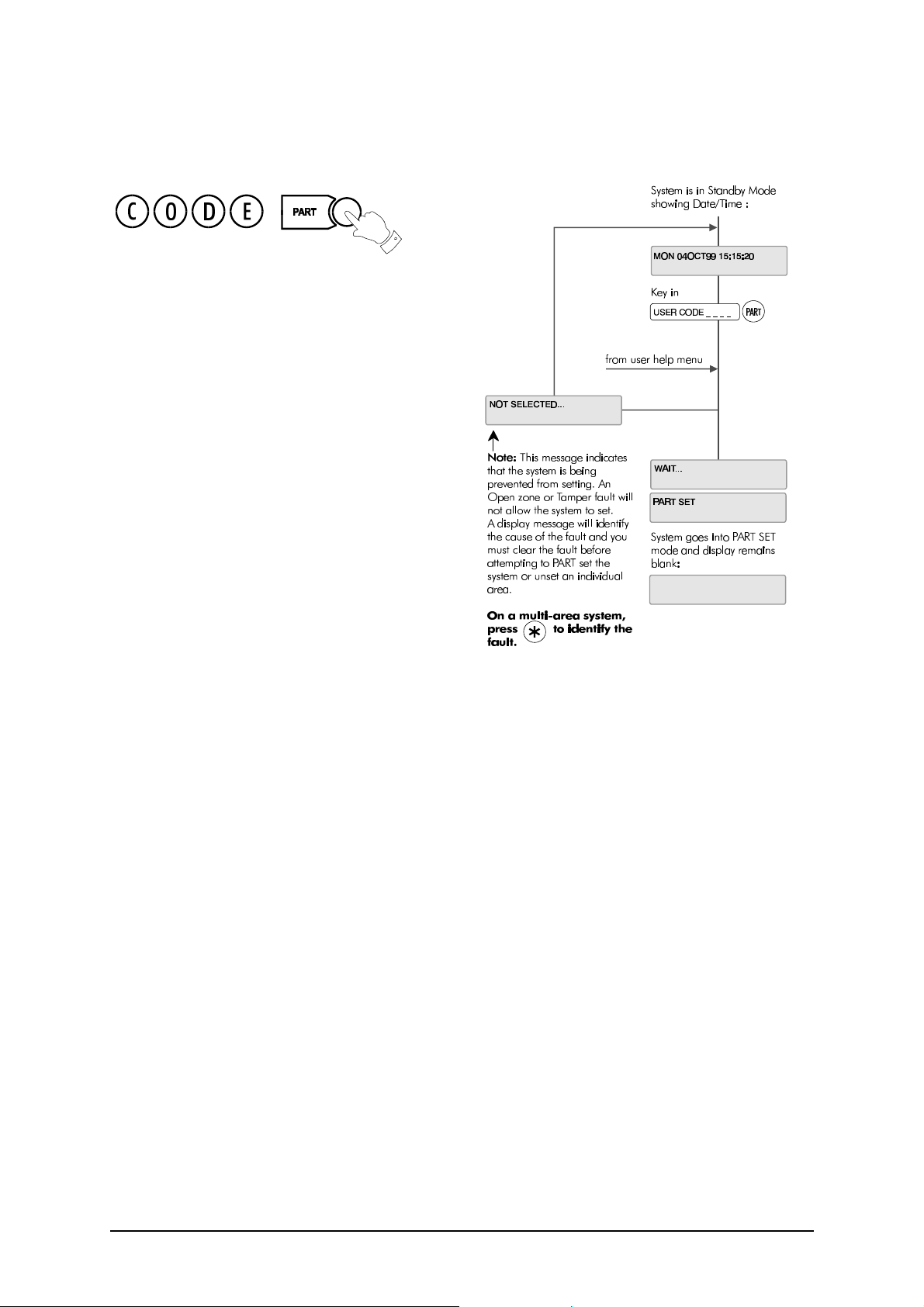

Part Set
With a standard alarm system, you can isolate
particular areas of the premises and set these areas
independently of the rest of the system.
Part Set allows you to protect the perimeter of a
premises while allowing free movement through the
exit and access area (e.g. from door, hall).
This would typically apply to the day or evening
operation of the system when people are on the
premises and using the common exit. There is free
access to the areas being used while the rest of the
building is armed.
There are no entry or exit times associated with this mode and protection is applied instantly.
The display remains blank and will only change to show alert and warning messages.
If selected while entering the building while the entry timer is running, the entry mode is cancelled and the
buzzer is silenced.
l If selected by mistake refer to “Unset/Reset” on page 8.
l If unable to set refer to “Unable to Set” on page 13.
10 3GS User Guide
Half Set/Set Individual Area (see also page 14)
3GS User Guide
User Guide
Half Set/Set Individual Area (see also page 14)

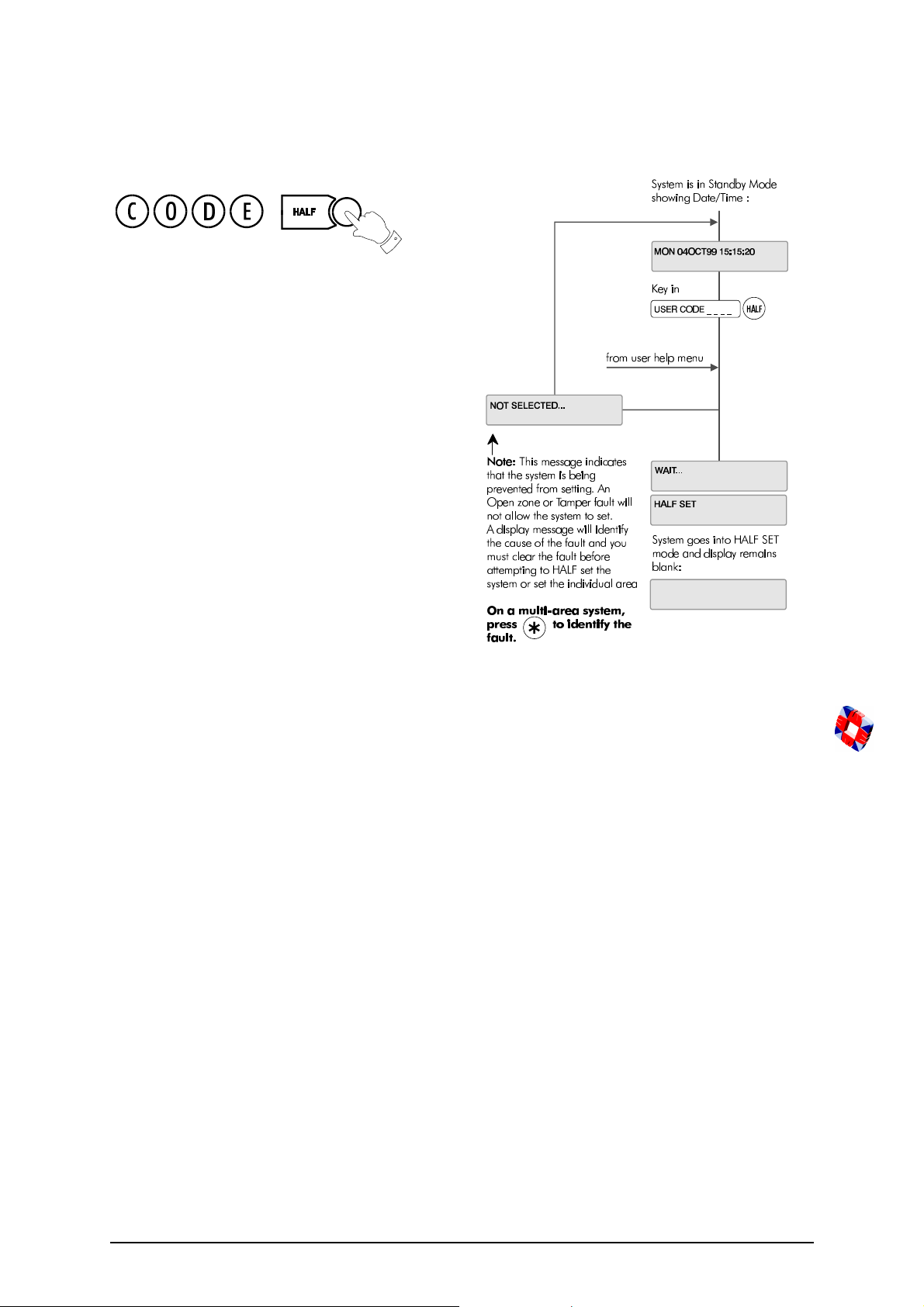

HALF Set is used to provide full perimeter protection
(including exits) when people are on the premises
and all exits are locked, i.e. late working operation.
This mode immediately arms the perimeter and the
Exit zones, i.e. no exit timer applies.
If selected when entering the building, the entry
mode is cancelled and the buzzer is silenced.
l If selected by mistake refer to “Unset/Reset” on
page 8.
l If unable to set refer to “Unable to Set” on page
13.
11
Full Set
This option will set the entire system. Ensure that all
zones (doors, windows, etc.) which are not on the
exit/entry route are closed.
Exit Sequence

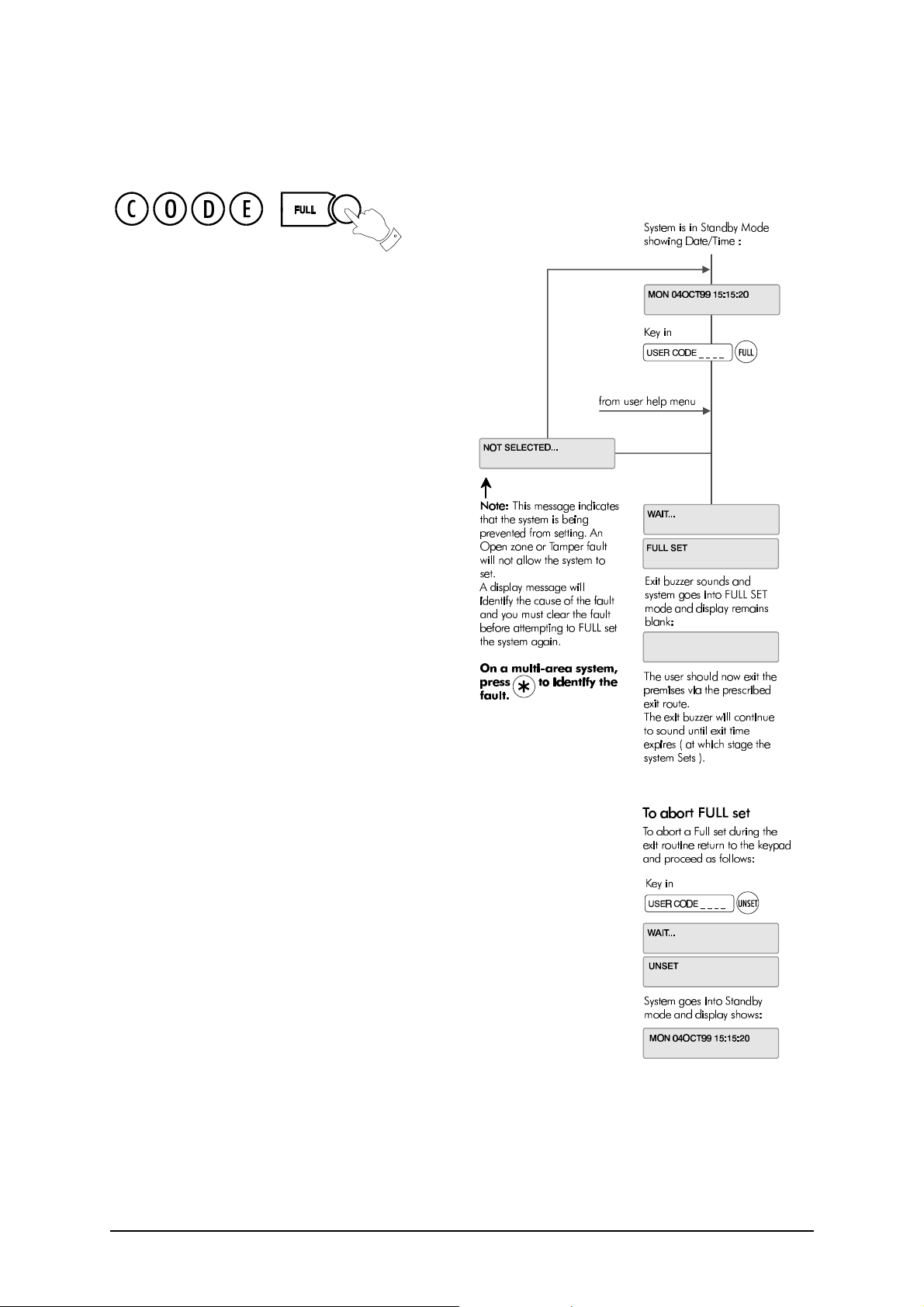

Enter your user code and press FULL. Leave via the
exit route. The buzzer will stop at the end of the exit
time and the system will fully set.
The buzzer will sound during the exit routine. At the
end of the exit time, if all zones are closed, the buzzer
will stop. The system will then become Fully Set if :
1. the exit time expires, or
2. the ‘exit terminator’ button is pressed.
If a zone is still open, the system will wait indefinitely
for a clear condition, then set when the zone is
closed.
During the exit period the buzzer will sound with one
of two possible tones, a long beep indicates that all
zones are closed and that the system will set correctly
when the exit time expires; a short beep indicates
that one or more zones are open and the system will
not SET until all these zones have closed.
Full Set
Multi-Area system
configuration
In a multi-area system, Full Set has the effect of
setting all areas plus the Common Area.
Alarm on exit
If the user strays from the exit route a local alarm will
be generated, tripping internal/external bells.
Action to take:
l Return to control panel;
l Select ‘UNSET’ (see “After an Alarm Activation” on
page 8).
l Remove alert messages (see “Accept All Alerts”
on page 9).
l Reselect “Full Set” and exit the premises.
Entry Sequence
When you enter the building, the system will be Fully Set. The entry buzzer sounds and the entry timer
begins. This gives you a specific number of seconds in which to go to the keypad and Unset the system.
Otherwise a full alarm is generated along with the alert message “CODE ENTRY TIMEOUT”. In this case
repeat the Unset procedure to silence the alarm.
12 3GS User Guide
Unable to Set
3GS User Guide
User Guide
Unable to Set
If attempts to Part, Half, Area or Full Set the system fail, the system buzzer briefly sounds and the display
briefly shows:
This is normally due to an zone or door being open away from the exit route.
✍ The system will display which zones are open. In an multi-area system, the display does
not indicate which zones are open until you press the key.
For example:
Action to take:
l Go to the Area concerned and close the zone(s).
l Return to the keypad and reselect the required ‘set’ mode.
l Leave via the exit route.
The system buzzer will stop when:
1. The Exit time expires or
2. When the ‘exit terminator’ button is pressed (if fitted).
13
Setting an Individual Area
Setting an Individual Area
In an Multi-Area system, the whole premises may be divided into up to 32 separate alarm areas, which can
be set and unset independently of each other.
✍ Please ensure that the Master User has given you the Part/Area Unset and Half/Area Set
options, and that the areas have been assigned to you. See User Setup on page 19, and
Area Setup on page 22.

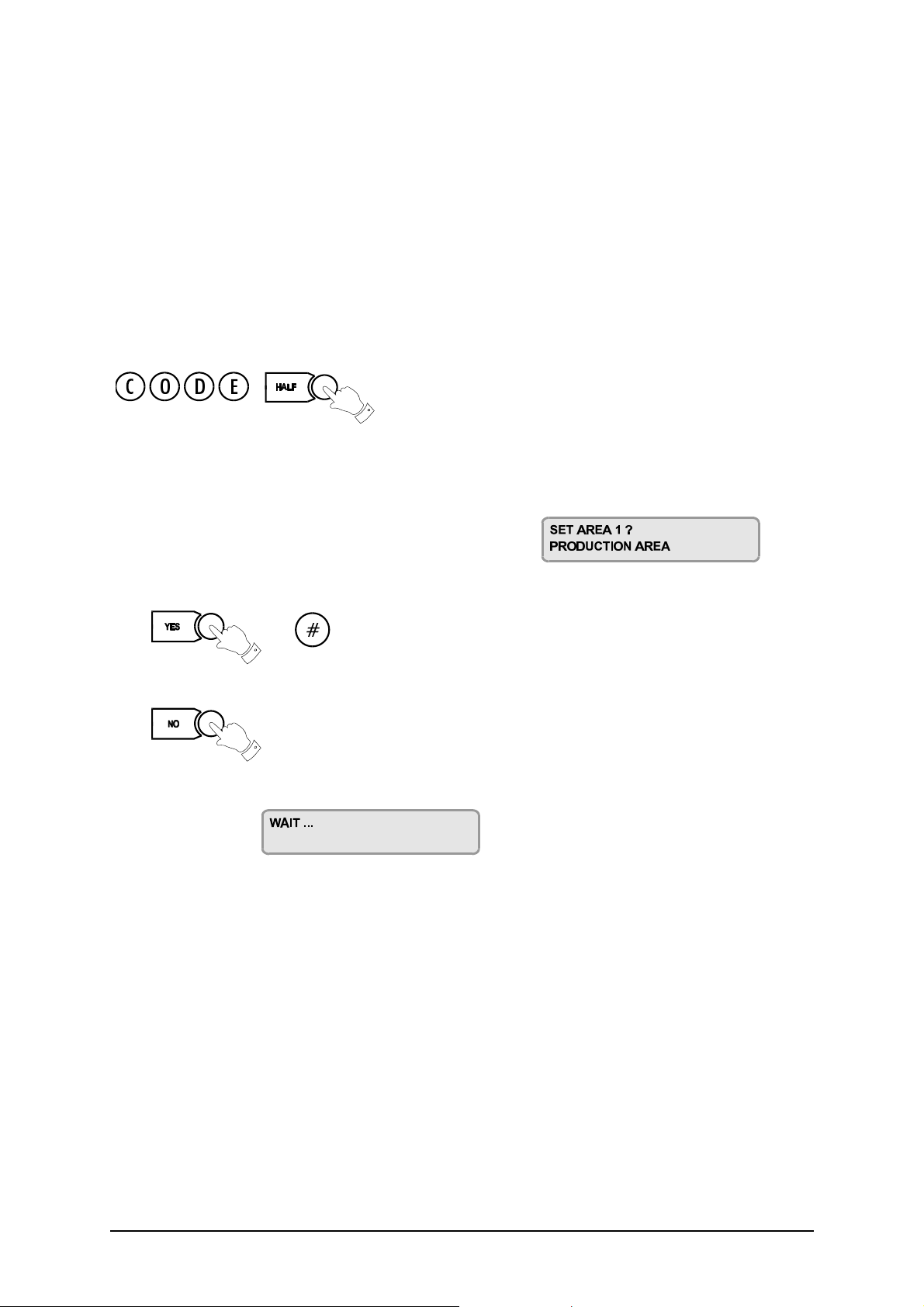

Setting an area
The installer or Master User will tell you which areas have been assigned to you, and you will be able to set/
unset these areas only.
To set an area, key in your Code plus HALF.
The display will prompt you to set the area you are now leaving
Press or to set this area.
Press to abort the procedure.
The display will show the exit buzzer begins and you can now leave the
area.
Multi-Area Setting
Please consult your installer on setting more than one area.
14 3GS User Guide
Unsetting an Individual area
3GS User Guide
User Guide
Unsetting an Individual area
Unsetting an area

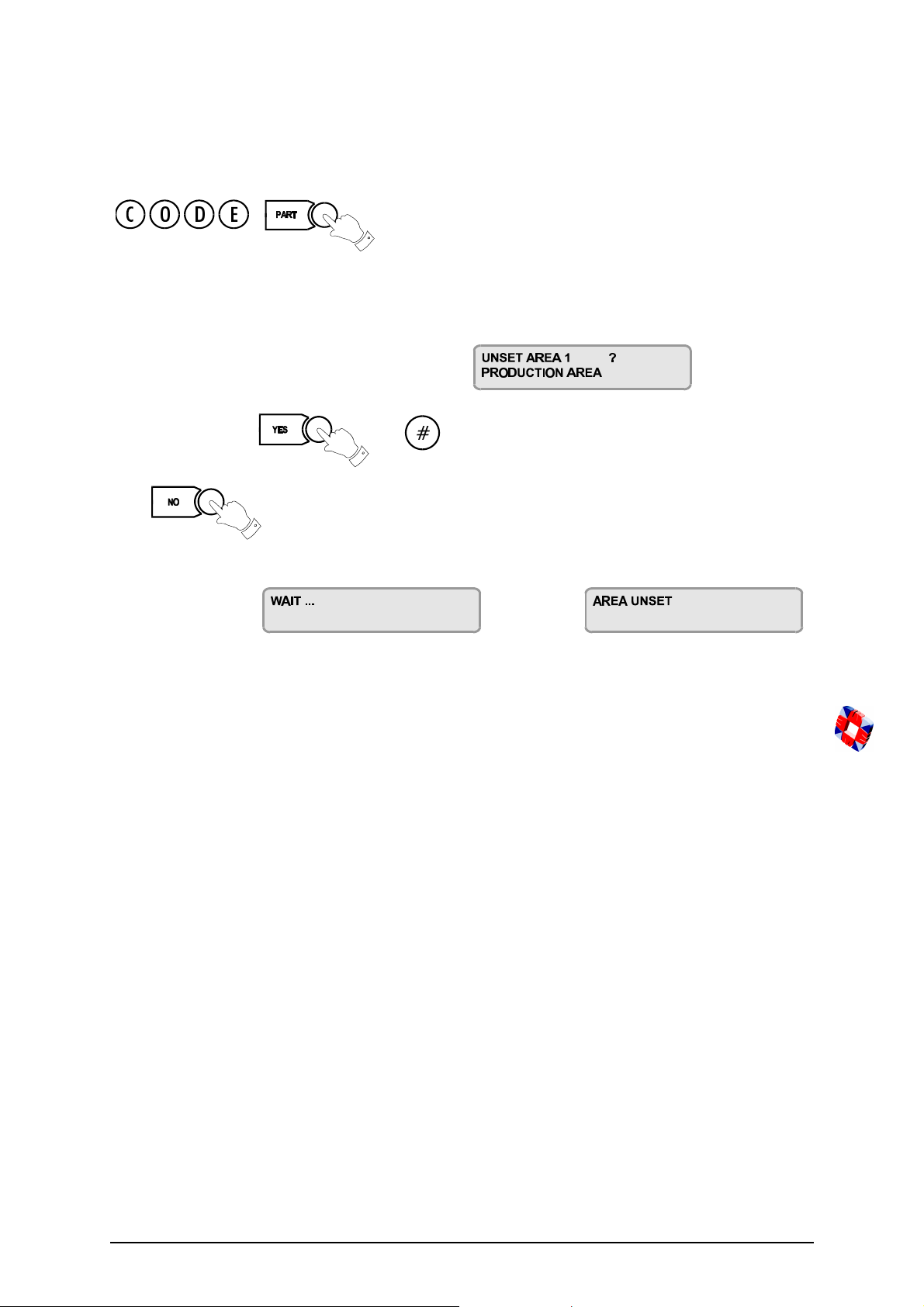

Unsetting areas is similar to setting areas, except that the PART key is used. You will be able to unset only
those areas that have been assigned to you.
Key in your Code plus PART.
The display will give you the option to unset the area:
To unset area 1, press or
Press to abort the procedure.
The display will show followed by
✍ Please ensure that the Master User has given you the Part/Area Unset and Half/Area Set
options, and that the areas have been assigned to you. See User Setup on page 19, and
Area Setup on page 22.
Areas and Full Set
The Full Set option (see page 12) operates in an multi-area system in the same way as in a standard alarm
system. Keying in your code plus FULL will arm all areas and begin the exit timer.
✍ To Full Set the system (all areas) you must be assigned the option by the Master User.
Common Area
The Multi-Area system consists of up to 32 Alarm areas plus a Common Area (usually the entrance/exit lobby
or front door).
The Common Area sets and unsets automatically:
l When all the other areas are set, the Common Area automatically sets.
l When one area is unset, the Common Area automatically unsets.
15
Coded Reset
Coded Reset
Under normal conditions, the system can only be re-armed after an alarm activation by a service/installation
company visit.
The display will show a CALL SERVICE message and the user will not be able to re-arm the system.
When enabled, the Coded Reset option allows you to re-arm the system, avoiding the need to call an
installer to the site.

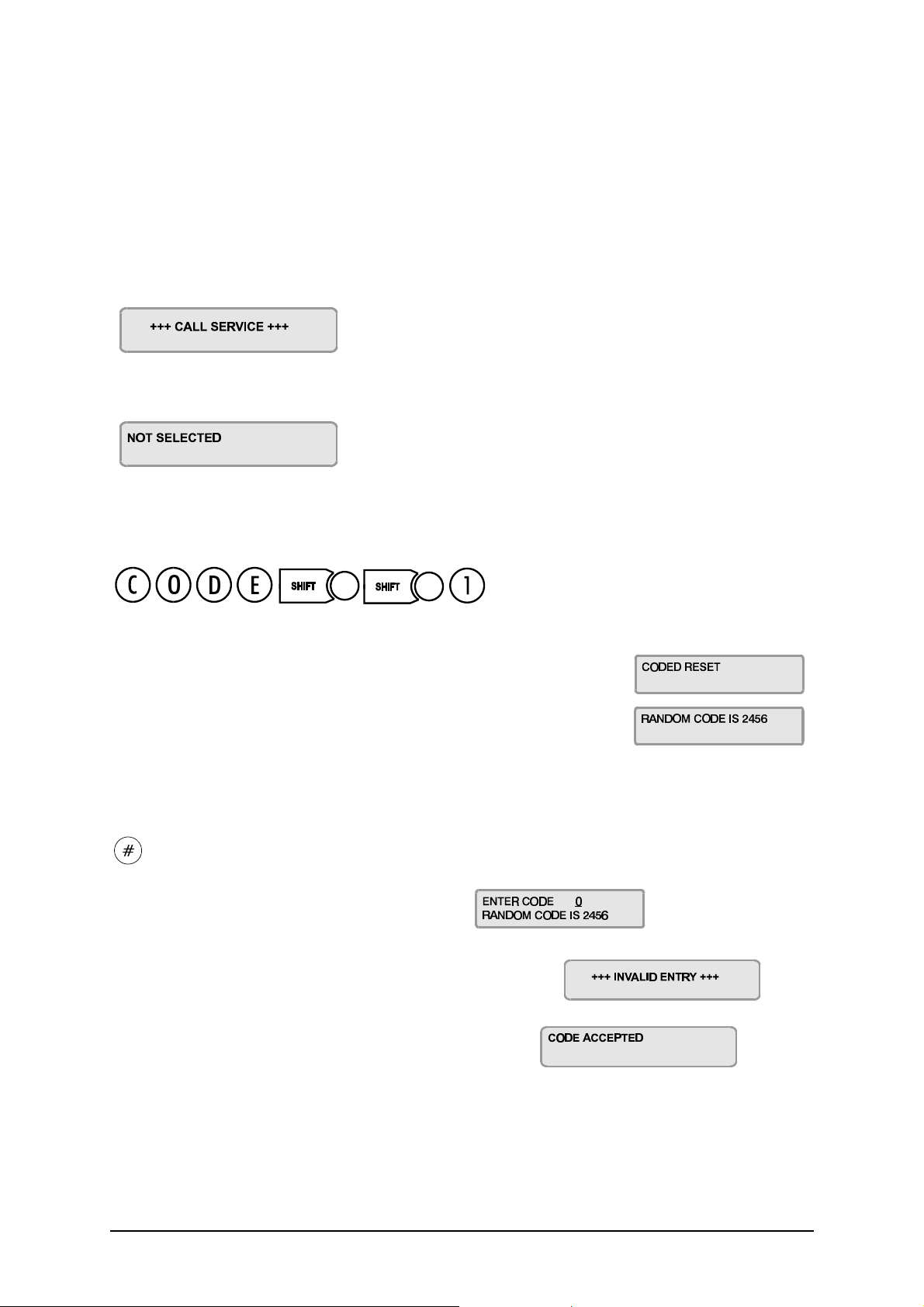

When you have acknowledged an alarm, the keypad will continue to display the message:
If you attempt to re-arm the system, the keypad will beep, and then briefly display the message:
You should now contact the Security Control Station for a release code. If the Security Control Station is
unable to give you a release code, contact your installer.
User Reset Procedure
Select Coded Reset.
The display will show a random 4-digit number.
Contact the Control Security Station with this random number.
The Central Station operator then converts this number to a 4-digit return
code acceptable to the system.
When you receive your return code from the Central Station operator, return to the keypad, and press the
key.
The display will prompt you to enter the return code:
Key it in at the prompt. If the code is incorrect, the display will show:
When you have keyed in the correct code, the display will show:
You can now re-arm the system by selecting Full Set (see page 12).
✍ All users who have the FULL SET option will automatically be assigned the Coded Reset
option. See User Setup on page 19.
16 3GS User Guide
Set Date & Time
3GS User Guide
User Guide

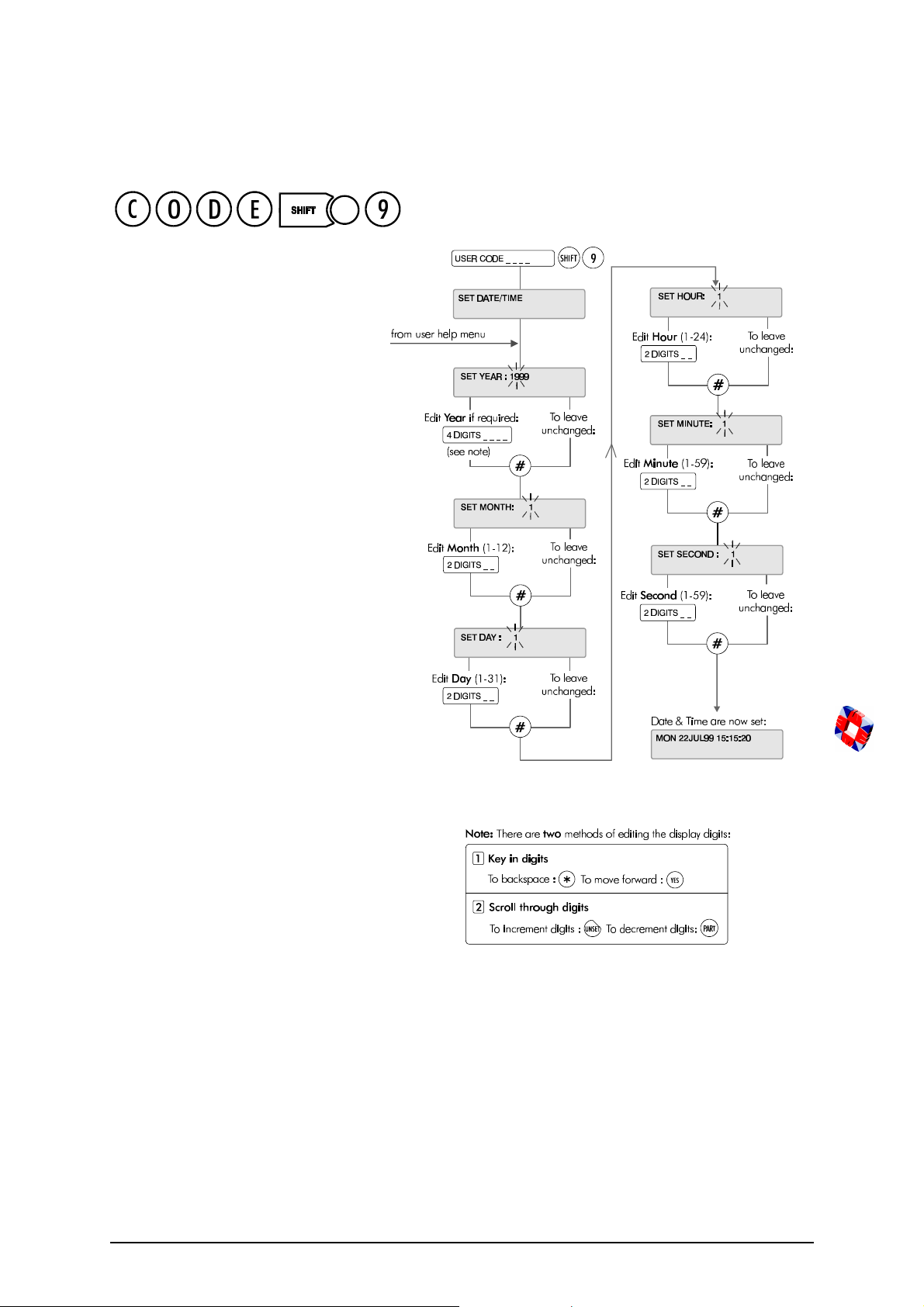

Set Date & Time
The time is set in 24-hour clock
notation.
To adjust the time for the Summer/
Winter hour change (Daylight Saving
Time), see the "Hour Adjust" option in
the User Options.
17

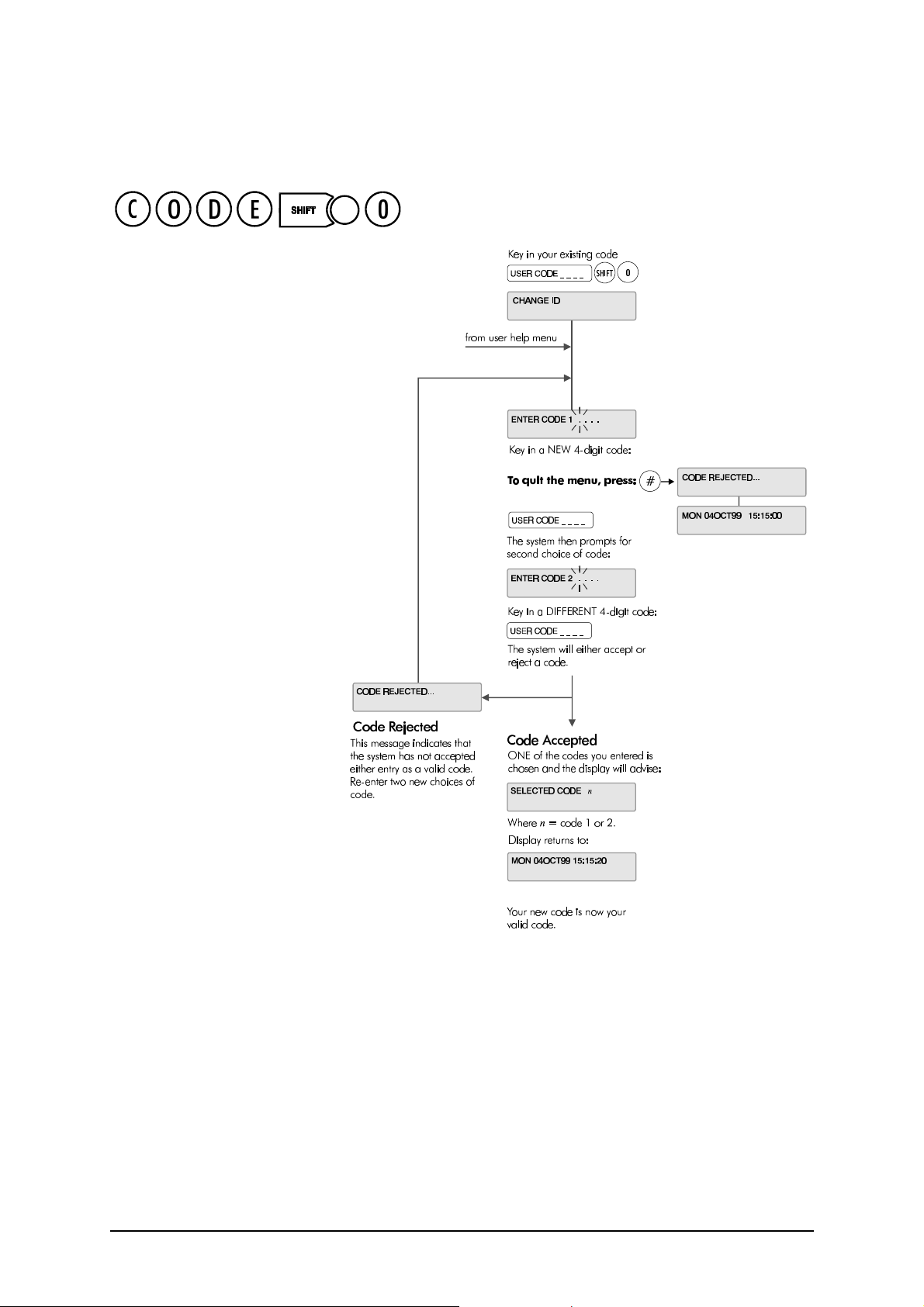

Change your own ID
This option allows the user to
change the ID code normally
assigned to them by the Master
User.
When the option is selected, the
user is prompted to enter a new
4-digit code. To avoid duplicate
codes, a second choice of code
is requested.
Once both codes have been
entered the system will either
reject or accept the user’s
choice. If rejected the user must
repeat the procedure and enter
two new codes. If accepted, the
system will assign one of them
(chosen at random) and will
indicate which code is to be
used.
This option is cancelled after use
so each user has only one
opportunity to change their
own code. The Master user may,
of course, grant the option again
if required. Once chosen the
code is completely private.
Remember the two codes you
have entered! The one chosen
by the system as your new code
will be indicated by either ‘1’ or
‘2’.
Once changed, test your code to
ensure that the system has
accepted it. In not, consult your
Master User or installer.
Change your own ID
18 3GS User Guide
User Setup
3GS User Guide
User Guide
User Setup
This menu is used to set up new users on the system, entering their names and
assigning ID codes and options.

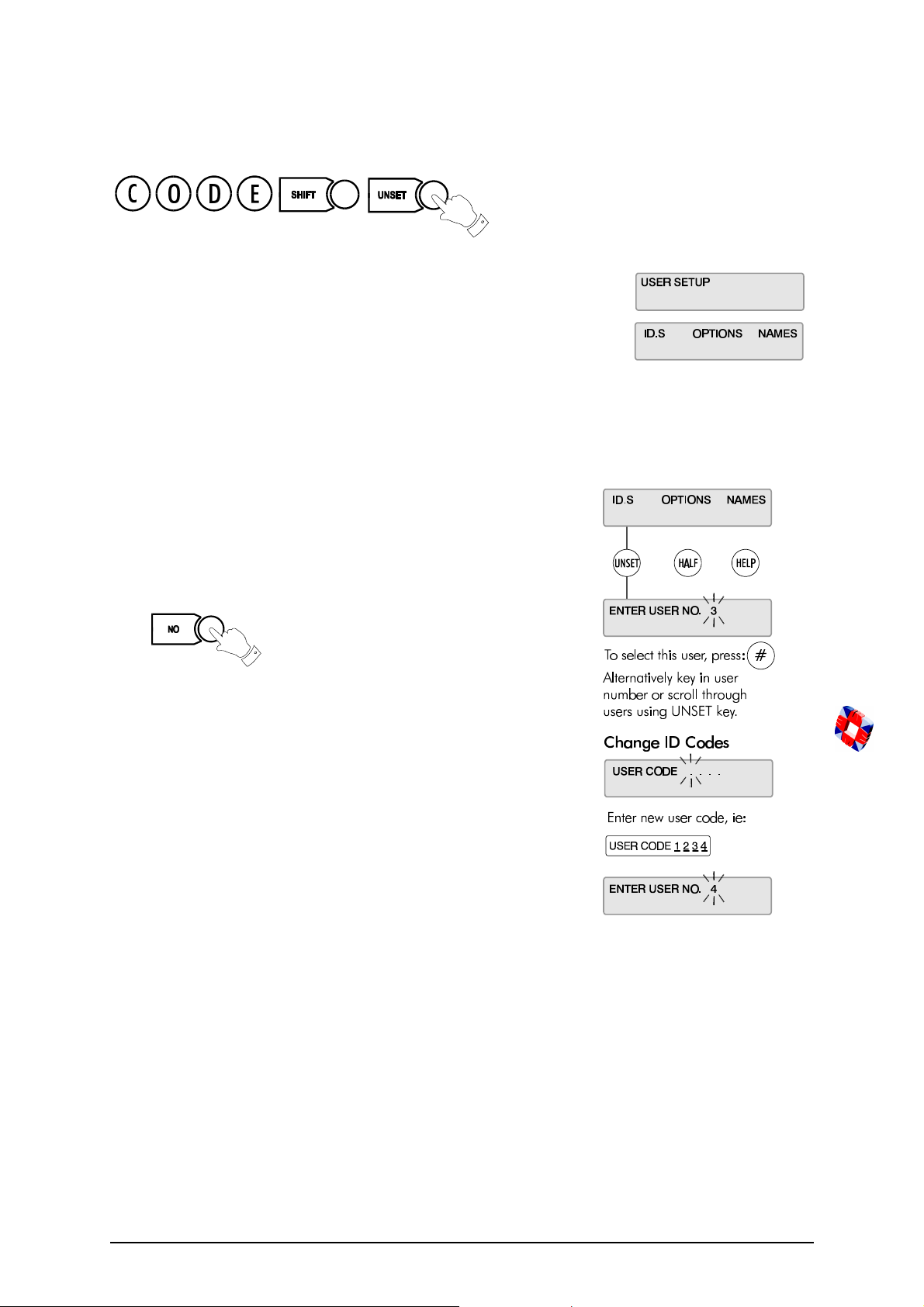

Changing User ID Codes
This option allows the Master User (user 2) to change individual ID
codes for all other system users (3 - 126).
✍ User ID codes must be 4 digits in length.
The new ID code is accepted and functioning as soon as you enter it.
Press at the user number prompt to exit the
codes
menu when finished.
You should now give the user the required options.
ID
19

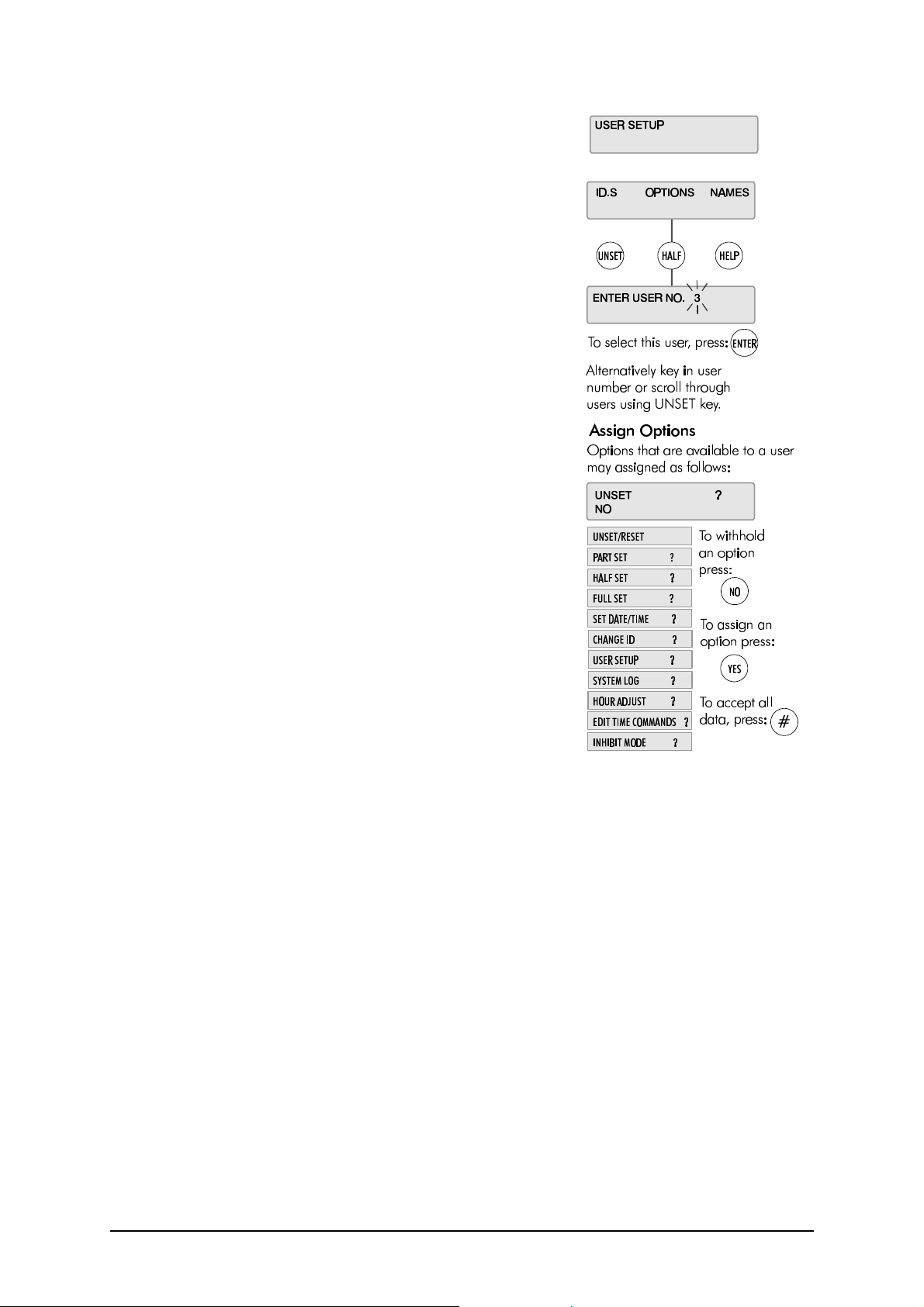

Changing User Options:
The Master User can assign the following menu options to all users.
Some options are linked to other functions, so that assigning an
option to a user may automatically give the user other options as
well.
l Unset/Reset (also Accept All Alerts)
l Part Set / Area Unset
l Half Set / Area Set
l Full Set (also Coded Reset)
l Set Date/Time
l Change ID
l User Setup (also Setup Areas and Radio PA Assign)
l System Log (also Test Radio PA, Setup Cards, Card Information
and Manual Door Control)
l Hour Adjust
l Edit Time Commands
l Inhibit Mode
Any user can be assigned some or all of these options. The Master
User has all of these options by default.
User Setup
✍ By default, User 1 is the installer and User 2 is the
Master User.
✍ The User Options menu also features Mode 5/6/7/8/9
options. These options are for installer use only and
cannot be accessed.
20 3GS User Guide
User Setup
3GS User Guide
User Guide

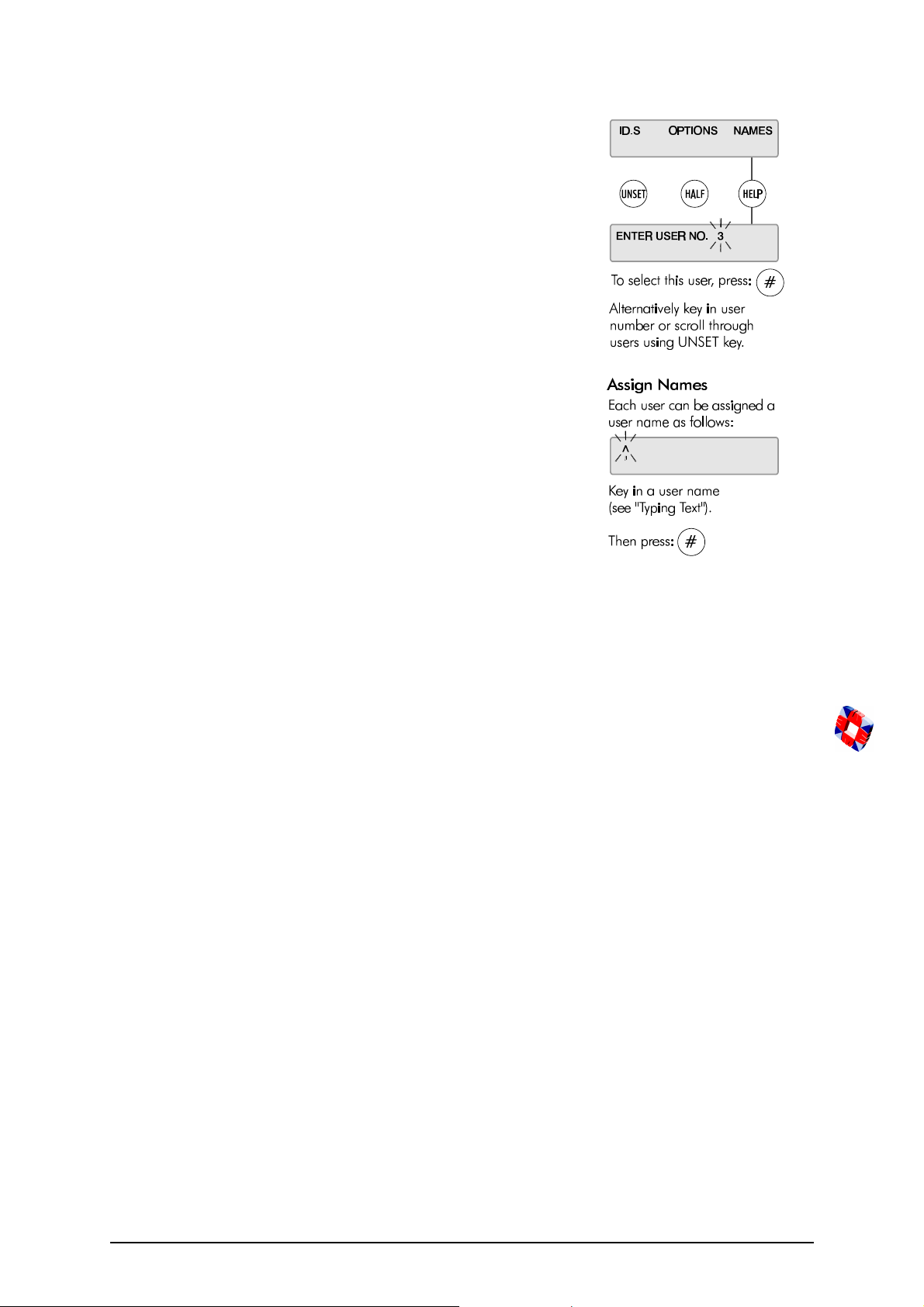

Changing User Names
This feature is used to enter individual user names into the system.
Text is entered via the keypad using the procedure described in Typing
Text on page 41, but it is recommended that this be carried out by the
installer.
21
Area Setup

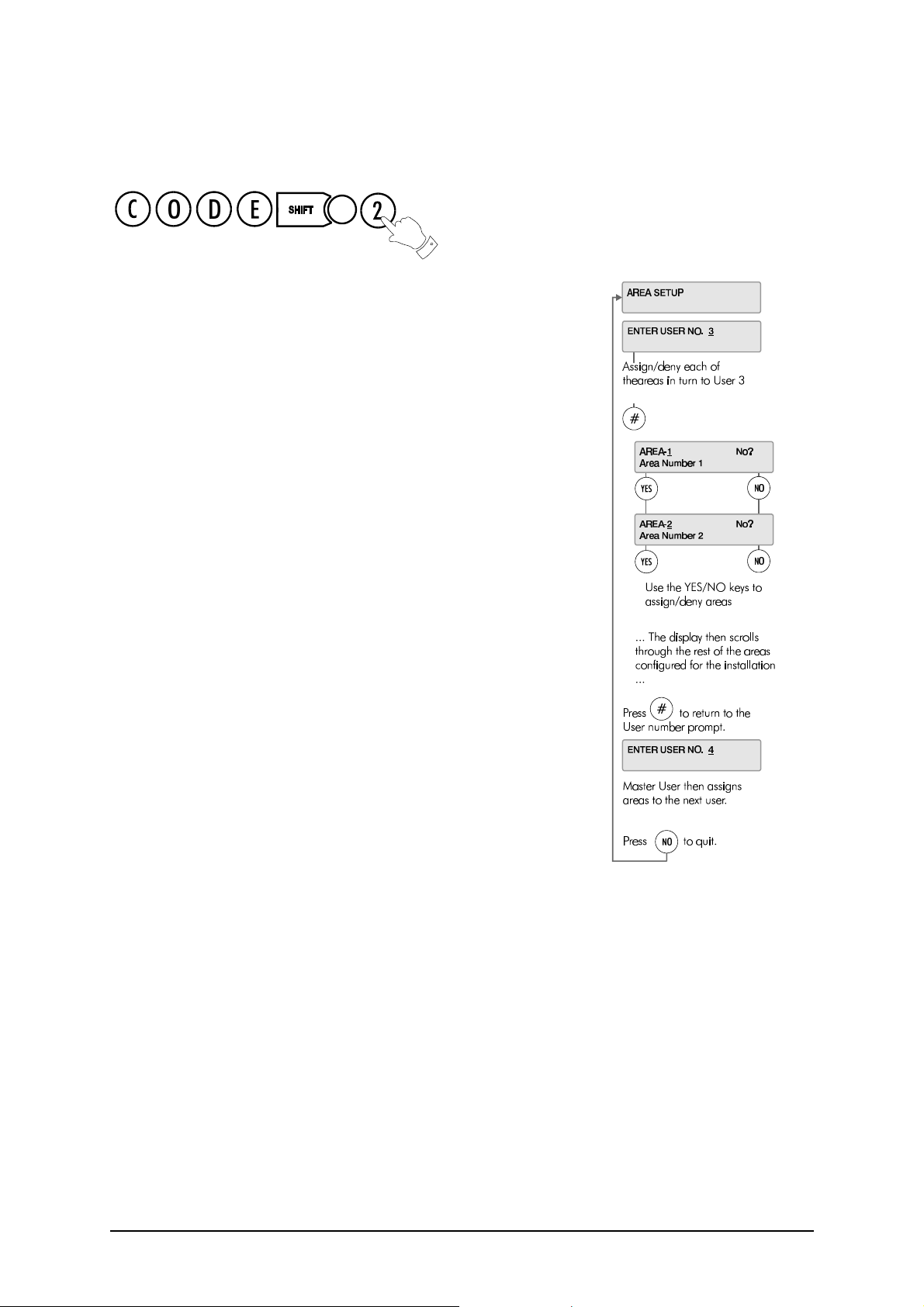

The Area Setup menu allows a Master User to assign areas to the system
users (3 to 126).
✍ The option to set or unset an area is configured by the Master
User in the User Setup menu (see page 19).
The number of areas to be used in the system is configured by the installer,
– the Master User assigns areas to users.
✍ User descriptions and PIN codes are set up in the User Setup
menu, which is described separately on page 19.
Area Setup
The system currently allows for up to 32 areas. The Master User enters the
number of the user to whom the area is to be assigned, and then scrolls
through each area in turn, assigning or denying that area to that user.
✍ To be able to set/unset an area, the user must be given:
the Part/Area Unset and Half/Area Set options,
and the Set/Unset option for that area,
using the User Setup menu on page 19.
22 3GS User Guide
Radio PA Assign
3GS User Guide
User Guide
Radio PA Assign
3GS allows for up to 126 3-button Radio Hold-Up handsets. This option is used to setup Radio PA (RPA)
units for use on a 3GS system. Each RPA unit must be given a system ID number and a description (optional),
and can be assigned up to five different functions, for example, SUSPICION, RAID etc.
Adding a new RPA to the system

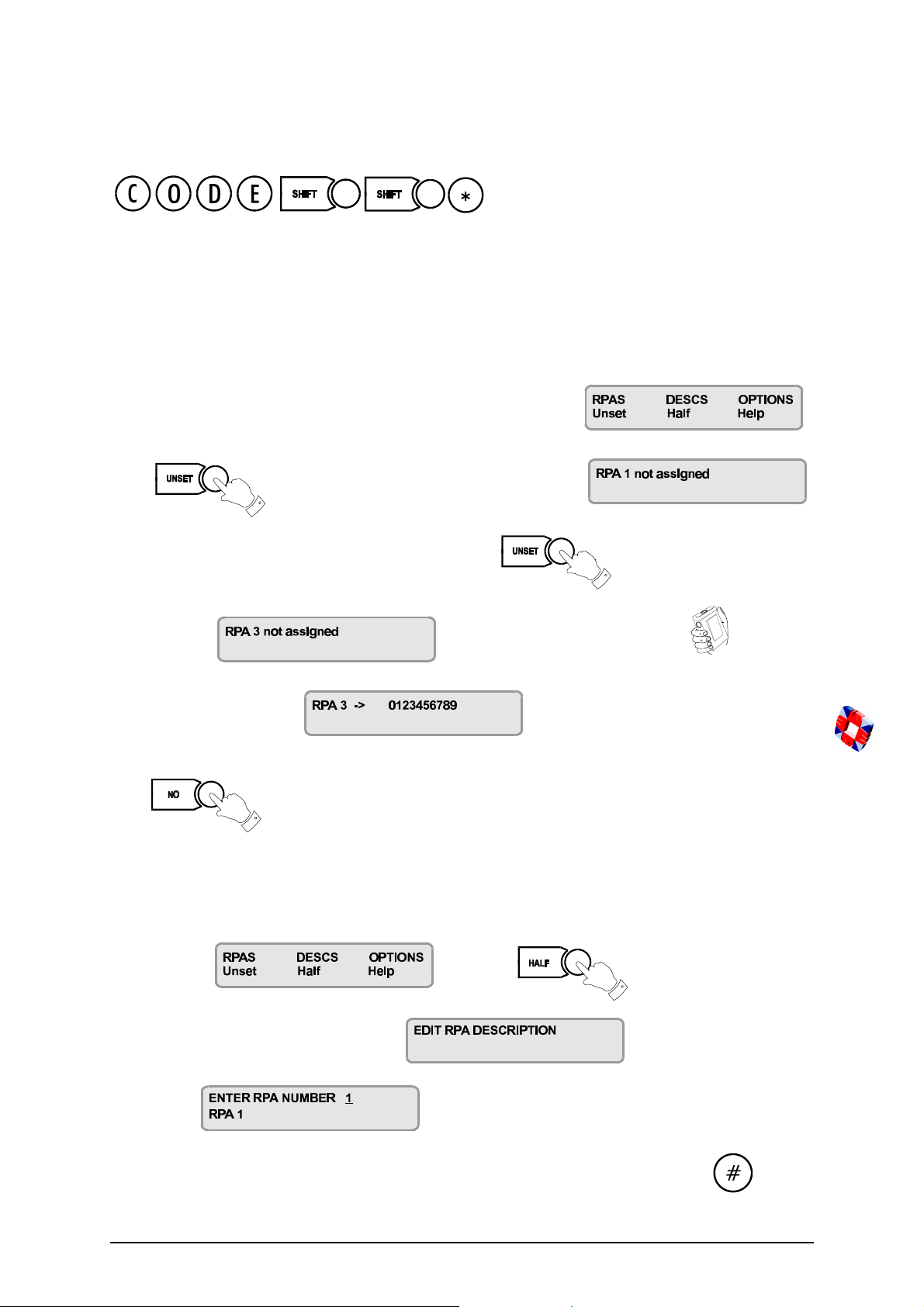

When you key in your code plus SHIFT SHIFT *, the display will show:
Press to enter the RPAs menu. The display will show:
In this example we will add RPA 3 to the system, so use the key to scroll forward until the
display shows: Now press any button on the RPA
The display will now show: where the 10-digit number is the serial
number encoded into the unit at the factory. This unit has now been entered into the system as RPA 3.
Press to return to the RPA menu.
Giving the RPA unit a Description
At the prompt press the key to enter the
Descriptions menu. The display will show
followed by:
Key in the number of the unit to which you want to give a description (e.g. 3) and press the key.
23
Radio PA Assign
The display will show: The first character will be flashing, and you can

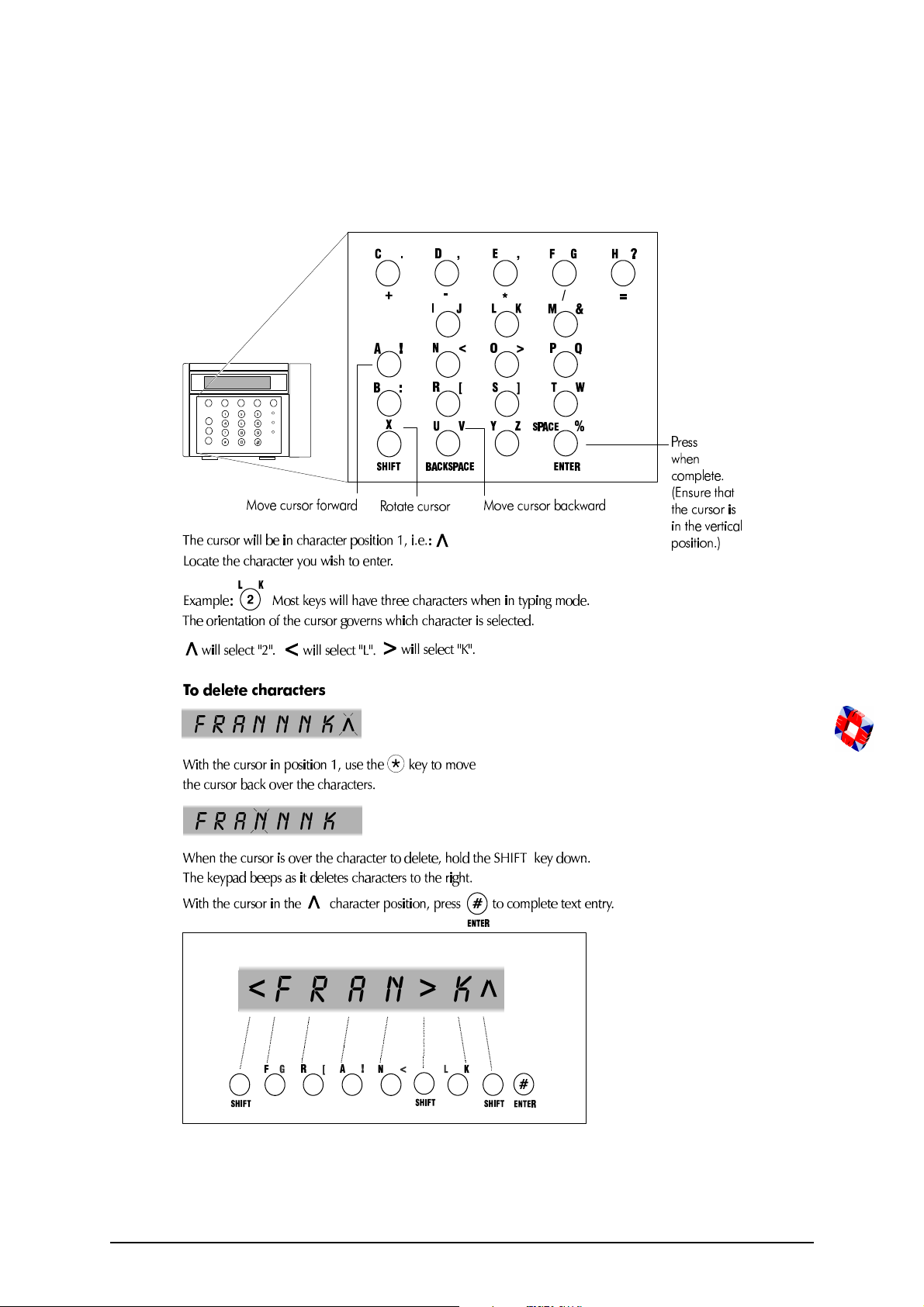

now enter a description using the method described on page 41.
When finished, press the key, ensuring that the cursor is in the vertical position as described in
Typing Text on page 41.

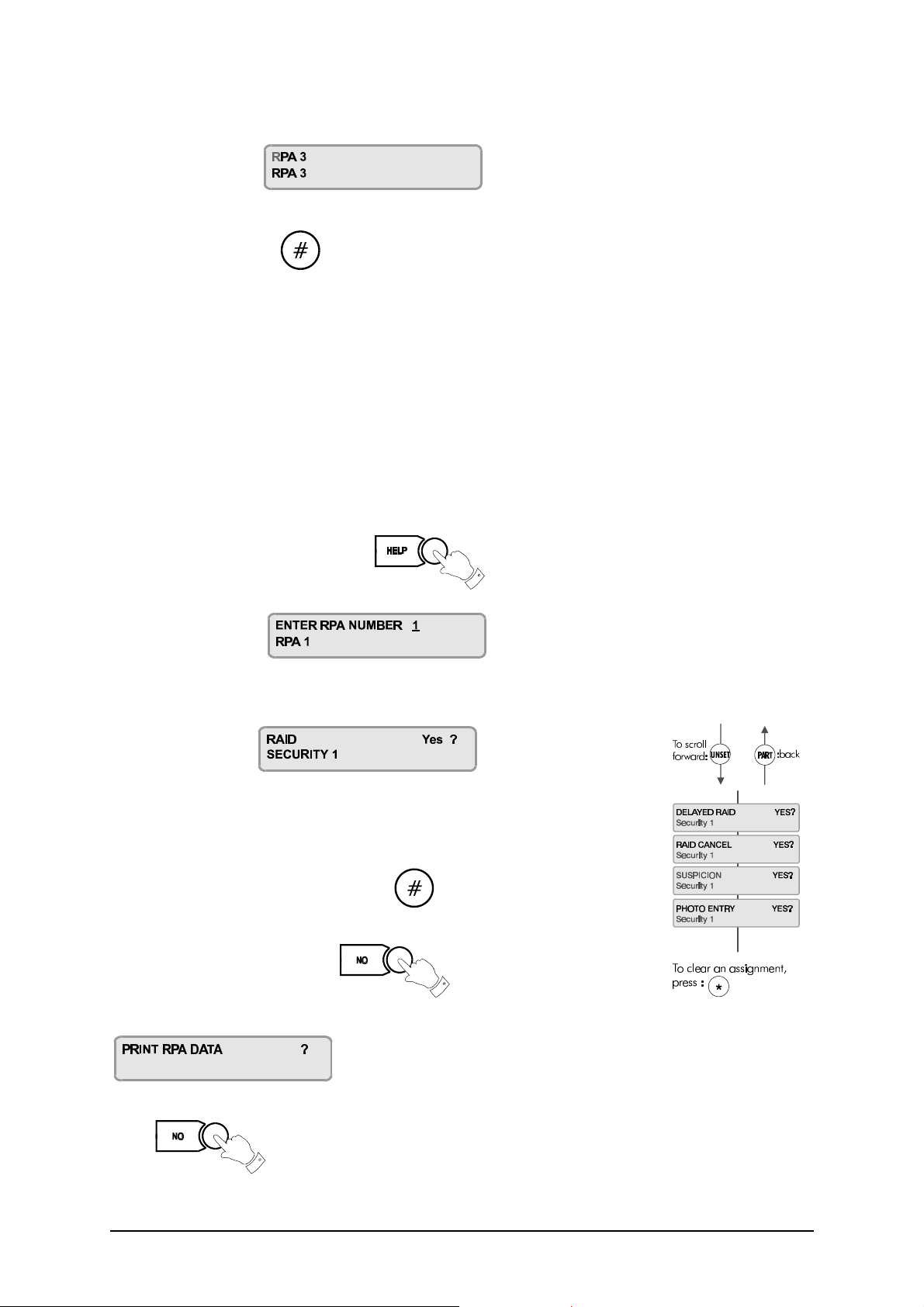

Setting the RPA Options
The RPA unit has no options assigned by default, and so must be set up for use with the Radio HUA system.
The unit can be assigned five different functions:
l RAID
l DELAYED RAID
l RAID CANCEL
l SUSPICION
l PHOTO ENTRY
Each function will be explained by the installer and is activated by pressing a combination of the three
buttons on the unit. The button combinations are also set up by the installer and will be explained by him.
To assign options to the RPA Unit, press to enter the
Options menu.
The display will show:
Enter the number of the RPA unit to which you want to assign options e.g. RPA 3, which now has the
description ‘Security 1’.
The display will show
Assign the RAID option to this unit by pressing YES.
Use the NO key to deny the option and the UNSET key to move to the next option.
When finished assigning options, press the key to return you to the main
RPA Number prompt.
To return to the main menu, press
When you press NO, again, you will be prompted
If you have a printer connected to the 3GS controller you can now print
off the RPA options you have just configured.
Press to exit the menu and return to the normal display.
24 3GS User Guide
System Logs
3GS User Guide
User Guide
System Logs

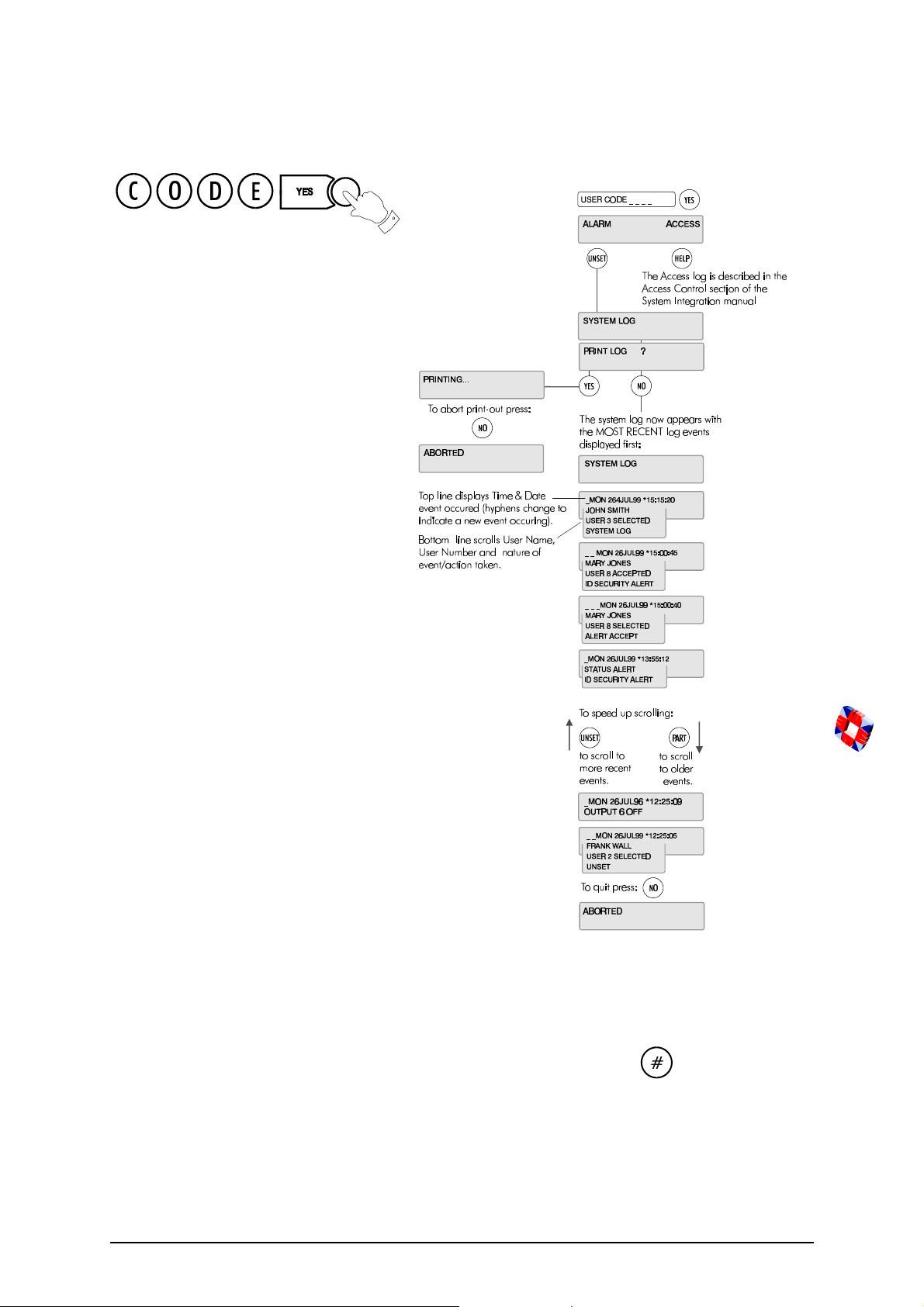

The 3GS alarm log is a record of all system
activity (keypad input, status alerts, alarm
activations etc.) and this may be viewed or
printed if a hard-copy is required. The
detail and length of the log provides an
invaluable record of the system operation
for both fault finding and alarm analysis.
The alarm log is 1000 events long (the
Access Log is 3000 events) and each event
is detailed with exact date and time to the
nearest second. System events are
displayed chronologically with the most
recent events appearing first.
The alarm log gives 4 details for each
event, which are appear on the display in
sequence:
l the date and time of the event;
l the user name or zone number (e.g.
Master User);
l the user number or zone description
(e.g. User 2 Selected);
l and the action taken (e.g. System Log)
T
Alarm and Access Logs
3GS gives 2 types of log: the standard
Alarm Log, which displays all the system
events (as described here); and the Access
Log, which displays only Access Controlrelated events, such as Invalid Card Entry,
Door Forced, and Time Zone Setup. The
Access Log should be viewed using 3GS+.
Printing the Alarm and
Access Logs
When the option "PRINT LOG ?" is displayed, if a serial printer is connected and the serial port correctly
configured, a print-out of the log can be generated by selecting the YES key. Otherwise, any other key
should be pressed and the log will be displayed.
Viewing the Alarm and Access Logs
The log display can be stepped through quickly one line at a time by pressing the key. The "*" appears
in the centre of the date & time display to make the log easily differentiable from the Standby/Unset mode
display. The date and time remain visible in the display until all information regarding that particular event
has been shown. The PART SET key will ‘rewind’ one entry at a time to the first entry of the date currently
being displayed, the UNSET key will skip to the next entry. To leave the system log at any point in the record,
press the NO key.
25
Radio PA Test
Radio PA Test

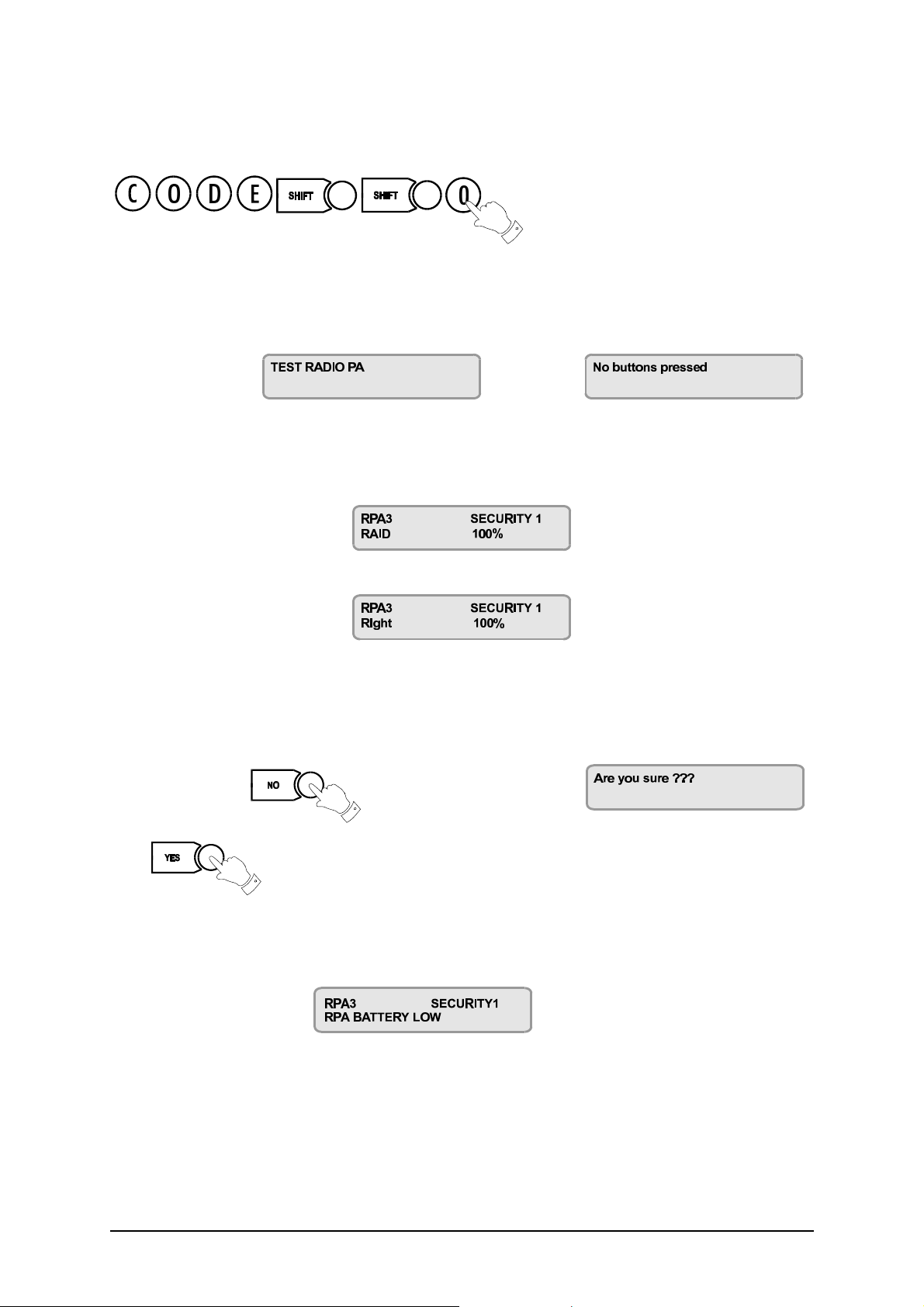

This option allows you to test each RPA unit in turn to ensure that the functions are correctly configured.
The system buzzer will sound intermittenly to indicate that the test is in progress.
The display will show followed by
Your installer will give a list of the button combinations for each option. When you press a button or
combination of buttons, the display will show the option assigned to that button and the field strength of the
signal.
For example, if RAID has been assigned to the right (green) button, press this button. The display will show:
If the right (green) button has not been assigned to this function, the display will show
indicating the button that you have just pressed.
✍ NOTE: Some units may not show the percentage value.
Using the list given to you by the installer, go through each option in turn, ensuring that the right button
combination gives you the right option.
When finished, press to exit. The display will prompt:
Press to confirm.
When the RPA battery is low ..
When the RPA battery level is low, the test information will not appear on the display.
Instead, the display will show
Replace the battery.
26 3GS User Guide
3GS Access Control
3GS User Guide
User Guide
3GS Access Control
3GS can control up to 64 doors with internal and external readers, and 10,000 cards/tokens per system, .
Access Control Readers
A variety of reader types are supported:
PIN code, magnetic stripe cards, proximity cards, ‘hands-free’ cards or a combination of card
and PIN code.
LED displays

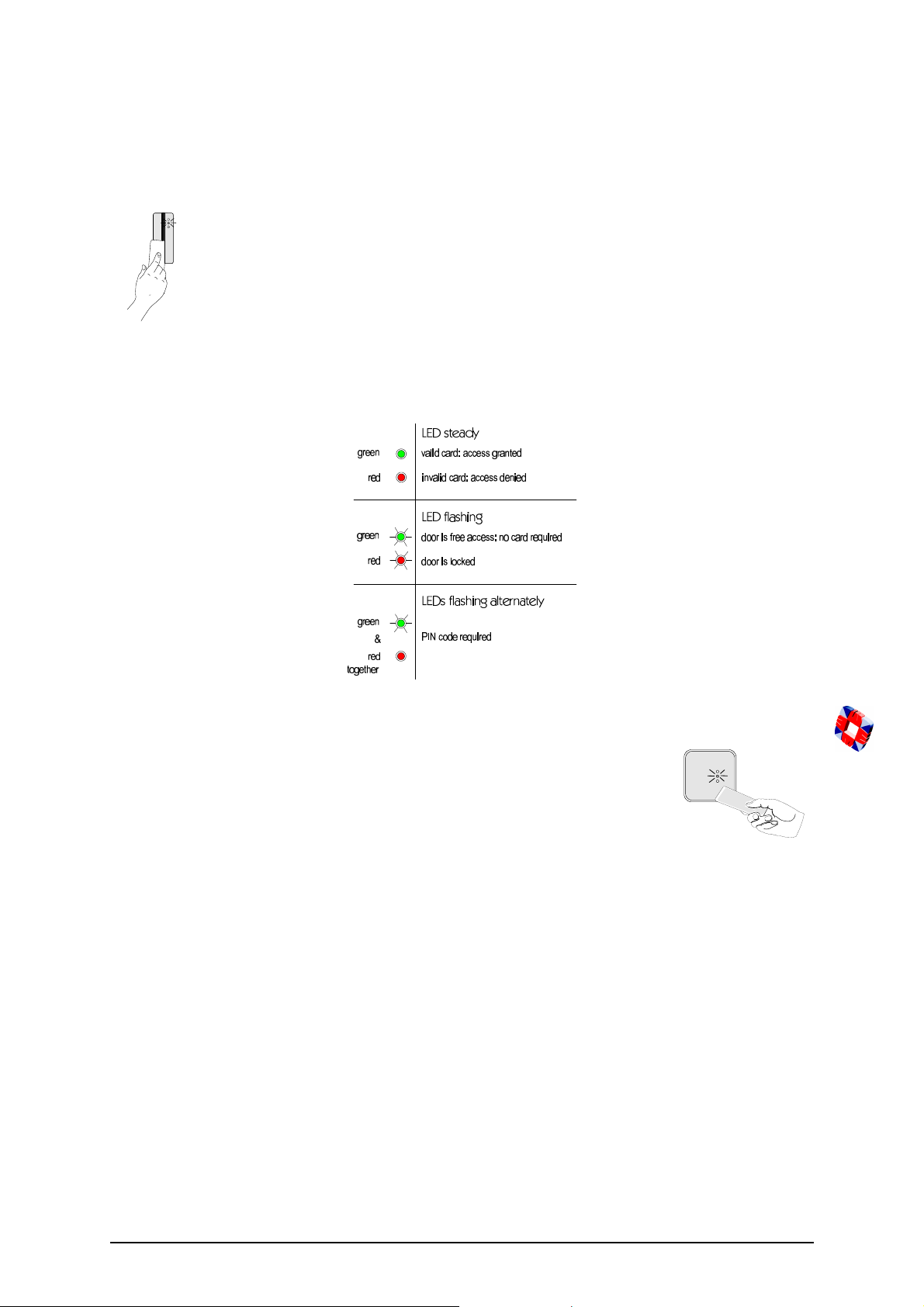

Card readers may display a variety of LED indications:
Setting the system using access cards
3GS allows for cards to control setting and unsetting of the complete alarm system, or
parts of it (i.e. areas). Please consult your 3GS installer for details.
l Unset inside the door: If the area is set, then when a card with this function is
presented to the entry reader, the user is granted access to the door. When the
door is opened it will start the entry timer. This allows the cardholder to unset the
system by presenting the card to the exit reader.
l Unset outside the door: If the area is set, then when a card with this function is swiped on the entry
reader, the user is granted access to the door. When the door is opened it will unset the system or area
immediately.
l Set: If the area is unset, then the cardholder can set the area/system by presenting the card to the exit
reader and then presenting it to the entry reader during the FUNCTON ENABLE TIME. Alternatively the
cardholder can use the SET button to set the area/system.
✍ Please consult with your installer before operating these functions
Asset Protection
3GS Access Control can also be configured to protect assets (such as PCs). By locating tokens placed inside
the asset, and fitting ‘hands-free’ readers at doors. 3GS can be set up to report the illegal removal of the
assets. Please consult your installer for details.
3GS allows for visitor cards, holidays, a multitude of access levels, anti-passback, car park control, roll call of
building occupants and much more. Consult your 3GS installer for more details.
27
Setup Cards
ASSIGN
UNSET
LEARN SELECT
CARDS OPTIONS PASS/VOID
Unset .. Half .. Help
PROG. FROM DOOR 1
TO CARD 9999
Setup Cards
3GS has a capacity of up to 10,000 access cards. This menu will set up the cards for use with the system.
✍ The 3GS panel menus for cards are similar to those of 3GS+ Software. The card settings
entered into the panel can be uploaded to the PC and vice versa. Using 3GS+ to change
access cards settings is recommended.
Cards .. Assign
To pass cards into the 3GS system, they must be
given a card ID between 1 and 9999.
This menu allows you to assign IDs to cards in 2
ways:
l Select. Batches of cards with pre-coded
numbers of between 1 and 9999 can be passed
directly into the system and given
corresponding system IDs. the first card of the
batch becomes Card ID 1, the second becomes
Card ID 2, etc.
In effect, this gives you 1-to-1 mapping,
automatically assigning IDs to cards.
l Learn. The card to be passed is of unknown
origin and the pre-encoded number is not
known. In this case the card is presented at a
card reader, assigned to a system door, and
then given a system ID.
SET UP CARDS
UNSET
UNSET
UNSET HELP
UNSET
Door 1
Identify the door at which you are
setting up the card. This frees all
other doors on the system for
normal use
ENTER CARD ID 1
CARD 1
By default, the display is
CARD 1 -> NOT ASSIGNED
CARD 1
HALF
Select the beginning and end of
the range of pre-programmed
cards to be mapped into the system.
FROM CARD 1
Card 1
HELP
_
#
_
Card 9999
Card 1 of this range has now been given
ID no. 1, Card 2: Id no. 2 etc.
You will be prompted if the ID has already
been assigned, in which case you can overwrite the existing card, or choose the next available ID.
28 3GS User Guide
Setup Cards
3GS User Guide
User Guide

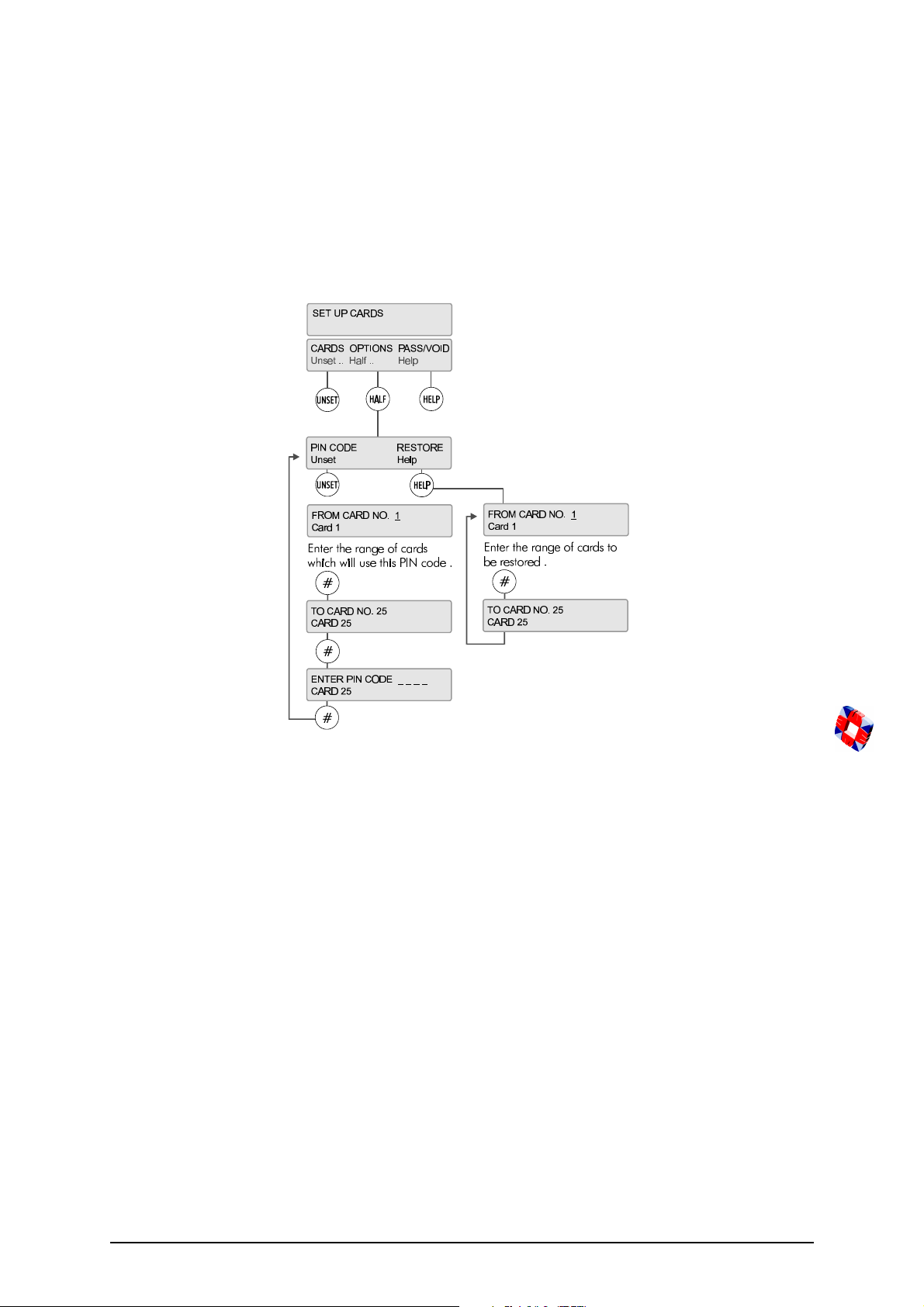

Cards .. Options
The Options menu is used to assign a PIN code to one or a range of cards, and to restore the settings of cards
that have been deleted from the system.
When an invalid PIN code has been entered three times, the card to which the code is attached will be
deleted from the system.
The
Restore menu will restore this card to the system without the need to set the card up again.
See the menu below.
29
Passing and Voiding Cards
Once a Card ID has been assigned, the card can then be passed into the system.
Card Range
Enter the range of cards to be passed, from 1 to 9999. To pass a single card,
enter the card number and press the key twice.
Once the card(s) has been passed, you will be prompted for the Access level
for this/these cards.
Change Access Level ?
Change Access Levels ?
Not Assigned
NO
#
/
current
assignment
Enter Access Level No. 1
YES
#
Passing and Voiding Cards
An Access level is a combination of a limited time period and a group of
doors, so that once applied to a card, it will limit the card user to having
access to certain doors at certain times only. Up to 250 Access levels are
programmed by the installer, who will indicate which levels should be
assigned to which cards. When you have assigned an Access level, you are
prompted for the Visitor Level.
Change Visitor Level ?
Change Visitor Level ?
Not Assigned
NO
#
/
current
assignment
The Visitor Level is used to program temporary cards, which will only be valid for a certain period of time
(between a given Start Date and End Date). The system allows for up to 250 different Visitor levels, which
are programmed by the installer. Once assigned, you are then prompted for a Function level.
Enter Visitor Level No. 1
YES
#

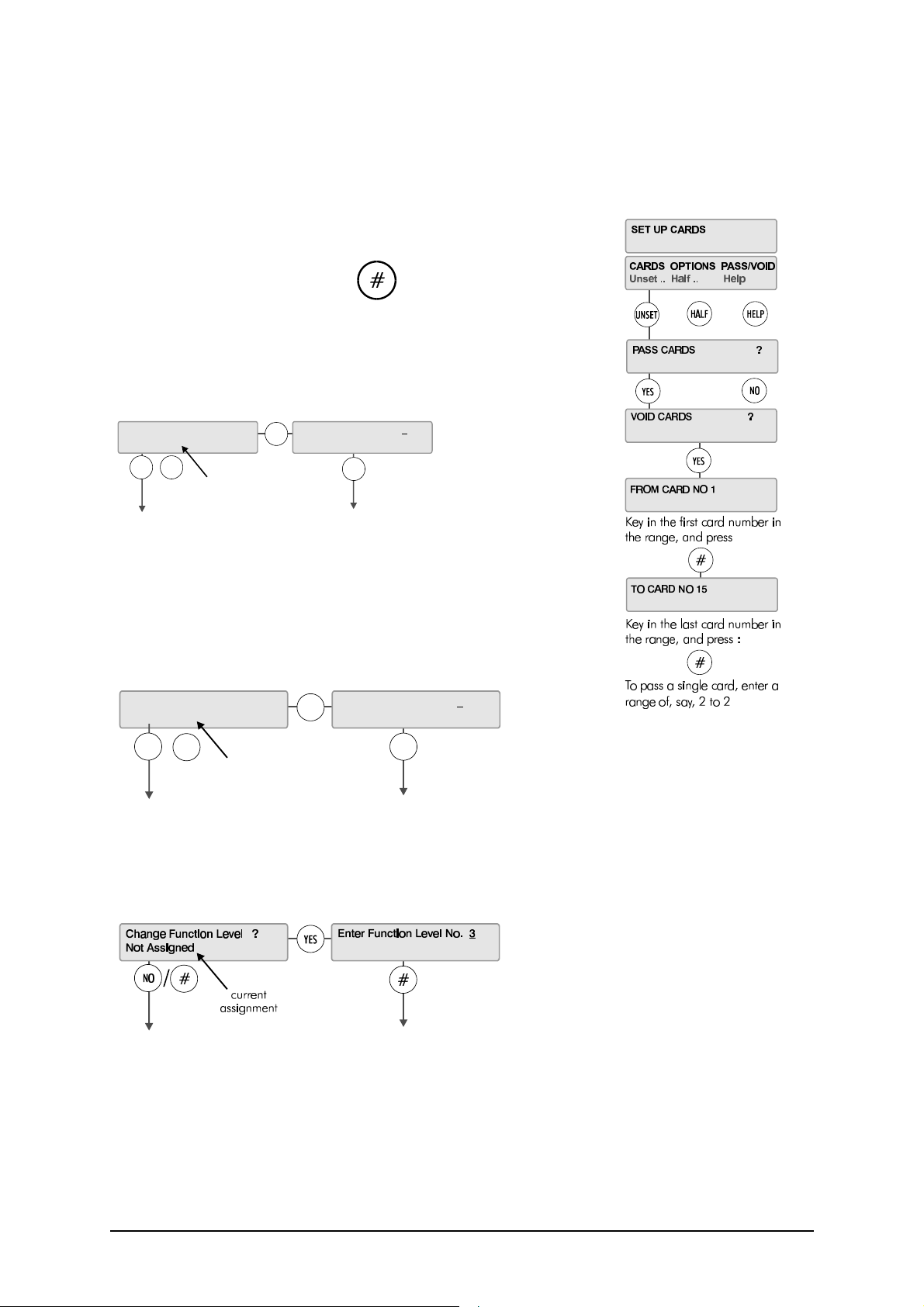

Change Function Level ?
Function levels give the user the ability to set and unset an Area by presenting a card to a reader outside the
Area entrance door. A Function level will give a card 3 extra capabilities: to unset an area from the outside,
to unset an area from inside, and to set an area once you have left (by swiping your card at a reader near the
exit door). Up to 250 Function levels are programmed by the installer. When you have assigned a function
level, you are prompted to change the PIN code requirement for the card.
✍ Please consult your installer on the correct procedure for setting/unsetting the system
using your card.
30 3GS User Guide
Passing and Voiding Cards
3GS User Guide
User Guide
range of, say, 2 to 2
CARDS OPTIONS PASS/VOID
Unset .. Half .. Help
Change Requirement
Change PIN requirement?
PIN code not required
NO
#
/
PIN Code required: YES
YES
Yes/No
Change PIN Code ?
Not Assigned
#
Current PIN code:
YES
New PIN code:
****
NO
#
This option allows you to decide if a card should also require a PIN code before it will grant access through a
door. It also allows you to change the existing PIN code for the card or create a new one.
✍ The user should be aware that the PIN code created using this option will apply to all the
cards being passed at this stage
Once a PIN code requirement has been assigned, you will be prompted to identify the card location.
Change Card Location?
Change Card Location?
Card inside perimeter
NO
#
/
When passing the card, you must establish where the card actually is at the time of passing. The Roll Call
and Anti-Passback functions allow the installer to identify which cards are in use in the system at any given
time, and to control the use of cards within the system. This menu will identify the card as being inside or
outside the alarm area when passed. When all the system cards can be located at any time, they can be
tracked and controlled effectively. When you have assigned the card a location status, press the key to
return to the main menu.
Card inside perimeter YES
YES
(Yes/No)
#
Voiding Cards
The Void Cards option is used when you have a set of cards that you want to be
removed from the system.
Voiding a card removes all the card’s settings from the system, from system ID to
access/function/visitor levels.
Exiting the Setup Cards menu
Press to exit the Setup Cards menu.
The display will show:

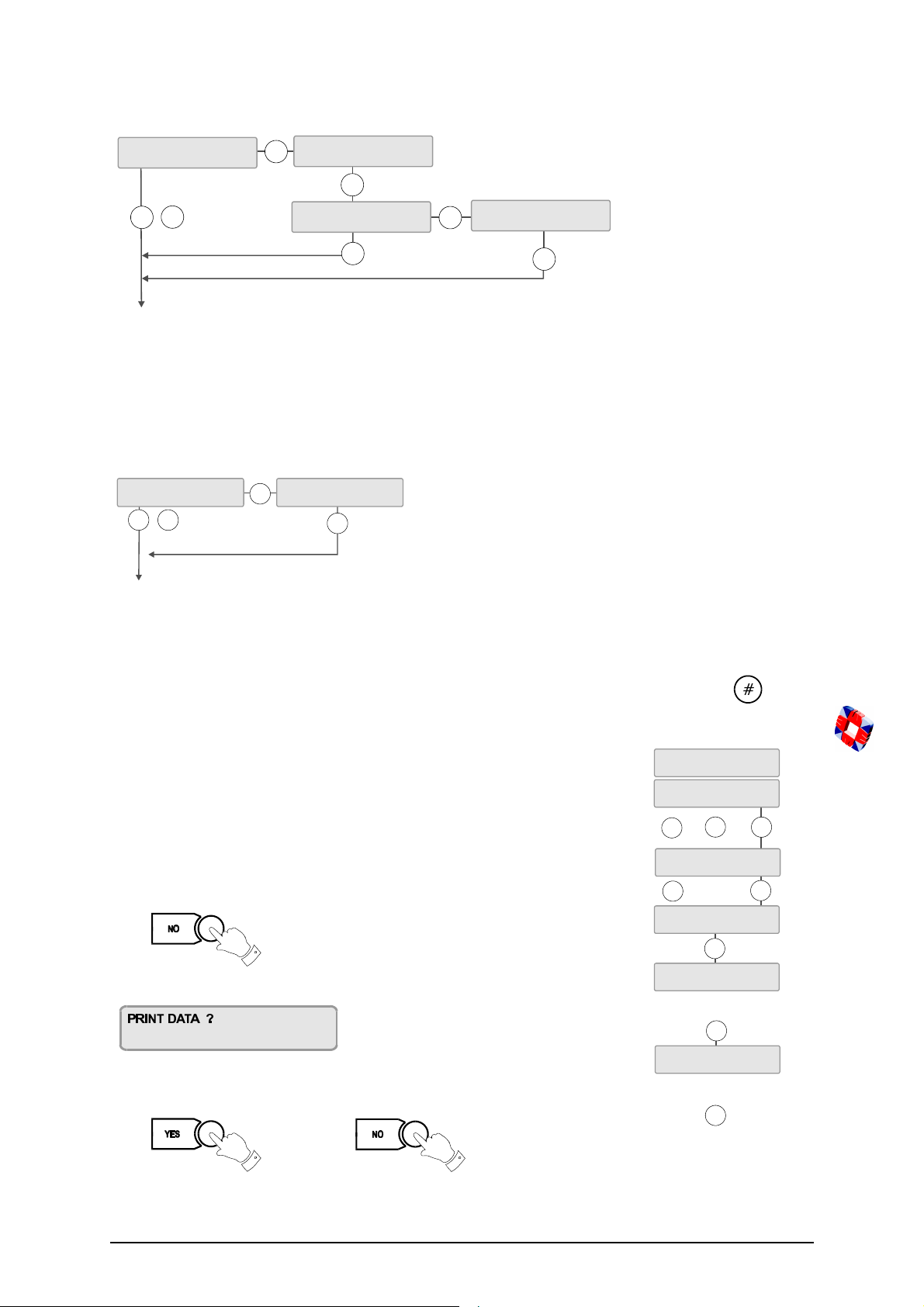

If you have a printer connected to the controller serial port, you can now print
out the card settings you have just configured.
Press to print and to exit the menu.
SET UP CARDS
HALF
UNSET
PASS CARDS ?
YES
VOID CARDS ?
FROM CARD NO 1
Key in the first card number in
the range, and press
TO CARD NO 15
Key in the last card number in
the range,
To void a single card, enter a
and press
HELP
NO
YES
#
:
#
31
Card Information
The Card Information menu allows you to test the validity of a card and check
that the card settings that you have configured have been entered into the
system.

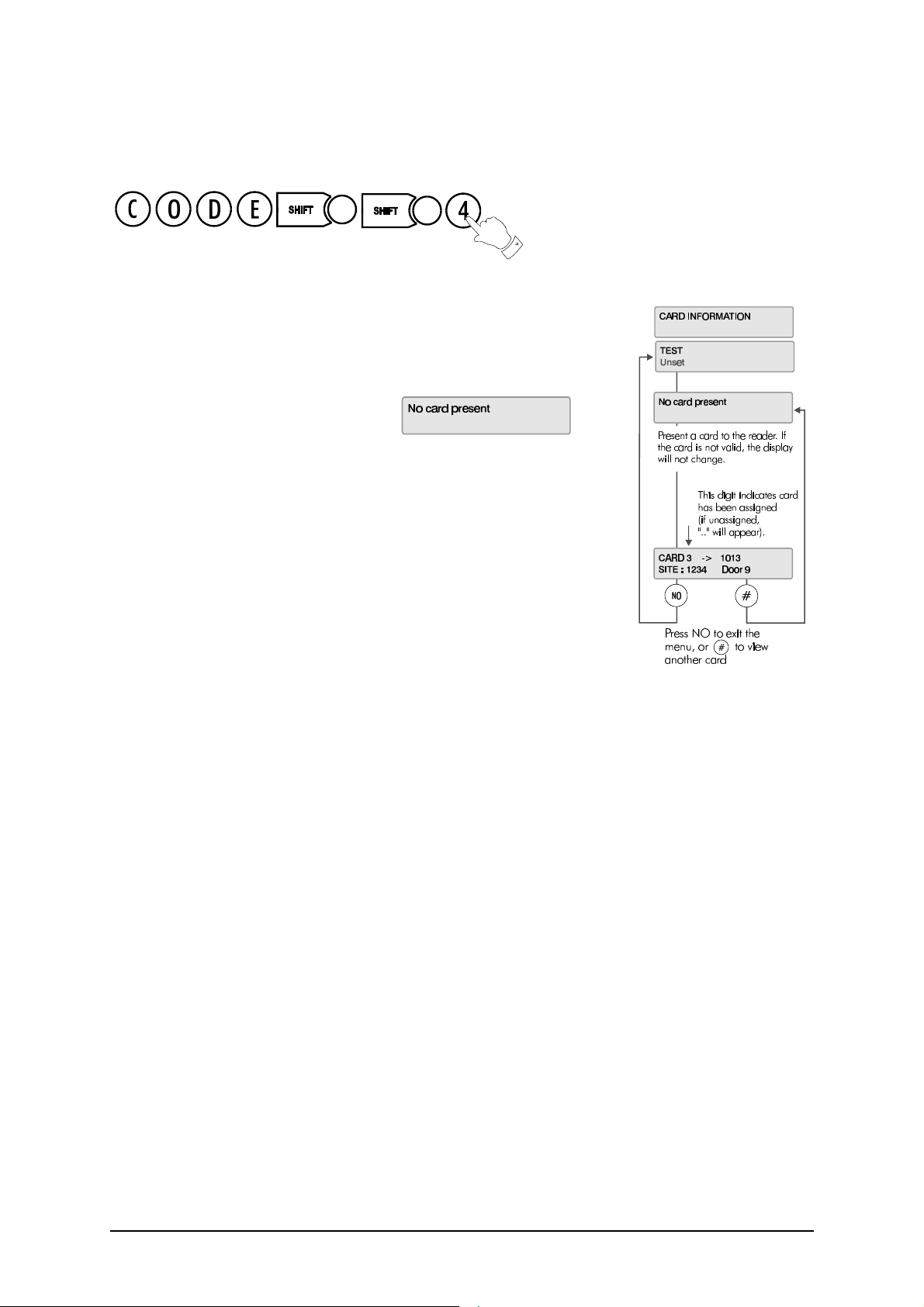

Select the menu option. When the prompt
appears, swipe the card or present it to the reader.
The display will then give details of the card ID, site code (which is configured
by the installer) and door at which the card is being presented.
Card Information
✍ When a card is presented, the display may not always show the
card number.
If the display does not show any information about the card,
present the card to the reader again.
32 3GS User Guide
Manual Door Control
3GS User Guide
User Guide
Return to sub-menu

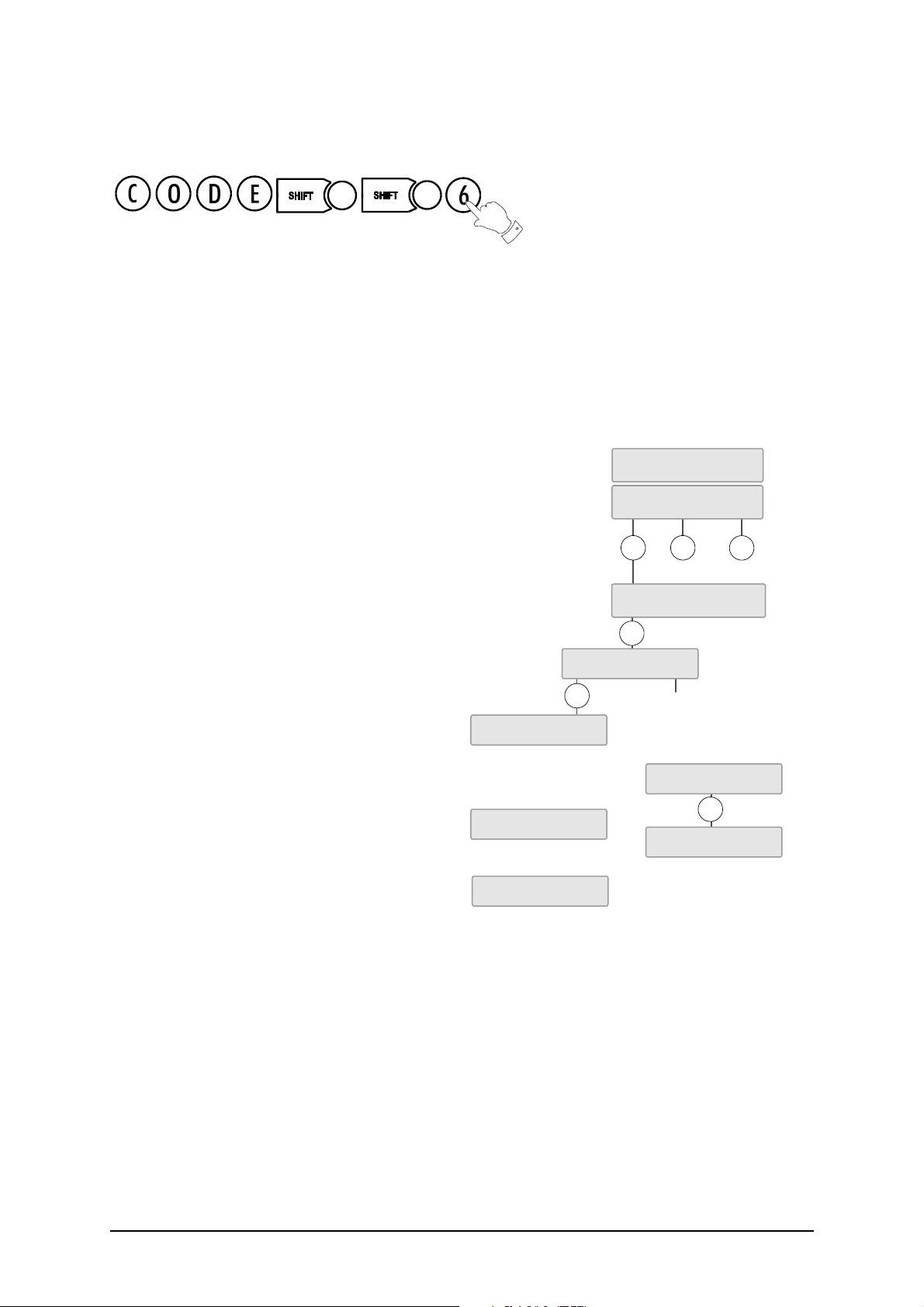

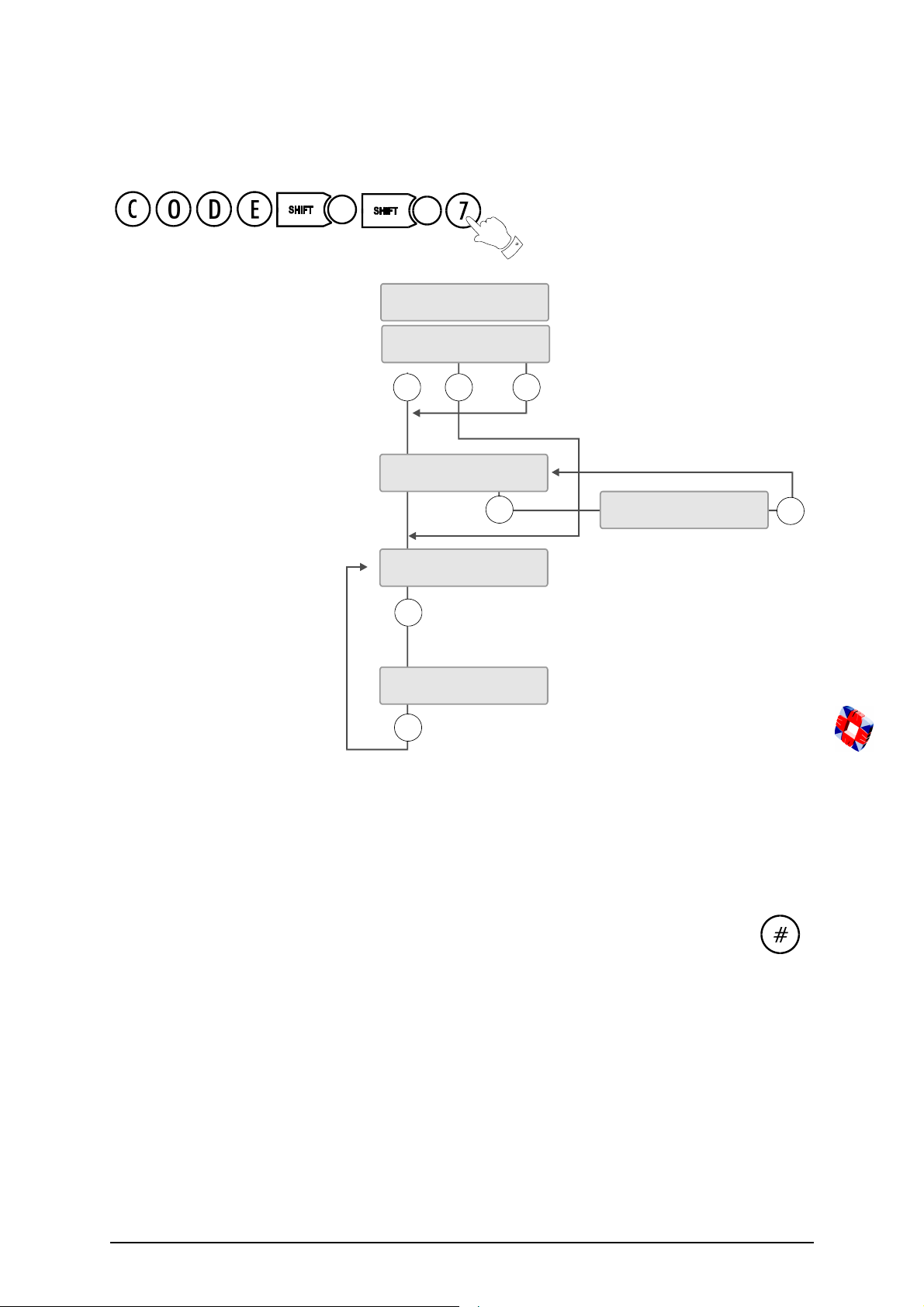

The Manual Door Control
feature gives the user a manual
MANUAL DOOR CONTROL
over-ride on all system door
settings.
At any stage, the user can use this
menu to open/lock a door or
series of doors.
OPEN RESTORE LOCK
Unset Part Help
UNSET
HALF
HELP
Once you have selected your
doors, the system will check for
Lock/Open Inhibits operating on
these doors (see Open/Lock
Inhibit in the System Integration
manual). If none have been set,
PERMANENT MOMENTARY
Unset Help
HELP
ENTER DOOR NO. 1
Door 1
#
the doors can be opened/locked
via the keypad.
The
Open menu allows you to
open a range of doors
permanently - i.e. the door will
remain open until you manually
restore the original door settings,
or momentarily - you can open
one door for the number of
FROM DOOR NO. 1
Door 1
Select the range
#
of doors to be
permanently
opened / restored
TO DOOR NO. 64
Door 64
seconds for which the door lock
would normally remain open
#
once access has been granted
(see Door Open Time in System
Integration manual).
When you select
Permanent, you are prompted to enter the range of door numbers you wish to open. Enter
the From and To ranges. When the Permanent condition is set on a door, the green LED (access granted) on
the node will flash. This allows free access through the doors selected until restored or locked.
The
Momentary sub-menu will ask you for the number of the door you wish to open momentarily. Again,
enter the number. The green LED will light steadily while access is granted.
Restore restores all door settings to their defaults. Enter the range of doors to be restored and press
to accept and quit. Once defaults have been restored, the system is in normal operation and no LEDs are lit.

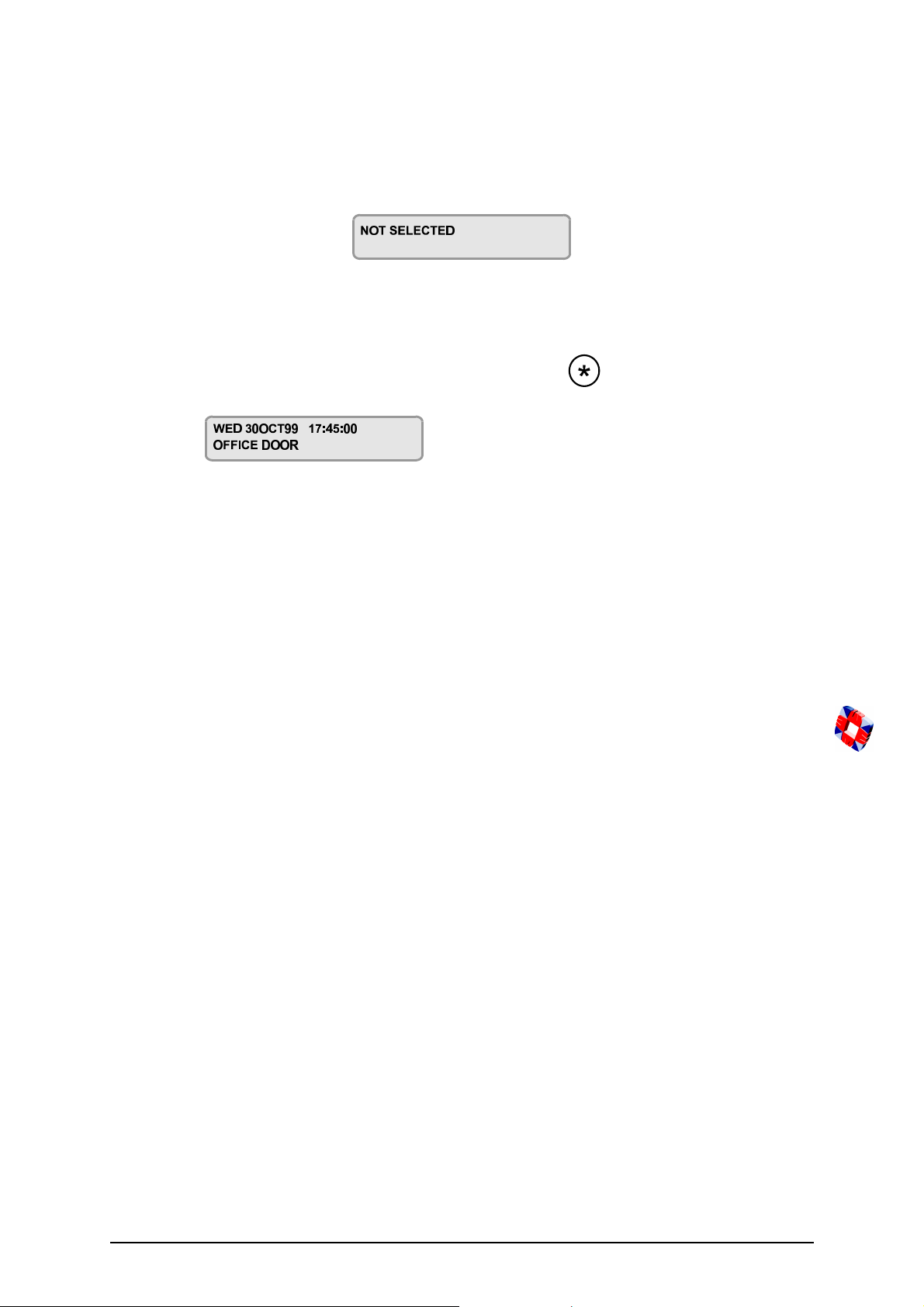

The
Lock menu works similarly to Open. When the Lock is manually set on a door, the card reader attached
to the door will not read or accept any cards. When the door is locked in this way, the red LED flashes to
indicate access denied.
33
Hour Adjust
This option adjusts the system clock to automatically
take account of the Summer / Winter time change
(Daylight Saving Time).
It must be selected during the week prior to the Sunday
on which the hour change is to occur at 2.00am.
A warning message is displayed until the function is
executed - “Hour Change Sunday”.
The system will automatically set the hour forward or
back as appropriate.
The option toggles on and off – you cancel the hour
change by selecting it again.
Hour Adjust
✍ Hour Adjust should only be selected during
March/April and October.
34 3GS User Guide

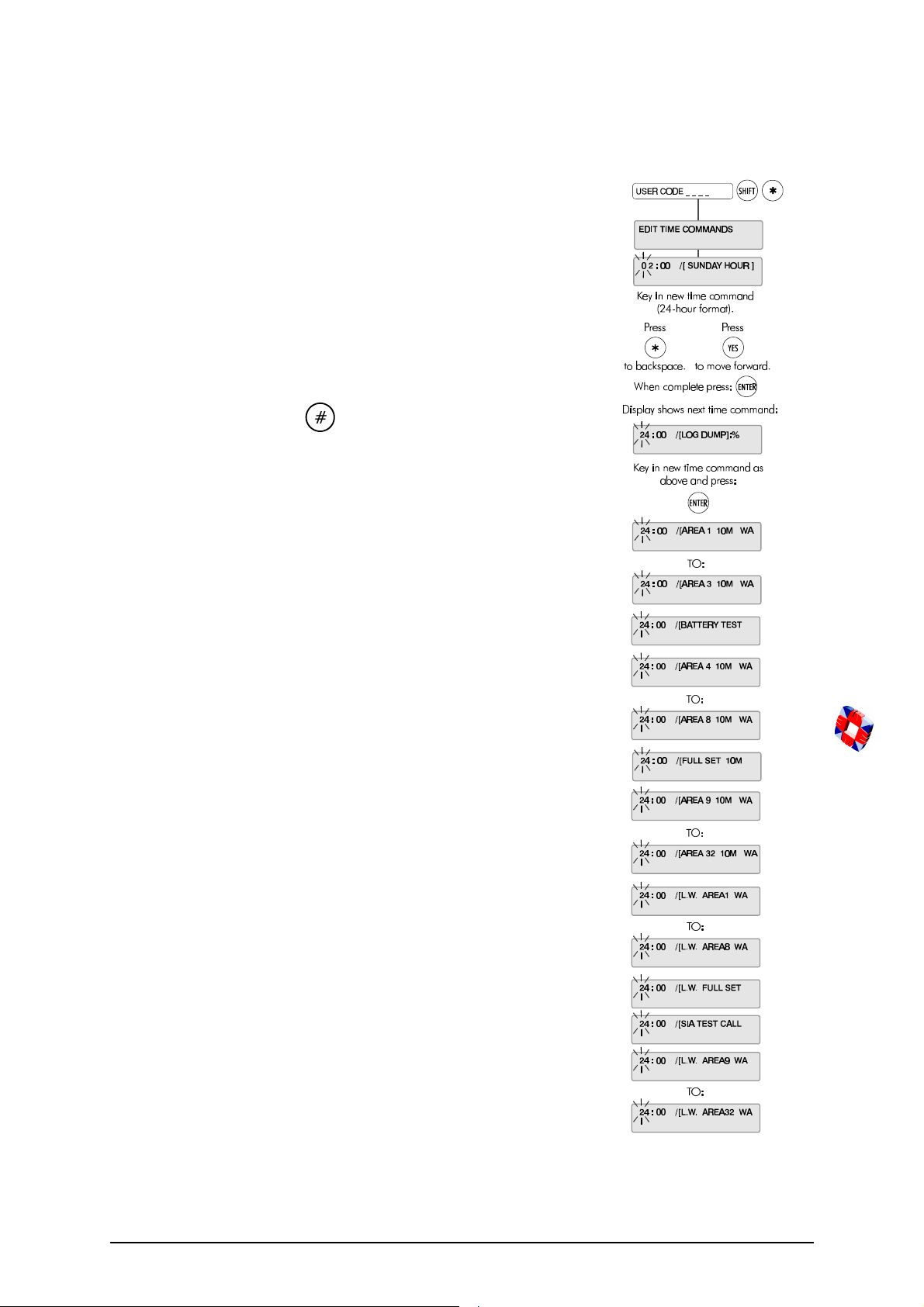

Edit Time Commands
3GS User Guide
User Guide
Edit Time Commands
An automatic time command is a programmed command string which
instructs the 3GS to execute a function at a pre-set time. For example,
the system could be instructed to automatically Full set the premises at
18:00.
Certain time commands are for installer use only, as indicated below.
The other commands are for Master User use.
This mode is a simplified "time command edit" function which allows the
Master User to modify the TIME at which the action will occur without
allowing alteration of the command.
The new time must be valid (24-hour format) or the procedure will not
continue.
After adjustment is made the key should be pressed to program
the new time into the system.
Movement forward and backward through the time strings is provided
by the UNSET and PART keys.
SUNDAY HOUR
Checks for Hour change on Sundays. Installer user only.
LOG DUMP
Sets dial-out variable for system to dial a remote PC/Printer. Installer user
only.
AREA 1 10M WARN to AREA 8 10M WARN
Automatic arming commands for Areas 1 to 8.
These commands (one for each block) start a 10-minute warning time (to
inform people that they must leave the building) after which time the
relevant area will arm.
BATTERY TEST
This command sets a time (1 per day) at which an automatic battery test
will be carried out. Installer user only.
FULL SET 10M WARN
Automatic arming command for the full system. Works in the same way
as the Area 10-minute Warning but in this case the full system will arm.
Late working time commands
These commands allow for late working on the premises. They will arm
the system/area if the first arming time command is cancelled. These are:
L.W. AREA1 WARN to L.W. AREA8 WARN
L.W. FULL SET WARN
E.g. AREA1 10M WARN may be set to 7pm and the L.W. AREA1 WARN
set to 9pm. Normally the first time command would arm the area 1 at
7pm. However, if the user cancels the first time command in order so
that he/she may work late then the first time command is ignored and
the system will be armed by the second time command at 9pm.
SIA TEST CALL
Sets a communication parameter. Installer use only.
35
Inhibit Zones/Doors
This option is used for temporarily isolating troublesome zones (doors,
windows, movement detectors, etc.) which may be preventing the
system from setting. Zones/doors may be inhibited singly or in blocks.
✍ The problem zone/door will be indicated on the display,
e.g. Zone 3 Tamper, Door 4 Open. Inhibit Mode
provides two identical sub-menus, for zones and doors.
Use the appropriate sub-menu to implement the
inhibit.
If zones/doors have been inhibited, on selection of FULL set mode, a
message will indicate how many are inhibited.
Selection of this option is logged by the system and an asterisk appears
beside the log entry to indicate the zone has been inhibited manually
(zone may also be inhibited via literal commands). The identity of the
user to select the option is also logged.
Inhibit Zones/Doors
Operation
Having entered the user CODE and then pressed the NO key, the
display will read "INHIBIT FROM 1". Enter the number of the first
zone to be inhibited followed by . The next displayed message
is "INHIBIT TO 1".
Enter the number of the last zone in the block to be inhibited. This
will be the same as the first zone if only one zone is required. After the
second parameter has been entered the display will show "n
INHIBITS" where n is the number of zones/doors inhibited) and the
buzzer will sound briefly before returning to UNSET mode displaying
the date and time.
The INHIBIT function can be re-entered any number of times to
inhibit more zones/doors, existing inhibited zones/doors will not be
affected.
Clear Inhibits
To clear inhibits, re-enter Inhibit Mode using the engineer code
followed by the NO key. The message "CLEAR ALL INHIBITS ?" will
appear in the display. Press YES to clear the inhibited zones. Press NO
to inhibit more zones or to view those zones which are already
inhibited.
36 3GS User Guide
User Option Assignments
3GS User Guide
User Guide
Unset/Reset
Part Set
Half Set
Full Set
Set Date/Time
Change own ID
User Setup
System Log
Hour Adjust
Inhibit Mode
User Option Assignments
Use these tables to record the options that have been assigned to the system users.
User
User Name (max. 24 characters)
No.
37
Area Descriptions
Use these tables to record the descriptions of the areas on your system.
Area no. Area Description (max. 24 characters)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
32
Area Descriptions
38 3GS User Guide
User Area Assignments
3GS User Guide
User Guide
User Area Assignments
Use this table to record the assignment of areas to users.
User name (max. 24 characters) User no.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Area Number
39
Area Number
User Area Assignments
User name (max. 24 characters) User no.
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
40 3GS User Guide
Typing Text
3GS User Guide
User Guide
Typing Text
This is a function normally carried out by the 3GS Installer. Ensure your 3GS system is configured with full
text descriptions for all alarm zones, areas, alarm users and access card holders before it is handed over.
Installer
Keypad
Overlay
41
Index
Index
Numerics
32-Area system 22
32-area v. standard alarm
system
10
3GS+ software
A
Accept All Alerts 8
Accept all alerts
how to
Access level
Adding a new RPA to
the system
Alarm on exit
procedure
Alarm v. Access logs
Alert messages
Area setup
Assigning IDs to cards
Assigning user options
B
Battery
for RPA unit
C
Call Service display 16
Card
Function level
Location
PIN code requirement
Range
Visitor level
voiding
Card information
Cards
Access level
Assign
Options
Change ID
Changing PIN code for a card
Changing user ID codes
Changing user names
Changing user options
Clearing zone inhibits
Coded Reset
Common Area
28
9
30
23
12
25
4, 9
22
28
20
26
30
31
31
30
30
31
32
30
28
29
18
19
21
20
36
16
15
31
D
Default codes 20
Door control, manual
Door Open menu
Door, inhibiting a
33
33
36
E
Edit Time Commands 35
Entry
12
Entry sequence 12
Entry/Entry Sequence
Exit sequence
12
12
F
Full Set 12
Function level
30
H
Half Set 11
Help menu
HOUR
Hour Adjust 34
6
35
I
Inhibit mode 36
L
LCD display 4
Learn cards procedure
LED functions
Locating a card on the system
Lock/Open Inhibits
Log, system
5
25
28
33
M
Manual door control 33
Menu options
6
N
Navigating the Help menu 7
Not Selected
10, 11, 12
P
Part Set 10
Passing Cards
Perimeter protection
Permanent/Momentary door
open
33
Printing the Log
Printing the log
30
11
25
25
31
R
Radio PA Assign 23
Radio PA Test
Radio PA Unit
Removing alert messages
Restore door menu
RPA unit
battery low
RPA unit descritpions
RPA unit options
26
23
4
33
26
23
24
S
Select cards procedure 28
Setting all areas
Setting areas
Setting date and time
Setting the system
Setup Cards
Site code
Summer/Winter hour change
System date and time
System Keypad
System Log
15
14
17
12
28
32
17
5
25
T
Testing the Radio PA units 26
Text entry
Typing text
41
41
U
Unable to set the system 13
Unset /Reset
Unsetting an area
Unsetting the system
User ID codes
User names
User Option Assignments
User reset procedure
User Setup
8
15
8
19
21
37
16
19
V
Viewing the log 25
Visitor level
Voiding Cards
30
31
Y
Year 2000 17
and 3GS systems
17
Z
Zone, inhibiting a 36
34
42 3GS User Guide
Loading...
