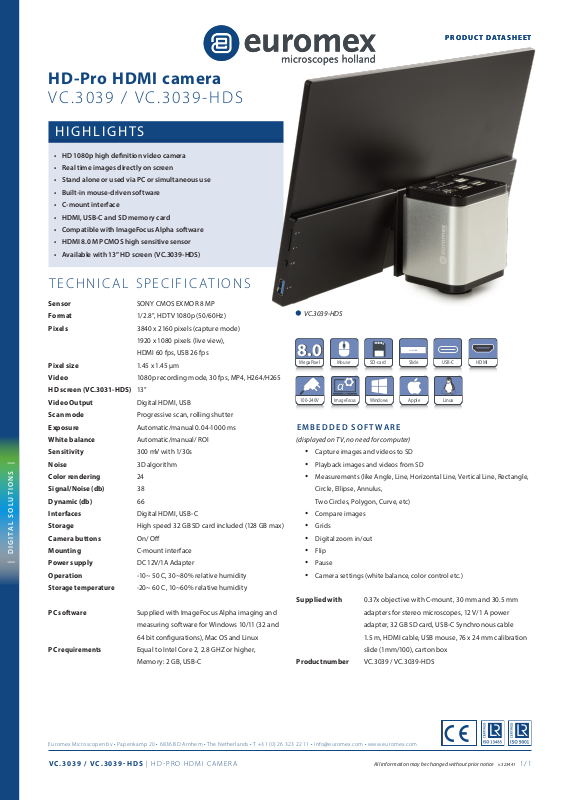

Euromex VC . 3039, VC . 3039 - HDS Data sheet [EN]

8.0

8.0

| DIGITAL SOLUTIONS |

HD-Pro HDMI camera

VC.3039 / VC.3039-HDS

HIGHLIGHTS

• HD 1080p high denition video camera

• Real time images directly on screen

• Stand alone or used via PC or simultaneous use

• Built-in mouse-driven software

• C-mount interface

• HDMI, USB-C and SD memory card

• Compatible with ImageFocus Alpha software

• HDMI 8.0 MP CMOS high sensitive sensor

• Available with 13” HD screen (VC.3039-HDS)

TECHNICAL SPECIFICATIONS

Sensor SONY CMOS EXMOR 8 MP

Format 1/2.8”, HDTV 1080p (50/60Hz)

Pixels 3840 x 2160 pixels (capture mode)

1920 x 1080 pixels (live view),

HDMI 60 fps, USB 26 fps

Pixel size 1.45 x 1.45 µm

Video 1080p recording mode, 30 fps, MP4, H264/H265

HD screen (VC.3031- HDS) 13 ”

Video Output Digital HDMI, USB

Scan mode Progressive scan, rolling shutter

Exposure Automatic/manual 0.04-1000 ms

White balance Automatic/manual/ ROI

Sensitivity 300 mV with 1/30s

Noise 3D algorithm

Color rendering 24

Signal/Noise (db) 38

Dynamic (db) 66

Interfaces Digital HDMI, USB-C

Storage High speed 32 GB SD card included (128 GB max)

Camera buttons On/ O

Mounting C-mount interface

Power supply DC 12V/1A Adapter

Operation -10~ 50 C, 30~80% relative humidity

Storage temperature

PC

software

Supplied with ImageFocus Alpha imaging and

PC

requirements

-20~ 60 C, 10~60% relative humidity

measuring software for Windows 10/11 (32 and

64 bit congurations), Mac OS and Linux

Equal to Intel Core 2, 2.8 GHZ or higher,

Memory: 2 GB, USB-C

PRODUCT DATASHEET

PRODUCT DATASHEET

VC.3039-HDS

1mm/100

MegaPixel

Mouse Slide

SD-card

USB-C

HDMI

α

100-240V

ImageFocus

Windows Apple

EMBEDDED SOFTWARE

(displayed on TV, no need for computer)

• Capture images and videos to SD

• Playback images and videos from SD

• Measurements (like Angle, Line, Horizontal Line, Vertical Line, Rectangle,

Circle, Ellipse, Annulus,

Two Circles, Polygon, Cur ve, etc)

• Compare images

• Grids

• Digital zoom in/out

• Flip

• Pause

• Camera settings (white balance, color control etc.)

Supplied with 0.37x objective with C-mount, 30 mm and 30.5 mm

adapters for stereo microscopes, 12 V/1 A power

adapter, 32 GB SD card, USB- C Synchronous cable

1.5 m, HDMI cable, USB mouse, 76 x 24 mm calibration

slide (1mm/100), carton box

Productnumber VC.3039 / VC.3039-HDS

Linux

Euromex Microscopen bv • Papenkamp 20 • 6836 BD Arnhem • The Netherlands • T [phone] • [e-mail] • www.euromex.com

VC.3039 / VC.3039-HDS | HD-PRO HDMI CAMERA

All inform ation may be chang ed without prior n otice

v.323441
