bScope®
fluorescence
Highlights
PRODUCT DATASHEETPRODUCT DATASHEET
PRODUCT DATASHEET
| LIFE SCIENCE |
• Medical device class I
• Trinocular models
• WF 10x/22 mm eyepieces
• Reversed ball-bearing quintuple nosepiece
with slot for polarization lter
• Plan IOS and Plan Fluarex IOS objectives
• Rackless integrated X-Y mechanical stage
• Epi-uorescence illumination with four monochromatic LEDs
• 3 W NeoLED™ adjustable transmitted illumination system
• Integrated carrying grip
• Cable Storage System and anti-theft system
• 10 years warranty
– EU MDR 2017-745
TECHNICAL SPECIFICATIONS
EYEPIECES
Wide eld HWF 10x/22 mm secured eyepieces (Ø 30 mm tube)
HEAD
The bScope® is equipped with a Siedentopf t ype head and equipped with 30°
inclined Ø 30 mm tubes and with a ± 5 diopter adjustment on left eyepiece. The
interpupillary distance is adjustable between 48 to 76 mm
The trinocular head comes with a Ø 23.2 mm photo tube, ensuring maximum
exibilit y. The prisms inside the heads are designed to minimize the light
absorption for perfect digital imaging. The trinocular head has a light path
selector (100:0 / 0:100) and generates an erect image
NOSEPIECE
Revolving and reversed ball-bearing quintuple nosepiece
OBJECTIVES
The state-of-the -art production techniques and multi layer coatings used
for the manufacturing of the bScope® objectives enable the bScope® to be
used for the most demanding applications. World class spherical aberration
correction and modern CNC and assembly technology ensure the perfect
centering of the objectives
Plan innity corrected PLi 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S60x/0.85
and S100x/1.25 oil immersion IOS objectives for applications where violet or
Ultra-Violet excitation is not needed
Plan Fluarex innity corrected PLFi 4x/0.10, 10x/0.25, 20x /0.40, S40x/0.65
and S100x/0.90 IOS objectives for applications where either higher resolving
power or violet or ultra-violet excitation is needed
BS.3153-PLi
TRINOCULAR MODELS
505 (h) x 195 (w) x 450 mm (d) | 8.8 kg
All S40x, S60 x and S100x oil immersion objectives are spring loaded.
All optics are anti-fungus treated and anti-reection coated for ma ximum
light throughput
FOCUSING
Double coaxial, low-positioned coarse and ne adjustments with 180
graduations. Precision 1.1 µm, 200 µm per rotation, total travel range is
approximately 19 mm. Supplied with an adjustable rack stop to prevent
damage to sample and objectives. The coarse adjustment is equipped with
friction control
STAGE
The bScope® is equipped with a scratch-resistant 152/197 x 131 mm stage
with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-
close removable specimen holder. The rackless stage has no protruding parts,
enables more smooth movements and is safer in use. Low-positioned X-Y
control knobs prevent fatigue during long working sessions
CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser
for brighteld comes with an iris diaphragm and swing-out lter holder
BSCOPE | FLUORESCENCE |
1/4
PRODUCT DATASHEETPRODUCT DATASHEET
PRODUCT DATASHEET
| LIFE SCIENCE |
CONDENSER FOR ZERNIKE PHASE CONTRAST
The height adjustable Zernike NA. 1.25 phase contrast disc condenser comes
with phase annuli for 10/20/S40x and S100x phase contrast objectives, an
iris diaphragm, a swing- out lter holder and also a BF position for brighteld
contrast. Phase contrast objectives are available in either EPL-PHi or PL-PHi
versions. Supplied with alignment telescope and green lter
CONDENSER FOR SIMPLE PHASE CONTRAST
The height adjustable NA. 1.25 simple phase contrast condenser has a free
slot for either a slider for 10/S40x phase contrast objectives, or a slider for 20/
S100x phase contrast objectives. The condenser has an iris diaphragm and
lter holder. The condenser includes a BF position for brighteld contrast
with an iris diaphragm and lter holder. Phase contrast objectives available
in either EPL-PHi or PL-PHi version. Supplied with alignment telescope and
green lter
POLARIZATION
The bScope® has an integrated slot above the nosepiece for an optional
polarization lter
FLUORESCENCE ATTACHMENTS
• Epi-illumination with four 5 W LEDs for uorescence excitation from 450 to
470 nm (blue), 515 to 535 nm (green), 390 to 400 (violet) and 360 to 370 nm
(ultraviolet). External 100-240 V power supply
• External 110 or 230 V
• Supplied with UV protection shield
• Fluorescence lter sets:
B 450-495
G 495-555
V 38 0- 415
UV 320-380
power supply
EX DM EM
505
515 ( LP)
580
595 (LP)
460
475 (LP)
420
435 (LP)
NEOLED™ TRANSMITTED ILLUMINATION
The 3 W adjustable Köhler NeoLED™ transmitted illumination is powered by
an internal 100-240 V power supply making it suitable for worldwide use.
The innovative NeoLED™ design oers larger apertures, allowing the optical
system of the bScope® microscope to produce images at higher resolutions,
very close to the theoretical diraction limit of the optics. Other benets
of the NeoLED™ is the low energy consumption, no heating and a long
operating life span
KÖHLER ILLUMINATION
A Köhler illumination ensures for all innity corrected IOS models the highest
possible contrast and the maximum achievable resolving power. Generates a
uniform illumination of the sample and eliminates all interference from dust
on lenses and side glare of the light source
CORDLESS USE
The optional rechargeable batteries turn the bScope® into a cordless system
for transmitted illumination
CSS CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the
instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe
transportation of the microscope
ANTITHEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can
be used to secure the instrument from theft
PACKAGE CONTENT
Smart styrofoam packaging ensures a low environmental footprint while
maintaining maximum safety during transport. Supplied with power cord,
dust cover, tools, a spare fuse, white lter, user manual and 5 ml
immersion oil
BSCOPE | FLUORESCENCE |
2/4
PRODUCT DATASHEETPRODUCT DATASHEET
PRODUCT DATASHEET

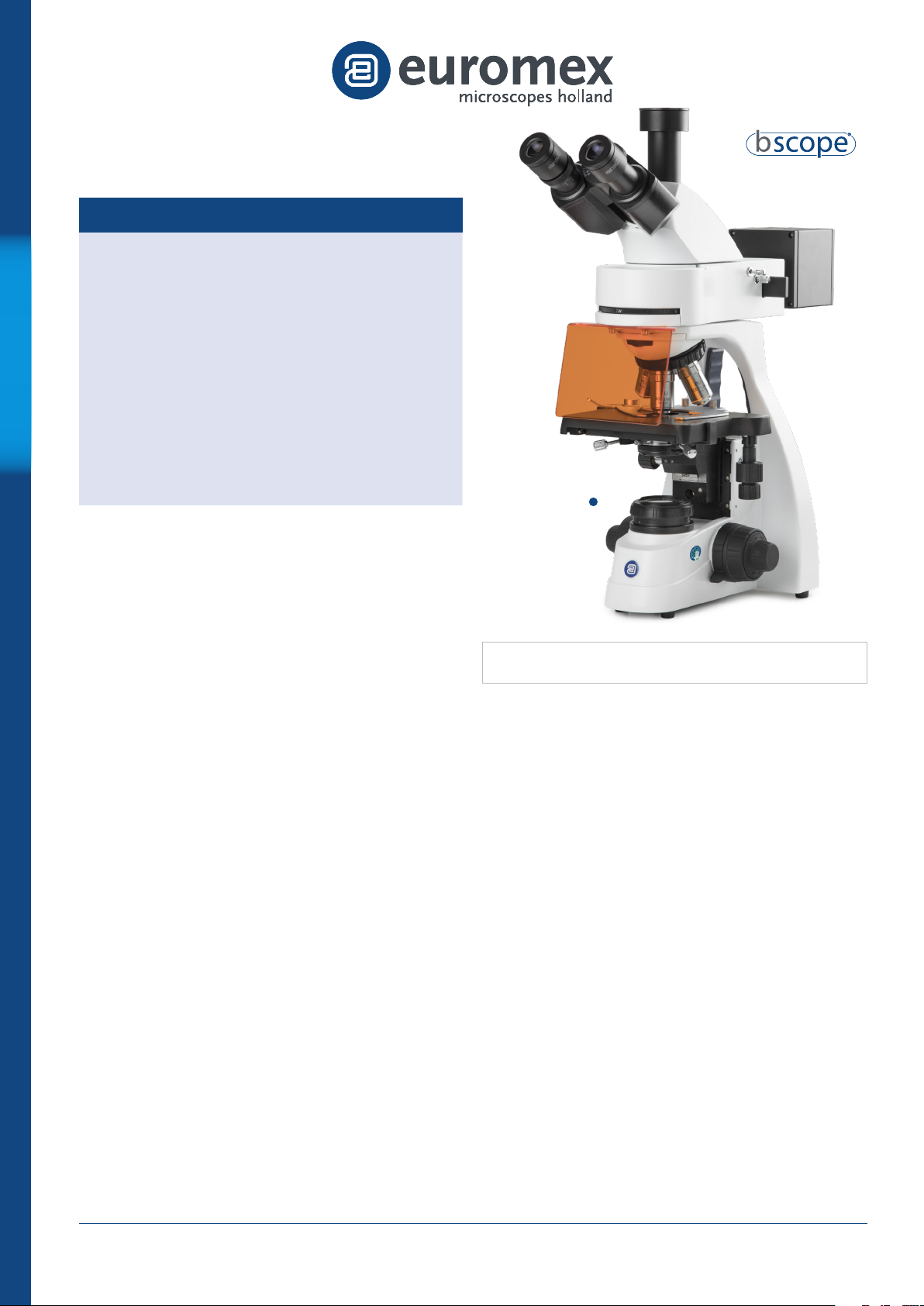

BSCOPE® WITH EPIFLUORESCENCE 4 LED ILLUMINATION BLUE, GREEN, VIOLET AND ULTRAVIOLET
| LIFE SCIENCE |
MODELS
BS . 3153 -PL i
BS . 3153 -PL Fi
(1)
The Plan Fluarex innity corrected IOS objectives are recommended for applications
Trinocular HWF 10x/22 mm eyepieces Quintuple nosepiece
Plan PLi 4/10/S40/ S100x
• • •
• • •
either higher resolving power or violet or ultra-violet excitation is needed
ACCESSORIES AND SPARE PARTS
EYEPIECES
BS.6310 WF 10x/22 mm eyepiece
BS.6310- M
BS.6315 WF 15x/12 mm eyepiece, Ø 30 mm tube
BS.6399 Pair of eyecups, Ø 30 mm tube
OBJECTIVES
BS.8404 Plan PLi 4x /0.10 IOS objective. WD 21.0 mm
BS .8410 Plan PLi 10x/0.25 IOS objective. WD 5.0 mm
BS.842 0 Plan PLi 20x/0.40 IOS objective. WD 8.8 mm
BS.8440 Plan PLi S40x/0.65 IOS objec tive. WD 0.66 mm
BS.8400 Plan PLi S100x/1.25 IOS objective (oil). WD 0.36 mm
86.550 Plan Fluarex 4x /0.15 IOS objective. WD 21.6 mm
86.552 Plan Fluarex 10x/0. 35 IOS objective. WD 2.9 mm
86.554 Plan Fluarex 20x/0.60 IOS objective. WD 1.5 mm
86.556 Plan Fluarex S40x/0.75 innity corrected IOS objective.
86.558 Plan Fluarex S100x/0.90 IOS objective. WD 0.62 mm
BS.74 00 Plan Fluarex S100x/1.30 IOS objective (oil). WD 0.13 mm
WD = working distance
WF 10x/22 mm eyepiece
WD 0.6 mm
Quintuple nosepiece
Plan Fluarex PLFi 4/10/S40/ S100x
(1)
CONDENSERS
BS. 9102 Abbe condenser 1,25 NA with slot for darkeld and phase contrast
sliders
BS .9170 Darkeld stop for BS.9102 condenser
BS. 9105 Swing-out Abbe condenser 0.9/1.25 NA
PHASE CONTRAST ATTACHMENTS
BS .9120 Zernike phase contrast kit with E-plan EPLPHi 10/20/S40 and S100x
oil phase contrast IOS innit y corrected objectives, Zernike rotating
condenser, telescope and green lter
BS .9126 Zernike phase contrast kit with plan PLPHi 10/20/S40 and S100x oil
phase contrast IOS innity corrected objectives, Zernike rotating
condenser, telescope and green lter
BS .9148 Alignment telescope for bScope® IOS version
with Ø 30 mm tubes
BS .9159 Phase contrast kit with Abbe condenser with slot for slider. E-plan
EPLPHi 20/S100x phase contrast innity corrected objectives, slider
with 20 and 100x annuli, telescope and
green lter
BSCOPE | FLUORESCENCE |
BS.3153-PLi
3/4
| LIFE SCIENCE |
BS. 9163 Phase contrast kit with Abbe condenser with slot for slider. Plan
PLPHi 20/S100x phase contrast innity corrected objectives, slider
with 20 and 100x annuli, telescope and green lter
POLARIZATION ATTACHMENTS
BS.9647 Polarization polarizer Ø 6 mm for slider under bScope® head
BS.9651 Polar
ization attachment for lamphouse of bScope® with 360° scale
MISCELLANEOUS
BS.9993 NeoLED™ replacement unit
AE .1370 Set of rechargeable batteries, three pieces
SL .1385 100 W HBO mercury vapor lamp for uorescence
AE.5226 Glass fuses 3A 250V, 10pcs
CAMERA ACCESSORIES
AE.5130 Universal Ø 23.2 mm tube adapter with built-in 2x lens for SLR
photo camera with APS- C sensor. Needs T2 adapter
AE.5025 T2 adapter for Nikon D SLR digital camera
AE.5040 T2 adapter for Canon EOS SLR digital camera
PRODUCT DATASHEETPRODUCT DATASHEET
PRODUCT DATASHEET
DISPOSABLES
PB .5155 Microscope slides 76 x 26 mm, ground edges, 50 pieces
PB.5157-W Microscope slides 76 x 26 mm, ground edges. White frosted side, 50
pieces per pack
PB .5157 -B Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50
pieces per pack
PB.5165 Cover glasses 18 x 18 mm, thickness 0.13-0.17 mm, 100 pieces
PB. 5168 Cover glasses 22 x 22 mm, thickness 0.13-0.17 mm, 100 pieces
PB.52 45 Lens cleaning paper, 100 sheets per pack
PB.52 55 Immersion oil (25 ml). n = 1.482
PB .5274 Isopropyl alcohol 99% (200 ml)
PB. 5275 Cleaning kit: lens cleaning uid, lint free lens tissue/paper, brush, air
blower, cotton swabs
PB. 5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush,
6 pcs screwdriver set, air blower, 3 pcs Allen key, 1.5, 2, 2.5 mm,
lens cleaning uid 20 ml, cleaning cloth 140 x 140 mm, 100 pcs
lens tissue sheets, tube of maintenance grease, 10 ml bottle of oil,
packed in a nice toolbox
BS.3153-PLi
