GENERAL INFORMATION

Getting to know your new cooker

Thank you for choosing one of our products.
Our cookers are of simple , rational design. They are
constructed to the best standards to ensure good
service and outstanding safety.
Please read this manual carefully; it will provide all the
advice needed to allow you to obtain the best results
from the very first day.

ATTENTION:

- Before using the appliance, do not forget to remove the
protecting parts of the appliance.

WHEN YOU CALL FOR SERVICE

When you call for service or order parts for your unit, be
sure to give:

1. MODEL

2. SERIAL NUMBER

3. COLOUR

4. PART NAME and/or description of problem

5. YOUR FULL NAME, ADDRESS , and HOME TELEPHONE

NUMBER and BUSINESS TELEPHONE NUMBER IF
APPROPRIATE.

POSITIONING

Important: Fix the chain located next to the gas connection on
both sides of the cooker to the wall to prevent the cooker from
tilting. Both chains must be securely fixed.
Make sure that the wall surface behind the Cooker is non­combustable (will not catch fire).
Where a painted surface is adjacent, a fire ret ardent paint surface
is recommended. Wallpaper, wood, or fabric should not be used
behind or next to the cooker.
“Any adjoining wall surface situated within 200mm from the edge
of any hob burner must be a suitable non-combustible material
for a height of 150mm for the entire length of the hob. Any
combustible construction above the hotplate must be at least
650mm above the maintop.” Ensure that a power and gas supply
are nearby. The Cooker should be located carefully so that the
heat produced by it has plenty of space to escape. The diagram
below shows an ideal configuration.

PROVISION FOR VENTILATION

INSTALLATION

The room where the Cooker is installed should have permanent
ventilation as follows:
“Ventilation must be in accordance with AS5601/AG 601 - Gas
Installations. In general, the appliance should have adequate
ventilation for complete comb ustion of gas, proper flueing and to
maintain temperature of immediate surroundings within saf e limit s .”

- Do not install in a bed-sitting room, a bathroom or sho wer room.
If there is another fuel burning appliance in the same room, a
higher level of ventilation will be required, you should consults
" the safety requirements".

In addition to the abov e , during prolonged use , opening a window
in the same room is recommended. This will avoid the build up
of excessive moisture and condensation.

ENVIRONMENTAL WARNING
Waste packaging

Do not throw the p ac kaging of your appliance into the dustbin,
but pick out the dif f erent materials (f or inst ance f oil, p aperboard,
polystyrene) according to the local rules for rubbish elimination.

This appliance must only be used for the purpose of domestic
cooking.

min. 20mm

min.100 mm

min. 50 mm min. 50 mm

min. 650 mm

min. 400 mm

min. 20mm

OVERALL DIMENSIONS

SECTION FOR THE QUALIFIED TECHNICIAN

OVERALL DIMENSIONS

895

1450/1500

610

100

850/900

910/960

“If the cooker is being fitted next to cupboards or adjoing wall
surfaces, which are within 200mm from the edge of the hob
burner and of a suitable non-combustible material as specified
in AS5601, ensure that a total gap of at least 12cm is left
between the edge of the cooker”.

This gap could be split equally,
i.e. 6cm on each side, or unequally, to suit circumstances. This
is to allow plenty of space for the heat produced by the hob to
escape at each side of it.

Note:

The cooker is fitted with 4 legs for an eventual alignment in height
with the furniture. To assemble them, it is necessary to raise the
cooker and to screw the four legs into the suitable threadings
placed on the corners on the bottom of the appliance .

• WARNING -Accessible parts will become hot when in use.
To avoid burns and scalds children should be kept away.

3

SPECIAL NOTE

After installation or any servicing operation, always ensure that
the appliance is gas sound and that the components are now
operating correctly. Items removed during
servicing should be replaced in the reverse
order to their removal.
In order to change the work-top injectors,
it is necessary to act as follows:

- remove the grids

- remove burners
and flame-spreaders.

GAS CONNECTION

Should conform to gas utility regulations e.g. AS5601 Gas
installations; also refer to rangehood manufacturers
recommendations.
Check gas pressure, note the correct setting from the data plate
sealed inside the front appliance drawer .

This appliance from the factory suitable for NATURAL gas bit, if
necessary, can be adjusted for U-LPG by authorised person.

*

IT IS RECOMMENDED THAT A SERVICE TAP AND UNION BE
FITTED ADJA CENT TO THE APPLIANCE INLET T O FACILITATE
FUTURE SERVICING.

5 burner models: set the burner pressure to 1kPa for Natural Gas
and 2.75kPa for U-LPG with the wok burner operating a full r ate’.
Apply a manometer to the test nipple and reset the regulator if
necessary. Do not forget to replace the test nipple screw and to
leave the instructions book with the user.

VERY IMPORTANT FOR THE INSTALLER

Do not attempt to turn or stress threaded elbow of the manifold:
you risk damage to this part of the gas appliance which may v oid
the manufacturers warranty.

Before Leaving - Check all connections for gas leaks with soap
and water. DO NOT use a naked flame for detecting leaks. Ignite
all burners to ensure correct operation of gas valves, burners and
ignition. Turn gas taps to low flame position and observe stability
of the flame.
When satisfied with the cooker, please instruct the user on the
correct method of operation.
In case the appliance fails to operate correctly after all checks
have been carried out, refer to the authorised service provider in
your area.’

GAS CONVERSION AND ADJUSTMENT

When used with natural gas all burners have been preset at our
factory and further adjustment should not be necessary. Con v ersion
kits to other gases are available from the place of purchase. Do
not attempt to fit the conversion kit yourself. Conversion to U-LPG
gas should only be carried out by an authorized technician.

GAS ADJUSTEMENTS

- change the injectors

- adjust the minimum flow
‘When converting from Natural Gas to U-LPG ensure that
the NG regulator is removed and replaced with the Test Point
Assembly. A gas regulator suitab le f or a supply pressure of 2.75kPa
should be part of the gas tank supply and should be adjusted with
the wok burner operating at maximum.

REPLACEMENT OF THE INJECTORS

When required to operate on other gas replace the injectors in
accordance with information referred to in chart below.

TO FIX THE COOKER TO THE REAR W ALL

This is required for safety reasons.
The cooker is equipped with 2 chains fixed in the upper part of the
rear right and of the rear left side (see Fig. A - position 1 and 2).
These 2 chains enable to fix the cooker to the rear wall.
To fix the cooker, act as follows:

1. By means of a drill make 2 holes with a diameter of 6mm in the
wall as in Fig. B - position F (with a distance between them as
per Fig. A position 1 and 2).

2. Put in these two holes part. R, then screw part. G (which are
provided with the cooker) (see Fig. C).

3. Bring the cooker near the wall and put the chains on hooks G
as in Fig. D - position C.

other relevant statutory code band regulations. If you have some
doubts, please contact the authorities for confirmation concerning
the characteristics of the gas and electricity output.
The appliance is generally preset for natural gas (so no other
adjustment is necessary) ensure regulator is fitted for N.G.
Ensure that all foreign matter has been cleared from the gas
supply line and also purge all air from the gas system. Connect
to regulator, tighten and check the installation to ensure no gas
leaks occur.

TAB. 1 should be modified as follows:

accordance with the manufacturer’s installation instructions,
relevant local fitting regulations, municipal building regulations,
the AS5601 code for gas burning appliances and equipment and

and 695mm from the floor (depends on adjustment of feet).
The appliance shall be installed by an authorized person in

For the adjustments to U-LPG please operate as specified in the
paragraph GAS CONVERSION AND ADJUSTMENT (pag 4).
The Gas Connection is male 1/2" BSP and is situated at the right
hand rear of the appliance, approximately 40mm from the side

Fig. C

wall

R

G

Fig. A

86 cm +/- 5

20 mm +/- 3

20 mm +/- 3

Position

2

Position

1

chain

This appliance can be connected with rigid pipe as specified in
AS5601 table 3.1 or with a Plumbezy Flexible hose, AGA Approval
number 6196, 10mm ID, class D and between 1-1.2m long in
accordance with AS5601 for a 'high level connection'.
If connected with a flexible hose, the restraining chain supplied
fitted to each side of the cooker must be fixed to the wall as follows:

1. Drill 2 holes in the wall approximately 100mm up from the floor
to line up with the holes in position 1 & 2 above.

2. Insert part R (above) in each hole and screw in part G into each
part R.

3. Fix the chain to part G
at position D (chain
should also be fixed at
position C to prevent
cooker tilting) as shown
in Fig. D. Ensure that the
chain prevents stress on
the hose assembly when
the cooker is moved out
of its normal operating
position.

Gas Type kPa Jet mm Ø Burners Power MJ/h

Natural 1.00 0.90 Auxiliary 4.0

1.20 Semi-quick

7.1

1.50 Quick 11.0

U - LPG 2.75

0.53 Auxiliary 3.7

0.73 Semi-quick 7.0

0.95 Quick 11.7

NG Regulator

LP Test point

adaptor

Regulator

1.55 Triple Crown 12.1

0.95 Triple Crown 11.7

Fig. D

position D

position C

wall

86 cm +/- 5

20 mm +/- 3

Position F = Hole
ø 6 mm

Fig. B

4

- change the injector (see Fig. C) and replace it with another one
suitable for the new type of gas (see tab. 1)

Fig. C

Fig. 1

MINIMUM FLOW ADJUSTMENT FOR HOB-TOP TAPS

In order to adjust the minimum flame setting proceed as follows:
switch the burner on, and set the knob at the minimum position
. Remove the knob from the t ap, place a small bladed scre wdriv er
down the centre of the tap shaft (fig. 1).

Unscrew the adjusting scre w in order to increase the flow or scre w
it to decrease the flow.
The correct adjustment is obtained when the flame has a length
of about 3 or 4 mm.
For butane/propane gas, the adjusting screw must be screwed
in thigt.
Make sure that the flame does not go out turning quickly from the
max. flow to the minimum flow .
Refit the knob again.

ELECTRICAL CONNECTION

‘In order to avoid hazard, any electrical work performed on this
equipment or its associated wiring, should only be done by persons
authorised by the supplier or similarly qualified persons.’

2nd SECTION FOR THE USER

WARNING:

Children should be kept away while the oven or grill is in use
since accessible parts become hot.

- Do not use oven base panel as a shelf, make use of the oven
shelves.

- To avoid splattering and smoke, position collecting tray under
the grill with some water in it.

- Always turn pan handles to the side or to the back of the hob.
If they are left out into the room they can easily be hit or reached
by children, this knocking the pan off the hob.

- Don’t let children sit down or play with the oven door. Do not
use the drop down door as a stool to reach above cabinets.

- Once your cooking is over make sure to close the main gas
supply.

WARNING

* This appliance is not intended for use by young children or

infirm persons without supervision.

* Young children should be supervised to ensure that they do

not play with the appliance.

WARNING

Before you use the appliance for the first time, check that the
plastic films protecting some parts (fascia panel, parts in stainless
steel, etc.) have been removed.

BURNERS PANS

fl min. fl max

AUXILIARY 80 mm 160 mm
SEMI-RAPID 120 mm 200 mm
RAPIDE 200 mm 230 mm
TRIPLE CROWN 230 mm 260 mm

- 1 Minute Tour -

Be safe

Please read the rest of the instruction book which contains
important information to help you use the appliance safely and
efficiently.

Gas and Electricity on

Make sure that the gas supply is turned on and that the appliance
is plugged in and switched on. The ignitor needs electricity.
In case there is no electric current, the burner can also be lighted
using a match.

It is recommended that pans suitable to the size of the burner
should be used as follows:

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE
WHILE IT IS IN OPERATION.

Electric..................1.5mm2 3 core cable (15 amp fuse required)

WARNING: THIS APPLIANCE MUST BE EARTHED
Connecting the mains cable

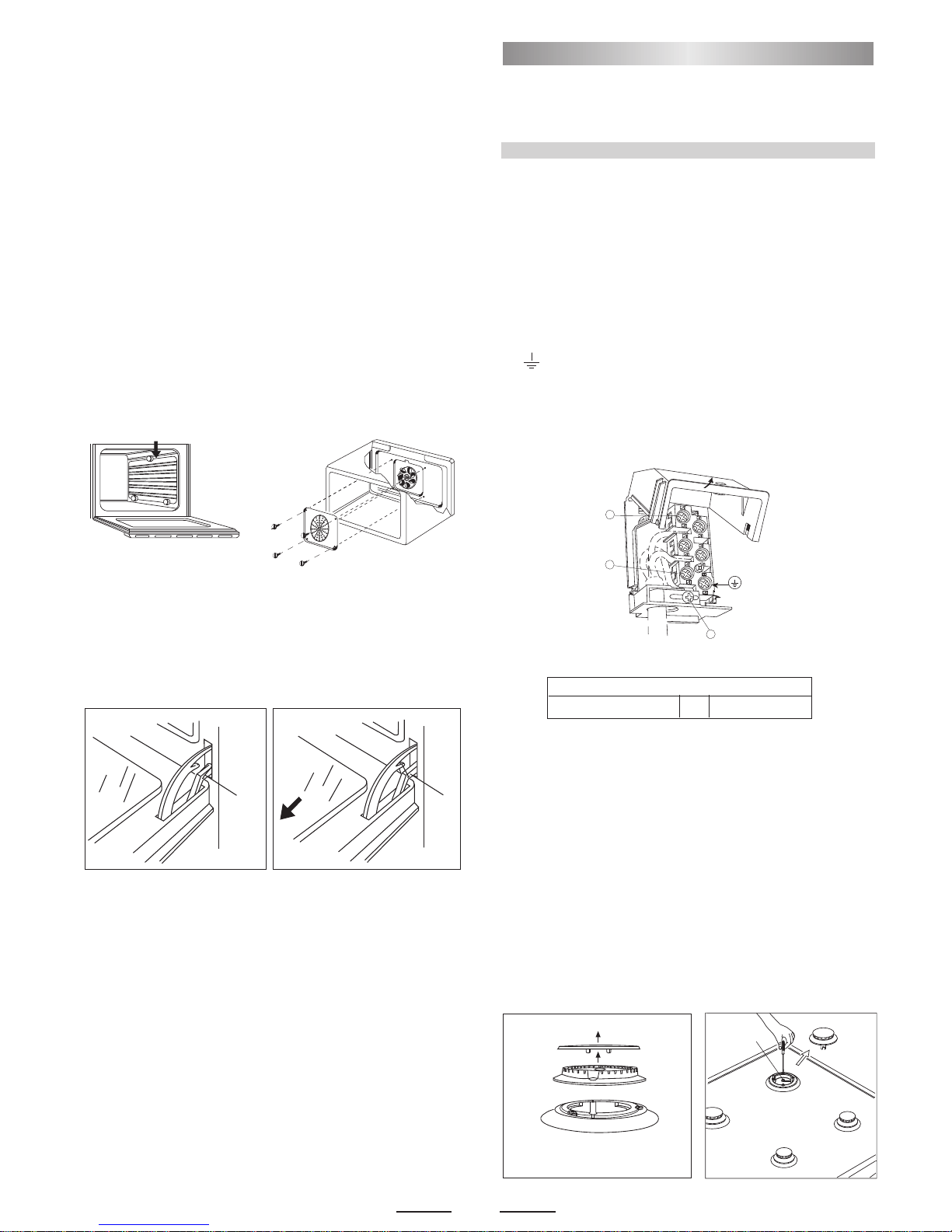

Open the mains terminal block co v er as sho wn, unscre w the cable
clamp «A» and unscrew (not fully) the scre ws in the mains terminal
block «L N E» which secure the three wires of the mains cable.
Fit the cable and refit the cable clamp «A» (fig. N) .

IMPORTANT

The wires in the mains lead are coloured in accordance with the
following code:

GREEN & YELLOW.........................................................EARTH

BLUE...........................................................................NEUTRAL

BROWN ...............................................................................LIVE

The supply cable must not come into contact with any component
the temperature of which exceeds the ambient temperature by
50°C.
Easy access to the plug or the switch is ensured once the appliance
is installed.
Ensure that there is sufficient cable allowed for any subsequent
removal of the unit.

5

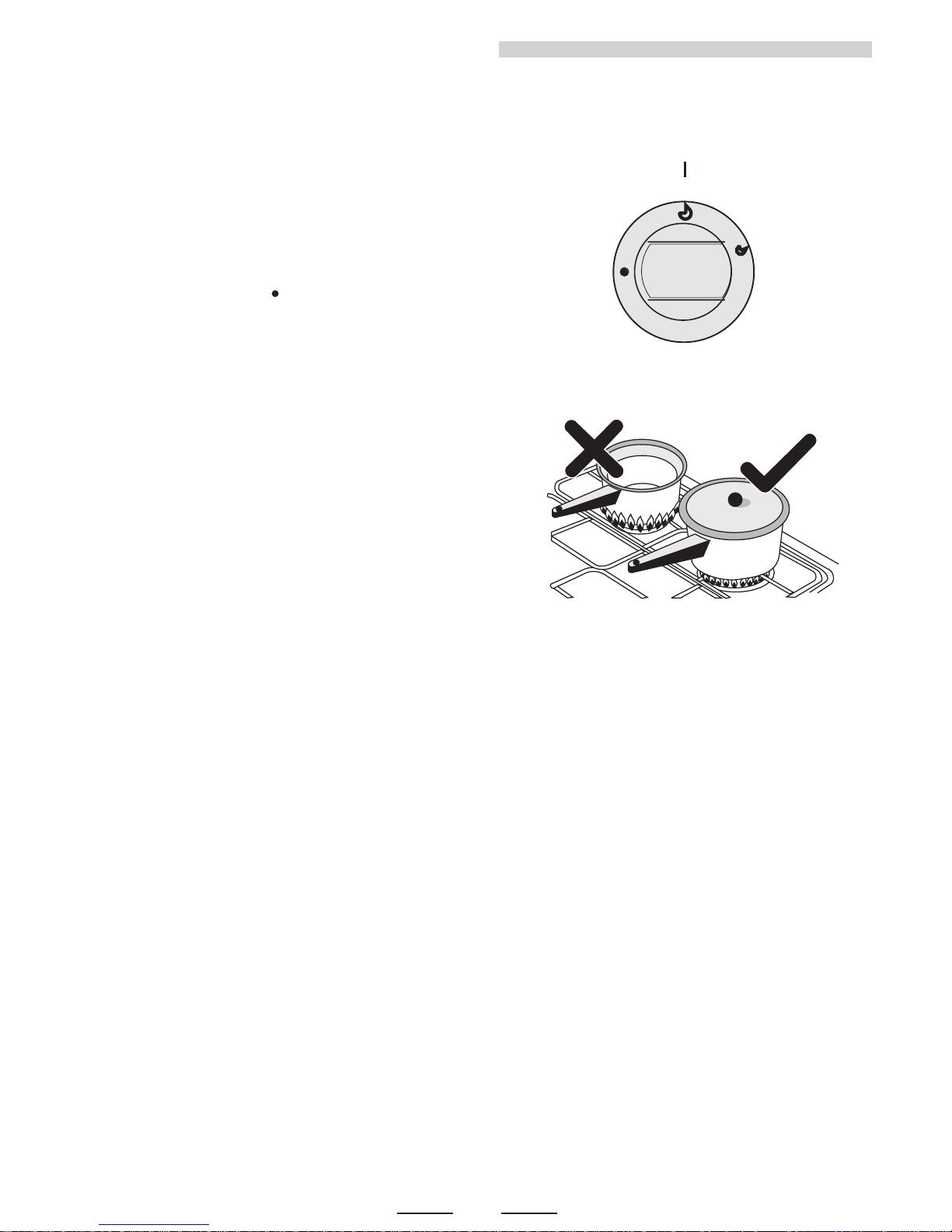

The small flame indicates the ‘low position’.
Turn the knob to it after the contents of a pan have boiled.

The smaller burners are for smaller pans and simmering. Make
sure flames are under the pans. Using a lid will help the contents
boil more quickly.

Always use pans with a flat base diameter, which are well balanced
and stable in use, a pan which overhangs the hotplate should not
be used. Avoid using old, misshapen pans, or pans which are
unstable when placed on a flat surface. Do not use “split pans”
as they are inherently unstable.
To save gas, always position pans centrally over the burners and
adjust the flames so that they do not lick up the sides of the pan
and only the base is heated. Always put lids on saucepans and
boil only the amount of liquid you use. When the liquid has boiled
adjust the setting to maintain a simmer. Do not light the burner
until the pan is in position and turn off the burner before removing
the pan. In hard water areas, descale kettles regularly. For safety,
keep saucepan handles turned to a safe position so they are out
of reach of small children and cannot be accidentally knocked.

To tunr the burner OFF, turn the control knob clockwise to the
OFF setting (marked with a dot )

WARNING

It is not recommended to press push button for ignition if all the

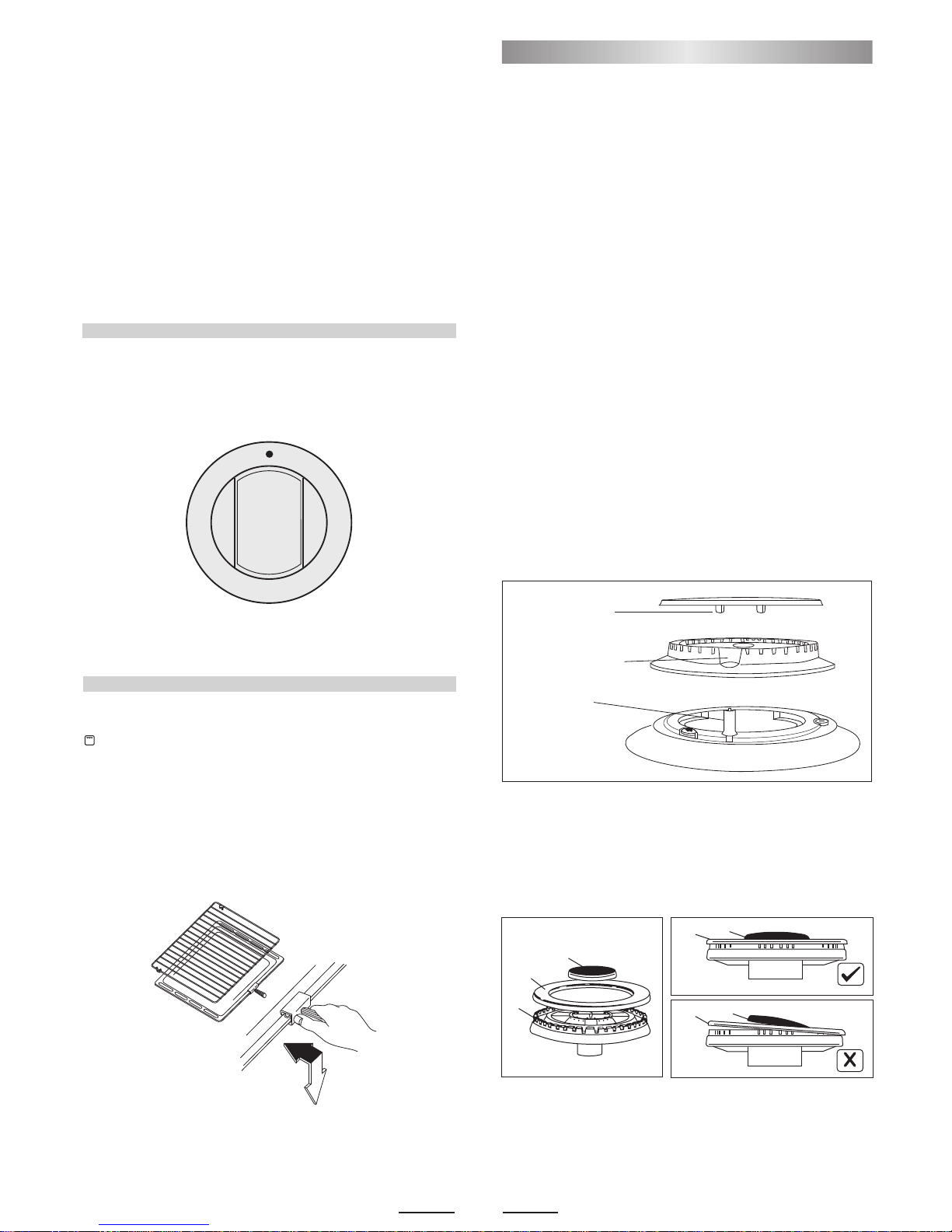

burners are not located in the proper positions. The burner heads,
burner skirts and pan supports are removable for better cleaning:
Always ensure that the burner skirts and heads are replaced
correctly so that the burners function safely and correctly.
During the use of the appliance pay attention that water or any
liquid does not enter into the appliance through the holes of the
burners or around the rods of the valves or the push button
electronic lighter.
Water or juice will produce dangerous short-circuits and can
seriously damage the working of the Hotplate.

Automatic electric ignition

To turn on a burner, press the knob corresponding to the
selected burner and turn it anticlockwise to the maximum
position. Keeping the knob pressed, the electric automatic
ignition of the burner will be started up. In case there is not
electric current, the burner can also be lighted using a
match.

6

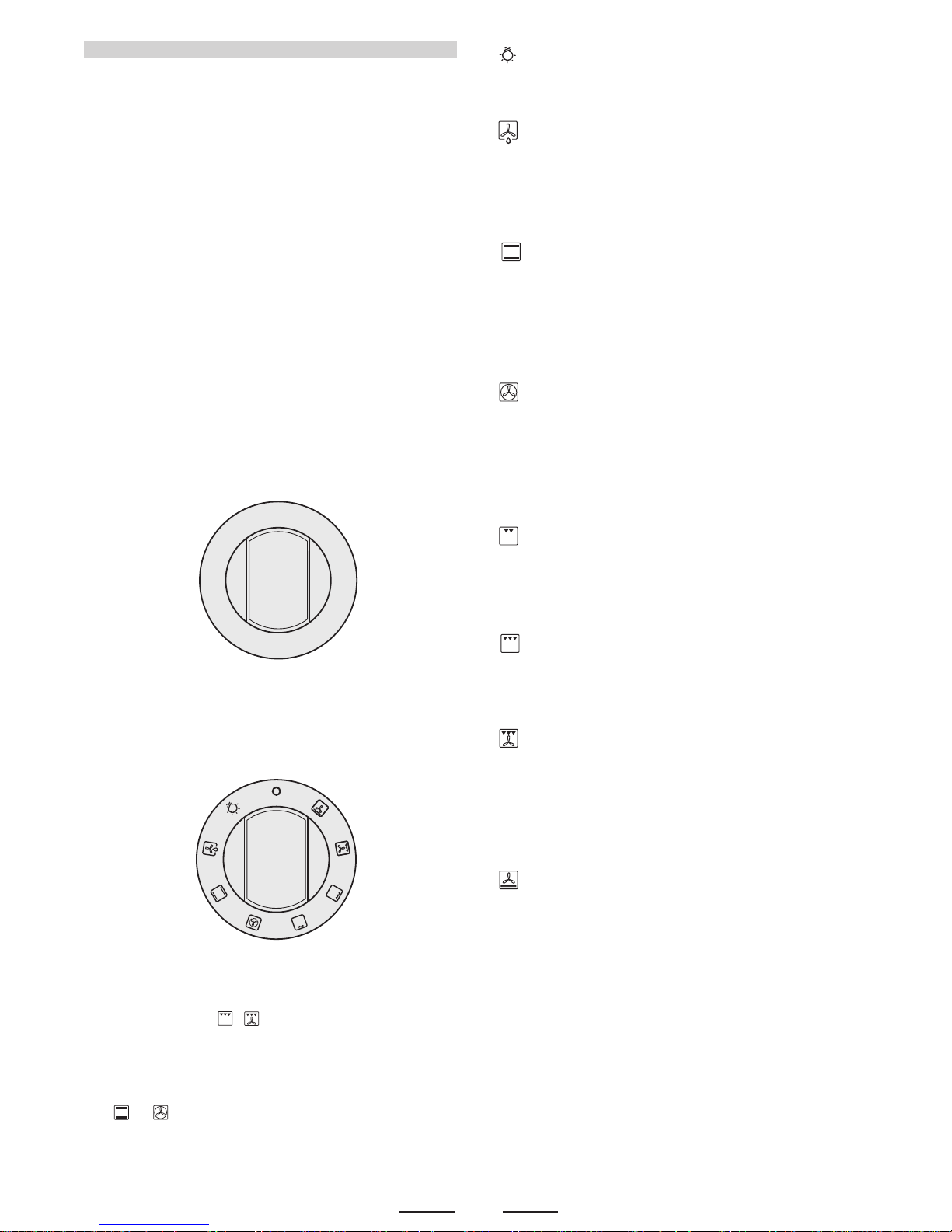

Oven commutator knob

Depending on the type of oven, it is possible to select one of the
following functions turning the commutator knob clockwise.

Note:

All the functions mentioned under switch the oven internal light on. A
warning light on the control panel will stay lit until the temperature is
reached; after it will light up intermittently.

Always use the oven with the oven door closed.

Use of the oven

Note: ovens with separate thermostat and commutator.
When the functions are used, place the thermostat
knob between 180 ÷ 200°C as maximum temperature.

ATTENTION:

The temperature shown on the control panel corresponds to the
temperature in the oven centre only when the functions selected
are or .

MULTIFUNCTIONAL OVEN

The oven is fitted with:

• a lower heating element;

• an upper heating element;

• a circular heating element surrounding the fan.
N.B.: Always set the temperature on the thermostat knob before
selecting any of the functions.

Oven thermostat knob

To obtain an oven temperature between 60°C and MAX°C, turn the
knob clockwise.

HOW TO USE YOUR ELECTRIC OVEN

- Before cooking in the first time we reccommend that the oven
should be operated at 200° C for 30 minutes to remove any
manufacturing greases and odours.

- Do not place items or pan directly on to the oven botton.

- Foil should only be used to cover food and not oven shelves or
party of the oven. When used improperly will obstruct the air
circulation causing problems in cooking and/or harmful accidents.

60

80

100

125

150

175

200

225

max

Natural convection

Both the lower and upper heating elements operate together.
This is the traditional cooking, very good for roasting joints, ideal
for biscuits, baked apples and crisping food.
You obtain very good results when cooking on a shelf adjusting
the temperature between 60 and MAX°C.

Fan oven

Both the fan and the circular heating element operate together.
The hot air adjustable between 60 and MAX°C is evenly distributed
inside the oven. This is ideal for cooking several types of food
(meat, fish) at the same time without affecting taste and smell.
It is indicated for delicate pastries.

Medium grill

It is indicated for grilling and gratinating small quantities of traditional
food.
The thermostat knob must be placed on the maximum position.

Total grill

It is indicated for grilling and gratinating traditional food.
Turn the thermostat control knob to the 200°C position.

Fan assisted total grill

The air which is heated by the grill heating element is circulated
by the fan which distributes the heat on the food.
The fan assisted grill replaces perfectly the turnspit. Y ou can obt ain
very good results also with large quantities of poultry, sausage,
red meat. Turn the thermostat control knob to the 200°C position.

Air forced lower heating element

The air which is heated by the lower heating element is circulated
by the fan which distributes the heat on the food.
This function can be used to sterilize food. This function can be
used between 60 and MAX°C

When you turn the control knob to this position, the light will be
on for all the following operations.

Defrosting with fan

The air at ambient temperature is distributed inside the oven for
defrosting food very quickly and without proteins adulterations.

7

PLATE WARMING

Ovenproof plates and dishes may be warmed in the oven on a
low temperature setting. Remember do not place items directly
into the oven base.

Warning: do not use foil to cover the oven shelves, or any part

of the oven interior including the oven base. Foil should only be
used to cover food and cooking dishes. Always place items which
may boil over (e.g. fruit pies) on a baking tray to prevent spillage
burning onto the oven base. Foil used improperly is frequent cause
of oven problems and painful accidents. Avoid letting grease
deposit collect around the upper heating element: it will cause
smoking and may start a fire.
Remember do not place pan or items directly onto the oven base.
Never leave unit unattended at hight heat settings. Boil over
causes smokingand greasy spill over that may start a fire.
If a grease fire should occur in a pan put out the flame by placing
a lid on the pan. Do not throw water on a grease fire.

GUIDE FOR FORCED CONVECTION COOKING
(Back rolled electric element with fan)

The accessories provided with the oven can be slotted in at 5
positions: the following guide concerns cooking times and thermostat
settings using N. 2 shelves on the same time (in position N. 2 and
N. 4). Cooked results are a matter of personal preference and may
easily be adjusted to suit individual requirements by slight adjustment
of the temperature and/or cooking time, or when using more or
less shelves in the same time. Preheating of the oven is
recommended for 10-15 minutes or until the oven thermostat
indicator light switches off to show the selected temperature has
been reached.
When using a baking tray it should be placed centrally on the oven
shelf with the short sides of the tray parallel to the sides of the
oven. Do not use trays, tins or dishes larger than 380mm (15")
long, 356 mm (14") wide, as cooking results may be impaired.

Food Thermostat Shelf Position Cooking Time

setting °C

(Counted from Bottom)

Small cakes (12 on tray) 195 3 20 - 30 mins.
Victoria sandwich 190 3 25 - 35 mins.
(2x7"/180mm)
Swiss roll or whisked sponge 200 3 20 - 25 mins.
Fruit cake (8"/205mm) 155 2 2 - 3 hours.
Scones 260 3 10 - 20 mins.
Meringues 95 2 2 - 3 hours.
Shortcrust Pastry 210 3 25 - 45 mins. depending
Puff or Flaky Pastry 220 2 20 - 35 mins. upon
Choux Pastry 220 3 25 - 35 mins. dish
Biscuits 200/220 3 15 - 25 mins. depending upon type
Bread 250 2 30 - 40 mins.
Milk pudding 165 2 1 H - 2 hours.
Pizza 270 3 25 mins.
Lasagne 170 3 75 mins.
Oven noodles 160 3 75 mins.
BEEF on bone & crusty 270 rare 3 12 mins. per 1/b (500 g) plus 12 mins.
(rare) 220 °C 3 15 mins. per 1/b (500 g) plus 15 mins.
(medium) 220 °C 3 20 mins. per 1/b (500 g) plus 20 mins.
(well done) 180 °C 3 25 mins. per 1/b (500 g) plus 15 mins.
LAMB on bone 220 °C 3 20 mins. per 1/b (500 g) plus 20 mins.

170 °C 3 27 mins. per 1/b (500 g) plus 27 mins.

Boned and rolled 220 °C 3 25 mins. per 1/b (500 g) plus 25 mins.

170 °C 3 35 mins. per 1/b (500 g) plus 20 mins.
PORK on bone 220 °C 3 25 mins. per 1/b (500 g) plus 25 mins.
Boned and roller 180 °C 3 30-35 mins. per 1/b (500 g) plus 35 mins.
VEAL on bone 220 °C 3 25 mins. per 1/b (500 g) plus 25 mins.
Boned and roller 220 °C 3 30 mins. per 1/b (500 g) plus 30 mins.
CHICKEN 220 °C 3 20 mins. per 1/b (500 g) plus 20 mins.

170 °C 3 25 mins. per 1/b (500 g) plus 25 mins.
TURKEY 220 °C 3 20 mins. per 1/b (500 g)

170 °C 3 25 mins. per 1/b (500 g)
DUCK 220 °C 3 20 mins. per 1/b (500 g)

170 °C 3 25 mins. per 1/b (500 g)
GOOSE 220 °C 3 20 mins. per 1/b (500 g) plus 20

Food Thermostat setting °C Cooking Time

Small cakes (12 on tray) 175 15-25 mins.
Victoria sandwich 170 20-30 mins.
(2x7"/180mm)
Swiss roll or whisked sponge 180 15-20 mins.
Fruit cake (8"/205mm) 135 1 H - 2 H hours.
Scones 210 8-15 mins.
Meringues 80 1 H - 2 H hours.
Shortcrust Pastry 190 20-40 mins. depending
Puff or Flaky Pastry 200 15-30 mins. upon
Choux Pastry 200 20-30 mins. dish
Biscuits 170/180 10-20 mins. depending upon type
Bread 200/220 25-35 mins.
Milk pudding 150 1 H - 2 hours.
Pizza 250 20 mins.
Lasagne 165 60 mins.
Oven noodles 150 60 mins.
BEEF on bone 230 rare & crusty 9 mins. per 1/b (500 g) plus 9 mins.
BEEF on bone 190 °C (rare) 15 mins. per 1/b (500 g) plus 8 mins.

190 °C (medium) 20 mins. per 1/b (500 g) plus 10 mins.

160 °C (well done) 25 mins. per 1/b (500 g) plus 8 mins.

Boned and rolled 190 °C (rare) 20 mins. per 1/b (500 g) plus 10 mins.

190 °C (medium) 25 mins. per 1/b (500 g) plus 15 mins.

160 °C (well done) 30 mins. per 1/b (500 g) plus 8 mins.

LAMB on bone 190 °C 20 mins. per 1/b (500 g) plus 10 mins.

155 °C 27 mins. per 1/b (500 g) plus 14 mins.

Boned and rolled 190 °C 25 mins. per 1/b (500 g) plus 14 mins.

155 °C 25 mins. per 1/b (500 g) plus 14 mins.
PORK on bone 200 °C 25 mins. per 1/b (500 g) plus 14 mins.
Boned and roller 160 °C 30-35 mins. per 1/b (500 g) plus 18 mins.
VEAL on bone 200 °C 25 mins. per 1/b (500 g) plus 14 mins.
Boned and roller 200 °C 30 mins. per 1/b (500 g) plus 14 mins.
CHICKEN 200 °C 20 mins. per 1/b (500 g) plus 10 mins.

155 °C 25 mins. per 1/b (500 g) plus 13 mins.
TURKEY 200 °C 18 mins. per 1/b (500 g) plus 14 mins.

155 °C 23 mins. per 1/b (500 g)
DUCK 200 °C 18 mins. per 1/b (500 g)

155 °C 23 mins. per 1/b (500 g)
GOOSE 180 °C 18 mins. per 1/b (500 g) plus 20 mins.

GENERAL INSTRUCTION

Warning: remember ovens get hot; some parts naturally become
very hot, notably the glass oven door and the protective strip.
Keep children away from oven at all times and warn them about
the danger.

GUIDE FOR CONVENTIONAL COOKING

(Outer ring of upper electric element and lower electric element
ON) The following Cooking Guides give the recommended shelf
positions (counted from the bottom), thermostat settings and
approximate cooking times for a range of baked items, using the
conventional oven, using one tray only. Cooking results are a
matter of personal preference and may easily be adjusted to
suitindividual requirements by slight adjustment of the temperature
and or cooking time. Preheating of the oven is recommended for
10-15 minutes or until the oven thermostat indicator light switches
off to show the selected temperature has been reached.
When using a baking tray it should be placed centrally on the
oven shelf with the short sides of the tray parallel to the sides of
the oven. Do not use trays, tins or dishes larger than 380 mm
(15") long, 356 mm (14") wide, as cooking results may be impaired.

Pan supports and burners

The burner heads can be removed for cleaning.
NB Do not drop hot burner caps in cold water.
Because of the rapid cooling they might get damaged.
Lift off and soak for about 10 minutes in hot water with a little
detergent. After having cleaned and washed them, dry them
carefully.
Make sure that no burner holes are clogged.
Clean the burners once a week or more frequently if necessary.
Make sure you have reassembled the burners correctly.
Pan supports can be washed by hand or in a dishwasher.
Remember to remove rubber feet (if fitted) prior to washing.
Refit them afterwards.

Before cleaning the appliance, close the gas stopcock and unplug
appliance or disconnect power at the main circuit breaker of the
electrical system.
Do not clean the appliance surfaces when still hot.
Always clean off spillage as quickly as possible to prevent burning
on which will make removal more difficult. Wash with a clean cloth
soaked in hot soapy water, rinse and dry with a soft cloth.
DO NOT USE ABRASIVES. CAUSTIC PASTES OR SPRAYS.
COARSE CLEANING PADS OR POWDERS. DO NOT USE
EXCESSIVE WA TER WHEN CLEANING YOUR OVEN IN ORDER
TO AVOID WATER PRESSING THROUGH CLEFTS INTO THE
BACK OF CONTROLS PANEL OR OF THE UNIT.

CLEANING

burner cap

locating pegs

notch for electrode
in burner head

electrode

B

A

C

B

A

B

A

Fig. N

Fig. P

USlNG THE GRILL

The grill is situated in the top of the oven compartment.
The grill pan should be located on the top oven shelf position.

Warning:

Do not place fatty foods too close to the grill and never leave the
grill unattended. If fatty foods are grilled, or roasting has been
cooked in the oven at a high temperature the grill element may
smoke. This is not dangerous and the smoke is caused by the fat
burning off when the grill element is hot. Leave the grill element
on until the smoking has stopped t-hen use as normal. If a grease
fire should occur in a pan put out the flame by placing a lid on the
pan. Do not throw water on a grease fire.

Fig. 5

USE OF THE ELECTRIC GRILL

USlNG THE GRILL

Turn the oven knob to the right and place it on the grill position
.
The grill pan should be located on the top oven shelf position and
is provided with a detachable grill pan handle which is engaged
centrally over the front edge of the pan between the indentations
provided. A wire grid is supplied. The grill pan handle should be
removed from the grill pan during the grilling operation and only
fitted for removal or insertion of the grill pan particularly when hot.
Always preheat the grill on full for 3-5 minutes before inserting
the food.

8

NOTE: A steam cleaner is not to be used for cleaning this
appliance .

For a triple crown burner, make sure head “C” and covers “A”
and “B” are properly placed on their seats as figure N and not off­centered as in figure P.

MINUTES COUNTERS (Fig.5 )

Turn the knob clockwise to set the desired cooking time.
The minutes minder can be adjusted from 1 to 60 minutes.
A sound signal will inform you that the chosen time is up.

The user can change the shelves, depending on his personal
whishes and on the different food.
Geat the oven 5 minutes before introducing the food.

5

10

15

20

25

35

40

45

50

55

30

9

Daily

Regular wiping down directly after use prevents dirt from burning
on. Clean the appliance with water and a detergent or all purpose
cleaner.
Avoid using too much water to prevent it entering the burner or
ventilation openings.

Interior: the oven shelf carriers and the back fan cover can be
removed for easier cleaning. To do this, remove all the shelves
and spring off the side carriers by applying pressure downwards
to unhook the top. The back can now be removed by unscrewing
the screw at each side. Replace in a similar manner. (Fig. Q-R)
Oven accessories (shelves, trays etc) should be washed in mild
detergent solution and should not be treated with abrasives. The
oven interior panels should be cleaned with mild detergent solution,
mild cream cleaners or a moist soap pad.
Install shelves by locating them in the horizontal guide rails on
the oven walls.
The raised portion of the shelf is to be facing the rear wall of the
oven.

IMPORTANT

Do not use excessive water when cleaning the oven and avoid
water passing through the fan grill or ducts in the oven back .
Avoid letting grease deposit collect around the upper heating
element: it will cause smoking and may start a fire.

Fig. Q Fig. R

OVEN DOOR REMOVAL AND REFITTING

Open the door fully and turn the two hinge disks clockwise (fig.S).
Reclose to about 45° and pull gently (fig. T).
To reassemble, keep the door at 45° and insert the arms of the
hinge in the slots on the front of the oven, then turn the two hinge
disks anticlockwise.

WARNINGS
Before performing any repair or operation, switch the
appliance off and close the gas tap.

The manufacturer declines all responsibility for any damage to
persons, animals or things caused by failure to observe the rules
indicated above. In case it is necessary to repair or replace the
inside components, act as follows:

DISASSEMBLE OF WORK-TOP

In case it is necessary to repair or replace the inside components,
act as follows:
Remove the grids, remove burners and flame-spreaders (see
fig. 13), unscrew the visible screws “V” placed on the work-top
(see fig. 14). Disassemble the work-top by unscrewing the 2 rear
screws “A” (see fig. 15). In this way it is possible to lift the work­top and to reach the inside components.

A

A

Fig. S Fig. T

SERVICE INSTRUCTIONS

All service should be carried out be a authorised service
technician only.

ALW AYS UNPLUG THE PLUG FROM THE CURRENT SOCKET
OR SWITCH OFF THE CURRENT ON THE POWER SUPPLY
LINE BY MEANS OF THE MAINS CIRCUIT SWITCH, BEFORE
CARRYING OUT ANY MAINTENANCE ON THE OVEN.

REPLACEMENT OF THE SUPPLY CABLE

-

In case the cable is damaged, replace it in accordance with the
following instructions:

- switch the appliance off at the control switch
open the box of the supply board as described on the picture

Fig. 13

Fig. 14

V

TYPE AND SECTION OF SUPPLY CABLE

230V-240V~
H05RR-F Ø 3 x 1.5 mm

2

2

1

3

4

5

L

N

A

Fig. N

- replace the cable with one of the same length and in accordance
with the specification described on the table;

- the “green-yellow” earth wire must be connected to the terminal
“ ” and it must be about 10 mm longer than the live and
neutral wires;

- the «blue» neutral wire must be connected to the ter minal
marked with letter «N.» - the live wire m ust be connected to the
terminal marked with letter «L».

below; - unscrew the clamp «A» fixing the cable;

10

SOME SAFETY POINT

Do not use the appliance as a space heater.

If you smell gas
Open a window. Do not use any electrical switches.
Immediately extinguish naked flames. Isolate appliance from
gas mains supplies via the isolation stopcock. Contact local
gas authority or emergency services as appropriate. In the
event of food fire. Isolate appliance from electric / gas mains
supplies if safe to do so. Try to extinguish flames with the
appropriate equipment (fire blanket or extinguishing foam).
Do not use water on cooking fat / oil fires.

If in difficulty call emergency services.

• Do not store or use flammable products or aerosol containers

near the hotplate or burners.

• Never flambe‚ under an extractor - even if the ventilator is

switched off.
The high flames can cause fire.

For your safety and that of your children

• Do not store items that are attractive to children above or near

the appliance.

• Keep children well away from the appliance:

do not forget that some parts of the appliance or of the pans
become very hot and dangerous during use, and will take time
to cool down.

• When cooking, do not use clothes that could catch fire and

cause serious injury.

• Some “Wok” cooking pots are unstable. Check with the

manufacturer before purchasing.

• Avoid using unstable and misshapen pans which may tilt easily

and pans with a very small base diameter, e.g. milk pans, single
egg poachers. The minimum pan diameter recommended is
125mm (5"). Smaller pans will be unstable.

Very large pans may cause walls or knobs to overheat. Using

pans which are too big may deform the control knobs or discolour
the walls. This is not covered by the guarantee.

• Carefully place all pans centrally over the burners.

• Always position pan handles safely away from the front of the

B

Clean the cone and its slot by means of a cloth soaked with diluent.
Slightly grease the cone with the relevant grease, put it in its slot,
and turn it some times. Remove the cone again, remove the
exceeding grease making sure the gas entries are not obstructed
by grease residuals. Assemble everything carefully in the opposite
direction check the connection seal by means of soapy water.

TAPS REPLACEMENT

Act as follows: open the work-top and disassemble also the control
panel as described on the previous paragraph. Unscrew screw

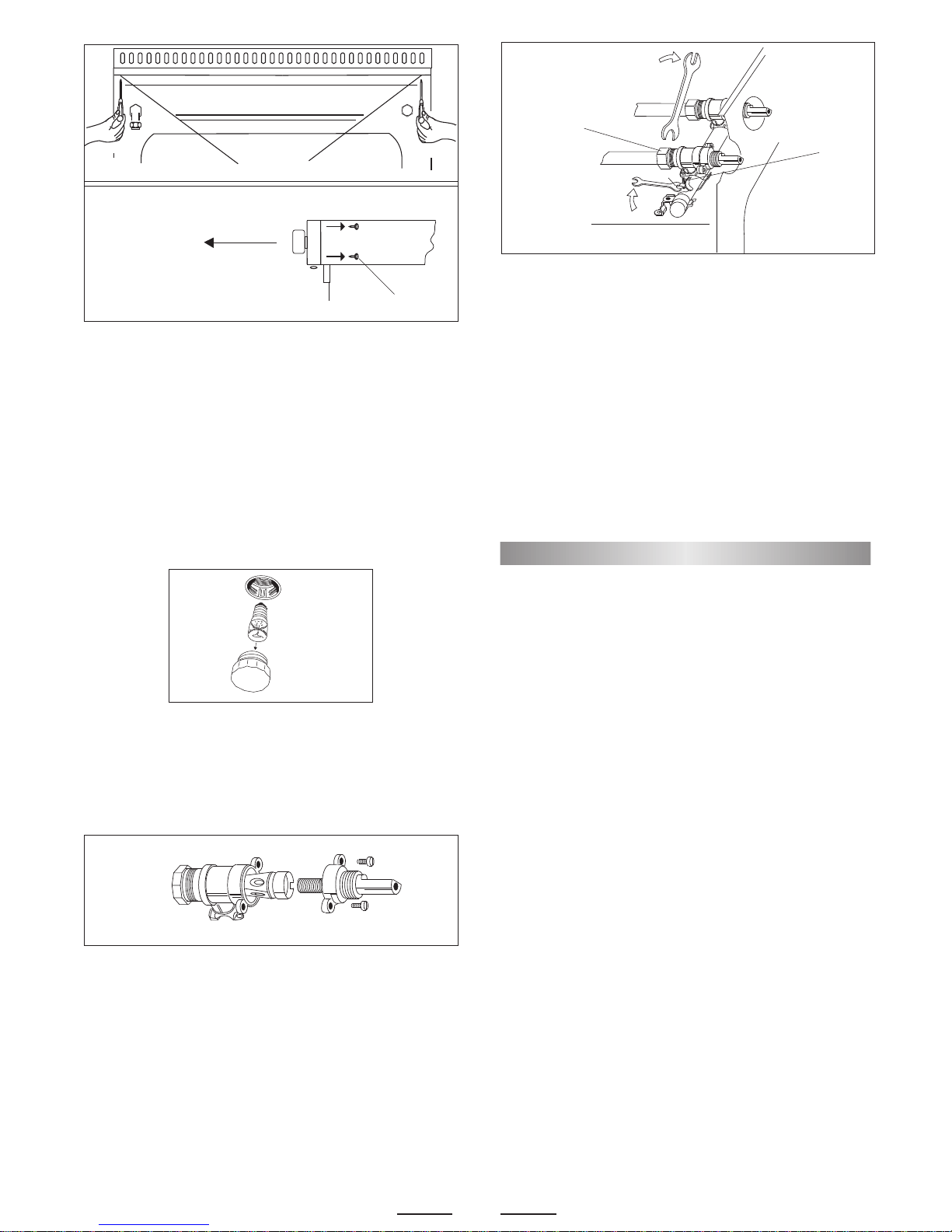

nut D of the gas tube supplying the burner. Unscrew screw V fixing
the tap to the bridle and remove it (see picture).
Note: Every time the tap is replaced, it is necessary to replace the
seal gasket too check the connection seal by means of soapy
water.

D

V

- To disassemble the control panel, unscrew the 4 internal screws
(B) fixing the control panel to the oven face ( fig 16 ).

OVEN LIGHTS
WARNINGS

Isolate the cooker from the electricity supply before attempting to
replace the oven lamp.
The oven lamp used is of a special type withstanding high
temperatures. To remove the light bulb, unscrew the glass cover
( A ) anticlockwise and remove. Turn the bulb anticlockwise and
remove. Replace with the same type of bulb (Type E14 threaded
clear lamp 230/240 V. 25 watt T 300°C).
Replace the light carefully and turn it clockwise.
Reassemble the protecting glass.

GREASING OF TAPS

If a tap becomes hard to be turned, grease it using a specific
grease withstanding high temperatures. Act as follows: open the
work-top and disassemble also the control panel as described on
the previous paragraph. Unscrew the two fixing screws from the
burner body (see picture) and remove the cone.

TAPS REPLACEMENT

Act as follows: open the work-top and disassemble also the control
panel as described on the previous paragraph. Unscrew screw
nut D of the gas tube supplying the burner. Unscrew screw V
fixing the tap to the bridle and remove it (see picture).
Note: Every time the tap is replaced, it is necessary to replace
the seal gasket too check the connection seal by means of soapy
water.

A

Fig. 15

15

7

Fig. 16

11

PROBLEM SOLVER

Any of the following are considered to be abnormal operation
and may require servicing:

Yellow tipping of the hob burner flame.
Sooting up of cooking utensils.
Burners not igniting properly.
Burners failing to remain alight.
Burners extinguished by oven door.
Gas valves, which are difficult to turn.

Y our Inst aller should be cont acted if you have any problems with
the installation.
Before you call a service engineer please check if the problem
is something you could fix yourself. The cause of the problem is
often a simple one.

THINGS TO TRY BEFORE CALLING FOR AN ENGINEER
Burner does not burn well

Is the burner dirty or damp? Try cleaning and/or drying the burner .
Appliance not suitable for your gas type? Check the identification
plate on the hotplate base.

Burner does not ignite

Do the burners spark when you press the ignition button? If not
is the power on? See ‘Checking the power supply’ section further
on. If the power supply is OK then there is probably something
wrong with the ignition system.
Are the electrode or burner slots blocked by debris?
Is the burner dirty or damp? Try cleaning and/or drying the burner .
Is the burner trim correctly located?
Are the burner caps correctly located?
Check that there is not a problem with your gas supply. You can
do this by making sure that other gas appliances you may have
are working.

Pan supports

Aluminium pans may cause a metallic marking on the pan supports
which does not affect the durability of the enamel and may be
cleaned off with a metal cleaner such as ‘Brasso’.

Checking the power supply

First check the socket by trying out another piece of electrical
equipment in it.
If that works, renew the fuse in the hotplate plug. Use a 10 amp
fuse. If the fuse ‘blows’ again there is a fault on the hotplate. Do
not use a fuse with a higher rating. Do not carry out other electrical
work. Unplug the hotplate and tell your installer.

Power Failure

In the event of a failure in the electrical supply the hotplate burners
may be lit using a match.

Ventilation

The use of a gas cooking appliance results in the production of
heat and moisture in the room in which it is installed. Ensure that
the kitchen is well ventilated: keep natural ventilation holes open
or install a mechanical ventilation device, (mechanical extractor
hood). Prolonged intensive use of the appliance may call for
additional ventilation, for example opening a window, or more

OVEN DOES NOT WORK AT ALL

First, when the oven is equipped with timer, check appliance is
not programmed to turn on later. If it is, turn to manual setting (i.e.
hand symbol). If the button or scale on the timer remains in the
automatic position after use, the power supply to the oven will be
interrupted. Also, check your appliance is switched on at the
mains. Next check for an unexpected power strike by switching
on adjacent lights etc. Finally, check fuses and plug wiring. If all
these prove satisfactory, call engineer.

LIGHT BULB DOESN’T COME ON

Check bulb for looseness or burned out bulb.

Note: bulb replacement is not covered by your guarantee.

SMOKE COMING FROM OVEN

If oven is still relatively new, this problem is invariably due to
protective oil on elements. Otherwise, the answer may be oil or
fat which has become deposited on the elements during cooking.
In either event, continued use should burn away the residues. On
future occasions, try to shield food with foil or keep it further away
from element, particularly when grilling.

CLOCK/TIMER DOES NOT WORK

Check to be sure range cord is plugged into outlet completely.
Check for a blown fuse or tripped circuit breaker. Check for power
outage. Check step by step operating Instructions on previous
pages.

effective ventilation, for example increasing the level of mechanical
ventilation where present. For more detail see the Installation
Instructions.

If, after checking through this section, you cannot resolve
your problem, please call the number for service and spare
parts.
When ordering please quote the appliance name, the colour
variant and serial number.
This information can be found on the data plate sealed inside
the front appliance drawer.

hotplate and out of danger, particularly from small children.

• Never leave a chip pan unattended.

• Pans and kettles with down turned base rims should not be
used.

• Simmering aids such as asbestos or mesh mats are NOT
recommended. They will reduce burner performance and could
damage the pan supports.

• Commercially available foil spillage aids are unnecessary on
this hotplate.

Maintenance schedule:
To ensure the appliance continues to operate at
peak performance, we recommend a routine service
call every 2 years for the life of the appliance.

Montagnani - Modena - Cod. 536424 - 0105
