Euromaid CW50 Specifications Sheet

EW50

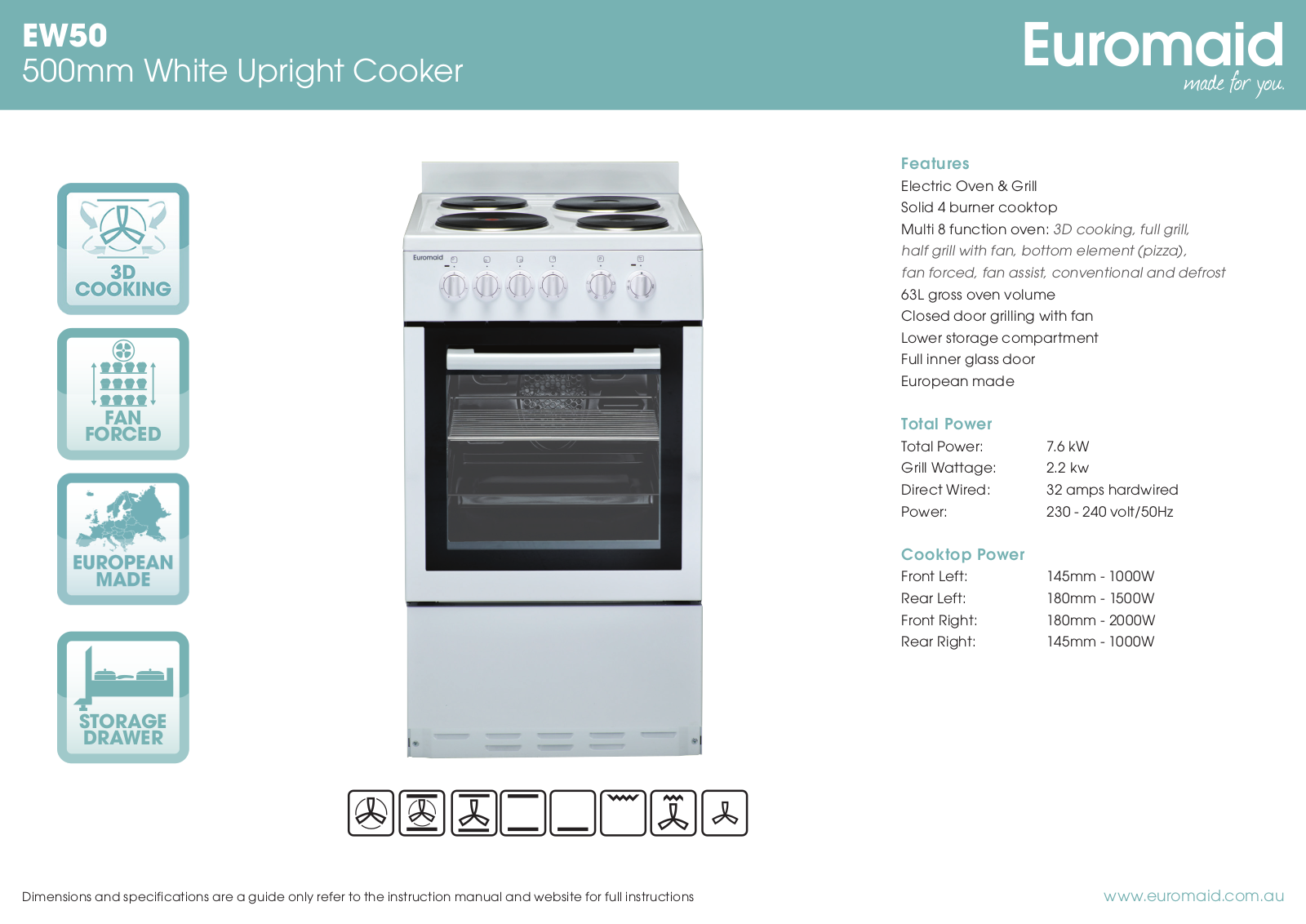

500mm White Upright Cooker

Features

Electric Oven & Grill

Solid 4 burner cooktop

Multi 8 function oven:

half grill with fan, bottom element (pizza),

fan forced, fan assist, conventional and defrost

63L gross oven volume

Closed door grilling with fan

Lower storage compartment

Full inner glass door

European made

3D cooking, full grill,

FAN

FORCED

STORAGE

DRAWER

Total Power

Total Power: 7.6 kW

Grill Wattage: 2.2 kw

Direct Wired: 32 amps hardwired

Power: 230 - 240 volt/50Hz

Cooktop Power

Front Left: 145mm - 1000W

Rear Left: 180mm - 1500W

Front Right: 180mm - 20 00W

Rear Right: 145mm - 1000W

Dimensions and specifications are a guide only refer to the instruction manual and website for full instructions

www.euromaid.com.au

EW50

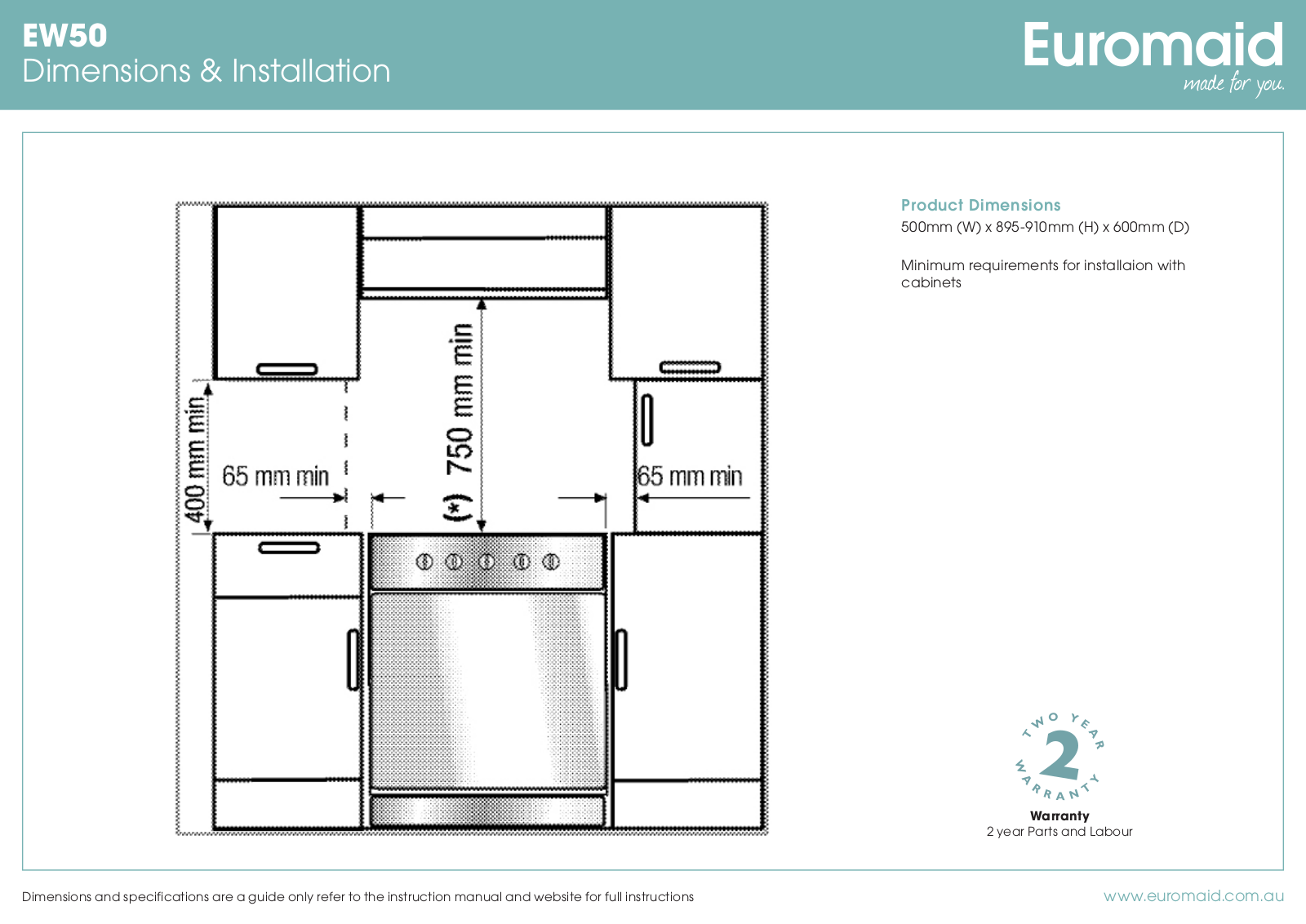

Dimensions & Installation

Product Dimensions

500mm (W) x 895-910mm (H) x 600mm (D)

Minimum requirements for installaion with
cabinets

Warranty

2 year Parts and Labour

www.euromaid.com.auDimensions and specifications are a guide only refer to the instruction manual and website for full instructions
