Euromaid CC9GE1 User Manual

900mm Ceramic Cooktop Manual

MODEL

CC9GE1

Installation and Operation

Co ntents

Dear Consumer,

Thank you for your purchase of our products. To ensure you use the applian ce in the best effect, please read this instruction manu al with care before the using, and please save it for later learning.

The manufacturer declines all responsibility for damage to persons or things caused by non- observance of the above prescriptions or by interference with any part of the appliance or by the use of non-original spares.

1. INSTRUCTIONS FOR PROPER USE ______________________________________ 2

2. SAFETY INSTRUCTIONS _______________________________________________ 3

3. KNOW YOUR HOB ____________________________________________________ 4

4. BEFORE FIRST USE___________________________________________________ 4

5. COOKING ZONES_____________________________________________________ 5

6. DESCRIPTION OF CONTROL ON THE FRONT CONTROL PANEL______________ 7

7. USE OF THE COOKING HOB____________________________________________ 8

8. CLEANING AND MAINTENANCE _________________________________________ 13

9. SOMETHING WRONG? ________________________________________________ 13

10. INSTALLATION _______________________________________________________ 14

INSTRUCTIONS FOR THE USER: these contain user advice, description of the commands and the correct procedures for cleaning and maintenance of the appliance.

INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who must install the appliance, set it functioning and carry out an inspection test.

Inst ruct ion for pro per use

1. INSTRUC TIO NS FOR PROPER USE

Electrical connection please refer to installation instructions for the gas.& electrical safety regulations and the ventilation requirements.

In your own interest, and that of safety, it is the law that all gas and electrical appliances be installed and serviced by competent persons, who will comply with the relevant standards and regulations. Smeg registered installers undertake to work to satisfctiory standards. Disconnection of gas and electric appliances should always be carried out by competent persons.

This manual is an integral part of the appliance and therefore must be kept in Its entirety and In an accessible place for the whole working life of the hob. we advise reading this manual and all the instructions therein before using the hob. Installation must be carried out by qualified personnel in accordance with the regulations in force . this appliance is intended for domestic uses and conforms to current regulations in force. The appliance has been built to carry out the following functions. Cooking and heating-up-of food. All other uses are considered improper.

The manufacturer declines all responsibility for improper use.

Never use this appliance for heating rooms.

Do not leave the packing in the home environment. Separate the various waste materials and take them to the nearest special garbage collection centre.

This appliance is marked according to the European directive 2002/96/EC on waste electrical and electronic equipment (WEEE). This guideline is the frame of a european-wide validity of return and recycling on waste electrical and electronic equipment.

The identification plate, with technical data, serial number and marking is clearly visible under the casing.

THE PLATE ON THE CASING MUST NOT BE REMOVED. Take care not to spill sugar or sweet mixtures on to the hob when hot. Never place materials or substances which may melt. (Plastic or aluminium foil) on the hob. In the event, promptly switch off and remove the molten material with the scraper provided while the cooking zone is still warm to prevent it from being damaged. Failure to instantly clean the ceramic hob could lead to encrustations which are impossible to remove once the hob has cooled down .

WARNING: If the surface is crack, switch off the appliance to avoid the possibility of electric shock.

During cleaning for the appliance, please do not use steam cleaner

2. SAF ETY INSTRUC TIONS

Instructions for the installer these are intended for the qualified technician who must install the appliance, set it functioning and carry out an inspection test.

It is obligatory for the electrical system to be grounded according to the methods required by safety rules.

Safety instruct ion

The appliance without plug ,When linking up to mains by plug and socket, make sure that both are compatible and connect by means of a power cable complying with applicable regulations. The socket must be accessible after the appliance has been built in

Never unplug by pulling on the cable

Always check that the controls are in the position 0 (OFF) when y ou fini s h usi n g t he ho b.

During use the appliance becomes very hot. Take care not to touch the surface of the hob

The appliance is intended for use by adults. Keep children at a safe distance and never allow them to play with it.

The appliance becomes very hot during use suitable heat proof gloves should be worn for all operations.

Before the appliance is put into operation. All the labels and protective films applied inside or outside must be removed.

Immediately after installation carry out a brief inspection test of the appliance, following the instructions below. Should the appliance not function, disconnect it from the power supply and call the nearest technical assistance center.

Never attempt to repair the appliance, all repairs must be carried out by an authorized engineer or at an authorized service centre.

Important. Beware of children in the vicinity as the warning lights indicating residual heat are out of sight to them. In fact, even after having been turned off, the cooking zone remains hot for a certain period of time. Make sure that children never touch the hob.

Inst ruct io ns for the user

3. KN OW YOUR HOB

All the C-serial hobs are designed in good quality according to the fashion models by modern technology. They are all supposed to spare the long good time together with you, and they will satisfy your life completely. Now, we are paying the most attention on the consumers’ demand and interesting. Purchasing our products means that you have chosen the good and ware well electrical appliance. So that you will simply your housework, beautify your daily life. The interesting and the attention you showed is the power we improving the products continually. For your advantage, we will work hard forever to make the products be the pronoun of quality, economic, substantial and good performance. For this reason too, we tie up with our consumers and communicate with them. Please read and action follow this manual with care:

1. Please read the instruction manual before using;

2. Don’t remove the permanent label on the product, otherwise, it will cause the Assurance be invalidation.

3. Please carry out national law and local law when using this appliance;

4. The appliance must well-grounded.

4. BEFO RE FIRST USE

Do not leave the packing in the home environment. Separate the various waste materials and take them to the nearest special garbage collection centre.

Before cooking for the first time the hob has to be cleaned. Following this, put a saucepan of water on the front hotplates and turn them full on for at least 30 minutes. After 30 minutes turn off the front hotplates and turn the rear hotplates and the central hotplate, if present, full on. This treatment is necessary in order to get rid of the “new smell” and to evaporate the humidity that may have collected during the manufacturing process. That is, it must be done so that the electronic circuits and the control buttons work properly.

If the controls do not work properly after 30 minutes, it means that not all the humidity has evaporated: leave the hotplates on until all the humidity has evaporated and then turn off the hob.

Remove all the removable labels and any protective sheeting. To switch on the hob, follow the instructions provided in point "7".

Inst ruc tions for the user

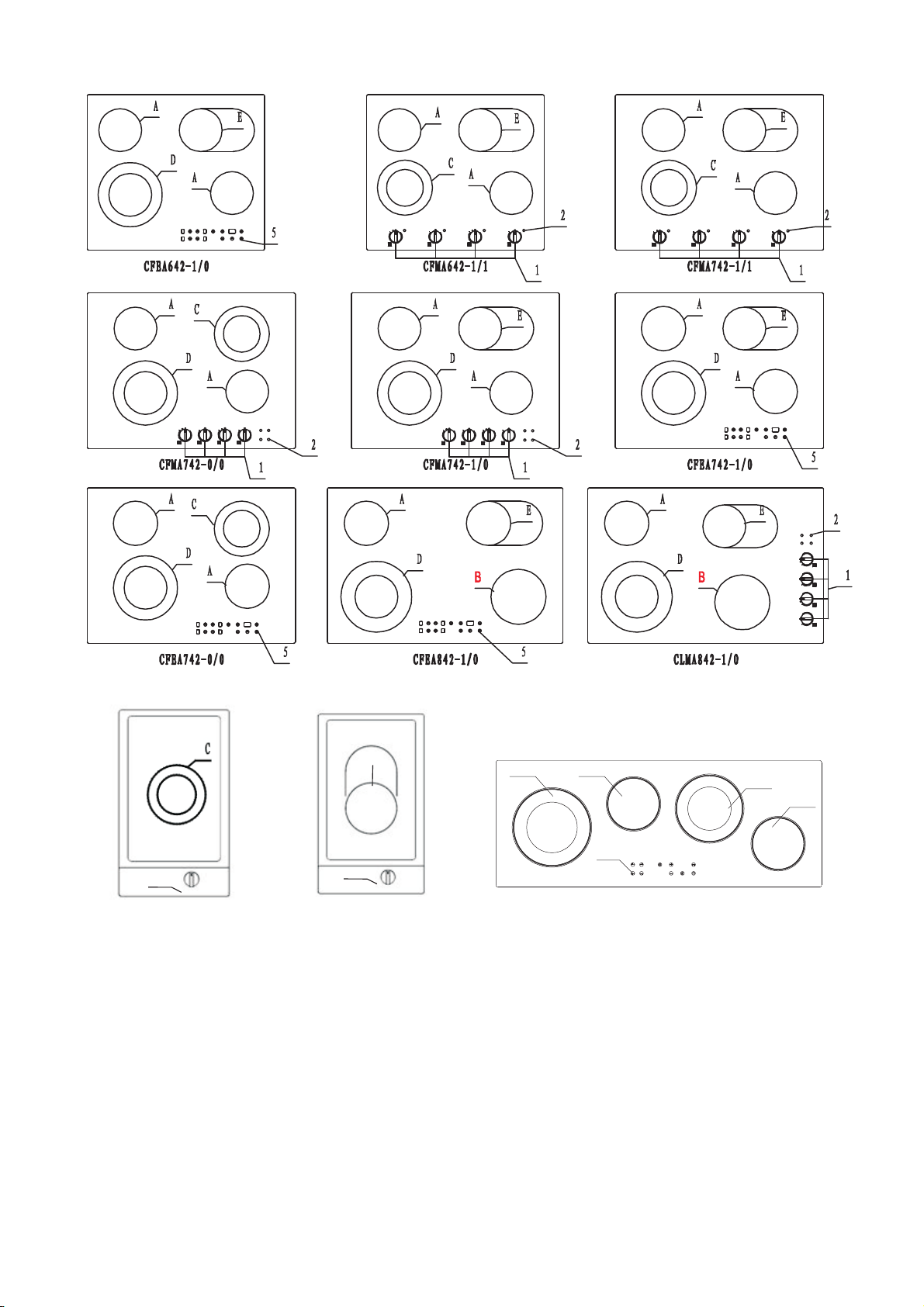

5. COOKING ZONES
