Page 1

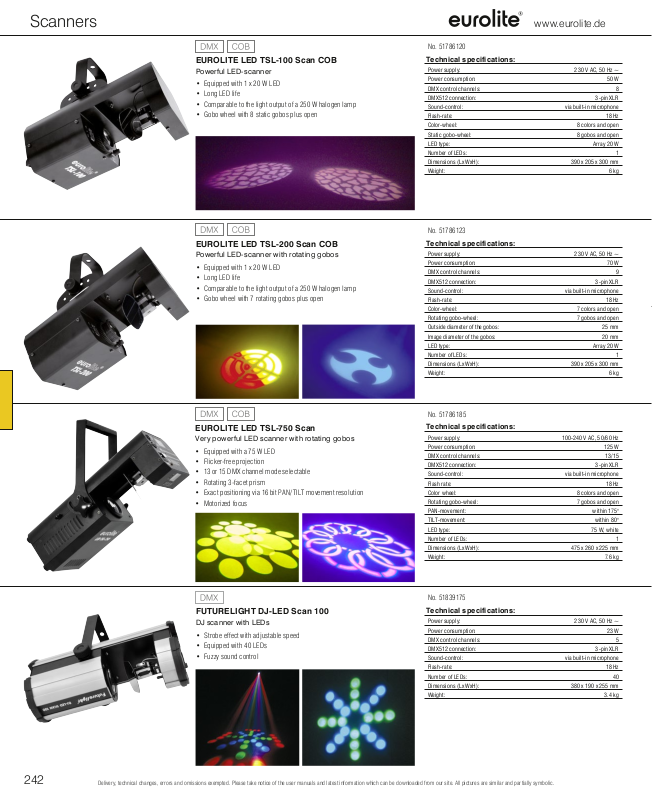

Scanners
EUROLITE LED TSL-100 Scan COB
Powerful LED-scanner
• Equipped with 1 x 20 W LED
• Long LED life
• Comparable to the light output of a 250 W halogen lamp
• Gobo wheel with 8 static gobos plus open
EUROLITE LED TSL-200 Scan COB
Powerful LED-scanner wi th rotating gobos
• Equipped with 1 x 20 W LED
• Long LED life
• Comparable to the light output of a 250 W halogen lamp
• Gobo wheel with 7 rotating gobos plus open
www.eurolite.de
No. 51786120
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: 50 W
DMX control channels: 8
DMX512 connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 18 Hz
Color-wheel: 8 colors and open
Static gobo-wheel: 8 gobos and open
LED ty pe: Arra y 20 W
Numbe r of LEDs: 1
Dimen sions (Lx WxH): 390 x 205 x 30 0 mm
Weigh t: 6 kg
No. 51786123
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: 70 W
DMX control channels: 9
DMX512 connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 18 Hz
Color-wheel: 7 colors and open
Rotating gobo-wheel: 7 gobos and open
Outside diameter of the gobos: 25 mm
Image d iameter of t he gobos: 20 mm
LED ty pe: Arra y 20 W
Numbe r of LEDs: 1
Dimen sions (Lx WxH): 390 x 205 x 30 0 mm
Weigh t: 6 kg
EUROLITE LED TSL-750 Scan
Very powerful LED scanner with rotating gobos
• Equipped with a 75 W LED
• Flicker-free projection
• 13 or 15 DMX channel mode selectable
• Rotating 3-facet prism
• E xact positioning via 16 bit PAN/TILT movement resolution
• Motorized focus
FUTURELIGHT DJ-LED Scan 100
DJ scanner with LEDs
• Strobe effect with adjustable speed
• Equipped with 40 LEDs
• Fuzzy sound control
No. 51786185
Technical specifications:
Power su pply: 100-240 V AC, 5 0/60 Hz
Power co nsumption: 125 W
DMX control channels: 13/15
DMX512 connection: 3-pin XLR
Sound-control: via built-in microphone
Flash r ate: 18 Hz
Color wheel: 8 colors and open
Rotating gobo-wheel: 7 gobos and open
PAN-movement: within 175°
TILT-movement: within 80°
LED ty pe: 75 W, whit e
Numbe r of LEDs: 1
Dimen sions (Lx WxH): 475 x 260 x 22 5 mm
Weigh t: 7.6 kg
No. 51839175
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: 23 W
DMX control channels: 5
DMX512 connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 18 Hz
Numbe r of LEDs: 40
Dimen sions (Lx WxH): 380 x 190 x 25 5 mm
Weigh t: 3.4 kg
242
Delivery, technical changes, errors and omissions exempted. Please take notice of the user manuals and latest information which can be downloaded from our site. All pictures are similar and partially symbolic.
