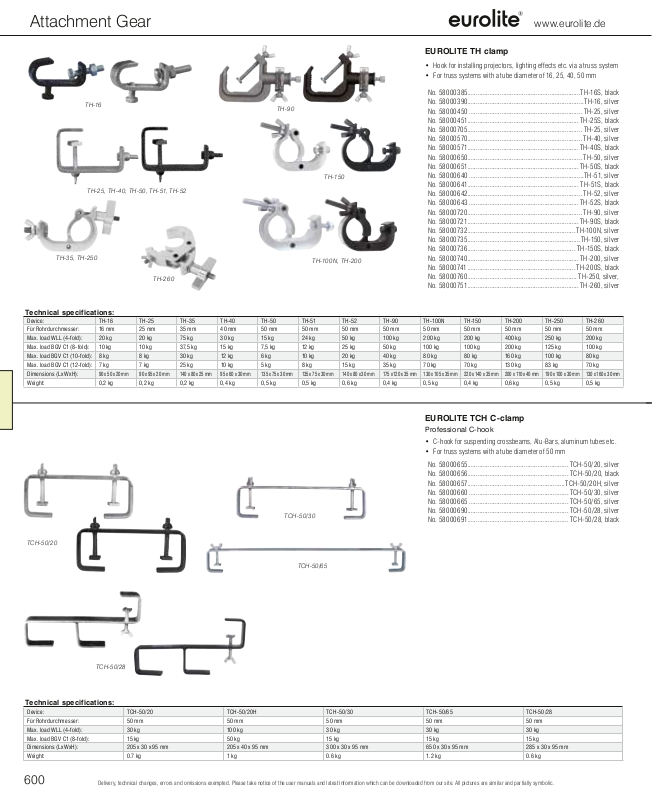

Attachment Gear
www.eurolite.de
EUROLITE TH clamp
• Hook for ins talling projectors, lighting effects etc. via a truss system
• For truss systems with a tube diameter of 16, 25, 40, 50 mm
No. 58 000385..................................................................TH-16S, black
TH-16
TH-25 , TH-4 0, TH- 50, TH- 51, TH-52
TH-3 5, TH-25 0
TH-26 0
TH-9 0
TH-150
TH-100N , TH-20 0
Technical specifications:
Devic e: TH-16 TH-25 TH-3 5 TH-4 0 TH-5 0 TH-51 TH-5 2 TH-9 0 TH-100N TH-150 TH-20 0 TH-25 0 TH-26 0
Für Ro hrdurchm esser: 16 mm 25 mm 35 mm 40 mm 50 m m 50 mm 50 mm 50 mm 50 mm 50 m m 50 mm 50 mm 50 mm
Max . load WLL (4-fold): 20 kg 20 kg 75 kg 30 kg 15 kg 24 kg 50 kg 100 kg 200 k g 200 k g 40 0 kg 250 kg 20 0 kg
Max . load BGV C1 (8-fold): 10 kg 10 kg 37,5 kg 15 kg 7,5 kg 12 kg 25 kg 50 kg 100 kg 100 kg 20 0 kg 125 kg 100 kg
Max . load BGV C1 (10-fold): 8 kg 8 kg 30 kg 12 kg 6 kg 10 kg 20 kg 40 kg 80 kg 80 kg 160 kg 100 kg 8 0 kg
Max . load BGV C1 (12-fold): 7 kg 7 kg 25 kg 10 kg 5 kg 8 kg 15 kg 35 kg 70 kg 70 kg 130 kg 83 kg 70 kg
Dimen sions (L xWxH):
Weigh t: 0,2 kg 0,2 kg 0,2 kg 0,4 kg 0,5 kg 0,5 kg 0,6 kg 0,4 kg 0,5 kg 0,4 kg 0,6 kg 0,5 kg 0,5 kg
90 x 50 x 20 mm 90 x 95 x 20 mm 140 x 80 x 25 mm 95 x 60 x 30 mm 135 x 75 x 30 mm 135 x 75 x 30 mm 140 x 80 x 30 mm 175 x 120 x 35 mm 130 x 105 x 35 mm 220 x 140 x 35 mm 200 x 110 x 40 mm 190 x 100 x 30 mm 130 x 160 x 30 mm
No. 580003 90....................................................................TH-16, silver
No. 58 000450 .................................................................. TH-25, silver
No. 58 000451 ................................................................. TH-25S, black
No. 5800070 5 ...................................................................TH-25, silver
No. 58000570 ................................................................... TH-40, silver
No. 580 00571 ................................................................. TH- 40S, black
No. 58 000650................................................................... TH-5 0, silver
No. 58 000651 ................................................................. T H-50S, black
No. 580006 40 ...................................................................TH-51, silver
No. 580006 41 ................................................................. TH-51S, black
No. 580006 42 ...................................................................T H-52, silver
No. 58 000643 ................................................................ TH-52S, black
No. 5800072 0 ...................................................................TH-90, silver
No. 58000721 .................................................................TH-90S, black
No. 58000732 ...............................................................TH -100N, silver
No. 5800073 5 ..................................................................TH-150, silver
No. 58 000736 ............................................................... T H-150S, black
No. 58000740 ................................................................. TH-200, silver
No. 58000741 ............................................................... TH-200S, black
No. 58 000760 ................................................................ TH -250, silver,
No. 58000751 ................................................................. T H-260, silver
EUROLITE TCH C-clamp
Profe ssiona l C-ho ok
• C-hook for suspending crossbeams, Alu-Ba rs, aluminum tubes etc.
• For truss systems with a tube diameter of 50 mm
No. 58 000655........................................................... TCH- 50/20, silver
No. 58 000656........................................................... TCH-50/ 20, black
No. 58 000657 .........................................................T CH-50/20 H, silver
No. 58 000660 .......................................................... TCH- 50/30, silver
No. 58 000665 .......................................................... TCH- 50/65, silver
TCH-5 0/30
TCH-5 0/20
TCH-50/65
TCH-50/28
Technical specifications:
Devic e: TCH-5 0/20 TCH-5 0/20H TCH-5 0/30 TCH-5 0/65 TCH-5 0/28
Für Ro hrdurchm esser: 50 mm 50 mm 50 mm 50 mm 50 mm
Max . load WLL (4-fold): 30 kg 100 kg 30 k g 30 kg 30 kg
Max . load BGV C1 (8-fold): 15 kg 50 kg 15 kg 15 kg 15 kg
Dimen sions (L xWxH): 205 x 30 x 95 m m 205 x 40 x 95 mm 30 0 x 30 x 95 mm 65 0 x 30 x 95 mm 28 5 x 30 x 95 mm
Weigh t: 0.7 kg 1 kg 0.6 kg 1.2 kg 0.6 kg
No. 580006 90........................................................... TCH-50/28, silver
No. 580006 91 ........................................................... TCH-50/28, black
600
Delivery, technical changes, errors and omissions exempted. Please take notice of the user manuals and latest information which can be downloaded from our site. All pictures are similar and partially symbolic.
