Page 1
www.eurolite.de
Luminaires

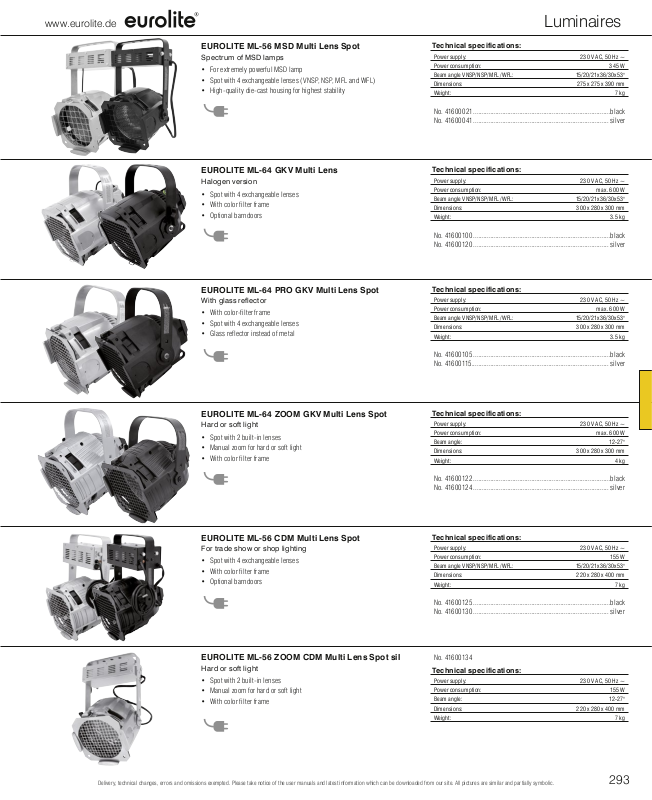

EUROLITE ML-56 MSD Multi Lens Spot
Spectrum of MSD lamps
• For extremely powerful MSD lamp
• Spot with 4 exchangeable lenses (VNSP, NSP, MFL and WFL)
• High-quality die-cast housing for highest stability
EUROLITE ML-64 GKV Multi Lens
Halogen version
• Spot with 4 exchangeable lenses
• With color filter frame
• Optional barndoors
EUROLITE ML-64 PRO GKV Multi Lens Spot
With glass reflector
• With color-filter frame
• Spot with 4 exchangeable lenses
• Glass reflector instead of metal
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: 345 W
Beam angle VNSP/NSP/MFL/WFL: 15/20/21x36/30x53°
Dimen sions: 275 x 2 75 x 390 mm
Weigh t: 7 kg
No. 41600021 ................................................................................black
No. 41600041 ............................................................................... silver
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: ma x. 600 W
Beam angle VNSP/NSP/MFL/WFL: 15/20/21x36/30x53°
Dimen sions: 300 x 28 0 x 300 mm
Weigh t: 3.5 kg
No. 41600100 ................................................................................black
No. 41600120 ............................................................................... silver
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: ma x. 600 W
Beam angle VNSP/NSP/MFL/WFL: 15/20/21x36/30x53°
Dimen sions: 300 x 28 0 x 300 mm
Weigh t: 3.5 kg
EUROLITE ML-64 ZOOM GKV Multi Lens Spot
Hard or soft light
• Spot with 2 built-in lenses
• Manual zoom for hard or soft light
• With color filter frame
EUROLITE ML-56 CDM Multi Lens Spot
For trade show or shop lighting
• Spot with 4 exchangeable lenses
• With color filter frame
• Optional barndoors
EUROLITE ML-56 ZOOM CDM Multi Lens Spot sil
Hard or soft light
• Spot with 2 built-in lenses
• Manual zoom for hard or soft light
• With color filter frame
No. 41600105 ................................................................................black
No. 4160 0115................................................................................ silver
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: ma x. 600 W
Beam an gle: 12-27°
Dimen sions: 300 x 28 0 x 300 mm
Weigh t: 4 kg
No. 41600122 ................................................................................black
No. 41600124 ............................................................................... silver
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: 155 W
Beam angle VNSP/NSP/MFL/WFL: 15/20/21x36/30x53°
Dimen sions: 220 x 28 0 x 400 mm
Weigh t: 7 kg
No. 41600125 ................................................................................black
No. 41600130 ............................................................................... silver
No. 41600134
Technical specifications:
Power su pply: 230 V AC, 50 H z ~
Power co nsumption: 155 W
Beam an gle: 12-27°
Dimen sions: 220 x 28 0 x 400 mm
Weigh t: 7 kg
Delivery, technical changes, errors and omissions exempted. Please take notice of the user manuals and latest information which can be downloaded from our site. All pictures are similar and partially symbolic.
