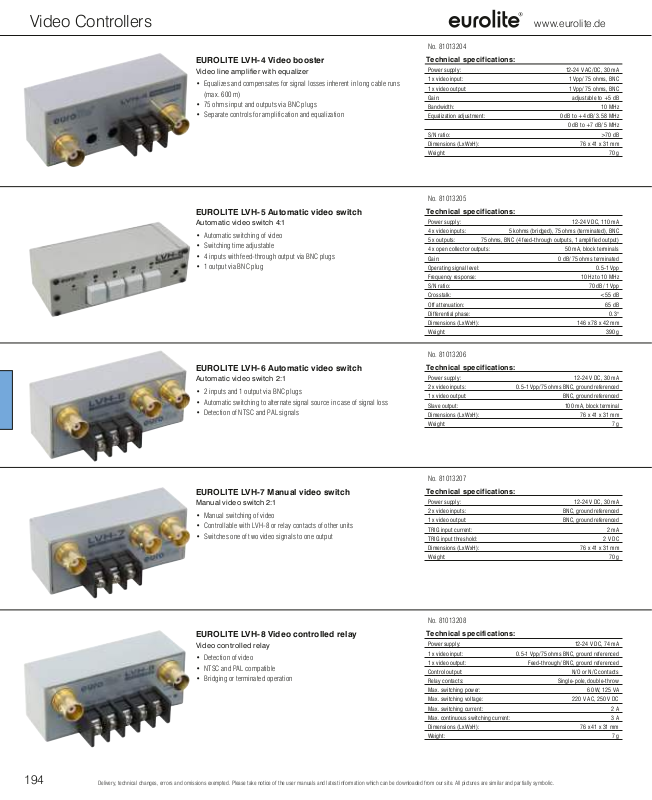

Video Controllers
EUROLITE LVH-4 Video booster
Video line amplifier with equalizer
• Equalizes and compensates for signal losses inherent in long cable runs
(max. 600 m)
• 75 ohms input and outputs via BNC plugs
• Separa te controls for amplification and equaliz ation
EUROLITE LVH-5 Automatic video switch
Automatic video switch 4:1
• Automatic switching of video
• Switching time adjustable
• 4 inputs with feed- through output via BNC plugs
• 1 output via BNC plug
www.eurolite.de
No. 81013204
Technical specifications:
Power su pply: 12-24 V AC/DC, 3 0 mA
1 x video i nput: 1 Vpp/ 75 o hms, BNC
1 x video o utput: 1 Vpp/ 75 o hms, BNC
Gain: adjus table to +5 dB
Bandw idth: 10 MHz
Equal ization adjustme nt: 0 dB to +4 dB/ 3.58 MHz
0 dB to +7 dB/ 5 MHz
S/N r atio: >70 dB
Dimen sions (Lx WxH): 76 x 41 x 31 mm
Weigh t: 70 g
No. 81013205
Technical specifications:
Power su pply: 12-24 V DC, 110 mA
4 x video i nputs: 5 kohms ( bridged), 75 o hms (termi nated), B NC
5 x ou tputs: 75 ohm s, BNC (4 fee d-throu gh outpu ts, 1 amp lified ou tput)
4 x ope n collec tor outpu ts: 50 mA , block te rminals
Gain: 0 dB/ 75 oh ms termina ted
Oper ating sig nal level: 0.5-1 Vpp
Frequency res ponse: 10 Hz to 10 MHz
S/N r atio: 70 dB/ 1 Vp p
Cross talk: <55 dB
Off attenu ation: 65 dB
Dif ferenti al phase: 0.3°
Dimen sions (Lx WxH): 146 x 78 x 42 mm
Weigh t: 390 g
EUROLITE LVH-6 Automatic video switch
Automatic video switch 2:1
• 2 inputs and 1 output via BNC plugs
• Automatic switching to alternate signal source in case of signal loss
• Detection of NTSC and PAL signals
EUROLITE LVH-7 Manual video switch
Manual video switch 2:1
• M anual switching of video
• Controllable with LVH-8 or relay contacts of other units
• Switches one of two video signals to one output
EUROLITE LVH-8 Video controlled relay
Video controlled relay
• Detection of video
• N TSC and PAL compatible
• Bridging or terminated operation
No. 81013206
Technical specifications:
Power su pply: 12-24 V DC, 30 mA
2 x vid eo input s: 0.5-1 Vpp /75 ohms BNC, groun d refere nced
1 x vid eo outpu t: BNC, gr ound ref erenced
Slave o utput: 100 mA, block ter minal
Dimen sions (Lx WxH): 76 x 41 x 31 mm
Weigh t: 7 g
No. 81013207
Technical specifications:
Power su pply: 12-24 V DC, 30 mA
2 x vid eo input s: BN C, ground referen ced
1 x vid eo outpu t: BNC, gr ound ref erenced
TRIG input cur rent: 2 mA
TRIG input thr eshold: 2 V DC
Dimen sions (Lx WxH): 76 x 41 x 31 mm
Weigh t: 70 g
No. 81013208
Technical specifications:
Power su pply: 12-24 V DC, 74 mA
1 x vid eo input : 0.5-1 Vpp /75 ohms BNC, groun d refere nced
1 x vid eo outpu t: Feed -through / BNC, gro und refe renced
Cont rol out put: N /O or N/C con tacts
Relay c ontact s: Singl e-pole, double-t hrow
Max. switch ing power : 60 W, 125 VA
Max. switch ing volt age: 220 V AC, 25 0 V DC
Max. switch ing curr ent: 2 A
Max. contin uous switch ing curren t: 3 A
Dimen sions (Lx WxH): 76 x 41 x 31 mm
Weigh t: 7 g
194
Delivery, technical changes, errors and omissions exempted. Please take notice of the user manuals and latest information which can be downloaded from our site. All pictures are similar and partially symbolic.
