Page 1
EC130 B4
130 B4 09.101.01 E
Technical
Data
Page 2
Contents
1 - Foreword .................................................................................................... 3
2 - General characteristics ............................................................................ 4
3 - Baseline Aircraft Definition ..................................................................... 11
4 - Recommended mission configurations................................................... 13
5 - Optional equipment .................................................................................. 21
6 - Main performance ..................................................................................... 29
7 - Customer Service Overview ...................................................................... 49
Technical Data
Manufacturers notice
Attention !
EUROCOPTER, its logo, AS350, EC130, ALOUETTE, ECUREUIL,
FENESTRON, INDOC, STARFLEX, STYLENCE, VEMD, are trade marks of
the Eurocopter group.
Eurocopter’s policy is one of on-going product enhancement which means
that alterations in definition, pictures, weights, dimensions or performance
may be made at any time without notice being included in those documents
that have already been issued.
This document cannot thus be taken as an offer or serve as an appendix to a
contract without a prior check as to its validity and prior written agreement of
EUROCOPTER.
The operational or certification regulations, as defined by the local
authorities, can make compulsory the installation of some of the equipment
and recommended solutions, listed in this document. This list does not claim
to cover the whole of the worldwide operational requirements nor the
equipment not specifically related to the helicopter (for example : life jacket)
or necessary for particular missions (for example : supplemental oxygen).
The operator is responsible for ascertaining with his local authorities that the
planned configuration of the helicopter complies with regulatory requirements
for the area(s) of operations and the type(s) of mission(s) considered.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 1
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 3
Technical Data
Blank
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 2
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 4
1- Foreword
Technical Data
The light single-engine EC130 B4 is the quietest, most spacious helicopter available on the market. It fulfils
the JAR 27 issue 1 regulation for VFR operation by day and night
2,427 kg /5,531 lb, the EC130 B4 is perfectly suited for the following missions:
Corporate use,
Passenger transport,
Tour operations,
Utility,
Emergency Medical Services (EMS / AMS),
The ultra-quiet EC130 B4 integrates the latest technological advances of EUROCOPTER's new generation
helicopters: a new 7/8 seats enlarged cabin with enhanced comfort, a new tail boom with quiet FENESTRON
shrouded tail rotor, a dual channel FADEC unit plus a third independent and automatic channel for engine
control, an automatic variable rotor speed control for noise reduction, a dual hydraulic system and energy
attenuating seats for each occupant. It has been designed to be environmental friendly, with an optimal
external noise pattern. It is one of the few aircraft meeting the very stringent noise level required in the
United States to fly over National Parks (GCNP). A high component community with EUROCOPTER light
helicopters' range results in a helicopter that is easy and affordable to maintain, increasing fleet versatility.
With its large cabin volume and high performance level, this "light truck" is the replacement of former
ALOUETTE III.
To optimise the Man-Machine Interface the helicopter is basically fitted with the VEMD (Vehicle and Engine
Multifunction Display) on the instrument panel. The EC130 B4 is powered with a TURBOMECA ARRIEL 2B1
engine of 847 shp (632 kW) and equipped with a dual channel FADEC system (Full Authority Digital Engine
Control), and third back-up control system. Therefore it offers the same world-beating performance
parameters, as the AS350 B3.
1. With a Maximum Gross Weight of
1 by night, in VFR, when the equipment required by operational regulations are installed and serviceable.
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 3
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 5
2- General Characteristics
Layout
Passenger-transport
z 1 pilot + 6 passengers in standard version 1
z 1 pilot + 7 passengers in "medium density" version
Technical Data
Casualty-evacuation
z 1 pilot + 1 or 2 stretcher patients + 2 medical attendants
z 2 pilots + 1 stretcher patient + 2 medical attendants
Cargo carrying
1 pilot + 3.7 m³ (130.7 ft³) load in cabin
z
Equipment
Complete 7 seats interior + trims + carpets included in standard
Ready to operate radio package included in standard :
z 2 VHF
z 2 VOR / LOC / GLIDE
z 1 GPS
z 1 ELT
z 1 XPD mode A + C
z 1 ICS capable of 8 outlets
z 1 ADI
z 1 HSI
Weights
Note : Empty weight accuracy : within ± 2 %
Empty weight, baseline aircraft 2
Useful load 4
Maximum all-up weight
Maximum cargo-swing load
Maximum all-up weight in external load configuration
kg lb
1,378
3,038
3
1,049 2,313
2,427 5,351
1,160 2,557
2,800 6,172
1 If required by the local airworthiness authorities, the capacity can be limited to 1 pilot + 5 passengers.
2 Baseline aircraft empty weight includes oil and unusable fuel. Ballast plates can be added at the rear of the
FENESTRON, their mass is 12.8 kg (28.2 lb) maximum. The baseline helicopter is delivered as standard with
4.8 kg (10.6 lb) ballast weight that is not included in the basic empty weight.
3 Empty weight according to baseline aircraft definition, as defined in pages 11 and 12, including the avionics suite.
4 The useful load does not include the ballast plates. Depending on the configur ation, the ballast’s weight will be
deducted from the useful load.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 4
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 6
Power plant
Technical Data
1 TURBOMECA ARRIEL 2B1 turbine engine
Engine ratings
Thermodynamic Power, in standard atmosphere, at sea level :
Take-off power
Maximum continuous power
kW ch shp
632 860 847
543 739 728
Usable Fuel capacities
Standard fuel tank
litres US gal. kg lb
540 143 426 939
External noise
In accordance with ICAO annex 16, chapter 8
Average value 86,8 EPNdB (- 7.0 dB / average ICAO limit)
Over flight 84,3 EPNdB (- 8.5 dB / ICAO limit)
(- 0.5 dB / GCNP 1 noise rule 6 PAX)
(- 1.2 dB / GCNP noise rule 7 PAX)
Internal noise
The noise in the cabin is also improved in order to increase pilot and passengers comfort.
Measures have been realised on a standard aircraft and give the following mean levels :
81.3 dB SIL4
86.1 dB SIL4 in cruise flight at 120 kts
2 in hover inside ground effect
1 GCNP = Grand Canyon National Park.
2 The method of sound level measurement used is Speech Interference Level (dB SIL4). This is the arithmetic
average of 4 octave (0.5, 1.0, 2.0 and 4.0 kHz) levels specified in dBlin (linear decibels). This particular set of
octaves corresponds to the human voice frequency range and thus allows to evaluate the interference with
passenger communication.
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 5
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 7

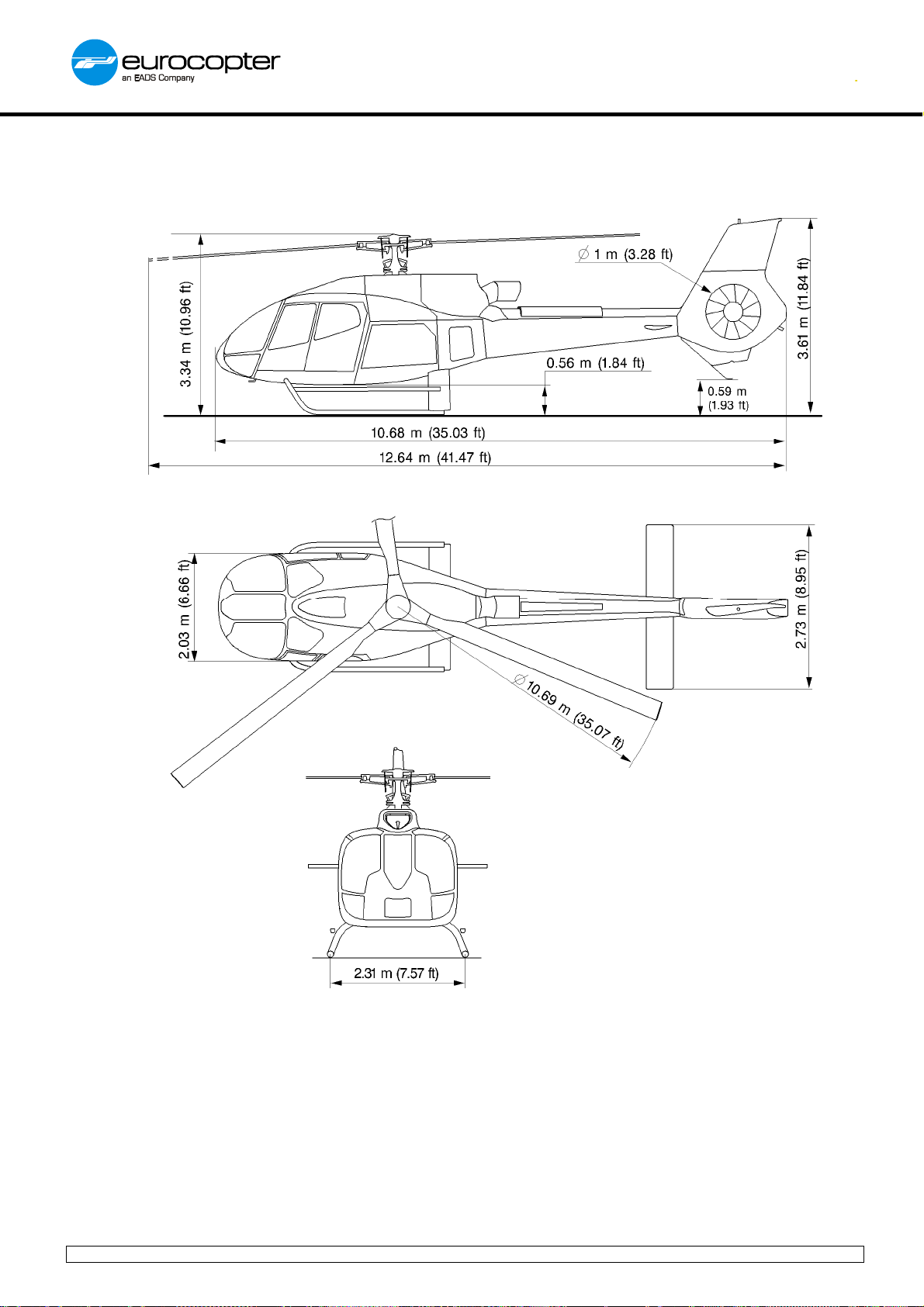

Main dimensions
Technical Data
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 6
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 8
Dimensions of compartments and accesses
Technical Data
Cabin main dimensions
CABIN
Surface
A
Volume 3.7 m³
3,00 m²
130.7 ft³
LH HOLD
Surface
Volume 0.285 m³
0.52 m²
10.06 ft³
RH HOLD
Surface
B
Volume 0.245 m³
0.43 m²
REAR HOLD
Surface
Volume 0.565 m³
0.55 m²
19.95 ft³
TOTAL HOLDS
32.3 ft²
5.60 ft²
4.63 ft²
8.65 ft³
5.92 ft²
Surface
Volume
1.50 m²
16.15 ft²
1.095 m³
38.66 ft³
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 7
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 9
Configurations
Standard Layout
Club seating Layout
Technical Data
Medium density Layout 1
1 Cabin lay-out if the option “8 Energy-absorbing seats lay-out” is fitted.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 8
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 10
Standard Cabin Lay-out and upholstery
The EC130 B4 offers an enlarged cabin floor, allowing comfortable accommodation for the pilot and
6 passengers on individual energy-absorbing seats. The rear seats are slightly elevated to offer a better
visibility to the passengers.
STYLENCE Cabin Lay-out and upholstery (optional)
Technical Data
Note:
EC130 B4 in STYLENCE upholstery configuration.
Enlarged cargo holds
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 9
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
The data set forth in this document are general in nature and for information purposes only.
Page 11
Other characteristics
TURBOMECA ARRIEL 2B1 turbine engine
847 shp (632 kW) take-off power
Triple engine control : one dual channel FADEC
(Full Authority Digital Engine Control) unit plus a
third independent and automatic back up channel
Optimized engine ratings according to outside
operations conditions thanks to electronic
governing system (FADEC)
Optimized engine monitoring through the VEMD
Automatic starting sequence
VEMD (Vehicle and Engine Multifunction Display)
Technical Data
Full colour LCD display
Fully duplex equipment
Self monitoring at one glance
First Limitation Indication (FLI) with aural warning
Mission parameters calculation
Engine cycle counting
Engine health monitoring
Noise reduction
The outstanding noise reduction is given by :
Automatic variable rotor speed control
quiet FENESTRON shrouded tail rotor
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 10
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
The data set forth in this document are general in nature and for information purposes only.
Page 12
3- EC130 B4 ECUREUIL - Baseline Aircraft Definition
The helicopter in the definition, presented hereafter, meets the certification standards for day and night VFR operations, set by the following
airworthiness authorities : EASA, FAA, TC. This list is not restrictive and the status of approval by other airworthiness authorities must be
checked. Additional equipment item may be required by the relevant operational regulation (most of them are available in catalogue).
Technical Data
GENERAL
The EC130 B4
The baseline aircraft is delivered with left side controls and
fixed parts of the removable dual controls (the removable parts
of removable dual controls are optional)
Fuselage comprising the cabin and 3 luggage holds, with floor tie-
down nets and access doors
Tail boom with stabilizer, FENESTRON
and tail skid
Tubular skid landing gear, with replaceable skid shoes, with long
footsteps (on right and on left side), profiler on rear tube, capable
of taking handling wheels
®
is certified with a pilot being on the left side
®
type anti torque rotor,
CABIN
Cabin floor in light-alloy sheet-metal
2 pilot and copilot high-back energy-absorbing seats,
adjustable in reach, removable, complete with cushions, safety
belts and shoulder harnesses
1 passenger high-back energy-absorbing seat (front right),
removable, complete with cushions, safety belt and shoulder
harness
4 passenger high-back energy-absorbing seats (rear row),
removable, complete with cushions, safety belts and shoulder
harnesses fitted on a removable frame bolted on the cabin floor
2 pilot and copilot jettisonable doors
z 1 LH front door fitted with a sliding window
z 1 RH large front door
1 LH rear sliding door
1 RH rear fixed panel
Locks on every access to cabin and luggage compartments
Lock on fuel cap
INSTRUMENTS
Instruments units : available in either metric or English units
1 airspeed indicator
1 altimeter
1 vertical speed indicator
1 LCD rotor and free turbine dual indicator
1 clock
1 warning panel
1 magnetic compass
1 heated pitot head
1 external side slip indicator
1 control box for light and electrical generation
1 ICS connection to audio warning issued from VEMD
®
Lifting points
Mooring fixtures
External paint : fuselage painted in 1 to 3 colours according to
standard paint schemes. Unless modified by optional item, the
main rotor head and tail rotor covers are painted in grey, the skid
landing gear in dark grey and the FENESTRON
®
duct in light
grey
Internal paint : light grey (prevailing colour)
Interior signs and markings : available in either French or English
Lateral and upper tinted windows (windscreen excluded)
1 ceiling housing the cabin lighting, 7 air ventilation outlets and
controls (ventilation controls, rotor brake and fuel cut-off)
Capabilities for mandatory optional item : air conditioning or
ventilation systems
Cabin heating
Demisting system for front windscreen
2 pilot map cases
Door map case in LH and RH front doors
Floor carpet
Rear bulkhead and lateral rear upholstery
1 fire-extinguisher
1 Flight Manuall: available in either French or English
Interior harmony according to definition in force
1 LCD dual screen Vehicle and Engine Multifunction display
®
(VEMD
z First limitation indicators (FLI)
z Engine oil temperature, pressure
z Fuel quantity
z Fuel flow and estimated remaining time to fly
z Ammeter and voltmeter and battery temperature
z Outside air temperature
z Enhanced usage monitoring functions
z VEMD
z Data downloading capability (software and connection wire
) providing the following information :
torquemeter
exhaust gas temperature (T4)
gas generator tachometer (Ng, delta Ng)
IGE/OGE performance calculations
engine cycle counting
engine power check
overlimits display
®
and peripheral maintenance information
as option)
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.100.01 E 11
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 13
AVIONICS
1 avionics master switch
1 gyro-horizon
1 gyro-compass with
1 horizontal Situation Indicator
1 turn and bank indicator
1 VHF/VOR/LOC/GS
POWER PLANT
1 Turboméca ARRIEL 2B1 632 kW (850 ch - 847 shp) turbine
engine complete with starting, fuel supply and dual channel
digital engine control system (FADEC) and 1 back-up fuel
control box that automatically controls the engine in case of a
total failure of the 2 digital channels of the FADEC
1 fuel system including 1 tank of 540 liters (143 US gal.) total
capacity
1 twist grip on pilot side (for engine reduction in case of tail
rotor failure and autorotation training)
TRANSMISSION SYSTEM
1 main gearbox, anti-vibration mounted, with oil sight gauge,
chip detector, oil temperature and pressure switches, port for
endoscope and self sealing valve for oil sampling and draining
1 main gearbox oil cooling system
1 engine to main gearbox coupling shaft
1 rotor brake
ROTORS AND FLIGHT CONTROLS
1 main rotor with 3 composite-material blades around a
STARFLEX
1 anti-torque rotor (FENESTRON
®
head fitted with spherical thrust bearings
®
) with 10 asymmetrical
blades, integrated in vertical fin
ELECTRICAL INSTALLATION
One 150 A, 28 VDC starter-generator
One 15 A.h cadmium-nickel battery
1 ground power receptacle
3 position lights (LED)
1 flashing anti-collision light (LED)
2 fixed landing lights
AIRBORNE KIT (*)
1 pitot head cover
2 static port stoppers
1 engine air-intake blanking cover
1 tail-pipe plug
2 ground handling bogies c/w hydraulic jacking system
1 lifting ring
(*) (weight not included in standard aircraft empty weight)
1 VHF/VOR/LOC/GS/GPS
1 transponder (mode A+C)
1 altitude encoder
1 Emergency Locator Transmitter
1 ICS + passenger interphone
1 magnetic plug and 1 chip detector
1 engine lubrication and oil cooling system
1 fire detection system
1 air-intake protection grids
1 torque-measurement pick-up
1 main rotor high and low r.p.m. warning device
1 tail drive carried by five anti-friction bearings
1 tail gearbox with oil sight gauge, chip detector and port for
endoscopic inspection
3 main rotor hydraulic servo units (duplex servos)
2 independent hydraulic generation systems
2 cabin light sets, each with 2 reading lights for 2 rear
passengers and 1 dome light
1 instrument panel lighting system
Integrated lighting in central console
1 reading map light on upper canopy strut for pilot
1 cockpit breaker panel
One 28 V DC cabin power outlet
2 upper mooring rings
3 main-blade socks
1 document holder
1 airborne kit stowage bag
Manuals (CD ROM)
Technical Data
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.100.01 E 12
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization of EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 14
4- Recommended mission configurations
EUROCOPTER propos es different mission configurations for its helicopters. This pre-selected list
of optional equipment should be regarded as a recommended minimum equipment list and can be
Technical Data
complemented by additional equipment from the optional equipment list in chapter
note that there can be incompatibilities between optional equipments. Any modification and/or
complement of the proposed mission configuration must be done in with assistance of a
EUROCOPTER sales representative.
The proposed mission configurations are done by EUROCOPTER using its years of experience in
making helicopters and in coordination with different operators of the EC130 B4 around the world.
For the EC130 B4 the recommended mission configurations are:
Passenger transport mission
Corporate transport mission (STYLENCE).
5. Please take
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 13
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 15
4-1 Passenger transport mission
The EC130 B4 with its FENESTRON shrouded fan tail rotor is one of the most silent helicopters flying
nowadays. Its very low noise level is 7 dB under the limits defined by the Grand Canyon National Park rule.
Technical Data
The helicopter has been designed with the occupants in mind. Each passenger is comfortably seated on
individual and comfortable seats. The wide and unobstructed cabin with very high visibility offers the
passengers an excellent view for both the front and the rear passengers. The rear passengers' seats are
placed on a raised platform to provide this excellent view.
Using the technologies of the well-known ECUREUIL family, the EC130 B4 has an exceptional high rate of
availability. All these elements make the EC130 B4 therefore the benchmark for passenger transport and
tourism helicopters.
Weights
Note : Empty weight accuracy : within ± 2 %
Empty weight, Passenger transport mission configuration
(including engine oil and unusable fuel)
Useful load
Maximum all-up weight
Maximum cargo-swing load
Maximum all-up weight in external load configuration
kg lb
1,460 3,219
967 2,132
2,427 5,351
1,160 2,557
2,800 6,172
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 14
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 16
Mission configuration
Document
reference
General Equipment
05-02049-A
05-03003-A
05-23005-A
05-27001-A
05-31033-A
05-37015-A
05-42025-A
Specific Mission Equipment
06-27003-A
06-42017-A
06-61006-A
Avionics
Commercial
reference
EC130 B4 Baseline aircraft as per 130 B4 09.100.01 E
05-02049-00-CI Customized external paint scheme 1 -
05-03003-00-CI
05-23005-00-CI
05-27001-00-CI
05-31033-00-CI
05-37015-00-CI
05-42025-01-CI
06-27003-00-FP
06-42017-00-CI
06-61006-00-FP
Name
1,378.0 3,038.0
2 5.0 11.0
First aid kit 3
Engine wash
Cabin fire-extinguisher 4
Sun protected upper windows
Dual controls
Air conditioning system with reinforced front air distribution
Cargo swing 1,160 kg – 2,557 lb - Fixed Parts
Landing light adjustable in site and azimuth 5
Emergency floatation gear - Fixed Parts 5 - 6
Standard VFR day and night package (included in Baseline Aircraft)
Thales H321EGM - Gyro-horizon
Honeywell KCS55A - Gyro Compass with
Honeywell KI525A - Horizontal Situation Indicator 8
UI 9560 - Turn and Bank indicator
Honeywell KX165A - VHF/VOR/LOC/GS
Garmin GNS430W - VHF/VOR/LOC/GS/GPS
Garmin GTX327 - Transponder (mode A+C)
Shadin 8800T - Altitude Encoder
Kannad 406AF-H - Emergency Locator Transmitter 11
Garmin GMA340 - ICS
12 - 13
7
9 - 10
kg lb
1.8 4.0
0.8 1.8
1.7 3.7
2.0 4.4
2.6 5.7
43.0 94.8
5.1 11.2
4.3 9.5
3.6 7.9
Technical Data
Configuration continued on next page…
1 The paint scheme must be approved at the latest 6 months before the delivery of the helicopter.
2 The option customized external paint scheme includes bet ween 4-6 different colors.
3 Recommended for public transport mission. Its content is the buyer’s responsibility as it may vary according to
geographical region or applicable regulations.
4 If type is accepted by local regulations.
5 May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
6 When the removable parts are not fitted on the aircraft, a part of the fixed parts representing 2 kg - 4.4 lb can be
easily dismounted (less than one working day).
7 With slip indicator included when the Turn and Bank indicator is replaced by the stand-by gyro-horizon.
8 With a selector switch for NAV1/NAV2 selection.
9 This equipment is delivered with the original EUROPE map which can be n ot up to date. Subscription to be made
by the customer.
10 Aircraft with capability WAAS (Wide Area Augmentation System). WAAS netw ork only covers the entire United
States and some of Canada and Mexico.
11 3 frequencies : 121.5 MHz, 243 MHz, 406 MHz. Compliant with ED 62 and TSO C91A.
The Programming Data Sheet must be filled and communicated by the customer two months at the latest before
the helicopter's delivery.
12 Includes the passenger interphone function.
13 I.C.S. compatible only with High level / High impedance headsets.
The headsets of the passengers should be of the same mark and the same model.
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 15
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 17
Document
reference
Avionics
08-22019-A
08-51019-A
08-18035-A
08-21008-A
08-83017-A
Commercial
reference
08-22019-01-CI
08-51019-01-CI
08-18035-00-CI
08-21008-06-CI
08-83017-00-CI
Name
Garmin GTX330 - Transponder (mode S) 1 - 2
instead of Garmin GTX327 - Transponder (mode A+C)
Thales H321EGM - Stand-by gyro-horizon 1- 3
instead of UI 9560 - Turn and Bank indicator
David Clark H10-13H – Headset (Qty. 7) 4
Thales AHV16 - Radio altimeter 1
- 5 - 6
VEMD data download kit 7 - 8
kg lb
0.7 1.5
3.1 6.8
3.5 7.7
4.6 10.1
— —
Technical Data
1 May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
2 The mode S identification must be communicated by the customer two months at the latest before the delivery.
3 Fitted with independent battery.
4 High level / High impedance headset.
5 The Radio Altimeter includes a 100 ft warning signal. The volume of this signal can be tuned down.
6 Option available for deliveries end 2009.
7 Allows compliance to JAR OPS 3 Amendment 3 requirement, as defined in Appendix 1
to JAR OPS 3.517 (a) and (b)(5)(i). Requires absolute time data, given through a compatible connectio n with
serviceable GPS equipment (Compliance achieved with the standard aircraft as defined on pa ges 11 and 12).
8 Delivered in addition to the airborne kit, the kit includes two software and a connection wire.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 16
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 18
Technical Data
Blank
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 17
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 19
4-2 Corporate transport mission (STYLENCE)

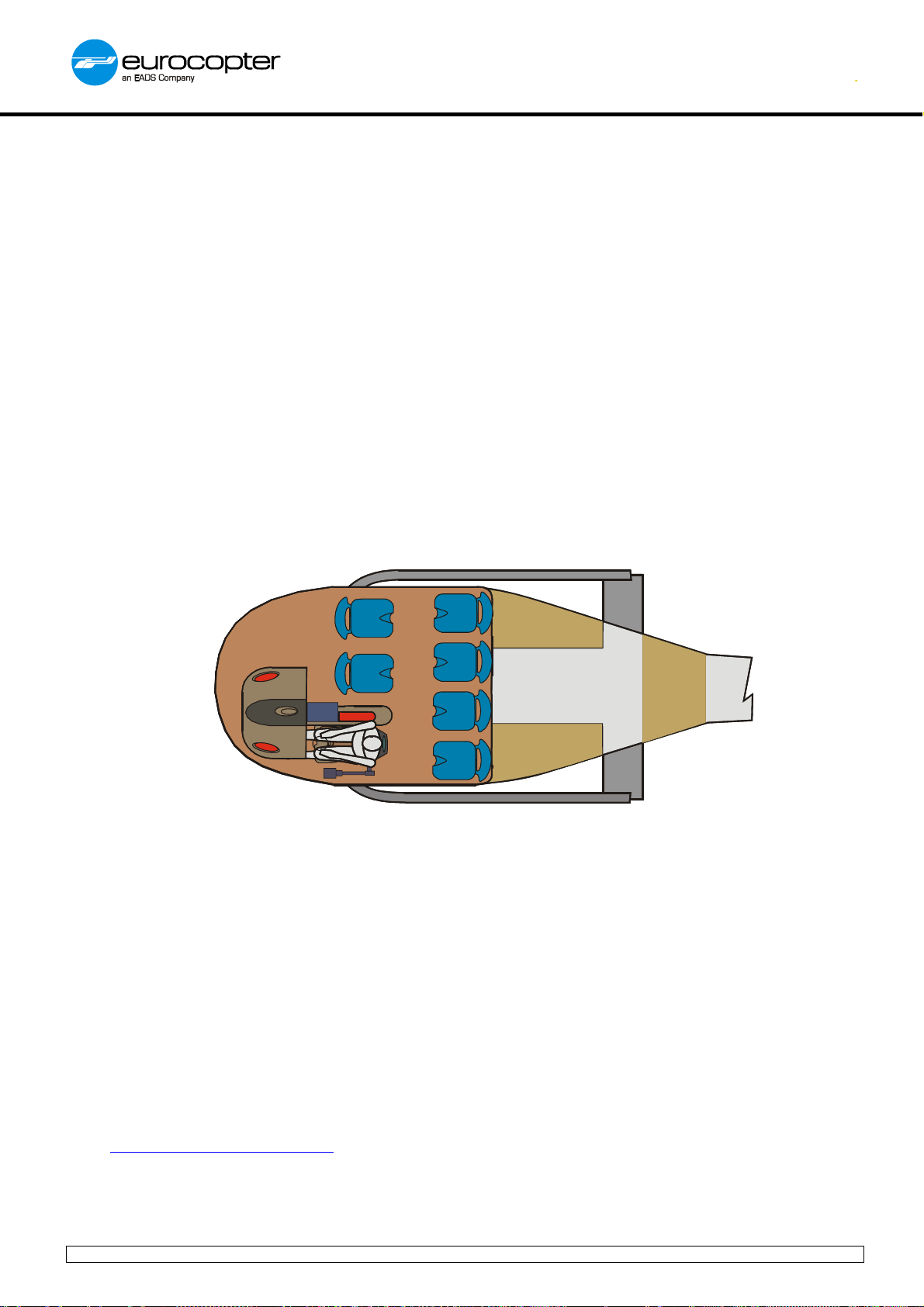

In the corporate configuration, the EC130 B4 can transport up to seven passengers in roominess and
comfort that is usually not found in a light helicopter. A large sliding door and the long boarding steps along
both sides of the helicopter allow easy access to the cabin. The passengers are seated on forward facing
energy absorbing seats
The additional STYLENCE package offers a high level of finishing to the interior of the helicopter. It is
available in six different colours (brick, aubergine, camel, graphite, silver and marine).
Technical Data
Weights
Note : Empty weight accuracy : within ± 2 %
Empty weight, Corporate transport mission configuration
(including engine oil and unusable fuel)
Useful load
Maximum all-up weight
Maximum cargo-swing load
Maximum all-up weight in external load configuration
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 18
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
kg lb
1,508 3,324
919 2,027
2,427 5,351
1,160 2,557
2,800 6,172
Page 20
Mission configuration
Document
reference
Commercial
reference
EC130 B4 Baseline aircraft as per 130 B4 09.100.01 E 1,378.0 3,038.0
Mission Package
00-50015-B
00-50015-02-CI
General Equipment
05-23005-A
05-25027-A
05-37015-A
05-23005-00-CI
05-25027-00-CI
05-37015-00-CI
Specific Mission Equipment
06-27003-A
06-42017-A
06-61006-A
06-27003-00-FP
06-42017-00-CI
06-61006-00-FP
Avionics
Configuration continued on next page…
Name
STYLENCE package 1
Engine wash
Enhanced Engine Air Particle Separators 2
Dual controls
Cargo swing 1,160 kg – 2,557 lb - Fixed Parts
Landing light adjustable in site and azimuth 3
Emergency floatation gear - Fixed Parts 3 - 4
Thales H321EGM - Gyro-horizon
Honeywell KCS55A - Gyro Compass with
Honeywell KI525A - Horizontal Situation Indicator 6
UI 9560 - Turn and Bank indicator
Honeywell KX165A - VHF/VOR/LOC/GS
Garmin GNS430W - VHF/VOR/LOC/GS/GPS
Garmin GTX327 - Transponder (mode A+C)
Shadin 8800T - Altitude Encoder
Kannad 406AF-H - Emergency Locator Transmitter 9
Garmin GMA340 - ICS
kg lb
102.0 225.0
0.8 1.8
7.1 15.7
2.6 5.7
5.1 11.2
4.3 9.5
3.6 7.9
Standard VFR day and night package (included in Baseline Aircraft)
5
7 - 8
10 - 11
Technical Data
1 For the content of the STYLENCE package, please refer to page 21 of this Technical Data.
2 Capabilities included in standard aircraft. The sand filter authorises the flight under falling snow.
3 May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
4 When the removable parts are not fitted on the aircraft, a part of the fixed parts representing 2 kg - 4.4 lb can be
easily dismounted (less than one working day).
5 With slip indicator included when the Turn and Bank indicator is replaced by the stand-by gyro-horizon.
6 With a selector switch for NAV1/NAV2 selection.
7 This equipment is delivered with the original EUROPE map which can be not up to date.
Subscription to be made by the customer.
8 Aircraft with capability WAAS (Wide Area Augmentation System). WAAS network only covers the entire United
States and some of Canada and Mexico.
9 3 frequencies : 121.5 MHz, 243 MHz, 406 MHz. Compliant with ED 62 and TSO C91A.
The Programming Data Sheet must be filled and communicated by the customer two months at the latest before
the helicopter's delivery.
10 Includes the passenger interphone function.
11 I.C.S. compatible only with High level / High impedance headsets.
The headsets of the passengers should be of the same mark and the same model.
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 19
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 21
Document
reference
Avionics
08-22019-A
08-18035-A
08-18043-A
Commercial
reference
08-22019-01-CI
08-18035-00-CI
08-18043-00-CI
Name
Garmin GTX330 - Transponder (mode S) 1 - 2
instead of Garmin GTX327 - Transponder (mode A+C)
David Clark H10-13H – Headset (Qty 2) 3
Bose Aviation X headset (Qty 5)
kg lb
0.7 1.5
1.0 2.2
2.5 5.5
Technical Data
1 May be a mandatory equipment, required by local airworthiness authorities or operationa l regulations.
2 The mode S identification must be communicated by the customer two months at the latest before the delivery.
3 High level / High impedance headset.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 20
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 22
5- Optional equipment
5-1 Mission package
EUROCOPTER proposes one mission package, specially designed for passenger transport,
offering an high level of finishing.
This package must be regarded as a whole and its content cannot be modified nor sold separately.
Technical Data
Document
reference
00-50015-B
Sun protected upper windows
Air conditioning system with reinforced front air distribution
ICS installation compatible with Bose Aviation X headset
Layout STYLENCE, including mainly
Front seats upholstered in leather, with casing made of carbon fiber and leather
Cabin carpet with additional foam
Set of over-carpets
New demisting ramp
Carpet baggage bay floor covering
Protection cover for carpet
The STYLENCE layout is available in 6 colour schemes :
Brick Aubergine Camel Graphite Chocolate Marine
EC130 B4 STYLENCE configuration empty weight : 1,479 kg - 3,261 lb
The aircraft equipped empty weight is correct to ± 2 %. According to aircraft equipment, ballast may be
required to accommodate various mission configuratio ns.
Commercial
reference
00-50015-02-CI
Name
STYLENCE package
Light grey internal paint
storage pouch
Rear seats upholstered in leather with fairing of the lower part
Integrated door case covered with light grey leather
Carpet edge protection
Upholstery panels on the front structure
Console upholstery
Lateral upholstery panels on the ceiling
Rear partition covered with light grey leather
New rear bulkhead ledge
Protection covers for seats
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 21
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 23
5-2 List of optional equipment
This chapter includes all the optional equipment that can be selected to customize the EC130 B4 helicopter.
Please take note that there can be incompatibilities between optional equipments. Any configuration made
by using this list of optional equipment should be made with the assistance of the latest issue of the Table of
Constraints, or validated by a EUROCOPTER sales representative.
Note : value of the weight breakdown is given for information and shall not be considered as contractual.
General equipment
Technical Data
Document
reference
05-01024-B
05-02049-A
05-02009-A
05-03003-A
05-21002-A
05-23005-A
05-24005-B
05-25006-A
05-25027-A
05-25029-A
05-27001-A
05-30001-A
05-31002-A
05-31033-A
05-37015-A
05-37020-A
05-37021-A
05-42025-A
05-44004-A
05-61008-A
05-63002-A
05-63005-A
05-92016-A
Commercial
reference
05-01024-01-CI
05-02049-00-CI
05-02009-00-CI
05-03003-00-CI
05-21002-00-CI
05-23005-00-CI
05-24005-00-CI
05-25006-00-CI
05-25027-00-CI
05-25029-00-CI
05-27001-00-CI
05-30001-00-CI
05-31002-00-CI
05-31033-00-CI
05-37015-00-CI
05-37020-00-CI
05-37021-00-CI
05-42025-01-CI
05-44004-00-CI
05-61008-00-CI
05-63002-02-CI
05-63005-00-CI
05-92016-00-FP
05-92016-00-RP
Name
Russian certification kit
Customized external paint scheme 1 - 2
Highly customized external paint scheme 1 - 3
First aid kit 4
Wire strike protection system 5
Engine wash
Concentric high visibility paint scheme
on main rotor blades (red or yellow strips) 6
Reinforced sand-erosion protection strip on main rotor blades
Enhanced Engine Air Particle Separator 5
- 7
Heavy duty blade pins 8
Cabin fire-extinguisher 9
Copilot's map-reading light
Sliding window on RH front door
Sun protected upper windows
Dual controls
Full option pilot cyclic control stick
Full option copilot cyclic control stick
Air conditioning system with reinforced front air distribution 10
Cabin ventilation system 10
2nd battery kit
Thales Avionics 200 A starter-generator
Thales Avionics 150 A starter-generator instead of APC
standard one
Folding of main rotor blades - Fixed Parts
Folding of main rotor blades - Removable Parts
kg lb
4.0 8.8
5.0 11.0
On request
1.8 4.0
5.3 11.7
0.8 1.8
0.1 0.2
0.3 0.7
7.1 15.7
0.0 0.0
1.7 3.7
0.3 0.7
0.1 0.2
2.0 4.4
2.6 5.7
0.4 0.9
0.4 0.9
43.0 94.8
5.8 12.8
17.0 37.5
1.1 2.4
-0.6 -1.3
1.8 4.0
— —
1 The paint scheme must be approved at the latest 6 months before the delivery of the helicopter.
2 The option customized external paint scheme includes bet ween 4-6 different colors.
3 Sophisticated paint scheme with numerous shades, complex graduated shades, or complicated emblem or logo.
4 Recommended for public transport mission. Its content is the buyer’s responsibility as it may vary according to
geographical region or applicable regulations.
5 Availability to be confirmed with a EUROCOPTER sales’ representative.
6 Only one painting scheme (concentric circles) and two colours (red or yellow) available.
7 The sand filter authorises the flight under falling snow.
8 Recommended for operations in sandy and abrasive conditions.
9 If type is accepted by local regulations.
10 It is mandatory to select one of the two optional items 05-42 025-01-CI or 05-44004-00-CI.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 22
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 24
Specific mission equipment
Document
reference
06-11006-A
06-26002-A
06-27002-B
06-27003-A
06-27016-A
06-42017-A
06-61006-A
06-74007-A
Commercial
reference
06-11006-00-CI
06-26002-00-CI
06-27002-01-FP
06-27002-01-RP
06-27003-00-FP
06-27003-00-RP
06-27016-00-FP
06-27016-00-RP
06-42017-00-CI
06-61006-00-FP
06-61006-00-RP
06-74007-00-CI
Name
Short protective skid shoes
External electric mirror
Cargo sling 750 kg - 1,654 lb - Fixed Parts
Cargo sling 750 kg - 1,654 lb - Removable Parts 1
Cargo swing 1,160 kg – 2,557 lb - Fixed Parts
Cargo swing 1,160 kg – 2,557 lb - Removable Parts 1
Cargo swing 1,350 kg – 2,976 lb - Fixed Parts 2
Cargo swing 1,350 kg – 2,976 lb - Removable Parts 2
Landing light adjustable in site and azimuth 4
Emergency floatation gear - Fixed Parts 4 - 5
Emergency floatation gear - Removable Parts 4
NVG compatible lighting for cockpit and standard avionics
suite 2
Interior cabin layout
07-24005-A
07-40013-A
07-60022-A
07-24005-00-CI
07-40013-00-CI
07-60022-00-CI
8 Energy-absorbing seats layout 6 - 7
Carpet edge protection
Cargo tie-down rings in cabin 2
- 3
kg lb
2.5 5.5
2.6 5.7
2.2 4.8
2.8 6.2
5.1 11.2
11.5 25.4
7.0 15.4
13.0 28.7
4.3 9.5
3.6 7.9
57.4 126.5
0.1 0.2
23.4 51.6
0.6 1.3
0.7 1.5
Technical Data
1 With Onboard Systems TALON hook.
2 Availability to be confirmed with a EUROCOPTER sales’ representative.
3 Complete Onboard Systems installation.
4 May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
5 When the removable parts are not fitted on the aircraft, a part of the fixed parts representing 2 kg - 4.4 lb can be
easily dismounted (less than one working day).
6 When the aircraft is delivered with 8 seats, the rails for installing 7 seats are provided as loose equipment.
7 According to the aircraft configuration, ballast may be required to accommodate both pilot alone a nd one pilot +
7 passengers. The weight figure includes a ballast's average value of 4.8 kg - 10.6 lb
(maximum value 12.8 kg -28.2 lb).
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 23
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 25
Avionics
Single pilot VFR day and night Package included in baseline definition
Thales H321EGM - Gyro-horizon
1
Honeywell KCS55A - Gyro Compass with
Honeywell KI525A - Horizontal Situation Indicator
2
UI 9560 - Turn and Bank indicator
Honeywell KX165A - VHF/VOR/LOC/GS
Garmin GNS430W - VHF/VOR/LOC/GS/GPS
3 - 4
Garmin GTX327 - Transponder (mode A+C)
Shadin 8800T - Altitude Encoder
Kannad 406AF-H - Emergency Locator Transmitter
Garmin GMA340 - ICS
5 - 6
The baseline aircraft definition includes an avionics package as defined her eabove. Brands and models are given for
information exclusively. EUROCOPTER reserves the rights to modify any brand or model constantly according to its
policy in force.
Equipment that can replace a standard equipment
Document
reference
08-22019-A
08-51019-A
Commercial
reference
08-22019-01-CI
08-51019-01-CI
Name
Garmin GTX330 - Transponder (mode S) 7 - 8
instead of Garmin GTX327 - Transponder (mode A+C)
Thales H321EGM - Stand-by gyro-horizon 7- 9
instead of UI 9560 - Turn and Bank indicator
kg lb
0.7 1.5
3.1 6.8
Technical Data
1 With slip indicator included when the Turn and Bank indicator is replaced by the stand-by gyro-horizon.
2 With a selector switch for NAV1/NAV2 selection.
3 This equipment is delivered with the original EUROPE map which can be not up to date.
Subscription to be made by the customer.
4 Aircraft with capability WAAS (Wide Area Augmentation System). WAAS network only covers the entire United
States and some of Canada and Mexico.
5 Includes the passenger interphone function.
6 I.C.S. compatible only with High level / High impedance headsets.
The headsets of the passengers should be of the same mark and the same model.
7 May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
8 The mode S identification must be communicated by the customer two months at the latest before the delivery.
9 Fitted with independent battery.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 24
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 26
Additional Avionic equipment that can be added depending on operational needs or
the requirements of the authorities in certain countries if not included in the
standard package
Document
reference
08-18024-A
08-18035-A
08-18037-A
08-18043-A
08-21008-A
08-51015-B
08-83017-A
Commercial
reference
08-18024-00-CI
08-18035-00-CI
08-18037-00-CI
08-18043-00-CI
08-21008-06-CI
08-51015-01-CI
08-83017-00-CI
Name
Headset extension cord
David Clark H10-13H - Headset 1
ICS installation compatible with Bose Aviation X headset 2
Bose Aviation X headset
Thales AHV16 - Radio altimeter 3 - 4 - 5
Thales H321EGM - Stand-by gyro-horizon 6 - 7
VEMD data download kit 8 - 9
The radio/com/nav. equipment weight figures included i n this chapter are average values. As the installation of those
equipment may vary from one a/c to an other, the weight of a complete configuration with multiple items may not be the
simple sum of all individual weights.
kg lb
0.1 0.2
0.5 1.1
1.0 2.2
0.5 1.1
4.6 10.1
3.8 8.4
— —
Technical Data
1 High level / High impedance headset.
2 Includes ICS stereo jacks : in addition to the standard jacks for pilot and copilot and in replacement of the
standard jacks for passengers. Provides electrical supply for the use of Bose X headset without battery pack.
3 May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
4 The Radio Altimeter includes a 100 ft warning signal. The volume of this signal can be tuned down.
5 Option available for deliveries end 2009.
6 Fitted with independent battery.
7 In addition to the standard Turn and bank indicator.
8 Allows compliance to JAR OPS 3 Amendment 3 requirement, as defined in Appendix 1
to JAR OPS 3.517 (a) and (b)(5)(i). Requires absolute time data, given through a compatible connectio n with
serviceable GPS equipment (Compliance achieved with the baseline aircra ft as defined on
pages 11 and 12).
9 Delivered in addition to the airborne kit, the kit includes two softwares and a connection wire.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 25
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 27

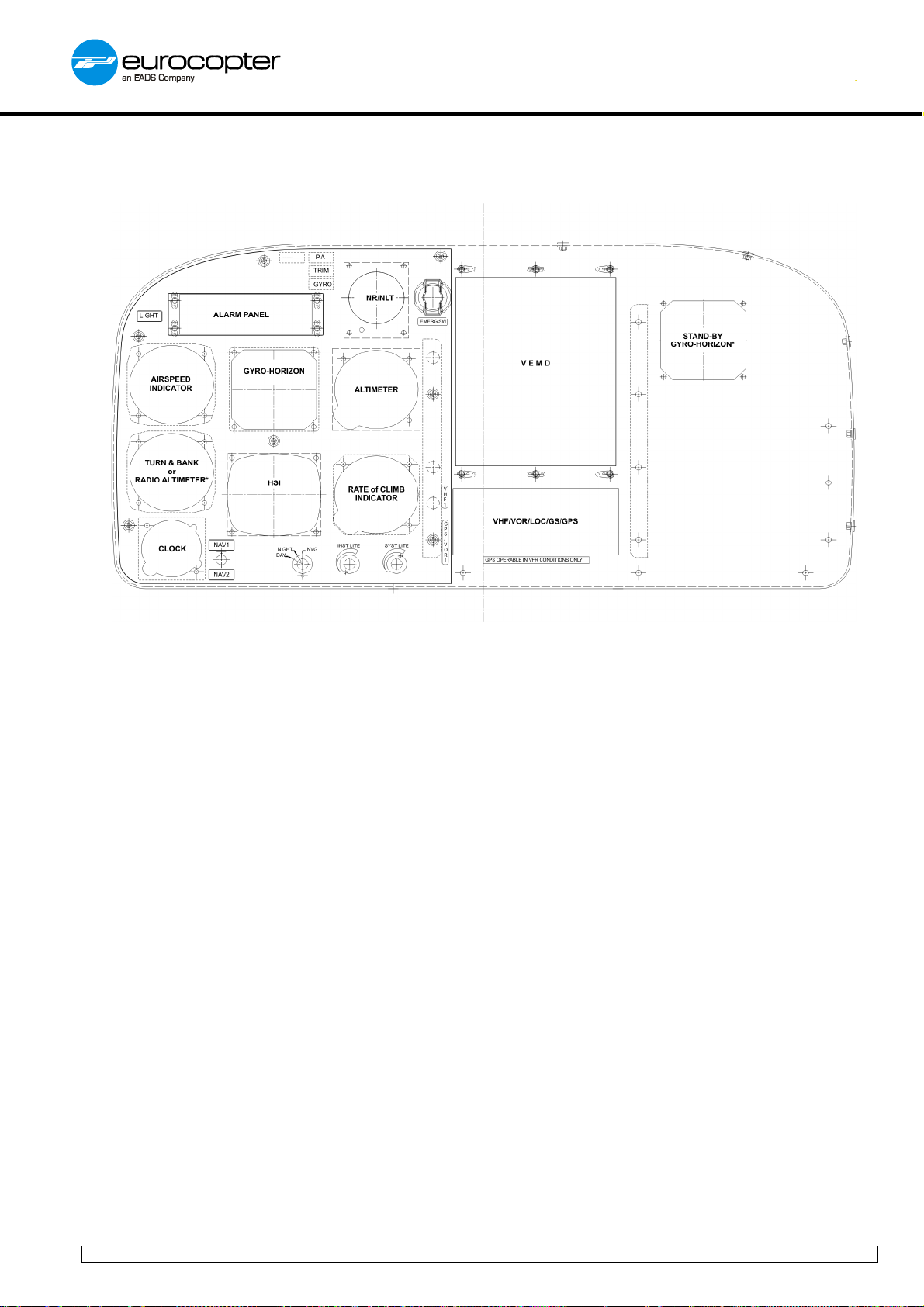

STANDARD INSTRUMENT PANEL LAYOUT
Technical Data
* Optional equipment.
Note: Layout given for information only and that can be modified later.
Note: Instrument panel includes integrated lighting.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 26
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 28
Equipment that may be required by operational regulations
The purpose of the following table is to summarise a list of available optional items of equipment — which
may supplement the sales standard aircraft definition — in order to comply with the relevant operational
regulations depending on the type of operations. This list must be considered as a reminder and does not
claim to cover all operational requirements.
Technical Data
Document
reference
05-03003-A
05-27001-A
06-42017-A
06-61006-A
08-18035-A
08-21008-A
08-22019-A
Commercial
reference
05-03003-00-CI
05-27001-00-CI
06-42017-00-CI
06-61006-00-FP
06-61006-00-RP
08-18035-00-CI
08-21008-06-CI
08-22019-01-CI
Name
First aid kit 1
Cabin fire-extinguisher 2
Landing light adjustable in site and azimuth
Emergency floatation gear - Fixed Parts 3
Emergency floatation gear - Removable Parts
David Clark H10-13H - Headset 4
Thales AHV16 - Radio altimeter 5 - 6
Garmin GTX330 - Transponder (mode S)
instead of Garmin GTX327 - Transponder (mode A+C)
7
kg lb
1.8 4.0
1.7 3.7
4.3 9.5
3.6 7.9
57.4 126.5
0.5 1.1
4.6 10.1
0.7 1.5
08-51015-B
08-51019-A
08-83017-A
08-51015-01-CI
08-51019-01-CI
08-83017-00-CI
Thales H321EGM - Stand-by gyro-horizon 8 - 9 - 10
Thales H321EGM - Stand-by gyro-horizon 8
instead of UI 9560 - Turn and Bank indicator
VEMD data download kit 11 - 12
- 9
3.8 8.4
3.1 6.8
— —
1 Recommended for public transport mission. Its content is the buyer’s responsibility as it may vary according to
geographical region or applicable regulations.
2 If type is accepted by local regulations.
3 When the removable parts are not fitted on the aircraft, a part of the fixed parts representing 2 kg - 4.4 lb can be
easily dismounted (less than one working day).
4 High level / High impedance headset.
5 The Radio Altimeter includes a 100 ft warning signal. The volume of this signal can be tuned down.
6 Option available for deliveries end 2009.
7 The mode S identification must be communicated by the customer two months at the latest before the delivery.
8 May be a mandatory equipment, required by local airworthiness authorities or operational regulations.
9 Fitted with independent battery.
10 In addition to the standard Turn and bank i ndicator.
11 Allows compliance to JAR OPS 3 Amendment 3 requirement, as defined in Appendix 1
to JAR OPS 3.517 (a) and (b)(5)(i). Requires absolute time data, given through a compatible connectio n with
serviceable GPS equipment (Compliance achieved with the baseline aircra ft as defined
on pages 11 and 12).
12 Delivered in addition to the air borne kit, the kit includes two softwares and a connection wire.
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 27
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 29
Technical Data
Blank
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 28
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 30
6- Main performance
The following performance values and figures refer to an EC130 B4.
Unless otherwise specified, the values and figures refer to a clean helicopter, equipped with a new engine,
at Sea Level (SL), in International Standard Atmosphere (ISA) and zero wind condition.
Note : The following data are extracted from the approved flight manual which is the reference for
performance computation.
Performance
Technical Data
Gross Weight
Maximum Speed, VNE
Fast cruise speed (at MCP)
Recommended cruise speed

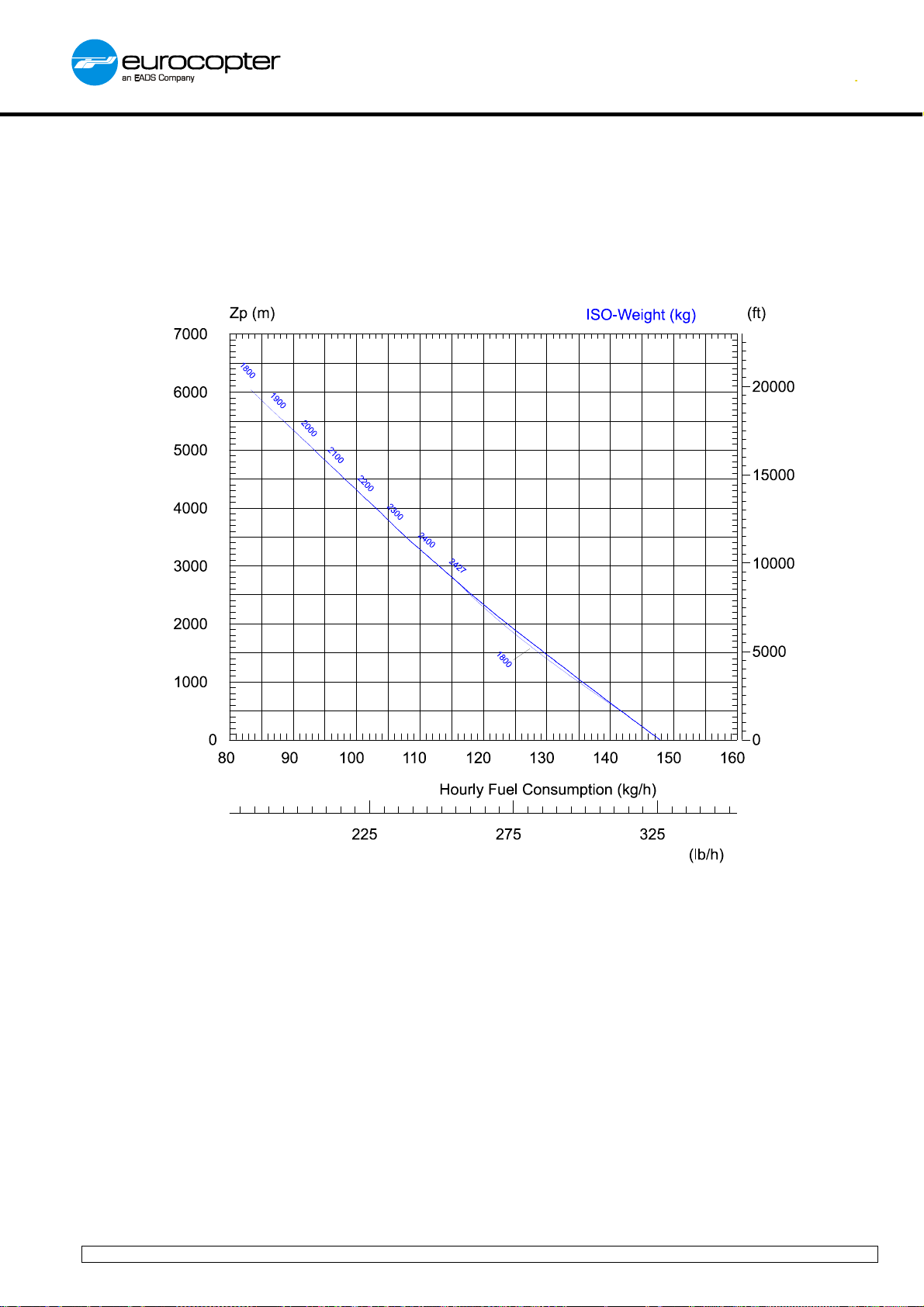

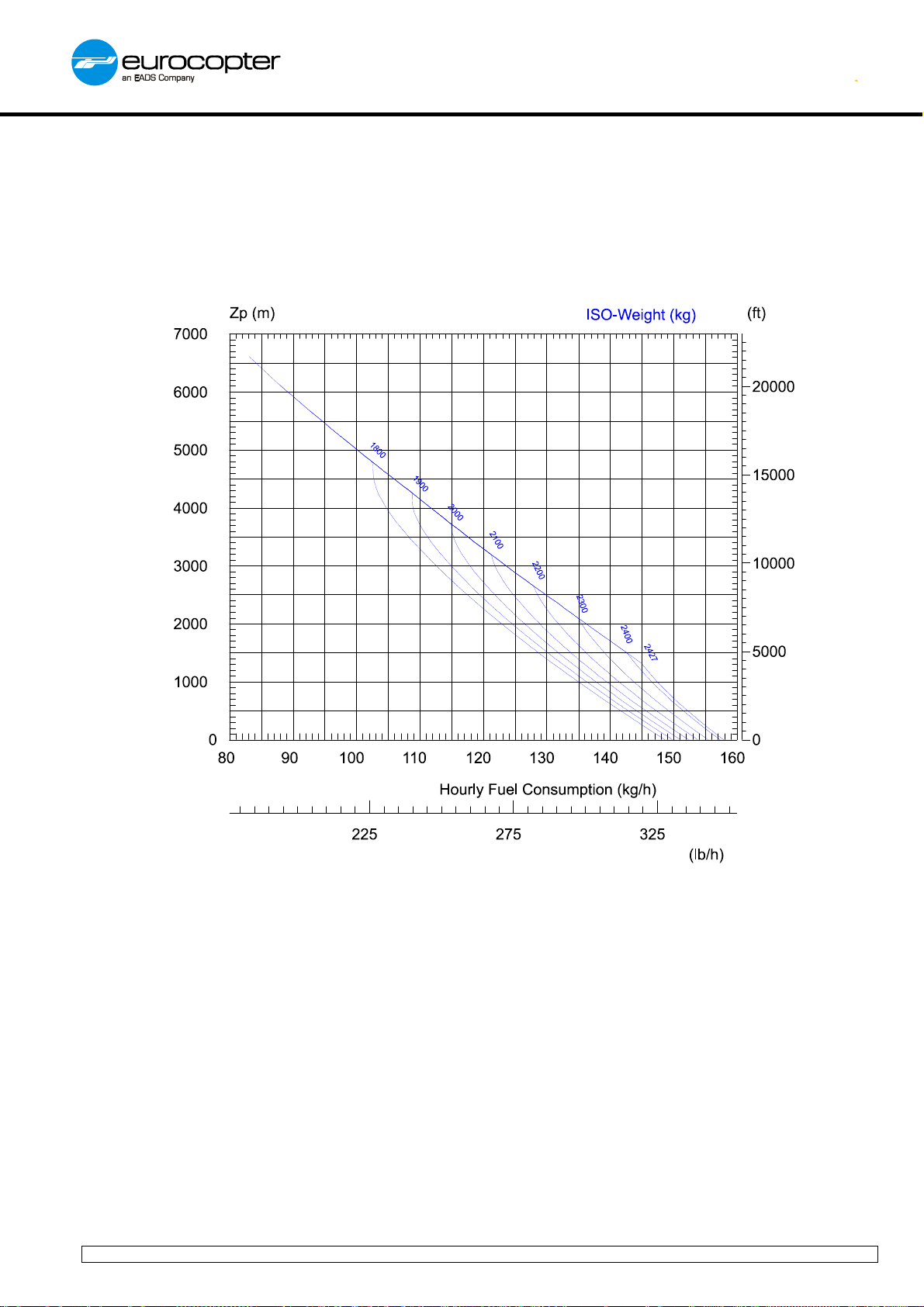

Fuel consumption
at fast cruise speed
Fuel consumption
at recommended cruise speed
Rate-of-climb
Hover ceiling IGE at Take-off power
z ISA
z ISA + 20°C
Hover ceiling OGE at Take-off power
z ISA
z ISA + 20°C
Service ceiling (0.5 m/sec., 100 ft/min.)
z ISA
z ISA + 20°C
Range
(without reserve, at recommended cruise
speed)
Endurance (without reserve)
kg
lb
km/hr
kts
km/hr
kts
km/hr
kts
kg/hr
Ib/h
kg/hr
Ib/h
m/sec
ft/min
m
ft
m
ft
m
ft
m
ft
m
ft
m
ft
km
nm
hr : min
1,800
3,968
287
155
250
135
222
120
175
386
149
328
11.6
2,290
2,000
4,409
287
155
248
134
222
120
175
386
151.5
334
10.9
2,155
2,200
4,850
287
155
244
132
222
120
175
386
154
340
10.1
1,995
2,300
5,071
287
155
242
131
222
120
175
386
155.5
343
9.6
1,905
5,865
19,255
5,145
16,880
4,920
16,140
4,175
13,710
4,035
13,240
3,275
10,750
3,615
11,865
2,840
9,320
5,360
17,590
4,610
15,130
4,400
14,435
3,630
11,915
3,505
11,505
2,705
8,875
3,075
10,090
2,260
7,415
>7,010
>23,000
6,645
21,805
644
347
6,505
21,345
5,675
18,625
635
343
5,665
18,585
4,755
15,605
625
337
5,265
17,275
4,300
14,120
620
334
04:07 04:01 03:54 03:51 03:48 03:47
2,400
5,291
287
155
240
130
222
120
175
386
157
346
9.1
1,805
3,210
10,530
2,420
7,940
2,650
8,695
1,830
6,000
4,870
15,980
3,855
12,655
615
332
2,427
5,351
287
155
240
130
222
120
175
386
157.5
347
9.0
1,770
3,100
10,165
2,305
7,575
2,535
8,325
1,715
5,630
4,770
15,655
3,735
12,260
610
329
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 29
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 31
Operating limitations
Technical Data
The helicopter is cleared to be operated within the following altitude and temperature limitations
(according to Flight Manual). For complementary information, refer to Flight Manual.
Maximum altitude 7,010 m - 23,000 ft (PA)
Maximum temperature ISA + 35 °C limited to + 50 °C
Minimum temperature – 40 °C
Abbreviations
IGE : In Ground Effect SL : Sea Level
ISA : International Standard Atmosphere TAS : True Air Speed
MCP : Maximum Continuous Power TOP : Take-Off Power
OGE : Out of Ground Effect VNE : Never Exceed Speed
PA : Pressure Altitude Vz : Rate-of-climb
Units
nm : nautical miles hr :min : hours : minutes
kts : knots kg : kilograms
ft/min : feet per minute lb : pounds
m/sec : meters per second km : kilometers
° C : degrees Celsius
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 30
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 32
Performance charts
The performance charts presented hereafter apply to an aircraft as per the baseline definition.
Technical Data
Take-off weight in hover IGE,
(height 5 ft, Maximum TOP, no wind)
Take-off weight in hover OGE,
(Maximum TOP, no wind)
Fast cruise speed
(ISA)
Fast cruise speed
(ISA + 20°C)
Fast cruise speed
(ISA + 35°C)
Recommended cruise speed
(ISA)
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Recommended cruise speed
(ISA + 20°C)
Recommended cruise speed
(ISA + 35°C)
Rate of climb in oblique flight
(ISA)
Rate of climb in oblique flight
(ISA + 20°C)
Rate of climb in oblique flight
(ISA + 35°C)
Hourly fuel consumption at fast cruise speed
(ISA, ISA + 20°C, ISA + 35°C)
Hourly fuel consumption at recommended cruise speed
(ISA)
Hourly fuel consumption at recommended cruise speed
(ISA + 20°C)
Hourly fuel consumption at recommended cruise speed
(ISA + 35°C)
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Payload / Range
Page 47
(ISA, recommended cruise speed, without reserve)
Payload / Range
Page 48
(ISA + 35°C, recommended cruise speed, without reserve)
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 31
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 33

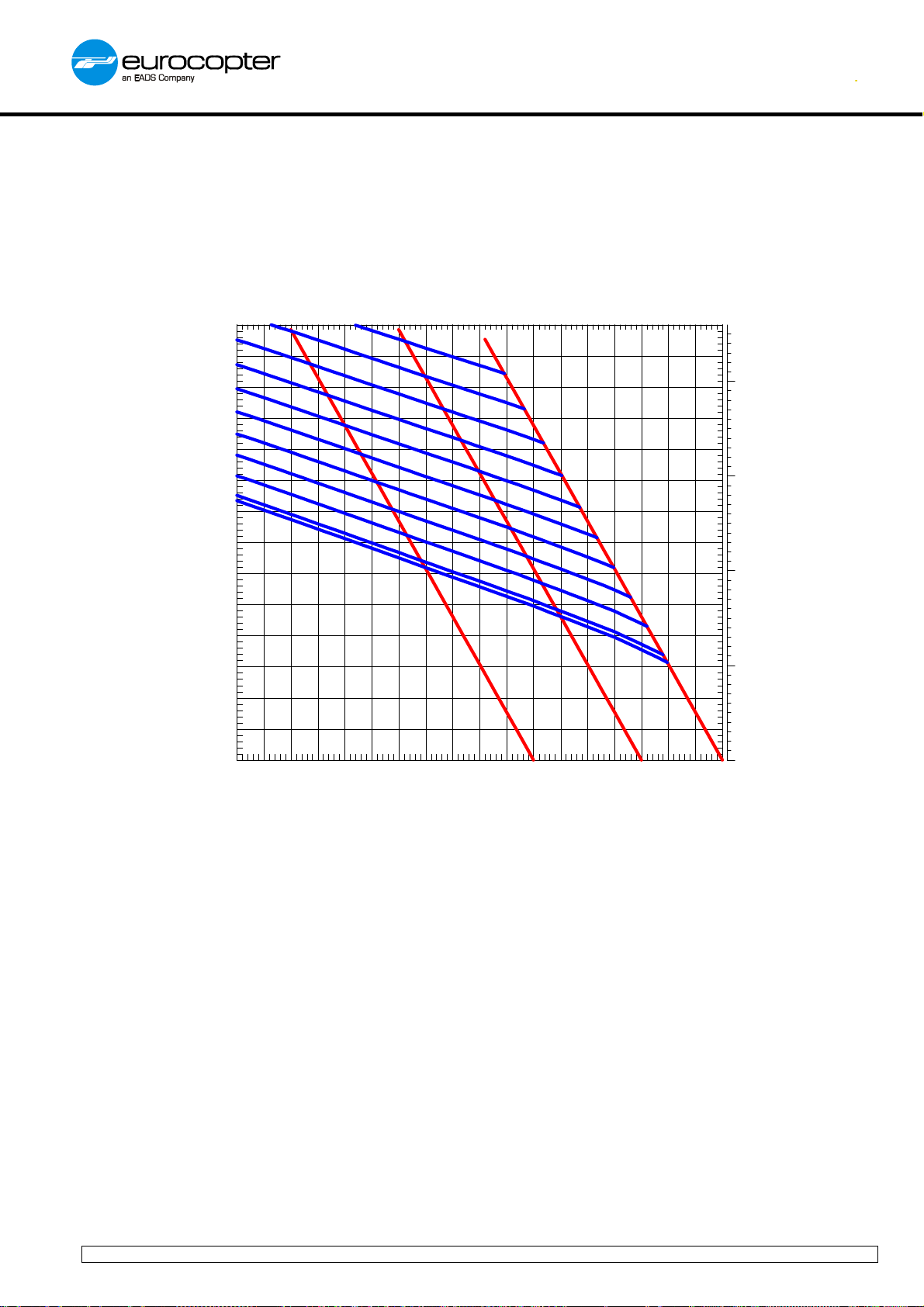

HOVER CEILING I.G.E.
at maximum TOP
(Height 5 ft)
Zp (m) (ft)
7000
6000
5000
4000
1
7
0
1
8
0
1
9
0
2
0
0
2
1
0
2200
2300
2400
2427
1
6
0
0
0
I
S
A
0
0
0
0
1
5
0
0
I
S
A
+
2
0
I
S
A
+
3
5
20000
15000
Technical Data
3000
10000
2000
5000
1000
0
0
-40 -30 -20 -10 0 10 20 30 40 50
OAT (°C)
Note : Approved performance, as long as the engine meets the power check criteria, as defined in the Flight Manual.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 32
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 34

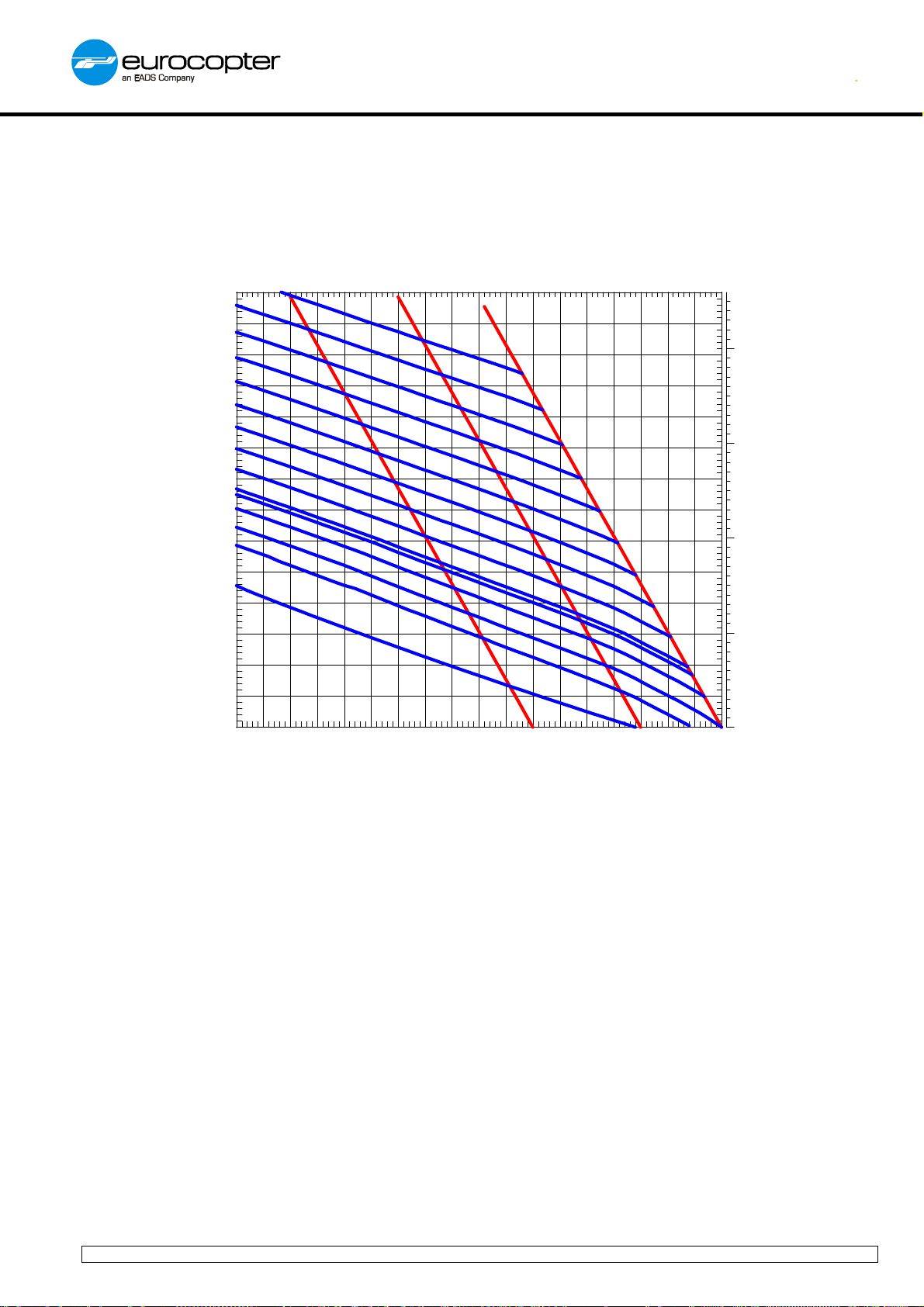

HOVER CEILING O.G.E.
at maximum TOP
Zp (m) (ft)
7000
6000
5000
4000
3000
1
5
0
1
6
0
1
7
0
1
8
0
1
9
0
2
0
0
2
1
0
2
2
0
2
3
0
2
400
2
427
2
500
2
600
2
700
0
0
I
S
A
0
0
0
0
0
0
0
I
S
A
+
2
0
I
S
A
+
3
5
20000
15000
10000
Technical Data
2
8
0
0
2000
5000
1000
0
0
-40 -30 -20 -10 0 10 20 30 40 50
OAT (°C)
Note : ISO weight curves from 2,427 to 2,800 kg are curves with external load.
Note : Approved performance, as long as the engine meets the power check criteria, as defined in the Flight Manual.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 33
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 35

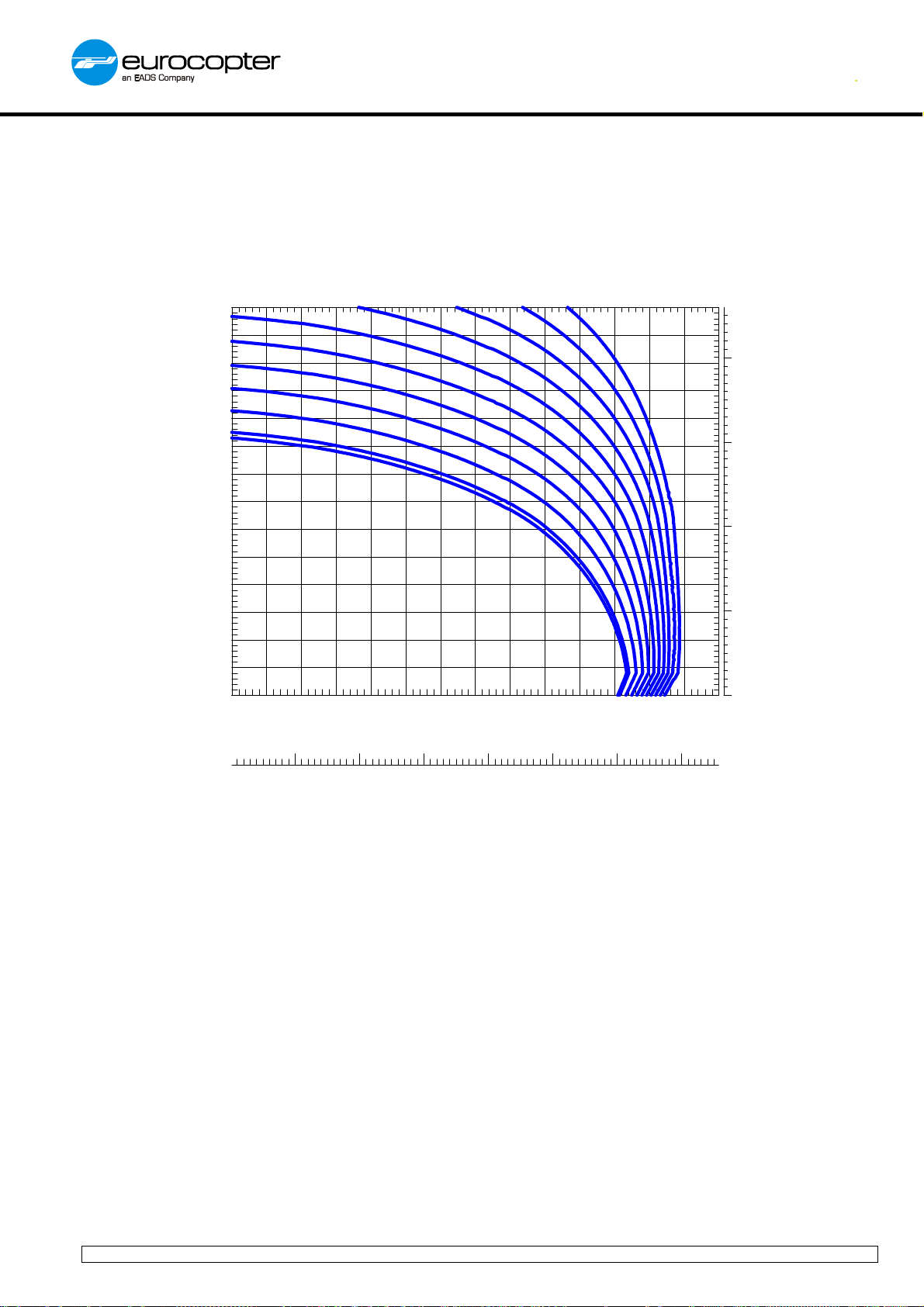

FAST CRUISE SPEED
ISA
7000
6000
5000
4000
3000
Zp (m) (ft)
19
00
2
0
0
0
2
10
0
22
00
2
3
0
0
24
00
2
4
2
7
1
8
0
0
17
0
0
ISO-Weight (kg)
1
1
6
5
0
0
0
0
20000
15000
10000
Technical Data
2000
1000
0
140 160 180 200 220 240 260
True Air Speed (km/h)
80 90 100 110 120 130 140
Note : Typical performance, with clean baseline aircraft and new engine.
(kt)
5000
0
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 34
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 36

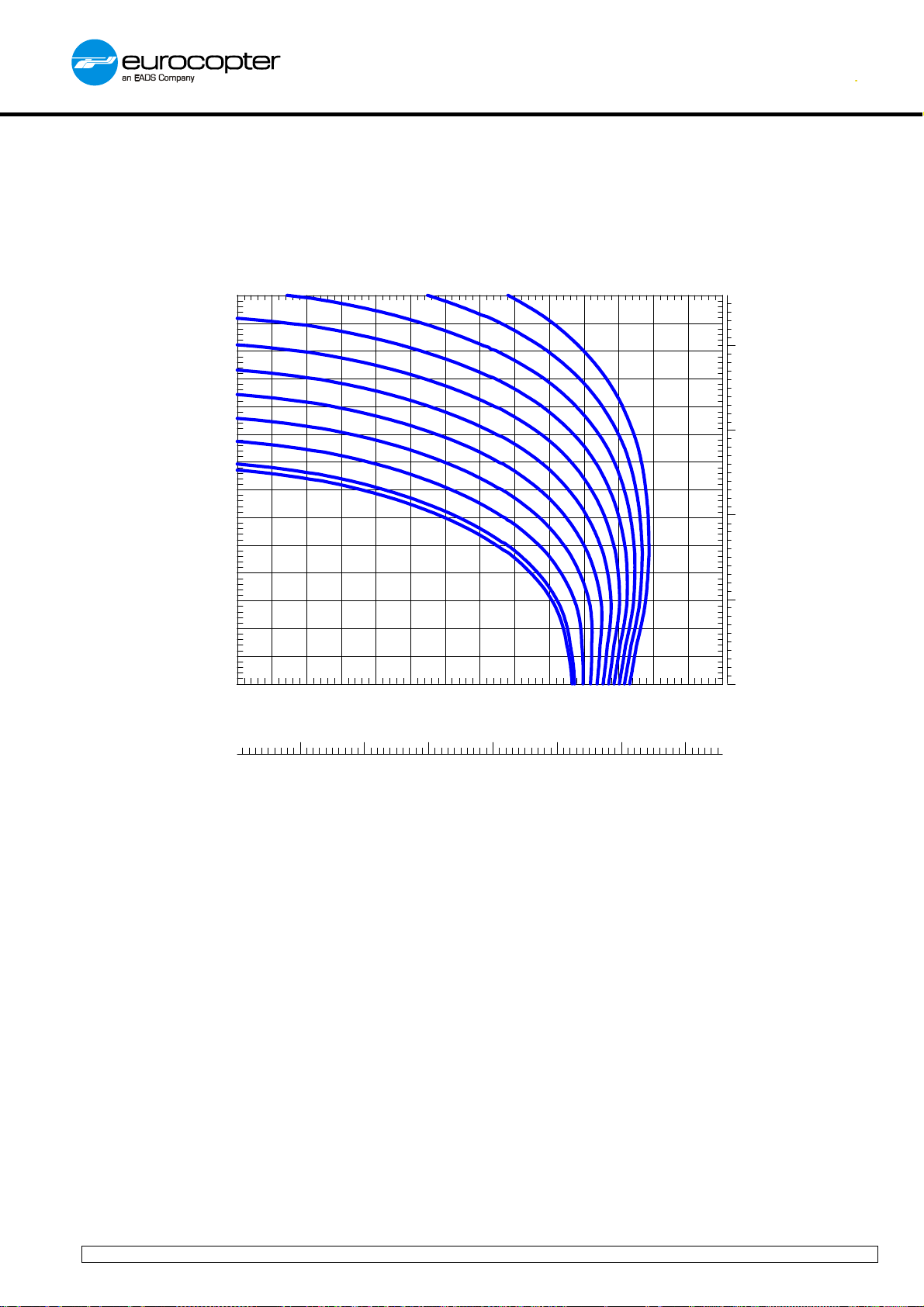

FAST CRUISE SPEED
ISA+20°C
7000
6000
5000
4000
3000
Zp (m) (ft)
1
1900
21
1
7
0
0
8
0
0
2
0
0
0
00
2
3
0
0
2
4
0
0
2
4
2
7
1
6
0
0
1
5
ISO-Weight (kg)
0
0
20000
15000
10000
Technical Data
2000
1000
0
140 160 180 200 220 240 260
True Air Speed (km/h)
80 90 100 110 120 130 140
Note : Typical performance, with clean baseline aircraft and new engine.
(kt)
5000
0
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 35
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 37

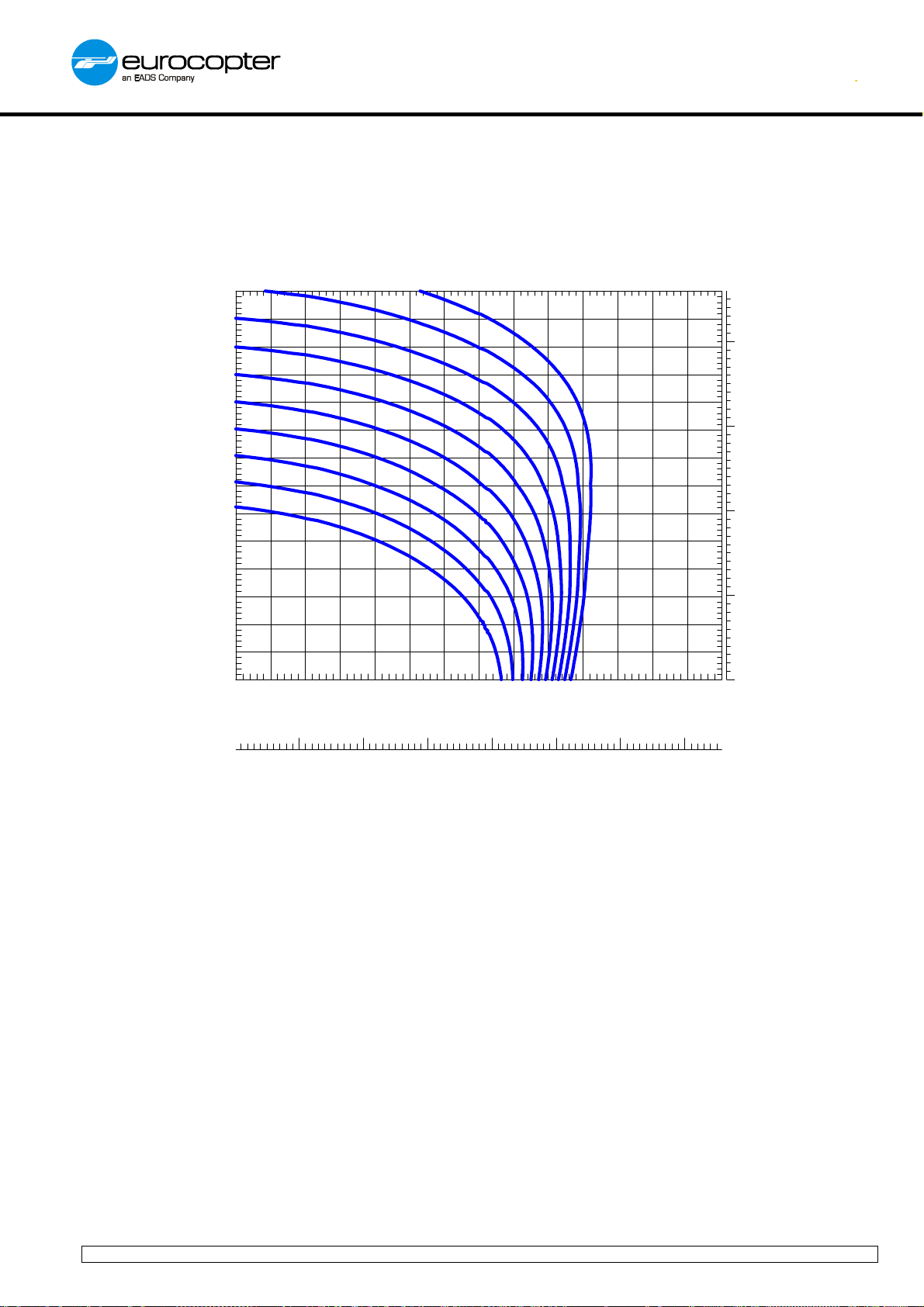

FAST CRUISE SPEED
ISA+35°C
7000
6000
5000
4000
3000
Zp (m) (ft)
170
1
190
2
0
2
1
2
2
2
2400
1
6
0
0
0
8
0
0
0
0
0
0
0
0
0
3
0
0
1
5
0
0
ISO-Weight (kg)
20000
15000
10000
Technical Data
2000
1000
0
140 160 180 200 220 240 260
True Air Speed (km/h)
80 90 100 110 120 130 140
Note : Typical performance, with clean baseline aircraft and new engine.
(kt)
5000
0
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 36
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 38

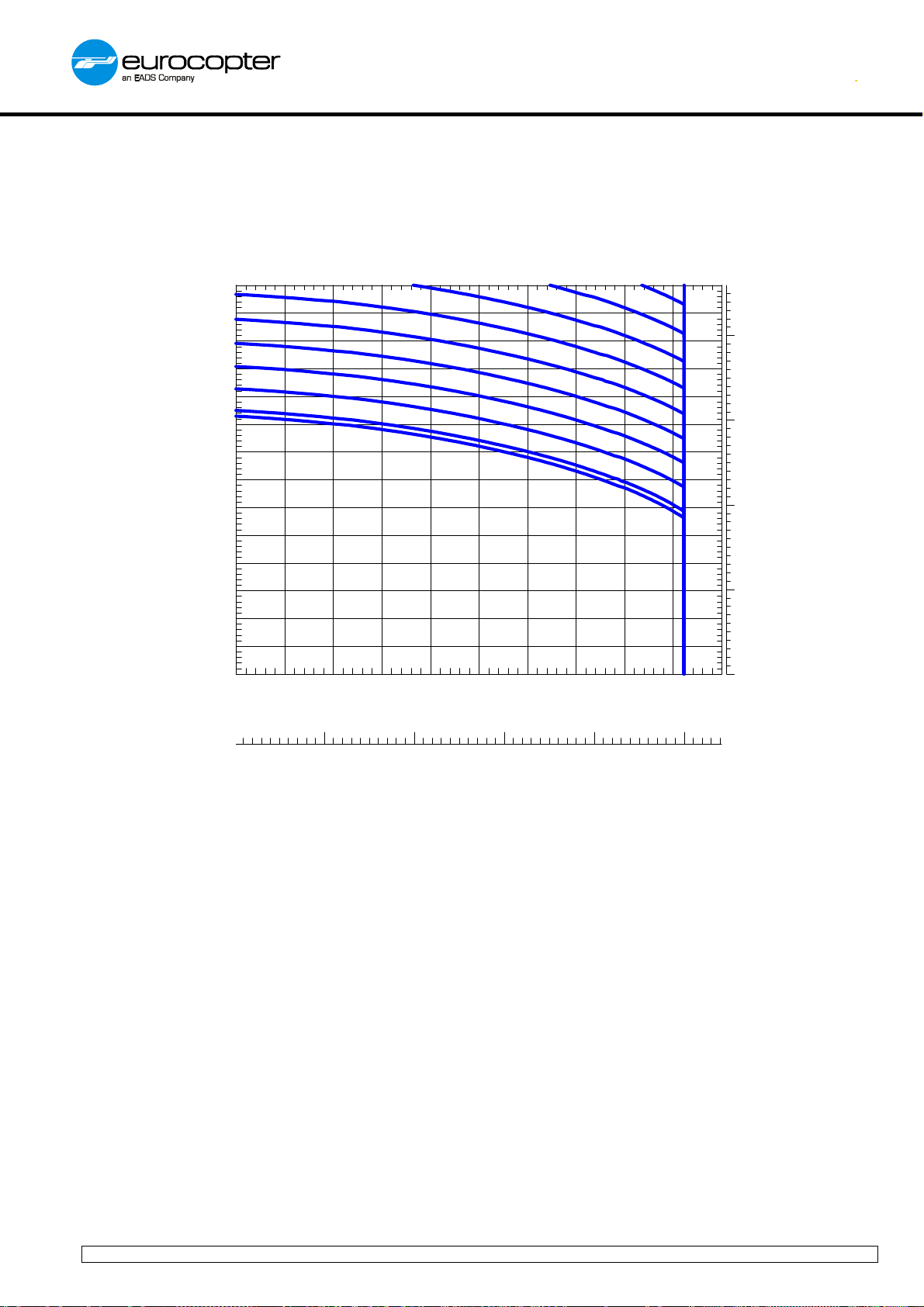

RECOMMENDED CRUISE SPEED
ISA
7000
6000
5000
4000
3000
Zp (m) (ft)
1
9
0
0
2
0
0
0
2
1
0
0
2
2
0
0
2
3
0
0
2400
2
42
7
1
8
0
0
ISO-Weight (kg)
1
7
0
0
1
6
0
0
20000
15000
10000
Technical Data
2000
1000
0
140 160 180 200 220
80 90 100 110 120
Note : Typical performance, with clean baseline aircraft and new engine.
TAS (km/h)
(kt)
5000
0
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 37
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 39
0
0
0

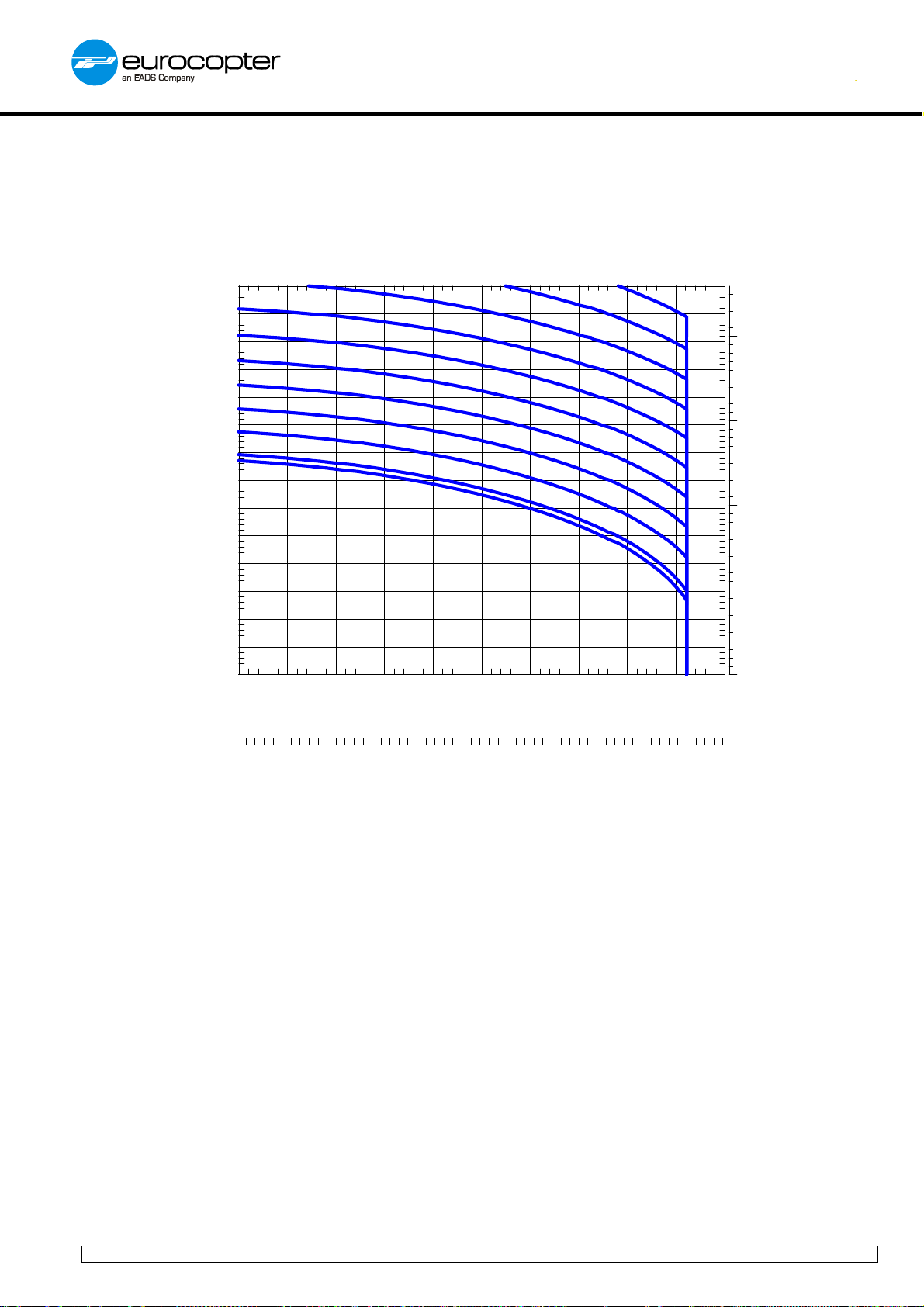

RECOMMENDED CRUISE SPEED
ISA+20°C
7000
6000
5000
4000
3000
Zp (m) (ft)
1
8
0
0
1
9
2
0
2
1
0
0
2
3
0
2
2
4
2
1700
0
0
0
0
0
4
0
0
7
1
60
ISO-Weight (kg)
0
15
00
2000
1500
1000
Technical Data
2000
1000
0
140 160 180 200 220
80 90 100 110 120
Note : Typical performance, with clean baseline aircraft and new engine.
TAS (km/h)
(kt)
5000
0
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 38
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 40

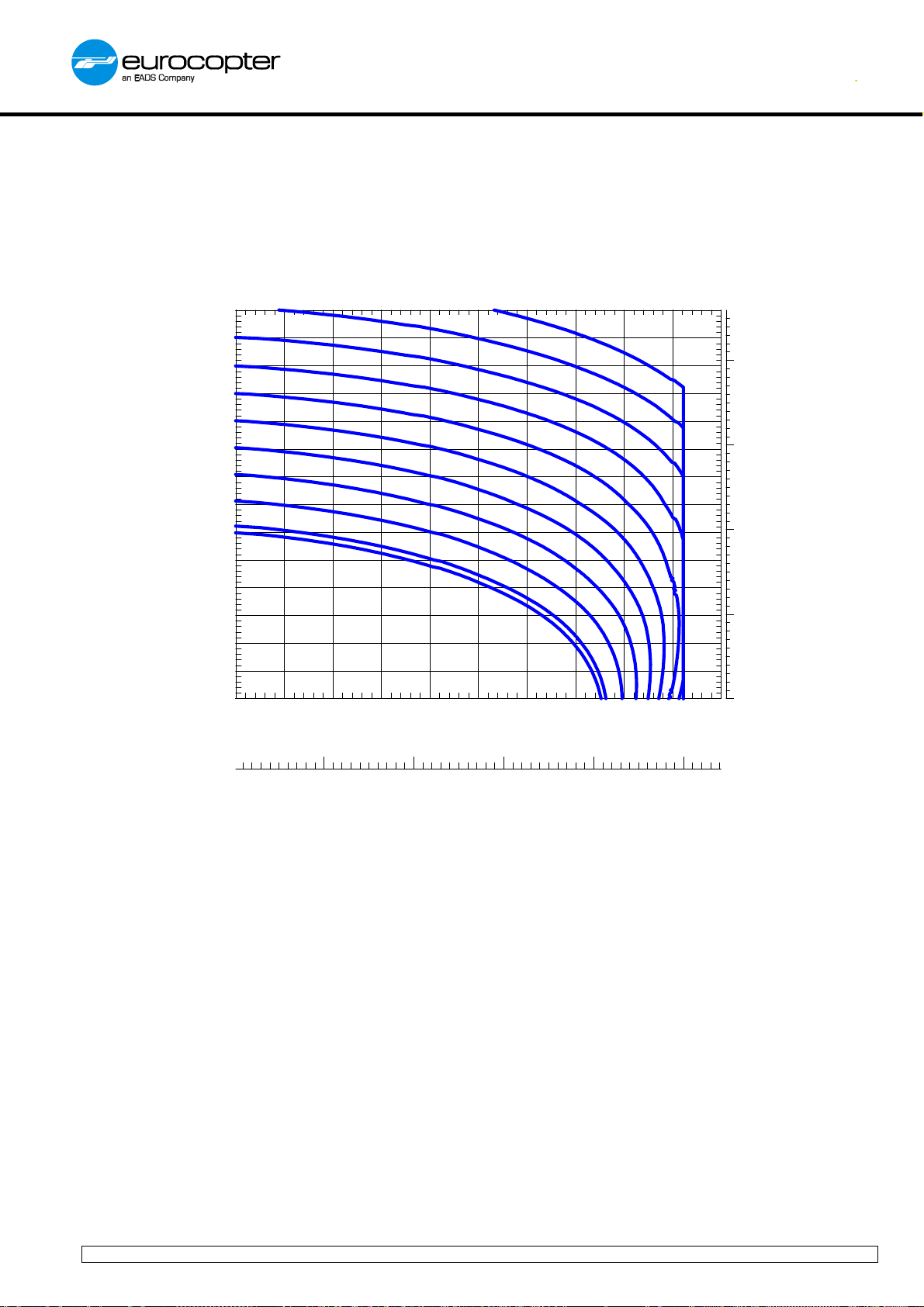

RECOMMENDED CRUISE SPEED
ISA+35°C
7000
6000
5000
4000
3000
Zp (m) (ft)
1
6
0
0
1
7
0
0
1
8
00
1
9
0
0
2
0
0
0
2
1
0
0
2
2
0
0
2
3
0
0
2400
1
5
0
0
ISO-Weight (kg)
20000
15000
10000
Technical Data
2000
1000
0
140 160 180 200 220
80 90 100 110 120
Note : Typical performance, with clean baseline aircraft and new engine.
TAS (km/h)
(kt)
5000
0
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 39
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 41

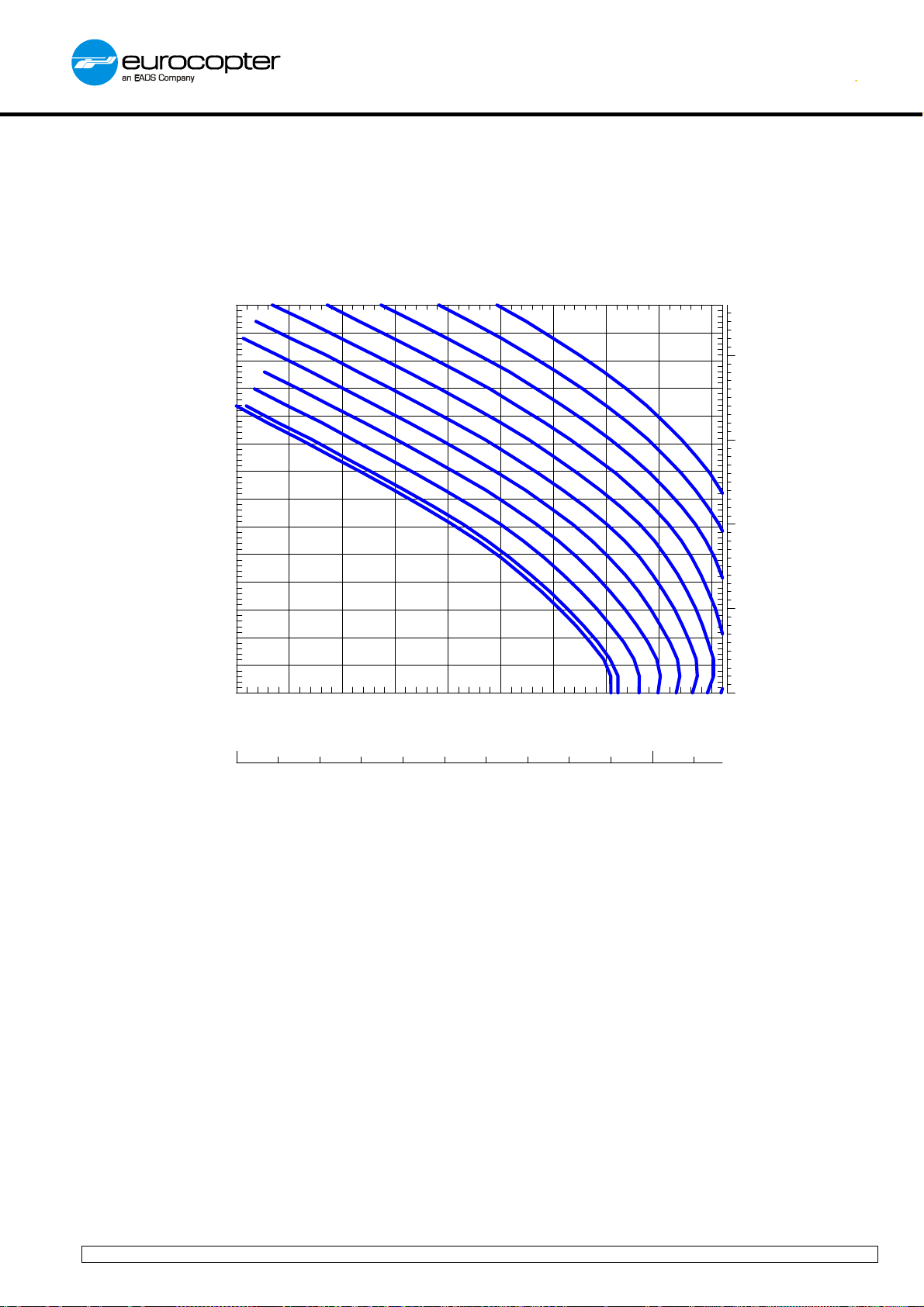

RATE OF CLIMB IN OBLIQUE FLIGHT
ISA
7000
6000
5000
4000
3000
2000
Zp (m) (ft)
1
9
0
0
2
0
0
0
2100
2
2
0
0
2
3
0
0
2
2
4
4
0
2
0
7
ISO-Weight (kg)
20000
15000
1
5
0
0
10000
1
6
0
0
1
7
0
0
5000
Technical Data
1000
0
0
8
1
0
0
0 500 1000 1500 2000
Rate of Climb (ft/mn)
00 10
(m/s)
Note : Approved performance, as long as the engine meets the power check criteria, as defined in the Flight Manual.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 40
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 42
RATE OF CLIMB IN OBLIQUE FLIGHT
ISA + 20°C
7000
6000
5000
4000
3000
Zp (m) (ft)
1
2
2
0
2
4
8
2
0
2
0
2
1
00
1
9
0
0
2
0
0
0
1
0
0
3
0
0
0
4
2
7
7
1
0
0
6
1
0
5
0
0
0
ISO-Weight (kg)
20000
15000
10000
Technical Data
2000
5000
1000
0
0
0 500 1000 1500 2000
Rate of Climb (ft/mn)
00 10
(m/s)
Note : Approved performance, as long as the engine meets the power check criteria, as defined in the Flight Manual.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 41
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 43

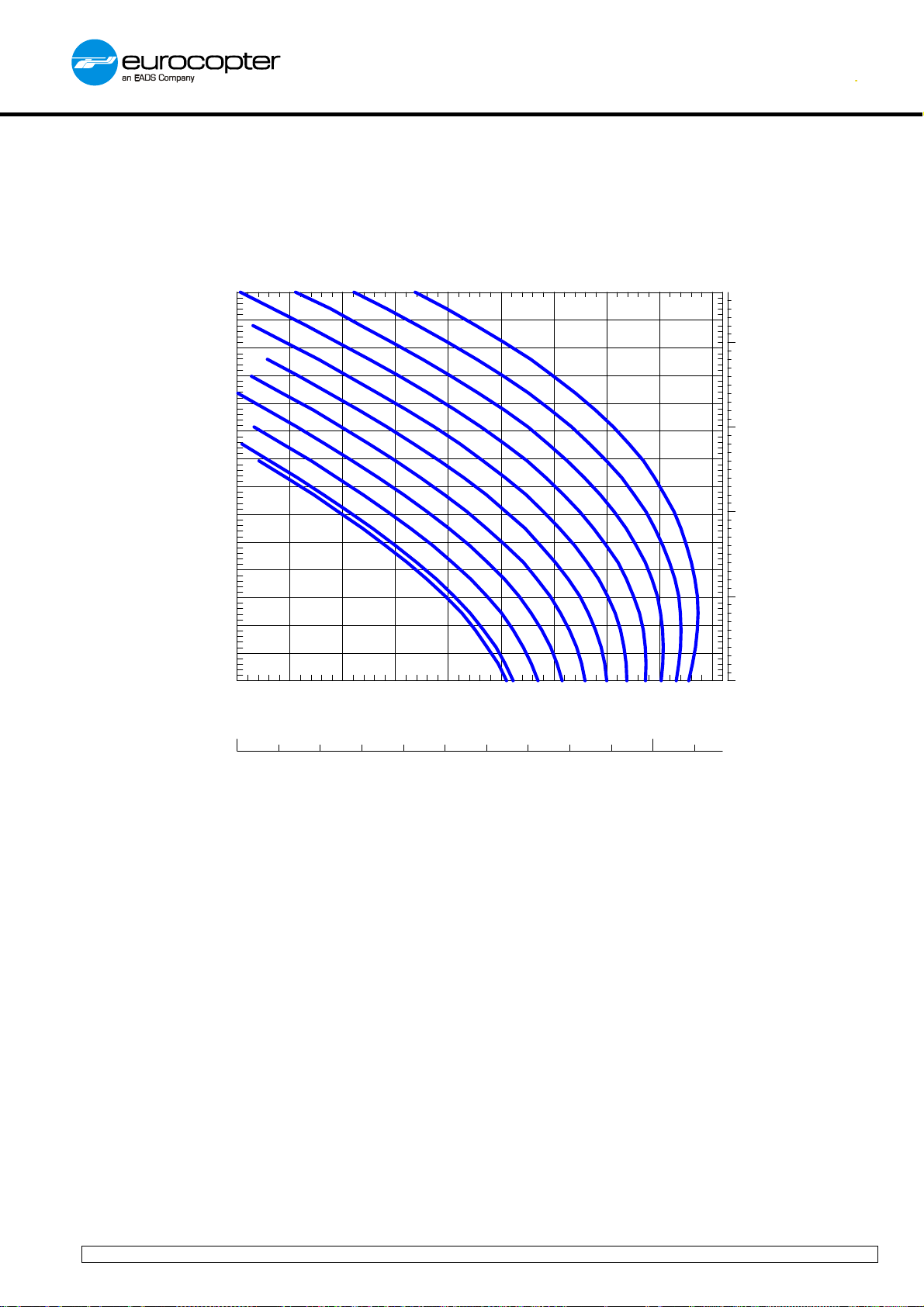

RATE OF CLIMB IN OBLIQUE FLIGHT
ISA + 35°C
7000
6000
5000
4000
3000
Zp (m) (ft)
1
2
2
2
4
8
2
0
2
0
2
1
0
0
1
9
0
0
2
0
0
0
1
0
0
0
3
0
0
0
4
2
7
7
1
0
6
0
1
0
5
0
0
0
ISO-Weight (kg)
20000
15000
10000
Technical Data
2000
5000
1000
0
0
0 500 1000 1500 2000
Rate of Climb (ft/mn)
00 10
(m/s)
Note : Approved performance, as long as the engine meets the power check criteria, as defined in the Flight Manual.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 42
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 44

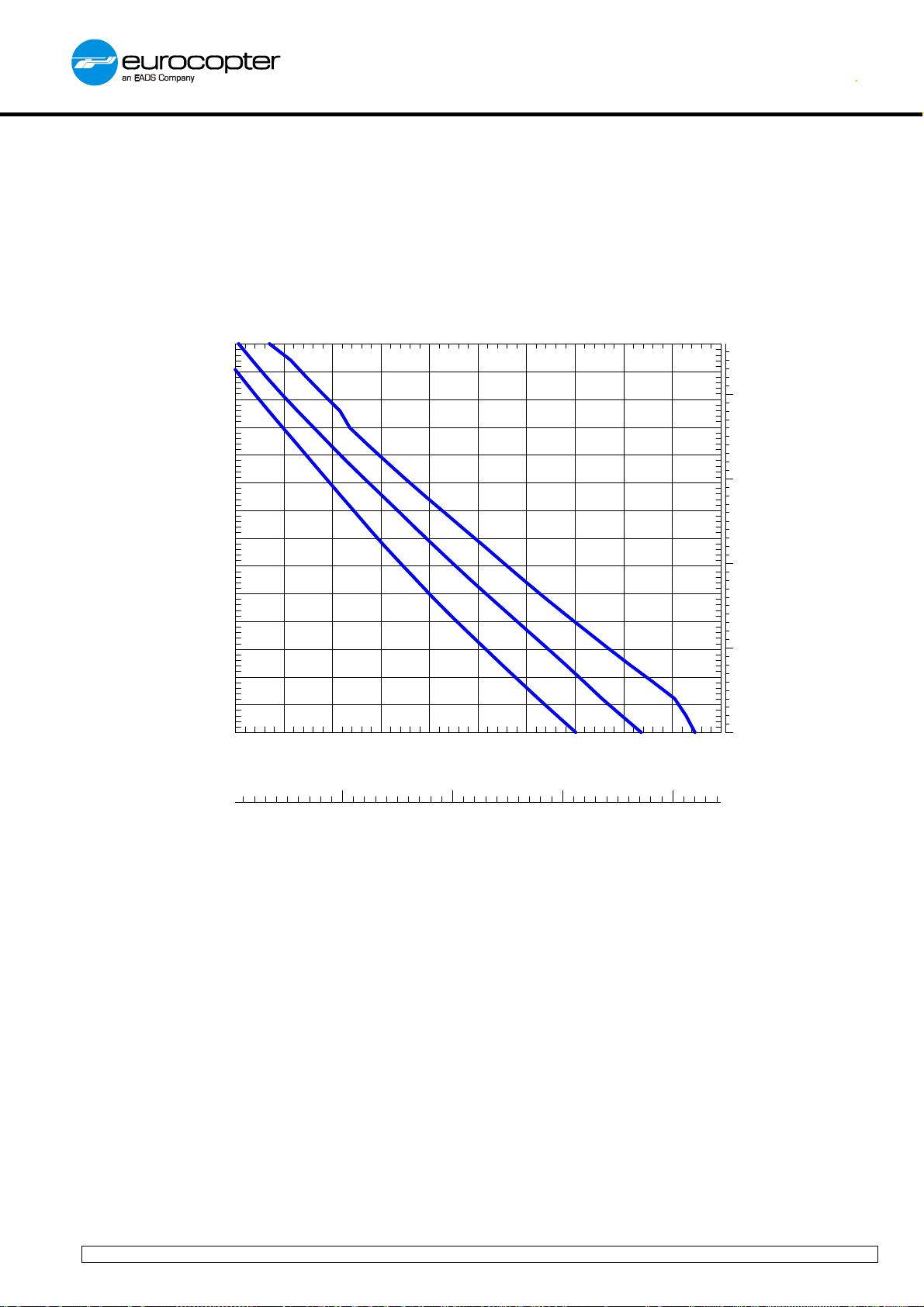

HOURLY FUEL CONSUMPTION
at fast cruise speed
ISA, ISA + 20°C, ISA + 35°C
7000
6000
5000
4000
Zp (m) (ft)
I
I
S
SA
I
S
A
+
A
+
2
0
3
5
ISO-ISA (°C)
20000
15000
Technical Data
3000
2000
1000
0
80 100 120 140 160 180
Hourly Fuel Consumption (kg/h)
225 275 325 375
Note : Typical consumption w ith clean baseline aircraft and new engine.
(lb/h)
10000
5000
0
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 43
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 45

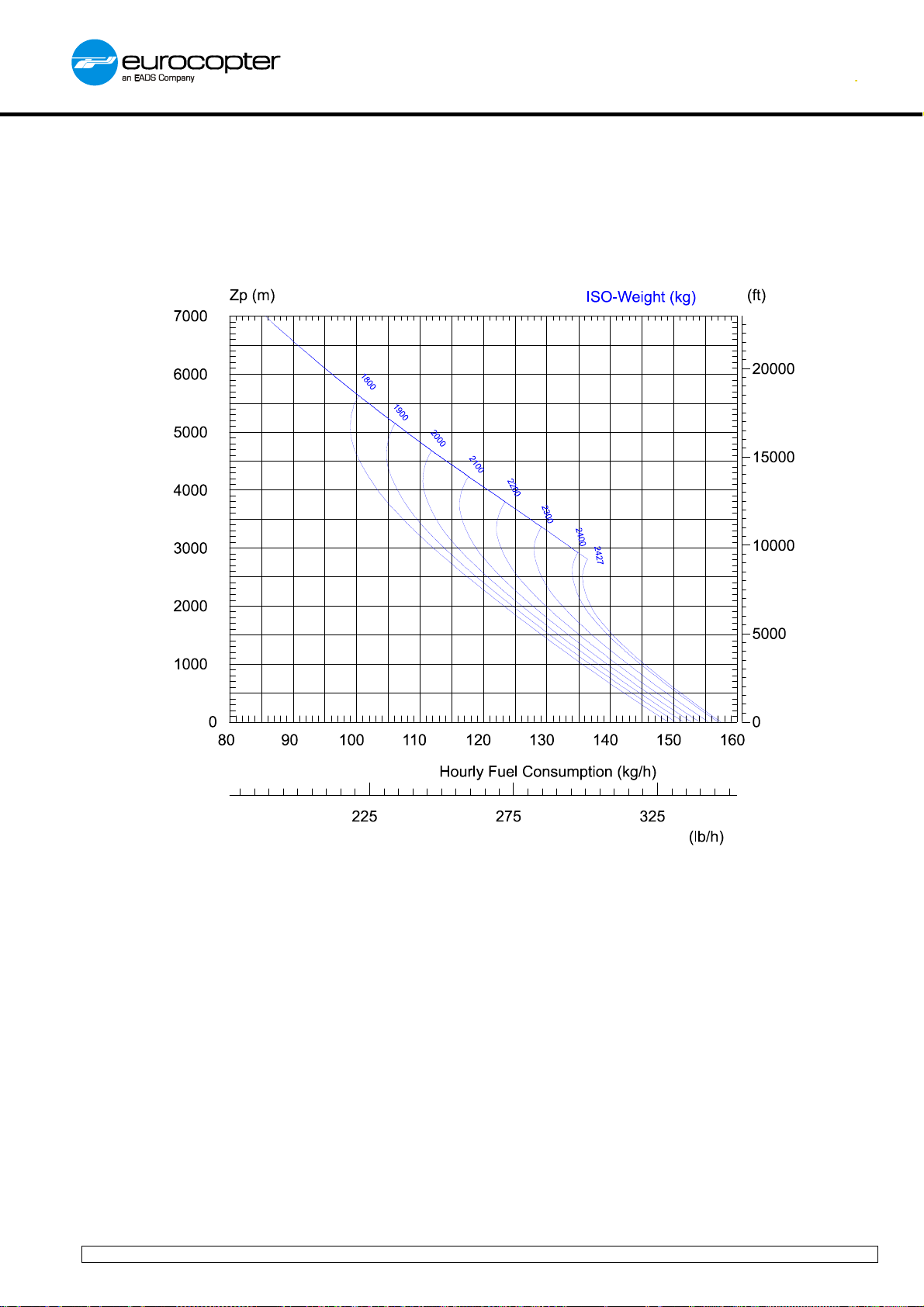

HOURLY FUEL CONSUMPTION
at recommended cruise speed
ISA
Technical Data
Note : Typical consumption w ith clean baseline aircraft and new engine.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 44
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
The data set forth in this document are general in nature and for information purposes only.
Page 46
HOURLY FUEL CONSUMPTION
at recommended cruise speed
ISA + 20°C
Technical Data
Note : Typical consumption w ith clean baseline aircraft and new engine.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 45
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
The data set forth in this document are general in nature and for information purposes only.
Page 47
HOURLY FUEL CONSUMPTION
at recommended cruise speed
ISA + 35°C
Technical Data
Note : Typical consumption w ith clean baseline aircraft and new engine.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 46
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
The data set forth in this document are general in nature and for information purposes only.
Page 48

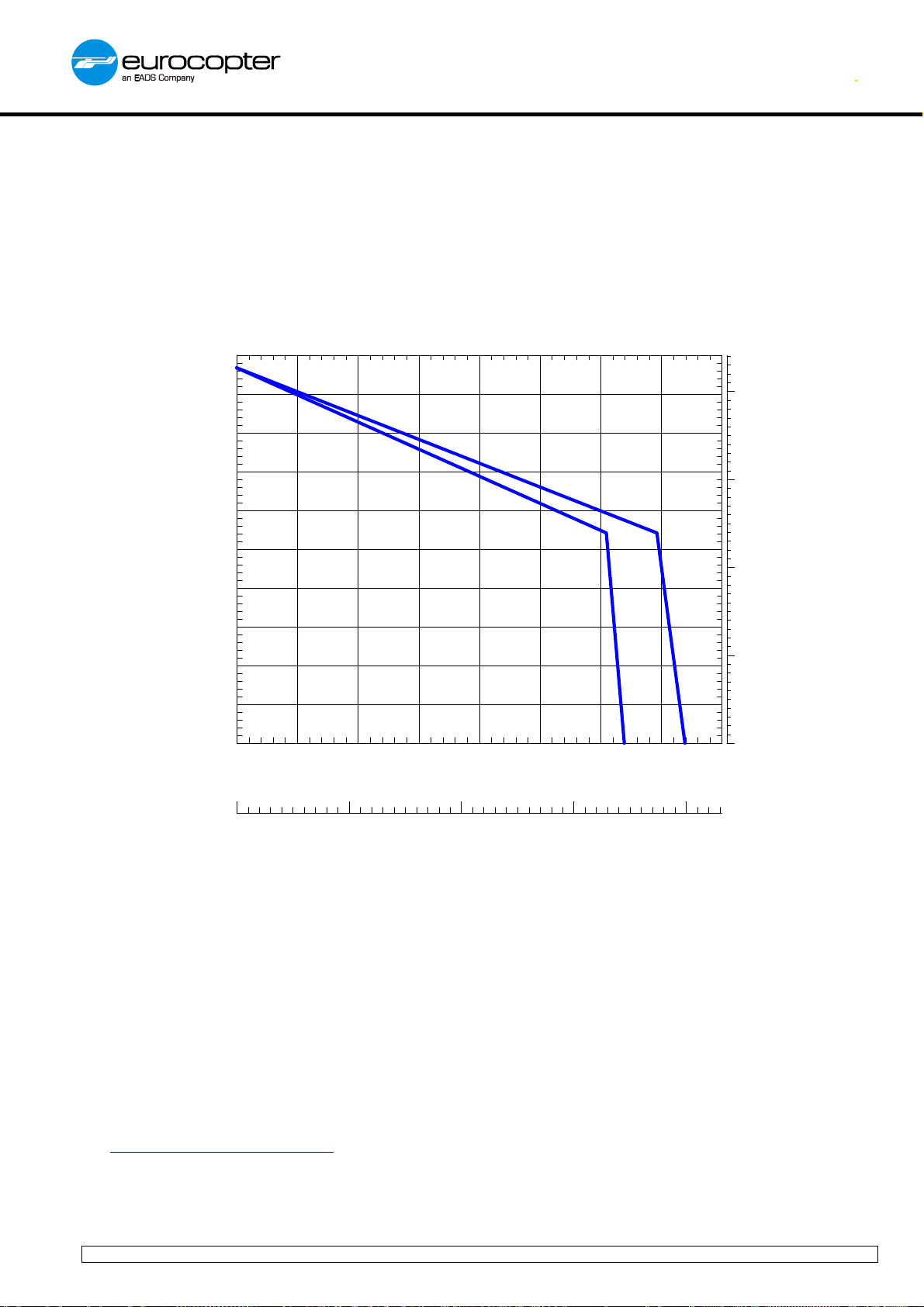

PAYLOAD RANGE
ISA
Recommended cruise speed
Empty weight equipped a/c + 1 pilot : 1,459 kg - 3,217 lb
Payload (kg) (lb)
1000
800
600
0
f
t
0
m
400
1
2000
1500
5
0
0
0
f
t
1
5
2
4
m
1000
Technical Data
200
0
0 200 400 600 800
Range (km)
0 100 200 300 400
Note : Typical mission without reserve, with clean baseline aircraft and new engine.
(nm)
500
0
1 Aircraft equipped and approved for VFR day and night operations (avionics included in empty weight).
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 47
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 49

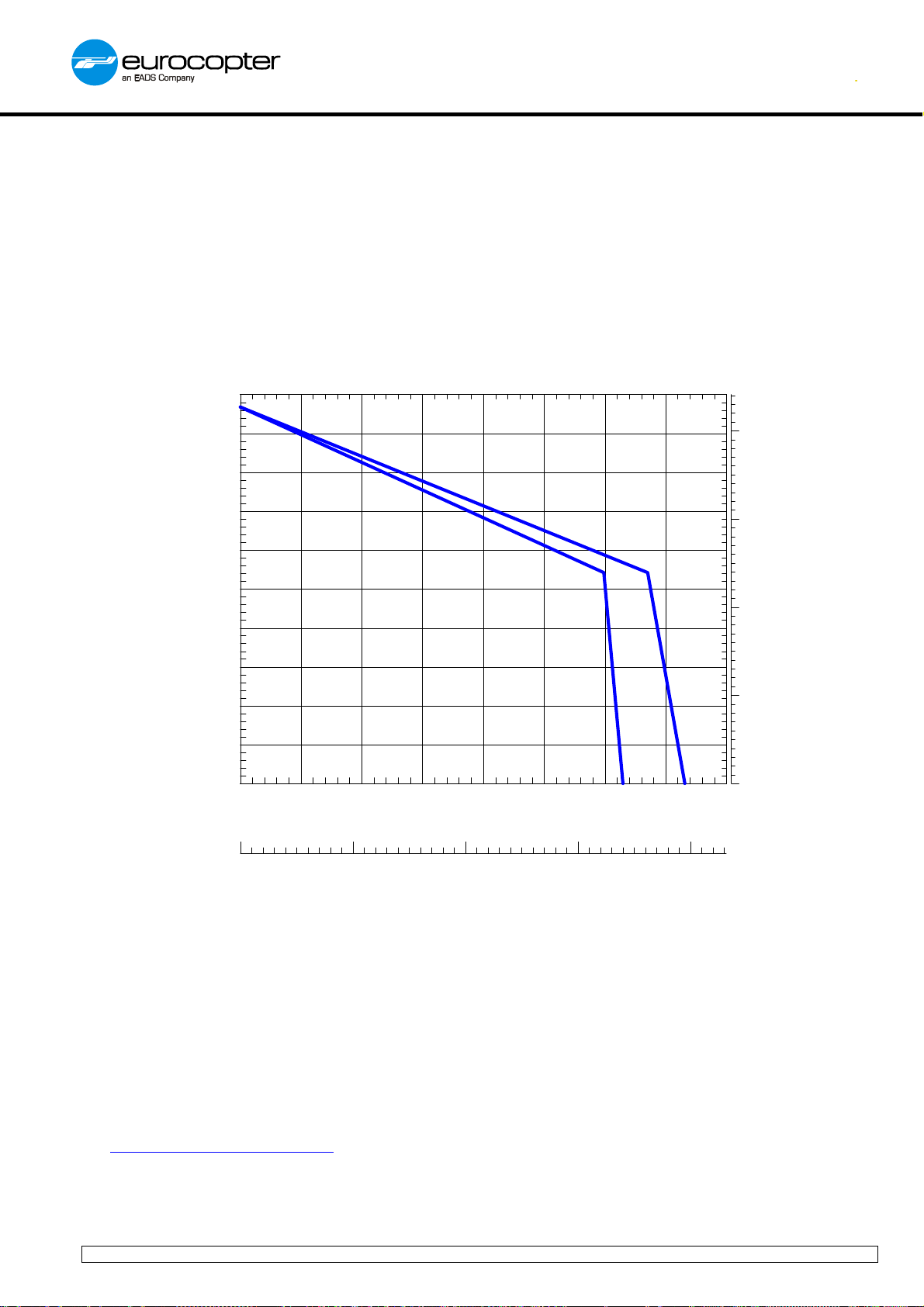

PAYLOD RANGE
ISA + 35°C
Recommended cruise speed
Empty weight equipped a/c + 1 pilot : 1,459 kg - 3,217 lb
Payload (kg) (lb)
1000
800
600
0
f
t
0
m
400
1
2000
1500
5
0
0
0
f
t
1
5
2
4
m
1000
Technical Data
200
0
0 200 400 600 800
Range (km)
0 100 200 300 400
Note : Typical mission without reserve, with clean baseline aircraft and new engine.
(nm)
500
0
1 Aircraft equipped and approved for VFR day and night operations (avionics included in empty weight).
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 48
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 50
7- Customer Service Overview
Assets
Proven reliability and availability based on experience
EUROCOPTER’s helicopter production programs have developed a strong reputation world-wide for being
fully committed to providing customers with operational, capable aircraft that achieve high availability
combined with cost-effective support systems. To achieve this record of performance, EUROCOPTER has
stressed the importance of working together with its customers to ensure constant feedback on their
demonstrated in-service Reliability, Availability and Maintainability/Testability (RAM) data. The main
objective is to reach the most optimized operational cost ensuring the highest flight safety.
EUROCOPTER has built and delivered EC130 B4 since 2001. There are more then 270 helicopters in
service world-wide. The total flight hours accumulated at this date are about 450,000 hours. The “lead the
fleet” aircraft has accumulated more than 10,000 flight hours.
Technical Data
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 49
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 51
Inspection Program
The Maintenance Program specifies the intervals between maintenance operations that are recommended
by EUROCOPTER, irrespective of whether they are mandatory or not.
The program can:
– either be used as is,
– or be adapted by each operator to suit his own specific organization, provided he complies with the
maximum intervals.
The following table provides an overview of all inspections. Scheduled inspections with shorter time intervals
have to be added to those with longer time intervals.
Scheduled Airframe Inspection Estimated Man Hour
Daily checks : Pilot’s task
100 flight hrs or 12 months periodicity tasks 2,36 MMH
Technical Data
600 flight hrs or 24 months periodicity tasks 1 75 MMH
Airframe Major Inspection Estimated Man Hour
12 years periodicity tasks 200 MMH
Scheduled Engine Inspection
ARRIEL 2B1
Estimated Man Hour
30 flight hrs periodicity tasks
300 flight hrs periodicity tasks
0,0348 MMH per FH
600 flight hrs periodicity tasks
MMH: Mean Man Hour
FH : Flight Hour
Note : All the “hands-on” aircraft values mentioned here above are given on the basis of a 20 000 flight
hours life cycle. They refer only to the scheduled inspections for the standard helicopter without
optional equipment in accordance with the Master Servicing Manual (MSM).
The announced Man Hours are without incoming flight, work preparation, reworking, servicing,
Service Bulletin implementation and unscheduled maintenance.
1 The interval for this T-Inspection will increase to 600 flight hrs (or 24 months periodicity) in the first quarter
of 2009. Before this date the inspection will remain at 500 flight hrs (or 24 months periodicity).
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 50
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 52
Main components
Technical Data
Time Between Overhaul (TBO) / Service Life Limit (SLL)
TBO (h)
Main Components
as per MSM
rev R017
MAIN ROTOR BLADE
SLEEVE
MAIN ROTOR SHAFT UNIT
STARFLEX HUB
SPHERICAL THRUST BEARING
MAIN GEARBOX BEVEL REDUCTION GEAR
MAIN GEARBOX EPICYCLIC REDUCTION GEAR
TAIL GEARBOX
BLADE,TAIL ROTOR
TAIL ROTOR SHAFT FRONT SECTION
TAIL ROTOR SHAFT CENTER SECTION
SERVO CONTROL, MAIN ROTOR
20000 20000
4400 4400
2400 2400
4600 4600
3000 3000
3000 3000
3000 3000
10000 10000
20000 20000
3000 3000
3000
“*”: Target value within the Maturity Plan under progress.
Engine TBO (h)
ARRIEL 2B1
3500
Time Between Overhauls (TBO):
The component in question must be removed at each interval that corresponds to the value indicated, in
order to undergo the operations in a specialized workshop that will enable it to be put back into service for
the next interval. A TBO is granted with a 10 % operational margin, limited at +300 hours. Some
subcomponents may have a Service Life Limit, rated above the TBO limit.
Service Life Limited (SLL):
The Service Life Limit is an airworthiness limit. The component in question must be removed from service
when it reaches the limit indicated.
TBO (h)
Target
Value *
TBO (h)
Target Value
1
SLL (h)
as per MSM
rev R017C
20000 /
72000 cycles
SLL (h)
SLL (h)
Target Value
*
20000 /
2
72000 cycles 2
SLL (h)
Target
Value *
1 Main component values are gi ven for information purposes only. The reference document is the aircraft Master
Servicing Manual.
2 First limit reached.
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 51
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 53
EUROCOPTER Maintenance Support Programs
EUROCOPTER offers its clients a comprehensive array of repair and overhaul services to ensure availability
and costs control. This array of services ranges from basic OEM repair and overhaul services up to
comprehensive Parts By the Hour (PBH) maintenance program s.
The different services are each tailored for one different user profiles and demands, such as customers:
z with a high number of flight hours,
z with a low number of flight hours,
z looking for immediate component availability,
z that wish budget control,
z …
To respond to the different customers’ demands EUROCOPTER offers the following flexible and modular
services:
z Classical Support
z Standard exchange
z Repair with guaranteed Turn Around Times (TAT)
z Guaranteed Direct Maintenance Costs (DMC)
z Unscheduled Maintenance Insurance Plan
z Parts by the Hour service.
Technical Data
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 52
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 54
Classic Support
Technical Data
The classical support consists of a comprehensive Initial Provisioning package to sustain aircraft operation.
This package includes Spare Parts, Tools, Test Equipment, etc..
The required level of operational availability determines the quantity and therefore the investment required.
With this support package the Customer bears the responsibility to monitor their repair; manage
obsolescence and to procure the right mix and quantity of components and spare parts.
Standard Exchange
The Standard Exchange consists in replacing a defective part with a serviceable and interchangeable part
within 48 hours subject to availability. This service is available for equipment, blades and dynamic
components.
Repair with Guaranteed TAT
EUROCOPTER offers for some components a repair with commitment on guaranteed TAT. When this lead
time is exceeded for the repair, EUROCOPTER provides the customer with a standard part exchange
delivery at the same price as agreed for the repair.
Guaranteed DMC
The Guaranteed DMC services offers guaranteed repair and overhaul TATs as well as guaranteed prices.
This addition to the classical repair and overhaul enables the customer to best size its inventory. Price for
this service is calculated per flight hour, thus enabling the customer to spread and predict both his scheduled
as unscheduled maintenance expenses. The guaranteed DMC service is available for dynamic components,
blades and basic equipment
Unscheduled Maintenance Insurance Plan (UMIP)
With the UMIP, EUROCOPTER gives the customer the option to secure unscheduled maintenance costs
while remaining responsible for the scheduled events (overhaul, life limited part replacement). Price for this
service is calculated per flight hour.
The UMIP service includes component unscheduled repairs and guaranteed parts replacement within 24H
through Standard Exchange based on a dedicated inventory. This service is available for dynamic
components, blades and basic equipment
Parts By the Hour (PBH)
The Parts by the Hour (PBH) service is a comprehensive program that offers and balances at the same time
guaranteed maintenance costs, reduced inventory and minimized helicopter downtime. This service is
intended for Customers looking for total cost control and high level of aircraft readiness. Price for this service
is calculated per flight hour.
The PBH service includes component unscheduled repairs component overhauls as well as Life Limited part
replacement. Parts replacement is guaranteed within 24H through Standard Exchange based on a dedicated
inventory. This service is available for dynamic components, blades and basic equipment.
Price charge is defined per flight hour.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 53
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 55
Engine Maintenance program
Always looking to maximize your efficiency and reduce your costs, Turbomeca, the engine manufacturer has
developed an improved service offering.
Turbomeca has 32 Repair Centers across the globe, supplemented by several new factory-authorized
service facilities strategically located near to you
Turbomeca range of services covers:
z Classical Repair and Overhaul
z Standard Exchange
z AOG services
z Support By the Hour (SBH) services
Within the Support By the Hour® coverage Turbomeca developed specific maintenance packages, as
summarized hereafter.
Technical Data
Standard Coverage : “Classic” SBH®
The “classic” Support by the Hour (SBH®) is a global support service offered to operators to enable them to
maintain the best availability of their engines fleet through a contract arrangement paid by running hours.
The Support by the Hour (SBH®) is operated mainly through Standard Exchange supported by Turbomeca
dedicated Corporate Pool.
Customized Coverage : SBH® “ Mission”
The new service, Support By the Hour® Mission, offers a modular series of comprehensive service and
engine management packages whereby Turbomeca undertakes to guarantee its operator's engine
availability and care.
From basic engine support requirement to fully comprehensive range of additional services, three different
types of packages are offered to operators : Pro, Prime and Privilege.
Turbomeca Internet Web Site - TOOLS
Turbomeca Operator On-Line Support (TOOLS site) is entirely dedicated to helping customers. With 24/7
availability, operators can access important information when they want to from where they want to, winning
precious time and staying head. TOOLS at www.turbomeca-support.com
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 54
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 56
Training
Technical Data
With more than 50 years of experience, the EUROCOPTER training centers provide the most
comprehensive, coherent and highest standard helicopter training in the world for pilots and technicians,
whether civilian or military.
Qualification training, allowing operators to comply with regulatory requirements, and services training, more
mission oriented and tailored to the customers’ operational needs, are addressed.
All training courses are established according to the relevant civil aviation authorities’ requirements. The
centers are approved by the relevant airworthiness authorities (EASA, FAA, DGAC, LBA, CAA…). We are
certified ISO 9001: V2000 and regularly audited by independent organisms such as Véritas, AFAQ…
EUROCOPTER training centers provide a wide range of courses and services, from basic training up to
preparation for the most sophisticated civil and military missions.
As part of the full range of services on offer, EUROCOPTER also plays an active role in helicopter pilot
development through its Ab Initio programs.
Centers are equipped with multimedia classrooms. This includes computers overhead projectors and stateof-the-art means such as Computer Aided Instruction (CAI), Computer Based Training (CBT). Some centers
also have self-learning laboratories.
EUROCOPTER has set up a network of 14 training centers. For detailed information refer to EUROCOPTER
specific publication.
EC130 B4 - Example of basic training course
COURSE
TYPE
COURSE REFERENCE
THEORETICAL
INSTRUCTION
Type rating 4 days 5 hours 3 hours
Pilot
Instructor pilot conversion 1 - 5 hours
Refresher 1 day 1,5 hours
COURSE
TYPE
Mechanics
Blades
TR1: For pilot non already qualified on single engine turbine
TR2: For pilot already qualified on single engine turbine.
Note: Length is given as information and depends on pilot or technician qualification or experience.
Complementary courses may be required.
COURSE REFERENCE THEORETICAL INSTRUCTION
Type rating
(Airframe + Engine)
Refresher 1 week
Maintenance and repair Up to 2 weeks
FLIGHT INSTRUCTION
TR1 TR2
3 weeks
1 Pilot already qualified on EC130 (15 hours mini, within last 12 months, not included in type rating).
The data set forth in this document are general in nature and for information purposes only.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
130 B4 09.101.01 E 55
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 57
Engine Training Courses
Technical Data
Training courses dedicated to Engine Maintenance is also organized by Turbomeca training schools and
approved centers the world over.
Up-to-date course calendars, on-line tests and e-learning modules are also available on the Turbomeca
Operator On-Line Support (TOOLS site).
Technical publications
EUROCOPTER provides all the technical publications necessary for safely operating and maintaining its
aircraft cost effectively.
EUROCOPTER technical publications are available on an interactive electronic medium as a standard or in
hard copies as an option.
The INDOC DVD-ROM includes the Aircraft Maintenance Manual (AMM), System Description Section
(SDS), Master Servicing Manual (MSM), Illustrated Parts Catalogue (IPC) and the Wiring Diagram Manual
(WDM).
The component maintenance manual (CMM) is available on DVD-ROM or hard copy, depending on the
Vendor.
Along with the INDOC DVD-ROM, EUROCOPTER provides a hard copy of the Airworthiness Technical
Publication (Flight Manual, Pilots Check List, Master Servicing Manual …) as well as the Service Bulletin
Catalogue.
The DVD ROM is available in English or French; it includes the latest information and is updated every
6 - 9 months.
T.I.P.I. (Technical Information Publication on Internet)
Description
T.I.P.I. website is entirely dedicated to provide a real-time issuing service for the following publications:
z Télex Alert, Télex Information, Service Bulletin, Service Letter, Service Information, Technical
Information Letter
z List of Applicable Publications (LOAP)
z List of Master Minimum Equipment List (MMEL)
Main features
z Each time a publication is issued, the customer is automatically informed by an e-mail.
z The download of the publication in pdf format is possible either directly from the e-mail or after
logging on the T.I.P.I. website.
z A keywords search tool is provided (aircraft family, type of publication, date of edition...).
Address: www.eurocopter.com/services/technical publications/T.I.P.I.
The publications are available in English, French or German depending o n the case.
z A small summary, already included in the e-mail, helps the customer to understand quickly the
subject.
z Small icons allow the customer to identify immediately the type of information received.
For performance data and operating limitations,reference must be made to the approved flight manual and all appropriate documents.
The data set forth in this document are general in nature and for information purposes only.
130 B4 09.101.01 E 56
This document is the property of EUROCOPTER©; no part of it shall be reproduced or transmitted without the express prior written authorization οf EUROCOPTER© and its contents shall not be disclosed. © EUROCOPTER-2009
Page 58
Eurocopter reserves the right to make configuration and data changes at any time without notice.
The facts and figures contained in this document and expressed in good faith do not constitute any offer or contract with Eurocopter
Loading...
