Eurocom M590KE User Manual [en, de, es, fr, it]
Introduction (English)
This Concise User’s Guide introduces the main features
of your computer. The English version of this guide begins on page 1. The expanded User’s Manual is on the
Device Drivers & Utilities + User’s Manual CD-ROM.
Einführung (Deutsch)
Dieses Ausführliche Benutzerhandbuch führt Sie in die
Hauptfunktionen des Notebooks ein. Die deutsche Version des Handbuchs beginnt auf Seite 45. Das erweiterte
Benutzerhandbuch finden Sie auf der CD-ROM für die
Gerätetreiber und Hilfsprogramme (CD-ROM Device
Drivers & Utilities + User's Manual).
Présentation (Français)
Ce Guide Utilisateur Concis présente les fonctionnalités
principales de votre ordinateur. La version française de
ce guide commence à la page 89. Le Manuel de l'Utilisa-
teur étendu se trouve sur le CD-ROM de Pilotes & Utilitaires + Manuel de l'Utilisateur (CD-ROM Device
Drivers & Utilities + User's Manual).
Introducción (Español)
Esta Guía del Usuario Concisa le presenta las características principales de su ordenador. La versión española de
esta guía comienza en la página 133. El Manual del usua-
rio completo se encuentra en el CD-ROM de Controladores del dispositivo y Utilidades + Manual del usuario
(CD-ROM Device Drivers & Utilities + User's Manual).
Introduzione (Italiano)
La presente Guida Rapida per l'Utente introduce le caratteristiche principali del computer. La versione italiana di
questa guida inizia da pagina 177. Il Manuale utente
completo si trova nel CD contenente driver e utilità +
Manuale utente (CD-ROM Device Drivers & Utilities +
User's Manual).
I
Contents
Notice .................... ............................... .................................. ........... 1
About this Concise User Guide .........................................................2
Instructions for Care and Operation ..................................................3
System Startup ..................................................................................7
System Map: Top View with LCD Panel Open ................................9

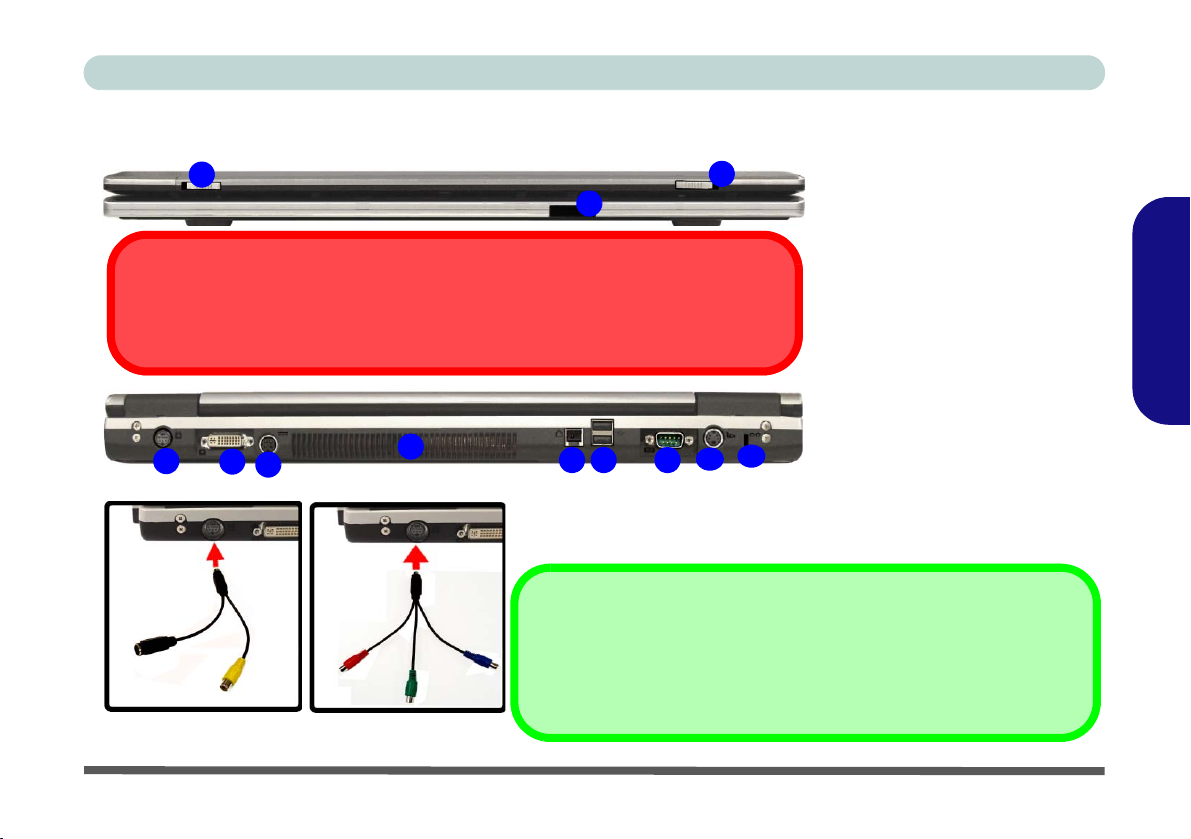

System Map: Front & Rear Views .................. ................................13
System Map: Left View ........................................... .......................14
System Map: Right View ................................................................15
System Map: Bottom View .............................................................16
Windows XP Start Menu & Control Panel .....................................17
Video Features ................................................................................18
Power Management Features ..........................................................21

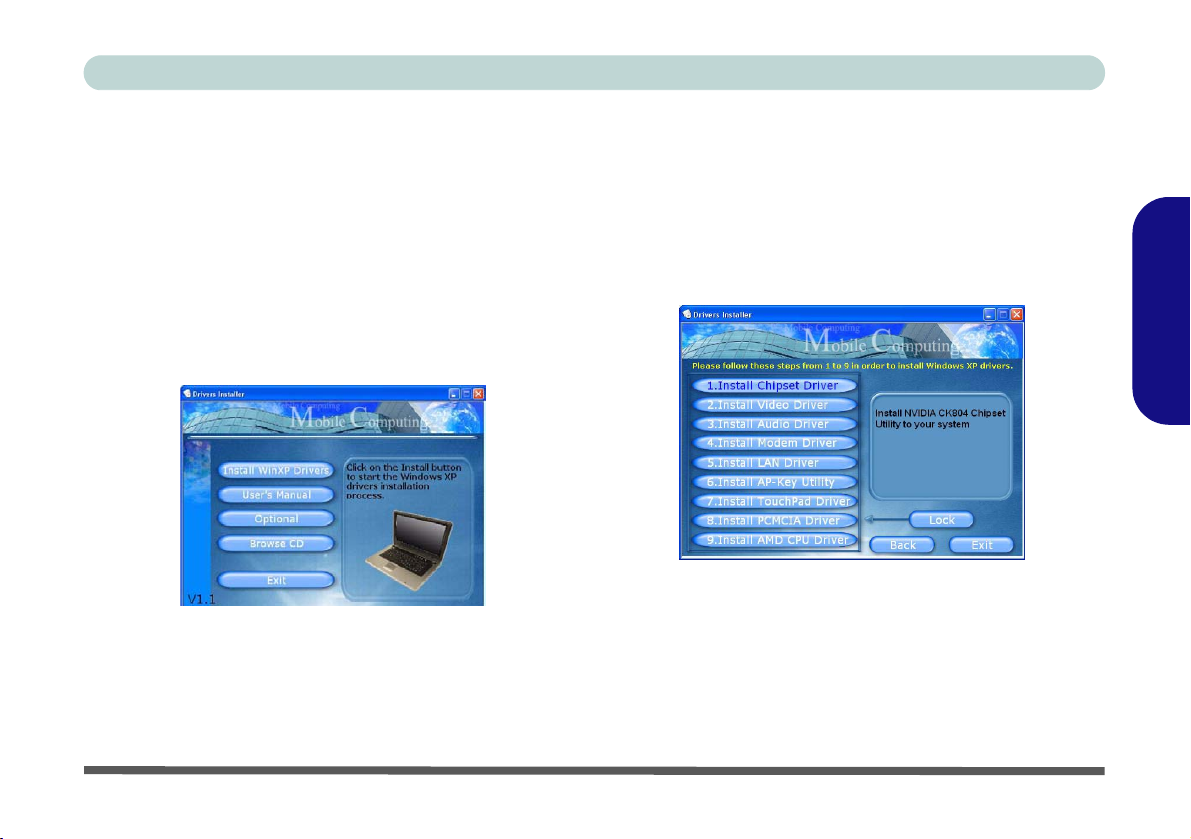

Driver Installation ...........................................................................22
RAID Configuration .......................................................................32
Troubleshooting ..............................................................................38
Specifications ............... ................................. .................................. 39
Inhalt
Hinweis ..................... ..... ....... ...... ..... ...... ..... ...... ..... ....... ...... ..... ...... ..45
Über das Ausführliche Benutzerhandbuch ......................................46
Hinweise zu Pflege und Betrieb ......................................................47
Schnellstart .................. ............................................ ........................51
Systemsoftware ...............................................................................52
Systemübersicht: Ansicht von oben mit geöffnetem
LCD-Bildschirm ................... ........................ ........................ ...........53
Systemübersicht: Ansicht von vorne und Rückansicht ...................57
Systemübersicht: Ansicht von links ........................................ ........58
Systemübersicht: Ansicht von rechts .............................................. 59
Systemübersicht: Ansicht von unten ...............................................60

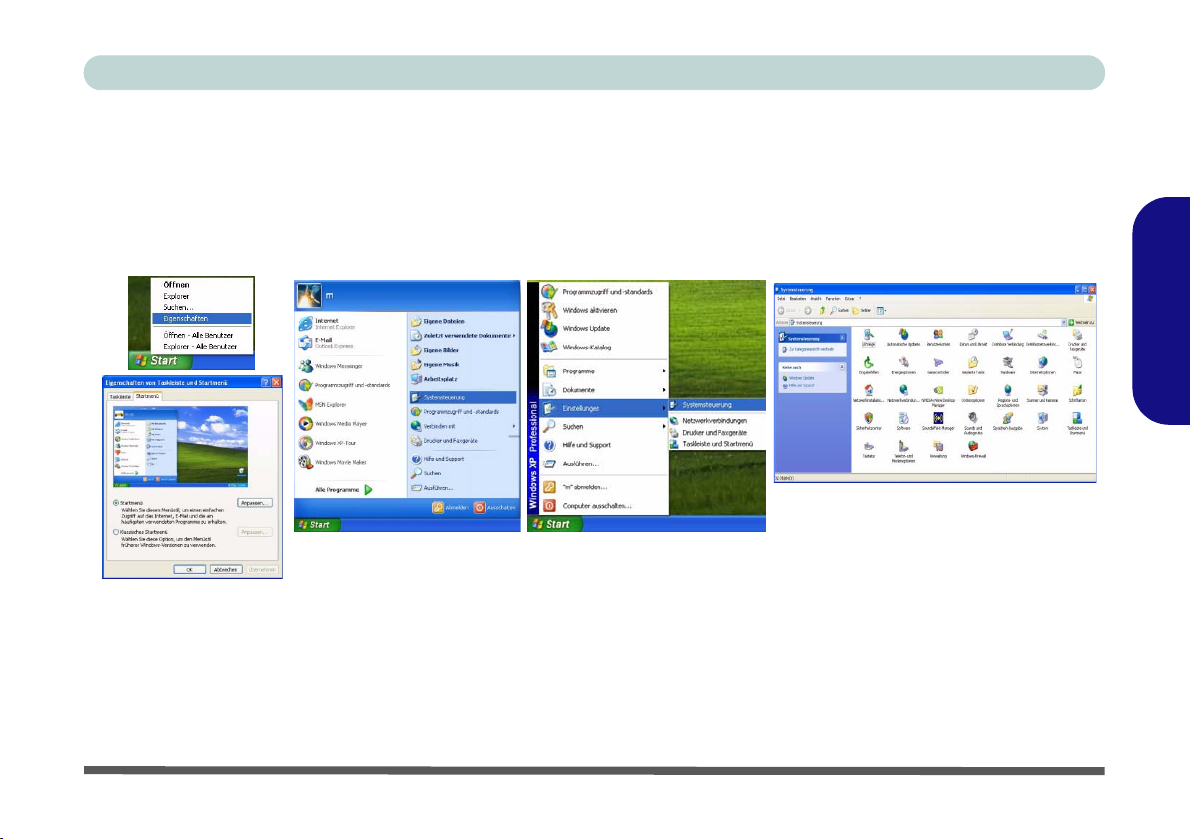

Windows XP Startmenü und Systemsteuerung ...............................61
Grafikfunktionen ................................................. ............................62
Energieverwaltungsfunktionen . ....... .... ....... ...... ..... ....... .... ....... .... ....65
Installation der Treiber ....................................................................66
RAID-Konfiguration .......................................................................76
Fehlerbehebung ...............................................................................82
Technische Daten ............................................................................83
II
Sommaire
Avertissement .................................................................................89
A propos de ce Guide Utilisateur Concis ........................................90
Instructions d’entretien et d’utilisation ...........................................91
Guide de démarrage rapide .............................................................95
Logiciel système .............................................................................96
Carte du système : Vue du dessus avec l’écran LCD ouvert ..........97
Carte du système : Vues de face & arrière .. .. ............................... .101
Carte du système : Vue gauche ............ ............................... ..........102
Carte du système : Vue droite .......................................................103
Carte du système : Vue d’en dessous ...... ......................................104
Menu Démarrer & Panneau de configuration de Windows XP ....105
Caractéristiques vidéo ...................................................................106
Caractéristiques de gestion de l’alimentation ...............................109
Installation du pilote .....................................................................110
Configuration RAID .....................................................................120
Dépannage .................... .... ....... .... ....... ....... .... ....... ....... .... ....... .... ...126
Spécifications ............... ................................. ................................ 127
Contenidos
Aviso .............................................................................................133
Acerca de esta Guía del Usuario Concisa .....................................134
Instrucciones para el cuidado y funcionamiento ...........................135
Guía rápida para empezar ..............................................................139
Software de sistema ..... ......................................................... .........140
Mapa del sistema: Vista superior con panel LCD abierto .............141
Mapa del sistema: Vistas frontal y posterior .................................145
Mapa del sistema: Vista izquierda ................................................146
Mapa del sistema: Vista derecha ...................................................147
Mapa del sistema: Vista inferior ...................................................148
Menú Inicio y Panel de control de Windows XP .. ........................149
Parámetros de vídeo ......................................................................150
Funciones de administración de energía ...................... .................153
Instalación de controladores ..........................................................154
Configuración RAID ................................ ............................ .........164
Solución de problemas ............................. .. ............................. ......170
Especificaciones ................ ............................................... .............171
III
Sommario
Avviso ........................ ............................................ ....................... 177
Informazioni sulla Guida Rapida per l'Utente .............. .. ..............178
Istruzioni per la custodia e il funzionamento ................................179
Guida di avvio rapido ....................................................................183
Software del sistema ....................................................... ..............184
Descrizione del sistema: Vista superiore con pannello
LCD aperto ....................................................................................185
Descrizione del sistema: Vista anteriore e posteriore ...................189
Descrizione del sistema: Vista sinistra .........................................190
Descrizione del sistema: Vista destra ...........................................191
Descrizione del sistema: Vista inferiore .......................................192
Menu Start e Pannello di controllo di Windows XP .....................193
Funzioni video ...... ........................................................ ................194
Funzioni di risparmio energetico ............................................. .....197
Installazione driver ........................................................................198
Configurazione RAID ...................................................................208
Risoluzione dei problemi ....................................... .......................214
Specifiche tecniche .......................................................................215
IV
Concise User’s Guide
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this
publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted
or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or m ay not be copyrights and/or registe red trademarks
of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer.
©October 2006
Trademarks
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovisio n Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home or other limited
viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disasse mbly is
prohibited.
Turion™ is a trademark of Advanced Micro Devices, Inc.
AMD
is a trademark of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.
English
Notice - 1
Concise User’s Guide
About this Concise User Guide
This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for
the expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s
Manual CD-ROM supplied with your computer. This CD-ROM also contains the drivers and utilities necessary for
English
the proper operation of the computer (except those for the optional TV Tuner module which are on a separate CD
provided).
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual CD-ROM does not contain an operating system.
Regulatory Information
Regulatory notices and information are contained in the expanded User’s Manual on the Device Drivers & Utilities
+ User’s Manual CD-ROM.
2 - About this Concise User Guide
Concise User’s Guide
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This is an
electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic
fields. These can hinder proper performance and damage your data.
4. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your
work. Remember to periodically save your data as data may be lost if the battery is depleted.
5. T ake care when using peripheral devices.
Wireless Device Operation Aboard Aircraft
The use of any portable electronic transmiss ion de vices aboard aircraft is us ually proh ibite d. Mak e sure the modules are OFF
if you are using the computer aboard aircraft.
English
Instructions for Care and Operation - 3
Concise User’s Guide
Power Safety
The computer has specific power requirements:
• Only use an AC/DC adapter approved for use with this computer.
• Your AC/DC adapter may be designed for international travel bu t it still requires a steady, uninterrupted power supply.
English
If you are unsure of your local power specifications, consult your service representative or local power company.
• The AC/DC adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety
feature; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install
one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Power Safety Warning
Before you undertake any upgrade procedures, make sure that you h ave turned off the po wer, and di sconnected all perip herals
and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the
machine on.
4 - Instructions for Care and Operation
Concise User’s Guide
Cleaning
Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or
abrasive cleaners on any part of the computer.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Refer servicing to qualified service personnel under any of the following conditions:
• When the power cord is damaged or frayed.
• If the computer has been exposed to rain or other liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
Power Off Before Traveling
Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a
notebook which is powered on in a travel bag may cause the vent(s) to be blocked. To prevent your computer from ove rheating
make sure nothing blocks the vent(s) while the computer is in use.
English
Instructions for Care and Operation - 5
Concise User’s Guide
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way.
Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may pos-
English
sibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery p ack repair or replacement to your servi ce representative or qual ified service personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully . Batteries
may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before dispos ing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life,
under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your
local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equiv alent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.
6 - Instructions for Care and Operation
Concise User’s Guide
System Startup
1. Remove all packing materials.
2. Place the computer on a stable sur fa ce.
3. Securely attach any peripherals you want to use with the notebook (e.g.
keyboard and mouse) to their ports.
4. Attach the AC/DC adapter to the DC-In jack at the rear of the computer, then
plug the AC power cord into an outlet, and connect the AC power cord to the
AC/DC adapter.
5. Move and hold the LCD latches in the direction of the arrows to release
the top cover.
6. Raise the lid/LCD to a comfortable viewing angle (DO NOT EXCEED AN
ANGLE of 120 degrees), and press the power button to turn the computer
“on”.
7. Adjust the LCD panel to a comfortable viewing angle.
8. The LED indicators show the power and battery status of the computer.
2
1
1
1. LCD Latches
2. LED Power & Communication Indicators
Figure 1 - Top Panel with LCD Closed
Shutdown
Please note that you should always shut your computer down by choosing the Shut Down/Turn Off Computer command from
the Start menu in Windows. This will help prevent hard disk or system problems.
2
English
1
System Startup - 7
Concise User’s Guide
System Software
Your computer may already come with system software pre-installed. Where this is not the case, or where you are reconfiguring your computer for a different system, you will find this manual refers to the folowing operatating systems:
• Microsoft Windows XP Professional (with Service Pack 2)
English
• Microsoft Windows XP Home Edition (with Service Pack 2)
• Microsoft Windows XP Media Center Edition (with Service Pack 2)
• Microsoft Windows XP Professional x64 Edition
Drivers
If you are installing/re-installing new system software, you will need to install the appropriate drivers. Drivers are programs which
act as an interface between the computer and a hardware component e.g. a wireless network module. It is very important that
you install the drivers in the order listed in Table 6 on pag e 22. You will be un abl e to use most advanced cont rols u nti l the necessary drivers and utilities are properly installed.
RAID Setup
Note that setting up the RAID syst em and insta lling t he driver for Windows needs to be done when installing the Windows OS,
and therefore before installing the other drivers etc. (see “RAID Configuration” on page 32).
8 - System Startup
Concise User’s Guide
System Map: Top View with LCD Panel Open
Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission
devices aboard aircraft is
usually prohibited. Make
sure the module(s) are
OFF if you are using the
computer aboard aircraft.
The key combination Fn +
F11 toggles power to the
WLAN module, and the
AP-Key button to the
Bluetooth module.
LCD Angle
When raising the LCD DO
NOT FORCE it in excess
of angle of 120 degrees.
6
4
1
2
3
5
7
8
9
10
1. Optional Built-In
PC Camera
2. LCD
3. LED Power &
Communication
Indicators
4. Speakers
5. AP-Key Buttons &
Power Button
6. Built-In Microphone
7. LED Status Indicators
8. Keyboard
4
9. TouchPad and Buttons
10. Consumer Infrared
Transceiver*
*Enabled with Optional Mini-
PCI TV Tuner Only
English
5
7
Figure 2 - Top View with LCD Panel Open
System Map: Top View with LCD Panel Open - 9
Concise User’s Guide
LED Indicators
The two sets of LED indicators (LED Status Indicators
and LED Power & Communication Indicators) on the
computer display helpful information about the current
status of the computer.
English
Table 1 - LED Status Indicators
Table 2 - LED Power & Communication Indicators
Icon Color Description
Orange DC Power is Plugged In
Green The Computer is On
Icon Color Description
Green
Green
Green
Green Hard Disk/Optical Device Activity
Green Number Lock Activated
Green Caps Lock Activated
Green
The (optional) PC Camera is
powered On
The (optional) Bluetooth Module
is powered On
The (optional) Wireless LAN
Module is powered On
Scroll Lock Activated (to activate
press Fn & Scr Lk)
10 - System Map: Top View with LCD Panel Open
Blinking Green
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange
Blinking Green New Mail Has Arrived
The Computer is in Stand by
Mode
The Battery Has Reached
Critically Low Power Status
Concise User’s Guide
AP-Key Buttons
These buttons power on/off the optional PC Camera and
Bluetooth modules, access the internet and e-mail, and
enable/disable high performance video.
Table 3 - AP-Key Buttons
AP-Key
Button
Enable/Disable High Performance Video
Enable/Disable the optional
Enable/Disable the optional
Activate the Default E-mail Program
Activate the Default Internet Browser
Function
PC Camera Module
Bluetooth Module
3D AP-Key Button
Use this button to enable/disable high performance video
when powered by the AC/DC adapter (the 3D AP-Key
button will be illuminated in blue when in high performance video mode).
If you switch from AC Power to battery power the system will automatically change to a lower performance
video mode setting. High Performance Video can not
be enabled when the system is battery powered.
The system will retain in memory the last known video
performance setting if you switch back from battery to
AC power.
Function Keys & Numeric Keypad
The keyboard has a numerical keypad for easy numeric
data input (see Figure 3
ber Lock feature by pressing the Num Lk key on the top
right of the keyboard. You may check if Number Lock
is enabled or not by looking at the LED status indicators
(see Table 1 on page 10). It also features function keys
to allow you to change operational features instantly (see
Table 4 on page 12).
on page 12). Activate the Num-
English
System Map: Top View with LCD Panel Open - 11
Concise User’s Guide
Table 4 - Function Keys
Keys Description
English
Fn + F1 T ouchPad Toggle
Fn + F2
Fn + F3 Mute Toggle
Fn + F4 Sleep Toggle
Fn + F5 Decrease Audio Volume
Fn + F6 Increase Audio Volume
Fn + F7 Display Toggle
Fn + F8 Decrease LCD Brightness
Fn + F9 Increase LCD Brightness
Fn + F11 WLAN Module Toggle
Fn + Scr
Fn Function Key
SRS WOW Surround
Sound Toggle
Lk
Scroll Lock Toggle
Figure 3 - Keyboard
Function Keys
Num Lk & Scr Lk Keys
Numeric
Keypad
Fn Key
Other Keyboards
If your keyboard is damaged or you just want t o make a change, you can us e any
standard USB keyboard. The system will detect and enable it automatically.
However special functions unique to the system’s regular keyboard may not
work.
12 - System Map: Top View with LCD Panel Open
Concise User’s Guide
System Map: Front & Rear Views
1
2
Overheating
To prevent your computer from overheating make sure nothing blocks t he ven t(s) in wh il e the computer is in use.
3
4
5
3 3
6
The 7-pin S-Video Out Jack requires an adapter cable (7-pin S-Video plug to 4pin S-Video jack adapter) in order to connect to a standard S-Video cable (the ycable pictured includes a yellow c omposite video jack).
8
7
1
10
9
7-Pin S-Video-Out Jack
11
English
Figure 4
Front & Rear Views
1. LCD Latches
2. Consumer Infrared
Transceiver*
3. 7-Pin S-Video-Out Jack
4. DVI-Out Port
5. DC-In Jack
6. Vent
7. RJ-11 Phone Jack
8. 2 * USB 2.0 Ports
9. Serial Port
10. S-Video-In Jack*
11. Security Lock Slot
*Enabled with Optional Mini-
PCI TV Tuner Only
S-Video/Composite Cable HDTV Cable
System Map: Front & Rear Views - 13
Concise User’s Guide
System Map: Left View
Figure 5
Left View
1. S/PDIF-Out Jack
English
2. Line-In Jack
3. Microphone-In Jack
4. Headphone-Out Jack
5. Optical Device Drive Bay
(for CD/DVD Device)
3152 4
CD Emergency Eject
If you need to manually eject a CD/DVD (e.g. due to an unexpected
power interruption) you may push the end of a straightened paper clip
into the emergency eject hole. Do not use a sharpened pencil or si milar object that may break and become lodged in the ho le. Don’t try to
remove a CD/DVD/floppy disk while the system is accessing it as this
may cause the system to “crash”.
Headphone Warning
Remove headphones from your ears when shutting the computer
down in order to prevent the higher level sh utdown sound from cau sing hearing damage.
14 - System Map: Left View
Changing DVD Regional Codes
Go to the Control Panel and double-click System >
Hardware (tab), click Device Manager, then click the
+ next to DVD/CD-ROM drives. Double-click on the
DVD-ROM device to bring up the Properties dialog
box, and select the DVD Region (tab) to bring up the
control panel to allow you to adjust the regi onal code.
DVD region detection is device dependent, not OSdependent. You can select your module’s region
code 5 times. The fifth selection is permanent. This
cannot be altered even if you change your operating
system or you use the module in another computer.
Concise User’s Guide
V
System Map: Right View
1
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
The Mini-IEEE 1394a port only supports SELF POWERED IEEE 1394a devices.
3
2
7-in-1 Card Reader
Mini-IEEE 1394a
3 3 4 5
6 7
Figure 6 - Right View
1. PC Card Slot
2. Mini-IEEE 1394a Port
3. 3 * USB 2.0 Ports
4. TV Antenna Jack
(an adapter is provided for CATV
connection)
5. 7-in-1 Card Reader
6. Infrared Transceiver
7. RJ-45 LAN Jack
*
*Enabled with Optional Mini-PCI T
Tuner Only
English
System Map: Right View - 15
Concise User’s Guide
System Map: Bottom View
Figure 7 - Bottom View
1. Battery
2. Battery Release Latch
English
3. Optical Device Release Latch
4. Hard Disk Bay Cover
5. Vent
6. Sub Woofer
7. Component Bay Cover
8. Speakers
5
5
5
7
5
1
5
2
CPU
The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate
your warranty.
5
5
5
4
6
8 8
Battery Information
Always completely discharge, then fully charge, a new battery before using it. Completely discharge and charge the battery at
least once every 30 days or after about 20 partial discharges.
16 - System Map: Bottom View
3
Concise User’s Guide
Windows XP Start Menu & Control Panel
Most of the control panels, utilities and programs within Windows XP are accessed from the Start menu. When you
install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in
the Start menu and/or the desktop. You can customize the look of the Start menu by right-clicking the Start menu
and selecting Properties from the menu.
Figure 8
Start Menu & Control Panel
In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel
is accessed from the Start menu. The Control Panel allows you to configure the settings for most of the key features
in Windows (e.g. power, video, network, audio etc.). Windows XP provides basic control panels for many of the features, however many new control panels are added (or existing ones are enhanced) when you install the drivers listed
in Table 6 on page 22. To see all controls it may be necessary to toggle off Category View.
English
Windows XP Start Menu & Control Panel - 17
Concise User’s Guide
Video Features
This computer features an NVIDIA Scalable Link Interface (SLI) that improves graphic quality and performance by
combining dual NVIDIA GPUs in a single system to allow the two graphics cards to run in parallel. You can switch
display devices, and configure display options, from the Display Properties control panel in Windows as long as the
English
appropriate video driver is installed. To access Display Properties in Windows:
1. Click Start, point to Settings and click Control Panel (or just click Control Panel).
2. Double-click Display (icon) - In the Appearances and Themes category.
3. Click Settings (tab) in the Display Properties dialog box.
(You can also access Display Properties by right-clicking the desktop and scrolling down and clicking Properties.)
4. Move the slider to the preferred setting in Screen area/resolution (Figure 9 on page 19).
5. Click the arrow, and scroll to the preferred setting In Colors/Color quality
6. Click Advanced (button) (Figure 9 on page 19) to bring up the Adva nc e d prop e rti es tabs.
7. Click GeForce Go/Quadro FX (tab).
8. Clicking the tabs or Additional Properties allows you to make any video adjustments you require.
3
Display Devices & Options
Besides the built-in LCD, you can also use an external VGA monitor (CRT)/external Flat Panel Display or TV as
your display device. A VGA monitor/Flat Panel Display connects to the DVI-Out port, a T V to the S-Video-Out jack.
See Table 5
on page 19 for a summary of the display modes available.
1
2
(Figure 9 on page 19).
18 - Video Features
Concise User’s Guide
English
1
2
3
Figure 9 - Display Properties Desktop
Display Mode Description
Single One of the connected displays is used as the display device
Clone* Both connected displays output the same view
Dualview* Both connected displays are treated as separate devices, and act as a virtual desktop
Video Features - 19
Table 5
Display
Options
Concise User’s Guide
Attaching Other Displays
If you prefer to use a monitor or flat panel display, connect it to the DVI-Out port at the rear of the computer.
1. Attach your external monitor to the DVI-Out port (or TV to the 7-pin S-Video-Out jack), and turn it on.
2. Go to Additional Properties in the GeForce Go/Quadro FX Properties control panel tab.
English
3. Select nView Display Settings (if nView Display Settings do not appear, close and reopen the control panel).
4. Select the display mode from the nView Display Mode drop box.
5. Select Apply and click Yes to confirm the settings.
6. Select the display option from the Primary Display/ Secondary Display dropbox (select and Apply the appropriate option).
7. Click the display icon to select it, then click the Device Settings button to make any adjustments for the selected display
(including Screen Resolutions & Refresh Rates).
8. Click Apply to confirm any setting changes.
Figure 10
nView Display Settings
20 - Video Features
Concise User’s Guide
Power Management Features
The Power Options control panel in Windows (see page 17) allows you to configure power management features for
your computer. You may conserve power through individual components such as the monitor or hard disk (by means
of Power Schemes), or you may use either Stand by or Hibernate mode to conserve power throughout the system
(enable Hibernate support from the control panel as pictured in Figure 11).
Figure 11 - Power Options
The computer’s power button, sleep button (Fn + F4 key combination), and lid (closing the lid) may be set to send
the computer in to either Stand by or Hibernate mode.
Power Saving and Performance
Power Schemes may have an affect on your computer performance (e.g. the system may reduce processor performance/speed if Max Battery is the chosen Power Scheme).
English
Power Management Features - 21
Concise User’s Guide
Driver Installation
The Device Drivers & Utilities + User’s Manual CDROM contains the drivers and utilities necessary for the
proper operation of the computer (except those for the
English
optional TV Tuner module which are on a separate CD
provided). Only install drivers for modules included in
your purchase option. Table6 lists what you need to in-
stall, and it is very important that the drivers are in-
stalled in the order indicated.
RAID Setup
Note that setting up the RAID system and installing the
driver for Windows needs to be done when installing the
Windows OS, and therefore before installing the other
drivers etc. (see “RAID Configuration” on page 32).
Windows XP with SP2 (Home Edition/Professional/
MCE) & Windows XP Professional x64 Edition
Driver Page
Chipset page - 25
Video (VGA) page - 25
Audio page - 25
Modem page - 26
LAN page - 26
AP-Key page - 26
TouchPad page - 26
PCMCIA page - 26
AMD Processor page - 27
AutoMail Checker page - 27
Bluetooth Module (Optional) page - 28
WLAN Module (Optional) page - 29
PC Camera Module (Optional) page - 30
Table 6 - Driver Installation
22 - Driver Installation
Concise User’s Guide
Installation Methods
You may choose to install the drivers from the autorun
program, or install them manually.
Drivers Installer Program
Insert the Device Drivers & Utilities + User’s Manual
CD-ROM and click Install WinXP Drivers (button), or
Optional (button) to access the Optional driver menu.
Figure 12 - Drivers Installer Screen 1
1. Check the driver installation order from Table 6 on page
22 (all the drivers must be installed in this order) which is
the same as that listed in the Drivers Installer menu below.
2. Click to select the driver you wish to install. After installing
each driver it will become grayed out (if you need to
reinstall any driver, click Unlock).
3. Follow the instructions for each individual driver
installation procedure as listed on the following pages.
Figure 13 - Drivers Installer Screen 2
Manual Driver Installation
Click the Browse CD button in the Drivers Installer application and browse to the executable file in the appropriate driver folder.
English
Driver Installation - 23
Concise User’s Guide
Updating/Reinstalling Individual Drivers
If you wish to update/reinstall individual drivers it may
be necessary to uninstall the original driver.To do this go
to the Control Panel in the Windows OS and doubleclick the Add/Remove Programs item. If you see the
English
individual driver listed (if not see below), uninstall it,
following the on screen prompts (it may be necessary to
restart the computer). Go to the appropriate section of the
manual to complete the update/reinstall procedure for the
driver in question.
If the driver is not listed in the Add/Remove Programs
item:
1. Click Start (menu), point to Settings and click Control
Panel (or click Start > Control Panel).
2. Double-click System (icon); System (icon) is in
Performance and Maintenance (category).
3. Click Hardware (tab) > Device Manager (button).
4. Double-click the device you wish to update/reinstall the
driver for (you may need to click “+”).
5. Look for the Update Driver button (check the Driver tab)
and follow the on screen prompts.
Windows XP Service Pack 2
Make sure you install Windows XP Service Pack 2 (or
a Windows XP version which includes Service Pack 2)
before installing any drivers. Service Pack 2 includes
support for USB 2.0. (Not Required for Windows XP
x64 Edition.)
If you have upgraded the system by installing Service
Pack 2 (i.e. your Windows XP version does not include
Service Pack 2) then follow these instructions:
1.Click Start (menu), point to Settings and click Con-
trol Panel (or click Control Panel).
2.Double-click System (icon); System (icon) is in Per-
formance and Maintenance (category).
3.Click the Hardware (tab) > Device Manager (button).
4.Click “+” next to Other Devices (if its sub-items are
not shown).
5.Right-click Universal Serial Bus (USB) Co ntroller
and select Uninstall > OK (if you don’t see the item
then there is no need to take any further action).
6.Restart the computer and it will find the USB 2.0 controller.
24 - Driver Installation
