Eurocom L390T User Manual

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication. This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. ©June 2008

Trademarks

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended fo r home or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Intel and Intel Core are trademarks/registered trademarks of Intel Corporation.

Preface

FCC Statement

(Federal Communications Commission)

You are cautioned that changes or modifications not expressly approved by the party responsible for comp liance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service representative or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:

1. This device may not cause interference. And

2. This device must accept any interference, including interference that may cause undesired operation of the

device.

Preface

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.



Warning

Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the equipment.

III

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sin k or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There

may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit (Full Range AC/DC Adapter – AC Input 100 -

240V, 50 - 60Hz, DC Output 19V, 4.74A).

CAUTION

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.

TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,

TELECOMMUNICATION LINE CORD

This Computer’s Optical Device is a Laser Class 1 Product

Preface

Instructions for Care and Operation

The computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele-

ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other

strong magnetic fields. These can hinder proper performance and damage your data.

4. Follow the proper workin g procedu res for t he comput er. Shut the computer down properly and don ’t for get

to save your work. Remember to periodically save your data as data may be lost.

5. Take care when using peripheral devices.

Preface

Power Safety

The computer has specific power requirements:

• When you want to unplug the power cord, be sure to disconnect it by the plu g head, not by



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines).

its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.

Preface

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord is damaged or frayed.

• If the computer has been exposed to any liquids.

• If the computer does not work normally when you follow the operating instructions.

• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your computer.



Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and screw(s) before turning the computer on.

VII

Preface

Ergonomics

We designed your Multimedia PC system to be functional as well as attractive. To get most out of it, here are some suggestions on how to position and use the computer:

• The top third of the LCD (screen) should be at eye-level or slightly below.

• The LCD should be at least 18"/45cm. directly in front of you.

• If the screen resolution makes you strain to read, then adjust the resolution to somethin g more comfortable (see “Video

Features” on page 1 - 14).

• Angle the LCD (see “Tilting the LCD Screen” on page 1 - 7) so that it doesn’t reflect any light into your eyes.

• Use a chair which offers good back support (especially lower-back). The seat should allow your feet to rest flat on the floor or on a footrest directly in front of you.

• If possible, illuminate your work area with natural daylight or use a steady-glowing (non-flickering) light source.

• Place the keyboard and mouse so that your arms are at your sides and your forearms are roughly parallel to the floor. Your wrists should flex slightly downward as you work. Your neck and shoulders should also be relaxed.

• T ake a break from the computer. Get up, stretch, flex your wrists, walk about, and look at something else for about 10 minutes every hour.

VIII

Preface

Lighting

Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders.

• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.

• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

• Position the display directly in front of you at a comfortable viewing distance.

• Adjust the display-viewing angle to find the best position.

LCD Screen Care

To prevent image persistence on LCD monitors (caused by the continuous display of graphics on the screen for an extended period of time) take the following precautions:

• Set the Windows Power Plans to turn the screen off after a few minutes of screen idl e time.

• Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long).

• Rotate desktop background images every few days.

• Turn the monitor off when the system is not in use.



Carrying the Computer

We strongly recommend using both hands to move the computer (one hand gripping the handle area and the other gripping the computer) to avoid accidentally dropping it. Be careful that objects such as belt buckles etc. do not scratch the screen while it is being carried.

Preface

Contents

Notice ................................................................................. I

FCC Statement .............................................................II

FCC RF Radiation Exposure Statement: ................... III

Instructions for Care and Operation ...........................V

Power Safety ..............................................................VI

Cleaning ....................................................................VII

Servicing ...................................................................VII

Ergonomics .................................................................. VIII

Quick Start Guide

Overview ........................................................................1-1

Advanced Users ...........................................................1-2

Beginners and Not-So-Advanced Users ......................1-2

Warning Boxes ............................................................1-2

Not Included ................................................................1-3

System Software ..........................................................1-4

System Startup ...............................................................1-5

System Map: Front View ...............................................1-6

Tilting the LCD Screen ..................................................1-7

Keyboard Options ..........................................................1-8

LED & Hot Key Indicators ............................................1-9

System Map: Left View ...............................................1-10

System Map: Right View .............................................1-11

Preface

System Map: Rear View ..............................................1-12

Windows Vista Start Menu & Control Panel ...............1-13

Video Features .............................................................1-14

Display Devices & Options .........................................1-14

Power Options ............................................ .... .... ..........1-16

Features & Components

Overview ........................................................................2-1

Hard Disk Drive .............................................................2-2

Optical (CD/DVD) Device ............................................2-3

Loading Discs ..............................................................2-3

Handling CDs or DVDs ...............................................2-4

DVD Regional Codes ..................................................2-5

7-in-1 Card Reader .........................................................2-6

ExpressCard Slot ............................................................2-7

Inserting and Removing ExpressCards ........................2-7

Audio Features ...............................................................2-8

Audio Jacks ....................................................................2-9

Adding a Printer ................................................. .... ......2-10

USB Printer ..................................................................2-10

Parallel Printer .............................................................2-10

Preface

Power Management

Overview ........................................................................3-1

Turning on the Computer ...............................................3-2

Power Plans ...................................................................3-3

System Power Options ...................................................3-5

Hibernate vs. Shut Down .............................................3-5

Sleep vs. Hibernate ......................................................3-5

Sleep ..............................................................................3-6

Hibernate ........................................................................3-6

Configuring the Power Button .......................................3-7

Resuming Operation ......................................................3-8

Drivers & Utilities

What to Install ................................................................4-1

Module Driver Installation ..........................................4-1

Driver Installation ..........................................................4-2

Updating/Reinstalling Individual Drivers ...................4-4

User Account Control (Win Vista) ..............................4-4

Windows Security Message ........................................4-4

New Hardware Found ..................................................4-4

Driver Installation Procedure ......................................4-5

Chipset ........................................................................... 4-5

Video ..............................................................................4-5

Audio .............................................................................4-5

Modem ........................................................................... 4-5

LAN ...............................................................................4-5

ExpressCard/Card Reader ..............................................4-6

Hot Key ..........................................................................4-6

e-SATA Support ............................................................4-6

Optional Drivers ..........................................................4-7

Bluetooth Module ..........................................................4-7

Wireless LAN Module ...................................................4-7

PC Camera Module ........................................................4-7

Touch Screen Module ............................................... .... .4-7

Intel Turbo Memory Technology Driver .......................4-7

BIOS Utilities

Overview ........................................................................5-1

The Power-On Self Test (POST) ................................... 5-2

Failing the POST .........................................................5-3

Fatal Errors .................................................... .... ............5-3

Non-Fatal Errors ............................................................5-3

The Setup Program ........................................................5-4

Entering Setup .............................................................5-4

Setup Screens ...............................................................5-5

Main Menu .....................................................................5-6

System Time & Date (Main Menu) ...............................5-6

SATA Port 1/2 (Main Menu) ......................................... 5-7

System/Extended Memory (Main Menu) ......................5-7

BIOS Revision/KBC/EC Firmware

XII

Preface

Revision (Main Menu) ...................................................5-7

Advanced Menu .............................................................5-8

SIO ITE8305E (Advanced Menu) .................................5-8

Installed O/S (Advanced Menu) ....................................5-9

SATA Mode Selection (Advanced Menu) ....................5-9

DFOROM (Robson) Support (Advanced Menu >

SATA Mode Selection [AHCI] ...................................5-10

Reset Configuration Data (Advanced Menu) ..............5-10

Boot-time Diagnostic Screen (Advanced Menu) .........5-10

Legacy OS Boot (Advanced Menu) ............................5-10

Power On Boot Beep (Advanced Menu) .....................5-11

Fan Control (Advanced Menu) ....................................5-11

Security Menu ..............................................................5-12

Set Supervisor Password (Security Menu) ..................5-12

Set User Password (Security Menu) ............................5-13

Fixed disk boot sector (Security Menu) .......................5-13

Password on boot (Security Menu) ..............................5-13

Boot Menu ...................................................................5-14

Exit Menu ....................................................................5-15

Upgrading The Computer

Overview ........................................................................6-1

When Not to Upgrade ..................................................6-2

Removing the Rear Top Cover ......................................6-3

Wireless Keyboard & Mouse USB Receiver .................6-5

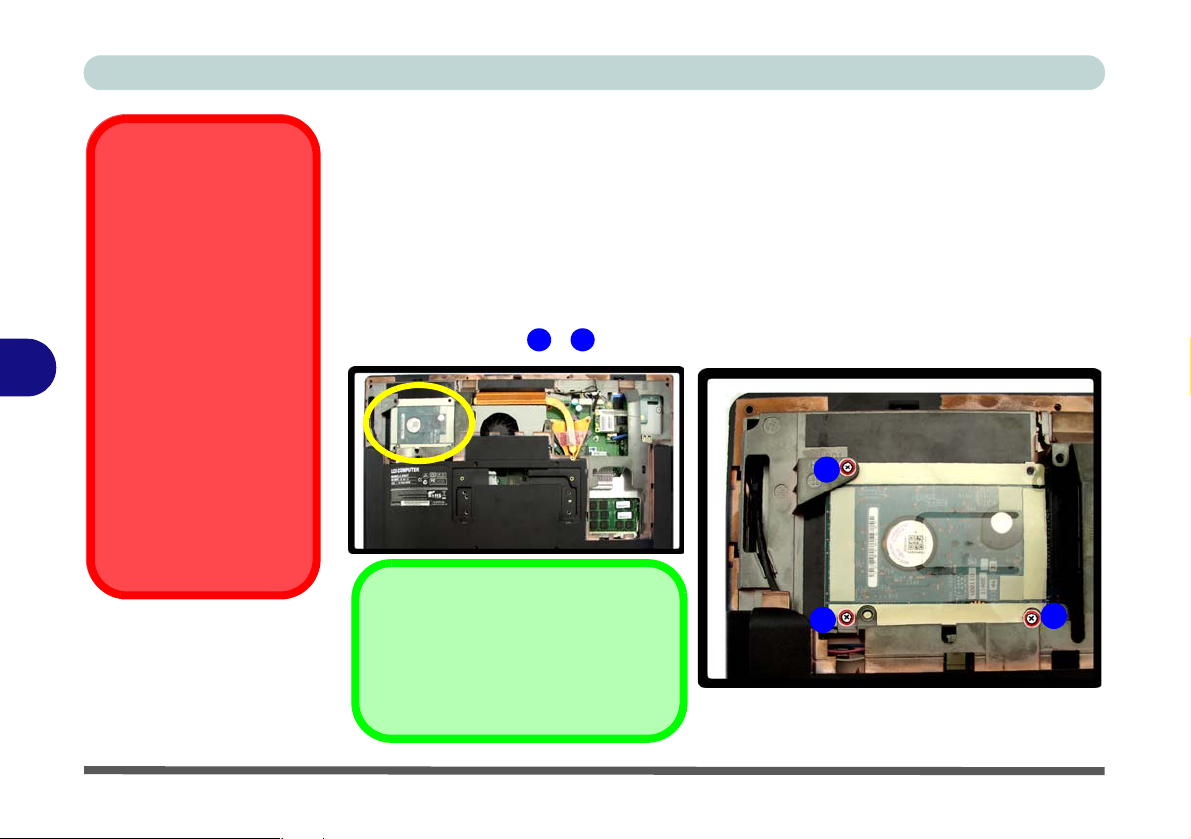

Upgrading the Hard Disk Drive .....................................6-6

Upgrading the System Memory (RAM) ........................6-8

Upgrading the Processor ..............................................6-10

Modules & Options

Overview ........................................................................7-1

Bluetooth Module ..........................................................7-2

Bluetooth Configuration in Windows Vista ..................7-3

Wireless LAN Module ...................................................7-6

Intel® Wi-Fi Link 5100/5300 Series (802.11 a/g/n)

Driver Installation ..........................................................7-7

802.11b/g Driver Installation .........................................7-7

Connecting to a Wireless Network .............................. 7-8

Windows Mobility Center .........................................7-11

PC Camera Module ......................................................7-12

PC Camera Driver Installation .....................................7-12

PC Camera Audio Setup ..............................................7-13

Touch Screen Module ............................................... ...7-19

Touch Screen Utility Installation ................................. 7-19

Calibrating the Touch Screen ....................................7-20

Tablet PC Input Panel ..................................................7-23

Intel Turbo Memory Module .......................................7-24

Intel Turbo Memory & Matrix Storage Setup and

Driver Installation ........................................................7-24

XIII

Preface

Troubleshooting

Overview ........................................................................8-1

Basic Hints and Tips ......................................................8-2

Backup and General Maintenance .................................8-3

Viruses ........................................................................... 8-4

Upgrading and Adding New Hardware/Software ..........8-5

Problems & Possible Solutions ......................................8-7

Interface (Ports & Jacks)

Overview .......................................................................A-1

Computer Ports and Jacks .............................................A-2

Card Reader Port .......................................................... .A-2

COM/Serial Ports ..........................................................A-2

DC-In Jack ....................................................................A-2

e-SATA Port .................................................................A-2

External Monitor (VGA) Port .......................................A-3

HDMI-Out Port .............................................................A-3

Headphone-Out Jack .....................................................A-3

Line-In Jack ..................................................................A-3

Microphone-In Jack ......................................................A-3

Mini-IEEE 1394 Port ....................................................A-4

RJ-11 Phone Jack ..........................................................A-4

RJ-45 LAN Jack ...........................................................A-4

Security Lock Slot ........................................................A-4

S/PDIF-Out Jack ...........................................................A-4

USB 2.0/1.1 Ports .........................................................A-5

Intel Video Driver Controls

Video .............................................................................B-1

Dynamic Video Memory Technology ........................B-1

Scheme Options ........................................................B-4

Configuring Other Displays from Intel® GMA

Driver for Mobile ..........................................................B-6

To Enable Intel(R) Dual Display Clone .....................B-10

To Enable Extended Desktop ..................................... B-11

Using Display Settings to Enable Extended Mode ..... B-13

Specifications

Processor ....................................................................... C-2

Core Logic ....................................................................C-2

LCD ..............................................................................C-2

Memory .........................................................................C-2

Video Adapter ...............................................................C-3

BIOS .............................................................................C-3

Storage .......................................................................... C-3

Audio ............................................................................C-3

Security ......................................................................... C-3

Keyboard .......................................................................C-3

Interface ........................................................................ C-3

Card Reader ..................................................................C-4

XIV

Preface

ExpressCard Slot ................................................. .... ..... C-4

Mini-Card Slots ............................................................ C-4

Communication ............................................................. C-4

Power Management ...................................................... C-4

Power ............................................................................ C-4

Environmental Spec ......................................................C-4

Dimensions & Weight ..................................................C-5

Optional ........................................................................ C-5

Windows XP Information

DVD Regional Codes ...................................................D-2

Windows XP Start Menu & Control Panel ...................D-3

Audio Features ..............................................................D-4

Audio Jacks ...................................................................D-5

Video Features ..............................................................D-6

Dynamic Video Memory Technology ..........................D-6

Display & Graphics Properties .....................................D-7

Display Devices & Options...........................................D-9

Attaching Other Displays ...........................................D-10

HDMI Audio Configuration........................................D-14

Power Management ....................................................D-16

Power Schemes............................................................D-17

System Power Options.................................................D-18

Hibernate Mode vs. Shutdown ...................................D-18

Configuring the Power Button.....................................D-20

Driver Installation .......................................................D-21

Updating/Reinstalling Individual Drivers....................D-22

Driver Installation Procedure.......................................D-23

Chipset ........................................................................D-23

Video ...........................................................................D-23

Audio ..........................................................................D-23

Modem ........................................................................D-24

LAN ............................................................................D-24

CardReader .................................................................D-24

Hot Key .......................................................................D-24

Optional Drivers ..........................................................D-25

Bluetooth Module .......................................................D-25

Wireless LAN Module ................................................D-25

PC Camera Module .....................................................D-25

Touch Screen Module ............................................... ..D-25

Bluetooth Module .......................................................D-26

Bluetooth Configuration in Windows XP ...................D-28

To Add a Bluetooth Device ........................................D-29

Wireless LAN Module ................................................D-31

Intel WLAN Driver Installation ..................................D-32

802.11b/g WLAN Driver Installation .........................D-34

PC Camera Module .....................................................D-35

PC Camera Driver Installation ....................................D-35

Touch Screen Module ............................................... ..D-41

Touch Screen Utility Installation ................................ D-41

Preface

Calibrating the Touch Screen ......................................D-42

XVI

Quick Start Guide

Chapter 1: Quick Start Guide

Overview

This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following:

• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk, optical device, 7-in-1 card reader, ExpressCard/34/54) Audio & Printer.

• Chapter 3 The computer’s power saving options.

• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems.

• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).

• Chapter 6 Instructions for upgrading your computer.

• Chapter 7 A quick guide to the computer’s Bluetooth, Wireless LAN, PC Camera, Touch Screen and Turbo Memory modules (some of which may be optional depending on your purchase configuration).

• Chapter 8 A troubleshooting guide.

• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external devices.

• Appendix B Information on the Intel video driver controls.

• Appendix C The computer’s specification.

• Appendix D Information on the Windows XP OS.

Overview 1 - 1

Quick Start Guide

Advanced Users

If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer” on

page 6 - 1 in the User’s Manual. You may also find the notes marked with a

 of interest to you.

Beginners and Not-So-Advanced Users



Notes

Check the light colored boxes with the mark above to find detailed information about the computer’s features.

If you are new to computers (or do not have an advanced knowledge of them) then the information contained in this Quick Start Guide should be enough to get you up and running. Eventually you should try to look through all the documentation (more detailed descriptions of the functions, setup and system controls are covered in the remainder of the User’s Manual), but do not worry if you do not understand everything the first time. Keep this manual nearby and refer to it to learn as you go. You may find it useful to refer to the notes marked with a

 as indicated in the margin.

For a more detailed description of any of the interface ports and jacks see “Interface

(Ports & Jacks)” on page A - 1.

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the

 symbol. Also please note the safety and handling instructions as indicated in the Preface.

1 - 2 Overview

Quick Start Guide

Not Included

Operating Systems (e.g. Windows Vista/Windows XP) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals.



Drivers

If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in “Drivers & Utilities” on page 4 - 1. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless network module. It is very important that you install the drivers in the order listed in Table 4 - 1, on page 4 - 3. You will be unable to use most advanced controls until the necessary drivers and utilities are properly installed. If your system hasn’t been properly configured (your service representative may have already done that for you), refer to “What to Install” on page 4 - 1 for installation instructions.

Ports and Jacks

See “Computer Ports and Jacks” on page A - 2 for a description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc.

Overview 1 - 3

Quick Start Guide

System Software

Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the following operating systems are supported.

Operating System & Version Supported Note

*Windows XP - SP2 (Home or Professional)

Windows Vista - SP1 (64-bit) Home Basic Edition

Windows Vista - SP1 (64-bit) Home Premium Edition

Windows Vista - SP1 (64-bit) Business/Enterprise/Ultimate Editions

Table 1 - 1 - Operating Systems Supported

In order to run Windows Vista without limitations or decreased performance, your computer requires a minimum 1GB of system memory (RAM).

*Note: For information on the Windows XP OS (specifically power, video and driver information) see “Win-

dows XP Information” on page D - 1.



Windows Vista Service Pack 1

Make sure you install Windows Vista Service Pack 1 (or a Windows Vista version which includes Service Pack 1) before installing any driver s. Go to the Microsoft website for download details, or contact your service center.

1 - 4 Overview

Quick Start Guide

System Startup

1. Remove all packing materials, CDs/DVDs and floppy disks etc.

2. Securely attach any peripherals you want to use with the computer to their ports (e.g keyboard and mouse etc.)

3. Attach the AC/DC adapter to the DC-In jack located und er the LCD, the n plug the AC power cor d into an outlet,

and connect the AC power cord to the AC/DC adapter.

4. Push the power button at the front of the computer (under the LCD) to turn the computer “on”.

Power Button (located under the LCD)



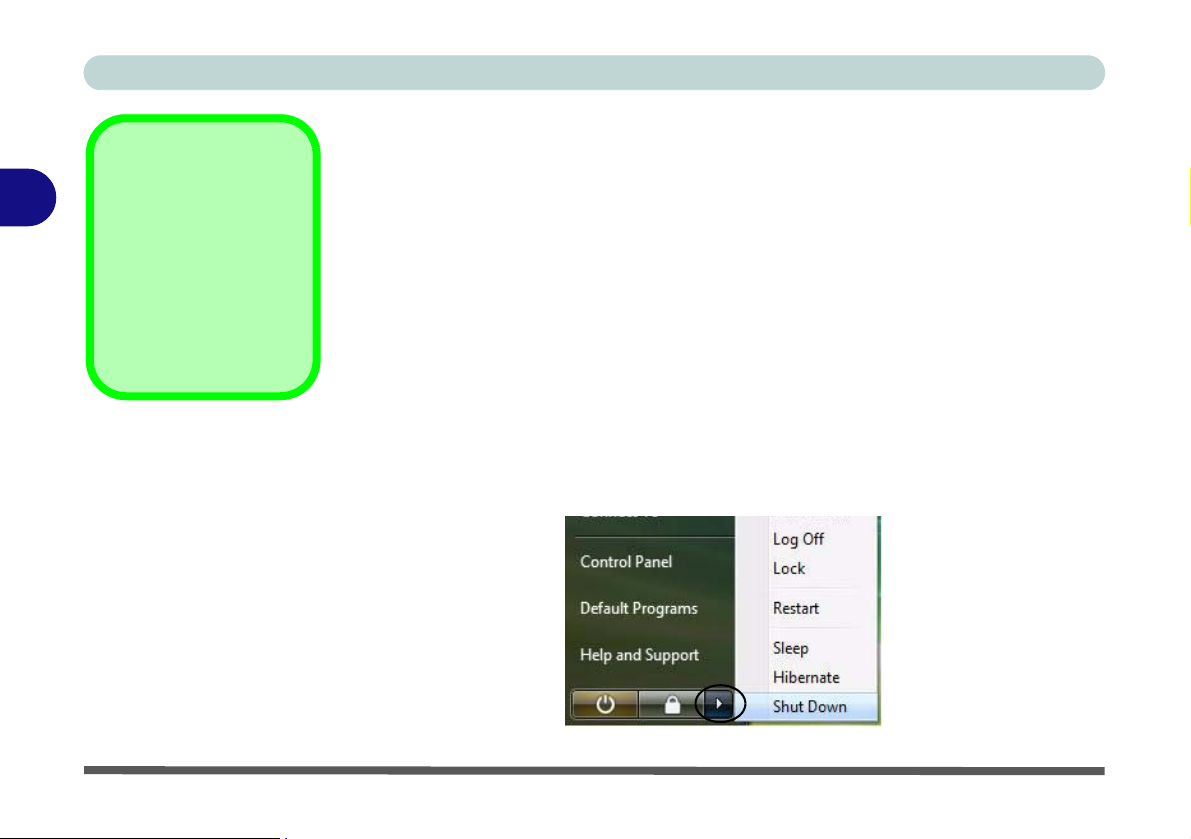

Shutdown

Note that you should always shut your computer down by choosing the Shut Down command from the Lock Button Menu in Windows Vista. This will help prevent hard disk or system problems.

Figure 1 - 1 - AC/DC Adapter Plugged-In/Power Button

System Startup 1 - 5

Quick Start Guide

System Map: Front View

1. Optional Built-In PC Camera

2. LCD (With Optional Touch Panel)

3. Power & System Activity LED Indicators

4. Volume Buttons (under the LCD)

5. Brightness Buttons (under the LCD)

6. Power Button (under the LCD)

7. USB Ports

8. Microphone-In Jack

9. Headphone/Speaker-Out Jack

10. DC-In Jack (under the LCD)

11. 2 * COM Ports (under the LCD)

12. External Monitor Port (under the LCD)

13. eSATA Port (under the LCD)

14. 2 * USB Ports (under the LCD)

15. RJ-11 Phone Jack (under the LCD)

16. RJ-45 LAN Jack (under the LCD)

Figure 1 - 2 - Front View

14 15 16

1 - 6 System Map: Front View

Quick Start Guide

Tilting the LCD Screen

It is possible to tilt the LCD screen in order to get the best possible viewing angle of the screen without glare etc. Apply pressure with one hand at the base of the computer, while carefully pushing the LCD screen to tilt it to the appropriate viewing angle.



-5°

45°

We strongly recommend using both hands to move the computer. You can use one hand to grip the computer by the stand, and the other to hold the top of the LCD screen.

It is recommended that you carry the computer with the LCD facing your body to avoid scratching the surface against other objects. However take care not to scratch the LCD with any personal items, belt fittings or jewelry etc.(one hand gripping the stand and the other gripping the top of the computer to avoid accidentally dropping it).

Moving the Computer

Figure 1 - 3 - LCD Screen Tilt

Tilting the LCD Screen 1 - 7

Quick Start Guide

Keyboard Options

There are two keyboard options for this computer series. These keyboards may include embedded numerical keypads for easy numeric data input and/or function keys/hot keys to allow you to change operational features instantly. Some keyboards may require a driver to access all available functions etc.

Figure 1 - 4 - Optional Wireless Keyboard & Mouse Kit

A USB port located behind the rear top cover is designed to house the receiver for the USB wireless Keyboard & Mouse Kit (or a USB transceiver for any Keyboard/Mouse). See “Wireless Keyboard & Mouse USB Receiv-

er” on page 6 - 5 for more information.

1 - 8 Keyboard Options

Quick Start Guide

LED & Hot Key Indicators

The LED indicators on the computer display helpful information about the current status of the computer.

Icon Color Description

Green The computer is On

Blinking Green The computer is in Sleep Mode

The AC/DC Adapter is Plugged

Orange

Green System Activity

Table 1 - 2 - LED Indicators

in & the Computer is Powered

Off

Visual indicators for brightness and volume are available when the hot key utility is installed (see “Hot

Key” on page 4 - 6). When the driver is installed, an

icon will appear in the taskbar.

Note that these indicators illustrate the volume and brightness level changes when adjusted by the brightness and volume buttons on the computer itself (some keyboards may provide their own indicators).

Hot Key Icon Description

Volume Decrease/Increase

Brightness Decrease/Increase

Table 1 - 3 - Hot Key Indicators

LED & Hot Key Indicators 1 - 9

Quick Start Guide

Figure 1 - 5

Left View

1. Stand

2. S/PDIF-Out Jack

3. Headphone-Out Jack

4. Microphone-In Jack

5. Line-In Jack

6. Mini-IEEE 1394 Port

7. HDMI-Out Port

8. 1 * USB 2.0 Port

9. 7-in-1 Card Reader

10. ExpressCard Slot (see page 2 - 7)

System Map: Left View



ExpressCard Slot

The ExpressCard Slot accepts either

ExpressCard/34 or ExpressCard/ 54 formats.

7-in-1 Card Reader

The card reader allows you to use

the most popular digital storage card

formats:

MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) / MS Pro

(Memory Stick Pro) / MS Duo (requires

PC adapter) /

Mini SD (requires PC adapter) / RS MMC

(requires PC adapter)

Mini-IEEE 1394 Port

The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.

5 4 3

1 - 10 System Map: Left View

System Map: Right View

Figure 1 - 6 - Right View

1. Stand

2. Optical Device Drive Bay (for CD/DVD Device - see page 2 - 3)



Changing DVD Regional Codes

Go to the Control Panel and double-click Device Manager (Hardware and Sound), then click the +

next to DVD/CD-ROM drives. Double-click on the DVD-ROM device to bring up the Properties dialog box, and select the DVD Region (tab) to bring up the control panel to allow you to adjust the regional code (see “DVD Regional Codes” on page 2 - 5).

Quick Start Guide



CD Emergency Eject

If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. Do not use a sharpened pencil or similar object that may break and become

lodged in the hole.

Media Warning

DVD region detection is device dependent, not OSdependent. You can select your module’s region code 5 times. The fifth selection is permanen t. This cannot be altered even if you change your operating system or you use the module in another computer.

Don’t try to remove a floppy disk/CD/DVD while the system is accessing it. This may cause the sys-

tem to “crash”.

System Map: Right View 1 - 11

Quick Start Guide

Figure 1 - 7

Rear View

1. Stand

2. Rear Component Cover

3. Vent/Fan Intake

4. Security Lock Slot

5. Carrying Handle Area

System Map: Rear View



CPU

The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate your warranty.

Overheating

3 3

To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake while the computer is in use.



Carrying the Computer

1 - 12 System Map: Rear View

Quick Start Guide

Windows Vista Start Menu & Control Panel

Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop. Right-click the Start menu icon , and then select Properties if you want to customize the appearance of the Start menu.

Click here to toggle Classic View

Figure 1 - 8 - Start Menu & Control Panel

In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features

in Windows (e.g. power, video, network, audio etc.). Windows Vista provides basic controls for many of the fea- tures, however many new controls are added (or existing ones are enhanced) when you install the drivers listed in Table 4 - 1, on page 4 - 3. To see all controls it may be necessary to toggle to Classic View on.

Windows Vista Start Menu & Control Panel 1 - 13

Quick Start Guide

Video Features

You can switch display devices, and configure display options, from the Display Settings control panel (in Personalization) in Windows Vista as long as the appropriate Intel video driver is installed. For more detailed vid-

eo information see “Intel Video Driver Controls” on page B - 1.

To access Display Settings in Windows Vista:

1. Click Start, and click Control Panel (or point to Settings and click Control Panel).

2. Click Adjust screen resolution under the Appearance and Personalization menu (or double-click Personalization > Display Settings).

3. Move the slider to the preferred setting in Resolution: (Figure 1 - 9 on page 1 - 15).

4. Click the arrow, and scroll to the preferred setting In Colors: (Figure 1 - 9 on page 1 - 15).

5. Click Advanced Settings (button) (Figure 1 - 9 on page 1 - 15) and click Intel(R) GMA Driver for mobile (tab).

6. Click Graphics Properties (button) (Figure 1 - 9 on page 1 - 15) to access the Intel GMA control panel (this control panel can also be accessed by double-clicking Intel(R) GMA Driver for mobile in the Windows control panel if Classic View is selected - see Figure 1 - 8 on page 1 - 13).

7. The Intel GMA control panel can also be accessed by clickin g th e ic on in the taskbar and selecting

Graphics Properties from the menu.

Display Devices & Options

Besides the built-in LCD, you can also use an external VGA monitor (CRT) or external Flat Panel Display connected to the external monitor port as your display device.

1 - 14 Video Features

Quick Start Guide

Figure 1 - 9 - Display Properties Desktop

Intel Display Mode Description

Single Mode One of the connected displays is used as the display device Intel(R) Dual Display Clone Mode Both connected displays output the same view and may be configured independently Extended Desktop Mode Both connected displays are treated as separate devices, and act as a virtual desktop

Table 1 - 4 - Display Options

Video Features 1 - 15

Quick Start Guide

Power Options

The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 1 - 13 ) allows you to configure power management features for your computer. You can conserve power by means of power plans and configure the options for the power button, sleep button, display and sleep mode from the left menu. Note that the power saver plan may have an affect on computer performance.

Click to select one of the existing plans, or click Create a power plan in the left menu and select the options to create a new plan. Click Change Plan Settings and click Change advanced power settings to access further con- figuration options.

1 - 16 Power Options

Note: Sleep is the default power saving state in Windows Vista

Figure 1 - 10 - Power Options

Features & Components

Chapter 2: Features & Components

Overview

Read this chapter to learn more about the following main features and components of the computer:

•Hard Disk Drive

• Optical (CD/DVD) Device

• 7-in-1 Card Reader

• ExpressCard Slot

• Audio Features

• Adding a Printer

Overview 2 - 1

Features & Components

Before attempting to access any of the internal components of your computer please ensure that the machine is not connected to the AC power, and that the machine is turned off. Also ensure that all peripheral cables, including phone lines, are disconnected from the computer.



Power Safety

Hard Disk Drive

The hard disk drive is used to store your data in the computer. The hard disk can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5 mm.

The hard disk is accessible from the rear of your computer as seen below. For further details see “Upgrading the Hard Disk Drive” on page 6 - 6.

Figure 2 - 1

Hard Disk Location

Hard Disk

2 - 2 Hard Disk Drive

Features & Components

Optical (CD/DVD) Device

There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual device will depend on the module you purchased (see “Storage” on page C - 3). The optical device is usually labeled “Drive D:” and may be used as a boot device if properly set in the BIOS (see “Boot Menu” on page 5 - 14).

Loading Discs

To insert a CD/DVD, press the open button and carefully place a CD/ DVD onto the disc tray with label-side facing up (use just enough force for the disc to click onto the tray’s spindle). Gently push the CD/DVD tray in until its lock “clicks” and you are ready to start. The busy indicator

will light up while data is being accessed, or while an audio/video CD, or DVD, is playing. If power is unexpectedly interrupted, insert an object such as a straightened paper clip into the emergency eject hole to open the tray.



Sound Volume

Adjustment

How high the sound volume can be set depends on the setting of the volume control within Win- dows. Click the Volume icon on the taskbar to check the setting (see

“Audio Features” on page 2 - 8).

Figure 2 - 2

Optical Device

Optical (CD/DVD) Device 2 - 3

Features & Components

CD Emergency Eject

If you need to manually eject a CD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. However please do NOT use a sharpened pencil or similar object that may break and become lodged in the hole.

Disk Eject Warning

Don’t try to remove a CD/DVD while the system is accessing it. This may cause the system to “crash”.



Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data stored on your CDs/DVDs can be accessed.

Note the following:

• Hold the CD or DVD by the edges; do not touch the surface of the disc.

• Use a clean, soft, dry cloth to remove dust or fingerprints.

• Do not write on the surface with a pen.

• Do not attach paper or other materials to the surface of the disc.

• Do not store or place the CD or DVD in high-temperature areas.

• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.

• Do not bend the CD or DVD.

• Do not drop or subject the CD or DVD to shock.

Handling CDs or DVDs

2 - 4 Optical (CD/DVD) Device

Features & Components

DVD Regional Codes

To change the DVD regional codes see “Changing DVD Regional Codes” on

page 1 - 11.

DVD Regional Coding

Region Geographical Location

1 USA, Canada

6China

Western Europe, Japan, South

Africa, Middle East & Egypt

South-East Asia, Taiwan, South

Korea, The Philippines, Indonesia,

Hong Kong

South & Central America, Mexico,

Australia, New Zealand

N Korea, Russia, Eastern Europe,

India & Most of Africa

Table 2 - 1

DVD Regional

Coding

Optical (CD/DVD) Device 2 - 5

Features & Components

Card Reader Cover

Make sure you keep the cover in the card reader when not in use. This will help prevent foreign objects and/or dust getting in to the card reader.



7-in-1 Card Reader

The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s). Make sure you install the Card Reader driver (see “ExpressCard/Card Reader” on page 4 - 6).

• MMC (MultiMedia Card)

• SD (Secure Digital)

• MS (Memory Stick)

• MS (Memory Stick Pro)

• MS Duo (requires PC adapter)

• Mini SD (requires PC adapter)

Figure 2 - 3

Front View

1. Card Reader

• RS MMC (requires PC adapter)

2 - 6 7-in-1 Card Reader

Features & Components

ExpressCard Slot

The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/ 34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC Cards).

ExpressCard/54 is used for applications which require a larger interface slot, e.g. CompactFlash card reader. The number denotes the card width; 54mm for the Express Card/54 and 34mm for the ExpressCard/34. Make sure you install the Card Reader driver (see “Express-

Card/Card Reader” on page 4 - 6).

Inserting and Removing ExpressCards

• Align the ExpressCard with the slot and

push it in until it locks into place.

• To remove an ExpressCard, simply press

the card to eject it.



ExpressCard Slot

Cover

Make sure you keep the cover in the ExpressCard slot when not in use. This will help prevent foreign objects and/ or dust getting in to the ExpressCard Slot.

Figure 2 - 4

ExpressCard Slot

1. ExpressCard Slot

ExpressCard Slot 2 - 7

Features & Components



Audio Features

You can configure the audio options on your computer from the Sound control

Sound Volume

Adjustment

The sound volume level is set using the volume control within Windows (and the volume function keys on the computer). Click the volume icon in the taskbar to check the setting.

panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/ control panel (right-click the taskbar icon to bring up an audio menu). You can adjust the volume by means of the volume buttons on the computer.

Right-click the icon to access the menu above.

Figure 2 - 5

Realtek Audio

Manager

2 - 8 Audio Features

Features & Components

Audio Jacks

Note that the system has two sets of audio jacks as well as internal speakers. All the audio jacks cannot function at the same time and are therefore assigned a priority

order depending on your audio connections.

• Priority 1 = The audio jacks at the front of the computer. Thus the audio

jacks at the side of the computer and the internal speakers are disabled (e.g if you connect headphones to the headphone-out jack at the front of the computer then speakers/headphones connected to the headphone-out jack at the side of the computer are disabled).

• Priority 2 = The audio jacks at the side of the computer. Thus the internal

speakers are disabled (e.g if you connect speakers to the headphone-out jack at the side of the computer then the internal speakers are disabled).

• Priority 3 = The internal speakers. If there are no audio connections to any of

the audio jacks, then the audio output will default to the internal speakers.

Audio Features 2 - 9

Features & Components

After setting up the printer attach the parallel cable to the printer.

Connect the printer’s parallel cable to the Parallel to USB converter, and then plug the converter into the USB port.

Turn ON the printer, then turn ON the computer.

Windows will identify the printer and either load one of its own drivers or ask you to supply one. Follow the on-screen instructions.



Parallel Printer

Adding a Printer

The most commonly used peripheral is a printer. The following conventions will help you to add a printer, however it is always best to refer to the printer manual for specific instructions and configuration options.

USB Printer

Most current printers have a USB interface connection. You may use any one of the ports to connect the printer.

Install Instructions:

1. Set up the printer according to its instructions (unp acking, p aper tray, toner/ink cartridge etc.).

2. Turn ON the computer.

3. Turn ON the printer.

4. Connect the printer’s USB cable to one of the USB ports on the comp uter.

5. Windows will identify the printer and either load one of its own drivers or ask you to supply one. Follow the on-screen instructions.

Parallel Printer

This is still a very common type of printer. The install instructions are in the sidebar, however you will need to purchase a parallel to USB converter.

2 - 10 Adding a Printer

Power Management

Chapter 3: Power Management

Overview

To conserve power, especially when using the battery, your computer power management conserves power by controlling individual components of the computer (the monitor and hard disk drive) or the whole system.

This chapter covers:

• Turning on the Computer

• Power Plans

• System Power Options

• Configuring the Power Button

The computer uses enhanced power saving techniques to give the operating system (OS) direct control over the power and thermal states of devices and processors. For example, this enables the OS to set devices into low-power states based on user settings and information from applications.

Using some form of power management greatly increases the life span of the LCD.



OS Note

Power management functions will vary slightly depending on your operating system. For more information it is best to refer to the user’s manual of your operating system.

(Note: All pictures used on the following pages are from the Windows Vista OS.)

Hibernate Mode In

Windows Vista SP1

If you are using Windows Vista SP1 with

4GB RAM installed, see page 8 - 9 for information on Hibernate.

Overview 3 - 1

Power Management

Turning on the Computer



Shut Down

Note that you should always shut your computer down by choosing the Shut Down command from the Lock Button

Menu in Windows Vis- ta. This will help prevent

hard disk or system problems.

To turn the computer on simply press the power button (see “System Startup” on

page 1 - 5).

When the computer is on, you can use the power button as a Sleep/Hibernate hotkey button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will force the computer to shut down). Use Power Op- tions (Hardware and Sound menu) control panel in Windows Vista to configure this feature.



Forced Off

If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, press the power button for 4 seconds, or longer, to force the system to turn itself off.

Power Button Sleep

Sleep is the default power mode when the power button is pressed for less than 4 seconds. You may configure the options for the power button from the Power Options (Hardware and Sound menu) control panel in Windows Vista (see your OS’s documentation, or

“Configuring the Power Button” on page 3 - 7 for details).

3 - 2 Turning on the Computer

Power Plans

The computer can be configured to conserve power by means of power plans. You can use (or modify) an existing power plan, or create a new one.

The settings may be adjusted to set the display to turn off after a specified time, and to send the computer into Sleep after a period of inactivity.

Click Change plan settings and then click Change advanced power settings to access further configuration options in Advanced Settings.

Power Management



Resuming Operation

See Table 3 - 1, on

page 3 - 8 for informa-

tion on how to resume from a power-saving state.

Password

It is recommended that you enable a password on system resume in order to protect your data.

Figure 3 - 1

Power Plan

Advanced Settings

Power Plans3-3

Power Management

Each Windows power plan will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance.

Figure 3 - 2

Power Plans

3 - 4 Power Plans

System Power Options

You can use the system power options to stop the computer’s operation and restart where you left off. The system features Sleep and Hibernate power saving states.

Hibernate vs. Shut Down

Hibernate and Shut Down are the same in that the system is off and you need to press the power button to turn it on. Their main difference is:

When you come back from hibernation, you can return to where you last left off (what was on your desktop) without reopening the application(s) and file(s) you last used.

You can use either method depending on your needs.

Sleep vs. Hibernate

If you want to stay away from your work for just a while, you can put the system into

Sleep instead of in hibernation. It takes a longer time to wake up the system from Hibernate mode than from Sleep mode.

Power Management



Sleep Button

The Power Button in the Start Menu (in Classic View use the Shut Down button ) can be used to send the computer into a powersaving state.

Note that Sleep is the default power saving state in Windows Vista.

System Power Options 3 - 5

Power Management

Sleep



Hibernate Mode In

Windows Vista SP1

If you are using Windows Vista SP1 with

4GB RAM installed, see page 8 - 9 for information on Hibernate.

Sleep uses very little system power, and takes a short time to return to full operation. After an extended period of time in Sleep the computer will save the contents of system memory (e.g. any open documents and applications) to the hard disk and shut the system down. When you are not using your computer for a certain length of time, which you specify in the operating system, it will enter Sleep mode to save power.

Hibernate

Hibernate uses no power and saves all of your information on a part of the hard disk before it turns the system off. Although it saves the most power it takes the longest time to return to full operation. You will need to enable Hibernate mode from the Advanced Settings in power plans, or you put the system directly into Hibernate mode from the Lock Button Menu. The system will resume from Hibernate mode by pressing the power button.

Figure 3 - 3

Lock Button Menu

3 - 6 System Power Options

Configuring the Power Button

The power button may be set to send the computer in to either Sleep or Hibernate. In Sleep, the LED will blink green. In Hibernate the LED will be orange. If only the display is turned off, the LED will remain green.

Power Management



Password Protection

It is recommended that you enable a password on wake up in order to protect your data.

However you can disable this setting from the Power Options menu by clicking Require a

password on wakeup

in the left menu, and selecting the options (click

Change settings that are currently unavailable).

Figure 3 - 4

Power Options

Define Power

Buttons

Configuring the Power Button 3 - 7

Power Management

Resuming Operation

You can resume operation from power-saving states by pressing the power button, or in some cases pressing the sleep button (see your keyboard documentation).

Power Status

Power Off Off Press the Power Button

Sleep Blinking Green

Table 3 - 1

Resuming Operation

Hibernate Orange (AC/DC adapter) Press the Power Button

When the computer is on, you can use the power button as a Sleep/Hibernate hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will force shut the computer to shut down).

3 - 8 Configuring the Power Button

Icon Color

Power Button

To Resume

Press the Power Button

Press the Sleep Button (on your keyboard)



Chapter 4: Drivers & Utilities

Drivers & Utilities

This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems. The system takes advantage of some newer hardware components for which the latest versions of most available operating systems haven’t built in drivers and utilities. Thus, some of the system components won’t be auto-configured with an appropriate driver or utility during operating system installation. Instead, you need to manually install some system-required drivers and utilities.

What to Install

The Device Drivers & Utilities + User’s Manual disc contains the drivers and utilities necessary for the proper operation of the computer.

Table 4 - 1, on page 4 - 3 lists what you need to install

and it is very important that the drivers are in- stalled in the order indicated (see “Driver Installa-

tion” on page D - 21 for Windows XP driver

information).

Module Driver Installation

The procedures for installing drivers for the Wireless LAN, PC Camera, Touchscreen Utility and Intel Turbo Memory (and Intel Matrix Storage) are pro-

vided in “Modules & Options” on page 7 - 1. Make sure that the drivers are installed in the order indicated in Table 4 - 1, on page 4 - 3. Only install drivers for modules included in your purchase option.

What to Install 4 - 1

Drivers & Utilities

Driver Installation

Insert the Device Drivers & Utilities + User’s Manual disc and click Install Drivers (button)/Option Drivers (button).

Figure 4 - 1 - Drivers Installer Screen 1

1. Check the driver installation order from Table 4 - 1,

on page 4 - 3 (the drivers must be installed in

this order) which is the same as that listed in the

Drivers Installer menu below.

2. Click to select the driver you wish to install, after installing each driver it will become grayed out (if you need to reinstall any driver, click the Unlock button).

3. Follow the instructions for each individual driver installation procedure as listed on the following pages.

4 - 2 Driver Installation

Figure 4 - 2 - Drivers Installer Screen 2

Drivers & Utilities

Driver - Windows Vista with Service Pack 1 Page #

Chipset Page 4 - 5 Video Page 4 - 5 Audio Page 4 - 5 Modem Page 4 - 5 LAN Page 4 - 5 ExpressCard/Card Reader Page 4 - 6 Hot Key Page 4 - 6 e-SATA Support Page 7 - 24

Wireless LAN Module Page 7 - 6 PC Camera Module Page 7 - 12 Touch Screen Module Page 4 - 7 Intel Turbo Memory Module Page 7 - 24

Table 4 - 1 - Driver Installation

Manual Driver Installation

Click Browse CD (button) in the Drivers Installer ap- plication and browse to the executable file in the appropriate driver folder.

Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest security updates etc. (all updates will include the latest hotfixes from Microsoft). See “Windows Update” on page 4 -

6 for instructions.



Windows Vista Service Pack 1

Make sure you install Windows Vista Service Pack 1 (or a Windows Vista version which includes Service Pack 1) before installing any drivers. Go to the Microsoft website for download details, or contact your service center.

Driver Installation 4 - 3

Drivers & Utilities

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it may be necessary to uninstall the original driver.To do this go to the Control Panel in the Windows OS and double-click the Programs and Features icon (Pro-

grams > Uninstall a program). Click to select the driver (if it is not listed see below) and click Uninstall, and then follow the on screen prompts (it may be necessary to restart the computer). Reinstall the driver as outlined in this chapter.

If the driver is not listed in the Programs and Fea- tures menu:

1. Click Start, and click Control Panel (or point to Settings and click Control Panel).

2. Double-click Device Manager (Hardware and Sound > Device Manager).

3. Double-click the device you wish to update/reinstall the driver for (you may need to click “+” to expand the selection).

4. Click Driver (tab) and click the Update Driver or

Uninstall button and follow the on screen prompts.

User Account Control (Win Vista)

If a User Account Control prompt appears as part of the driver installation procedure, click Continue or Allow, and follow the installation procedure as directed.

Windows Security Message

If you receive a Windows security message as part of the driver installation process. Just click “Install this driver software anyway” or Install to continue the in- stallation procedure.

You will receive this message in cases where the driver has been released after the version of Windows you are currently using. All the drivers provided will have already received certification for Windows.

New Hardware Found

If you see the message “New Hardware Found” during the installation procedure (other than when out- lined in the driver install procedure), click Cancel to close the window, and follow the installation procedure.

4 - 4 Driver Installation

Drivers & Utilities

Driver Installation Procedure

Insert the Device Drivers & Utilities + User’s Manual disc and click Install Drivers (button), or Option Driv- ers (button) to access the Optional driver menu.

Chipset

1. Click 1.Install Chipset Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish to restart the computer.

Video

1. Click 2.Install Video Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish to restart the computer.

Audio

1. Click 3.Install Audio Driver > Yes.

2. Click Next > Next.

3. Click Finish to restart the computer .

Modem

1. Click 4.Install Modem Driver > Yes.

2. Click OK.

3. The modem is ready for dial-up configuration.



Modem Country Selection

Go to the Phone and Modem Options control panel (Hardware and Sound) and make sure the modem country selection

is appropriate for you.

LAN

1. Click 5.Install LAN Driver > Yes.

2. Click Next > Install.

3. Click Finish.

4. The network settings can now be configured.

Driver Installation 4 - 5

Drivers & Utilities

ExpressCard/Card Reader

1. Click 6.Install CardReader Driver > Yes.

2. Click Next > Install.

3. Click Finish to complete the installation.

Hot Key

1. Click 7.Install Hotkey Driver > Yes.

2. Click Next > Install.

3. Click Finish > Finish to restart your computer.



Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest security up-

dates etc. (all updates will include the latest hotfixes from Microsoft).

To enable Windows Update make sure you are con-

nected to the internet:

e-SATA Support

See “Intel Turbo Memory & Matrix Storage Setup

and Driver Installation” on page 7 - 28 for instruc-

tions on installing this driver to enable the e-SATA port.

4 - 6 Driver Installation

1. Click Start, and click Control Panel (or point to Settings and click Control Panel).

2. Click Check for updates (Security), or double-click Security Center and click Windows Update.

3. Double-click Check for updates (button).

4. The computer will now check for updates (you need to be connected to the internet).

5. Click Install now (button) to install the updates.

Drivers & Utilities

Optional Drivers

See the pages indicated for the driver installation procedures for any modules included in your purchase option. Insert the Device Drivers & Utilities + User’s Manual disc and click Option Drivers (button) to ac- cess the optional driver menu.

Figure 4 - 3 - Optional Drivers

Bluetooth Module

Note: The operating system is the default setting for Bluetooth control in Windows Vista. See “Bluetooth

Module” on page 7 - 2 for configuration instructions.

Wireless LAN Module

See the introduction in “Wireless LAN Module” on

page 7 - 6, and check the installation procedure.

PC Camera Module

See the introduction in “PC Camera Module” on

page 7 - 12, and check the installation procedure.

Touch Screen Module

See the introduction in “Touch Screen Module” on

page 7 - 19, and check the installation procedure.

Intel Turbo Memory Technology Driver

See the introduction in “Intel Turbo Memory Mod-

ule” on page 7 - 28, and check the installation proce-

dure. Note this driver is also required to enable support for the e-SATA port.

Driver Installation 4 - 7

Drivers & Utilities

4-8

BIOS Utilities

Chapter 5: BIOS Utilities

Overview

This chapter gives a brief introduction to the computer’s built-in software:

Diagnostics: The POST (Power-On Self Test)

Configuration: The Setup utility

If your computer has never been set up, or you are mak ing important chan ges to the system (e.g. hard disk setup), then you should review this chapter first and note the original settings found in Setup. Even if you are a beginner, keep a record of the settings you find and any changes you make. This information could be useful if your system ever needs servicing.

There is one general rule: Don’t make any changes unless you are sure of what you are doing. Many of the settings are required by the system, and changing them could cause it to become unstable or worse. If you have any doubts, consult your service representative.



BIOS Settings

Warning

Incorrect settings can cause your system to malfunction. To correct mistakes, return to Set-

up and restore the Setup Defaults with <F9>.

Overview 5 - 1

BIOS Utilities

The Power-On Self Test (POST)

Each time you turn on the computer, the system takes a few seconds to conduct a POST, including a quick test of the on-board RAM (memory).

As the POST proceeds, the computer will tell you if there is anything wrong. If there is a problem that prevents the system from booting, it will display a system summary and prompt you to run Setup.

If there are no problems, the Setup prompt will disappear and the system will load the operating system. Once that starts, you can’t get into Setup without rebooting.

The screen which appears at startup depends on whether or not you have enabled/ disabled the Boot-time Diagnostic Screen (see “Boot-time Diagnostic Screen (Ad-

vanced Menu)” on page 5 - 10).

5 - 2 The Power-On Self Test (POST)

Failing the POST

Errors can be detected during the POST. There are two categories, “fatal” and “nonfatal”.

Fatal Errors

These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.

Non-Fatal Errors

This kind of error still allows you to boot. You will get a message identifying the problem (make a note of this message!) followed by the prompt:

• Press <F1> to resume

• <F2> to enter Setup

Press F1 to see if the boot process can continue. It may work, without the correct configuration.

BIOS Utilities

Press F2 to run the Setup program and try to correct the problem. If you still get an error message after you change the setting, or if the “cure” seems even worse, call for help.

The Power-On Self Test (POST) 5 - 3

BIOS Utilities

The Setup Program

The Setup Utility program tells the system how to configure itself and manage basic features and subsystems (e.g. port configuration).

Entering Setup

To enter the Setup Utility, turn on the computer and press F2 during the POST. The

prompt (Press F2 to Enter Setup) seen on page 5 - 2 is usually present for a few seconds after you turn on the system. If you get a “Keyboard Error”, (usually because you pressed F2 too quickly) just press F2 again.

If the computer is already on, reboot using the Ctrl + Alt + Delete combination and then hold down F2 when prompted. The Setup Utility main menu will appear.

5 - 4 The Setup Program

Setup Screens

The following pages contain additional advice on portions of the Setup Utility.

Along the top of the screen is a menu bar with menu headings. When you select a heading, a new screen appears. Scroll through the features listed on each screen to make changes to Setup Utility.

Instructions on how to navigate each screen are in the box along the bottom of the screen. If these tools are confusing, press F1 to call up a General Help screen, and then use the arrow keys to scroll up or down the page.

The Item Specific Help on the right side of each screen explains the highlighted item and has useful messages about its options.

If you see an arrow next to an item, press Enter to go to a sub-menu on that subject. The sub-menu screen that appears has a similar layout, but the Enter key may execute a command.

BIOS Utilities



Setup Menus

The Setup menus shown in this section are for reference only. Your computer’s menus will indicate the configuration appropriate for your model and options.

The Setup Program 5 - 5

BIOS Utilities

Main Advanced Security Boot Exit

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

<Tab>, <Shift Tab>, or <Enter> selects field.

Main

System Time: [22:12:05]

System Date: [05/28/2008]

 SATA Port 1 [None]  SATA Port 2 [None]

System Memory: 640 KB Extended Memory: 1979 MB

BIOS Revision: ******

KBC/EC Firmware Revision: ******

Phoenix SecureCore(tm) Setup Utility

Main Menu

Figure 5 - 1

Main Menu

5-6Main Menu

System Time & Date (Main Menu)

The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings. Some applications may also alter data files to reflect these changes.

SATA Port 1/2 (Main Menu)

Pressing Enter opens the sub-menu to show the configuration of a hard disk or optical device drive on the computer’s SATA Ports. Use the Auto (Type:) setting to have the items configured automatically for you.

System/Extended Memory (Main Menu)

This item contains information on the system memory, and is not user configurable. The system will auto detect the amount of memory installed.

BIOS Revision/KBC/EC Firmware Revision (Main Menu)

This item contains information on the BIOS version etc. and is not user configurable.

BIOS Utilities

Main Menu 5 - 7

BIOS Utilities

Main Advanced Security Boot Exit

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

These items control the configuration of various National 393 SIO devices.

Advanced

Phoenix SecureCore(tm) Setup Utility

 SIO ITE8305E

Installed O/S: [Vista] SATA Mode Selection: [AHCI]

DFOROM(Robson) Support: [Enabled] Reset Configuration Data: [No] Boot-time Diagnostic Screen: [Disabled] Legacy OS Boot: [Disabled] Power On Boot Beep: [Enabled] FAN Control: [Disabled]

Advanced Menu

Figure 5 - 2

Advanced Menu

Only available if Windows Vista

SIO ITE8305E (Advanced Menu)

The sub-menu here allows you to adjust settings for the computer’s serial ports.

is selected as the O/S.

5 - 8 Advanced Menu

Installed O/S (Advanced Menu)

This setting tells the computer what kind of operating system you’re using. Make sure you choose the correct setting for your O/S in order to prevent system problems. Note: If you select the Vista O/S then the SATA Mode Selection menu will become available. If you are installing the Windows XP O/S make sure you have set the ap- propriate operating system here in order to prevent system problems.

SATA Mode Selection (Advanced Menu)

This menu is only available if you select the Vista O/S as your operating system. You can configure SATA (Serial ATA) control to operate in either IDE (native/ compatible) or AHCI (Advanced Host Controller Interface) modes from this menu. The SATA mode should be set to AHCI mode for this system (unless you are sure your hard disk can only operate in IDE mode). If you are unsure of the mode your hard disk supports contact your service center. Note the following:

• If you have installed the Windows Vista O/S with AHCI enabled, DO NOT dis-

able it (see sidebar).

•The SATA mode should be set to AHCI if you have included an Intel Turbo Memory (Robson) NAND flash memory card module

in your purchase option.

You can then enable the option from the DFOROM (Robson) Support Menu.

BIOS Utilities



SATA Mode

Selection

If you have installed the Windows Vista operating system with AHCI mode enabled (default setting), DO NOT disable AHCI mode (if you wish to disable AHCI mode you will need to reinstall the Windows VIsta OS).

•The SATA mode should be set to AHCI, and the DFOROM (Robson) Support Menu setting should be set to “Enabled” to support eSATA port hot-swapping.

Advanced Menu 5 - 9

BIOS Utilities

DFOROM (Robson) Support (Advanced Menu > SATA Mode Selection [AHCI]



SATA Mode & eSata

Port

The eSATA port only supports hot-swapping if you have selected

AHCI mode in SATA

Mode Selection, and

enabled DFOROM (Robson) Support.

This item will only be available if you have selected AHCI in SATA Mode Selec- tion. The option should be enabled if you have included an optional Intel Turbo Memory Module in your purchase configuration, or you want to support eSATA

port hot-swapping. You should then install the driver as per the instructions in “Intel

Turbo Memory & Matrix Storage Setup and Driver Installation” on page 7 - 24.

Reset Configuration Data (Advanced Menu)

This item is set to No as default. You can change the setting to Yes if you have installed a new add-on which has reconfigured the system, resulting in such a serious system conflict that the operating system is unable to boot.

Boot-time Diagnostic Screen (Advanced Menu)

Use this menu item to enable/disable the Boot-time Diagnostic Screen (or POST) screen.

Legacy OS Boot (Advanced Menu)

Enable this item to support only system boot from the Legacy OS (e.g Windows Vista). If disabled the system will attempt to boot from the EFI (Extensible Firmware

Interface) before the Legacy OS.

5 - 10 Advanced Menu

Power On Boot Beep (Advanced Menu)

Use this menu to enable/disable the single beep sound at the end of the POST. This item is “Disabled” by default.

Fan Control (Advanced Menu)

This menu item allows you to set the fan cooling behavior under light system activity (if you choose Automatic the system will adjust the fan cooling as appropriate for the system activity).

BIOS Utilities

Advanced Menu 5 - 11

BIOS Utilities



Security Menu

The changes you make here affect the access to the Setup utility itself, and also

access to your machine as it boots up after you turn it on. These settings do not affect your machine or network passwords which will be set in your software OS.

Figure 5 - 3

Security Menu

Main Advanced SSeeccuurriittyyBoot Exit

Supervisor Password Is: Clear User Password Is: Clear

Set Supervisor Password [Enter]

Set User Password [

Fixed disk boot sector: [ Password on boot: [D

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Set Supervisor Password (Security Menu)

You can set a password for access to the Setup Utility. This will not affect access to the computer OS (only the Setup Utility).

Phoenix SecureCore(tm) Setup Utility

Security

]

Item Specific Help

Supervisor Password controls access to the setup utility.

Security Menu

5 - 12 Security Menu

Set User Password (Security Menu)

You can set a password for user mode access to the Setup Utility. This will not affect access to the computer OS, (only the Setup utility) unless you choose to set a Password on Boot (see below). Many menu items in the Setup Utility cannot be modified in user mode. You can only set the user password after you have set the supervisor password.

Fixed disk boot sector (Security Menu)

If you choose “Write-Protect” this will protect against viruses being written to the hard disk boot sector (this is not a substitute for installing an anti-virus program - see

“Viruses” on page 8 - 4).

Password on boot (Security Menu)

Specify whether or not a password should be entered to boot the computer (you may only set a password on boot if a supervisor password is enabled). If “Enabled” is selected, only users who enter a correct password can boot the system (see the warning in the sidebar). The default setting is “Disabled”.

Note: To clear existing passwords press Enter and type the existing password, then

press Enter for the new password (without typing any password entry) and Enter again to confirm the password clearance.

BIOS Utilities



Password Warning

If you set a boot password (Password on boot is “Enabled“), NEVER forget your password.

The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.

Security Menu 5 - 13

BIOS Utilities

Boot Menu

Figure 5 - 4

Boot Menu

Main Advanced Security

Boot priority order:

1: USB KEY:

2: USB HDD: 3: IDE CD: 4: IDE HDD: 5: PCI BEV: P4-Optiarc CDRWDVD CRX890S 6: USB FDC: 7: USB CDROM: 8:

Excluded from boot order:

: USB ZIP: : USB LS120: : PCI SCSI: P0-FUJITSU MHY2120BH : PCI BEV: Realtek Boot Agent : Other USB: :PCI: : Legacy

F1 Help  Select Item -/+ Change Values F9 Setup Defaults

Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Boot

Exit

Item Specific Help

Keys used to view or configure devices: Up and Down arrows select a device. <+> and <-> moves the device up or down. <f> and <r> specifies the device fixed or removable. <x> exclude or include the device to boot. <Shift + 1> enables or disables a device. <1 - 4> loads default



boot sequence.

When you turn the computer on it will look for an operating system (e.g. Windows Vista) from the devices listed in this menu, and in this priority order. If it cannot

find the operating system on that device, it will try to load it from the next device in the order specified in the Boot priority order. Item specific help on the right is available to help you move devices up and down the order.

Phoenix SecureCore(tm) Setup Utility

5 - 14 Boot Menu

Exit Menu

BIOS Utilities

Main Advanced Security Boot

Exit Saving Changes

Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Phoenix SecureCore(tm) Setup Utility

Exit

Item Specific Help

Exit System Setup and save your changes to CMOS.

Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any changes you have made to the Setup. You can also choose to restore the original Set- up defaults that will return the Setup to its original state, and erase any previous changes you have made in a previous session.

Figure 5 - 5

Exit Menu

Exit Menu 5 - 15

BIOS Utilities

5-16

Upgrading The Computer

Chapter 6: Upgrading The Computer

Overview

This chapter contains information on upgrading the computer. Follow the steps outlined to make the desired upgrades. If you have any trouble or problems you can contact your service representative for further help. Before you begin you will need:

• A small crosshead or Phillips screwdriver

• A small regular slotted (flathead) screwdriver

• An antistatic wrist strap

Before working with the internal components you will need to wear an antistatic wrist strap to ground yourself because static electricity may damage the components.

The chapter includes:

• Removing the Rear Top Cover

• Wireless Keyboard & Mouse USB Receiver

• Upgrading the Hard Disk Drive

• Upgrading the System Memory (RAM)



Warranty Warning

Please check with your service representative before undertaking any upgrade procedures to find out if this will VOID your warranty.

Please make sure that you review each procedure before you perform it.

Overview 6 - 1

Upgrading The Computer

When Not to Upgrade



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnect-

ed all peripherals and cables (including telephone lines).

These procedures involve opening the system’s case, adding and sometimes replacing parts.

You should not perform any of these upgrades if:

• Your system is still under warranty or a service contract

• You don’t have all the necessary equipment

• You’re not in the correct environment

• You doubt your abilities

Under any of these conditions, contact your service representative to purchase or replace the component(s).



Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upgrade, remember to replace the cover(s) and screw(s) before turning the computer on.

6 - 2 Overview

Upgrading The Computer

Removing the Rear Top Cover

Before undertaking any upgrade procedure it is necessary to remove the rear top cover to access the components.

1. Turn off the computer and disconnect all cables and peripherals.

2. Carefully place the computer flat with the LCD facing down (make sure you cover

the LCD to avoid scratches) so that you may access the rear cover.

3. Remove screws - .

3 4

Figure 6 - 1

Rear Top Cover

Screws

Removing the Rear Top Cover 6 - 3

Upgrading The Computer

4. Slide the rear top cover until the arrow is aligned with the unlock icon .

Figure 6 - 2

Rear Top Cover

Unlock

5. When the arrow is aligned with the unlock icon you can remove the rear top cover .

Figure 6 - 3

Rear Top Cover

Removal

6 - 4 Removing the Rear Top Cover

Upgrading The Computer

Wireless Keyboard & Mouse USB Receiver

If your purchase includes an optional Wireless Keyboard & Mouse Kit you can use the USB port located behind the rear top cover to house the USB receiver.

1. Remove the rear cover (see “Removing the Rear Top Cover” on page 6 - 3).

2. Insert the USB receiver into the USB port .

3. Replace the rear top cover and scre ws.

1 2

Figure 6 - 4

USB Port for

Wireless Keyboard

& Mouse Kit

Wireless Keyboard & Mouse USB Receiver 6 - 5

Upgrading The Computer

Upgrading the Hard Disk Drive



HDD System

Warning

New HDD’s are blank. Before you begin make sure: You have backed up any data you want to keep from your old HDD.

You have all the CD-ROMs and FDDs required to install your operating system and programs. If you have access to the internet, download the latest application and hardware driver updates for the operating system you plan to install. Copy these to a removable medium.

Figure 6 - 5

Hard Disk Screws

The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm (h) (see “Storage” on page C - 3). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in “Driver Installation” on page 4 - 2), when setting up a new hard disk.

1. Remove the rear cover (see “Removing the Rear Top Cover” on page 6 - 3).

2. Remove screws - .

1 3



Hard Disk Slot

Make sure you install the hard disk into the lower slot on the mainboard.

6 - 6 Upgrading the Hard Disk Drive

Upgrading The Computer

3. Firstly slide the hard disk in the direction of arrow , and then slide it in the direction of arrow to remove it.

4. Remove the adhesive hard disk cover .

Figure 6 - 6

Hard Disk Assembly

Removal

Figure 6 - 7

Hard Disk Cover

Removal

5. Reverse the process to install a new hard disk.

Upgrading the Hard Disk Drive 6 - 7

Upgrading The Computer

Upgrading the System Memory (RAM)

The computer has two memory sockets for 200 pin Small Outline Dual In-line (SODIMM) DDRII (DDR2) type memory modules (see “Memory” on page C - 2 for details of supported module types).

The total memory size is automatically detected by the POST routine once you turn on your computer.

1. Remove the rear cover (see “Removing the Rear Top Cover” on page 6 - 3).

2. The RAM is located at point .

Figure 6 - 8

RAM Location

6 - 8 Upgrading the System Memory (RAM)

3. Gently pull the two release latches on the sides of the memory socket in the direction indicated by the arrows ( &

2 2

) in Figure 6 - 9.

Upgrading The Computer



Contact Warning

Be careful not to touch the metal pins on the module’s connecting edge. Even the cleanest hands have oils which can attract particles, and degrade the module’s performance.

4. The RAM module will pop-up, and you can remove it.

5. Pull the latches to release the second module if necessary.

6. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

7. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it will go. DO NOT FORCE the module; it should fit without much pressure.

8. Press the module in and down towards th e mainboard until the slot levers click into place to secure the module.

9. Replace the module bay cover and screws.

10. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

Upgrading the System Memory (RAM) 6 - 9

Figure 6 - 9

RAM Module

Removal

Upgrading The Computer

Upgrading the Processor



Warranty

The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate your warranty.

Unauthorized tampering with the HDD may also violate your warranty.

If you want to upgrade your computer by replacing the existing processor with a faster/new one you will need to contact your customer service representative. We recommend that you do not do this yourself, since if it is done incorrectly you may damage the processor or mainboard.

6 - 10 Upgrading the Processor

Chapter 7: Modules & Options

Overview

This chapter contains information on the following modules, which may come with your computer, depending on the configuration purchased. If you are unsure please contact your service representative.

• Bluetooth Module

• Wireless LAN Module

• PC Camera Module

• Touch Screen Module

• Intel Turbo Memory Module

Modules & Options

Overview 7 - 1

Modules & Options

Bluetooth Module

The optional Bluetooth module allows you to connect your computer to Bluetooth enabled devices such as other computers, desktop computers, mobile phones, printers, digital cameras, PDAs, headsets etc. using a short-range radio frequency.

The operating system’s Bluetooth Devices control panel is used to configure the Bluetooth settings in Windows Vista, and therefore does not require a driver.



Bluetooth Data Transfer

7 - 2 Bluetooth Module

Note that the transfer of data between the computer and a Bluetooth enabled device is supported in one direction only (simultaneous data transfer is not supported). Therefore if you are copying a file from your computer to a Bluetooth enabled device, you will not be able to copy a file from the Bluetooth enabled device to your computer until the file transfer process from the computer has been completed.

Bluetooth Configuration in Windows Vista

Setup your Bluetooth Device so the Computer Can Find it

1. Turn your Bluetooth device (e.g. PDA, mobile phone etc.) on.

2. Make the device discoverable (to do this check your device documentation).

Modules & Options



Bluetooth Taskbar

Icon

To Turn the Bluetooth Module On

1. A Bluetooth icon will appear in the taskbar (see sidebar).

2. You can then do any of the following to access the Bluetooth Devices control panel.

• Double-click the icon to access the Bluetooth Devices control panel.

• Click Start, and click Control Panel (or point to Settings and click Control Panel), and then click Bluetooth Devices (Hardware and Sound).

• Click/Right-click the icon and choose an option from the menu.

If you cannot see the Bluetooth icon in the taskbar, access the

Bluetooth Devices control panel. Click Options (tab), and make sure that Show Bluetooth icon in the notification area check box

(Connections) has a tick inside it.

Figure 7 - 1

Bluetooth Devices &

Click Icon Menu

Bluetooth Module 7 - 3

Modules & Options

Figure 7 - 2

Add Bluetooth Device Wizard



To Add a Bluetooth Device

1. Access the Bluetooth Devices control panel.

2. Click Options (tab), and make sure that Allow Bluetooth devices to connect to this computer check box (Connections) has a tick inside it.

3. Click Devices (tab), and then click Add.

4. The Add Bluetooth Device Wizard will appear.

5. Click to select “My device is set up and ready to be found”, and then click Next.

Passkey Options

You can allow the system to choose a passkey for you. You will then be prompted to enter the generated passkey on your Bluetooth device.

Figure 7 - 3

Passkey Option

7 - 4 Bluetooth Module

6. The Wizard will then search for any available Bluetooth devices within range.

7. Click to select the device you want to communicate with, and click Next.

8. Select an appropriate passkey op tion and click Next.

9. Click Finish.

To Change Settings for the Bluetooth Device

1. Access the Bluetooth Devices control panel.

2. Click on the device you want to change and click Properties to:

• Change the name of the device (click General, type a new name and click OK).

• Enable/Disable a

service

(click

Services

, clear/tick the check box next to the service and click OK).

To Make your Computer Discoverable to Bluetooth Devices

1. Access the Bluetooth Devices control panel.

2. Click Options, and make sure that Allow Bluetooth devices to find this computer check box (Discovery) has a tick inside it.

3. Make sure that Alert me when a new Bluetoo th device wants to connect check box (Connections) has a tick inside it, if you want to be notified when a Bluetooth device wants to connect.

Modules & Options



Bluetooth Help

To get help on Bluetooth configuration and settings, select Help and Support from the Start menu. Type Bluetooth in the Search Help box, and select an item from the returned search results to get more information.

Figure 7 - 4

Bluetooth Devices

Options

Bluetooth Module 7 - 5

Modules & Options

Wireless LAN Module

If you have included an module, or driver as per the procedure overleaf

Make sure you install the drivers in the order indicated in

3rd Party 802.11b/g WLAN module

Intel® Wi-Fi Link 5100/5300 Series (802.11 a/g/n) WLAN

in your purchase option, install the

Table 4 - 1, on page 4 - 3

7 - 6 Wireless LAN Module

Intel® Wi-Fi Link 5100/5300 Series (802.11 a/g/n) Driver Installation

1. Insert the Device Drivers & Utilities + User’s Manual disc into the CD/ DVD drive.

2. Click Option Drivers (button).

3. Click 1.Install WLAN Driver > Yes.

4. Click Next > Next.

5. Click the button to accept the license and click Next.

6. Click Next > Next > Finish.

Note: The operating system is the default setting for Wireless LAN control in Windows Vista (see overleaf).

802.11b/g Driver Installation

1. Insert the Device Drivers & Utilities + User’s Manual disc into the CD/ DVD drive.

2. Click Option Drivers (button).

3. Click 1.Install WLAN Driver > Yes.

4. Choose the language you prefer and click Next.

5. Click Next > Install.

6. Click Finish to restart the computer .

Modules & Options

Note: The operating system is the default setting for Wireless LAN control in Windows Vista (see overleaf).

Wireless LAN Module 7 - 7

Modules & Options

Figure 7 - 5

Taskbar Menus

Connecting to a Wireless Network

Make sure the Wireless LAN module is turned on (see page 7 - 11).

1. Click the taskbar wireless icon , and then click Connect to a network (or rightclick the icon , and then click Connect to a network).



Network and

Sharing Center

You can also use the

Network and Sharing Center control panel in Windows (Network and Internet) to connect to

any available wireless networks.

Figure 7 - 6

Connect to a

Network

7 - 8 Wireless LAN Module

Click icon

2. In the Show list, click to choose Wireless from the drop-down menu.

3. A list of currently available networks will appear.

Right-click icon

4. Click a network, and then click Connect.

5. If you do not see a network you want to connect to, click Set up a connection or network (a list of options will appear allowing manual searching, and creating a new network).

6. Move the cursor over the taskbar icon to see the connection status (see below).

Modules & Options

Figure 7 - 7

Connecting

Figure 7 - 8

Connection Status

Wireless LAN Module 7 - 9

Modules & Options

7. To disconnect from the wireless network you can click the taskbar wireless icon ,



Security Enabled

Networks

You should try to make sure that any network you are connecting to is a secure network.

Connecting to unsecure networks may allow unauthorized access to

your computer, documents, websites and files etc.

and then select Connect or disconnect to access the network menu, and click Disconnect (or right-click the icon , and then click Disconnect from).

Click icon

Figure 7 - 9

Disconnecting

7 - 10 Wireless LAN Module

Right-click icon

Windows Mobility Center

The Windows Mobility Center control panel provides an easy point of access for information on battery status, power plans used and wireless device status etc.

To access the Windows Mobility Center:

1. Click Start, and click Control Panel (or point to Settings and click Control Panel).

2. Double-click Windows Mobility Center (Mobile PC).

3. Click the button to Turn wireless off/on, or click the icon to access the network menu.

Modules & Options

Figure 7 - 10

Windows Mobility

Center

Wireless LAN Module 7 - 11

Modules & Options



2.0M PC Camera

Screen Refresh

PC Camera Module

There PC Camera module uses the BisonCap application to capture video files. Install the driver as per the instructions below.

The 2.0M PC Camera module supports a frame rate of 12 fps. If you find that the screen refresh rate is subject to lag or stuttering, then re- duce the window size, or adjust the Output

Size and/or Color Space Compression.

To reduce Output Size and/or Color Space

Compression run the BisonCap application, click Options and select Video Capture Pin. Ad-

just the settings from the appropriate pull-down menu.

7 - 12 PC Camera Module



Latest PC Camera Driver Information

Check the Device Drivers & Utilities + User’s Manual disc, and any accompanying insert pages, for the latest updated information on the PC Camera driver, which may override the information provided here.

PC Camera Driver Installation

1. Insert the Device Drivers & Utilities + User’s Manual disc into the CD/

DVD drive.

2. Click Option Drivers (button).

3. Click 2.Install Camera Driver > Yes.

4. Choose the language you prefer and click Next > Next.

5. Click Finish to restart the computer.

6. Run the BisonCap application program from the BisonCam shortcut on the desktop, or from the BisonCam item in the Start > Programs/All Pro- grams menu.

PC Camera Audio Setup

If you wish to capture video & audio with your camera, it is necessary to connect a microphone to either of the microphone ports and then setup the audio reco rding options in Windows as follows.

Modules & Options

1. Click

2. Click Sound (Hardware and Sound).

3. Click Recording (tab).

4. Right-click Microphone (for the microphone-in jack on the left side of the

5. Double-click Microphone/FrontMic (or select Properties from the right-click

6. Click Levels (t ab ), and adjust th e Microphone/FrontMic and Microphone Boost

7. Click OK and close the control panels.

8. Run the BisonCap application prog ram from the Start > Programs/All Programs

9. Go to the Devices menu heading and select Microphone/FrontMic (it should

10. Go to the Capture menu head ing and se lect Capture Audio (i t should ha ve a tick

Start

, and click

computer) or FrontMic (for the microphone-in jack on the base of the computer) and make sure the item is not disabled.

menu). sliders to the level required.

> BisonCam menu. have a tick alongside it). alongside it).

Control Panel

(or point to

Settings

and click

Control Panel

PC Camera Module 7 - 13

Modules & Options

Figure 7 - 11

Audio Setup for PC

Camera

Right-click

7 - 14 PC Camera Module
