D40EF IMPRESSA
User Manual
196 pgs4.06 Mb0

EUROCOM D40EF IMPRESSA User Manual

I
Introduction (English)
This Concise User’s Guide introduces the main features of your computer. The English version of this guide be­gins on page 1. The expanded User’s Manual is on the Device Drivers & Utilities + User’s Manual CD-ROM.
Einführung (Deutsch)
Présentation (Français)
Ce Guide Utilisateur Concis présente les fonctionnalités principales de votre ordinateur. La version française de ce guide commence à la page 77. Le Manuel de l'Utilisa-
teur étendu se trouve sur le CD-ROM de Pilotes & Utili­taires + Manuel de l'Utilisateur (CD-ROM Device Drivers & Utilities + User's Manual).
Introducción (Español)
Esta Guía del Usuario Concisa le presenta las caracterís- ticas principales de su ordenador. La versión española de esta guía comienza en la página 115. El Manual del usua-
rio completo se encuentra en el CD-ROM de Controla­dores del dispositivo y Utilidades + Manual del usuario (CD-ROM Device Drivers & Utilities + User's Manual).
Introduzione (Italiano)
La presente Guida Rapida per l'Utente introduce le carat­teristiche principali del computer. La versione italiana di questa guida inizia da pagina 153. Il Manuale utente completo si trova nel CD contenente driver e utilità +
Manuale utente (CD-ROM Device Drivers & Utilities + User's Manual).
II
Contents
Notice ..........................................................................................1
About this Concise User Guide ...................................................2
Instructions for Care and Operation ............................................3
Quick Start Guide .......................................................................7
Model Differences ......................................................................8
System Map: Top View with LCD Panel Open ..........................9
System Map: Front View .......................................................... 12
System Map: Left View ............................................................ 13
System Map: Right & Rear Views ............................................14
System Map: Bottom View .......................................................15
Video Features ..........................................................................16
Power Management Features .................................................... 19
Driver Installation .....................................................................20
Troubleshooting ........................................................................29
Hyper-Threading .......................................................................31
Specifications ............................................................................32
Inhalt
Hinweis .....................................................................................39
Über das ausführliche Benutzerhandbuch ................................40
Hinweise zu Pflege und Betrieb ................................................41
Schnellstart ................................................................................45
Modellunterschiede .................................................................. 46
Systemübersicht: Ansicht von oben mit geöffnetem
LCD-Bildschirm ....................................................................... 47
Systemübersicht: Ansicht von vorne ........................................ 50
Systemübersicht: Ansicht von links ......................................... 51
Systemübersicht: Ansicht von rechts und Rückansicht ............ 52
Systemübersicht: Ansicht von unten ........................................ 53
Grafikfunktionen ...................................................................... 54
Energieverwaltungsfunktionen ................................................. 57
Installation der Treiber ............................................................. 58
Fehlerbehebung ........................................................................ 67
Hyper-Threading ...................................................................... 69
Technische Daten ..................................................................... 70
Sommaire
Avertissement ........................................................................... 77
A propos de ce Guide Utilisateur Concis ................................. 78
Instructions d’entretien et d’utilisation ..................................... 79
Guide de démarrage rapide ....................................................... 83
Différences entre modèles ........................................................ 84
Carte du système : Vue du dessus avec l’écran LCD ouvert .... 85
Carte du système : Vue de face ................................................ 88
Carte du système : Vue gauche ................................................ 89
Carte du système : Vues droite & arrière ................................. 90
III
Carte du système : Vue d’en dessous ........................................91
Caractéristiques vidéo ............................................................... 92
Caractéristiques de gestion de l’alimentation ...........................95
Installation du pilote .................................................................96
Dépannage ...............................................................................105
Hyper-Threading .....................................................................107
Spécifications ..........................................................................108
Contenidos
Aviso .......................................................................................115
Acerca de esta guía del usuario concisa ..................................116
Instrucciones de cuidado y uso ...............................................117
Guía rápida para empezar .......................................................121
Diferencias de modelos ...........................................................122
Mapa del sistema: Vista superior con panel LCD abierto ......123
Mapa del sistema: Vista frontal ..............................................126
Mapa del sistema: Vista izquierda ..........................................127
Mapa del sistema: Vistas derecha y posterior .........................128
Mapa del sistema: Vista inferior ............................................. 129
Parámetros de vídeo ................................................................ 130
Funciones de administración de energía .................................133
Instalación de controladores ...................................................134
Solución de problemas ............................................................ 143
Hyper-Threading (Híper entrelazado) .....................................145
Especificaciones ..................................................................... 146
Sommario
Avvertenza .............................................................................. 153
Informazioni sulla guida rapida per l’utente .......................... 154
Istruzioni per la manutenzione e l’uso .................................... 155
Guida di avvio rapido ............................................................. 159
Differenze dei modelli ............................................................ 160
Descrizione del sistema: Vista superiore con pannello LCD
aperto ...................................................................................... 161
Descrizione del sistema: Vista anteriore ................................ 164
Descrizione del sistema: Vista sinistra ................................... 165
Descrizione del sistema: Vista destra e posteriore ................. 166
Descrizione del sistema: Vista inferiore ................................. 167
Funzioni video ........................................................................ 168
Funzioni di risparmio energetico ............................................ 171
Installazione driver ................................................................. 172
Risoluzione dei problemi ........................................................ 181
Hyper-Threading .................................................................... 183
Specifiche tecniche ................................................................. 184
IV
Notice - 1
Concise User’s Guide
English
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information con­tained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any sub­sequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this pub­lication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this pub­lication, except for copies kept by the user for backup purposes. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorse­ment of that product or its manufacturer.
© July 2004
Trademarks
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copy­right protection technology must be authorized by Macrovision Corporation, and is intended for home or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Intel and Pentium are registered trademarks of Intel Corporation.
2 - About this Concise User Guide
Concise User’s Guide
English
About this Concise User Guide
This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for the expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s Manual CD-ROM supplied with your computer. This CD-ROM also contains the drivers and utilities necessary for the proper operation of the computer.
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure (or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s Manual CD-ROM does not contain an operating system.
Regulatory Information
Regulatory notices and information are contained in the expanded User’s Manual on the Device Drivers & Utilities + User’s Manual CD-ROM.
Instructions for Care and Operation - 3
Concise User’s Guide
English
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry , and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data.
4. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.
5. Take care when using peripheral devices.
!
Wireless Device Operation Aboard Aircraft
The use of any portable electronic transmission devices aboard aircraft is usually prohibit­ed. Make sure the modules are OFF if you are using the computer aboard aircraft.
4 - Instructions for Care and Operation
Concise User’s Guide
English
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If
you are unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety fea-
ture; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
!
Power Safety Warning
Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and ca­bles (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.
Instructions for Care and Operation - 5
Concise User’s Guide
English
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way.
Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may pos­sibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qual-
ified service personnel.
• Keep children away from, and promptly dispose of a damaged battery . Always dispose of batteries carefully. Batteries
may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
!
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the man­ufacturer. Discard a used battery according to the manufacturer’s instructions.
6 - Instructions for Care and Operation
Concise User’s Guide
English
Cleaning
• Do not apply cleaner directly to the computer, use a soft clean cloth.
• Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the com­puter to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power sup­ply. Refer servicing to qualified service personnel under any of the following conditions:
• When the power cord is damaged or frayed.
• If the computer has been exposed to rain or other liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
!
Power Off Before Traveling
Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s) to be blocked. To prevent your com­puter from overheating make sure nothing blocks the vent(s)/fan intake(s) while the computer is in use.
Quick Start Guide - 7
Concise User’s Guide
English
Quick Start Guide
This guide assumes that you are already familiar with computers and can tell at a glance what and where all the key components are. If you are not that comfortable with this type of device, then please refer to the following pages, which give an overview of the system.
1. Remove all packing materials.
2. Securely attach any peripherals you want to use with the notebook (e.g.
keyboard and mouse) to their ports (see “Peripheral Devices” on page 14).

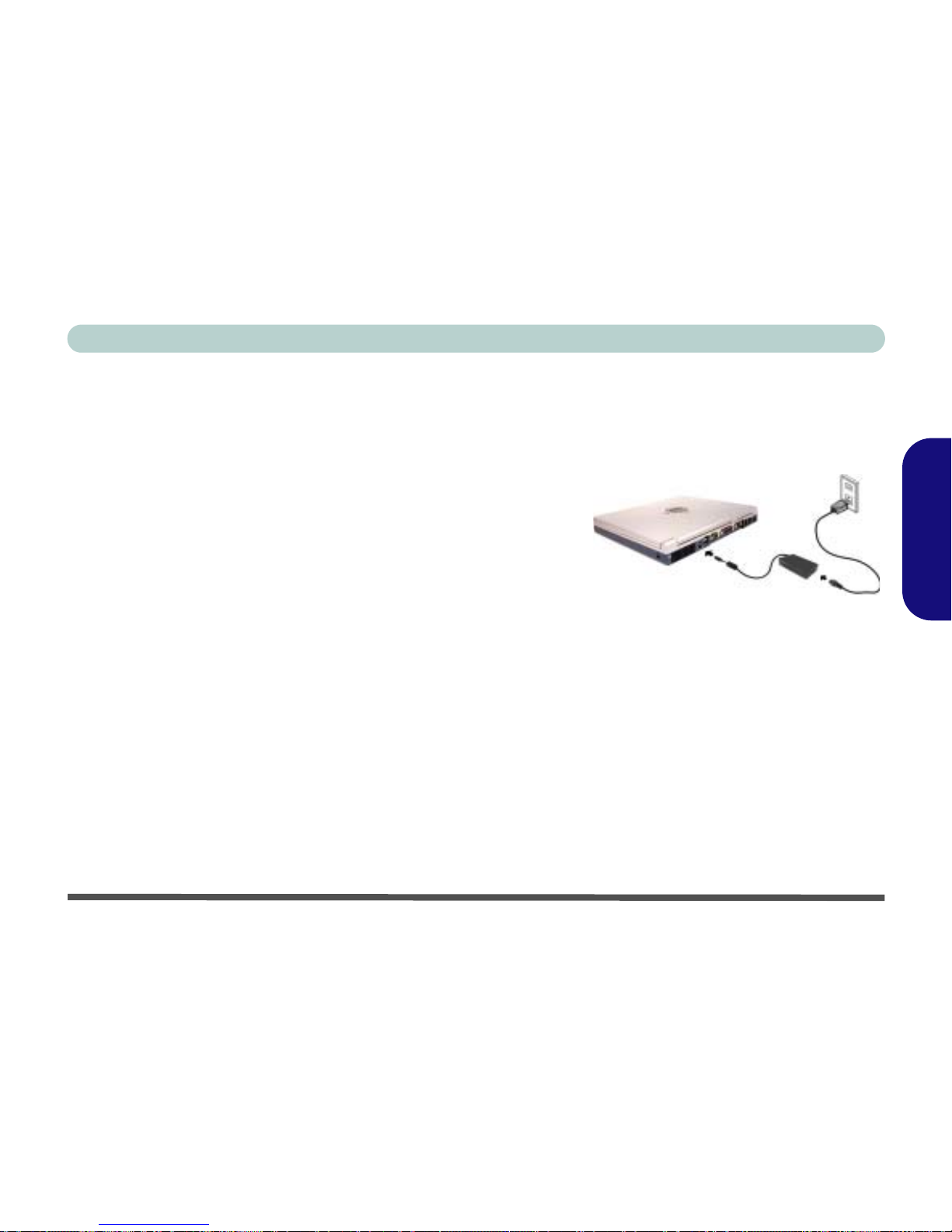

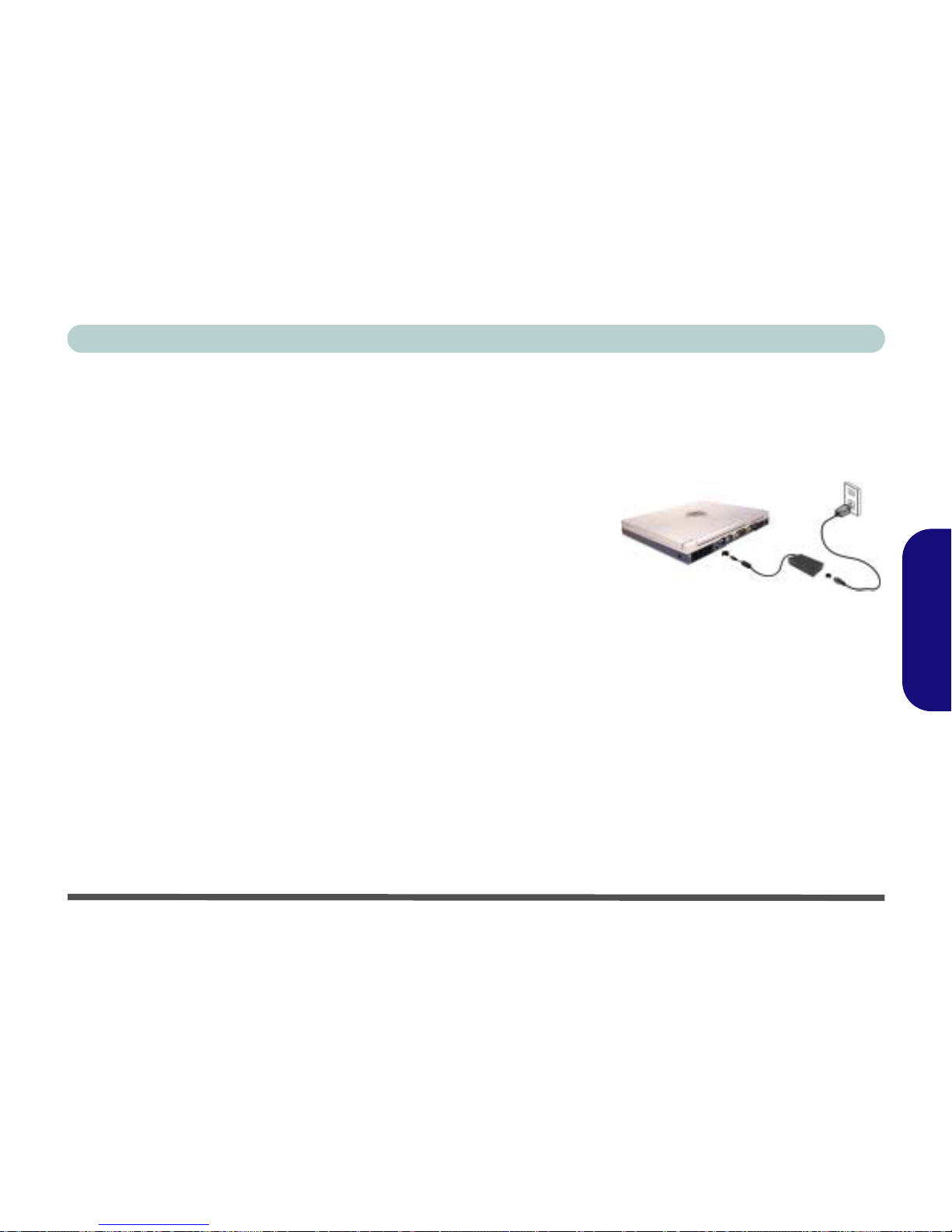

3. Attach the AC adapter to the DC-in jack at the rear of the computer (see
“Rear View” on page 14), then plug the AC power cord into an outlet, and
connect the AC power cord to the AC adapter.
4. Raise the lid/LCD to a comfortable viewing angle.
5. Press the power button to turn “on”.
Not Included
Operating Systems (e.g. Windows XP) have their own manuals as do applications (e.g. word processing, spreadsheet and database programs). If you have questions about the operating systems or programs then consult the appropriate manuals.
System Software
Your computer may already come with system software pre-installed. Where this is not the case, or where you are re­configuring your computer for a different system, you will find this manual refers to the Microsoft Windows XP op­erating system. Further information on installing the drivers and utilities is available in Chapters 4 & 7 of the expand­ed User’s Manual on the Device Drivers & Utilities + User’s Manual CD-ROM.
8 - Model Differences
Concise User’s Guide
English
Model Differences
This notebook series includes two different model types according to the specifications. You can identify your com­puter by checking Table 1. In addition to the two model types, there are also two different designs as illustrated in

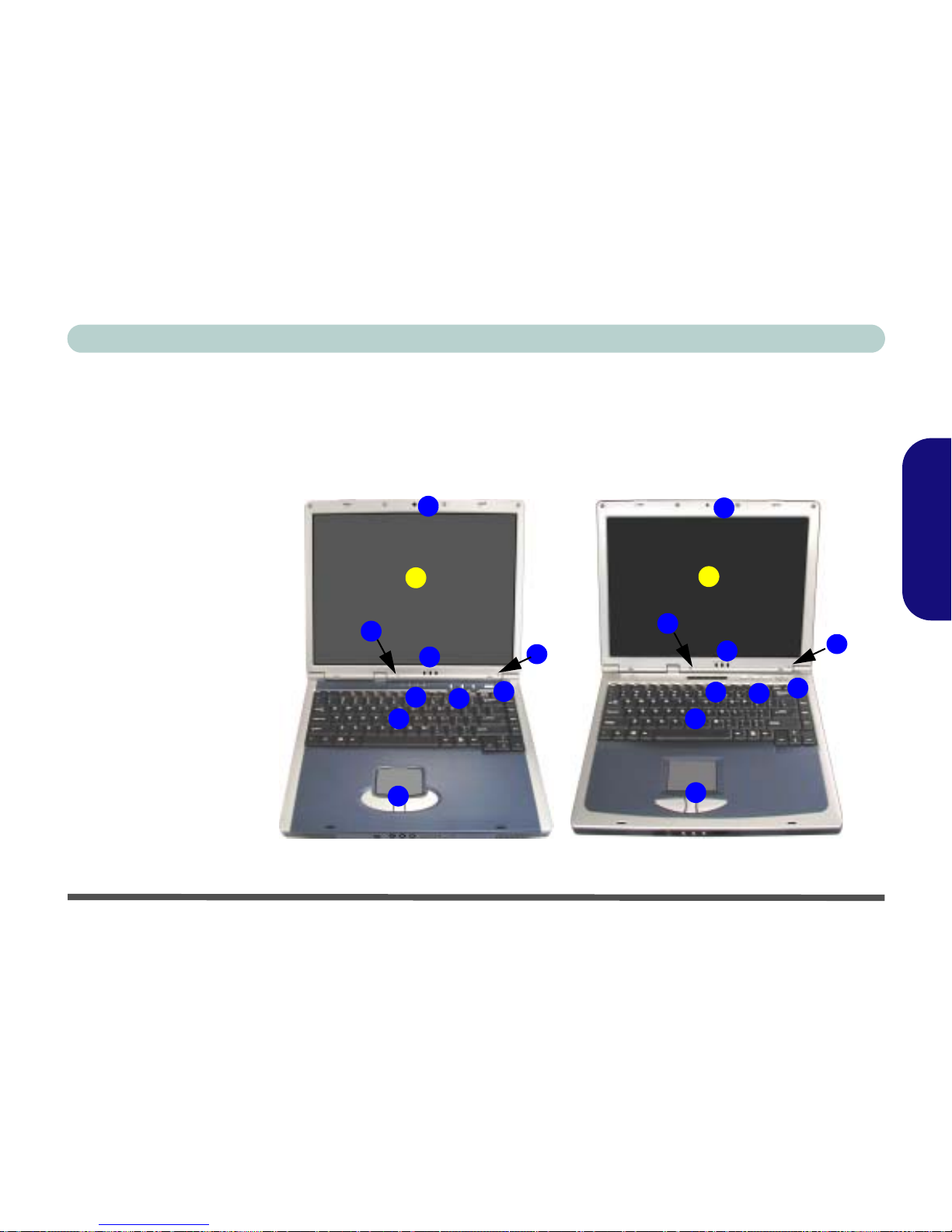

Figure 1 on page 9. Photographs used throughout this manual are of Design I.
Table 1 - Model Differences
Feature Model A Model B
Designs Supported
See Figure 1 on page 9
Processor Types
See “Processor Types” on page 32 for details
AC Adapter
20V, 5A 20V, 6A
System Map: Top View with LCD Panel Open - 9
Concise User’s Guide
English
System Map: Top View with LCD Panel Open
The following pages are a general map of the system’s features. Detailed descriptions of the functions, setup and sys­tem controls are covered in the expanded User’s Manual.
2
1
9
2
6
4
1
5
8
7
3
Design I
Design II
9
6
4
5
8
7
3

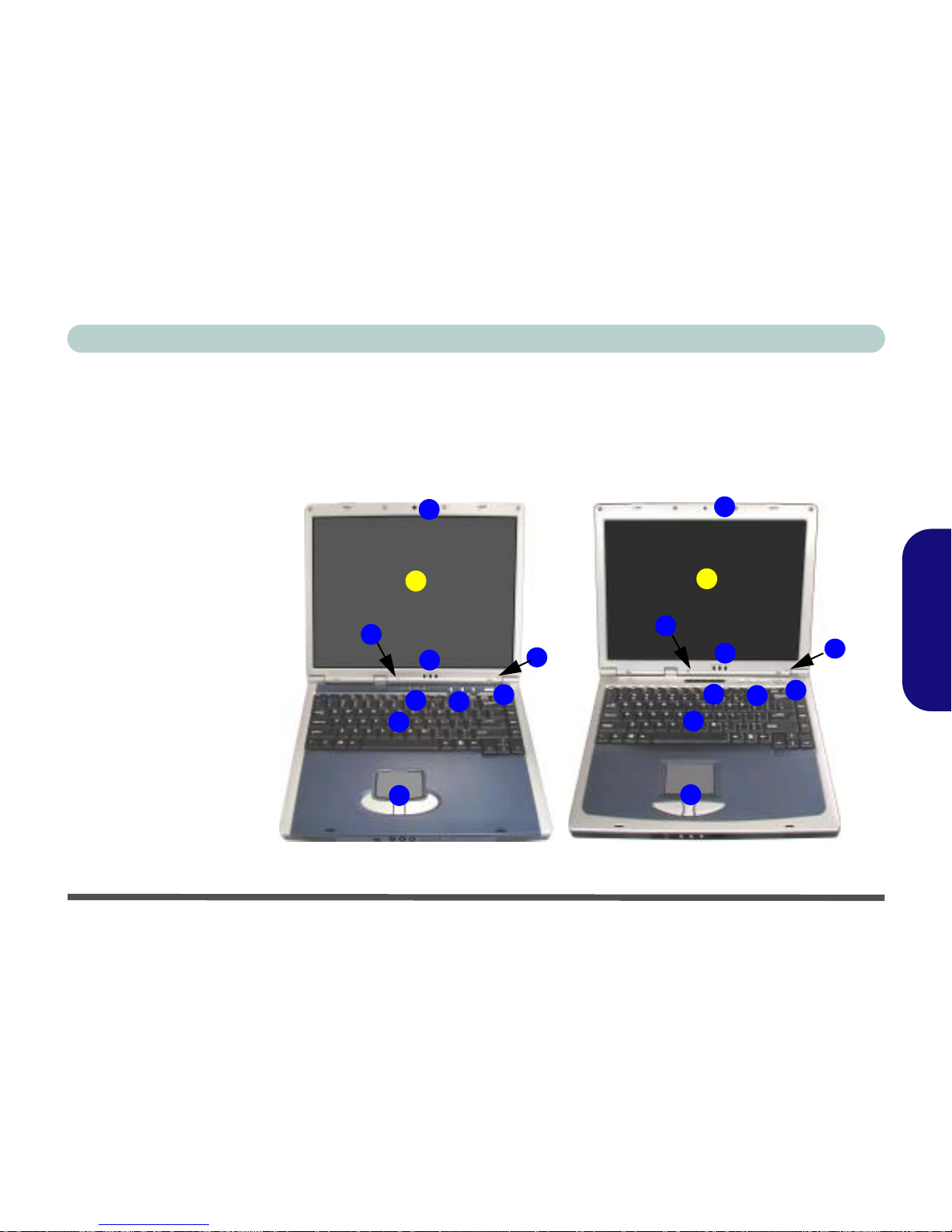

Figure 1
Top View with
LCD Panel Open
1. Optional PC Camera
2. LCD Panel
3. Built-In Microphone
4. LED Power & Communication Indicators
5. LED Status Indicators
6. Hot-Key Buttons
7. Close Cover Switch
8. Power Button
9. Keyboard
10. TouchPad and Buttons
10
10
Concise User’s Guide
10 - System Map: Top View with LCD Panel Open
English
LED Power & Communication Indicators
LED Status Indicators
Icon Color Description
Orange The AC Adapter is plugged in.
Green The computer is on.
Blinking
Green
The computer is in Standby mode.
Orange The battery is being charged.
Green The battery is fully charged.
Blinking
Orange
The battery has reached critically low power status.
Blinking Half Orange/ Half
Green
The battery has a serious problem.
Blinking Half Orange/ Half
Green
New mail has arrived.
Fast Blinking Half Orange/
Half Green
New mail has arrived from users defined in the Special Group in Auto Mail Checker.
Green
The (optional) Wireless LAN module is On.
Orange The (optional) Bluetooth module is On.
Half Orange/
Half Green
Both the (optional) Wireless LAN and Bluetooth modules are On.
Icon Color Description
Green The hard disk/optical device is in use.
Green
The numeric keypad is enabled. (To activate press Fn & NumLk)
Green Caps Lock is activated.
Green
Scroll Lock is activated. (To activate press Fn & ScrLk)
Concise User’s Guide
System Map: Top View with LCD Panel Open - 11
English
Function Keys & Numeric Keypad
Function Keys
On the bottom-left of the keyboard is the Fn key or Func­tion key. The Fn key allows you to change operational features instantly. To use the functions press and hold the Fn key, then press the appropriate function key (F3 - F9 etc.) located on your keyboard.
Numeric Keypad
The keyboard has an embedded numerical keypad for easy numeric data input. The numeric keys are highlight­ed by a yellow typeface. Pressing the Fn + NumLk keys toggles the numeric keypad on or off.
Figure 2 - Function Keys & Numeric Keypad
Hot-Key Buttons
Numeric Keypad
Fn Key
Function Keys
NumLk & ScrLk Keys
Keys Description
Fn Function Key Fn + F3 Mute Toggle Fn + F4 Sleep/Resume Toggle Fn + F5 Decrease Audio Volume Fn + F6 Increase Audio Volume Fn + F7 Display Toggle Fn + F8 Decrease LCD Brightness Fn + F9 Increase LCD Brightness
Fn + F12 Multiple Wireless Modules Toggle
Fn + NumLk Number Lock Toggle
Fn + ScrLk Scroll Lock Toggle
Hot-Key Button Function
Activate the default e-mail program.
Activate the default Internet browser. Activate the user specified application
e.g. Microsoft Word or Excel.
12 - System Map: Front View
Concise User’s Guide
English

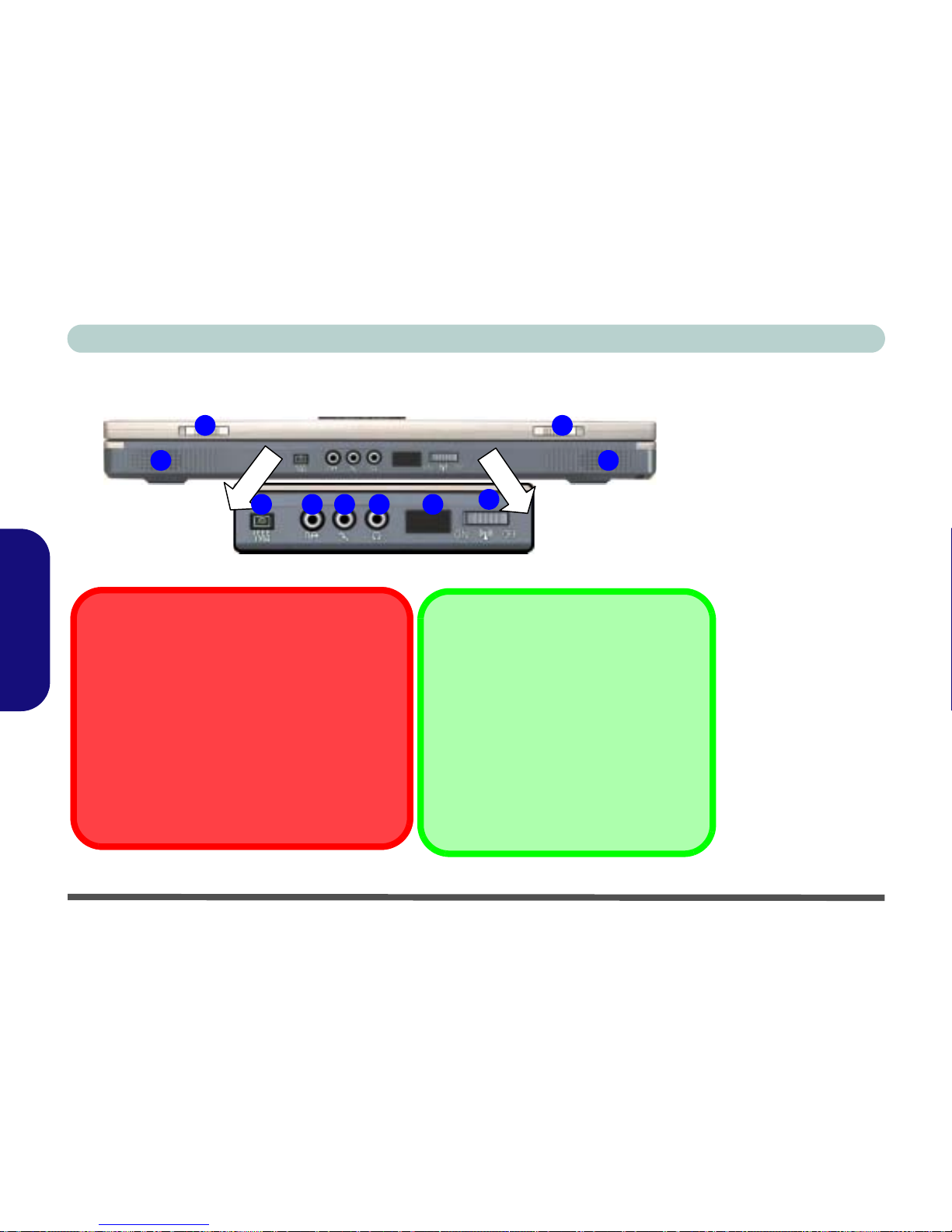

System Map: Front View
4 5 6
1
2
1
3
8 8
!
Infrared Communication
The Infrared transceiver operates on a “Line of Sight”. Make sure nothing is blocking the “Line of Sight” between your system’s transceiver and the des­tination’s transceiver.
IEEE 1394
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.

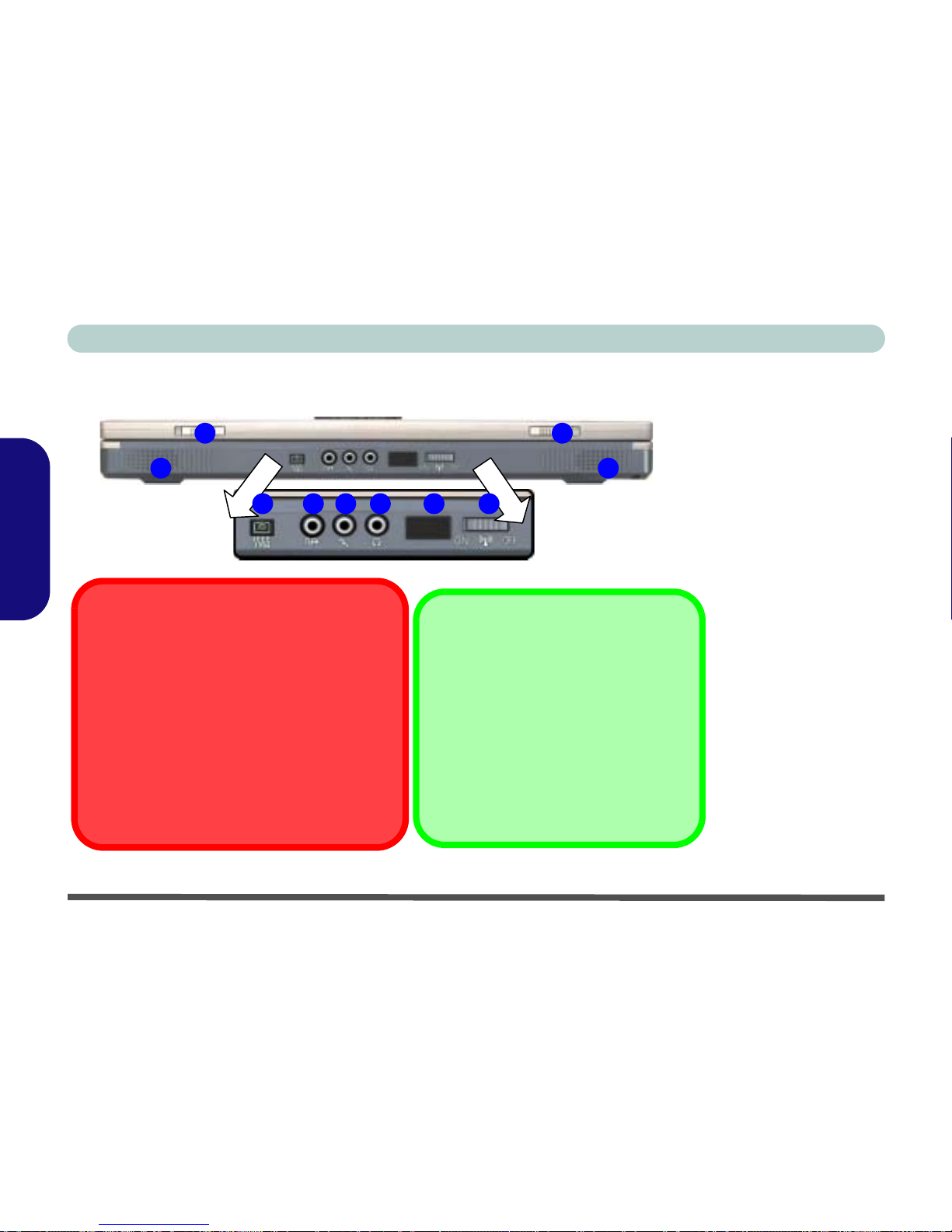

Figure 3
Front View
1. LCD Latches
2. Mini-IEEE 1394 Port
3. S/PDIF Out Port
4. Microphone-In Jack
5. Headphone-Out Jack
6. Infrared Transceiver
7. Wireless Module ON/OFF Switch
8. Built-In Speakers
!
Wireless Device Operation Aboard Aircraft
The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the
modules are OFF if you are using the computer aboard aircraft.
Communication Conflict
Do not try to use the Wireless LAN module and the Blue­tooth module at the same time, as this may cause a communication conflict.
4 5 62 3
7
System Map: Left View - 13
Concise User’s Guide
English

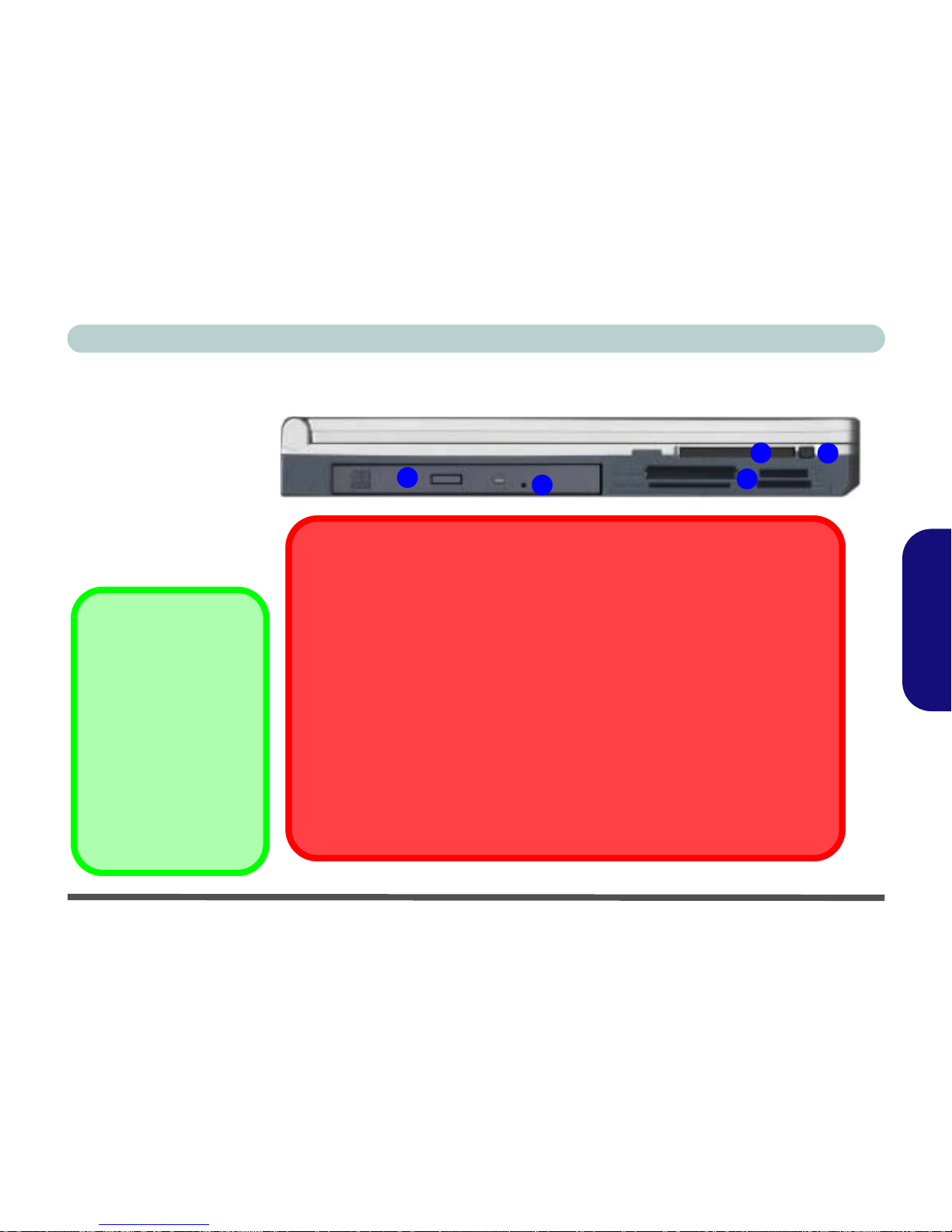

System Map: Left View

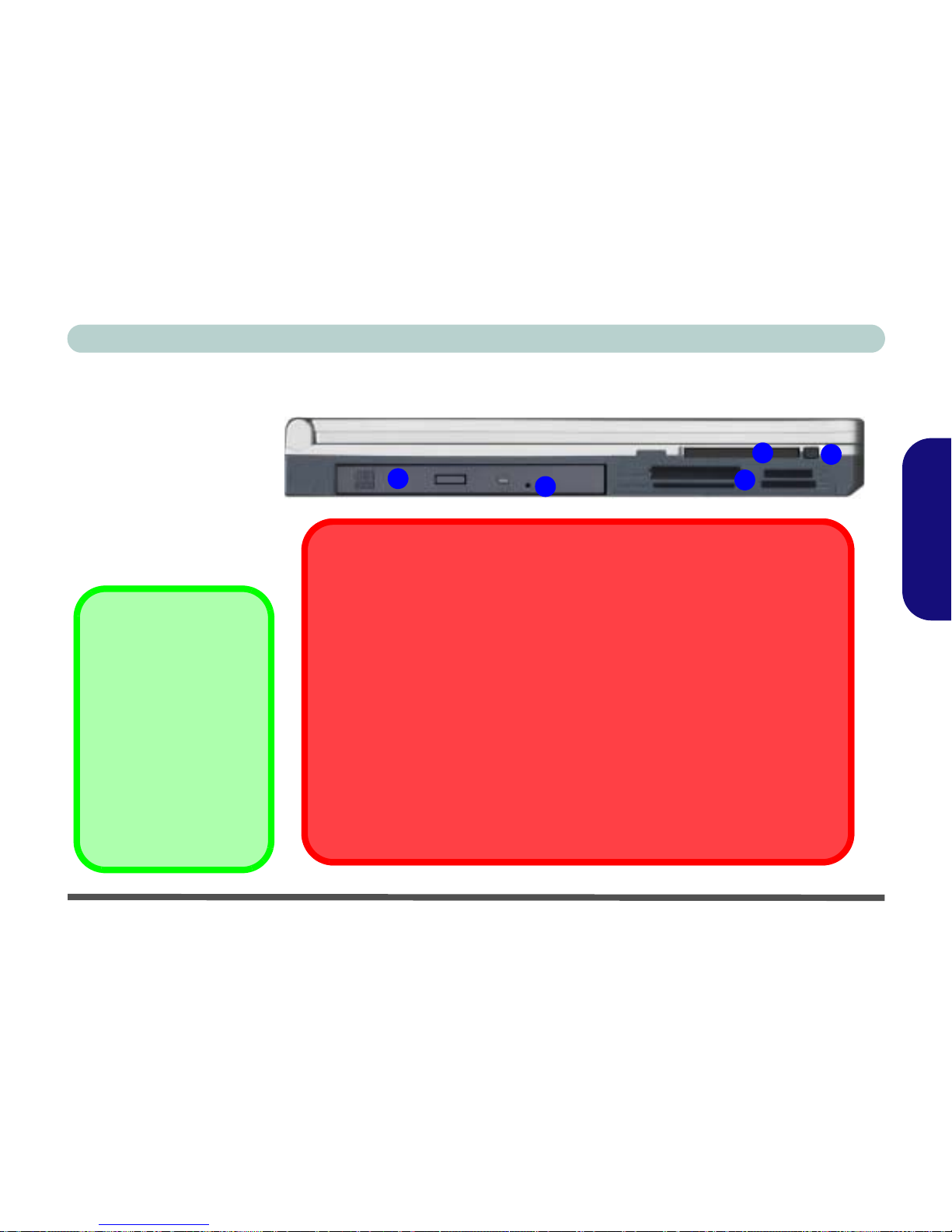

Figure 4
Left View
1. Optical Device Bay
2. Emergency Eject Hole
3. 7-in-1 Card Reader
4. PC Card Slot
5. PC Card Slot Eject Button
!
7-in-1 Card Reader Format
The card reader allows you to use the following digital storage card formats:
• MMC (MultiMedia Card)
• SD (Secure Digital)
• MS (Memory Stick)
• MS PRO (Memory Stick
PRO)
• SM (SmartMedia Card)
• CF (Compact Flash)
• MD (IBM Microdrive)
3
4
1
2
!
CD Emergency Eject
If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. Do not use a sharpened pencil or similar object that may break and become lodged in the hole.
DVD Regional Codes
DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The fifth selection is permanent. This cannot be altered even if you change your operating system or you use the module in another computer.
Media Warning
Don’t try to remove a floppy disk/CD while the system is accessing it. This may cause the system to “crash”.
5
14 - System Map: Right & Rear Views
Concise User’s Guide
English

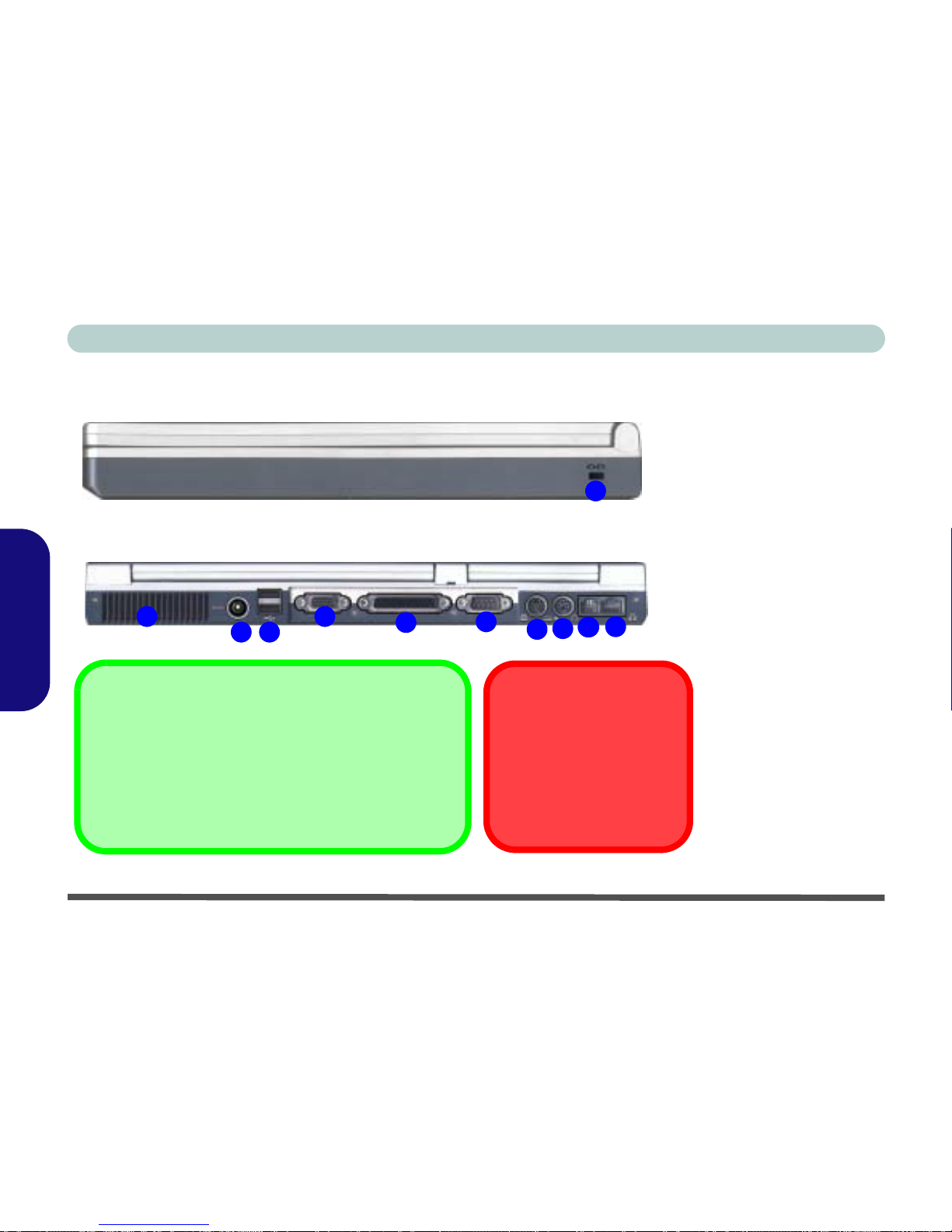

System Map: Right & Rear Views

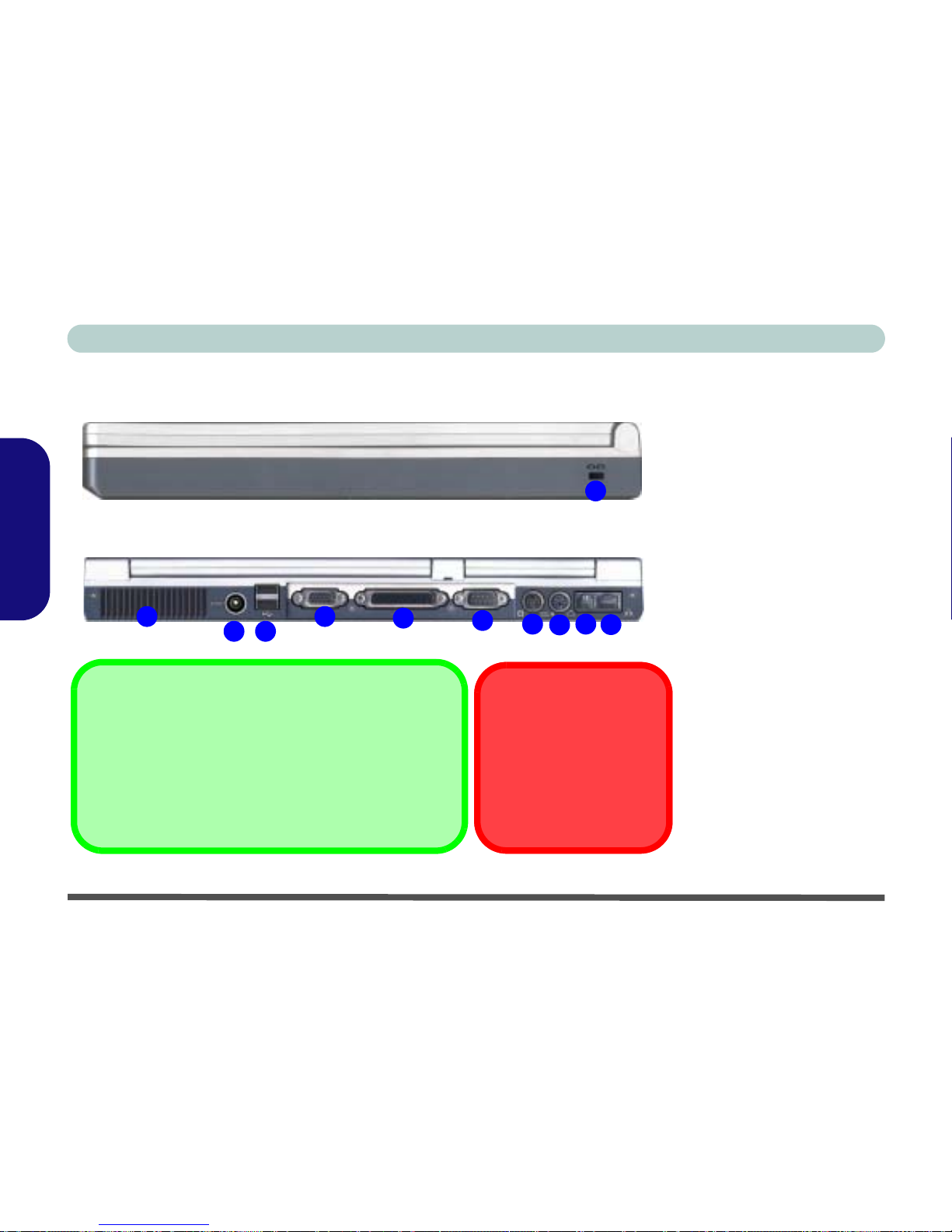

Figure 5
Right View
1. Security Lock Slot
Figure 6
Rear View
1. Vent
2. DC-In Jack
3. 2 USB 2.0/1.1 Ports
4. External Monitor (VGA) Port
5. Parallel Port
6. Serial Port
7. S-Video Out Port
8. PS/2 Type Port
9. RJ-11 Phone Jack
10. RJ-45 LAN Jack
3
5
6
7
8
9
1
2
1
10
4
!
Overheating
To prevent your comput­er from overheating make sure nothing blocks the vent(s)/fan in­take(s) while the com­puter is in use.
!
Peripheral Devices
Please note that peripherals (printers, digital cameras, etc.) which attach to your computer by either USB or Mini-IEEE 1394 ports may be connected after Windows is up and run- ning. All other peripherals must be connected before you turn on the system.
System Map: Bottom View - 15
Concise User’s Guide
English
System Map: Bottom View

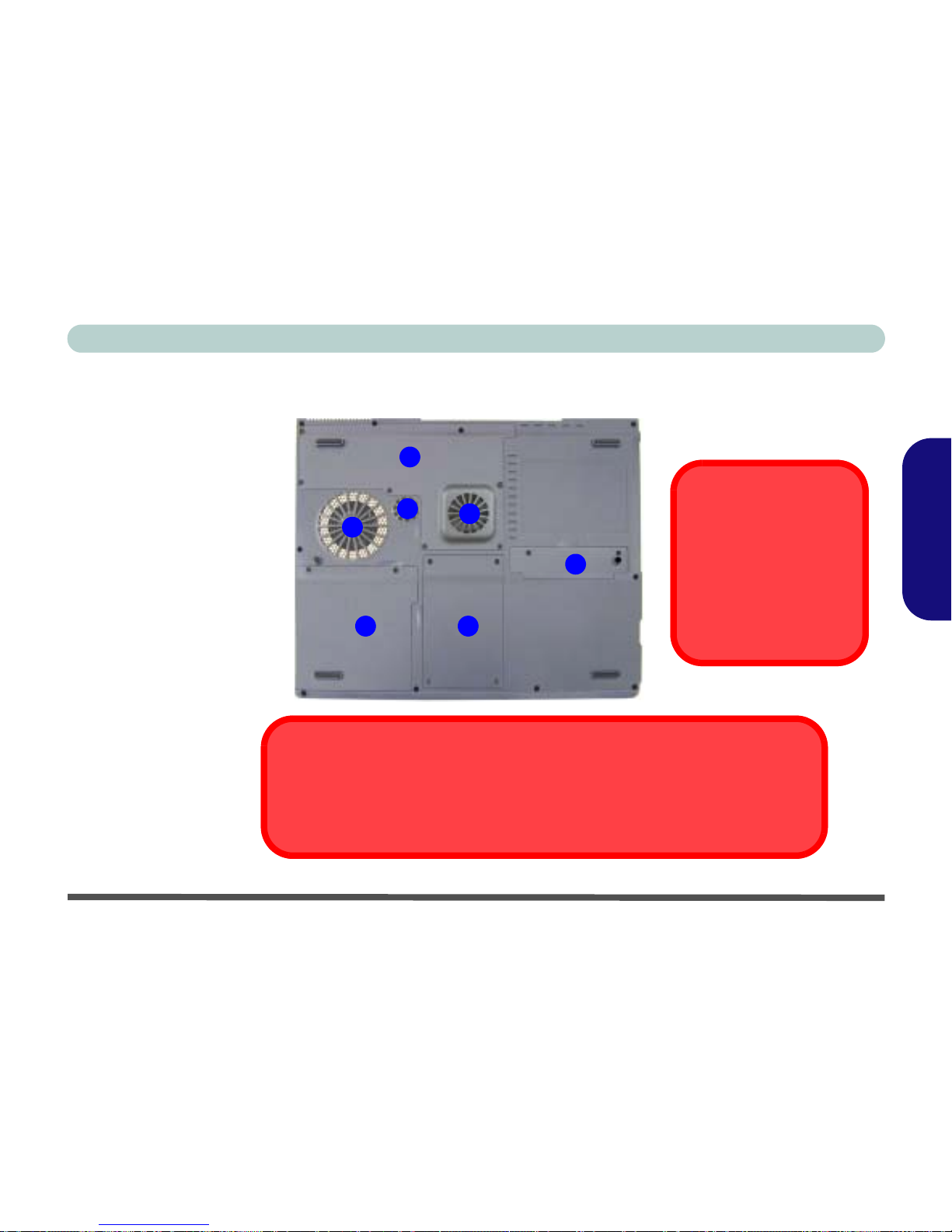

Figure 7
Bottom View
1. Vent/Fan Intake
2. Battery Cover
3. Hard Disk Cover
4. Bluetooth Module Cover
5. CPU & Memory Socket Cover
The RAM and optional Wireless LAN module are located under the CPU Cover.
2
4
5
3
!
CPU
The CPU is not a user serviceable part. Open­ing this compartment, or accessing the CPU in any way, may violate your warranty.
!
Drive Warning
Don’t try to remove the hard disk (HDD) while the system is on. This could cause data loss or damage. Unauthorized removal or tampering with the HDD may violate your warranty. If you are in doubt, consult your service representative.
1
1
1
16 - Video Features
Concise User’s Guide
English
Video Features
Video Driver Controls
You can switch display devices and configure the display options from the Display control panel in Windows, pro- vided the video driver is installed.
1. Click Start, point to Settings and click Control Panel.
2. Double-click Display (icon).
3. In the Display Properties dialog box, click Settings (tab).
4. Click Advanced (button), and click SiS Utility Manager (tab).
5. Choose the setting you wish to change.
OR
1. Right-Click the SiS Utility Tray icon in the taskbar.
2. Point to Display Property and choose the setting you wish to change.
SiS Utility Tray icon

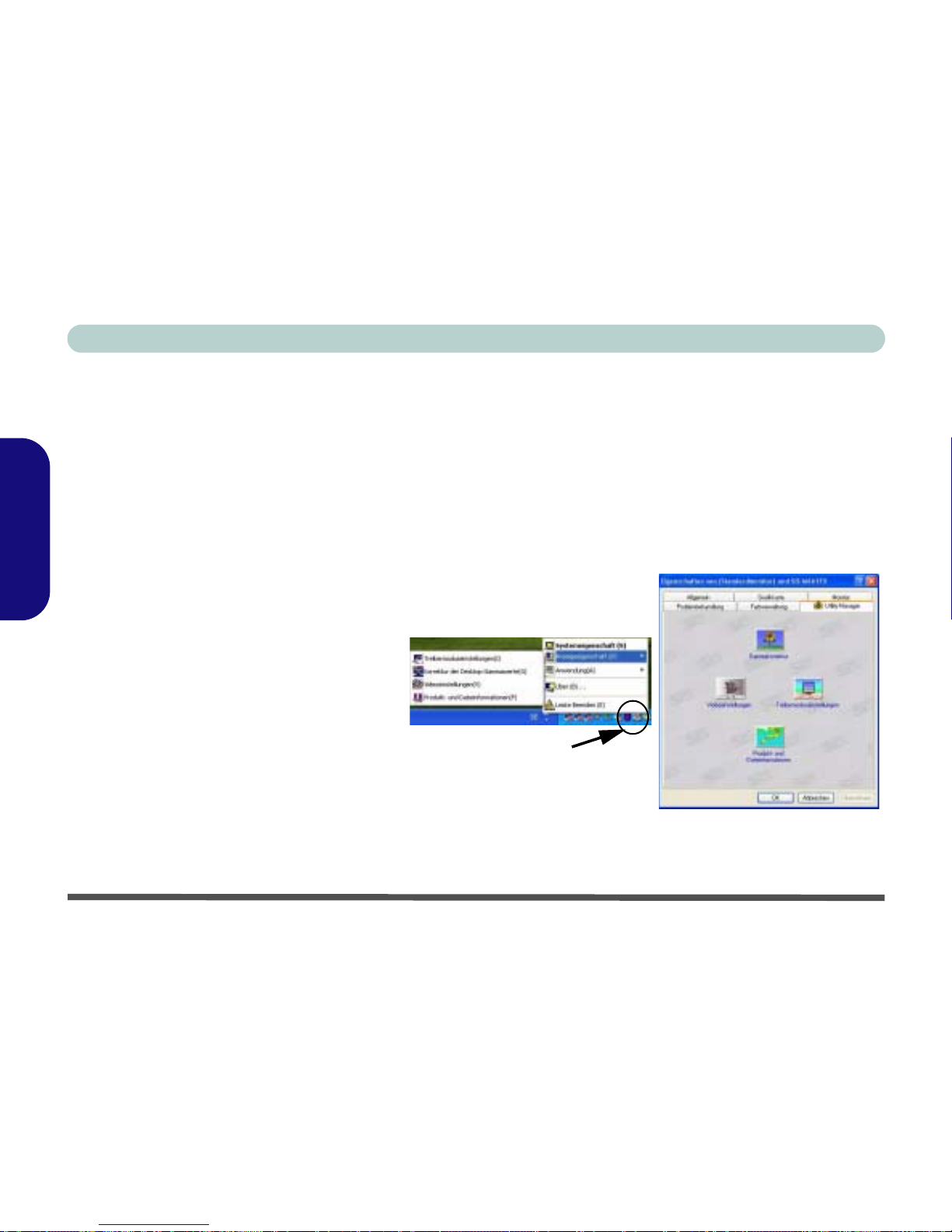

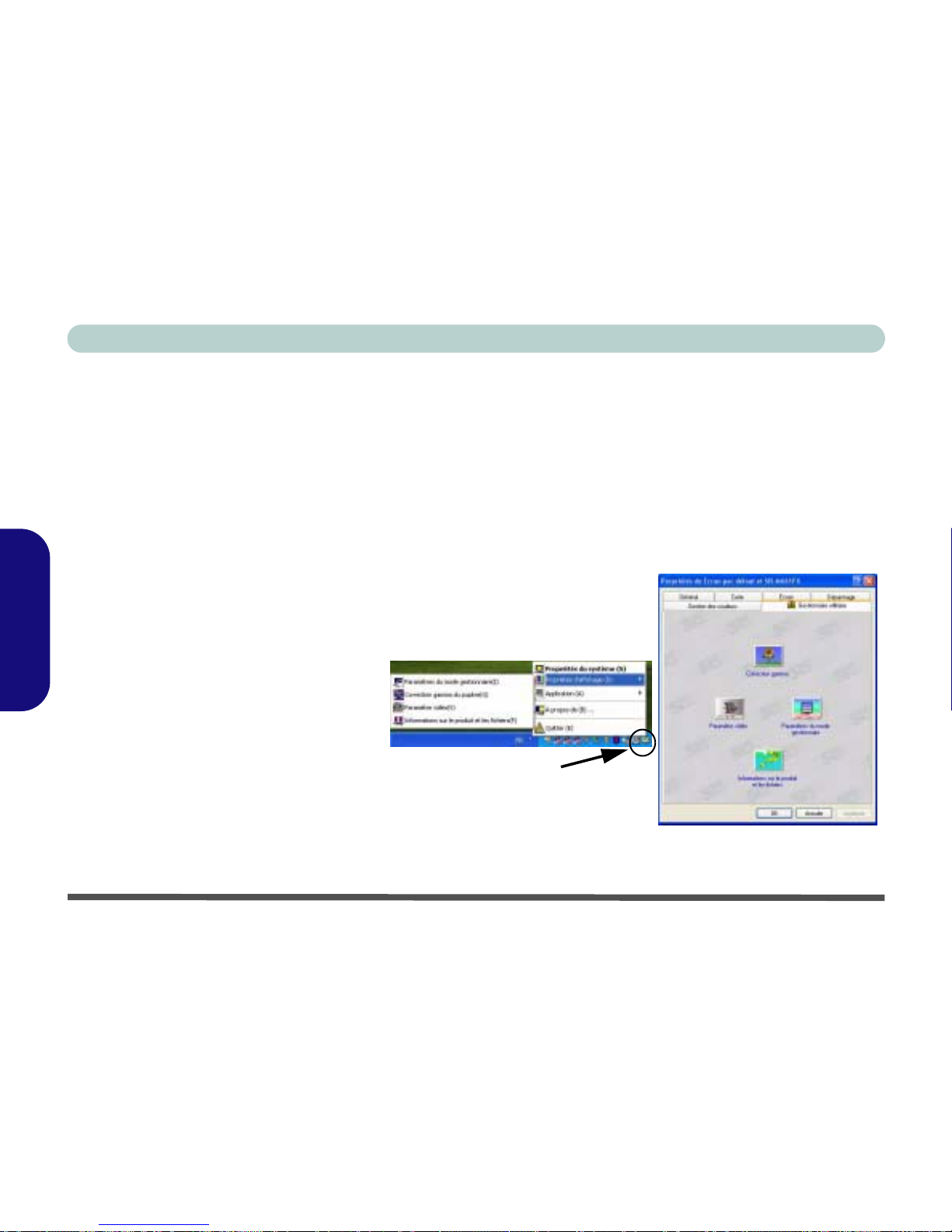

Figure 8
SiS Utility Tray/Manager
Video Features - 17
Concise User’s Guide
English
Display Options
Besides the built-in LCD, you can also use an external VGA monitor or TV as your display device. A VGA monitor connects to the external monitor (VGA) port, a TV to the S-Video Out port.
The display options are as follows:
1. The built-in LCD (Single).
2. The built-in LCD and a VGA monitor showing the same image (Mirror ).
3. The built-in LCD and a TV showing the same image (Mirror ).
4. The built-in LCD and a VGA monitor showing different images (Extended Desktop ).
5. The built-in LCD and a TV showing different images (Extended Desktop ).
6. A VGA monitor and a TV showing different images (Extended Desktop ).
Display Mode Windows XP Windows 2000
Single
""
Mirror ( )
""
Extended Desktop ( )
"
Not Available
18 - Video Features
Concise User’s Guide
English
Switching/Enabling Displays (Driver Controls)
You can use the video driver’s built-in controls to switch between displays as follows:
1. Plug the VGA monitor or TV into the appropriate port.
2. Follow the instructions in “Video Driver
Controls” on page 16, and choose Driver Mode
Settings.
3. To use your display devices in Mirror mode, make sure the Mirror icon is displayed, then choose which device is to be Primary, and which is to be Secondary.
4. Click OK > OK to apply the settings (you may need to give your monitor/TV a few seconds to refresh).
5. Click Yes to keep the settings.
6. To use your display devices in Extended Desktop mode, click the Mirror icon
to change to the
Extended Desktop icon , then choose which device is to be Primary, and which is to be Secondary.
7. Click OK > OK > Yes to restart your computer.
8. Upon restart the displays will be configured for you.

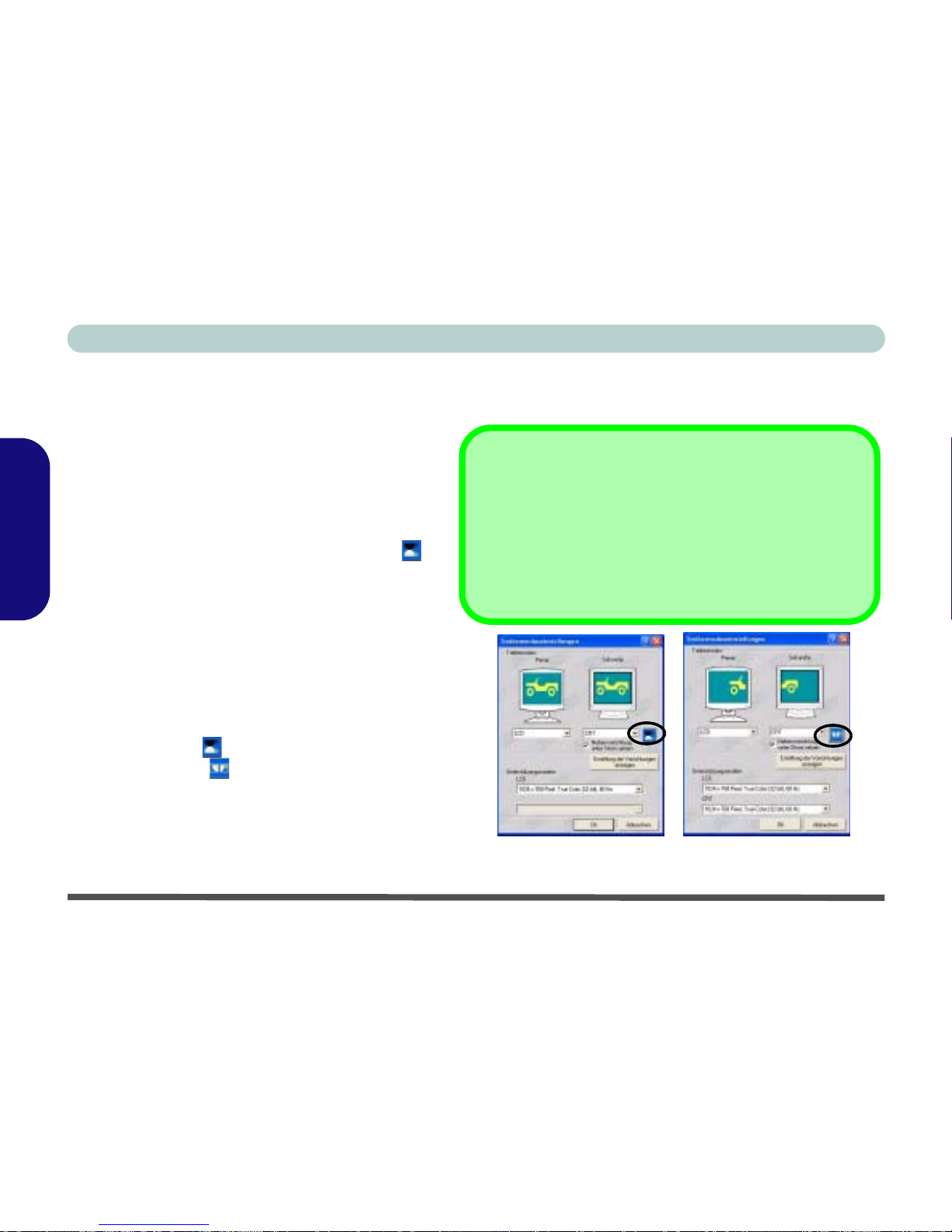

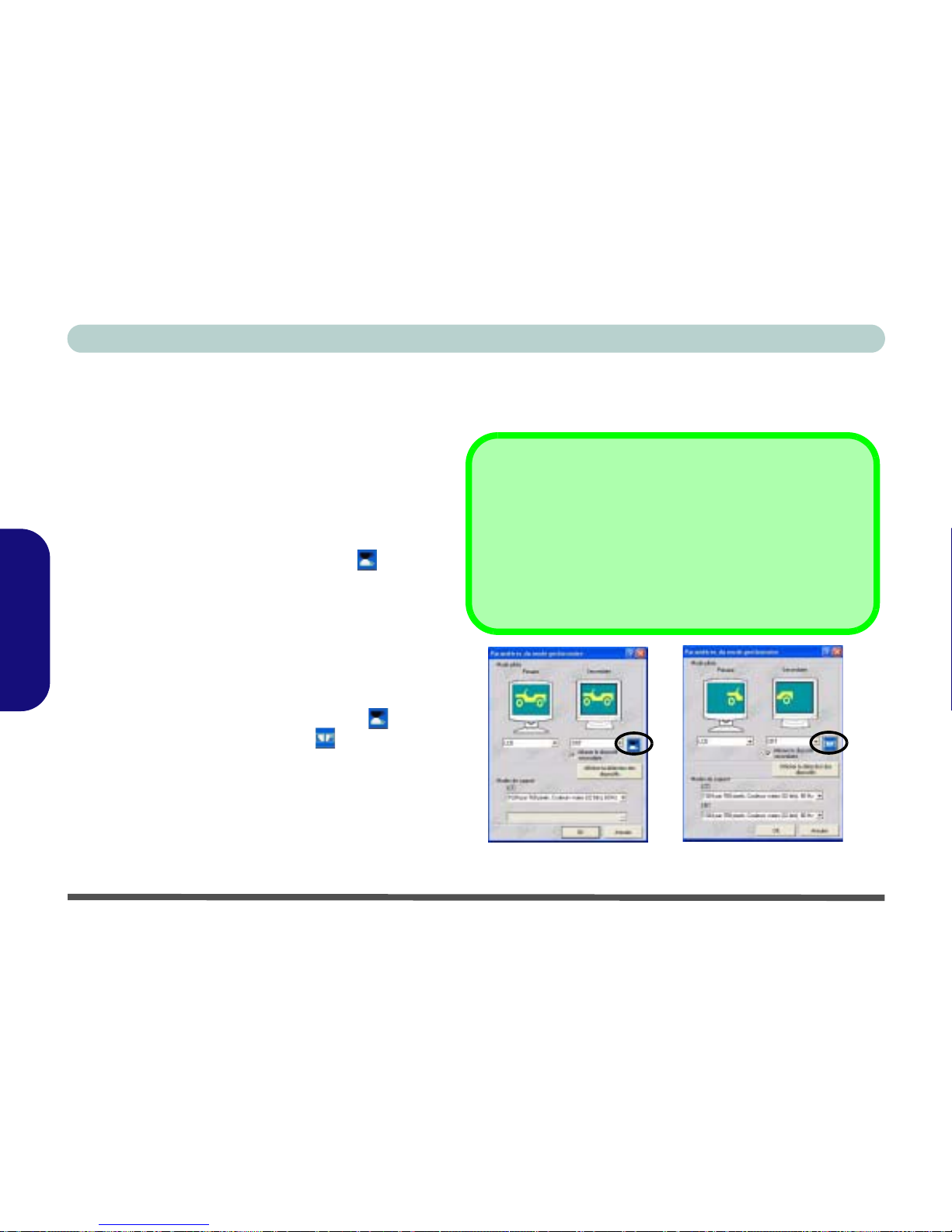

Figure 9 - Driver Mode Setting
!
External Display Activation
If you plug-in an external display device while the system is pow­ered on, follow this procedure:
1. Click the Display devices detection button to detect the exter­nal display.
2. Click in the Power on secondary device tickbox to activate the external display.
Power Management Features - 19
Concise User’s Guide
English
Power Management Features
The Power Options control panel in Windows allows you to configure power management features for your comput­er. You may conserve power through individual components such as the monitor or hard disk by means of Power
Schemes, or you may use either Standby or Hibernate mode to conserve power throughout the system (enable Hi­bernate support from the Control Panel as pictured in Figure 10).
The computer’s power button, sleep button (Fn + F4 key combination), and close cover switch may be set to send the computer in to either Standby or Hibernate mode.
Figure 10 - Power Options
!
Configuring the Power Button
The power button may be set to send the computer in to either Standby or Hibernate mode, if pressed for less than 4 seconds. In Standby mode, the LED will flash green. In Hiber- nate mode the LED will be orange if the computer is powered by the AC adapt­er (if powered by the battery the LED will be off). If you are in a power saving mode set to save power through indi­vidual components (e.g. hard disk, monitor), the LED will remain green.
Power Button
Sleep/Resume (Sleep) Button
Lid (Close Cover Switch)
Concise User’s Guide
20 - Driver Installation
English
Driver Installation
The Device Drivers & Utilities + User’s Manual CD­ROM contains the drivers and utilities necessary for the
proper operation of the computer. This section covers driver and utility installation instructions for Windows
XP. Table 2 on page 21 lists what you need to install. It is very important that the drivers are installed in the order indicated in the table. If you are using Windows
2000 information on installing the drivers and utilities is available in Chapters 4 & 7 of the expanded User’s Man- ual on the same CD-ROM.
Installation Methods (Windows XP)
You have a choice of installation methods to install your drivers.
• Driver Install (via Notebook Driver Installation)
• Manual Install
Driver Install
Insert the Device Drivers & Utilities + User’s Manual CD-ROM and the Notebook Driver Installation applica-
tion will run automatically (Figure 11).
1. Check the driver installation order from Table 2 on
page 21 (the drivers must be installed in this order).
2. Click to select the driver you wish to install.
3. Click the Driver Install button.
4. Follow the Driver Install instructions from step 3 (as appropriate for your OS) as listed in the following pages.
5. Make a note of the drivers you have already installed.

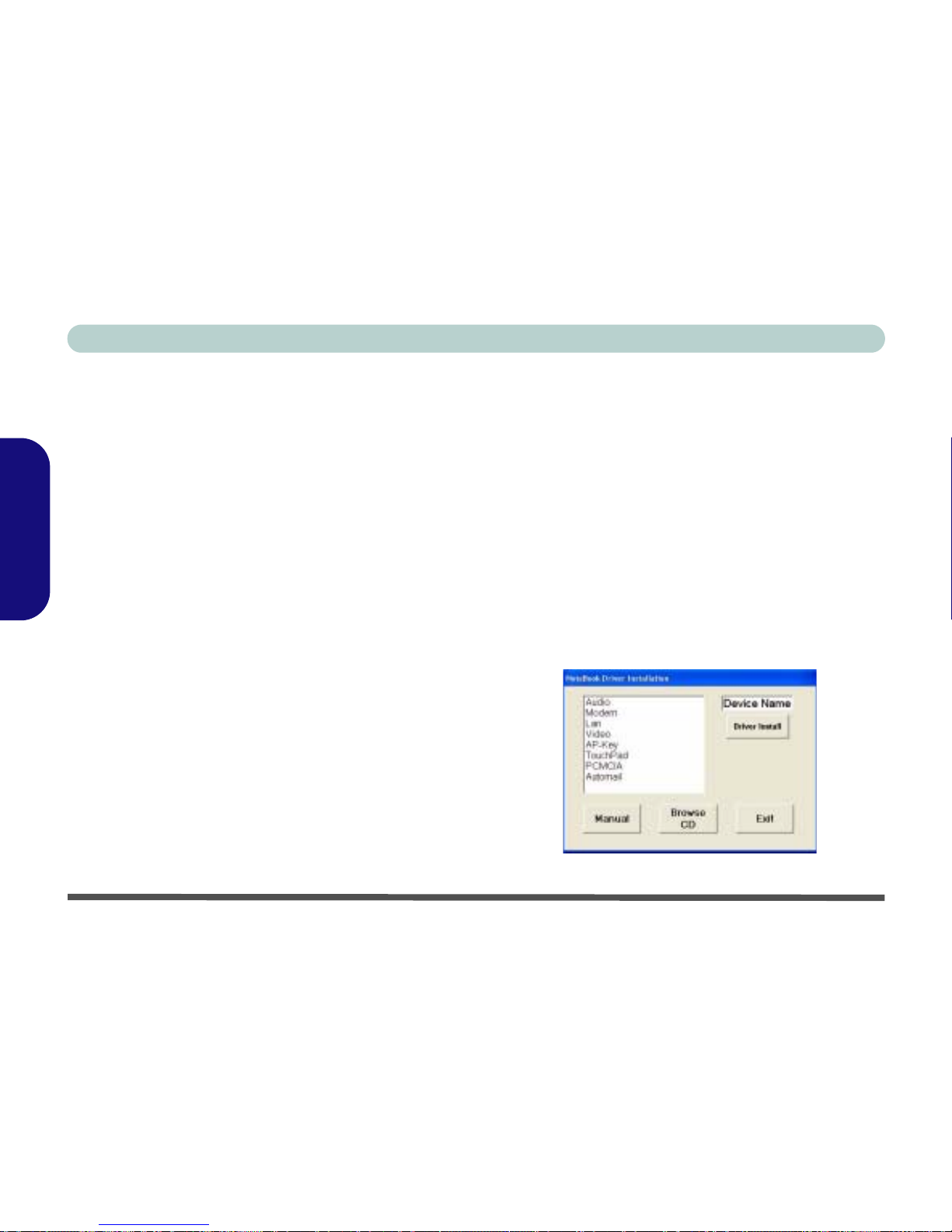

Figure 11 - Notebook Driver Installation
Concise User’s Guide
Driver Installation - 21
English
Manual Driver Installation
Insert the Device Drivers & Utilities + User’s Manual CD-ROM, and close the Notebook Driver Installation ap-
plication. Follow this procedure:
1. Click Start (menu) > Run...
2. Navigate (Browse..) to D:\Drivers\(driver folder name
e.g. 01Audio)\Setup.exe (or SETUPpg.exe) and click OK
OR Navigate (Browse..) to D:\Drivers\(driver folder name e.g. 02Modem)\WinXP\Setup.exe and click OK.
3. Follow the Driver Install instructions from step 3 (as appropriate for your OS) as listed in the following pages.
4. Make sure you install the drivers in the order listed in
Table 2.
Table 2 - Installation Procedure
Feature Windows XP
Audio page 24 Modem page 24 Network (LAN) page 25 Video page 25 Hot-Key Buttons page 25 TouchPad page 25 PC Card/PCMCIA page 26 PC Camera (optional) page 26 Wireless LAN (optional) page 27 Bluetooth (optional) page 27 Auto Mail page 28
Concise User’s Guide
22 - Driver Installation
English
Optional Module Drivers
If your purchase does not include any of the optional modules (PC Camera, Wireless LAN or Bluetooth), DO NOT install the drivers for them.
Authorized Driver Message
If you receive a message telling you that the driver you are installing is not authorized (Digital Signature Not Found), just click Yes or Continue Anyway to ignore the message and continue the installation procedure.
Installation Prerequisite
If you are installing an operating system (e.g. Windows 2000 or Windows XP), make sure to set the USB Host
Controller option in the BIOS to “Disabled”. This will disable all the USB ports. This will also prevent the sys- tem from seeing the card reader as a disk drive (if the system sees the card reader as a disk drive, it will auto­matically define it as drive “C:”). Don’t forget to enable the USB ports after installing the OS.
Version Conflict Message
During driver installation if you encounter any “file ver­sion conflict” message, please click Yes to choose to keep the existing (newer) version.
!
Windows XP Service Pack 1a
Make sure you install Windows XP Service Pack 1a (or a Windows XP version which includes Service Pack 1a) be- fore installing any drivers. Service Pack 1a includes sup­port for USB 2.0.
If you have upgraded the system by installing Service Pack 1a (i.e. your Windows XP version does not include Service Pack 1a) then follow these instructions:
1.Go to Device Manager and click “+” next to Other devic- es (if its sub-items are not shown).
2.Right-click Universal Serial Bus (USB) Controller and select Uninstall > OK.
3.Restart the computer and it will find the USB 2.0 control­ler.
Concise User’s Guide
Driver Installation - 23
English
Updating/Reinstalling Individual Driv­ers
If you wish to update/reinstall individual drivers it may be necessary to uninstall the original driver.
To do this go to the Control Panel in the Windows OS and double-click the Add/Remove Programs item. If you see the individual driver listed (if not see below), uninstall it, following the on screen prompts (it may be necessary to restart the computer). Go to the appropriate section of the manual to complete the update/reinstall procedure for the driver in question.
If the driver is not listed in the Add/Remove Programs item:
1. Click Start (menu), point to Settings and click Control
Panel. Double-click System (icon) and then click Hardware (tab) > Device Manager (button).
2. Double-click the device you wish to update/reinstall the
driver for (you may need to click “+”).
3. Look for the Update Driver button (check the Driver
tab) and follow the on screen prompts.
New Hardware Found
If you see the message “New Hardware Found” (Found New Hardware Wizard) for the Universal Serial Bus (USB) Con­troller during the installation procedure, click Cancel to close the window, and follow the installation procedure as directed.
!
Wireless Module ON/OFF Switch
While installing the drivers make sure that the Wireless Module ON/OFF switch is turned OFF, until you come to
install the drivers for the Wireless LAN or Bluetooth mod­ules. Before installing the Wireless LAN or Bluetooth drivers turn the switch ON. If you have both the Wireless LAN and Bluetooth modules, use the Fn + F12 key combi­nation to toggle the power to the module(s). If the Found New Hardware Wizard appears at any time (other than out­lined in the driver install procedure), click Cancel.
Driver Installation and Multi Language Options
Make sure you have not enabled any of the Multi language options in the Regional and Language Options control panel before installing the drivers. Some of these language options will interfere with the audio driver installation pro­cess. After you have installed all the drivers you may then configure the language options.
Concise User’s Guide
24 - Driver Installation
English
Audio (WinXP)
1. Insert the Device Drivers & Utilities + User’s Manual CD-ROM
or click Start (menu) > Run... and navigate
(Browse..) to D:\drinst2.exe and click OK.
2. Click to select Audio from the menu on the left, then click Driver Install (button).
3. Click Next.
4. Click Finish to restart your computer.
5. You can click the AC97 Audio Configuration icon in the taskbar for further configuration options.
Modem (WinXP)
1. Insert the Device Drivers & Utilities + User’s Manual CD-ROM
or click Start (menu) > Run... and navigate
(Browse..) to D:\drinst2.exe and click OK.
2. Click to select Modem from the menu on the left, then click Driver Install (button).
3. The driver will install and quit the installer menu automatically. The modem is ready for dial-up configuration.
!
Modem Country Selection
You can change the modem country selection in the con­trol panel (Control Panel > Phone and Modem Op- tions icon).
