Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information
contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or
any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear
in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse)
of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators
of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended
as an endorsement of that product or its manufacturer.
©May 2010
Trademarks
Intel and Intel Core are trademarks/registered trademarks of Intel Corporation.
I
Preface
R&TTE Directive
This device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC.
This device will be sold in the following EEA countries: Austria, Italy, Belgium, Liechtenstein, Denmark, Luxembourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland,
United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slovenia.
II
Preface
FCC Statement
(Federal Communications Commission)
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Re orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the service representative or an experienc ed radio/TV technician for help.
Operation is subject to the following two conditions:
1. This device may not cause interference.
And
2. This device must accept any interference, including interfer ence that may cause undesired operation of the
device.
III
Preface
Warning
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the
equipment.
If your purchase option includes both Wireless LAN and 3.75G modules, then the appropriate antennas will be installed.
Note that In order to comply with FCC RF exposure compliance requirements, the antenna must not be co-located or operate
in conjunction with any other antenna or transmitter.
Important Notice - 3.75G/HSPA & Bluetooth/Wireless LAN Modules
In order to comply with FCC regulations you should NOT operate the 3.75G/HSPA module and the Bluetooth/Wireless LAN
modules at the same time as this may disrupt radio frequency, and cause interference. When the 3.75G/HSPA module is
powered on, make sure that the Bluetooth/Wireless LAN modules are powered off.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator
and your body.
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury
to persons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitche n sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There
may be a remote risk of electrical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC
Output of 19V, 4.74A (90 Watts) minimum AC/DC Adapter.
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
This Computer’s Optical Device is a Laser Class 1 Product
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele-
ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or moisture may affect the system.
Don’t use or store the computer in a humid environment.
Do not place the computer on
any surface that will block the
Vents/Fan Intakes.
VI
Preface
3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other
strong magnetic fields. These can hinder proper performance and damage your data.
4. Follow the proper workin g procedu res for t he computer. Shut the computer down proper ly and don ’t for get
to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
5. Take care when using peripheral devices.
Use only approved brands of
peripherals.
Do not disassemble the computer by yourself.
Unplug the power cord befor e
attaching peripheral devices.
Perform routine maintenance
on your computer.
VII
Preface
Power Safety
Warning
Before you undertake
any upgrade procedures, make sure that
you have turned off the
power, and disconnected all peripherals
and cables (including
telephone lines). It is
advisable to also remove your battery in
order to prevent accidentally turning the
machine on.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC/DC adapter may be design ed for inte rnational travel but it still requires a steady,
uninterrupted power supply. If you are unsure of your local power specifications, consult
your service representative or local power company .
• The power adapter may have either a 2-pr ong or a 3-prong ground ed plug. The third prong
is an important safety feature; do not defeat its purpose. If you do not have access to a
compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be su re to disconnect it by the plug head, not by
its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load
of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies (i.e. AC/DC adapter or car adapter).
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.
VIII
Battery Precautions
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life,
under various state and local laws, it may be illegal to dispose of this battery in to the municipal waste stream. Check with
your local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalen t type recommended by the
manufacturer. Discard used battery according to the manufacturer’s instructions.
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not remove any batteries from the computer while it is powered on.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even
if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly
result in fire.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repa ir or replacemen t to you r service repre sentati ve or qu alified service personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries
may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Preface
IX
Preface
Removal Warning
When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and
screw(s) before turning the computer on.
Cleaning
Do not apply cleaner directly to the computer; use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the
computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the
power supply. Then refer servicing to qualified service personnel under any of the following conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to rain or other liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
X
Preface
Power Off Before Traveling
Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a
notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s)/outlet(s) to be blocked. To prev ent your
computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.
Travel Considerations
Packing
As you get ready for your trip, run through this list to make sure the system is ready to go:
1. Check that the battery pack and any spares are fully charged.
2. Power off the computer and peripherals.
3. Close the display panel and make sure it’s latched.
4. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.
5. The AC/DC adapter uses volt ages from 100 to 240 volt s so you won’t need a second volt age adapter. However ,
check with your travel agent to see if you need any socket adapters.
6. Put the notebook in its carrying bag and secure it with the bag’s straps.
7. If you’re taking any perip herals (e.g. a printer, mouse or digital camera), pack them and those devices’ adapters
and/or cables.
8. Anticipate customs - Some jurisdictions may have import restrictions or req uire proof of ownersh ip for both hard -
ware and software. Make sure your documents are prepared.
XI
Preface
On the Road
In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting,
keep these points in mind:
Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very
common. Don’t check it with normal luggage. Baggage handlers may not be sufficiently careful. Avoid knocking the computer against hard objects.
Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the computer, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and
disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note:
Some airports also scan luggage with these devices.
Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight.
These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make
sure it’s secure. Contents may shift and/or fall out when the compartment is opened.
Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery(ies)
charged.
Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer.
Wait a few minutes before turning it on so that any moisture can evaporate.
XII
Preface
Developing Good Work Habits
Developing good work habits is important if you need to work in fron t of the computer for long periods of time.
Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or
other joints. The following are some tips to reduce the strain:
• Adjust the height of the chair and/or desk so that the keyboard is at or slightly below the
level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.
• Your knees should be slightly higher than your hips. Place your feet flat on the floor or on
a footrest if necessary.
• Use a chair with a back and adjust it to support your lower back comfortably.
• Sit straight so that your knees, hips and elbows form approximately 90-degree angles
when you are working.
• Take periodic breaks if you are using the computer for long periods of time.
Remember to:
• Alter your posture frequently.
• Stretch and exercise your body several times a day.
• Take periodic breaks when you work at the computer for long periods of time. Frequent
and short breaks are better than fewer and longer breaks.
XIII
Preface
Lighting
Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and
shoulders.
• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.
• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.
• Position the display directly in front of you at a comfortable viewing distance.
• Adjust the display-viewing angle to find the best position.
LCD Screen Care
To prevent image persistence on LCD monitors (caused by the continuous display of graphics on the screen for
an extended period of time) take the following precautions:
• Set the Windows Power Plans to turn the screen off after a few minutes of screen idl e time.
• Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long ).
• Rotate desktop background images every few days.
• Turn the monitor off when the system is not in use.
XIV
Contents
Notice ................................................................................. I
FCC Statement ................................................................III
FCC RF Radiation Exposure Statement: ........................IV
Instructions for Care and Operation ...............................VI
Power Safety ................................................................ VIII
Battery Precautions ...................................................... ...IX
Cleaning ........................................................................... X
Servicing ..........................................................................X
Travel Considerations .....................................................XI
Quick Start Guide
Overview ........................................................................1-1
Advanced Users .............................................................1-2
Beginners and Not-So-Advanced Users ........................1-2
Warning Boxes ..............................................................1-2
Not Included ..................................................................1-3
System Startup ...............................................................1-4
System Software .................................................. ..........1-5
Model Differences .........................................................1-6
System Map: LCD Panel Open - Model A ....................1-7
System Map: LCD Panel Open - Model B ....................1-8
LED Indicators ............................................. .... ..............1-9
Hot Key Buttons ..........................................................1-10
Preface
Keyboard ...................................................................... 1-11
Function/Hot Key Indicators .......................................1-12
System Map: Front & Left Views ................................1-13
System Map: Right & Rear Views ..............................1-14
System Map: Bottom View - Model A ........................1-16
System Map: Bottom View - Model B ........................1-17
3.75G/HSPA Module USIM Card Installation ............1-18
Video Features .............................................................1-20
NVIDIA® Optimus™ Technology .............................1-20
Power Options ........................................ .... ..................1-24
MOFA LCD Back Covers - Model A ..........................1-25
Features & Components
Overview ........................................................................2-1
Hard Disk Drive .............................................................2-2
Optical (CD/DVD) Device ............................................2-3
Loading Discs ................................................................2-3
Handling CDs or DVDs .................................................2-4
DVD Regional Codes ........................................ .... ... .... .2-5
3-in-1 Card Reader .........................................................2-6
Touchpad and Buttons/Mouse .......................................2-7
Gestures and Device Settings ........................................2-8
Audio Features .............................................................2-11
XV
Preface
Optimizing Audio Recording ......................................2-12
Adding a Printer ...........................................................2-13
USB Printer ..................................................................2-13
Parallel Printer .............................................................2-13
Power Management
Overview ........................................................................3-1
The Power Sources ........................................................3-2
AC/DC Adapter .............................................................3-2
Battery ............................................................................3-2
Turning On the Computer ..............................................3-3
Power Plans ...................................................................3-4
Power-Saving States ......................................................3-6
Sleep ..............................................................................3-6
Hibernate ........................................................................3-7
Shut down ......................................................................3-7
Configuring the Power Buttons ..................................... 3-8
Resuming Operation ......................................................3-9
Energy Star Power Saving ...........................................3-10
Battery Information .....................................................3-11
Conserving Battery Power ...........................................3-12
Battery Life .......................................................... ........3-13
New Battery .................................................................3-13
Recharging the Battery with the AC/DC Adapter .......3-13
Proper handling of the Battery Pack ............................3-14
Battery FAQ .................................................................3-15
Drivers & Utilities
What to Install ........................................................... .....4-1
Module Driver Installation .............................................4-1
Windows 7 Driver Installation ....................................... 4-2
Updating/Reinstalling Individual Drivers ......................4-4
User Account Control ....................................................4-5
Windows Security Message ...........................................4-5
New Hardware Found ....................................................4-5
Driver Installation Procedure ......................................... 4-6
Chipset ...........................................................................4-6
Video (VGA) .................................................................4-6
NVIDIA Video (VGA) ..................................................4-6
MEI Driver .....................................................................4-6
Modem ...........................................................................4-6
LAN ...............................................................................4-6
CardReader ....................................................................4-7
Touchpad .......................................................................4-7
Hot Key ..........................................................................4-7
USB 3.0 ..........................................................................4-7
Audio .............................................................................4-7
Windows Experience Index ...........................................4-8
Optional Drivers ............................................................4-9
PC Camera Module ........................................................4-9
XVI
Preface
Wireless LAN Module ...................................................4-9
3.75G/HSPA Module .....................................................4-9
BIOS Utilities
Overview ........................................................................5-1

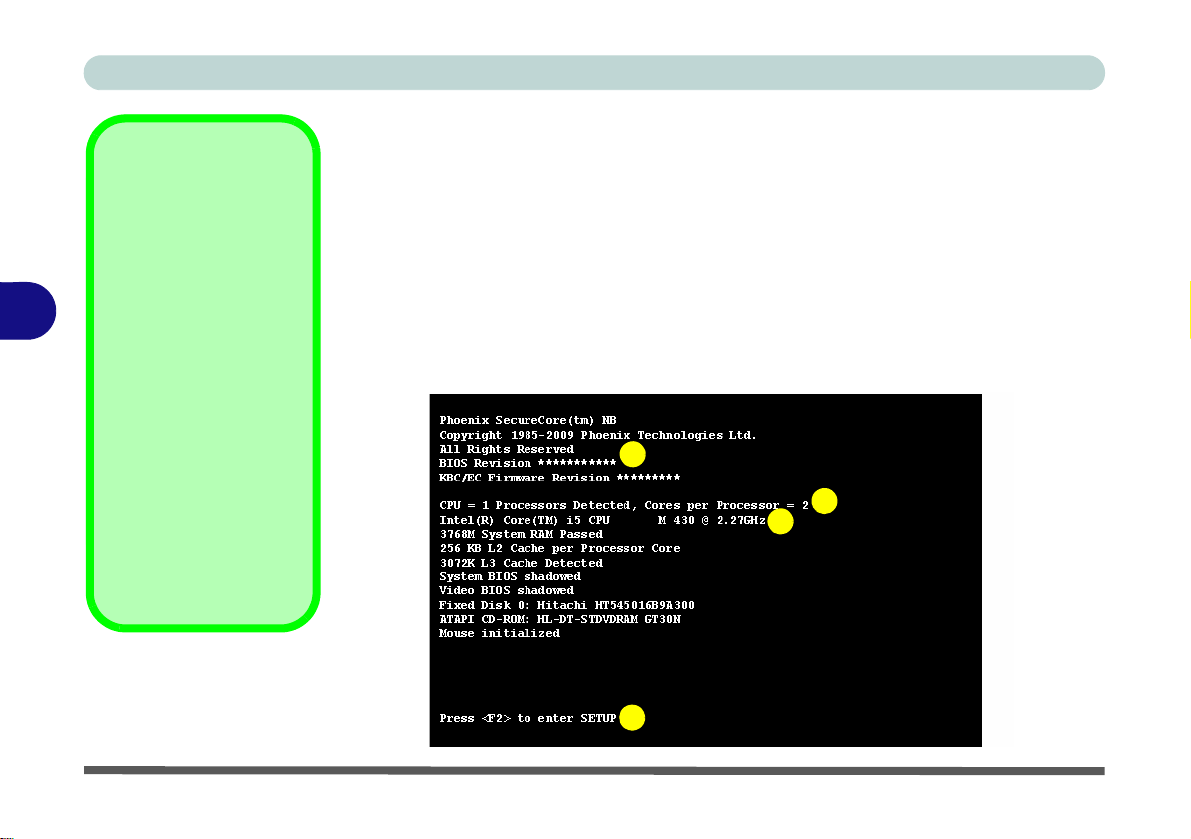

The Power-On Self Test (POST) ................................... 5-2
Failing the POST ...........................................................5-3
Fatal Errors ....................................................................5-3
Non-Fatal Errors ............................................................5-3
The Setup Utility ............................................................5-4
Entering Setup ...............................................................5-4
Setup Screens .................................................................5-5
Main Menu .....................................................................5-6
System Time & Date (Main Menu) ...............................5-6
SATA Port 1/2/3 (Main Menu) ......................................5-7
System/Extended Memory (Main Menu) ......................5-7
BIOS Revision/KBC/
EC Firmware Revision (Main Menu) ............................5-7
GPU Card/GPU VBIOS Revision/
GPU VBIOS Build Date (Main Menu) .........................5-7
Advanced Menu .............................................................5-8
Advanced Chipset Control (Advanced Menu) ..............5-8
Total Graphics Memory (Advanced Menu > Advanced
Chipset Control) .............................................................5-9
SATA Mode (Advanced Menu) ....................................5-9
Legacy USB Support: (Advanced Menu) ......................5-9
Boot-time Diagnostic Screen (Advanced Menu) ...........5-9
Legacy OS Boot: (Advanced Menu) ...........................5-10
Power on Boot Beep (Advanced Menu) ......................5-10
Battery Low Alarm Beep (Advanced Menu) ...............5-10
Security Menu ..............................................................5-11
Set Supervisor Password (Security Menu) ..................5-11
Set User Password (Security Menu) ............................5-12
Password on boot: (Security Menu) .............................5-12
Boot Menu ...................................................................5-13
Exit Menu ....................................................................5-14
Upgrading The Computer
Overview ........................................................................6-1
When Not to Upgrade ....................................................6-2
Removing the Battery ....................................................6-3
Upgrading the Hard Disk Drive .....................................6-4
Upgrading the Optical (CD/DVD) Device ....................6-7
Upgrading the System Memory (RAM) ........................6-9
Changing the Optional LCD Back Covers ..................6-12
Modules & Options
Overview ........................................................................7-1
Bluetooth Module ..........................................................7-2
PC Camera Module ........................................................7-7
XVII
Preface
PC Camera Driver Installation .......................................7-8
Wireless LAN Module .................................................7-15
802.11b/g/n Driver Installation ....................................7-16
Intel® Wi-Fi Link Series Driver Installation ...............7-16
Connecting to a Wireless Network in Windows 7 .......7-17
3.75G/HSPA Module ...................................................7-21
Mobile Partner .............................................................7-24
Mobile Partner Application Installation ......................7-24
Mobile Partner Application .........................................7-25
Profile Management .....................................................7-25
Text Messaging Service ...............................................7-29
Fingerprint Reader Module ..........................................7-30
Fingerprint Reader Driver Installation .........................7-31
User Enrollment ...........................................................7-32
Fingerprint Control Center Features ............................7-34
Troubleshooting
Overview ........................................................................8-1
Basic Hints and Tips ......................................................8-2
Backup and General Maintenance .................................8-3
Viruses ........................................................................... 8-4
Upgrading and Adding New Hardware/Software ..........8-5
Problems and Possible Solutions ...................................8-7
Bluetooth Connection Problems ..................................8-13
Interface (Ports & Jacks)
Overview ....................................................................... A-1
Notebook Ports and Jacks .............................................A-2
Video Driver Controls
Video Driver Installation ..............................................B-1
Video (VGA) ................................................................B-1
NVIDIA Video (VGA) .................................................B-1
NVIDIA® Optimus™ Technology ..............................B-2
Dynamic Video Memory Technology ......................B-5
Intel® Graphics & Media Control Panel ......................B-6
Display Devices & Options ......................................B-8
Attaching Other Displays ..............................................B-9
Configuring an External Display in Windows 7 .........B-11
HDMI Audio Configuration .......................................B-14
NVIDIA Control Panel ...............................................B-16
Optimus™ Customization Options .............................B-18
TV Settings .................................................................B-22
Specifications
Processor ....................................................................... C-2
Processor (Cont’d) ........................................................ C-2
Core Logic ....................................................................C-2
Display .......................................................................... C-2
XVIII
Memory .........................................................................C-2
Video .............................................................................C-2
BIOS ............................................................................. C-3
Storage .......................................................................... C-3
Audio ............................................................................ C-3
Keyboard, Pointing Device & Buttons ......................... C-3
Interface ........................................................................ C-3
Card Reader ............................................................. ..... C-3
Slots .............................................................................. C-3
Communication .............................................................C-3
Communication (Cont’d) ..............................................C-4
Power Management ...................................................... C-4
Power ............................................................................ C-4
Security ......................................................................... C-4
Operating System .......................................................... C -4
Design Feature ..............................................................C-4
Environmental Spec ......................................................C-4
Dimensions & Weight ..................................................C-4
Preface
XIX
Preface
XX
Quick Start Guide
Chapter 1: Quick Start Guide
Overview
This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the
computer and to getting your system started. The remainder of the manual covers the following:
• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk,
optical device, 3-in-1 card reader, ExpressCard/34), Touchpad & Mouse, Audio & Printer.
• Chapter 3 The computer’s power saving options.
• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the
computer’s subsystems.
• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).
• Chapter 6 Instructions for upgrading your computer.
• Chapter 7 A quick guide to the computer’s PC Camera, Wireless LAN, 3.75G/HSPA, Bluetooth, and Fin-
gerprint modules (some of which may be optional depending on your purchase configuration).
• Chapter 8 A troubleshooting guide.
• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external
devices.
• Appendix B Information on the Video driver controls.
• Appendix C The computer’s specification.
1
Overview 1 - 1
1
Notes
Check the light colored
boxes with the mark
above to find detailed information about the computer’s features.
Quick Start Guide
Advanced Users
If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful
to refer to “What to Install” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer” on
page 6 - 1 in the reminder of the User’s Manual. You may also find the notes marked with a
of interest to you.
Beginners and Not-So-Advanced Users
If you are new to computers (or do not have an advanced knowledge of them) then
the information contained in the Quick Start Guide should be enough to get you up
and running. Eventually you should try to look through all the documentation (more
detailed descriptions of the functions, setup and system controls are covered in the
remainder of the User’s Manual), but do not worry if you do not understand everything the first time. Keep this manual nearby and refer to it to learn as you go. You
may find it useful to refer to the notes marked with a
as indicated in the margin.
For a more detailed description of any of the interface ports and jacks see “Interface
(Ports & Jacks)” on page A - 1.
Warning Boxes
No matter what your level please pay careful attention to the warning and safety information indicated by the
symbol. Also please note the safety and handling instructions as indicated in the Preface.
1 - 2 Overview
Quick Start Guide
Drivers
If you are installing new system software, or are re-configuring your computer for a different system, you will need to install
the drivers listed in “Drivers & Utilities” on page 4 - 1. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless network module. It is very important that you install the drivers in the order
listed. You will be unable to use most advanced controls until the necessary drivers and utilities are properly installed. If
your system hasn’t been properly configured (your service representative may have already done that for you); refer to
Chapter 4 for installation instructions.
Ports and Jacks
See “Notebook Ports and Jacks” on page A - 2 for a description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc.
Not Included
Operating Systems (e.g. Windows 7) and applications (e.g. word processing, spreadsheet and database programs)
have their own manuals, so please consult the appropriate manuals.
1
Overview 1 - 3
1
Shutdown
Note that you should always shut your computer down by choosing the Shut Down command from the bottom right of the
Start menu in Windows. This will help prevent hard disk or system problems.
Quick Start Guide
System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports.
4. Attach the AC/DC adapter to the DC-In jack at the rear of the computer, then plug the AC power cord into an
outlet, and connect the AC power cord to the AC/DC adapter.
5. Use one hand to raise the
hand (as illustrated in Figure 1 - 1 below) to support the base of the computer (Note: Never lift the computer by
the lid/LCD).
lid/LCD to a comfortable viewing angle (
do not exceed 120 degrees
);
use the other
Figure 1 - 1 - Opening the Lid/LCD & Computer with AC/DC Adapter Plugged-In
1 - 4 System Startup
Quick Start Guide
Windows OS
In order to run Windows 7 without limitations or decreased performance, your computer requires a minimum 1GB of system memory (RAM), however if you are running Windows 7 64 bit your computer requires a minimum 2GB of system
memory (RAM).
System Software
Your computer may already come with system software pre-installed. Where this is not the case, or where you
are re-configuring your computer for a different system, you will find that this manual refers to the Windows 7
operating system.
1
System Startup 1 - 5
1
Quick Start Guide
Model Differences
This notebook series includes two different model types that mainly differ as indicated in the table below. Note that
your model may appear slightly different from those pictured in this manual.
Feature Model A Model B
Display Type
Supported
MOFA LCD Back
Cover
3.75G Module
Modem 56K Fax Modem N/A
Fingerprint
Module
Dimensions &
Weight
15.6” (39.62cm) HD (1366 * 768) / HD+ (1600 * 900) /
FHD (1920 * 1080) 16:9 LCD Panel
Factory Option N/A
UMTS/HSPDA-based 3.75G Module with USB Mini-Card
Interface
(Factory Option)
Factory Option N/A
374mm(w) * 250mm(d) * 25-37.2mm(h)
2.6 kg with ODD & 48.84WH Battery
17.3” (43.94cm) HD+ (1600 * 900) / FHD (1920 * 1080) 16:9
413mm(w) * 277mm(d) * 25.1-38.9mm(h)
3.1 kg with ODD & 48.84WH Battery
Table 1 - 1 - Model Differences
1 - 6 Model Differences
LCD Panel
N/A
System Map: LCD Panel Open - Model A
Figure 1 - 2
LCD Panel Open -
Model A
1. Built-In PC Camera
(
Optional
)
2. LCD
3. Power Button
4. GPU Button
5. LED Indicators
6. Hot Key Buttons
7. Keyboard
8. Built-In Microphone
9. Touchpad &
Buttons
10. Fingerprint Reader
9
Note that the Touchpad and
Buttons valid operational area
is that indicated within the red
dotted lines above.
10
2
4
1
7
9
3
5
Wireless Device
Operation Aboard
Aircraft
The use of any portable electronic transmission devices
aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are
using the computer aboard
aircraft.
Use the key combinations to
toggle power to the 3.75G/
HSPA/WLAN/Bluetooth
modules, and check the LED
indicator or on-screen icon to
see if the modules are powered on or not (see Table 1 -
5, on page 1 - 12/ Table 1 3, on page 1 - 9).
6
4
5
8
10
Quick Start Guide
1
System Map: LCD Panel Open - Model A 1 - 7
1
Figure 1 - 3
LCD Panel Open
Model B
1. Built-In PC Camera
(
Optional
)
2. LCD
3. Power Button
4. GPU Button
5. LED Indicators
6. Hot Key Buttons
7. Keyboard
8. Built-In Microphone
9. Touchpad &
Buttons
Note that the Touchpad and
Buttons valid operational area
is that indicated within the red
dotted lines above.
9
2
4
1
7
9
3
5
Wireless Device
Operation Aboard
Aircraft
The use of any portable electronic transmission devices
aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are
using the computer aboard
aircraft.
Use the key combinations to
toggle power to the WLAN/
Bluetooth modules, and
check the LED indicator or
on-screen icon to see if the
modules are powered on or
not (see Table 1 - 5, on
page 1 - 12/ Table 1 - 3, on
page 1 - 9).
6
8
4
5
3
6
Quick Start Guide
System Map: LCD Panel Open - Model B
1 - 8 System Map: LCD Panel Open - Model B
Quick Start Guide
1
LED Indicators
The LED indicators on the computer display helpful
information about the current status of the computer.
Icon Color Description
Orange DC Power is Plugged In
Green The Computer is On
Blinking Green
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange
Green Number Lock Activated
Green Caps Lock Activated
Green
Table 1 - 2 - Front Left LED Indicators
The Computer is in Sleep
Mode
The Battery Has Reached
Critically Low Power Status
Scroll Lock Activated (to
activate press Fn & Scr Lk)
Icon Color Description
Green UMA Mode Activated
Orange Optimus Mode Activated
Green Intel Integrated GPU (iGPU) Activated
Orange NVIDIA Discrete GPU (dGPU) Activated
White
White Hard Disk Activity
White
White Volume Mute is Enabled (see over)
White
White The Computer is Powered On
The (optional) Bluetooth Module is
Powered On
The (optional) Wireless LAN Module is
Powered On (see over)
The (optional) PC Camera is Powered
On (see over)
Table 1 - 3 - Top Case LED Indicators
Some LED indicators also act as hot key buttons (see over)
.
LED Indicators 1 - 9
1
Quick Start Guide
Hot Key Buttons
Press the hot key buttons (these also feature as LED indicators) on the computer to toggle the appropriate function on/off. When the WLAN or PC camera module is powered on the appropriate icon will be highlighted.
Icon Color Description
Green UMA Mode Activated
Orange Optimus Mode Activated
White The (optional) Wireless LAN Module is Powered On
White Volume Mute is Enabled
White The (optional) PC Camera is Powered On
White The Computer is Powered On
1 - 10 Hot Key Buttons
Table 1 - 4 - Hot Key Buttons
Keyboard
Other Keyboards
If your keyboard is damaged or you just want to
make a change, you can
use any standard USB
keyboard. The system will
detect and enable it automatically. However special functions/hot-keys
unique to the system’s
regular keyboard may not
work.
NumLk & ScrLk
Hold down the Fn Key
and either NumLk or
ScrLk to enable number
or scroll lock, and check
the LED indicator for status.
Numerical Keypad
Play/Pause Key
Function Keys
Toggle Key
3.75G/HSPA
Module Power
NumLk &
ScrLk Keys
Fn Key
Special Characters
Some software applications allow the number-keys to be used with Alt to produce special characters.
These special characters can only be produced by using the numeric keypad. Regular number keys (in
the upper row of the keyboard) will not work. Make sure that NumLk is on.
The keyboard has an embedded numerical keypad for easy numeric data input, and
features function keys to allow you to change operational features instantly. See
Table 1 - 5, on page 1 - 12 for full function key combination details.
Figure 1 - 4 - Keyboard
Quick Start Guide
Keyboard 1 - 11
1
1
Quick Start Guide
Function/Hot Key Indicators
The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition
to the basic function key combinations; visual indicators are available when the hot key utility is installed.
Keys Function Keys Function
Fn + ~ Play/Pause (in Audio/Video Programs) Fn + F5/F6
Fn +
Fn + F1
Fn + F2
Fn + F3
Fn + F4 Sleep Toggle Fn + F12
3.75G Module Power Toggle*
Touchpad T oggle
(Press a key to or use Touchpad to turn on)
Turn LCD Backlight Off
Mute Toggle
Fn + F7 Display Toggle
Fn + F8/F9
Fn + F10
Fn + F11
Volume Decrease/Increase
Brightness Decrease/Increase
PC Camera Power Toggle
*WLAN Module Power Toggle
Bluetooth Module Power Toggle
Table 1 - 5 - Function & Hot Key Indicators
*Make sure that Wireless is ON in the Windows Mobility Center to ensure proper wireless function key behavior (see “Wireless Hot
Keys” on page 3 - 12).
1 - 12 Function/Hot Key Indicators
System Map: Front & Left Views
Figure 1 - 5
Front & Left Views
1. LED Indicators (see
Table 1 - 2, on
page 1 - 9)
2. External Monitor
Port
3. RJ-45 LAN Jack
4. HDMI-Out Port
5. 2 * USB 2.0 Ports
6. e-SATA Port
7. Vent/Fan Intake
8. 1 * USB 3.0 Port or
USB 2.0 Port
(Factory Option)
9. 3-in-1 Card Reader
2
7
4
1
6
3
3-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC / SDXC Compatible
MS (Memory Stick) / MS Pro / MS Duo
USB 3.0 Port OR USB 2.0 Port
Some models in this series have a single USB 3.0 port (Factory Option) on the le ft side
of the computer, other models will have a USB 2.0 port. The USB 3.0 port is denoted by
its blue color; USB 2.0 ports are colored black.
Note that the USB 3.0 port requires a driver installation (see “USB 3.0” on page 4 - 7) and
does not support wake on USB.
9
5 5
8
Quick Start Guide
1
System Map: Front & Left Views 1 - 13
1
Figure 1 - 6
Right & Rear Views
1. Headphone-Out
Jack
2. Microphone-In
Jack
3. S/PDIF-Out Jack
4. USB 2.0 Port
5. RJ-11 Modem
Jack (
Optional for
Model A Only
)
6. Optical Device
Drive Bay
7. Security Lock Slot
8. Battery
9. DC-In Jack
15263 4
1 263 4
Model A
Model B
7
8
9
Quick Start Guide
System Map: Right & Rear Views
1 - 14 System Map: Right & Rear Views
Disk Eject Warning
Don’t try to eject a CD/DVD while the system is accessing it. This may cause the system to “crash”. Stop
the disk first then eject it, or press the stop button
twice.
CD/DVD Emergency Eject
If you need to manually eject a CD/DVD (e.g. due to
an unexpected power interruption) you may push the
end of a straightened paper clip into the emergency
eject hole. Do not use a sharpened pencil or any object that may break and become lodged in the hole.
Don’t try to remove a floppy disk/CD/DVD while the
system is accessing it. This may cause the system to
“crash”.
Changing DVD Regional Codes
Go to the Control Panel and double-click Device
Manager (Hardware and Sound), then click th e +
next to DVD/CD-ROM drives. Double-click on the
DVD-ROM device to bring up the Properties dialog
box, and select the DVD Region (tab) to bring up the
control panel to allow you to adjust the regional code
(see “DVD Regional Codes” on page 2 - 5).
DVD region detection is device dependent, not OSdependent. You can select your module’s region
code 5 times. The fifth selection is pe rmanent. This
cannot be altered even if you change your operating
system or you use the module in another computer.
Quick Start Guide
1
System Map: Right & Rear Views 1 - 15
1
Figure 1 - 7
Bottom View
Model
1. Battery
2. Component Bay
Cover
3. Fan Intake
4. Hard Disk Bay
Cover
5. Speakers
2
3
1
4
3
Battery Information
Always completely discharge, then fully charge,
a new battery before using
it. Completely discharge
and charge the battery at
least once every 30 days
or after about 20 partial
discharges. See “Battery
Information” on page 3 11 for full instructions.
CPU
The CPU is not a user serviceable part.
Overheating
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake
while the computer is in use.
3
55
3
3
Quick Start Guide
System Map: Bottom View - Model A
1 - 16 System Map: Bottom View - Model A
System Map: Bottom View - Model B
Figure 1 - 8
Bottom View
Model B
1. Battery
2. Component Bay
Cover
3. Fan Intake
4. Hard Disk Bay
Cover
5. Speakers
2
1
4
3
CPU
The CPU is not a user serviceable part.
Overheating
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake
while the computer is in use.
3
5
5
3
3
Battery Information
Always completely discharge, then fully charge,
a new battery before using
it. Completely discharge
and charge the battery at
least once every 30 days
or after about 20 partial
discharges. See “Battery
Information” on page 3 11 for full instructions.
Quick Start Guide
1
System Map: Bottom View - Model B 1 - 17
1
USIM Card
Orientation
Note that the USIM
card’s readable side
(with the gold-colored
contacts) should face
upwards as illustrated.
Quick Start Guide
3.75G/HSPA Module USIM Card Installation
If you have included an optional 3.75G/HSPA module in your purchase option (Factory Option for Model A
Computers Only), follow the instructions below to install the USIM card (which will be provided by your ser-
vice provider), and then run the Mobile Partner application. See “Mobile Partner” on page 7 - 24 for instruc-
tions on installing the program etc.
1. Turn off the computer, and turn it over and then remove the battery (slide the latches in the direction indicated
below and slide the battery out).
2. Insert the USIM card (at the rea r of the batter y comp artment ) as ill ustrated below until it clicks fully into position,
and replace the battery.
Figure 1 - 9 - Battery Removal & USIM Card Insertion
1 - 18 3.75G/HSPA Module USIM Card Installation
Quick Start Guide
Figure 1 - 10 - Start Menu & Control Panel
Click here to toggle Category View
Windows 7 Start Menu & Control Panel
Most of the control panels, utilities and programs within Windows 7 (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk
drive, and a shortcut will usually be placed in the Start menu and/or the desktop. Right-click the Start menu
icon , and then select Properties if you want to customize the appearance of the Start menu.
In many instances throughout this manual you will see an instruction to open the Control Panel. The Control
Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features
in Windows (e.g. power, video, network, audio etc.). Windows 7 provides basic controls for many of the features,
however many new controls are added (or existing ones are enhanced) when you install the drivers. To see all
controls it may be necessary to toggle off Category View to view the control panel icons.
3.75G/HSPA Module USIM Card Installation 1 - 19
1
1
Quick Start Guide
Video Features
NVIDIA® Optimus™ Technology
NVIDIA® Optimus™ technology is a seamless technology designed to get best performance from the graphics
system while allowing longer battery life, without having to manually change settings. When the computer is in
Optimus Mode it will automatically switch between the integrated UMA (Unified Memory Architecture) GPU
(iGPU) and the discrete GPU (dGPU) when required by the applications in use. This switch is seemless to the
user and does not require any use of the GPU button (see “NVIDIA® Optimus™ Technology” on page B - 2).
The GPU button allows you to switch between the Optimus Mode (where GPU switching is automatically
handled) and UMA Mode (for constant power-saving with the integrated GPU only).
Icon Color Description Note
Green UMA Mode Activated
Orange Optimus Mode Activated
Green Integrated GPU (iGPU) Activated
Orange Discrete GPU (dGPU) Activated
Table 1 - 6 - GPU Modes & GPU LED Indicators
The GPU LED indicators will
display which GPU is currently in use.
You can switch display devices, and configure display options, from the Display control panel (in Appearances
and Personalization) in Windows 7 (see over). For more detailed video information see “Video Driver Con-
trols” on page B - 1.
1 - 20 Video Features
To access Display (Control Panel) and Screen Resolution in Windows:
1
2
1
2
1. Click Start and click Control Panel.
2. Click Display (icon) - In the Appearances and Personalization category.
3. Click Adjust Screen Resolution/Adjus t resolution.
4. Alternatively you can right-click the desktop and select Screen resolution.
5. Use the dropbox to select the screen Resolution (Figure 1 - 11).
6. Click Advanced settings (Figure 1 - 11) to bring up the Advanced properties tabs.
Quick Start Guide
1
Figure 1 - 11 - Screen Resolution
Video Features 1 - 21
1
234
3
4
Quick Start Guide
To access the Intel(R) Graphics and Media Control Panel:
1. Click Advanced settings (Figure 1 - 11 on page 1 - 21) in the Display Settings control panel in Windows.
2. Click Graphics Properties (button) (Figure 1 - 12) in the Intel Graphics & Media Control Panel tab.
OR
3. Right-click the desktop and select Graphics Properties from the menu.
OR
4. Click the icon (Figure 1 - 12) in the taskbar and select Graphics Properties from the menu.
OR
5. Access the Intel(R) Graphics and Media Control Panel from the Windows control panel in Classic View.
Figure 1 - 12 - Intel Graphics and Media Control Panel
1 - 22 Video Features
Quick Start Guide
5
6
5
6
To access the NVIDIA Control Panel:
1. Right-click the desktop and select NVIDIA Control Panel (Figure 1 - 13).
OR
2. Click the icon (Figure 1 - 13) in the taskbar and select Open the NVIDIA Control Panel from the menu.
1
Figure 1 - 13 - NVIDIA Control Panel
Video Features 1 - 23
1
Quick Start Guide
Power Options
The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 1 - 17 ) allows you
to configure power management features for your computer. You can conserve power by means of power plans
and configure the options for the power button, sleep button, computer lid (when closed), display and sleep
mode from the left menu. Note that the Power saver plan may have an affect on computer performance.
Click to select one of the existing plans, or click Create a power plan in the left menu and select the options to
create a new plan. Click Change plan settings and click Change advanced power settings to access further configuration options.
Pay attention to the instructions on battery care in “Battery Information” on page 3 - 11.
1 - 24 Power Options
Figure 1 - 14 - Power Options
Quick Start Guide
MOFA LCD Back Covers - Model A
MOFA (Magic of Film Art) technology allows fashionable and unique pictorial designs to be printed on the specially designed changeable LCD back covers. If your purchase option includes the specially designed changeable LCD back cover option (Model A Computers Only), then follow the instructions in “Changing the
Optional LCD Back Covers” on page 6 - 12 to change the covers (note these covers are not applicable to all
models in this series - consult your service center for details).
1
Figure 1 - 15 - Magic Of Film Art Optional LCD Back Covers
MOFA LCD Back Covers - Model A 1 - 25
1
Quick Start Guide
1 - 26
Features & Components
Chapter 2: Features & Components
Overview
Read this chapter to learn more about the following main features and components
of the computer:
•Hard Disk Drive
• Optical (CD/DVD) Device
• 3-in-1 Card Reader
• Touchpad and Buttons/Mouse
• Audio Features
• Optimizing Audio Recording
2
Overview 2 - 1
Features & Components
Power Safety
Before attempting to access any of the internal
components of your
computer please ensure
that the machine is not
connected to the AC
power, and that the machine is turned off. Also
ensure that all peripheral cables, including
phone lines, are disconnected from the computer.
Figure 2 - 1
Hard Disk Location
HDD Bay HDD Bay
Model A
Model B
2
Hard Disk Drive
The hard disk drive is used to store your data in the computer. The hard disk can be
taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height
of 9.5 mm.
The hard disk is accessible from the bottom of your computer as seen below. For further details see “Upgrading the Hard Disk Drive” on page 6 - 4.
2 - 2 Hard Disk Drive
Features & Components
Sound Volume
Adjustment
How high the sound volume can be set depends
on the setting of the volume control within Win-
dows. Click the Volume
icon on the taskbar to
check the setting (see
“Audio Features” on
page 2 - 11).
Figure 2 - 2
Optical Device
123
1
2
3
Optical (CD/DVD) Device
There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual device will depend on the module you purchased (see “Storage” on page C - 3). The
optical device is usually labeled “Drive D:” and may be used as a boot device if
properly set in the BIOS (see “Boot Menu” on page 5 - 13).
Loading Discs
To insert a CD/DVD, press the open button and carefully place a CD/DVD onto
the disc tray with label-side facing up (use just enough force for the disc to click onto
the tray’s spindle). Gently push the CD/DVD tray in until its lock “clicks” and you
are ready to start. The busy indicator will light up while data is being accessed,
or while an audio/video CD, or DVD, is playing. If power is unexpectedly interrupted, insert an object such as a straightened paper clip into the emergency eject hole
to open the tray.
2
Optical (CD/DVD) Device 2 - 3
Features & Components
CD Emergency Eject
If you need to manually
eject a CD (e.g. due to
an unexpected power
interruption) you may
push the end of a
straightened paper clip
into the emergency eject
hole. However please
do NOT use a sharpened pencil or similar
object that may break
and become lodged in
the hole.
Disk Eject Warning
Don’t try to remove a
CD/DVD while the system is accessing it. This
may cause the system
to “crash”.
2
2 - 4 Optical (CD/DVD) Device
Handling CDs or DVDs
Proper handling of your CDs/DVDs will prevent them from being damaged. Please
follow the advice below to make sure that the data stored on your CDs/DVDs can be
accessed.
Note the following:
• Hold the CD or DVD by the edges; do not touch the surface of the disc.
• Use a clean, soft, dry cloth to remove dust or fingerprints.
• Do not write on the surface with a pen.
• Do not attach paper or other materials to the surface of the disc.
• Do not store or place the CD or DVD in high-temperature areas.
• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.
• Do not bend the CD or DVD.
• Do not drop or subject the CD or DVD to shock.
Features & Components
Table 2 - 1
DVD Regional Coding
DVD Regional Codes
To change the DVD regional codes see “Changing DVD Regional Codes” on
page 1 - 15.
.
Region Geographical Location
1 USA, Canada
2
3
4
5
6China
Korea, The Philippines, Indonesia,
South & Central America, Mexico,
N Korea, Russia, Eastern Europe,
2
DVD Regional Coding
Western Europe, Japan, South
Africa, Middle East & Egypt
South-East Asia, Taiwan, South
Hong Kong
Australia, New Zealand
India & Most of Africa
Optical (CD/DVD) Device 2 - 5
Features & Components
Card Reader Cover
Make sure you keep the
rubber cover provided in
the card reader when
not in use. This will help
prevent foreign objects
and/or dust getting in to
the card reader.
Figure 2 - 3
Left View
1. Card Reader
• MMC (MultiMedia Card) / RS MMC
• SD (Secure Digital) / Mini SD / SDHC / SDXC Compatible
• MS (Memory Stick) / MS Pro / MS Duo
1
2
3-in-1 Card Reader
The card reader allows you to use some of the latest digital storage cards. Push the
card into the slot and it will appear as a removable device, and can be accessed in
the same way as your hard disk (s). Make sure you install the Card Reader driver
(see “CardReader” on page 4 - 7.
Note: Some of these cards require PC adapters that are usually supplied with the
cards.
2 - 6 3-in-1 Card Reader
Features & Components
Touchpad Scrolling
This computer model series may feature different
Touchpad versions.
These Touchpads may
differ in their vertical
scrolling function in most
scrollable windows.
Some Touchpads require
sliding the finger up and
down on the right of the
Touchpad to scroll the
window. Other versions
require tapping/holding
down the finger at the top
right or bottom right of the
Touchpad to scroll the
window.
Figure 2 - 4
Mouse Properties
Touchpad and Buttons/Mouse
The Touchpad is an alternative to the mouse; however, you can also add a mouse to
your computer through one of the USB ports. The Touchpad buttons function in
much the same way as a two-button mouse.
Once you have installed the Touchpad driver (see “Touchpad” on page 4 - 7) you
can configure the functions by double-clicking the Touchpad driver icon on the
taskbar. You may then configure the Touchpad tapping, buttons, scrolling (see
sidebar), pointer motion and sensitivity options to your preferences.
2
Touchpad and Buttons/Mouse 2 - 7
Features & Components
Show Video
You can get a clearer
view of the gestures involved by clicking the
Show Video option for
each gesture item.
Select the gesture (Pinch
Zoom, Rotating, Three
Fingers Down and
Three Finger Flick) in the
Device Settings > Settings left tree menu
and click the Show Video
button to see the demonstration video.
For more details on any of
the gestures see the help
in the lower part of the
right menu window.
Figure 2 - 5
Mouse Properties -
Device Settings
2
Gestures and Device Settings
The Synaptics Gestures Suite application allows you to use a specific gesture (action) on the surface of the Touchpad to perform specific actions to manipulate documents, objects and applications.
You can configure the settings from the Device Settings tab in Mouse Properties:
1. Click
2. Click Mouse (Hardware and Sound).
3. Click Device Settings (tab) and click Settings.
4. Use the menu tree on the lef t to access the user configurable settings.
Start
, and click
Control Panel
(or point to
Settings
and click
Control Panel
).
2 - 8 Touchpad and Buttons/Mouse
Scrolling
Figure 2 - 6
Scrolling Gesture
Mouse Driver
If you are using an external mouse your operating system may be
able to auto-configure
your mouse during its
installation or only enable its basic functions.
Be sure to check the
device’s user documentation for details.
Figure 2 - 7
Zooming Gesture
The Two-Finger scrolling feature works in most scrollable windows and allows you
to scroll horizontally and vertically. Place two fingers, slightly separated, on the
Touchpad surface and slide both fingers in the direction required (in a straight continuous motion).
Zooming
The Pinch Zoom gesture can be used to perform the same function as a scroll wheel
in Windows applications that support CTRL + scroll wheel zoom functionality.
Place two fingers on the Touchpad (for best results use the tips of the fingers) and
slide them apart to zoom in, or closer together to zoom out.
Features & Components
2
Touchpad and Buttons/Mouse 2 - 9
Features & Components
Figure 2 - 8
Rotating Gesture
Figure 2 - 9
Flick/Press
Gesture
2
Rotating
Use the Pivot Rotate gesture to rotate objects (e.g. photos) in 90 degree increments.
Place a finger down on the left “target” zone and keep it stationary. Place another
finger near the middle of the Touchpad and slide it in a circular motion around the
stationary finger (clockwise or counterclockwise) to rotate the object.
Three Finger-Flick/Three Fingers Down (Press)
The Three Finger-Flick gesture may be used to enhance navigation with a variety of
applications such as browsing the Internet or scrolling through a photo viewer. The
Three Fingers Down gesture may be used to launch user-selectable applications.
2 - 10 Touchpad and Buttons/Mouse
Features & Components
Sound Volume
Adjustment
The sound volume level
is set using the volume
control within Windows
(and the volume function keys on the computer). Click the volume
icon in the taskbar to
check the setting.
Figure 2 - 10
Realtek Audio
Manager
Right-click the icon
to access the menu
above.
Audio Features
You can configure the audio options on your computer from the Sound control
panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/
control panel (right-click the taskbar icon to bring up an audio menu). The volume
may also be adjusted by means of the Fn + F5/F6 key combination.
2
Audio Features 2 - 11
Features & Components
Figure 2 - 11
Optimizing Audio
Recording
2
Optimizing Audio Recording
Follow these instructions to optimize your audio recording.
1. Double-click the taskbar icon to bring up the Realtek HD Audio Manager.
2. Click the Microphone tab.
3. Click the Noise Suppression button to prevent any background noise or
feedback.
4. Click OK to close the Realtek HD Audio Manager.
2 - 12 Audio Features
Features & Components
Parallel Printer
After setting up the printer attach the parallel cable to the printer.
Connect the printer’s
parallel cable to the Parallel to USB converter,
and then plug the converter into the USB port.
Turn ON the printer,
then turn ON the computer.
Windows will identify the
printer and either load
one of its own drivers or
ask you to supply one.
Follow the on-screen instructions.
Adding a Printer
The most commonly used peripheral is a printer. The following conventions will
help you to add a printer; however it is always best to refer to the printer manual for
specific instructions and configuration options.
USB Printer
Most current printers have a USB interface connection. You may use any one of the
ports to connect the printer.
Install Instructions:
1. Set up the printer according to its instructions (unp acking, p aper tr ay, toner/ink cartridge etc.).
2. Turn ON the computer.
3. Turn ON the printer.
4. Connect the printer’s USB cable to one of the USB ports on the computer.
5. Windows will identify the printer and either load one of its own drivers or ask you
to supply one. Follow the on-screen instructions.
Parallel Printer
This is still a very common type of printer. The install instructions are in the sidebar,
however you will need to purchase a parallel to USB converter.
2
Adding a Printer 2 - 13
Features & Components
2
2-14
Chapter 3: Power Management
OS Note
Power management
functions will vary slightly depending on your
operating system. For
more information it is
best to refer to the user’s
manual of your operating system.
(Note: All pictures used
on the following pages
are from the Windows 7
OS.)
Power Management
Overview
To conserve power, especially when using the battery, your computer power management conserves power by controlling individual components of the computer
(the LCD and hard disk drive) or the whole system. This chapter covers:
• The Power Sources
• Turning On the Computer
• Power Plans
• Power-Saving States
• Configuring the Power Buttons
• Energy Star Power Saving
• Battery Information
The computer uses enhanced power saving techniques to give the operating system
(OS) direct control over the power and thermal states of devices and processors. For
example, this enables the OS to set devices into low-power states based on user settings and information from applications.
3
Overview 3 - 1
Power Management
The Power Sources
The computer can be powered by either an AC/DC adapter or a battery pack.
3
AC/DC Adapter
Use only the AC/DC adapter that comes with your computer. The wrong type of AC/
DC adapter will damage the computer and its components.
1. Attach th e AC/DC adapter to the DC-in jack at the rear of the computer.
2. Plug the AC power cord into an outlet, and then conne ct the AC power co rd to the
AC/DC adapter.
3. Raise the lid/LCD to a comfortable viewing angle.
4. Press the power button to turn “On”.
Battery
The battery allows you to use your computer while you are on the road or when an
electrical outlet is unavailable. Battery life varies depending on the applications and
the configuration you're using. To increase battery life, let the battery discharge
completely before recharging (see “How do I completely discharge the battery?”
on page 3 - 15).
We recommend that you do not remove the battery. For more information on the battery, please refer to “Battery Information” on page 3 - 11.
3 - 2 The Power Sources
Turning On the Computer
Forced Off
If the system “hangs”,
and the Ctrl + Alt + Del
key combination doesn’t
work, press the power
button for 4 seconds, or
longer, to force the system to turn itself off.
Power Button as
Stand by or
Hibernate Button
You can use the OS’s
Power Options control
panel to set the power
button to send the system into Stand by or Hibernate mode (see your
OS’s documentation, or
“Configuring the Power Buttons” on page 3
- 8 for details).
Shut Down
Note that you should always shut your computer down by choosing the Shut Down command from the bottom right of the Start menu in Windows. This will help prevent hard disk
or system problems.
Now you are ready to begin using your computer. To turn it on simply press the power button on the front panel.
When the computer is on, you can use the power button as a Stand by/Hibernate/
Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and
holding the power button for longer than this will shut the computer down). Use
Power Options in the Windows control panel to configure this feature.
Power Management
3
Turning On the Computer 3 - 3
Power Management
Resuming
Operation
See Table 3 - 1, on
page 3 - 9 for informa-
tion on how to resume
from a power-saving
state.
Password
It is recommended that
you enable a password
on system resume in order to protect your data.
Figure 3 - 1
Power Plan
Advanced Settings
(Win 7)
Power Plans
The computer can be configured to conserve power by means of power plans. You
3
can use (or modify) an existing power plan, or create a new one.
3 - 4 Power Plans
The settings may be adjusted to set the display to turn off after a specified time, and
to send the computer into Sleep after a period of inactivity.
Click Change plan settings and then click Change advanced power settings to access further configuration options in Advanced Settings.
Each Windows power plan will also adjust the processor performance of your ma-
Figure 3 - 2
Power Plans (Win 7)
Click to Show/Hide
additional
power plans
chine in order to save power. This is worth bearing in mind if you are experiencing
any reduced performance (especially under DC/battery power).
Choose High performance (you may need to click Show additional plans to view
the High performance plan) for maximum performance when the computer is powered from an AC power source. Choose the Power saver (bear in mind that this
scheme may slow down the overall performance of the computer in order to save
power) for maximum power saving when the computer is battery (DC power) powered.
Power Management
3
Power Plans3-5
Power Management
Power-Saving States
You can use power-saving states to stop the computer’s operation and restart where
3
you left off. Win 7 uses the Sleep, Hibernate and Shut Down power-saving states.
Sleep
In Sleep all of your work, settings and preferences are saved to memory before the
system sleeps. When you are not using your computer for a certain length of time,
which you specify in the operating system, it will enter Sleep to save power.
The PC wakes from Sleep within seconds and will return you to where you last left
off (what was on your desktop) without reopening the application(s) and file(s) you
last used.
If your mobile PC in Sleep is running on battery power the system will use only a
minimum amount of power. After an extended period the system will save all the
information to the hard disk and shut the computer down before the battery becomes
depleted.
3 - 6 Power-Saving States
Hibernate
Figure 3 - 3
Start Menu Power
Hibernate uses the least amount of power of all the power-saving states and saves
all of your information on a part of the hard disk before it turns the system off. If a
power failure occurs the system can restore your work from the hard disk; if a power
failure occurs when work is saved only to memory, then the work will be lost. Hi-
bernate will also return you to where you last left off within seconds. You should
put your mobile PC into Hibernate if you will not use the computer for a period of
time, and will not have the chance to charge the battery.
Shut down
You should Shut down the computer if you plan to install new hardware (don’t forget to remove the battery and follow all the safety instructions in Chapter 6), plan
to be away from the computer for several days, or you do not need it to wake up and
run a scheduled task. Returning to full operation from Shut down takes longer than
from Sleep or Hibernate.
Power Management
3
Power-Saving States 3 - 7
Power Management
Password
Protection
It is recommended that
you enable a password
on wake up in order to
protect your data.
However you can disable this setting from the
Power Options menu
by clicking Require a
password on wakeup
in the left menu, and selecting the options (click
Change settings that
are currently unavailable).
Figure 3 - 4
Power Options
Define Power
Buttons
3
Configuring the Power Buttons
The power/sleep button (Fn + F4 key combo) and closed lid may be set to send the
computer in to a power-saving state. Click Choose what the power buttons do on
the left menu in Power Options to bring up the menu.
3 - 8 Configuring the Power Buttons
Resuming Operation
Closing the Lid
If you have chosen to
send the computer to
Sleep when the lid is
closed, raising the lid
will wake the system up.
Table 3 - 1
Resuming
Operation
3.75G/HSPA
Modules & System
Wake Up
Note that the 3.75G modules
DO NOT
support
system wake up on
3.75G/HSPA modem activity.
Power Button
When the computer is on, you can use the power button as a Sleep/Hibernate/Shut Down
hot key button when it is pressed for less than 4 seconds (pressing and holding the power
button for longer than this will force the computer to shut down).
You can resume operation from power-saving states by pressing the power button,
or in some cases pressing the sleep button (Fn + F4 key combo).
Power Status
Power Off Off Press the Power Button
Sleep Blinking Green
Hibernate
Display Turned Off Green Press a Key or Move the Mouse/Touchpad
Icon Color
Press the Sleep Button (Fn + F4 Key Combo)
Off (battery)
Orange (AC/DC adapter)
To Resume
Press the Power Button
Press the Power Button
Configuring the Power Buttons 3 - 9
Power Management
3
Power Management
Taskbar Icon
If the taskbar icon does
not appear then click the
taskbar arrow and select
Customize.
Select Show icon and
notifications alongside
the Hot key icon and
click OK. The icon
will now appear in the
taskbar.
Figure 3 - 5
Energy Star Menu
Conservation Modes
The default Energy Star setting
will result in maximum power saving, but with the possible loss of
some performance.
Setting the mode to Balance will
give power saving matched with
performance.
Performance will give optimum
computer performance but with
less power conservation.
3
Energy Star Power Saving
This system supports Energy Star power management features that place computers (CPU, hard drive, etc.) into a low-power sleep modes after a designated period
of inactivity. If you want to enable Energy Star power saving then follow these instructions:
1. Right-click the taskbar icon (see sidebar).
2. Select Power Conservation Modes.
3. Select Energy St ar to use the Energy Star power management and ove rride other
power saving settings.
3 - 10 Energy Star Power Saving
Battery Information
Low Battery
Warning
When the battery is critically low, immediately
connect the AC/DC
adapter to the computer
or save your work, otherwise, the unsaved
data will be lost when
the power is depleted.
Figure 3 - 6
Battery Icon
(Taskbar) & Battery
Advanced Settings
Follow these simple guidelines to get the best use out of your battery.
Battery Power
Your computer’s battery power is dependent upon many factors, including the programs you are running, and peripheral devices attached. You can set actions to be
taken (e.g. Shut down, Hibernate etc.), and set critical and low battery levels from
power plan Change plan settings > Change advanced power settings (see Figure
3 - 1 on page 3 - 4).
Click the battery icon in the taskbar to see the current battery level and charge
status.
Power Management
3
Battery Information 3 - 11
Power Management
Wireless Hot Keys
The computer’s wireless
function keys will not function properly if Wireless is
turned OFF in the Win-
dows Mobility Center
control panel.
The wireless indicators
may show that
the WLAN module is powered on, however if wireless is OFF in the Mobility
Center, the module will not
be powered on.
Make sure that Wireless is
ON in the Mobility Center to
ensure proper function key
behavior.
Figure 3 - 7
Windows Mobility
Center
Windows Mobility
Center
The Windows Mobility Center control pan-
el provides an easy
point of access for information on battery
status, power plans
used and wireless device status etc.
Make sure Wireless is ON to ensure proper function key behavior.
3
Conserving Battery Power
•Use a power plan that conserves power (e.g Power saver), however note that
this may have an affect on computer performance.
• Lower the brightness level of the LCD display. The system will decrease LCD
brightness slightly to save power when it is not powered by the AC/DC adapter.
• Reduce the amount of time before the display is turned off.
• Close wireless, Bluetooth, modem or co mmunication applications when they are
not being used.
• Disconnect/remove any unnecessary external devices e.g. USB devices,
ExpressCards etc.
3 - 12 Battery Information
Battery Life
Battery life may be shortened through improper maintenance. To optimize the life
and improve its performance, fully discharge and recharge the battery at least
once every 30 days.
We recommend that you do not remove the battery yourself. If you do need to remove the battery for any reason (e.g. long term storage) see “Removing the Battery”
on page 6 - 3.
New Battery
Always completely discharge, then fully charge, a new battery (see “Battery FAQ”
on page 3 - 15 for instructions on how to do this).
Recharging the Battery with the AC/DC Adapter
The battery pack automatically recharges when the AC/DC adapter is attached and
plugged into an electrical outlet. If the computer is powered on, and in use, it will
take several hours to fully recharge the battery. When the computer is turned off but
plugged into an electrical outlet, battery charge time is less. (Refer to “LED Indica-
tors” on page 1 - 9 for information on the battery charge status, and to “Battery Information” on page 3 - 11 for more information on how to maintain and properly
recharge the battery pack.)
Power Management
3
Battery Information 3 - 13
Power Management
Caution
Danger of explosion if
battery is incorrectly replaced.
Replace only with the
same or equivalent type
recommended by the
manufacturer. Discard
used battery according
to the manufacturer’s instructions.
Damaged Battery Warning
Should you notice any physical defects (e.g. the battery is bent ou t of shape after being
dropped), or any unusual smells emanating from the notebook battery, shut your computer
down immediately and contact your service center. If the battery has bee n d roppe d we do
not recommend using it any further, as even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire . It is
recommended that you replace your computer battery every two years.
Proper handling of the Battery Pack
• DO NOT disassemble the battery pack under any circumstances
• DO NOT expose the battery to fire or high temperatures, it may explode
3
• DO NOT connect the metal terminals (+, -) to each other
3 - 14 Battery Information
Battery FAQ
Figure 3 - 8
Power Plan Create
How do I completely discharge the battery?
Use the computer with battery power until it shuts down due to a low battery. Don’t
turn off the computer even if a message indicates the battery is critically low, just let
the computer use up all of the battery power and shut down on its own.
1. Save and close all files and applications.
2. Create a power plan for discharging the battery and set all the options to Never.
Power Management
3
Battery Information 3 - 15
Power Management
Figure 3 - 9
Change Plan
Settings / Change
Advanced Power
Settings
3
3. Click Change plan settings (after creating it) and click Change plan settings >
Change advanced power settings.
3 - 16 Battery Information
4. Scroll down to Battery and click + to expand the ba ttery options.
Figure 3 - 10
Power Options
Advanced Settings -
Battery
5. Choose the options below (click Yes if a warning appears):
• Low battery levels = 0%
• Critical battery Levels = 0%
• Low battery action = Do Nothing
• Critical battery action (On battery) = Shut Down
• Critical battery action (Plugged in) = Do Nothing
Power Management
3
Battery Information 3 - 17
Power Management
How do I fully charge the battery?
When charging the battery, don’t stop until the LED charging indicator light changes
from orange to green.
3
How do I maintain the battery?
Completely discharge and charge the battery at least once every 30 days or after
about 20 partial discharges.
3 - 18 Battery Information
Drivers & Utilities
Chapter 4: Drivers & Utilities
This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of
the computer’s subsystems. The system takes advantage of some newer hardware components for which the latest versions of most available operating systems haven’t built in drivers and utilities. Thus, some of the system
components won’t be auto-configured with an appropriate driver or utility during operating system installation.
Instead, you need to manually install some system-required drivers and utilities.
What to Install
The Device Driv ers & Utilities + User’s Manual disc contains the drivers and utilities necessary for the proper
operation of the computer. Table 4 - 1, on page 4 - 3 lists what you need to install and it is very important that
the drivers are installed in the order indicated.
Module Driver Installation
The procedures for installing drivers for the PC Camera, Wireless LAN, 3.75G/HSPA and Fingerprint modules are provided in “Modules & Options” on page 7 - 1.
4
What to Install 4 - 1
Drivers & Utilities
Windows 7 Driver Installation
Insert the Device Drivers & Utilities + User’s Manual disc and click Install Drivers/Option Drivers (butto n).
4
Figure 4 - 1 - Drivers Installer Screen 1
1. Check the driver installation order from Table 4 - 1, on page 4 - 3 (the drivers must be installed in this order)
which is the same as that listed in the Drivers Installer menu below.
2. Click to select the driver you wish to install, (you should note down the drivers as you install them).
3. Follow the instructions for each individual driver installation procedure as listed on the following pages.
4 - 2 Windows 7 Driver Installation
Drivers & Utilities
Driver Win 7
Chipset Page 4 - 6
Video (VGA) Page 4 - 6
Figure 4 - 2 - Drivers Installer Screen 2
NVIDIA Video (VGA) Page 4 - 6
MEI Driver Page 4 - 6
Modem Page 4 - 6
LAN Page 4 - 6
CardReader Page 4 - 7
Touchpad Page 4 - 7
Hot Key Page 4 - 7
USB 3.0 Page 4 - 7
Audio Page 4 - 7
PC Camera Module Page 7 - 8
Wireless LAN Module
3.75G/HSPA Module
Fingerprint Reader Module
Page 7 - 16
Page 7 - 21
Page 7 - 30
Table 4 - 1 - Driver Installation
Windows 7 Driver Installation 4 - 3
4
Drivers & Utilities
Manual Driver Installation
Click Bro wse CD/DVD (button) in the Drivers Installer application and browse to the executable file in the
appropriate driver folder.
4
Windows Update
After installing all the drivers make sure you enable
Windows Update in order to get all the latest securi ty
updates etc. (all updates will include the latest hotfixes
from Microsoft). See “Windows Update” on page 4 -
8 for instructions.
Updating/Reinstalling Individual Drivers
If you wish to update/reinstall individual drivers it
may be necessary to uninstall the original driver.To do
this go to the Control Panel in the Windows OS and
double-click the Programs and Features icon (Pro-
grams > Uninstall a program). Click to select the
driver (if it is not listed see below) and click Uninstall,
and then follow the on screen prompts (it may be necessary to restart the computer). Reinstall the driver as
outlined in this chapter.
If the driver is not listed in the Programs and Fea-
tures menu:
1. Click Start, and click Control Panel (or point to
Settings and click Control Panel).
2. Double-click Device Manager (Hardware and
Sound > Device Manager).
3. Double-click the device you wish to update/reinstall
the driver for (you may need to click “+” to expand
the selection).
4. Click Driver (tab) and click the Update Driver or
Uninstall button and follow the on screen prompts.
4 - 4 Windows 7 Driver Installation
Drivers & Utilities
Driver Installation General Guidelines
The driver installation procedure outlined in this Chapter
(and in Chapter 7 Options & Modules), are accurate at
the time of going to press.
Drivers are always subject to upgrade and revision so
the exact procedure for certain drivers may differ slightly. As a general guide follow the default on screen instructions for each driver (e.g. Next > Next > Finish)
unless you are an advanced user. In many cases a restart is required to install the driver.
Make sure any modules (e.g. PC Camera, WLAN or
3.75G/HSPA) are ON before installing the appropriate
driver.
User Account Control
If a User Account Control prompt appears as part of
the driver installation procedure, click Continue or
Allow, and follow the installation procedure as directed.
Windows Security Message
If you receive a Windows security message as part of
the driver installation process. Just click “Install this
driver software anyway” or “Install” to continue the
installation procedure.
You will receive this message in cases where the driver has been released after the version of Windows you
are currently using. All the drivers provided will have
already received certification for Windows.
New Hardware Found
If you see the message “New Hardware Found” during the installation procedure (other than when out-
lined in the driver install procedure), click Cancel
to close the window, and follow the installation procedure.
4
Windows 7 Driver Installation 4 - 5
Drivers & Utilities
Modem Country Selection
Go to the Phone and Modem (Options) control panel (Hard-
ware and Sound) and make sure the modem country selection
is appropriate for you.
Driver Installation Procedure
Insert the Device Drivers & Utilities + User’s Manual
disc and click Install Drivers (button).
Chipset
4
1. Click 1.Install Chipset Driver > Yes.
2. Click Next > Yes > Next > Next.
3. Click Finish to restart the computer .
Video (VGA)
1. Click 2.Install VGA Driver > Yes.
2. Click Next > Yes > Next > Next.
3. Click Finish to restart the computer.
NVIDIA Video (VGA)
1. Click 3.Install nVIDIA VGA Driver > Yes.
2. Click Next > Next.
3. Click Finish to restart the computer.
Note: After installing the video driver go to the Display/Display Settings control panel to adjust the vid-
eo settings to the highest resolution.
4 - 6 Windows 7 Driver Installation
MEI Driver
1. Click 4.Install MEI Driver > Yes.
2. Click Next > Yes > Next > Next.
3. Click Finish.
Modem
1. Click 5.Install Modem Driver > Yes.
2. Click OK.
3. Click OK to restart the computer.
4. The modem is ready for dial-up configuration.
LAN
1. Click 6.Install LAN Driver > Yes.
2. Click Install.
3. Click Finish.
Drivers & Utilities
CardReader
1. Click 7.Install Cardreader Driver > Yes.
2. Click Install.
3. Click Finish.
Touchpad
1. Click 8.Install Touchpad Driver > Yes.
2. Click Next.
3. Click the button to accept the license agreement
and click Next.
4. Click Finish > Restart Now to restart the com-
puter.
Hot Key
1. Click 9.Install Hotkey AP > Yes.
2. Click Next > Next.
3. Click Finish > Finish to restart the computer.
USB 3.0
1. Click 10.Install USB 3.0 Driver > Yes.
2. Click Next.
3. Click the button to accept the license agreement
and click Next.
4. Click Next > Install.
5. Click Finish.
Audio
1. Click 11.Install Audio Driver > Yes.
2. Click Next.
3. Click Finish to restart the computer.
Note that after installing the audio driver the system
will not return to the Drivers Installer screen. To in-
stall any of the optional drivers listed overleaf, eject
the Device Drivers & Utilities + User’s Manual disc
and then reinsert it (or double-click the disc icon in My
Computer), and click Option Drivers (button) to ac-
cess the optional driver menu.
4
Windows 7 Driver Installation 4 - 7
Drivers & Utilities
Windows Update
After installing all the drivers make sure you enable Windows Update in order to get all the latest security up-
dates etc. (all updates will include the latest hotfixes
from Microsoft).
To enable Windows Update make sure you are con-
nected to the internet:
1. Click Start, and click Control Panel (or point to
Settings and click Control Panel).
2. Click Windows Update (System and Security/
Security).
3. Click Check for updates (button).
4. The computer will now check for updates (you
need to be connected to the internet).
5. Click Install now (button) to begin checking for the
updates.
6. Click Install updates (button) to install the
updates.
4
Windows Experience Index
After the drivers are installed follow this procedure to
ensure an accurate rating from the Windows Experi-
ence Index (make sure the AC/DC adapter is plugged
in):
1. Click Start, and click Control Panel.
2. Click Performance Information and Tools
(System and Security > System > Check the
Windows Experience Index).
3. Click “Rate this computer/Refresh Now/Re-
run the assessment”.
4. The computer will take a few minutes to assess
the system performance.
5. Close the control panel.
4 - 8 Windows 7 Driver Installation
Drivers & Utilities
Optional Drivers
See the pages indicated for the driver installation procedures for any modules included in your purchase option.
Figure 4 - 3 - Drivers Installer - Option Drivers Menu
Bluetooth Module
Note: The operating system is the default setting for
Bluetooth control in Windows 7 and does not require
a driver. See “Bluetooth Module” on page 7 - 2 for
configuration instructions.
4
PC Camera Module
See the introduction in “PC Camera Module” on
page 7 - 7, and check the installation procedure.
Wireless LAN Module
See the introduction in “Wireless LAN Module” on
page 7 - 15, and check the installation procedure.
3.75G/HSPA Module
See the introduction in “3.75G/HSPA Module” on
page 7 - 21, and check the installation procedure.
Fingerprint Module
See “Fingerprint Reader Module” on page 7 - 30 for
configuration instructions.
Windows 7 Driver Installation 4 - 9
Drivers & Utilities
4
4-10
Chapter 5: BIOS Utilities
BIOS Screens
Note that the BIOS
screens pictured on
these pages are intended for guidance in setting up your system’s
BIOS.
BIOS versions are subject to constant change
and revision, therefore
your computer’s actual
screens may appear
slightly different from
those pictured on these
pages.
Overview
This chapter gives a brief introduction to the computer’s built-in software:
Diagnostics: The POST (Power-On Self Test)
Configuration: The Setup utility
If your computer has never been set up, or you are making impo rtant changes to the
system (e.g. hard disk setup), then you should review this chapter first and note the
original settings found in Setup. Even if you are a beginner, keep a record of the settings you find and any changes you make. This information could be useful if your
system ever needs servicing.
There is one general rule: Don’t make any changes unless you are sure of what you
are doing. Many of the settings are required by the system, and changing them could
cause it to become unstable or worse. If you have any doubts, consult your service
representative.
BIOS Utilities
5
Overview 5 - 1
BIOS Utilities
POST Screen
1.BIOS information
2.CPU type
3.Memory status
4.Enter Setup prompt
appears only during
POST
Note:
The
POST
screen
as pictured right is for
guideline purposes only.
The
POST
screen on
your computer may appear slightly different. If
you disable the
Boot-
time Diagnostic Screen
,
the POST screen will not
appear.
Figure 5 - 1
POST Screen
1
2
3
4
5
The Power-On Self Test (POST)
Each time you turn on the computer, the system takes a few seconds to conduct a
POST, including a quick test of the on-board RAM (memory).
As the POST proceeds, the computer will tell you if there is anything wrong. If there
is a problem that prevents the system from booting, it will display a system summary
and prompt you to run Setup.
If there are no problems, the Setup prompt will disappear and the system will load
the operating system. Once that starts, you can’t get into Setup without rebooting.
5 - 2 The Power-On Self Test (POST)
Failing the POST
BIOS Settings
Warning
Incorrect settings can
cause your system to
malfunction. To correct
mistakes, return to Set-
up and restore the Setup Defaults with <F9>.
Errors can be detected during the POST. There are two categories, “fatal” and “nonfatal”.
Fatal Errors
These stop the boot process and usually indicate there is something seriously wrong
with your system. Take the computer to your service representative or authorized
service center as soon as possible.
Non-Fatal Errors
This kind of error still allows you to boot. You will get a message identifying the
problem (make a note of this message!) followed by the prompt:
• Press <F1> to resume
• <F2> to enter Setup
Press F1 to see if the boot process can continue. It may work, without the correct
configuration.
Press F2 to run the Setup program and try to correct the problem. If you still get an
error message after you change the setting, or if the “cure” seems even worse, call
for help.
BIOS Utilities
5
The Power-On Self Test (POST) 5 - 3
BIOS Utilities
The Setup Utility
The Phoenix SecureCore(tm) Setup Utility tells the system how to configure itself
and manage basic features and subsystems (e.g. port configuration).
Entering Setup
To enter Setup, turn on the computer and press F2 during the POST. The prompt
5
(Press F2 to Enter Setup) seen on page 5 - 2 is usually present for a few seconds
after you turn on the system. If you get a “Keyboard Error”, (usually because you
pressed F2 too quickly) just press F2 again.
If the computer is already on, reboot using the Ctrl + Alt + Delete combination and
then hold down F2 when prompted. The Setup main menu will appear.
5 - 4 The Setup Utility
Setup Screens
Setup Menus
The Setup menus
shown in this section are
for reference only. Your
computer’s menus will
indicate the configuration appropriate for your
model and options.
The following pages contain additional advice on portions of the Setup.
Along the top of the screen is a menu bar with menu headings. When you select a
heading, a new screen appears. Scroll through the features listed on each screen to
make changes to Setup.
BIOS Utilities
Instructions on how to navigate each screen are in the box along the bottom of the
screen. If these tools are confusing, press F1 to call up a General Help screen, and
then use the arrow keys to scroll up or down the page.
The Item Specific Help on the right side of each screen explains the highlighted
item and has useful messages about its options.
If you see an arrow next to an item, press Enter to go to a sub-menu on that subject. The sub-menu screen that appears has a similar layout, but the Enter key may
execute a command.
5
The Setup Utility 5 - 5
BIOS Utilities
Figure 5 - 2
Main Menu
Main Menu
5
System Time & Date (Main Menu)
The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you
can change the date and time settings in your operating system, you will also change
these settings. Some applications may also alter data files to reflect these changes.
5-6Main Menu
SATA Port 1/2/3 (Main Menu)
Pressing Enter opens the sub-menu to show the configuration of a optical Device/
HDD on the computer’s SATA Port 1/2/3. Use the Auto (Type:) setting to have the
items configured automatically for you.
System/Extended Memory (Main Menu)
This item contains information on the system memory, and is not user configurable.
The system will auto detect the amount of memory installed.
BIOS Revision/KBC/EC Firmware Revision (Main Menu)
This item contains information on the current BIOS and firmware versions.
GPU Card/GPU VBIOS Revision/GPU VBIOS Build Date (Main Menu)
This item contains information on the current video card and video BIOS.
BIOS Utilities
5
Main Menu 5 - 7
BIOS Utilities
Figure 5 - 3
Advanced Menu
Advanced Menu
5
Advanced Chipset Control (Advanced Menu)
The sub-menu here allows you to enable/disable the JMicron Power Saving (as
used by the card reader) control, and to adjust the amount of Total Graphics Mem-
ory used by the system.
5 - 8 Advanced Menu
Total Graphics Memory (Advanced Menu > Advanced Chipset Control)
SATA Mode
Selection
If you have installed the
Windows 7 operating
system with AHCI mode
enabled (default setting), DO NOT disable
AHCI mode (if you wish
to disable AHCI mode
you will need to reinstall
the Windows 7 OS).
Use this menu item to set the amount of system memory to be allocated for use by
®
Intel
Dynamic Video Memory Technology for the graphics device. The default
memory size allocated is MaxDVMT (up to 1748MB) and this may be adjusted to
128MB or 256MB (by pressing the spacebar to adjust) if required (see “Dynamic
Video Memory Technology” on page B - 5).
SATA Mode (Advanced Menu)
You can configure SATA (Serial ATA) control to operate in either IDE (native/
compatible) or AHCI (Advanced Host Controller Interface) modes from this menu.
The SATA mode should be set to AHCI mode for this system (unless you are sure
your hard disk can only operate in IDE mode). If you are unsure of the mode your
hard disk supports contact your service center.
Legacy USB Support: (Advanced Menu)
Choose “Enabled” if you intend to use USB devices in systems which do not normally support USB functionality (e.g. DOS). The default setting is “Enabled” and
does not need to be changed if you intend to use your USB devices in Windows.
Boot-time Diagnostic Screen (Advanced Menu)
Use this menu item to enable/disable the Boot-time Diagnostic Screen or POST
screen (see “The Power-On Self Test (POST)” on page 5 - 2).
BIOS Utilities
5
Advanced Menu 5 - 9
BIOS Utilities
Legacy OS Boot: (Advanced Menu)
Enable this item to support only system boot from the Legacy OS (e.g Windows Vista). If disabled the system will attempt to boot from the EFI (Extensible Firmware
Interface) before the Legacy OS.
Power on Boot Beep (Advanced Menu)
Use this menu item to enable/disable the beep as the computer starts up.
5
Battery Low Alarm Beep (Advanced Menu)
Use this menu item to enable/disable the battery low alarm beep.
5 - 10 Advanced Menu
