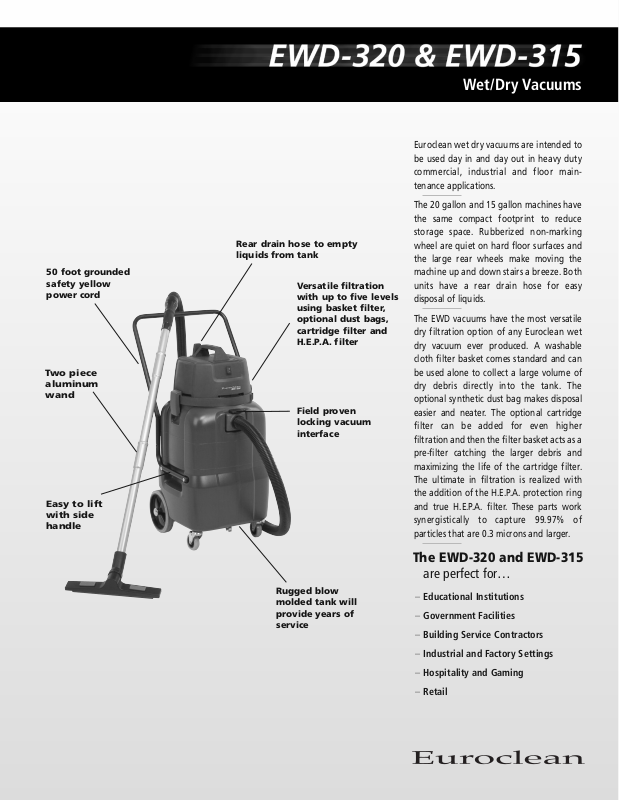

Euroclean EWD 315, EWD-320 Specifications

50 foot grounded
safety yellow
power cord

Two piece
aluminum
wand

Easy to lift
with side
handle

Rear drain hose to empty
liquids from tank

Versatile filtration
with up to five levels
using basket filter,
optional dust bags,
cartridge filter and
H.E.P.A. filter

Field proven
locking vacuum
interface

Wet/Dry Vacuums

Euroclean wet dry vacuums are intended to
be used day in and day out in heavy duty
commercial, industrial and floor main­tenance applications.

The 20 gallon and 15 gallon machines have
the same compact footprint to reduce
storage space. Rubberized non-marking
wheel are quiet on hard floor surfaces and
the large rear wheels make moving the
machine up and down stairs a breeze. Both
units have a rear drain hose for easy
disposal of liquids.

The EWD vacuums have the most versatile
dry filtration option of any Euroclean wet
dry vacuum ever produced. A washable
cloth filter basket comes standard and can
be used alone to collect a large volume of
dry debris directly into the tank. The
optional synthetic dust bag makes disposal
easier and neater. The optional cartridge
filter can be added for even higher
filtration and then the filter basket acts as a
pre-filter catching the larger debris and
maximizing the life of the cartridge filter.
The ultimate in filtration is realized with
the addition of the H.E.P.A. protection ring
and true H.E.P.A. filter. These parts work
synergistically to capture 99.97% of
particles that are 0.3 microns and larger.

Rugged blow
molded tank will
provide years of
service

The EWD-320 and EWD-315

are perfect for…

– Educational Institutions

– Government Facilities

– Building Service Contractors

– Industrial and Factory Settings

– Hospitality and Gaming

– Retail

TECHNICAL SPECIFICATIONS

Models EWD-320 EWD-315

Tank Capacity 20 gal (75.7 L) 15 gal (56.7 L)

NominalVoltage 120VAC/60 Hz 120VAC/60 Hz

Vacuum Motor 1,350 W 1,350 W

Current Draw 11.2 Amps 11.2 Amps

Maximum Waterlift 95 in (241 cm) 95 in (241 cm)

Maximum Airflow 130 C.F.M. (61.3 L/s) 130 C.F.M. (61.3 L/s)

Sound Level 68 dB 68 dB

Washable Water Basket 225 in2(0.15 m) 225 in2(0.15 m)

Power Cord 50 ft (15 m) 50 ft (15 m)

Dimensions (HxWxD) 35 in x 17 in x 19 in 30.5 in x 17 in x 19 in

(89 cm x 43 cm x 48 cm) (77 cm x 43 cm x 48 cm)

Weight with Cord and Tools 45 lb (20.4 kg) 42 lb (19 kg)

Part Numbers 905 8912 010 905 8911 010

Specifications are subject to change without notice.

Unique modular three piece floor
tool set with squeegee, hard and

oft floor tools

s

Cyclonic inlet helps knock
down foam

Optional Accessories Include

– 24 or 30 inch Front Mount Squeegee

– Dust Bags

– Upholstery Tool

– Crevice Tool

– H.E.P.A. Filter System

– Cartridge Filter

– Heavy Duty S-Wand Tools

14600 21st Avenue North
Plymouth, Minnesota 55447-3408
www.kenteuroclean.com
Phone [phone]
Fax [phone]

240 Superior Boulevard
Mississauga, Ontario, Canada L5T 2L2
www.kenteuroclean.com
Phone [phone] or 800-668-8400
Fax [phone] or 800-263-5111

Optional H.E.P.A. protection ring
and H.E.P.A. filter

Optional front mount squeegee is
available in 24 and 30 inch sizes,
for high productivity

©2008 Euroclean is a registered trade name of Nilfisk-Advance, Inc. Form L1709E 8-08

recyclable
