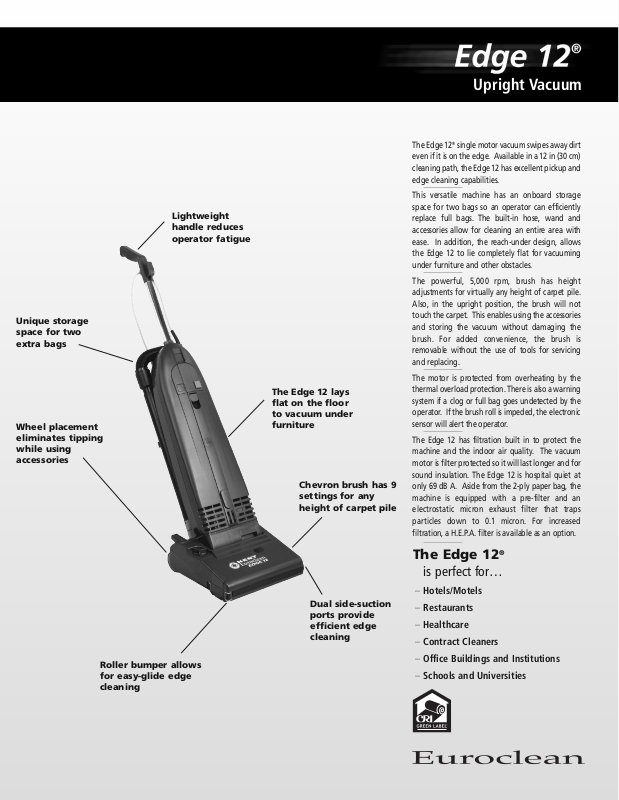

Euroclean Edge 12 Specifications

Unique storage
space for two
extra bags

Wheel placement
eliminates tipping
while using
accessories

Lightweight
handle reduces
operator fatigue

The Edge 12 lays
flat on the floor
to vacuum under
furniture

Chevron brush has 9
settings for any
height of carpet pile

Upright Vacuum

The Edge 12®single motor vacuum swipes away dirt
even if it is on the edge. Available in a 12 in (30 cm)
cleaning path, the Edge 12 has excellent pickup and
edge cleaning capabilities.

This versatile machine has an onboard storage
space for two bags so an operator can efficiently
replace full bags. The built-in hose, wand and
accessories allow for cleaning an entire area with
ease. In addition, the reach-under design, allows
the Edge 12 to lie completely flat for vacuuming
under furniture and other obstacles.

The powerful, 5,000 rpm, brush has height
adjustments for virtually any height of carpet pile.
Also, in the upright position, the brush will not
touch the carpet. This enables using the accessories
and storing the vacuum without damaging the
brush. For added convenience, the brush is
removable without the use of tools for servicing
and replacing.

The motor is protected from overheating by the
thermal overload protection. There is also a warning
system if a clog or full bag goes undetected by the
operator. If the brush roll is impeded, the electronic
sensor will alert the operator.

The Edge 12 has filtration built in to protect the
machine and the indoor air quality. The vacuum
motor is filter protected so it will last longer and for
sound insulation. The Edge 12 is hospital quiet at
only 69 dB A. Aside from the 2-ply paper bag, the
machine is equipped with a pre-filter and an
electrostatic micron exhaust filter that traps
particles down to 0.1 micron. For increased
filtration, a H.E.P.A. filter is available as an option.

Roller bumper allows
for easy-glide edge
cleaning

Dual side-suction
ports provide
efficient edge
cleaning

The Edge 12

®

is perfect for…

– Hotels/Motels

– Restaurants

– Healthcare

– Contract Cleaners

– Office Buildings and Institutions

– Schools and Universities

TECHNICAL SPECIFICATIONS

Motor 120/60 hz, 850 watts, 7.5 amps, 2 stage

Motor Protection

Waterlift 79 in (200 cm)

CFM 92

Brush Single row nylon bristles in a 360˚ chevron pattern with variable brush height.

Brush Speed 5,000 rpm, driven by a toothed timing belt

Brush Length 10.75 in (27.2 cm)

Cleaning Path 12 in (30 cm)

Filtration 2-ply paper bag, inlet foam filter, motor protection filter, hospital grade

Bag Capacity 244 in3(4 L)

Filter Capabilities Electrostatic exhaust filter – 97% efficiency at 0.3 micron H.E.P.A. filter –

Onboard Tools 4:1 stretch hose, telescopic wand, crevice tool, and upholstery tool

Power Cable

Sound Level 69 dB A

Weight 15 lb (6.8 kg) without cord / 17.7 lb (8.0 kg) with cord / 21 lb (9.5 kg) shipping

Width 12 in (30.5 cm)

Length 12.5 in (31.75 cm)

Height

Part Number 56 649 960

Thermal overload protection and electronic shutoff

Dynamic balanced brush roller.

exhaust filter and an optional H.E.P.A. filter

99.97% efficiency at 0.3 micron

41 ft (12.5 m) safety yellow, 18/3 wire

45 in (114 cm) or 42.5 in (113 cm)

The no tools removable brush door
provides easy access to brush for
cleaning and maintenance.

The Edge 12 comes standard with a
hospital grade exhaust filter.
The optional H.E.P.A. filter provides
filtration of 99.97% efficiency at

0.3 microns.

Specifications are subject to change without notice.

Standard Accessories Include

– 4:1 stretch hose

– 24 in (61 cm) telescopic wand extends to 38 in (97 cm)

– Crevice tool

– Upholstery tool

– Extra bag in storage space

14600 21st Avenue North
Plymouth, Minnesota 55447-3408
www.kenteuroclean.com
Phone [phone]
Fax [phone]

240 Superior Boulevard
Mississauga, Ontario, Canada L5T 2L2
www.kenteuroclean.com
Phone [phone] or 800-668-8400
Fax [phone] or 800-263-5111

The Edge 12 has a built-in hose and
telescopic wand for off-the-floor
cleaning. For added convenience, a
crevice tool, upholstery tool and two
extra bags are stored onboard.

5,000 rpm motorized brush is driven
by a toothed timing belt that can’t
slip. Dual ball bearings are
protected for long life.

©2008 Euroclean is a registered trade name of Nilfisk-Advance, Inc. Form L1498E 8-08
