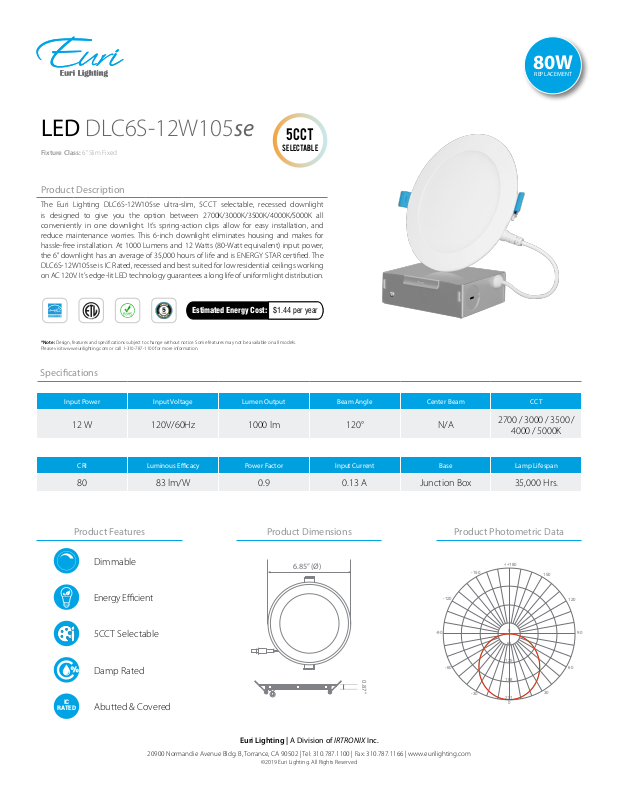

Page 1
80W
REPLACEMENT
LED DLC6S-12W105se
Fixture Class: 6” Slim Fixed
5CCT
Selectable
Product Description
The Euri Lighting DLC6S-12W105se ultra-slim, 5CCT selectable, recessed downlight
is designed to give you the option between 2700K/3000K/3500K/4000K/5000K all
conveniently in one downlight. It’s spring-action clips allow for easy installation, and
reduce maintenance worries. This 6-inch downlight eliminates housing and makes for
hassle-free installation. At 1000 Lumens and 12 Watts (80-Watt equivalent) input power,
the 6” downlight has an average of 35,000 hours of life and is ENERGY STAR certified. The
DLC6S-12W105se is IC Rated, recessed and best suited for low residential ceilings working
on AC 120V. It’s edge-lit LED technology guarantees a long life of uniform light distribution.
5
Estimated Energy Cost: $1.44 per year
YEAR
*Note: Design, features and specifications subject to change without notice. Some features may not be available on all models.
Please visit www.eurilighting.com or call 1-310-787-1100 for more information.
Specications
Input Power Input Voltage Lumen Output Beam Angle Center Beam CCT
12 W 120V/60Hz 1000 lm 120° N/A
2700 / 3000 / 3500 /
4000 / 5000K
CRI Luminous Ecacy Power Factor Input Current Base Lamp Lifespan
80 83 lm/W 0.9 0.13 A Junction Box 35,000 Hrs.
Product Features Product Dimensions Product Photometric Data
IC
RATED
Dimmable
Energy Efficient
5CCT Selectable
Damp Rated
Abutted & Covered
20900 Normandie Avenue Bldg. B, Torrance, CA 90502 | Tel: 310.787.1100 | Fax: 310.787.1166 | www.eurilighting.com
6.85” (Ø)
0.87"
Euri Lighting | A Division of IRTRONIX Inc.
©2019 Euri Lighting. All Rights Reserved
-150
-120
-90
-60
-30
-/+180
0
63
125
188
251
0
150
120
90
60
30
