REPLACEMENT

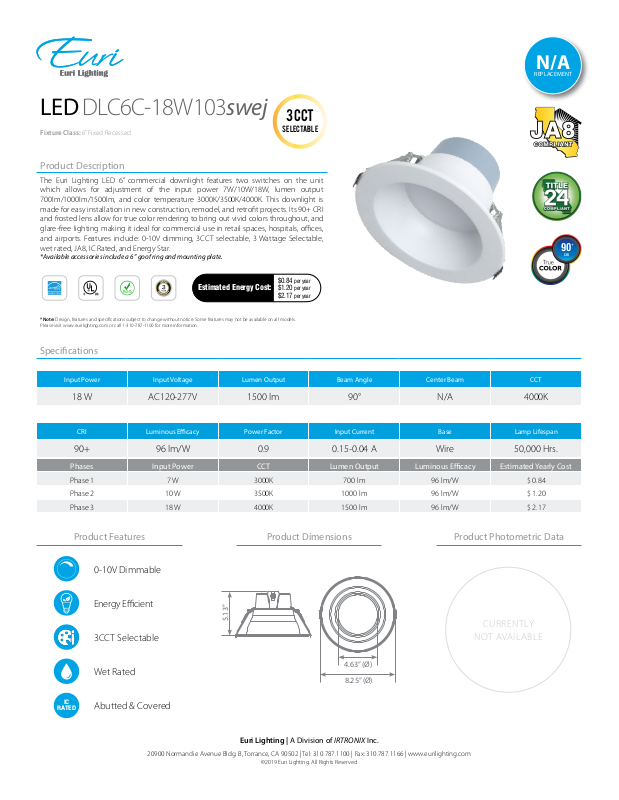

LED DLC6C-18W103swej
Fixture Class: 6” Fixed Recessed
3CCT
Selectable
Product Description
The Euri Lighting LED 6” commercial downlight features two switches on the unit
which allows for adjustment of the input power 7W/10W/18W, lumen output
700lm/1000lm/1500lm, and color temperature 3000K/3500K/4000K. This downlight is
made for easy installation in new construction, remodel, and retrofit projects. Its 90+ CRI
and frosted lens allow for true color rendering to bring out vivid colors throughout, and
glare-free lighting making it ideal for commercial use in retail spaces, hospitals, offices,
and airports. Features include: 0-10V dimming, 3CCT selectable, 3 Wattage Selectable,
wet rated, JA8, IC Rated, and Energy Star.
*Available accessories include a 6” goof ring and mounting plate.
5
YEAR
*Note: Design, features and specifications subject to change without notice. Some features may not be available on all models.
Please visit www.eurilighting.com or call 1-310-787-1100 for more information.
Estimated Energy Cost:
$0.84 per year
$1.20 per year
$2.17 per year
Specications
Input Power Input Voltage Lumen Output Beam Angle Center Beam CCT
18 W AC120-277V 1500 lm 90° N/A 4000K
90
+
CRI
CRI Luminous Ecacy Power Factor Input Current Base Lamp Lifespan
90+ 96 lm/W 0.9 0.15-0.04 A Wire 50,000 Hrs.
Phases Input Power CCT Lumen Output Luminous Ecacy Estimated Yearly Cost
Phase 1 7 W 3000K 700 lm 96 lm/W $ 0.84
Phase 2 10 W 3500K 1000 lm 96 lm/W $ 1.20
Phase 3 18 W 4000K 1500 lm 96 lm/W $ 2.17
Product Features Product Dimensions Product Photometric Data
0-10V Dimmable
Energy Efficient
IC
RATED
3CCT Selectable
Wet Rated
Abutted & Covered
5.13”
4.63” (Ø)
8.25” (Ø)
CURRENTLY
NOT AVAILABLE
Euri Lighting | A Division of IRTRONIX Inc.
20900 Normandie Avenue Bldg. B, Torrance, CA 90502 | Tel: 310.787.1100 | Fax: 310.787.1166 | www.eurilighting.com
