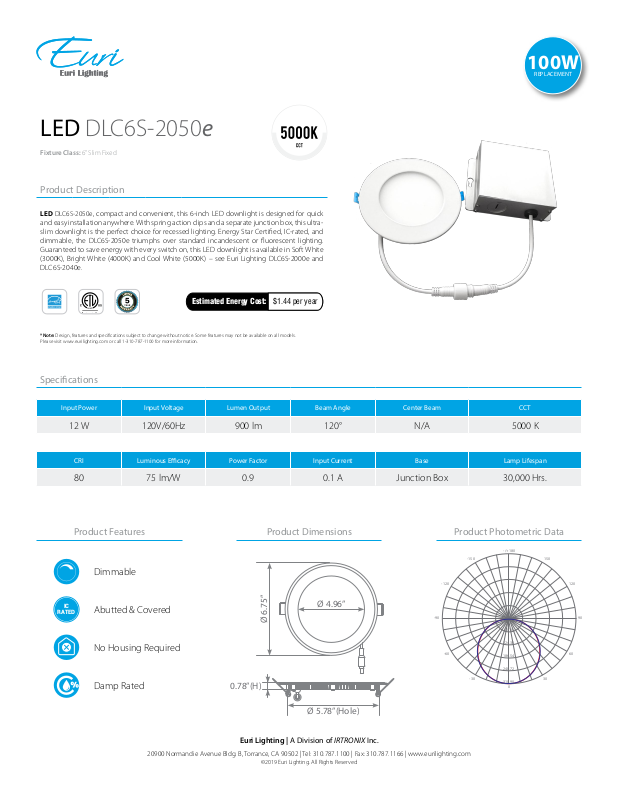

LED DLC6S-2050e
Fixture Class: 6” Slim Fixed
Product Description
LED DLC6S-2050e, compact and convenient, this 6-inch LED downlight is designed for quick
and easy installation anywhere. With spring action clips and a separate junction box, this ultraslim downlight is the perfect choice for recessed lighting. Energy Star Certified, IC-rated, and
dimmable, the DLC6S-2050e triumphs over standard incandescent or fluorescent lighting.
Guaranteed to save energy with every switch on, this LED downlight is available in Soft White
(3000K), Bright White (4000K) and Cool White (5000K) – see Euri Lighting DLC6S-2000e and
DLC6S-2040e.
100W
REPLACEMENT
5
YEAR
*Note: Design, features and specifications subject to change without notice. Some features may not be available on all models.
Please visit www.eurilighting.com or call 1-310-787-1100 for more information.
Estimated Energy Cost: $1.44 per year
Specications
Input Power Input Voltage Lumen Output Beam Angle Center Beam CCT
12 W 120V/60Hz 900 lm 120° N/A 5000 K
CRI Luminous Ecacy Power Factor Input Current Base Lamp Lifespan
80 75 lm/W 0.9 0.1 A Junction Box 30,000 Hrs.
Product Features Product Dimensions Product Photometric Data
Dimmable
-120 120
-/+ 180
150-150
IC
RATED
Abutted & Covered
No Housing Required
Damp Rated
20900 Normandie Avenue Bldg. B, Torrance, CA 90502 | Tel: 310.787.1100 | Fax: 310.787.1166 | www.eurilighting.com
Ø 4.96”
Ø 6.75”
0.78”(H)
Ø 5.78”(Hole)
Euri Lighting | A Division of IRTRONIX Inc.
©2019 Euri Lighting. All Rights Reserved
-90
62.18
124.36
-60
186.54
248.72
310.90
0
30-30
90
60
