REPLACEMENT

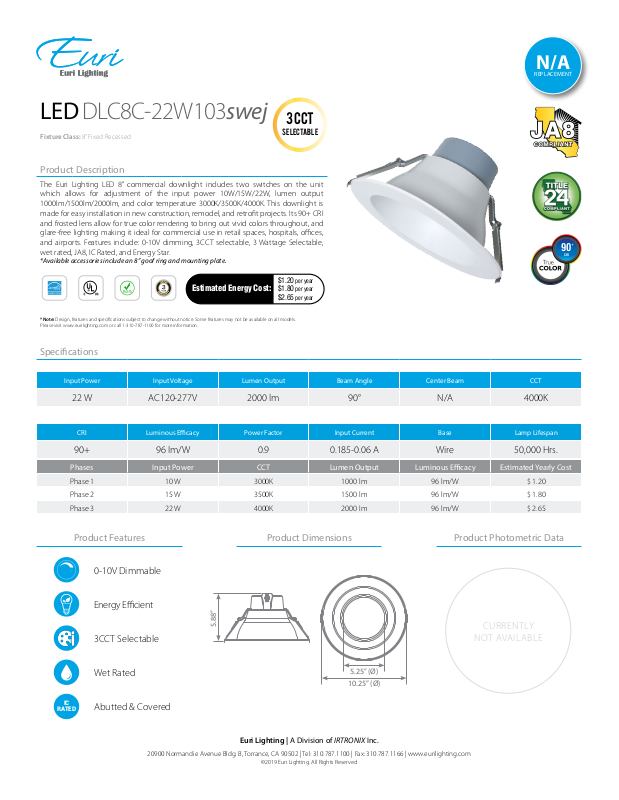

LED DLC8C-22W103swej
Fixture Class: 8” Fixed Recessed
3CCT
Selectable
Product Description
The Euri Lighting LED 8” commercial downlight includes two switches on the unit
which allows for adjustment of the input power 10W/15W/22W, lumen output
1000lm/1500lm/2000lm, and color temperature 3000K/3500K/4000K. This downlight is
made for easy installation in new construction, remodel, and retrofit projects. Its 90+ CRI
and frosted lens allow for true color rendering to bring out vivid colors throughout, and
glare-free lighting making it ideal for commercial use in retail spaces, hospitals, offices,
and airports. Features include: 0-10V dimming, 3CCT selectable, 3 Wattage Selectable,
wet rated, JA8, IC Rated, and Energy Star.
*Available accessories include an 8” goof ring and mounting plate.
5
Estimated Energy Cost:
YEAR
*Note: Design, features and specifications subject to change without notice. Some features may not be available on all models.
Please visit www.eurilighting.com or call 1-310-787-1100 for more information.
$1.20 per year
$1.80 per year
$2.65 per year
Specications
Input Power Input Voltage Lumen Output Beam Angle Center Beam CCT
22 W AC120-277V 2000 lm 90° N/A 4000K
90
+
CRI
CRI Luminous Ecacy Power Factor Input Current Base Lamp Lifespan
90+ 96 lm/W 0.9 0.185-0.06 A Wire 50,000 Hrs.
Phases Input Power CCT Lumen Output Luminous Ecacy Estimated Yearly Cost
Phase 1 10 W 3000K 1000 lm 96 lm/W $ 1.20
Phase 2 15 W 3500K 1500 lm 96 lm/W $ 1.80
Phase 3 22 W 4000K 2000 lm 96 lm/W $ 2.65
Product Features Product Dimensions Product Photometric Data
0-10V Dimmable
Energy Efficient
IC
RATED
3CCT Selectable
Wet Rated
Abutted & Covered
5.88”
5.25” (Ø)
10.25” (Ø)
CURRENTLY
NOT AVAILABLE
Euri Lighting | A Division of IRTRONIX Inc.
20900 Normandie Avenue Bldg. B, Torrance, CA 90502 | Tel: 310.787.1100 | Fax: 310.787.1166 | www.eurilighting.com
©2019 Euri Lighting. All Rights Reserved
