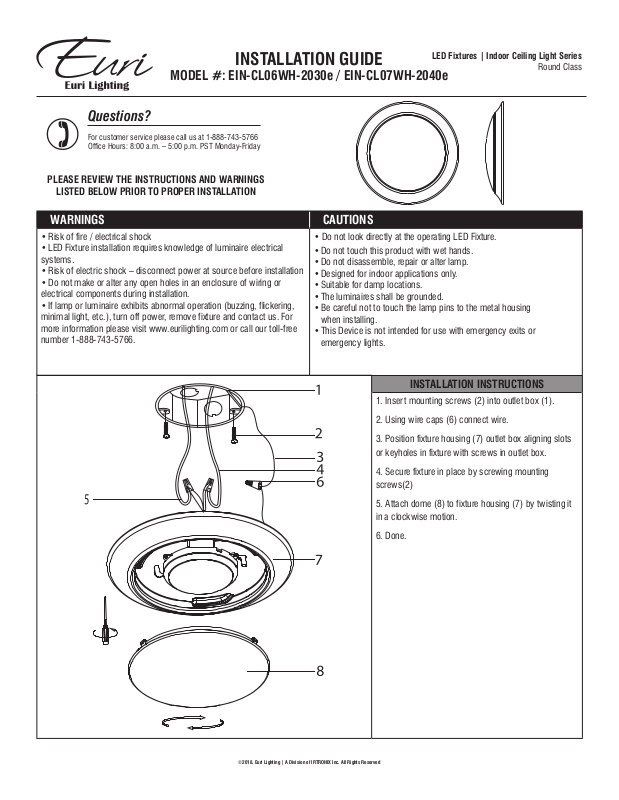

INSTALLATION GUIDE
MODEL #: EIN-CL06WH-2030e / EIN-CL07WH-2040e
Questions?
For customer service please call us at 1-888-743-5766
PLEASE REVIEW THE INSTRUCTIONS AND WARNINGS
LISTED BELOW PRIOR TO PROPER INSTALLATION
WARNINGS CAUTIONS
• Risk of fire / electrical shock
• LED Fixture installation requires knowledge of luminaire electrical
systems.
• Risk of electric shock – disconnect power at source before installation
• Do not make or alter any open holes in an enclosure of wiring or
electrical components during installation.
• If lamp or luminaire exhibits abnormal operation (buzzing, flickering,
minimal light, etc.), turn off power, remove fixture and contact us. For
more information please visit www.eurilighting.com or call our toll-free
number 1-888-743-5766.
Office Hours: 8:00 a.m. – 5:00 p.m. PST Monday-Friday
• Do not look directly at the operating LED Fixture.
• Do not touch this product with wet hands.
• Do not disassemble, repair or alter lamp.
• Designed for indoor applications only.
• Suitable for damp locations.
• The luminaires shall be grounded.
• Be careful not to touch the lamp pins to the metal housing
when installing.
• This Device is not intended for use with emergency exits or
emergency lights.
LED Fixtures | Indoor Ceiling Light Series
Round Class
INSTALLATION INSTRUCTIONS
1. Insert mounting screws (2) into outlet box (1).
2. Using wire caps (6) connect wire.
3. Position fixture housing (7) outlet box aligning slots
or keyholes in fixture with screws in outlet box.
4. Secure fixture in place by screwing mounting
screws(2)
5. Attach dome (8) to fixture housing (7) by twisting it
in a clockwise motion.
6. Done.
©2018. Euri Lighting | A Division of IRTRONIX Inc. All Rights Reserved
