VACUUM CLEANER
Household Type
Owner’s Guide
Model 79 Series
Charge 14-16 hours
before first use.
IMPORTANT
Please do not return this
product to the store.
For assembly problems or
questions contact: Eureka’s
Customer Service Division
toll free at 1-800-282-2886*,
8 a.m. to 7:30 p.m.,
Central Standard Time,
Monday through Friday.
Saturday and Sunday
10:00 a.m. - 6:30 p.m.
For replacement of broken or
missing items
to be shipped direct to you,
call 1-800-282-2886*,
*En Mexico llame al (55) 5343-4384
For location of nearest Eureka
Warranty Station or Service
Information, call 1-800-282-2886.
www.eureka.comPart No. 70687B (1/10)
Page 2
IMPORTANT SAFEGUARDS
When using an electric appliance, basic precautions should always be followed,
CONSEILS DE SÉCURITÉ
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not operate the vacuum cleaner or charger that has been damaged in any way.
If vacuum cleaner is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
• To avoid excessive heat and damage to the unit or batteries, do not operate the
vacuum cleaner while in the charging stand.
• Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
• Use only as described in this manual.
• Use only the charger provided to recharge; Eureka model A7400 for 120 volt and
HKA-A0740 for 230 volt.
• Do not pull or carry the charger by cord, use cord as a handle, close a door on cord,
or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.
• Do not handle charger or vacuum cleaner with wet hands.
• DO NOT MUTILATE OR INCINERATE BATTERIES AS THEY WILL EXPLODE AT
HIGH TEMPERATURES.
• Leaks from battery cells can occur under extreme usage or termperature conditions.
If the liquid gets on the skin (1) wash quickly with soap and water or (2) neutralize
with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush
them immediately with clean water for a minimum of 10 minutes. Seek medical
attention. NOTE: The liquid is a 25-35% solution of potassium hydroxide.
• The terminal on the vacuum cleaner should be kept free and clean of objects. While
there is no shock hazard from the terminal, a burn could occur if metal objects are
inserted into the terminal area.
• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
• Do not use without a filter in place. When servicing the unit, never put fingers or
other objects into the fan chamber in case the unit would accidentially be turned on.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in
areas where they may be present.
• Locate the wall bracket indoors in a cool, dry area not exposed to the weather to
avoid electrical shock and/or cleaner damage.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
2
Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent
être observées, incluant les suivantes:
LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR.
AVERTISSEMENT
Pour réduire le risque de feu, de choc électrique ou de blessure:
• N’utilisez pas l’aspirateur à l’extérieur ou sur une surface mouillée.
•
N’utilisez jamais l’aspirateur ou le chargeur s’ils ont été endommagés. Si l’aspirateur
ne fonctionne pas comme il le faut, s’il a été échappé, s’il a été endommagé, s’il a
été laissé à l’extérieur, s’il a été échappé dans de l’eau, retournez-le à un centre de
service avant de l’utiliser.
• Pour éviter que l’aspirateur surchauffe, ou que l’aspirateur ou les piles soient
endommagés, n’utilisez pas l’aspirateur lorsqu’il est encore dans son support de
recharge.
• Ne permettez pas que l’aspirateur soit utilisé comme un jouet. Une attention
particulière est nécessaire lorsqu’il est utilisé par ou près d’un enfant.
• Suivez les recommandations d’utilisation de ce manuel.
• Pour recharger l’aspirateur, utilisez uniquement le chargeur qui l’accompagne –
Eureka modèle nº A7400 pour 120 volt, HKA-A0740 pour 230 volt.
• Ne pas tirer l’aspirateur ou le transporter par le cordon. Ne pas utiliser le cordon en
guise de poignée. Ne pas fermer une porte sur le cordon ou tirer le cordon sur des
bordures ou des coins pointus. Tenir le cordon à distance des surfaces chauffantes.
Ne pas utiliser des rallonges ou des prises qui n’ont pas une capacité suffisante
•
pour transporter le courant.
• Ne pas débrancher en tirant sur le cordon. Pour débrancher, empoignez le chargeur
et non pas le cordon.
• Ne pas manipuler le chargeur ou l’aspirateur avec les mains mouillées.
• NE PAS MUTILER OU INCINÉRER LES PILES. LES PILES EXPLOSENT A DES
TEMPÉRATURES EXCESSIVES.
• Il peut y avoir des fuites des éléments des piles lorsque celles-ci sont soumises à
des conditions d’emploi excessif ou de température excessive. Si le liquide touche
la peau (1) laver tout de suite la peau avec de l’eau et du savon (2) Neutraliser avec
un acide doux, tel que le jus de citron ou le vinaigre. Au cas de contact avec les
yeux, nettoyer à grande eau pour un minimum de 10 minutes. Cherchez des soins
médicaux. NOTE: Le liquide est une solution à 25-35% d’hydroxyde de potassium.
• La borne de l’aspirateur doit être maintenue propre et libre de tout autre objet. Il n’y
a aucun risque de choc électrique de la borne elle-même, mais une brûlure est
possible si des objets en métal sont introduits dans la borne.
• Cet aspirateur crée de la succion. Tenir les parties mobiles et les ouvertures loin des
cheveux, des habits, des doigts et de toute partie du corps.
• Ne pas ramasser des objets qui brûlent ou fument comme des cigarettes, des
allumettes ou les cendres chaudes.
• Ne pas utiliser sans que le filtre ne soit installé. Lors de réparations ou d’entretien, il
ne faut jamais mettre les doigts, ou autres objets, près du ventilateur dans le cas où
l’aspirateur serait accidentellement mis en marche.
• Portez une attention particulière lorsque vous nettoyez les escaliers.
• Ne pas utiliser pour ramasser des liquides inflammables ou combustibles comme de
l’essence. Ne pas utiliser dans les endroits où ces liquides pourraient être présents.
• Situez le support pour l’aspirateur à l’intérieur, dans un endroit frais, sec et protégé
pour éviter le choc électrique ou les dommages.
• Travaillez toujours dans un endroit bien éclairé.
• Débranchez les appareils électriques avant de les nettoyer avec l’aspirateur.
CONSERVEZ CES INSTRUCTIONS
3
Page 3
GENERAL INFORMATION
The
Grab
in
sills, or steps.
It
(40
While
and does not indicate a problem.
Important Battery Disposal Information
Nickel-Cadmium Batteries
NOTE:
Service Information
The
service is required, telephone toll free:
Rating Plate
The
which
cleaner
refer to these numbers:
Model
Serial
4
Identify Parts
cordless vacuum cleaner is the answer for quick, convenient, and easy cleanups.
the cleaner for little tasks rather than using a larger cleaner. Place the wall bracket
any area of easy access that allows versatile cleaning of kitchen crumbs, window
Always store the cleaner in the wall bracket to provide a ready charge.
Charge for 14-16 hours before first use.
Batteries could lose charge in shipping.
is best to charge the batteries when temperatures are between 32° F (0°C) and 104°F
C). Other temperatures could damage batteries.
charging, the charger may become warm to the touch. This is a normal condition
Motor
Filter
Dust Cup
Latch
On/Off
Switch
Screws and
Cavity Wall
Anchors
Wall Mount
Bracket
Remove the battery pack only when the batteries no longer hold a charge
for the nearest Eureka Authorized Warranty Station. If you prefer, you can write to Electrolux Home Care Products North America, Service Division, P.O. Box 3900, Peoria, IL
61612. In Canada write to Electrolux Home Care Products North America, 5855 Terry
Fox Way, Mississauga, Ontario L5V3E4. Refer to The Eureka Warranty for complete
service information.
and you plan to dispose of them.
instructions in this booklet serve as a guide to routine maintenance. If additional
DO NOT OIL. The motor has lubrication and has a permanent seal.
The RBRC Battery Recycling Seal on the nickel-cadmium (Ni-Cd)
battery indicates The Eureka Company is voluntarily participating
in an industry program to collect and recycle these batteries at
the end of their useful life, when taken out of service in the United
States or Canada. The RBRC program provides a convenient
alternative to placing used Ni-Cad batteries into the trash or the
municipal waste system, which is illegal in some areas. Please
call 1-800-8-BATTERY for information on Ni-Cd battery recycling
in your area.
USA: 1-800-282-2886
Mexico: (55) 5343-4384
Canada: 1-800-282-2886
Dust
Cup
Charger Plug
Crevice Tool
(On the back)
Socket
Charger
USING THE VACUUM CLEANER
1. To switch on, move the on/off switch forward toward the dust container.
2. To switch off, move the on/off switch backward toward the handle.
To Use the Crevice Tool
1. Locate crevice tool on the bottom of the cleaner.
2. Grasp the end of the crevice tool nozzle and rotate out until it stops.
3. Then push the crevice tool firmly into the end of the cleaner nozzle.
End of the
crevice tool
nozzle.
model number is indicated on the rating plate
is located on the underside of the vacuum
. For prompt and complete service, always
and Type No.______________________
No. or Date Code___________________
ELECTROLUX HOME CARE PRODUCTS
NORTH AMERICA
Bloomington, Illinois 61701 USA
HOUSEHOLD TYPE
MODEL
4. After use, to store crevice tool pull the crevice tool out from the cleaner
nozzle.
5. Rotate back into the bottom of the cleaner until it snaps into place.
5
Page 4
The charger plug can be left in the electrical outlet at all times, even when the unit is in

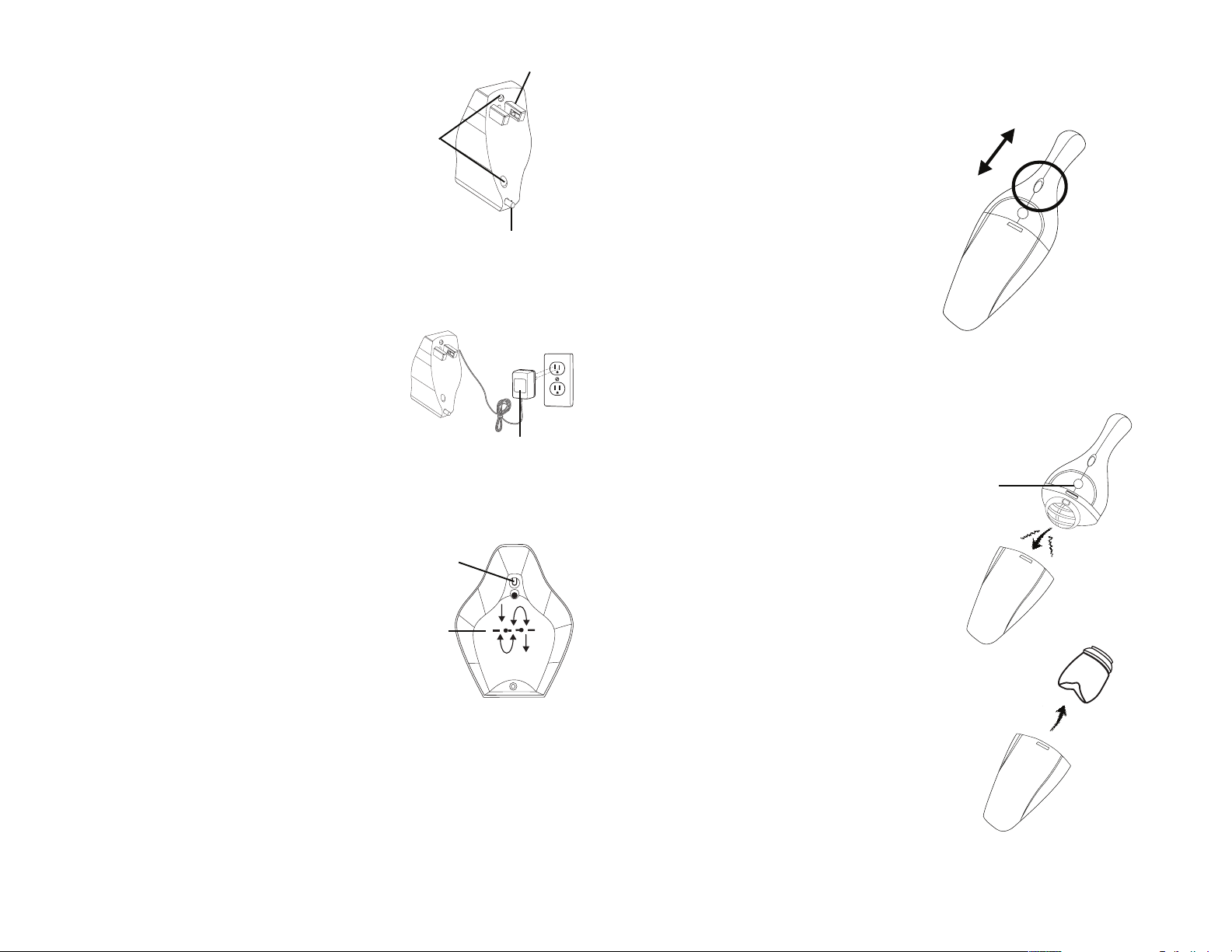

How to Wall Mount your Wall Bracket
HOW TO USE
CAUTION: Use only charger model A7400 for 120 volt;
model HKA-A0740 for 230 volt.
Your vacuum cleaner has a special bracket designed
to hold the unit, so that it may recharge while mounted
on the wall.
Cleaner hangs in bracket with the nozzle end down.
Mount on a wall where there are no dangerous objects
hidden beneath the wall surface like electrical wires,
pipes, etc.
1. Hold bracket against wall to mark location for
screws. Make sure the wall bracket is positioned
vertically, with the charger socket at the bottom.
2. Use a 1/4 inch drill for drilling holes for the plastic
anchors.
3. Insert the anchors. Line up the bracket with the
anchors.
4. Use a screwdriver to drive the screws into the
anchors to secure the bracket.
Holes for
Screws.
How to Mount your Vacuum Cleaner
5. Rest the cleaner on the docking pegs, with the
nozzle pointed down push on the unit until you
hear the charger socket click into place.
6. Plug the charger into an electrical outlet.
NOTE: Charge the cleaner for 14-16 hours before initial use. The batteries of a
new cleaner are on a low charge.
Docking
Pegs
Charger
Socket
Charger
Plug
1. Push the power switch forward to turn on.
2. Pull the power switch back to turn off.
On
Off
HOW TO MAINTAIN
The instructions given in this booklet serve as a guide to routine maintenance. Keep the
cleaner operating at top efficiency. Empty the dust cup and clean the filter after each
use.
Dust Cup
Latch
How to Switch Optional Charger Plug
1. Remove the screw in the middle of the back of the
wall bracket and remove back cover.
2. Unwind the cord from cord holders and pull charger
socket up and away from wall bracket.
3. Insert new charger socket into charger socket hole
and wind cord around cord holders.
4. Replace back cover lining cord up with notch in
back cover. Replace screw.
Charger
Socket
Hole
Cord
Holders
Keeping your Vacuum Cleaner Ready for Use
Return your vacuum cleaner to the wall holder after every use. Firmly position into the
mounting bracket ensuring that the vacuum cleaner fits correctly into the charging socket.
It will then be recharged and ready for operation at all times.
use. It is impossible to overcharge the batteries. The charger plug will become warm,
however, this is not a cause for concern.
6
Empty Dust Cup
1. Push down on dust cup latch.
2. Pull dust cup from handle section.
3. Remove motor filter from dust cup.
4. Shake contents into a waste
container.
5. Clean motor filter (refer to motor filter
section, page 8).
6. Replace motor filter in the dust cup.
7. Press dust cup onto handle section
until they snap together.
7
Page 5
Clean Motor Filter
Clean the motor filter after each cleaner use.
1. Remove the filter frame from the dust cup.
2. Shake and brush the dust and dirt from filter.
3. If desired, remove filter from filter frame and launder the filter by hand in warm water
(150° F, 65°C) using a mild detergent.
4. Air dry thoroughly.
5. Replace filter over frame.
Replace a dirty or torn filter. Order additional motor filters from Electrolux
Home Care Products North America, Bloomington, IL 61701.
Order motor filter, 61130.
Remove Battery Pack for Disposal
For information 1-800-822-8837
NOTE: Remove the battery pack only when the batteries no
CAUTION: Do not short circuit or dispose of in fire. Dispose of
A municipal waste will not dispose of the battery pack. Use a recycling center if
one is convenient. Otherwise, take or send the battery pack to your nearest Eureka
Warranty Service Station. To learn the address of the nearest factory service center
call 1-800-282-2886.
1. Lay cleaner down on its top.
2. Use a screwdriver to pry the battery cover up and away from unit.
3. Remove battery pack and dispose of properly. For more information call
1-800-822-8837.
longer hold a charge and you plan to dispose of them.
properly.
Battery
Cover
8
Page 6
THE EUREKA LIMITED WARRANTY
USA: 1-800-282-2886
Mexico: (55) 5343-4384
Canada: 1-800-282-2886
hat This Warranty Covers
W
original purchaser and members of his or her immediate household. The warranty is subject to the following provisions.
Your Eureka cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of one year. The warranty is granted only to the
• Parts of the cleaner that require replacement under normal use.
• Damages or malfunctions caused by negligence, abuse, or use not in accordance with the Owner’s Guide.
hat This Warranty Does Not Cover
• Defects or damages caused by unauthorized service or the use of other than Genuine Eureka, ARM & HAMMER™ and Filtrete™ by 3M parts.
W
will not refund the consumer’s purchase price.
The Eureka Company will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a matter of warranty policy, the Eureka Company
hat The Eureka Company Will Do
W
arranty Registration
W
You will find the nearest location in the Yellow Pages, under “Vacuum Cleaners–Service and Repair.” Be certain that the Warranty Station is “Eureka Authorized.”
For the location of the nearest Eureka Authorized Warranty Station or for service information, telephone toll free:
Please fill out and return the warranty registration card accompanying your cleaner.
To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Eureka Authorized Warranty Station.
btaining Warranty Service
O
North America, 5855 Terry Fox Way, Mississauga, Ontario, L5V3E4. If it is necessary to ship the cleaner outside your community to obtain warranty repair, you must pay the shipping
charges to the Eureka Authorized Warranty Station. Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type, and serial
If you prefer, you can write to Electrolux Home Care Products North America, Service Division, P.O. Box 3900, Peoria, IL 61612. In Canada write to Electrolux Home Care Products
number from the data plate on the cleaner.
Page 7
GENUINE
EUREKA PRODUCT
This warranty gives you specific legal rights. You may also have other rights which vary by state.
Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall Eureka be liable for any consequential or incidental
Any warranty that may be implied in connection with your purchase or use of the cleaner, including any warranty of Merchantability or any warranty for Fitness
urther Limitations and Exclusions
damages, so the above limitation or exclusion may not apply to you.
may not apply to you.
damages you may incur in connection with your purchase or use of the cleaner. Some states do not allow the exclusion or limitation of incidental or consequential
For A Particular Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations
F
uestions & Answers about Genuine Eureka Products
Q
For Genuine Eureka Value, Accept No Imitations!
difficulties.
satisfaction, ensures the long life and cleaning efficiency of your vacuum cleaner. Overall, this saves you money and helps to keep your home clean.
Q: Why should I use only Genuine Eureka parts in my Eure ka pro duc t?
A: Using Genuine Eureka Products, wh ich are made to our exacting specifications and engineered with emphasis on qualit y, perform ance, and customer
assistance, you may call our toll-free number, 1-800-282-2886, for the location of a nearby Eureka Authorized Warranty Statio n.
Q: H ow can I be sur e I am us ing on ly gen uin e E ure ka products in my product?
A: Typically, packaged products and paper bags can be identified by a “Genuine Eureka Product” symbol (see illustration above). For further identification
and parts whi le thinking they purchased genuine. Unfortunately, many of these custom ers discovered the differences after they e xperienced related
Q: Are there any differences between “made to fi t” or “i mit ati on” an d G enu ine Eu rek a p arts?
A: Yes, there are some very important differences in materials, quality, and reliability. Many customers have mistakenly purchased “imitation” paper bags
Household Warranty
abs 190
Part No. 70687B
(1/10) Printed in China
©2010 Electrolux Home Care Products, Ltd.
Loading...
