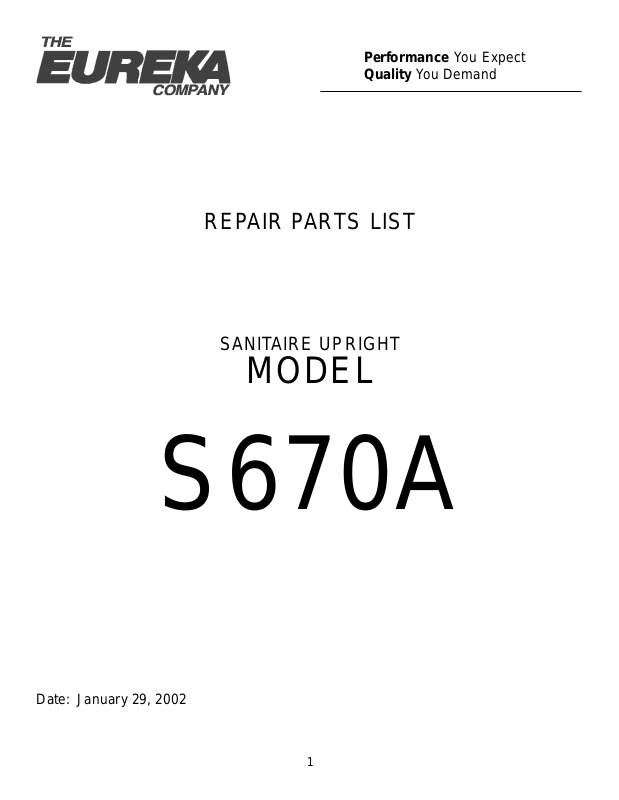

REPAIR PARTS LIST
SANITAIRE UPRIGHT
MODEL
S670A
Date: January 29, 2002
1
Page 2
2
Page 3
S670A
1. 38054-3 GRIP ASSEMBLY
2. 53143 SCREW - pkg of 10
3. 14302-3 KNOB
4. 12601-8 LENS
5. 60192-1 WIRE SPLICE - pkg of 5
6. 35958A HEADLIGHT SOCKET ASSEMBLY
7. 53238-14 MOTOR MOUNTING SCREW - pkg of 10
8. 56383SV AIR INLET DUCT ASSEMBLY (R.H.)
9. 54352-3 MOTOR ASSEMBLY
10. 25462A LIGHT SHIELD
11. 53228-2 SCREW - pkg of 10
12. 55296 WIRE & TERMINAL ASSEMBLY
13. 53213-5 NUT - pkg of 10
14. 53097 FOOT PEDAL SPRING - pkg of 10
15. 53140 CLAMP & SCREW ASSEMBLY
16. 54408-8 BASE ASSEMBLY*
17. 24964A-1 CAM (R.H.)
18. 24965A-1 CAM (L.H.)
19. 53118 CAM RIVET - pkg of 10
20. 53133 WASHER - pkg of 10
21. 53117 HOOD SPRING - pkg of 10
22. 53089-1 STRAIN RELIEF BUSHING - pkg of 10
23. 54407-4 HOOD & NAMEPLATE**
24. 39500 NAMEPLATE
25. 40009A HEADLIGHT
26. 53160 CABLE CLAMP - pkg of 5
27. 53238-14 MOTOR SCREW - pkg of 10
28. 56382SV AIR INLET DUCT ASSEMBLY (L.H.)
29. 30517 MOTOR SEAL GASKET
30. 24834A-3 FOOT PEDAL
31. 53228-2 SCREW - pkg of 10
32. 36263 WHEEL COVER
* INCLUDES ITEMS 17, 18, 19 & 20
** INCLUDES ITEM 24
3
Page 4
4
Page 5
S670A
1. 28504-1 FURNITURE GUARD
2. 53121 PUSH NUT - pkg of 10
3. 37183 REAR AXLE
4. 53238-11 SCREW - pkg of 10
5. 35947A FRONT AXLE
6. 53270 DISTURBULATOR ASSEMBLY*
7. 26057A DISTURBULATOR CAP
8. 54256 BEARING & RETAINER ASSEMBLY
9. 53184 KLIPRING
10. 60161 WHEEL & AXLE ASSEMBLY**
11. 26242-119N REAR WHEEL
12. 53201 AXLE CLAMP - pkg of 10
13. 53076-2 AXLE SPRING - pkg of 6
14. 35859A-1 FRONT WHEEL
15. 52100A BELT - pkg of 2
16. 52282-4 BRISTLE STRIP SET
17. 13236-3 DISTURBULATOR TUBE
18. 26059A CAP COVER
19. 53158 NUT - pkg of 10
20. 25937 SHAFT
21. 25922-1 BOTTOM PLATE ASSEMBLY
* INCLUDES ITEMS 7, 8, 9, 16, 17, 19 & 20
** INCLUDES ITEMS 3 & 12
5
Page 6
6
Page 7
S670A
1. 54352-3 MOTOR ASSEMBLY COMPLETE
2. 20217E RETAINER ASSEMBLY
3. 30478 MOTOR BRUSH ASSEMBLY
4. 54396 MOTOR COVER
5. 54425-3 ARMATURE FAN & BEARING ASSEMBLY*
6. 53088-5 BEARING - pkg of 5
7. 30474A FAN
8. 53441-2 FIELD ASSEMBLY
9. 46713-1 CABLE TIE
10. 54811 WASHER - pkg of 10
11. 53148 FAN WASHER - pkg of 10
12. 37012-2 PULLEY
13. 53138 RETAINER SCREW - pkg of 10
14. 56817 HEX NUT
15. 53222-4 LOCK WASHER - pkg of 10
16. 53219-2 BRUSH SCREW
17. 54169-1 MOTOR BASE ASSEMBLY**
18. 20217E BEARING RETAINER
19. 53088-5 BEARING - pkg of 5
20. 53187-1 RIVET - pkg of 10
21. 53142 ORLO THREAD SCREW - pkg of 10
22. 12988 FAN
23. 53148 FAN WASHER - pkg of 10
* INCLUDES ITEMS 6 & 7
** INCLUDES ITEMS 18, 19 & 20
7
8
Page 8
Page 9

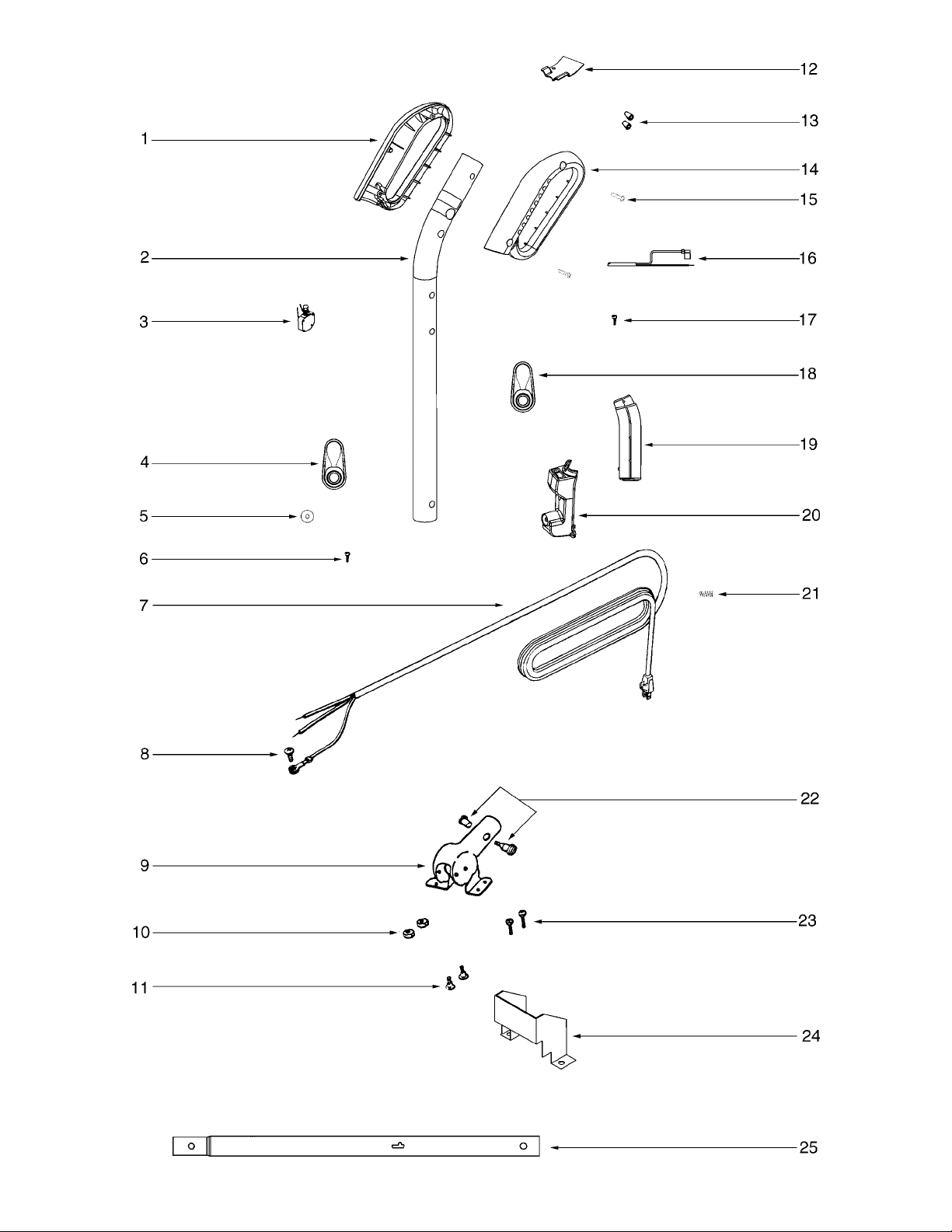

S670A
1. 15596-288N HANDLE GRIP (L.H.)
2. 28639 UPPER HANDLE TUBE
3. 28305 SWITCH
4. 28316-288N UPPER CORD RETAINER
5. 60946 WASHER - pkg of 10
6. 60947 SCREW - pkg of 10
7. 38680-25 SUPPLY CORD
8. 53238-13 SCREW - pkg of 10
9. 38183-1SV HANDLE SOCKET ASSEMBLY
10. 53213-5 NUT - pkg of 10
11. 53145 BOLT - pkg of 10
12. 59741-316N WIRING SHIELD
13. 60192-1 WIRE SPLICE - pkg of 5
14. 15597-288N HANDLE GRIP (R.H.)
15. 53197-1 SCREW - pkg of 10
16. 28011-6 UPPER CORD
17. 53238-18 SCREW - pkg of 10
18. 13521-2 LOWER CORD RETAINER
19. 02349A-288N SWITCH HOUSING (R.H.)
20. 02410A-288N SWITCH HOUSING (L.H.)
21. 60945 SPRING - pkg of 10
22. 53198-1 SCREW & NUT ASSEMBLY - pkg of 6
23. 53238-13 SCREW - pkg of 10
24. 36439 HANDLE SOCKET SHIELD
25. 12637-8 LOWER HANDLE TUBE
9
Page 10
10
Page 11
S670A
1. 53469-20 BAG ASSEMBLY*
2. 36968 GASKET
3. 48410 BAG SPRING
4. 52309-1 ADAPTER, SLEEVE & GASKET ASSEMBLY**
5. 52320A DISPOSABLE DUST BAGS (STYLE F&G) - pkg of 3
6. 71971-1 HARDWARE PACKAGE
71970 OWNER’S GUIDE - not illustrated
* INCLUDES ITEMS 2, 3 & 4
** INCLUDES 2
11
