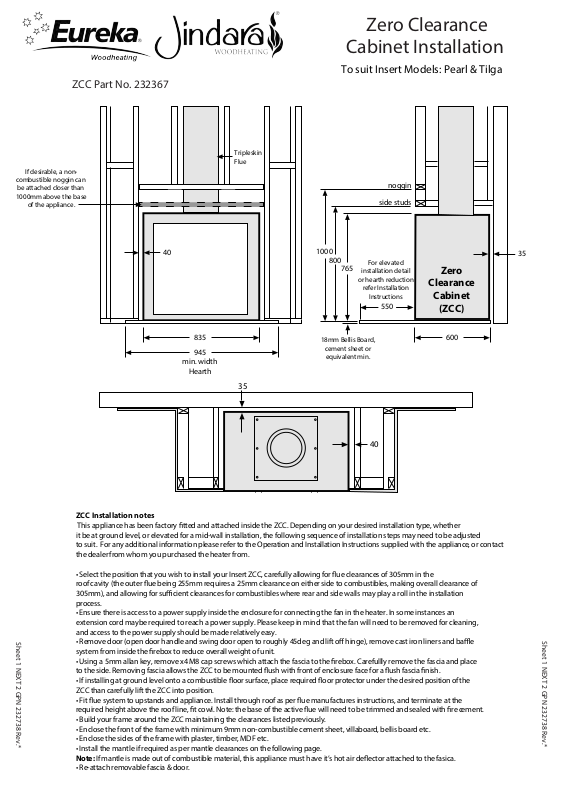

Eureka Jindara Installation Notes

Page 1
ZCC Part No. 232367
If desirable, a non-
combustible noggin can
be attached closer than
1000mm above the base
of the appliance.
Zero Clearance
Cabinet Installation
To suit Insert Models: Pearl & Tilga
Tripleskin Flue
noggin
side studs
40
835
945
min. width
Hearth
1000
800
765
or hearth reduction
18mm Bellis Board,
cement sheet or
equivalent min.
For elevated
installation detail
refer Installation
Instructions
550
Zero
Clearance
Cabinet
(ZCC)
600
35
40
ZCC Installation notes
35
• Select the position that you wish to install your Insert ZCC, carefully allowing for ue clearances of 305mm in the roof cavity (the outer ue being 255mm requires a 25mm clearance on either side to combustibles, making overall clearance of 305mm), and allowing for sucient clearances for combustibles where rear and side walls may play a process.
• Ensure there is access to a power supply inside the enclosure for connecting the fan in the heater. In some instances an extension cord maybe required to reach a power supply. Please keep in mind that the fan will need to be removed for cleaning,
Sheet 1 NEXT 2 GPN 232738 Rev.*
and access to the power supply should be made relatively easy.
• Remove door (open door handle and swing door open to roughly 45deg and lift o hinge), remove cast iron liners and bae system from inside the rebox to reduce overall weight of unit.
• Using a 5mm allan key, remove x4 M8 cap screws which attach the fascia to the rebox. Carefullly remove the fascia and place to the side. Removing fascia allows the ZCC to be mounted ush with front of enclosure face for a ush fascia nish.
• If installing at ground level onto a combustible oor surfa ZCC than carefully lift the ZCC into position.
• Fit ue system to upstands and appliance. Install through roof as per ue manufactures instructions, and terminate at the required height above the roof line, t cowl. Note: the base of the active ue will need to be trimmed and sealed with re cement.
• Build your frame around the ZCC maintaining the clearances listed previously.
• Enclose the front of the frame with minimum 9mm non-combustible cement sheet, villaboard, bellis board etc.
• Enclose the sides of the frame with plaster, timber, MDF etc.
• Install the mantle if required as per mantle clearances on the following page. Note: If mantle is made out of combustible material, thi
• Re-attach removable fascia & door.
roll in the installation
Sheet 1 NEXT 2 GPN 232738 Rev.*
ce, place required oor protector under the desired position of the
s appliance must have it’s hot air deector attached to the fasica.
Page 2
ZCC Part No. 232367
Zero Clearance
Cabinet Installation
To suit Insert Models: Pearl & Tilga
2 petS1 petS
Minimum 9mm thick cement sheet, villaboard or non-combustible material on front face of framing
Non-combustible material can overlap clearance gap between ZCC and frameing, and run over the front of the ZCC. DO NOT silicon or adhear material to ZCC as heat expansion of ZCC will cause cracking.
Non-combustible hearth
Breast plate no thicker than 30mm
55 (appliance
to mantle upright)
Vent may be
located in the
wall of on the oor.
Plaster, timber, MDF etc.
250
1500
1410
Hearth depth
mm in front
of unit
Vent (optional) - Position vent
such that access is
available to fan power
supply when vent is
removed.
6 inch Flue Kit
Minimum Requirements:
5 x 6” S/S Flue
4 x 8” Gal Flue
4 x 10” Gal Flue
• 10” Upstands
450mm
4th Skin
3rd Skin
2nd Skin
1st Skin
Heater
55mm
10” Gal Flue
10”
425mm
8” Gal Flue
6˝ S/S Flue
Note: Some states will use dierent size ue kits which will require the appropriate upstande.
• 8” Upstand
97mm
Spigot
8”
370mm
10” Upstand
8” Upstand
385mm
Removable fascia
Mantle only
hot air deflector
M8 cap screw
Door
Sheet 2 NEXT 2 GPN 232738 Rev.*
