AS3300 – AS3400 series
Upright vacuum cleaner; household type
Owner’s Guide
Thank you for purchasing your new Eureka vacuum!
Important instructions
For easy assembly, please take a few moments to read this owner’s guide.
If you have questions about your new vacuum, please contact our customer service helpline at 1-800-282-2886. We’re here to help!
www.eureka.com
© 2014 Electrolux Home Care Products, Inc. Printed in China WMT88779
Where to find important vacuum information
Keep this information
Write the model, type and serial number here:
Date of purchase (keep your receipt) _______________
Model number and type ________________________
Serial number _________________________________

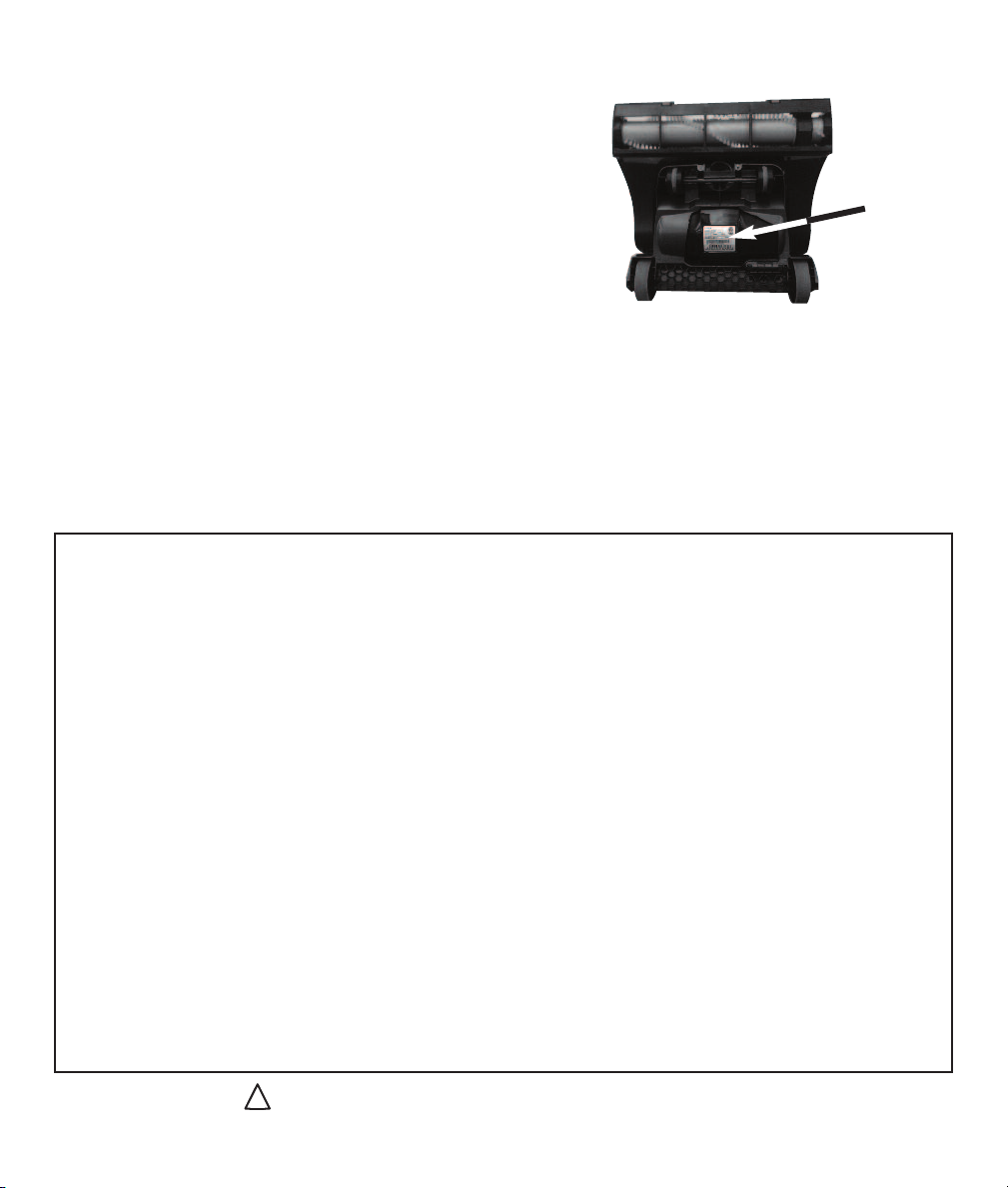

Find these numbers on a label on the middle back side of the vacuum cleaner. Refer to these numbers when ordering parts and accessories or if service is needed.
This Owner’s Guide provides important
instructions to prolong the life of your Eureka
Registration: To register your product visit www.eureka.com and click on the ‘Register Your Product’ link in the top right corner. Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit is tested and
thoroughlyInspectioninspected: before shipping. For instructions regarding any shipping damage, call Eureka Customer Service
HELPLINE 1-800-282-2886 immediately.
|
|
Contents |
|
|
Important safeguards . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . .3 |
|
What comes in the carton . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . .4 |
|
How to assemble your vacuum cleaner . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . .5 |
|
How to identify parts of your vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . .6 |
|
|
Dust cup, filter, screen and exhaust filter |
|
|
|
Filter maintenance instructions . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . .7 |
|
How to use your vacuum cleaner . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . .8 |
|
Automatic cord rewind, brush roll on/off pedal, crevice tool, |
|
|
|
How to use accessories . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . .9 |
|
extension wand, dusting brush and turbo nozzle |
|
|
|
How to clear a blockage . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . .10 |
|
How to maintain turbo nozzle . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . .11 |
|
How to use Brushroll Clean feature . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . .11 |
|
How to clean brush roll manually . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . .11 |
|
How to replace brush roll or belt . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . .12 |
|
Thermal cut-off and problem solving . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . .13 |
|
Eureka limited warranty information . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . .14 |
|
Order forms and parts list . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . .15 |
|
! Follow caution information wherever you see this symbol. |
|
|
2 |
Eureka Customer Service HELPLINE 1-800-282-2886 |
www.eureka.com |
|
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
WARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
! • inDousenotandleavbeforevacuumservicingleaner. when plugged in. Turn off the switch and unplug the electrical cord when not
• Do not allow to be used as a toy. Close attention is necessary when used by or near children. e only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center before using.
• Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not place vacuum cleaner on furniture or stairs as the brush roll may cause damage. Use extra care when cleaning stairs. Place vacuum cleaner on floor with the handle in storage position while using attachments.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust cup, filter, screen and exhaust filter in place.
• Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive belt.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
• Store your vacuum cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
• Unplug before connecting turbo nozzle.
• Do not press Brushroll Clean pedal more than recommended. See "How to maintain brush roll” in this guide.
SAVE THESE INSTRUCTIONS
, this appliance has a polarized plug (one blade is wider than theTo reduceother). Thist e riskplugofwillelectricfit in a polarizedshock outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
Motor the motor or the brush roll at any time. The bearings are permanently lubricated and sealed.
Do Not Oil
Eureka Customer Service HELPLINE 1-800-282-2886 www.eureka.com 3

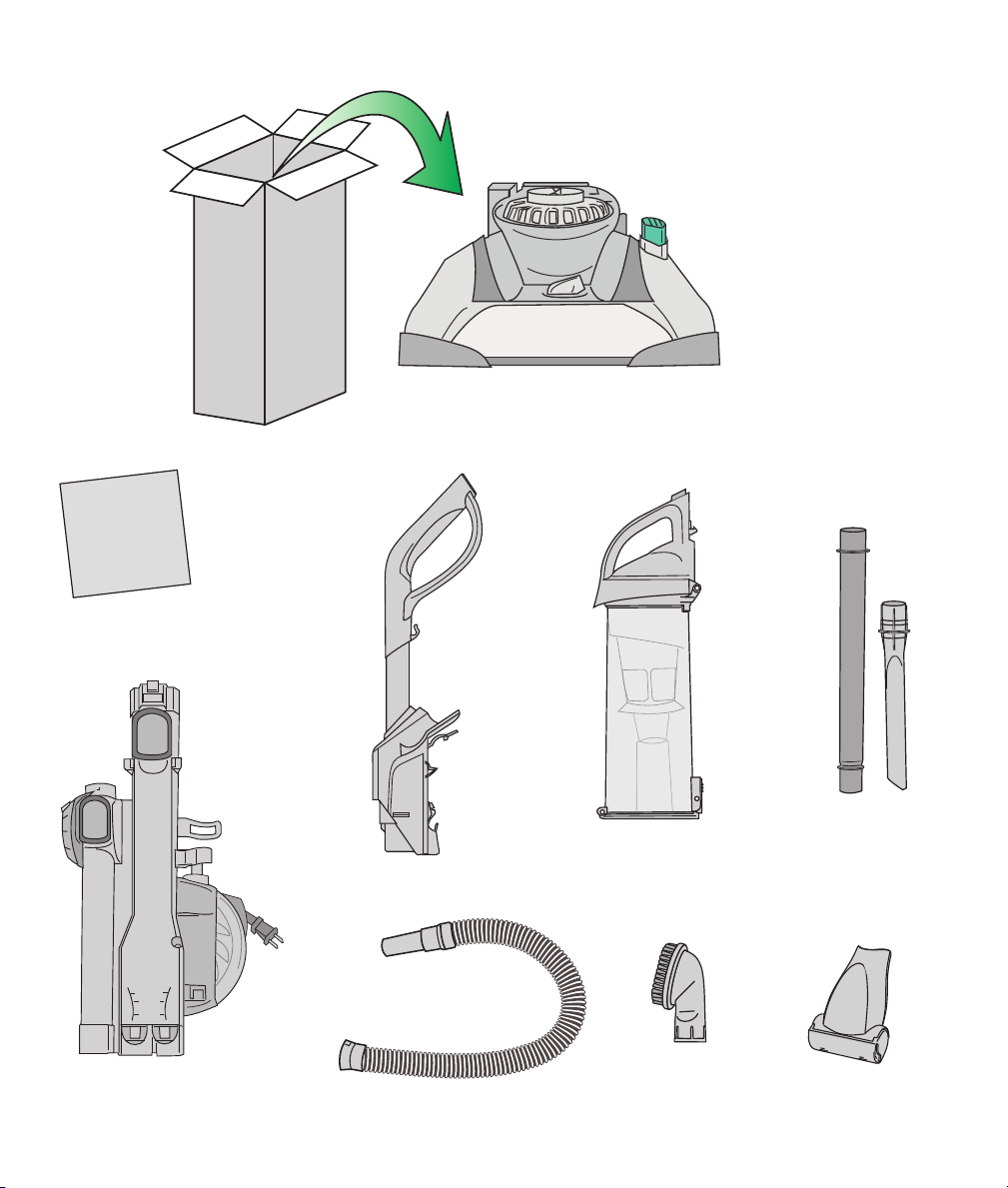

What comes in the carton
Vacuum cleaner
|
|
R’S |
NE |
||
OW |
|
|
|
E |
|
ID |
|
|
GU |
|
|
Important safeguards
Dust cup |
Extension wand |
and crevice tool |
|
Handle |
|
|
Hose |
|
Vacuum back |
Dusting brush |
Turbo nozzle |
|
4 |
Eureka Customer Service HELPLINE 1-800-282-2886 |
www.eureka.com |

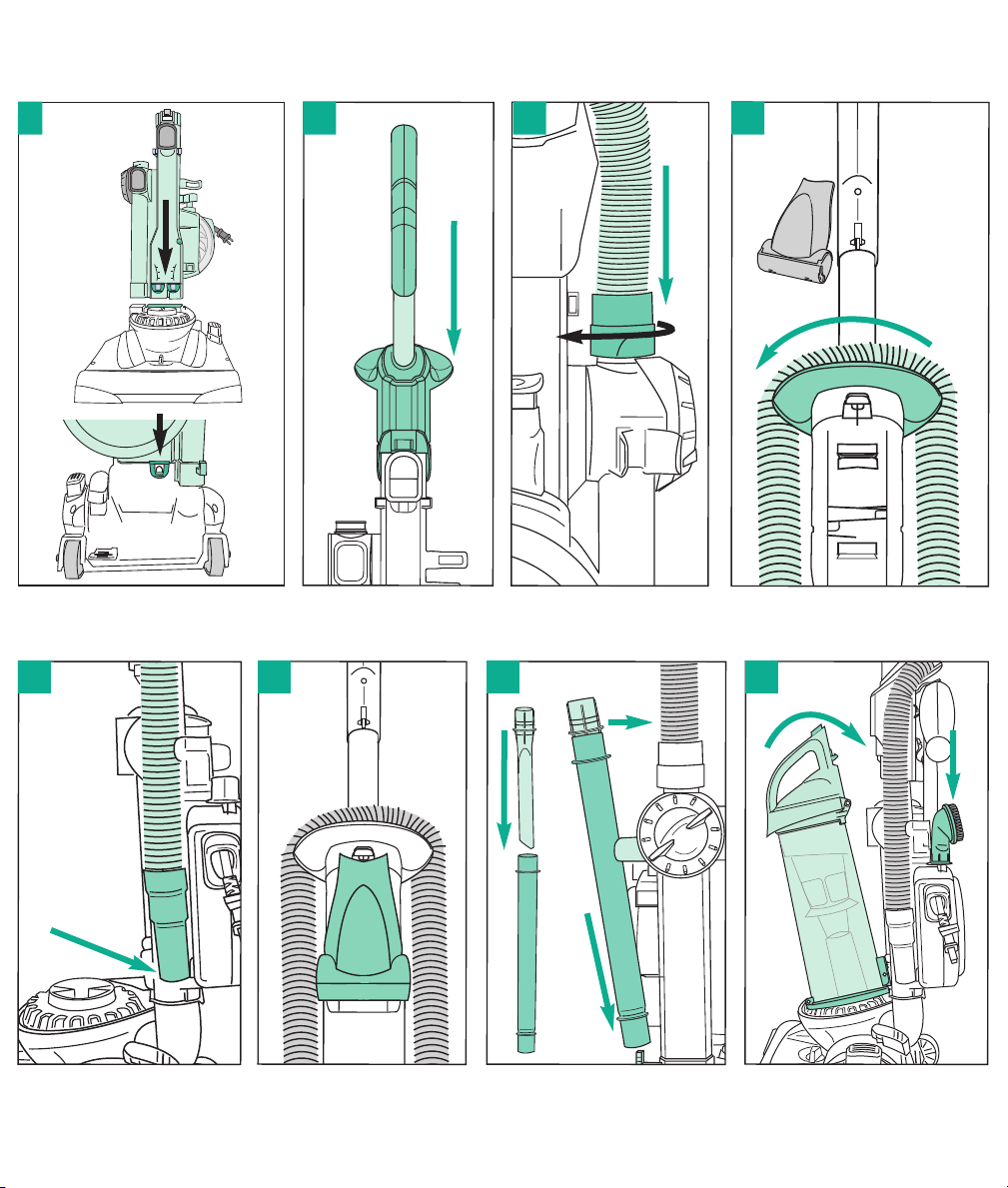

How to assemble your vacuum cleaner
1
Front
view
Back
view
Place vacuum back on base and push down until it snaps into place.
2 |
3 |
Back |
4 |
Back |
|
view |
view |
||||
|
|
|
Slide handle onto vacuum |
Install hose: Align tabs and Loop hose over carry handle. |
back and push down until |
push down; twist clockwise |
it snaps. |
to lock. |
5 |
6 |
Back |
7 |
8 |
|
|
view |
|
|
Secure loose end of hose |
Place turbo nozzle opening |
Slip crevice tool inside extension |
over hose hook. |
onto turbo nozzle clip ridge; |
wand; store in holder on side of |
|
push top in to snap. |
vacuum. |
Eureka Customer Service HELPLINE 1-800-282-2886
Place dust cup on base
and snap into place. Store dusting brush on back of vacuum. 5
www.eureka.com
Loading...
