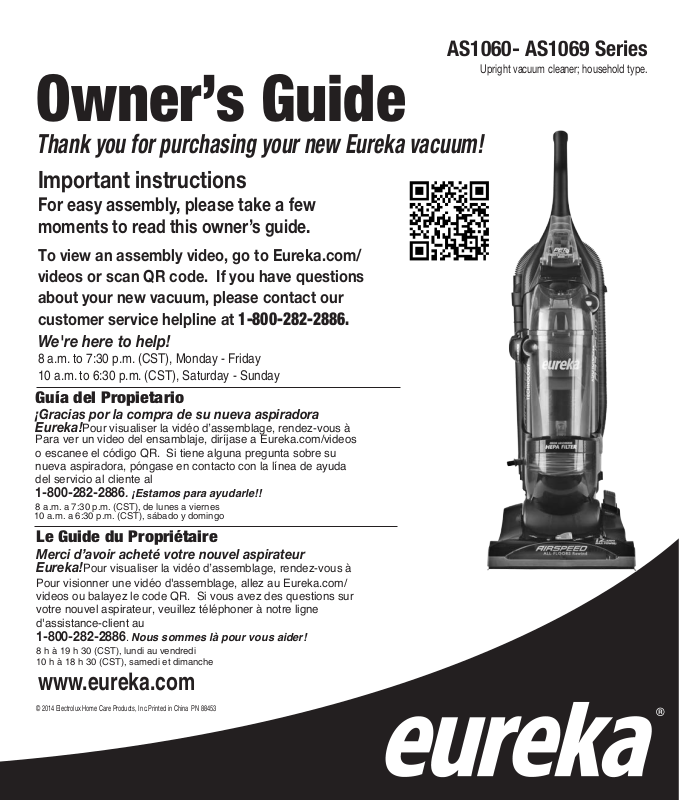

Page 1

AS1060- AS1069 Series

Owner’s Guide

Thank you for purchasing your new Eureka vacuum!

Important instructions

For easy assembly, please take a few moments to read this owner’s guide.

To view an assembly video, go to Eureka.com/ videos or scan QR code. If you have questions about your new vacuum, please contact our customer service helpline at

We're here to help!

8 a.m. to 7:30 p.m. (CST), Monday - Friday 10 a.m. to 6:30 p.m. (CST), Saturday - Sunday

Guía del Propietario

¡Gracias por la Eureka!

Para ver un video del ensamblaje, diríjase a Eureka.com/videos o escanee el código QR. Si tiene alguna pregunta sobre su nueva aspiradora, póngase en contacto con la línea de ayuda del servicio al cliente al

1-800-282-2886

a.m. a 7:30 p.m. (CST), de lunes a viernes

10 a.m.

Pour visualiser la vidéo d’assemblage, rendez-vous à

a 6:30 p.m. (CST), sábado y domingo

compra de su nueva aspiradora

. ¡Estamos para ayudarle!!

1-800-282-2886.

Upright vacuum cleaner; household type.

Le Guide du Propriétaire

Merci d’avoir acheté votre nouvel aspirateur Eureka!

Pour visionner une vidéo d'assemblage, allez au Eureka.com/ videos ou balayez le code QR. Si vous avez des questions sur votre nouvel aspirateur, veuillez téléphoner à notre ligne d'assistance-client au

1-800-282-2886

8 h à 19 h 30 (CST), lundi au vendredi 10 h à 18 h 30 (CST), samedi et dimanche

Pour visualiser la vidéo d’assemblage, rendez-vous à

. Nous sommes là pour vous aider!

www.eureka.com

Page 2

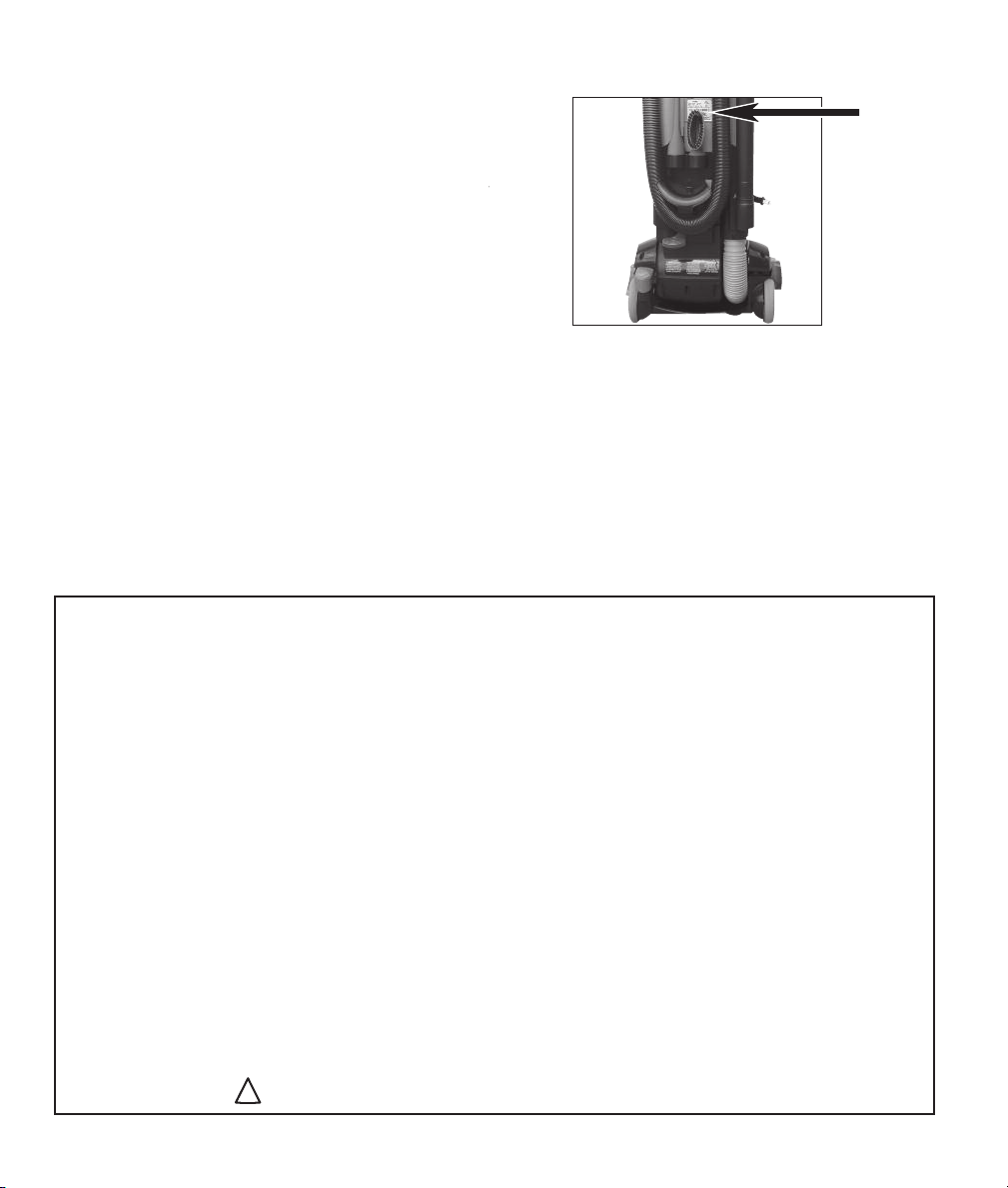

Where to find important vacuum information

Keep this information

Write the model, type and serial number here:

Date of purchase (keep your receipt) _______________

Model number and type _________________________

Serial number _________________________________

Find these numbers on a label on the middle back side of the vacuum cleaner. Refer to these numbers when ordering parts and accessories or if service is needed.

Before you start your vacuum cleaner

Refer to Quick Start Guide for assembly and use. This Owner’s Guide provides

important instructions to prolong the life of your Eureka vacuum cleaner.

Registration

in the top right corner.

Inspection

is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call Eureka Customer Service HELPLINE 1-800-282-2886 immediately.

To register your product visit www.eureka.com and click on the ‘Register Your Product’ link

Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit

Table of contents

Important safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

How to identify parts of vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Maintenance schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Dust cup, filter, screen and exhaust/HEPA filter.

How to use accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Automatic cord rewind, wand, crevice tool, dusting brush, turbo nozzle and stair hose.

How to maintain your vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Maintain brush roll, replace U belt and how to clear a blockage.

How to maintain turbo nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Eureka limited warranty information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Thermal cut-off and problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Spanish owner’s guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-13

French owner’s guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-20

Order forms and parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-22

Follow caution information wherever you see this symbol.

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com

Page 3

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

WARNING

To reduce the risk of fire, electric shock, or injury:

• Do not use outdoors or on wet surfaces.

• Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical cord when not in use and before servicing.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer's recommended attachments.

• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center before using.

• Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Turn off all controls before unplugging.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Hold plug when rewinding into cord reel. Do not allow plug to whip when rewinding.

• Do not handle plug or vacuum cleaner with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.

• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Do not place vacuum cleaner on furniture or stairs as the brush roll may cause damage. Use extra care when cleaning stairs. Place vacuum cleaner on floor with the handle in storage position while using attachments.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without dust cup, filter and screen, and HEPA exhaust filter in place.

• Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive belt.

• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.

• Store your vacuum cleaner indoors in a cool, dry area.

• Keep your work area well lighted.

• Unplug electrical appliances before vacuuming them.

• Unplug before connecting turbo nozzle.

ENGLISH

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider

than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Motor

Do Not Oil the motor or the brush roll at any time.The bearings are permanently lubricated

and sealed.

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com 1

Page 4

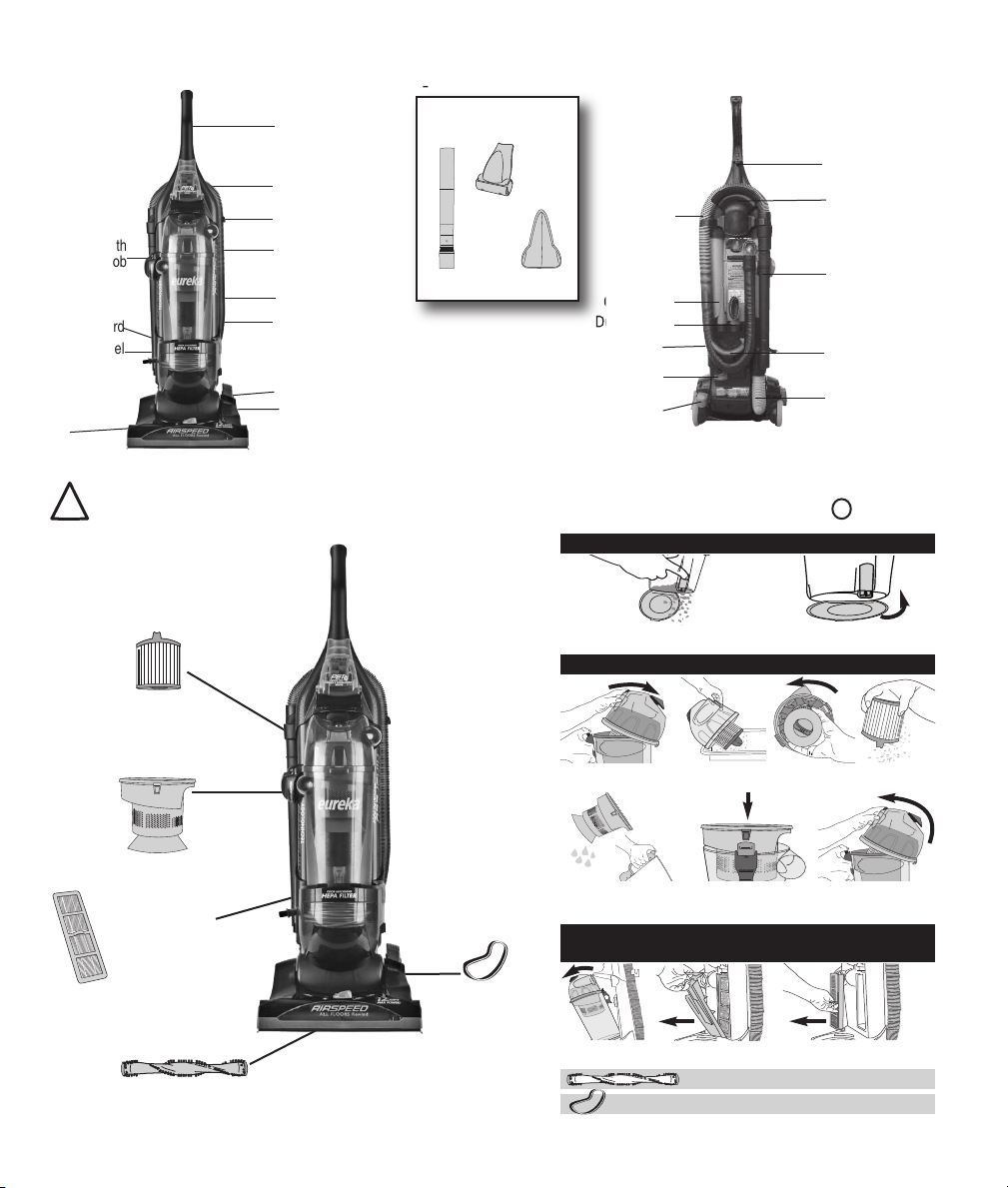

How to identify parts of vacuum cleaner

WAND

SPECIAL FEATURES

Handle

Available on some models

Air path

selector knob

Power cord

Cord reel

Height adjustment knob

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. Moving parts! Power switch is marked for On/Off.

Filter

DCF21

Turbo nozzle

(on some models)

Dust cup release

Filter and screen

(located inside dust cup)

Dust cup

Exhaust/HEPA filter compartment

(located behind dust cup)

Wand 2

Turbo

nozzle

Hose

Turbo cover

Crevice tool

Dusting brush

Cord rewind switch

Power switch

Brushroll on/off pedal

Brush roll cover

Handle release

Maintenance schedule

Maintenance Schedule is also located on back side of dust cup.

DUST CUP – Empty after each use

Press lever to release bottom lid.

Debris will empty.

FILTER DCF21 – Replace or clean regularly to maintain suction

Cord clip

Carry handle

Wand

Lower hose retainer

Base hose

Close bottom lid

until it clicks.

Empty cup. Pull back

latch to lift off lid.

For quick clean,

tap filter.

Grasp filter and twist to remove

from lid. Shake dust from filter.

Screen

Reinstall filter. Align lid

at front; press down until

lid snaps into place.

Exhaust filter

EF6

( HEPA filter

on some models)

Remove screen. Rinse

screen and dust cup.

Dry thoroughly.

Align tab with slot to

reinstall screen.

EXHAUST FILTER EF6 – Check filter regularly. Replace every

6-12 months or when performance loss is noticeably declining

W belt

Remove dust cup. Press down tab and

Brush roll

Eureka Customer Service HELPLINE 1-800-282-2886

remove filter cover.

W BELT –

BRUSH ROLL – Clean monthly

Replace worn, cut or out of shape belt

Lift out filter and replace. Reinstall

cover and snap into place.

www.eureka.com

Page 5

WAND

TOOLS

FLOORS

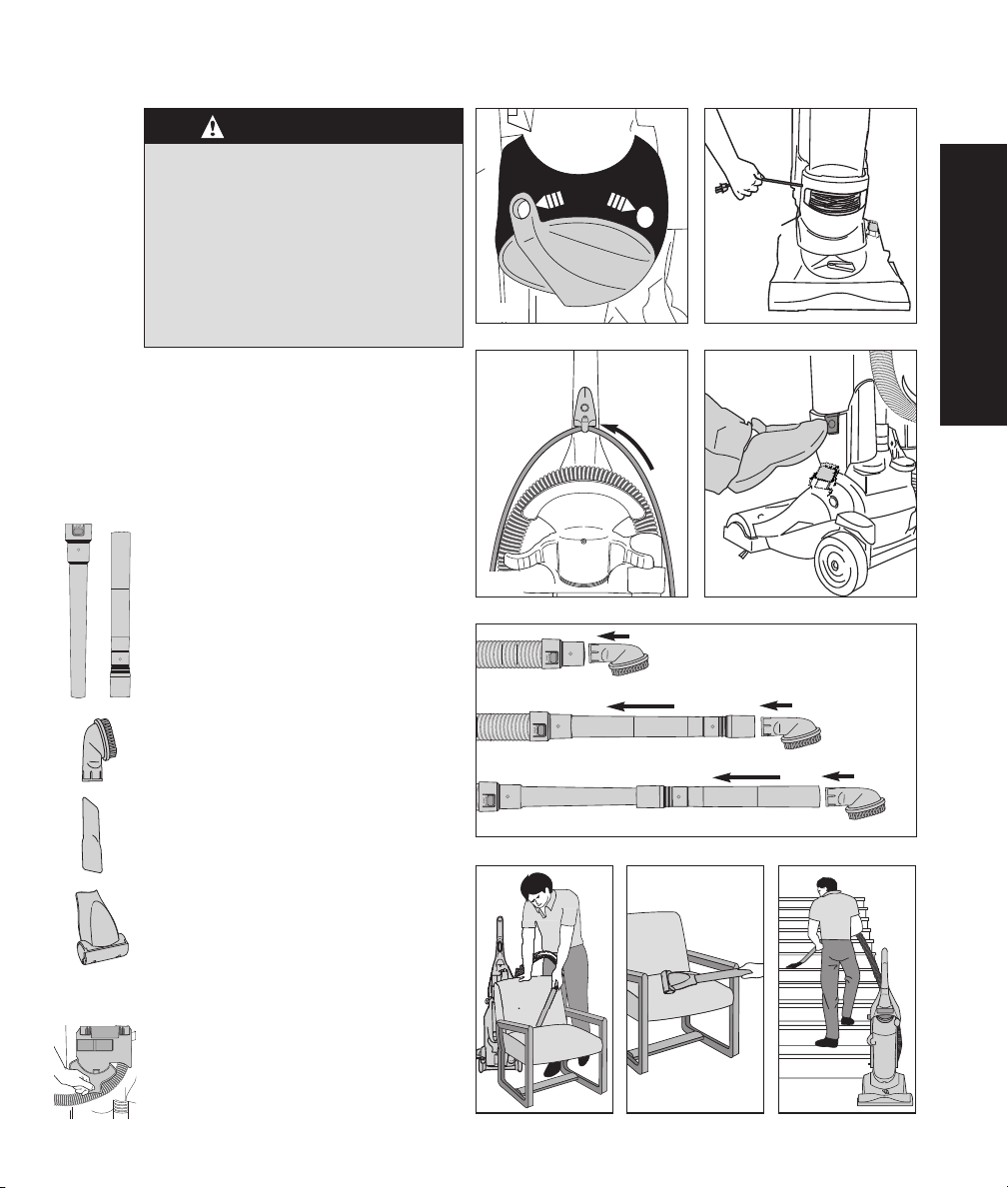

How to use accessories

WAND

C A U T I O N

When using tools, always place handle in upright position to raise vacuum to highest carpet setting. Brush roll will continue to turn when vacuum is turned on and handle is in upright position. Do not tilt vacuum forward while using tools. To avoid damage, do not set vacuum on carpet, carpeted stairs, furniture or fringed rugs when using tools.

Before using accessories

•

Turn air path selector knob to ‘tools’ (Fig. 1).

• Pull out cord to desired length. Do not pull past red line (Fig. 2).

• Push cord into cord clip (Fig. 3).

• To store, press switch to retract cord (Fig. 4).

2-Position wand

(wand 2 on some models or available for purchase)

• Loosen wand and hose from vacuum.

• Push tool onto end of wand (Fig. 5).

• Short wand: Push hose release button to remove wand 1. Attach tool to end of hose.

• Longer wand: Slide off wand 2 and turn over, then push opposite end onto wand 1.

Fig.1

Fig.3

ENGLISH

Fig. 2

Fig.4

Dusting brush

Use for furniture, drapes and vents.

Crevice tool

Use for baseboards, corners and tight spaces.

Turbo nozzle

(on some models or available for purchase)

Use for furniture and stairs.

Stairs – make sure vacuum is below you, pushed against the bottom step.

Eureka Customer Service HELPLINE 1-800-282-2886

• Attach turbo nozzle to end of hose.

NOTE: Hose length can be increased by releasing the hose from the hose retainer on back of unit. Reposition hose inside hose retainer after using accessories.

Fig.5

Wand 1

Wand 2

(on some models)

www.eureka.com

Page 6

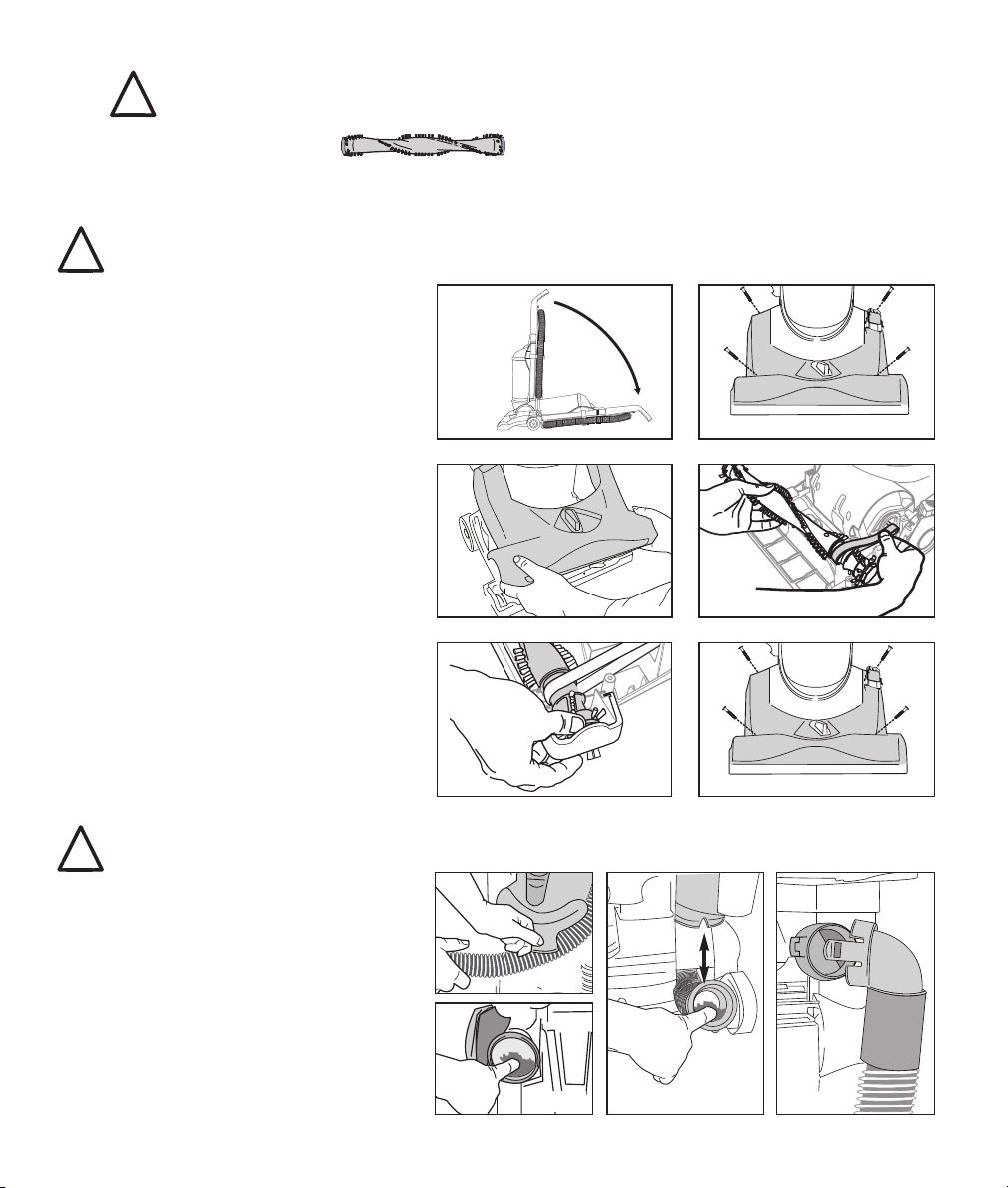

How to maintain your vacuum cleaner

! !

Make sure vacuum cleaner is turned off and power cord is unplugged.

Maintain brush roll

Motor pulley can become hot with normal use.

Remove hair and threads from brush roll periodically. Do not remove end caps.

Check W belt.

Avoid touching the motor shaft when checking brush roll or belt.

Replace

if worn, cut or out of shape.

How to replace brush roll or belt

• Step on handle release to lower handle flat onto floor (Fig.1).

• Remove 4 screws from brush roll cover. (Fig. 2).

• Lift off brush roll cover. (Fig. 3).

• Remove brush roll and belt.Thread new belt around motor shaft and brush roll (Fig. 4).

• Insert left end of brush roll first. Make sure end cap fits into base. Pull right side of brush roll to stretch belt and insert right end cap into base (Fig. 5). Make sure it slides into position.

• Rotate brush roll 2 turns to center belt.

• Replace brush roll cover (Fig. 3).

• Replace 4 screws (Fig. 6).

Fig.1

Fig. 3

Fig. 5

Fig. 2

Fig. 4

Fig. 6

How to clear a blockage

Make sure vacuum is turned off and power cord is unplugged.

Hose blockage

• Remove hose from hose retainer. Flex the hose to loosen any blockage (Fig.1).

•

Remove dust cup. Set air path knob to ‘floors.’ Use finger to check for debris (Fig 2).

• Base hose – base hose. Use finger to clear blockage. Snap hose end back up into position (Fig 3).

• Hose connector – Pull out on left side tab to remove connector. Remove debris. Align tab at right and snap connector back into place (Fig. 4).

Eureka Customer Service HELPLINE 1-800-282-2886

Pull down to loosen end of

Fig. 1

Fig. 2 Fig. 4Fig. 3

www.eureka.com

Page 7

How to maintain turbo nozzle (on some models)

1) Turn nozzle onto back side. Remove 1 screw.

2) Rotate lower part of cover down over brush and lift off cover.

The Eureka limited warranty

Eureka warrants this vacuum cleaner to be free from defects in material and workmanship for a term of three years for normal household use. Warranty is granted only to the original purchaser and members of immediate household.

This warranty is good for three years from the date of purchase only when the vacuum cleaner is used in the accordance with Eureka operating instructions. Note: refurbished or remanufactured products have a one year limited warranty.

Thhiiss wwaarrrraannttyy ddooeess nnoott ccoovveerr

• P

arts of the vacuum that require replacement under normal use such as disposable dust bags, filters, drive belts, light bulbs, brush roll, bristles, impellers and cleaning.

• Damages or malfunctions caused by negligence, abuse, and use not in accordance with the Owner’s Guide.

• Defects or damages caused by unauthorized service or the use of other than Genuine Eureka, ARM & HAMMER

What Eureka will do

Eureka will, at its option, repair or replace a defective vacuum or vacuum part that is covered by this warranty. As a matter of warranty policy, Eureka will not refund the consumer’s

purchase price.

Obtaining warranty service

To obtain warranty service you must return the vacuum or vacuum part along with “proof of purchase” to any Eureka Authorized Warranty Station. For Eureka Authorized Warranty Station or Service Information, visit www.eureka.com, write or telephone toll free:

and Filtrete

by 3M parts.

3) Clear blockage from brush roll area. Use scissors to clip

4) Place cover back into position. Tighten screw.

threads or hair.

USA: 1-800-282-2886

Electrolux Home Care North America Service Division P.O. Box 3900 Peoria, IL 61612

Obtaining warranty service outside your community

You must pay the shipping charges to the Eureka Authorized Warranty Station.

Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type and serial number located on the rating plate on the lower backside of the vacuum.

Further limitations and exclusions

Any warranty that may be implied in connection with your purchase or use of the vacuum, including any warranty of Merchantability or any warranty for Fitness For A Particular Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall the manufacturer be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the vacuum.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights. You may also have other rights, which may vary by state.

The ARM & HAMMER name is a trademark of Church and Dwight Co., Inc. 3M and Filtrete are trademarks of 3M Company, used by Electrolux Home Care Products, Inc. under license.

Mexico: (55) 5343-4384

Electrolux Home Care

Canada: 1-800-282-2886

Electrolux Home Care North America Service Division 5855 Terry Fox Way Mississauga, Ontario L5V 3E4

ENGLISH

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com

Page 8

Problem solving

Make sure vacuum is turned off and power cord is unplugged.

N O T I C E: The rmal cut -off

This vacuum cleaner has a special thermostat that protects the vacuum in case of motor overheating. If the vacuum suddenly shuts off, proceed as follows:

1) Push the power switch to off and unplug the vacuum.

2) Check the vacuum for a possible source of overheating such as a full dust cup, blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum.

3) After the 30 minute period, plug the vacuum back in and turn on the switch. If the vacuum still does not work, call the Eureka customer service helpline.

Problem

Motor will not start.

Vacuum does not clean carpet or bare floor.

No suction at the end of hose.

Turbo nozzle will not turn (on some models).

Vacuum is hard to push.

Burning smell; brush roll will not turn.

Cord will not rewind fully.

Cause

Power plug

Power switch • Step on power switch to turn vacuum on.

Thermal cut-off • See detailed "thermal cut-off" instructions above.

Dust cup and filter

Air path selector • Turn selector knob to ‘floors.’

Belt • Replace a worn, cut or out of shape belt. Page 4

Hose • Remove clogs from the hose that restrict the airflow. Make sure hose

Bare floor setting

Carpet height setting

Dust cup and filter

Air path selector • Turn selector knob to ‘tools.’

Hose

Rotating brush • Check turbo nozzle for debris. Page 5

Vacuum height setting • Adjust knob to a higher position.

Belt • Replace a worn, cut or out of shape belt. Page 4

Belt • Check brush roll for debris. Page 4

Cord tangles • Pull out entire cord removing any kinks, and push button to rewind

• Push plug securely into outlet, try another outlet or check circuit breaker.

• Empty dust cup, clean and/or change filter.

• Clean or replace filters regularly to maintain suction. Page 2

• If picking up fine dust, the dust cup may not look full, but a fine substance tends to reduce suction when it blocks air flow through the filter and screen. Refer to page 2 for filter maintenance. Make sure filter, screen and dust cup are installed properly.

is replaced into hose retainer. Page 4

• For bare floor cleaning, turn height adjustment knob to bare floor position. Step on brushroll on/off pedal to

turn off the brushroll. For carpet cleaning, step on the brushroll on/off pedal to ensure the brushroll

•

is on. Adjust height adjustment knob to appropriate carpet height setting.

• Empty dust cup, clean and/or change filter.

• Clean or replace filters regularly to maintain suction. Page 2

• Remove clogs from the hose that restrict the airflow. Make sure hose is replaced into hose retainer. Page 4

• If no suction at end of hose, turn selector knob to ‘tools.’

• Replace broken or out of shape belt. Page 4

completely.

Solution

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com
