Page 1
Household Type
Vacuum Cleaner
Owner’s Guide
790 Series
Index
Important Safeguards .................. 2
General Information .....................4
Use .............................................. 5
Dust Cup ..................................... 8
Exhaust Filter ............................ 10
Brush Roll ..................................11
Brush Roll Belt ........................... 11
Warranty ............................... 15-16
For location of nearest
Eureka Warranty Station
or service information call
1-800-282-2886.
www.eureka.com
Page 2
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug
the electrical cord when not in use and before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should,
has been dropped, damaged, left outdoors, or dropped into water, return it to a
service center before using.
• Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord
around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord
away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, and anything that may reduce airflow.
• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair,
loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
• Do not use without dustcup and filter in place.
• Belt pulleys can become hot during normal use. To prevent burns, avoid touching
the belt pulley when servicing the drive belt.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in
areas where they may be present.
• Store your cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
2
Page 3
CONSEILS DE SÉCURITÉ
Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent
être observées, incluant les suivantes:
LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR.
AVERTISSEMENT
Pour réduire le risque de feu, de choc électrique, ou de blessure:
• Ne pas utiliser à l’extérieur ou sur des surfaces mouillées.
• Fermez le commutateur et débranchez l’appareil lorsque vous ne l’utilisez pas
ou avant le nettoyage ou l’entretien.
• Ne permettez pas qu’il soit utilisé comme jouet. Une attention particulière est nécessaire
lorsque utilisé par ou près d’un enfant.
• Suivez les recommandations d’utilisation de ce manuel. Utilisez uniquement les
accessoires recommandés par le fabriquant.
• Ne pas utiliser si le cordon ou la fiche sont endommagés. Si l’aspirateur ne fonctionne
pas comme il le devrait, s’il a été échappé, s’il est endommagé, s’il a été laissé à
l’extérieur ou échappé dans l’eau, retournez-le à un centre de service avant de utiliser.
• Ne pas le tirer ou le transporter par le cordon, ne pas utiliser le cordon en guise de
poignée. Ne pas fermer une porte sur le cordon ou tirer le cordon sur des coins ou
bordures pointus. Ne pas circuler sur le cordon avec l’aspirateur. Tenir le cordon à
distance des surfaces chauffantes.
• Ne pas utiliser des rallonges ou des prises qui n’ont pas de capacité suffisante pour
transporter le courant.
• Fermer tous les contrôles avant débrancher.
• Ne pas débrancher en tirant sur le cordon. Pour débrancher, tenez la fiche et non le
cordon.
• Ne pas manipuler la fiche ou l’aspirateur avec les mains mouillées.
• Ne pas rien insérer dans les ouvertures. Ne pas utiliser si des ouvertures sont bloquées;
assurez-vous qu’elles soient dégagées de poussière, mousse, cheveux ou toute autre
chose qui pourrait réduire le passage de l’air.
• Cet aspirateur créé de la succion et contient un rouleau-brosse tournant. Tenir les
parties mobiles et les ouvertures loin des cheveux, du linge, des doigts et de toute
partie du corps.
• Ne pas ramasser des objets qui brûlent ou fument comme les cigarettes, allumettes ou
cendres chaudes.
• N’utilisez pas sans le coupe de poussière de ou filtre en place.
• Les poulies du courroie peuvent devenir chaudes pendant l’utilisation normale. Pour
prévenir des brûlures, évitez de touché la poulie du courroie lorsque vous réparez la
courroie.
• Portez une attention particulière lorsque vous nettoyez les escaliers.
• Ne pas utiliser pour ramasser des liquides inflammables ou combustibles comme de
l’essence: Ne pas utiliser dans les endroits où ces liquides pourraient être présents.
• Entreposez votre aspirateur à l’intérieur dans un endroit propre et sec.
• Maintenez un bon éclairage à l’endroit où vous travaillez.
• Débrancher les appareils électrique avant de les balayer.
CONSERVEZ CES INSTRUCTIONS
3
Page 4
To reduce the risk of electric shock, this appliance has a polarized plug (one blade
wider than the other). This plug will fit in a polarized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
Afin de réduire le risque de choc électrique, cet appareil est muni d’une fiche polarisée
(une des lames est plus large). Cette fiche ne peut être insérée dans une prise polarisée
que d’une seule façon. Si la fiche ne peut être insérée dans la prise, retourner la fiche.
Si la fiche ne peut toujours pas être insérée dans la prise, faire installer une prise
adéquate par un électricien qualifié. Ne pas modifier la fiche.
GENERAL INFORMATION
The cleaner is designed to pick up dirt and dust particles. Avoid picking up hard or
sharp objects with the cleaner to prevent bag tears and hose clogs.
Service Information
The instructions in this booklet serve as a guide to routine maintenance. For additional
service information telephone our toll free number for the nearest Eureka Authorized
Warranty Station. You should know the model, type and serial numbers when you
call:
USA: 1-800-282-2886
Mexico: 5670-6169
Canada: 1-800-282-2886
If you prefer, you can write to The Eureka Company, Service Division, 807 North Main
Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company, 866
Langs Drive, Cambridge, Ontario N3H 2N7. Refer to The Eureka Warranty for complete
service information.
DO NOT OIL the motor or the brush roll at any time. The bearings are
permanently lubricated and sealed.
Rating Plate
The model, type, and serial number are
indicated on the rating plate located on
the back of the cleaner. For prompt and
complete service information, always
refer to these numbers when inquiring
about service.
Model & Type____________________
Serial No._______________________
MODEL TYPE SERIAL NO.
VOLTS AMPS. HERTZ
SERVICE INFORMATION: 1-800-282-2886
Thermal Cut Off
This vacuum cleaner has a special thermostat that protects the cleaner in case of motor
overheating. If the cleaner suddenly shuts off, push the on/off switch off (0) and unplug
the cleaner. Check the cleaner for a possible source of overheating such as a full dust
cup, a blocked hose or clogged filter. If these conditions are found, fix them and wait at
least 30 minutes before attempting to use the cleaner. After the 30 minute period, plug
the cleaner back in and push the on/off switch on (l). If the cleaner still does not run,
then take it to a Eureka Authorized Service Center for repair.
Cleaner Care
NOTE: Turn off the switch and unplug the electrical cord before cleaning unit.
To keep the vacuum cleaner looking new, it can be wiped with a damp cloth and a mild
soap solution, then thoroughly dried. Never use any type of chemical as chemicals
can damage the cleaner. When not in use, the cleaner should be stored in a clean, dry
place.
4
Page 5
HOW TO USE
HANDLE
2
RELEASE
1
3 POSITION
ON/OFF
SWITCH
1
Power Switch
Top position is Off. Middle position is for floor cleaning
and cleaning with accessories (brush roll does not turn).
Bottom position is for cleaning carpets (brush roll turns).
2
Handle Release
When handle is in collapsed position, press handle release
button and rotate handle into upright position.
5
Page 6

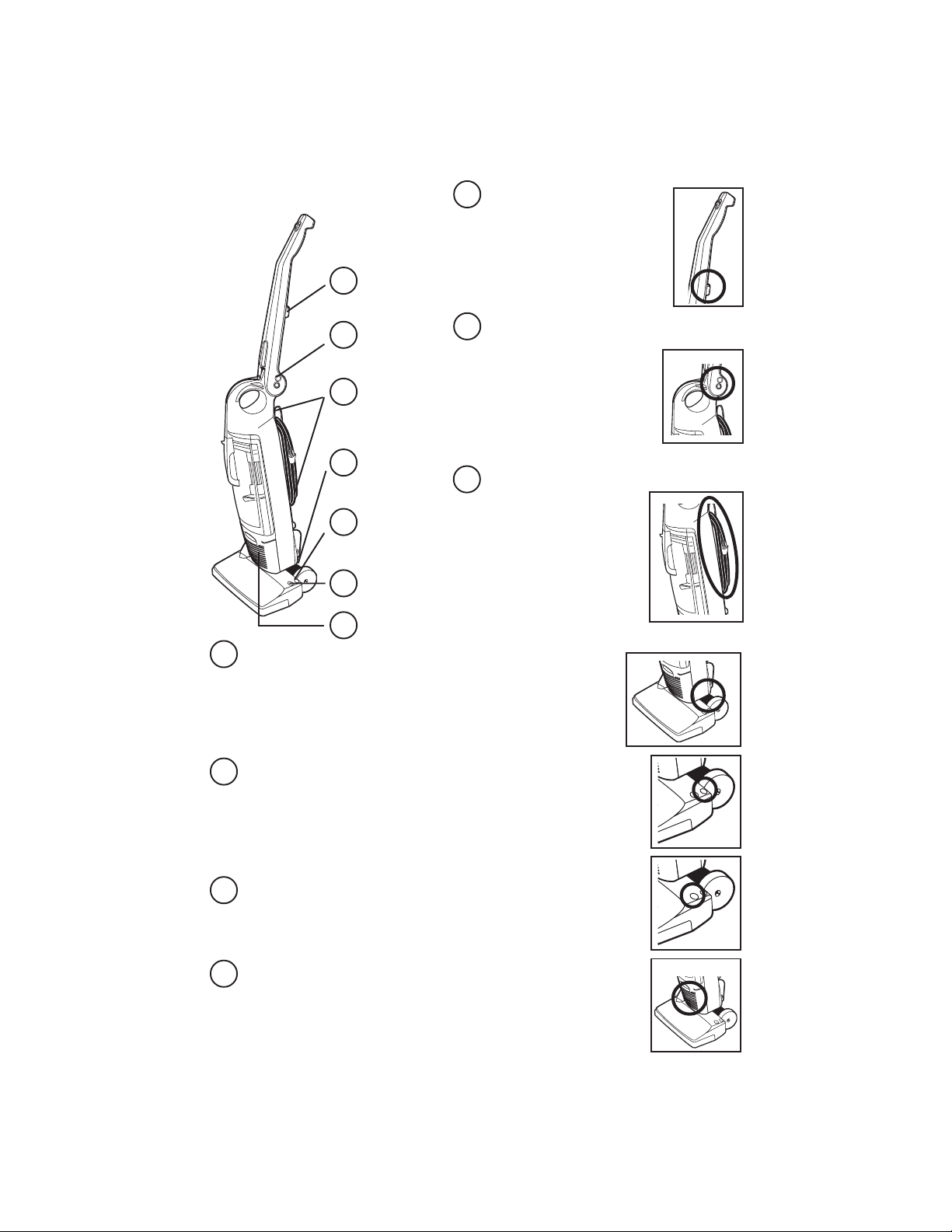

HOW TO USE
CORD
3
RETAINER
3
Cord Retainer
When preparing to use vacuum,
firmly push the electrical cord
down into the cord retainer. This
will place the electrical cord out
of the way while you vacuum.
HANDLE
4
COLLAPSE
BUTTON
CORD
5
STORAGE
HOOKS
HANDLE
6
RELEASE
PEDAL
RESET
7
BUTTON
RESET
8
LIGHT
REMOVABLE
9
EXHAUST GRILLE
6
Handle Release Pedal
The handle release pedal is located next to the floor between
the two wheels on the back of the cleaner. Step on the handle
release pedal and pull back handle to find a comfortable
operating position. Handle will automatically lock into storage
position when handle is rotated into upright position.
7
Reset Button
This unit uses a cogged, non-stretch belt. If a large object causes
the brush roll to jam, the brush roll motor shuts off and the Reset
Light illuminates. Turn off and unplug the unit. Check the brush roll
for debris and clean if needed. Press the reset button, plug in the
unit and turn on to continue cleaning.
4
Handle Collapse Button
To collapse the handle from the
upright position, press handle
collapse button, rotate handle
down until latch in hand grip
locks onto the body.
5
Cord Storage Hooks
This unit has two convenient
cord storage hooks attached
to the handle. Wind the cord
around the hooks and fasten
the plug to the cord to prevent
unwinding.
8
Reset Light
The reset light is a neon light that illuminates when the brush roll
jams. See reset button above for actions to take when this light comes
on.
9
Removable Exhaust Grille
Remove this exhaust grille to clean or replace filter. Refer to page 9.
6
Page 7

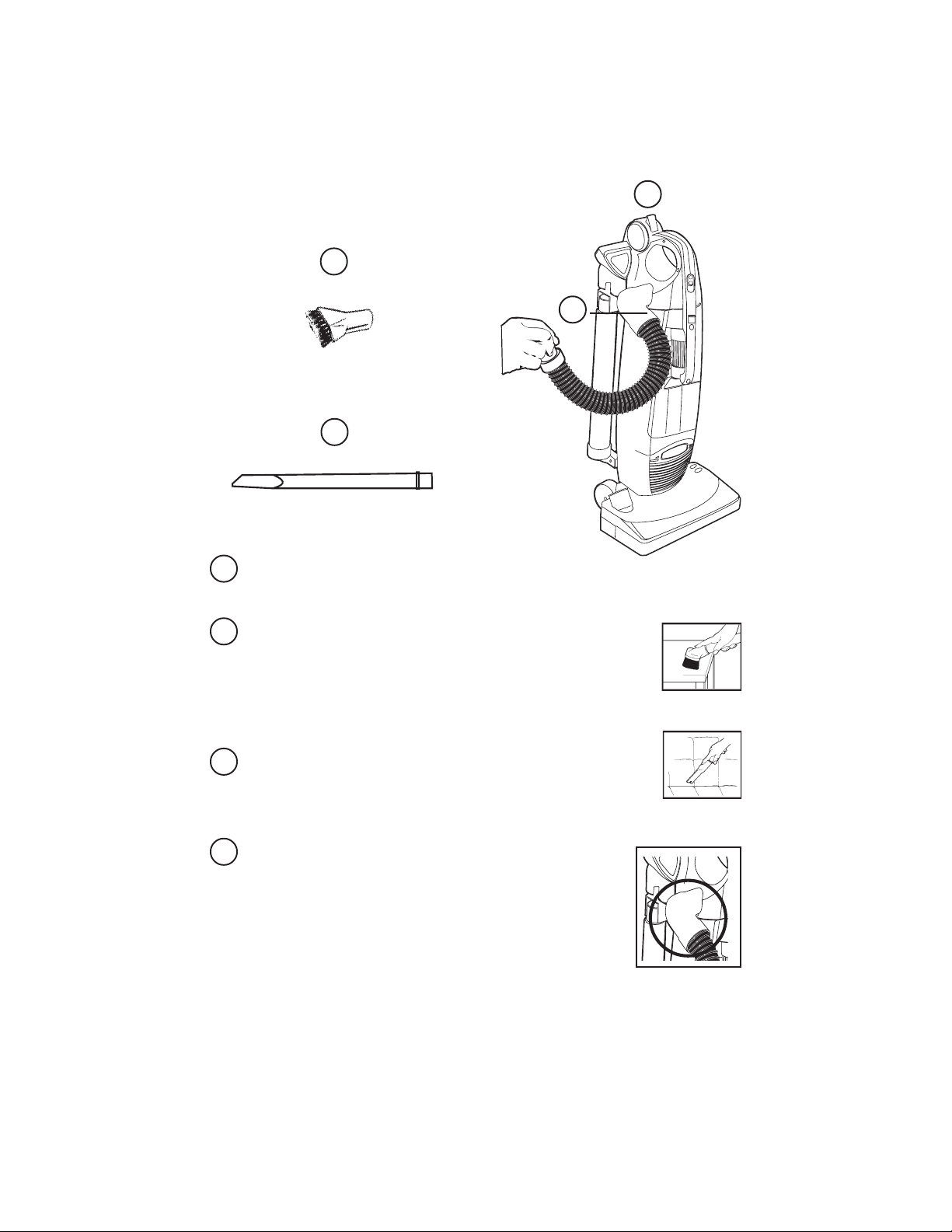

HOW TO USE ACCESSORIES
1
2
Dusting Brush
4
3
Crevice Tool
1
Collapse the handle from the upright position. Press handle release button and
rotate handle down and against the body of the cleaner until it locks onto the body.
2
The dusting brush fits on both the hose and the wand with a
built-in crevice tool. Use the dusting brush to dust furniture, blinds,
books, lamps, shelves.
3
The crevice tool cleans corners, base boards, between cushions.
4
To connect the hose, align notch on top of elbow with
arrow on main body to reconnect. Hose elbow rotates for easy
use of the hose and attachments.
To disconnect the hose for inspection of blockages, align notch
on top of elbow with arrow on main body. Check for blockages
and clear if necessary.
7
Page 8
HOW TO MAINTAIN
How to Empty Dust Cup
NOTE: Turn off the switch and unplug the electrical cord before servicing the
FOR INSTRUCTIONS ON HOW TO REMOVE THE DUST CUP FROM THE
CLEANER BODY, REFER TO PAGE 8.

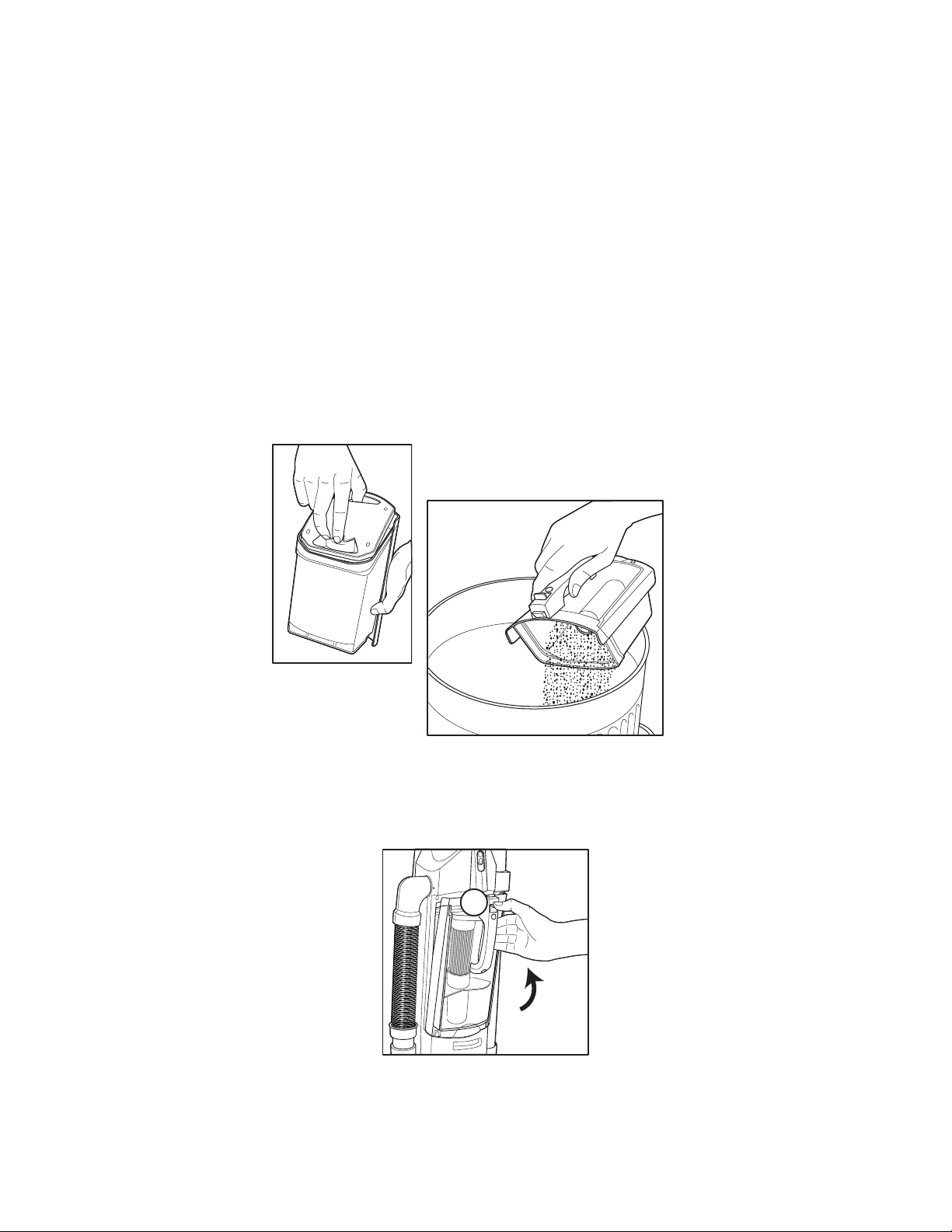

Emptying the Dust Cup:
It is clearly visible when the dust cup is full and needs emptying. Remove dust cup
from cleaner body. Remove dust cup lid from dust cup by grasping lid handles and
lifting up. (See below.) Then dump debris in a waste container.
cleaner. Never operate the vacuum cleaner without the dust cup or filter.
Reinstalling the Dust Cup:
Grasp the dust cup lid by the lid handles and sit back on top of dust cup. It will fit only
one way. To replace the dust cup, put bottom of dust cup in place by aligning tabs in
slots and pivoting dust cup up against the cleaner body. Lift up on dust cup latch to
secure in place (a).
a
8
Page 9
HOW TO MAINTAIN (continued)
The instructions given in this booklet serve as a guide to routine maintenance. To
avoid unnecessary service calls, check the dust cup, filter, belt, and brush roll often.
Empty the dust cup if it is full; clean the filter, replace the belt if it is stretched or
cracked, and clean the brush roll bristles if they are wrapped with thread and hair.

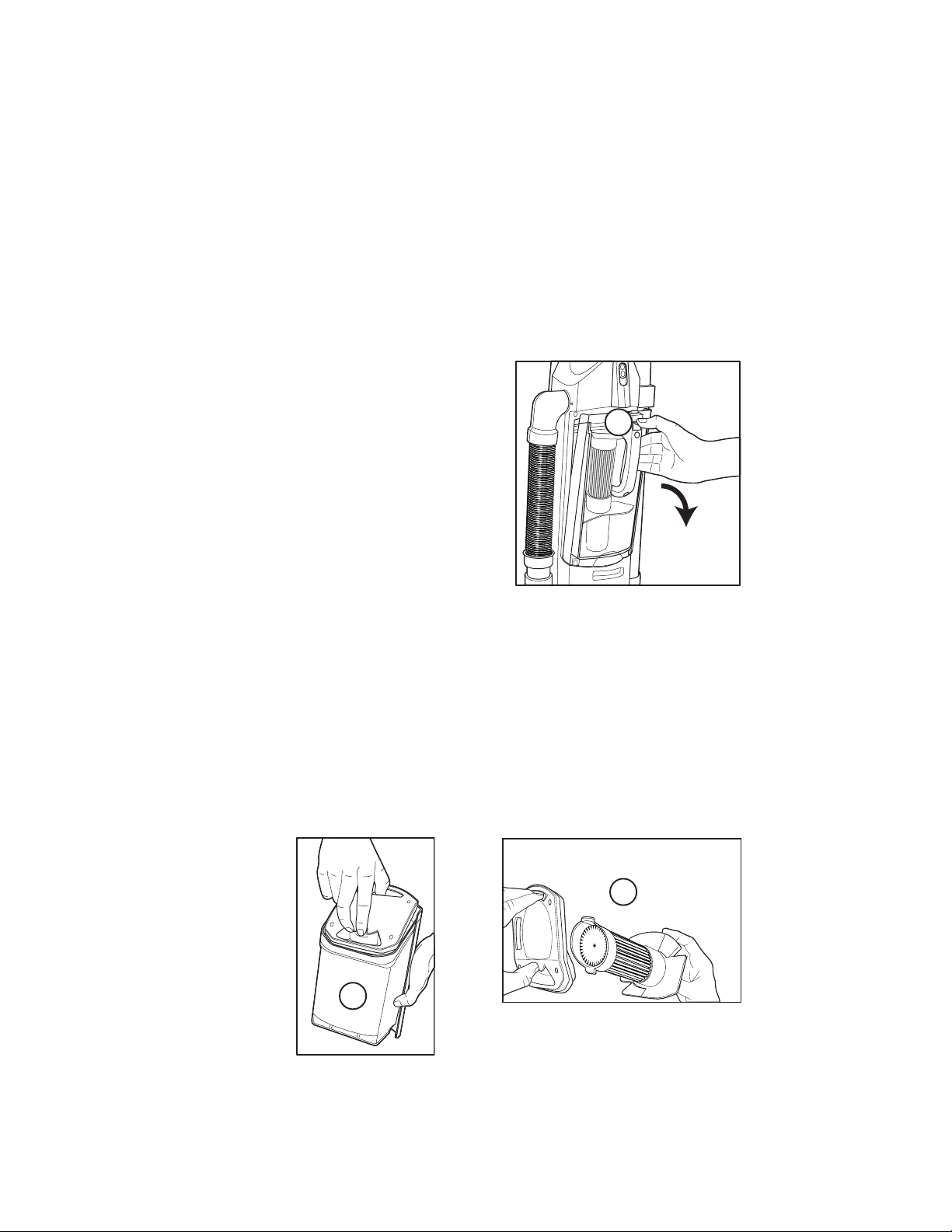

To Change Dust Cup Pleated Filter
NOTE: Turn off the switch and unplug the electrical cord before changing the
HINT: When cleaning new carpet for the first time, cup will fill quickly. Check
Remove the dust cup by pressing down on the
dust cup latch (a) and pulling dust cup away from
cleaner body. When replacing the dust cup put
bottom of dust cup in place by aligning tabs in
slots and pivot dust cup up against the cleaner
body. Lift up on dust cup latch to secure in place.
Check and clean the Pleated Filter once a
month to maintain good performance. The
filter can be cleaned by washing with mild
detergent and warm water. Be sure pleated
filter is completely dry before reinstalling.
To Clean the Pleated Filter:
1. Remove dust cup from cleaner body. See above illustration (a).
2. Remove dust cup lid by grasping lid handles and lifting up.
3. To release the pleated filter from dust cup lid, press latch in the bottom lid handle.
4. To remove debris, tap filter against waste container or brush off. You may also
5. When all parts are completely dry, reattach pleated filter to dust cup lid and
NOTE: Do not put any parts in a dishwasher.
NOTE: Your dust cup filter may need to be replaced if cleaning it does not restore
pleated filter. Never operate the vacuum cleaner without the dust cup or
the pleated filter.
often.
a
Pull pleated filter away from dust cup lid.
vacuum the filter using a different cleaner. If filter needs further cleaning, wash in
warm water using a mild detergent. To clean between filter pleats, fan open under
running water.
follow the above steps in reverse to reassemble.
cleaning performance.
3
2
9
Page 10
HOW TO MAINTAIN (continued)
NOTE: Turn off the switch and unplug the electrical cord before servicing the
cleaner. Never operate the vacuum cleaner without the dust cup or filter
in place.
FILTER
The filters should be checked at each
empting of dust cup. If the filters are dirty,
clean or replace for maximum performance
of your cleaner.

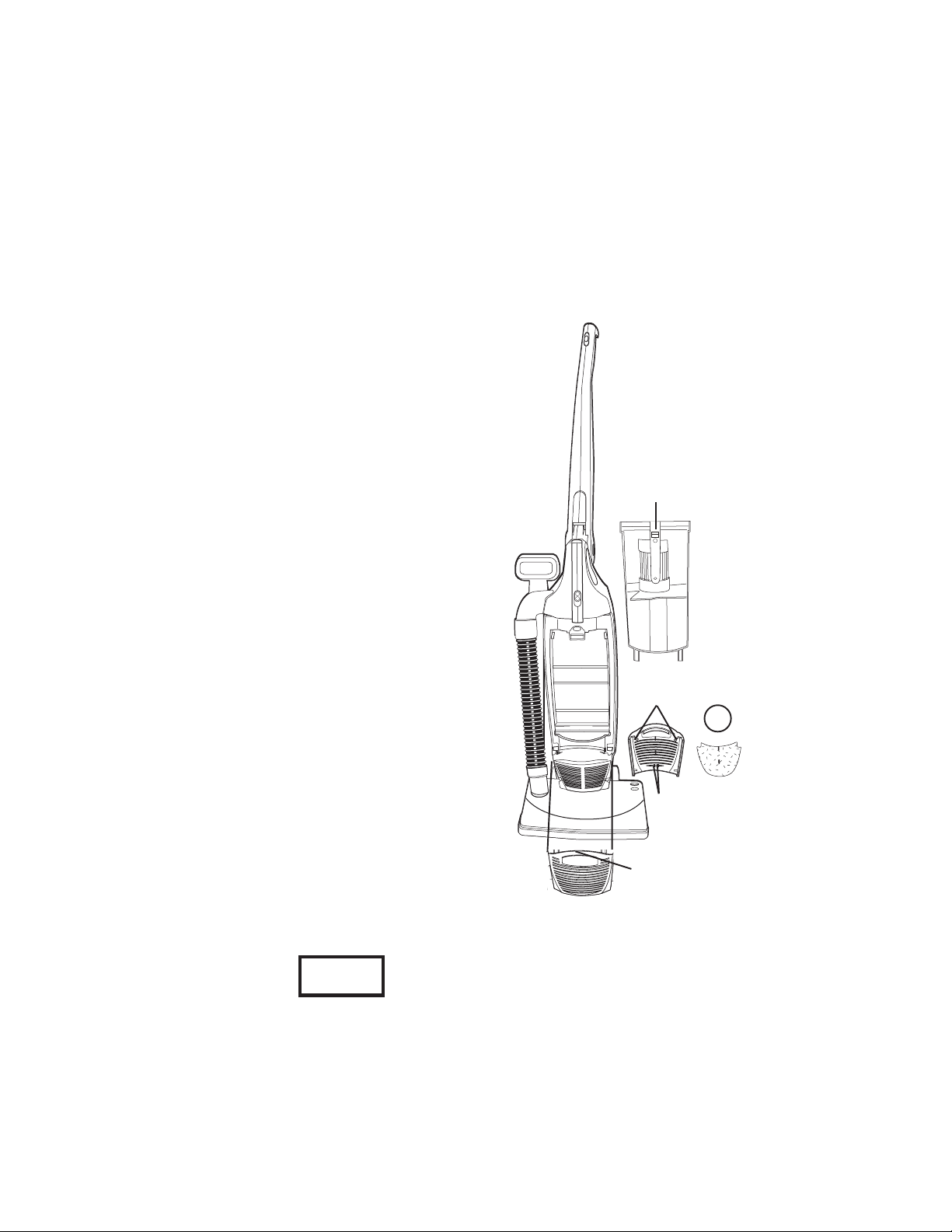

Exhaust Filter
The exhaust filter is located behind the
dust filter grille below the dust cup
compartment.
Remove the dust cup. (The dust cup has
to be removed first to enable removal of
exhaust grille.) Lift up on exhaust grille
handle to remove. The filter is attached to
the back of the grille. If the exhaust filter is
dirty, remove and clean or replace with a
new filter.
To clean the exhaust filter, brush the debris
off into a trash bin or vacuum with another
vacuum cleaner.
To replace the exhaust filter, tuck the
bottom of the filter behind the two filter
retainers at the bottom of the exhaust grille.
Then place the top of the filter behind the
two filter retainers at the top of the grille.
Press the filter down on narrow pegs in
the center of the grille. Replace the grille
on the cleaner and replace the dust cup.
Dust Cup
Upper Filter
Retainers
2
Lower
Filter
Retainers
Look for the symbol.
10
GENUINE
EUREKA PRODUCT
Exhaust
Grille
Handle
Page 11
HOW TO MAINTAIN (continued)
NOTE: Turn off the switch and unplug the electrical cord before servicing the

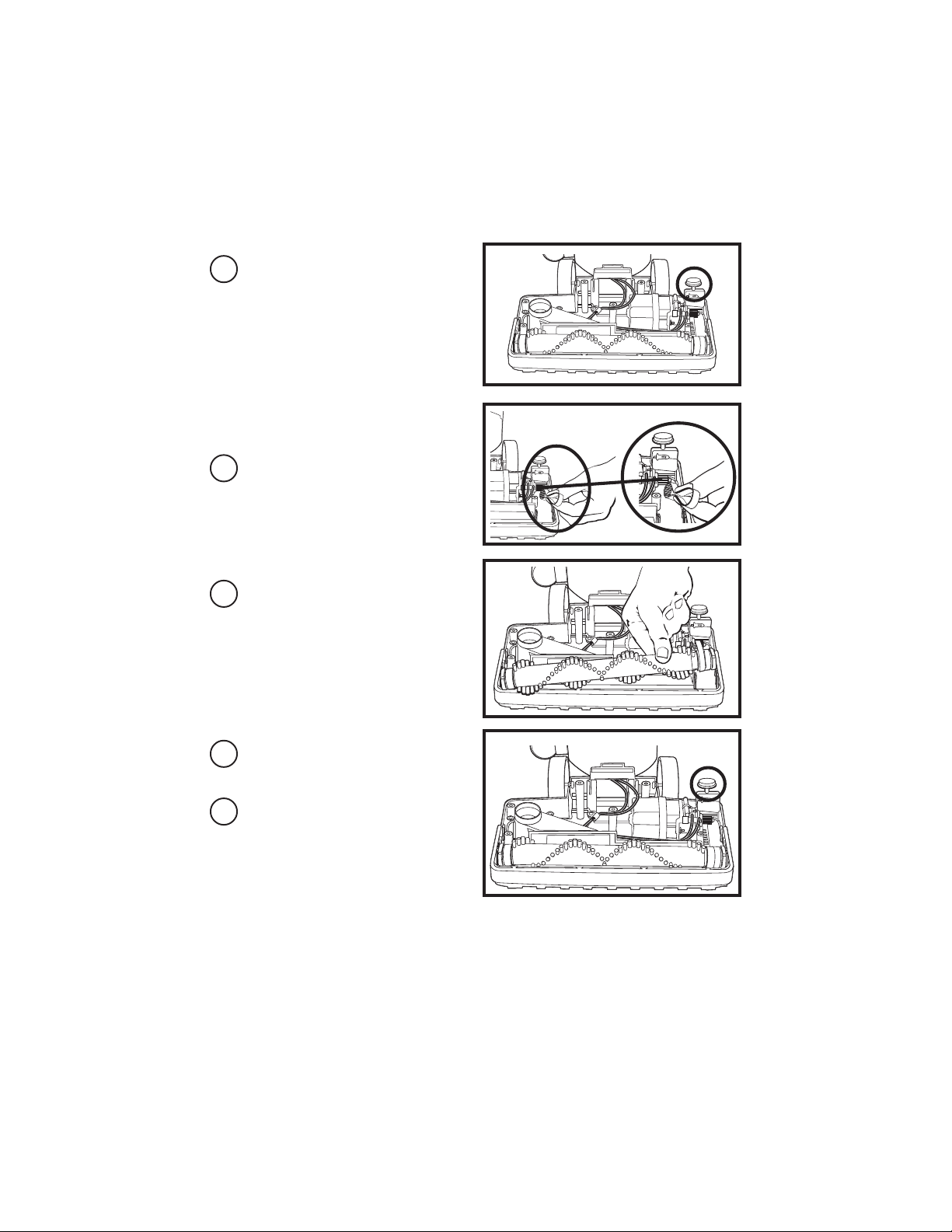

REPLACE BRUSH ROLL BELT
bottom of the power nozzle. Flip the
power nozzle back upright and remove
the hood.
NOTE: The reset button cover
Pinch new brush roll belt together and
position new belt so teeth engage cog
pulley on end of motor shaft.
brush roll. Align left end of brush roll into
the base by rotating slightly until brush
roll end cap slides into place.
cleaner.
1
Remove the 10 screws on the
(circled) is spring loaded so
it may become displaced
when you remove the hood.
Keep track of reset button and
spring.
2
Remove broken brush roll belt.
3
Place the other end of belt around
Cog
Pulley
Secure right end of brush roll into base.
4
The brush roll belt is now installed.
5
Make sure the reset button
cover (circled) is in position on spring.
Replace hood. Hold body and power
nozzle, turn over so bottom of power
nozzle is facing up. Replace screws.
Brush Roll
As the brush roll rotates, it sweeps and combs the carpet nap. Remove hair and threads
from the brush roll so it continues brushing the carpet nap. Check brush roll occasionally for hair or string that may have wrapped around dowel. Remove with scissors.
When bristles have worn to about 1/4" in length, carpet cleaning effectiveness will be
reduced. It is time to replace the brush roll. Follow the instructions in the brush roll belt
section to open up the power nozzle and replace the brush roll.
11
Page 12
4/03
(Not applicable in Canada)
ORDER FORM
$5.50
Printed in China
© 2003 White Consolidated Ltd.
TOTAL ENCLOSED
Name
Address (street address needed for UPS)
City State Zip
I
S
The Eureka Company
P.O. Box 2799
Bloomington, IL 61702-2799
P
H
Part No. Qty. Price (USD) Total
Total (prices subject to change without notice)
Tax (add state and local taxes as required by law)
Postage and Handling Charge (Within the U.S.A.)
Telephone (Day) (Eve) (Fax)
T
O
1-800-282-2886*
Disposable Bag (Style SL) - pkg of 3 61125 3.49
Belt 61121 2.39
Motor Filter 61123 1.49
Exhaust Filter 61124 1.99
Dust Cup Filter 61975 9.99
Brush Roll 61128-1 17.49
Hose Assembly 61129-1 16.49
Dusting Brush 61126 1.99
Nested Wands 61127 3.99
Genuine Eureka Parts
__________________
Model Number
__________________
Type
__________________
Serial Number
IMPORTANT:
To Answer Problems or Questions for U.S.A. and Canada call:
8 a.m. - 7:30 p.m. (CST) Monday - Friday and 10 a.m. - 6:30 p.m. (CST) Saturday
plate.
numbers may be
Be sure to include
your model, type, and
serial numbers. These
found on the rating
Check or money order (payable to The Eureka Company). Do not send currency.
Method of Payment (No C.O.D.s)
Visa (16 digits) DiscoverCard (15 digits) MasterCard (13 digits) American Express (15 digits)
Acct. number Expiration date
Signature (Full name as shown on account) _____________________________________________
Name
Address (street address needed for UPS)
VACUUM CLEANERS
S
City State Zip
L
D
O
Telephone (Day) (Eve) (Fax)
To Order
T
O
HOURS:
By Phone
and 4:45 p.m.,
Call between 8 a.m.
central standard time
1-800-438-7352*
By FAX
1-309-823-5789
Monday through Friday.
By Mail
5670-6169
*En Mexico llame al
include day
Order Form.
Please be sure to
Simply fill out this
ON-LINE
and evening
phone numbers.
72807
www.eureka.com
Page 13
THE EUREKA LIMITED WARRANTY
• Damages or malfunctions caused by negligence, abuse, or use not in accordance with the Owner’s Guide.
hat This Warranty Covers
W
Your Eureka cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of one year. The warranty is granted only to the original
hat This Warranty Does Not Cover
purchaser and members of his or her immediate household. The warranty is subject to the following provisions.
• Defects or damages caused by unauthorized service or the use of other than Genuine Eureka parts.
• Parts of the cleaner that require replacement under normal use, such as disposable dust bags, filters, drive belts, light bulbs, brush roll bristles, impellers and cleaning.
W
hat The Eureka Company Will Do
W
The Eureka Company will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a matter of warranty policy, the Eureka Company will not
refund the consumer’s purchase price.
arranty Registration
Please fill out and return the warranty registration card accompanying your cleaner.
W
To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Eureka Authorized Warranty Station.
You will find the nearest location in the Yellow Pages, under “Vacuum Cleaners–Service and Repair.” Be certain that the Warranty Station is “Eureka Authorized.”
btaining Warranty Service
O
Mexico: 5670-6169
USA: 1-800-282-2886
Canada: 1-800-282-2886
For the location of the nearest Eureka Authorized Warranty Station or for service information, telephone toll free:
If you prefer, you can write to The Eureka Company, Service Division, 807 North Main Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company,
866 Langs Drive, Cambridge, Ontario N3H 2N7.
If it is necessary to ship the cleaner outside your community to obtain warranty repair, you must pay the shipping charges to the Eureka Authorized Warranty Station.
Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type, and serial numbers from the data plate on the cleaner.
Page 14
GENUINE
EUREKA PRODUCT
Bloomington, Illinois 61701
THE EUREKA COMPANY
For Genuine Eureka Value, Accept No Imitations!
Any warranty that may be implied in connection with your purchase or use of the cleaner, including any warranty of Merchantability or any warranty for Fitness For A
urther Limitations and Exclusions
F
Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall Eureka be liable for any consequential or incidental
Particular Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not
apply to you.
Part No. 72806 (02/03)
long life and cleaning efficiency of your vacuum cleaner. Overall, this saves you money and helps to keep your home clean.
Q: Why should I use only Genuine Eureka paper bags, belts, and parts in my Eureka vacuum cleaner?
This warranty gives you specific legal rights. You may also have other rights which vary by state.
damages you may incur in connection with your purchase or use of the cleaner. Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
A: Using Genuine Eureka Products, which are made to our exacting specifications and engineered with emphasis on quality, performance, and customer satisfaction, ensures the
uestions & Answers about Genuine Eureka Products
Q
may call our toll-free number, 1-800-282-2886, for the location of a nearby Eureka Authorized Warranty Station.
Q: How can I be sure I am using only genuine Eureka products in my vacuum cleaner?
A: Typically, packaged products and paper bags can be identified by a “Genuine Eureka Product” symbol (see illustration above). For further identification assistance, you
©2003 White Consolidated, Ltd.
they purchased genuine. Unfortunately, many of these customers discovered the differences after they experienced related difficulties.
Q: Are there any differences between “made to fit” or “imitation” and Genuine Eureka paper bags, belts, and parts?
A: Yes, there are some very important differences in materials, quality, and reliability. Many customers have mistakenly purchased “imitation” paper bags and parts while thinking
Printed in China
Household Warranty
abs 190
Loading...
