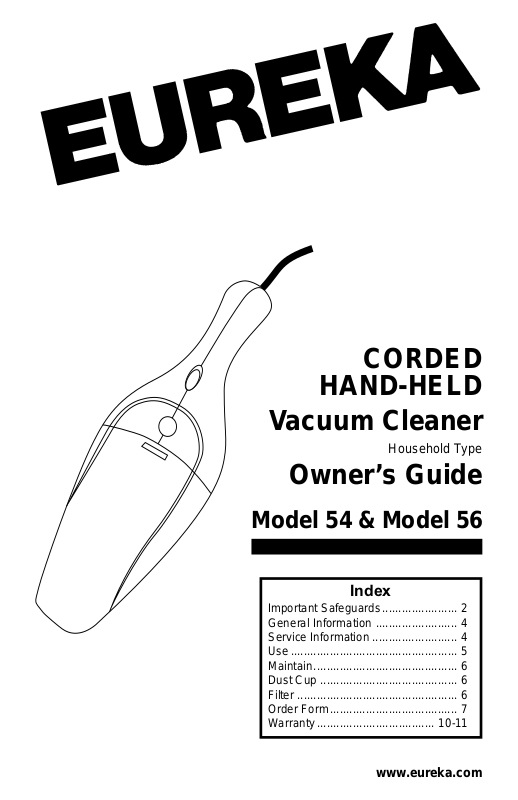

Page 1
CORDED
HAND-HELD
Vacuum Cleaner
Household Type
Owner’s Guide
Model 54 & Model 56
Index
Important Safeguards....................... 2
General Information ......................... 4
Service Information .......................... 4
Use................................................... 5
Maintain............................................ 6
Dust Cup .......................................... 6
Filter ................................................. 6
Order Form....................................... 7
Warranty.................................... 10-11
www.eureka.com
Page 2
IMPORT ANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
W ARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in. Turn off the switch and
unplug the electrical cord when not in use and before servicing.
• Do not allow to be used as a toy . Close attention is necessary when used by
or nearchildren.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as
it should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service center before using.
• Do not pull or carry by cord, use cord as a handle, close door on cord, or
pull cord around sharp edges or corners. Keep cord away from heated
surfaces.
• Do not use extension cords or outlets with inadequate current carrying
capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not plug in or handle vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked;
keep freeof dust, lint, hair, and anything that may reduce airflow.
• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and
all parts of body away from openings and moving parts.
• Do not use to pick up anything that is burning or smoking, such as cigarettes,
matches or hot ashes.
• Do not use without a filter in place. When servicing the unit, never put fingers
or other objects into the fan chamber in case the unit would accidentally be
turned on.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline, or
use in areas where they may be present.
• Store your cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
SA VE THESE INSTRUCTIONS
2
Page 3
CONSEILS DE SÉCURITÉ
Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires
doivent être observées, y compris les suivantes:
LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER CET ASPIRATEUR.
AVERTISSEMENT
Pour réduire le risque de feu, de décharge électrique ou de blessure:
• N’utilisez pas cet aspirateur à l’extérieur ou sur une surface humide.
• Ne quittez pas l’aspirateur lorsqu’il est branché. Mettez l’interrupteur à l’arrêt et
débranchez le cordon électrique lorsque l’aspirateur n’est pas utilisé et/ou avant de le
réparer.
• N’utilisez pas l’aspirateur comme un jouet. Il faut faire attention lorsqu’il est utilisé par
ou près des enfants.
• Utilisez-le seulement comme il est décrit dans ce livret. Utilisez seulement les
accessoires recommandés par le fabricant.
• N’utilisez pas l’aspirateur avec une fiche ou un cordon endommagé. S’il ne fonctionne
pas comme il faut; s’il est tombé; s’il a été endommagé, laissé à l’extérieur ou plongé
dans l’eau, retournez-le à un centre de service après-vente avant de l’utiliser.
• Ne tirez pas sur le cordon et ne portez pas l’aspirateur par le cordon. N’utilisez pas le
cordon comme une poignée. Ne fermez pas de porte sur le cordon, et ne tirez pas le
cordon autour des coins aigus. Gardez le cordon éloigné des surfaces chaudes.
• N’utilisez pas de cordons prolongateurs ni de prises de courant avec une capacité de
courant insuffisante.
• Mettez à l’arrêt toutes les commandes avant de le débrancher.
• Ne débranchez pas l’aspirateur en tirant sur le cordon. Pour le débrancher, saisissez
la fiche, et non pas le cordon.
• Ne touchez pas la fiche ou l’aspirateur avec les mains mouillées.
• Ne mettez aucun objet dans les ouvertures. N’utilisez pas l’aspirateur avec des
ouvertures bouchées; gardez-le exempt de poussière, charpie, cheveux et tout ce qui
peut réduire la circulation de l’air.
• Cet aspirateur produit de la succion. Tenez les pièces mobiles et les ouvertures
éloignées des cheveux, des vêtements, des doigts et des parties du corps.
• Ne ramassez pas des objets qui brûlent ou fument, commes des cigarettes, des
allumettes ou des cendres chaudes.
• N’utilisez pas l’aspirateur tant que le filtre n’est pas en place. Lors de l'entretien de
l'appareil, ne mettez jamais les doigts ou d'autres objets dans le compartiment du
ventilateur au cas où l'appareil serait accidentellement mis en marche.
• Soyez extrêmement prudent lorsque vous nettoyez dans des escaliers.
• N’utilisez pas l’aspirateur pour ramasser des liquides inflammables ou combustibles,
comme l’essence. Ne l’utilisez pas en présence éventuelle de tels liquides.
• Entreposez votre aspirateur à l’intérieur, dans un endroit frais et sec.
• Gardez le lieu de travail bien éclairé.
• Débranchez les appareils ménagers électriques avant de les nettoyer avec l’aspirateur.
CONSERVEZ CES INSTRUCTIONS
3
Page 4
T o reduce the risk of electric shock, this appliance has a polarized plug (one
blade is wider than the other). This plug will fit in a polarized outlet only one
way. If the plug does not fit fully into the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician to install the proper outlet. Do not change
the plug in any way.
GENERAL INFORMATION
The corded vacuum cleaner is the answer for quick, convenient, and easy
cleanups. Use this cleaner for little tasks rather than a larger cleaner.
Service Information
The instructions in this booklet serve as a guide to routine maintenance. For
additional service information telephone our toll free number for the nearest
Eureka Authorized Warranty Station. You should know the model, type and
serial numbers when you call:
USA: 1-800-282-2886
Mexico: 5670-6169
Canada: 1-800-282-2886
If you prefer, you can write to The Eureka Company, Service Division, 807 North Main
Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company , 866
Langs Drive, Cambridge, Ontario N3H 2N7. Refer to The Eureka Warranty for complete
service information.
DO NOT OIL the motor at any time. The bearings are permanently
lubricated and sealed.
Rating Plate
The model, type, and serial numbers are
indicated on the rating plate located on
the back side of the cleaner. For prompt
and complete service information, always
refer to these numbers when inquiring
about service.
Model & Type No. ________________
Serial No. _______________________
4
MODEL TYPE SERIAL NO.
VOLTS AMPS. HERTZ
SERVICE INFORMATION: 1-800-282-2886
THE EUREKA COMP ANY
BLOOMINGTON, ILLINOIS 61701
Page 5
IDENTIFY PARTS
1. Dust Container
2. Release Button
3. ON/OFF Switch
4. Power Cord
5. Crevice Tool
6. Motor Filter
2
1
5
6
4
3
On back
of unit.
USING THE VACUUM CLEANER
1. Plug the power cord into a wall socket.
2. To switch on, move the on/off switch forward toward the dust container.
3. To switch off, move the on/off switch backward toward the handle.
To Use the Crevice Tool
1. Locate crevice tool on the bottom of the cleaner.
2. Grasp the end of the crevice tool nozzle and rotate out until it stops.
3. Then push the crevice tool firmly into the end of the cleaner nozzle.
End of the
crevice tool
nozzle.
4. After use, to store crevice tool pull the crevice tool out from the cleaner
nozzle.
5. Rotate back into the bottom of the cleaner until it snaps into place.
5
Page 6
HOW TO MAINTAIN
The instructions given in this booklet serve as a guide to routine maintenance.
Keep the container operating at top efficiency. Empty the dust cup and clean
after each use.

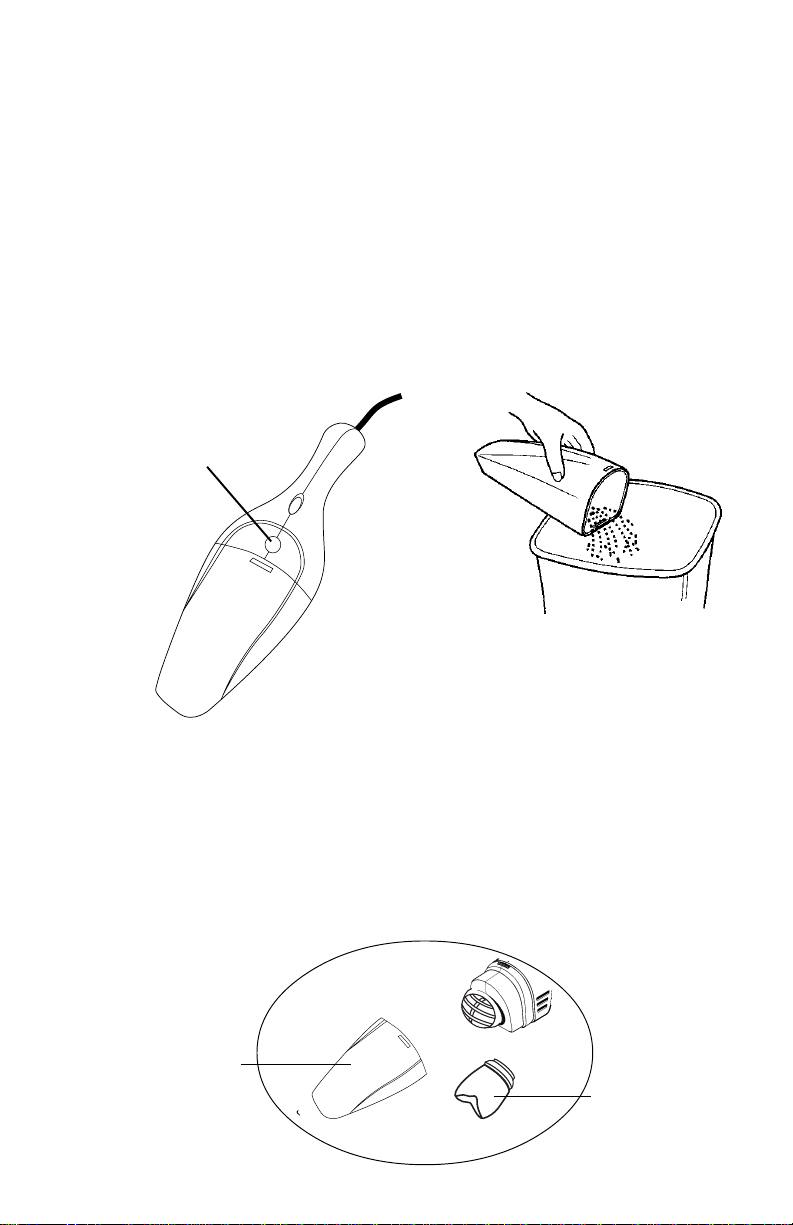

Empty Dust Cup
1. Push down on Dust Cup Release Button.
2. Pull dust cup from handle section.
3. Empty dust cup contents.
4. Clean motor filter per instructions below.
5. Replace dust container by pressing it into handle section until
they snap together.
Dust Cup Release
Button
Clean Motor Filter
Clean the motor filter after each use.
1. Remove filter from dust cup.
2. Clean motor filter . If necessary , vacuum the filter with another vacuum cleaner.
3. Replace filter into dust cup.
Dust Cup
Motor Filter
6
Page 7
2/01
ORDER FORM
Name
Address (street address needed for UPS)
City State Zip
Telephone (Day) (Eve) (Fax)
I
S
H
T
P
Part No. Qty. Price (USD) Total
O
$3.75
TOT AL
Total (prices subject to change without notice)
Tax (add state and local taxes as required by law)
Postage and Handling Charge (Within the U.S.A.)
Printed in China & U.S.A.
© 2001 White Consolidated Industries, Inc.
#
The Eureka Company
P .O. Box 2799
Bloomington, IL 61702-2799
VACUUM CLEANERS
Name
Address (street address needed for UPS)
City State Zip
L
S
D
O
Motor Filter 61130 2.09
Charger (110 volt) - model 79 70686 6.99
Charger (240 volt) - model Z79 61229 6.99
Battery Pack - model 79 70685 13.29
Genuine Eureka Parts
Check or money order (payable to The Eureka Company). Do not send currency.
IMPORTANT:
numbers. These
on the rating plate.
model, type, and serial
numbers may be found
(Not applicable in Canada)
__________________
Model Number
__________________
Type
__________________
Telephone (Day) (Eve) (Fax)
T
O
Be sure to include your
Serial Number
Charge to my Visa (13/16 digits) MasterCard (13 digits) American Express (15 digits)
Method of Payment (No C.O.D.s)
Acct. number Expiration date
Signature (Full name as shown on account) _____________________________________________
70695
Page 8
Page 9
Page 10
THE EUREKA LIMITED WARRANTY
Mexico: 5670-6169
USA: 1-800-282-2886
Canada: 1-800-282-2886
Your Eureka cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of one year. The warranty is granted only to the original
hat This Warranty Covers
purchaser and members of his or her immediate household. The warranty is subject to the following provisions.
W
• Parts of the cleaner that require replacement under normal use, such as disposable dust bags, filters, drive belts, light bulbs, and brush roll bristles
• Damages or malfunctions caused by negligence, abuse, or use not in accordance with the Owner’s Guide.
hat This Warranty Does Not Cover
• Defects or damages caused by unauthorized service or the use of other than Genuine Eureka parts.
W
The Eureka Company will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a matter of warranty policy, the Eureka Company will not
hat The Eureka Company Will Do
refund the consumer’s purchase price.
W
arranty Registration
Please fill out and return the warranty registration card accompanying your cleaner.
W
To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Eureka Authorized Warranty Station.
You will find the nearest location in the Yellow Pages, under “Vacuum Cleaners–Service and Repair.” Be certain that the Warranty Station is “Eureka Authorized.”
btaining Warranty Service
For the location of the nearest Eureka Authorized Warranty Station or for service information, telephone toll free:
O
If you prefer, you can write to The Eureka Company, Service Division, 807 North Main Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company,
866 Langs Drive, Cambridge, Ontario N3H 2N7.
If it is necessary to ship the cleaner outside your community to obtain warranty repair, you must pay the shipping charges to the Eureka Authorized Warranty Station.
Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type, and serial numbers from the data plate on the cleaner.
Page 11
GENUINE
EUREKA PRODUCT
Bloomington, Illinois 61701
THE EUREKA COMPANY
For Genuine Eureka Value, Accept No Imitations!
Any warranty that may be implied in connection with your purchase or use of the cleaner, including any warranty of Merchantability or any warranty for Fitness For A Particular
Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall Eureka be liable for any consequential or incidental damages you
may incur in connection with your purchase or use of the cleaner. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
urther Limitations and Exclusions
This warranty gives you specific legal rights. You may also have other rights which vary by state.
F
Q: Why should I use only Genuine Eureka paper bags, belts, and parts in my Eureka vacuum cleaner?
uestions & Answers about Genuine Eureka Products
Q
ensures the long life and cleaning efficiency of your vacuum cleaner. Overall, this saves you money and helps to keep your home clean.
A: Using Genuine Eureka Products, which are made to our exacting specifications and engineered with emphasis on quality, performance, and customer satisfaction,
may call our toll-free number, 1-800-282-2886, for the location of a nearby Eureka Authorized Warranty Station.
Q: How can I be sure I am using only genuine Eureka products in my vacuum cleaner?
A: Typically, packaged products and paper bags can be identified by a “Genuine Eureka Product” symbol (see illustration above). For further identification assistance, you
thinking they purchased genuine. Unfortunately, many of these customers discovered the differences after they experienced related difficulties.
Q: Are there any differences between “made to fit” or “imitation” and Genuine Eureka paper bags, belts, and parts?
A: Yes, there are some very important differences in materials, quality , and reliability. Many customers have mistakenly purchased “imitation” paper bags and parts while
Household Warranty
abs 190
Page 12
©2000 White Consolidated Industries, Inc.
Part No. 70692 (3/01) Printed in China & U.S.A.
Loading...
