Page 1

Owner’s Guide

Thank you fo r purch asing y our new Eurek a vacuum!

Important instructions

For easy assembly, please take a few moments to read this owner’s guide.

If you have questions about your new vacuum, please contact our customer service helpline at

1-800-282-2886

8 a.m. to 7:30 p.m. (CST), Monday - Friday 10 a.m. to 6:30 p.m. (CST), Saturday - Sunday

Promotional code: 470ser11

Special Offer – receive 15% off parts and accessories when ordering online. Promotion excludes vacuums.

Guía del Propietario

¡Gracias por la compra de su nueva aspiradora Eureka!

Si tiene alguna pregunta sobre su nueva aspiradora, por favor contacte a nuestra línea de ayuda de atención al cliente llamando

1-800-282-2886

8 a.m. a 7:30 p.m. (CST), de lunes a viernes 10 a.m. a 6:30 p.m. (CST), sábado y domingo

Código de promoción: 470ser11

Oferta especial – descuento de 15% cuando compre partes y accesorios

por internet. Oferta excluye aspiradoras.

We’re here to help!

. ¡Estamos aquí para ayudarle!

470 Series

Upright vacuum cleaner. Household type

Le Guide du Propriétaire

Merci d’avoir acheté votre nouvel aspirateur Eureka!

Si vous avez des questions au sujet de votre nouvel aspirateur, veuillez contacter notre ligne d'aide du service à la clientèle au

1-800-282-2886

8 h à 19 h 30 (CST), lundi au vendredi 10 h à 18 h 30 (CST), samedi et dimanche

Code de promotion : 470ser11

Offre spéciale – recevez 15 % de réduction sur les pièces et les accessoires

lorsque vous commandez en ligne. La promotion exclut les aspirateurs.

. Nous sommes là pour vous aider!

www.eureka.com

Page 2

Where to find important vacuum information

Keep this information

Write the model, type and serial number here:

Date of purchase (keep your receipt) ____________________

Model number and type ______________________________

Serial number ______________________________________

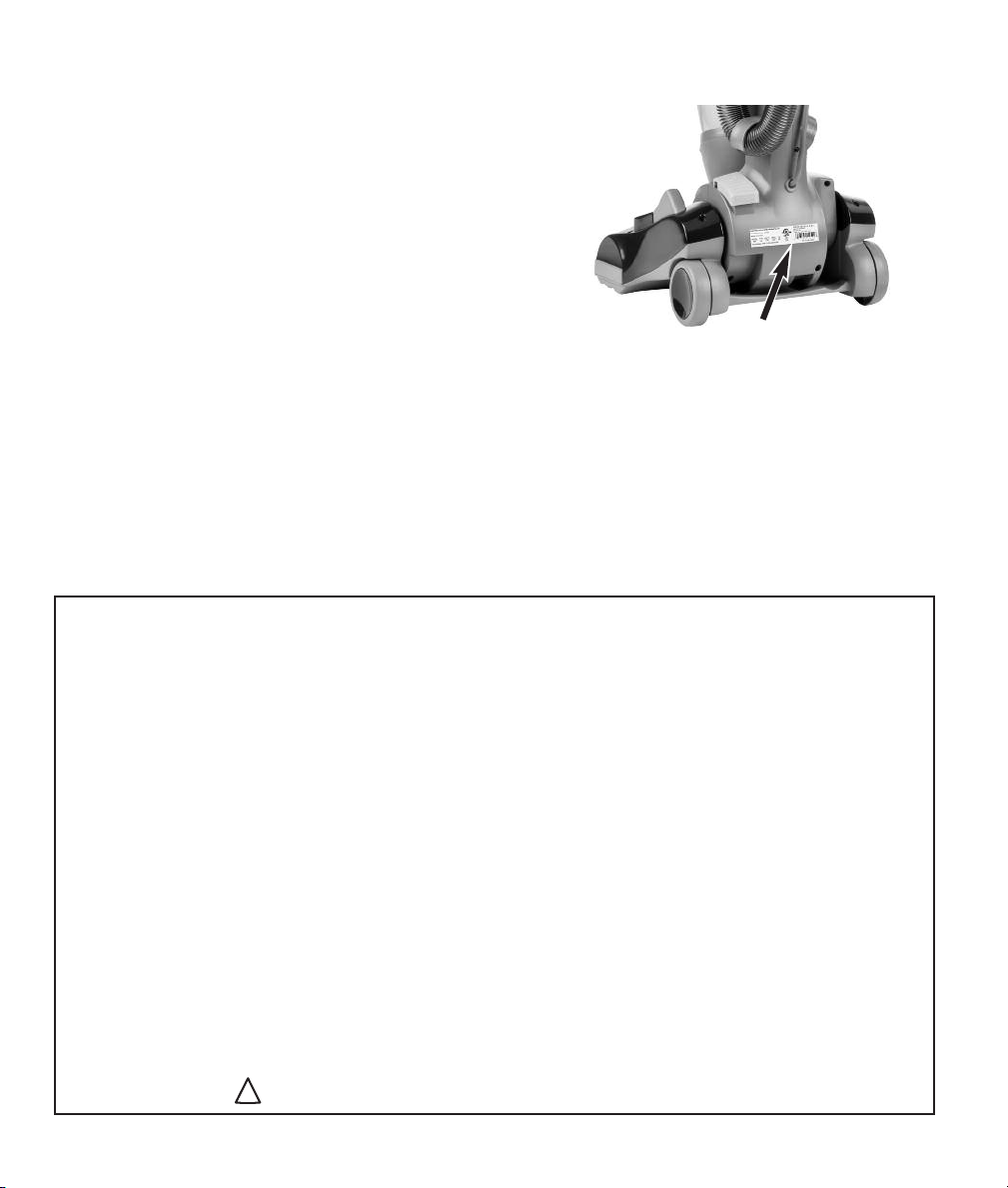

Find these numbers on a label on the underside of the vacuum cleaner. Refer to these numbers when ordering parts and accessories or if service is needed.

Before you start your vacuum cleaner

Please read these instructions for assembly and use. This owner’s guide

provides important instructions to prolong the life of your Eureka vacuum cleaner.

Inspection

Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call Eureka Customer Service HELPLINE 1-800-282-2886 immediately.

Table of contents

Important safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

What’s in the carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Dust cup and filter maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Easy assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

How to identify parts of vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How to use vacuum and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How to maintain your vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

How to clear a blockage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

How to maintain turbo nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Eureka limited warranty information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Problem solving and thermal cut-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Spanish owner’s guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-13

French owner’s guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-20

Order forms and parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-22

Follow caution information wherever you see this symbol.

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com

Page 3

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

WARNING

To reduce the risk of fire, electric shock, or injury:

• Do not use outdoors or on wet surfaces.

• Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical

cord when not in use and before servicing.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer's recommended attachments.

• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center before using.

• Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Turn off all controls before unplugging.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or vacuum cleaner with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.

• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Do not place vacuum cleaner on furniture or stairs as the brush roll may cause damage. Use extra care when cleaning stairs. Place vacuum cleaner on floor with the handle in storage position while using attachments.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without dust cup, filter and screen, and HEPA exhaust filter in place.

• Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive belt.

• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.

• Store your vacuum cleaner indoors in a cool, dry area.

• Keep your work area well lighted.

• Unplug electrical appliances before vacuuming them.

• Unplug before connecting turbo nozzle.

ENGLISH

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider

than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Motor

Do Not Oil the motor or the brush roll at any time.The bearings are permanently lubricated

and sealed.

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com 1

Page 4

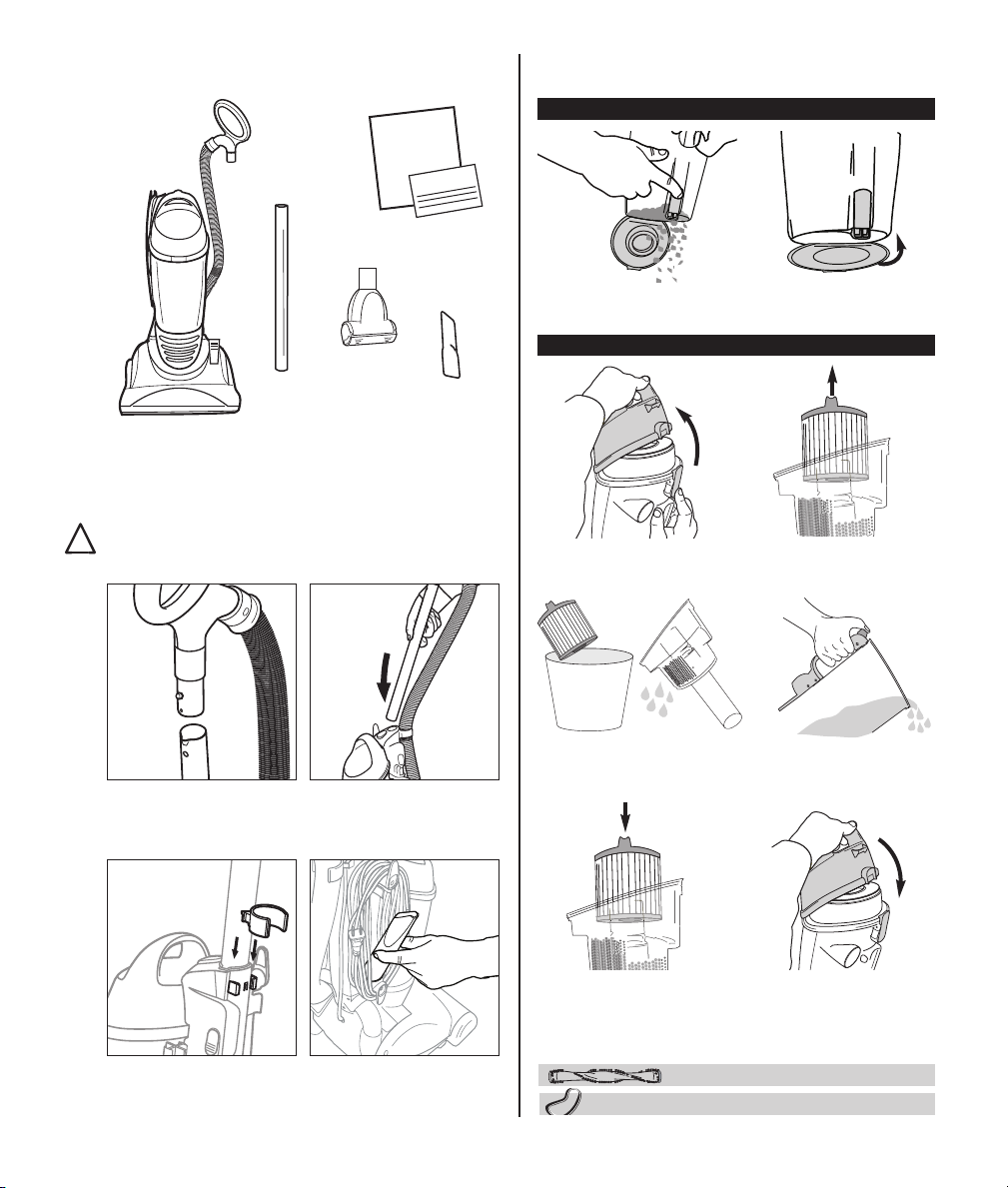

What’s in the carton Filter maintenance

DUST CUP – Empty after each use

’

Important

safeguards

Turbo nozzle

Wand

Vacuum cleaner

with hand grip and hose

Crevice

Easy assembly

Please read all instructions before using this vacuum cleaner. Moving parts! Assemble the vacuum cleaner before using.

1) Snap handle grip onto wand.

2) Slide wand into top of vacuum until it clicks in place.

tool

Press lever to release bottom

lid. Debris will empty.

Close bottom lid

until it clicks.

FILTER DCF21 – Clean or replace regularly, to maintain suction

Empty debris. Pull back

latch to lift off lid.

Clean filters and wash;

dry THOROUGHLY.

Pull out filter.

Rinse dust cup;

dry THOROUGHLY.

Reinstall filter and screen

inside dust cup.

Align lid at front; press

down until lid snaps

into place.

Never use vacuum without all filters in place.

Slide hose support into bracket on back of vacuum. Push to secure.

Eureka Customer Service HELPLINE 1-800-282-2886

4) Store crevice tool on side of vacuum.

BRUSH ROLL – Clean monthly

BELT-86100 – Replace worn, cut or out of shape belt

www.eureka.com

Page 5

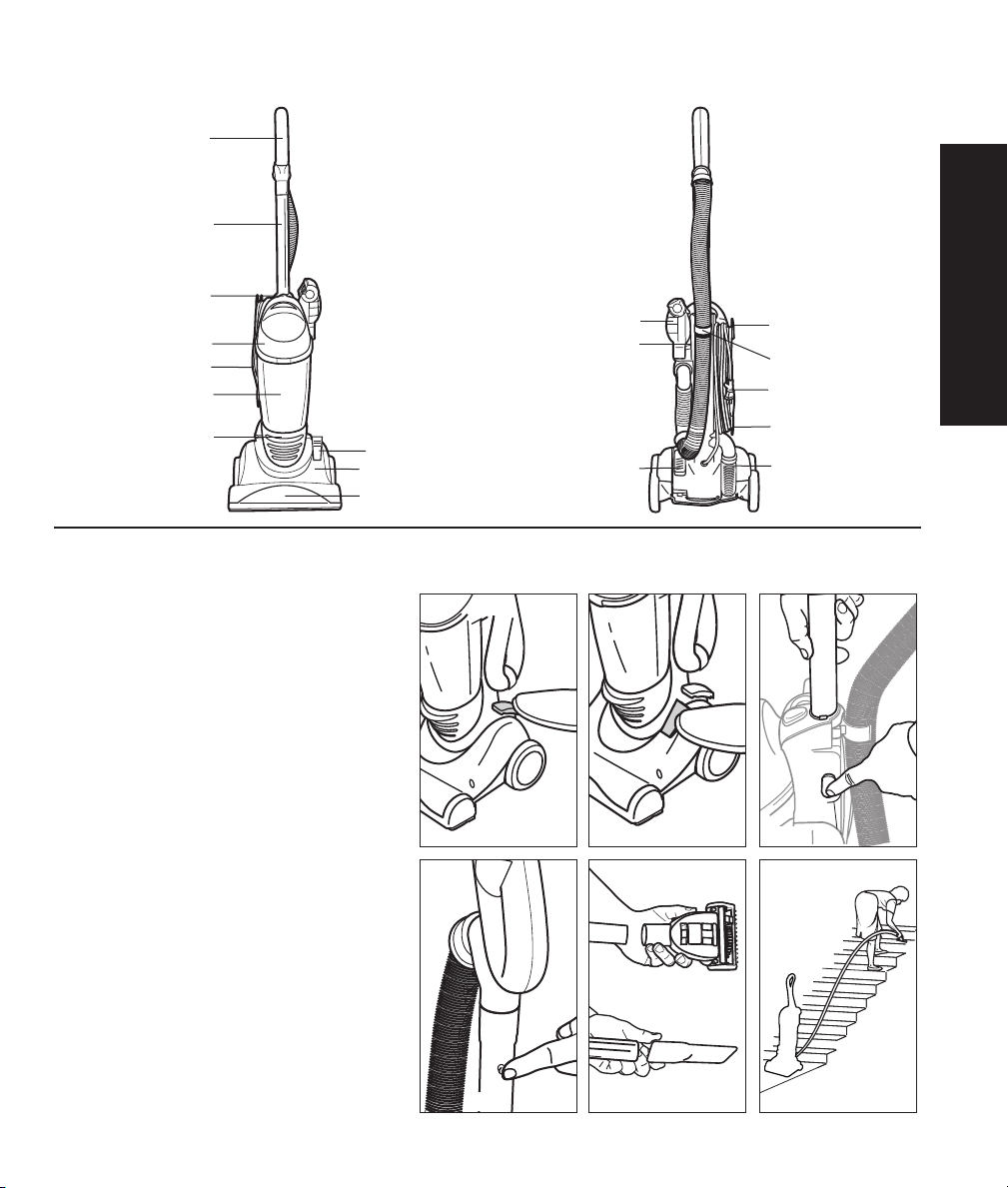

How to identify parts of vacuum cleaner

Handle grip

Wand

Dust cup release button

Filter compartment

Crevice tool

Dust cup

Turbo nozzle

Handle release button

ENGLISH

Quick release upper cord wrap

Hose support

Power cord

Carrying handle

Brush roll on/off pedal

Brush roll cover

Brush roll window

How to use vacuum and accessories

Get ready to vacuum

• Step on power switch to turn vacuum on (Fig. 1). Place foot on brush roll cover and pull handle back into position for vacuuming.

• For carpet, step on brush roll pedal to turn brush roll on. For bare floors, make sure brush roll is off. (Fig. 2).

To use accessories

Handle must be in upright position when using accessories.

• Be sure handle is in upright position, and make sure brush roll is off (Fig. 2).

• Press release button to remove wand from top of cleaner (Fig. 3).

• To use tool directly on handle grip, press button and remove wand (Fig. 4).

• Attach tool to end of wand or handle grip (Fig 5).

• Use crevice tool for baseboards, corners and tight spaces.

• Use turbo nozzle for furniture and stairs.

• When vacuuming stairs, make sure vacuum is below you, pushed against the bottom step (Fig. 6).

Power switch

Fig. 1 Fig. 2

Fig. 4 Fig. 5

Lower cord wrap

Base hose

Fig. 3

Fig. 6

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com

Page 6

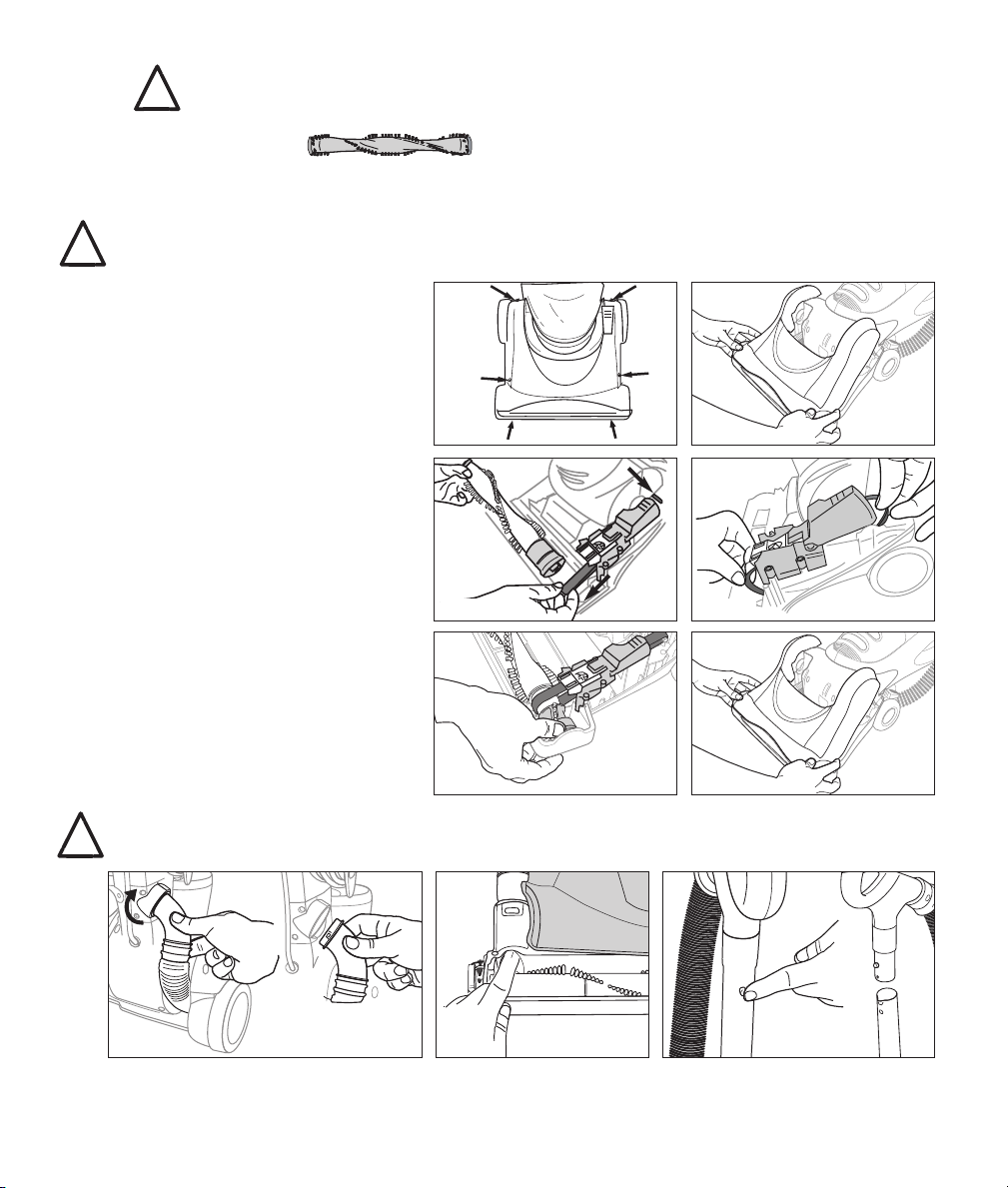

How to maintain your vacuum cleaner

Make sure vacuum cleaner is turned off and power cord is unplugged.

Maintain brush roll

Motor pulley can become hot with normal use.

Remove hair and threads from brush roll periodically. Do not remove end caps.

Check belt-86100. Replace if worn, cut or out of shape.

Avoid touching the motor shaft when checking brush roll or belt.

How to replace brush roll or belt

• Remove 4 screws from brush roll cover, and 2 screws from base plate (Fig. 1).

• Lift off brush roll cover (Fig. 2).

• Remove brush roll and remove belt from shaft (Fig. 3). Slide out belt completely from under brush roll pedal.

• Thread new belt under brush roll pedal mechanism, and around shaft, then place other end of belt around brush roll (Fig. 4).

• Insert left end of brush roll first. Make sure end cap fits into base. Pull right side of brush roll to stretch belt and insert right end camp into base (Fig. 5). Make sure cap slides into position. Rotate brush roll 2 turns to center belt.

• Replace brush roll cover. Replace 6 screws (Fig. 6).

How to clear a blockage

Make sure vacuum is turned off and power cord is unplugged.

Fig.1

Fig. 3

Fig. 5 Fig. 6

Fig. 2

Fig. 4

Grasp base hose connector; rotate toward front to unlock and pull out. Use finger to check for debris.

Remove brush roll cover. Use finger to check base hose for debris.

Remove handle from wand to check for blockage. Snap handle back into place.

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com

Page 7

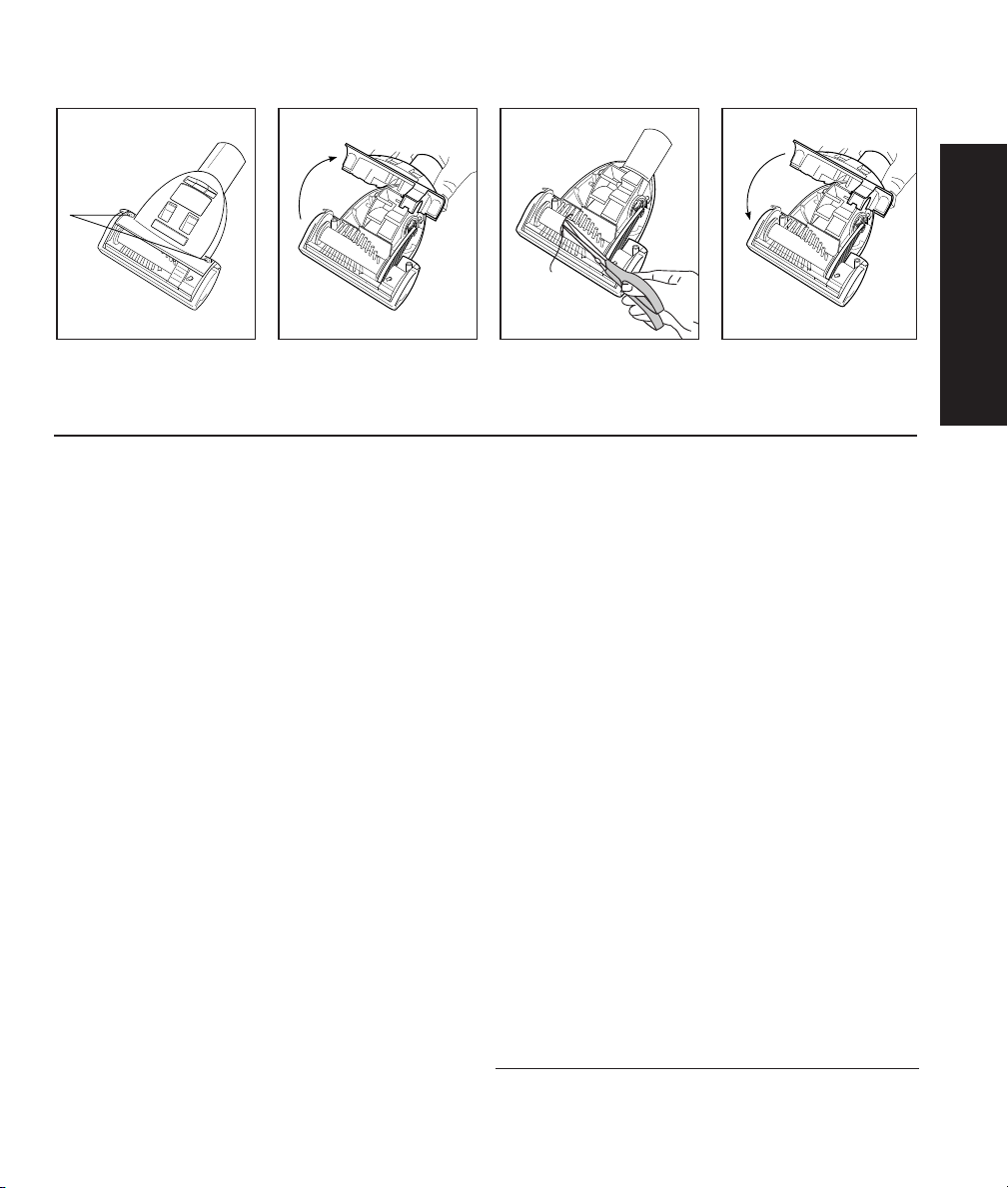

How to maintain turbo nozzle

Screws

Turn nozzle onto back

Lift off cover.

side. Remove 2 screws.

The Eureka limited warranty

Eureka warrants this vacuum cleaner to be free from defects in material and workmanship for a term of one year for normal household use. Warranty is granted only to the original purchaser and members of immediate household.

This warranty is good for one year from the date of purchase only when the vacuum cleaner is used in the accordance with Eureka operating instructions. Note: refurbished or remanufactured products have a one year limited warranty.

and Filtrete

by 3M parts.

TThhiiss wwaarrrraannttyy ddooeess nnoott ccoovveer

• Parts of the vacuum that require replacement under normal use such as disposable dust bags, filters, drive belts, light bulbs, brush roll, bristles, impellers and cleaning.

• Damages or malfunctions caused by negligence, abuse, and use not in accordance with the Owner’s Guide.

• Defects or damages caused by unauthorized service or the use of other than Genuine Eureka, ARM & HAMMER

What Eureka will do

Eureka will, at its option, repair or replace a defective vacuum or vacuum part that is covered by this warranty. As a matter of warranty policy, Eureka will not refund the consumer’s

purchase price.

Warranty registration

Please fill out and return the warranty registration card accompanying your vacuum.

Obtaining warranty service

To obtain warranty service you must return the vacuum or vacuum part along with “proof of purchase” to any Eureka Authorized Warranty Station. For Eureka Authorized Warranty Station or Service Information, visit www.eureka.com,

Clear blockage from brush roll area. Use scissors to

Place cover back into position. Tighten screws.

clip threads or hair.

write or telephone toll free:

USA: 1-800-282-2886

Electrolux Home Care North America Service Division P.O. Box 3900 Peoria, IL 61612

Obtaining warranty service outside your community

You must pay the shipping charges to the Eureka Authorized Warranty Station.

Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type and serial number located on the rating plate on the lower backside of the vacuum.

Further limitations and exclusions

Any warranty that may be implied in connection with your purchase or use of the vacuum, including any warranty of Merchantability or any warranty for Fitness For A Particular Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall the manufacturer be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the vacuum.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights. You may

also have other rights, which may vary by state.

The ARM & HAMMER name is a trademark of Church and Dwight Co., Inc. 3M and Filtrete are trademarks of 3M Company, used by Electrolux Home Care Products, Inc. under license.

Mexico: (55) 5343-4384

Electrolux Home Care

Canada: 1-800-282-2886

Electrolux Home Care North America Service Division 5855 Terr y Fox Way Mississauga, Ontario L5V 3E4

ENGLISH

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com

Page 8

Problem solving

Make sure vacuum cleaner is turned off and power cord is unplugged.

Problem

Motor will not start.

Vacuum does not clean carpet or bare floor.

No suction at the end of hose.

Turbo nozzle will not turn (on some models).

Cause

Power plug • Push plug securely into outlet, try another outlet or

Power switch

Thermal cut-off • See detailed instructions below.

Dust cup and filter

Belt

Hose

Dust cup and filter

Hose

Rotating brush

check circuit breaker.

• Step on power switch to turn vacuum on.

• Empty dust cup, clean and/or change filter.

• Clean or replace filters regularly to maintain suction. Page 2

• If picking up fine dust, the dust cup may not look full, but a fine substance tends to reduce suction when it blocks air flow through the filter and screen. Refer to page 2 for filter maintenance. Make sure filter, screen and dust cup are installed properly.

• Replace a worn, cut or out of shape belt. Page 4

• Remove clogs from the hose that restrict the airflow. Page 4

• Empty dust cup, clean and/or change filter.

• Clean or replace filters regularly to maintain suction. Page 2

• Remove clogs from the hose that restrict the airflow. Page 4

• Check turbo nozzle for debris. Page 5

Solution

Vacuum is hard to push.

Burning smell; brush roll will not turn.

Belt • Replace a worn, cut or out of shape belt.

Belt • Check brush roll for debris. Page 4

• Replace broken or out of shape belt. Page 4

Thermal cut-off

This vacuum cleaner has a special thermostat that protects the vacuum in case of motor overheating. If the vacuum suddenly shuts off, push the power switch to off and unplug the vacuum. Check the vacuum for a possible source of overheating such as a full dust cup, blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum. After the 30 minute period, plug the vacuum back in and turn on the switch. If the vacuum still does not work, take it to a Eureka authorized service center for repair or call 1-800-282-2886.

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com
