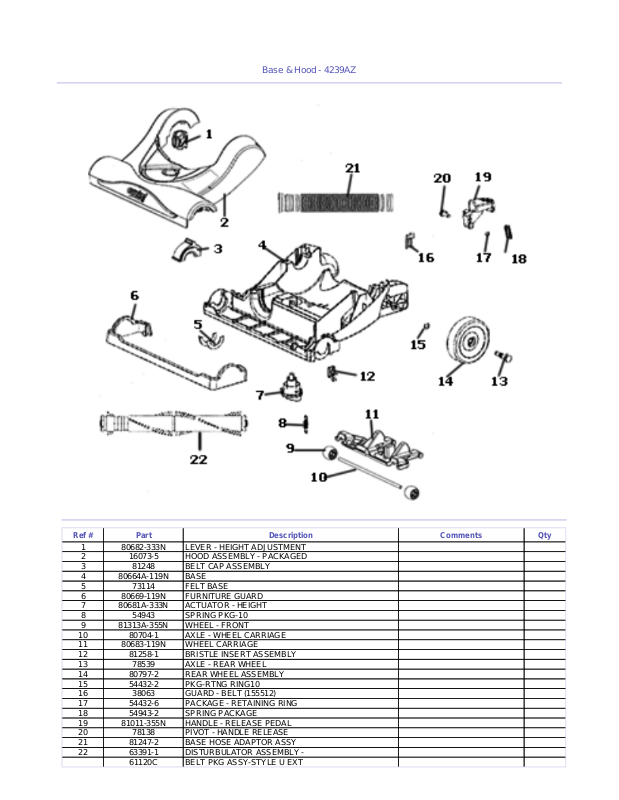

Page 1

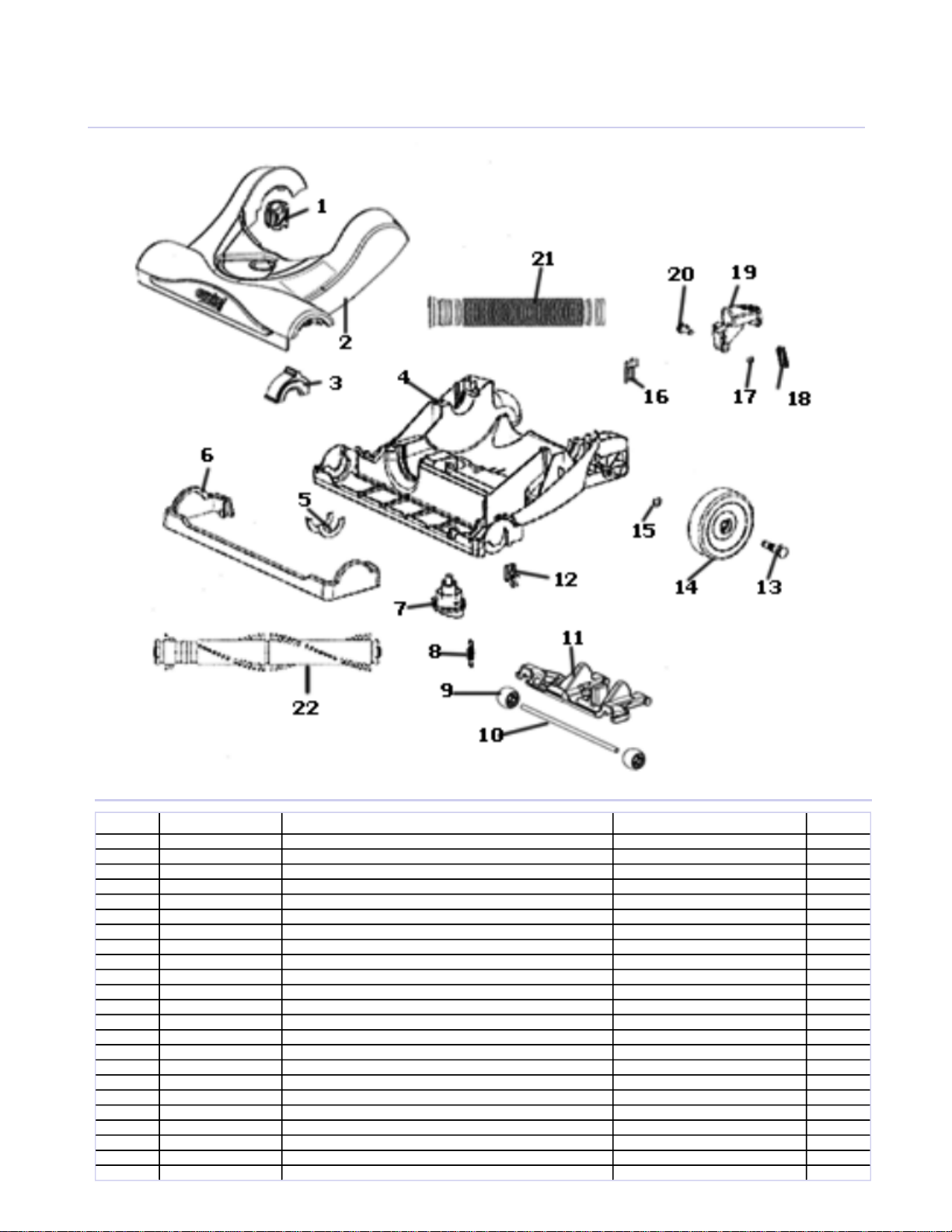

Base
& Hood - 4239AZ
ef # Part Description Comments Qty
R
1 80682-333N LEVER - HEIGHT ADJUSTMENT
2 16073-5 HOOD ASSEMBLY - PACKAGED
3 81248 BELT CAP ASSEMBLY
4 80664A-119N BASE
5 73114 FELT BASE
6 80669-119N FURNITURE GUARD
7 80681A-333N ACTUATOR - HEIGHT
8 54943 SPRING PKG-10
9 81313A-355N WHEEL - FRONT
10 80704-1 AXLE - WHEEL CARRIAGE
11 80683-119N WHEEL CARRIAGE
12 81258-1 BRISTLE INSERT ASSEMBLY
13 78539 AXLE - REAR WHEEL
14 80797-2 REAR WHEEL ASSEMBLY
15 54432-2 PKG-RTNG RING10
16 38063 GUARD - BELT (155512)
17 54432-6 PACKAGE - RETAINING RING
18 54943-2 SPRING PACKAGE
19 81011-355N HANDLE - RELEASE PEDAL
20 78138 PIVOT - HANDLE RELEASE
21 81247-2 BASE HOSE ADAPTOR ASSY
22 63391-1 DISTURBULATOR ASSEMBLY -
61120C BELT PKG ASSY-STYLE U EXT
Page 2

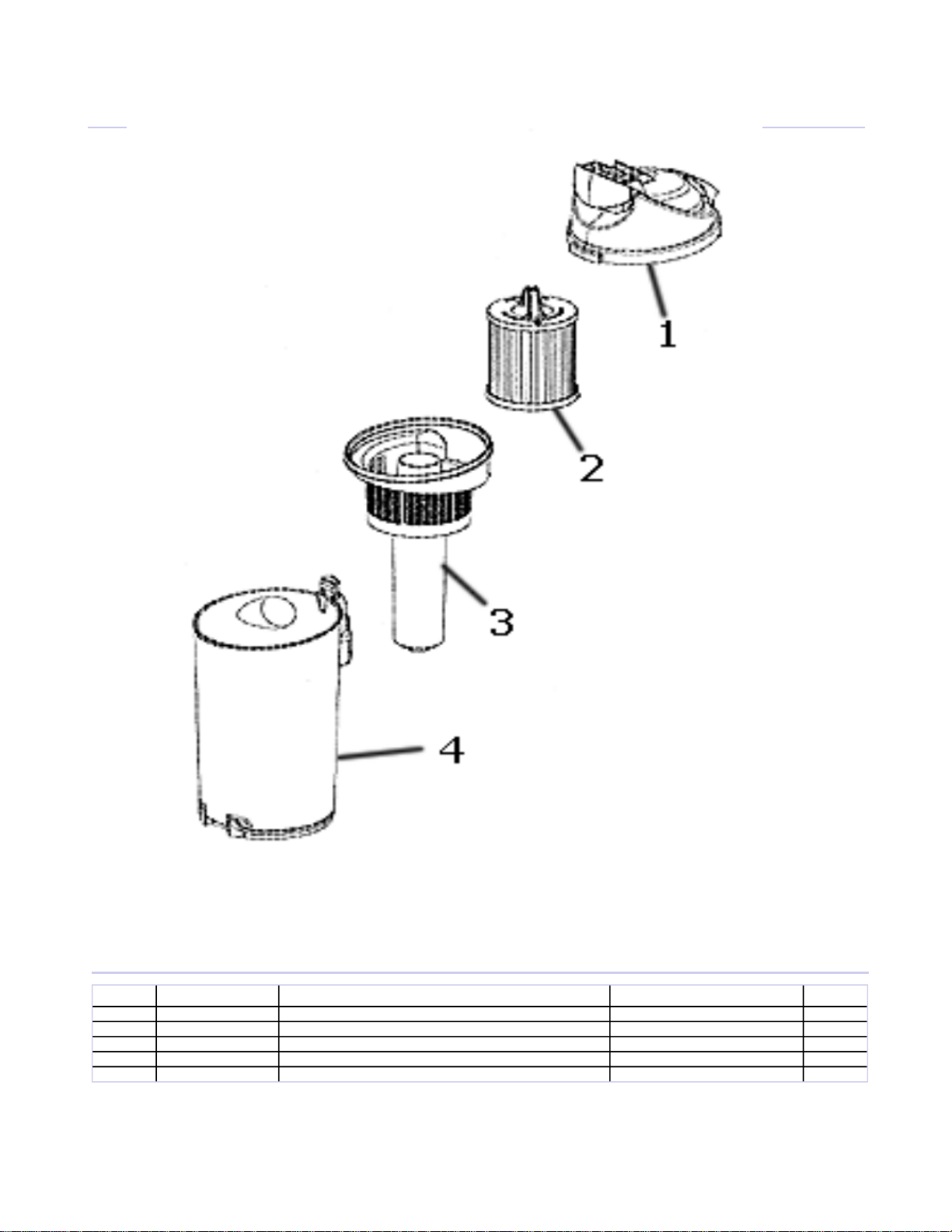

D
ust Cup Assembly - 4239AZ
D
ust Cup Assembly - 4239AZ
ef # Part Description Comments Qty
R
1 81263-4 DUSTCUP COVER ASSEMBLY
2 68931 FILTER PKG - EUREKA DCF21
3 83845-2 FILTER BASKET & INNER TUB
4 81264-4 DUSTCUP & DOOR ASSEMBLY
82598-333N FILTER SHROUD
Page 3

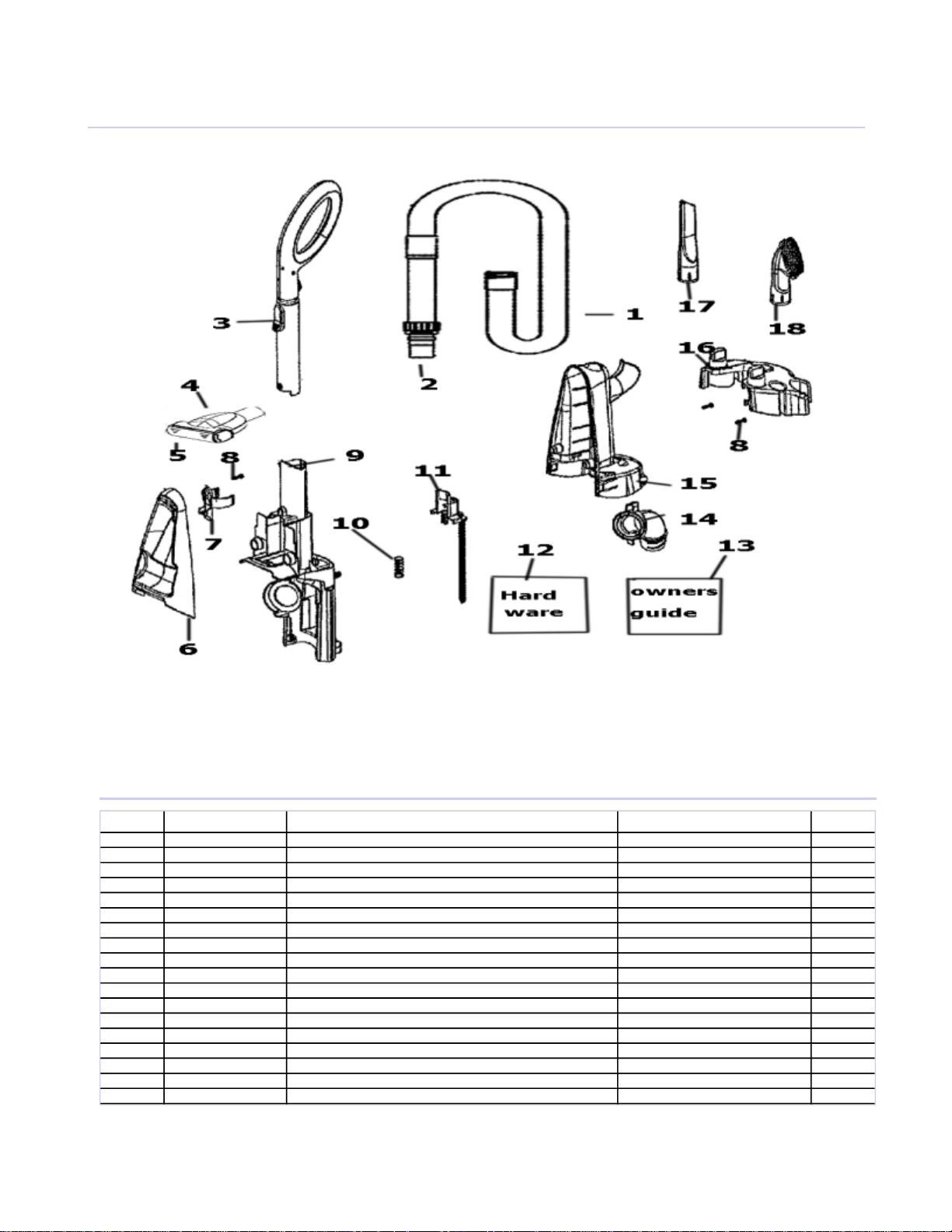

Handle &
Accessories - 4239AZ
Handle &
ef # Part Description Comments Qty
R
1 16074-3 HOSE ASSEMBLY - CARTONED
2 8 1218-4 TELESC OPIC WAND ASSEMBLY
3 81214-4 HANDLE AND TUBE ASSEMBLY
4 81295-1 TURBO NOZZLE ASSEMBLY
5 75914 BELT - TURBO
6 80709-450P COVER - TURBO NOZZLE
7 80914-119N CLIP - TURBO
8 53238-27 SCREW PKG
9 81642-3 UPPER REAR HOUSING & GRAP
10 54943-3 SPRING PACKAGE
11 80634-333N ROD - CORD REWIND
12 81897A PACKAGE-HARDWARE FOR 4236A
13 81221 OWNERS GUIDE
14 81060 HOSE ADAPTOR ASSEMBLY
15 80913-119N COVER - REAR HANDLE
16 80693-1 TOOL CADDY & GRAPHICS ASS
17 80707-355N CREVICE TOOL
18 39379-3 COMBINATION BRUSH - BRIST
Accessories - 4239AZ
Page 4

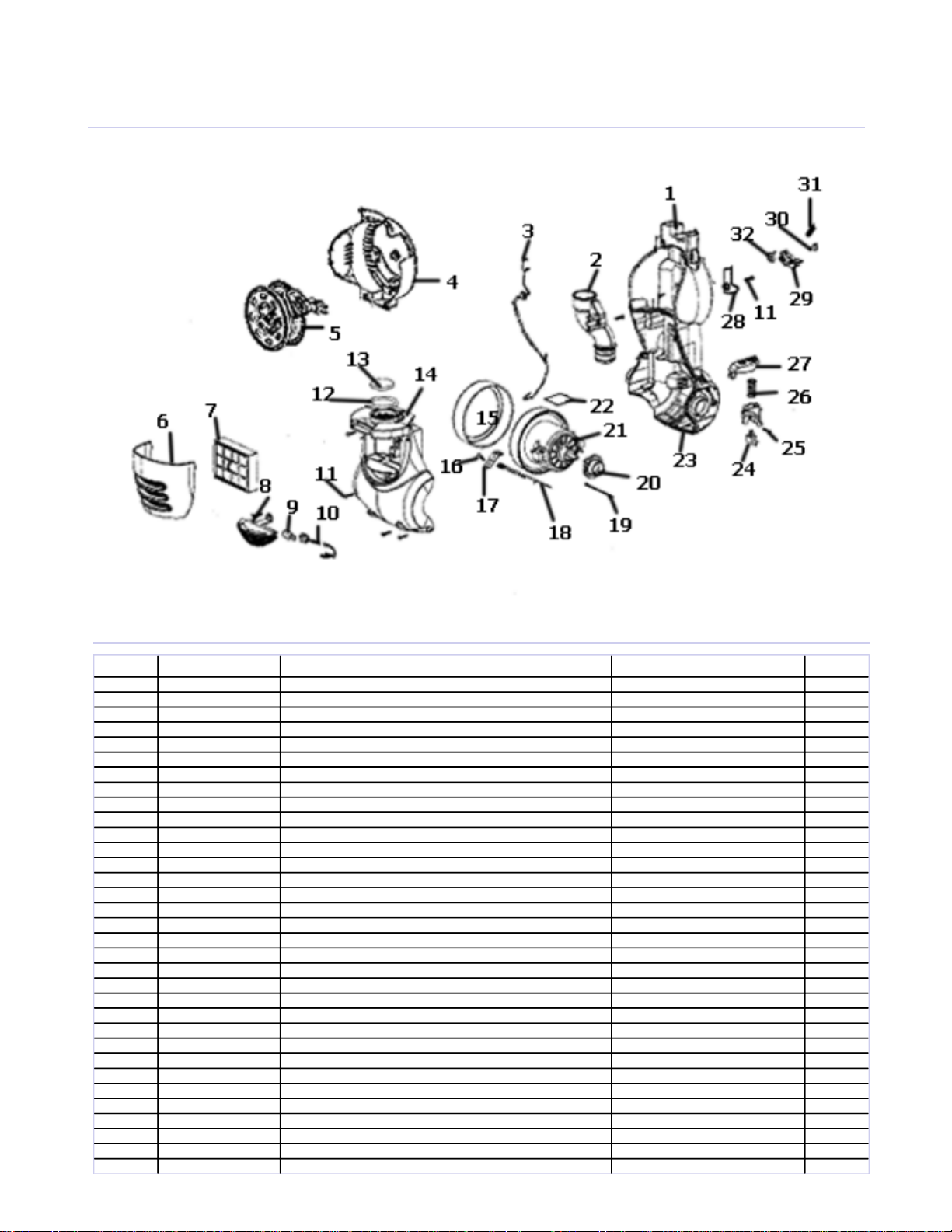

Main
Body - 4239AZ
Body - 4239AZ
Main
R
ef # Part Description Comments Qty
1 8 1312-5 REAR HOUSING & GRAPHICS A
2 81062-2 HOSE COUPLING ASSEMBLY
3 81261A JUMPER - WIRE ASSEMBLY
4 80622A-119N COVER - CORD REEL
5 80613-4 CORD REEL ASSEMBLY
6 81249-3 DOOR - EXHAUST FILTER ASS
7 81250-3 FILTER ASSY-EUREKA HF-11 HEPA
8 80627-313N LENS
9 57940-3 HEADLIGHT
10 38828B-7 HEADLIGHT ASSEMBLY
11 53238-27 SCREW PKG
12 81482 GASKET
13 80618 FOAM - PREMOTOR
14 80629-450P MOTOR COVER
15 72476-141N GASKET - MOTOR CAN
16 61803-3 SCREW PKG
17 72443 THERMOSTAT CLIP
18 74719-1 THERMOSTAT & TERMINAL ASS
19 46713-6 TIE - CABLE (PURCHASED)
20 72650-316N BUSHING - MOTOR
21 62075-1 MOTOR ASSY.
22 73526-1 SHIELD - MOTOR
23 72522-4 GASKET - MOTOR COVER
24 81142 SWITCH
25 80621-119N BRACKET - POWER SWITCH
26 54943-4 SPRING PACKAGE
27 80630-355N PEDAL - POWER SWITCH
28 80633-453N COVER - SUPPLY CORD
29 80614-316N LEVER - CORD RELEASE
30 60160 SCREW PKG 10 (55927 (NLA)
31 54943-5 SPRING PACKAGE
32 80915 TIGHTENING WHEEL ASSY
80628A-119N HOSE HOOK
