Where to Find Important Vacuum Cleaner Information

!

Please Retain

Record the model, type and serial number below.

Date of Purchase____________ (keep your receipt)

Model & Type______________________________

Serial Number_____________________________

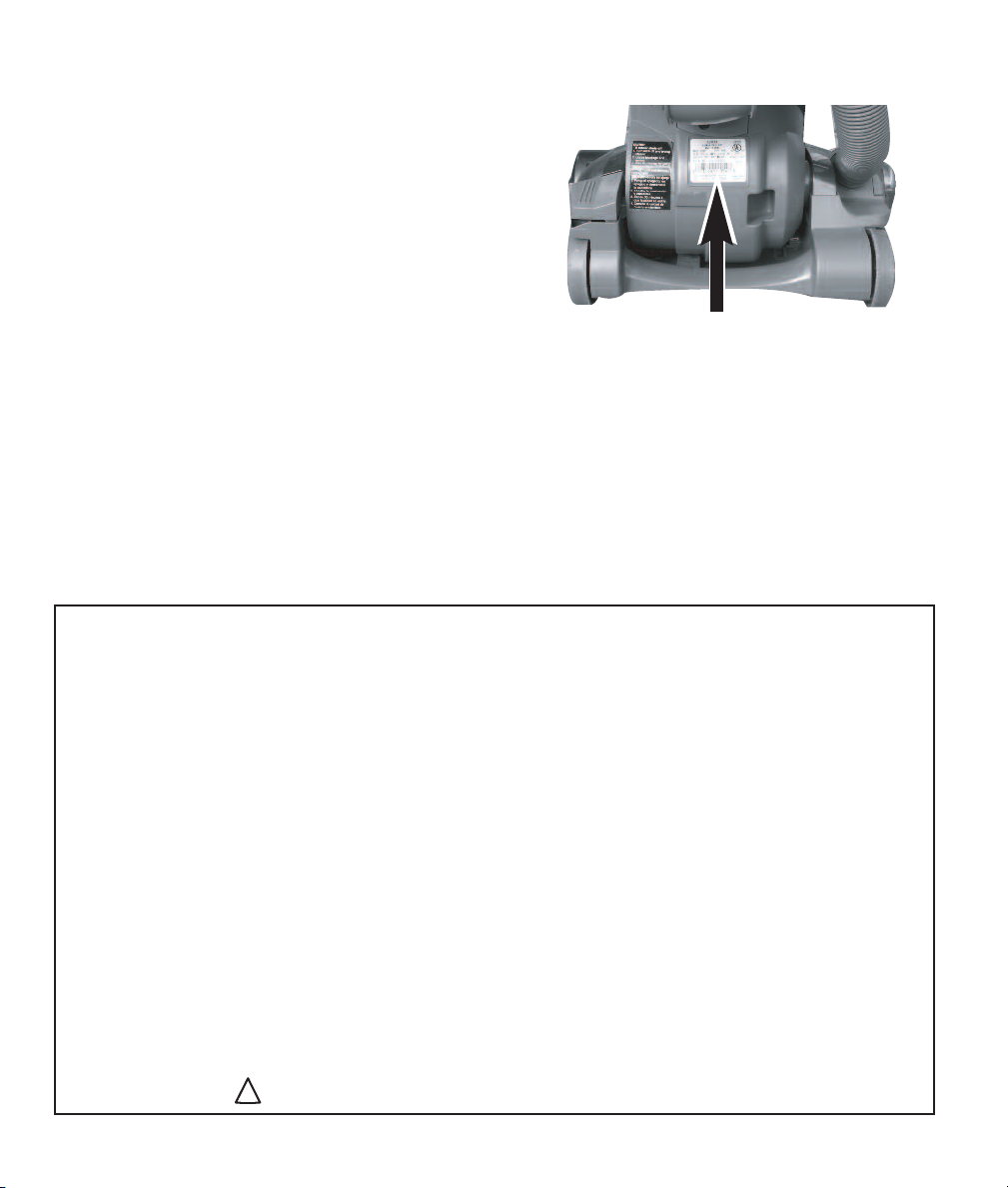

This information is located on the rating plate on the lower back side of the vacuum.
Refer to these numbers when ordering parts, accessories or when service is needed.

Before You Start Your Vacuum Cleaner

Refer to Quick Start Guide for assembly and use.This Owner’s Guide provides

important instructions to prolong the life of your Eureka vacuum cleaner.

Inspection

Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit is tested and
thoroughly inspected before shipping. For instructions regarding any shipping damage, call Eureka
Customer Service HELPLINE 1-800-282-2886 immediately.

Table of Contents

Important Safeguards
How to Identify Parts of Vacuum Cleaner

Filter Maintenance Schedule

Filter screen, foam filter, and HEPA filter.

How to Use Accessories

Crevice tool, extension wand, dusting brush, Power Paw®and stair hose.

How to Maintain Your Vacuum Cleaner

Maintain brush roll and replace EXT-U brush roll belt.

How to Clear a Blockage

Hose blockages.

Eureka Limited Warranty Information
Thermal Cut-Off and Problem Solving
Spanish Owner’s Guide
French Owner’s Guide

Order Forms and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-22

Eureka Customer Service HELPLINE 1-800-282-2886

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-20

Follow caution information wherever you see this symbol.

www.eureka.com

2

!

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

WARNING

To reduce the risk of fire, electric shock, or injury:

• Do not use outdoors or on wet surfaces.

• Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the

electrical cord when not in use and before servicing.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer's recommended attachments.

• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center before using.

• Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord
around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from
heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Turn off all controls before unplugging.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or vacuum cleaner with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce airflow.

• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose
clothing, fingers, and all parts of body away from openings and moving parts.

• Do not place vacuum cleaner on furniture or stairs as the brush roll may cause damage. Place
vacuum cleaner on floor with the handle in storage position while using attachments.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without dust cup, filter screen, foam filter and HEPA exhaust filter in place.

• Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley
when servicing the drive belt.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where
they may be present.

• Store your vacuum cleaner indoors in a cool, dry area.

• Keep your work area well lighted.

• Unplug electrical appliances before vacuuming them.

• Unplug before connecting Power Paw.

The Power Paw name is a registered trademark of Electrolux Home Care Products, Inc.

®

Not for use on animals.

ENGLISH

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully
into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any way.

Motor

Do Not Oil the motor or the brush roll at any time. The bearings are permanently lubricated

and sealed.

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com 1

How to Identify Parts of Vacuum Cleaner

!

align to
open/close

turn to
lock

align to
open/close

turn to
lock

align to
open/close

turn to
lock

align to
open/close

turn to
lock

Dusting Brush

Cord Retainer

Power Paw

Nested Crevice Tool

& Extension Wand

Foam Filter

On (I)/Off (O) Switch

Handle/Latch

Hose Hook

Upper Cord Wrap

Carry Handle

Power Cord

Hose

& HEPA Filter

Filter Screen

(located in dust cup

compartment)

Height Adjustment Knob

Dust Cup
Compartment

Brush Roll Cover

Quick Release

Cord Wrap

Hose Sleeve

Handle Release

Hose Wand

Hose Retainer

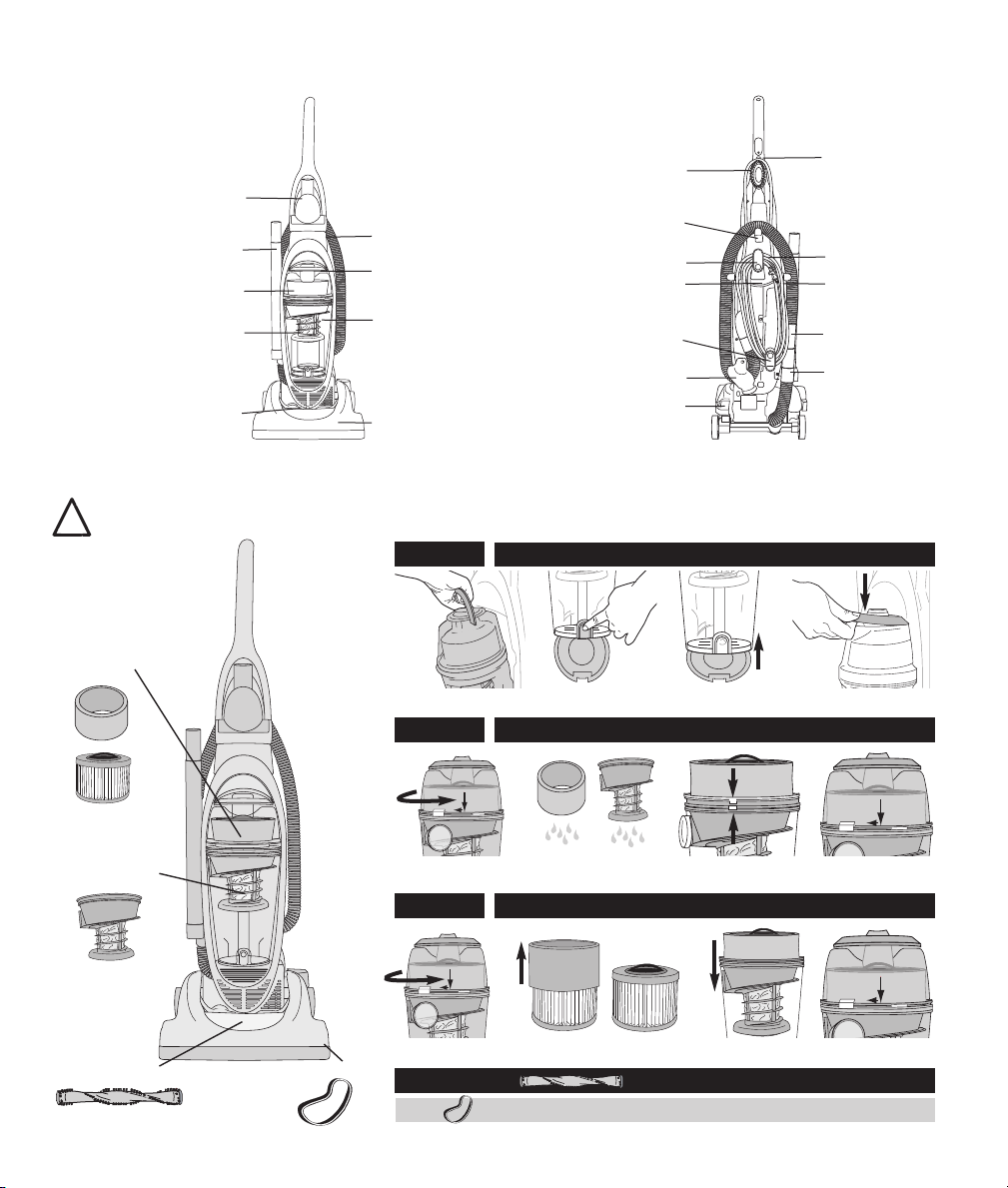

Filter Maintenance Schedule

Maintenance Schedule is also located on back side of dust cup.

Assemble the vacuum cleaner before using. Moving parts. Make sure ON/OFF switch is in OFF (O) position before plugging in power cord.

Foam &

HEPA Filter

DCF-20

EACH USE

PULL UP HANDLE

WEEKLY

&

REMOVE

FOAM FILTER & FILTER SCREEN – Wash & Clean

DUST CUP – Empty

CLOSE LID UNTIL IT CLICKS LOCK TABS

&

SNAP HANDLEEMPTY

Filter Screen

&

FILTER SCREEN

6 MONTHS

Brush Roll

2

Eureka Customer Service HELPLINE 1-800-282-2886

EXT-U Belt

MONTHLY

&

LINE UP YELLOW NOTCHES

REPLACE FILTERS

AND

HEPA FILTER – Replace

REMOVE

REINSTALL FILTERS

BRUSH ROLL – Clean

BELT – Replace a worn, cut or out-of-shape belt

LINE UP LID AND CLOSEWASH& DRY THOROUGHLYTURN LID, REMOVE FILTERS

LINE UP LID AND CLOSEREMOVE FOAM AND REPLACE HEPA FILTERTURN LID

www.eureka.com

!

How to Use Accessories

Vacuum Cleaner handle must be in upright position.

Be sure to raise height adjustment setting before using attachments.

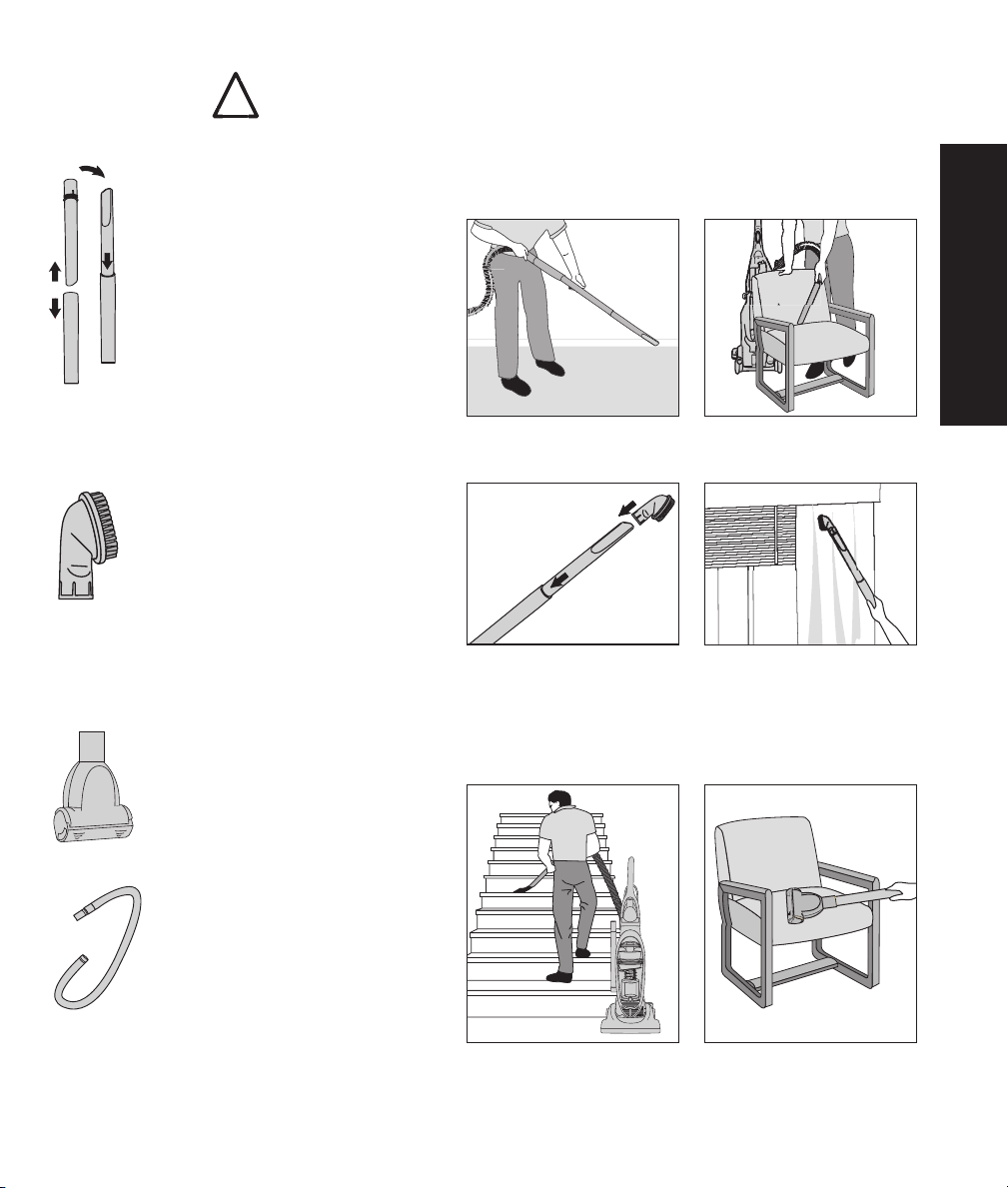

Combination Crevice Tool and Extension Wand

Baseboards, corners & between cushions

1) Grasp crevice tool near ridges and
pull apart.

2) Turn ridge end to center.

3) Push crevice tool into wand and
place on end of hose.

Dusting Brush

Furniture, drapes, blinds, bookshelves,
lampshades and vents.

1) Remove hose from hose retainer
on back of vacuum.

2) Place dusting brush on end of hose,
wand or crevice tool.

Power Paw®for Furniture and Stairs
Stair Hose

Make sure vacuum is below you,
pushed against the bottom step.

1) If model has additional stair hose,
attach to end of hose.

2) Attach Power Paw to the end of
wand or hose.

Vacuum must be turned off
before removing debris from
Power Paw.

For additional assistance, call Eureka
Customer Service HELPLINE.

(Some vacuum models have an additional stair hose – Part number 70947-5)

ENGLISH

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com

3

!

!

!

How to Maintain Your Vacuum Cleaner

Make sure vacuum cleaner is turned off and power cord is unplugged.

Maintain Brush Roll – Part number 77315

Do not remove end caps. Remove hair and threads from brush roll periodically.

Replace EXT-U Belt if Worn, cut or Out of Shape – Part number 61120C

Motor can become hot with normal use.
Avoid touching the motor shaft when checking brush roll belt.

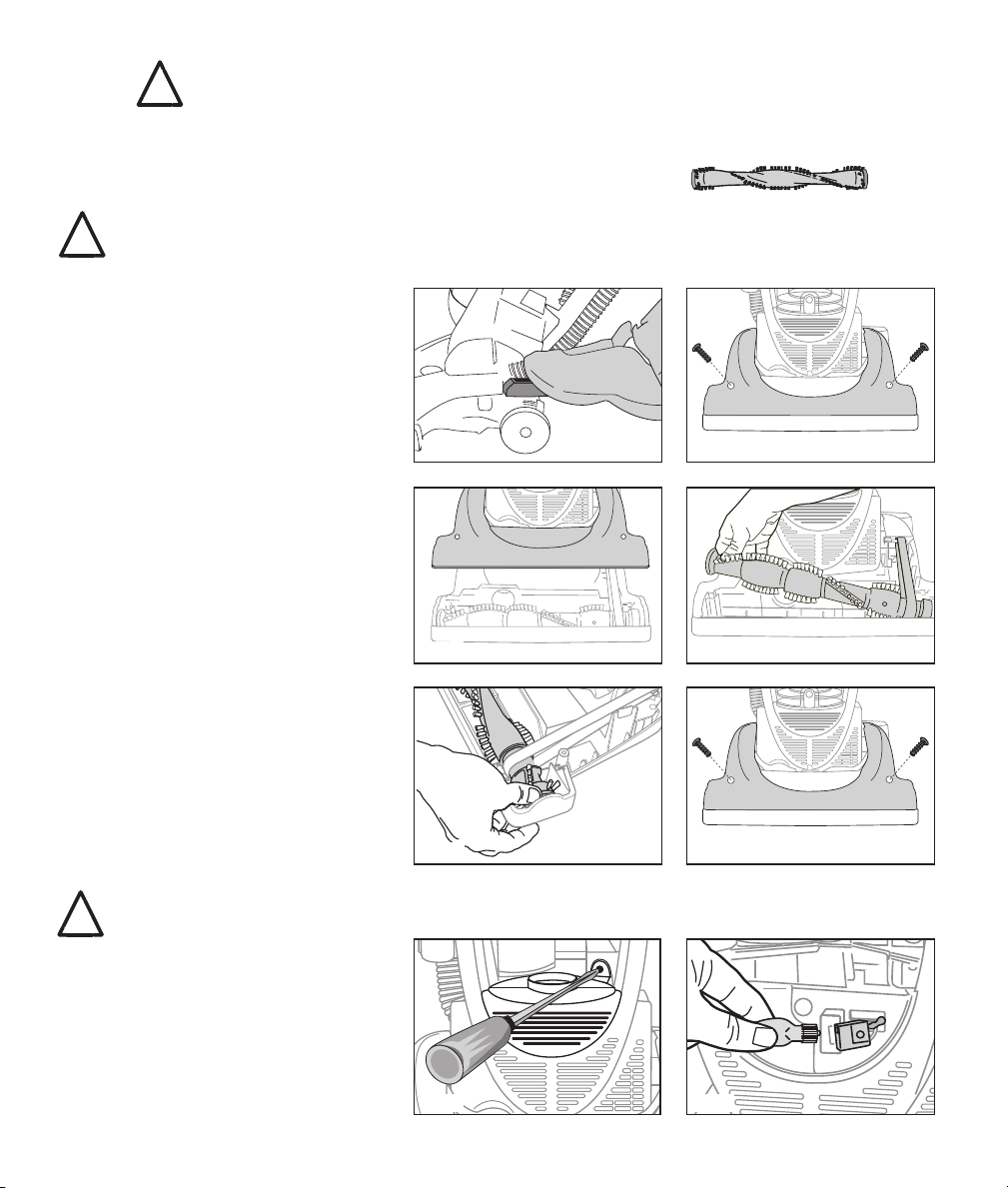

1) Use handle release to lower handle
flat onto floor (Fig. 1).

Remove Brush Roll Cover

1) Remove 2 screws from the front
side of brush roll cover (Fig. 2).

2) Lift and remove brush roll cover
(Fig. 3).

Replace EXT-U Belt

1) Remove brush roll and belt.

2) Thread new belt around motor
shaft and brush roll (Fig. 4).

Replace Brush Roll

1) Insert left end of brush roll first.
Make sure square on brush roll
cap is in place.

2) Pull right side of brush roll to
stretch belt.

3) Secure right end cap into base
(Fig. 5).

4) Rotate brush roll 2 turns to
center belt.

5) Replace brush roll cover and
two screws (Fig. 6).

Fig. 1

Fig. 3

Fig. 5

Fig. 2

Fig. 4

Fig. 6

Change Light Bulb – Available on some models – Part number 57940-3

Make sure vacuum is turned off and power cord is unplugged.

1) Pull up release handle latch and
remove dust cup compartment.

2) Unscrew the lens cover and remove
old bulb (Fig. 7).

3) Push in new bulb, replace lens cover
and screw. (Fig. 8).

4) Replace dust cup compartment,
snap release handle down to secure.

4

Eureka Customer Service HELPLINE 1-800-282-2886

Fig. 7

Fig. 8

www.eureka.com

!

How to Clear a Blockage

Make sure vacuum is turned off and power cord is unplugged.
Hose Blockage

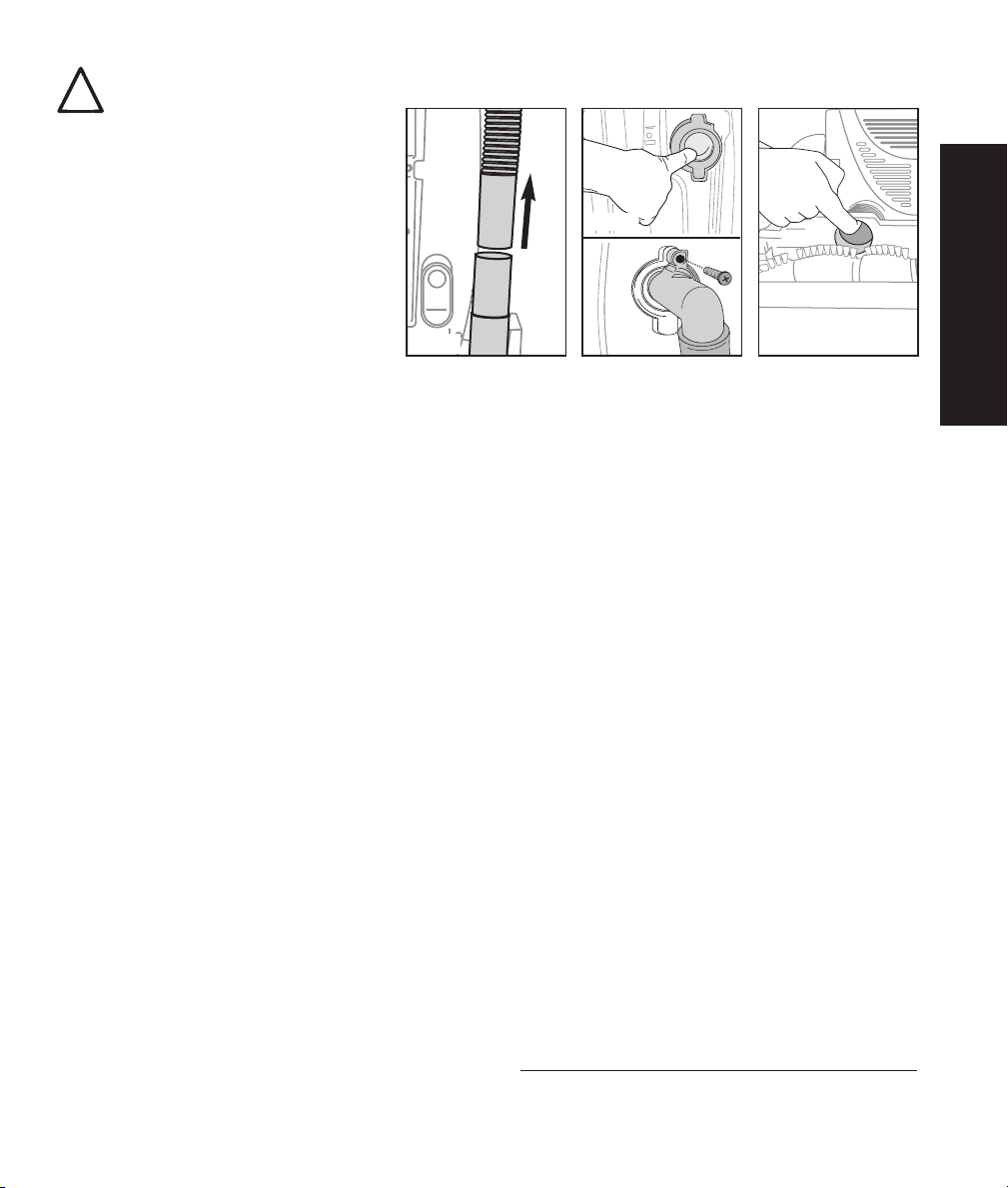

1) Remove hose from hose retainer.
Flexing the hose will help loosen any
blockage (Fig. 1).

2) Remove dust cup and remove debris
from hose connector opening

Fig. 2A

(Fig. 2A). If still blocked, remove
screw from hose connector and
remove blockage

(Fig. 2B).

3) Hose inlet – remove two screws and
brush roll cover. Clear blockage from
hose inlet (Fig. 3).

Fig. 1 Fig. 3

Fig. 2B

The Eureka Limited Warranty

Eureka warrants this vacuum cleaner to be free from
defects in material and workmanship for a term of one
year for normal household use. Warranty is granted
only to the original purchaser and members of
immediate household.

This warranty is good for one year from the date of
purchase only when the vacuum cleaner is used in
the accordance with Eureka operating instructions.

TThhiiss WWaarrrraannttyy DDooeess NNoott CCoovveer

• Parts of the vacuum that require replacement
under normal use such as disposable dust bags,
filters, drive belts, light bulbs, brush roll, bristles,
impellers and cleaning.

• Damages or malfunctions caused by negligence,
abuse, and use not in accordance with the
Owner’s Guide.

• Defects or damages caused by unauthorized
service or the use of other than Genuine Eureka,
ARM & HAMMER

What Eureka Will Do

Eureka will, at its option, repair or replace a defective
vacuum or vacuum part that is covered by this warranty.
As a matter of warranty policy, Eureka will not refund

the consumer’s purchase price.

Warranty Registration

Please fill out and return the warranty registration card
accompanying your vacuum.

Obtaining Warranty Service

To obtain warranty service you must return the vacuum
or vacuum part along with “proof of purchase” to any
Eureka Authorized Warranty Station. For Eureka

TM

r

and Filtrete

TM

by 3M parts.

Authorized Warranty Station or Service Information, visit
www.eureka.com, write or telephone toll free:

USA: 1-800-282-2886

Electrolux Home Care
North America Service Division
P.O. Box 3900
Peoria, IL 61612

Obtaining Warranty Service
Outside Your Community

You must pay the shipping charges to the Eureka
Authorized Warranty Station.

Return Shipping Charges will be paid by the Warranty
Station. When returning parts for repair, please include
the model, type and serial number located on the rating
plate on the lower backside of the vacuum.

Further Limitations and Exclusions

Any warranty that may be implied in connection with your
purchase or use of the vacuum, including any warranty
of Merchantability or any warranty for Fitness For A
Particular Purpose is limited to the duration of this
warranty. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitations
may not apply to you.
Your relief for the breach of this warranty is limited to
the relief expressly provided above. In no event shall the
manufacturer be liable for any consequential or incidental
damages you may incur in connection with your
purchase or use of the vacuum.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above
limitation or exclusion may not apply to you.

This warranty gives you specific legal rights. You may

also have other rights, which may vary by state.

The ARM & HAMMER name is a trademark of Church and Dwight Co., Inc.
3M and Filtrete are trademarks of 3M Company, used by Electrolux Home

Care Products, Inc. under license.

Mexico: (55) 5343-384

Electrolux Home Care

Canada: 1-800-282-2886

Electrolux Home Care
North America Service Division
5855 Terry Fox Way
Mississauga, Ontario L5V 3E4

ENGLISH

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com

5

Thermal Cut-Off

!

This vacuum cleaner has a special thermostat that protects the vacuum in case of motor overheating. If the vacuum
suddenly shuts off, push the on/off switch to off (O) and unplug the vacuum. Check the vacuum for a possible source of
overheating such as a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes
before attempting to use the vacuum. After the 30 minute period, plug the vacuum back in and turn on the switch. If the
vacuum still does not work, take it to a Eureka Authorized Service Center for repair.

Problem Solving

Make sure vacuum is turned off and power cord is unplugged.

Problem

Motor will not start.

Vacuum does not clean
carpet or bare floor.

No suction at the
end of hose.

Vacuum is hard
to push.

Brush roll will not turn.

Vacuum motor sounds
louder than normal.

Cause

ower plug

P

On / Off switch

Thermal cut-off

Dust cup and filters

Belt

Hose

Bare floor setting

Carpet height setting

Dust cup and filters

Filter screen

Hose

Vacuum height setting

Belt

Belt

Dust cup and filters

Belt

Hose

Solution

• Push plug securely into outlet.

• Try another outlet.

• Check circuit breaker.

• Turn On / Off switch on ( I ).

• See above.

• Empty the dust cup and/or change the filters.

• If picking up fine dust, the dust cup may not look full, but
a fine substance tends to reduce suction when it blocks
air flow through the foam filter and filter screen. Refer to
page 2 for filter maintenance. Make sure the foam filter and
filter screen are installed properly.

• Replace a worn, cut or out-of-shape belt. Page 4

• Remove any clogs from the hose that restrict the
airflow. Page 5

• For bare floor cleaning, turn height adjustment knob to bare
floor position. Refer to Quick Start Guide.

• For carpet cleaning, turn height adjustment knob to another
position. Refer to Quick Start Guide.

• Empty the dust cup and/or change the filters.

• If picking up fine dust, the dust cup may not look full, but
a fine substance tends to reduce suction when it blocks
air flow through the foam filter and filter screen. Refer to
page 2 for filter maintenance. Make sure the foam filter and
filter screen are installed properly.

• (Located inside the dust cup). Check and clean debris to

maintain full air flow. Page 2

• Remove any clogs from the hose that restrict the
air flow. Page 5

•

Adjust knob to a higher position.

• Replace a worn, cut or out-of-shape belt. Page 4

• Check brush roll for debris. Page 4

• Replace broken or out-of-shape belt. Page 4

• Empty the dust cup and/or change the filters.

• Refer to page 2 for filter maintenance.

• Replace a worn, cut or out-of-shape belt. Page 4

• Remove any clogs from the hose that restrict the
airflow. Page 5

Refer to Quick Start Guide.

Eureka Customer Service HELPLINE 1-800-282-2886

6

www.eureka.com
