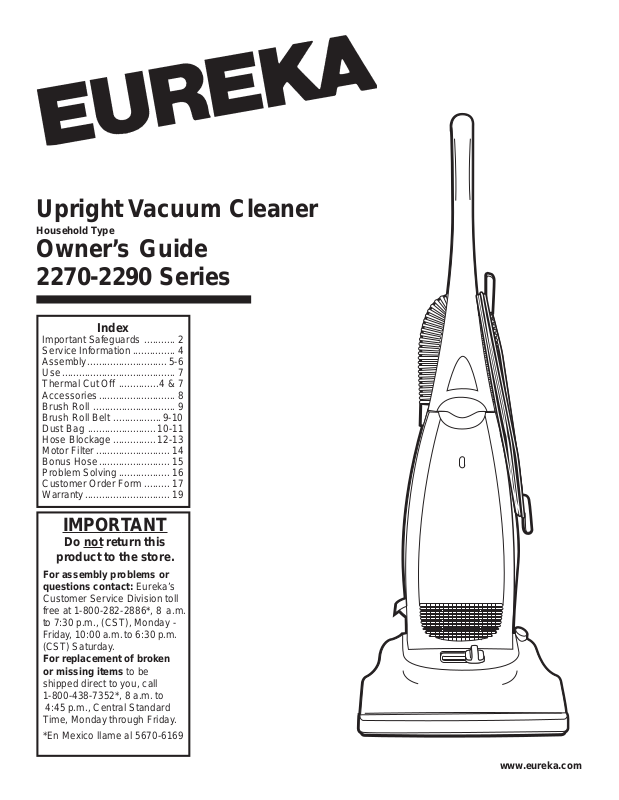

Page 1
Upright Vacuum Cleaner
Household Type
Owner’s Guide
2270-2290 Series
Index
Important Safeguards ........... 2
Service Information ............... 4
Assembly............................5-6
Use........................................ 7
Thermal Cut Off ..............4 & 7
Accessories........................... 8
Brush Roll ............................. 9
Brush Roll Belt .................9-10
Dust Bag ........................10-11
Hose Blockage...............12-13
Motor Filter.......................... 14
Bonus Hose......................... 15
Problem Solving.................. 16
Customer Order Form ......... 17
Warranty.............................. 19
IMPORTANT
Do not return this
product to the store.
For assembly problems or
questions contact: Eureka’s
Customer Service Division toll
free at 1-800-282-2886*, 8 a.m.
to 7:30 p.m., (CST), Monday Friday, 10:00 a.m. to 6:30 p.m.
(CST) Saturday.
For replacement of broken
or missing items to be
shipped direct to you, call
1-800-438-7352*, 8 a.m. to
4:45 p.m., Central Standard
Time, Monday through Friday.
*En Mexico llame al 5670-6169
www.eureka.com
Page 2
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in. T urn off the switch and unplug the electrical cord when not in use and
before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center before using.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do
not run vacuum cleaner over cord. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce airflow.
• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
• Do not place cleaner on furniture or stairs as the brush roll may cause damage. Place cleaner on floor with the handle in
storage position while using attachments.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag in place.
• Belt pulleys can become hot during normal use. T o pre v ent burns, avoid touching the belt pulle y when servicing the drive
belt.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
• Store your cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
2
Page 3
CONSEILS DE SÉCURITÉ
Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent être observées, incluant les suivantes:
LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR.
AVERTISSEMENT
Pour réduire le risque de feu, de choc électrique, ou de blessure:
• Ne pas utiliser à l’extérieur ou sur des surfaces mouillées.
• Fermez le commutateur et débranchez l’appareil lorsque vous ne l’utilisez pas ou avant le nettoy age ou l’entretien.
• Ne permettez pas qu’il soit utilisé comme jouet. Une attention particulière est nécessaire lorsque utilisé par ou prés d’un
enfant.
• Suivez les recommandations d’utilisation de ce manuel. Utilisez uniquement les accessoires recommandés par le fabriquant.
• Ne pas utiliser si le cordon ou la fiche sont endommagés. Si l’aspirateur ne fonctionne pas comme il le devrait, s’il a été
échappé, s’il est endommagé, s’il a été laissé à l’extérieur ou échappé dans l’eau, retournez-le à un centre de service
avant d’utiliser.
• Ne pas le tirer ou le transporter par le cordon, ne pas utiliser le cordon en guise de poignée. Ne pas fermer une porte sur
le cordon ou tirer le cordon sur des coins ou bordures pointus. Ne pas circuler sur le cordon avec l’aspirateur. Tenir le
cordon à distance des surfaces chauffantes.
• Ne pas utiliser des rallonges ou des prises qui n’ont pas de capacité suffisante pour transporter le courant.
• Fermer tous les contrôles avant de débrancher.
• Ne pas débrancher en tirant sur le cordon. Pour débrancher, tenez la fiche et non le cordon.
• Ne pas manipuler la fiche ou l’aspirateur avec les mains mouillées.
• Ne pas rien insérer dans les ouvertures. Ne pas utiliser si des ouvertures sont bloquées; assurez-vous qu’elles soient
dégagées de poussière, mousse, cheveux ou toute autre chose qui pourrait réduire le passage de l’air.
• Cet aspirateur créé de la succion et contient un rouleau-brosse tournant. Tenir les parties mobiles et les ouvertures loin
des cheveux, du linge, des doigts et de toute partie du corps.
• Ne pas mettre l’aspirateur sur les meubles ou sur les escaliers car le rouleau-brosse peut faire des dommages. Placer
l’aspirateur sur le plancher avec le manche en entreposage position temps que les accessoires sont en usage.
• Ne pas ramasser des objets qui brûlent ou fument comme les cigarettes, allumettes ou cendres chaudes.
• N’utilisez pas sans le sac de poussière en place.
• Les poulies du courroie peuvent devenir chaudes pendant l’utilisation normale. Pour prévenir des brûlures, évitez de
touché la poulie du courroie lorsque vous réparez la courroie.
• Portez une attention particulière lorsque vous nettoyez les escaliers.
• Ne pas utiliser pour ramasser des liquides inflammables ou combustibles comme de l’essence: Ne pas utiliser dans les
endroits où ces liquides pourraient être présents.
• Entreposez votre aspirateur à l’intérieur dans un endroit propre et sec.
• Maintenez un bon éclairage à l’endroit où vous travaillez.
• Débrancher les appareils électrique avant de les balayer.
CONSERVEZ CES INSTRUCTIONS
3
Page 4
To reduce the risk of electric shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit
in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper outlet. Do not change the plug in any way.
Afin de réduire le risque de choc électrique, cet appareil est muni d’une fiche polarisée (une des lames est plus large).
Cette fiche ne peut être insérée dans une prise polarisée que d’une seule façon. Si la fiche ne peut être insérée dans la prise,
retourner la fiche. Si la fiche ne peut toujours pas être insérée dans la prise, faire installer une prise adéquate par un
électricien qualifié. Ne pas modifier la fiche.
GENERAL INFORMATION
The cleaner is designed to pick up dirt and dust particles. Avoid picking up hard or sharp objects with the cleaner to prevent
bag tears, hose clogs, and fan blade breakage with subsequent motor damage.
Service Information
The instructions in this booklet serve as a guide to routine maintenance. For additional service information telephone our toll
free number for the nearest Eureka Authorized Warranty Station. You should know the model, type and serial numbers
when you call:
USA: 1-800-282-2886
Mexico: 5670-6169
Canada: 1-800-282-2886
If you prefer, you can write to The Eureka Company, Service Division, 807 Nor th Main Street, Bloomington, Illinois 61701,
USA. In Canada write to The Eureka Company, 866 Langs Drive, Cambridge, Ontario N3H 2N7. Refer to The Eureka Limited
Warranty for complete service information.
DO NOT OIL the motor or the brush roll at any time. The bearings are permanently lubricated and sealed.
Rating Plate
The model, type, and serial numbers are indicated on the
rating plate located on the underneath side of the cleaner.
For prompt and complete service information, always refer
to these numbers when inquiring about service.
Model & Type__________________________
Serial No. _____________________________
MODEL TYPE SERIAL NO.
VOLTS AMPS. HERTZ
SERVICE INFORMATION: 1-800-282-2886
THE EUREKA COMPANY
BLOOMINGTON, ILLINOIS 61701
Thermal Cut Off
This vacuum cleaner has a special thermostat that protects the cleaner in case of motor overheating. If the cleaner suddenly
shuts off, push the switch pedal once and unplug the cleaner . Check the cleaner for a possible source of ov erheating such as
a full bag, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before
attempting to use the cleaner. After the 30 minute period, plug the cleaner back in and turn on the switch. If the cleaner still
does not run, then take it to a Eureka Authorized Service Center for repair.
4
Page 5
HOW TO ASSEMBLE
CAUTION: Assemble the cleaner before using.
CAUTION: Moving parts, make sure on/off switch is in off position before plugging in.
NOTE: Features may vary by model yet all parts assemble the same.
Step A Attach Handle
CAUTION: Do not catch cord under handle.

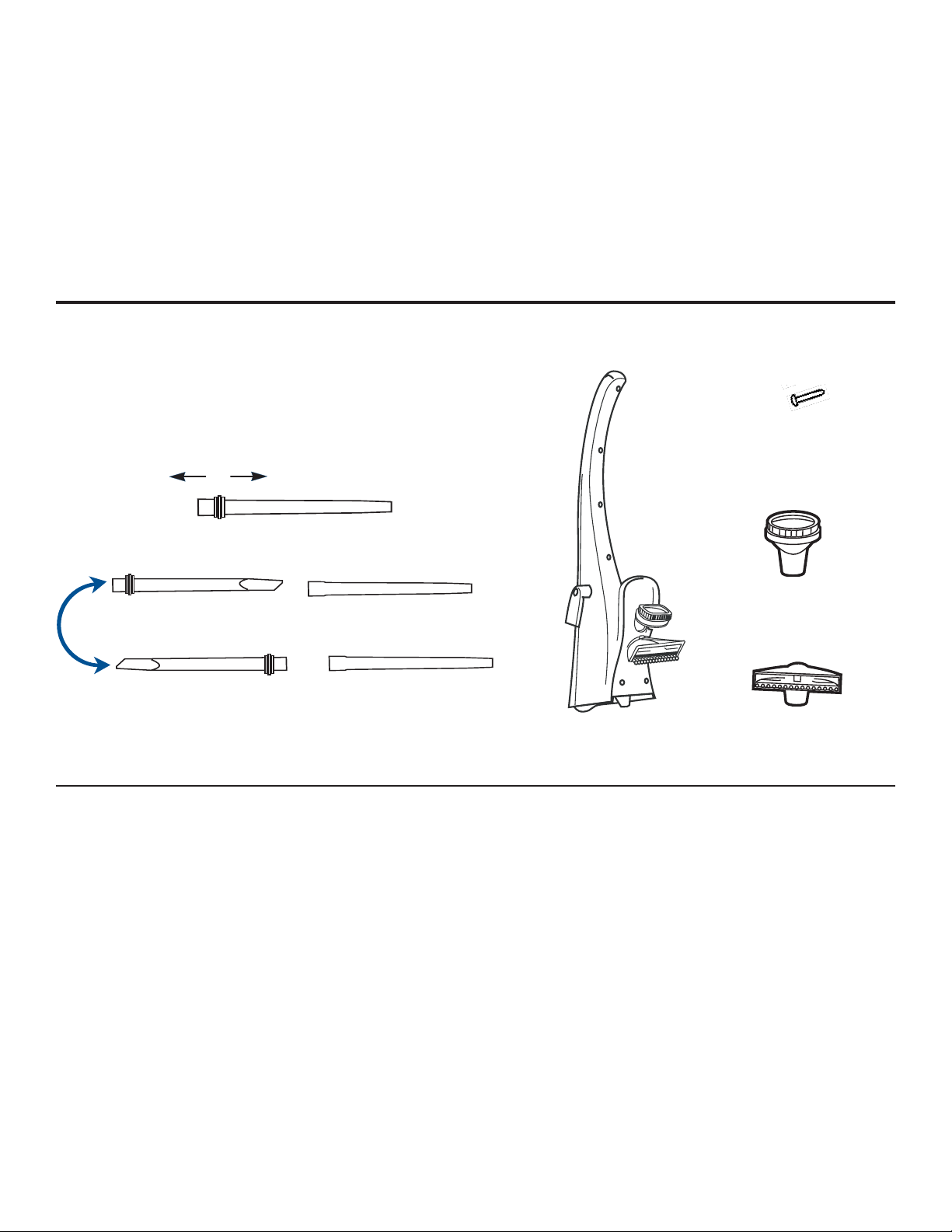

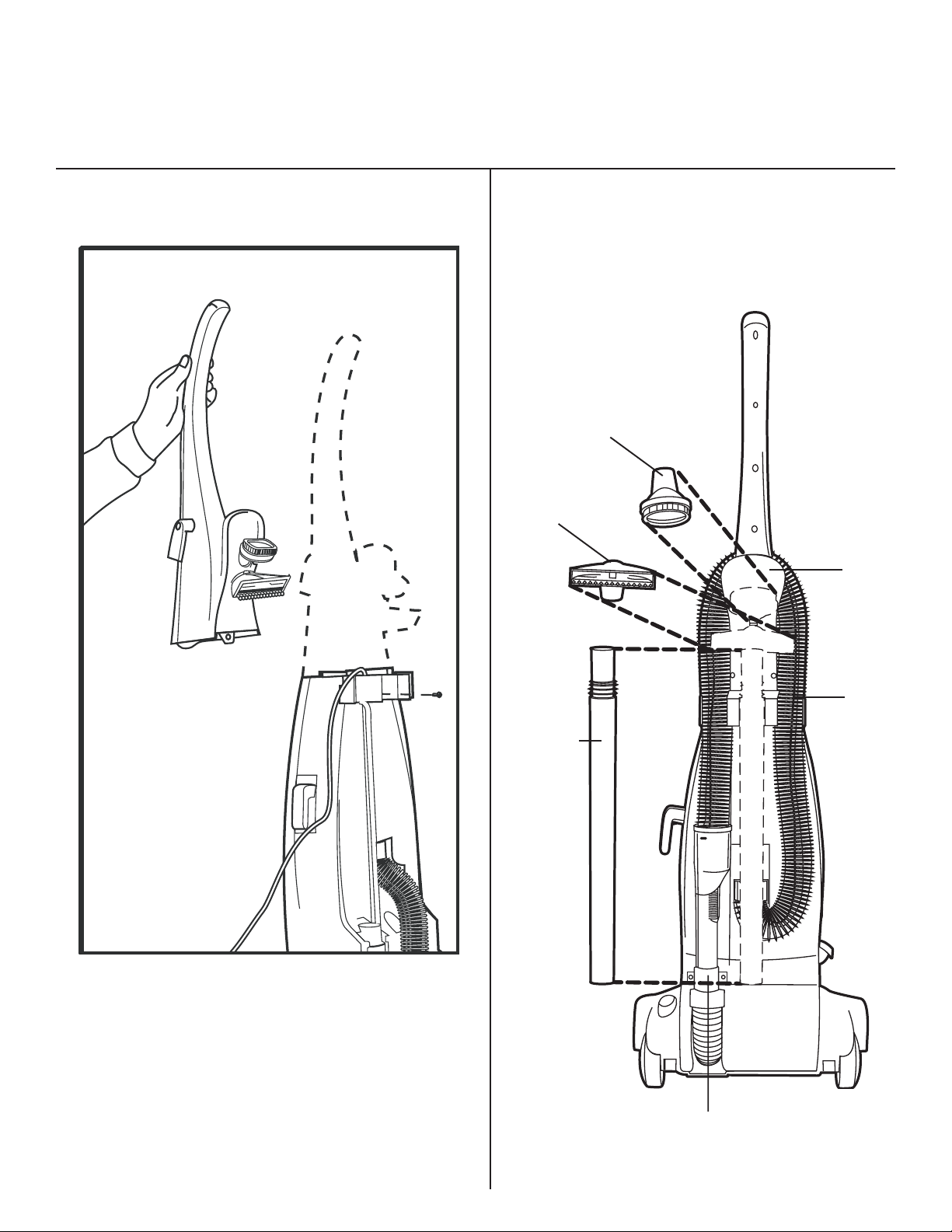

Step B Store Hose and Accessories
Dusting
Brush
Upholstery
Tool
Hose
Hook
1. Remove bag cover.
2. From front of cleaner , align handle with groove and slide
onto cleaner. If necessary, use thumb and finger
pressure to slide handle into position.
3. Attach handle with 5/8 inch screw in the assembly packet.
Use a Phillips® head screwdriver.
Hose
Nested
Extension
Wands
Hose
Retainer
5
Page 6

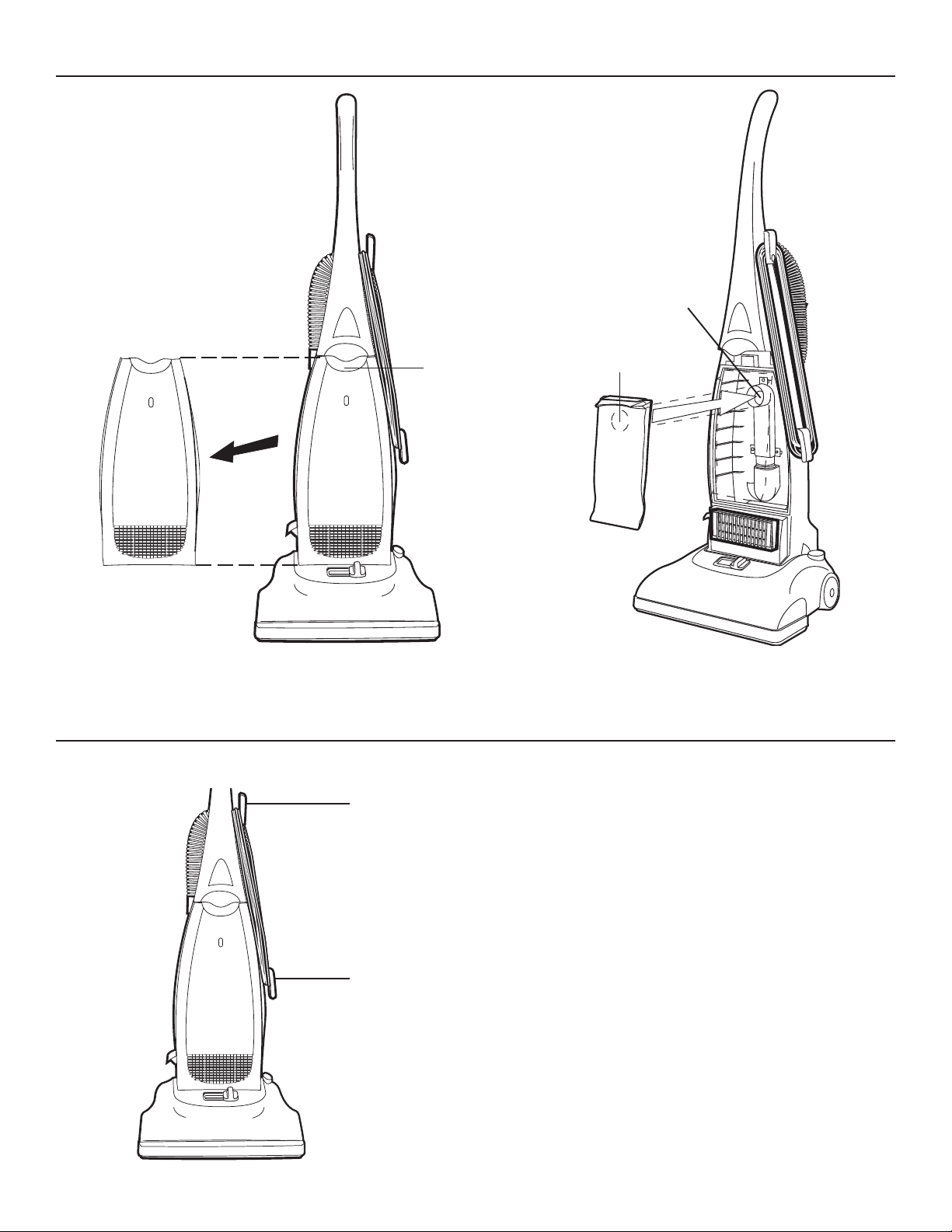

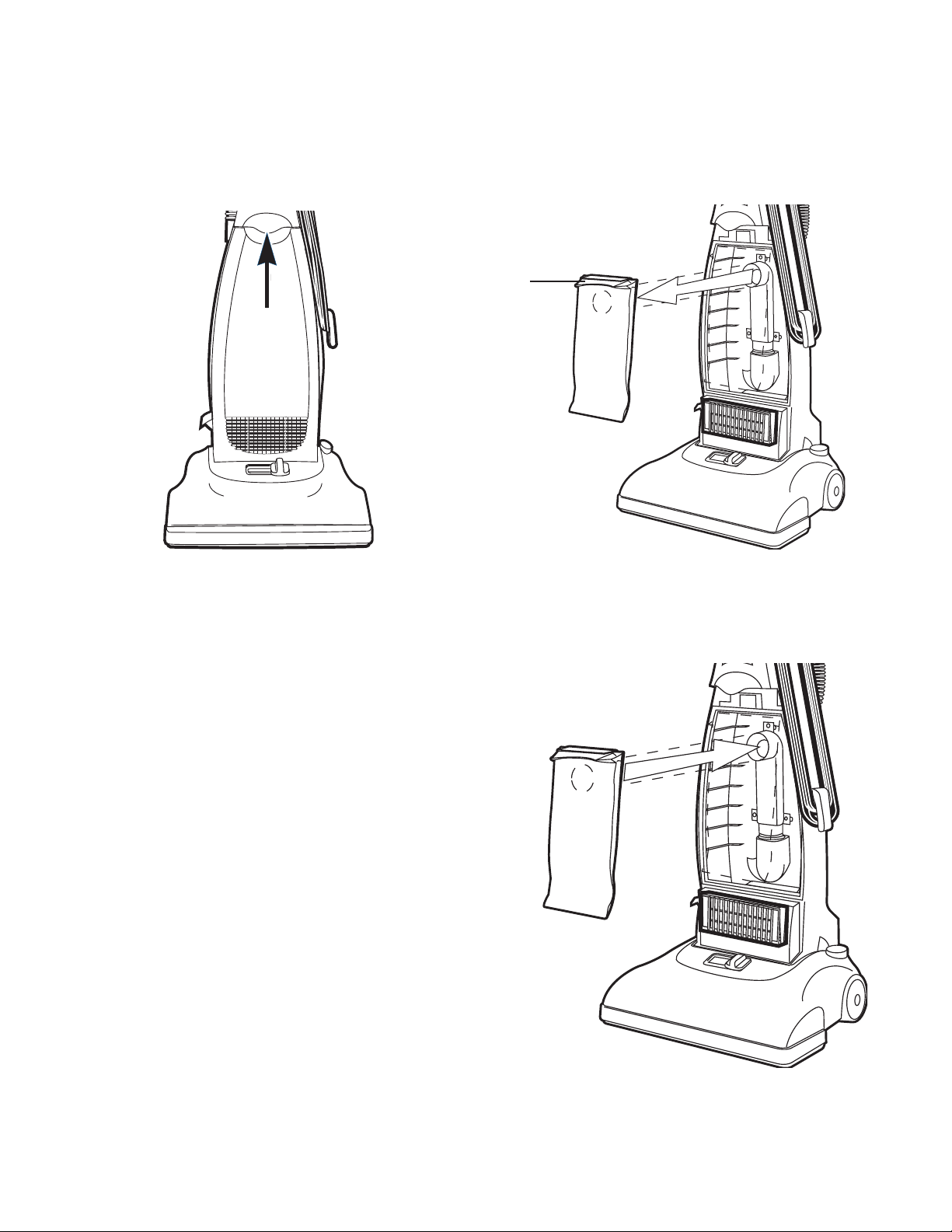

Step C Check Disposable Dust Bag
Inlet
Tube
Handle
Latch
4. Remove front cover. Press down on handle latch
and lift cover away from cleaner.
Step D Store Electrical Cord
Cord
Hook
Inlet
Hole
5. Check to be sure the paper bag inlet hole is secure
on the inlet tube.
6. Replace front bag cover. Place the tabs on the bottom
of the front cover into slots at bottom of bag
compartment and press cover against unit until it clicks
shut.
7. Next wind the cord around the two cord hooks on the
right side of cleaner. On some models the upper cord
hook turns to release the cord. Turn the hook up to
store the cord.
NOTE: For easier access to bag compartment, when
Cord
Hook
8. Secure the plug to the cord to prevent unwinding.
6
you store the electrical cord use a figure 8
pattern.
Page 7

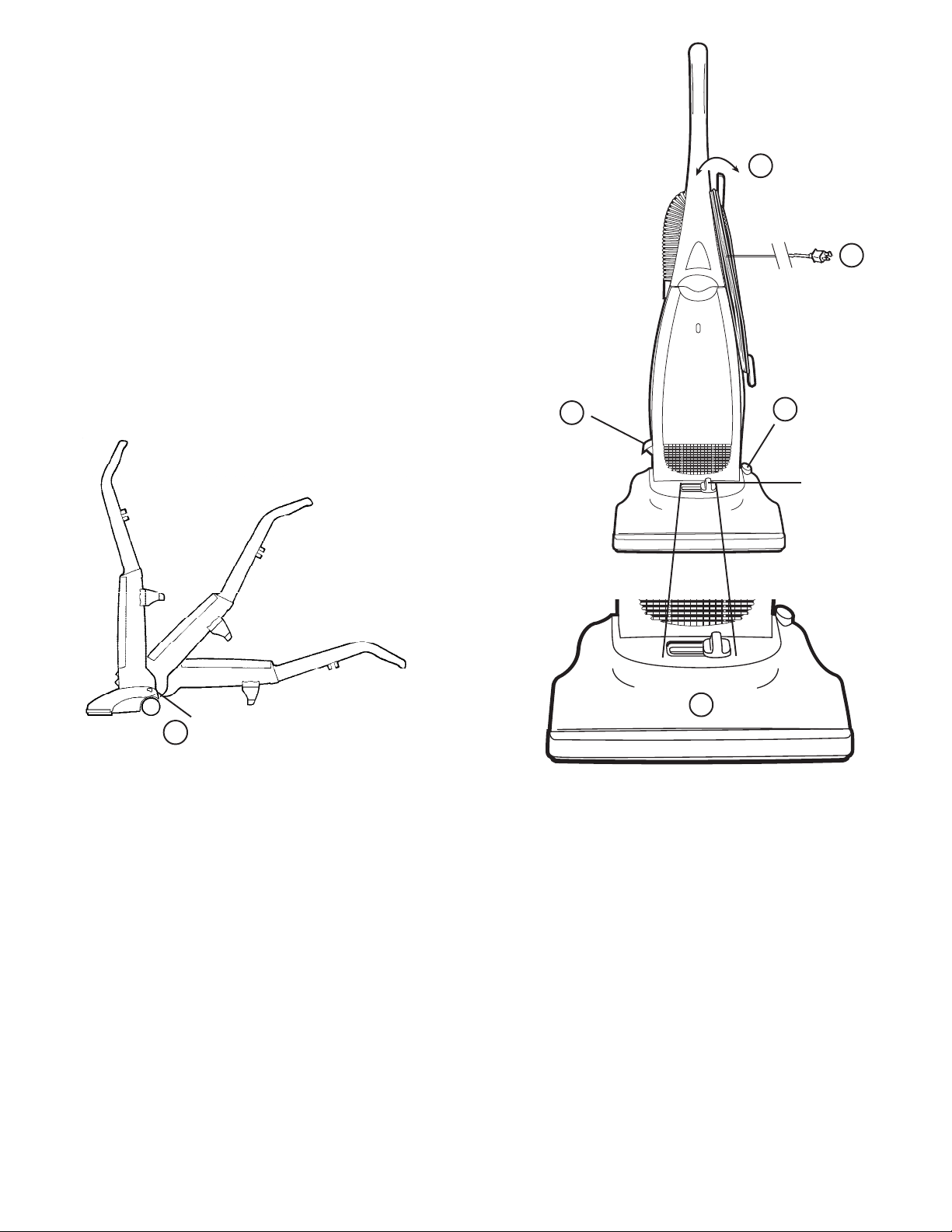

HOW TO USE
The upright vacuum cleaner design allows use on multiple types
of carpeting and on upholstery or bare floors with attachments.
When using the attachment tools, place the handle in the
upright position. Do not place cleaner on furniture or steps
as the brush roll may cause damage.
1. Adjust cleaner height setting knob to lowest position for
maximum cleaning. Adjust to a higher setting to make
pushing easier. For easy adjustments, tilt the cleaner back
to move the setting knob.
2
2. Unwind all of the electrical cord. The upper cord hook rotates
downward to release cord. When storing cord twist back to
upright position.
3. Plug electrical cord into outlet.
4. Step on handle release. Pull handle back to a comfortable
position.
5. Push On or Off power switch.
Store or
Use Attachments
Use
Clean
Under
Handle
4
Release
5
ON/OFF
HIGH LOW
1
Handle
4
Release
Adjustment
Knob
3
Cleaner Height Setting
WARNING: Avoid injury. Keep loose clothing, hair , fingers,
and all other parts of body away from any
moving part (such as the revolving brush). T urn
off the switch and unplug the cleaner before
changing the cleaner height setting.
The front of the cleaner has an adjustment that raises or lowers
the cleaner base to match the type of carpet. With the cleaner
cord unplugged, set the adjustment to lowest setting for
maximum cleaning. If the cleaner is difficult to push, move
adjustment to next highest setting until cleaner is comfortable
to push. The brush roll bristles must reach the carpet for
effective cleaning.
NOTE: For ease in moving the adjustment knob, place
handle in operating position and tilt cleaner back
to remove weight from front wheels.
NOTE: When handle is in upright position, brush roll is
lifted off carpet. This is normal. Height adjustment
will not change brush roll level until the cleaner’s
handle is moved into the operating position.
Thermal Cut Off
This cleaner has a special thermostat that protects the
cleaner in case of motor overheating. If the cleaner
suddenly turns off, follow this procedure:
1. Push on/off pedal once.
2. Unplug cleaner.
3. Check for source of overheating problem (i.e. full bag,
clogged hose or clogged filter).
4. If a full bag, clogged hose or clogged filter is found,
replace the bag, unclog the hose or replace the filters.
5. Wait at least 30 minutes bef ore attempting to reuse the
cleaner.
6. After 30 minute cool down period, plug the cleaner in
and push the switch pedal. The cleaner should turn on.
7. If the cleaner still does not operate, take it to any Eureka
Authorized Service Center for repair.
7
Page 8

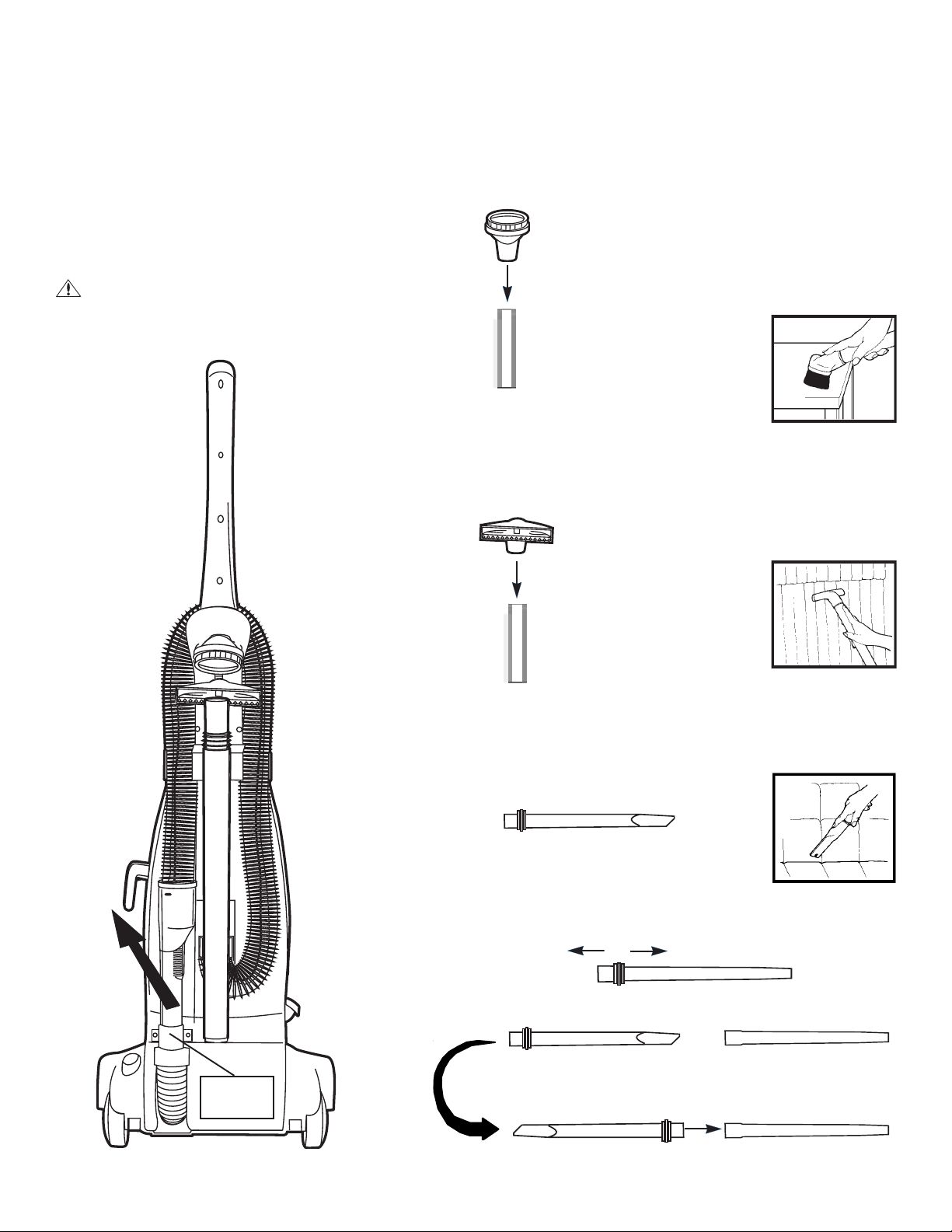

How To Use Accessories
NOTE: Do not place cleaner on furniture or
steps as the brush roll may cause
damage. Place cleaner on floor with
the handle in storage position while
using accessories.
1. Remove hose from rear of cleaner.
2. Place desired accessory onto end of hose.
Always work with the cleaner at a level
below you, pulling hose from side of cleaner;
not
the back or the front of the c leaner.
Dusting Brush is for furniture, blinds, books, lamp shades,
shelves. (On some models .)
Dusting Brush
Upholstery Nozzle is for curtains, draperies, cushions,
fabrics. (On some models.)
Upholstery
Nozzle
Crevice W and cleans corners, stairs, baseboards, and between
cushions.
Crevice T ool
Nested Extension Wands to add reach.
• Grasp both wands near ridges.
Hose
Retainer
• Turn ridge end to center. • Push wands together.
8
• Pull apart.
Page 9
HOW TO MAINTAIN
The instructions in this booklet serve as a guide to routine maintenance. To avoid unnecessary service calls, check the bag,
belt, and brush roll often.
Brush Roll
The brush roll turns as it sweeps and combs the carpet nap. Remove hair and threads from the brush roll so it continues
brushing the carpet. To maintain the most efficient cleaning, the bristles must touch the car pet. To test the bristle length,
hold a ruler against the underneath side of the cleaner. If the bristles no longer touch the ruler, replace the brush roll.
Brush Roll Belt
The brush roll belt turns the brush roll to agitate, sweep, and comb the carpet nap. Check the belt regularly to be sure it is
in good condition. Replace the belt if it stretches, cracks or loses tension. Cut away any hair or threads wound around the
brush roll or the belt pulley because the buildup could cause the belt to rotate unevenly.

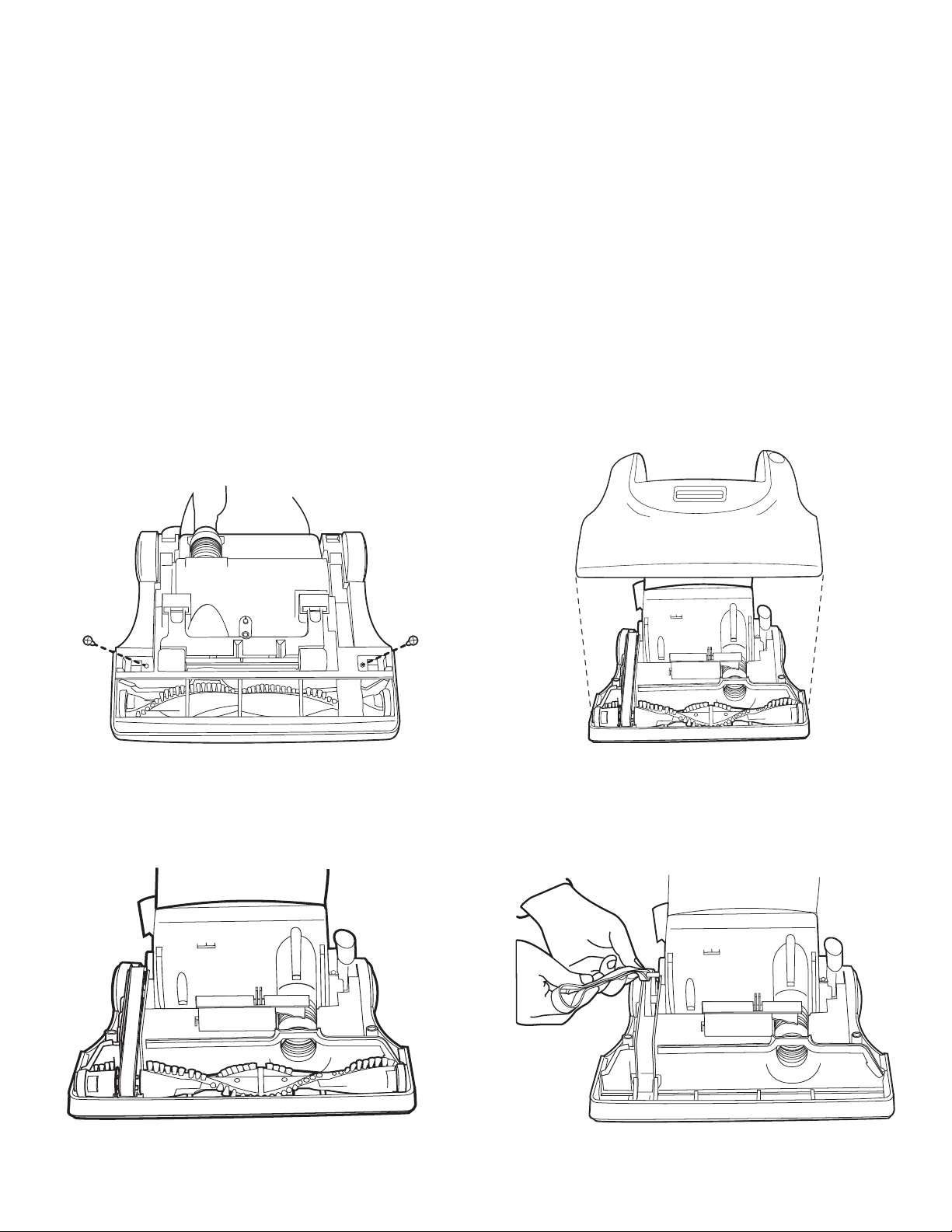

How To Replace Brush Roll Belt
NOTE: Turn off the switch and unplug the electrical cord before replacing belt. Belt pulleys can become hot during
normal use. To prevent injury, avoid touching the motor pulley when checking the belt.
1. Lower handle to floor to change belt. Turn cleaner over
so the bottom of the powerhead is facing up.
2. Remove two screws to release hood.
6. Remove and discard old belt.
3. Hold powerhead together and turn over with hood side
up.
4. Remove height adjustment knob. You may need to pry
up with end of screwdriver .
5. Lift hood up off of powerhead.
7. Place belt around brush roll pulley.
9
Page 10
Brush Roll
Pulley
Right
Side
View
Disposable Dust Bag and Filters
The disposable dust bag plays a very important role in
the efficiency of a vacuum cleaner. The purpose of the
Insert
paper bag is to trap dirt. As the bag traps dirt, it must also
be porous enough to allow air to pass on through. If the
paper bag becomes clogged, no air can pass through the
cleaner and no cleaning can take place regardless of how
powerful the unit. Change the dust bag and check the filters
frequently. Some fine particles can restrict airflow very
quickly and will decrease performance even before the
bag appears to be full.
When vacuuming carpet fresheners or cleaners, powder ,
plaster dust, or similar fine substances, the bag and filters
may require more frequent maintenance.

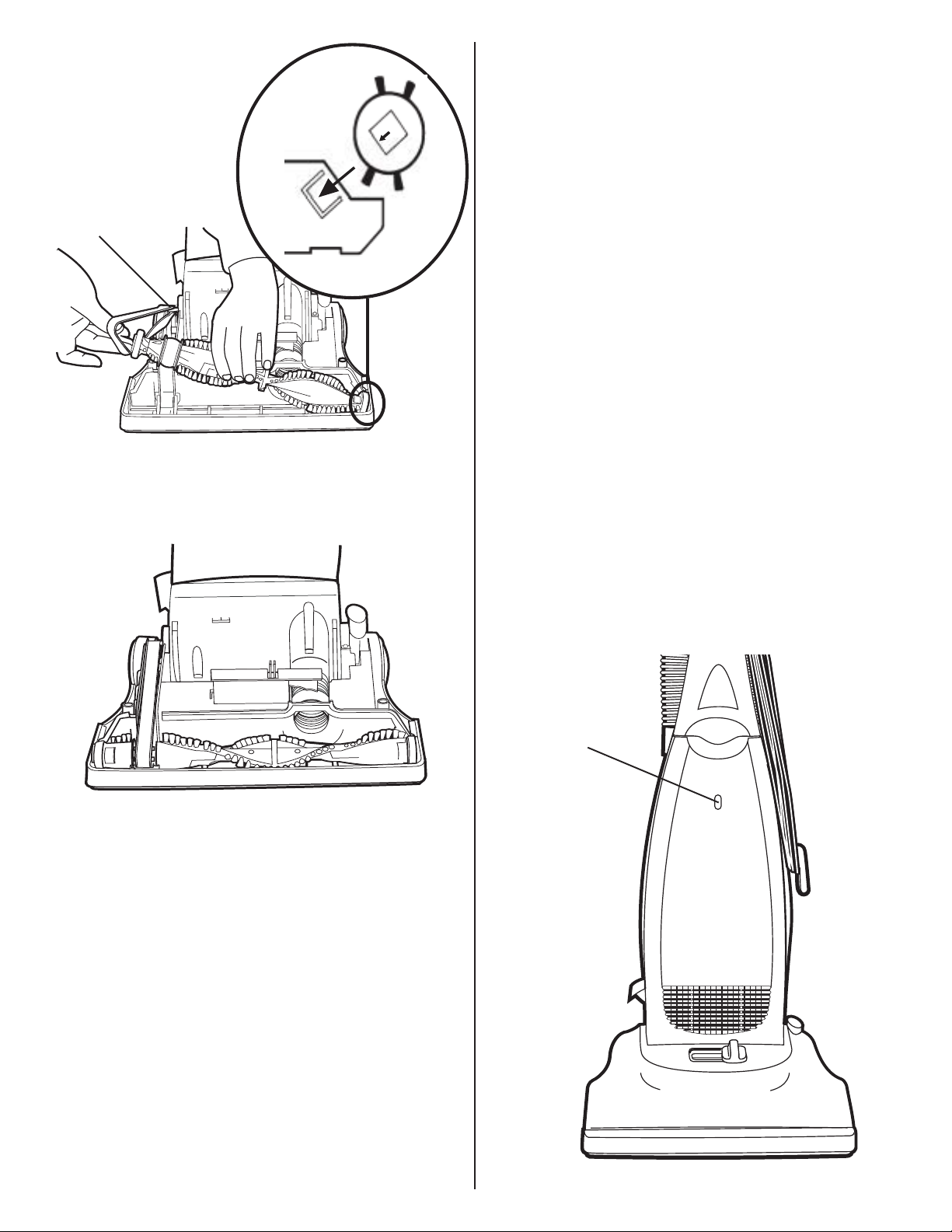

8. Place belt around brush roll pulley . Align right end cap
with square in base. Push end cap into place; see
right side view.
Bag Change Indicator
(only for models
with a Bag Change Indicator)
Some models feature a Bag Change Indicator to remind
you to change the bag. The indicator on the bag cover
moves into the window as the airflow through the bag
decreases. Certain types of fine particles like powder,
plaster dust, or fine road dust can restrict airflow very
quickly . The fine particles will decrease performance ev en
before the bag appears to be full. Change the dust bag to
restore maximum performance.
Be sure to use GENUINE EUREKA dust bags for best
performance. If a clean dust bag does not restore
maximum performance, check for obstructions in the hose
or airflow passage.
Bag
Change
Indicator
9. Pull left side of brush roll to stretch belt. Secure left
end cap in base. Roll brush roll to seat belt.
10.Replace hood. Make sure hood front is behind furniture
guard on front of base. Replace carpet height
adjustment knob. Hold hood and power head together
and flip over. Replace and tighten screws. See
previous page.
Use GENUINE EUREKA replacement belt, J Style, Part
No. 61520. Look for the GENUINE EUREKA product
symbol.
10
Page 11
How To Replace Bags–Style J
NOTE: Turn off the switch and unplug the electrical cord before changing dust bag. Never operate the vacuum
cleaner without the dust bag or the filter.
It may be more convenient to lower the handle to the floor before changing the bag.
To Remove Bag:
Bag
Collar
Front
Cover
Latch
A. Remove front cover. Press down on front cover latch
and lift cover away from cleaner.
To Replace New Bag:
C. Align bag inlet hole and inlet tube. Push bag straight
onto tube.
D. Tuck bag into bottom and along sides.
E. Replace front cover. Make sure disposable bag does
not catch under front cover. Place the tabs on the
bottom of the front cover into slots at bottom of bag
compartment and press cover against unit until it clicks
shut.
B. Grasp bag collar and pull straight out of bag
compartment. Dispose of used bag.
* We recommend using only Genuine Eureka
Bags, Part No. 61515.
11
Page 12

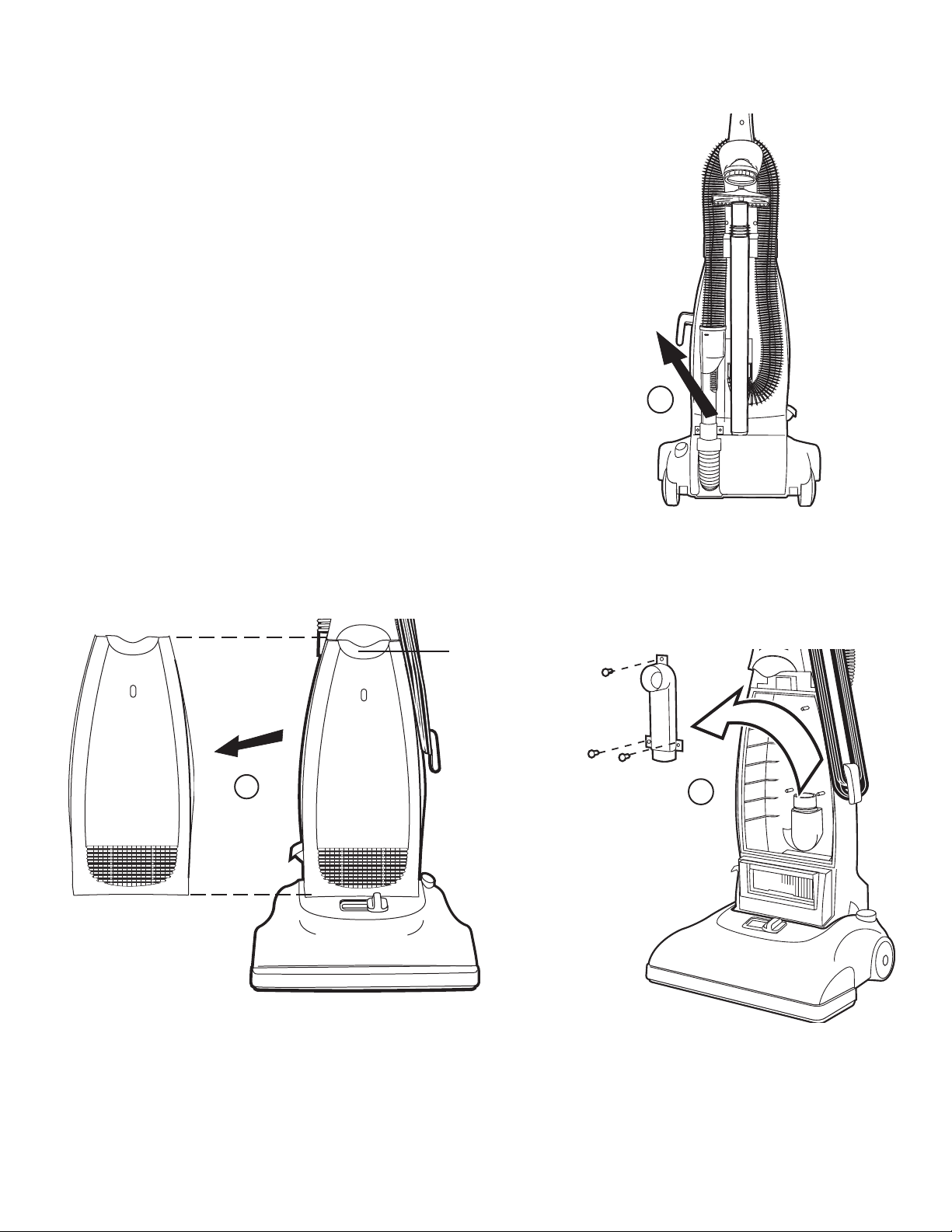

How to Check and Clear Hose Blockages
Low suction or poor pickup may be due to a blockage in the vacuum cleaner.
1. Remove attachment hose and check suction at end of hose
– if little or no suction, check disposable dust bag. Change
if needed. If no improvement proceed to step 2.
NOTE: Turn off the switch and unplug the electrical cord
before clearing hose.
2. Remove bag cover and disposable dust bag.
3. Remove tube inside dust bag compartment by removing 3
screws.
Check for any obstructions that may be in the hose. Any
obstructions can be removed by using a blunt instrument to
clear the hose. Flexing the hose may help loosen the clog.
4. Reinstall the tube after clearing any clog. Reinstall the
disposable dust bag and bag cover.
NOTE: If no improvement in performance on carpet, proceed
to following page.
1. Remove attachment hose and check
suction at end of hose.
1
Handle
Latch
2
2. Remove bag cover. Press down on handle latch and
lift cover away from cleaner.
3
3. Remove tube inside dust bag
compartment by removing 3 screws.
12
Page 13

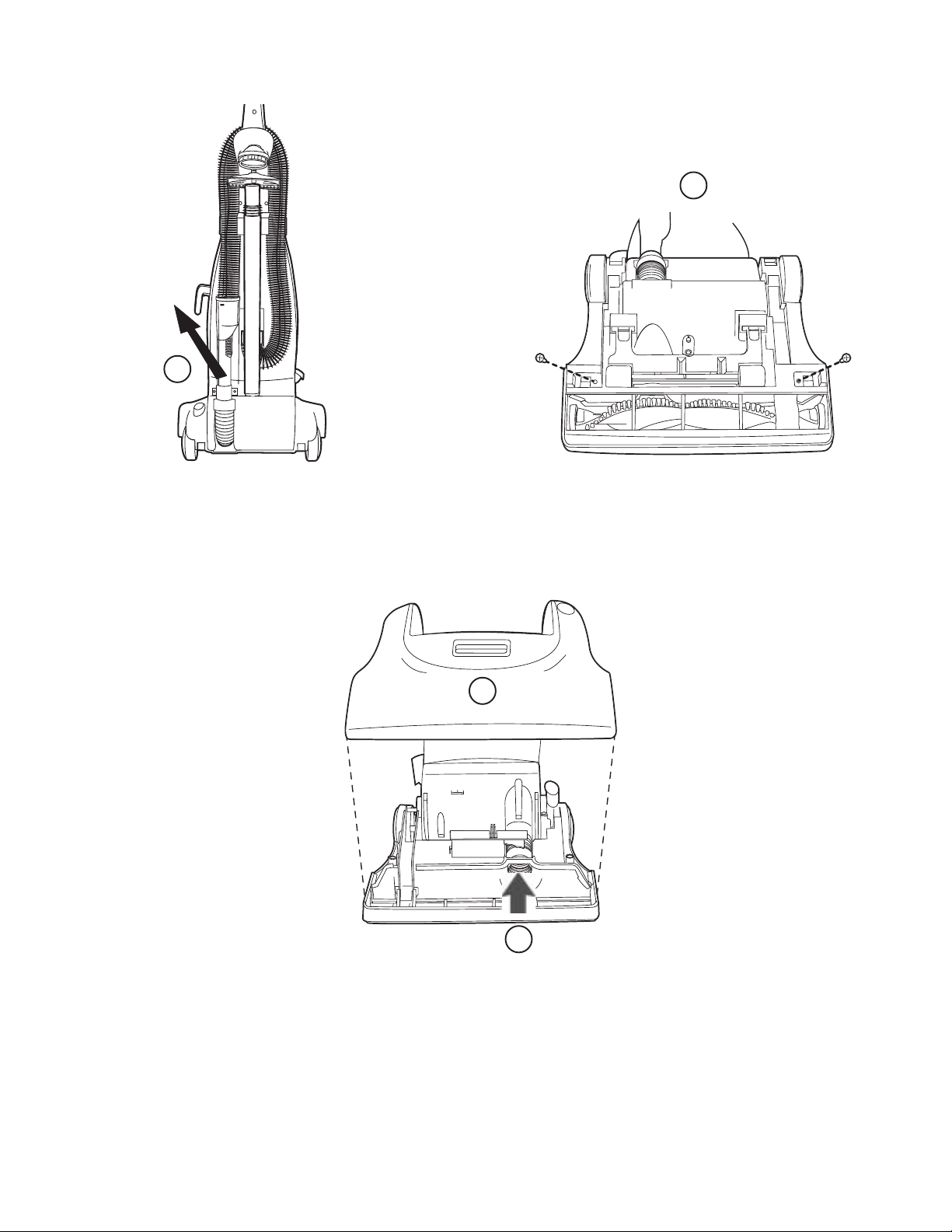

How to Check and Clear Blockages in Base
1
2
1. Remove the attachment hose from the lower hose
retainer and look into the hose retainer for any
obstructions. Proceed to Step 2 to check for any other
blockages.
2. Lower handle to floor. Turn cleaner over so the bottom
of the power head is facing up. Remove two screws
to release hood.
3
3. Hold power head together and turn over with hood side
up. Lift hood up off of power head.
5. After the blockage is removed, replace the hood and
tighten the two hood screws (see Fig. 2). Raise the
handle to the upright position place the hose into the
lower hose retainer.
4
4. Check for bloc kages in the brush roll area and remove
any obstructions found there. The base hose can be
cleared of any blockage by using a blunt instrument.
13
Page 14
Motor Filter
Check the motor filter with each disposable dust bag
change. Clean or replace as needed.
To Clean Motor Filter
1. Remove bag cover . Press down on handle latch and
lift cover away from cleaner.
2. The filter is located under the bag compartment. To
remove filter frame, grasp and pull straight out from
cleaner. Pull filter from filter frame.
3. Shake filter to remove excess dust. If necessary,
the filter can be cleaned by vacuuming with another
cleaner.
4. Reinstall filter in filter frame by placing under the
two retaining tabs on each end of filter frame. Push
filter frame back into cleaner. Reinstall bag cover.
Filter
Use GENUINE EUREKA replacement filter, 61528.
Look for the GENUINE EUREKA product symbol.
Filter Frame
14
Page 15
STAIR CLEANING HOSE (Only on Certain Models)
WARNING: Never position any cleaner on the stairs as this could damage the carpet.
Some models will come complete with an extra bonus hose which is ideal for cleaning stairs.
HOW TO ASSEMBLE AND USE
WARNING
Always work with the cleaner below you, pulling
Step 1 - Remove the hose attached to the cleaner.
hose from side of cleaner;
the cleaner . Ensure it is positioned sideways up against
the bottom step.
not
the back or the front of
Step 2 - Connect the hose cuff to the end of the
bonus hose.
Step 3 - You are ready to clean your stairs.
NEVER STAND ANY CLEANER ABOVE YOU.
NEVER POSITION ANY CLEANER ON THE
STAIRS AS THIS COULD DAMAGE THE CARPET.
15
Page 16
PROBLEM SOLVING
NOTE: Turn off the switch and unplug the electrical cord before servicing.
PROBLEM CAUSE SOLUTION
Motor will not start. Electric Plug Push plug securely into outlet.
✓
Try another outlet.
Check circuit breaker.
Motor suddenly stops. Thermal Cut Off Refer to page 7.
Does not clean the carpet or Disposable Dust Bag Change the bag. Hint: If picking up fine dust, the bag
floor. and Filter(s) may
No suction at the end of the Disposable Dust Bag Change the bag. Hint: If picking up fine dust, the bag
hose. may
Noise from the brush roll area. Brush Roll Remove hood and clean debris from the brush roll area.
Cleaner is hard to push. Cleaner Height Setting Turn adjustment knob to a higher position. Hint: Put
Brush roll will not turn. Belt Replace cut, loose or out of shape belt.
✓
✓
not look full, but a fine substance tends to reduce
suction when it blocks the airflowthrough the paper bag
and filter(s). Make sure the dust bag is installed properly.
Make sure bag cover is installed properly.
Belt Replace a cut, loose or out of shape belt.
✓
Brush Roll Clean hair and thread from bristles and end cap area.
✓
Hose Remove any clogs from the hose that restrict the airflow.
✓
Replace brush roll if bristles are worn.
✓
not look full, but a fine substance tends to reduce
suction when it blocks the airflowthrough the paper bag.
Hose Remove any clogs from the hose that restrict the airflow.
✓
Check both ends of the hose. (See pages 12-13)
✓
Belt Replace a cut, loose or out of shape belt.
✓
✓
handle in operating position. Tilt the cleaner back to
raise the front wheels off floor. Then turn the knob.
Belt Replace a cut, loose and out of shape belt.
✓
✓
Burning smell. Belt Replace cut, loose or out of shape belt.
Cleaning height knob will not Cleaner Height Setting Hint: Put handle in operating position. Tilt the cleaner
slide. back to raise the front wheels off floor. Then slide the
Missing parts. Call 1-800-438-7352 between 8:00 a.m. and 4:45 p.m.,
Questions? Call 1-800-282-2886, 8 a.m. to 7:30 p.m., (CST), Monday
✓
✓
knob.
central standard time, Monday through Fr iday. Know the
model and serial numbers when you call.
- Friday. 10:00 a.m. to 6:30 p.m. (CST) Saturday. Know
the model and serial numbers when you call.
16
Page 17
Page 18
Page 19
THE EUREKA LIMITED WARRANTY
hat This Warranty Covers
W
Your Eureka cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of one year. The warranty is granted only to the
original purchaser and members of his or her immediate household. The warranty is subject to the following provisions.
hat This Warranty Does Not Cover
W
• Parts of the cleaner that require replacement under normal use, such as disposable dust bags, fans, filters, drive belts, light bulbs, brush roll bristles, impellers and cleaning.
• Damages or malfunctions caused by negligence, abuse, or use not in accordance with the Owner’s Guide.
• Defects or damages caused by unauthorized service or the use of other than Genuine Eureka parts.
hat The Eureka Company Will Do
W
The Eureka Company will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a matter of warranty policy, the Eureka Company
will not refund the consumer’s purchase price.
arranty Re gistration
W
Please fill out and return the warranty registration card accompanying your cleaner .
btaining W arr anty Service
O
To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Eureka Authorized Warranty Station.
You will find the nearest location in the Yellow Pages, under “Vacuum Cleaners–Service and Repair.” Be certain that the Warranty Station is “Eureka Authorized.”
For the location of the nearest Eureka Authorized Warranty Station or for service information, telephone toll free:
USA: 1-800-282-2886
Mexico: 5670-6169
If you prefer, you can write to The Eureka Company, Service Division, 807 North Main Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company,
866 Langs Drive, Cambridge, Ontario N3H 2N7.
If it is necessary to ship the cleaner outside your community to obtain warranty repair, you must pay the shipping charges to the Eureka Authorized Warranty Station.
Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type, and serial number from the data plate on the cleaner.
Canada: 1-800-282-2886
urther Limitations and Exclusions
F
Any warranty that may be implied in connection with your purchase or use of the cleaner, including any warranty of Merchantability or any warranty for Fitness F or A Particular
Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied wa rranty lasts, so the above limitations may not apply to you.
Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall Eureka be liable for any consequential or incidental dama ges you
may incur in connection with your purchase or use of the cleaner. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary by state.
GENUINE
EUREKA PRODUCT
uestions & Answers about Genuine Eur eka Products
Q
Q:Why should I use only Genuine Eureka paper bags, belts, and parts in my Eureka vacuum cleaner?
Using Genuine Eureka Products, which are made to our exacting specifications and engineered with emphasis on quality, performance, and customer satisfaction,
A:
ensures the long life and cleaning efficiency of your vacuum cleaner. Overall, this saves you money and helps to keep your home clean.
Q:How can I be sure I am using only genuine Eureka products in my vacuum cleaner?
Typically, packaged products and paper bags can be identified by a “Genuine Eureka Product” symbol (see illustration above). For further identification assistance,
A:
you may call our toll-free number, 1-800-282-2886, for the location of a nearby Eureka Authorized Warranty Station.
Q:Are there any differences between “made to fit” or “imitation” and Genuine Eureka paper bags, belts, and par ts?
A:
Yes, there are some very important differences in materials, quality, and reliability. Many customers have mistakenly purchased “imitation” paper bags and parts
while thinking they purchased genuine. Unfortunately, many of these customers discovered the differences after they experienced related difficulties.
For Genuine Eureka Value, Accept No Imitations!
THE EUREKA COMPANY
Bloomington, Illinois 61701
Household Warranty
abs 190A (11/02)
19
Page 20
Questions?
Do Not Return To Store
Call
1-800-282-2886
8 a.m. to 7:30 p.m. Central Standard Time, Monday thru Friday, 10:00 a.m. to 6:30 p.m. Saturday
Accessory Items in This Carton
Nested extension wands to add reach.
• Grasp both wands near ridges.
• Pull apart.
• Turn ridge end to center. • Push wands together.
Thank you for selecting a Eureka cleaner.
1 vacuum cleaner
handle
1 hardware package
(1 screw)
1 dusting brush
(on some models)
1 upholstery nozzle
(on some models)
Part No. 71434A
(11/02)
Don’t Forget to Use
Genuine Eureka
Bags and Belts
CAUTION: Damages caused by the use of non-
genuine Eureka bags are not covered by
the Eureka Limited Warranty.
©2001 White Consolidated Ltd.
Printed in China
Loading...
