S5 surface
CM401, CM402, CM403,
CM408, CM411
Installation Manual
Document Revision: A
Part Number: 840-11307-01
Release Date: August 2010
Euphonix is Avid. Learn more at www.avid.com
Regulatory and Safety Notices
FCC Notice
Part 15 of the Federal Communication Commission Rules and Regulations has established Radio
Frequency (RF) emission limits to provide an interference free radio frequency spectrum. Many
electronic devices produce RF energy incidental to their intended purpose.
These rules place electronic equipment into two classes, A and B, depending on the intended use.
Class A devices are those that may be expected to be installed in a business or commercial environment.
Class B devices are those that may be expected to be installed in a home or residential environment. The
FCC requires devices in both classes to be labeled with the interference likelihood and additional
operating instructions. The rating label on the equipment will show which class the product is (A or B).
Class A product will not have an FCC logo. Class B equipment will have an FCC logo. The information
statements differ on the two classes.
Class A Equipment
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at personal expense.
Euphonix is Avid. Learn more at www.avid.com
Modifications
The FCC requires the user to be notified that any changes or modifications made to Avid hardware that
are not expressly approved by Avid Technology may void the user’s authority to operate the equipment.
Cables
Connections to Avid hardware must be made with shielded cables with metallic RFI/EMI connector
hoods in order to maintain compliance with FCC Rules and Regulations.
PRODUCTS WITH MULTIPLE POWER I NP UTS :
WARNING: Each power input is intended to be connected to a separate branch circuit. Risk of high
leakage exists if multiple inputs are connected to a single source and protective earth is not present. A
QUALIFIED SERVICE PERSON shall verify that each socket-outlet from which the equipment is to be
powered provides a connection to the building protective earth. If any do not provide this connection,
the QUALIFIED SERVICE PERSON shall arrange for the installation of a PROTECTIVE EARTHING
CONDUCTOR from the separate protective earthing terminal to the protective earth wire in the building.
Canadian ICES-003
Class A Equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecté toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Euphonix is Avid. Learn more at www.avid.com
European Union Declaration of Conformity
Declaration of conformity
Konformitätserklärung
Déclaration de conformité
Declaración de Confomidad
Verklaring de overeenstemmin g
Dichiarazione di conformità
We/Wir/ Nous/WIJ/Noi:
Avid Technology
1925 Andover Street
Tewksbury, MA, 01876 USA
European Contact: Nearest Avid Sales and Service Office or
Avid Technology International B.V.
Sandyford Industrial Es tat e
Unit 38, Carmanhall Road
Dublin 18, Ireland
declare under our sole responsibility that the product,
erklären, in alleniniger Verantwortung,daß dieses Produkt,
déclarons sous notre seule responsabilité que le produit,
declaramos, bajo nuestra sola responsabilidad, que el producto,
verklaren onder onze verantwoordelijkheid, dat het product,
dichiariamo sotto nostra unica responsabilità, che il prodotto,
Euphonix is Avid. Learn more at www.avid.com
Product Name(s) : S5 Surface Modules
Model Number(s): CM401, CM402, CM403, CM408, CM411
Product Options: This declaration covers all options for the above product(s).
to which this declaration relates is in conformity with the following standard(s) or other normative documents.
auf das sich diese Erklärung bezieht, mit der/den folgenden Norm(en) oder Richtlinie(n) übereinstimmt.
auquel se réfère cette déclaration est conforme à la (aux) norme(s) ou au(x) document(s) normatif(s).
al que se refiere esta declaración es conforme a la(s) norma(s) u otro(s) documento(s) normativo(s).
waarnaar deze verklaring verwijst, aan de volende norm(en) of richtlijn(en) beantwoordt.
a cui si riferisce questa dichiarazione è conforme alla/e seguente/i norma/o documento/i normativo/i.
The requirements of the European Council:
Safety: Directive 2006/95/EC
EN 60065:2002 /A1:2006
EMC: Directive 2004/108/EC
EN 55103-1:1996
EN 55103-2:1996
Euphonix is Avid. Learn more at www.avid.com
LED Safety Notices
Avid hardware might contain LED or Laser devices for communication use. These devices are compliant
with the requirements for Class 1 LED and Laser Products and are safe in the intended use. In normal
operation the output of these laser devices does not exceed the exposure limit of the eye and cannot
cause harm.
Standard to which conformity is declared: (IEC 60825-1)
Optical connections are located on the rear panel and are typically labeled “Optical” or “SPDIF/ADAT.”
The exact location of optical connections is identified more clearly elsewhere in the documentation for
the Avid hardware device.
Disposal of Waste Equipment by Users in the
European Union
Euphonix is Avid. Learn more at www.avid.com
Lithium Battery R eplacement
If a battery is supplied in this Avid product it must only be replaced by qualified personnel. Contact Avid
Customer Support for assistance.
WARNING
Danger of explosion if battery is incorrectly replaced. Replace with only the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af
samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.
ADVARSEL!
Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes kun batteri som anbefalt av
apparatfabrikanten. Brukt batteri returneres apparatleverandøren.
VARNING
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som
rekommenderas av apparattillverkaren. Kassera använt batteri enligt
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan
suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
fabrikantens instruktion.
Euphonix is Avid. Learn more at www.avid.com
Overview
The System 5 control surface consists of a number of control surface modules. These modules
are described below. Typically, each connects to the system via a network cable. Each console
must include one CM401T Master Module and at least one CM408T Eight-Fader Module.
• CM401T: Master control module with configuration interface.
• CM402T: Expanded channel module with eight faders.
• CM403: Dual joystick and film monitor panel.
• CM408T: Eight-fader module.
• CM411: VGA/DVI input module with optional dual joysticks.
Euphonix is Avid. Learn more at www.avid.com
Connections
Power
Heat
13.25”
34 cm
12”
30 cm
33.5”
84 cm
35lb
16 kg
34 cm
30 cm
84 cm
16 kg
Power Connector (IEC): Accepts standard IEC power cord (provided). An autoranging
switching supply accepts voltages between 100–240 VAC, 50–60 Hz.
Network Port (RJ45): Connect to EuCon Network Switch via RJ45 through the console
ethernet harness (provided).
Expansion Port (DB25): Active on the CM401T only. Connect optional, external talkback
An optional 16-port BNC Bulkhead Panel (see figure 3-4) allows BNC panel access to the
DSP cards’ MADI ports.
VGA Port (HD15D): For debug only
Mouse and Keyboard: Used only on the CM401T
Serial: Used to connect the Joysticks
More information
Please check the website www.euphonix.com for the Service manual and Operational Manual

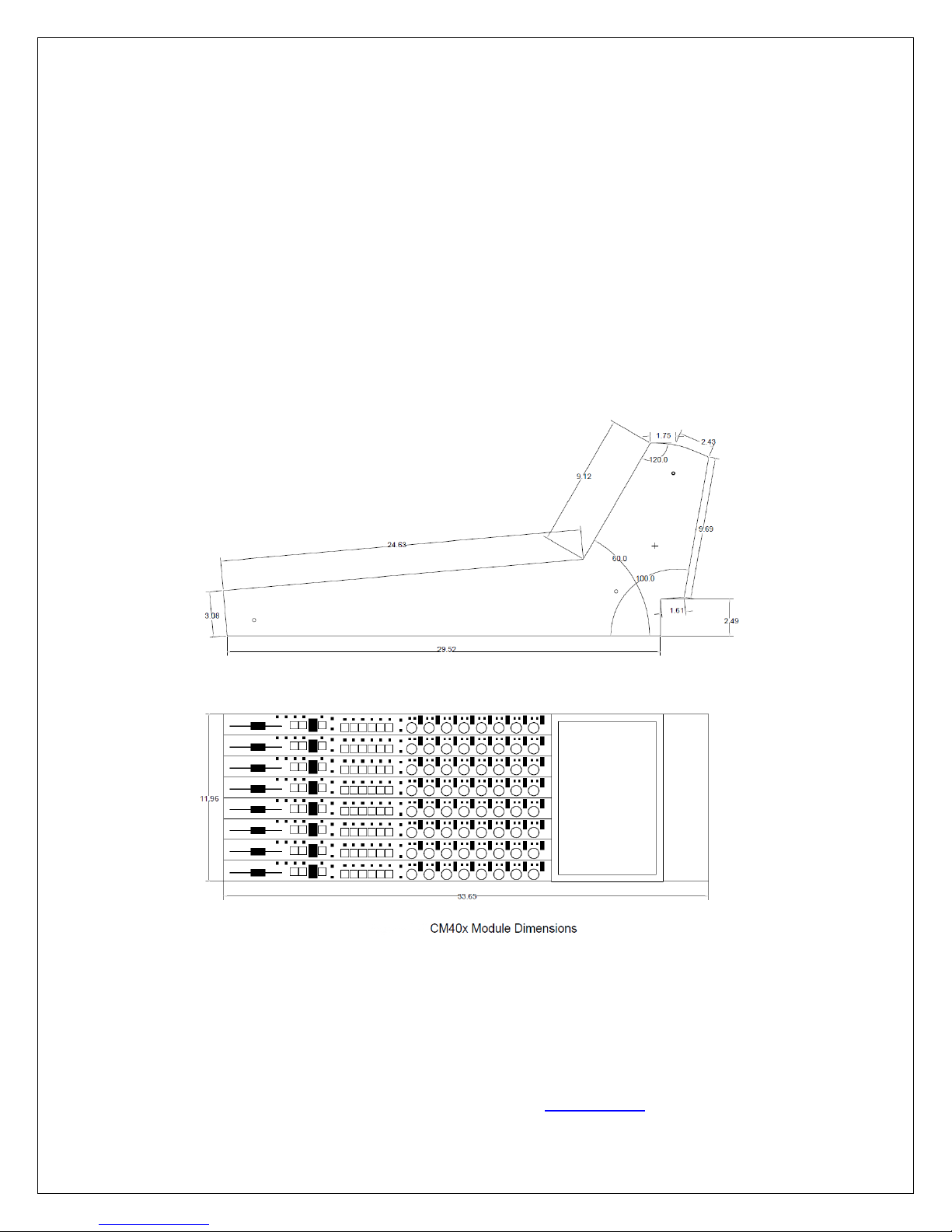

Specifications
Environmental Requirements
Environmental requirements for the System 5 Control Modules are as follows:
Operating Temperature: 0 to 40 degrees Celsius (ambient)
Storage Temperature: -10 to 55 degrees Celsius
Humidity: 0 to 90% non-condensing
Power Requirements
100 to 240 Volts AC (rms), 50/60Hz, up to 2A per input
Component
CM401T
CM402T
CM403
CM408T
CM411
Height
13.25”
13.25”
34 cm
13.25”
34 cm
13.25”
34 cm
Width
12”
12”
30 cm
12”
30 cm
12”
30 cm
Depth
33.5”
33.5”
84 cm
33.5”
84 cm
33.5”
84 cm
Weight
35lb
35lb
16 kg
35lb
16 kg
18lb
8.2 kg
Consumption
Dissapation
2A per input 853BTU/hr
2A per input 853BTU/hr
2A per input 450BTU/hr
2A per input 853BTU/hr
2A per input 119BTU/hr
Euphonix is Avid. Learn more at www.avid.com
