Chapter 1: Introduction to the MC524
The MC524 Monitor Interface centralizes control room monitor and communication signals in one box and places them
under remote control by the system operator. The MC524 is a
digitally controlled analog signal router and level control device with a built in Talkback microphone circuit in a 2U rack
enclosure.
The MC524 receives the 22 monitor busses and two solo busses from the System 5 monitor matrix output and provides a
control room output to three speaker sets, four SLS/Cue monitor outputs as well as post preamp talk and listen mic outputs.
The SC253i Interface Pilot digitally controls the MC524 over a
15-pin control cable with a maximum length 100 m. The system operator can control all MC524 parameters from the System 5 control surface. There is only one MC524 in a System 5
configuration.
Applications
The MC524 allows the System 5 engineer to adjust all Control
Room communications (Level Control, Cut, Dim and speaker
selection) from the console Center Section. We recommend
installing the MC524 in the Control Room.
System Requirements and
Compatibility
Avid can only assure compatibility and provide support for
hardware and software it has tested and approved.
For complete system requirements and a list of qualified
computers, operating systems, hard drives, and third-party
devices, visit www.avid.com/compatibility.
Features
Mic Inputs
Mic level inputs are provided for four Listen and two Talk mics
on a 38-pin Elco connector. An analog gain stage provides
boost or attenuation for mic level signals. Talkback mic inputs
include phantom power and a compressor.
Line Inputs
There are 24 line level inputs for Control Room feeds, Monitor
A–D, and Solo. Line level inputs have attenuation only.
Line Outputs
Line outputs are on 90-pin Elco connectors for eight Monitor
A (up to 7.1 monitoring), two each for Monitor B–D, eight
Control Room Main (up to 7.1 monitoring), six Control Room
Alt 1 (up to 5.1 monitoring), two Control Room Alt 2, four Listen preamp, two Talk preamp out, and two Solo outputs.
All cabling is provided from the digital input to the final user
connections of the output patchbay. See the cabling diagrams
in Chapter 3, “Configuration and Connection.”
Chapter 1: Introduction to the MC524 1
About This Guide
About www.avid.com
This guide provides a basic overview of MC524 features and
functionality.
For complete instructions on connecting and configuring
your system, see the System 5 Installation Guide.
Conventions Used in This Guide
All of our guides use the following conventions to indicate
menu choices and key commands:
:
Convention Action
File > Save Choose Save from the File menu
Control+N Hold down the Control key and press
the N key
Control-click Hold down the Control key and click the
mouse button
Right-click Click with the right mouse button
The names of Commands, Options, and Settings that appear
on-screen are in a different font.
The following symbols are used to highlight important
information:
The Avid website (www.avid.com) is your best online source
for information to help you get the most out of your system.
The following are just a few of the services and features
available.
Product Registration Register your purchase online.
Support and Downloads Contact Avid Customer Success (tech-
nical support); download software updates and the latest online manuals; browse the Compatibility documents for system
requirements; search the online Knowledge Base or join the
worldwide Avid user community on the User Conference.
Training and Education Study on your own using courses available online or find out how you can learn in a classroom setting at a certified Avid training center.
Products and Developers Learn about Avid products; download demo software or learn about our Development Partners
and their plug-ins, applications, and hardware.
News and Events Get the latest news from Avid or sign up for
a demo.
User Tips are helpful hints for getting the most from
your system.
Important Notices include information that could affect
your data or the performance of your system.
Shortcuts show you useful keyboard or mouse shortcuts.
Cross References point to related sections in this guide and
other Avid guides.
MC524 Guide2
Chapter 2: MC524 Features
MONITOR-COMMS INTERFACE
MC
524
Front Panel
MC524 front panel
Power Switch The power switch turns the unit on/off.
Since the MC524 is software controlled, the power switch is
the only front panel control.
Chapter 2: MC524 Features 3
Back Panel
MC524 back panel
In 1 (38-pin Elco) Talkback, Listen Back and Mic inputs. This
connector receives four stereo listen channels and two stereo
talk mic inputs. All signals input at this port can be level
boosted or attenuated. In standard patch configuration, input
cable fans out to 12 XLR females.

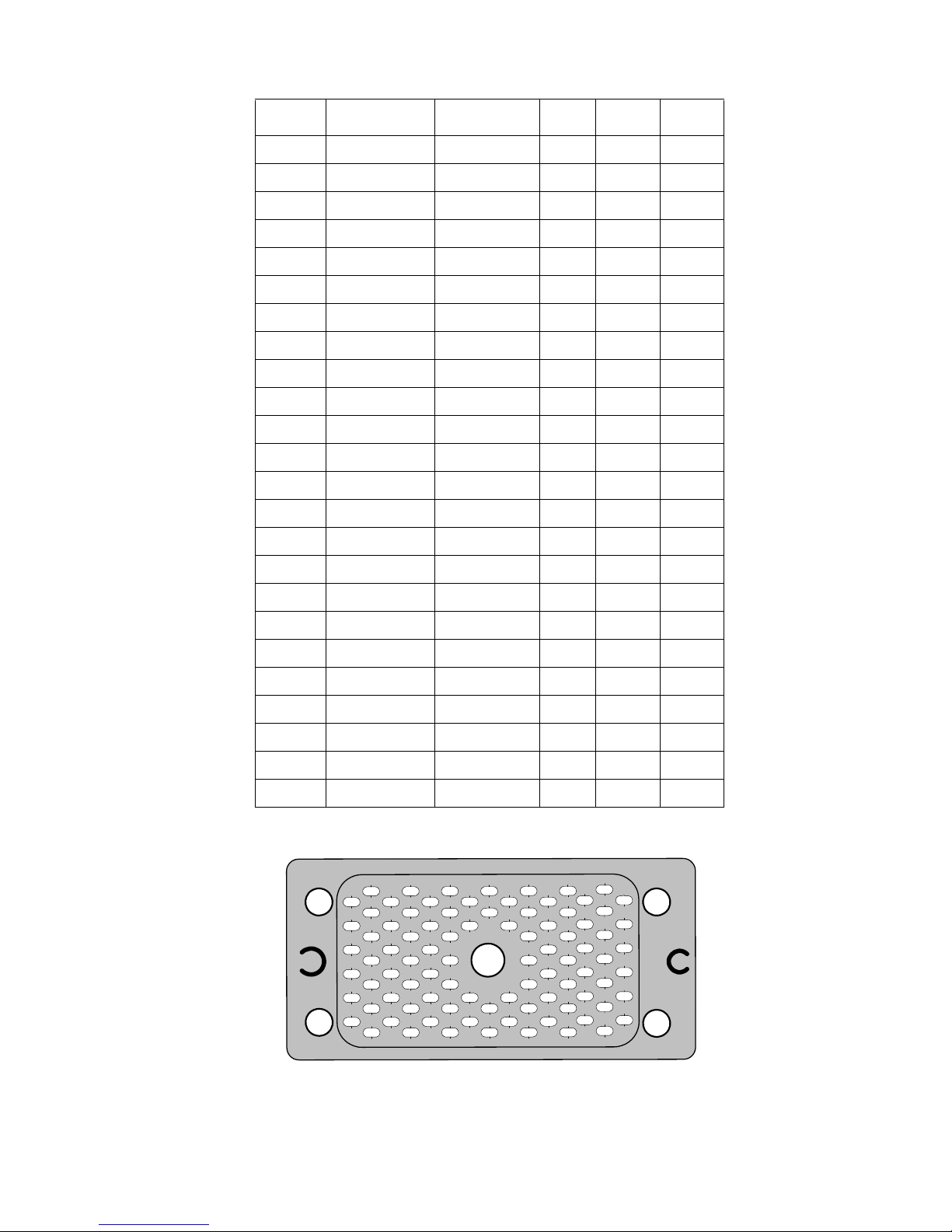

In 2 (90-pin Elco) Control Room Busses, Monitor A, B, C, D,
and Solo busses inputs. This connector receives eight Monitor
A channels, and two each channels for Monitor B, C, D.
Signals input at this port can only be level attenuated. In
standard configuration these signals are fed from the AM713
converter.
Out 1 (90-pin Elco) Monitor A, B, C, D Speaker outputs. This
connector outputs eight Control Room channels, eight Monitor A channels, and two each channels for Monitor B, C, D,
and Solo. The output cable fans out to two 38-pin Elco connectors for the patchbay.
Out 2 (90-pin Elco) This connector outputs eight Control
Room Main channels, six Control Room Alt 1 channels, two
Control Room Alt 2 channels, four Listen pre, two talk pre and
two Solo channels. The output cable fans out to two 38-pin
Elco connectors for the patchbay.

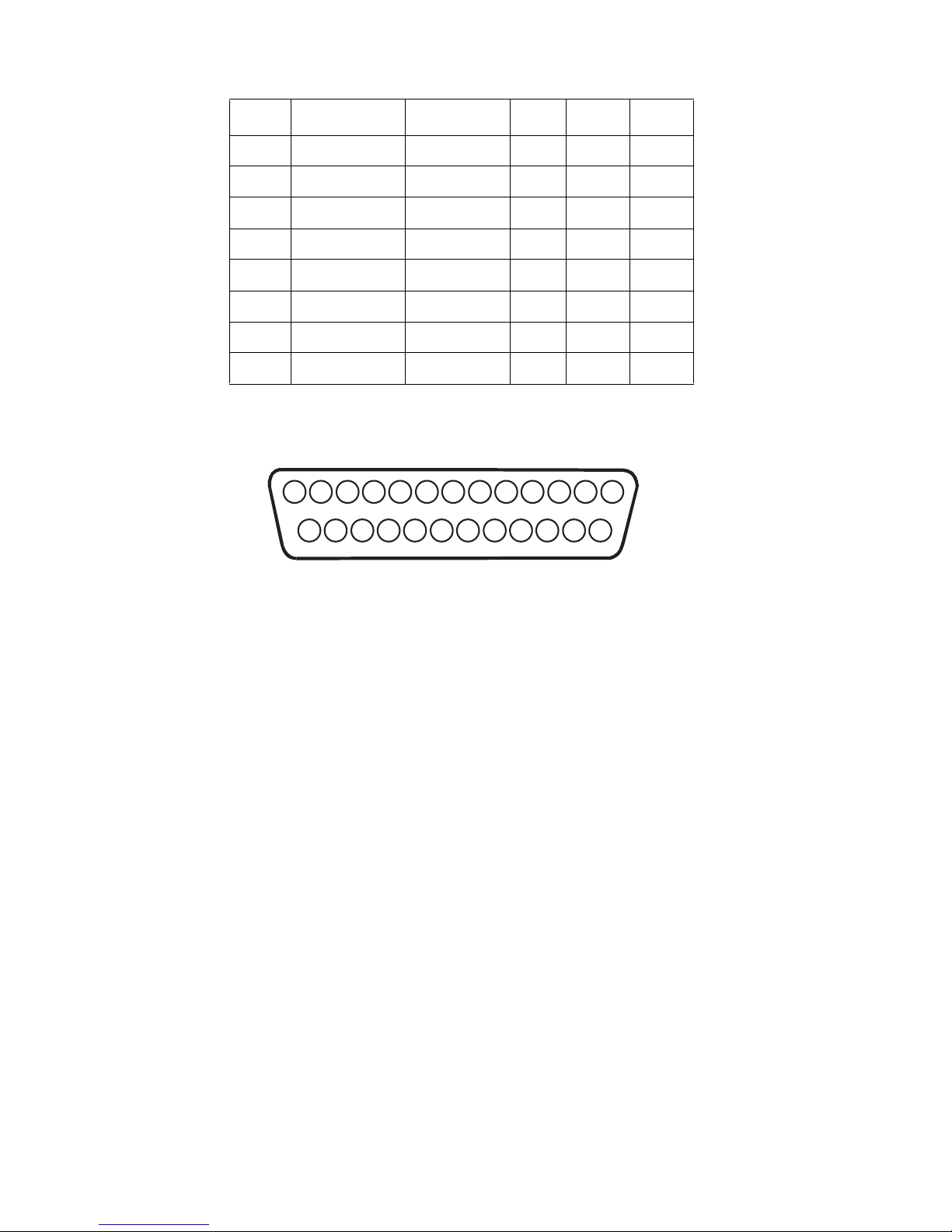

Out 3 (DB-25 female) This connector outputs four Listen pre,
two Talkback pre, and two Solo channels, eight Monitor A
channels, and two channels each for Monitor B, C, D, and
Solo. The output cable fans out to eight male XLR connectors.
Control (DB-15) Input for digital control signal from Digital
Pilot. Signal format is Euphonix TCC bi-directional serial protocol. All patching, switching, and gain controls are communicated via this connection as well as MC524 IP address.
AC Line In (IEC) and Fuse Tray The power connector accepts
standard IEC power cords. 110, 220, or 240 VAC, 50/60 Hz can
be applied at this connector.
MC524 Guide4
Chapter 3: Configuration and Connection
5
2 1
B
4
recommended locations
3
MA703
ADigital Core
B
MC524
Use relative locations to
determine cable lengths
Control Room
B
Machine Room
A
12
5
4
7,8
7
6
Standard Configuration

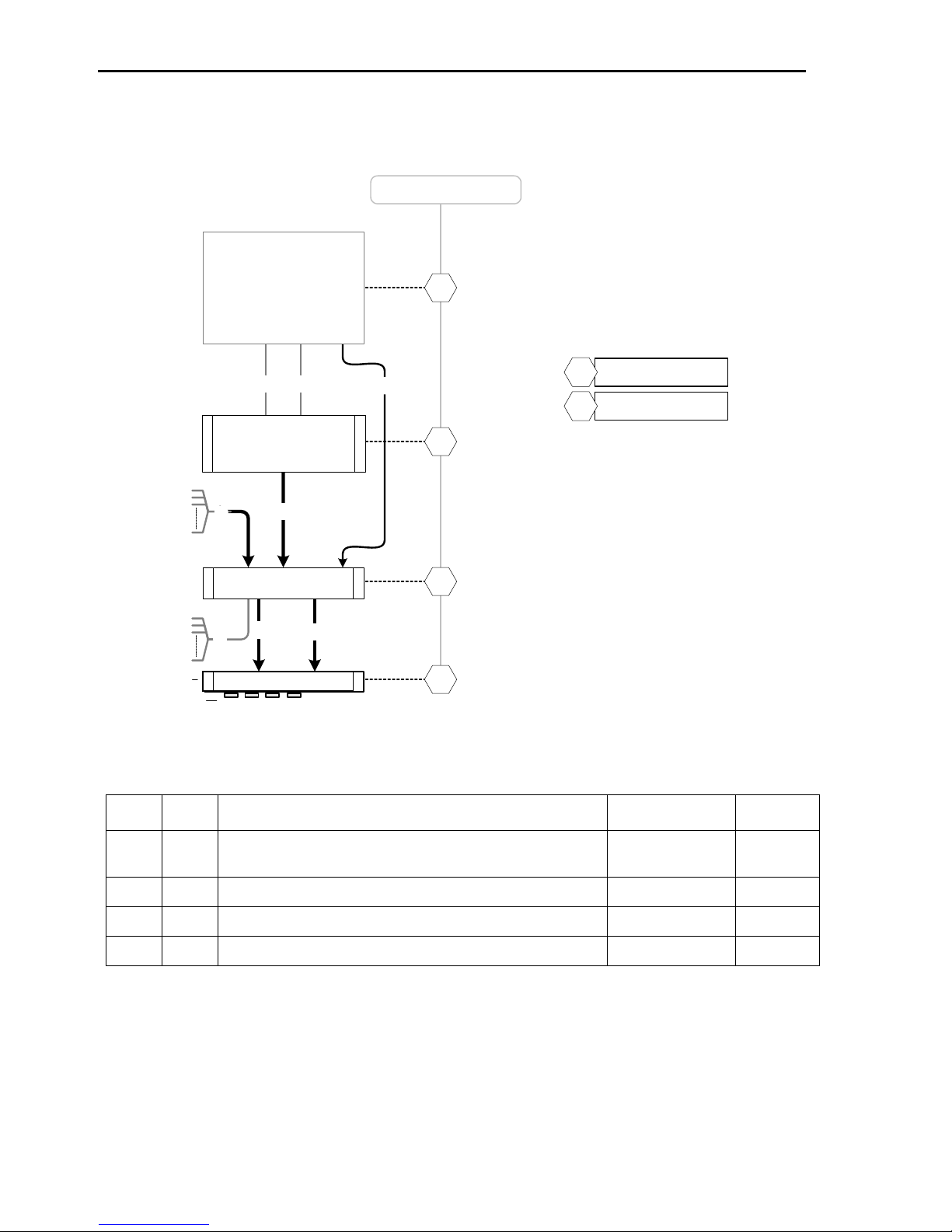

MC524 standard cable diagram
Standard Configuration Cable Specification
Cable Qty Description 10m Part # 20m Part# Length
Accessory cable kits by special order 936-07084-01 936-07156-01
11MADI Output: RG59 75 coax 032-07230-00 032-07306-00
21
3 1 TCC Control from 253i Interface Pilot 030-06983-01 030-06985-01
41
51
61
7 2 Elco 90-pin Connector w/hood 100-07470-00 NA
8 180 Elco Crimp Pins 100-02100-00 NA
The standard lengths in the above table are supplied so the monitor interface can be located in the control room. Cable kits are
ordered separately. Custom lengths are available.
AES/EBU Sync:
one male XLR <> one female XLR
TB/LB Mic:
one male Elco 38 <> 12 female XLR
CR/Mon/Solo Bus:
one male Elco 90 <> 24 female XLR
TB and LB Mic Pre Out:
one DB-25 <> eight male XLR
030-07085-01 030-07153-01
030-06919-01 2 m
030-07225-01 1 m
032-07038-00 3 m
Chapter 3: Configuration and Connection 5
Phantom Power: 48V Jumper Settings
Phantom power is enabled by fitting the link to short pins 1 and 2. If not required (i.e., using a dynamic mic) then it should be
set to short pins 2 and 3. Pin 1 position can be ascertained by looking for the square pad on the solder side.
Pins set to phantom power
Note that the standard Talkback mic on the console (wired to T1) is a condenser type which requires phantom power.
The following table shows the mapping of the jumpers:
Upper Board Lower Board
J1 Talkback 1 (T1) J1 Listen 2 (L2)
J2 Talkback 2 (T2) J2 Listen 3 (L3)
J3 Listen 1 (L1) J3 Listen 4 (L4)
MC524 Guide6

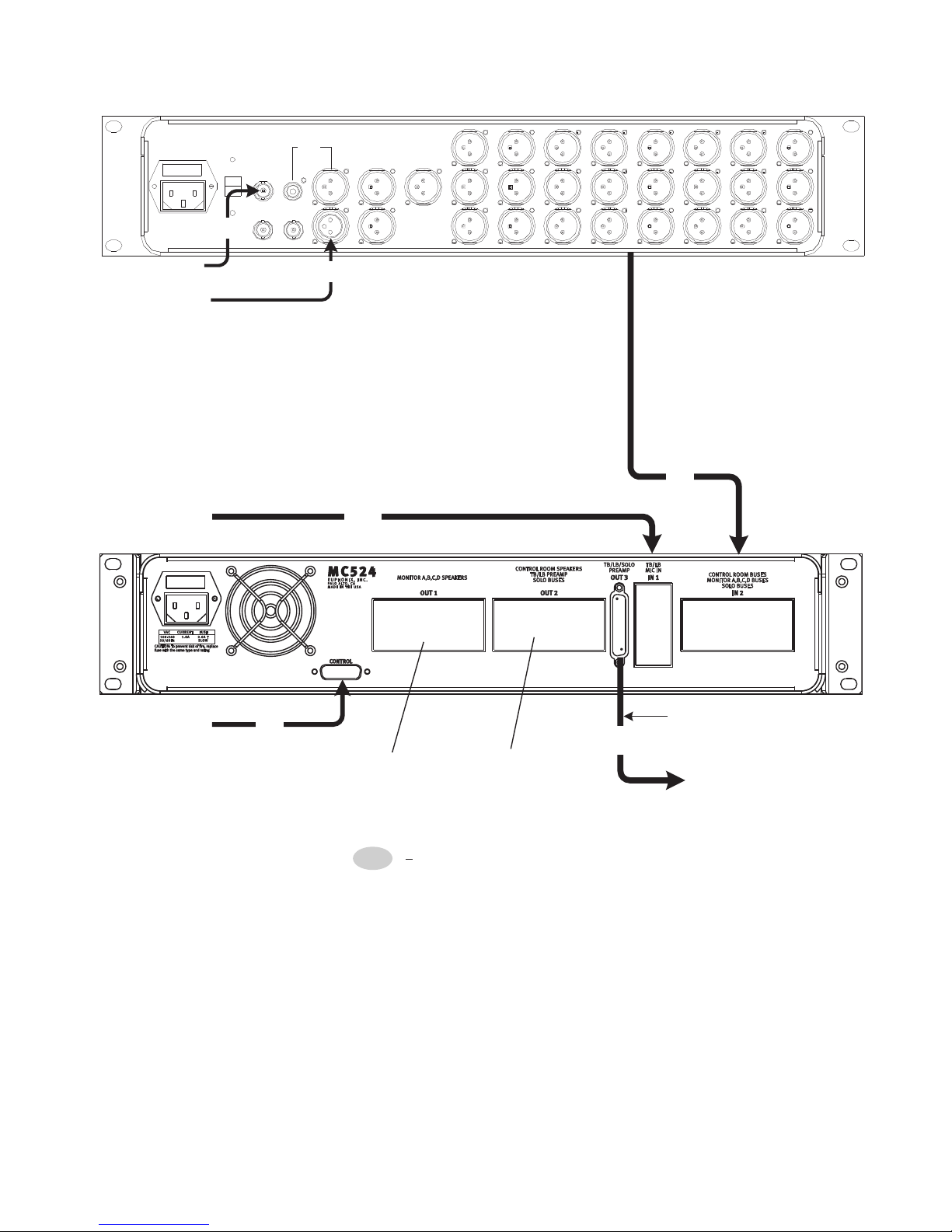

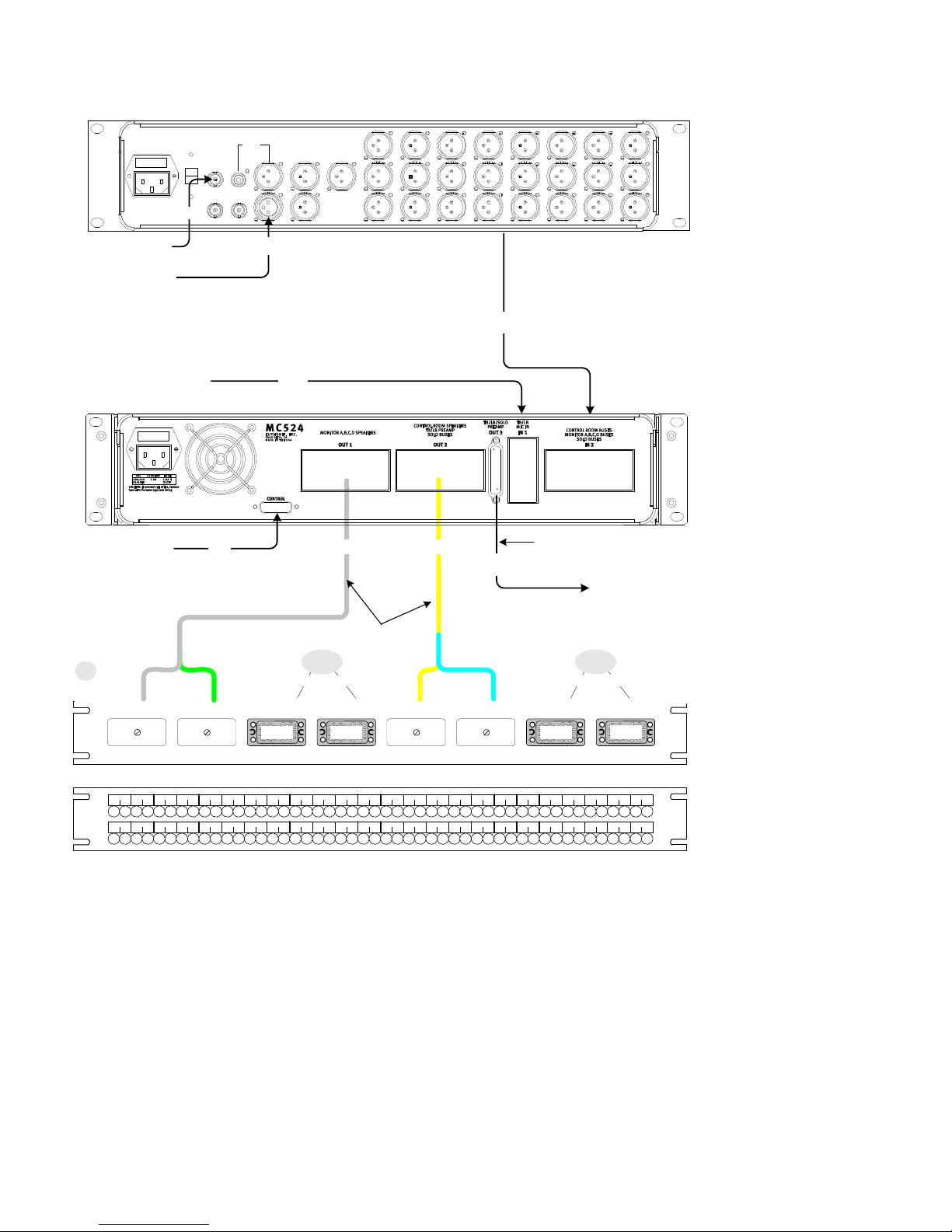

Standard Configuration Connection Diagram
8 - Control Room
8 - Mon A
2 - Mon B
2 - Mon C
2 - Mon D
2 - Solo
12XLRF<>1xEM38
4 Listen &
2 Talk Mic inputs
2 - Solo out
2 - Talk pre out
4 - Listen pre out
8 - CR Main out
6-CRAlt1out
2-CRAlt2out
8 - Mon A
2 - Mon B
2 - Mon C
2 - Mon D
8xXLRM to DB25
Control from Digital
Interface Pilot
24XLRFto 1xEM90
Monitor bus outs
from MA703
3
4
6
5
2 - TB pre out
4 - Listen pre out
2 - Solo out
(TB1 returns to
core for slate)
MADI in from Core
1
AES/EBU Sync In
from Studio Hub
2
MA703
DIGITAL
OUTPUTS
ANALOG
OUTPUTS
MADI
IN
2
1
Connectors and pins provided
7, 8
MC524 standard configuration
Chapter 3: Configuration and Connection 7
Input/Output Connections
A
BC
D
L
M
N
P
J
E
FH
K
T
R
S
V
U
W
X
Y
Z
A
A
B
B
C
C
D
D
E
E
F
F
H
H
JJKKL
L
MMN
N
P
P
R
R
S
S
T
T
In 1 Elco 38 Pinout
Crk # Designator 24 X 32 High Low Gnd
1M1 Talk 1 AEL
2M2 Talk 2 BFM
3M3 Listen 1CHN
4M4 Listen 2DJP
5M5 Listen 3DDJJPP
6M6 Listen 4EEKKRR
7FFLLSS
8HHMMTT
9RSV
10 T U W
11 X Z AA
12 Y BB CC
MC524 Guide8
Elco 38 connector
In 2 Elco 90 Pinout
A
B
C
D
E
F
A
E
A
F
A
H
A
J
A
K
A
L
A
U
A
M
A
N
A
P
A
R
A
S
A
T
A
V
A
W
A
X
A
Y
B
C
A
Z
B
A
B
B
C
E
B
Y
B
Z
C
A
C
B
C
C
C
D
B
D
B
E
B
F
B
H
B
S
S
T
B
U
B
V
B
W
B
X
B
R
B
J
B
K
B
L
B
M
B
N
B
P
C
F
C
H
C
J
C
K
C
L
C
M
C
W
C
X
C
Y
C
Z
D
A
D
B
C
U
C
N
C
P
C
R
C
S
C
T
C
U
P
H
J
K
L
M
N
R
S
T
U
V
W
A
D
X
Y
Z
A
A
A
B
A
C
Crk # Designator 24 X 32 High Low Gnd
1L3 Cntrl Rm (L)AHR
2L4 Cntrl Rm (C)BJS
3L5 Cntrl Rm (R)CKT
4L6 Cntrl Rm (Sl)DLU
5 L7 Cntrl Rm (Sr) E M V
6L8 Cntrl Rm (B)FNW
7L9 Cntrl Rm (Li)XAEAM
8 L10 Cntrl Rm (Ri) Y AF AN
9 L11 Mon A (L) Z AH AP
10 L12 Mon A (C) AA AJ AR
11 L13 Mon A (R) AB AK AS
12 L14 Mon A (Sl) AC AL AT
13 L15 Mon A (Sr) BJ BS BY
14 L16 Mon A (B) BK BT BZ
15 L17 Mon A (Li) BL BU CA
16 L18 Mon A (Ri) BM BV CB
17 L19 Mon B (L) BN BW CC
18 L20 Mon B (R) BP BX CD
19 L21 Mon C (L) CF CN CW
20 L22 Mon C (R) CH CP CX
21 L23 Mon D (L) CJ CR CY
22 L24 Mon D (R) CK CS CZ
23 L1 Solo (L) CL CT DA
24 L2 Solo (R) CM CU BD
Elco 90 connector
Chapter 3: Configuration and Connection 9
Out 1Elco 90 Pinout
A
B
C
D
E
F
A
E
A
F
A
H
A
J
A
K
A
L
A
U
A
M
A
N
A
P
A
R
A
S
A
T
A
V
A
W
A
X
A
Y
B
C
A
Z
B
A
B
B
C
E
B
Y
B
Z
C
A
C
B
C
C
C
D
B
D
B
E
B
F
B
H
B
S
S
T
B
U
B
V
B
W
B
X
B
R
B
J
B
K
B
L
B
M
B
N
B
P
C
F
C
H
C
J
C
K
C
L
C
M
C
W
C
X
C
Y
C
Z
D
A
D
B
C
U
C
N
C
P
C
R
C
S
C
T
C
U
P
H
J
K
L
M
N
R
S
T
U
V
W
A
D
X
Y
Z
A
A
A
B
A
C
Crk # Designator 24 X 32 High Low Gnd
1BO11 Mon A (L)AHR
2BO12 Mon A (C)BJS
3BO17 Mon A (R)CKT
4BO18 Mon A (Sl)DLU
5 BO19 Mon A (Sr) E M V
6BO20 Mon A (B)FNW
7BO21 Mon A (Li)XAEAM
8BO22 Mon A (Ri)YAFAN
9 BO23 Mon B (L) Z AH AP
10 BO24 Mon B (R) AA AJ AR
11 BO25 Mon C (L) AB AK AS
12 BO26 Mon C (R) AC AL AT
13 BO27 Mon D (L) BJ BS BY
14 BO28 Mon D (R) BK BT BZ
15 BL BU CA
16 BM BV CB
17 BN BW CC
18 BP BX CD
19 CF CN CW
20 CH CP CX
21 CJ CR CY
22 CK CS CZ
23 CL CT DA
24 CM CU BD
MC524 Guide10
Elco 90 connector
Out 2 Elco 90 Pinout
A
B
C
D
E
F
A
E
A
F
A
H
A
J
A
K
A
L
A
U
A
M
A
N
A
P
A
R
A
S
A
T
A
V
A
W
A
X
A
Y
B
C
A
Z
B
A
B
B
C
E
B
Y
B
Z
C
A
C
B
C
C
C
D
B
D
B
E
B
F
B
H
B
S
S
T
B
U
B
V
B
W
B
X
B
R
B
J
B
K
B
L
B
M
B
N
B
P
C
F
C
H
C
J
C
K
C
L
C
M
C
W
C
X
C
Y
C
Z
D
A
D
B
C
U
C
N
C
P
C
R
C
S
C
T
C
U
P
H
J
K
L
M
N
R
S
T
U
V
W
A
D
X
Y
Z
A
A
A
B
A
C
Crk # Designator 24 X 32 High Low Gnd
1BO31 Solo L AHR
2BO32 Solo R BJS
3TL1 Talk 1 CKT
4TL2 Talk 2 DLU
5 TL3 Listen 1 E M V
6 TL4 Listen 2 F N W
7 TL5 Listen 3 X AE AM
8 TL6 Listen 4 Y AF AN
9 BO3 CR main (L) Z AH AP
10 BO4 CR main (C) AA AJ AR
11 BO5 CR main (R) AB AK AS
12 BO6 Cntrl Rm (Sl) AC AL AT
13 BO7 Cntrl Rm (Sr) BJ BS BY
14 BO8 CR main (B) BK BT BZ
15 BO9 CR main (Li) BL BU CA
16 BO10 CR main (Ri) BM BV CB
17 BO13 CR Alt 1 (L) BN BW CC
18 BO14 CR Alt 1 (C) BP BX CD
19 BO15 CR Alt 1 (R) CF CN CW
20 BO16 CR Alt 1 (Sl) CH CP CX
21 BO29 CR Alt 1 (Sr) CJ CR CY
22 BO30 CR Alt 1 (B) CK CS CZ
23 BO1 CR Alt 2 (L) CL CT DA
24 BO2 CR Alt 2(R) CM CU BD
Elco 90 connector
Chapter 3: Configuration and Connection 11
Out 3 DB-25 Pinout
1
2
345
10 9
8
7
6
11
1213
14
1516171819
2021
22
232425
Crk # Designator 24 X 32 High Low Gnd
1T1241225
2T2102311
3L121922
4L27208
5L318619
6L44175
7 Solo L 15 3 16
8 Solo R 1 14 2
DB-25 connector
MC524 Guide12
Optional Configurations
A
A
5
2 1
B
4
7
recommended locations
3
MA703
A
Digital Core
B
MC524
B
Monitor Output Patch
Use relative locations to
determine cable lengths
Control Room
B
Machine Room
A
D
E, F
2 1
C C
5
4
6
Monitor Output Patch
Monitor output patch cable diagram
Monitor Output Patch Cable Specification
Part Qty Description Part # Length
C2
D 1 Tie Line Patch 950-03770-01 NA
MC524 Patch Connect:
one male Elco 90 <> two male Elco 38
E 4 Elco 38-Pin Connector w/hood 100-02099-00 NA
F 160 Elco Crimp Pins (Supplied with standard configuration) 100-02100-00 2 m
Patchbay, cables, pins and connectors are ordered separately.
030-07036-01 2 m
Chapter 3: Configuration and Connection 13
Monitor Output Patch Connection Diagram
Monitor Output Patch
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
Upper 37-48 Upper 25-36 Lower 37-48 Lower 25-36 Upper 13-24 Upper 1-12 Lower 13-24 Lower 1-12
L R
1 2
T1 T2
3 4
L1 L2
5 6
L3 L4
7 8
L C
9 10
R S
L
11 12
S
R
B
13 14
Li R
i
15 16
L C
17 18
R S
L
19 20
S
R
B
21 22
L R
23 24
L C
25 26
R S
L
27 28
S
R
B
29 30
Li Ri
31 32
L R
33 34
L R
35 36
L R
37 38 39 40 41 42 43 44 45 46 47 48
C R M a i n
M o n B
A l t 1 A l t 2S o l o M o n AT a l k M i c s L i s t e n M i c s
TB & LB M i c P r e O u t
M o n C M o n D
USER
USER
USERUSERUSER
8 - Control Room
8 - Mon A
2 - Mon B
2 - Mon C
2 - Mon D
2 - Solo
12 female XLR to 1 Elco 38
4 Listen and 2 Talk Mic inputs
2 - Solo out
2 - Talk pre out
4 - Listen pre out
8 - CR Main out
6 - CR Alt 1 out
2 - CR Alt 2 out
8 - Mon A
2 - Mon B
2 - Mon C
2 - Mon D
8 male XLR to DB-25
Control from Digital
Interface Pilot
24 female XLR to 1 male Elco 90
Monitor bus outs from MA703
3
4
6
AA
5
2 - TB pre out
4 - Listen pre out
2 - Solo out
(TB1 returns to
core for slate)
MADI in from Core
1
AES/EBU Sync In
from Studio Hub
2
MA703
DIGITAL
OUTPUTS
ANALOG
OUTPUTS
MADI
IN
B
C,D
C,D
1 male Elco 90 to
2 male Elco 38
2
Connectors and pins provided
Connectors and pins provided
Monitor output patch configuration
MC524 Guide14
Monitor Insert Patch
E E
FG
6
6
2 1
B
E
7
recommended locations
MA703
A
Digital Core
B
MC524
B
Monitor Output Patch
3
B
Monitor Insert Patch
Use relative locations to
determine cable lengths
Control Room
B
Machine Room
A
H
2 1
E EE
G F
FF
6
Monitor insert patch cable diagram
Monitor Insert Patch Cable Specification
Part Qty Description Part # Length
E3TB/LB Mic, Bus: one male Elco 38 <> 12 female XLR 030-06919-01 2 m
F3
G1
H 1 Tie Line Patch 950-03770-01 NA
MC524 Patch Connect:
one male Elco 90 <> two male Elco 38
MC524 Patch Connect:
one male Elco 38 <> one male Elco 38
030-07036-01 2 m
030-07158-01 2 m
Chapter 3: Configuration and Connection 15
Monitor Insert Patch Connection Diagram
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
Upper 37-48 Upper 25-36 Lower 37-48 Lower 25-36 Upper 13-24 Upper 1-12 Lower 13-24 Lower 1-12
Monitor Insert Patch
L C
1 2
R S
L
3 4
S
R
B
5 6
Li Ri
7 8
L C
9 10
R S
L
11 12
S
R
B
13 14
Li R
i
15 16
L R
17 18
L R
19 20
L R
21 22
L R
23 24
T1 T2
25 26
L1 L2
27 28
L3 L4
29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
C o n t r o l R o o
m
M o n A M o n B M o n C
M o n D S o l o T B M i c s L i s t e n M i c s
H
2 - Solo out
2 - Talk pre out
4 - Listen pre out
8 - CR Main out
6 - CR Alt 1 out
2 - CR Alt 2 out
8 - Mon A
2 - Mon B
2 - Mon C
2 - Mon D
8 male XLR to DB-25
Control from Digital
Interface Pilot
1 male Elco 90 <>
2 male Elco 38
MADI in from Core
1
AES/EBU Sync In
from Studio Hub
3
6
FF
2
2 - TB pre out
4 - Listen pre out
2 - Solo out
(TB1 returns to core for slate)
1 male Elco 90 <>
2 male Elco 38
1 male Elco 38 <>
1 male Elco 38
E
G
F
E
(2) 12 female XLR to 1 male Elco 38
Monitor bus outs from MA703
E
12 female XLR <>
1 Elco 38
4 Listen and
2 Talk Mic inputs
8 - Control Room
8 - Mon A
2 - Mon B
2 - Mon C
2 - Mon D
2 - Solo
MA703
DIGITAL
OUTPUTS
ANALOG
OUTPUTS
MADI
IN
2
Monitor Output Patch
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
Upper 37-48 Upper 25-36 Lower 37-48 Lower 25-36 Upper 13-24 Upper 1-12 Lower 13-24 Lower 1-12
L R
1 2
T1 T2
3 4
L1 L2
5 6
L3 L4
7 8
L C
9 10
R S
L
11 12
S
R
B
13 14
Li R
i
15 16
L C
17 18
R S
L
19 20
S
R
B
21 22
L R
23 24
L C
25 26
R S
L
27 28
S
R
B
29 30
Li Ri
31 32
L R
33 34
L R
35 36
L R
37 38 39 40 41 42 43 44 45 46 47 48
C R M a i n
M o n B
A l t 1 A l t 2S o l o M o n AT a l k M i c s L i s t e n M i c s
TB & LB M i c P r e O u
t
M o n C M o n D
USER
USER
USERUSERUSER
Monitor insert patch configuration
MC524 Guide16
Tie Line Patch Elco 38 Pinout
D
D
E
E
F
F
H
H
P
P
R
R
S
S
T
T
L
M
N
P
R
S
T
U
V
W
X
Y
Z
A
A
B
B
C
C
J
J
K
K
L
L
M
M
N
N
1
3
1
4
1
5
1
6
C
D
A
B
1
7
1
8
1
9
2
0
2
1
2
2
2
3
2
4
E
F
H
J
K
Signal Name Hot Cold Shield
Channel 1, 13, 25, 37
Input/Output
Channel 2, 14, 26, 38
Input/Output
Channel 3, 15, 27, 39
Input/Output
Channel 4, 16, 28, 40
Input/Output
Channel 5, 17, 29, 41
Input/Output
Channel 6, 18, 30, 42
Input/Output
Channel 7, 19, 31, 43
Input/Output
Channel 8, 20, 32, 44
Input/Output
Channel 9, 21, 33, 45
Input/Output
Channel 10, 22, 34. 46
Input/Output
pin A pin E pin L 1
pin B pin F pin M 2
pin Cpin Hpin N3
pin D pin J pin P 4
pin DD pin JJ pin PP 5
pin EE pin KK pin RR 6
pin FF pin LL pin SS 7
pin HH pin MM pin TT 8
pin R pin S pin V 9
pin T pin U pin W 10
Connector Pair
Number
Channel 11, 23, 35, 47 pin X pin Z pin AA 11
Channel 12, 24, 36, 48
Input/Output
pin Y pin BB pin CC 12
Rear View of Elco Male 38-Pin Connector (Insert pins from this side)
Elco 38 connector (rear view)
Connector Specifications
38-pin male w/ hood Elco P/N 00-8016-038000-519 (Euphonix P/N 100-02099)
Use crimp pins Elco P/N 60-8017-031300-339 (Euphonix P/N 100-02100)
Chapter 3: Configuration and Connection 17
MC524 Guide18
Appendix A: MC524 Specifications
Performance Specifications
Main Inputs Solo, CR 7, Mon A, B, C, D
Description Electronically balanced, transformerless, differential input
Gain Variable from 0 dB (unity) to -72 dB
Optimum Input Levels Set to 0 dBFS = +26 dBu. Designed to be fed from MA703 DAC.
Maximum Input Level Before Clipping >+28 dBu (sine wave)
Maximum Input Voltages 16 VDC, 25 VAC (common mode), 50 VAC (differential)
Input impedance 10 k 10% each leg, 20 Hz – 20 kHz
CMRR >40 dB (50 dB typical), 20 Hz – 20 kHz
T alkback and Listen Mic Inputs T1, T2, L1–L4
Description
Gain
Maximum Input Level Before Clipping 10 dBu (sine wave)
Maximum Input Voltages 50 VDC, 2.5 VAC (common mode), 5 VAC (differential)
Phantom Power 48 V available, link selectable on PCB
Frequency Response Attenuated LF and HF response, -3 dB at 200 Hz and 10 kHz
Electronically balanced, transformerless, differential input with automatic level
optimization
AGC circuit optimizes front end gain to produce approx. +8 dBu signal; this is
variable from +8 to -64 dBu at the monitor outputs
Monitor Outputs
Description Electronically balanced and floating, differential output
Maximum Output Level >+28 dBu (sine wave)
Output Impedance 100 10%, balanced or unbalanced, 20 Hz – 20 kHz
DC Offset < 5 mV with respect to chassis GND
Full Signal Path Main Input To Main Output
Frequency Response 0/-0.4 dB, 20 Hz – 20 kHz (ref. 1 kHz)
Signal Breakthrough with Full Cut <-110 dB, 20 Hz – 20 kHz
Distortion <0.005%, 20 Hz – 20 kHz, +15 dBu output level
Crosstalk <-100 dB at 1 kHz; <-90 dB at 20 kHz
Output Noise typically <-90 dBu RMS (unweighted); >117 dB of dynamic range
Appendix A: MC524 Specifications 19
Environmental and Power Specifications
Operating Temperature 5–35°C
Power Requirements 90–240 VAC, 50/60Hz
Power Consumption 70 W
Physical Dimensions
Height 3.5 inches
Width 19 inches
Depth 18.6 inches
Weight 17 lb
Leave about six inches behind the MC524 for cable connections.
MC524 Guide20
Appendix B: Compliance Information
Environmental Compliance
Disposal of Waste Equipment by Users in the
European Union
This symbol on the product or its packaging indicates that this product must not
be disposed of with other waste. Instead, it is your responsibility to dispose of
your waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help conserve
natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off
your waste equipment for recycling, please contact your local city recycling office
or the dealer from whom you purchased the product.
Proposition 65 Warning
This product contains chemicals, including lead,
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.
Perchlorate Notice
This product may contain a lithium coin battery. The State of California requires
the following disclosure statement: “Perchlorate Material – special handling may
apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
Recycling Notice
Appendix B: Compliance Information 21
EMC (Electromagnetic Compliance)
N1709
Avid declares that this product complies with the following standards regulating
emissions and immunity:
• FCC Part 15 Class A
• EN55103-1 E4
• EN55103-2 E4
• AS/NZS CISPR 22 Class A
• CISPR 22 Class A
FCC Compliance for United States
Communication Statement
Note: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
Any modifications to the unit, unless expressly approved by
Avid, could void the user's authority to operate the
equipment.
Australian Compliance
Canadian Compliance
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du
Règlement sur le material brouilleur du Canada.
CE Compliance
(EMC and Safety)
Avid is authorized to apply the CE (Conformité Europénne) mark on this compliant
equipment thereby declaring conformity to EMC Directive 2004/108/EC and Low
Voltage Directive 2006/95/EC.
MC524 Guide22
Safety Compliance
Safety Statement
This equipment has been tested to comply with USA and Canadian safety
certification in accordance with the specifications of UL Standards:
UL 60950-1:2007, 2nd Ed and CAN/CSA-22.2 No. 60950-1-07, 2nd Ed.
Avid Inc., has been authorized to apply the appropriate NRTL mark on its
compliant equipment.
War ning
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves,
or other equipment (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect power cords from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the equipment.
11) Only use attachments/accessories specified by the manufacturer.
12) For products that are not rack-mountable: Use only with a cart, stand, tripod,
bracket, or table specified by the manufacturer, or sold with the equipment.
When a cart is used, use caution when moving the cart/equipment combination
to avoid injury from tip-over.
13) Unplug this equipment during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when
the equipment has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the equipment,
the equipment has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15) For products that are a Mains powered device:
The equipment shall not be exposed to dripping or splashing and no objects filled
with liquids (such as vases) shall be placed on the equipment.
Warning! To reduce the risk of fire or electric shock, do not expose this
equipment to rain or moisture.
16) For products containing a lithium battery:
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
17) For products with a power switch:
It should remain accessible after installation.
18) The equipment shall be used at a maximum ambient temperature of 40° C.
19) This unit is provided with a power supply cord set suitable for 120V AC input
only (for U.S.A.and Canada). For other than U.S.A. and Canada, a qualified
person must provide for use with this unit, an appropriate, approved power
supply cord set which is in compliance with the end use country requirements
and has a minimum cross-sectional area of 1.0mm2.
20) For units with more than one power cord:
CAUTION: This unit has more than one power supply cord. Disconnect two power
supply cords before servicing to avoid electrical shock.
ATTENTION: Cet appareil comporte plus d’un cordon d’alimentation. Afin de
prévenir les chocs électriques, débrancher les deux cordons d’alimentation
avant de faire le dépannage.
21) For products with an operator-accessible fuse:
CAUTION: For continued protection against risk of fire, replace only with same
type and rating of fuse.
ATTENTION: Pour ne pas compromettre la protection contre les risques
d’incendie, remplacer par un fusible de même type et de même caractéristiques
nominales.
Appendix B: Compliance Information 23
MC524 Guide24
Avid
2001 Junipero Serra Boulevard
Daly City, CA 94014-3886 USA
Technical Support (USA)
Visit the Online Support Center at
www.avid.com/support
Product Information
For company and product information,
visit us on the web at www.avid.com
Loading...
