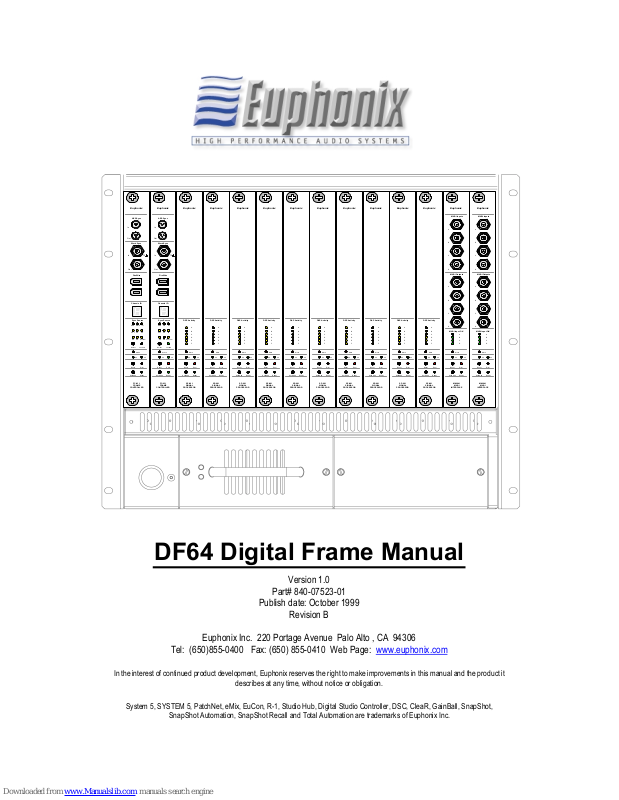

DF64 Digital Frame Manual

Euphonix Inc. 220 Portage Avenue Palo Alto , CA 94306

Tel: (650)855-0400 Fax: (650) 855-0410 Web Page: www.euphonix.com

In the interest of continued product development, Euphonix reserves the right to make improvements in this manual and the product it

System 5, SYSTEM 5, PatchNet, eMix, EuCon, R-1, Studio Hub, Digital Studio Controller, DSC, CleaR, GainBall, SnapShot,

SnapShot Automation, SnapShot Recall and Total Automation are trademarks of Euphonix Inc.

Version 1.0

Part# 840-07523-01

Publish date: October 1999

Revision B

describes at any time, without notice or obligation.

This page intentionally left blank

TABLE OF CONTENTS

Box Inventory..............................................................................................................4

Safety and Precautions.............................................................................................. 4

Power On Sequence...................................................................................................5

CE/TUV/UL/CSA .......................................................................................................... 5

Component Overview.................................................................................................6

Functional Description ........................................................................................................................6

Applications..........................................................................................................................................6

Hardware Operation ................................................................................................... 8

Dimensions and Weight ......................................................................................................................8

Front Panel, FC631 Frame Controller ................................................................................................9

Front Panel, MM641 MADI Interface Card........................................................................................11

Front Panel, SP661 Signal Processing Card ...................................................................................12

Technical Specifications..........................................................................................13

Performance Specifications..............................................................................................................13

Environmental Requirements ...........................................................................................................14

Power Requirements .........................................................................................................................14

Serviceability ......................................................................................................................................14

User Reference ...............................................................Error! Bookmark not defined.

DF64 Hookup Diagram............................................................................ Error! Bookmark not defined.

Box Inventory

The DF64 Digital Frame box contains the following items.

Description Part # Qty

DF64 Digital Audio Frame

Power supply, DF64 Dummy power supply Rackmount Hardware

Power Cord, IEC/US, 8’ Front Panel Blank, Modular Card, FC631 Frame Controller

FC631 Pack Card, MM641 MADI Interface

MM641 Pack Card, SP661 Signal Processor DF64 Manual

* - Number varies depending on configuration ordered.

946-06938-01

600-06829-00 946-06940 936-06541-01

032-03613-00 726-06526-01 946-07106-01

936-07226-01 946-07105-01

936-07227-01 946-07113-01

1 1 2 1

1 1 2 2

Safety and Precautions

1) Read Instructions - Read all the safety and operation instructions before operating the DF64 Digital Frame.

2) Heed Warnings – Follow all warnings on the DF64 and in these operating instructions.

3) Water and Moisture – Do not use the DF64 near water.

4) Heat – Locate the DF64 away from heat sources.

5) Power Sources – Connect the Am713/MA703 only to a power supply of the type described in these operation instructions or as marked on the DF64.

6) Power Cord Protection – Route power cords so that they are not likely to be walked upon or pinched by items placed on them.

7) Object and Liquid Entry – Do not drop objects or spill liquids on the DF64.

8) Damage Requiring Service – The DF64 should be serviced only by qualified personnel when:

a) Objects have fallen, or liquid has spilled into the DF64; or b) The DF64 does not appear to operate or exhibits a marked change in

performance; or,

c) The DF64 have been dropped or there is damage to a chassis.

9) Servicing – Do not attempt to service the DF64 beyond those means described in this operation manual. All other servicing should be referred to the Euphonix Tech Support department.

10) Fuse replacement – To prevent electric shock and avoid risk of fire, replace fuse only with the same type and rating.

11) To prevent electric shock, do not use the DF64 polarized plug with and extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

12) Grounding or Polarization – Do not defeat the grounding or polarization of the DF64.

13) Cooling - Ventilation for cooling is provided to the DF64 via four rear panel mounted fans. These fans draw cooling air through the chassis from the openings on the front panel. To avoid damage to the unit, do not block the fans or the front panel openings. Do not disconnect the fans.

THERE ARE NO USER SERVICEABLE PARTS IN THE DF64. However, individual cards

can be swapped by the user.

Power On Sequence

It is recommended that the DF64 Digital Frame(s) are powered on after all the other System 5 components have been powered on and the Virtual Mixer has been loaded in all the corresponding Digital Pilot computers.

CE/TUV/UL/CSA

The DF64 is fully CE compliant. Documentation is available from the factory.

Component Overview

Functional Description

The DF64 Digital Frame is the Digital Signal Processing Center of System 5. Digital Audio is routed to and from the DF64 in MADI. Control of the DF64 is provided by a Digital Pilot Computer (one per DF64,) which in turn communicates with the System 5 Control Surface. Thus the DF64 is under control of the System 5 system operator.

The DF64 assembly is a standard 19” rack width and 9RU high.

Applications

In its role of Digital Signal Processing Center for System 5 , the DF64 performs three functions;

• Signal I/O

• Signal Routing and Synchronization

• Signal Processing

There are 3 different types of cards in the DF64 that address each of the above functions.

The number and type of cards in the DF64 are configurable. There are one to four DF64 frames per System 5 , each of which can contain up to 14 cards. One SC253d Digital Pilot is required for each DF64.

Signal I/O– MM641 MADI Interface Card

All audio I/O is handled by the MM641 MADI Interface Card. MADI signals input at 24 bit fixed point resolution are converted to 32 bit floating point resolution for distribution over the backplane to other cards (the SP-661 Signal Processor Cards use 40 bit floating point processing internally—see below). Each MM641 card can input 224channels and output 224 channels of audio (56 channels per MADI port.) The MADI cards can also support 64 channel MADI if an application requires this. When operating at 96kHz sample rates, each MADI port handles 28 audio channels.

Signal Routing and Synchronization – FC631 Frame Controller Card

All patching between I/O, Channels, and Busses is done on the Time Division Multiplexed(TDM_ bus and controlled by the FC631 Frame Controller Card. The FC631 Card also provides a FireWire interface to the SC253d Pilot Computer. The DF64 includes a slot for a backup FC631 card, for applications where maximum fault tolerance is required.

The DF64 typically acts as a Sample Rate Slave in System 5 synchronization, although it can be a Master if desired. The Sync Source section on the FC631 front panel allows the user to select between AES or Word Sync (slave mode) or Internal Sync (master mode). Once locked to the selected sync source, the FC631 distributes a sync clock to the other cards in the DF64 frame and outputs a reference clock on its AES and Word sync output connectors. The master Sample Rate clock signal for the DF64 and all System 5 system components comes from the Studio Hub (SH612), which in turn can be used to synchronize other digital components in the studio.

Signal Processing – SP661 Signal Processor Card

The SP661 Signal Processor card performs all signal processing functions in the DF64. This card comprises six Analog Devices SHARC processors, massive DMA facilities for transferring audio data, and a RISC CPU for management of card functions. The programmable DSP architecture on the SP661 card allows it to perform channel processing, mixing, or various other signal processing tasks.

Hardware Operation

Dimensions and Weight

Height: 15.75 inches Width: 19 inches Depth: 17.3 inches Weight: 72lbs (approx) with 9-SP661, 1-FC631, 2-MM641 cards, and 1-power supply. Weight

can vary with configuration.

19”

17”

16”

17.3”

Front

15.75”

17”

Side

17”

Rear

Front Panel, FC631 Frame Controller

AES Sync In (3-pin Lemo Female) AES/EBU formatted sync input. The

DF64 clocks to the signal at this port when Sync Source is set to AES. An XLR female to LEMO adapter cable is provided.

AES Sync Out (3-pin Lemo Male) AES/EBU formatted sync output. This

signal is active regardless of the selected sync source. A LEMO to XLR male adapter cable is provided.

Word In (BNC) TTL-level square wave Sync Input. DF64 Sample

rate is clocked to the signal at this port when Sync Source is set to Word.

Word Out (BNC) TTL-level square wave sync output. This signal is

active regardless of selected sync source.

IEEE 1394 ports (2) (IEEE 1394) High speed communication interface to the

SC253d Pilot Computer. This interface carries real-time control and metering data between the SC253d and the DF64. The cable from the SC253d can be plugged into either of the two ports.

Euphonix

AES Sync

Out

Word Sync

Out

FireWire

Chassis ID Display Each DF64 chassis must be assigned a unique ID which

identifies it among multiple frames in a system. The ID is set using a rotary switch located on the Backplane PCB. The System is shipped with the ID switch preset to the proper number, so users will not normally need to access the switch. The switch position must match that of the corresponding Digital Pilot computer.

Sync Source LEDs The top three LEDs in the Sync Source section indicate

the selected sync source: AES, Word, or Internal. The sync source is changed by pressing the select button (a paper clip or similar tool is required) Refer to the System 5 Operation Manual for information on changing the sync source.

Sample Rate LEDs The bottom six LEDs in the Sync Source section indicate

the sample rate that is measured by the FC-631 card. Standard sample rates include 44.1kHz, 48kHz, 96kHz, and the 0.1% “pullup” and “pull-down” rates associated with each of these standard rates. If the FC631 is locked to a non-standard sample rate, the CUSTOM LED will be lit.

Select Button Use this button to manually select the Sync source (and

Sample Rate, if Internal Sync is selected) Refer to the System 5 Operation Manual for information on changing the sync source.

Chassis ID

Sync Source

AES Word Int

44.1 48 96

PU CustomPD

LockedSelect

Active

Reset Error

HotSwap Ready

FC-631 FRAME

CONTROLLER

Locked LED Indicates that the FC631card is receiving and locked to

the selected sync source. This LED must be lit to ensure proper audio operation of the DF64. .

Active LED When lit, Indicates that the FC631 is actively controlling

the TDM bus. In a system with two FC631 cards, this LED is

used to determine which card is Active and which is on stand-by.

5V, 3V LEDs Indicate that 5 volt and 3 volt power are present.

Reset Button This button forces a manual reset of the FC631 card.

Error LED Indicates that an error condition has been detected on the

FC631. It is normal for this LED to remain lit for 30 seconds or more after the DF64 is powered on.

HotSwap Button Push this button prior to making a swap of the FC631

Card. In a system fitted with two FC-631 cards, the backup card will take over when the HotSwap button is pressed on the active card (supported in v2.0).

Ready LED Indicates that FC631 is disconnected from the DF64

system bus and ready for removal.

Front Panel, MM641 MADI Interface Card

Euphonix

MADI Inputs

MADI In Ports(4) (BNC) Digital audio signal input. Each port can receive 56

or 64 channels of audio at sample rates up to 48kHz, or 28 or 31 channels at 96kHz.

MADI Out Ports(4) (BNC) Digital audio signal output. Each port can transmit

56 or 64 channels of audio at Sample Rates up to 48kHz, or 28 or 31 channels at 96kHz.

MADI Input OK LEDs Indicate that a MADI signal is present at the respective

input port(s). A flashing LED indicates a protocol or sync error on the incoming MADI line.

Mute Indicates that all channels of audio from the MM641 to the

TDM bus are muted. MADI output channels are muted automatically if the hardware detects a corrupted signal.

5V, 3V LEDs Indicate that 5 volt and 3 volt power are present.

MADI Outputs

MADI Input OK

Reset Button This button forces a manual reset of the MM641 card.

Error LED Indicates that an error condition has been detected on the

MM641 card. It is normal for the Error LED to be lit for 30 seconds or more after the DF64 has been powered on.

HotSwap Button Push this button prior to making a swap of the MM641

card.

Ready LED Indicates that the MM641 card is disconnected from the

DF64 system bus and ready for removal.

Mute

Reset Error

HotSwap Ready

MM-641

MADI

INTERFACE

Front Panel, SP661 Signal Processing Card

DSP Activity LEDs These LEDs indicate the level of processing activity on

each of the SP661 Sharc processors. The lights glow more brightly as each Sharc increases its processing activity.

Mute Indicates that all Audio signals from the SP661 to the TDM

bus are muted.

5V, 3V LEDs Indicate that 5 volt and 3 volt power are present.

Reset Button This button forces a manual reset of the SP661 card.

Euphonix

DSP Activity

Mute

Error LED Indicates that an error condition has been detected on the

SP661 card. Is is normal for the Error LED to remain lit for 30 seconds or more after the DF64 is powered on

HotSwap Button Push this button prior to making a swap of the SP661 Card.

Ready LED Indicates that the SP661 card is disconnected from the

DF64 system bus and ready for removal.

Reset Error

HotSwap Ready

SP-661

SIGNAL

PROCESSOR

Technical Specifications

Performance Specifications

Sync sources: Word Sync, AES

Word Sync In 1 BNC AES Sync In 1 Lemo 3-pin (adapter to XLR female provided)

Internal Fs: 44.1, 48, 96 kHz +/-20ppm Sample Rate Range (Fs) Locking to External Source: 40,000Hz → 48,480Hz (in single speed mode) 80,000Hz 96,960Hz (in double speed mode)

Sync Outputs:

Word Clock Out 1 BNC AES Sync Out 1 Lemo 3-pin (adapter to XLR male available)

AES and Word Sync

MADI

MADI input: 4 (BNC) 75ohms, 56 channel (with nominal Sample Rates ≥40kHz and

≤48.48kHz) Full 24-bit precision.

“MADI Input OK” LED per input port MADI output: 4 (BNC) 75ohms, 56 channel (with nominal Sample Rates ≥40kHz and

≤48.48kHz) Full 24-bit precision.

Backplane 684-channel pipelined TDM bus (32-bit floating point audio data)

342 channels at 80kHz -> 96.96kHz operation 32-bit floating-point audio data format (converted to/from 24-bit

24-bit fixed point on MM641 Card)

DSP 40-bit floating-point internal computation

32-bit floating point maintained throughout all internal paths

7.5 GFLOPS Peak DSP horsepower per DF64 Frame

(using 9 SP661 Cards and 2 MM641 Cards)

29.8 GFLOPS Peak DSP horsepower per system (4 DF64 frames)

Total Harmonic Distortion 0.005% or better, 20Hz ~ 20kHz, -18dBFS (through any audio path)

Audio Throughput Delay 44 Samples Typical (MADI In -> Channel -> Mix Bus -> Monitor Bus ->

MADI Out ) (0.92 msec @ Fs=48kHz, 0.46 msec @ Fs=96kHz Delay remains constant with EQ/Filters/Dynamics In or Out Additional user-adjustable delay per channel (up to 240 samples)

FireWire (IEEE1394)

2 ports on FC631 front panel.

Used for real-time system control and configuration

200Mbps max data rate

Environmental Requirements

Operating Temperature: 0 to 35 degrees Celsius (ambient)

Storage Temperature: -10 to 55 degrees Celesius

Humidity: 0 to 90% non-condensing

Power Requirements

90 to 254 Volts AC (rms), 50/60Hz, 400 Watts Max

Maximum inrush current at power-on: 40 Amps

Specifications subject to change without notice.

Serviceability

All active modules (Cards, Power supplies) can be inserted or removed with power on.

Redundant Power supply available.

Redundant DSP and Frame Controller Cards supported in v2.0

Euphonix DF64 Digital Frame User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
