MUSIC | AUDIO POST | VIDEO | FILM
Artist Series
professional control surface
professional control surface
EuCon Application Setup Guide
Document Revision: E
professional control surfaces
Artist Series
MC Control, MC Mix, Studio Monitor Express, Studio Monitor Pro, EuControl, EuCon and EuCon Powered are trademarks of Euphonix Inc. All other product names are trademarks of their respective manufacturers.
EuCon APPLICATION SETUP GUIDE
ii
Artist Series
professional control surfaces
Table of Contents
Section 1: Introduction......................................................................................... 5
Section 2: Logic Pro..............................................................................................5
Section 3: Nuendo ................................................................................................ 6
3.1 EuCon Device Setup .....................................................................7
3.1.1 EuConized channel types .................................................9
3.1.2 Global Settings................................................................ 9
Section 4: Cubase ...............................................................................................11
4.1 EuCon Device Setup ...................................................................12
4.1.1 EuConized channel types ............................................... 13
EuCon APPLICATION SETUP GUIDE
4.1.2 Global Settings.............................................................. 13
Section 5: Mackie Control..................................................................................15
5.1 Setting Up EuCon for Mackie Control .......................................... 15
5.2 Final Cut Pro and Soundtrack Pro................................................ 18
5.3 Digital Performer........................................................................ 20
5.4 Ableton Live ...............................................................................22
Section 6: Pro Tools (HUI) ................................................................................. 24
6.1 Setting up EuCon to Control Pro Tools ........................................24
6.2 Setting up Pro Tools to Control the Artist Series ......................... 26
iii
Artist Series
professional control surfaces

Section 1: Introduction

The EuCon Application Setup Guide helps you setup EuControl to work with your specific application. EuControl must be installed before proceeding to your ap­plication’s section in this Guide. See the Installation section in the Quickstart or User Guides to install EuControl if you have not already done so.

Section 2: Logic Pro

Logic Pro 8 works with your Artist Series control surface with very little additional setup. Make sure the MC Mix and/or MC Control software is installed and that EuControl is running. Launch Logic Pro and click in a Logic window so it is the front-most application. Your surface now controls Logic Pro.
To make sure your Artist Series control surface works correctly with Logic Pro:
1. In Logic Pro, choose Logic Pro -> Preferences -> Control Surfaces -> Setup...
The Logic Control Surface Setup window appears.
Figure 2-1 Logic Control Surface Setup window
2. In Control Surface Group 1 on the left side of the window, locate Channel Strip View Mode (fourth parameter from top).
3. Set this parameter to Arrange, not one of the other settings.
EuCon APPLICATION SETUP GUIDE
5
Use Software Update so your Mac stays updated the latest version of Logic Pro.
INTRODUCTION
professional control surfaces
Artist Series

Section 3: Nuendo

Nuendo 4 is a powerful DAW that can handle as many tracks and effects as your workstation’s CPU can support. It offers multitrack recording, editing, and monitoring. Steinberg’s EuCon adapter enables fully integrated control of all of Nuendo’s functions from the Artist Series control surfaces.
NOTE: The EuCon Adapter is available in MC Mix version 1.0.1 and later. This version
of the adapter works with Nuendo version 4.1.2 and later.
To enable Nuendo to work with the Artist Series, you must obtain an activation code:
1. Create a user account in the MySteinberg area of Steinberg’s web site.
EuCon APPLICATION SETUP GUIDE
6
If you already have a MySteinberg account and have already registered your version of Nuendo 4, continue with Step 4.
2. Check your email and activate your user account by clicking the link in the confirmation email.
3. Log into your MySteinberg account, click on Product Registration, choose Register Product and select Product with Steinberg Key or Soft-eLicenser.
4. Log into your MySteinberg account if you have not already. Click on Activa­tion & Reactivation, choose Euphonix Artist Series EuCon Adapter and select Permanent Activation. Enter your Artist Series hardware serial number.
You will receive an email containing the activation code.
5. Launch the License Control Center (LCC) Software from the Applications folder, choose Wizards->License Download, enter your activation code and follow the instructions.
For Nuendo to communicate with the Artist Series devices, Nuendo’s EuCon device must be added in the Device Setup dialog:
1. Open Nuendo.
2. Choose Devices->Device Setup.
The Device Setup dialog opens.
NUENDO
Artist Series
professional control surfaces
3. Click the + button (add) on the top-left.
A drop-down list of devices appears with EuCon near the top of the list.
4. Select EuCon from the drop-down list.
The EuCon device is added, the control surface immediately updates, the faders and knobs display track functions, and the EuCon Device Setup dialog appears (Figure 3-1).

3.1 EuCon Device Setup

This section discusses the EuCon Device Setup dialog which allows editing track assignment and transport control parameters. If the EuCon Device setup dialog is not open: From Nuendo choose Devices->Device Setup, then select EuCon from the Remote Devices folder in the Devices section.
EuCon APPLICATION SETUP GUIDE
7
NUENDO
professional control surfaces
Artist Series
EuCon APPLICATION SETUP GUIDE
8
Figure 3-1 EuCon Device Setup
NUENDO
Artist Series
professional control surfaces

3.1.1 EuConized channel types

The EuConized channel types section contains checkboxes that determine which channel types appear on your control surface. If a certain channel is available in Nuendo and the corresponding checkbox is selected, that channel can be selected to appear on the surface. This channel is called EuConized.
All channels except Input channels are EuConized by default and can appear on the surface. This is useful to eliminate tracks from the surface, reduce memory usage, and reduce the time needed to build the EuCon mixer model when con­necting, adding, or removing tracks from the Nuendo project.
To enable/disable EuConized tracks, select the checkbox next to each type. Tracks without a checkmark do not appear on the surface. This setting applies only to the open project.

3.1.2 Global Settings

The Global Settings section has two parameters: Tape machine style transport and Number of knobsets to cache.
EuCon APPLICATION SETUP GUIDE
Tape machine style transport
Two Nuendo transport control modes are available for the control surface. Toggle the modes from the Tape machine style transport option.
These transport modes affect the operation of the Stop, Fast Forward and Rewind buttons in the following manner:
Tape machine style transport checked
Stop: The control surface STOP button halts the transport and keeps the play
head at the current position (even multiple presses), independent from Nu­endo’s preferences.
Fast Forward/Rewind: The FF/RW buttons always latch independent of the control surface latch time preference. Repeatedly pressing the same FF/RW button has no effect. The current action can be stopped by pressing the op­posite wind button, STOP, or PLAY. The FF/RW also stops if it reaches the be­ginning or end of the project.
9
NUENDO
professional control surfaces
Artist Series
Tape machine style transport not checked
Stop: The control surface STOP button copies the Nuendo stop button.
Fast Forward/Rewind: The FF/RW buttons function as EuCon Momentary/
Latch-Switches. If the button is pressed and released quickly, the switches do NOT latch but behave momentarily, resembling the way these buttons work in the Nuendo GUI. If the Artist Series FF/RW buttons are held down longer than the latch time set in the Preferences-Setup page, they latch.
Number of knobsets to cache
Nuendo creates knobsets for EQ, Dynamic, Inserts, Aux sends and other functions. A certain number of these knobsets are kept, or cached, in RAM. For large projects on a large control surface, increasing the number of knobsets in the cache can access them faster but uses more RAM. It is rare to change this value.
EuCon APPLICATION SETUP GUIDE
10
NUENDO
Artist Series
professional control surfaces

Section 4: Cubase

NOTE: Cubase is supported in MC Mix version 1.0.1 and higher. Cubase version 4.1.2
and higher is required. Download the latest version of Cubase from Steinberg's web site.
To enable Cubase to work with the Artist Series, you must obtain an activation code:
1. Create a user account in the MySteinberg area of Steinberg’s web site.
If you already have a MySteinberg account and have already registered your version of Cubase 4, continue with Step 4.
2. Check your email and activate your user account by clicking the link in the confirmation email.
3. Log into your MySteinberg account, click on Product Registration, choose Register Product and select Product with Steinberg Key or Soft-eLicenser.
EuCon APPLICATION SETUP GUIDE
4. Log into your MySteinberg account if you have not already. Click on Activa­tion & Reactivation, choose Euphonix Artist Series EuCon Adapter and select Permanent Activation. Enter your Artist Series hardware serial number.
You will receive an email containing the activation code.
5. Launch the License Control Center (LCC) Software from the Applications folder, choose Wizards->License Download, enter your activation code and follow the instructions.
For Cubase to communicate with the Artist Series devices, Cubase’s EuCon device must be added in the Device Setup dialog:
1. Open Cubase but do not open a project.
If Cubase automatically opens a project, close it.
2. Choose Devices->Device Setup.
The Device Setup dialog opens.
3. Click the + button (add) on the top-left.
A drop-down list of devices appears with EuCon near the top of the list.
11
CUBASE
professional control surfaces
Artist Series
4. Select EuCon from the drop-down list.
The EuCon device is added, the control surface immediately updates, the faders and knobs display track functions, and the EuCon Device Setup dialog appears (Figure 4-1).

4.1 EuCon Device Setup

This section discusses the EuCon Device Setup dialog which allows editing track assignment and transport control parameters. If the EuCon Device setup dialog is not open: From Cubase choose Devices->Device Setup, then select EuCon from the Remote Devices folder in the Devices section.
EuCon APPLICATION SETUP GUIDE
12
CUBASE
Figure 4-1 EuCon Device Setup
Artist Series
professional control surfaces

4.1.1 EuConized channel types

The EuConized channel types section contains checkboxes that determine which channel types appear on your control surface. If a certain channel is available in Cubase and the corresponding checkbox is selected, that channel can be selected to appear on the surface. This channel is called EuConized.
All channels except Input channels are EuConized by default and can appear on the surface. This is useful to eliminate tracks from the surface, reduce memory usage, and reduce the time needed to build the EuCon mixer model when con­necting, adding, or removing tracks from the Cubase project.
To enable/disable EuConized tracks, select the checkbox next to each type. Tracks without a checkmark do not appear on the surface. This setting applies only to the open project.

4.1.2 Global Settings

The Global Settings section has two parameters: Tape machine style transport and Number of knobsets to cache.
EuCon APPLICATION SETUP GUIDE
Tape machine style transport
Two Cubase transport control modes are available for the control surface. Toggle the modes from the Tape machine style transport option.
These transport modes affect the operation of the Stop, Fast Forward and Rewind buttons in the following manner:
Tape machine style transport checked
Stop: The control surface STOP button halts the transport and keeps the play
head at the current position (even multiple presses), independent from Nu­endo’s preferences.
Fast Forward/Rewind: The FF/RW buttons always latch independent of the control surface latch time preference. Repeatedly pressing the same FF/RW button has no effect. The current action can be stopped by pressing the op­posite wind button, STOP, or PLAY. The FF/RW also stops if it reaches the be­ginning or end of the project.
13
CUBASE
professional control surfaces
Artist Series
Tape machine style transport not checked
Stop: The control surface STOP button copies the Cubase stop button.
Fast Forward/Rewind: The FF/RW buttons function as EuCon Momentary/
Latch-Switches. If the button is pressed and released quickly, the switches do NOT latch but behave momentarily, resembling the way these buttons work in the Nuendo GUI. If the Artist Series FF/RW buttons are held down longer than the latch time set in the Preferences-Setup page, they latch.
Number of knobsets to cache
Cubase creates knobsets for EQ, Dynamic, Inserts, Aux sends and other functions. A certain number of these knobsets are kept, or cached, in RAM. For large projects on a large control surface, increasing the number of knobsets in the cache can access them faster but uses more RAM. It is rare to change this value.
EuCon APPLICATION SETUP GUIDE
14
CUBASE
Artist Series
professional control surfaces

Section 5: Mackie Control

Mackie Control Universal is a widely used MIDI-based protocol that controls ap­plication parameters and supports metering in many DAW applications. The ex­tent to which Mackie Control can be used depends on the specific application’s implementation. The Artist Series devices use EuCon-to-Mackie Control conver­sion software along with a special EuCon MIDI Driver. These use internal MIDI ports to easily control these programs without external MIDI cables.

5.1 Setting Up EuCon for Mackie Control

Before proceeding, make sure you have installed and are running EuControl as described in the Installation section of your Quickstart or User Guides.
All applications that use Mackie Control must perform the following steps:

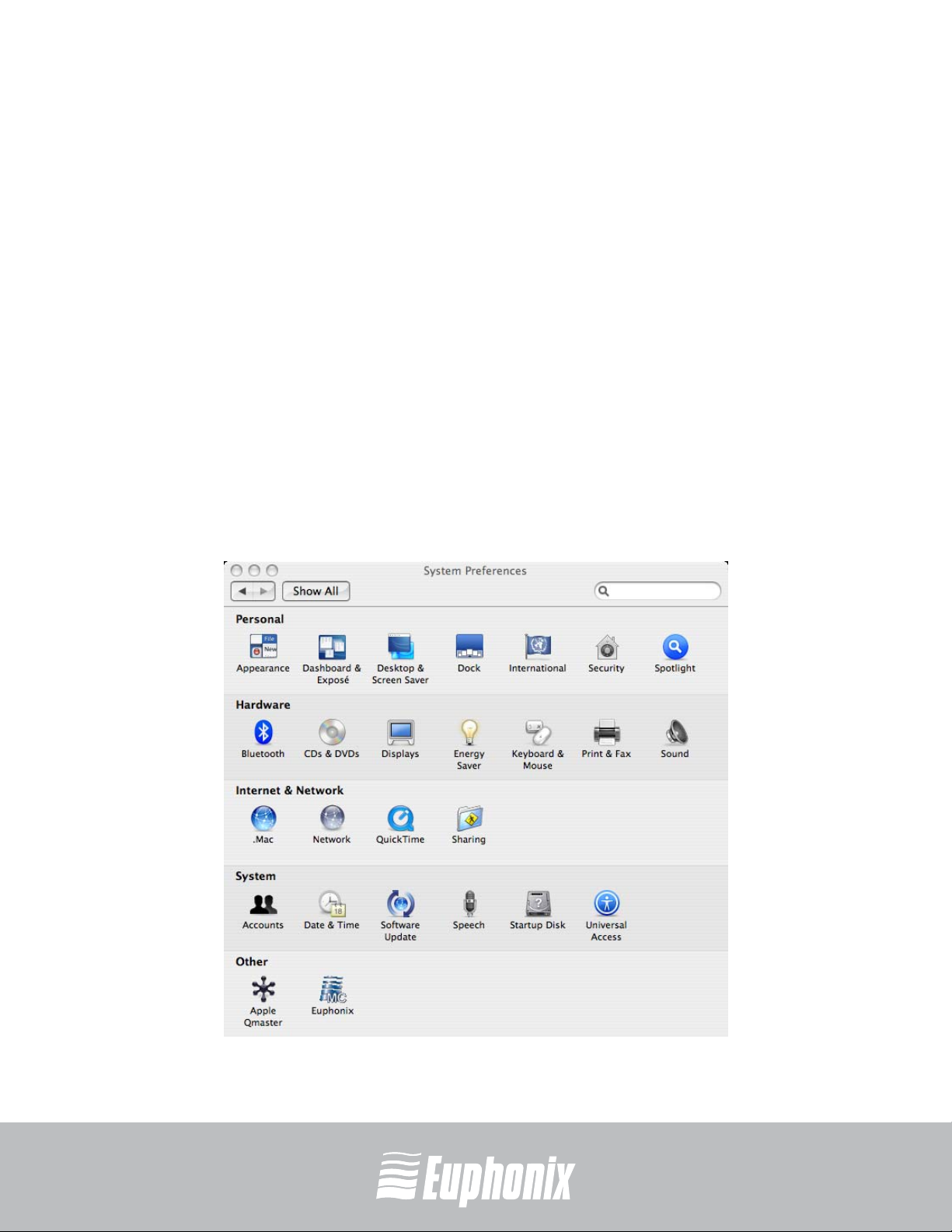

1. From the Apple Menu, open System Preferences.
EuCon APPLICATION SETUP GUIDE
15
Figure 5-1 System Preferences
MACKIE CONTROL
professional control surfaces
Artist Series
2. Double-click the Euphonix icon in the Other section at the bottom of the window.
The Euphonix preference pane opens.
EuCon APPLICATION SETUP GUIDE
16
Figure 5-2 Euphonix preference pane
3. Locate the Application you want to control in the Finder.
This is found in your Applications folder or in the program’s own folder at the top level of the hard drive.
4. Drag the Application icon into the middle of the Euphonix preference pane and release the mouse button.
Its name and location appears in the Application and Path columns, respec­tively.
5. Click in the Protocol column and select Mackie Control (see Figure 5-3).
MACKIE CONTROL
Artist Series
professional control surfaces
Figure 5-3 Euphonix preference pane with application selected and Mackie Control set
6. Close the Euphonix preference pane and reboot your computer if prompted
to do so.
The next steps configure your specific application to be controlled by Mackie Control. This differs for each application and instructions can be found in the ap­plication’s user manual. For your convenience, we’ve included instructions for several applications in the following sections.
When setting up an application to be controlled by Mackie Control, use the MIDI ports of the EuCon MIDI Driver that were specified in the Euphonix preference pane (i.e., 1–4 in Figure 5-3). Examples are shown in the following sections.
More than one application can be controlled using Mackie Control by dragging multiple application icons into the Euphonix preference pane. Make sure each application has it’s own unique set of MIDI ports.
To access the Mackie Control Master fader, press the ASSIGN key (lights) on any fader strip on any Artist Series control surface in the network.
EuCon APPLICATION SETUP GUIDE
17
MACKIE CONTROL
professional control surfaces
Artist Series

5.2 Final Cut Pro and Soundtrack Pro

Configuring Final Cut Pro and Soundtrack Pro to operate with the Artist Series devices is simple. Since both are Apple applications, their interfaces are similar and instructions may be combined.
Before proceeding, you must already have completed the steps described in Setting Up EuCon for Mackie Control on page 15.
To finish the configuration:
1. In Final Cut Pro, choose Tools->Control Surfaces.
The Control Surface dialog opens.
2. In Soundtrack Pro, choose Soundtrack Pro->Preferences.
The Preferences dialog opens.
EuCon APPLICATION SETUP GUIDE
18
3. Click the Control Surfaces tab at the top.
MACKIE CONTROL
Figure 5-4 Add Control Surface dialog (Soundtrack Pro)
Artist Series
professional control surfaces
4. Now both programs can follow the same instructions. Click the + button.
The Add Control Surface dialog opens.
Figure 5-5 Add Control Surface dialog
5. Select Mackie Control from the Control Surface Type drop-down menu.
6. For the Input and Output Connection drop-down menus, select the MIDI send
and receive ports.
These will be the same port, so if Soundtrack Pro uses ports 5–8, the first controller sends and receives on port 5.
7. Click OK to close the Add Control Surfaces dialog.
8. Repeat steps 4–7 for each additional Artist Series control surface in your
network.
9. in Final Cut Pro, click the OK button. In Soundtrack Pro, click the Close but­ton at the top-left to close the Preferences.
The Artist Series devices connect and update with new track information.
Your Artist Series device should now be controlling your application. If not:
• Make sure Final Cut Pro or Soundtrack Pro is the front-most application (i.e., the one receiving keystrokes and mouse clicks). The Artist Series devices control only the front-most application.
• Check that all steps in Setting Up EuCon for Mackie Control on page 15 and in this section have been performed correctly, and reboot your Mac.
EuCon APPLICATION SETUP GUIDE
19
• Make sure the Euphonix MIDI device in Applications->Utilities->Audio MIDI
Setup is blue (active) and not gray (inactive). If inactive, select it, click Re­move Device, and click Rescan MIDI.
MACKIE CONTROL
professional control surfaces
Artist Series

5.3 Digital Performer

Before proceeding, you must already have completed the steps described in Setting Up EuCon for Mackie Control on page 15.
To finish the configuration:
1. Open Applications->Utilities->Audio MIDI Setup and select the MIDI Devices tab (Figure 5-6).
EuCon APPLICATION SETUP GUIDE
20
2. Click Add Device, double-click the device that appears in the Audio MIDI Set­up dialog, and assign a device name (i.e., MCU1).
There is no need to modify the manufacturer, model or any other fields.
3. Repeat the previous steps for each additional Artist Series control surface in your network.
4. In Digital Performer select Setup->Control Surface Setup.
5. Configure the dialog settings as they appear in Figure 5-7.
MACKIE CONTROL
Figure 5-6 Audio MIDI Setup
Artist Series
professional control surfaces
Figure 5-7 Control Surface dialog
6. Click the OK Button.
Your Artist Series device should now be controlling Digital Performer. If not:
• Make sure Digital Performer is the front-most application (i.e., the one re- ceiving keystrokes and mouse clicks). The Artist Series devices control only the front-most application.
• Check that all steps in Setting Up EuCon for Mackie Control on page 15 and in this section have been performed correctly, and reboot your Mac.
• Make sure the Euphonix MIDI device in Audio MIDI Setup is blue (active) and not gray (inactive). If inactive, select it, click Remove Device, click Res-
can MIDI, and repeat steps 2 and 3 if the Mackie Control devices are absent.
EuCon APPLICATION SETUP GUIDE
21
MACKIE CONTROL
professional control surfaces
Artist Series

5.4 Ableton Live

Before proceeding, you must already have completed the steps described in Setting Up EuCon for Mackie Control on page 15.
To finish the configuration:
1. Choose Live->Preferences.
The Preferences dialog opens.
2. Click the MIDI tab on the left (Figure 5-8).
EuCon APPLICATION SETUP GUIDE
22
3. Select Mackie Control or Mackie Control Classic from the Control Surface column.
4. We recommend Mackie Control.
5. Select the desired MIDI emulation ports from the Input and Output columns
for the Mackie Control Surface.
MACKIE CONTROL
Figure 5-8 Live MIDI Preferences dialog
Artist Series
professional control surfaces
6. Repeat steps 3 and 5 for each additional Artist Series control surface in your network.
The MIDI ports selected here should match those specified in the Euphonix Preferences Pane.
7. Close the Preferences dialog.
Your Artist Series device should now be controlling your application. If not:
• Make sure Live is the front-most application (i.e., the one receiving key­strokes and mouse clicks). The Artist Series devices control only the front­most application.
• Check that all steps in Setting Up EuCon for Mackie Control on page 15 and in this section have been performed correctly, and reboot your Mac.
• Make sure the Euphonix MIDI device in Applications->Utilities->Audio MIDI
Setup is blue (active) and not gray (inactive). If inactive, select it, click Re­move Device, and click Rescan MIDI.
EuCon APPLICATION SETUP GUIDE
23
MACKIE CONTROL
professional control surfaces
Artist Series

Section 6: Pro Tools (HUI)

HUI is a control protocol developed by Mackie that works with Pro Tools. The Artist Series uses HUI commands and extensive Pro Tools key commands to con­trol Pro Tools operations. It has the additional advantage of being able to con­trol multiple workstations from one surface in a studio with multiple Pro Tools systems.

6.1 Setting up EuCon to Control Pro Tools

Before proceeding, make sure you have installed and are running EuControl as described in the Installation section of your Quickstart or User Guides.
To setup HUI to control Pro Tools:
1. From the Apple Menu, open System Preferences.
EuCon APPLICATION SETUP GUIDE
24
PRO TOOLS (HUI)
Figure 6-1 System Preferences
Artist Series
professional control surfaces
2. Double-click the Euphonix icon in the Other section at the bottom of the window.
The Euphonix preference pane opens.
EuCon APPLICATION SETUP GUIDE
Figure 6-2 Euphonix preference pane
3. Locate the Application you want to control in the Finder.
This is found in your Applications folder or in the program’s own folder at the top level of the hard drive.
4. Drag the Application icon into the middle of the Euphonix preference pane and release the mouse button.
Its name and location appears Application and Path columns, respectively.
5. Click in the Protocol column and select HUI (see Figure 6-3).
25
PRO TOOLS (HUI)
professional control surfaces
Artist Series
EuCon APPLICATION SETUP GUIDE
Figure 6-3 Euphonix preference pane with application selected and HUI protocol set
6. Close the Euphonix preference pane and reboot your computer if prompted
to do so.
26

6.2 Setting up Pro Tools to Control the Artist Series

1. Launch Pro Tools.
2. Choose Peripherals from the Operations menu.
The Peripherals dialog opens.
3. Click the MIDI Controllers tab.
PRO TOOLS (HUI)
Artist Series
professional control surfaces
Figure 6-4 Pro Tools Peripherals dialog
4. Configure a HUI controller for each Artist series control surface in your
network (up to four).
5. Select HUI from the Type drop-down box for each controller to configure.
6. Configure each controller to have the input and output MIDI ports set for Pro Tools in the Euphonix Preferences Pane. Click on the Receive From and Send To drop-down menus, hover over Predefined, then select from the Euphonix
MIDI ports.
For example, if you set Pro Tools to use MIDI ports 1–4, your first HUI con­troller’s receive and transmit ports should be set to EphMIDIEP1.
Figure 6-5 Excerpt from Pro Tools MIDI menu
EuCon APPLICATION SETUP GUIDE
27
PRO TOOLS (HUI)
professional control surfaces
Artist Series
7. Select 8 from the Ch # drop-down menu as the number of channels for each controller.
8. Press OK.
Pro Tools updates the channel and track information and transmits that to the Artist Series devices.
Your Artist Series device should now be controlling Pro Tools. If not:
• Make sure Pro Tools is the front-most application (i.e., the one receiving keystrokes and mouse clicks). The Artist Series devices control only the front-most application.
• Check that all steps in Setting up EuCon to Control Pro Tools on page 24 and in this section have been performed correctly, and reboot your Mac.
EuCon APPLICATION SETUP GUIDE
28
PRO TOOLS (HUI)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
