EUPA IBBP User Manual

IBBP

ATX Pentium II

User's Manual

®

Mainboard

Model : IBBP ATX Mainboard
Manual version : English, version 1.0
Release Date : Mar 30, 1999

Copyright

Copyright  1998 by this company. All rights reserved.

No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any form or by
any means, electronic, mechanical, magnetic, optical, manual or otherwise,
without the prior written consent of the copyright holders.

User’s Notice

The contents of this publication are subject to change. This company reserves
the right to alter the contents of this publication at any time and without
notice. The contents of this publication may contains inaccuracies or
typographical errors and is supplied for informational use only.

Intel and Pentium are registered trademarks of Intel Corporation.

OS/2 and IBM are registered trademarks of International Business Machines.

Windows and MS-DOS are registered trademarks of Microsoft Corporation.

AWARD is a registered trademark of Award Software Inc.

Other brand, corporate, and product names may or may not be registered
trademarks or copyright of their respective companies.

II

FCC & DOC Compliance

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:

² This device may not cause harmful interference, and
² This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
manufacturer
communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

² Re-orient or relocate the receiving antenna.
² Increase the separation between the equipment and the receiver.
² Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

² Consult the dealer or an experienced radio/TV technician for help.

Warning! The use of shielded cables for the connection of the monitor to
the graphics card is required to assure compliance with FCC regulations
Changes or modifications to this authority to operate this equipment.

III

CONTENTS

SECTION 1: PRODUCT INFORMATION

1-1 Manual Features………………………….…………………………………....1-1

1-2 Package Check List....................................1-1

1-3 Mainboard Specification...……….………………………….….1-2
1-4 Mainboard Layout …………………………………………………….………1-5

SECTION 2: HARDWARE INSTALLATION

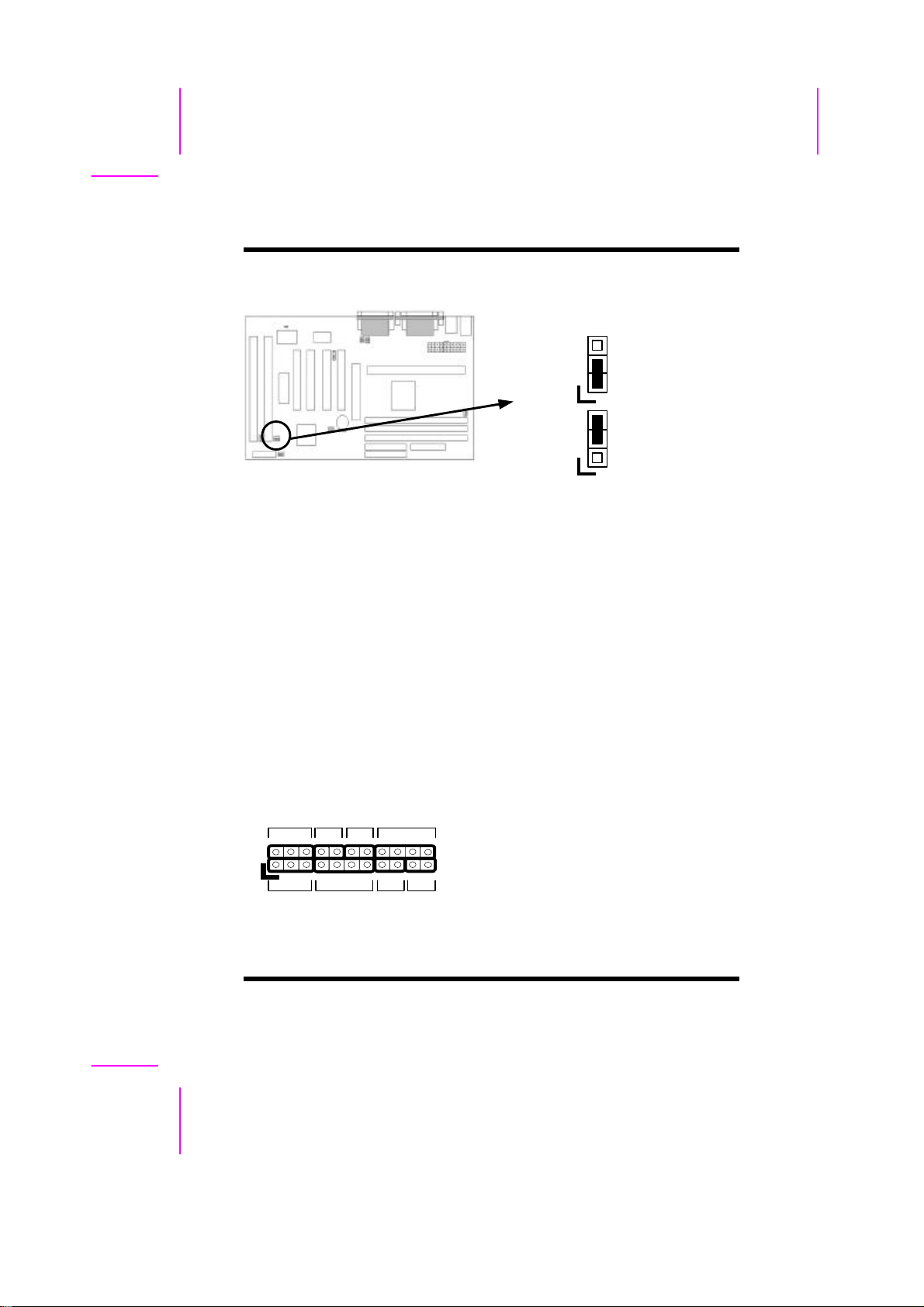

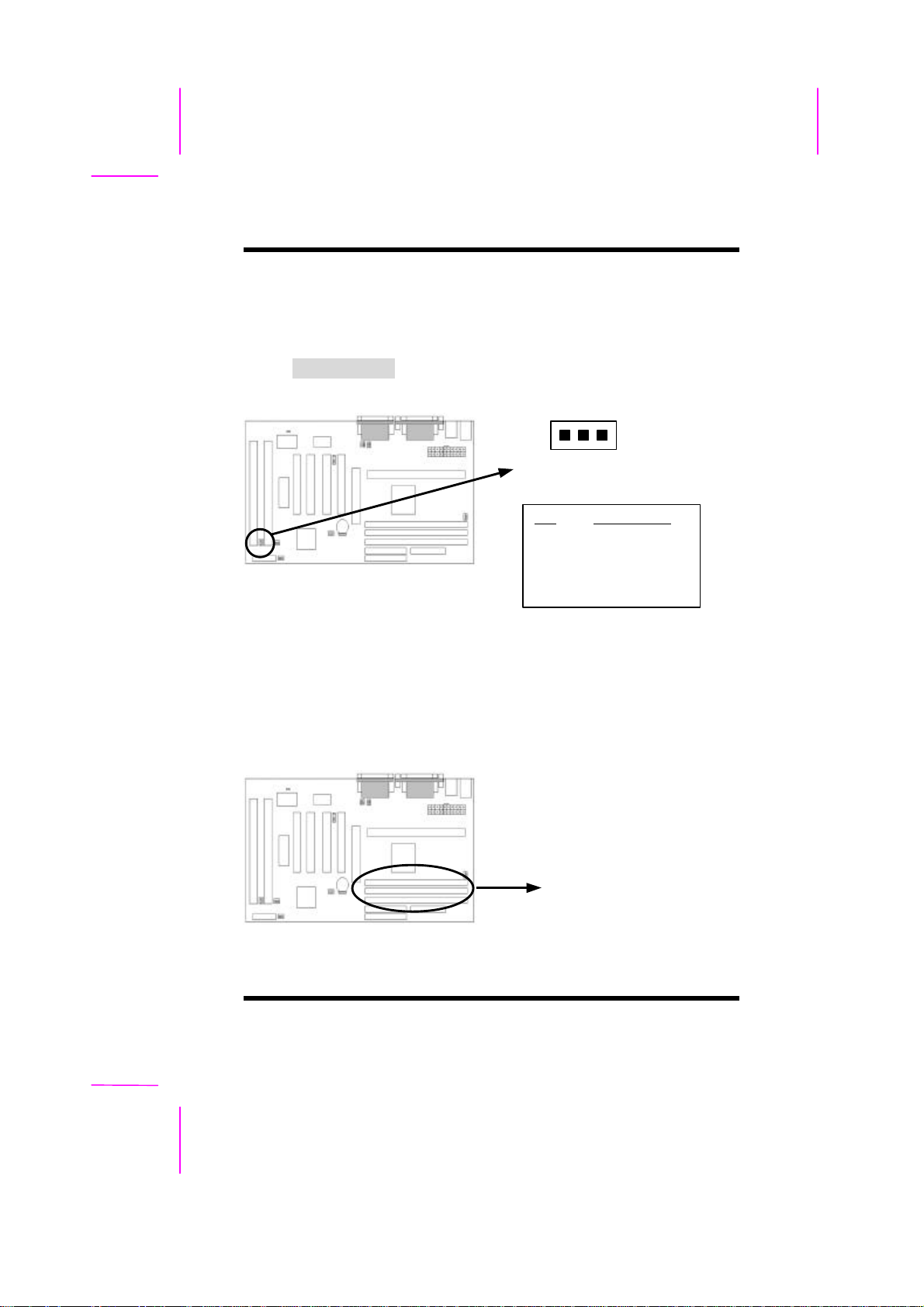

2-1 Jumper Settings.........................................2-1

2-1.1 CMOS Clear Setting ………..............………… … ……...2-1

2-1.2 CPU Type Setting …………………......................……....2-2

2-1.3 Power On Mode …………..……….......................……....2-3

IV

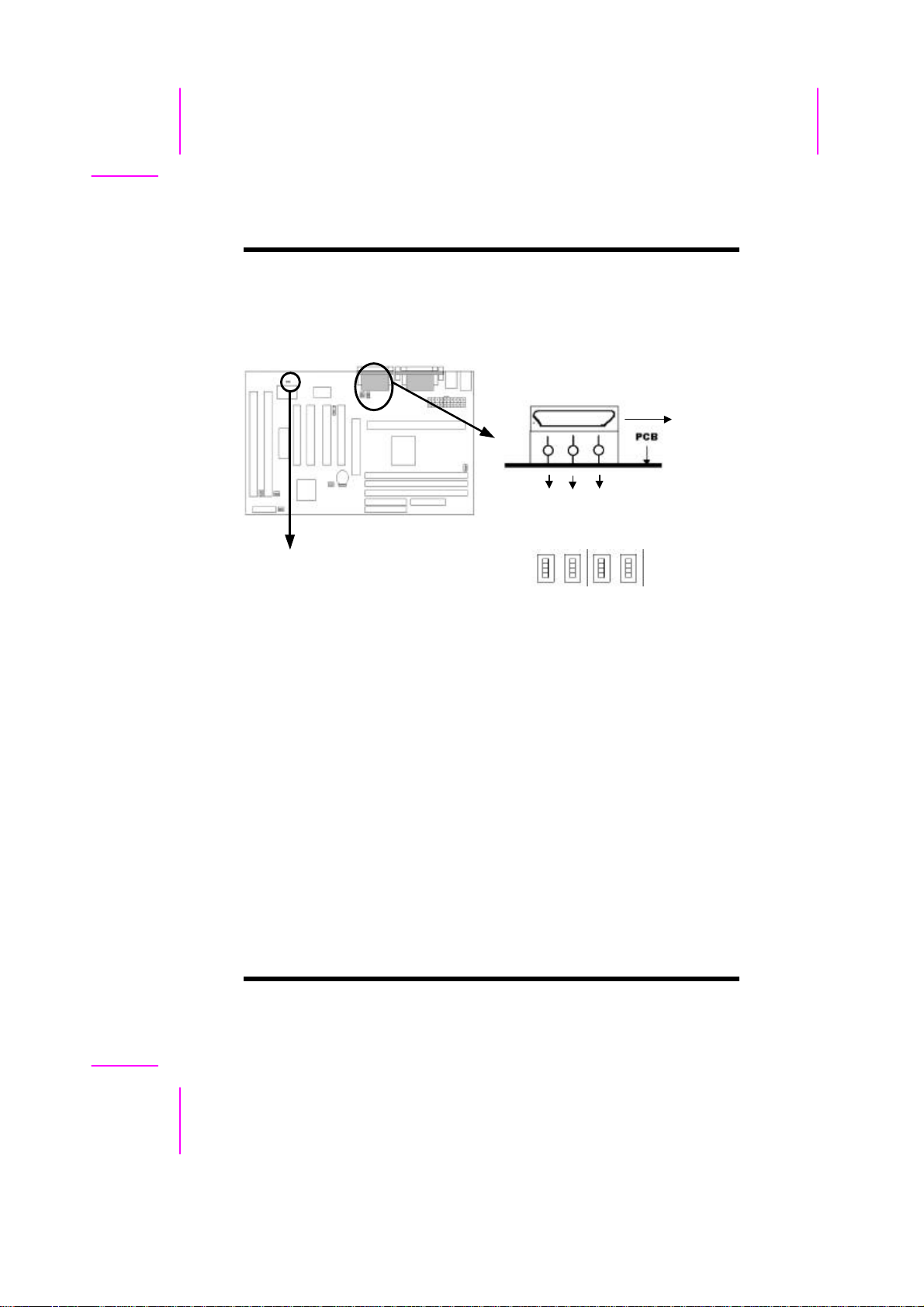

2-2 Connectors ……….……....……………....…………………………………....2-3

2-2.1 Panel Connector……….…...….……………………………2-3

2-2.2 Power Connector…………....………………………………2-4

2-2.3 Fan Connectors…….……..…….….....….…………………2-5

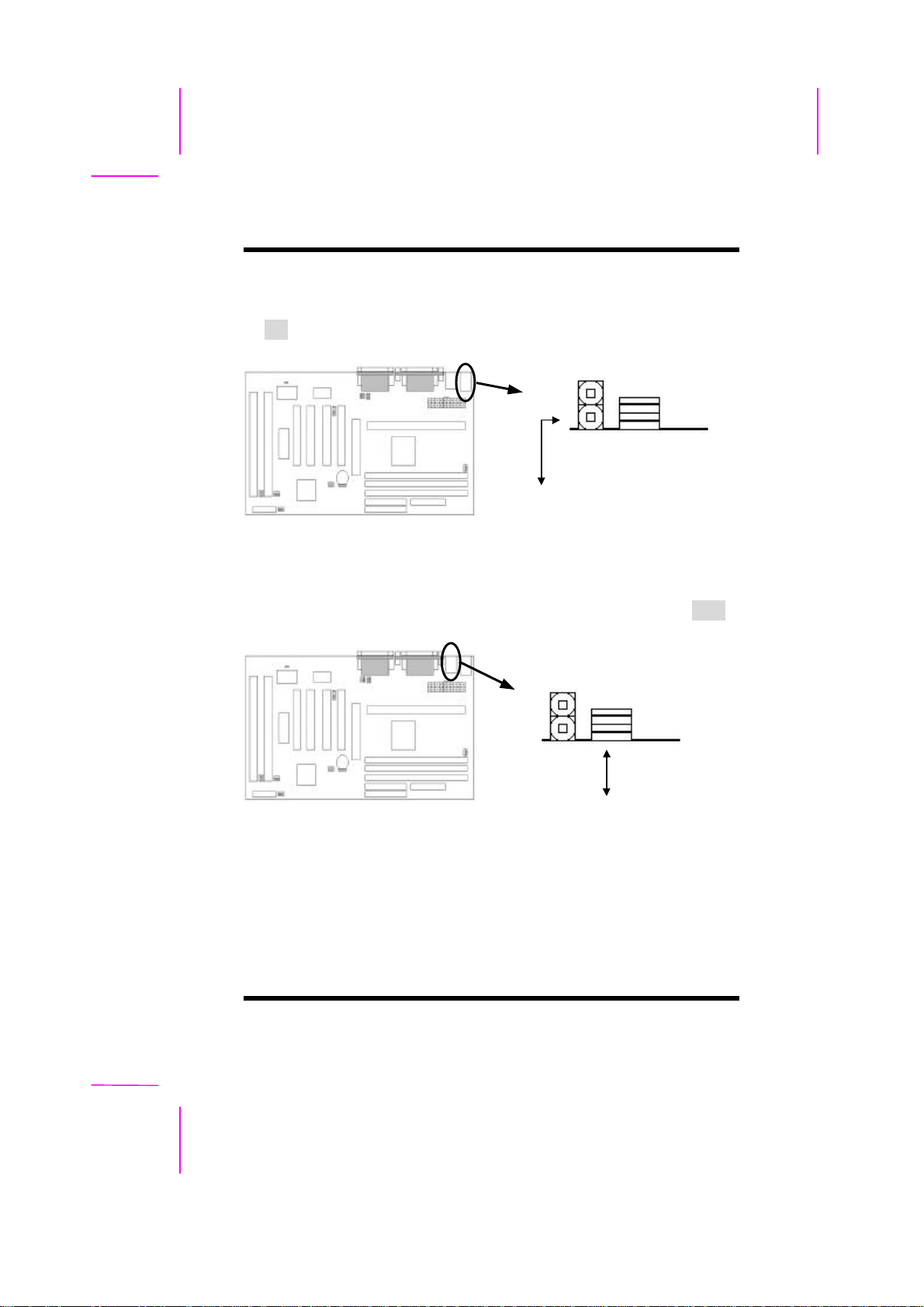

2-2.4 PS/2 Mouse Connector…………..…………………………2-5
2-2.5 Keyboard Connector….………..……………………………2-6
2-2.6 USB Device Connector……..………………………………2-6

2-2.7 Serial Device(COM1/COM2) Connectors……...…....…….2-7

2-2.8 Printer Connector.….….….….……..….…....….…….…...2-7

2-2.9 Floppy Drive Connector…….….….……......................…2-8

2-2.10 IDE Hard Disk and CD-ROM Connector..…….…….……2-8

2-2.11 IrDA Connector…….….………………………........…...…2-9

2-2.12 Wake On LAN Connector….….….……....…....……..…..2-10

2-3 System Memory Installation .......……….………..2-10

2-3.1 Type .............………………………….........….…………2-11

2-3.2 Speed ..……….……………………………………………2-11

2-3.3 Buffered and Non-buffered ..……..........….....….…...…2-11

2-3.4 2-clock and 4-clock Signal….……..….…...……….....…2-12

2-3.5 Parity and Non-parity………....……...………….........….2-12

2-3.6 Memory Auto detection by BIOS …....….…………….…2-12

2-3.7 Suggested SDRAM combination ….........…...………….2-12

2-4 Game/Audio Connector……........…………………………...2-13

SECTION 3: CMOS SETUP UTILITY

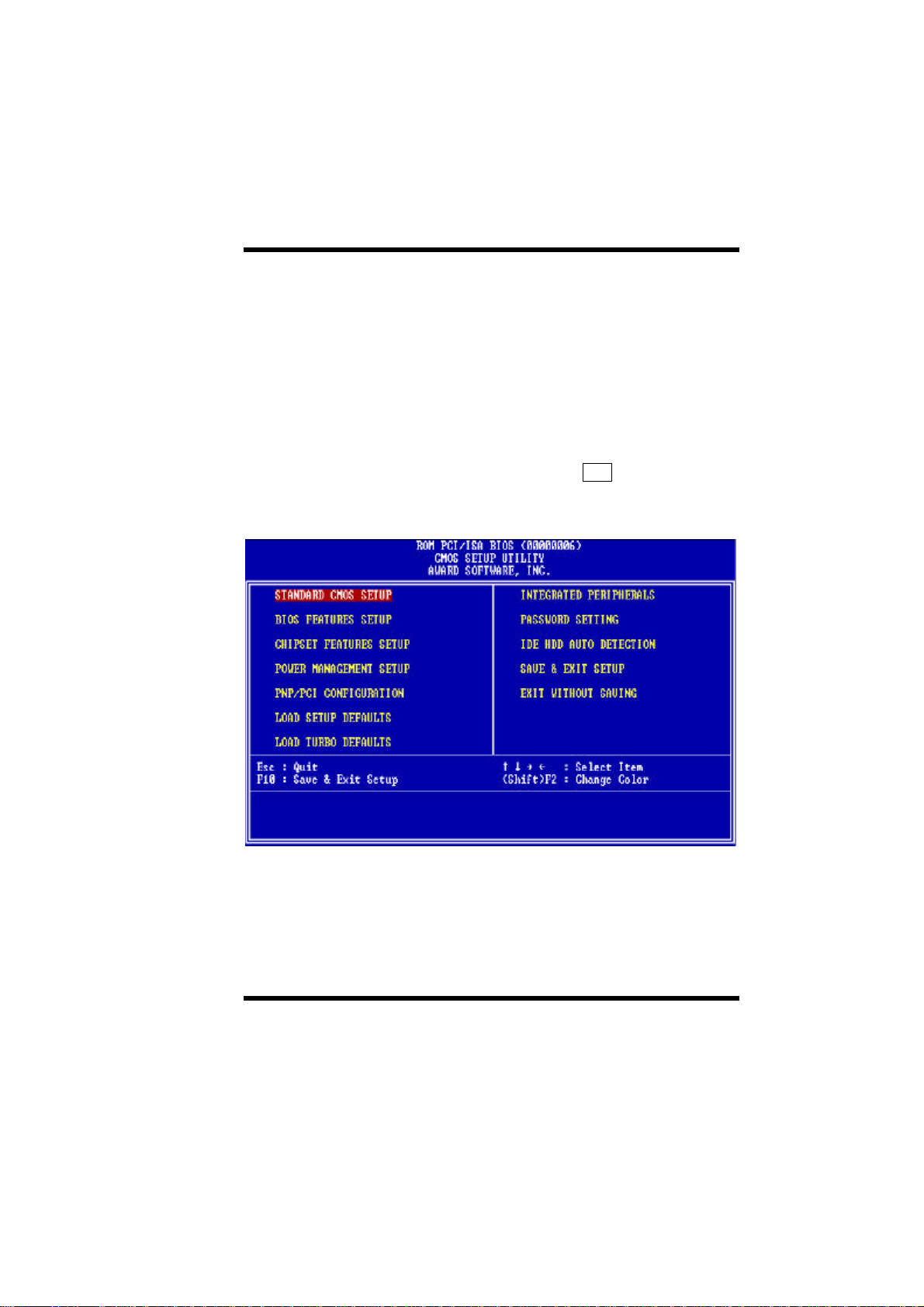

3-1 BIOS Setup Main Menu ..............................3-1

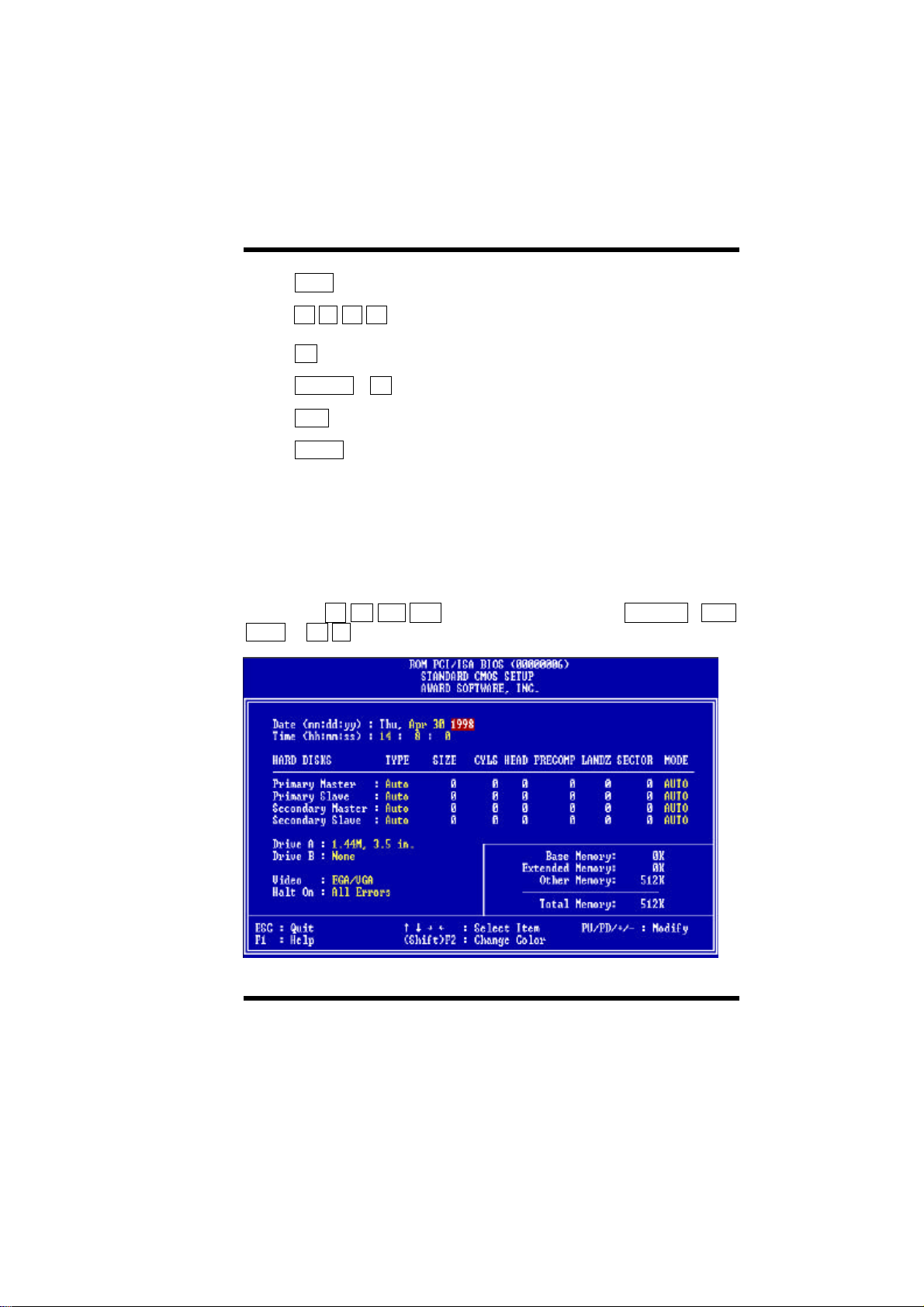

3-2 Standard CMOS Setup...............................3-2

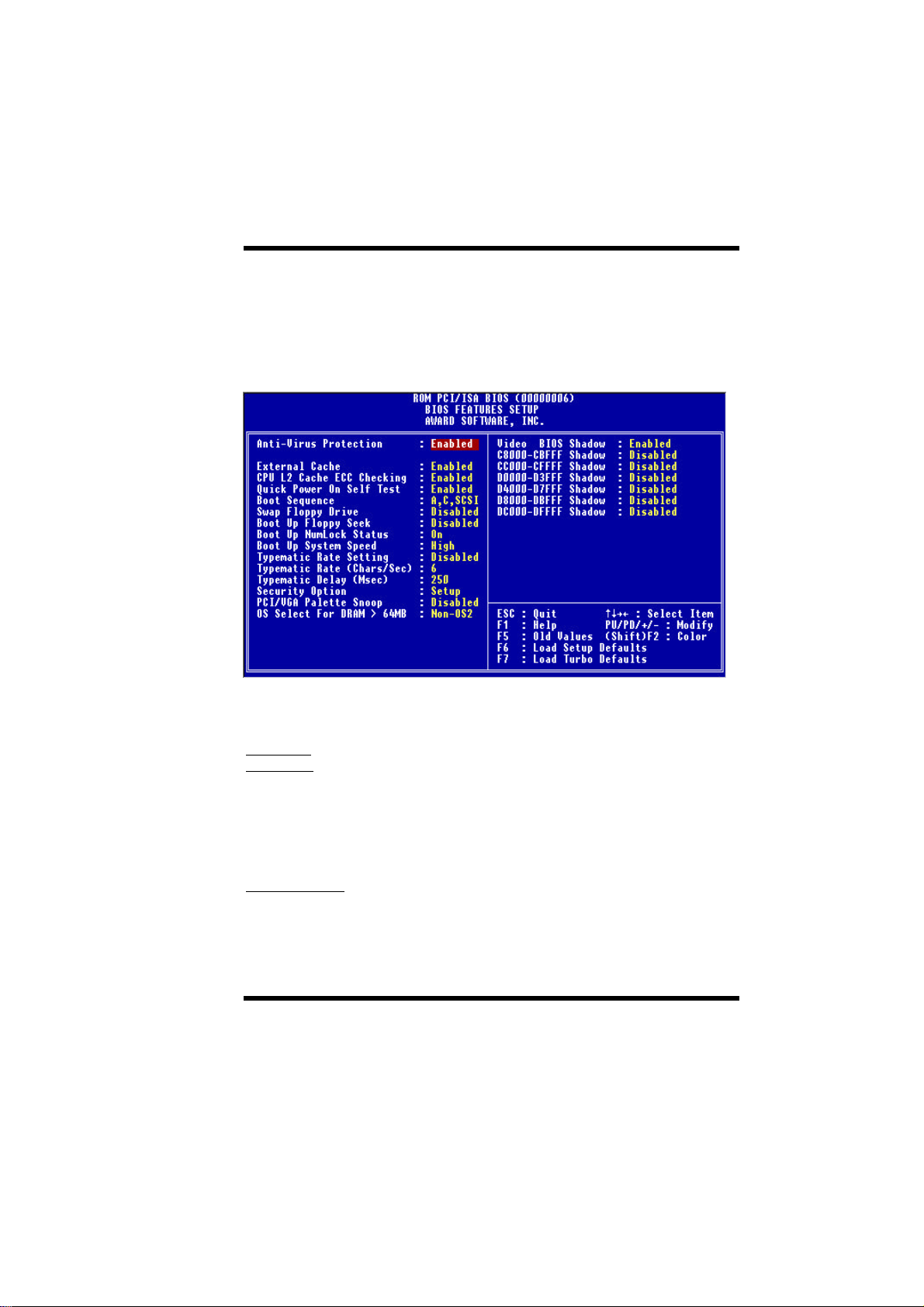

3-3 BIOS Features Setup .................................3-5

3-4 Chipset Features Setup.............................3-9

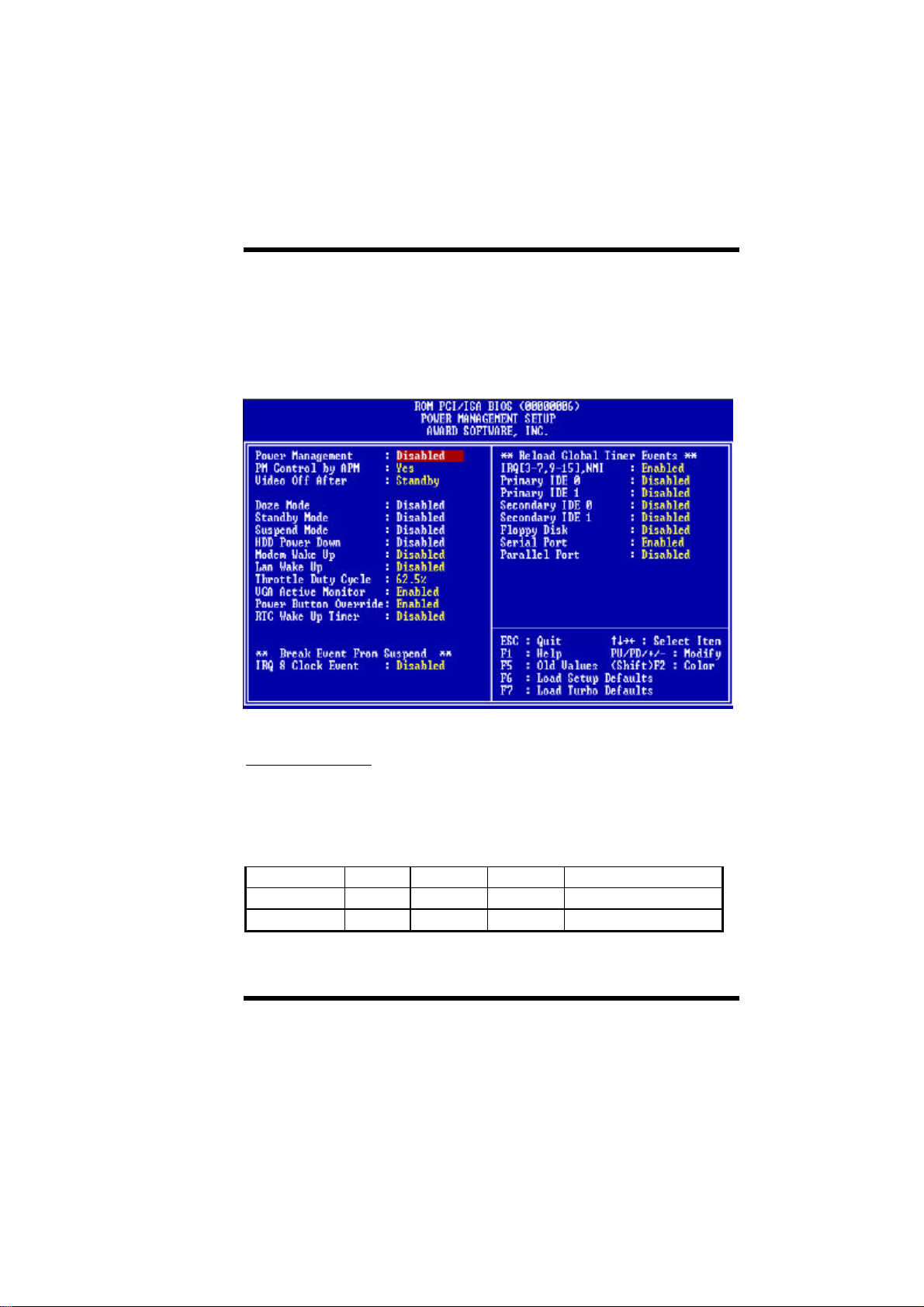

3-5 Power Management Setup.......................3-14

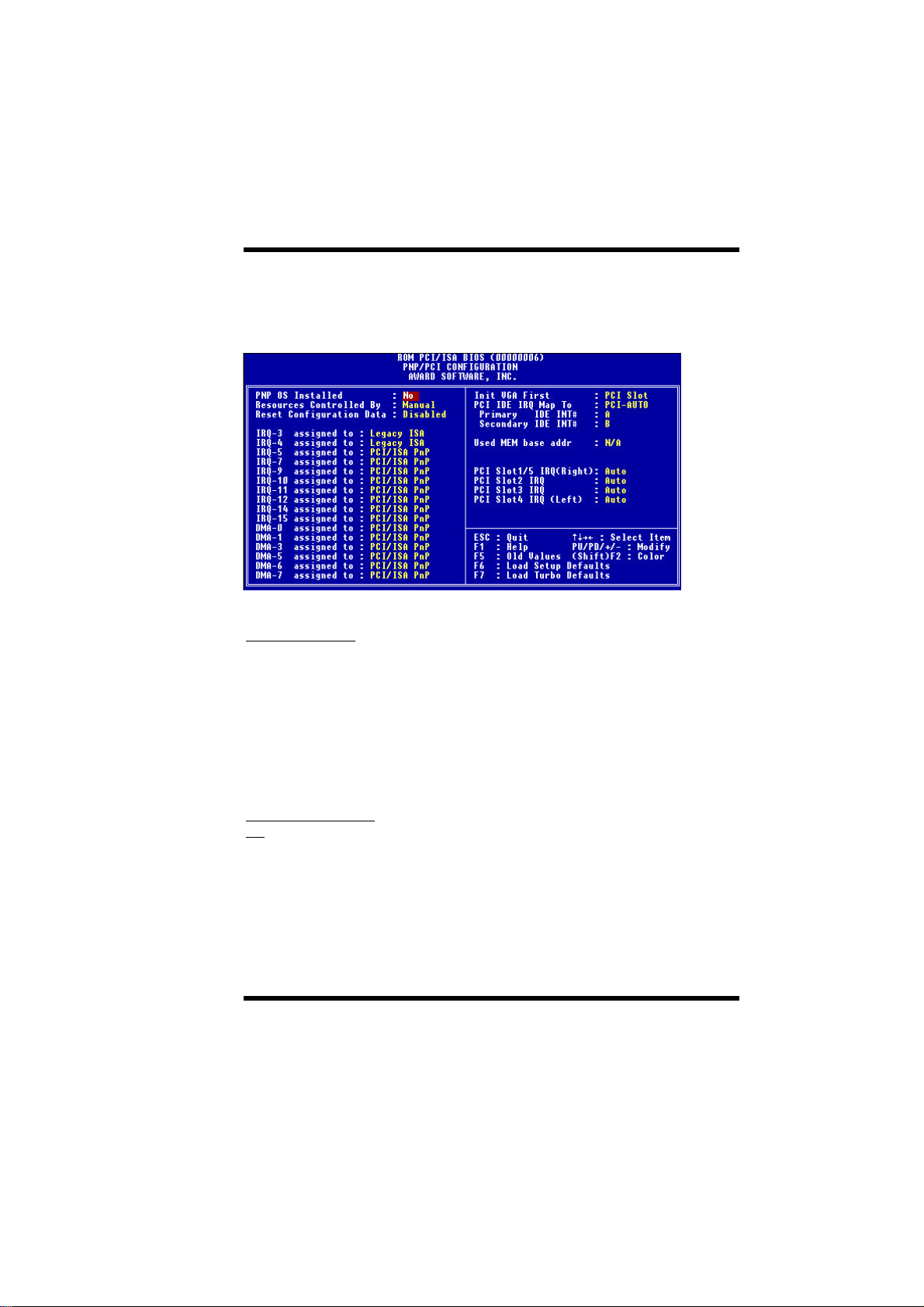

3-6 PNP/PCI Configuration Setup .................3-20

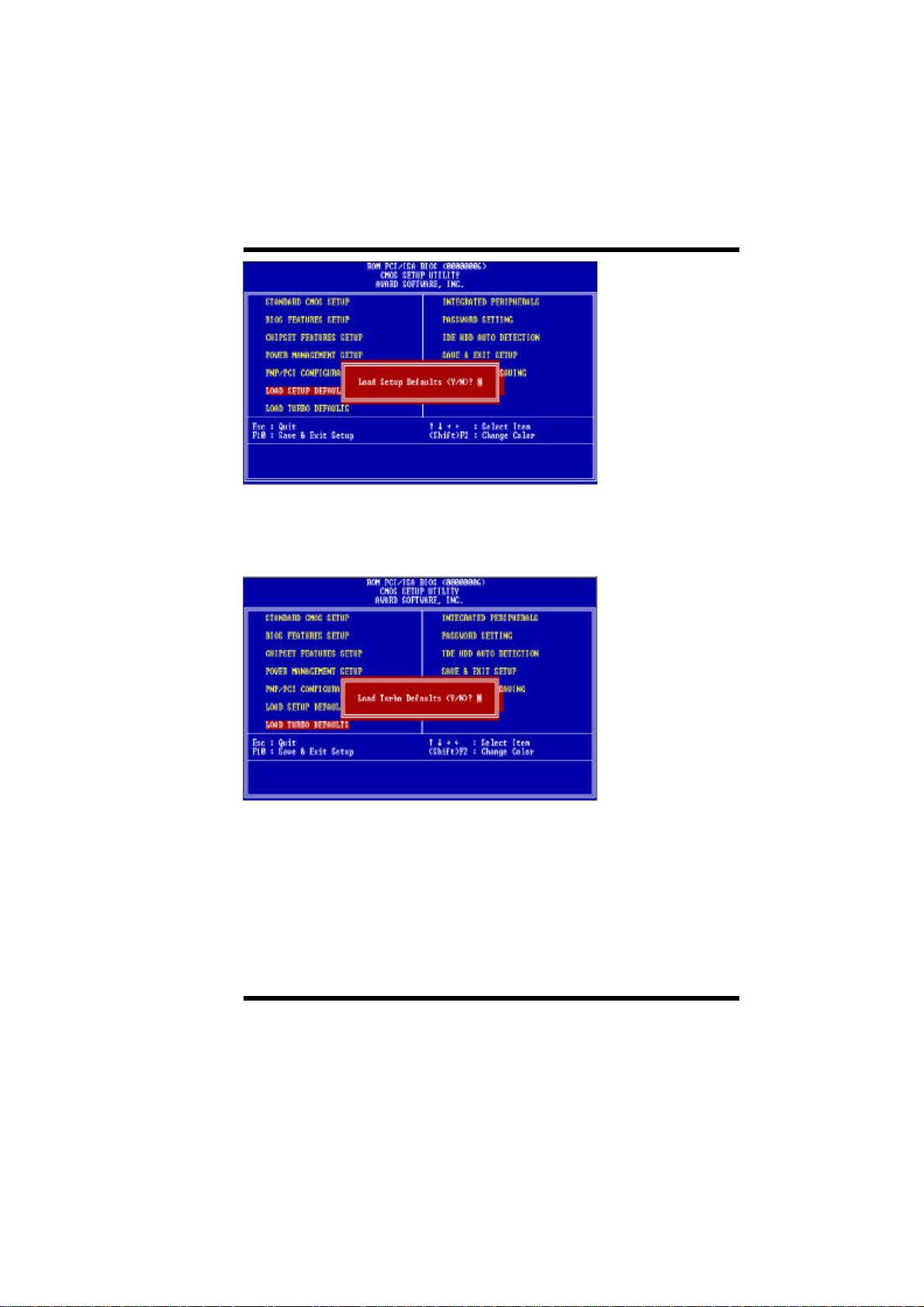

3-7 Load Setup Defaults ................................3-23

3-8 Load Turbo Defaults................................3-24

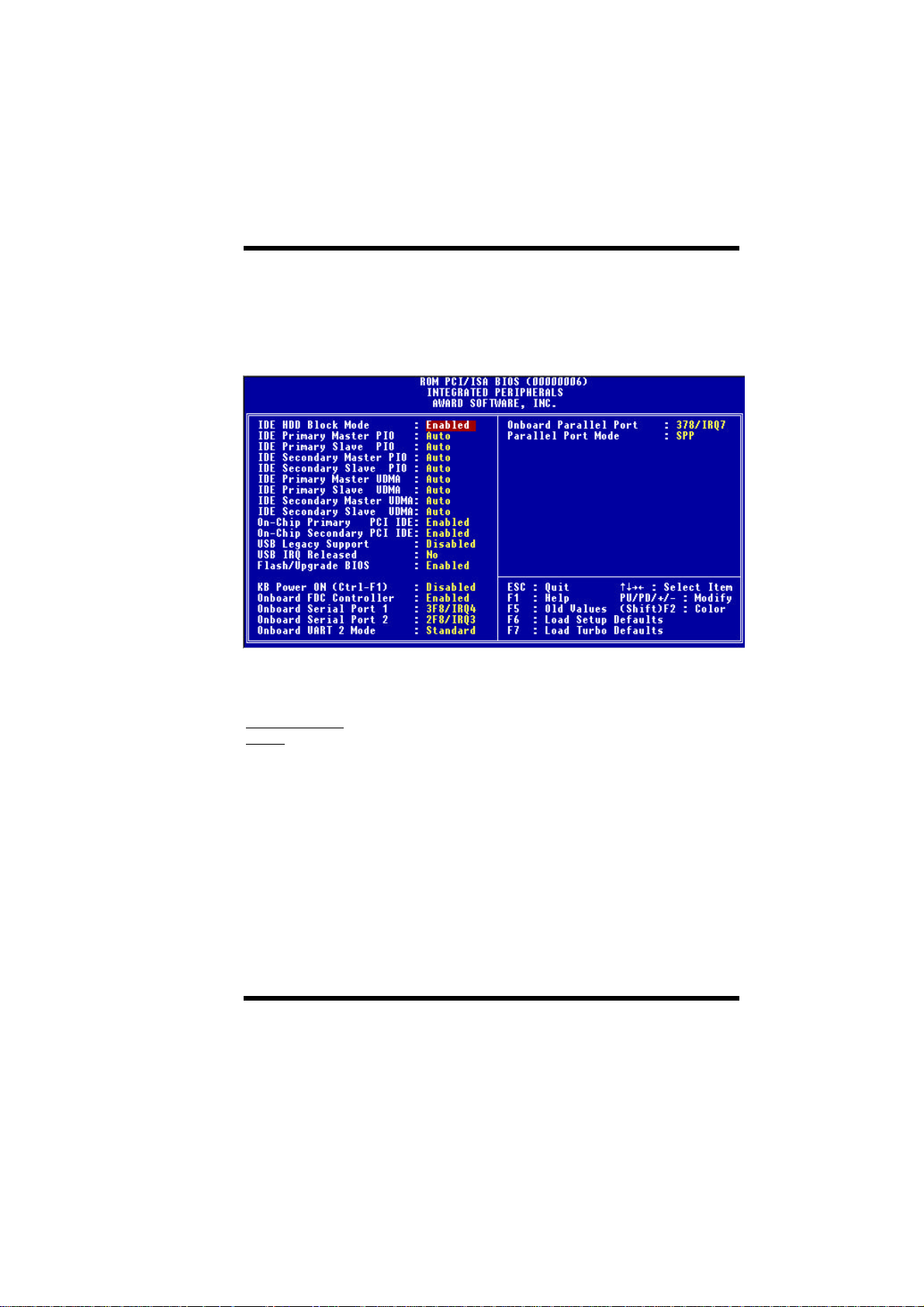

3-9 Integrated Peripherals .............................3-25

V

3-10 Password Setting………................…..……3-30

3-11 IDE HDD Auto Detection…....….…..……….3-31

3-12 Save & Exit Setup………..........….….…..….….3-31

3-13 Exit without Saving……..……...…….….………...3-31

SECTION 4: SOFTWARE UTILITY

4-1 Flash Utility flash.exe.................................4-1

4-2 BIOS Flash/Upgrade Protection ......……..…....4-2

4-3 Install Win95 Bus Master IDE

(Ultra DMA/33)Driver……….....…………….………………………….4-2

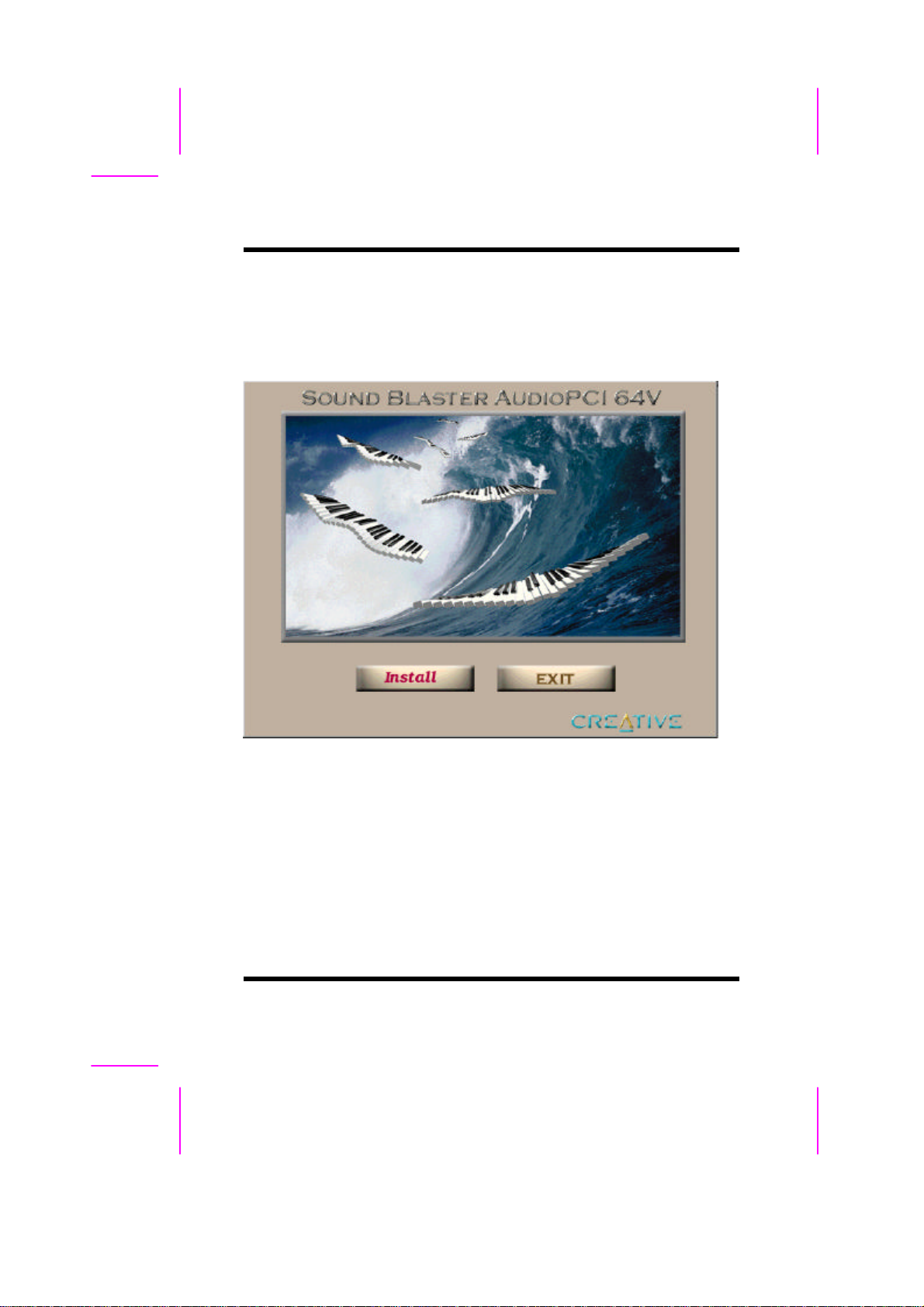

4-4 Audio Driver/Utility………………......….…..………………………..4-2

VI

SECTION 1.
PRODUCT INFORMATION

Thanks for purchasing this IBBP Slot-1ATX mainboard.
This user’ s manual contains all the information and features that show you

how to use the mainboard. Please take a moment to familiarize yourself
with the design and organization of this manual.

1-1 Manual Features

This manual is divided into the following four sections:

Section 1: Product Information

A brief overview of what comes in the mainboard package, the mainboard
layout and the specification it appears.

Section 2: Hardware Installation

Tell you the usage of the mainboard jumpers and the connectors.

Section 3: CMOS Setup Utility

A summary of the mainboard CMOS (BIOS) Setting.

Section 4: Software Utility

Introduction of some useful mainboard software utilities.

1-2 Package Check List

This mainboard package contains the following items. Please inspect the
package contents and confirm that everything is there. If anything is
missing or damaged, call your vendor for instructions before operating.

The package includes:

IBBP ATX Mainboard User’s Manual

<1-1>

I. PRODUCT INFORMATION

l One Pentium II IBBP Mainboard
l One Pentium II Retention Module
l One Floppy Interface Cable
l One IDE Interface Cable
l One Motherboard Resource Kit CD Title
l One User’ s Manual

1-3 Mainboard Specification

Form Factor
Board Size
CPU

System Memory

Chipset
System Bus/FSB

Expansion Slots

l ATX form factor
l 30.5 cm x 18 cm
l Standard CPU supported with Jumperless BIOS

Setup:

- Pentium II/Celeron: 233 ~ 450 MHz with

- Pentium III (Katmai): 450 ~ 500MHz
l Jumperless Overclock:

- Supports CPU Clock Ratio:

1.5/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7.0
/7.5/8.0x

- Supports CPU Clock Frequency:

66.8/75.0/83.3/100/103/112/115/120/124/133
/140/150MHz

l DIMM 168-pin x 3 , SDRAM maximum 768MB
l Supports 64M-bit SDRAM technology
l Intel 440BX AGP Chipset
l 66/100MHz
l 75/83.3/103/112/115/120/124/133/140/150MHz

(Available for over-clocking)

l 1 x AGP bus
l 2 x ISA bus

IBBP ATX Mainboard User’s Manual

<1-2>

I. PRODUCT INFORMATION

Serial Port

Parallel Port

Floppy Interface

IDE Interface

USB Interface

PS/2 Mouse
Keyboard
Fuse
RTC and Battery

Wake Up Function

Synchronous
Switching Regulator

Hardware Monitor
(Optional)

l 4 x PCI bus with Bus master mode
l Two serial ports UART 16C550 compatible
l Sets serial port 2 to operate in normal mode , IrDA or

ASKIR

One parallel port supports :

l SPP-standard parallel port
l EPP-enhanced parallel port
l ECP-extended capabilities port

Supports drives inches/format with:

l 3.5 inches—720KB/1.44MB/2.88MB
l 5.25 inches—360KB/1.2MB
l Dual PCI IDE interface support up to 4 x IDE HDD or

CDROM

l Supports PIO mode4 , DMA mode2 and Ultra DMA33
l Two USB ports supported
l USB legacy keyboard function supported
l PS/2 mouse supported by connector onboard
l PS/2 keyboard supported by connector onboard
l Supports recoverable fuse for USB and KB/Mouse
l RTC build in chipset (south bridge PIIX4)
l Lithium (CR-2032) battery
l Modem ring wake up
l LAN wake up
l RTC Alarm wake up
l High efficient synchronous switching regulator for

CPU core voltage from 2.0V to 3.5V

l Supports over-voltage / over-current protection

function

l Fan speed monitor—Two fan connectors , warning w

hen CPU or Housing fan is malfunction

l Voltage monitor—Warning when system voltage

(5V,12V,3.3V,VCORE) are abnormal

IBBP ATX Mainboard User’s Manual

<1-3>

I. PRODUCT INFORMATION

Power Connector
Power On Function

BIOS

LED Indicator

Sound Function

l CPU and system thermal monitor—Warning when

CPU and system temperature is higher than a
predefined value

l Supports ATX(20-pin) power connector
l Panel switch power on
l Keyboard power on
l Award BIOS
l Year 2000 Compliance
l PCI 2.1 Compliance
l PnP BIOS v1.0a Compliance
l APM v1.2 Compliance
l DMI 2.0 compliance
l Flash/Upgrade BIOS protection
l Supports ACPI (Advanced Configuration and Power

Interface) and OS Directed Power Management

l Supports SOFT power
l Anti-Virus Boot Protection
l Floppy drive swapping function supported
l System power LED
l HDD activity LED
l Suspend LED (Green LED)
l Integrated Creative 1373 PCI 3D Audio

- Sound Blaster PCI Audio

- AC97 Interface Compliance

- Microsoft PC97/PC98 Compliance

- 3D Positional Audio Supported

IBBP ATX Mainboard User’s Manual

<1-4>

I. PRODUCT INFORMATION

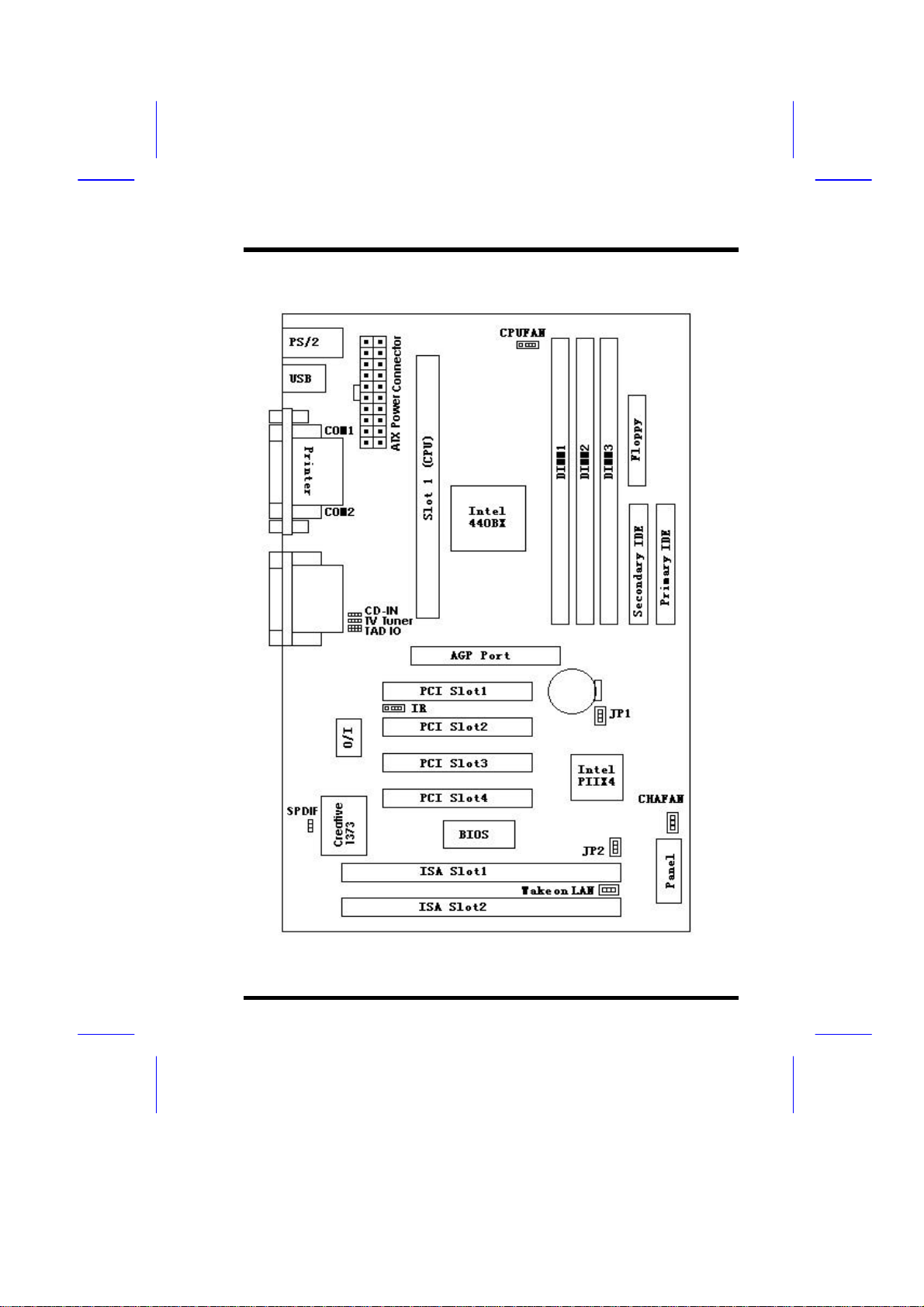

1-4 Mainboard Layout

IBBP ATX Mainboard User’s Manual

<1-5>

Jumpers

I. PRODUCT INFORMATION

1. JP1

2. JP2

Expansion Sockets

1. DIMM 1

2. DIMM 2

3. DIMM 3

Expansion Slots

1. CPU

2. ISA Slot 1 & Slot 2

3. PCI Slot 1 to Slot 4

Connectors

1. PS/2 KB

2. PS/2 Mouse

3. USB

4. COM1/COM2

5. PRINTER

6. ATX POWER

7. CPUFAN

8. CHAFAN

9. Floppy

10. Primary IDE

11. Secondary IDE

12. IR

13. Wake on LAN

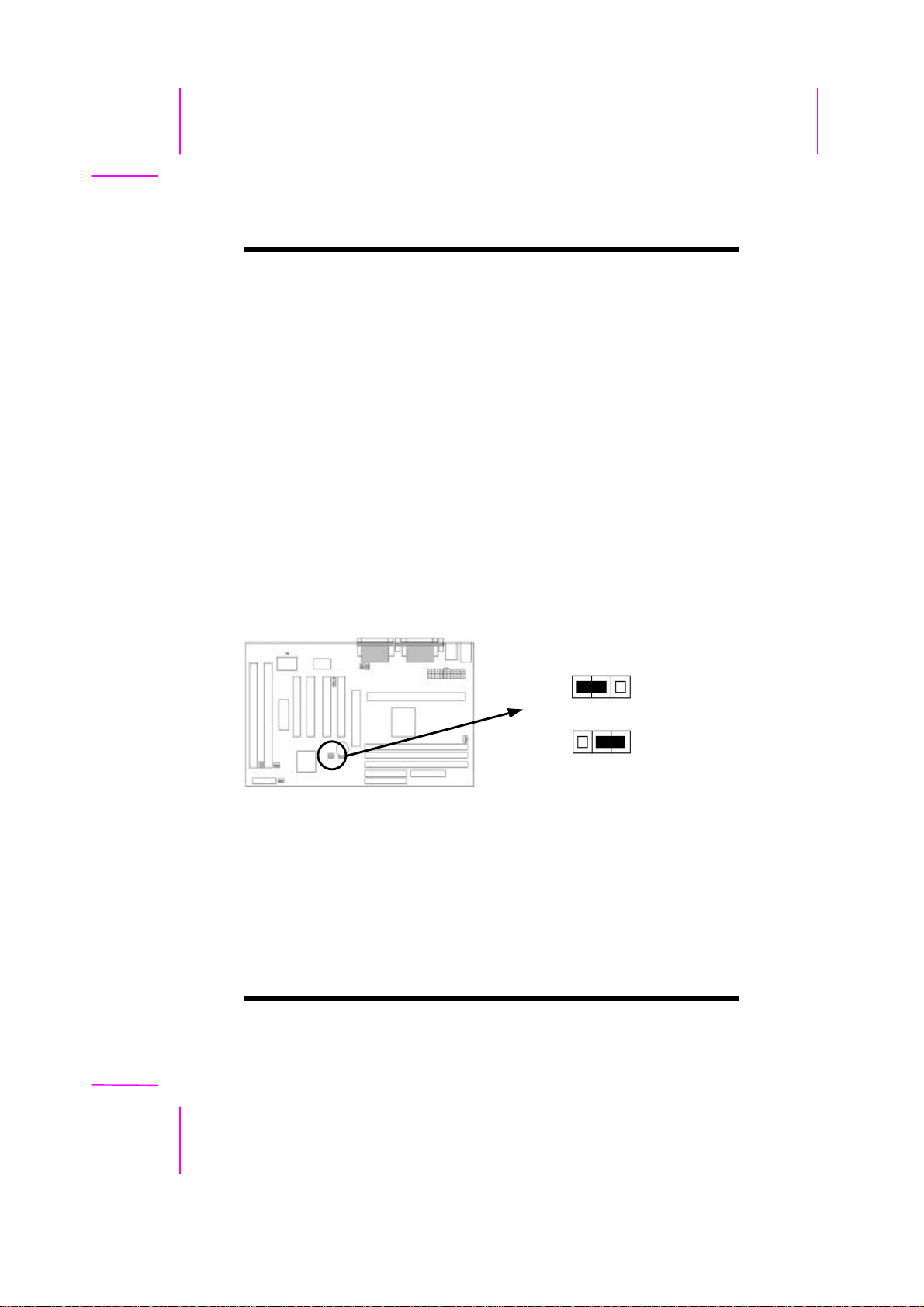

Clear CMOS (Real Time Clock)
Power On Mode

(Keyboard Power On / Panel Switch Power On)

Support 168-pin DIMM Memory
Support 168-pin DIMM Memory
Support 168-pin DIMM Memory

Slot 1 for supporting Pentium II/ Pentium III /
Celeron CPU

16-bit ISA Bus Expansion Slot
32-bit PCI Bus Expansion Slot

PS/2 Keyboard Connector (6-pin female)
PS/2 Mouse Connector (6-pin female)
Universal Serial Bus Port 1 and Port 2
(two 4-pin female)
Serial Port 1 / Serial Port 2 (two 9-pin female)
Printer (Parallel) Port Connector (25-pin female)

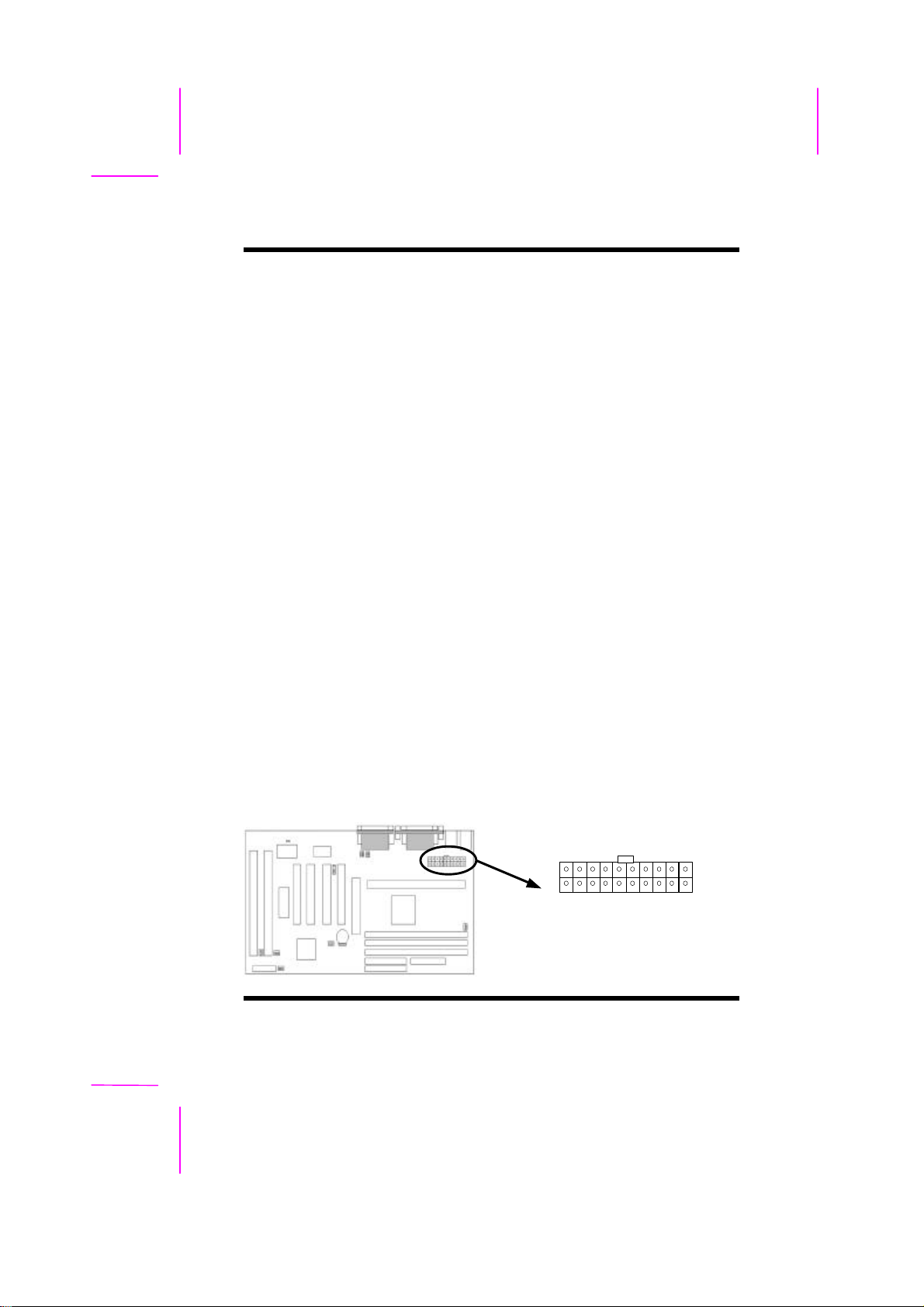

ATX Mainboard Power Connector (20-pin block)
Pentium II CPU Fan Connector (3 pins)
Chassis Fan Connector (3 pins)

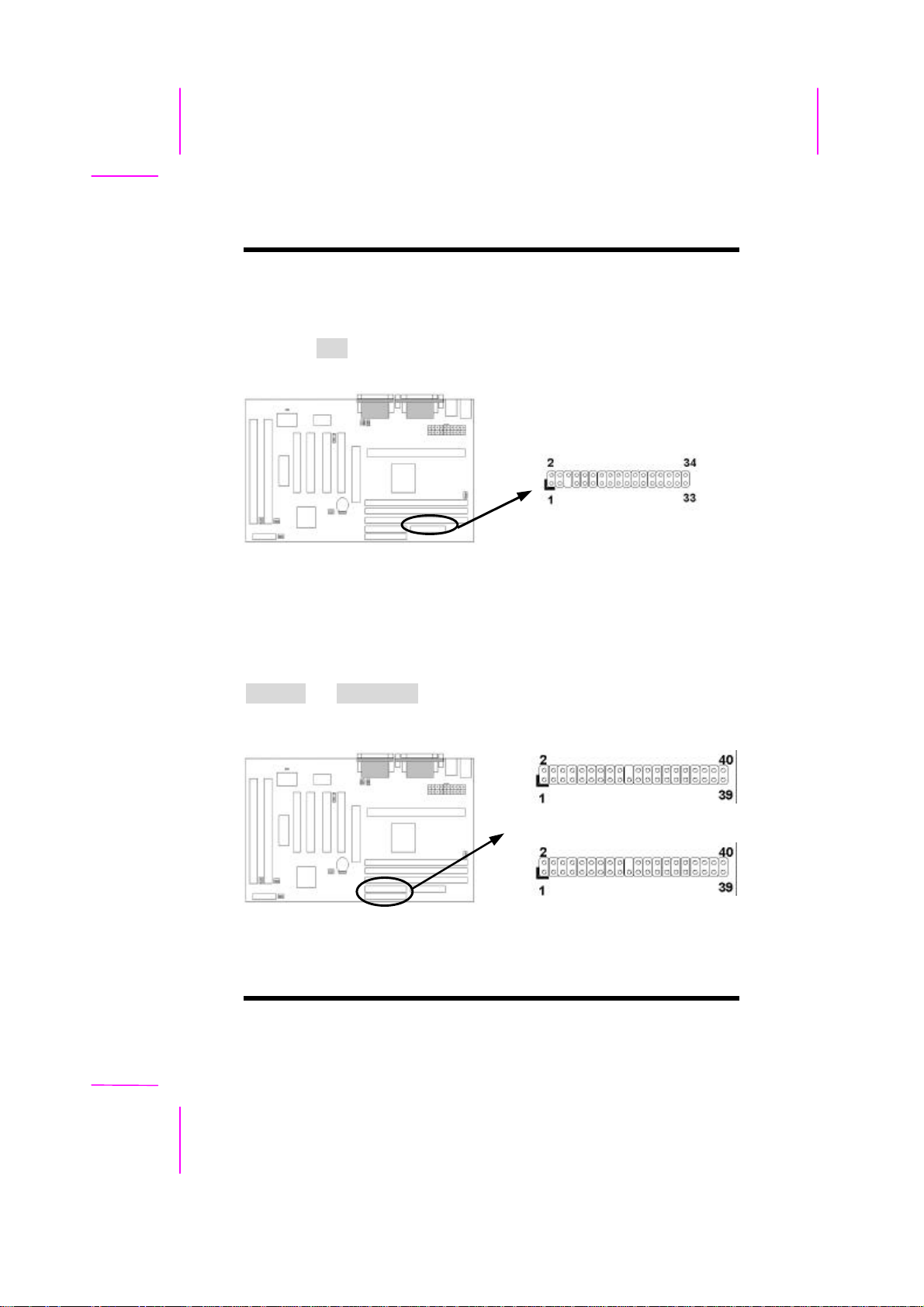

Floppy Drive Connector (34 pins)
Primary IDE Connector (40 pins)
Secondary IDE Connector (40 pins)
Infrared Port Connector (5 pins)
LAN wake up connector

IBBP ATX Mainboard User’s Manual

<1-6>

I. PRODUCT INFORMATION

14. Panel:

- PWR LED

- KBLCK

- SLP

- SPEAKER

- GRN LED

- HDD LED

- RESET

- PWR ON

15. Audio/Game:

- Line-In

- Line-Out

- MIC

- Game Port

- CD-In

- SPDIF-Out

(Optional)

- TAD IO

(Optional)

- TV Tuner

(Optional)

ATX Power LED Connector (3 pins)
Keyboard Lock Switch Connector (2 pins)
Suspend Switch Connector (2 pins)
Chassis Speaker Connector (4 pins)
Green Status LED Connector (3 pins)
HDD LED Connector (4 pins)
Reset Switch Connector (2 pins)
ATX Power Switch Connector (2 pins)

Audio Line In Connector
Audio Line Out Connector
Microphone Connector
Game Port Connector
CD Audio In Connector
Support digital audio to external speaker or

compressed AC3 data to an external Dolby Digital
Decoder

Support Voice Modem (Phone-In/ Mono-Out)

Support TV Card (Audio-Out)

IBBP ATX Mainboard User’s Manual

<1-7>

SECTION 2.
HARDWARE INSTALLATION

This section gives you a step-by-step procedure on how to install your
system. Follow each section accordingly.

2-1 Jumper Settings

Please refer the following figures for the locations of the jumpers on the
mainboard.

2-1.1 CMOS Clear Setting

JP1 CMOS

1 2 3

1 2 3

To clear CMOS, please follow the steps below:

1. Power off the system and unplug the chassis AC power cord.

2. Short JP1 at pin 2-3 for few seconds.

3. Set JP1 back to its Normal position at pin 1-2.

4. Plug the AC power cord to the chassis.

5. Power on the system and load the BIOS setup default.

IBPP ATX Mainboard User’s Manual

<2-1>

Default
(Normal)

Clear CMOS

II. HARDWARE INSTALLATION

2-1.2 CPU Type Setting

This mainboard supports jumperless CPU type setting, no jumper or switch is
needed. Select your CPU Type under “CHIPSET FEATURES SETUP” in
BIOS (CMOS) Setup Menu.

The Intel Pentium II CPU currently available in the market are listed as below:

CPU Type CPU Clock Ratio CPU Clock Frequency

233MHz 3.5x 66MHz
266MHz 4.0x 66MHz
300MHz
333MHz
350MHz
400MHz
450MHz
500MHz

This mainboard also supports CPU over-clocking by adjusting the CPU Clock
Frequency and CPU Clock Ratio under BIOS Setup.

4.5x

5.0x

3.5x

4.0x

4.5x

5.0x

66MHz
66MHz
100MHz
100MHz
100MHz
100MHz

System Frequency = CPU Clock Ratio * CPU Clock Frequency

The available settings are:

- CPU Clock Frequency

66 / 68.5 / 75 / 83.3 / 100 / 103 / 112 / 115 / 120 / 124 / 133 / 140 / 150MHz

- CPU Clock Ratio

1.5x / 2x / 2.5x / 3x / 3.5x / 4x / 4.5x / 5x / 5.5x / 6x / 6.5x / 7x / 7.5x / 8x

Warning: At this moment, Intel Pentium II CPU normally supports 66/100MHz
CPU Clock Frequency, the other CPU Clock Frequency 75.0/83.3//103/112/
115/120/124/133/140/150MHz are available only for internal test or end-user
over-clocking testing, which may cause your system unstable or serious
damage.

IBBP ATX Mainboard User’s Manual

<2-2>

II. HARDWARE INSTALLATION

+

+-+

-

++-+--+

2-1.3 Power On Mode

JP2 Power On Mode

The mainboard supports two kinds of system power on mode, panel switch
power on (PAN SW. PWR ON) mode and keyboard power on (KB PWR ON)
mode. Set JP2 at pin 1-2 to use power switch/button to power on your system.

If you want to use the “Keyboard Power On” function, make sure you have a
300mA/+5VSB or above ATX power supply and the supporting mainboard
BIOS. Set JP2 at pin 2-3 to enable the keyboard power on mode.

3

PAN SW. PWR ON

2

(Default)

1

3

KB PWR ON

2
1

2-2 Connectors

2-2.1 Panel Connector

GRN
LED

KB
LCK

HDD
LED

SLP

SPEAKER

RESET

PWR

ON

IBBP ATX Mainboard User’s Manual

PWR
LED

<2-3>

II. HARDWARE INSTALLATION

- PWR LED

- KBLCK

- SLP

- SPEAKER

- GRN LED

- HDD LED

- RESET

- * PWR ON

* PWR ON: ATX Power Switch and Suspend Switch Connector

Attach the ATX power button or suspend switch cable to this connector.
In the ATX power system, this connector will be not only an ATX power

button, but a suspend switch as well. Details are describes as below:
When the system is off, push the power button to turn the system on. When

the system is on, push the power button rapidly within 4 seconds to switch the
system to the suspend mode, and, by pushing and holding the button for
more than 4 seconds, it will turn the system completely off. When the system
is in the suspend mode, push the power button rapidly to turn the system on.

When the system is in suspend mode, the GRN LED will flash. And when the
system is in normal working mode, the GRN LED will not work.

ATX Power LED Connector (3 pins)
Keyboard Lock Switch Connector (2 pins)
Suspend Switch Connector (2 pins)
Chassis Speaker Connector (4 pins)
Green Status LED Connector (3 pins)
HDD LED Connector (4 pins)
Reset Switch Connector (2 pins)
ATX Power Switch Connector and Suspend Switch

Connector (2 pins)

2-2.2 Power Connector

Connect the 20-pin ATX power supply cable to this power connector. Make
sure the right plug-in direction and the power supply is off before connecting
or disconnecting the power cable.

ATX Power Connector

IBBP ATX Mainboard User’s Manual

<2-4>

II. HARDWARE INSTALLATION

+12v

Fan Connector

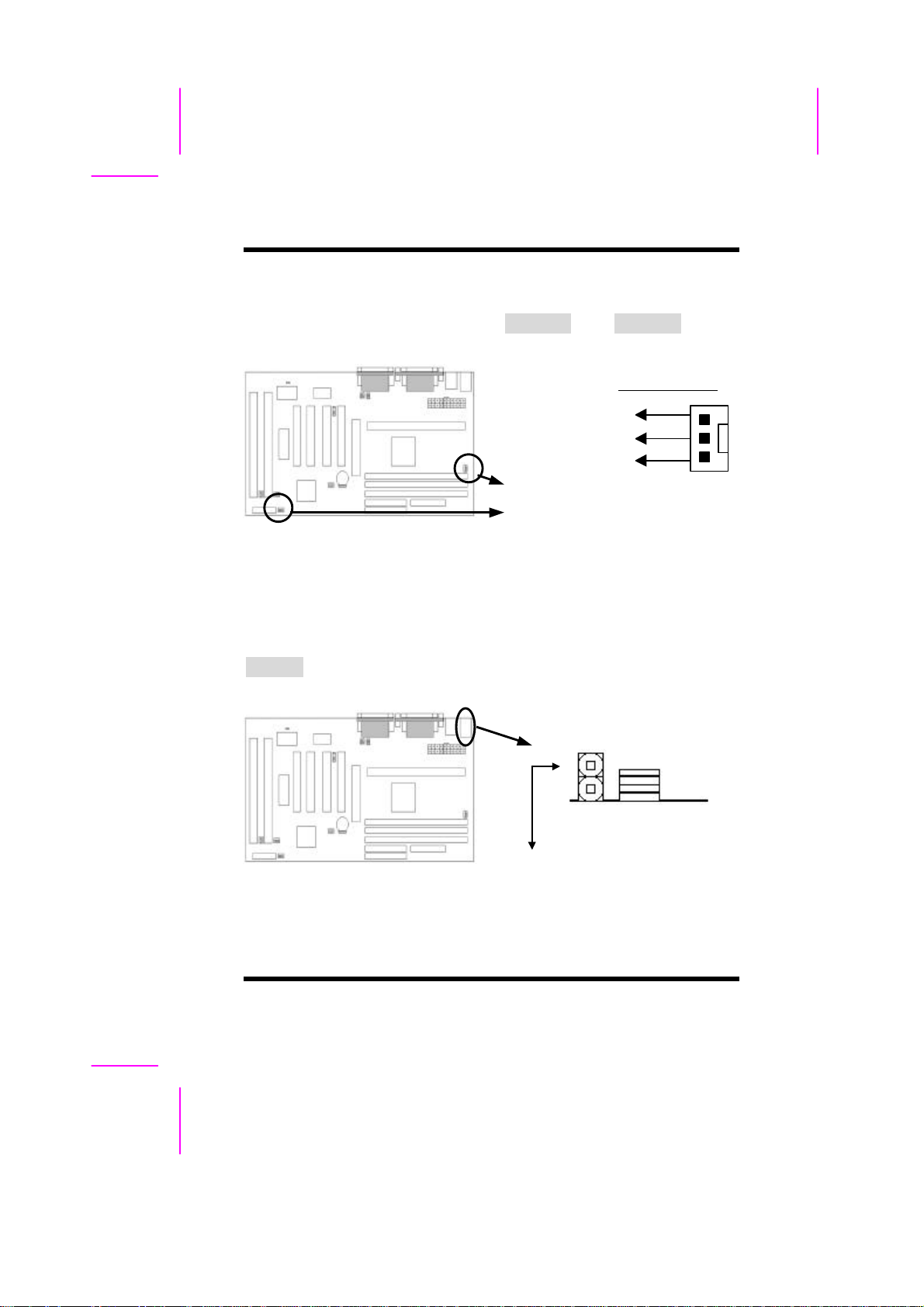

2-2.3 Fan Connectors

Connect the CPU and Chassis Fan cables to the fan connectors shown below.
The fan connectors are marked as: CPUFAN and CHAFAN on the
mainboard.

SENSE

GND

CPUFAN
CHAFAN

2-2.4 PS/2 Mouse Connector

Connect the PS/2 mouse to the onboard 6-pin Mini-Din connector marked as
MOUSE.

PS/2 Mouse

IBBP ATX Mainboard User’s Manual

<2-5>

II. HARDWARE INSTALLATION

2-2.5 Keyboard Connector

Connect the PS/2 keyboard to the onboard 6-pin Mini-Din connector marked
as KB.

PS/2
Keyboard

2-2.6 USB Device Connector

Connect your USB device(s) to the onboard USB connector marked as USB.

Top: USB1
Bottom: USB2

IBBP ATX Mainboard User’s Manual

<2-6>

II. HARDWARE INSTALLATION

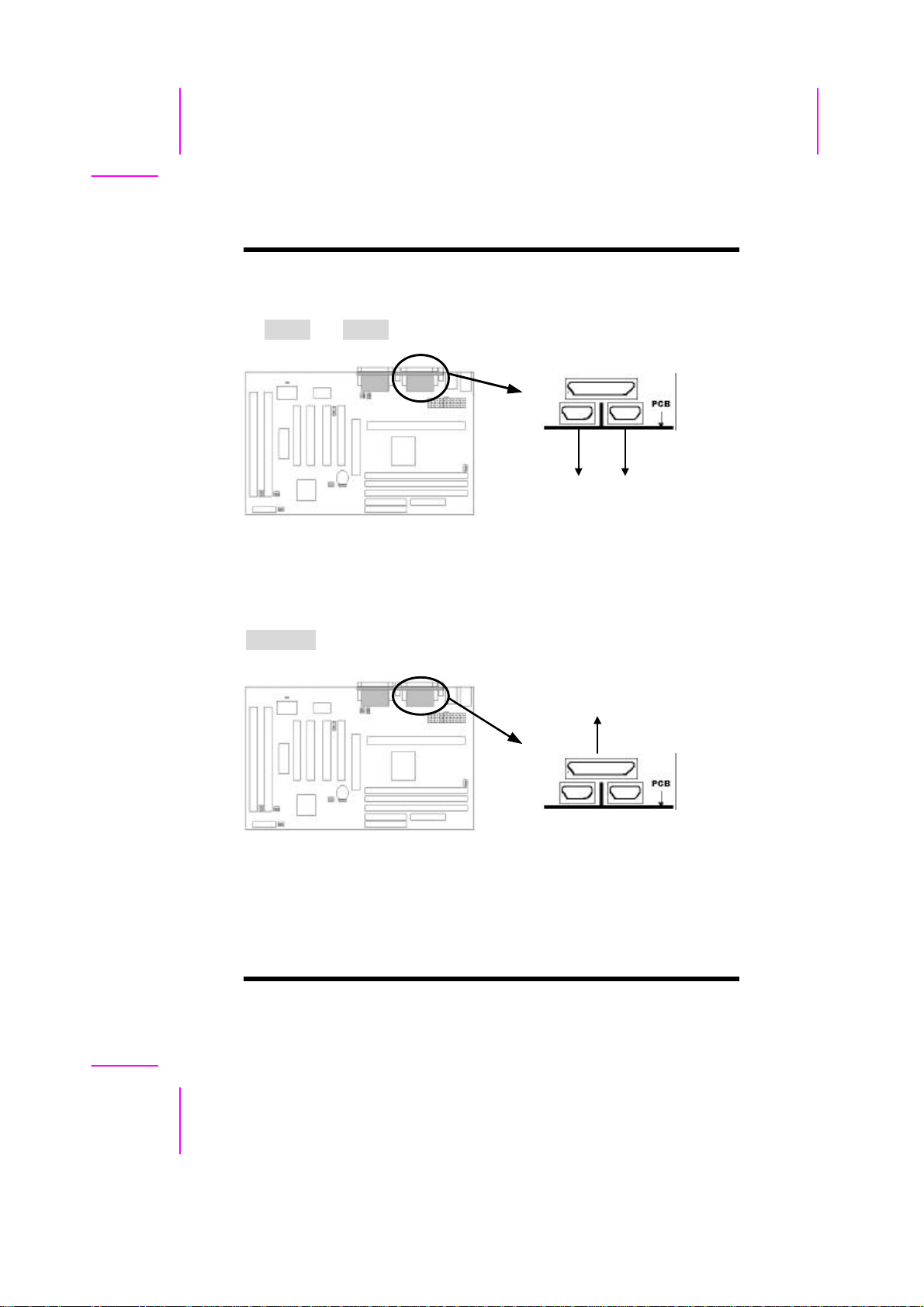

2-2.7 Serial Device(COM1/COM2) Connectors

Connect your serial device(s) to the onboard 9-pin serial connectors marked
as COM1 and COM2.

COM1 COM2

2-2.8 Printer Connctor

Connect your local printer to the onboard 25-pin printer connector marked as
PRINTER.

PRINTER

IBBP ATX Mainboard User’s Manual

<2-7>

II. HARDWARE INSTALLATION

FDD

2-2.9 Floppy Drive Connector

Connect the floppy drive cable to the onboard 34-pin floppy drive connector
marked as FDD.

2-2.10 IDE Hard Disk and CD-ROM Connector

Connect your IDE devices to the onboard 40-pin IDE connectors marked as
Primary and Secondary.

Secondary

Primary

IBBP ATX Mainboard User’s Manual

<2-8>

II. HARDWARE INSTALLATION

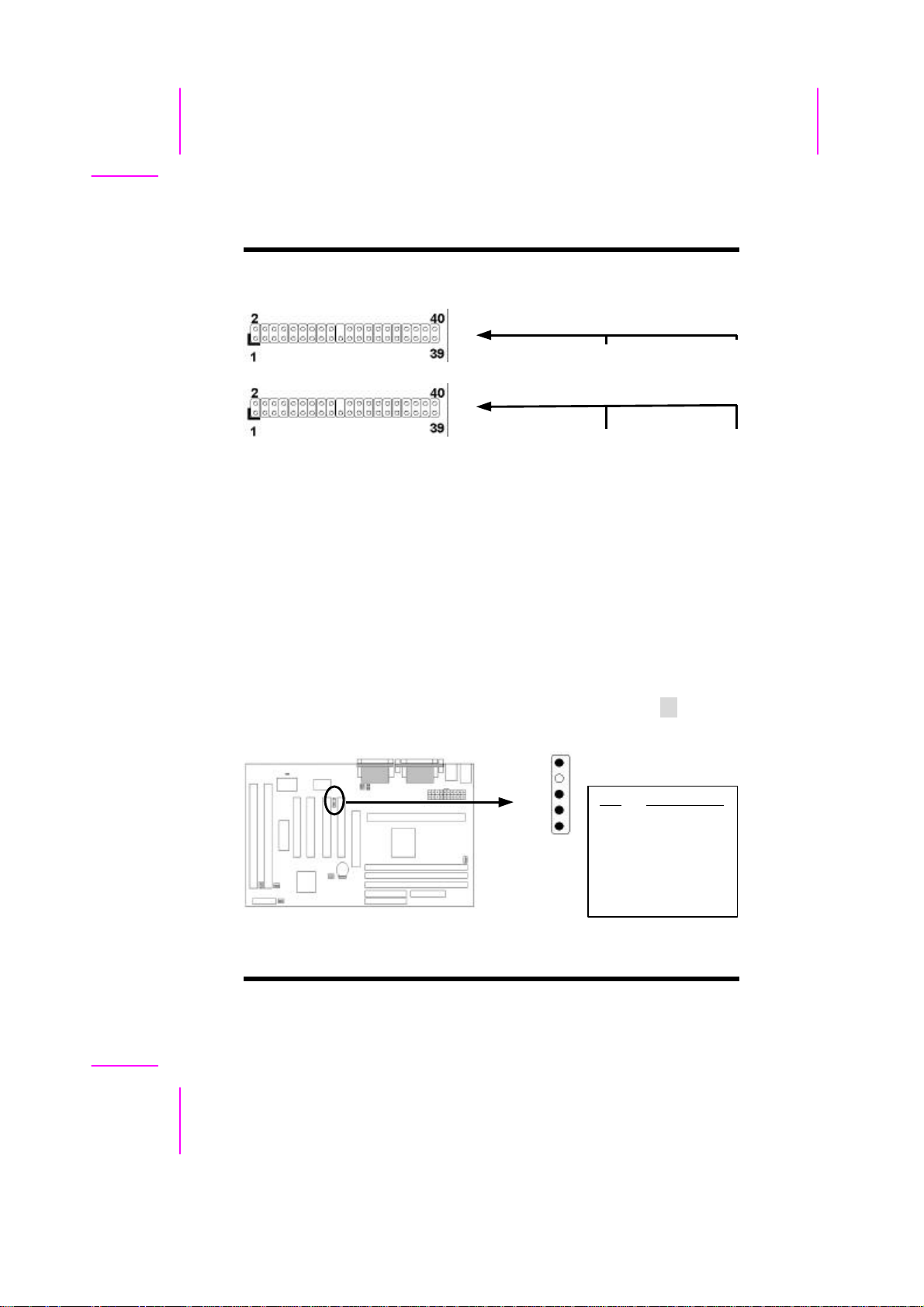

Secondary IDE Cable

Secondary

Primary

It is suggested that you connect the IDE devices to your IDE cables as the
figure shown above. Each IDE channel, either Primary or Secondary, supports
two IDE devices which must be set differently to master mode and slave
mode.

(Refer to your hard disk and CD-ROM user’ s manual for detailed settings of
IDE master and slave mode.)

Slave

Primary IDE Cable

Slave Master

Master

2-2.11 IrDA Connector

Connect your IR device to the onboard IrDA connector marked as IR.

1
2
3
4
5

IR

Pin Description

1 +5V
2 NC
3 IRRX
4 GND

5 IRTX

IBBP ATX Mainboard User’s Manual

<2-9>

II. HARDWARE INSTALLATION

2-2.13 Wake on LAN Connector

This mainboard supports wake up on LAN function. To use this function, you
need a Wake on LAN supported network card and software.

Wake on LAN

1 2 3

Pin Description

1 +5V Standby
2 GND
3 Signal

2-3 System Memory Installation

There are 3 pcs 168-pin DIMM (Dual Inline Memory Module) sockets on the
mainboard which support Synchronous DRAM and Registered SDRAM, and
allow you install system memory maximum up to 768MB.

DIMM Sockets

IBBP ATX Mainboard User’s Manual

<2-10>

II. HARDWARE INSTALLATION

2-3.1 Type

This mainboard supports Synchronous DRAM and Registered SDRAM.
However, mixing SDRAM and Registered SDRAM is not allowed. Install one
type only in your system for better compatibility.

2-3.2 Speed

The memory speed normally marked as: -15, -12, -10, -7, -8, PC-100.
The meaning is,

-15 = 15ns, and the maximum clock is 66MHz

-12 = 12ns, and the maximum clock is 83MHz

-10 = 10ns, and the maximum clock is 100MHz

-8 = 7ns, and the maximum clock is 125MHz

-7 = 8ns, and the maximum clock is 142MHz
PC-100 = New Intel specification for high memory speed
with 100MHz or above CPU Bus Clock.
This motherboard supports all the above memory speed. For better system

performance and reliability, we suggest that you use PC-100 SDRAM if
100MHz or above CPU Bus Clock is used in your system.

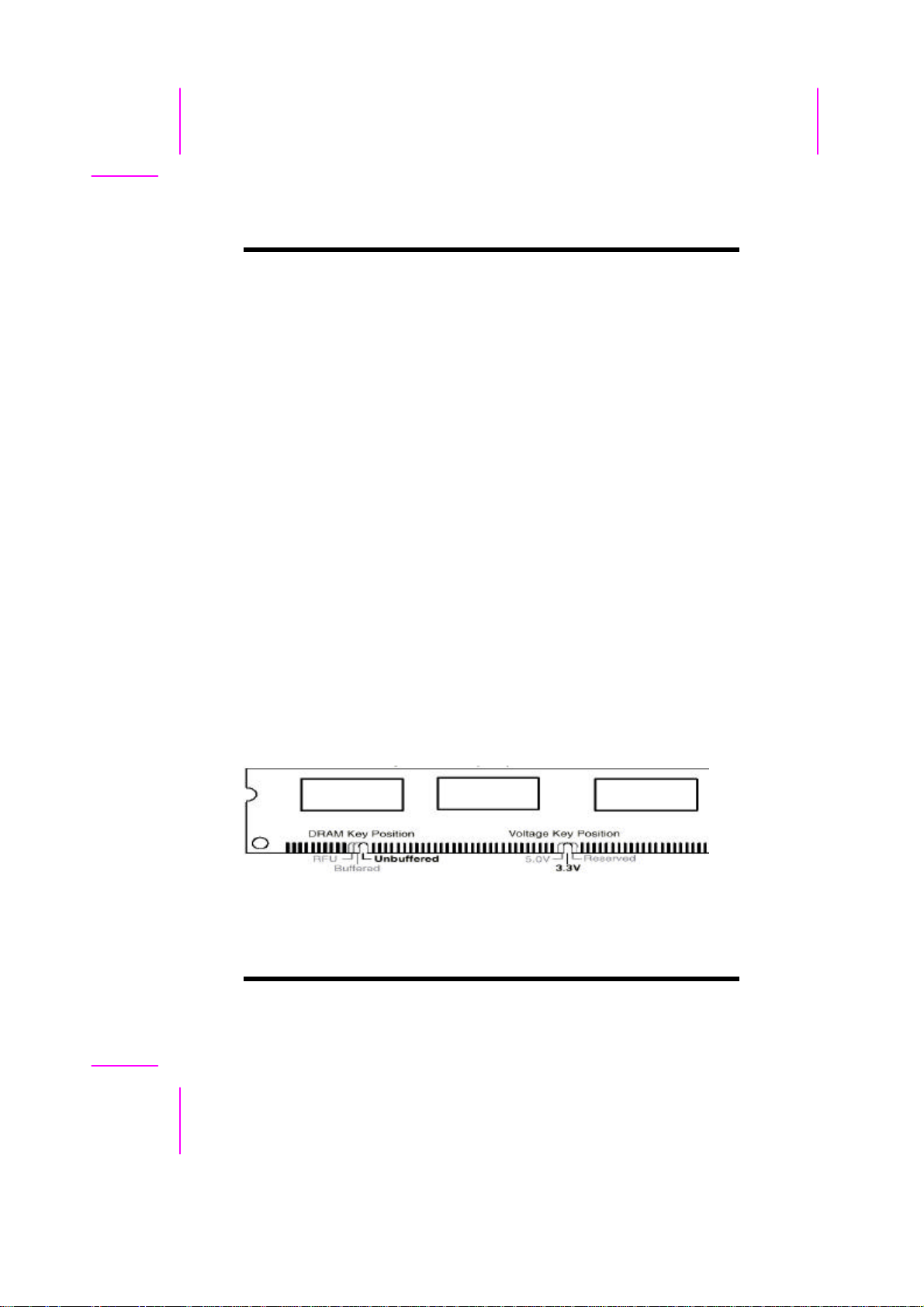

2-3.3 Buffered and Non-buffered

Only the non-buffered DIMM can be used in this mainboard.

The difference between buffered and non-buffered DIMM can be identified by
the notch position shown above.

IBBP ATX Mainboard User’s Manual

<2-11>

II. HARDWARE INSTALLATION

2-3.4 2-clock and 4-clock signal

Both 2-clock and 4-clock SDRAM DIMM supported by this mainboard.

2-3.5 Parity and Non-parity

This mainboard supports standard 64 bit (Non-parity) and 72 bit (Parity)
DIMM modules.

2-3.6 Memory Auto detection by BIOS

This mainboard BIOS can automatically detect the DIMM memory size and
type, so you do not need to adjust any hardware or software settings. The
maximum memory size supported up to 768MB.

2-3.7 Suggested SDRAM combination

This mainboard supports the following SDRAM combination.

DIMM Location

DIMM 1 SDRAM 8, 16, 32, 64 128,

DIMM 2 SDRAM 8, 16, 32, 64 128,

DIMM 3 SDRAM 8, 16, 32, 64 128,

Total Memory Size = DIMM1 + DIMM2 + DIMM3

DIMM Size Max. Memory Size

256MB

256MB

256MB

256MB

256MB

256MB
Total

System Memory

768MB

IBBP ATX Mainboard User’s Manual

<2-12>

II. HARDWARE INSTALLATION

TV Tuner (Optional)

TAD IO (Optional)

CD Audio In

2-4 Game/Audio Connector

Connect your audio devices to the audio connector as below.

Line

Line

MIC

Out

In

SPDIF
(Optional)

GAME PORT

IBBP ATX Mainboard User’s Manual

<2-13>

SECTION 3.
CMOS SETUP UTILITY

3-1 BIOS Setup Main Menu

This section tells you how to configure the system by changing BIOS setup
options. To enter the BIOS Setup Utility, press DEL key during POST
(Power-On Self Test). The BIOS Setup Main Menu will appear as shown
below.

The main menu displays a table of items which defines basic information
about your system. Below are the keyboard function keys you can use under
the menu.

Menu function keys:

IBBP ATX Mainboard User’s Manual

<3-1>

III. CMOS SETUP UTILITY

E S C
↑ ↓ ←

F 1
S H I F T + F 2
F 1 0
ENTER

To close the BIOS Setup Utility.
To move around the screen. An item is highlighted

→

if it is selected.
To displays information about the highlighted item

you selected.
To Change the color scheme.
To save the changes before exit the BIOS Setup

Utility.
To select or enter a submenu.

3-2 Standard CMOS Setup

This "Standard CMOS Setup" sets the basic system settings such as the date,
time, and the hard disk type, Video display type and error handling. Use the

arrows keys ↑
Down or + - to set the value for each item.

↓ ← →

to highlight an item and use Page Up / Page

IBBP ATX Mainboard User’s Manual

<3-2>

III. CMOS SETUP UTILITY

Ø Date

To set the date, highlight the date area. Press + / - or Page Up / Page

Down to set the current date. The date format is month: Jan. ~ Dec., date:
1 ~ 31, and year: 1994 ~ 2079.

Ø Time

To set the time, highlight the time area. Press + / - or Page Up / Page

Down to set the current time. The time format is hour: 00 ~ 23, minute: 00 ~
59, and second: 00 ~ 59.

Ø Hard Disks à Primary Master
Ø Hard Disksà Primary Slave
Ø Hard Disks à Secondary Master
Ø Hard Disks à Secondary Slave

TYPE:

- Auto

- User

- None

MODE:

- AUTO

- NORMAL

- LBA

- LARGE

This item lets you set your system IDE hard disk type.
Select Auto to let BIOS automatically detect the installed
hard disk when system boot up. Select User if you prefer
manually enter the hard disk type. The available
parameters are SIZE(HDD Size), CYLS(No. of Cylinder),
HEAD(No. of Head), PRECOMP(Pre-compensation),
LANDZ(Landing Zone), SECTOR(No. of Sector) and
MODE(HDD Mode). Select None if there is no hard disk
connected to the system.

Default: Auto

Select NORMAL for IDE HDD smaller than 528MB.
Select LBA for IDE HDD over than 528MB and support
LBA(Logical Block Addressing) mode. Select LARGE
for IDE HDD over than 528MB and do not support LBA
mode.

Note: We recommend that you set both IDE HDD
TYPE and MODE to AUTO to let BIOS automatically
detect the hard disk drives for you.

Default: Auto

IBBP ATX Mainboard User’s Manual

<3-3>

III. CMOS SETUP UTILITY

Ø Floppy à Drive A
Ø Floppy à Drive B

Drive A / B:

- None

- 360KB - 5.25"

- 1.2MB 5.25"

- 720KB 3.5"

- 1.44MB 3.5"

- 2.88MB 3.5"

Ø Video

Video:

- EGA/VGA

- CGA40

- CGA80

- Mono

Ø Halt On

Halt On:

- All Errors

- No Errors

- All, But Keyboard

- All, But Diskette

- All, But Disk/Key

Select the floppy drive type installed in your system.
The available options for Drive A and Drive B are:
360KB 5.25”, 1.2MB 5.25” , 720KB 3.5”, 1.44MB 3.5”,

2.88MB 3.5” and None.

Default: Drive A => 1.44MB 3.5”

Drive B => None

Select the video display card type installed in your system.
The available types are: EGA/VGA, CGA 40, CGA 80 and
Mono.

Default: EGA/VGA

This item defines the operation of the system
POST(Power On Self Test). You can use this item to
select which kind of errors will cause the system to halt
during POST.

Default: All Errors

IBBP ATX Mainboard User’s Manual

<3-4>

III. CMOS SETUP UTILITY

3.3 BIOS Features Setup

This "BIOS Features Setup" option allows you to setup and improve your
system features and performance.

Ø Anti-Virus Protection

Anti-Virus
Protection:

- Enabled

- Disabled

When this item is enabled, BIOS will automatically load
Anti-Virus program that will prevent your system being
infected by Boot Viruses.

Ø External Cache

External Cache:

- Enabled

- Disabled

This item controls Enable/Disable the external L2 cache.

IBBP ATX Mainboard User’s Manual

Default: Enabled

Default: Enabled

<3-5>

III. CMOS SETUP UTILITY

Ø CPU L2 Cache ECC Checking

CPU L2 Cache ECC
Checking:

- Enable

- Disabled

This item can be used to enable ECC (Error Checking and
Correcting) function of the CPU level-2 cache memory.
When the item is enabled, BIOS will automatically check if
CPU support L2 ECC function. This item will not be
displayed if CPU does not support L2 ECC.

Ø Power-On Self-Test

Quick Power-on
Self-test:

- Enable

- Disabled

This item can be used to start operating system quickly by
skip some normal POST checking items.

Ø Boot Sequence

Boot Sequence:

- A,C,SCSI

- C,A,SCSI

- C,CDROM,A

- CDROM,C,A

- D,A,SCSI

- E,A,SCSI

- F,A,SCSI

- SCSI,A,C

- SCSI,C,A

- C only

- LS/ZIP,C

This item defines where the system will look for an
operating system, and the order of priority. The boot up
search sequence shown as left.

Default: Enabled

Default: Enabled

Default: A, C, SCSI

IBBP ATX Mainboard User’s Manual

<3-6>

III. CMOS SETUP UTILITY

Ø Swap Floppy Drive

Swap Floppy Drive:

- Enabled

- Disabled

If you have two floppy drives in your system, This item
allows you to swap around the assigned drive letters so
that drive A becomes drive B, and drive B becomes drive
A. Default: Disabled

Ø Boot Up Floppy Seek

Boot Up Floppy
Seek:

- Enabled

- Disabled

This item controls the system to seek floppy drive during
boot up POST.

Ø Boot Up NumLock Status

Boot Up NumLock
Status:

- On

- Off

This item defines if the keyboard NumLock key is active
when your system is started.

Ø Boot Up System Speed

Boot-up System
Speed:

- High

- Low

This item allows the system boot up with High or Low
speed.

Default: Disabled

Default: On

Default: High

Ø Typematic Rate Setting

Typematic Rate
Setting:

- Enabled

- Disabled

To Enable or Disable the speed of keyboard to send
repeat keystrokes.

IBBP ATX Mainboard User’s Manual

Default: Disabled

<3-7>

III. CMOS SETUP UTILITY

Ø Typematic Rate (Chars/Sec)

Typematic
Rate:

- 6

- 8

- 10

- 12

- 15

- 20

- 24

- 30

This item provides typematic rate setting, which allows you to
control the repeated keystrokes speed.

Ø Typematic Delay (Msec)

Typematic Delay:

- 250

- 500

- 750

- 1000

This item provides typematic delay setting, which
allows you control the delay time between the first and
the second keystroke.

Ø Security Option

Security Option:

- Setup

- System

The “Setup” option is for password request in entering
BIOS setup.

The “System” option is for password request in entering
setup and system boot up.

Default: 6

Default: 250

Default: Setup

Ø PCI/VGA Palette Snoop

PCI/VGA Palette
Snoop:

- Enabled

- Disabled

Set this item to Enabled to reduce display problem when
both PCI VGA and some graphic accelerator devices
such as MPEG/Video capture cards are installed in your
system.

IBBP ATX Mainboard User’s Manual

Default: Disabled

<3-8>

III. CMOS SETUP UTILITY

Ø OS Select for DRAM > 64MB

OS Select for
DRAM > 64MB:

- OS/2

- Non-OS/2

This item is to patch that can not report correct
memory size for more than 64 MB. Set it to OS/2 if you
have an OS/2 installed and have over 64MB system
memory.

Default: Non-OS/2

Ø Video BIOS Shadow

Video BIOS
Shadow:

- Enabled

- Disabled

This item defines if you leave default setting, video
BIOS memory will be copied from ROM into DRAM
area to enhance system performance as DRAM access
time is faster than ROM.

Default: Enabled

Ø C8000-CBFFF Shadow to DC000-DFFFF Shadow

C8000-CBFFF to
DC000-DFFFF
Shadow:

- Enabled

- Disabled

Set Enabled if you know the address that your add on
card ROM used to shadow them. If the item is Enabled,
BIOS will copy the selected area from ROM to RAM to
increase system performance.

Default: Disabled

3-4 Chipset Features Setup

This option display a table of items which define timing parameters of the
mainboard components including the graphic system, memory, and the
system logic. In general rule, you should leave the items on this page at the
default values unless you are familiar with the technical specifications of your
hardware. If you change the values, you may introduce fatal errors or
recurring instability into your system.

IBBP ATX Mainboard User’s Manual

<3-9>

III. CMOS SETUP UTILITY

Ø SDRAM CAS Latency

SDRAM CAS
Latency:

- 2T

- 3T

- Auto

This item defines the latency between SDRAM read
command and the actual data time.

It is an important SDRAM parameter. If your SDRAM
has unstable problem, try set this item to 3T.

Ø SDRAM RAS# to CAS# Delay

SDRAM RAS# to
CAS# Delay:

- 2T

- 3T

- Auto

This item defines the latency between SDRAM active
command and the read/write command.

It is an important SDRAM parameter. If your SDRAM
has unstable problem, try set this item to 3T.

Ø SDRAM RAS# Precharge Time

SDRAM RAS#
Precharge:

- 2T

- 3T

- Auto

This item defines the waiting time after issuing a
SDRAM Precharge command.

Default: 3T

Default: 3T

Default: 3T

IBBP ATX Mainboard User’s Manual

<3-10>

III. CMOS SETUP UTILITY

Ø DRAM ECC Function

DRAM ECC
Function:

- Enabled

- Disabled

This item enables/disables ECC(Error Checking and
Correction) for the main memory. We recommend
that you leave this item at Disabled if you have not
verified that your memory modules support ECC. To
use this function, you need 72 bits(64+8 bit parity)
DIMM.

Ø Video BIOS Cacheable

Video BIOS
Cacheable:

- Enabled

- Disabled

This item allows the video BIOS to be cached for
faster video performance.

Ø Video RAM Cacheable

Video RAM
Cacheable:

- Enabled

- Disabled

This item allows the Video RAM to be cached for
faster video performance.

Ø 8 Bit I/O Recovery Time
Ø 16 Bit I/O Recovery Time

Default: Disabled

Default: Disabled

Default: Disabled

8 Bit I/O Recovery
Time:

- 1

- 2

- 3

- 4

- 5

- 6

- 7

- 8

- NA

16 Bit I/O Recovery Time:

- 1

- 2

- 3

- 4

- NA

This two items set timing parameters for 8-bit and 16­bit ISA expansion cards.

Default: 8-Bit I/O Recovery Time => 4

8-Bit I/O Recovery Time => 2

IBBP ATX Mainboard User’s Manual

<3-11>

III. CMOS SETUP UTILITY

Ø Memory Hole At 15M-16M

Memory Hole At
15M-16M:

- Enabled

- Disabled

This item can be used to reserve memory space for
some ISA cards that require it.

Ø Passive Release
Ø Delayed Transaction

Passive Release,
Delayed Transaction:

- Enabled

- Disabled

These two items make the PCI Bus Compliant with
the PCI Specification ver. 2.1.

Ø AGP Aperture Size (MB)

AGP Aperture Size
(MB):

- 4

- 8

- 16

- 32

- 64

- 128

- 256

This item defines the effective memory size of the
AGP Aperture.

Default: Disabled

Default: Enabled

Default: 64

Ø Pentium II Micro Codes

Pentium II Micro
Codes:

- Enabled

- Disabled

This item defines the Pentium II Micro Codes which
are used to resolve Pentium II CPU bugs. We
recommend that you leave this item at the default
value for better reliability.

IBBP ATX Mainboard User’s Manual

Default: Enabled

<3-12>

III. CMOS SETUP UTILITY

Ø AGP Overspeed Mode

AGP Overspeed
Mode:

- Enabled

- Disabled

Ø System Frequency

This item allows you enabled/disabled AGP
Overspeed Mode. Set Enabled for better AGP
performance if your system is running overclocking.

Note: The maximum clock of the AGP specification is
66MHz. If the system bus clock is larger than 66MHz,
you can set this item to Enabled to force AGP clock
synchronize with bus clock. However, doing so may
probably cause your system unstable or serious
damage.

Default: Disabled

System Frequency:

- 233 MHz

- 266 MHz

- 300 MHz

- 333 MHz

- 350 MHz

- 400 MHz

- 450 MHz

- 500 MHz

- Manual

This item allows you set the System Frequency.
Select manual if you want to set your own CPU Clock

Frequency and CPU Clock Ratio.

- Available CPU Clock Frequency:
66/75/83.3/100/103/112/115/120/124/133/140/150MH

z

- Available CPU Clock Ratio:

1.5/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.0x
Warning: Normally, Intel Pentium II CPU supports

66/100MHz, the other CPU Clock Frequency 75/83.3/
103/112/115/120/124/133/140/150MHz are available
only for internal test or end-user over-clocking testing,
which may cause your system unstable or serious
damage.

Default: 233 MHz

Note: If the system can not boot up because of your

wrong setting of this item, you can load BIOS default
setting, System Frequency 233MHz, by the following
steps.

1. Press the “Home” key before power on the system.

2. Holding the “Home” key until the screen shows the
default 233 MHz CPU Type.

IBBP ATX Mainboard User’s Manual

<3-13>

III. CMOS SETUP UTILITY

3-5 Power Management Setup

This option displays a table of items which lets you control the power
management of the system. Modern operating system take care of much of
the routine power management. This mainboard supports ACPI (Advanced
Configuration and Power Interface).

Ø Power Management

Power Management:

- Max Saving

- Mix Saving

- User Define

- Disabled

Mode Doze Standby Suspend HDD Power Down
Min Saving
Max Saving

This item allows you to set the default parameters of
power-saving modes. Set to Disable to disable power
management function. Set to User Define to define
your own parameters.

Default: User Define

1 hour 1 hour 1 hour 15 min
1 min 1 min 1 min 1 min

IBBP ATX Mainboard User’s Manual

<3-14>

III. CMOS SETUP UTILITY

Ø PM Controlled by APM

PM Controlled by
APM:

- Yes

- No

Ø Video Off After

Video Off After:

- N/A

- Doze

- Standby

- Suspend

Ø Doze Mode

Doze Mode:

- Disabled

- 1 Min

- 2 Min

- 4 Min

- 8 Min

- 12 Min

- 20 Min

- 30 Min

- 40 Min

- 1 Hour

Set to Yes to transfer power management control to
APM (Advanced Power Management) and enhance
power saving function.

Default: Yes

To select the power down mode option to turn off
video monitor.

Default: Standby

This item lets you set the timer after which the system
enters into Doze mode from Working mode. The
system event is detected by monitoring the IRQ
signals or other I/O events.

Default: Disabled

IBBP ATX Mainboard User’s Manual

<3-15>

III. CMOS SETUP UTILITY

Ø Standby Mode

Standby Mode

- Disabled

- 1 Min

- 2 Min

- 4 Min

- 8 Min

- 12 Min

- 20 Min

- 30 Min

- 40 Min

- 1 Hour

Ø Suspend Mode

Suspend Mode:

- Disabled

- 1 Min

- 2 Min

- 4 Min

- 8 Min

- 12 Min

- 20 Min

- 30 Min

- 40 Min

- 1 Hour

This item lets you set the timer after which the system
enters into Standby mode from Doze mode.

In this mode, the monitor power-saving feature
activates. Any activity detected returns the system to
normal full power mode. The system activity is
detected by monitoring the IRQ signals or other I/O
events.

Default: Disabled

This item lets you set the timer after which the system
enters into Suspend mode from Standby mode. The
system activity is detected by monitoring the IRQ
signals or other I/O events.

Default: Disabled

Ø HDD Power Down

HDD Power Down:

- Disabled

- 1 Min

- .....

- 15 Min

This item allows you specify the IDE HDD idle time
before the device enters the power down state. This
item is independent from the power states, Standby
and Suspend Mode.

IBBP ATX Mainboard User’s Manual

Default: Disabled

<3-16>

III. CMOS SETUP UTILITY

Ø Modem Wake Up

Modem Wake Up:

- Enabled

- Disabled

To enable or disable Modem Wake Up function.

Ø LAN Wake Up

LAN Wake Up:

- Enabled

- Disabled

To enable or disable LAN Wake Up function.

Ø Throttle Duty Cycle

Throttle Duty Cycle:

- 12.5%

- 25.0%

- 37.5%

- 50.0%

- 62.5%

- 75.0%

- 87.5%

This item defines the CPU clock slowing ratio in a
given time at the Doze/Standby state of power saving
mode.

Ø VGA Active Monitor

Default: Disabled

Default: Disabled

Default: 62.5%

VGA Active Monitor:

- Enabled

- Disabled

IBBP ATX Mainboard User’s Manual

To enable or disable the detection of VGA activity for
power saving mode.

Default: Enabled

<3-17>

III. CMOS SETUP UTILITY

Ø Power Button Override

Power Button
Override:

- Enabled

- Disabled

When set to Enabled, the power switch on the front
panel can be used to control power On/Suspend/Off.

Press switch System status
Less than 4 seconds Suspend mode
Longer than 4 seconds Power off

When set to Disabled, the power switch is only used
to control On/Off, no Suspend mode function.

Ø RTC Wake Up Timer

RTC Wake Up
Timer:

- Enabled

- Disabled

To enable or disable the RTC Wake Up function.

Ø WakeUp Date (of Month)

WakeUp Date (of
Month):

- 0

- 1

- .....

- 31

This item displayed only when you enable the RTC
Wake Up Timer item.

You can use this item to specify the date you want to
wake up the system. For Example, if you set to 18,
the system will wake up on the 18th day of every
month. If set to 0, the system will wake up on the
specified time every day.

Default: Enabled

Default: Disabled

Ø WakeUp Time (hh:mm:ss)

WakeUp Time
(hh:mm:ss):

- hh:mm:ss

This item is displayed only when you enable the RTC
Wake Up Timer item. You can use this item to specify
the time you want to wake up the system.

IBBP ATX Mainboard User’s Manual

<3-18>

III. CMOS SETUP UTILITY

Ø IRQ 8 Clock Event

IRQ 8 Clock Event:

- Enabled

- Disabled

OS/2 has periodically IRQ8 RTC(Real Time Clock)
event. When set this item to enabled, OS/2 may has
problem to go into Doze/Standby/Suspend mode.

Ø IRQ [3-7,9-15],NMI

IRQ [3-7,9-15],NMI:

- Enabled

- Disabled

To enable or disable the detection of IRQ3-7, IRQ9­15 or NMI interrupt events for power saving mode.

Ø Primary IDE 0
Ø Primary IDE 1
Ø Secondary IDE 0
Ø Secondary IDE 1
Ø Floppy Disk
Ø Serial Port
Ø Parallel Port

Primary/Secondary
IDE 0/1, Floppy,
Serial & Parallel
Port:

- Enabled

- Disabled

These items enable or disable the detection of IDE,
Floppy, Serial and Parallel port activities for power
saving mode.

Default: Disabled

Default: Enabled

Default: Serial Port => Enabled

Others => Disabled

IBBP ATX Mainboard User’s Manual

<3-19>

III. CMOS SETUP UTILITY

3-6 PNP/PCI Configuration Setup

This option display a table of items that configures how PNP (Plug and Play)
and PCI expansion cards operates in your system.

Ø PnP OS Installed

PnP OS Installed:

- Yes

- No

Normally, BIOS will allocate the PnP resources during
POST (Power-On Self Test). Set this item to Yes if
you have a PnP operating system such as Windows
95, BIOS will bypass PNP device initial except of boot
device (VGA/IDE or SCSI) and PNP operating system
will do these PNP devices resource allocation. If this
item is set to No, BIOS will handle all PNP devices.

Ø Resources Controlled By

Resources Controlled
by:

- Auto

- Manual

Basically, BIOS will allocate the IRQ/DMA resources
automatically for these PNP/PCI and onboard
devices. The exception might be encountered when
legacy ISA devices are installed, which occupies
resources that BIOS can not know. Therefore, this
option is for BIOS to know in advance that IRQ/DMA
is occupied by legacy ISA devices if Manual is
selected.

IBBP ATX Mainboard User’s Manual

Default: No

Default: Manual

<3-20>

III. CMOS SETUP UTILITY

Ø Reset Configuration Data

Reset Configuration
Data:

- Enabled

- Disabled

When this item is set to Enabled, BIOS will turn it
Disabled again in the next boot up. This item is for
clearing ESCD data. The only reason to clear is the
data loosing the confidence. The engineering test is a
good reason to change the default setting.

Ø IRQ3~5, IRQ7, IRQ9~12, IRQ14~15

IRQ 3-5, 7, 9-12,
14-15:

Legacy ISA
PCI/ISA PnP

Set the selected IRQ to Legacy ISA if your ISA card is
not PnP compatible card and requires a special IRQ
to make it function.

These options provide IRQ resources allocation for
Legacy ISA or PCI/ISA PnP card.

Default: IRQ 3~4 => Legacy ISA

Others =>PCI/ISA PnP

Ø DMA 0, DMA 1, DMA 3, DMA 5, DMA 6, DMA 7

DMA 0,1,3,5-7:

- Legacy ISA

- PCI/ISA PnP

Set the selected DMA channel to Legacy ISA if your ISA
card is not PnP compatible card and requires a special DMA
channel to make it function.

Default: Disabled

Default: PCI/ISA PnP

Ø Init Display First

Init Display First:

- PCI Slot

- AGP

IBBP ATX Mainboard User’s Manual

This item allows you select whether PCI Slot or AGP
device will be initialed first for display.

Default: PCI Slot

<3-21>

III. CMOS SETUP UTILITY

Ø PCI IDE IRQ Map To

PCI IDE IRQ Map
To:

- ISA

- PCI-Slot1

- PCI-Slot2

- PCI-Slot3

- PCI-Slot4

- PCI-Auto

This is a complement for the case that an ISA or PCI
add-on IDE card is installed. Since most of PCI add­on IDE cards are not PCI Compliant, a location and
INT# inputs are necessary for acknowledging to
BIOS.

Set this item to PCI-Auto to allow BIOS to
configure the installed PCI IDE card automatically .

Ø Primary IDE INT#
Ø Secondary IDE INT#

Primary/Secondary
IDE INT#:

- A

- B

- C

- D

Each PCI slot has four PCI interrupts (INT) aligned as
listed , A, B, C, D. You should specify the slot in the
"PCI IDE IRQ Map To", and set the PCI interrupt
(INT) here to the interrupt connection on the card.

Use this item to specify the interrupt of the primary/
secondary channel of the PCI IDE add-on card.

Ø Used MEM Base Addr

Used MEM base
addr:

- N/A

- C800

- CC00

- D000

- D400

- D800

- DC00

This item lets you set a memory space for non-PnP
ISA card and specifies the memory base of the
reserved memory space.

Default: PCI-Auto

Default: Primary IDE INT# => A

Secondary IDE INT# => B

Default: N/A

IBBP ATX Mainboard User’s Manual

<3-22>

III. CMOS SETUP UTILITY

Ø Used MEM Length

Used MEM Length:

- 8K

- 16K

- 32K

- 64K

This item is displayed when the above Used MEM
base addr option is not set to N/A.

If your ISA card is not PnP card and requires special
memory space to make it function, use item to set
the memory size to inform the PnP BIOS to reserve
the specified memory space for installing legacy ISA
card.

Ø PCI Slot1/5 IRQ (Right) to PCI Slot4 IRQ (Left)

PCI Slot 1 to PCI
Slot4 IRQ:

- 3

- 4

- 5

- 7

- 9

- 10

- 11

- 12

- 14

- 15

- Auto

These items allow you manually assign an specified
IRQ to each PCI slot.

Leave this item at default “Auto” , BIOS will
automatically assign an available IRQ to the device
on each PCI slot.

Default: Auto

3.7 Load Setup Defaults

This option allows you load BIOS optimized settings for optimum system
performance. We recommend you to use the Optimal settings if your system
has large memory size and fully loading with add-on cards.

To load Setup Default, press Y key to confirm the operation when you see the
above display.

IBBP ATX Mainboard User’s Manual

<3-23>

III. CMOS SETUP UTILITY

3-8 Load Turbo Defaults

This option provides better performance than optimal setup values. Load the
turbo values if you have light system loading, that is, few add-on cards and
memories.

If your system has heavy loading (more add-on cards and memories), you
may manually set the parameters in the "Chipset Features Setup" to get
proper setting to get the best system performance. Before changing any
settings in the "Chipset Features Setup", be sure that you understand the
functions of every item.

IBBP ATX Mainboard User’s Manual

<3-24>

III. CMOS SETUP UTILITY

3-9 Integrated Peripherals

This option allows you to configure the I/O features.

Ø IDE HDD Block Mode

IDE HDD Block
Mode:

- Enabled

- Disabled

This BIOS supports the enhanced IDE specification
and allow multiple sectors access in a time when
read/write. If set this item to disabled, IDE runs in
single sector access.

Ø IDE Primary Master PIO
Ø IDE Primary Slave PIO
Ø IDE Secondary Master PIO
Ø IDE Secondary Slave PIO

IBBP ATX Mainboard User’s Manual

Default: Enabled

<3-25>

III. CMOS SETUP UTILITY

IDE
Primary/Secondary
Master/Secondary
PIO:

- Auto

- Mode 1

- Mode 2

- Mode 3

- Mode 4

Set these items to Auto to auto-detect the HDD
speed. The PIO mode specifies the data transfer rate
of HDD.

IDE HDD Mode Transfer Rate
Mode 0 3.3MB/s
Mode 1 5.2MB/s
Mode 2 8.3MB/s
Mode 3 11.1MB/s
Mode 4 16.6MB/s.

Set to slower mode if your hard disk performance
becomes unstable.

Ø IDE Primary Master UDMA
Ø IDE Primary Slave UDMA
Ø IDE Secondary Master UDMA
Ø IDE Secondary Slave UDMA

IDE
Primary/Secondary
Master/Slave UDMA:

- Auto

- Disabled

These items allows you to set the Ultra DMA/33 mode
supported by the IDE hard disk drive installed in your
system.

Default: Auto

Default: Auto

Ø On-Chip Primary PCI IDE
Ø On-Chip Secondary PCI IDE

On-Chip
Primary/Secondary
PCI IDE:

- Enabled

- Disabled

To enable or disable the IDE device connected to the
Primary/Secondary IDE connector.

IBBP ATX Mainboard User’s Manual

<3-26>

Default: Enabled

III. CMOS SETUP UTILITY

Ø USB Legacy Support

USB Legacy Support:

- Enabled

- Disabled

This BIOS simulates USB keyboard in legacy mode,
which means during POST or under operating
system, you can use a USB keyboard without loading
USB driver. Note you can not use both USB driver
and USB legacy keyboard at the same time. Set
disabled if you have USB driver in the operating
system.

Ø USB IRQ Released

USB IRQ Released:

- Yes

- No

This item allows you to release USB controller IRQ if
you do not have any USB device or your system IRQ
are not enough for add-on cards allocation.

Ø Flash/Upgrade BIOS

Flash/Upgrade BIOS:

- Enabled

- Disabled

This item allows you to protect your mainboard BIOS
being flashed/upgraded by MAXFLASH.EXE flash
utility if you set this item disabled.

You can specify the BIOS password to avoid that
someone can change your setting.

Default: Disabled

Default: No

Default: Enabled

Ø KB Power ON (Ctrl-F1)

KB Power ON:

- Enabled

- Disabled

This item allows you to enable or disable the
keyboard power on function.

Press “Ctrl-F1” to power on system after setting this
item to enabled.

IBBP ATX Mainboard User’s Manual

Default: Disabled

<3-27>

III. CMOS SETUP UTILITY

Ø Onboard FDC Controller

Onboard FDC
Controller:

- Enabled

- Disabled

To enable or disable the onboard floppy disk
controller. Set to disabled if you want to use a
separate floppy disk controller card.

Ø Onboard Serial Port 1
Ø Onboard Serial Port 2

Onboard Serial Port
1 & 2:

- Auto

- 3F8/IRQ4

- 2F8/IRQ3

- 3E8/IRQ4

- 2E8/IRQ3

- Disabled

This item allows you to select the I/O port and IRQ
used by the onboard serial ports.

Ø Onboard UART Mode

Onboard UART
Mode:

- Standard

- IrDA

- ASKIR

This item is selectable only when the onboard serial
port 2 is enabled. The available mode selections for
the serial port 2 are Standard, IrDA, and ASKIR.

Standard: Configures serial port as normal mode.
IrDA: Set to this setting if there is an infrared device

connected on the onboard IrDA connector. The
maximum baud rate of this setting is: 115K baud.

ASKIR: Set to this setting if there is an infrared device
connected on the onboard IrDA connector. The
maximum baud rate of this setting is: 19.2K baud.

Default: Enabled

Default: Onboard Serial Port 1=> 3F8/IRQ4

Onboard Serial Port 2=> 2F8/IRQ3

Default: Standard

IBBP ATX Mainboard User’s Manual

<3-28>

III. CMOS SETUP UTILITY

Ø Onboard Parallel Port

Onboard Parallel
Port:

- 3BC/IRQ7

- 378/IRQ7

- 278/IRQ7

- Disabled

This item controls the onboard parallel port address
and interrupt.

Ø Parallel Port Mode

Parallel Port Mode:

- SPP

- EPP

- ECP

- ECP + EPP

This item allows you to set the parallel port mode.

1. SPP (Standard Parallel Port): IBM AT and PS/2
compatible mode

2. EPP (Enhanced Parallel Port): To enhances the
parallel port by directly write/read data to/from
parallel port without latch.

3. ECP (Extended Parallel Port): ECP supports DMA
and RLE (Run Length Encoded) compression and
decompression.

Ø ECP Mode Use DMA

Default: 378/IRQ7

Default: SPP

ECP Mode Use DMA:

- 3

- 1

IBBP ATX Mainboard User’s Manual

This item displayed when select the ECP mode above
for the parallel port. You can set the DMA channel of
ECP mode.

Default: 3

<3-29>

III. CMOS SETUP UTILITY

3-10 Password Setting

Password prevents unauthorized use of your computer. If you set a password,
the system prompts for the correct password before boot or access to Setup,
the steps as follows,

1. Highlight the item Password Setting on the main menu and press ENTER.

2. The password dialog box will appear.

3. If you are installing a new password, carefully type in the password.
Press ENTER after you have typed in the password. If you are deleting a
password that is already installed just press ENTER when the password
dialog box appears.

4. The system will ask you to confirm the new password by asking you to
type it in a second time. Carefully type the password again and press
ENTER, or just press ENTER if you are deleting a password that is
already installed.

5. If you typed the password correctly, the password will be installed.

[Note]

If you forget your password, or you want to cancel your password, you can do
the steps as the following,

(1) Password forgotten:

i> Turn off the system
ii> Short JP1 at Pin 2-3 for a few seconds to clear CMOS.
iii> Set the JP1 back to Pin 1-2.
iv> Power on the system.

(2) Clear Password:
Clear your password by key-in the password you installed before,
then go to PASSWORD SETTING to press ENTER twice.

IBBP ATX Mainboard User’s Manual

<3-30>

III. CMOS SETUP UTILITY

3-11 IDE HDD Auto Detection

This item automatically detects and installs any hard disk drives installed on
the primary and secondary IDE channel. Most modern drives can be detected.
If you are using a very old drive that can be detected, you can install it
manually using the Standard CMOS Setup option. Setup will check for two
devices on the primary IDE channel and then two devices on the secondary
IDE channel. At each device, the system will flash an N in the dialog box.
Press Enter to skip the device and proceed to the next device. Press Y, then
Enter to tell the system to accept the BIOS auto-detected device type.

3-12 Save & Exit Setup

Highlight this item and press ENTER to save the changes that you have made
in the setup utility and exit the setup program. When the Save and Exit dialog
box appears, press Y to save and exit, or press N to return to the setup main
menu.

3-13 Exit without Saving

Use this option to exit Setup Utility without saving the CMOS value changes.

IBBP ATX Mainboard User’s Manual

<3-31>

SECTION 4.
SOFTWARE UTILITY

4-1 Flash Utility MAXFLASH.EXE

This section tells you a step-by-step procedure on how to use the flash utility,
“maxflash.exe” , upgrade your mainboard BIOS.

To upgrade your motherboard BIOS, please follow the following:

1. For Win95 system, press F8 before Win95 boot-up, and select

“Safe mode command prompt only”.
For Non-Win95 system, boot-up the system into DOS prompt with a
bootable floppy disk.

!!!DO NOT load any memory manager like EMM386.EXE,
QEMM386.EXE under config.sys. !!!

2. Run A:>maxflash biosfile.bin

3. After loading the new BIOS code, the utility will prompt you to save

original BIOS code into your HDD or floppy. Please press "Y" to
store

it as "BIOS.OLD".

4. After the old BIOS has been successfully saved, press "Y" to

replace

BIOS.

5. After the flashing process, reboot the system by turn off the power.

!!! DO NOT TURN OFF THE POWER DURING THE FLASHING
PROCESS. !!!

6. Press "DEL" key to enter BIOS setup during POST. Reload the

"BIOS SETUP DEFAULT" and reconfigure other items as your previous

set

7. Then save and exit.

IBBP ATX Mainboard User’s Manual

<4-1>

IV. SOFTWARE UTILITY

4-2 BIOS Flash/Upgrade Protection

This mainboard supports BIOS Flash/Upgrade protection which allows you
protect your system BIOS being flashed by flash utility. We suggest you use
this feature with Password Setting in BIOS to prevent your BIOS being flashed
by flash utility.

To active the BIOS Flash/Upgrade protection, follow the steps below:

1. When the system boot up at POST (Power On Self- Test), press <Del> key

to enter BIOS Setup Utility.

2. Set the “Flash/Upgrade BIOS” item in the “Integrated Peripherals” to

Disabled.

3. Save the changes and exit Setup Utility.

4-3 Install Win95 Bus Master IDE (Ultra

DMA/33) Driver

The Bus Master IDE(Ultra DMA/33) driver is available in the bundled CD title.
You may run setup.exe directly to install the driver.

After installation, you will see following devices under Win95 Device Manager:

--- Hard Disk Controllers

Intel 82371AB PCI Bus Master IDE Controller
Primary Bus Master IDE Controller
Secondary Bus Master IDE Controller

4-4 Audio Driver/Utility

The onboard Creative 1373 PCI 3D audio adapter drivers can be found
under below directory in the bundle CD title:

D:\Audio\Creative\Audio\English\
(assuming your CD-ROM disc drive is in drive D)

Install Audio Driver/Utility:

IBBP ATX Mainboard User’s Manual

<4-2>

IV. SOFTWARE UTILITY

ü Insert the motherboard resource kit CD.
ü Go to the directory: \Audio\Creative\Ctrun\
ü Run the setup program “ctrun.exe”. Below installation screen will

then appear.

IBBP ATX Mainboard User’s Manual

<4-3>
