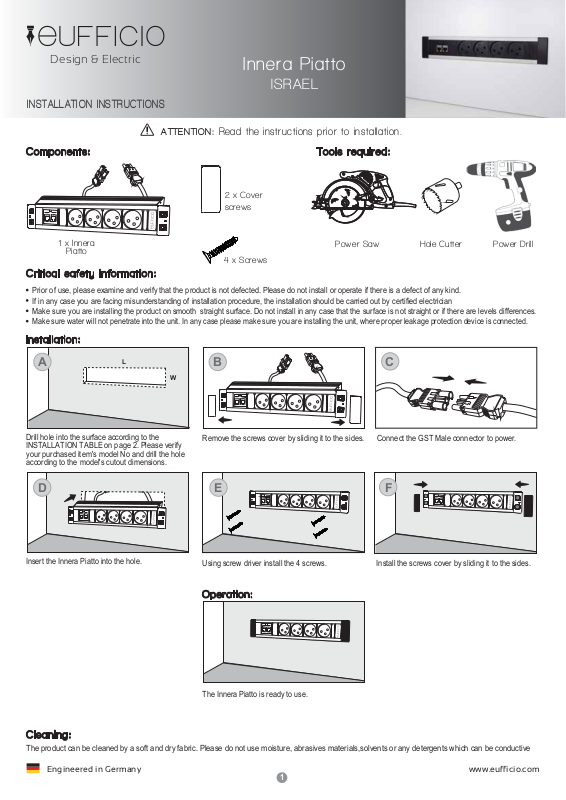

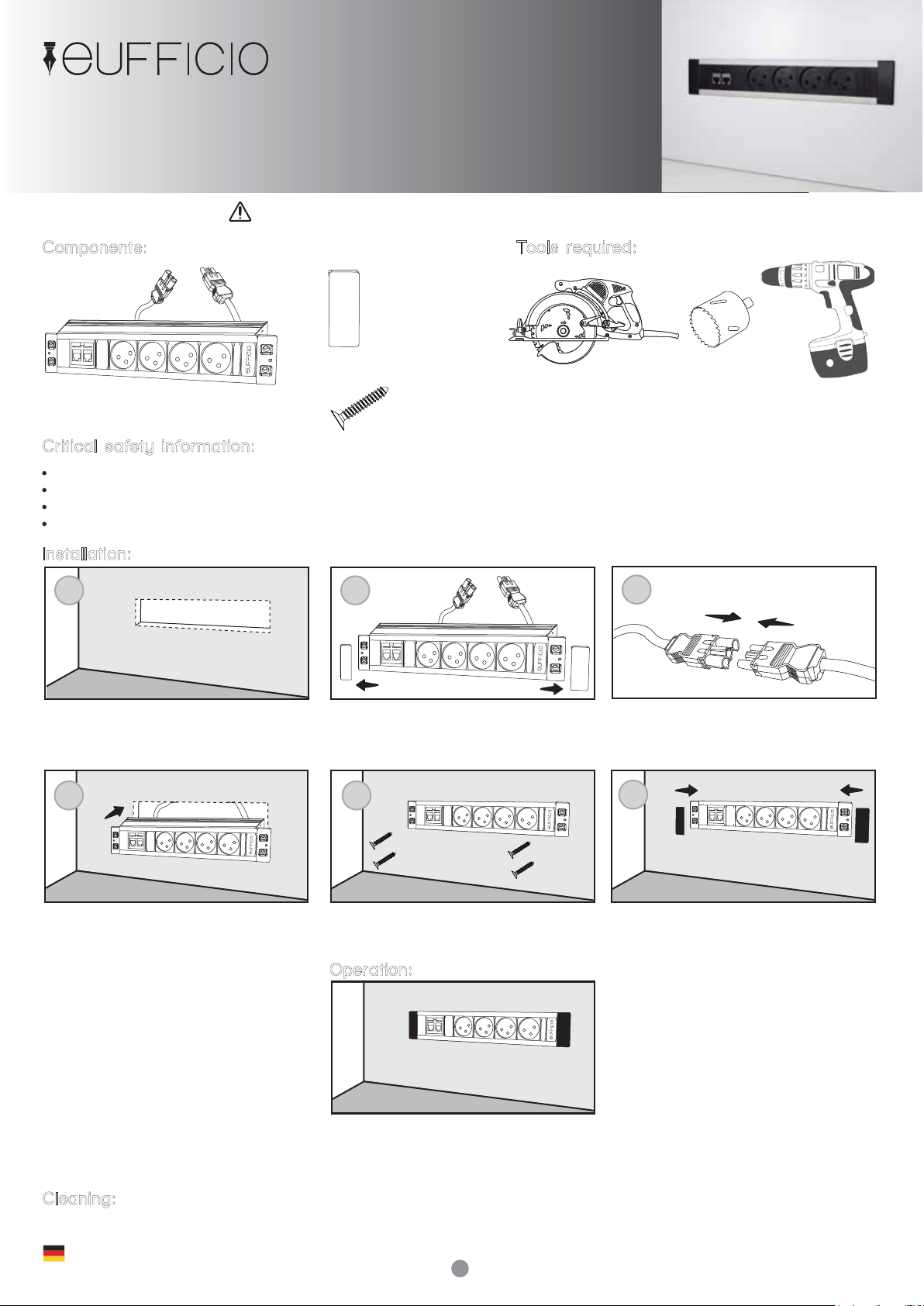

Page 1
Design & Electric
INSTALLATION INSTRUCTIONS
Innera Piatto
ISRAEL
ATTENTION:
Components:
Read the instructions prior to installation.
Tools required:
2 x Cover
Cat 6
Cat 6
1 x Innera
Piatto
screws
Power DrillPower Saw Hole Cutter
4 x Screws
Critical safety information:
Prior of use, please examine and verify that the product is not defected. Please do not install or operate if there is a defect of any kind.
If in any case you are facing misunderstanding of installation procedure, the installation should be carried out by certiļ¬ed electrician
Make sure you are installing the product on smooth straight surface. Do not install in any case that the surface is not straight or if there are levels differences.
Make sure water will not penetrate into the unit. In any case please make sure you are installing the unit, where proper leakage protection device is connected.
Installation:
A
L
W
B
Cat 6
Cat 6
C
Drill hole into the surface according to the
INSTALLATION TABLE on page 2. Please verify
your purchased item's model No and drill the hole
according to the model's cutout dimensions.
D
Cat 6
Cat 6
Insert the
Innera Piatto
into the hole.
Using screw driver install the 4 screws
Operation:
The Innera Piatto is ready
E
Connect the GST Male connector to power.Remove the screws cover by sliding it to the sides.
Cat 6
Cat 6
.
Cat 6
Cat 6
F
Install the screws cover by sliding it to the sides.
Cat 6
Cat 6
to use.
Cleaning:
The product can be cleaned by a soft and dry fabric. Please do not use moisture, abrasives materials,solvents or any detergents which can be conductive
Engineered in Germany
1
www.eufficio.com
Page 2
Design & Electric
INSTALLATION INSTRUCTIONS
Innera Piatto
ISRAEL
L

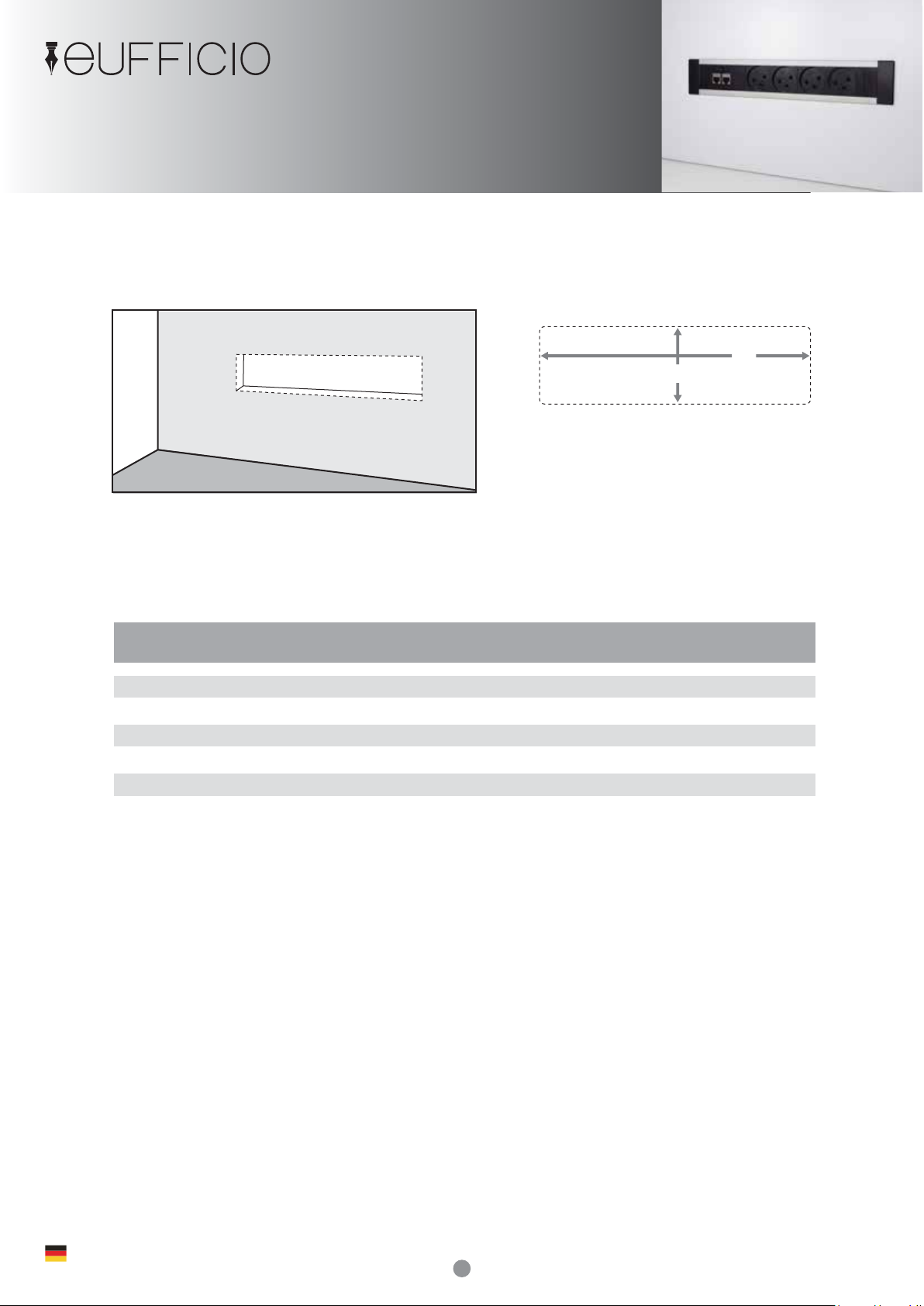

INSTALLATION TABLE:
Catalog No DescriptionModel
726811932087
726811931813
726811931820
769978901992
769978901787
769978897721
IP-54
IP-20
IP-40
IP-32
IP-32C
IP-54R
W
4 IL sockets , 2 keystone adapters
4 keystone adapters
8 keystone adapters
2 IL sockets , 2 keystone adapters
2 IL sockets & USB Charger
4 IL sockets , 2 keystone adapters
W
Cutout Hole
Length mm (L)
292
142
228
206
206
292
L
Width mm (W)
53
53
53
53
53
53
Engineered in Germany
2
www.eufficio.com
