EUCHNER MGB-L**B-PN series Operating Instructions Manual

EN

Operating Instructions

Safety Systems

MGB-L..B-PN.-… (PROFINET)

with Data Structure Type A

from V3.30.0

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

2

(translation of the original operating instructions) 114575-04-03/15

Contents

1. About this document ............................................................................................. 4

1.1. Scope ............................................................................................................................................4

1.1.1. Notes on older product versions ......................................................................................4

1.2. Target group ..................................................................................................................................4

1.3. Key to symbols ...............................................................................................................................4

1.4. Supplementary documents ..............................................................................................................4

2. Correct use .......................................................................................................... 5

3. Description of the safety function .......................................................................... 7

4. Exclusion of liability and warranty ......................................................................... 9

5. General safety instructions.................................................................................... 9

6. Function ............................................................................................................. 10

6.1. Interlocking module MGB-L0.B-PN. .................................................................................................10

6.2. Locking module MGB-L1.B-PN. and MGB-L2.B-PN. ...........................................................................10

6.3. Guard locking for version MGB-L1 ..................................................................................................11

6.4. Guard locking for version MGB-L2 ..................................................................................................11

6.5. Control of the guard locking ..........................................................................................................12

6.5.1. Case A .........................................................................................................................12

6.5.2. Case B .........................................................................................................................13

6.5.3. Case C .........................................................................................................................14

7. System overview................................................................................................. 15

7.1. Bus module MGB-B-…-PN ..............................................................................................................15

7.2. Locking/release module MGB-L.- ....................................................................................................16

7.3. Handle module MGB-H-…...............................................................................................................16

7.4. Escape release MGB-E-… (optional) ................................................................................................16

7.5. Dimension drawing .......................................................................................................................16

7.6. Manual release .............................................................................................................................16

7.7. Mechanical release .......................................................................................................................17

7.8. Lockout mechanism ......................................................................................................................18

7.9. Escape release (optional) ..............................................................................................................18

7.9.1. Preparing escape release .............................................................................................19

8. Mounting ............................................................................................................ 20

8.1. Mounting color cover ....................................................................................................................21

9. Changing actuating direction .............................................................................. 22

10. Protection against environmental effects ............................................................. 23

11. Controls and indicators ....................................................................................... 24

3

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

12. Electrical connection .......................................................................................... 25

12.1. Notes about .........................................................................................................................25

12.2. Connections on bus module ...........................................................................................................26

12.2.1. Terminal assignment for version with push-pull plugs ........................................................26

12.2.2. Terminal assignment for version with 7/8" and M12 plugs, d-coded ..................................26

13. Setup ................................................................................................................. 27

13.1. Integrating into PROFINET and PROFIsafe .......................................................................................27

13.2. Replacement of an MGB system without programming device ..........................................................27

13.3. System reset to factory settings ....................................................................................................27

13.4. Teach-in operation (only for MGB unicode) .......................................................................................28

13.5. Mechanical function test ................................................................................................................28

13.6. Electrical function test ...................................................................................................................28

13.7. PROFINET data bytes (data blocks for unsafe functions) ...................................................................29

13.8. PROFIsafe data bytes (data block for safe functions) ........................................................................30

14. Diagnostic messages of the MGB system ............................................................. 31

15. PROFINET alarms ............................................................................................... 32

15.1. Fault in stacklight module .................................................................................................32

16. System status table ............................................................................................ 33

17. Technical data .................................................................................................... 34

18. Troubleshooting and assistance ........................................................................... 35

18.1. Latching fault when actuating the escape release ............................................................................35

18.2. Fault reset ....................................................................................................................................35

18.3. Help on troubleshooting on the Internet ..........................................................................................35

18.4. Help on mounting on the Internet ...................................................................................................35

18.5. Application examples ....................................................................................................................35

19. Service .............................................................................................................. 36

20. Inspection and service ........................................................................................ 36

21. Declaration of conformity ................................................................................... 37

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

4

(translation of the original operating instructions) 114575-04-03/15

1. About this document

1.1. Scope

These operating instructions are valid for all MGB-L..B-PN.-… (PROFINET) with Data Structure Type A and the following order
numbers:

105283 109856 113230 113233 115621 121843
105284 109857 113231 114775 115622 121845
105287 110816 113232 114776 121841 121847

These operating instructions, the document “Safety information and maintenance” and any enclosed data sheet form the
complete user information for your device.

Series Guard locking types System families Product versions

MGB

L0 (without guard locking)

…-PN…

from V3.30.1
L1 (guard locking by spring force) from V3.30.1
L2 (guard locking by solenoid force) from V3.30.0

1.1.1. Notes on older product versions

Products with lower product versions or without a version number are not described by these operating instructions. Please
contact our support team in this case.

1.2. Target group

Design engineers and installation planners for safety devices on machines, as well as setup and servicing staff possessing
special expertise in handling safety components

1.3. Key to symbols

Symbol/depiction Signicance

Printed document

www

Document is available for download at www.EUCHNER.de

Document on CD

DANGER

WARNING

CAUTION

Safety precautions

Danger of death or severe injuries
Warning about possible injuries
Caution Slight injuries possible

NOTICE

Important!

Notice about possible device damage
Important information

Tip Tip/useful information

1.4. Supplementary documents

The overall documentation for this device consists of the following documents:

Document title
(document number)

Contents

Operating instructions
(114575)

(this document)

Possibly enclosed data
sheet

Item-specic information about deviations or additions

Important!

Always read all documents to gain a complete overview of safe installation, setup and use of the
device. The documents can be downloaded from www.euchner.de. Enter the document number in the
search box for this purpose.

5

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

2. Correct use

The following applies to MGB-L0:

The system comprises at least one interlocking module MGB-L0-... and one handle module MGB-H...
The safety system MGB is an interlocking device without guard locking (type4). Devices with unicode evaluation possess a

high coding level; devices with multicode evaluation feature a low coding level.
In combination with a movable safety guard and the machine control, this safety component prevents dangerous machine

functions from occurring while the safety guard is open. A stop command is triggered if the safety guard is opened during
the dangerous machine function.

This means:

Ì Starting commands that cause a dangerous machine function must become active only when the safety guard is closed.
Ì Opening the safety guard triggers a stop command.
Ì Closing a safety guard must not cause automatic starting of a dangerous machine function. A separate start command

must be issued. For exceptions, refer to ENISO12100 or relevant C-standards.

The following applies to MGB-L1/MBG-L2:

The system comprises at least one locking module MGB-L1-…/MGB-L2-… and one handle module MGB-H…
The safety system MGB is an interlocking device with guard locking (type4). Devices with unicode evaluation possess a

high coding level; devices with multicode evaluation feature a low coding level.
In combination with a movable safety guard and the machine control, this safety component prevents the safety guard from

being opened while a dangerous machine function is being performed.
This means:

Ì Starting commands that cause a dangerous machine function must become active only when the safety guard is closed

and locked.

Ì The guard locking device must not be unlocked until the dangerous machine function has ended.
Ì Closing and locking a safety guard must not cause automatic starting of a dangerous machine function. A separate start

command must be issued. For exceptions, refer to ENISO12100 or relevant C-standards.

For MGB-L0 /MGB-L1 / MGB-L2

The interlocking module MGB-L0B-PN.-… and the locking module MGB-L1B-PN.-…/MGB-L2B-PN.-… are operated as IO
devices in the PROFINET (PROFIsafe).

Before the device is used, a risk assessment must be performed on the machine, e.g. in accordance with the following
standards:

Ì ENISO13849-1, Safety of machinery – Safety-related parts of control systems – Part 1: General principles for design
Ì ENISO12100, Safety of machinery – General principles for design – Risk assessment and risk reduction
Ì IEC62061, Safety of machinery – Functional safety of safety-related electrical, electronic and programmable electronic

control systems

Correct use includes observing the relevant requirements for installation and operation, particularly based on the following
standards:

Ì ENISO13849-1, Safety of machinery – Safety-related parts of control systems – Part 1: General principles for design
Ì ENISO14119 (supersedes EN1088), Safety of machinery – Interlocking devices associated with guards – Principles

for design and selection

Ì EN60204-1, Safety of machinery – Electrical equipment of machines – Part 1: General requirements

The safety system MGB can only be combined with the intended modules in the MGB system family.
On the modication of system components, EUCHNER provides no warranty for function.
The customer is responsible for the safe overall function, especially for the safe integration into the PROFIsafe environment.

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

6

(translation of the original operating instructions) 114575-04-03/15

Important!

Ì The user is responsible for the proper integration of the device into a safe overall system. For this

purpose, the overall system must be validated, e.g. in accordance with ENISO13849-2.

Ì Correct use requires observing the permissible operating parameters (see chapter 17. Technical

data on page 34).

Ì If a product data sheet is included with the product, the information on the data sheet applies in

case of discrepancies with the operating instructions.

Table 1: Possible combinations for MGB components

Evaluation unit

Handle module

MGB-H-...

from V2.0.0

MGB…PN

from V3.30.0

Key to symbols Combination possible

7

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

3. Description of the safety function

Devices from this series feature the following safety functions:

The following applies in case of active guard lock monitoring (ÜK, bitSI 10):
Monitoring of guard locking and the position of the safety guard

(interlocking device with guard locking according to ENISO14119)

Ì Safety function (see chapter 6. Function on page 10):

- When guard locking is unlocked, safety bit SI 10 (ÜK)=0 (monitoring of the locking device).

- When the safety guard is open, safety bit SI 9 (SK)=0.

- Guard locking can be activated only when the bolt tongue is located in the locking module (failsafe locking mechanism).

Ì Safety characteristics: category, Performance Level, PFH

d

(see chapter 17. Technical data on page 34).

Control of guard locking (safety bit SO 1)

Ì Safety function.

If the device is used as guard locking for personnel protection, control of guard locking must be regarded as a safety
function.

The safety level of guard locking control is determined by the device PFH

d

int.

and by the external control (e.g. PFH

d

ext.

of the standstill monitor).

PFH

d

ext.

PFH

d

int.

(internal electronic)

Guardlocking Device

MGB-PN

(e.g. standstill

monitor)

Safetybit SO 1

(Guardlocking)

Ì Safety characteristics: category, Performance Level, PFH

d

(see chapter 17. Technical data on page 34).

The following applies in case of inactive guard lock monitoring (ÜK, bitSI 10):
Monitoring of the safety guard position

(interlocking device according to ENISO14119)

Ì Safety function: When the safety guard is open, safety bit SI 10 (SK)=0 (see chapter 6. Function on page 10).
Ì Safety characteristics: category, Performance Level, PFH

d

(see chapter 17. Technical data on page 34).

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

8

(translation of the original operating instructions) 114575-04-03/15

The following applies to devices with emergency stop:
Emergency stop

(emergency stop device according to ENISO13850)

Ì Safety function: evaluation of emergency stop
Ì Safety characteristics: B

10d

value of emergency stop and PFHd for the evaluation electronics (see chapter 17. Technical

data on page 34)

PFH

d

ext.

PFH

d

int.

(internal electronic,

evaluation of the
emergency stop)

MGB-PN

(Failsafe PLC)

B10

d

(Emergency Stop)

Safetybit SI 1

(Emergency Stop)

The following applies to devices with connection for enabling switch:
Enabling function

Ì Safety function: evaluation of a connected enabling switch
Ì Safety characteristics: B

10d

value of the enabling switch (see manufacturer’s information) and PFHd for the evaluation

electronics (see chapter 17. Technical data on page 34)

PFH

d

ext.

PFH

d

int.

(internal electronic,

evaluation of the

enabling switch)

MGB-PN

(Failsafe PLC)

B10

d

(Enabling Switch)

Safetybit SI 2

(Enabling Switch)

For devices with selector switch:
Detection of the switch position

Ì Safety function: evaluation of the switch position, e.g. for safe switchover between individual operating modes
Ì Safety characteristics: PFH

d

for the evaluation electronics (see chapter 17. Technical data on page 34). The switch

position is scanned electronically, so there is no B

10d

value for the switch.

PFH

d

ext.

PFH

d

int.

(internal electronic,

evaluation of the

selector switch)

MGB-PN

(Failsafe PLC)

Safetybits

SI 6, SI 7, SI 8

(Selector Switch)

9

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

4. Exclusion of liability and warranty

In case of failure to comply with the conditions for correct use stated above, or if the safety instructions are not followed,
or if any servicing is not performed as required, liability will be excluded and the warranty void.

5. General safety instructions

Safety switches fulll personal protection functions. Incorrect installation or tampering can lead to fatal injuries to personnel.
Check the safe function of the safety guard particularly

Ì after any setup work
Ì after the replacement of an MGB component
Ì after an extended period without use
Ì after every fault
Ì after any change to the DIP switch setting

Independent of these checks, the safe function of the safety guard should be checked at suitable intervals as part of the
maintenance schedule.

WARNING

Danger to life due to improper installation or due to bypassing (tampering). Safety components perform
a personal protection function.

Ì Safety components must not be bypassed, turned away, removed or otherwise rendered ineffec-

tive. On this topic pay attention in particular to the measures for reducing the possibility of bypass­ing according to ENISO14119:2013, section 7.

Ì The switching operation is only allowed to be triggered by the intended handle module MGB-H…

that is positively fastened to the safety guard.

Ì Prevent bypassing by means of replacement actuators (only for multicode evaluation). For this

purpose, restrict access to actuators and to keys for releases, for example.

Ì Mounting, electrical connection and setup only by authorized personnel possessing the following

knowledge:

- specialist knowledge in handling safety components

- knowledge about the applicable EMC regulations

- knowledge about the applicable regulations on occupational safety and accident prevention.

Important!

Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating
instructions are always available during mounting, setup and servicing. EUCHNER cannot provide any
warranty in relation to the readability of the CD for the storage period required. For this reason you
should archive a printed copy of the operating instructions. You can download the operating instruc­tions from www.euchner.de.

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

10

(translation of the original operating instructions) 114575-04-03/15

6. Function

6.1. Interlocking module MGB-L0.B-PN.

Together with a handle module, the interlocking module makes it possible to interlock moving safety guards. The combina­tion also serves as a mechanical door stop at the same time.

The following switch-on condition applies to safety bit SI 9 (SK):

Ì Safety guard closed (T)
Ì Bolt tongue inserted into interlocking module (R)

See also chapter 16. System status table on page 33 and chapter 13.8. PROFIsafe data bytes (data block for safe
functions) on page 30.

The interlocking module detects the position of the safety guard and the position of the bolt tongue.
The bolt tongue in the handle module is moved into and out of the interlocking module by actuating the door handle.

6.2. Locking module MGB-L1.B-PN. and MGB-L2.B-PN.

Together with a handle module, the locking module makes it possible to lock moving safety guards. The combination also
serves as a mechanical door stop at the same time.

Important!

To operate the device as a guard lock for personnel protection according to ENISO14119, the sig­nals for door position (T=PROFIsafe bit SI 3), bolt position (R= PROFIsafe bit SI 4) and guard lock
monitoring (Z= PROFIsafe bit SI 5) must be polled in a logical AND operator. This operator is already
implemented in the PROFIsafe data block (ÜK=safety bit SI 10).

As an alternative, you can also link the bits SI 3 to SI 5 individually in your control system.

The following switch-on condition applies to safety bit SI 10 (ÜK):

Ì Safety guard closed (T)
Ì Bolt tongue inserted into locking module (R)
Ì Locking arm in locking position (guard lock monitoring) (Z)

See also chapter 16. System status table on page 33 and chapter 13.8. PROFIsafe data bytes (data block for safe func-
tions) on page 30.

The locking module detects the position of the safety guard and the position of the bolt tongue. The position of the locking
arm is also monitored.

The bolt tongue in the handle module is moved into and out of the locking module by actuating the door handle.
When the bolt tongue is fully inserted in the locking module, the locking arm locks the bolt tongue in this position. Depending

on the version, this locking is by spring force or solenoid force.

11

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

6.3. Guard locking for version MGB-L1

(guard locking actuated by spring force and released by energy ON)

Activating guard locking: close safety guard; no voltage at the solenoid (safety bit SO 1=0).
Releasing guard locking: apply voltage to the solenoid (safety bit SO 1=1).

The spring-operated guard locking functions in accordance with the closed-circuit current principle. If voltage is interrupted
at the solenoid, guard locking remains active and the safety guard cannot be opened directly.

Important!

If the safety guard is open when the power supply is interrupted and the guard is then closed, guard
locking is activated. This can lead to persons being locked in unintentionally.

As long as the locking arm is closed, the bolt tongue cannot be pulled out of the locking module and the safety guard is locked.
When voltage is applied to the locking solenoid, the locking arm is opened and bolt tongue is released. The safety guard

can be opened.

6.4. Guard locking for version MGB-L2

(guard locking actuated by energy ON and released by spring force)

Important!

Use as guard locking for personnel protection is possible only in special cases, after strict assessment
of the accident risk (see ENISO14119:2013, section 5.7.1)!

Activating guard locking: apply voltage to the solenoid (safety bit SO 1=1).

Releasing guard locking: disconnect voltage from the solenoid (safety bit SO 1=0).

The magnetically actuated guard locking operates in accordance with the open-circuit current principle. If voltage is inter­rupted at the solenoid, guard locking is released and the safety guard can be opened directly!

The safety guard can be opened as long as no voltage is applied to the guard locking solenoid.
When voltage is present at the guard locking solenoid, the the locking arm is held in locked position and the safety guard

is locked.

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

12

(translation of the original operating instructions) 114575-04-03/15

6.5. Control of the guard locking

From MGB version V2.36.4, the factory ensures that control is possible only from the safe control area.
By changing the parameters in the conguration tool of your control system, it can be set whether bit O 16 (in the safe

data block for the MGB locking module) is evaluated as well.

Important!
The following applies to MGB-L2:

Control of the guard locking via the safe control area does not provide increased safety, as the device­internal control of the guard locking is only of single-channel design.

Important!

The following functions depend on the MGB version, the version of the GSD le and the settings made
there.
Compare the specied versions with those on your device and your GSD le. The version number of
your MGB can be found on the type plate (format: VX.XX.X).

MGB version GSD version Continue in section ...

up to and including V2.35.4 ..._110026-20110725 Case A

..._110026-20110815 Case A

from V3.30.0 ..._110026-20110725 Case B

..._110026-20110815 or newer Case C

6.5.1. Case A

You have an MGB with a version number of V2.35.4 and a GSD le with a version number of ..._110026-20110725 or older.
Or you have an MGB with a version number of V2.35.4 and a GSD le with a version number from ..._110026-20110815.

The guard locking solenoid is controlled if

Ì bit O 16 OR bit SO 01 = 1

Truth table

PROFINET bit PROFIsafe bit Guard locking with

O 16 SO 01

MGB-L1... MGB-L2...

0 0

active inactive

0 1

inactive active

1 0

inactive active

1 1

inactive active

What must be observed?

The guard locking can be controlled from the unsafe control area. The combination with the more up-to-date GSD le allows
a parameter to specify which bits are to be used for control. However, the device does not support this function. In other
words, the setting in your conguration software remains ineffective.

13

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

6.5.2. Case B

You have an MGB with a version number of V3.30.0 and a GSD le with a version number of ..._110026-20110725 or older.

The guard locking solenoid is controlled if
for MGB-L1...

Ì bit SO 01 = 1

for MGB-L2...

Ì bit O 16 OR bit SO 01 = 1

Truth table

PROFINET bit PROFIsafe bit Guard locking with

O 16 SO 01

MGB-L1... MGB-L2...

0 0

active inactive

0 1

inactive active

1 0

active active

1 1

inactive active

What must be observed?

Bit O 16 does not have any function with version MGB-L1.... In existing installations in which old devices are replaced with

new ones (e.g. due to defect), malfunctions can occur if control via bit O 16 was programmed in the PLC.

Remedy:

1. Replace the old GSD le with a version from ..._110026-20110815.

2. In the parameter Locking module – solenoid control, activate unsafe control of the guard locking solenoid via bit O 0.0.

3. Set bit SO 01 permanently to the value 1.

¨ The guard locking solenoid is controlled exclusively via bit O 16

or

Ì Change the control bit from O 16 to SO 01 in your PLC program.

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

14

(translation of the original operating instructions) 114575-04-03/15

6.5.3. Case C

You have an MGB with a version number of V3.30.0 and a GSD le with a version number from ..._110026-20110815.

The guard locking solenoid is controlled if:

Ì bit SO 01 = 1 (factory setting)

Truth table

PROFINET bit PROFIsafe bit Guard locking with

O 16

irrelevant

SO 01

MGB-L1... MGB-L2...

0 0

active inactive

0 1

inactive active

1 0

active inactive

1 1

inactive active

What must be observed?

You can dene in the GSD le whether bit O 16 may be used for control in addition to bit SO 01. The setting is specied
in the parameter Locking module – solenoid control.

If O 16 is additionally used, the guard locking solenoid is controlled if
for MGB-L1...

Ì bit SO 01 AND bit O 16 = 1

for MGB-L2...

Ì bit SO 01 OR bit O 16 = 1

Truth table

PROFINET bit PROFIsafe bit Guard locking with

O 16 SO 01

MGB-L1... MGB-L2...

0 0

active inactive

0 1

active active

1 0

active active

1 1

inactive active

15

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

7. System overview

Mounting plate

Escape release (optional)
(MGB-E...)

Handle module (MGB-H...)

Locking/release module (MGB-L...)

Bus module
(Pronet)
(MGB-B...)

Figure 1: Components at a glance

NOTICE

MGB-PN systems are completely factory congured. The conguration must not be changed subse­quently. The illustrations in this chapter can deviate from your system and serve only as examples. The
conguration of your MGB system can be found in the data sheet included with every MGB system.

7.1. Bus module MGB-B-…-PN

Key:

1

LED indicator

2

Power supply

3

PROFINET connection

Notice:
Depending on the version, additional controls and indicators may be integrated into
the cover. See enclosed data sheet.

1

2

3

Figure 2: Bus module MGB-B-…-PN (conguration example)

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

16

(translation of the original operating instructions) 114575-04-03/15

7.2. Locking/release module MGB-L.-

2

1

3

4

Key:

1

LED indicator

2

Cover for mechanical release

3

Locking arm (only for version with guard locking)

4

Auxiliary marking for max. permitted mounting distance

Notice:
Depending on the version, additional controls and indicators may be integrated into
the cover. See enclosed data sheet.

Figure 3: Locking/release module MGB-L.-

7.3. Handle module MGB-H-…

1

2

3

3

4

Key:

1 Door handle
2 Locking screws T10 for housing cover and handle adjustment
3 Fold-out lockout mechanism

(optional: second, automatically extending lockout mechanism)

4 Bolt tongue
Notice:

Depending on the version, a mounting plate can be included.
See enclosed data sheet.

Figure 4: Handle module MGB-H-…

7.4. Escape release MGB-E-… (optional)

1 2 3 4 5

Key:

1 Door handle
2 Setscrew
3 Cover
4 Actuation axis 8 x 8 mm

(different lengths available)

5 Protective sleeve
Notice:

Depending on the version, a mounting plate can be included.
See enclosed data sheet.

Figure 5: Escape release MGB-E-…

7.5. Dimension drawing

See enclosed data sheet.

7.6. Manual release

Some situations require guard locking to be released manually (e.g. malfunctions or an emergency). A function test should
be performed after release.

More information on this topic can be found in the standard ENISO14119:2013, section 5.7.5.1. The device can feature
the following release functions:

17

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

7.7. Mechanical release

In the event of service, the guard locking can be released with the mechanical release irrespective of the state of the sole­noid (see Figure 6).

Important!

Ì The system enters into a latching fault when the mechanical release is actuated. See System sta-

tus table, signal sequence incorrect status (DIA red, Lock ashes 1 time).

Ì The system might not enter into a latching fault if the mechanical release is actuated very slowly.

Important!

Ì The mechanical release is not a safety function.
Ì The machine manufacturer must select and use a suitable release (escape release, emergency

unlocking, etc.) for a specic application. A risk assessment is required for this purpose. It may be
necessary to take specications from a product standard into account.

Ì The correct function must be checked at regular intervals.
Ì Loss of the release function due to mounting errors or damage during mounting. Check the re-

lease function every time after mounting.

Ì Please observe the notes on any enclosed data sheets.

The locking screw must be screwed back in and sealed (for example with sealing lacquer) after assembly and after every
use of the mechanical release. Tightening torque 0.5 Nm.

1. Undo locking screw.

2. Lift locking arm using a screwdriver and actuate door handle.

Figure 6: Mechanical release

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

18

(translation of the original operating instructions) 114575-04-03/15

7.8. Lockout mechanism

If the lockout mechanism is pivoted out/extended, the bolt tongue cannot be extended. The lockout mechanism can be
secured with padlocks (see Figure 7). This is intended to prevent people from being locked in unintentionally. The lockout
mechanism does not fulll any safety function.

¨ To pivot out, press the grooved part (only possible with bolt tongue retracted).

1

2

Key:

1

Padlock ∅min. 2mm,

∅max. 10 mm

2

Automatically extending, second lockout mechanism

Padlock ∅min. 6mm, ∅max. 10 mm

Notice:
You can t a maximum of 3 locks Ø8mm.

Figure 7: Lockout mechanism secured with padlock

7.9. Escape release (optional)

The escape release is used to open a locked safety guard from the inside without tools.
The system enters into a latching fault when the escape release is actuated.

See chapter 16. System status table on page 33, signal sequence incorrect status (DIA red, Lock ashes 1 time).
The system might not enter into a latching fault if the escape release is actuated very slowly.

Important!

Ì It must be possible to operate the escape release manually from inside the protected area without

tools.

Ì It must not be possible to reach the escape release from the outside.
Ì The actuator must not be under tensile stress during manual release.

Ì The escape release meets the requirements of Category B according to ENISO13849-1:2008.
Ì The correct function must be checked at regular intervals.
Ì Please observe the notes on any enclosed data sheets.

Ì Fit escape release such that operation, inspection and service are possible.
Ì The actuation axis for the escape release must be inserted min. 10 mm into the handle module. Note the information on

the different prole widths in the chapter 7.9.1. Preparing escape release on page 19.

Ì Align escape release axis at right angles to the handle module. See Figure 8.

19

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

7.9.1. Preparing escape release

Prole width Length required for actua-

tion axis

Which EUCHNER parts are required? Necessary work steps

Without plates With mounting

plates
(4 mm each)

D D+13 D+21

30 mm 43 mm 51 mm Standard escape release

with 110 mm axis
(order no. 100465)

Shorten to required length

40 mm 53 mm 61 mm Standard escape release

with 110 mm axis
(order no. 100465)
If necessary
extended actuation axis (order no. 106761)

Without mounting plates:

None
With mounting plates:
Use long actuation axis and protective sleeve and
shorten to required length

45 mm 58 mm 66 mm Standard escape release

with 110 mm axis
(order no. 100465)
and
extended actuation axis (order no. 106761)

Use long actuation axis and protective sleeve and
shorten to required length

50 mm 63 mm 71 mm Standard escape release

with 110 mm axis
(order no. 100465)
and
extended actuation axis (order no. 106761)

Use long actuation axis and protective sleeve and
shorten to required length

1

Fit door handle.

2

Insert actuation axis. The locking ring A must be in contact with the escape release B.

3

Tighten setscrew to 2 Nm.

4

Fit protective sleeve.

Protective sleeve

Actuation axis

Example with mounting plates:

58.5

4.2

D

4.2

(10)

55.5

(+4.2 mm per plate)

250

182

Mounting plates

D + 13

3.5

(+4.2 mm per plate)

D + 3.5

1

3

2

4

A

B

Figure 8: Preparing escape release

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

20

(translation of the original operating instructions) 114575-04-03/15

8. Mounting

WARNING

Mounting must be performed only by authorized personnel.

With two-wing hinged doors, one of the two door wings additionally must be latched mechanically.
Use a rod latch (Item) or a double-door lock (Bosch Rexroth) for this purpose, for example.

Important!

Ì If installed ush, the switching distance changes as a function of the installation depth and the

safety guard material.

Locking

module

Handle module

Locking

module

Handle module

Surface mounting

Flush mounting

Operating distance

Operating distance

Tip!

Ì You can nd an animation on the mounting process at www.mgb.euchner.de.
Ì The color and labeling of pushbuttons and indicators can be modied.

For mounting steps, see Figure 9 and Figure 10 to Figure 15.
Attach system such that operation of the mechanical release as well as inspection and maintenance are possible.
The locking screw of the escape release must be returned to its original position and sealed before putting into operation

(for example with sealing lacquer).

21

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

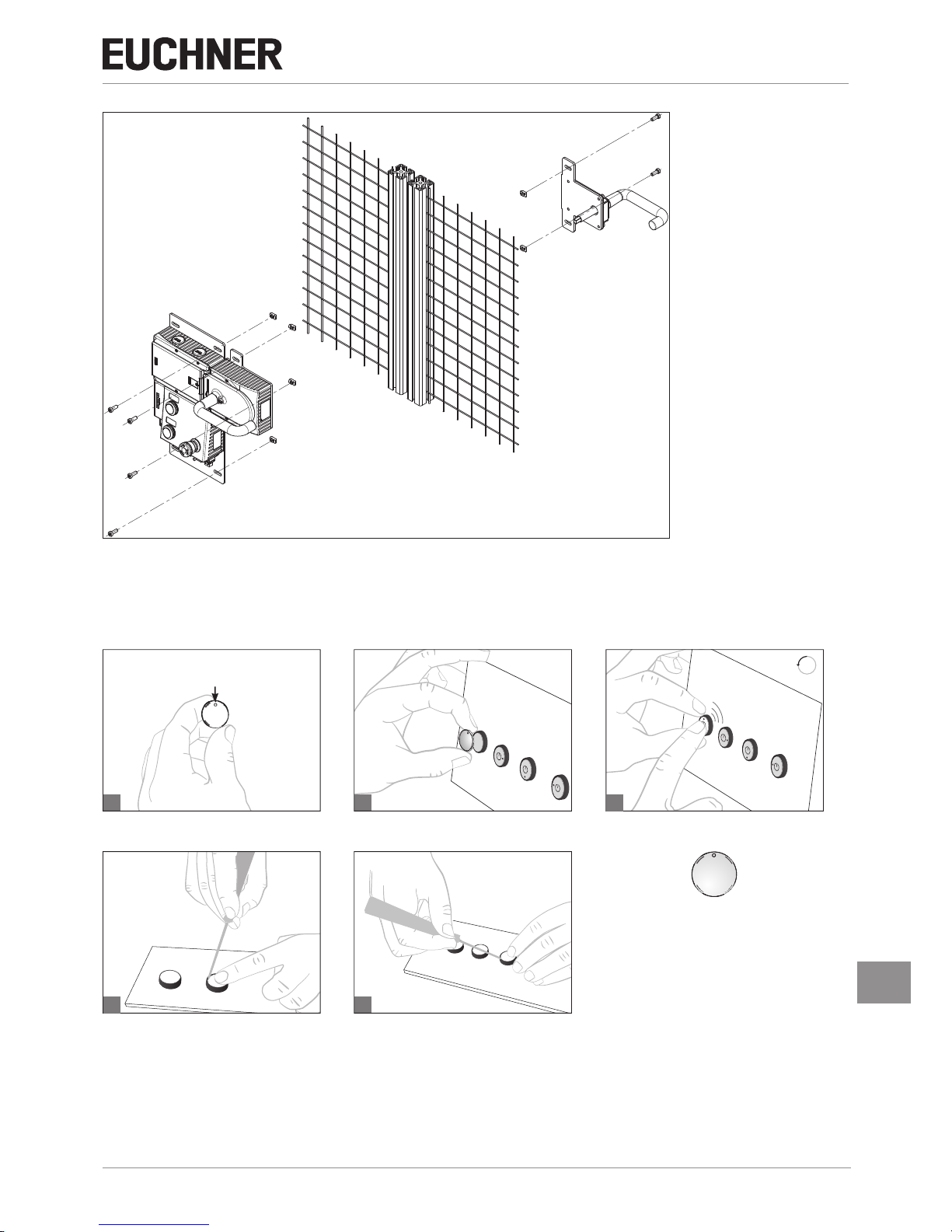

Figure 9: Installation example for door hinged on the right (general view)

8.1. Mounting color cover

1 2

2

3

90°

Click!

1

Mounting

Removing

Color cover

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

22

(translation of the original operating instructions) 114575-04-03/15

9. Changing actuating direction

(here: from right to left)

Important!

It is only possible to make this change when the bolt tongue is not extended and an escape release
is not yet mounted.

As supplied, the handle module is set either for doors hinged on the right or for doors hinged on the left.
Based on the example of a handle module for doors hinged on the right this means:

Ì The safety guard opens by pressing down the door handle.
Ì The system is mounted the other way around for doors hinged on the left. In other words, the safety door opens by

pressing up the door handle (see Figure 10). For this reason the actuating direction of the door handle must be changed
(see Figure 10 to Figure 15).

(Similarly on handle modules for doors hinged on the left)

CLOSED

OPEN

1

3

2

1

Press door handle up.

2

Unscrew locking screws.

3

Push cover aside.

Figure 10: Changing actuating direction, step

1

Figure 11: Changing actuating direction, steps 2 and

3

5

4

4

Lift the locking pin on the door handle using a screwdriver and hold

it in this position.

5

Turn door handle to the right.

7

8

6

b

a

3 mm

6

Only if using an escape release: using the hexagon head screw,

turn the joint counterclockwise from position (a) to position (b).

7

Close cover.

8

Screw in locking screws and tighten to 0.8 Nm.

Figure 12: Changing actuating direction, steps 4 and

5

Figure 13: Changing actuating direction, steps 6 to

8

23

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

3 mm

9

10

11

OPEN

CLOSED

9

Remove cover and undo hexagon socket screw.

A

Reposition the door handle by 90° in clockwise direction and fasten

it again.

AK

Tighten hexagon socket head screw to 3 Nm.

AL

State after repositioning.

Figure 14: Changing actuating direction, steps 9 and AKFigure 15: Changing actuating direction, nal state

10. Protection against environmental effects

Lasting and correct safety function requires that the system must be protected against foreign bodies such as swarf, sand,
blasting shot, etc., which can become lodged in the locking and handle modules. For this purpose a suitable installation
position should be selected.

Cover device during painting work!

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

24

(translation of the original operating instructions) 114575-04-03/15

11. Controls and indicators

Data

Link

SF
BF

ON

B

U

1
1

2

Link
Data

2

X1 X3 X4

PN1PN2

X2

DC24V DC24V

Data2

Link2

SF
BF
ON
UB

Link1

Lock
DIA
State
Power

Data1

3

6

12

51 23 4

4

LEDs on the bus module

LED Color Description

Link 1 and
Link 2

Green Bus plug inserted:

statically on

Data 1 and
Data 2

Yellow Data transfer:

ashing

SF Red System error:

statically on
(see chapter on diag­nostic messages of
the MGB system)

BF Red Bus error:

statically on
(see chapter on diag­nostic messages of
the MGB system)

ON Green Self-test OK: stati-

cally on
User passivated:
ashing

UB Green Power supply OK:

statically on

LEDs on locking/release module

see System status table

DIP switches for PROFIsafe address

For coding see above

361 2

51 2 3 4

4

124816

32

64

128

256

512

OFF
ON

ON
OFF

default address:
128 + 4 + 2 + 1 = 135

Binary coding of the DIP
switches for PROFIsafe
address (factory setting:

135)

Cover for DIP switches

Figure 16: Indicators and controls/binary coding of the DIP switches for PROFIsafe address (factory setting: 135)

25

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

12. Electrical connection

WARNING

In case of an error, loss of the safety function through incorrect connection.

Ì Mounting must be performed only by authorized personnel.
Ì Lay the connection cables with protection to prevent the risk of short circuits.

CAUTION

Risk of damage to equipment or malfunctions as a result of incorrect connection.

Ì All the electrical connections must either be isolated from the mains supply by a safety trans-

former according EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other
equivalent isolation measures.

Ì Power devices which are a powerful source of interference must be installed in a separate location

away from the input and output circuits for signal processing. The cable routing for safety circuits
should be as far away as possible from the cables of the power circuits.

Ì In order to avoid EMC interference, follow EMC notes on devices in the immediate vicinity of the

MGB system and their cables.

Ì In order to avoid EMC interference, the physical environmental and operating conditions at the

installation site of the device must comply with the requirements according to the standard DIN
EN60204-1:2006, section 4.4.2/EMC.

Ì The function earth must be connected. An M6 threaded bore is available on the mounting plate

for this purpose.

Important!

Ì The supply for further users on the bus may be forwarded via the Euchner MGB system. The entire

supply current through the MGB must not be higher than specied in the chapter 17. Technical
data on page 34.

Ì If the device does not appear to function when operating voltage is applied (e.g. UB LED does not

illuminate), the safety switch must be returned unopened to the manufacturer.

Ì To ensure the stated degree of protection is achieved, the cover screws must be tightened to a

tightening torque of 1 Nm.

Ì Tighten screw for the cover for the mechanical release to 0.5 Nm.

12.1. Notes about

Important!

Ì For use and operation as per the requirements

1)

, a power supply with the feature “for use in
class 2 circuits” must be used. The same requirement applies to the safety outputs. Alternative
solutions must comply with the following requirements:

a) Electrically isolated power supply unit with a max. open-circuit voltage of 30V/DC and a
limited current of max. 8A.

b) Electrically isolated power supply unit in combination with fuse as per UL248. This fuse
should be designed for max. 3.3A and should be integrated into the 30VDC voltage section.

Ì The mounting of conduits directly on the MGB is not allowed. Cables are only allowed to be

connected via suitable cable glands. For this purpose use EUCHNER cable gland of type
EKPM20/06U. Equivalent cable glands can be used if they are UL-listed (QCRV) and are suitable
for the related cable diameter (22 AWG – 17 AWG).

1) Note on the scope of the UL approval: Only for applications as per NFPA 79 (Industrial Machinery).
The devices have been tested as per the requirements of UL508 (protection against electric shock and re).

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

26

(translation of the original operating instructions) 114575-04-03/15

12.2. Connections on bus module

The bus module includes the PROFINET connections (X3 and X4) and the power supply connections (X1 and X2). Depending
on the version, connection is made via push-pull plugs according to IEC 61076-3-117, variant 14 or 7/8" plugs according
to ANSI/B93.55M-1981 and M12 plugs (d-coded) according to IEC 61076-3-101.

The bus module includes a PROFINET RT switch for Ethernet connection.

12.2.1. Terminal assignment for version with push-pull plugs

X1 X2 X3 (PN2) X4(PN1)

1 2 3 4 5 1

8 1 8 1

2 345

1L+ 2L+

1L+

2L+

RJ45

Pin Description

X3.1 Receive Data RD+
X3.2 Receive Data RD­X3.3 Transmit Data TD+
X3.4 n.c.
X3.5 n.c.
X3.6

Transmit Data TD­X3.7 n.c.
X3.8 n.c.

Pin Description

X4.1 Receive Data RD+
X4.2 Receive Data RD­X4.3 Transmit Data TD+
X4.4 n.c.
X4.5 n.c.
X4.6

Transmit Data TD­X4.7 n.c.
X4.8 n.c.

Pin Description

X1.1 L1 operating voltage DC 24 V
X1.2 N1 operating voltage 0 V
X1.3 L2 auxiliary voltage* DC 24 V
X1.4 N2 auxiliary voltage* 0 V
X1.5 Function earth

* The auxiliary voltage is not required for the MGB

system

Pin Description

X2.1 L1 operating voltage DC 24 V
X2.2 N1 operating voltage 0 V
X2.3 L2 auxiliary voltage* DC 24 V
X2.4 N2 auxiliary voltage* 0 V
X2.5 Function earth

12.2.2. Terminal assignment for version with 7/8" and M12 plugs, d-coded

1

4

1 2

3

d-kodierung

(female)

(Buchse)

3

X1

(Stift / male)

X2

(Buchse / female)

X3 (PN2)

d-kodierung

2

3

4

5 5

4

3

1

214

X4 (PN1)

(Buchse)

(female)

2

M12

7/8"

M12

7/8"

Pin Description

X1.1 N2 auxiliary voltage *0 V
X1.2 N1 operating voltage 0 V
X1.3 Function earth
X1.4 L1 operating voltage DC 24 V
X1.5 L2 auxiliary voltage* DC 24 V

* The auxiliary voltage is not required for the MGB

system

Pin Description

X2.1 N2 auxiliary voltage *0 V
X2.2 N1 operating voltage 0 V
X2.3 Function earth
X2.4 L1 operating voltage DC 24 V
X2.5 L2 auxiliary voltage* DC 24 V

Pin Description

X3.1 Transmit Data +TD
X3.2 Receive Data +RD
X3.3 Transmit Data -TD_N
X3.4 Receive Data -RD_N
Function earth on plug housing

Pin Description

X4.1 Transmit Data +TD
X4.2 Receive Data +RD
X4.3 Transmit Data -TD_N
X4.4 Receive Data -RD_N
Function earth on plug housing

27

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

13. Setup

13.1. Integrating into PROFINET and PROFIsafe

NOTICE

The parameters “Update time” and “F-WD-Time” have a decisive effect on the reaction time of the
safety function. The safety function could be lost if the reaction times are too long.

Important!

You will require the corresponding GSD le in GSDML format in order to integrate the MGB system:

Ì GSDML-Vx.x-EUCHNER-MGB-PN_D_110026-JJJMMTT.xml

You can nd the GSD le in the download area at www.euchner.de.
Prior to commissioning, the GSD le must be imported into the conguration software of the control

system (see control system manual).

You must perform the following steps to integrate the MGB system into PROFINET:

1. Congure the MGB system with the conguration software of the control system and assign parameters.
The following PROFINET parameters must be set:

Ì Device name (factory setting from GSD le): [euchnermgb].
Ì IP address: optionally xed or dynamic
Ì Update time

Recommendation [32 ms]
Maximum value [128 ms]
(with number of repeat cycles = 3)

The following PROFIsafe parameters must be set:

Ì F_dest_adr (PROFIsafe address): this is generally assigned automatically by the control system.
Ì F_WD_Time (time during which the control system expects a response by the PROFIsafe device): [xxx ms]. Factory set-

ting from GSD le: [600 ms]

2. Set the PROFIsafe address (F_dest_adr) on the MGB system using the DIP switches (see Figure 16 on page 24).
Important: Identical addresses must be set in the control system and on the device.

3. Save the conguration and transfer it to the MGB system.

13.2. Replacement of an MGB system without programming device

If servicing is required, the MGB system is easy to replace with a new one. For this purpose, the following prerequisites
must be met:

Ì The DIP switch settings (PROFIsafe address) on the new device must match those on the old device.
Ì Your Pronet master must support the automatic replacement of Pronet users.
Ì Your Pronet topology must be correctly congured.
Ì The replacement device must be connected to the same port as its predecessor.
Ì There must be no device name in the MGB system.

This eld is empty in the as-delivered state. Systems that already contain a name must rst be reset to the factory set­tings.

Once these conditions are met, simply replace the old system with the new system.
The Pronet bus does not need to be switched off for this purpose.

13.3. System reset to factory settings

You will nd detailed instructions in the manual for the conguration software for your control system.

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

28

(translation of the original operating instructions) 114575-04-03/15

13.4. Teach-in operation (only for MGB unicode)

The handle module must be assigned to the locking module using a teach-in function before the system comprising locking
module and handle module and forms a functional unit.

The system is in a safe state (bits SI 3, SI 4, SI 5, SI 9 and SI 10 are not set) during a teach-in operation.

Important!

Ì The locking module disables the code for the previous handle module if teach-in is carried out for

a new handle module. Teach-in is not possible again immediately for this actuator if a new teach-in
operation is carried out. The disabled code is deleted in the locking module only after a third code
has been taught.

Ì The locking module can only be operated with the last handle module taught.
Ì If, in the teach-in standby state, the locking module detects the handle module taught-in or a

disabled handle module, the teach-in standby state is ended immediately and the locking module
changes to the normal state.

Ì If the bolt tongue is in the operating distance for less than 60 s, the handle module is not taught.

Teaching in handle module

1. Fit handle module.

2. Close safety guard. Check for correct alignment and distance using the marking on the locking module and re-adjust if
necessary.

3. Insert bolt tongue in the locking module.

4. Apply operating voltage to the locking module.

¨ Teach-in operation starts, green LED (State) ashes slowly (approx. 1 Hz). The teach-in standby state is active for 3 min-

utes after switch on. During teach-in, the locking module checks whether the handle module is a disabled handle module.
Provided this is not the case, the teach-in operation is ended after approx. 60 seconds, and the green LED (State) goes
out. The new code has now been stored, and the old code is disabled.

5. Reset via bit O 18 in the data block of the diagnostic function to activate the taught-in code of the handle module in the
locking module.

13.5. Mechanical function test

It must be possible to easily insert the bolt tongue in the locking module. To check, close safety guard several times and
actuate door handle.

If available, check function of the escape release. With active guard locking it must be possible to operate the escape release
from the inside without excessive effort (approx. 40 N).

13.6. Electrical function test

1. Switch the operating voltage on or perform a reset via output bit O 18 in the data block of the diagnostic function.

2. Close all safety guards and insert the bolt tongue into the locking module.
In case of guard locking by solenoid force ¨ activate guard locking.

Ì The machine must not start automatically.
Ì It must not be possible to open the safety guard.
Ì The following applies to MGB-L0: The green LED (State) is illuminated.
Ì The following applies to MGB-L1/2: The green LED (State) and the yellow LED (Lock) are illuminated.

3. Enable operation in the control system.

Ì It must not be possible to deactivate guard locking as long as operation is enabled.

4. Disable operation in the control system and deactivate guard locking.

Ì The safety guard must remain locked until there is no longer any risk of injury.
Ì It must not be possible to start the machine as long as the guard locking is deactivated.
Ì It must be possible to open the safety guard.

Repeat steps 2-4 for each safety guard.

29

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

13.7. PROFINET data bytes (data blocks for unsafe functions)

NOTICE

Ì See the supplied data sheet for details on the bit assignment.
Ì See chapter 14. Diagnostic messages of the MGB system on page 31.

Pronet RT modules 3 bytes IO:

Assignment in the input area of the bus master:

1st byte I8 I7 I6 I5 I4 I3 I2 I1
2nd byte I16 I15 I14 I13 I12 I11 I10 I9

Depending on your conguration variant
(refer to the data sheet of your device for the exact bit allocation)

3rd byte I24 I23 I22 I21 I20 I19 I18 I17

I17: Device diagnosis (PROFIsafe error 72): message present. Diagnostic

code: see table of device-specic messages.

I18: Device diagnosis, device-specic message 274(4) "Plausibility check

found an error (e.g. escape release actuated)"

I19: Device diagnosis, device-specic message 272(1) or 273(1) "Error in

emergency stop"

I20: Device diagnosis, device-specic message 272(2) or 273(2) "Error in

enabling switch"

I21: Device diagnosis, device-specic message 272(6) or 273(6) "Error in

operating mode selector switch"
I22: n.c.
I23: n.c.
I24: Mechanical life > 1 million operating cycles

Assignment in output area of the bus master:

1st byte O8 O7 O6 O5 O4 O3 O2 O1
2nd byte O16 O15 O14 O13 O12 O11 O10 O9

Depending on your conguration variant
(refer to the data sheet of your device for the exact bit allocation)

3rd byte O24 O23 O22 O21 O20 O19 O18 O17

O17: Device diagnosis: acknowledge message; acknowledgment of I19,

I20 or I21. I17 is also acknowledged if only one message is present.

O18: Trigger MGB locking module reset: acknowledge message; acknowl-

edgment of I18. I17 is also acknowledged if only one message is

present.
O19: n.c.
O20: n.c.
O21: n.c.
O22: n.c.
O23: n.c.
O24: n.c.

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

30

(translation of the original operating instructions) 114575-04-03/15

13.8. PROFIsafe data bytes (data block for safe functions)

Safe PROFIsafe data are transmitted in addition to the non-safety-related PROFINET data. These data include all information
about the door position and guard locking, emergency stop and enabling switch, for example.

NOTICE

Ì See the supplied data sheet for details on the bit assignment.

Important!

Never use the signaling bits for safety functions.

Prosafe assignment in the output area of the bus master:

Byte n+0 SO8 SO7 SO6 SO5 SO4 SO3 SO2 SO1
Byte n+1 SO16 SO15 SO14 SO13 SO12 SO11 SO10 SO9
Byte n+2 Prosafe internal
Byte n+3 Prosafe internal
Byte n+4 Prosafe internal
Byte n+5 Prosafe internal

SO1: Control of guard locking solenoid (for function, see section on control

of guard locking, p. 6, only available for L1 and L2)
SO2: n.c
SO3: n.c
SO4: n.c
SO5: n.c
SO6: n.c
SO7: n.c
SO8: n.c

SO9: n.c
SO10: n.c
SO11: n.c
SO12: n.c
SO13: n.c
SO14: n.c
SO15: n.c
SO16: n.c

Prosafe assignment in the input area of the bus master:

Byte n+0 SI8 SI7 SI6 SI5 SI4 SI3 SI2 SI1
Byte n+1 SI16 SI15 SI14 SI13 SI12 SI11 SI10 SI9
Byte n+2 Prosafe internal
Byte n+3 Prosafe internal
Byte n+4 Prosafe internal
Byte n+5 Prosafe internal

SI1: Emergency stop
SI2: Enabling switch

Enabling contacts closed (three-stage enabling switch in center posi-

tion), no evaluation of the edges
SI3: Door position (T)
SI4: Bolt position (R)
SI5: Guard locking (Z)
SI6:

Operating mode selector switch (used, 3 bits)

SI7:
SI8:

SI9: SK (T AND R)

Door position + bolt position (available for L0, L1 and L2)
SI10: ÜK (T AND R AND Z)

Door position + bolt position + guard locking (available only for L1

and L2)
SI11: n.c
SI12: n.c
SI13: n.c
SI14: n.c
SI15: n.c
SI16: Reserved for customer-specic function

31

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

14. Diagnostic messages of the MGB system

All diagnostic messages are listed below. The scope of the possible messages can differ according to the MGB system version.

PROFIsafe messages

Display via LED BF (see Figure 16)

No. Description Measures/remedying errors

64 Error when comparing the

PROFIsafe destination address
(F_Dest_Add)

1. Check DIP switch setting

2. Restart system

65 Invalid PROFIsafe destination ad-

dress (F_Dest_Add)

1. Check addressing

2. Restart system

66 Invalid PROFIsafe source address

(F_Sourrce_Add)

1. Check addressing

2. Restart system

67 Value for the PROFIsafe time moni-

toring is 0 ms (F_WD_TIME)

1. Check system times

2. Restart system

68 Parameter F_SIL exceeds SIL of

the device-specic application

1. Check settings

2. Restart system

69 Parameter F_CRC_Length does

not match the generated values

1. Check settings

2. Restart system

70 Version for F_Parameter not

correct

1. Check conguration

2. Restart system
71 Error CRC 1- (during booting) 1. Restart system
72 Device-specic diagnostic informa-

tion (see following table)

1. Identify error via input bit I 17

2. For error remedy, see the fol-

lowing table with device-specic
messages

Device-specic diagnostic information

Display via LED SF (see Figure 16)

Discrepancy error (two-channel monitoring detected
an error)

Notice:

Ì The discrepancy time is the maximum time during which

channel 1 and channel 2 may have different signal states.

Ì If acknowledgment was unsuccessful, send the device to

the manufacturer.

No. Description Measures/remedying errors

272 Discrepancy time exceeded 1. Search for cause

2. Acknowledge fault (via output
bit O 17)

272(1) Emergency-stop discrepancy

time exceeded

1. Press emergency stop

2. Acknowledge fault (via output
bit O 17)

272(3) Door position discrepancy time

exceeded

1. Open the door

2. Acknowledge fault (via output
bit O 17)

272(4) Bolt-position discrepancy time

exceeded

1. Open the door

2. Acknowledge fault (via output
bit O 17)

272(5) Guard-locking discrepancy time

exceeded

1. Open the door

2. Acknowledge fault (via output
bit O 17)

272(6) Operating mode selector switch

discrepancy time exceeded

1. Search for cause

2. Acknowledge fault (via output
bit O 17)

272(7) Enabling switch detection dis-

crepancy time exceeded

1. Remove enabling switch

2. Acknowledge fault (via output
bit O 17)

272(8) Internal device error Please contact our

support organization!

Test-pulse error (short-circuit monitoring detected an
error)

Notice:

Ì The emergency stop must not be pressed during ac-

knowledgment.

Ì If acknowledgment was unsuccessful, send the device to

the manufacturer.

No. Description Measures/remedying errors

273 Test pulses erroneous Safety function is switched off while

no test pulses are being detected.

1. Check system

2. Acknowledgment via output bit
O 17 required.

273(1) Emergency-stop test pulses

erroneous

Safety function is switched off while
no test pulses are being detected.

1. Check system

2. Acknowledgment via output bit
O 17 required.

273(3)

Door-position test pulses er­roneous

Safety function is switched off while
no test pulses are being detected.

1. Close door

2. Acknowledgment via output bit
O 17 required.

273(4) Bolt-position test pulses errone-

ous

Safety function is switched off while
no test pulses are being detected.

1. Close door

2. Acknowledgment via output bit
O 17 required.

273(5) Guard-locking test pulses er-

roneous

Safety function is switched off while
no test pulses are being detected.

1. Close and lock door

2. Acknowledgment via output bit
O 17 required.

273(6) Operating mode selector switch

test pulses erroneous.

Safety function is switched off while
no test pulses are being detected.

1. Check system

2. Acknowledgment via output bit
O 17 required.

273(7)

Enabling-switch detection test
pulses erroneous

Safety function is switched off while
no test pulses are being detected.

1. Check system

2. Acknowledgment via output bit
O 17 required.

273(8) Internal device error Please contact our

support organization!

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

32

(translation of the original operating instructions) 114575-04-03/15

General messages of the overall system

No. Description Measures/remedying errors

274(2) Internal device error Please contact our support organi-

zation!

274(3) Signal sequence erroneous (e.g.

broken bolt tongue recognized)

1. Check mech. functions

2. Acknowledge fault (via output
bit O 18). The safety door must
be open.

274(4) Plausibility test detected an error

(e.g. escape release actuated)

Important: The resetting procedure
is contained in the section “Latch­ing fault when actuating the escape
release”

Ì Acknowledge fault (via output bit

O 18)

274(5) Locking module in error Please contact our

support organization!

274(6) Internal device error

Please contact our

support organization!

274(7) Internal device error
274(8) Internal device error

Fault in operating mode selector switch

No. Description Measures/remedying errors

275(1) Plausibility check erroneous

Please contact our support organi-

zation!

275(2) Internal device error
275(3) Internal device error
275(4) Internal device error
275(5) Internal device error
275(6) Internal device error
275(7) Internal device error
275(8) Internal device error

PROFIsafe errors

No. Description Measures/remedying errors

276(1) Starting error PROFIsafe

Please contact our support organi-

zation!

276(2) Memory error RAM
276(3) Memory error FLASH
276(4) Communication error
276(5) Synchronization error
276(6) Voltage monitoring
276(7) Internal device error
276(8) Hardware fault

General messages of the overall system

No. Description Measures/remedying errors

277(1) Starting error MGB

Please contact our

support organization!

277(2) Communication error
277(3) Internal device error
277(4) Wrong software version
277(5) Internal device error
277(6) Internal device error
277(7) Internal device error
277(8) Internal device error

No. Description Measures/remedying errors

278(1) Solenoid control fault

Please contact our

support organization!

278(2) Fault in switch element CPUA
278(3) Fault in switch element CPUB
278(4) Timeout of switch element CPUA
278(5) Timeout of switch element CPUB
278(6) Internal device error
278(7) Internal device error
278(8) Internal device error

Cyclical Prosafe status message

Bit Description Measures/remedying errors

0 Reserved ­1 Error in F-Device or F-Module

User is passivated (on LED ashes).

You will nd information on depassiv-

ating in the manual for your control

system.

2 Communication error, CRC error
3 Communication error, watchdog

timeout
4 Fail-safe values activated ­5 Toggle bit ­6 Consecutive number was reset ­7 Reserved -

15. PROFINET alarms

15.1. Fault in stacklight module

Short circuits on the stacklight module are output as a PROFINET diagnostic alarm (alarm number 1: short circuit).

33

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

Operating mode

Door position

Position of the bolt

tongue

Guard locking

Door position input

bit SI 3

Bolt position input

bit SI 4

Guard locking input

bit S 5

ÜK

input bit SI 10

Device diagnostics

input bit I 17

Device diagnostics

input bit I 18

Device diagnostics

input bit I 24

LED indicator

State

POWER (gn)

STATE (gn)

Lock (ye),

only MGB-

L1/-L2

DIA (rd)

Normal operation

open

not in-

serted

off off off off off off off X

long OFF

short ON

Normal operation, door open

closed

not in-

serted

off on off off off off off X

long ON

short OFF

Normal operation, door closed

closed inserted off on on off off off off X

long ON

short

OFF

Normal operation, door closed, bolt tongue inserted

closed inserted on on on on on off off X Normal operation, door closed and locked

Teach-in standby

(only for MGB uni-

code)

open

not in-

serted

off off off off off off off X 3 x

Door open; unit is ready for teach-in for another handle

module (only short time after power-up)

Setup

(only for MGB uni-

code)

closed inserted on off on on off off off X 1 Hz Teach-in operation

X X X off off off off off off X

Positive acknowledgment after completion of teach-in

operation

Fault display

X X X off off off off on off X 3 x

Handle module read error (e.g. error in code or code

cannot be read)**

X X X off off off off on off X Internal fault (e.g. component faulty, data error)*

X X X off off off off on off X 1 x

Signal sequence incorrect, e.g. broken bolt tongue

recognized ***

or after actuation of the escape release, for example*

Key to symbols

LED not illuminated

LED illuminated

10 Hz (8 s)

LED ashes for 8 seconds at 10 Hz

3 x

LED ashes three times

X Any state

* Latching fault; use corresponding output bit to reset (see chapter 14. Diagnostic messages of the MGB system on page 31)

** Non-latching fault; open safety guard and close it again to reset

*** Latching fault; use corresponding output bit to reset; door must be open (see chapter 14. Diagnostic messages of the MGB system on page 31)

Important: If you do not nd the displayed device status in the System status table, this indicates an internal device fault. In this case, you should contact the manufacturer.

16. System status table

LEDs on interlocking/locking module

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

34

(translation of the original operating instructions) 114575-04-03/15

17. Technical data

NOTICE

If a product data sheet is included with the product, the information on the data sheet applies.

Parameter Value

sar max. door position 65 mm
Housing material Fiber glass reinforced plastic;

die-cast zinc, nickel-plated;

stainless steel;

powder-coated sheet steel

Dimensions See dimension drawing
Weight of MGB-L.B (bus module, locking module, and button module with mounting

plate)

4.05 kg

Weight of handle module with mounting plate 1.20 kg
Weight of escape release module with mounting plate 1.15 kg
Ambient temperature -20 … +55 °C
Degree of protection IP 54
Safety class III

Degree of contamination 3

Installation position Any
Locking force Fzh in accordance with GS-ET-19 2,000 N
Connection options, power supply 2 x push-pull power

1)

or 2 x plug connectors 7/8" according to ANSI/B93.55M-1981

Connection type, bus 2 x RJ 45, push-pull, according to IEC 61076-3-117 type 14, screened

1)

or 2 x M12 (d-coded) according to IEC61076-2-101

Connection cable, bus Pronet I/O cable, at least cat. 5e
Operating voltage U

B

DC 24V +10% / -15%

(PELV – see chapter 12. Electrical connection on page 25)

Current consumption, max. 500 mA
Max. feed-in current in the connection block (push-pull plug connector) 4,000 mA
Fuse protection for power supply, external Min. 1 A slow-blow
Safety outputs Prosafe according to IEC61784-3-3
Rated insulation voltage U

i

75 V

Rated impulse withstand voltage U

imp

0.5 kV

Resilience to vibration and shock According to EN60947-5-3

EMC protection requirements According to EN61000-4

and DIN EN61326-3-1
Switching frequency max. 1 Hz
Risk times max. (switch-off times)

2)

- Emergency stop

- Enabling switch

- Operating mode selector switch

- Door position

- Bolt position

- Guard locking

220 ms
220 ms
220 ms
550 ms
550 ms
550 ms

Reliability values acc. to ENISO13849-1

Category 4 (EN13849-1:2008-12)
Performance Level PL e (EN13849-1:2008-12)
MTTFd

3)

91 years
DC 99%
Mission time 20 years
PFHd

3)

- Monitoring of guard locking

- Control of guard locking

- Evaluation of emergency stop, enabling switch, selector switch

4.07x10

-8

3.91x10

-8

4.10x10

-8

B

10d

4)

- Emergency stop

- Enabling switch

1x105

According to manufacturer’s specications

1) The document PROFINET Cabling and Interconnection Technology from the PNO aids in the correct selection of wiring.

2) The risk time is the max. time between the change in the input status and the deletion of the corresponding bit in the bus protocol.

3) Fixed failure rate without consideration of faults in wearing parts.

4) Information regarding wearing parts without consideration of xed failure rates in electronic components.

35

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

18. Troubleshooting and assistance

18.1. Latching fault when actuating the escape release

In order to achieve monitoring of the locking device in category 4, PL e according to ENISO13849-1, an internal monitoring
logic system is integrated into every locking module.

Result: The MGB system enters into a latching fault when the escape release is actuated (refer to the 16. System status
table on page 33).

Door position

Position of the bolt tongue

Guard locking

Door position input bit SI 3

Bolt position input bit SI 4

Guard locking input bit SI 5

ÜK input bit SI 10

Device diagnostics input bit I 17

Device diagnostics input bit I 18

Device diagnostics input bit I 24

LED indicator

State

Power (gn)

State (gn)

Lock (ye)

DIA (rd)

X X X off off off off on on X 1 x

Signal sequence incorrect (e.g. after actuation of the escape
release)*

LED not illuminated

LED illuminated

10 Hz (8 s)

LED ashes for 8 seconds at 10 Hz

3 x

LED ashes three times

X

Any state

NOTICE

The system might not enter into a latching fault if the escape release is actuated very slowly.

18.2. Fault reset

Proceed as follows:

1. Acknowledge fault via output bit O 18 (in data block for diagnostics function).

2. Close safety guard if necessary and switch guard locking on.

¨ The system is in normal mode again.

18.3. Help on troubleshooting on the Internet

You will nd a help le on troubleshooting under “Support” in the service area at www.euchner.de.

18.4. Help on mounting on the Internet

You will nd an animation on the mounting process at www.euchner.de.

18.5. Application examples

You will nd application examples on connecting the device to various control systems at www.euchner.de.

Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

36

(translation of the original operating instructions) 114575-04-03/15

19. Service

If service support is required, please contact:
EUCHNER GmbH + Co. KG

Kohlhammerstraße 16
D-70771 Leinfelden-Echterdingen

Service telephone:

[phone]

E-mail:

[e-mail]

Internet:

www.euchner.de

20. Inspection and service

WARNING

Loss of the safety function because of damage to the system.
In case of damage, the affected module must be replaced completely. Only accessories or spare parts

that can be ordered from EUCHNER may be replaced.

Regular inspection of the following is necessary to ensure trouble-free long-term operation:

Ì Check the switching function (see section 13.6. Electrical function test on page 28)
Ì Check the secure fastening of the devices and the connections
Ì Check for soiling

No servicing is required; repairs to the device are only allowed to be made by the manufacturer.

NOTICE

The year of manufacture can be seen in the lower right corner of the rating plate.

37

114575-04-03/15 (translation of the original operating instructions)

Operating Instructions Safety Systems

MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A

EN

21. Declaration of conformity

Euchner GmbH + Co. KG
Kohlhammerstraße 16
D-70771 Leinfelden-Echterdingen
[e-mail]
www.euchner.de

Edition:
114575-04-03/15
Title:
Operating Instructions Safety Systems
MGB-L..B-PN.-… (PROFINET) and with Data Structure Type A
from V3.30.0
(translation of the original operating instructions)
Copyright:
© EUCHNER GmbH + Co. KG, 03/2015

Subject to technical modications; no responsibility is ac­cepted for the accuracy of this information.
