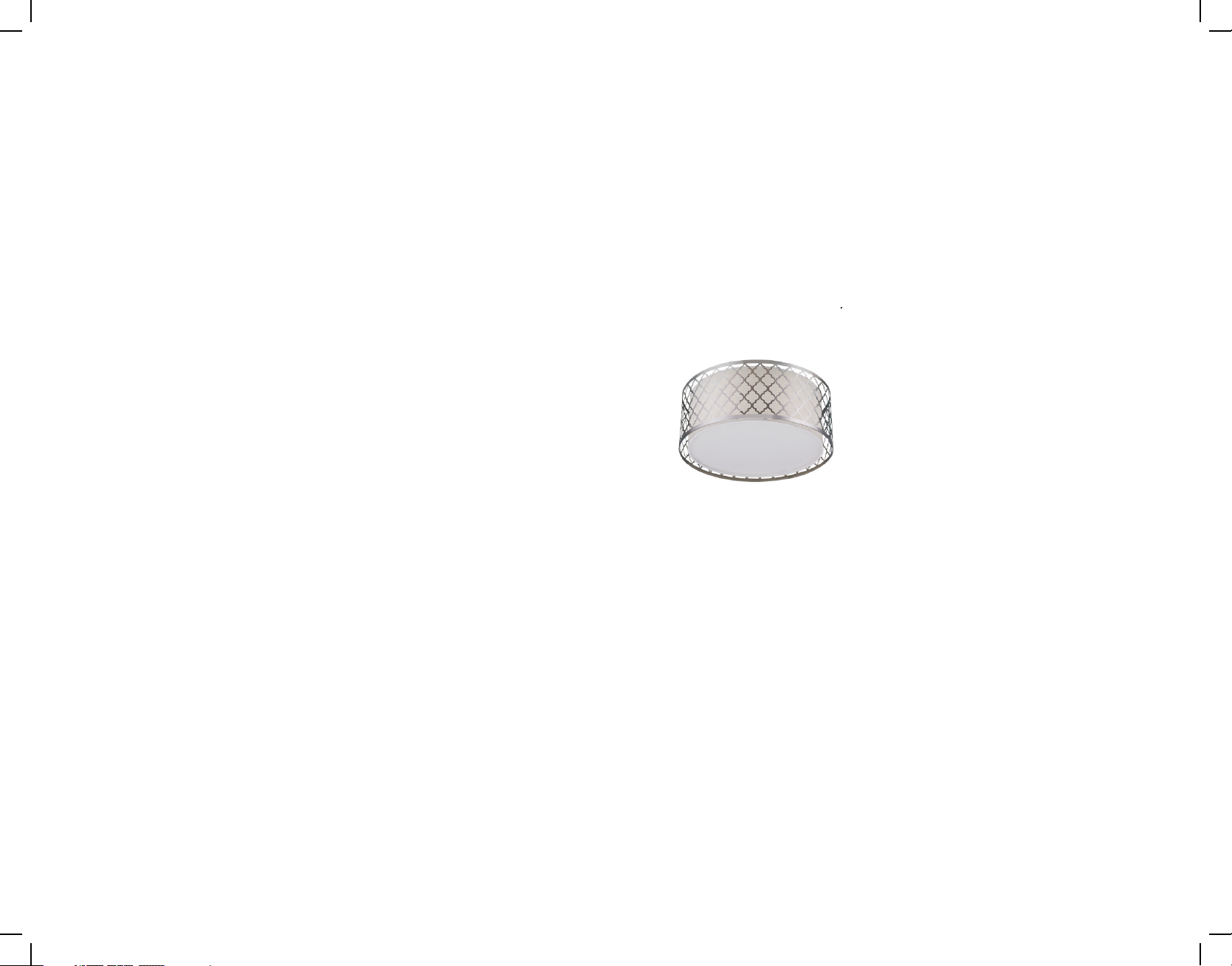

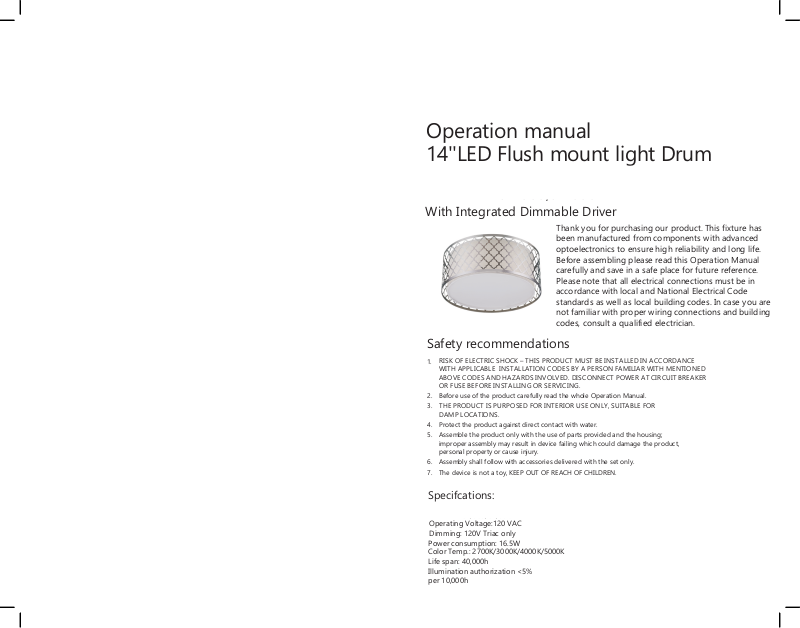

Operation manual
14' LED Flush mount light Drum'
Models :62-985,62-986,62-987,62-988,
62-989,62-990
With Integrated Dimmable Driver
Thank you for purchasing our product. This fixture has
been manufactured from components with advanced
optoelectronics to ensure high reliability and long life.
Before assembling please read this Operation Manual
carefully and save in a safe place for future reference.
Please note that all electrical connections must be in
accordance with local and National Electrical Code
standards as well as local building codes. In case you are
not familiar with proper wiring connections and building
codes, consult a qualified electrician.
Safety recommendations
RISK OF ELECTRIC SHOCK – THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE
1.
WITH APPLICABLE INSTALLATION CODES BY A PERSON FAMILIAR WITH MENTIONED
ABOVE CODES AND HAZARDS INVOLVED. DISCONNECT POWER AT CIRCUIT BREAKER
OR FUSE BEFORE INSTALLING OR SERVICING.
2. Before use of the product carefully read the whole Operation Manual.
3. THE PRODUCT IS PURPOSED FOR INTERIOR USE ONLY, SUITABLE FOR
DAMP LOCATIONS.
4. Protect the product against direct contact with water.
5. Assemble the product only with the use of parts provided and the housing;
improper assembly may result in device failing which could damage the product,
personal property or cause injury.
6. Assembly shall follow with accessories delivered with the set only.
7. The device is not a toy, KEEP OUT OF REACH OF CHILDREN.
Copyright © 2016
Satco Products, Inc.
All Rights Reserved.
National To ll-Free:
800-43-SAT CO
(800-437-2826)
www. nuvoli ghting. com
Distrib ution Center s:
New York, Flo rida,
Texas, W ashington,
Califo rnia, Puer to Rico
Satco Prod ucts Inc.
110 Heartland Blvd.,
Brentwood, NY 11717
PH 631-243-2022
FX 631-243-2027
Specifcations:
Models: 62/985,62/986,62/987,62/988
62/989/62/990
Operating Voltage:120 VAC
Dimming: 120V Triac only
Power consumption: 16.5W
Color Temp.: 2700K/3000K/4000K/5000K
Life span: 40,000h
Illumination authorization <5%
per 10,000h
Page 2

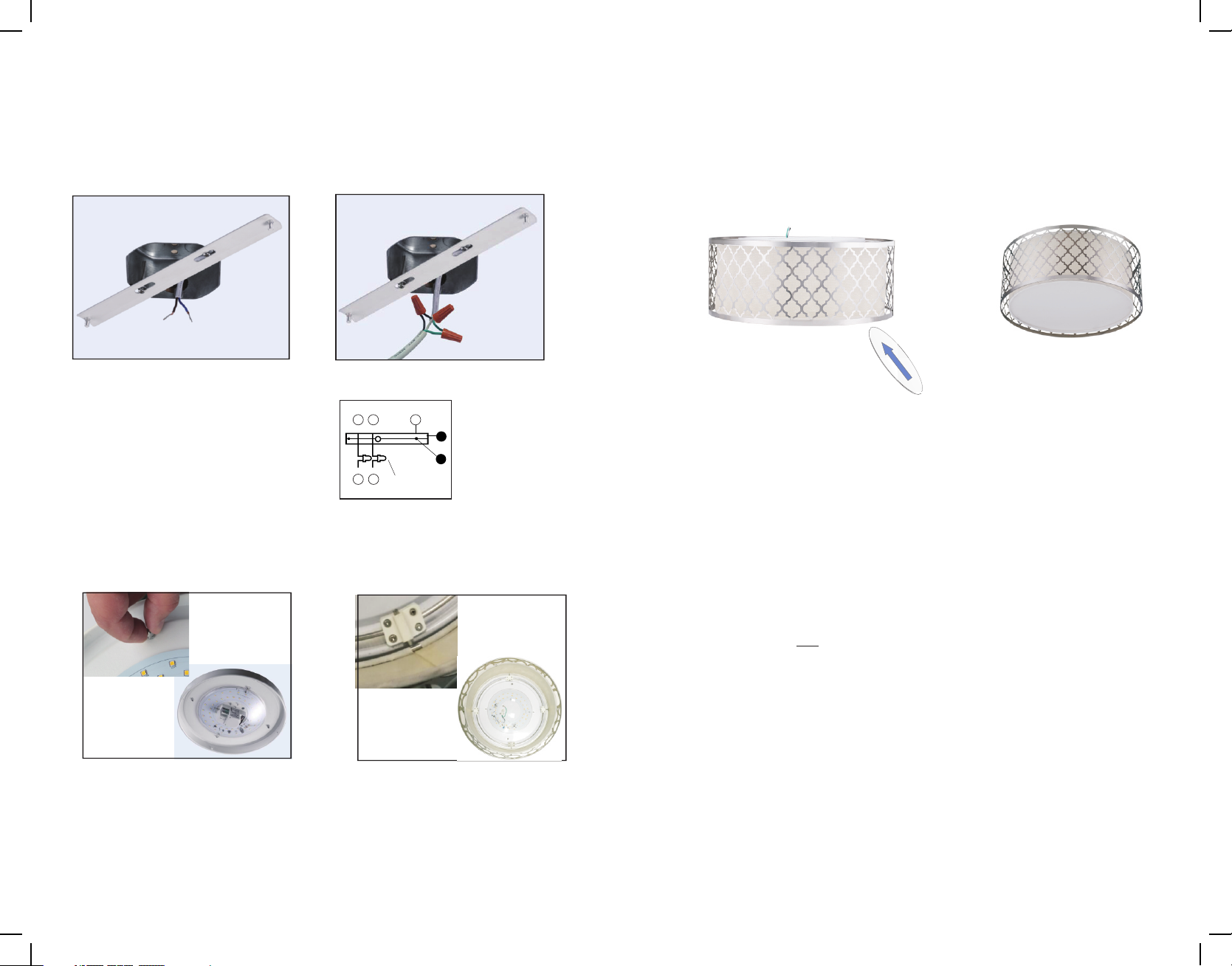

Step 1
Attach installation bracket to
junction box using two screws
(provided)
Step 3
Attach base of fixture to
mounting bracket using
two nuts (provided).
Step 2
Supply Wire
A
C
L
LNN
B
D
Fixture lead
Twist-on
connector
1. Co nnect l ive sup ply wir e (A)
(ty pical ly blac k or the sm ooth,
unm arked s ide of th e two-
E
con ductor wire s) to live f i xture
1
lead (B) with a ppr opria tely si zed
twi st twis t-on co nnect or.
2
.
2. Co nnect n eutra l suppl y wire (C )
(ty pical ly whit e or the ri bbed,
mar ked sid e of the tw o-con ducto r
wir es) t o neu tr al f ixtur e lead (D ).
3. Fo r posit ive gro undi ng in a 3-wire
electrical sy stem, f asten t he fixt ure
gro und (E) ( typic ally co oper or
gre en plas tic coa ted) to t he fixt ure
mou nting s trap( 1) with t he grou nd
scr ew (2).
Step 4
Align decorative drum with
locking ramps to fixture pins
and twist until it locks into
place.
Step 5
Remove protective film on
diffuser(provided).Tilt the diffuser
and slide into drum. Gently rest it
on bottom of drum.
Dimming
This product is compatible with most residential type dimmers available on the market.
T he dimming performance will depend on kind of dimmer and dimmer settings.
Visit www.satco.com for an up to date list of compatible dimmers.
Cleaning
• Clean with a soft or damp cloth. While cleaning with the damp cloth make sure
the power is OFF.
• Do not clean with liquids or abrasives.
5 Year limited warranty
The purchased product is covered with a 5 year warranty with respect to any defect in material
or workmanship after purchase date.
Satco shall bear no responsibility on account of guarantee, as well as shall bear no
liability for any faults, in case of improper operation, use, negligence, accident or
exposure to any natural hazard, or excessive use over the limits specified for the unit, or if
any unauthorized alteration or repair was made after purchase.
Enjoy your light!
2 3
www.satco.comcustomer service 1-800-43-SATCO
