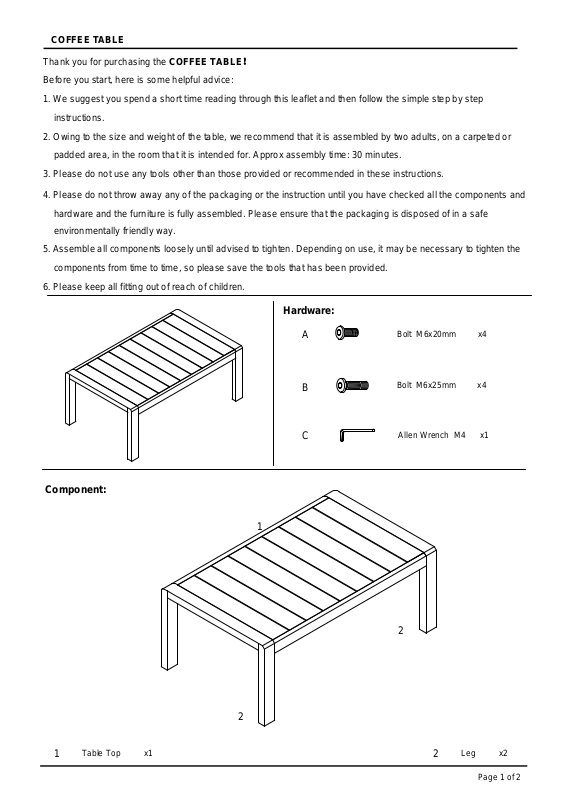

COFFEE TABLE
Thank y
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the table, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
ou for purchasing the COFFEE TABLE！
Hardware:
A
Bolt M6x20mm x4
Component:
B
C
Bolt M6x25mm x4
Allen Wrench M4 x1
1
2
2
Table Top x1
1
Page 1 of 2
2
Leg x2
COFFEE TABLE
STEP 1:
Remove the plastic covers which pre-install in the end of the Table Top (1) by using Allen Wrench (C).
Please put 1 piece of Leg (2) stand on a carpeted or padded area.
Insert Table Top (1) into the Leg (2) as shown.
Insert 2 pieces of Bolt (B) from the pre-drilled holes on the bottom of the Table Top (1) into each side on the bottom of Leg (2).
Insert 2 pieces of Bolt (A) from the pre-drilled holes on the side rail of the Table Top (1) into each end of Leg (2) as shown.
Do not fully tighten Bolts (A&B) at this step.
Repeat the same steps for the remaining 1 piece of Leg (2).
The bottom of table top and legs
2
C
B
1
Ax4 Bx4 Cx
STEP 2:
Carefully position the table to your desired location.
1
2
2
1
1
2
The bottom of table top and legs
Hardware & Tool required
A
C
Assembly is c
ompleted. The table is ready to enjoy now!
Page 2 of 2
