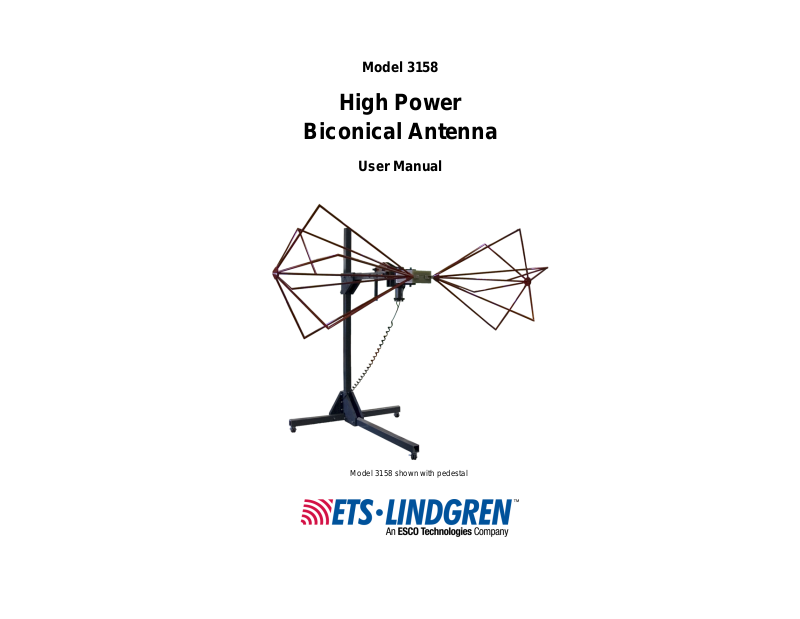

Model 3158 shown with pedestal

ETS-Lindgren L.P. reserves the right to make changes to any product described

herein in order to improve function, design, or for any other reason. Nothing

contained herein shall constitute ETS-Lindgren L.P. assuming any liability

whatsoever arising out of the application or use of any product or circuit

described herein. ETS-Lindgren L.P. does not convey any license under its

patent rights or the rights of others.

© Copyright 2000–2009 by ETS-Lindgren L.P. All Rights Reserved. No part
of this document may be copied by any means without written permission
from ETS-Lindgren L.P.

Trademarks used in this document: The ETS-Lindgren logo and FACT are

trademarks of ETS-Lindgren L.P.

Revision Record

MANUAL, MODEL 3158 HIGH POWER BICON | Part #399262, Rev. D

Revision Description Date

A Initial Release December, 2000

B Updates / edits March, 2002

C Updated Assembly and Mounting

Instructions; Rebrand

D Updated data; updated photos May, 2009

ii |

February, 2009

Table of Contents

Notes, Cautions, and Warnings ................................................ v

1.0 Introduction .......................................................................... 7

ETS-Lindgren Product Information Bulletin ................................................... 8

2.0 Maintenance ......................................................................... 9

Annual Calibration ......................................................................................... 9

Maintenance of Fiber Optics .......................................................................... 9

Service Procedures ..................................................................................... 10

3.0 Specifications ..................................................................... 11

Electrical Specifications ............................................................................... 11

Physical Specifications ................................................................................ 11

4.0 Assembly and Mounting Instructions .............................. 13

5.0 Typical Data ........................................................................ 17

Data from MIL-STD-461F/RTCA DO-160 Setup (No Bench) ...................... 17

MIL-STD-461F/RTCA DO-160 Setup (No Bench) ............................... 18

Data from ISO 11451-2 Setup ..................................................................... 19

ISO 11451-2 Setup .............................................................................. 20

Data from ECE Regulation 10 Setup ........................................................... 21

Appendix A: Warranty ............................................................. 23

| iii

This page intentionally left blank.

iv |

Notes, Cautions, and Warnings

Note: Denotes helpful information intended to

See the ETS-Lindgren Product Information Bulletin for safety,

regulatory, and other product marking information.

provide tips for better use of the product.

Caution: Denotes a hazard. Failure to follow

instructions could result in minor personal injury

and/or property damage. Included text gives proper

procedures.

Warning: Denotes a hazard. Failure to follow

instructions could result in SEVERE personal injury

and/or property damage. Included text gives proper

procedures.

| v

This page intentionally left blank.

vi |

1.0 Introduction

The ETS-Lindgren Model 3158 High Field Biconical Antenna is specifically

designed for Immunity testing.

This linearly-polarized

transmit antenna is

optimized to generate

high levels of

electromagnetic fields in

the range of 20 MHz to

120 MHz.

Model 3158 shown with pedestal

The ability of the Model 3158 to handle high power levels over a broadband

makes it excellent for use in Radiated Susceptibility testing.

The biconical elements are made from welded aluminum tubing. The 4-to-1 ratio

balun network is fabricated from G10 fiberglass and specially machined brass

and aluminum support and contact parts. The bifilar inductors of the balun are

wound in precision-machined cuts to provide high barrier insulation between

windings while simultaneously giving good coupling between bifilar windings.

During manufacturing each Model 3158 is individually calibrated using the

three antenna method of calibration. The results of the calibration are tabulated

and included with the antenna.

7 | Introduction

ETS-Lindgren Product Information Bulletin

See the ETS-Lindgren Product Information Bulletin included with your shipment

for the following:

• Warranty information

• Safety, regulatory, and other product marking information

• Steps to receive your shipment

• Steps to return a component for service

• ETS-Lindgren calibration service

• ETS-Lindgren contact information

Introduction | 8

2.0 Maintenance

Before performing any maintenance,
follow the safety information in the
ETS-Lindgren Product Information
Bulletin included with your shipment.

WARRANT Y

Maintenance of the Model 3158 is limited
to external components such as cables
or connectors.

If you have any questions concerning
maintenance, contact ETS-Lindgren
Customer Service.

Annual Calibration

See the Product Information Bulletin included with your shipment for information

on ETS-Lindgren calibration services.

Maintenance of Fiber Optics

Fiber optic connectors and cables can be damaged from airborne particles,

humidity and moisture, oils from the human body, and debris from the connectors

they plug into. Always handle connectors and cables with care, using the

following guidelines.

9 | Maintenance

Before performing any maintenance, disconnect
the fiber optic cables from the unit and turn off
power.

When disconnecting fiber optic cables, apply
dust caps to the ends to maintain their integrity.

Before connecting fiber optic cables, clean the
connector tips.

Before attaching connectors, clean them with
moisture-free compressed air.

Failure to perform these tasks may result in
damage to the fiber optic connectors or cables.

Service Procedures

For the steps to return a system or system component to ETS-Lindgren for

service, see the Product Information Bulletin included with your shipment.

Maintenance | 10

3.0 Specifications

Electrical Specifications

Frequency Range: 20 MHz to 120 MHz
VSWR Ratio:

Maximum Input Power: 5 kW
Input Impedance: 50 Ω
Connector: 7/16 DIN female

Physical Specifications

Length: 1.14 m (3.74 ft)
Width: 3.00 m (9.84 ft)
Height: 1.14 m (3.74 ft)
Tilt Range: 0° to 45°

• Typical—2:1

• Maximum—5:1

11 | Specifications

This page intentionally left blank.

Specifications | 12

4.0 Assembly and Mounting Instructions

Before connecting any components, follow the
safety information in the ETS-Lindgren
Product Information Bulletin included with your
shipment.

13 | Assembly and Mounting Instructions

The Model 3158 High Power Biconical Antenna is shipped unassembled, and

includes these parts:

• Balun

• Biconical element (2)

• Pedestal

• Belleville washer (2)

• Washer (4) and 5/16–1 1/4 hex bolt (4)

• Air solenoid nylon tube

• Fiber optic polarization cable

Due to the size of the antenna, you must mount the balun onto the

pedestal before you attach the elements.

1. Run your antenna cable through the polarization tube and attach it to

the connector on the bottom of the balun.

Assembly and Mounting Instructions | 14

2. Place the bottom of the balun in the mount plate. Insert two washers

and two hex bolts on both sides of the mount plate to firmly secure the

balun in place.

Do not cross thread any connections or
permanent damage could occur.

3. Slide a belleville washer onto the threaded screw end of one of the

biconical elements.

4. Line up the screw threads on the element with the receptacle hole on

the balun and turn the element until it is firmly secured in the balun.

5. Repeat step 3 and step 4 for the remaining biconical element.

Damage to the pneumatic system may occur if
the air supply exceeds the maximum
50 psi–70 psi.

6. Connect the air solenoid tube to the air solenoid located on the back of

the pedestal. Connect the other end to your air supply.

15 | Assembly and Mounting Instructions

The Model 2090 (or next generation ETS-Lindgren controller, if

applicable) is a separate component required for operation.

7. Connect the fiber optic polarization cable to the polarization unit

located on the back of the pedestal. Connect the other end to the

Model 2090 Multi-Device Controller.

Assembly and Mounting Instructions | 16

5.0 Typical Data

All data was measured in an ETS-Lindgren FACT™ 3 chamber; field for a

5-kW input.

Data from MIL-STD-461F/RTCA DO-160 Setup (No Bench)

17 | Typical Data

MIL-STD-461F/RTCA DO-160 SETUP (NO BENCH)

Typical Data | 18

Data from ISO 11451-2 Setup

19 | Typical Data

ISO 11451-2 SETUP

Typical Data | 20

Data from ECE Regulation 10 Setup

Power input for 30 V/m at 2 meters from the antenna and 1 meter over the

ground.

21 | Typical Data
