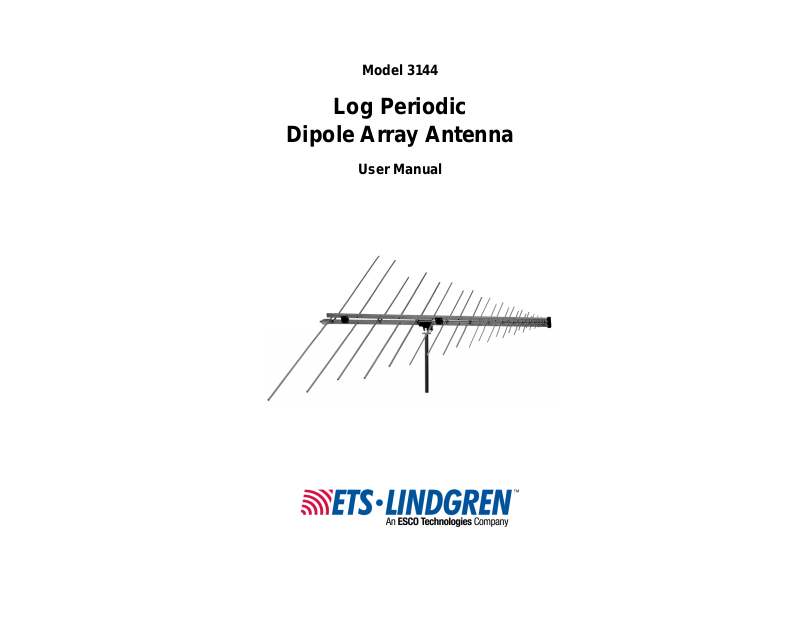

Log Periodic
Dipole Array Antenna
User Manual
Page 2
ETS-Lindgren L.P. reserves the right to make changes to any product described
herein in order to improve function, design, or for any other reason. Nothing
contained herein shall constitute ETS-Lindgren L.P. assuming any liability
whatsoever arising out of the application or use of any product or circuit
described herein. ETS-Lindgren L.P. does not convey any license under its
patent rights or the rights of others.
© Copyright 1997–2010 by ETS-Lindgren L.P. All Rights Reserved. No part
of this document may be copied by any means without written permission
from ETS-Lindgren L.P.
Trademarks used in this document: The ETS-Lindgren logo is a trademark of
ETS-Lindgren L.P.
Revision Record
MANUAL 3144 LOG PERIODIC ANTENNA | Part # 399171, Rev. E
Revision Description Date
A–C Initial Release
Updates/edits
Updates/edits
D Updates/edits September, 2002
E Rebrand September, 2010
ii |
January, 1997
Page 3
Table of Contents
Notes, Cautions, and Warnings ................................................ v
1.0 Introduction .......................................................................... 7
Optional Items ................................................................................................ 8
Support Rod ........................................................................................... 8
Tripod ..................................................................................................... 8
ETS-Lindgren Product Information Bulletin ................................................... 9
2.0 Maintenance ....................................................................... 11
Maintenance Recommendations ................................................................. 11
Annual Calibration ....................................................................................... 11
Service Procedures ..................................................................................... 11
3.0 Specifications ..................................................................... 13
Electrical Specifications ............................................................................... 13
Physical Specifications ................................................................................ 13
4.0 Mounting & Assembly ....................................................... 15
Mounting Instructions ................................................................................... 15
Using Included Mounting Adapters ...................................................... 15
Additional 4-TR Mounting Options ....................................................... 17
Additional 7-TR and Mast Mounting Options ....................................... 18
Additional 2x2 Boom Mounting Options .............................................. 19
Assembly Instructions .................................................................................. 20
5.0 Application ......................................................................... 21
6.0 Typical Data ........................................................................ 23
Model 3144 Antenna Factor ........................................................................ 23
Model 3144 Gain ......................................................................................... 23
Model 3144 VSWR ...................................................................................... 24
Model 3144 Half-Power Beamwidth ............................................................ 24
Model 3144 Forward Power 1M ................................................................... 25
Model 3144 Forward Power 3M ................................................................... 25
Appendix A: Warranty ............................................................. 27
| iii
Page 4
This page intentionally left blank.
iv |
Page 5
Notes, Cautions, and Warnings
Note: Denotes helpful information intended to
See the ETS-Lindgren Product Information Bulletin for safety,
regulatory, and other product marking information.
provide tips for better use of the product.
Caution: Denotes a hazard. Failure to follow
instructions could result in minor personal injury
and/or property damage. Included text gives proper
procedures.
Warning: Denotes a hazard. Failure to follow
instructions could result in SEVERE personal injury
and/or property damage. Included text gives proper
procedures.
| v
Page 6
This page intentionally left blank.
vi |
Page 7
1.0 Introduction
The ETS-Lindgren Model 3144
Log Periodic Dipole Array is a
linearly polarized, broadband
antenna designed to operate over the
frequency range of 80 MHz to 2 GHz.
The choice of scaling factors, the various diameters of each element, and the
center-to-center spacing of the booms are such that excellent VSWR
characteristics are obtained throughout the operating frequency range.
The precise design of the feed and the positioning of the elements on the boom
yield optimum phase relationship. This causes the active region, at any given
frequency, to propagate RF energy towards the smaller elements leaving the
elements behind it electrically dead.
The constant gain of the antenna yields an antenna factor which varies linearly
with frequency. The variation is smooth; therefore, accurate interpolation of
performance between specified frequency points is simple.
The Model 3144 is provided with an integral mount and the necessary
attachments to mount the antenna to either a tripod (with a 1/4–20 threaded
mount) or an ETS-Lindgren antenna mast. For the variety of mounting options
available for the Model 3144, see Mounting & Assembly on page
Each Model 3144 is individually calibrated at one meter per SAE ARP 958 and at
three and 10 meters per ANSI C63.5. Actual antenna factors and a signed
Certificate of Calibration Conformance are included.
Introduction | 7
15.
Page 8
Optional Items
SUPPORT ROD
Antenna mount with insert drilled to accept ETS-Lindgren or other tripods with
standard 1/4–20 threads.
TRIPOD
ETS-Lindgren offers the following non-metallic, non-reflective tripods for use at
both indoor and outdoor EMC test sites.
• 4-TR Tripod—Constructed of linen
phenolic and delrin, designed with an
adjustable center post for precise height
adjustments. Maximum height is 2.0 m
(80.0 in), and minimum height is 94 cm
(37.0 in). This tripod can support up to
an 11.8 kg (26.0 lb) load.
8 | Introduction
Page 9
• 7-TR Tripod—Constructed of PVC and
fiberglass components, providing
increased stability for physically large
antennas. The unique design allows for
quick assembly, disassembly, and
convenient storage. Allows several
different configurations, including options
for manual or pneumatic polarization.
Quick height adjustment and locking
wheels provide ease of use during
testing. Maximum height is 2.17 m
(85.8 in), with a minimum height of 0.8 m
(31.8 in). This tripod can support a
13.5 kg (30 lb) load.
ETS-Lindgren Product Information Bulletin
See the ETS-Lindgren Product Information Bulletin included with your shipment
for the following:
• Warranty information
• Safety, regulatory, and other product marking information
• Steps to receive your shipment
• Steps to return a component for service
• ETS-Lindgren calibration service
• ETS-Lindgren contact information
Introduction | 9
Page 10
This page intentionally left blank.
10 | Introduction
Page 11
2.0 Maintenance
Before performing any maintenance,
follow the safety information in the
ETS-Lindgren Product Information
Bulletin included with your shipment.
WARRANTY
Maintenance of the Model 3144 is limited
to external components such as cables
or connectors.
If you have any questions concerning
maintenance, contact ETS-Lindgren
Customer Service.
Maintenance Recommendations
If the Model 3144 Log Periodic Dipole Array Antenna is used outdoors, periodic
removal of the antenna cable connection and cleaning of any corrosion may be
needed to maintain accuracy of the measurements. An inspection to determine
the need for cleaning should be made at least every six months. More frequent
inspection may be needed depending on the atmosphere and the environment in
which the antenna is used.
Annual Calibration
See the Product Information Bulletin included with your shipment for information
on ETS-Lindgren calibration services.
Service Procedures
For the steps to return a system or system component to ETS-Lindgren for
service, see the Product Information Bulletin included with your shipment.
Maintenance | 11
Page 12
This page intentionally left blank.
12 | Maintenance
Page 13
3.0 Specifications
Electrical Specifications
Frequency Range: 80 MHz–2 GHz
Input Impedance: 50 Ohms
VSWR: Average: 1.2:1
Maximum: 2.0:1
CW Power: 1000 W
Symmetry: +/– 0.5 dB
Connector: Type N Female
Physical Specifications
Height: 6.4 cm (2.5 in)
Width: 213.4 cm (84.0 in)
Depth: 167.6 cm (66.0 in)
Weight: 4.3 kg (9.5 lb)
Specifications | 13
Page 14
This page intentionally left blank.
14 | Specifications
Page 15
4.0 Mounting & Assembly
The Model 3144 antennas are precision
measurement devices. Handle your antenna
with care.
Mount the Model 3144 Log Periodic Dipole Array Antenna first, and
then attach the elements to the antenna.
Mounting Instructions
USING INCLUDED MOUNTING ADAPTERS
The Model 3144 ships with these mounting adapters:
• 100989 Polarizing Mounting
Adapter with 7/8–14 thread
receptacle

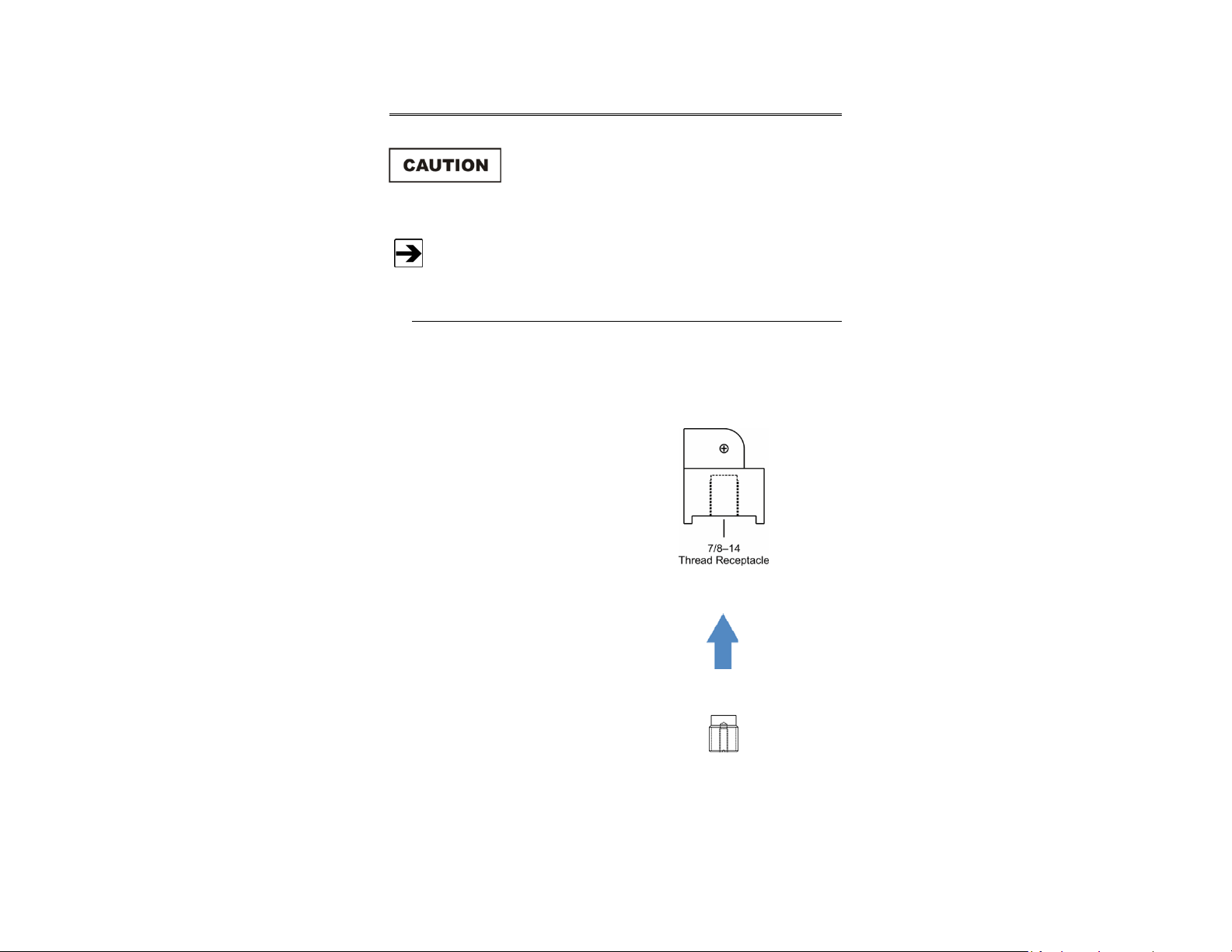

If you need to convert the polarizing
adapter to a 1/4–20 receptacle,
insert the 1/4–20 thread insert into
the polarizing adapter
• 105861B 1/4–20 Thread Insert
Mounting & Assembly | 15
Page 16
To attach the included adapters to the Model 3144:
1. If required, insert the 1/4–20 thread insert into the polarizing adapter.
2. Remove the mounting knob from the mounting bracket on the antenna.
3. Slide the polarizing adapter into the mounting bracket by placing the
polarizing adapter placed between the shoulders of the mounting
bracket.
16 | Mounting & Assembly
Page 17
Do not cross thread or permanent damage to the adapter could occur.
4. Thread the mounting knob through the mounting bracket, then through
the polarizing adapter, and finally through the hex nut.
5. Tighten the mounting knob to secure the antenna.
6. Attach the polarizing adapter and antenna to tripod or tower, as
required.

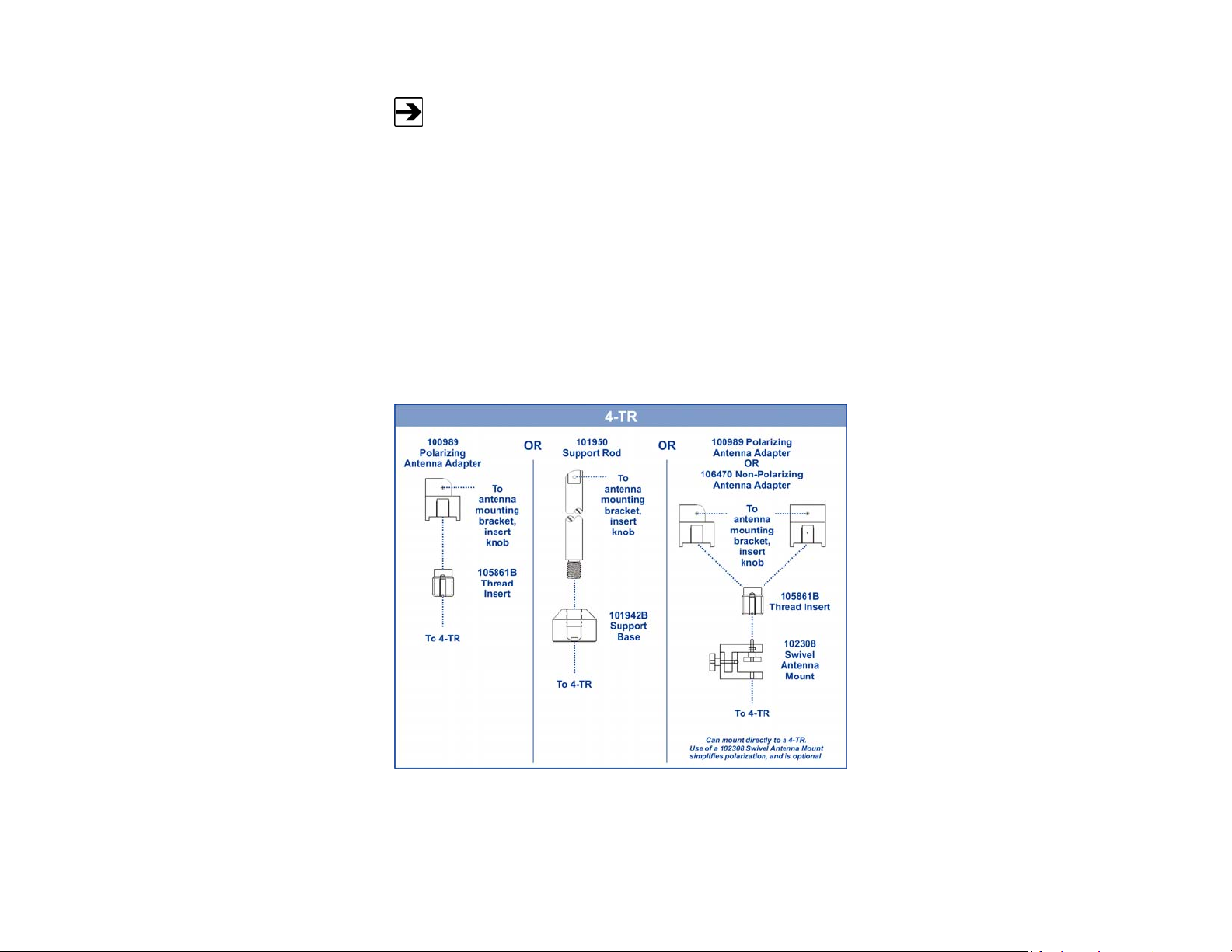

ADDITIONAL 4-TR MOUNTING OPTIONS
Following are additional options for mounting the Model 3144 onto an
ETS-Lindgren 4-TR tripod. Contact the ETS-Lindgren Sales Department for
information on ordering optional mounting hardware.
Mounting & Assembly | 17
Page 18
ADDITIONAL 7-TR AND MAST MOUNTING OPTIONS
Following are options for mounting the Model 3144 onto an ETS-Lindgren 7-TR
Tripod or mast. Contact the ETS-Lindgren Sales Department for information on
ordering optional mounting hardware.
Mast refers to 2070 Series, 2075, and 2175 Antenna Towers.
7-TR refers to 109042 and 108983 booms:
• 109042 boom—Straight boom; for general antenna mounting on a
7-TR.
• 108983 boom—Offset boom; for general antenna mounting on a
7-TR with pneumatic or manual polarization; can also be used to
mount stinger-type antennas.
18 | Mounting & Assembly
Page 19
ADDITIONAL 2X2 BOOM MOUNTING OPTIONS

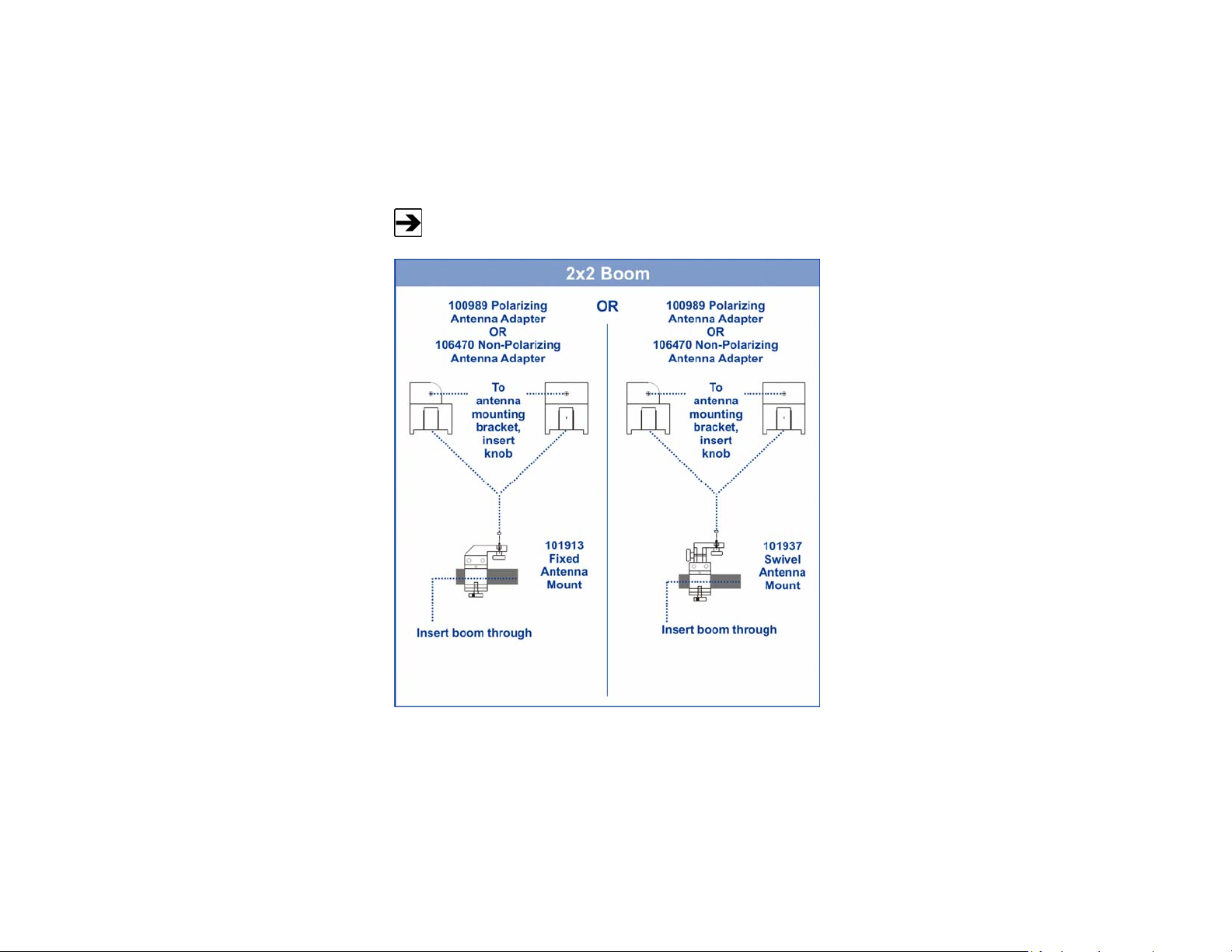

Following are additional options for mounting the Model 3144 onto a 2x2 boom.
Contact the ETS-Lindgren Sales Department for information on ordering optional
mounting hardware.
2x2 boom refers to a typical 2-inch by 2-inch boom.
Mounting & Assembly | 19
Page 20
Assembly Instructions
To facilitate transport, the Model 3144 is shipped with the five longest elements
on each side removed. After you mount the antenna, follow these assembly
steps:
• Do not cross thread or permanent damage to the antenna and
element could occur.
• Do not overtighten or use excessive force or permanent damage
to the antenna and element could occur.
1. Carefully thread one of the numbered elements into the corresponding
numbered receptacle.
2. Thread the element until it is finger tight.
3. Repeat these steps until all of the numbered elements are mounted.
20 | Mounting & Assembly
Page 21
α
5.0 Application
Before connecting any components, follow the
safety information in the ETS-Lindgren
Product Information Bulletin included with your
shipment.
After mounting the Model 3144 Log Periodic Dipole Array Antenna onto an
ETS-Lindgren tripod or antenna mast adapter, connect an N-type coaxial cable
from the antenna connector to a generator (immunity) or receiver (emissions).
Both horizontal and vertical polarizations are easily accomplished when the
Model 3144 is mounted onto a tower or tripod. Due to the length of the low
frequency elements, verify element clearance prior to switching the antenna to
vertical polarization. Contact with any metallic or non-metallic structure can
capacitively load the antenna, which may cause inconsistent results. Therefore,
care must be taken to ensure that no part of the dipole elements is in contact with
the tripod or tower, particularly in vertically-polarized tests. Where possible, run
the feed cable straight at least one meter or more back from the Model 3144
before dropping vertically.
For emissions measurements, electric field strength in db[V/m] is obtained from:
E(dB[V/m])=V(dB[V])+AF(dB[1/m])+ α(dB)
V
= the receiver or spectrum analyzer voltage reading
AF = antenna factor
= cable loss in dB, if cable losses are non-negligible
Application | 21
Page 22
G[dB]/10
For immunity testing, the electric field strength generated at a distance d can be
approximated by:
Pg
E
V/m =
()
30
d
d = distance, in meters
g = numeric gain (10
)
P = antenna net input power, in watts
An estimate of the power required for any field strength E can be obtained from
Typical Data on page 23. For any other field strength not shown, multiply the
power in watts by the desired E-field squared, or:
P(E V/m) = E2 P(1 V/m)
Actual transmitted field strength should be verified using an ETS-Lindgren
electric field probe, or equivalent.
For IEC/EN 31000-4-3 type testing, the antenna tip can be placed at any
distance between one and three meters from the EUT as long as the front face
plane is illuminated according to the -0, +6 dB uniform field specification. In
general, closer distances require less power to create a given field strength.
22 | Application
Page 23
6.0 Typical Data
Model 3144 Antenna Factor
Model 3144 Gain
Typical Data | 23
Page 24

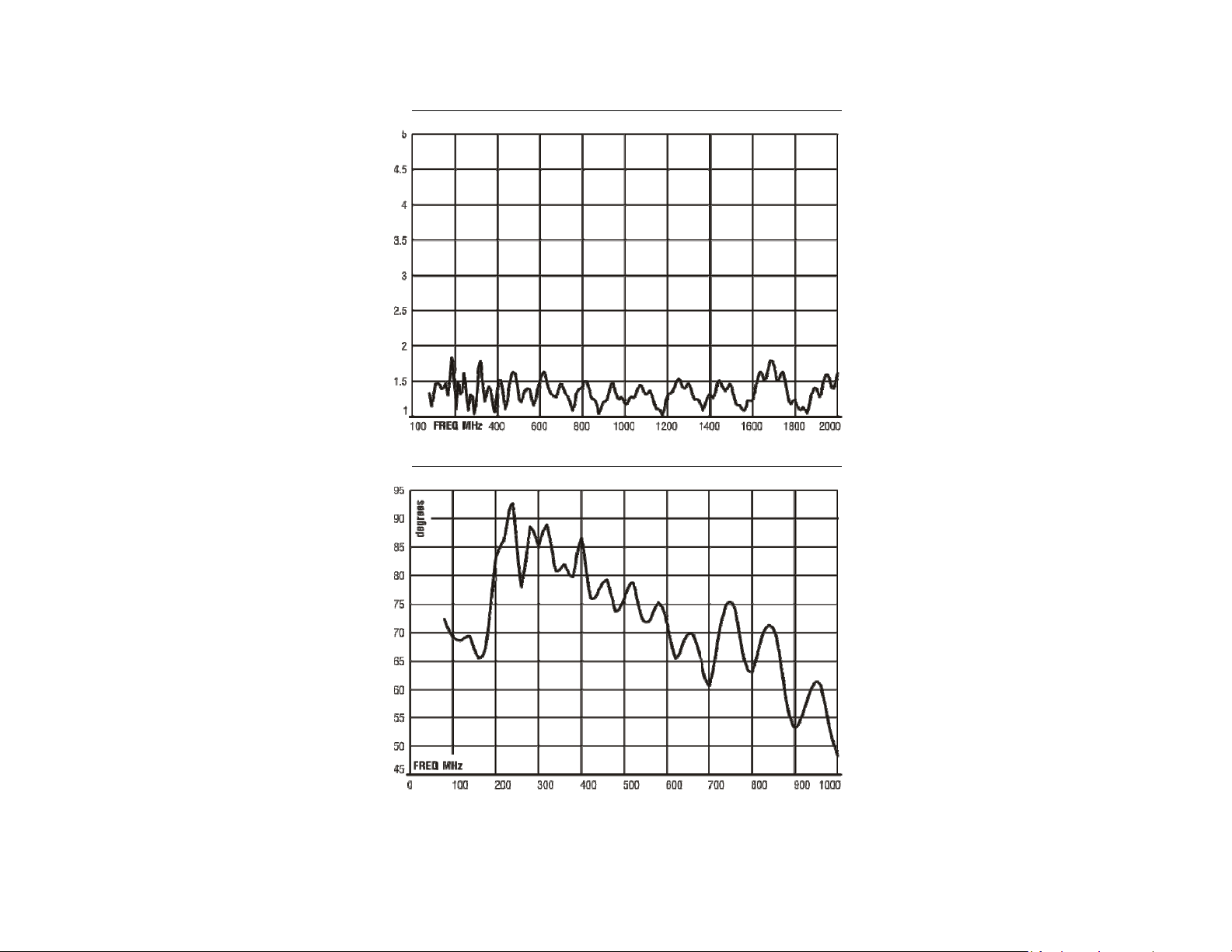

Model 3144 VSWR
Model 3144 Half-Power Beamwidth
24 | Typical Data
Page 25
Model 3144 Forward Power 1M
Model 3144 Forward Power 3M
Typical Data | 25
Page 26
This page intentionally left blank.
26 | Typical Data
Page 27
Appendix A: Warranty
See the Product Information Bulletin included with your shipment for
the complete ETS-Lindgren warranty for your Model 3144.
DURATION OF WARRANTIES FOR MODEL 3144
All product warranties, except the warranty of title, and all remedies for warranty
failures are limited to two years.
Product Warranted Duration of Warranty Period
Model 3144 Log Periodic Dipole
Array Antenna
2 Years
Warranty | 27
Loading...
