ETS-Lindgren 2187 User Manual

Model 2187

Electric-Powered Turntable

2-Meter, 3-Meter

User Manual

ETS-Lindgren L.P. reserves the right to make changes to any products herein to improve
functioning or design. Although the information in this document has been carefully reviewed and
is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the
application or use of any product or circuit described herein; nor does it convey any license under
its patent rights nor the rights of others. All trademarks are the property of their respective
owners.

©Copyright 2007–2008 by ETS-Lindgren L.P. All Rights Reserved. No part of this
document may be copied by any means without written permission from
ETS-Lindgren L.P.

Trademarks used in this document: The ETS-Lindgren logo is a trademark of ETS-Lindgren L.P.

Revision Record | MANUAL,2187 | Part #399789, Rev. C

Revision Description Date

A Initial Release June, 2007
B Added 3.0 turntable information and drawings February, 2008
C Rebrand July, 2008

ii |

Table of Contents

Notes, Cautions, and Warnings.........................................................................v

1.0 Introduction...................................................................................................7

Standard Configuration....................................................................................................... 7

Turntable Assembly...............................................................................................7

Shield Room Feed-through ................................................................................... 8

Optional Items..................................................................................................................... 8

Infrared Remote Controller.................................................................................... 8

Slip Ring ................................................................................................................ 8

EUT Power Outlets................................................................................................9

Mounted Line Impedance Stabilization Network................................................... 9

Additional Fiber Optic Cables................................................................................ 9

ETS-Lindgren Product Information Bulletin........................................................................ 9

2.0 Maintenance................................................................................................11

Recommended Maintenance Schedule ........................................................................... 11

6-Month Service .................................................................................................. 11

12-Month Service ................................................................................................ 12

Replacement and Optional Parts...................................................................................... 12

Service Procedures.......................................................................................................... 12

3.0 Specifications..............................................................................................13

Electrical Specifications.................................................................................................... 13

Mechanical Specifications................................................................................................ 13

4.0 Turntable Installation Considerations.......................................................15

Before You Begin—Precautions....................................................................................... 15

Power and Signal Lines....................................................................................................16

Conduit ................................................................................................................ 16

Electrical Considerations..................................................................................... 16

Access................................................................................................................. 16

Outdoor Installations......................................................................................................... 16

Drainage.............................................................................................................. 16

Cold Climate Conditioning................................................................................... 16

5.0 Electrical Installation..................................................................................17

| iii

6.0 Assembly and Installation..........................................................................19

Floor Flange Installation in a Paneled Floor..................................................................... 20

Floor Flange Installation in a Concrete Pit ....................................................................... 22

IR Repeater Installation.................................................................................................... 23

Installation Assembly Components..................................................................... 23

Required Tools for Installation............................................................................. 23

Installation Steps................................................................................................. 23

7.0 Operation.....................................................................................................25

Appendix A: List of Assembly Drawings........................................................27

Appendix B: Warranty......................................................................................29

Appendix C: EC Declaration of Conformity....................................................31

iv |

Notes, Cautions, and Warnings

Note: Denotes helpful information intended to provide tips for

See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and
other product marking information.

better use of the product.

Caution: Denotes a hazard. Failure to follow instructions
could result in minor personal injury and/or property
damage. Included text gives proper procedures.

Warning: Denotes a hazard. Failure to follow instructions
could result in SEVERE personal injury and/or property
damage. Included text gives proper procedures.

| v

This page intentionally left blank.

vi |

1.0 Introduction

The ETS-Lindgren Model 2187 Turntable is an electric-powered turntable

platform system designed for use with the Model 2090 Multi-Device Controller (or

next generation ETS-Lindgren controller, if applicable) for EMI compliance

testing. The Model 2187 is available in 2.03-meter and 3.03-meter sizes, both

designed for indoor or outdoor use.

The top of the turntable is conductive with a continuous ground brush to

electrically couple it to the ground plane. The ground brushes are attached

directly to the chamber floor by the floor flange, and are in continuous contact

with the turntable top. The brushes point downward from the floor flange.

Both models utilize a pinion and gear drive with a gear reducer and electric motor

located beneath the platform. The bearing on which the turntable rotates has the

drive teeth cut directly on the outside and will easily support most Equipment

Under Test (EUT). Support for the turntable includes casters that aid in the

support of cantilevered loads on the outside of the turntable.

The turntable top is sectional to provide easy access if service is required. On

standard models, a 15-cm hole is provided in the center of the turntable to

accommodate customer supplied cabling to and from the EUT.

To prevent over-travel of the turntable in either direction of movement, hard limits

are provided in the form of pins that actuate switches located below the tabletop.

These pins allow limits to be set and allow as much as two full rotations. Rotation

speed can be varied from a controller (not included) or through the IEEE-488

interface bus.

Standard Configuration

TURNTABLE ASSEMBLY

Featuring continuous or non-continuous operation, the turntable assembly

includes:

• 230 VAC electric motor unit

• Convenient rotational limit adjust switches

• Ground ring assembly with ground brush and floor flange

• 10-meter fiber optic cable

Additionally, the turntable is infrared compatible, and can be used with an

optional ETS-Lindgren Infrared Remote Controller (IR remote). For more

information on using an IR remote, see Infrared Remote Controller on page 8.

Introduction | 7

SHIELD ROOM FEED-THROUGH

Routes the fiber optic control cable from the control room to the shield room,

maintaining satisfactory shielding attenuation. The unit is made of brass for

conductivity and provides attenuation of greater than 100 dB at 10 GHz. A single

22.25-mm (0.875-in) hole is required for mounting.

Optional Items

INFRARED REMOTE CONTROLLER

The Model 2187 is infrared compatible, and can be used with a universal remote

control programmed to a specific protocol, such as the ETS-Lindgren Infrared

Remote Controller (IR remote).

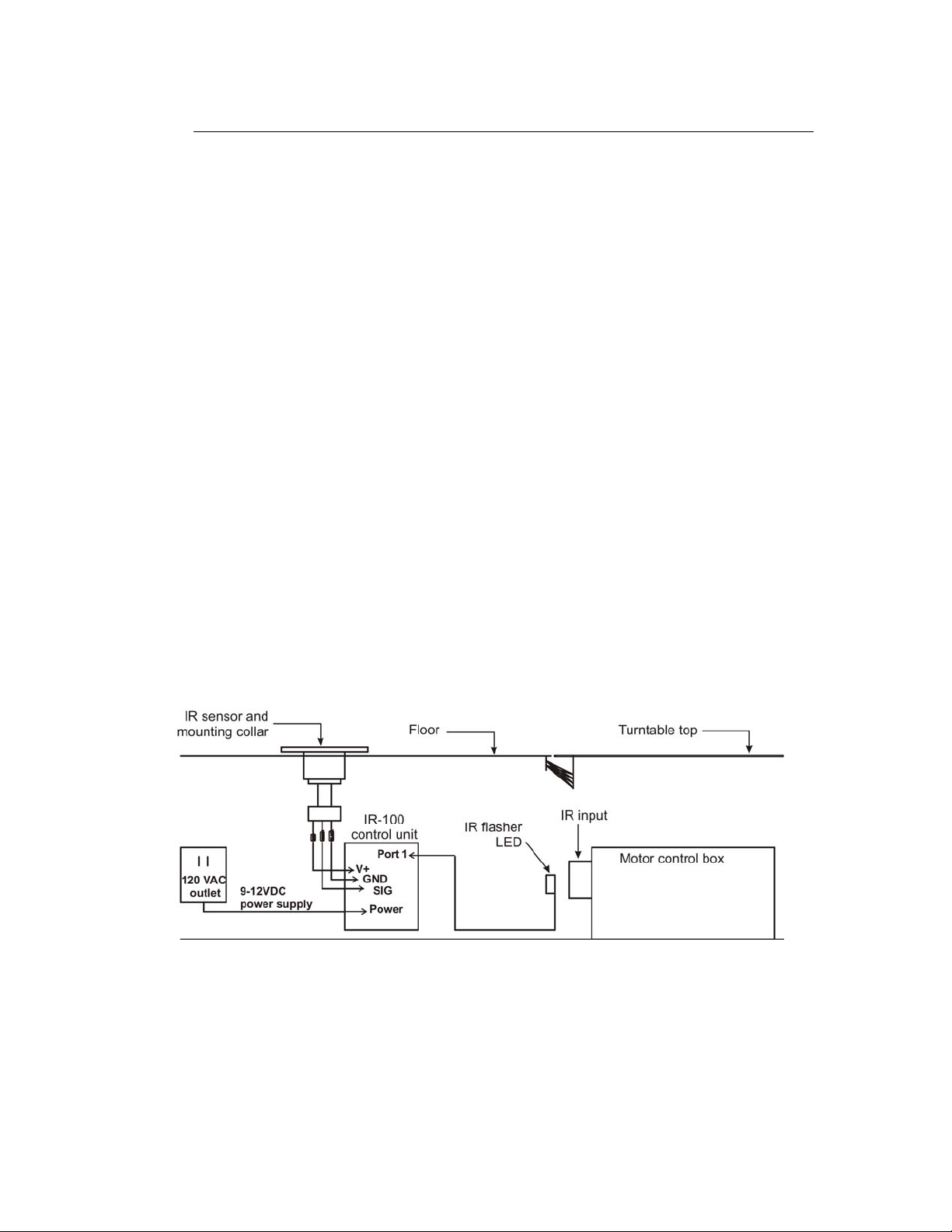

The IR remote communicates with an infrared receiver in the Model 2187

motor base through an IR repeater installed in the floor near the turntable. See

IR Repeater Installation on page 23 for instructions on installing an IR repeater.

SLIP RING

Allows continuous rotation of the turntable through the latest technology in

mercury slip rings, and either Schuko or NEMA connectors can be ordered with

the slip ring. The current rating for the standard electrical assembly is

20 amperes. Contact ETS-Lindgren for custom requirements on slip rings.

8 | Introduction

EUT POWER OUTLETS

Receptacles are usually mounted on the base of the turntable at the center axis

point. These receptacles can be custom mounted, flush with the tabletop on

some turntables. Contact ETS-Lindgren for information.

MOUNTED LINE IMPEDANCE STABILIZATION NETWORK

A Line Impedance Stabilization Network (LISN) can be mounted to the underside

of some turntables. This option is only practical on larger turntables with sufficient

clearance.

ADDITIONAL FIBER OPTIC CABLES

Additional lengths of fiber optic cable may be ordered.

ETS-Lindgren Product Information Bulletin

See the ETS-Lindgren Product Information Bulletin included with your shipment

for the following:

• Warranty information

• Safety, regulatory, and other product marking information

• Steps to receive your shipment

• Steps to return a component for service

• ETS Lindgren calibration service

• ETS Lindgren contact information

Introduction | 9

This page intentionally left blank.

10 | Introduction

2.0 Maintenance

WARRANT Y

Before performing any maintenance, follow the safety
information in the ETS-Lindgren Product Information
Bulletin included with your shipment.

Regularly inspect all equipment and conduct scheduled
maintenance in accordance with the factory recommendations
provided.

BEFORE SERVICING: CONTACT ETS-LINDGREN
(+1.512.531.6400)—Servicing or modifying the unit without

ETS-Lindgren authorization may void your warranty. If an
attempt to service the unit must be made, disconnect all
electrical power prior to beginning. Voltages exist at many points
within the instrument that could, if contacted, cause personal
injury. Only trained service personnel should perform
adjustments and/or service procedures upon this instrument.
Capacitors inside this instrument may still be charged even
when the instrument is disconnected from the power source.

Recommended Maintenance Schedule

Regular maintenance will prolong the effective operation and reliability of your

turntable. Follow the recommended schedule for 6-month and 12-month service.

Do not perform maintenance while the turntable is operating.

6-MONTH SERVICE

• Lubricate the casters with good quality bearing grease.

• Check the gearbox for fluid leakage. A collection of slight film is normal, but

puddles of fluid are not normal. The gearbox is lubricated and sealed at the
factory. Under normal conditions, the gearbox should not require servicing
during its life.

Maintenance | 11

12-MONTH SERVICE

• Lubricate the main bearing race with a grease gun containing good quality
bearing grease. The grease fittings are located inside the race, 90 degrees
apart, beneath the top. Three discharges from the grease gun in each fitting
are adequate.

• Lubricate the gear teeth with good quality grease.

Replacement and Optional Parts

Following are the part numbers for ordering replacement or optional parts for the
Model 2187 Turntable.

Part Description Part Number

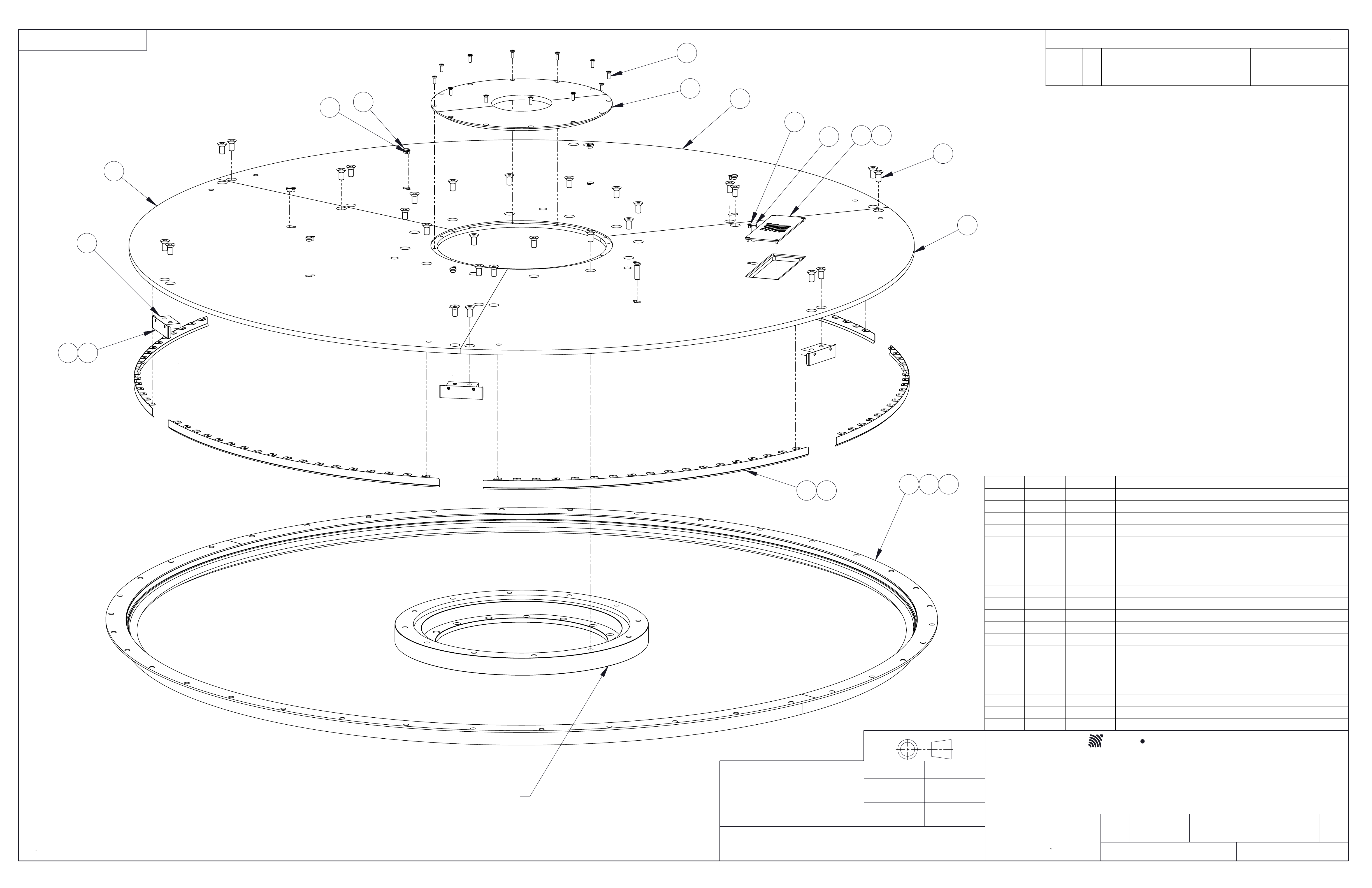

Turntable assembly For a list of all turntable parts, see the

drawings located in the back of this

manual.
IR Remote Controller 707030
NEMA connectors for slip ring 103441
Schuko connectors for slip ring 103351

Service Procedures

For the steps to return a system or system component to ETS-Lindgren for
service, see the Product Information Bulletin included with your shipment.

12 | Maintenance

3.0 Specifications

Electrical Specifications

Drive Speeds:
Nominal AC Voltage:
Input Frequency:
Current Rating:
Current Draw:
RPM:
Phase:

Mechanical Specifications

Diameter:

Minimum Height:

Maximum Height:

Required Pit Diameter:

Variable
208–230 VAC
50/60 Hz
15 amp service
< 10 amps

0.5–2.0
Single (1)

2.03 meters 3.03 meters

27.63 cm

10.88 in

31.57 cm

12.43 in

202.56 cm ± .63 cm

79.75 in ± .25 in

27.63 cm

10.88 in

31.57 cm

12.43 in

302.56 cm ± .63 cm

119.12 in ± .25 in

Distributed Load Rating:

Distributed Load Rating applies when:

• Load is evenly distributed on top;

• No point loads under 0.19 sq m (2.0 sq ft) should exceed 100 kg

(220 lb);

• And not over 28.5 kg (62.8 lb) should be applied to a 45-degree
segment at the table outer edge.

910 kg
2000 lb

1100 kg
2500 lb

Specifications | 13

This page intentionally left blank.

14 | Specifications

4.0 Turntable Installation Considerations

Before assembling, installing, or connecting any components,
follow the safety information in the ETS-Lindgren
Product Information Bulletin included with your shipment.

Before You Begin—Precautions

Read this manual completely before starting installation. This
equipment should be installed and operated only by qualified
personnel.

Do not attempt to service unless qualified to do so. As with any
electrical equipment, make sure unit electrical power has been
disconnected and secured when performing schedule d
maintenance or adjustments.

WARRAN TY

Do not make any modifications to this unit without consulting
the factory directly.

Regularly inspect all equipment for loose fasteners and wear.
Conduct scheduled maintenance in accordance with the factory
recommendations provided.

Only use replacement parts and fasteners ordered directly from
the factory.

Stay clear of all moving components on this equipment.

Do not operate turntable while someone is physically on the
turntable top.

Do not, at any time, place hands or feet in the vicinity of the
drive pinion on the turntable.

Turntable Installation Considerations | 15

Power and Signal Lines

CONDUIT

Power and signal line paths should be planned in advance. Conduit should be in
place before pouring concrete or installing the ground plane. Consider the size of
the cable bundle when selecting conduit diameter.

ELECTRICAL CONSIDERATIONS

Electrical connection is subject to local electrical codes, and
should only be performed by a qualified electrician.

A qualified and licensed electrical contractor should install power lin es, and the
installation should comply with all applicable regulatory agencies. A dedicated
circuit should be used, with the shortest distance possible between the power
source and the turntable.

For more information on electrical installation, see page 17.

ACCESS

An access area beneath the turntable is advisable for large diameter
installations. A service switch should be installed to deactivate the turntable
during service.

Outdoor Installations

DRAINAGE

A centerline drain of at least 15 cm (6 in) must be installed to provide proper
drainage during rainstorms and other moisture-collecting situations.

COLD CLIMATE CONDITIONING

The oil used in the gear assemblies will congeal at 2°C (28°F). Turntables
operated in these temperatures should include a heat source or dehumidifier, or
both.

16 | Turntable Installation Considerations

5.0 Electrical Installation

The Model 2187 Turntable is configured to operate using 208-230 VAC,
single phase, 50/60 Hz service. It is recommended to operate at this voltage level
to reduce the surge currents necessary to power an electric motor.

Before assembling, installing, or connecting any components,
follow the safety information in the ETS-Lindgren
Product Information Bulletin included with your shipment.

Electrical installation must be performed by a qualified
electrician, and in accordance with local and national electrical
standards.

Make sure the power is off and secured before proceeding.

1. The branch circuit supplying power to the motor base should be

protected from excess current according to local electrical codes. An
integral circuit breaker is mounted inside the main bearing on one of the
bearing support blocks. The circuit breaker is specifically designed for
the inductive load presented by the electric motor.

2. Make sure the conductor size is adequate for the motor load and the
distance from the mains source. Improperly sized conductors will lead to
a high voltage drop in the power conductors and cause reduced starting
torque and premature motor failure.

3. The motor base assembly is provided with a non-terminated flexible
conduit with input power leads exposed. The flexible conduit is to be
terminated into a junction box fitted on or near the motor base. Terminate
the power leads of the motor base assembly according to local electrical
code requirements. Following is the conductor color code:

Brown: AC high

Blue: AC neutral

Green/Yellow: Protective earth/safety ground

Electrical Installation | 17

Connect the fiber optic control cable and install the power connection acco rding
to local electrical code. See the controller manual for information on connecting
the fiber optic cable. After the fiber optic cable is installed, secure it with a wire tie
to one of the leveling screws.

To feed the fiber optic connectors through a waveguide in the chamber, cables
are included to connect from the feedthroughs on the penetration panel to the
controller and motor base.

18 | Electrical Installation

6.0 Assembly and Installation

Before assembling, installing, or connecting any components,
follow the safety information in the ETS-Lindgren
Product Information Bulletin included with your shipment.

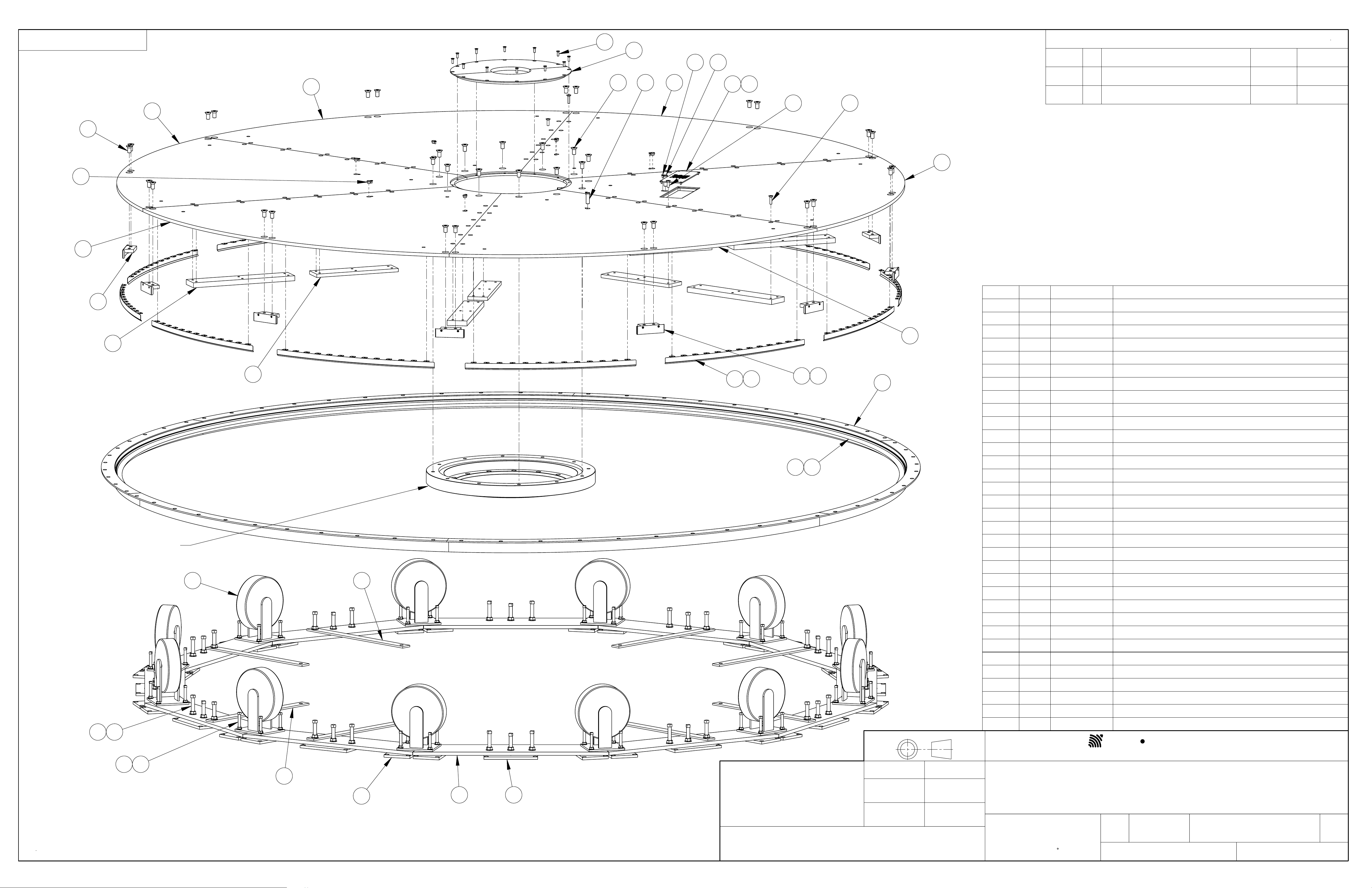

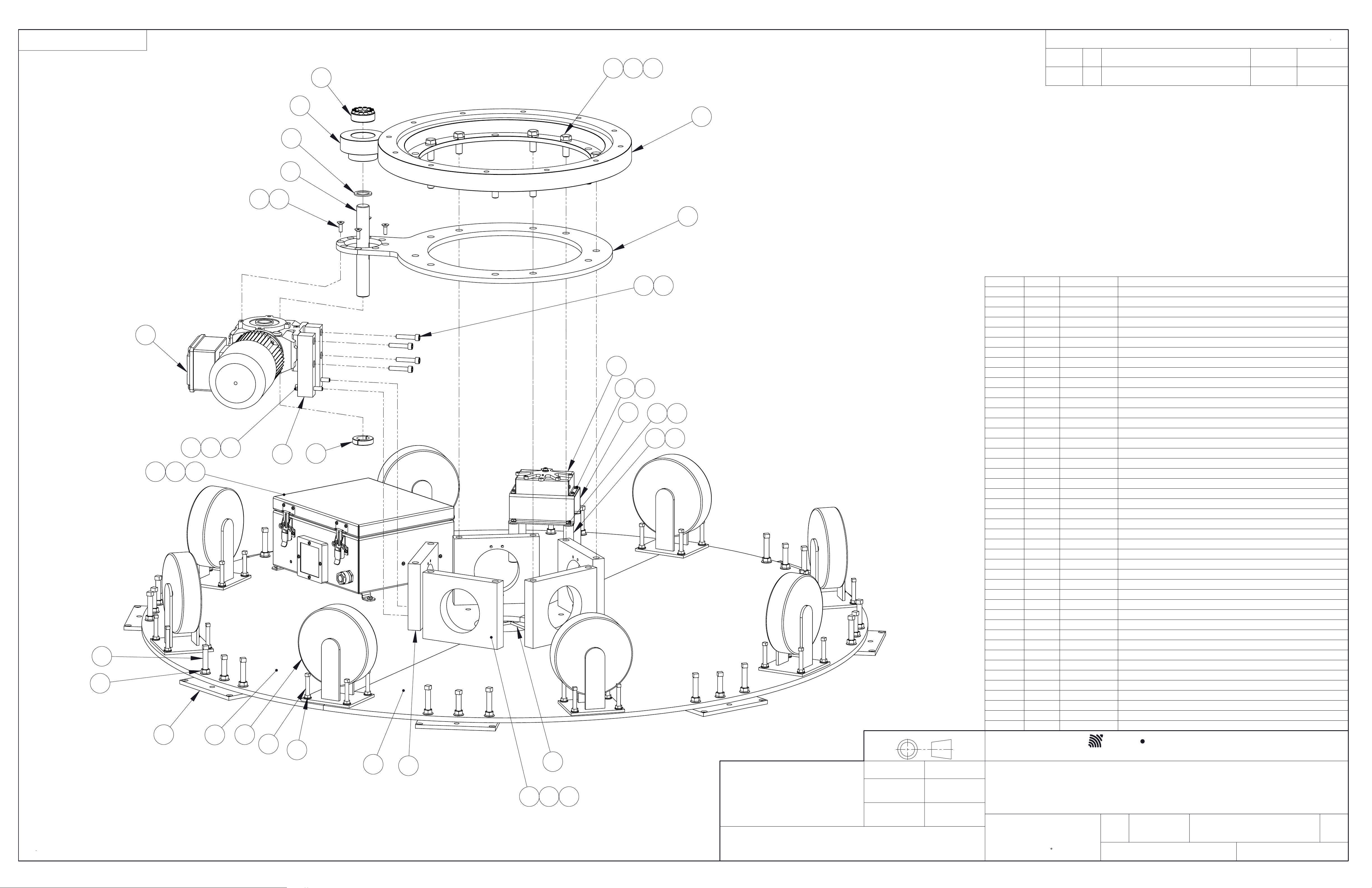

Prior to assembly and installation, review the drawings located in the back
pocket of this manual.

Proper installation of the turntable directly affects performance. The installation of
turntables two meters and larger will be performed by factory installation
specialists or individuals authorized by ETS-Lindgren to perform such work. The
following installation information is included only to provide an informational
overview of the installation process.

1. Uncrate all parts and check for shipping damage. Create a clear area to
safely assemble the turntable unit. Do not discard any packing material
until unit is fully assembled.

2. Remove the bolts that attach the top onto the turntable drive assembly.
Make note of the placement of each top section as it is removed.

Only qualified personnel should use a forklift or other lifting
machinery to lift the turntable assembly.

3. Using a forklift or other appropriate lifting machinery, place the turntable

bottom or bearing support section into position. If the turntable is to be
installed in a pit, center and level the assembly.

Make sure power is off and secured before proceeding.

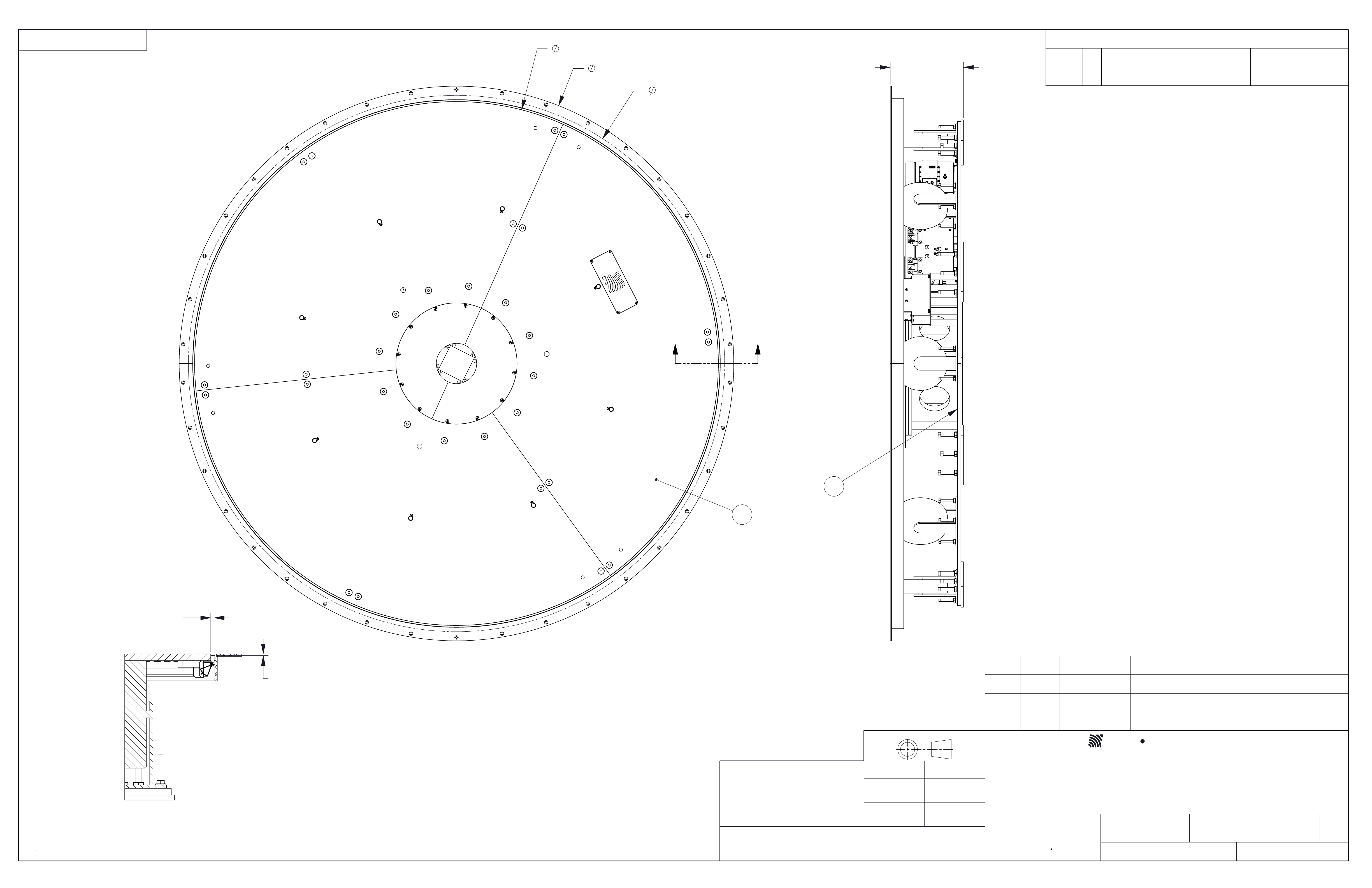

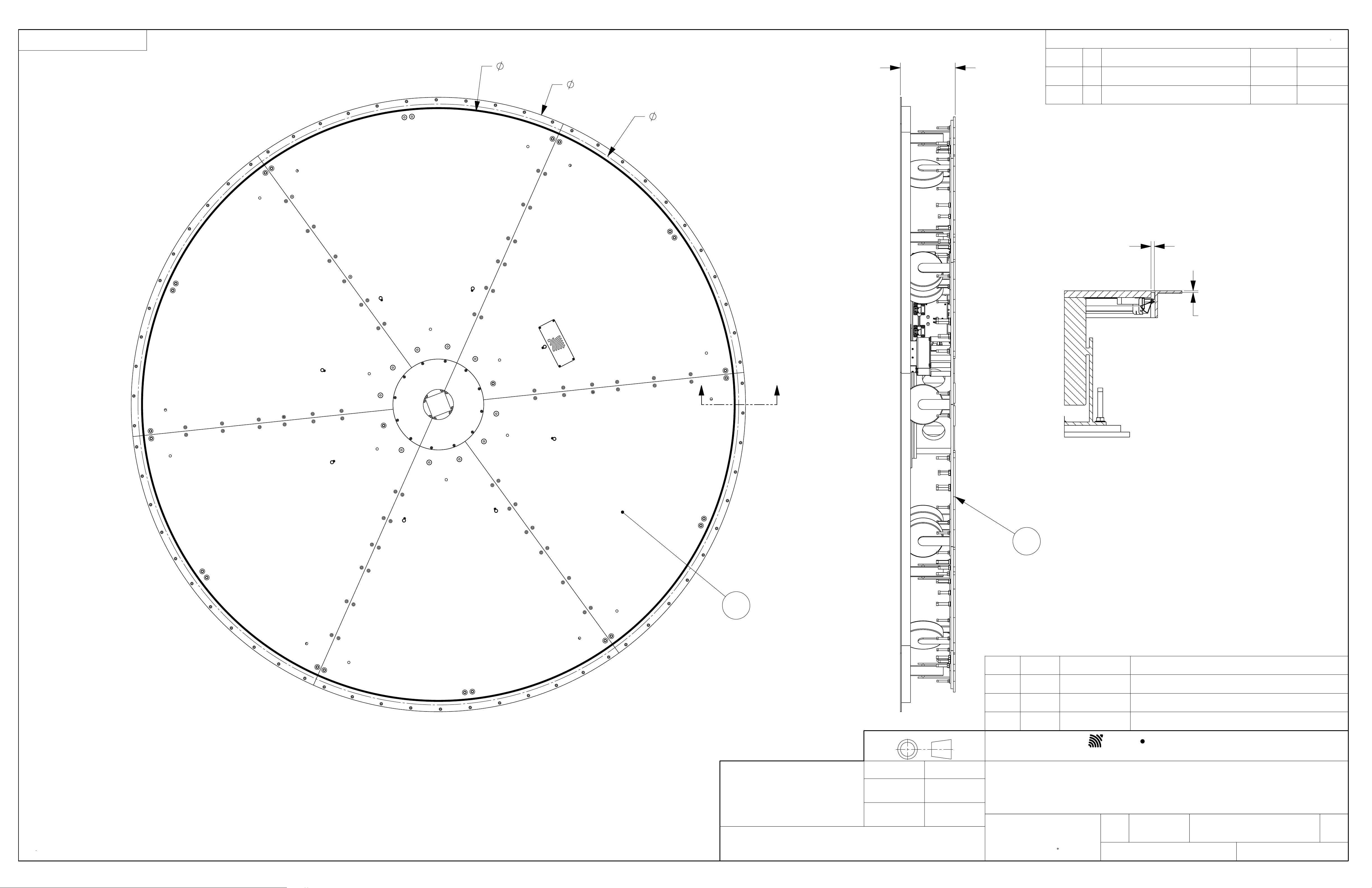

4. The drawings in the back of this manual show the placement of floor

plates and leveling screws to anchor and level the turntable. Anchor the
turntable through the attachment holes using the concrete expansion
bolts provided. After installing the floor plates and leveling screws, level
the entire turntable by adjusting all the leveling screws between and
under the casters, and in the center section of the turntable.

5. Tighten all lock nuts accompanying the leveling screws to lock the height
of the turntable into place.

Assembly and Installation | 19

6. Connect the fiber optic control cable and install the power connection

according to local electrical code. The standard power configuration is
230 VAC 50/60 Hz.

Keep all body parts away from the drive pinion when the
turntable is energized.

7. Follow the instructions in the next section, Floor Flange Installation in a

Paneled Floor, to install the ground ring assembly.

8. Reinstall the top section removed in step 2 of these instructions.

Floor Flange Installation in a Paneled Floor

The ground ring assembly includes a floor flange with a mounted brush ring that
interfaces with the contact ring mounted beneath the turntable top. The floor
flange provides constant electrical contact with the ground plane.

Mounting methods vary according to user specifications. Clearance holes are
provided at evenly-spaced intervals along the outside perimeter of the floor
flange to attach to a customer-supplied ground plane. These instructions
describe installation for a paneled floor. For concrete pit mounting instructions,
see Floor Flange Installation in Concrete Pit on page 22.

20 | Assembly and Installation

Installing the ground ring assembly requires these tools:

• 1/4-in spacers (3)

• Hand drill

• 5/32-in drill bit

• #3 Phillips drive bit

• Small square

• #14 x 1 wood/metal screws

The turntables each have two floor flange pieces. All flanges are pre-cut at the
factory for a drop-in fit.

1. Lay the floor flange into the opening of the raised floor and push outward
to the diameter of the opening.

2. Attach the turntable top onto the center bearing with the hardware
provided.

3. Using a pipe clamp and 1/4-in Allen wrenches or 1/4-in pin, place a
spacer between the turntable and floor flange starting in three places in
the center or on the flange.

Assembly and Installation | 21

4. Once tension is placed on all three wrenches, drill a 5/32-in hole through

the counter-sunk holes in the floor flange. Drill completely through the
panel and place screws into the holes.

5. Continue working around the floor flange, completing two or three holes
at a time.

Make sure that a 1/4-in gap between the turntable top and the mounted brush

Floor Flange Installation in a Concrete Pit

ring be held as close as possible so that the grounding brushes seat properly.
Also, make sure the flange ends are flush with each other.

6. Continue mounting until all screws are installed. Some screws may fall
between the floor panel joints. Try to position the flanges, making sure as
few screws hit these points as possible, and making sure that the first or
last hole in the flange is not too close to one of these joints. Trim the top
floor joint strips to fit up against the flange.

Installing in a concrete pit is the same as a paneled floor, with the exception of
the mounting hardware. Instead of the #14 x 1-in square socket flat head screws,
use 1/4 x 1.75-in Phillips flat head concrete anchors.

These tools are required for the next stage of installation:

• 1/2-in hammer drill

• 3/16 x 3.5-in hammer drill bit, at minimum

• Vacuum to clean inside the drilled holes for maximum thread

engagement

When drilling holes, be aware of buried conduit and pit drainpipes. Drill 3/16-in
holes, two inches minimum depth.

22 | Assembly and Installation

IR Repeater Installation

INSTALLATION ASSEMBLY COMPONENTS

• Infrared sensor

• Mounting collar

• IR-100 control unit

• IR flasher LED

• 9–12VDC power supply

• Connection cable

• Flathead mounting screws

REQUIRED TOOLS FOR INSTALLATION

• Electric drill

• 1-in hole saw to create a

• 1/16-in drill bit

• Small flat blade screwdriver

• Phillips #2 bit driver

• Adhesive tape

INSTALLATION STEPS

1. Choose a location for the IR infrared sensor that is away from traffic.

2. Using a 1-in hole saw, cut an opening in the floor for the IR sensor.

3. Connect the V+, GND, and SIG wires to the IR sensor as shown in the

diagram, and feed the cable through the hole.

Assembly and Installation | 23

4. Use the 1/16-in drill bit and four flathead mounting screws to mount the

IR sensor collar.

5. Connect the V+, GND, and SIG wires from the IR sensor to the
IR-100 control unit as shown in the diagram.

6. Using adhesive tape, attach the IR flasher LED directly over the IR input
on the motor control box.

7. Connect the IR flasher to port 1 on the IR-100 control unit.

8. Plug the 9–12VDC power supply into the power connector on the

IR-100 control unit, and then plug the power supply into a 120 VAC
outlet.

24 | Assembly and Installation

7.0 Operation

Before placing into operation, follow the safety information in the
ETS-Lindgren Product Information Bulletin included with your
shipment.

With the assembly of the turntable complete, the Model 2090 Multi-Device
Controller (or next generation ETS Lindgren controller, if applicable) must be
connected to the unit and power applied to both the motor base and controller.
See the controller manual for complete information on connecting the fiber optic
cable and operating the controller. A manual is included with each controlle r and
is also available for download from www.ets-lindgren.com

.

Operation | 25

This page intentionally left blank.

26 | Operation

Appendix A: List of Assembly Drawings

Following is a list of the assembly drawings located in the back of this manual.
Prior to assembly and installation, review the drawings. Refer to the drawings
during assembly and installation for detailed information.

• 2187–2.0: 2-meter turntable (3 pages)

• 2187–3.0: 3-meter turntable (2 pages)

List of Assembly Drawings | 27

This page intentionally left blank.

28 | List of Assembly Drawings

Appendix B: Warranty

See the Product Information Bulletin included with your shipment for the

D

URATION OF WARRANTIES FOR MODEL 2187

complete ETS-Lindgren warranty for your Model 2187 Turntable.

All product warranties, except the warranty of title, and all remedies for warranty
failures are limited to two years.

Product Warranted Duration of Warranty Period

ETS-Lindgren Model 2187 Turntable 2 Years

Warranty | 29

This page intentionally left blank.

30 | Warranty

Appendix C: EC Declaration of Conformity

The EC Declaration of Conformity is the method by which ETS-Lindgren, L.P. declares that the equipment listed
on this document complies with the EMC Directive (EEC/89/336) and Low Voltage Directive (EEC/73/23),
including applicable amending directives.

Issued by

Factory

ETS-Lindgren, L.P. ETS-Lindgren, L.P.
1301 Arrow Point Drive 1301 Arrow Point Drive
Cedar Park, TX, USA 78613 Cedar Park, TX, USA 78613

The products listed below are eligible to bear the CE mark:

– Model 2187 Electric Powered Turntable, 2-Meter and 3-Meter with 2088 style motor base

APPLICABLE REQUIREMENTS

Standard Criteria

EN 55011 Group 1, Class B

EN 61000-4-2:1995 Level 2/3 (4/8 kV)

EN 61000-4-3:1997 Level 2 (3 V/m)

EN 61000-4-4 Level 2 (1/0.5 kV)

ENV 50204:1996 Level 2 (3 V/m)

EN 61000-4-5:1995 Level 3 (2/1 kV)

EN 61000-4-11:1994 2 kV

EN 61010-1 Safety requirements for electrical equipment for measurement,

control, and laboratory use

AUTHORIZED SIGNATORIES

The authorizing signatures on the EC Declaration of Conformity document authorize ETS-Lindgren, L.P. to affix the
CE mark to the indicated product. CE marks placed on these products will be distinct and visible. Other marks or
inscriptions liable to be confused with the CE mark will not be affixed to these products. ETS-Lindgren, L.P. has ensured
that appropriate documentation shall remain available on premises for inspection and validation purposes for a period of
no less than 10 years.

EC Declaration of Conformity | 31

REF DRAWING

REFER TO SUB ASSY DRAWINGS FOR PARTS AND BOM'S

1.
SEE P/N 398797 FOR WIRING DIAGRAM

2.

77.88

TABLE TOP

82.48

REF

10.88

MIN

12.43 MAX

ECN

5190

REV

A

RELEASED

REVISIONS

DESCRIPTION

DATE

10/27/06

APPROVED

RBG

79.75

±.25

PIT

OPENING DIMENSION,REF

AA

1

.25

GAP BETWEEN TABLE TOP

AND BRUSH HOLDER

2

3

1

111343

KIT,SHIPPING,2187-2.0 TURNTABLE

SECTION A-A

SCALE 1 : 3

.13

FROM TABLE TOP TO

TOP OF BRUSH HOLDER EDGE

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER

TOLERANCES ARE:

DECIMALS

X.XX

X.XXX

FINISH

±
±

.015
.005

ANGLES

±

.5

NONE

THIRD ANGLE PROJECTION

INITIAL

DRAFTING

ENGINEERING

RBG

10/27/06

DATE

2

1

ITEM#

1

1

QTY

111330

111329

PART#

SUB-ASSY,TOP,TURNTABLE,2187-2.0

TURNTABLE,2187-2.0

DESCRIPTION

TM

ETS LINDGREN

An ESCO Technologies Company

TITLE

TURNTABLE,2M,MD,ELECTRIC,METAL TOP

PROPRIETARY INFORMATION

ANY DUPLICATION OF THIS
DOCUMENT, WHOLE OR IN PART,
WITHOUT EXPRESS WRITTEN
PERMISSION OF ETS LINDGREN
IS PROHIBITED.

SIZE

D

DO NOT SCALE DRAWING

SCALE

1:6

DWG. NO.

2187-2.0

SHEET

OF

1 1

REV.

A

REF DRAWING

REVISIONS

ECN

REV

DESCRIPTION

DATE

APPROVED

34 28 35

16

5190

RELEASED

A

10/27/06

RBG

19

15

7

11

3635

6

18

44 1 398797

WIRING DIAGRAM,2187 ELECTRONIC ASSY (NOT SHOWN)

37 35

43 20 890983
42 4 708040
41 1 675294
40 1 890191
39 1 920228
38 25 890192
37 4 930997
36 4 930734

SLEEVING,SLIT-CONVOLUTED,PE,1/4" ID (NOT SHOWN)
FIBER OPTIC CABLE LIMIT SWITCH 1.5M (NOT SHOWN)
CABLE,ENCODER,8 METER SHIELDED (NOT SHOWN)
CONN 90DEG CONDUIT FLX (NOT SHOWN)
LABEL,EQUIPMENT CHECKED (CAL) (NOT SHOWN)
CONDUIT,FLEX 1/2" RF SHIELDED (NOT SHOWN)
SCREW,M10X1.5X50,SH,CAP,SS,DIN 912-A2
SCREW,M8 X 1.25 X 25mm,FLAT,SOCKET,SS

4

23 22

5

26 27

10 30

35 .01 920081
34 10 910620
33 10 910619
32 32 910616
31 32 910615
30 4 910603
29 2 910599
28 10 910539

LOCTITE THREAD LOCKING #242 31 50MI
BOLT,5/8-11 X 1-3/4,HEX,GR5,ZN
SCREW,5/8-11 X 1.25,SH,FLAT,SS
SCREW LEVELING 1/2-13 X 3 SQ HD CU
NUT,3/8-16,HEX,ZINC,SERRATED FLANGE
SCREW,1/4-20 X 7/8,PHIL,FLAT,SS
BOLT,3/8-16 X 2-1/2,HEX,SS
WASHER,5/8,LOCK,STL,ZN,SPLIT

292537

9

17

122627

27 8 910456
26 8 910436
25 2 910411

WASHER,1/4,LOCK,SS,SPLIT
BOLT,1/4-20 X 1/2,HEX,SS

WASHER,3/8,LOCK,STL,ZN,SPLIT
24 24 910367
23 4 910244
22 4 910228
21 8 890668
20 24 890238
19 1 880315
18 1 880314
17 1 880216
16 1 880215
15 1 880044
14 1 111332
13 1 111331
12 1 110932
11 1 110917
10 4 110901

9 2 110898
8 1 110897

NUT,1/2-13,HEX,SERRATED FLANGE,ZN

SCREW,8-32 X 3/8,PHIL,BIND,SS

WASHER,#8,LOCK,SS,SPLIT

CASTER 3A886 GRAINGER

SCREW LEVELING 1/2-13 X 3 SQ HD CU

PINION,16T,4DP

GEARBOX,SEW EURODRIVE

SHAFT COLLAR,1 1/4 BORE,TWO PIECE,STEEL

LOCKING COUPLER TLK 200 X 1.25 BROWNING

BEARING,25.15 OD.,99T

BASE PLATE,LOWER,2187 TURNTABLE

BASE PLATE,GEAR BOX,2187 TURNTABLE

DRIVE,TURNTABLE,2187

SHAFT,DRIVE,GEARBOX,2187

STANDOFF,MECHANICAL LIMIT SWITCH ASSY

BLOCK,GEARBOX TORQUE

SUPPORT,BEARING/GEARBOX

20

24

2

13

21

32

31

14

8

REF

3

1 33 35

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER

TOLERANCES ARE:

X.XX

X.XXX

FINISH

DECIMALS

±

.015

±

.005

ANGLES

±

.5

NONE

THIRD ANGLE PROJECTION

INITIAL

DRAFTING

ENGINEERING

RBG

10/27/06

DATE

7 1 110896
6 1 110895
5 1 109307
4 1 108758
3 4 106982
2 8 106789
1 4 105812

ITEM#

TITLE

QTY

PART#

TURNTABLE,2187-2.0

PROPRIETARY INFORMATION

ANY DUPLICATION OF THIS
DOCUMENT, WHOLE OR IN PART,
WITHOUT EXPRESS WRITTEN
PERMISSION OF ETS LINDGREN
IS PROHIBITED.

SPACER,PINION

MOUNT PLATE,GEARBOX

BRACKET,LIMIT SWITCH CASE

ASSY,MECHANICAL LIMIT SWITCH,MOTORBASE

FLOOR PLATE SPACER 3, MODEL 2088

TIE PLATE 2M 2087

BLOCK 1 BEARING 2087 2M TURNTABLE

DESCRIPTION

ETS LINDGREN

An ESCO Technologies Company

SIZE

D

DO NOT SCALE DRAWING

SCALE

1:4

DWG. NO.

111329

TM

SHEET

REV.

A

OF

1 1

REF DRAWING

REVISIONS

8

16

4

14

9

7

16

11

2 12

13

ECN

5190

REV

A

RELEASED

DESCRIPTION

DATE

10/27/06

APPROVED

RBG

1

518

6

3 15

10 17 19

20 1 920192

19 74 910652

18 12 910173

17 6 109468

16 8 910930

15 108 910714

14 12 910440

13 30 910413

12 4 910241

11 2 880316

10 2 705421

9 2 111333

8 1 110891

7 1 110890

LABEL,WARNING,GEARS BELOW TURNTABLE (NOT SHOWN)

SCREW FH PHL ZN TAPTITE 6-32 X 3/8

SCREW,6-32 X 3/8,PHIL,FLAT,SS

ASSY,BRUSH/HOLDER MODIFICATION

SCREW,10-32 X 3/8,PHIL,FLAT,SS

SCREW,6-32 X 1/4,PHIL,BIND,TAPTITE

SCREW,1/4-20 X 3/4,PHIL,FLAT,SS

SCREW,1/2-13 X 1.00,SH,FLAT,ZN

SCREW,8-32 X 3/8,PHIL,FLAT,SS

PIN,CLEVIS,SS,1/2"O.D. X 1.5" LONG

FLOOR FLANGE,TURNTABLE,2.03m,AL

RING,SPLIT,2187 TURNTABLE

TOP,SECT 3,2187-2.03/C24391

TOP,SECT 2,2188-2.03/C24391

BEARING SHOWN FOR

REF ONLY

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER

TOLERANCES ARE:

DECIMALS

X.XX

X.XXX

FINISH

±
±

.015
.005

ANGLES

±

.5

NONE

THIRD ANGLE PROJECTION

INITIAL

DRAFTING

ENGINEERING

RBG

10/27/06

DATE

6 1 110889

5 6 110405

4 6 110059

3 6 109333

2 1 108925

1 9 105813

ITEM#

TITLE

QTY

PART#

SUB-ASSY,TOP,TURNTABLE,2187-2.0

PROPRIETARY INFORMATION

ANY DUPLICATION OF THIS
DOCUMENT, WHOLE OR IN PART,
WITHOUT EXPRESS WRITTEN
PERMISSION OF ETS LINDGREN
IS PROHIBITED.

TOP,SECT 1,2187-2.03/C24391

CONTACT FLAT,BRUSH,TURNTABLE

PLUG,HOLE,TABLE TOP

CONTACT STRIP,BRUSH,TURNTABLE

COVER,ACCESS

TAB,TOP,2087

DESCRIPTION

ETS LINDGREN

An ESCO Technologies Company

SIZE

D

DO NOT SCALE DRAWING

SCALE

1:4

DWG. NO.

111330

TM

SHEET

REV.

A

OF

1 1

REF DRAWING

REVISIONS

REFER TO SUB ASSY DRAWINGS FOR PARTS AND BOM'S

1.
SEE P/N 398797

2.

FOR WIRING DIAGRAM

117.22

TABLE TOP

121.82

REF

119.12

±.25

PIT

OPENING DIMENSION, REF

10.88

MIN

12.43 MAX

ECN

5407

REV

1

A

DESCRIPTION

INITIAL BUILD

RELEASED TO STANDARD

DATE

2/18/08

APPROVED

-

RBG

A A

.25

GAP BETWEEN TABLE TOP

AND BRUSH HOLDER

.13

FROM TABLE TOP TO

TOP OF BRUSH HOLDER EDGE

2

SECTION A-A

SCALE 1 : 3

1

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER

TOLERANCES ARE:

DECIMALS

X.XX

X.XXX

FINISH

±
±

.015
.005

ANGLES

±

.5

NONE

THIRD ANGLE PROJECTION

INITIAL

DRAFTING

ENGINEERING

RBG

7/16/07

DATE

3

2

1

ITEM#

1

1

1

QTY

112132

112131

111329

PART#

KIT,SHIPPING,TURNTABLE,2187-3.0

SUB-ASSY,TOP,TURNTABLE,2187-3.0

TURNTABLE,2187-2.0

DESCRIPTION

TM

ETS LINDGREN

An ESCO Technologies Company

TITLE

TURNTABLE,3M,MD,ELECTRIC,METAL TOP

PROPRIETARY INFORMATION

ANY DUPLICATION OF THIS
DOCUMENT, WHOLE OR IN PART,
WITHOUT EXPRESS WRITTEN
PERMISSION OF ETS LINDGREN
IS PROHIBITED.

SIZE

D

DO NOT SCALE DRAWING

SCALE

1:8

DWG. NO.

2187-3.0

SHEET

OF

1 1

REV.

A

REF DRAWING

25

REVISIONS

9

ECN

REV

DESCRIPTION

DATE

1629

APPROVED

11

24

16

10

6 20

5407

INITIAL BUILD

1

RELEASED TO STANDARD

A

2/18/08

-

RBG

2223

12

24

13

7

10

33 1 920192

1

32 96 910652

31 12 112134

30 8 109468

LABEL,WARNING,GEARS BELOW TURNTABLE(NS)

SCREW FH PHL ZN TAPTITE 6-32 X 3/8

CONTACT STRIP,BRUSH,TURNTABLE,2187-3.0

ASSY,BRUSH/HOLDER MODIFICATION

11

2

14

31 28

8 19

15

29 8 910930

28 156 910714

27 48 910616

26 48 910615

25 12 910440

24 36 910413

SCREW,10-32 X 3/8,PHIL,FLAT,SS

SCREW,6-32 X 1/4,PHIL,BIND,TAPTITE

SCREW LEVELING 1/2-13 X 3 SQ HD CU

NUT,3/8-16,HEX,ZINC,SERRATED FLANGE

SCREW,1/4-20 X 3/4,PHIL,FLAT,SS

SCREW,1/2-13 X 1.00,SH,FLAT,ZN

BEARING SHOWN FOR

REFERENCE ONLY

18

23 36 910373

22 36 910372

21 36 910367

20 4 910241

SCREW,5/16-18 X 1,SH,FLAT,SS

SCREW,5/16-18 X 1 1/4,SH,FLAT,SS

NUT,1/2-13,HEX,SERRATED FLANGE,ZN

SCREW,8-32 X 3/8,PHIL,FLAT,SS

3032

19 24 910173

18 12 890668

17 36 890238

16 2 880316

15 6 705434

14 6 112133

13 1 111988

12 1 111987

4

11 2 111986

SCREW,6-32 X 3/8,PHIL,FLAT,SS

CASTER,8" FIXED

SCREW LEVELING 1/2-13 X 3 SQ HD CU

PIN,CLEVIS,SS,1/2"O.D. X 1.5" LONG

FLOOR FLANGE,TURNTABLE,3.0m,AL

TIE BAR,INSIDE,TOP,2187-3.0

TOP,SECT4,TURNTABLE,2187-3.0

TOP,SECT3,TURNTABLE,2187-3.0

TOP,SECT2,TURNTABLE,2187-3.0

10 2 111985

9 2 111333

8 12 110405

7 6 110059

6 1 108925

5 12 106789

4 8 106733

3 12 106732

2 6 106730

1 12 105813

ITEM#

1721

THIRD ANGLE PROJECTION

QTY

PART#

TOP,SECT1,TURNTABLE,2187-3.0

RING,SPLIT,2187 TURNTABLE

CONTACT FLAT,BRUSH,TURNTABLE

PLUG,HOLE,TABLE TOP

COVER,ACCESS

FLOOR PLATE SPACER 2081

ANGLE STRUT 3M 2087

CASTER PLATE 2M 2087

TIE PLATE 3m 2087

TAB,TOP,2087

DESCRIPTION

TM

ETS LINDGREN

An ESCO Technologies Company

2726

4

5

REF, PART OF

53

SHIPPING KIT

X.XX

X.XXX

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER

TOLERANCES ARE:

DECIMALS

FINISH

±
±

.015
.005

ANGLES

±

.5

INITIAL

DRAFTING

ENGINEERING

RBG

DATE

7/16/07

NONE

TITLE

SUB-ASSY,TOP,TURNTABLE,2187-3.0

PROPRIETARY INFORMATION

ANY DUPLICATION OF THIS
DOCUMENT, WHOLE OR IN PART,
WITHOUT EXPRESS WRITTEN
PERMISSION OF ETS LINDGREN
IS PROHIBITED.

SIZE

D

DO NOT SCALE DRAWING

SCALE

DWG. NO.

1:6

112131

SHEET

REV.

A

OF

1 1
