Page 1

Archived 3/18/10

Model 2081

Turntable Series

2081-2.0, 2081-2.5, 2081-3.0,

2081-4.0, 2081-5.0, 2081-6.0

MANUAL

Page 2

MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

ETS-Lindgren L.P. reserves the right to make changes to any products herein to improve functioning, design, or for any other reason. Nothing contained herein shall constitute ETS-Lindgren L.P. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein. ETSLindgren L.P. does not convey any license under its patent rights or the rights of others.

No part of this document may be copied by any means

without written permission from ETS-Lindgren L.P.

E-MAIL & INTERNET

Support@ets-lindgren.com

http://www.ets-lindgren.com

USA

1301 Arrow Point Dr., Cedar Park, TX 78613 P.O. Box 80589, Austin, TX 78708-0589 Phone 512.531.6400 Fax 512.531.6500

FINLAND

Euroshield OY Mekaanikontie 1 27510, Eura, Finland Phone + 358.2.838.3300 Fax + 358.2.865.1233

JAPAN

4-2-6, Kohinata Bunkyo-ku Tokyo 112-0006 JAPAN Phone + 81 3 3813 7100 Fax + 81 3 3813 8068

CHINA

1917-1918 Xue Zhixuan Building No 16 Xue Qing Road Haidian District Beijing Postcode: 100083 CHINA Phone + 86 010 82755304 Fax + 86 010 82755307

Page 3

MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

Table of Contents

INTRODUCTION ........................................................................................................................................ 1

STANDARD CONFIGURATION .............................................................................................................. 2

OPTIONS ...................................................................................................................................................... 3

PRECAUTIONS ........................................................................................................................................... 4

TURNTABLE INSTALLATION CONSIDERATIONS........................................................................... 6

POWER AND SIGNAL LINES ......................................................................................................................... 6

OUTDOOR INSTALLATIONS .......................................................................................................................... 6

INSTALLATION ......................................................................................................................................... 7

GROUND RING INSTALLATION .................................................................................................................... 9

ELECTRICAL INSTALLATION ............................................................................................................ 10

CONNECTING THE MODEL 2090 POSITIONING CONTROLLER..................................................................... 11

OPERATION .............................................................................................................................................. 12

RECOMMENDED PARAMETERS FOR THE MODEL 2090 POSITIONING CONTROLLER ................................... 13

EDITING MODEL 2090 POSITIONING CONTROLLER CONFIGURATION PARAMETERS .................................. 14

TURNTABLE ENCODER CALIBRATION ....................................................................................................... 14

TT CALIBRATION EXAMPLE ...................................................................................................................... 15

SETTING CURRENT POSITION ON 2090 ...................................................................................................... 17

CAUTION: ON RESETTING CURRENT POSITION ON 2090 ........................................................................... 17

CHANGING ROTATION SPEED .................................................................................................................... 18

SETTING TRAVEL LIMITS .......................................................................................................................... 19

ALTIVAR MOTOR BASE CONFIGURATION ................................................................................................. 20

HAND CONTROL UNIT .......................................................................................................................... 21

RECOMMENDED MAINTENANCE ...................................................................................................... 22

EVERY SIX MONTHS.................................................................................................................................. 22

EVERY TWELVE MONTHS .......................................................................................................................... 23

SPECIFICATIONS .................................................................................................................................... 24

ELECTRICAL .............................................................................................................................................. 24

PHYSICAL .................................................................................................................................................. 24

WARRANTY STATEMENT .................................................................................................................... 25

ILLUSTRATIONS ..................................................................................................................................... 26

Page 4

MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

NOTICE: This produc t and related documentation must be r eviewed fo r familiariz ation with safety markings and instructions before operation.

SAFETY SYMBOL DEFINITIONS

CAUTION

WARNING

REFER TO MANUAL

instruction manual for additional information.

HIGH VOLTAGE

could result in severe personal injury or death.

PROTECTIVE EARTH GROU ND (SAF ETY G ROUND)

Indicates protective earth terminal. You should provide uninterruptible safety ea rth ground from the main power source to the pr o duct input wiring terminals, power cord, or supplied power cord set.

CAUTION

minor personal i n ju r y and/or propert y damage. Included text gives proper procedures.

WARNING

SEVERE pe r sonal inju ry and/or proper ty damage. Included text gives pr o per procedures.

GENERAL SAFETY CONSIDERATIONS

BEFORE POWER IS APPLIED TO THIS INSTRUMENT, GROUND IT PROPERLY

cable to a power source provided with protective earth contact. Any interruption of the protective (grounding) conductor , inside or outside the ins trument, or dis c onnection of the protective ea rth termi nal could result in personal injury.

When product is marked with this symbol refer to

Indicates presence of hazardous voltage. Unsafe practice

Denotes a hazard. Failure to follow instructions could result in

through the protective conductor of the AC power

WARRANTY

BEFORE SERVICING: CONTACT ETS-LINDGREN -

(or modifying) the unit by yourself may void your warranty. I f you attempt to ser vice the unit by yo urself, disconnect all electrical powe r befor e starting. There ar e v oltages at many points in the instrument which could, if contacted, cause personal injury. Only trained service personnel should perform adjust m ents and/or s ervice proce dures upon thi s inst rument.

Capacitors inside this instrument may still be CHARGE D even when instrument is disconn ected from its power source.

ONLY QUALIFIED PERSONNEL

STAY CLEAR

of moving components during operat i o n of equipment.

shou ld ope rate (or s ervice) this equi pm e nt.

servicing

Page 5

MODEL 2081 TURNTABLE SERIES Introduction

Archived 3/18/10

INTRODUCTION

The ETS-Lindgren Model 2081 is an electric powered turntable platform system designed to be used with the Model 2090 Positioning Controller for EMI compliance testing. Two meter and larger tables utilize a pinion and gear drive with a gear reducer and electric motor. The conductive metal top is outfitted with a continuous ground brush to electrically couple the turntable to the ground plane. The drive motor and gearing are located beneath the platform. The sectional turntable top provides easy access in the event that service is required. A shielded enclosure contains the electronics for the system. Signal I/O from the turntable to the Model 2090 controller is via fiber optic cable.

The bearing on which the turntable rotates has the drive teeth cut directly on the outside and will easily support most heavily weighed equipment under test (EUT). Casters underneath the table surface aid in the support of a cantilevered load. Leveling screws are located at each caster, between the casters and in the center section of the assembly for ease in matching height on an uneven ground plane.

To prevent over-travel of the turntable in either direction of movement, mechanical limits can be set using dial knobs on the outside of the encoder enclosure located in the center of the main pivot bearing. The knobs can be accessed by removing the center section of the turntable. Soft limits can be set within the mechanical limits, using the Model 2090 Positioning Controller.

Ground brushes attached directly to the top of the table are in continual contact with the floor flange supplied with the ground ring option. The brushes point downward from the top of the table.

To extend the life of the ground brush, a one-piece stainless steel liner is attached to the inside edge of the stationary floor flange.

Page 6

Standard Configuration MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

STANDARD CONFIGURATION

• Three-phase electric motor unit (standard)

• Heavy duty two-speed drive system (standard)

• Conductive sectional top

• Convenient rotational limit adjust switches

• Limit override feature

• Ten meter fiber-optic control cables (standard)

• Overall height 400 mm (15.75 in)

• Sectional top for easy service access

• Full supporting leveling screws

2 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 7

MODEL 2081 TURNTABLE SERIES Options

Archived 3/18/10

OPTIONS

Model 2090 Positioning Controller: This controller provides control for two separate devices (towers and turntables) in any combination, plus the control of four auxiliary devices via a fiber optic interface. The unit includes a GPIB connection and is compatible with most popular EMI measurement software.

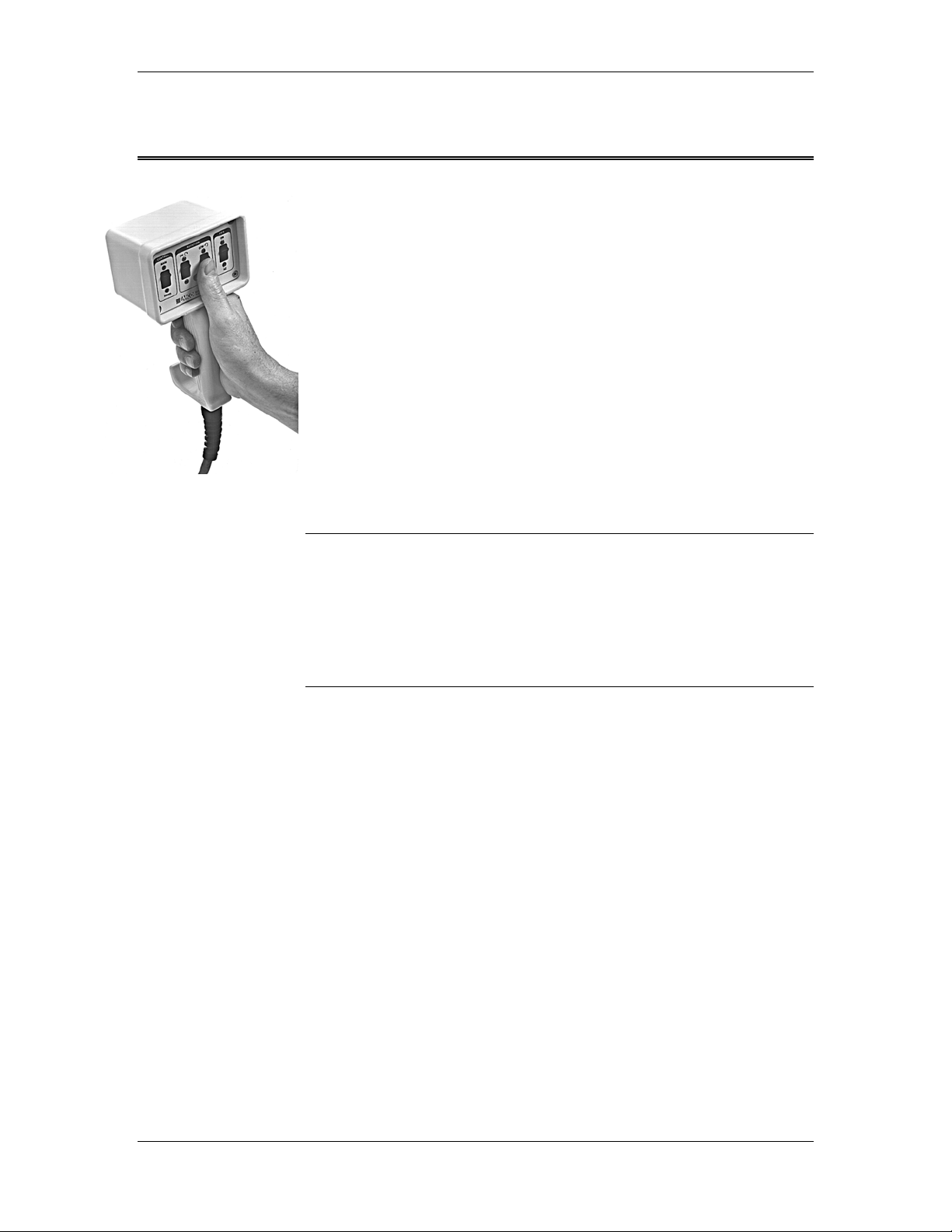

Hand Control Unit: This sturdy, hand-held controller will allow the user to manually operate the table remotely and independently from the Model 2090 Positioning Controller. This controller attaches conveniently to the electrical enclosure located on the base of the turntable. Functions include: Clockwise (CW), Counterclockwise (CCW) and Hand/Main Control selection.

Slip Ring: This option allows continuous rotation of the turntable through the use of the latest technology in mercury slip-rings. The slip ring option is typically supplied with Schuko or NEMA connectors. Specify part #103441 for NEMA connectors, and part #103351 for Schuko connectors. The amperage rating for the standard electrical assembly is 20 amps. Consult the factory for all custom requirements on slip-rings.

Shield Room Feed-through: This option allows the customer to take the fiber optic control cable from the control room to the shield room while maintaining shielding attenuation. The unit is made of brass for conductivity and provides attenuation of greater that 100 dB at 10 GHz. A single 22.25 mm (.875 inch) hole is required to mount this option.

Additional Fiber Optic Cable: Various lengths of fiber optic cable are available by customer order. The standard length provided is 10 m (32.8 ft).

Variable Speed Drive: An optional variable speed drive package is available with the Model 2081 Turntable. Speed adjustment is electronically controlled by the Model 2090 via the front panel or through the GPIB interface.

Page 8

Precautions MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

EUT Power Outlets: Receptacles are usually mounted on the base of the turntable at its center axis point. These receptacles can be custom mounted, flush with the tabletop on some turntables. Consult the factory for more details.

Mounted LISNs: LISNs can be mounted to the underside of some turntables. This option is only practical on larger turntables with sufficient clearance.

PRECAUTIONS

Read this manual completely before starting installation. This equipment should be installed and operated only by qualified personnel.

Ensure correct voltage setting is selected on the Motor Base unit (when applicable).

The fiber optic cable must be looped through the “P” clip installed on the front panel of the motor base. Failure to do so will increase the chance of the cable being accidentally pulled, thus breaking the fiber optic connectors.

Do not attempt to service unless qualified to do so. As with any electrical equipment, ensure unit electrical power has been disconnected and secured when performing scheduled maintenance or adjustments.

WARRANTY

Do not make any modifications to this unit without consulting the factory directly.

Stay clear of all moving components on this equipment.

Do not, at any time, place hands or feet in the vicinity of the drive

pinion on the turntable.

Do not operate the turntable while someone is physically on the turntable top.

4 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 9

MODEL 2081 TURNTABLE SERIES Precautions

Archived 3/18/10

Regularly inspect the equipment for loose fasteners and wear. Conduct scheduled maintenance in accordance with the factory recommendations provided.

Only use replacement parts and fasteners ordered directly from the factory or specified by ETS-Lindgren.

The access plate(s) above the pinion gear should remain firmly attached with the screws provided at all times. When the plate is removed for servicing, the electrical breaker located on the electrical control enclosure should be in the OFF position.

Page 10

Turntable Installation Considerations MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

TURNTABLE INSTALLATION CONSIDERATIONS

Pre-planning is essential for a successful installation. Be sure to discuss your requirements with your sales representative and request dimensional drawings prior to construction of your site.

POWER AND SIGNAL LINES

Conduit

Power and signal line paths should be planned in advance. Conduit should be in place before pouring concrete or installing the ground plane. Be sure to consider the size of the cable bundle when selecting conduit diameter.

Electrical Considerations

A qualified and licensed electrical contractor should be used to install power lines, and the installation should comply with all applicable regulatory agencies. A dedicated circuit should be used, with the shortest distance possible between the power source and the turntable.

Access

An access area underneath the turntable is advisable for large diameter installations. A service switch should be installed to deactivate the turntable during service.

6 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

OUTDOOR INSTALLATIONS

Drainage

A centerline drain of at least 15cm (6in) must be installed to provide proper drainage during rain storms, etc.

Cold Climate Conditioning

Oil used in the gear assemblies will congeal at 2 Turntables operated in these temperatures should include a heat source and/or dehumidifier.

C (28o F).

Page 11

MODEL 2081 TURNTABLE SERIES Installation

Archived 3/18/10

INSTALLATION

The installation of turntables 2 meters and larger will be performed by a factory installation specialist or by individuals who have been authorized by ETS-Lindgren to do such work. Proper installation of the turntable directly affects performance. The following installation information is provided to familiarize the user of the turntable with the installation process.

1. Uncrate all parts. NOTE: Do not discard any packing material

until unit is fully assembled. Check all parts for any shipping damage. Ensure a clear area is available to assemble the turntable unit safely.

2. After removing three ½-13 flat head screws from the center of

the turntable, install three eye-bolts (provided) for lifting the turntable center drive section.

3. Attach lifting chains or slings though the eye-bolts.

CAUTION Lifting and placement of turntable center drive unit into a pit should only be performed by qualified personnel.

4. Safely lift the turntable into the pit using a forklift or other

appropriate lifting device, place the turntable bottom or bearing support section into position.

5. Remove the drive pinion so the turntable may be rotated

manually.

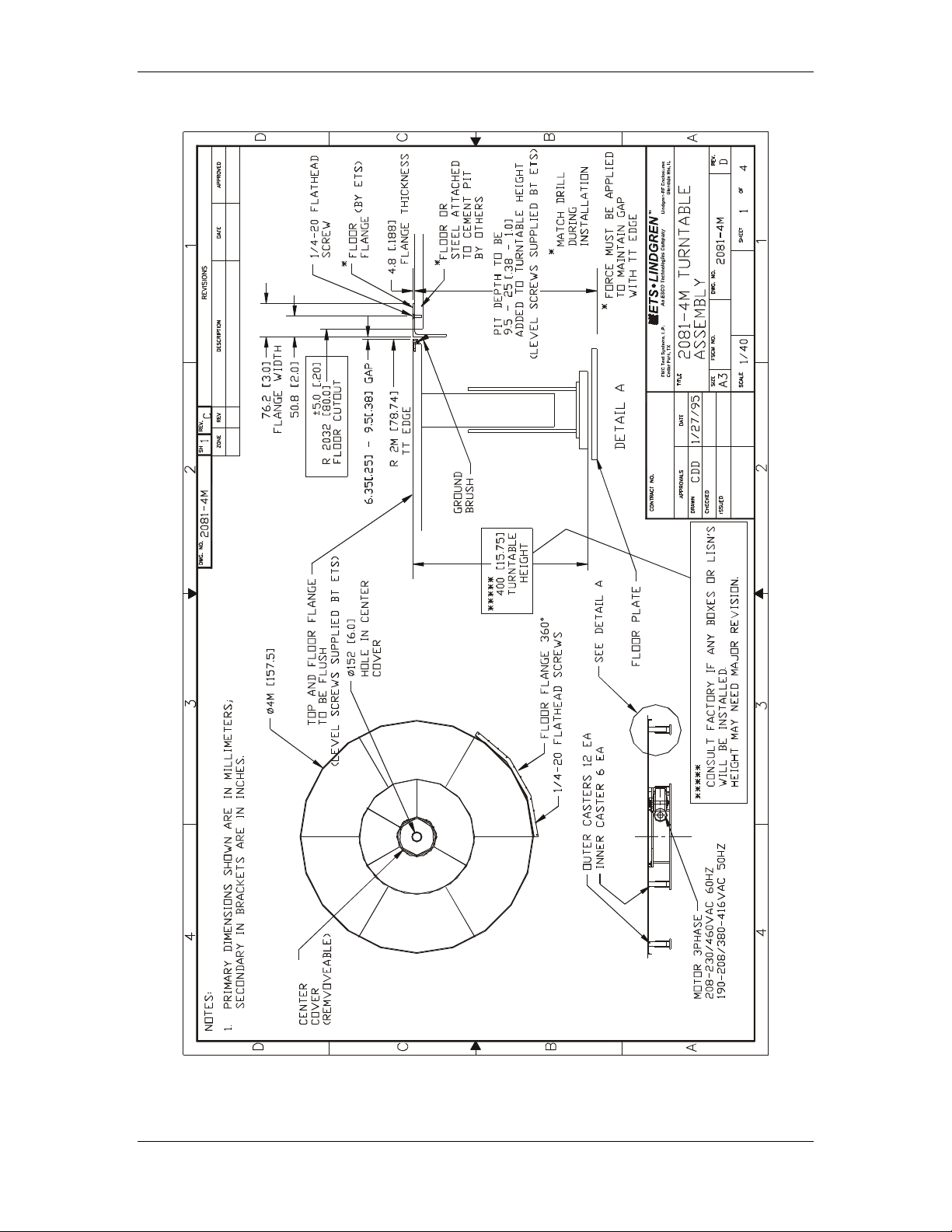

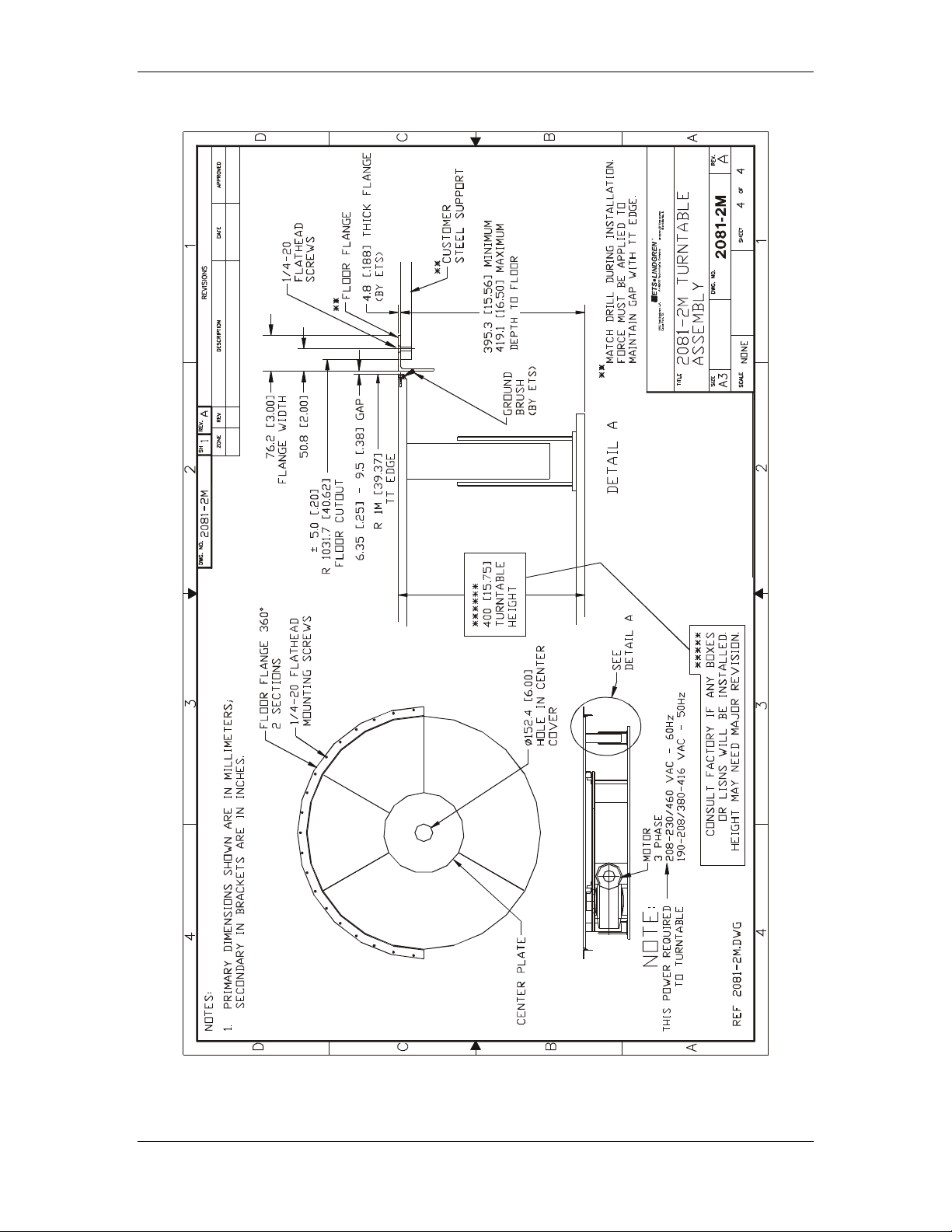

6. If the turntable is to be installed into a pit or floor cut-out,

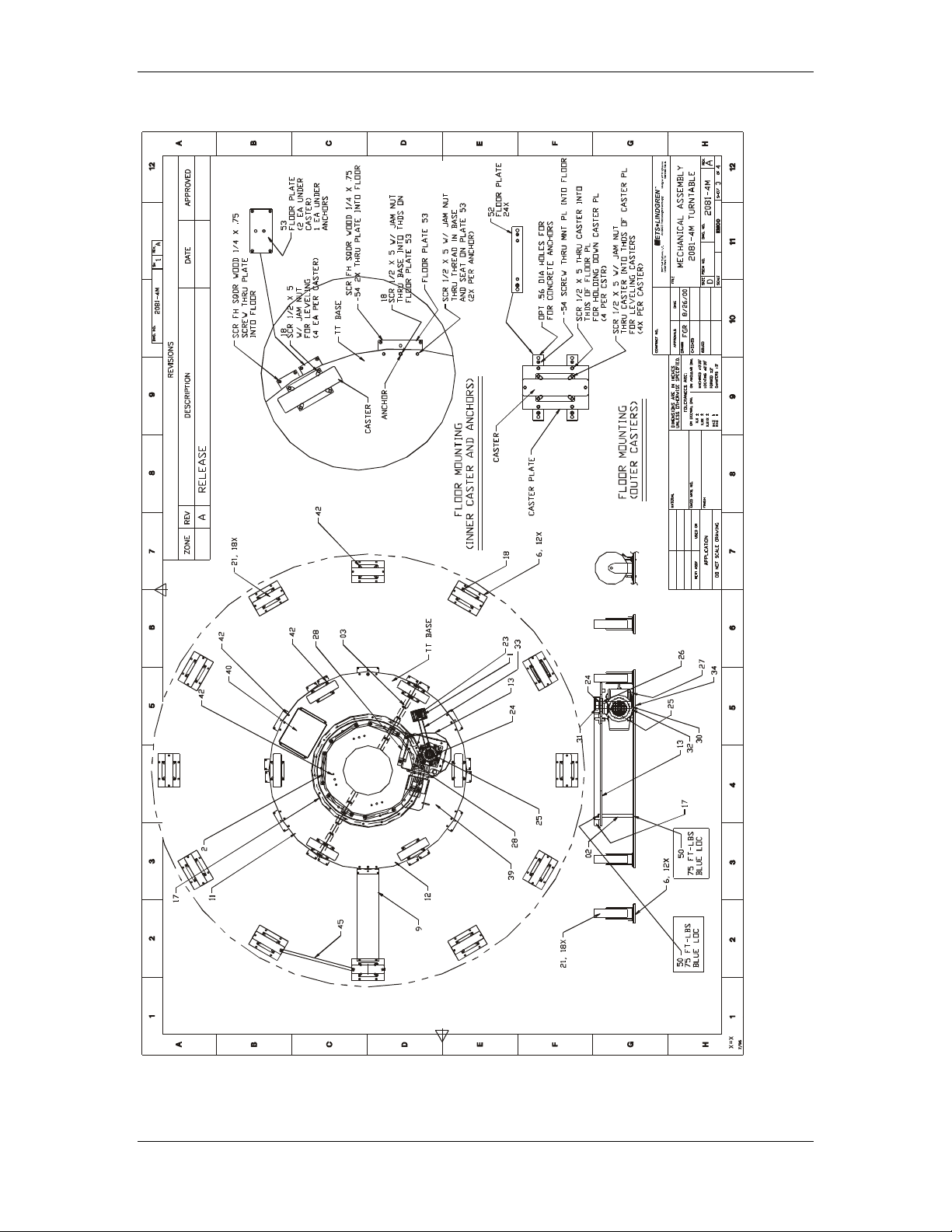

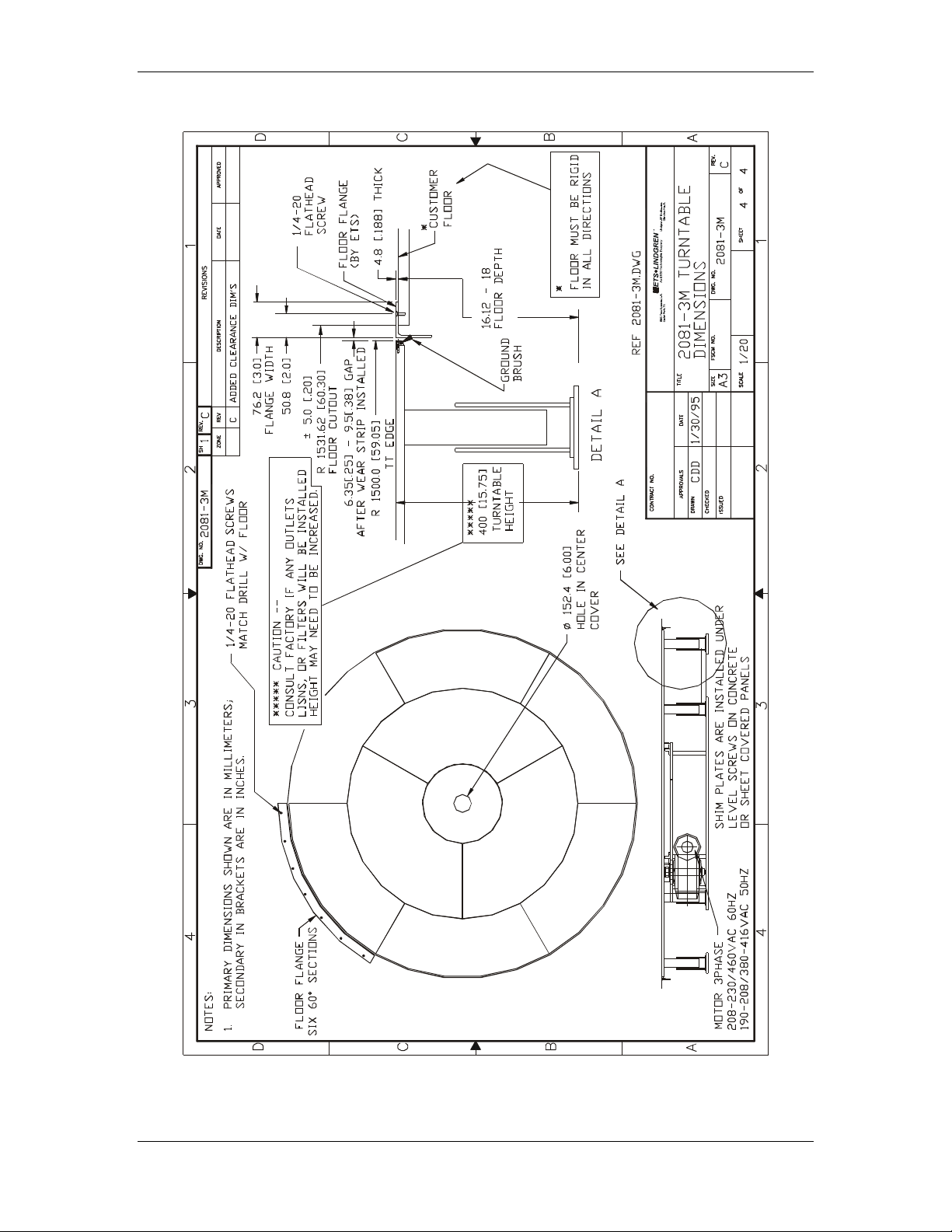

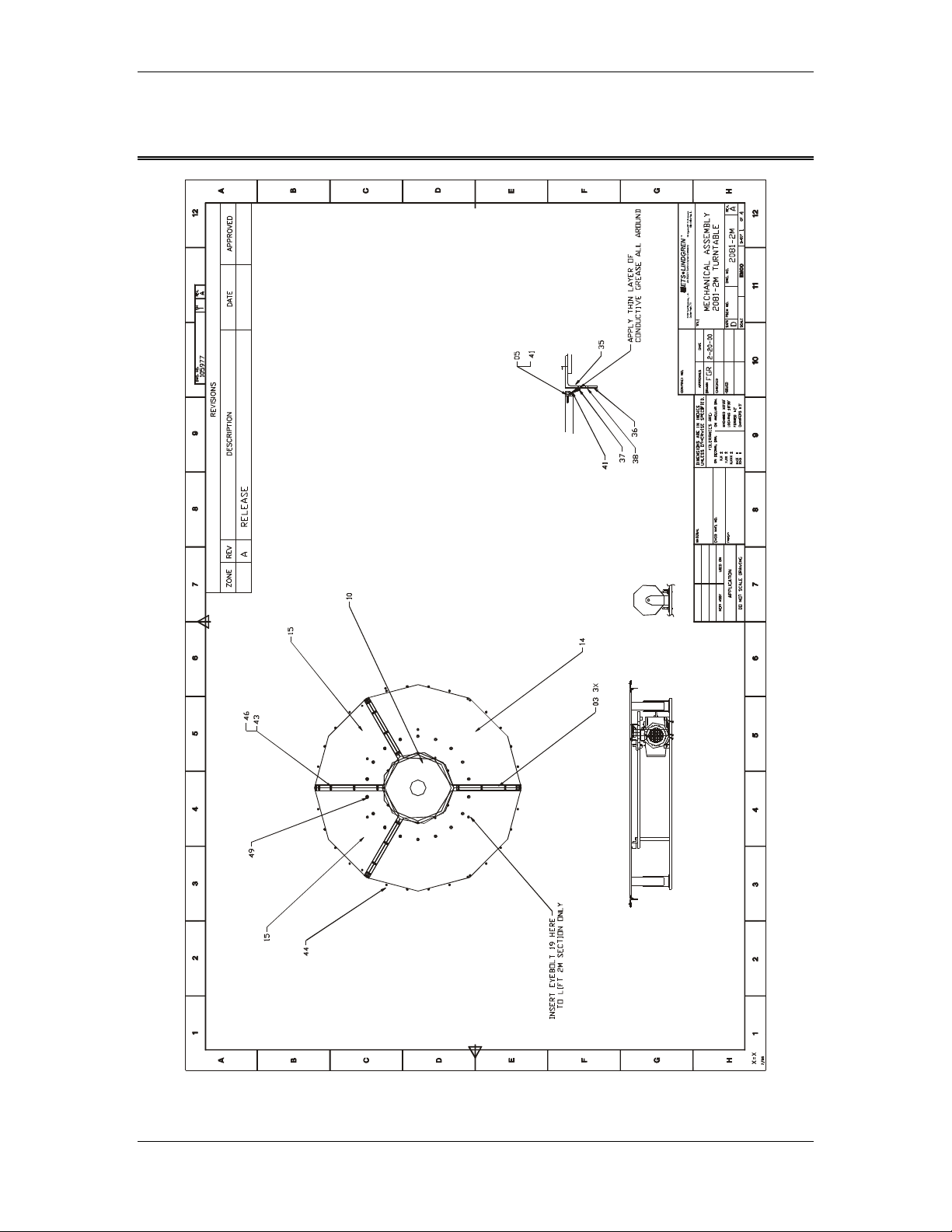

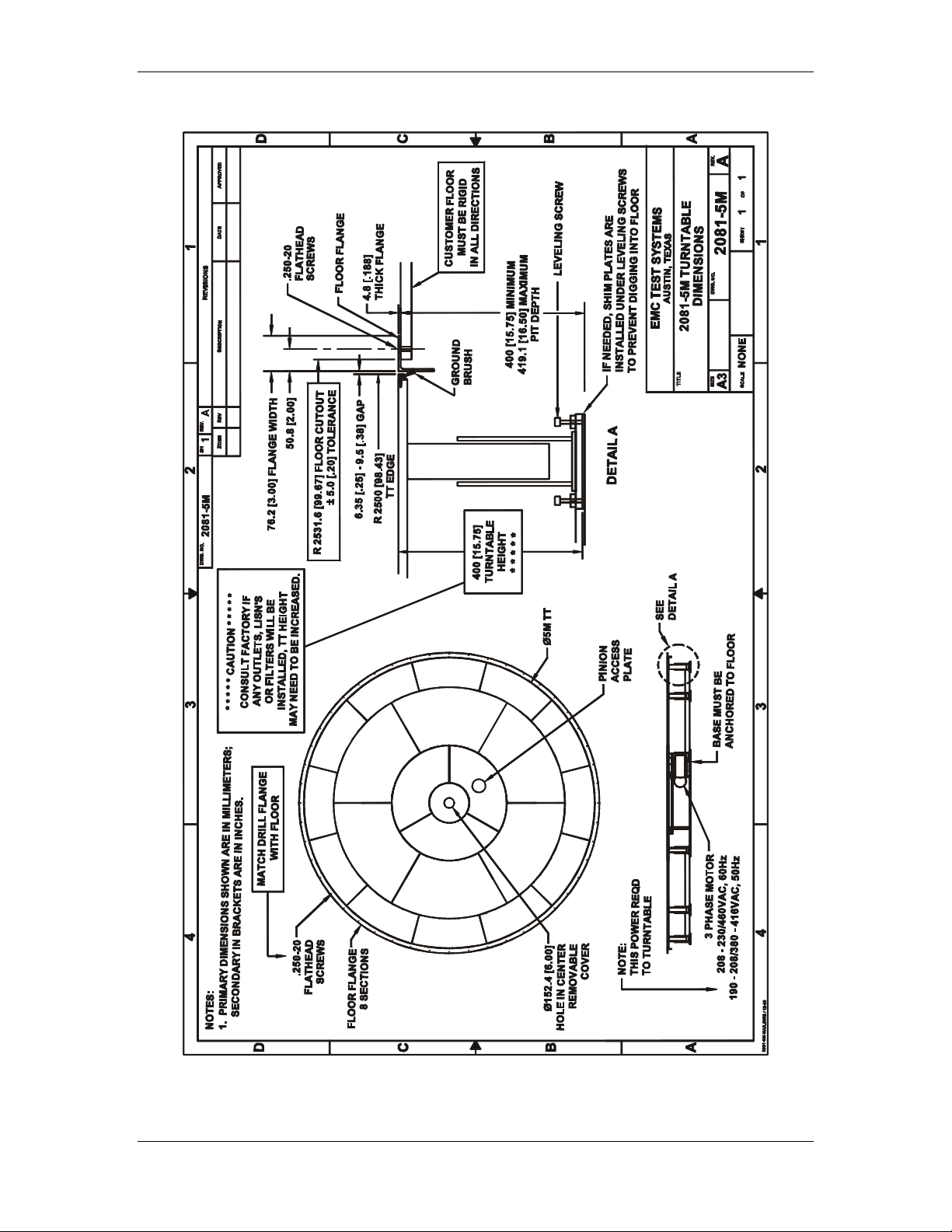

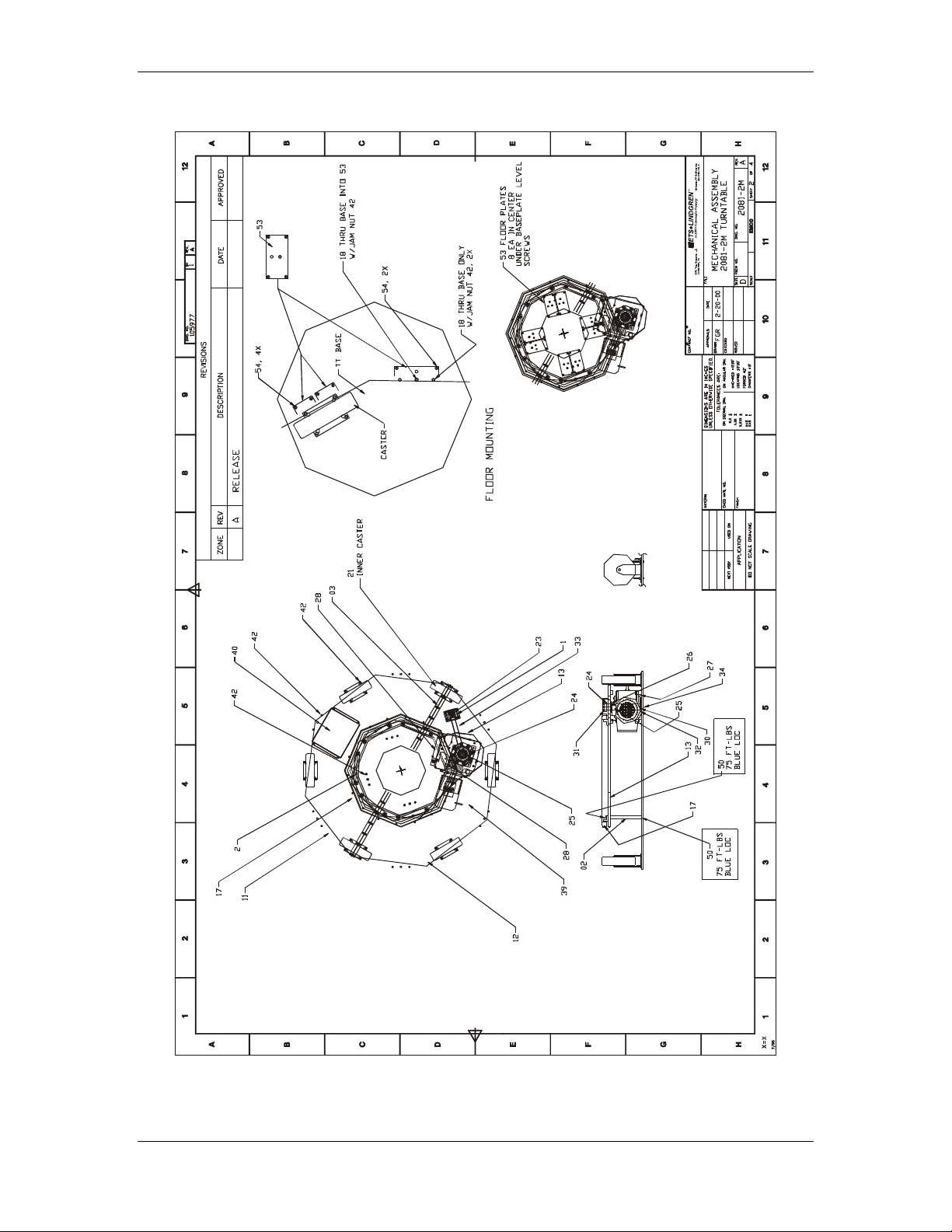

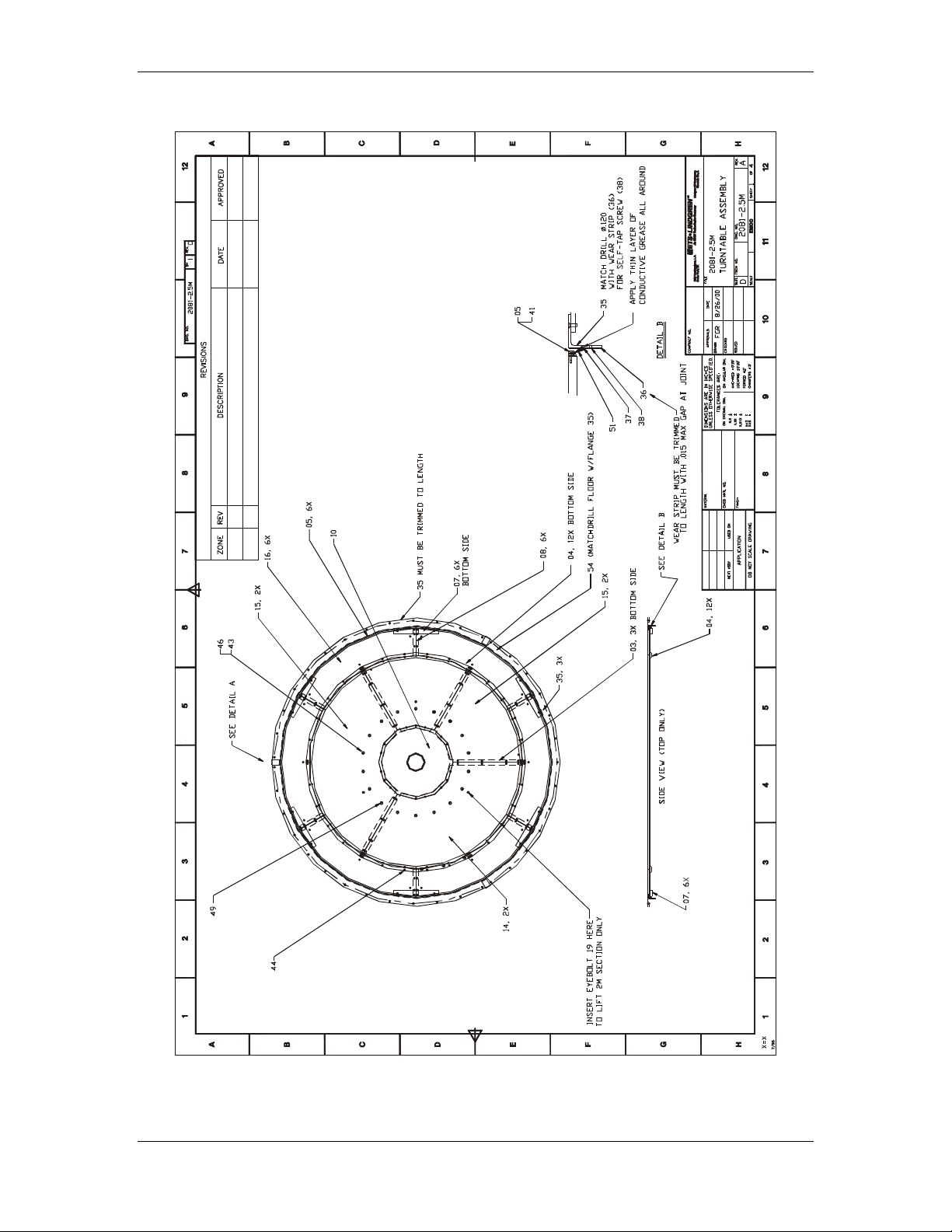

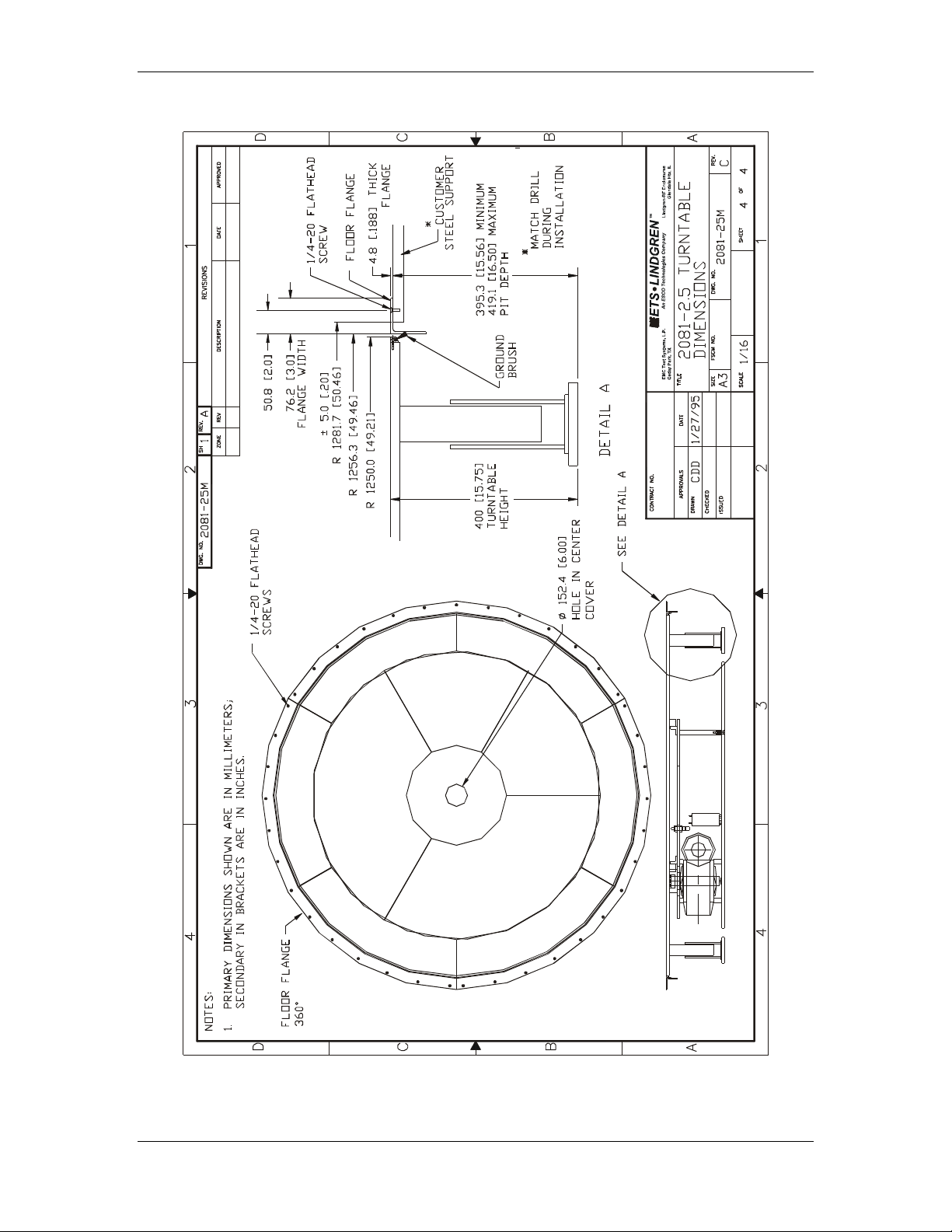

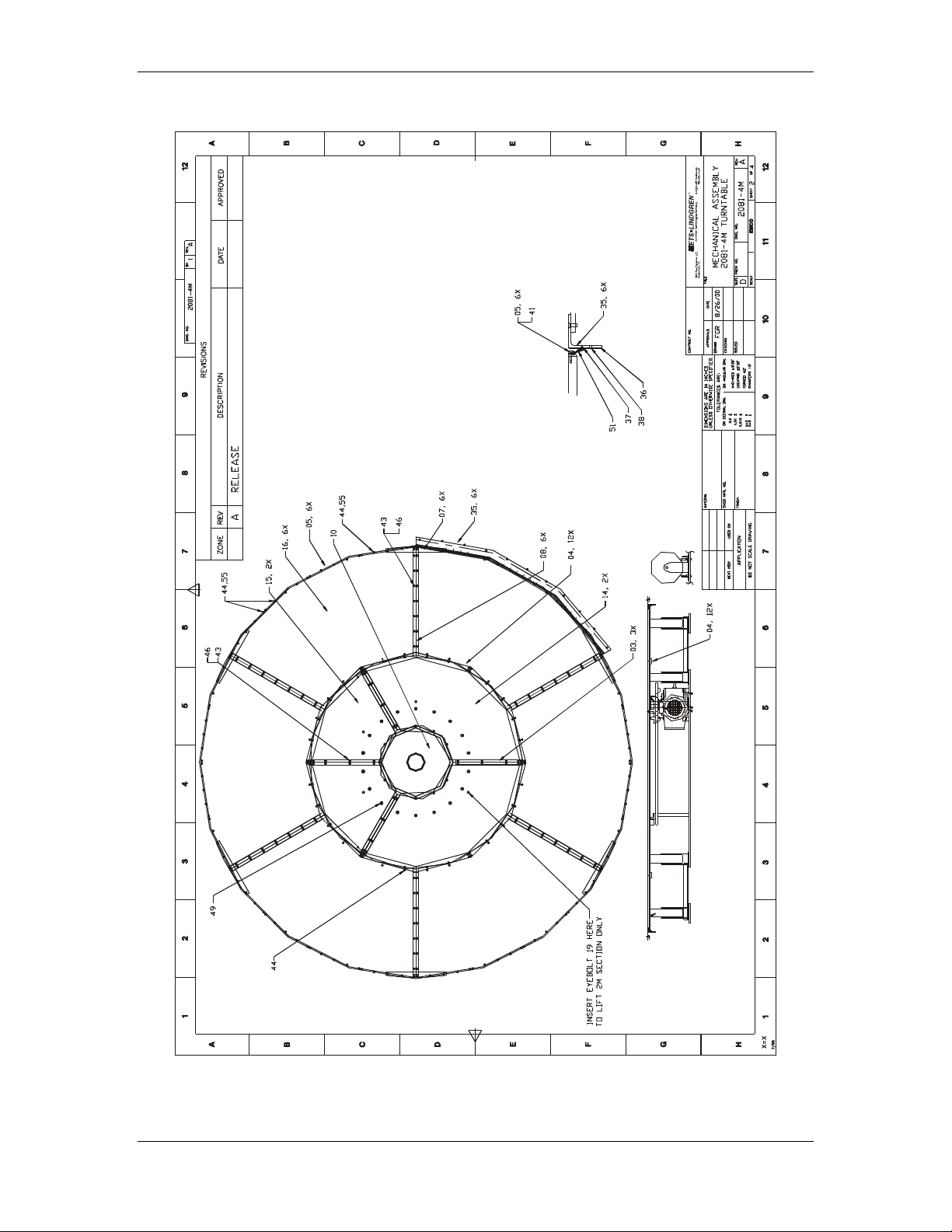

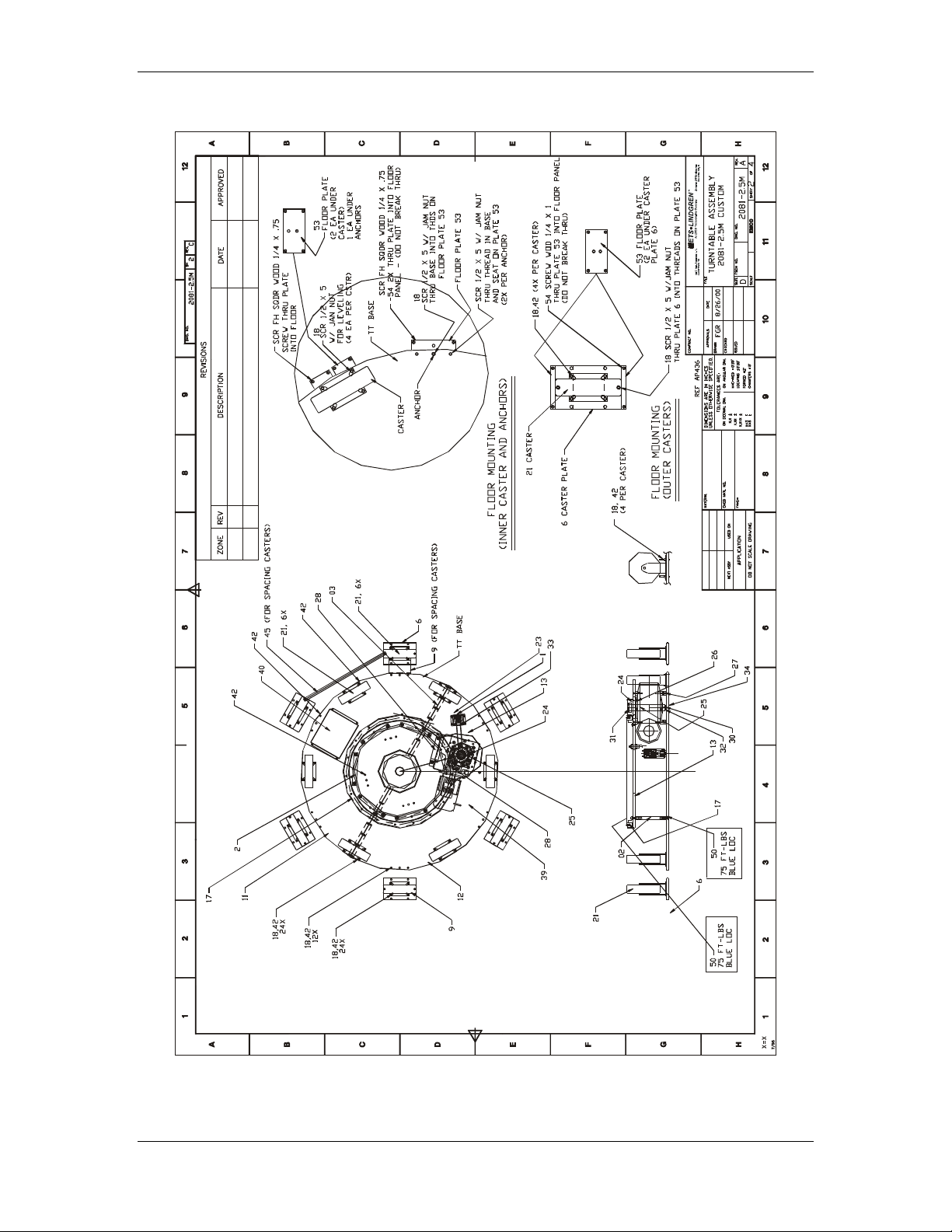

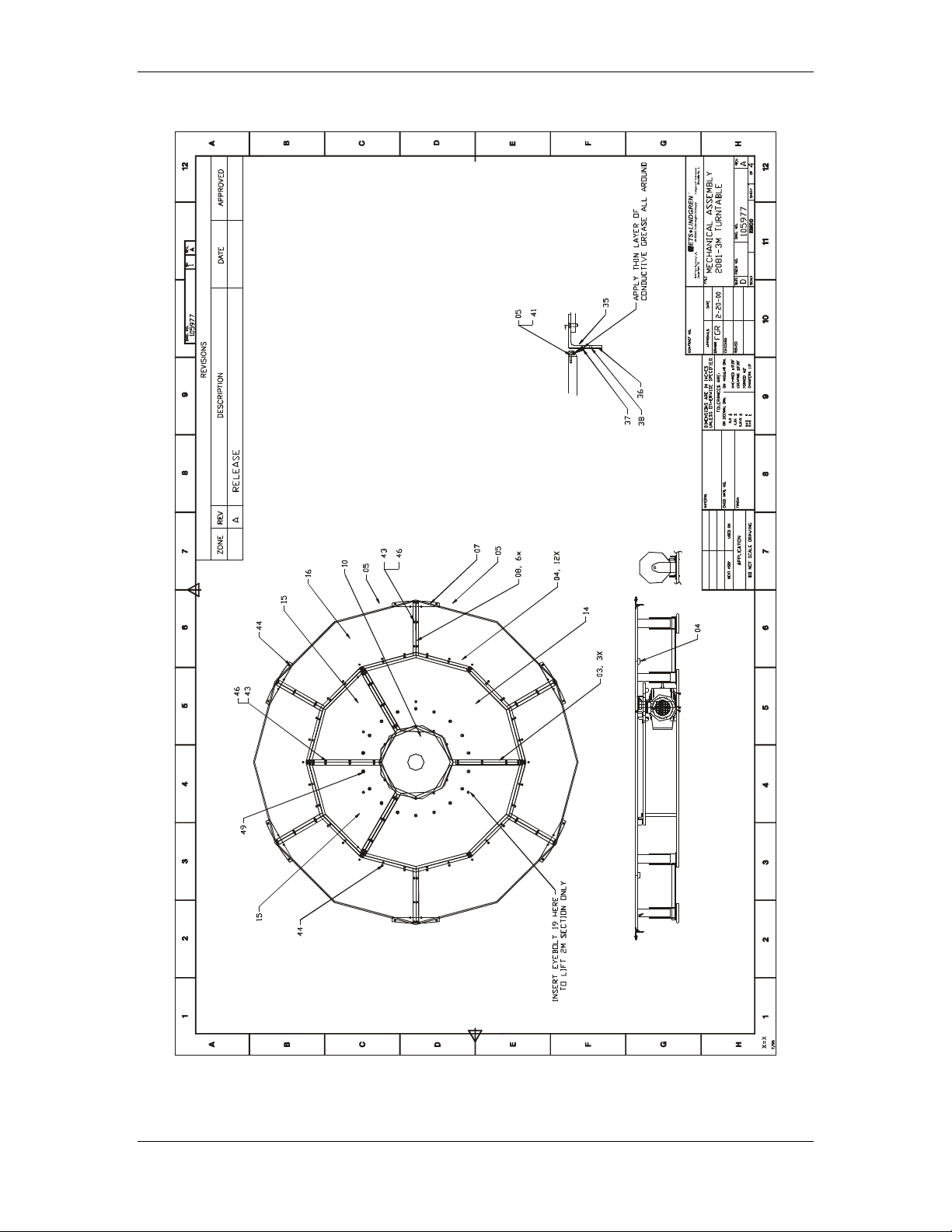

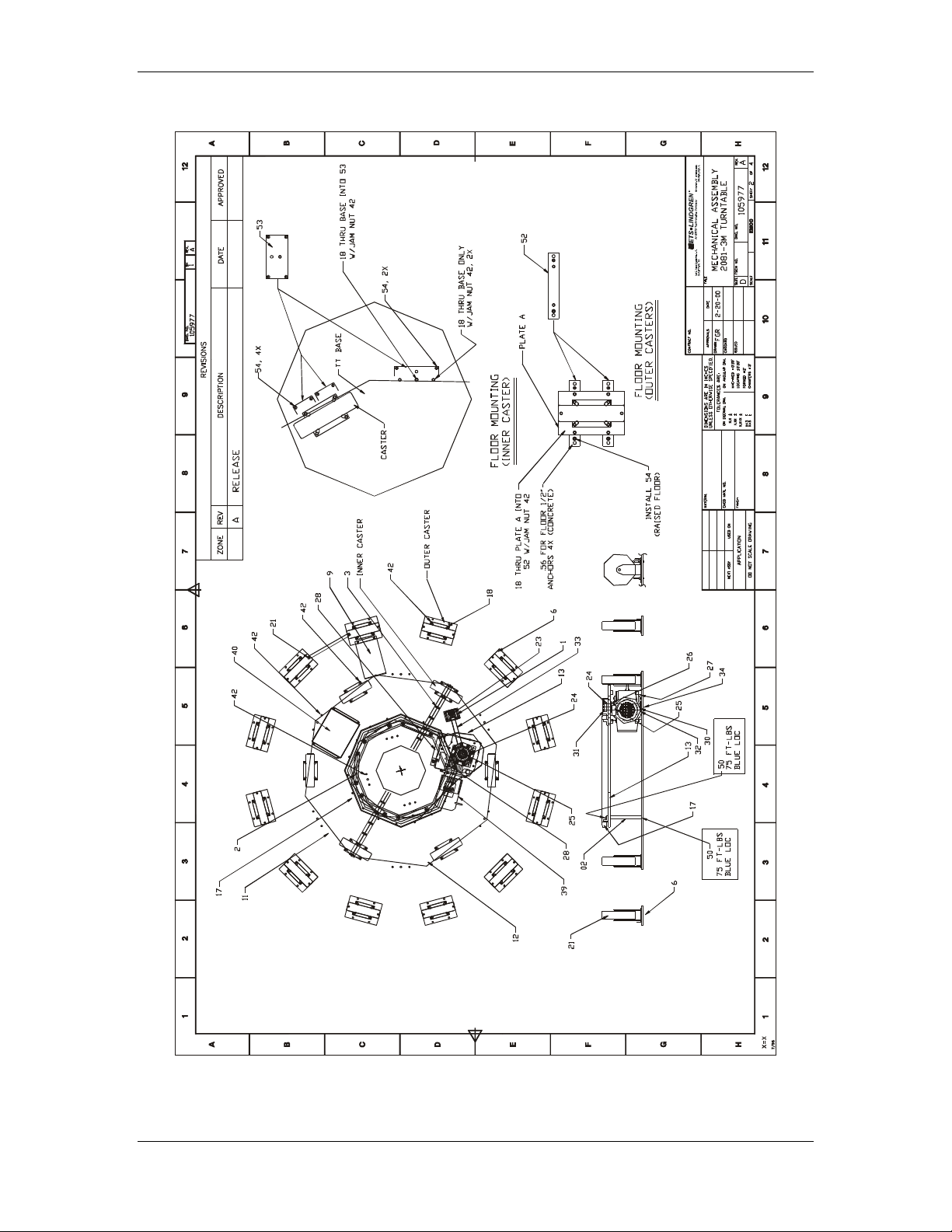

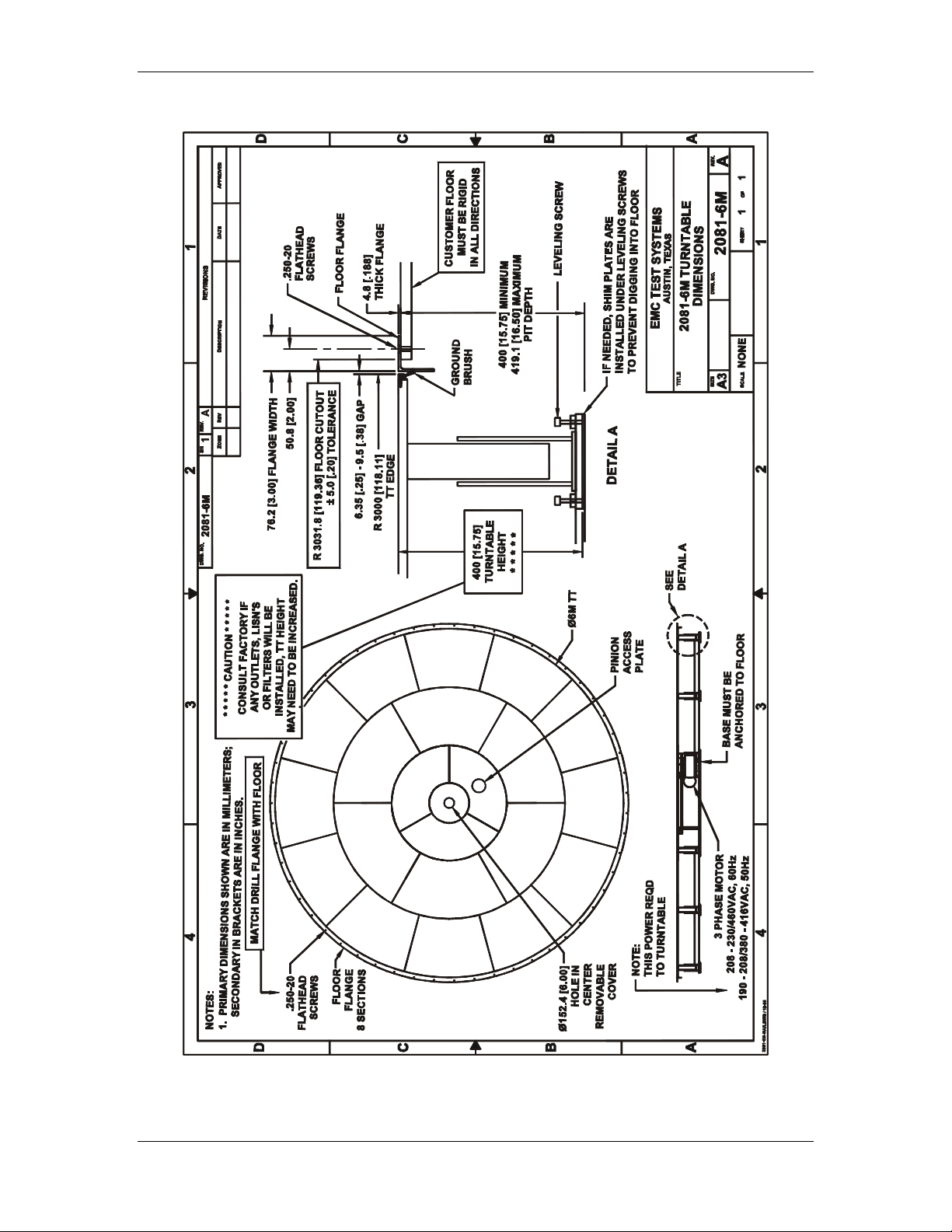

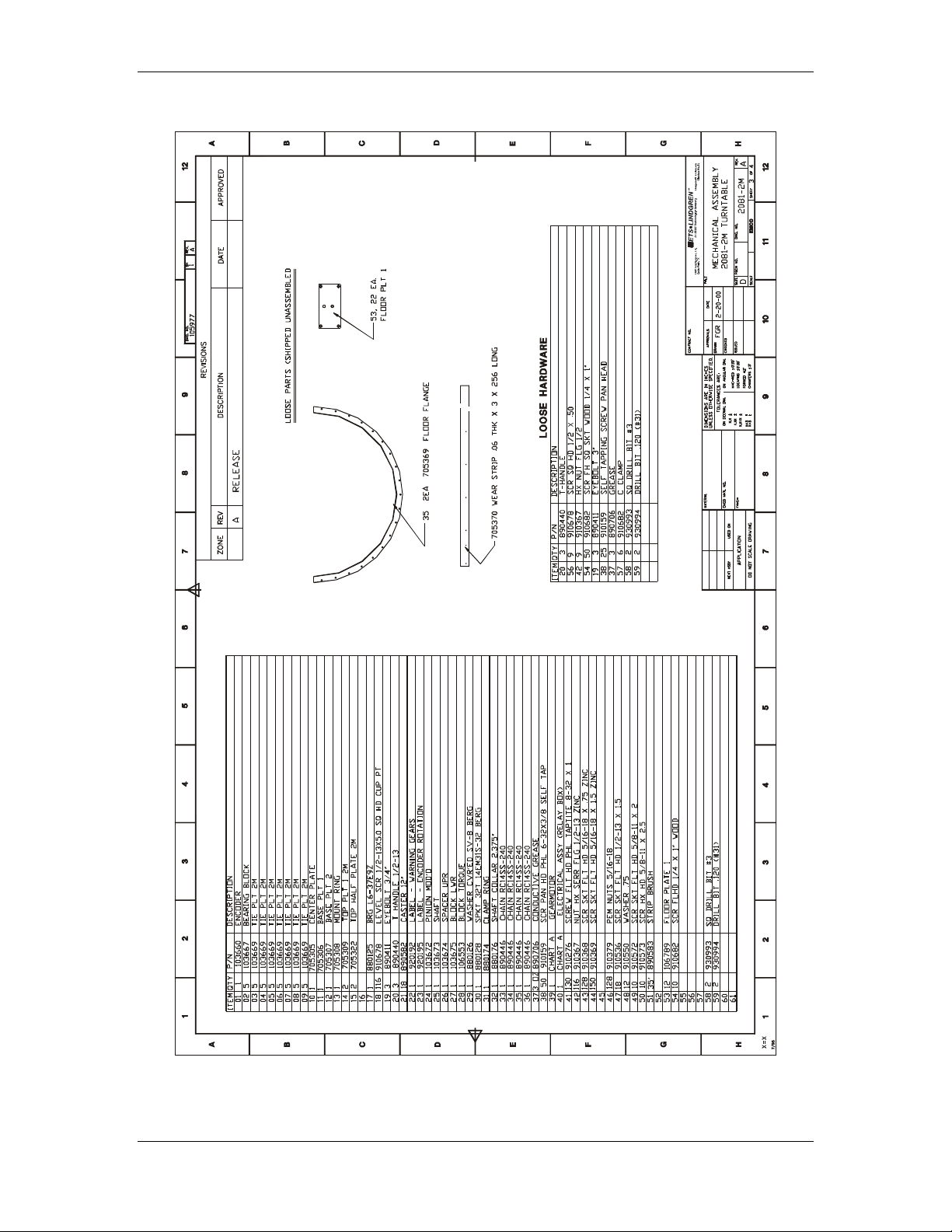

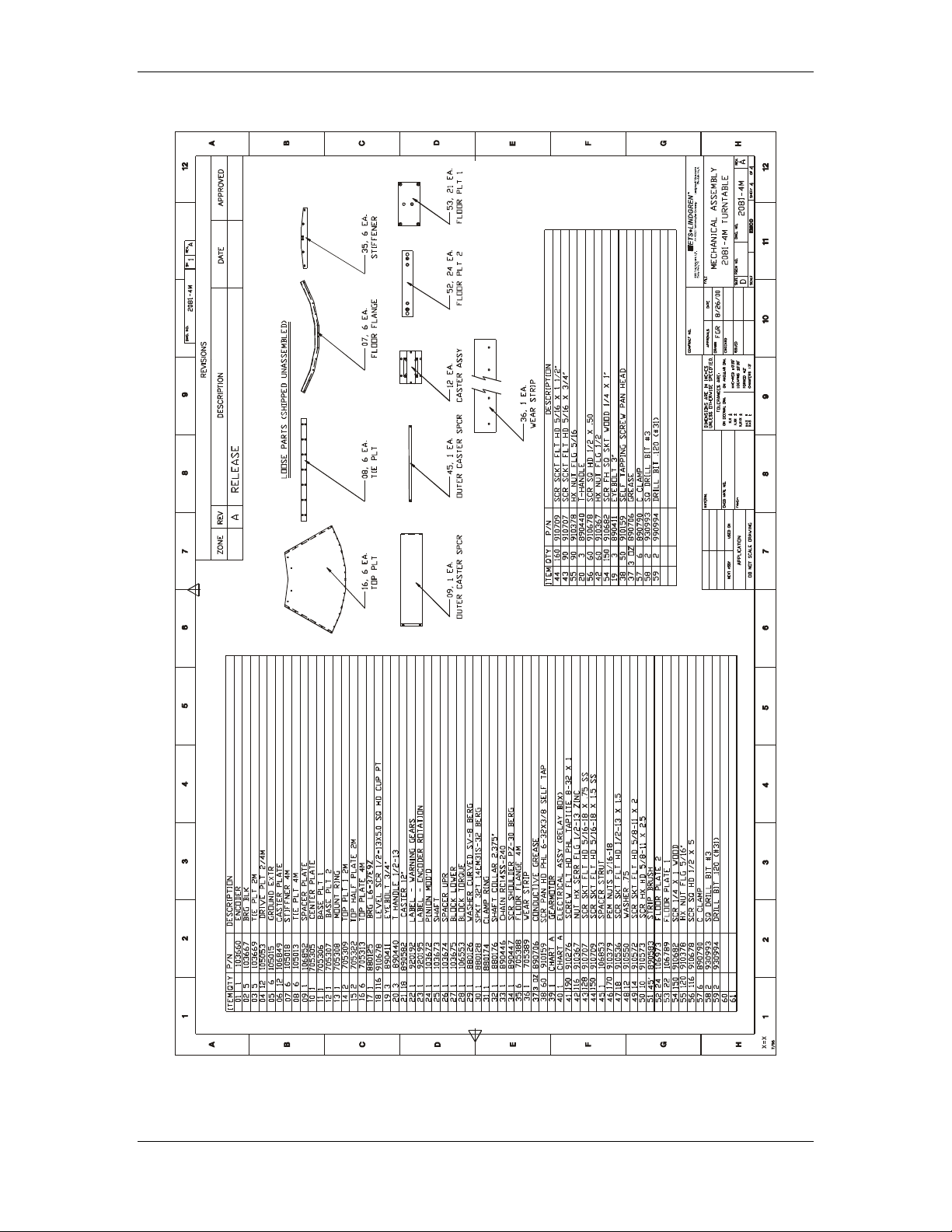

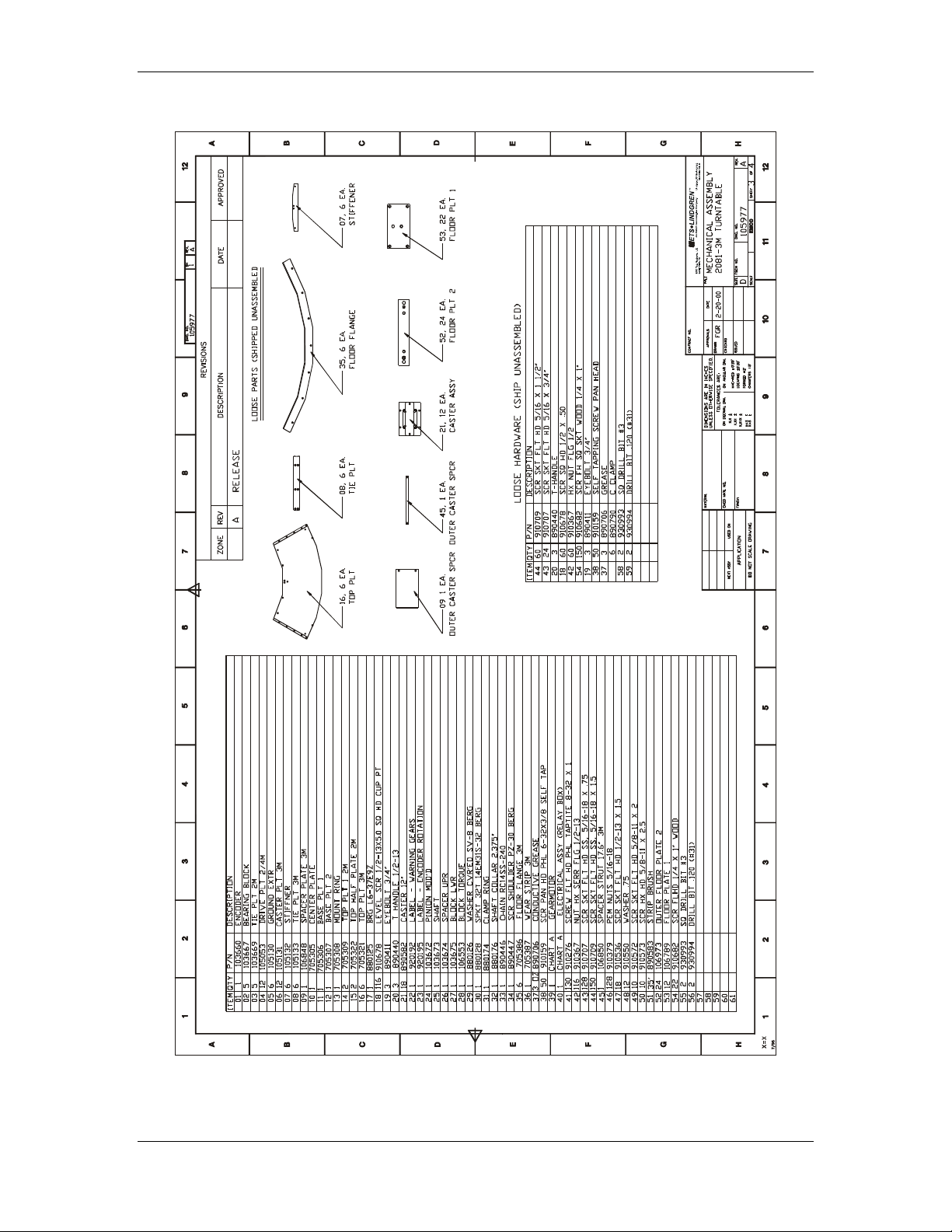

center and level the assembly. The drawings at the back of this manual illustrate the placement of floor plates and leveling screws that will take place in order to anchor and level the turntable. Your installation specialist may have to make slight adjustments to accommodate the conditions at your site. After installing the floor plates and leveling screws the installer will level the entire turntable by adjusting all the leveling screws.

CAUTION Ensure power is OFF and secured before proceeding further.

Page 12

Installation MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

7. After the turntable is level the installation specialist will tighten

all lock-nuts accompanying the leveling screws to lock the height of the turntable into place.

8. Anchor the turntable through the anchor holes with the

appropriate bolts (provided).

9. With the electrical breaker still in the OFF position, re-install

the drive pinion.

CAUTION Electrical connection should only be performed by a qualified electrician and in compliance with all applicable regulatory agencies.

10. Connect the fiber optic control cable and install the power

connection. The “Electrical Installation” section provides guidelines for the installation of the electrical connection.

11. Return the breaker in the center of the turntable to the ON

position.

CAUTION Keep all body parts away from the drive pinion when the turntable in energized.

12. Rotate the turntable using the controller to verify proper

operation.

13. Set the travel limits, if desired, by following the instructions in

the section titled “Setting Travel Limits”.

14. Install the ground ring flange provided around the turntable

with flat head screws (not provided). Install the stainless steel wear strip and apply conductive grease according to the “Ground Ring Installation” section.

15. With the key provided, adjust the speed of the turntable while it

is running on the CW or CCW direction until the desired speed is obtained.

16. Install the top sections of the turntable to complete the

assembly.

8 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 13

MODEL 2081 TURNTABLE SERIES Installation

Archived 3/18/10

GROUND RING INSTALLATION

The ground ring assembly includes a floor flange which interfaces with the brush ring located on the perimeter of the turntable. The floor flange provides constant electrical contact with the user’s ground plane and is usually installed with the turntable.

Mounting methods vary according to user specifications. Clearance holes are provided along the outside perimeter of the ground ring as a means of attaching the ring to a customer supplied ground plane. These mounting holes are provided at evenly spaced intervals.

1. When attaching the ground ring, first center and level the

turntable assembly into the turntable pit. The cutout diameter in the floor needs to be per the Dimensional Drawing for the table.

2. Install the floor flange around the turntable. A gap of 5/16” to

7/16” should be maintained around the turntable. Trim flange to length by match drilling with floor and installing ¼-20 flathead screws.

3. Install wear strip on inside of floor flange by aligning with top

of turntable flange.

4. Make sure that pre-drilled mounting holes in wear strip are

aligned to 2.54cm (1.00”) from bottom of flange.

5. Trim wear strip to size after ensuring that the full

circumference of the flange is covered by the strip.

6. Using pre-drilled holes on wear strip as a template, drill holes

through the flange.

7. Secure wear strip to floor flange using 6-32 x 3/8” hex head

stainless steel thread cutting screws (furnished with turntable).

8. Apply conductive grease (furnished with turntable) on wear

strip along the brush contact area (approximately 1” to 2” from the top of the strip).

Page 14

Electrical Installation MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

ELECTRICAL INSTALLATION

CAUTION It is important that this procedure be performed by a qualified electrician prior to energizing the unit.

The Model 2081 is designed to operate using either 208-230 VAC three–phase 60 Hz or 400 VAC three phase 50 Hz power. The appropriate power requirements are determined when the order is placed. Other power ratings are available on a special order basis.

1. The branch circuit supplying power to the motor base should

be protected from excess current according to local electrical codes. ETS-Lindgren has provided a three pole circuit breaker integral to the relay control enclosure. This circuit breaker also serves as a service switch and removes motor power from both the control enclosure assembly and the motor.

WARNING With the circuit breaker in the off position some parts with AC hazards still present a potentially lethal shock hazard.

2. Check that the conductor size is adequate for the motor load

and the distance from the mains source. Improperly sized conductors will lead to a high voltage drop in the power conductors and cause reduced starting torque and premature motor failure.

3. The motor base assembly is provided with an unterminated

flexible conduit with input power leads exposed. This flexible conduit is to be terminated into a junction box fitted on or near the motor base. Terminate the power leads of the motor base assembly according to local electrical code requirements.

2081 Electrical Wiring Color Code Line Conductors (3 each) Neutral N/A Blue Protective Earth Green with yellow

208-230 VAC 60 Hz 3 phase

Brown Brown

stripe

380-410 VAC 50 Hz 3phase

Green with yellow stripe

10 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 15

MODEL 2081 TURNTABLE SERIES Electrical Installation

Archived 3/18/10

CONNECTING THE MODEL 2090 POSITIONING CONTROLLER

Any combination of primary devices (towers, turntables, reverberation paddles, MAPS, etc.) can be connected to the two Device Interface ports located on the rear panel of the Model 2090 controller. For easy set up of an EMC facility, it is recommended that the turntable be connected to the Device 2 interface port. The controllers default settings are for a tower connected to the Device 1 interface port and a turntable connected to the Device 2 port.

Primary device connection is accomplished by way of a dual fiberoptic cable included with the device. This cable terminates into two ST connectors that are identical at both ends. The cable is symmetrical; either end can be connected to the controller. A fiber optic cable that is connect to the IN port of a device should, at the other end, be connected to the primary OUT port of the motorbase. A fiber connected to the OUT port of the device should, at the other end, be connected to the primary IN port of the motorbase. Older motor base designs have only one fiber optic connector pair, while the newest motor base interface provides a secondary interface reserved for future expansion.

NOTE: Fiber optic cabling for each device should not be allowed to hang unsupported from the rear panel of the controller. The fibers and connectors are easily broken if twisted or bent. Keep the fiber optic cables as straight as possible from the connector to the protective sheath.

Using the Model 2090 Position Controller (or hand controller), rotate the motor base shaft to verify proper operation. Run the motorbase down to the lower limit CCW and then back it off from the lower limit just a bit. This step will help after the turntable is attached to the motorbase and it is time to set the rotation limits for the turntable.

CAUTION The soft rotational limits in the Model 2090 controller must be set. Ensure the travel limit settings will not cause damage to user installed cables and equipment mounted on the table.

Page 16

Operation MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

OPERATION

Please refer to the Model 2090 Positioning Controller manual if you are unfamiliar with the operation of the unit. A manual is included with each 2090 shipment and is also available for download from our website.

With the assembly complete, the Model 2090 controller will need to be connected to the unit and power applied to both the motor base and controller in order to continue. Refer to the section titled “Connection the Model 2090 Positioning Controller” if you have questions about how to connect the fiber optic cables.

Using the Model 2090 Positioning Controller check the CW and CCW rotation in both directions by a few degrees. The position in degrees increases (+) in the CW direction and decreases (-) in CCW direction.

The turntable is calibrated at the factory to read out 360 degrees (+ or - 1 degree) for one complete revolution. If the table is not within this accuracy, the unit can be re-calibrated per the instructions in the “Turntable Encoder Calibration” section.

12 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 17

MODEL 2081 TURNTABLE SERIES Operation

Archived 3/18/10

RECOMMENDED PARAMETERS FOR THE MODEL 2090 POSITIONING CONTROLLER

DEVICE 2

Parameter Value Description

P1 0 Turntable P2 2 Standard Turntable P3 000 Infinite Scan Count P5 1 Non-continuous rotation P8 2.5 2.5 Second reverse delay P9 9 Primary GPIB address 9 b1 000 User options disabled c 3608 3600 encoder counts per meter S0 -1 Step speed = run speed S1 31 Speed 1 ~12.5% of max speed S2 63 Speed 2 ~25% of max speed S3 95 Speed 3 ~37.5% of max speed S4 127 Speed 4 ~50% of max speed S5 159 Speed 5 ~62.5% of max speed S6 191 Speed 6 ~75% of max speed S7 223 Speed 7 ~87.5% of max speed S8 255 Speed 8 = max speed Oc On Overshoot compensation enabled

Page 18

Operation MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

EDITING MODEL 2090 POSITIONING CONTROLLER CONFIGURATION PARAMETERS

To edit a configuration parameter, press the PARAM key to display the current parameter. Pressing the PARAM key repeatedly will scroll down through the parameter list, showing each parameter in turn. While viewing a parameter, the STEP keys (INC/DEC) may be used to scroll up or down the parameter list. This reduces the effort necessary to scan through a long parameter list using the PARAM key. Pressing any of the LIMIT/POSITION selection keys will return the display to that selection. Pressing any of the remaining motion keys will return the display to the current position and execute that motion. Pressing the PARAM key again will return to the last displayed parameter in the list, allowing easy transition between parameter adjustment and device operation.

Once the desired limit, position or parameter is visible in the display window, pressing INCRM, DECRM, or ENTER will toggle into edit mode. The lowest adjustable digit will flash on and off. Pressing the LOCAL key for that device will switch the flashing digit to the next higher digit. In this way, it is possible to rapidly adjust any digit of a multi-digit parameter or limit.

14 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

TURNTABLE ENCODER CALIBRATION

The display symbol C refers to the encoder calibration parameter. This setting is used to convert the encoder count values returned from a motor base into the corresponding centimeter or degree position reading. For turntables, this represents the number of encoder counts per revolution. The setting for the Model 2081 Turntable Series is: 3608

If the given value does not appear to work correctly, the encoder calibration value can be determined using the following procedure:

1. Set the encoder calibration value to 3600.

Page 19

MODEL 2081 TURNTABLE SERIES Operation

Archived 3/18/10

2. Insure that the turntable is positioned to allow more than a full

revolution of travel in the clockwise direction and use the STEP keys to run the turntable clockwise a few degrees to remove any play in the table.

3. Mark the current location of the turntable against the ground

ring (masking tape works well), and set the current position reading to 000.0.

4. Using the STEP keys, rotate the turntable clockwise until it is

again aligned with the mark on the ground ring. For best results, the last motion should always be in the clockwise direction to insure that any play in the gearing between the motor and encoder is accounted for.

5. Record the reading of the display, ignoring the decimal point

(i.e. 360.0 would be 3600). This is the encoder calibration value. NOTE: If the value is below 3600, the resolution of the

encoder is low and thus the 2090 will not provide 0.1 degree resolution, even though the display shows that digit. If the value has gone past 9999, the encoder has too many counts per meter and the 2090 can not correct for it. In this case, contact ETS-Lindgren for assistance.

6. Enter this value for the encoder calibration value and reset the

limits and position information.

7. Test the turntable by moving it a complete revolution and

comparing the alignment marks. It may be necessary to adjust the encoder calibration value up or down slightly depending on the result. NOTE: When scanning between limits, it is not

uncommon to have a small discrepancy between the absolute position of the table and the display on the 2090. This is because reversing the direction of rotation reverses any gear play between the encoder and the table top, allowing that play to be visible in the positioning accuracy.

TT CALIBRATION EXAMPLE

The table is set at the 0 degree position. A piece of tape is placed on the edge of the TT to line up with the edge of the gearbox cover. The table is stopped when the tape travels exactly 360

Page 20

Operation MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

degrees around. The display on the 2090 now reads 356.3 degrees which is recorded.

The table is rotated CCW back to 0. The parameter button is set on the “C” setting. The “C” digits display 3430. A new “C” setting is now calculated:

New “C” = (356.3 divided into 360) times 3430 = 3395 (rounded off)

Decrement the C parameter to 3395 and “ENTER” is pressed. Then the “current position” button is pressed to get back to operation mode.

The table is rotated from 0 to 360 and the mark is now within one degree of being one full TT revolution. Calibration is complete.

16 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 21

MODEL 2081 TURNTABLE SERIES Operation

Archived 3/18/10

SETTING CURRENT POSITION ON 2090

The total travel between the mechanical limits is typically set between 370 and 400 degrees at the factory. Set the 0 degree position on the 2090 so that the 2090 moves the table between the mechanical limits without engaging them in normal operation.

EXAMPLE (CW - clockwise, CCW - counterclockwise)

The table is rotated CCW until it stops at the mechanical limit. The table current position is then set at 0. Then it is rotated CW until it stops at the CW mechanical limit switch. The controller now reads 385 degrees which is the full travel between mechanical limits. The current position on the 2090 is then reset to 360 about 10-15 degrees from the CW mechanical limit. This will keep it from hitting both mechanical limits when rotating from 0 to 360 during operation by the 2090.

CAUTION: ON RESETTING CURRENT POSITION ON 2090

The 0 degree position of the 2090 controller is fixed with respect to the mechanical limits described in the “Setting Current Position on 2090” section if they are not disabled per the instructions in the “Setting Travel Limits” section.

Should it become necessary to reset the current position readout of the Model 2090 Controller. The platform can be rotated periodically back to a desired position and the 2090 current position can be reset to 0 only if the mechanical limits are disabled. The CW and CCW limits on the 2090 will continue to function with the mechanical limits disabled. If the mechanical limits remain in operation, the 360 travel on the 2090 will no longer be between mechanical limits and normal operation will be interrupted if they are not disabled per the instructions in the “Setting Travel Limits” section.

Page 22

Operation MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

CHANGING ROTATION SPEED

The ETS-Lindgren two-speed turntable is designed to shift speeds at a standstill or during rotation. To change rotational speed, simply depress the POLAR/SPEED button on the front panel of the Model 2090 Controller. (Refer to the controller manual for more information). Changing speed on the turntable is also available through the IEEE-488 GPIB interface.

The shift from high to low speed as well as from low to high speed should be a relatively smooth transition. A smooth pole changer is utilized in the motor control assembly which compensates for changes in torque when switching speeds. No adjustments are necessary.

The ETS-Lindgren optional variable speed drive provides smooth speed adjustment throughout the range of adjustment. A variable frequency drive provides continuous speed adjustment with high reliability. Adjustment of the turntable’s speed is facilitated by the Model 2090 Controller and these operations are discussed in detail in the Model 2090 Controller manual.

18 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 23

MODEL 2081 TURNTABLE SERIES Operation

Archived 3/18/10

SETTING TRAVEL LIMITS

The mechanical limits of the Model 2081 turntable have been changed from previous models for user convenience, ease of operation and safety. These limit adjustments are located outside the center section of the turntable adjacent to the gearbox. In some installations, it will be necessary to remove several of the top sections of the turntable to access the limit switch adjustments.

To increase the amount of travel in either direction turn the knob in the direction indicated by the positive (+) sign. To decrease the amount of travel in either direction you must turn the knob in the minus (-) direction as indicated.

WARNING Ensure the current ravel limit settings will not cause damage to existing cables and equipment located underneath the turntable.

You may decide not to use any mechanical limits if you want the turntable to rotate continuously. To do this, the coupling between the encoder and threaded shaft must be disengaged. To gain access, remove the knobs and cover to the encoder. Disengage one side of the coupling by loosening the set screws that link it to the shaft. Then slide the coupling ¼ inch on the shaft to disengage the teeth and retighten the shaft set screws.

CAUTION The limits should be set whether or not the soft limits present in the controller are used. Failure to do so may cause damage to occur due to overrun of the table in either direction.

Once limits have been set, return the turntable to its original position by replacing the top center section removed previously.

Page 24

Operation MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

ALTIVAR MOTOR BASE CONFIGURATION

The following settings are the defaults for the Altivar motor base set by ETS-Lindgren:

Altivar

208/230 VAC 60 Hz 400 VAC 50 Hz

Setting

bFr 60 50 ACC dEC

0.1 0.1

LSP 0 0 HSP 75 75 UnS 230 400

FrS 60 60

tFr

90 90

Should you need to change the configuration on the Altivar motor base supplied with your turntable the Altivar manual is available at www.SquareD.com.

20 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 25

MODEL 2081 TURNTABLE SERIES Hand Control Unit

Archived 3/18/10

HAND CONTROL UNIT

To connect the Hand Control Unit (HCU), remove the connector cap on the motor base. Plug the cable receptacle from the hand control unit into the electrical enclosure and screw connectors completely together. The HCU is now ready to operate. Be sure to coordinate use of the unit with the operator of the Model 2090 Positioning Controller.

To allow the HCU to operate, push the control switch from MAIN to HAND. When the HCU is selected, the Model 2090 Positioning Controller is overridden until control is returned from the HCU. If the Model 2090 Positioning Controller is left on while the HCU is used, all changes in position are recorded by the Model 2090

Device Positioner.

CAUTION Do not plug the hand control unit into the motor base while that device is operational. Coordinate with the operator of the Model 2090 Positioning Controller before plugging in, using, or unplugging. Do not push the CD and CCW buttons at the same time. Be sure that the motor is completely stopped before reversing direction with the unit.

When you are ready to change to automated testing, toggle the control switch from HAND to MAIN.

Page 26

Recommended Maintenance MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

RECOMMENDED MAINTENANCE

CAUTION Do not perform maintenance while turntable is operating.

Regular maintenance will prolong the serviceable life of your turntable. Follow this recommended schedule.

EVERY SIX MONTHS

Adjust the encoder chain. The chain should have no more than 20 mm (1/8”) looseness when flexed to a point halfway between the two sprockets. Adjust the chain by loosening the two screws holding the encoder assembly. Move the encoder in or out to the desired tension.

Lubricate the encoder chain. Use a good quality grease to lubricate the chain.

Grease the casters. Use a good quality bearing grease to lubricate the casters.

Check the gearbox for fluid leakage. A slight film that collects is normal. You should not have puddles of fluid. The gearbox is lubricated and sealed at the factory. Under normal conditions, it should not require servicing during its life.

Apply conductive grease on the ground brush along the wear strip contact area (approximately 1 to 2” from the top of the strip).

Inspect the ground brush for wear. A well maintained ground brush should have a long serviceable life. Should it need to be replaced, replacement ground brushes for turntables are available in standard lengths that are straight and not trimmed. They are assembled at the factory into the predrilled aluminum extrusion that is attached around the edge of the turntable. During replacement the brush assembly is clamped in place using a pipe clamp in order to bend the brushes to conform to the edge of the turntable top. The

22 © ETS-LINDGREN L.P. – JANUARY 2003

REV D – PN 399212

Page 27

MODEL 2081 TURNTABLE SERIES Recommended Maintenance

Archived 3/18/10

replacement brushes have hole spacing that is machined exactly the same as the original.

EVERY TWELVE MONTHS

Lubricate the main bearing race. Use a grease gun with a good quality bearing grease. The grease fittings are located inside the race, 90 degrees apart, underneath the top. Three discharges from the grease gun in each fitting are adequate.

Grease the gear teeth with a good quality grease.

Page 28

Specifications MODEL 2081 TURNTABLE SERIES

Archived 3/18/10

SPECIFICATIONS

ELECTRICAL

Model Drive Speeds RPM Voltage Line

2081-2.0 Series

2081-3.0 Series

2081-4.0 Series

2081-5.0 Series

2081-6.0 Series

Frequency

Dual .5/2.0 208-230 60 8 3

Dual .5/2.0 380 50 5 3 Variable .5/2.0 208-230 60 18 3 Variable .5/2.0 380 50 7 3

Dual .5/2.0 208-230 60 8 3

Dual .5/2.0 380 50 5 3 Variable .5/2.0 208-230 60 18 3 Variable .5/2.0 380 50 7 3 Variable .5/2.0 208-230 50/60 15 Single

Dual .5/2.0 208-230 60 8 3

Dual .5/2.0 380 50 5 3 Variable .5/2.0 208-230 60 18 3 Variable .5/2.0 380 50 7 3 Variable .5/2.0 208-230 50/60 15 Single

Dual .5/2.0 208-230 60 13 3

Dual .5/2.0 380 50 8 3 Variable .5/2.0 208-230 60 20 3 Variable .5/2.0 380 50 14 3

Dual .5/2.0 208-230 60 13 3

Dual .5/2.0 380 50 8 3 Variable .5/2.0 208-230 60 20 3 Variable .5/2.0 380 50 14 3

AMP Phase

PHYSICAL

Model Diameter Nominal Height Distributed Load

Rating*

2081-2.0 Series

2081-3.0 Series

2081-4.0 Series

2081-5.0 Series

2081-6.0 Series

*Distributed Load Rating is based on load being evenly distributed to each section. No point loads under .37 sq. m (4 sq. ft) should exceed 500kg (1100 lb); and not over 500 kg should be applied to a 45 degree segment outboard of the casters.

2.0 m

6.56 ft

3.0 m

9.84 ft

4.0 m

13.12 ft

5.0 m

16.40 ft

6.0 m

19.69 ft

40.0 cm

15.75 in

40.0 cm

15.75 in

40.0 cm

15.75 in

40.0 cm

15.75 in

40.0 cm

15.75 in

1,500 kg 3,300 lb 4,000 kg 8,800 lb 6,000 kg

13,200 lb

6,800 kg

15,000 lb

9,000 kg

20,000 lb

REV D – PN 399212

Top Construction

Sectional

Aluminum

Sectional

Aluminum

Sectional

Aluminum

Sectional

Aluminum

Sectional

Aluminum

Page 29

MODEL 2081 TURNTABLE SERIES Warranty Statement

Archived 3/18/10

WARRANTY STATEMENT

ETS-Lindgren L.P., hereinafter referred to as the Seller, warrants that standard EMCO products are free from defect in materials and workmanship for a period of two (2) years from date of shipment. Standard EMCO Products include the following:

 Antennas, Loops, Horns  GTEM cells, TEM cells, Helmholtz Coils  LISNs, PLISNs, Rejection cavities & Networks  Towers, Turntables, Tripods, & Controllers  Field Probes, Current Probes, Injection Probes

If the Buyer notifies the Seller of a defect within the warranty period, the Seller will, at the Seller’s option, either repair and/or replace those products that prove to be defective.

There will be no charge for warranty services performed at the location the Seller designates. The Buyer must, however, prepay inbound shipping costs and any duties or taxes. The Seller will pay outbound shipping cost for a carrier of the Seller’s choice, exclusive of any duties or taxes. If the Seller determines that warranty service can only be performed at the Buyer’s location, the Buyer will not be charged for the Seller’s travel related costs.

This warranty does not apply to:

 Normal wear and tear of materials  Consumable items such as fuses, batteries, etc.  Products that have been improperly installed, maintained or used  Products which have been operated outside the specifications  Products which have been modified without authorization  Calibration of products, unless necessitated by defects

THIS WARRANTY IS EXCLUSIVE. NO OTHER WARRANTY, WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED, INCLUDING BUT NOT LMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE REMEDIES PROVIDED BY THIS WARRANTY ARE THE BUYER’S SOLE AND EXCLUSIVE REMEDIES. IN NO EVENT IS THE SELLER LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.

Note: Please contact the Seller’s sales department for a Return Materials Authorization (RMA) number before shipping equipment to us.

Page 30
