ETS SunStar 332 User Manual

Download

Page 1

26868-01A

Page 2

26868-01A

STANDARD 48 MONTH WARRANTY

Your ETS Distributor (including ETS, Inc. if purchased directly), through a manufacturer’s warranty, warrants your tanning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime. Your ETS Distributor will, at its discretion, repair any structural defect which materially affects the performance of the tanning unit, or replace the tanning unit.

For forty-eight (48) months following the shipping date of your tanning unit, your ETS Distributor will provide replacements for parts that prove to be defective in material or workmanship. Fluorescent lamps, and lamp starters are warranted against manufacturer’s defects for a period of ninety (90) days following the shipping date of your tanning unit. Acrylics will be warranted against manufacturer’s defects for a period of 1 year (prorated).

Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or replacement work required to be performed for a period of one (1) year following the shipping date of your tanning unit. Normal wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting from unauthorized repairs or modifications are not covered by this warranty. Warranty coverage does not include cosmetic abnormalities such as scratches, nicks, dents, or other cosmetic changes that do not materially interfere with the function of the tanning unit.

THIS STANDARD 48 MONTH WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or modify this Standard 48 Month Warranty in any respect. To obtain service under this Standard 48 Month Warranty, contact your authorized ETS Distributor (or ETS, Inc. if purchased directly). Proof of purchase, including serial number, is required.

IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUITY FOR ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE PRICE RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR SUBSTITUTE PRODUCTS, LOSS OF BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, and the above limitation or exclusion will not apply to residents of some states. This Standard 48 Month Warranty gives you specific, legal rights and you may have other rights which may vary from state to state.

All warranty service must be performed by an authorized service person. All labor charges must be authorized by your ETS Distributor prior to the start of repairs and must not exceed the established rates and time allotment policies established by your ETS Distributor. If your tanning unit must be returned for service, all freight charges shall be at your expense. Contact your ETS Distributor for the authorized Service Center nearest you. This warranty is serial number specific and only applies to tanning units purchased through an authorized ETS Distributor. This warranty is extended to the individual or legal entity whose name appears on the original sales document and may not be transferred to any other individual or legal entity. This warranty is void if the tanning unit is modified in any manner from its original design.

To obtain warranty service, contact your place of purchase. Proof of purchase, including serial number, is required for verification. Contact ETS, Inc. onl

y if you purchased your equipment directly.

ETS, Inc. 7445 Company Drive, Indianapolis, IN 46237-9296

1-800-449-3605

In Canada call 1-800-661-6292 or 519-421-1212

Page 3

26868-01A

elcome

Congratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service for you.

Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions.

ontents

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . .21

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Page 4

26868-01A

iii

afety Information

Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause

eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES. Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan or tan minimally should not use this equipment.

To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 3 inches (7.6 centimeters) between your body and canopy acrylic panel, otherwise overexposure may occur. Minimum use distance from face tanner is 4 inches (10.2 centimeters). Minimum use distance elsewhere is touching the acrylic panel. Do not use without acrylic panels in place. Untanned persons should not tan on consecutive days during their first week of tanning. Never tan more than once a day. Tanning normally appears after the first few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels corresponding to the extent of their base tan.

New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should therefore be reduced by approximately 10% during that period.

WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If discomfort develops, discontinue use and consult a physician.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT:

Dark Tan™ PLUS Wolff® Model DTP71-T12-100W BI-PIN Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045

(SolarMax™ IFT facial unit)

THIS EQUIPMENT MUST BE EARTH GROUNDED.

This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.

LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section

1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following:

DANGER

88465

DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 10 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4 Level 5

Skin Type:

1st-3rd Sessions

I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING II Light (Burns easily and severely and tans minimally.) 246810 III Normal (Burns moderately and tans average.) 3571010 IV Dark (Burns minimally, tans easily and above average.) 4681010

Page 5

26868-01A

Renseignements sur la Sécurité

Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les

rayons du soleil,une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réactions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.

Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace d’au moins 3 pouces (7,60 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure, afin d’éviter une exposition excessive. La distance minimale d’usage de l’appareil de bronzage pour le visage est de 4 pouces (10.2 centimètres). Les autres parties du corps peuvent toucher les panneaux de plastique transparents. N’utilisez pas la lampe sans les panneaux de plastique transparents. La première semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se faire bronzer tous les jours. Ne vous faites jamais bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître après les premières séances : il atteint son apogée au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peuvent commencer à des niveaux plus élevés, selon l’importance de leur hâle initial.

Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonctionnement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.

AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées: Les coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes protectrices peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices,ce produit peut causer des brûlures ou lésions oculaires graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.

SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :

DARK TAN™ PLUS Wolff® Modèle DTP71-T12-100W BI-PIN Heraeus E400 HPT -ou- Philips Modèle HPA 400/30s -ou- CosmoTech Modèle 23045

(unité faciale)

Cet équipement doit être mis à la terre. Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie

1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.

DANGER

88465

TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 10 MINUTES

Élevé 1/Semaine 1

Élevé 2 Élevé 3 Élevé 4 Élevé 5

Type de peau:

ere-3e

I Peau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ II Peau claire (brûle facilement et bronze très peu) 246810 III Peau normale (brûle et bronze de façon modérée) 3571010 IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4681010

Débrancher l’alimentation électrique avant de nettoyer l’appareil , d’en faire l’entretien ou de changer les lampes.

Page 6

26868-01A

nstallation

Unpacking and Inspection

Your sunbed comes in two cardboard cartons, one for the canopy and one for the bench and ballast tray. Open the cartons and remove the sunbed parts as follows.

The boxes dismantle to allow easy removal of the units. Remove the box tops and pull the sides out. The bench and canopy are each wrapped in plastic. Remove the plastic and, with a helper or two, grasp the canopy and pull it from the carton bottom without using the plastic endcaps to lift the unit. Do the same for the bench. Do not attempt to lift either

unit with the plastic still on as it may slip.

The ballast drawer is secured to the carton bottom with brackets. Remove these brackets from the ballast drawer with a Phillips screwdriver.

Note! The cartons are reusable. You may wish to save them for future use.

After unpacking the unit, check to make sure you have received the following:

• Canopy unit

• Bench unit

• Ballast drawer

• Body fan kit

• Pair of gas springs

• (2) endcaps (one with slots for the body fan bracket)

• Front access panel

• Bag containing necessary assembly hardware, safety goggles, and pillow

Inspect these items, including the canopy and bench, and make sure they are free from any visible damage. Report the extent of any damage to the transportation company.

Record the serial numbers of the canopy and bench in the area provided at the back of this manual. This information will be required whenever you call customer service.

Page 7

26868-01A

Installation - Pre-Installation Planning

Pre-Installation Planning

Before you begin to assemble your sunbed, you should observe the following considerations.

WARNING

Shock hazard. Disconnect power before

servicing.

Air from the room is used to cool the sunbed. Maximum ambient room temperature should be 80°F. Place your sunbed no closer than 6” from any wall. Make sure nothing obstructs the airflow into or out of the fan openings. A poorly ventilated room may cause the unit to become hot and cause discomfort to the user.

CAUTION

Use of a voltage source above 230V AC may prevent proper operation of the sunbed and could cause damage and void the warranty.

CAUTION

Proper assembly of your sunbed requires three people. Plan to have a couple of helpers assist you.

CAUTION

• The SUNSTAR® 332 requires a dedicat- ed circuit capable of providing 30 Amp service at 220VAC. This unit must be hardwired directly to a junction box on a dedicated circuit. W

e recommend con-

nection by a professional electrician.

• IMPORTANT! Voltage must be below 230V AC or may require a Buck Booster.

• Some portions of the carton may be used for assembly. Do not discard cartons until assembly is complete.

Page 8

26868-01A

Installation - Tools Required

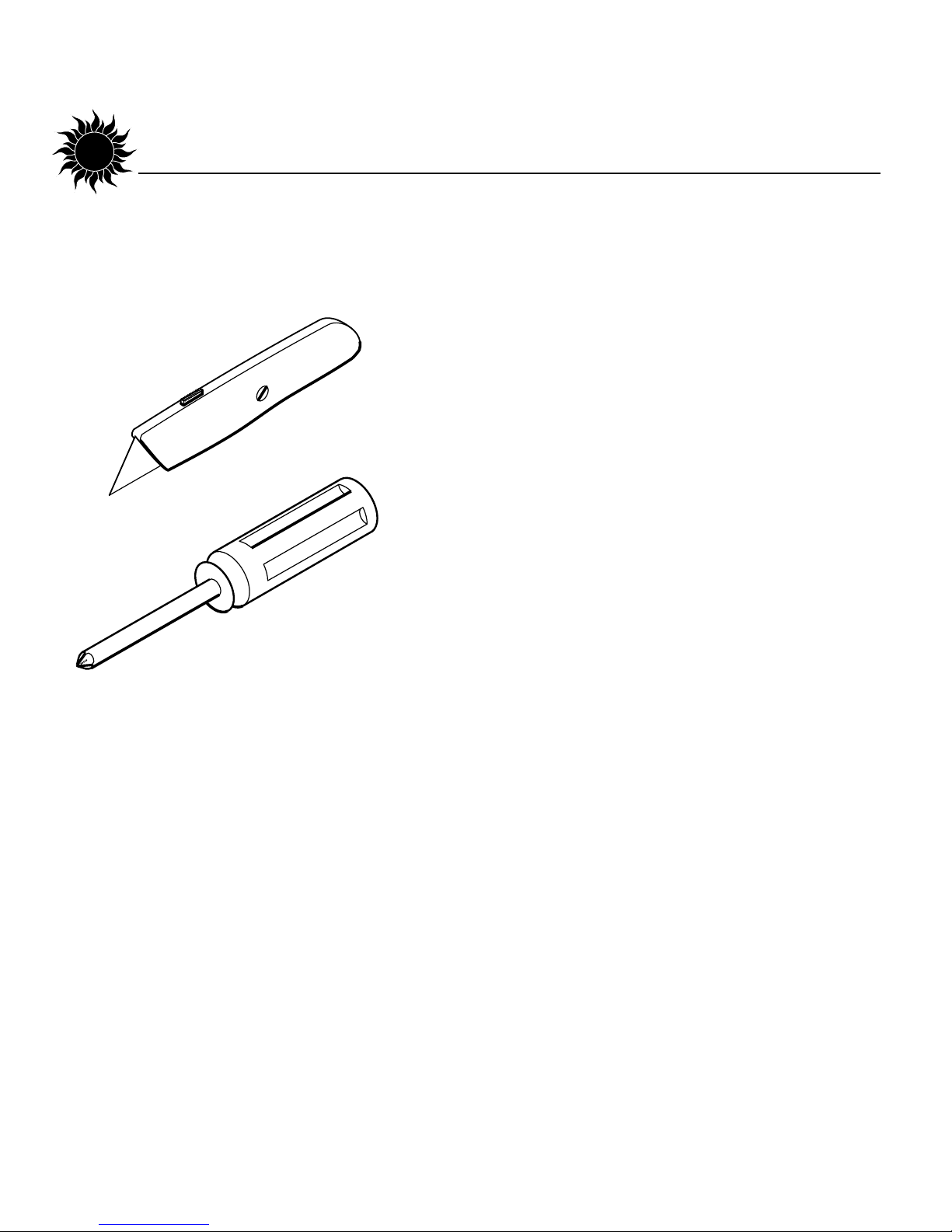

Tools Required

You will need the following tools to assemble your sunbed.

Utility Knife

#2 Phillips Screwdriver

Page 9

26868-01A

Installation - Hardware Inventory

Nylon Floating

Bearing

Quantity 4

Hinge Pin,

5/16” x 2 1/32”

Quantity 2

Hinge Pin Locking Clip

Quantity 2

Clevis Fork,

M10 Long

Quantity 2

Bronze Bushing, 10mm

Quantity 2

Clevis Pin, 10mm

Quantity 2

Retaining Ring

Quantity 2

Phillips Screw, #10 x 1/2”

Quantity 8

Phillips Screw, #10 x 1”

Quantity 8

Hardware Inventory

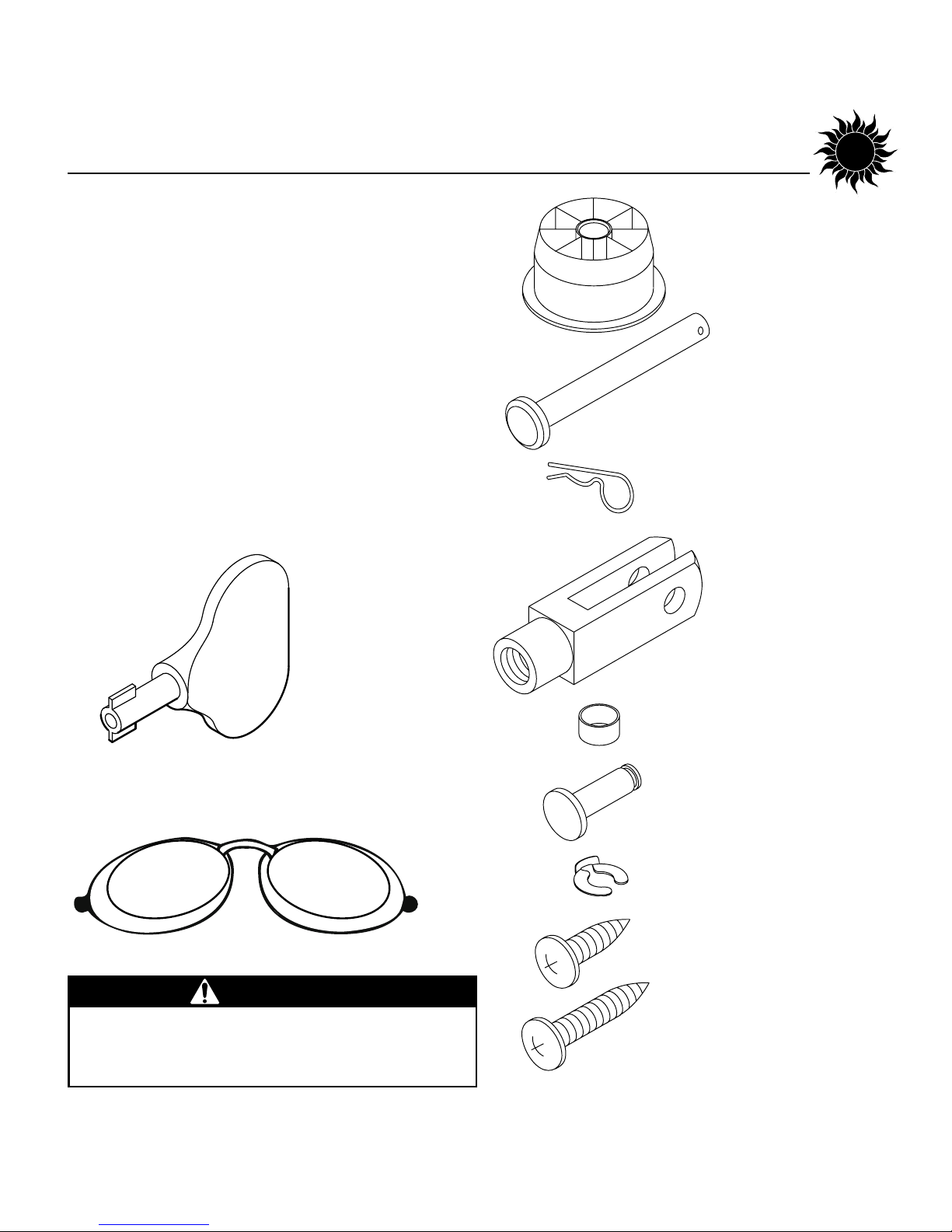

Use the utility knife to cut open the hardware bag. Remove the hardware. In addition to some touch-up paint, a phone type (RJ-11) cable and pillow, make sure you have the following items.

Safety Goggles

Quantity 1

Access Panel Key

Quantity 1

WARNING

Always wear protective eyewear when unit is on. Failure to may result in severe burns or

longterm injury to the eyes.

Page 10

26868-01A

Installation - Assembly Procedures

Assembly Procedures

Stand Assembly

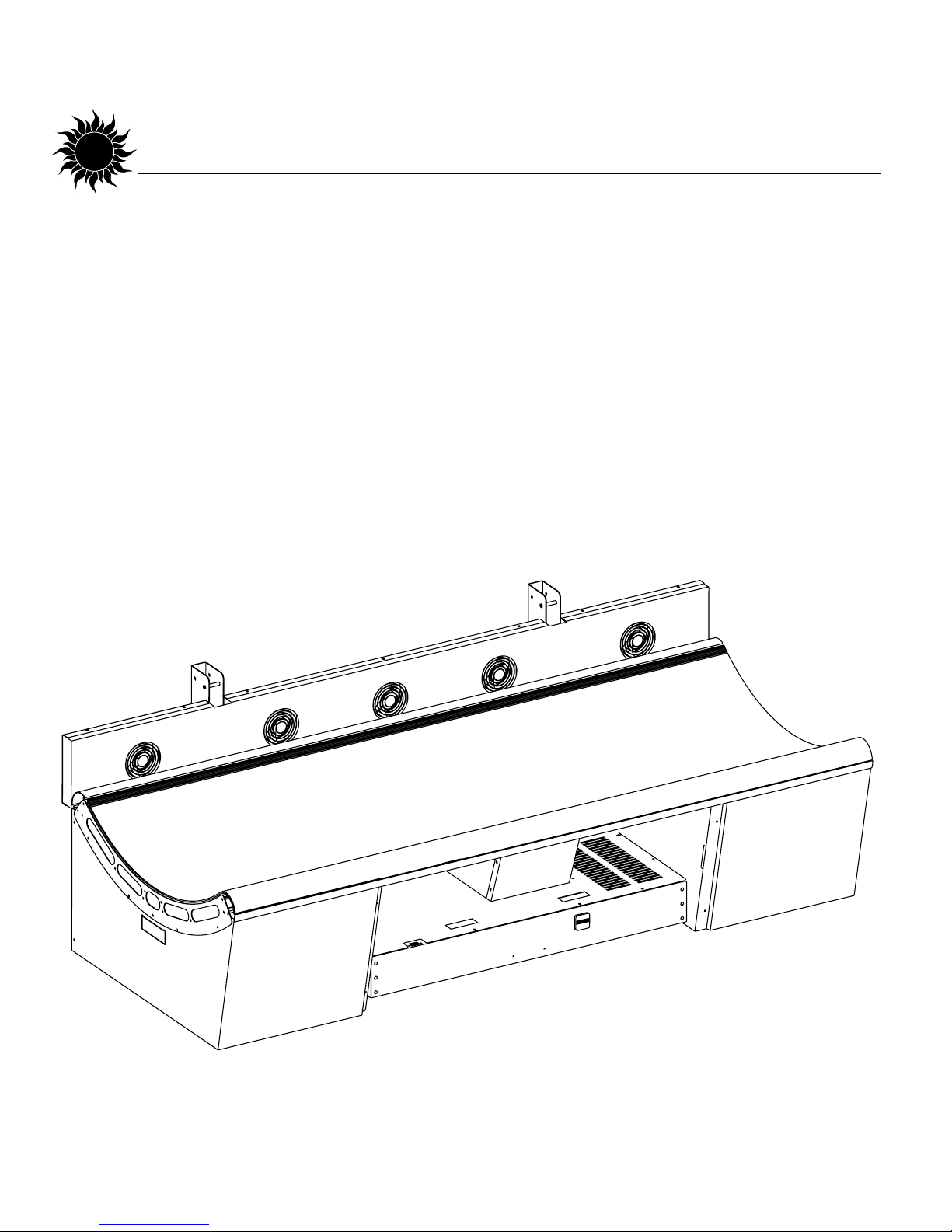

1. Place the bench unit approximately where it will be when assembled. Leave some room behind it to work.

2. Slide the ballast drawer under the bench, as shown, with the cables toward the back.

Page 11

26868-01A

Installation - Assembly Procedures

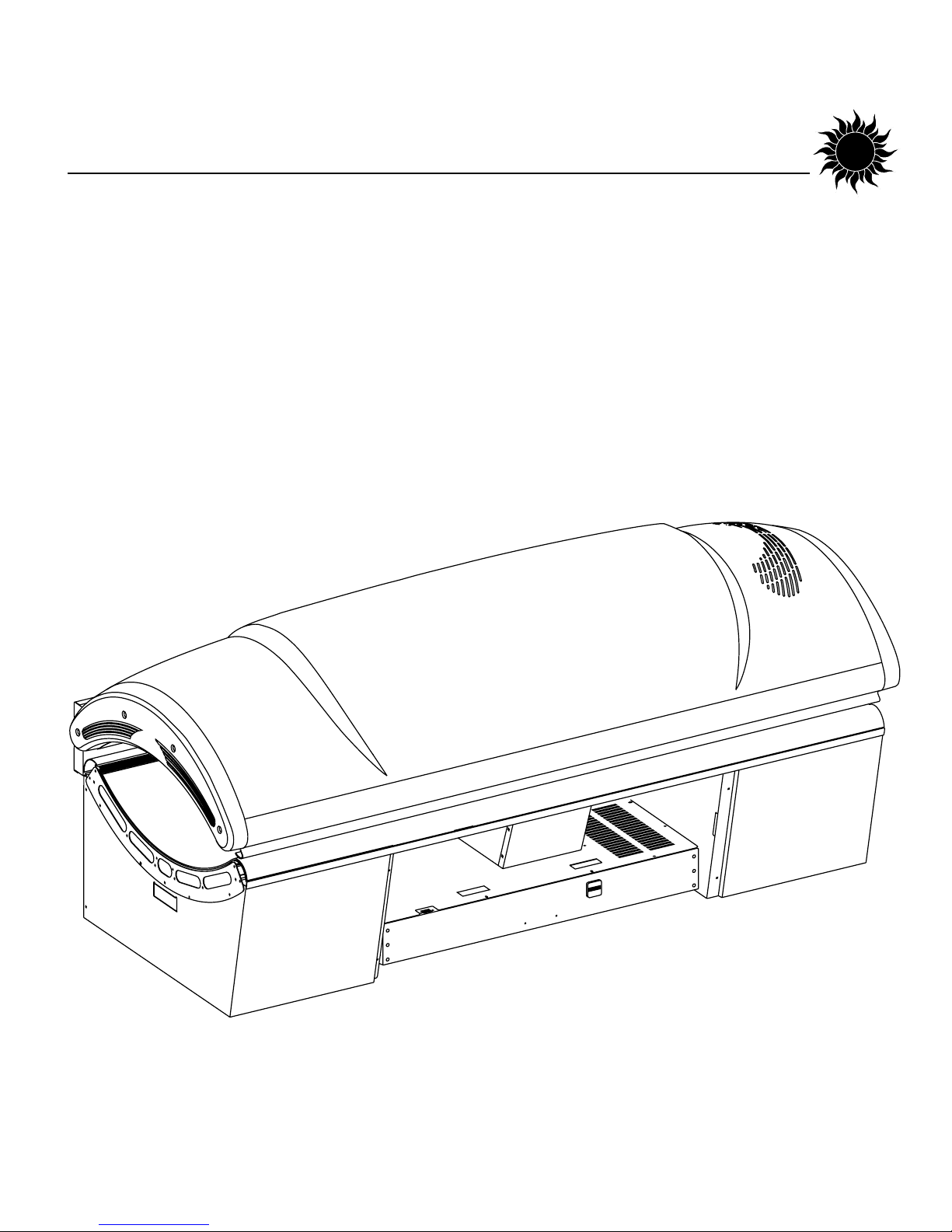

Install Canopy

1. Lay something across the bench, such as some cardboard or a blanket, to protect the units and place the canopy on the bench with the canopy hinge arms toward the back. Once again, do not use the canopy plastic endcaps to lift the unit.

Page 12

26868-01A

Installation - Assembly Procedures

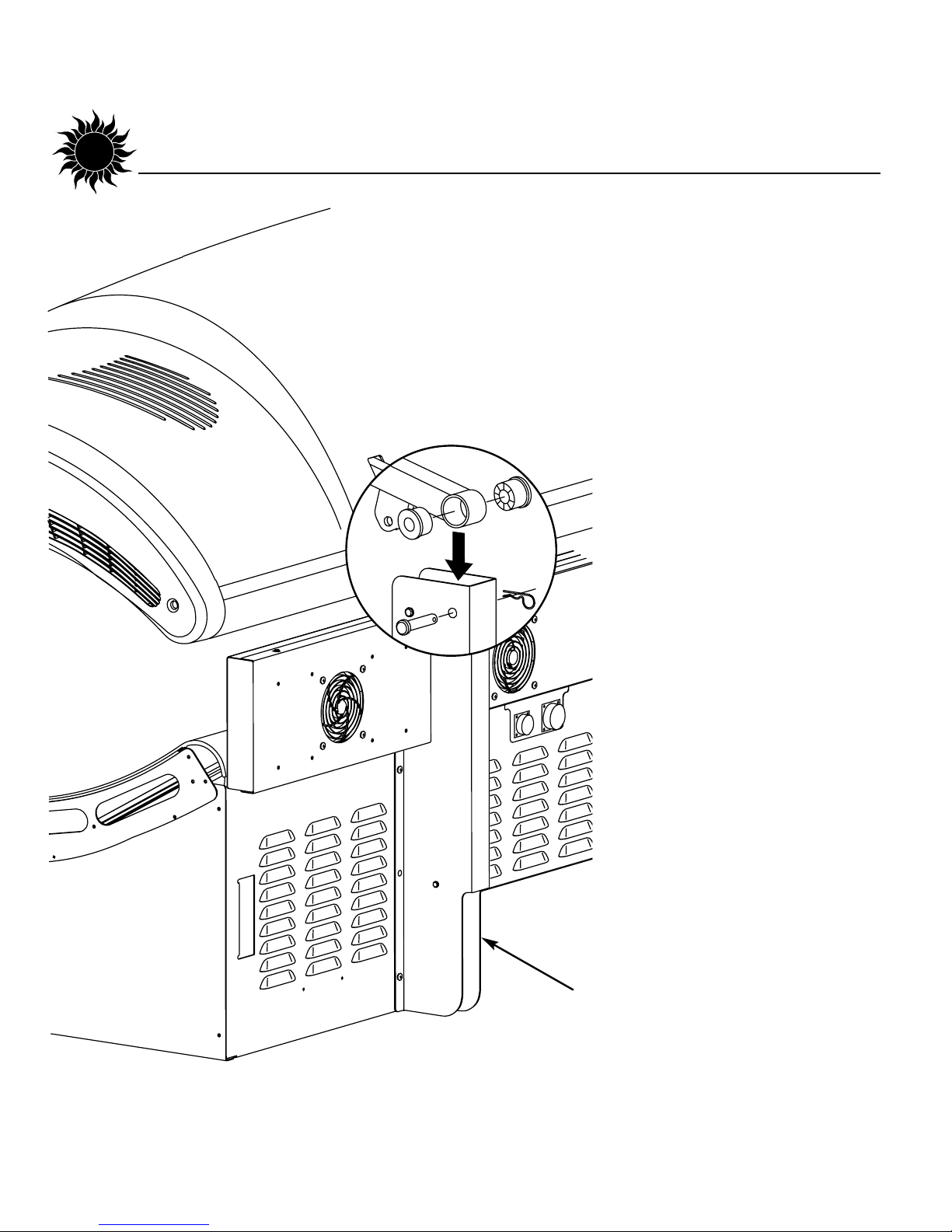

2. Insert the Nylon Floating Bearings into the canopy hinge arms and carefully lower the hinge arms into the bench uprights.

3. Secure the arms in place with the Hinge Pins and Hinge Pin Locking Clips.

Bench Upright

Page 13

26868-01A

Installation - Assembly Procedures

Install Gas Springs

1. Screw the upper Clevis Forks onto the Gas Springs, piston end up as shown.

2. Have a helper hold the canopy in its fully open position.

3. The lower clevis forks are already installed. Make sure the threaded hole faces up, slide the Gas Springs down into the bench uprights and twist the Gas Springs into the lower clevis forks. Turn the Gas Springs until they are snug.

Do not lower the canopy yet!

Page 14

26868-01A

Installation - Assembly Procedures

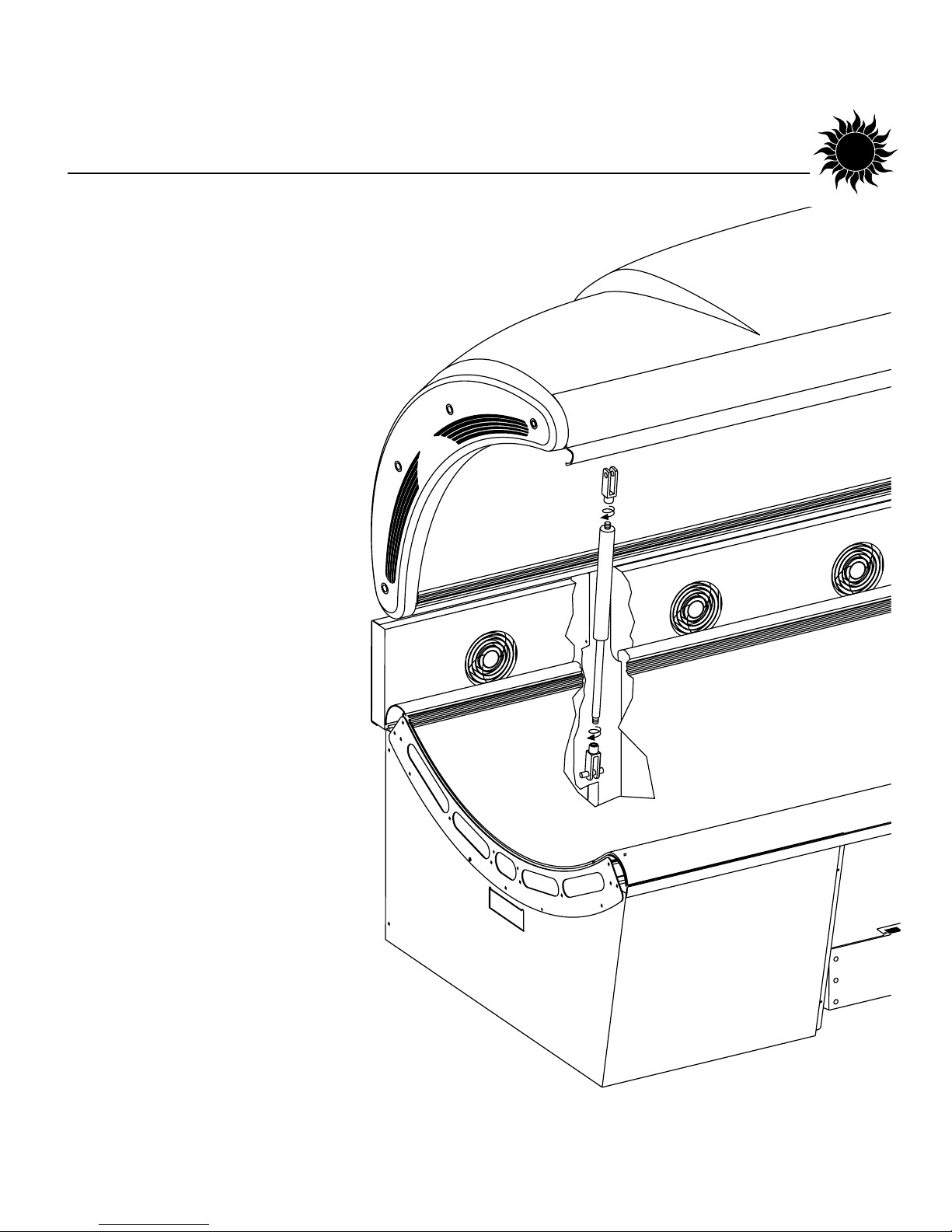

Attach Gas Springs

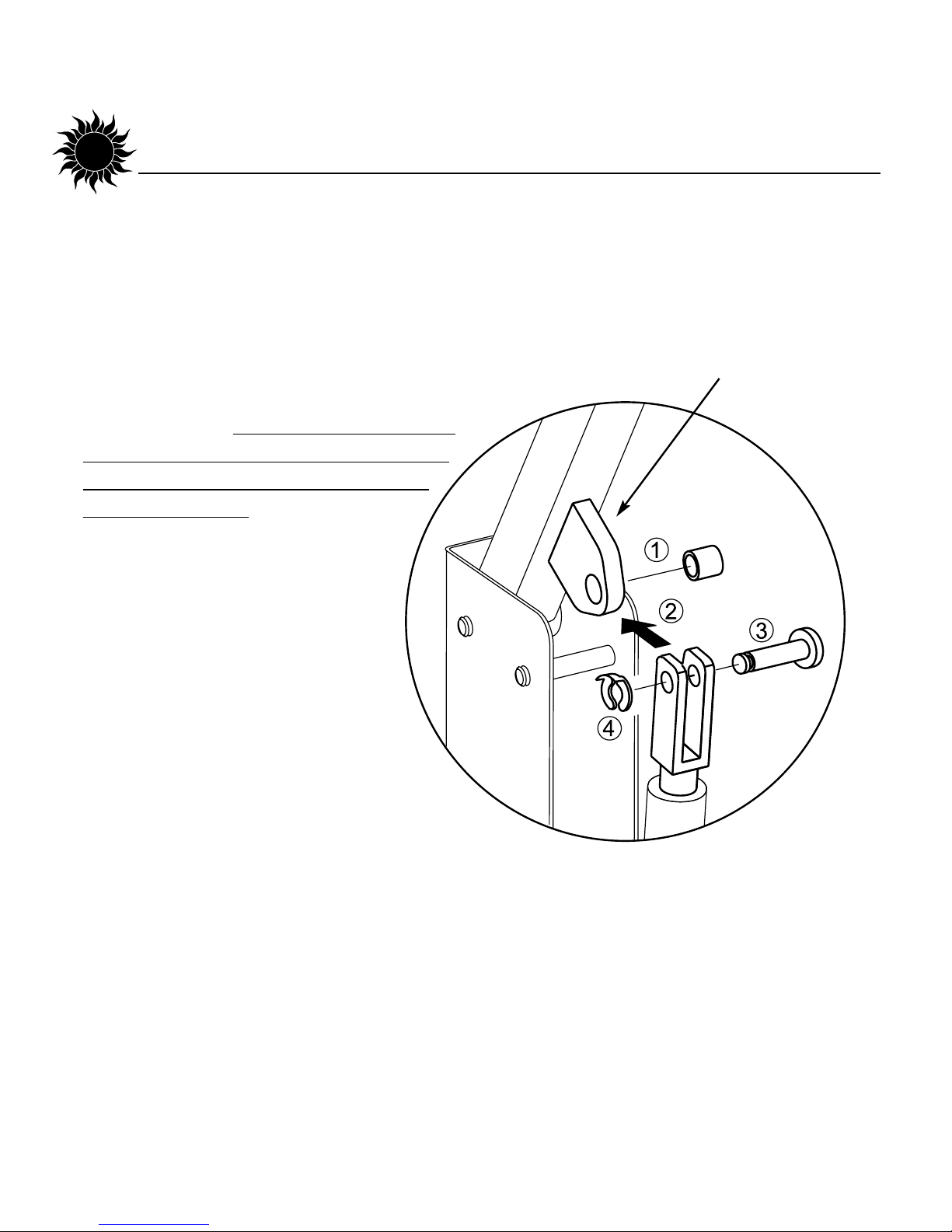

1. With the canopy still raised, slip the Bronze Bushings into the hole in the clevis brackets on the underside of the canopy mounting arms.

2. Line up both Clevis Forks and carefully lower the canopy to engage the Clevis Forks. P

ay special attention when lowering the canopy that the clevis forks do not damage the bronze bushings. Bronze is excellent for smooth pivoting applications such as this, but tends to be soft compared to the steel clevis fork.

3. Lock the Clevis Forks in place with the Clevis Pins

4. Secure the Clevis Pins with the Retaining Rings.

NOTE: When this assembly is complete, lift and lower the canopy a few times to lubricate the gas springs for optimum performance.

Clevis Bracket

Page 15

26868-01A

Installation - Assembly Procedures

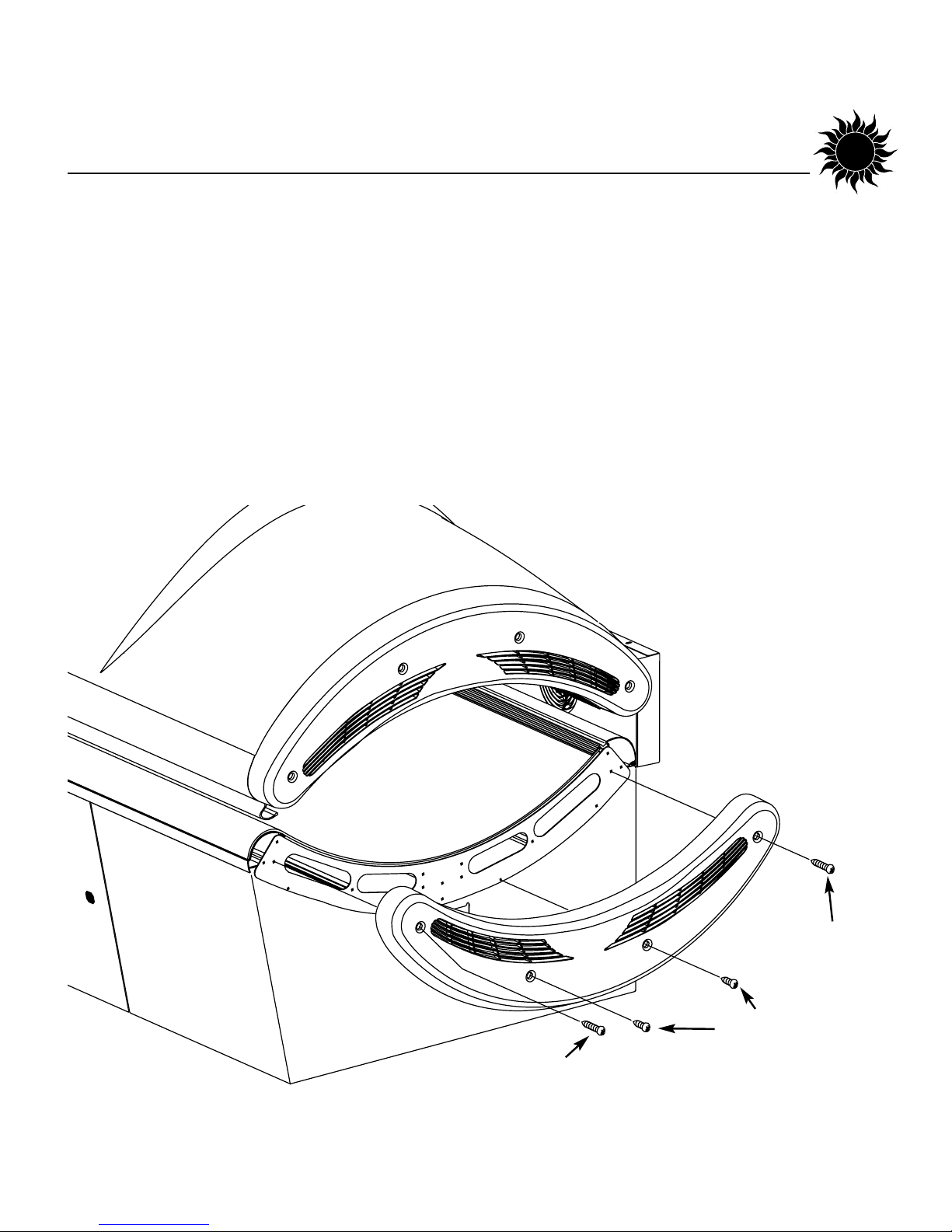

Install Endcaps

NOTE: This unit comes with a foot end body fan. Instructions for installing the fan are included with the body fan kit. Follow those instructions to install the body fan.

Put the head end endcap (the one without slots on top) in place and secure with two #10 x 1/2” screws in the two middle holes. Use two #10 x 1” screws in the two outer holes.

1/2” SCREWS

1” SCREW

Page 16

26868-01A

Installation - Electrical Connections

Electrical Connections

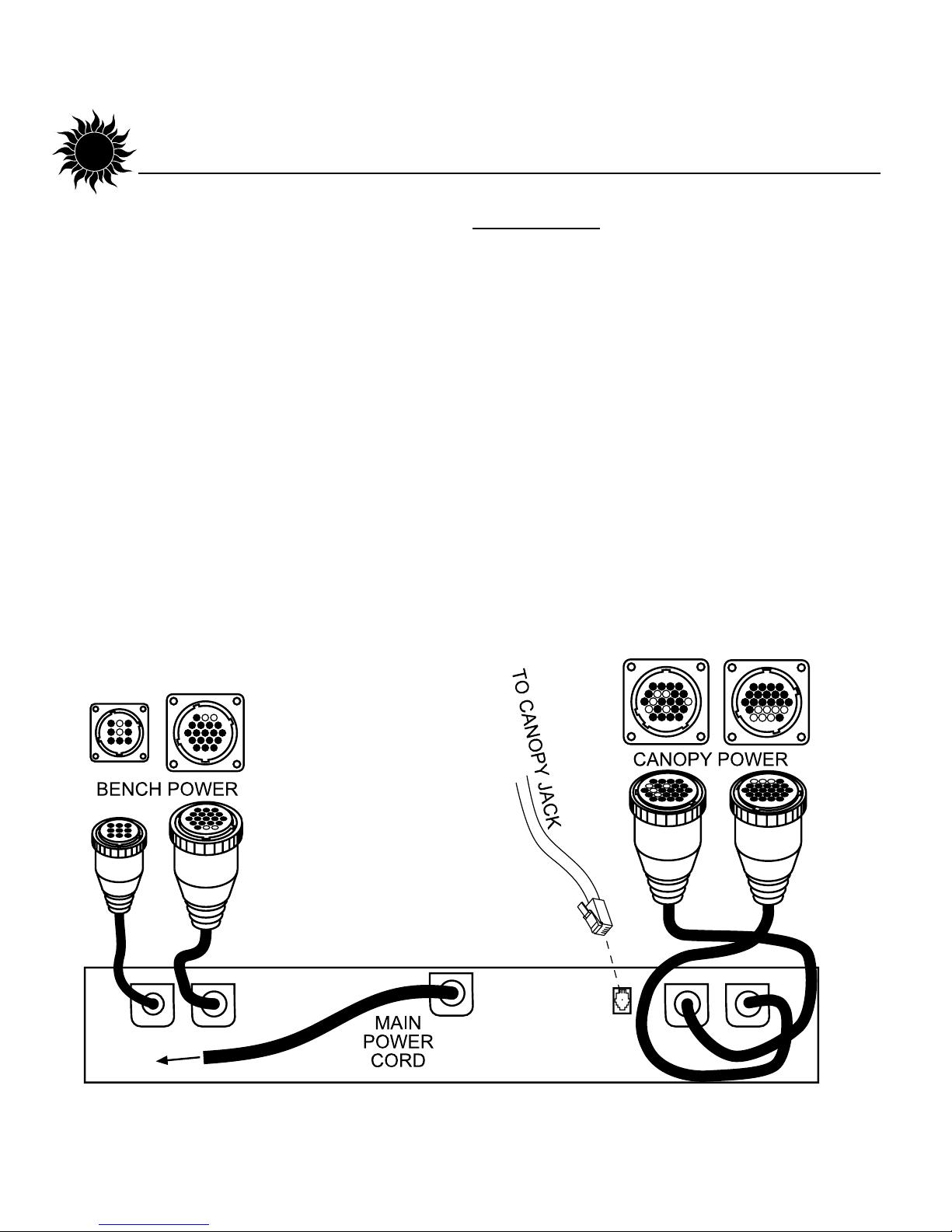

At the rear of the sunbed, connect the two canopy power cords and two bench power cords from the ballast tray to their respective power receptacles. Simply match the plug to the receptacle, push on firmly and secure by twisting the threaded locking ring. Connect the RJ-11 (phone type) cable between the canopy and rear jack on the ballast drawer. The double jacks on the front of the drawer are for remote connections. Connect main power cord as described in Pre-Installation Planning.

PIN CONFIGURATIONS MAY VARY FROM SHOWN

Helpful Hint: Line up the plug with the proper receptacle and push in. Apply pressure to the plug and twist the locking ring counter-clockwise until you feel the plug click into place. Then turn the locking ring clockwise to secure it. The ring will click when fully engaged.

Page 17

26868-01A

Installation - Final Assembly

Final Assembly

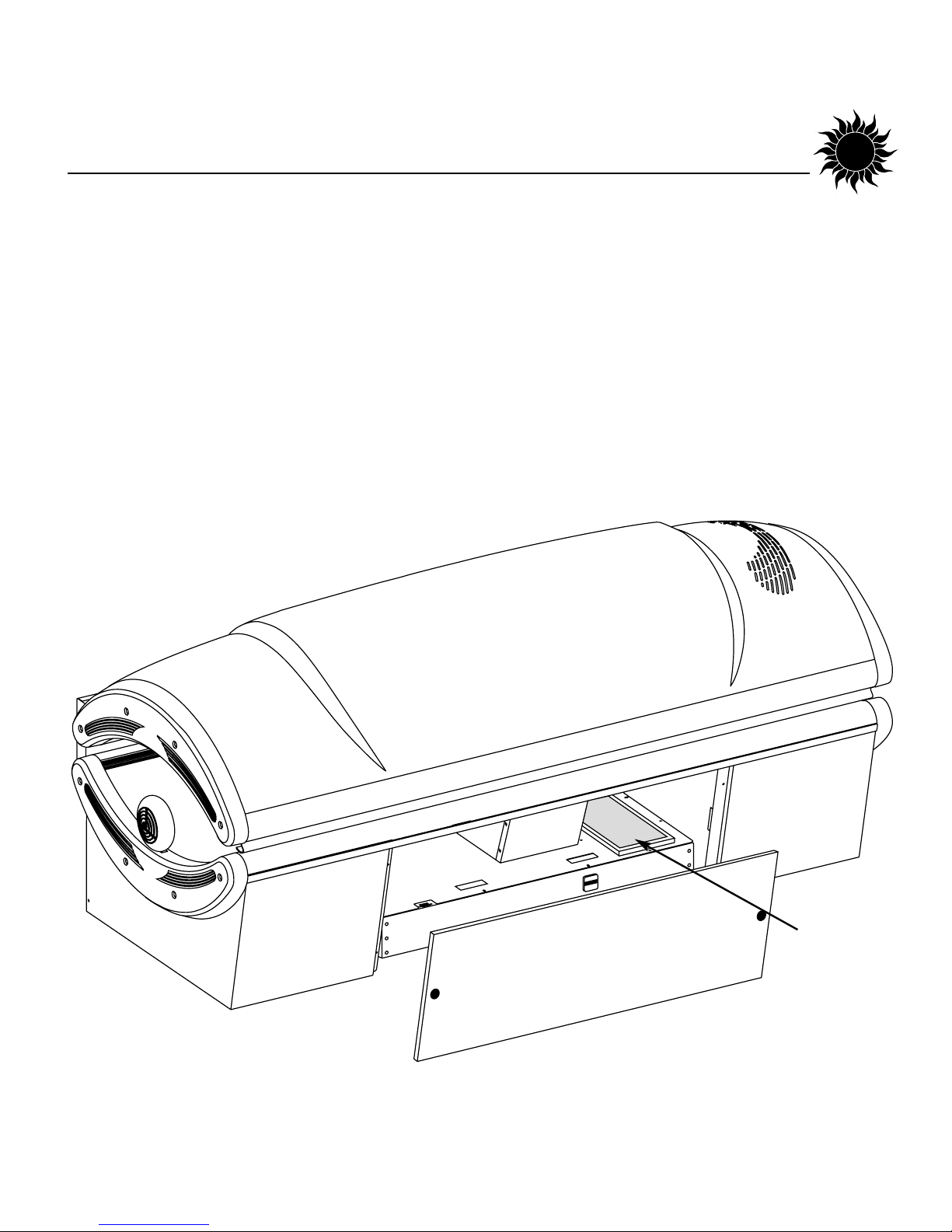

Make sure the air filter is in place on top of the ballast drawer. It simply sits on the drawer, over the air slots, and is held in place by airflow when the unit is running. The arrow on the filter should point down.

Put the Front Access Panel in place and lock with the Access Panel Key.

Note: You may have a few extra screws left over.

ACCESS PANEL

FILTER

Page 18

26868-01A

Installation - Remote Connections

Remote Connections

Your sunbed incorporates advanced circuitry allowing it to connect and communicate with most remote control systems. If a remote system is to be used, first determine whether the remote system is a T-Max® System or a standard remote system operating with a control relay. Follow the appropriate instructions for your system type.

Two remote ports are located on top of the ballast drawer at the front. Both ports work the same. A Remote Control Bypass plug is already installed in one of the remote control ports. Your sunbed will not operate without the Remote Control Bypass plug or a remote system connected.

ATTENTION: Although the Remote Control Bypass plug provided with your sunbed will work wherever a T-Max® terminator is called for in the series, the TMax® terminator will not work as a bypass plug. Normally, a bypass plug is needed only when your sunbed is operated without a remote system connected.

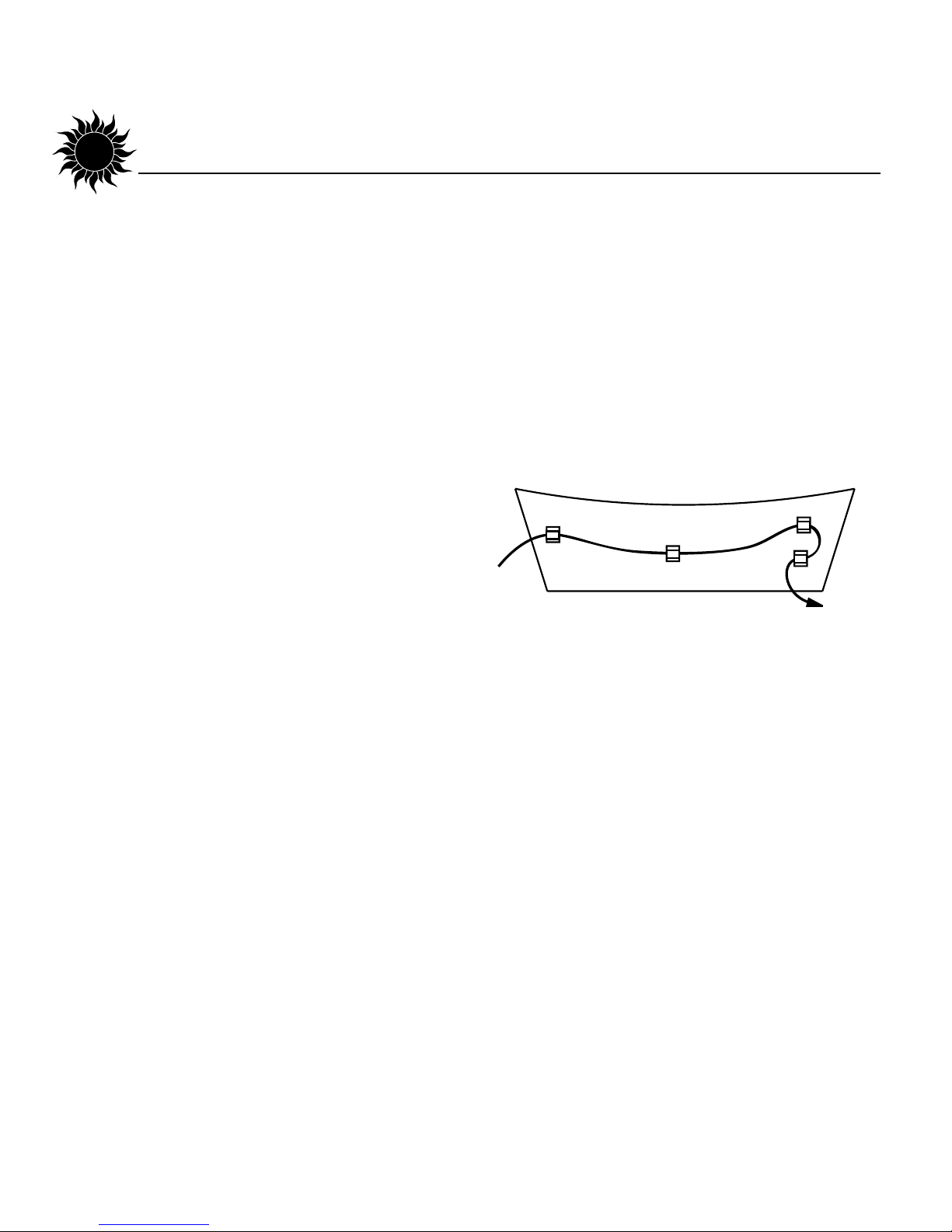

You will notice some wire clamps along the side of the fan housing under the bench. These are for the remote cables to keep them out from under the ballast drawer when rolling the drawer in and out of the unit. Route the remote cables as shown below, leaving some slack for the drawer to roll out.

REAR

TO REMOTE PORT

FAN HOUSING UNDER BENCH

Page 19

26868-01A

Installation - Remote Connections

T-Max® Products

The T-Max® remote systems offer the ultimate in sunbed control, while allowing the tanner easy straightforward operation. Your sunbed is configured to directly connect to this system. The circuitry inside your sunbed eliminates the need for the T-Max® 1A or 3A when connecting to the T-Max® Manager series. Your sunbed supports the auto addressing feature of the latest T-Max® Manager models and the following parameters: 2, 5, 6, 7, 8, 9, 10, 14, and

15. See your T-Max® manual for descriptions of these parameters and how they function.

T-Max® Manager Remote System

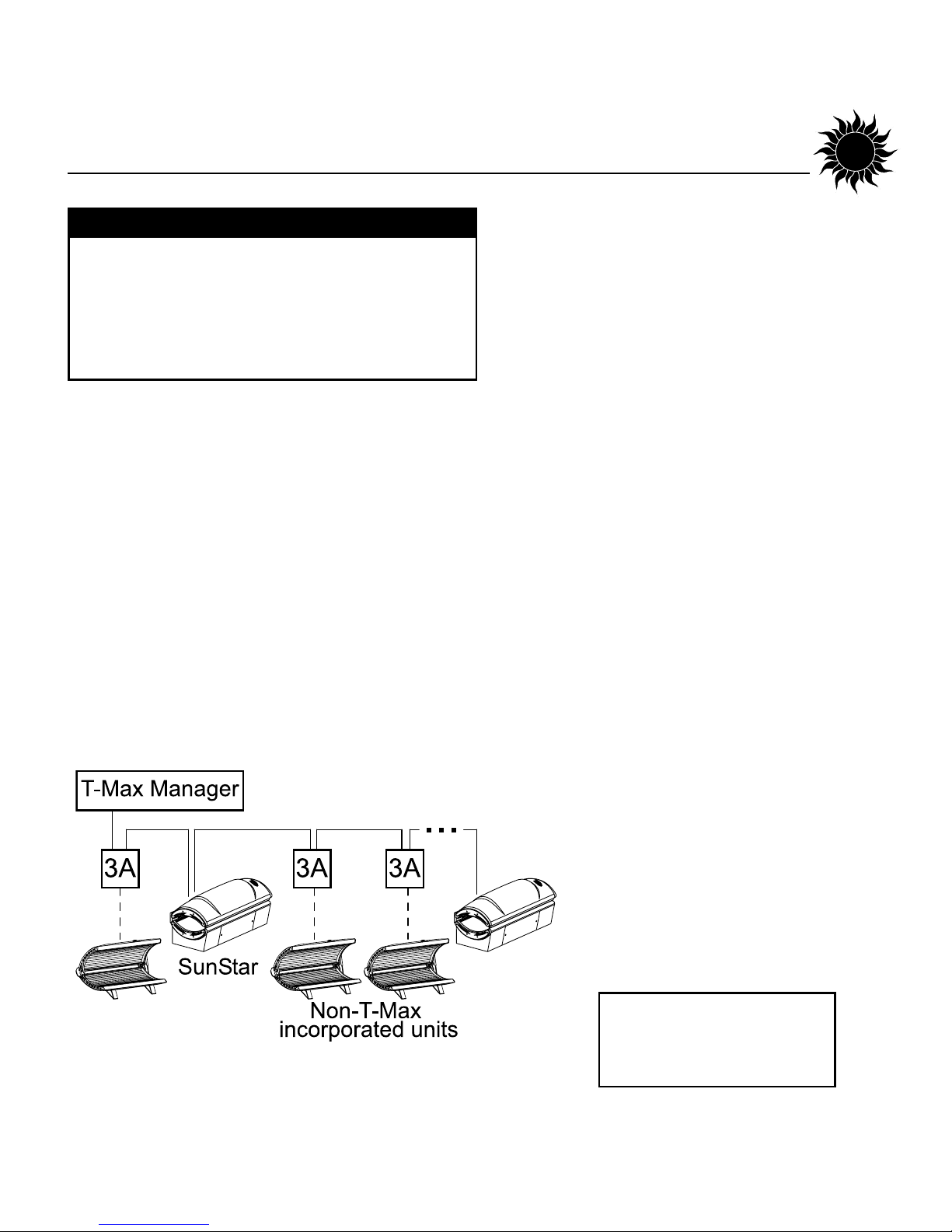

This system is ideal for multiple sunbed installations. Simply connect the RJ-22 modular cable(s), described in the T-Max® Manager manual, into the remote port(s) located on the back of your sunbed and follow the instructions that came with your remote system, not-

ing figure 1. If you have an older TMax® Manager that doesn’t support auto addressing, set the address, or “id”, of each sunbed manually as described in Setting the address man- ually. You can place your sunbed at any location in the series.

figure 1

NOTE: A T-Max® 1A

can be substituted for

the 3A in figure 1.

CAUTION

The remote connection is not designed to supply or accept high voltage, nor can it provide power to an external timer. The sunbed’s remote interface circuitry operates on 5 volts, attempting to connect it to any higher voltages will damage the sunbed as well as void your warranty.

Go straight to the source with all your

T-Max® brand remote questions:

(417) 338-5101

Page 20

26868-01A

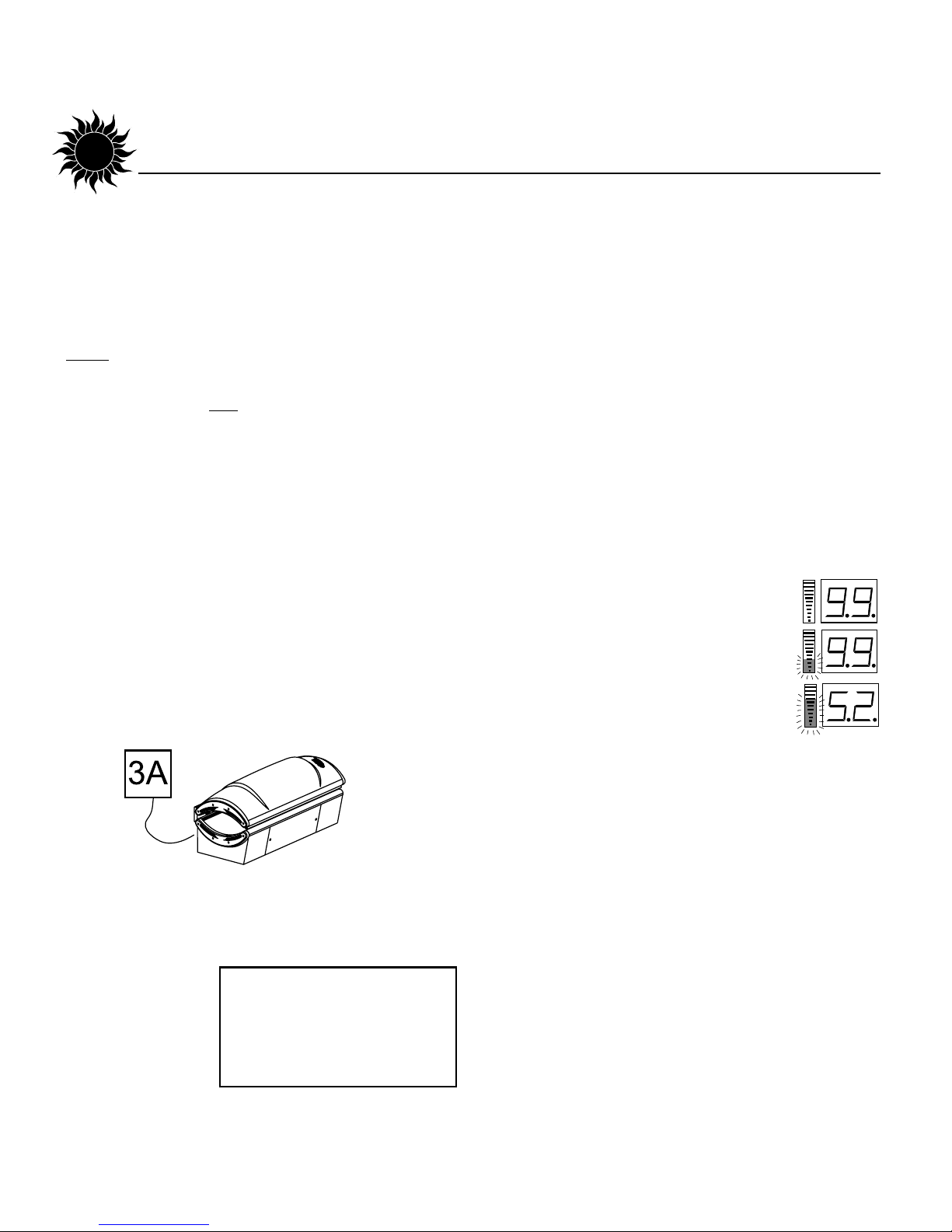

T-Max® 1A and 3A Remote Systems

In single sunbed installations, the T-Max® 1A and 3A can offer the same control as the TMax® Manager, eliminating the need for a Manager. If you’re using a 1A in this manner, it must

have a chip labelled “master” installed on its circuit board. The remote control bypass plug must not

be used in this configuration. The 3A may be used as a “master” with no modification.

After you have set the T-Max® 1A’s, or 3A’s, address to “0” (refer to your T-Max® user’s guide) and the sunbed’s address to “1” (see right), simply connect the RJ-22 modular cables, described in the T-Max® user’s guide, directly into either port located on the back of the sunbed and either port on the back of the T-Max® 1A or 3A. See figure 2.

Setting the address manually

Before connecting your sunbed to the T-Max® Manager or T-Max® 1A or 3A, the address of your sunbed must first be set. Set the “id” manually as described below.

Setting the “id”

1. Make sure no cables are plugged into your sunbed’s remote ports.

2. Remove and reapply power to the unit.

3. Press and hold the stop button, located on the sunbed display, for three seconds and release. The display should indicate an “id” number from “oF” to “252”.

4. If you are using a T-Max® 1A or 3A as a “master” remote, the “id” of the sunbed must be set to “1”. If you are using a TMax® Manager each sunbed must be assigned a different “id”. To set the “id” press the timer button, to count up, or the body fan control button, to count down, until the desired number is achieved.

5. Press the stop button to return to the normal display mode.

1-99

100-199

200-252

figure 2

NOTE: A T-Max® 1A

with a “master” chip

can be substituted for

a 3A in figure 2.

Installation - Remote Connections

Page 21

26868-01A

figure 3

Remote systems using a Control Relay

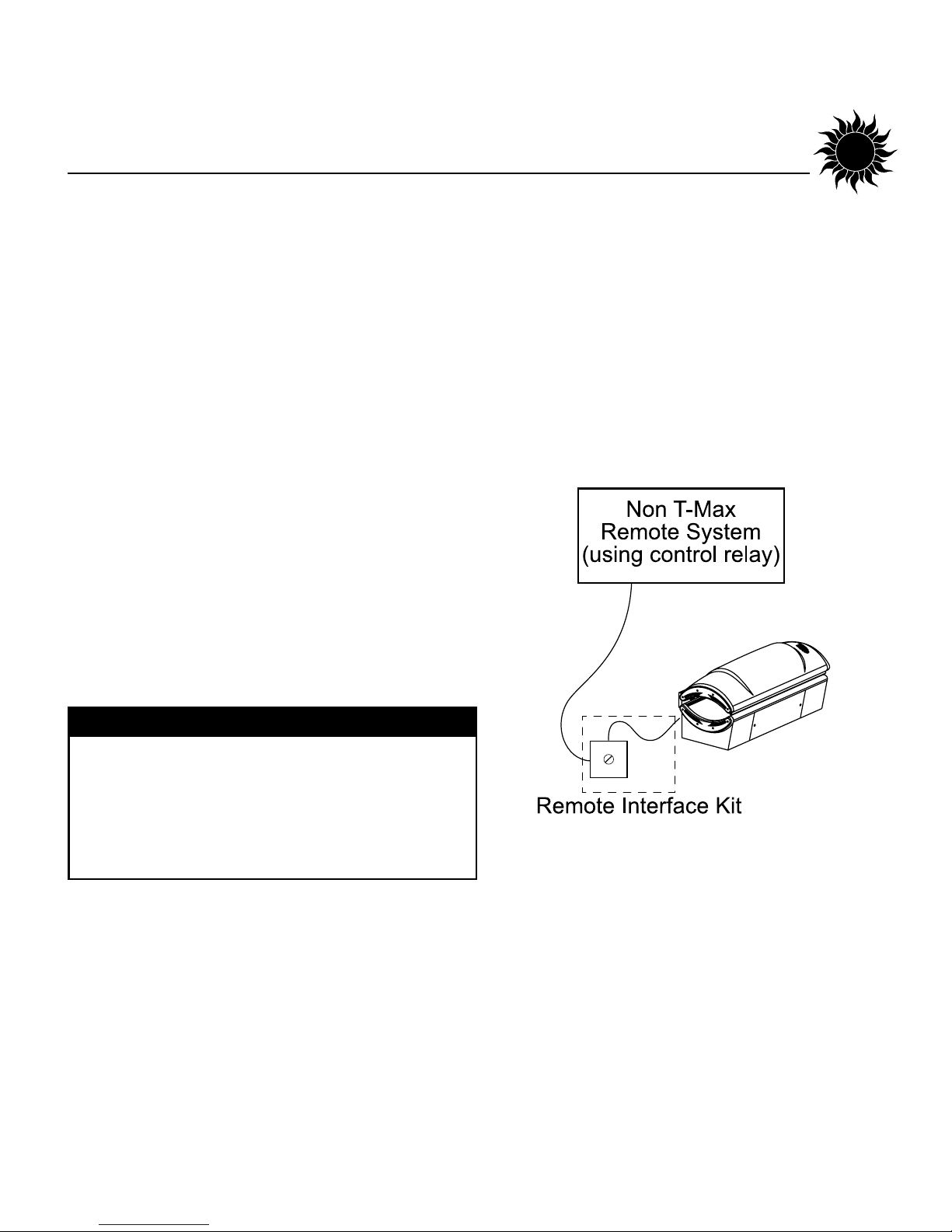

Most non-T-Max® remote systems control the sunbed by the use of a relay. The relay operates the sunbed by connecting and disconnecting a pair of wires leading from the sunbed. Refer to the user’s manual provided with your remote system to determine if it operates in this way. To connect your sunbed to this type of system a remote interface kit is required. Contact your place of purchase to obtain the kit. Figure 3 details a typical connection. Follow the instructions provided with the kit and from the remote’s manual to make the necessary connections.

CAUTION

Installation - Remote Connections

Page 22

26868-01A

peration

Before You Tan

Before using your sunbed, please note the following important precautions.

• Your skin should be free of cosmetics, oils, or other body lotions prior to tanning except for those specifically made for use with tanning devices. However, do not remove natural body oils by bathing or showering immediately before tanning.

• Your hair should be free of gels, mousses, sprays, or other hair products prior to tanning. These products can cause damage to the sunbed acrylic. As an alternative, a shower cap or towel can be worn to keep treated hair away from the sunbed surfaces.

• This unit intended for individual use. Only one pair of eyewear is included.

Exposure Times

Follow the guidelines for skin type and exposure times as shown in the table below. Untanned persons should not tan on consecutive days during their first week of tanning. Never tan more than once a day. Tanning normally appears after the first few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels corresponding to the extent of their base tan.

DANGER

Shock hazard. Do not operate this device near

water or while you are wet.

DANGER

Some medication may increase your sensitivity to ultraviolet light. It is recommended that you consult a physician before using this sunbed if taking any medication or if you suspect that your skin might be especially sensitive to sunlight.

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 10 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4 Level 5

Skin Type:

1st-3rd Sessions

Page 23

26868-01A

Operation - Using Your Sunbed

Using Your Sunbed

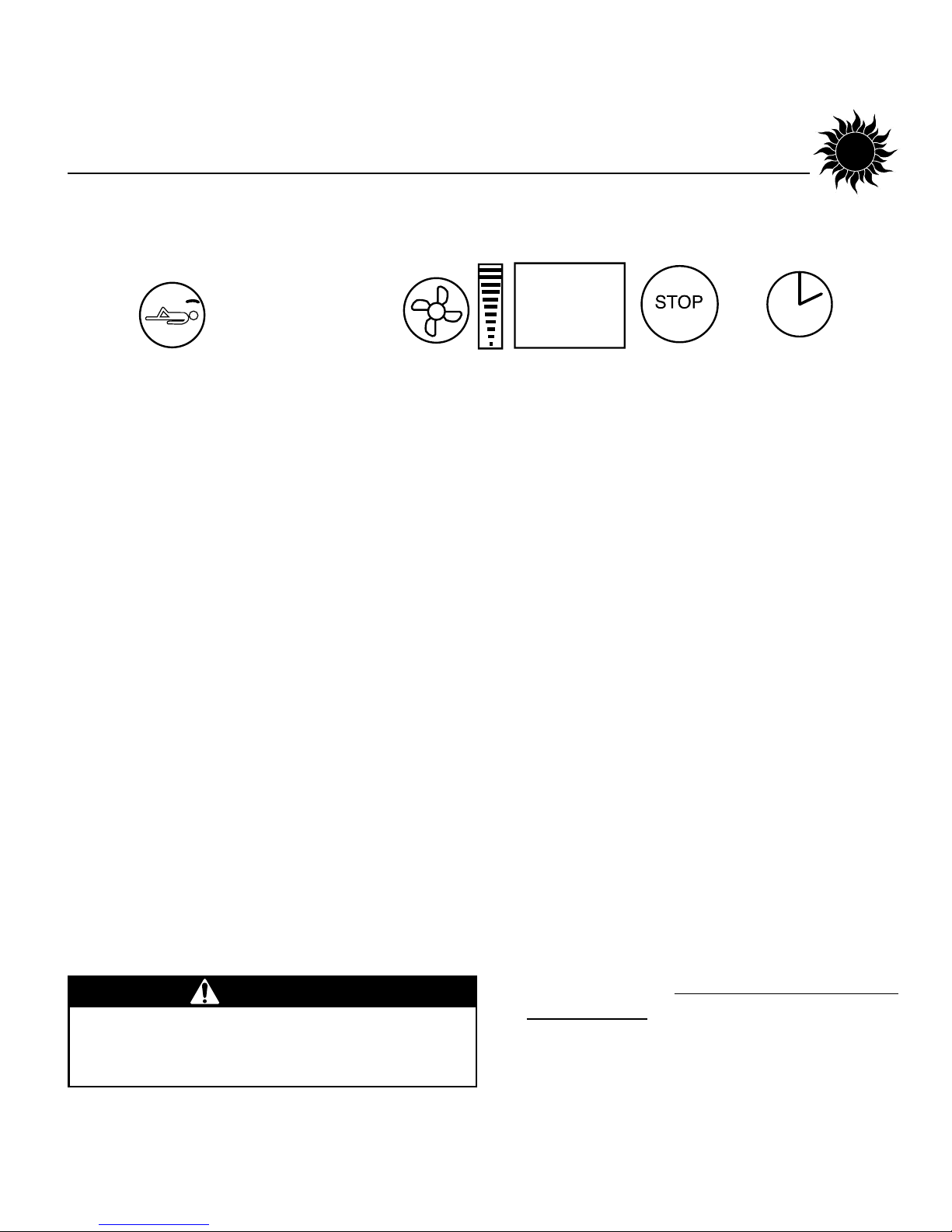

A Face tanner control - Turns face tanners

on and off during use. (Units equipped with face tanner only)

B Body fan control - Controls the speed of

the body fan during use.

C Body fan speed indicator - Indicates

speed of fan. (OFF - LOW - MED HIGH)

D Timer display - Displays remaining time.

E Stop button - Interrupts tanning session.

F Timer button - Turns bed on. Timer dis-

play shows remaining time. If a lesser time is desired, press timer button until desired time is displayed.

ABCDEF

WARNING

Wear protective eyewear. Failure to may result in severe burns or

longterm injury to the eyes.

(Operation as a stand-alone unit or connected to a remote system using a control relay. If using TMax® see next page.)

1. Lift the canopy, lie down on the bench (face up), lower the canopy using the canopy handle. For best results, position the canopy as close to your body as possible, maintaining at least 3” (7.6 centimeters) from your body and 4” (10.2 centimeters) from your face.

2. Put on your safety goggles.

3. Press the timer button (F, see left) to begin

the tanning session. The lamps will turn on and the timer will begin to count down.

4. When the timer reaches “0” the lamps turn off. If you want to stop your session before time expires, press the stop button (E). You will have ten seconds to restart with the remaining time, otherwise the timer will reset to “0”.

5. Raise the canopy by using the outer edge of the canopy, do not push up on the acrylic shield. The cooling fans run for a period of time after the lamps shut off to aid in cooling the sunbed.

Page 24

26868-01A

(Operation while connected to a T-Max® remote system. If using other remotes or no remote system, see previous page.)

1. Lift the canopy, lie down on the bench

(face up), lower the canopy using the canopy handle. For best results, position the canopy as close to your body as possible, maintaining at least 3” (7.6 centimeters) from your body and 4” (10.2 centimeters) from your face.

2. Put on your safety goggles.

3. Assuming the remote system has been set

to allow a pre-tanning delay time, the timer display (D) will repeatedly flash the delay symbol “dL” and then the remaining delay time. Press the timer button (F) or wait until the delay time has expired to begin the tanning session. The lamps will turn on and the timer will begin to count down.

4. When the timer reaches “0” the lamps turn off. If you want to stop your session before time expires, press the stop button (E).

5. Raise the canopy by using the outer edge of the canopy, do not push up on the acrylic shield. The cooling fans run for a period of time after the lamps shut off to aid in cooling the sunbed. The timer will indicate “..” as a reminder to clean the sunbed. After the sunbed is cleaned press the timer button and the display will return to “0”.

Operation - Using Your Sunbed

Page 25

26868-01A

are and Maintenance

Cleaning After Use

Clean and disinfect your tanning bed’s bench and canopy after each use. Use a non-abrasive disinfectant cleaner that does

not contain ammonia or ammonia derivatives. Ammonia may damage the acrylic

shield. Spray the acrylic lightly with disinfectant and wipe dry with a clean soft cloth. We recommend SunQuest® disinfectant and SunQuest® acrylic cleaner.

Thorough Periodic Cleaning

Introduction

The cooling fans draw air through the bed and over time will cause a dust buildup on the lamps and reflectors. This will reduce the tanning effectiveness of the bed. When a dust buildup is observed, it is necessary to thoroughly clean the inside of the bench and canopy.

Cleaning the Canopy and Bench

Step 1 Open the acrylic shields and

remove lamps as described in Lamp and Acrylic Replacement.

Step 2 With a soft cloth, wipe the entire

length of each lamp to remove any film buildup.

Step 3 Clean both sides of the acrylic

shields with a non-ammonia disinfectant cleaner.

Step 4 Wipe the reflectors with a clean

damp cloth.

Step 5 Reinstall the lamps and acrylic

shields.

Step 6 Clean or replace air filter on top

of ballast tray. Replace with a 10” x 24” x 1” furnace filter.

Mechanical Inspection

Your tanning bed has been built for years of service. To ensure trouble-free operation throughout its life, inspect the unit’s mechanical integrity every 400-500 hours of use.

• Inspect the unit’s fasteners verifying that all are firmly in place.

• Inspect gas springs for signs of wear. Gas springs that will not hold the canopy in the full open position when raised should be immediately replaced. See Troubleshooting.

• Inspect the AC power cord and its connections.

• Inspect the acrylic. Broken, cracked

or badly scratched acrylics should be immediately replaced.

WARNING

Shock hazard. Disconnect power before removing

any protective covers.

Page 26

26868-01A

Care and Maintenance - Lamp and Acrylic Replacement

Lamp and Acrylic Replacement

Introduction

To be assured of maximum tanning effectiveness, change lamps after approximately 800-1000 hours of use. Tanning will continue after this time but at a slower rate. To ensure trouble-free operation of your sunbed, replace the lamp starters whenever the lamps are replaced.

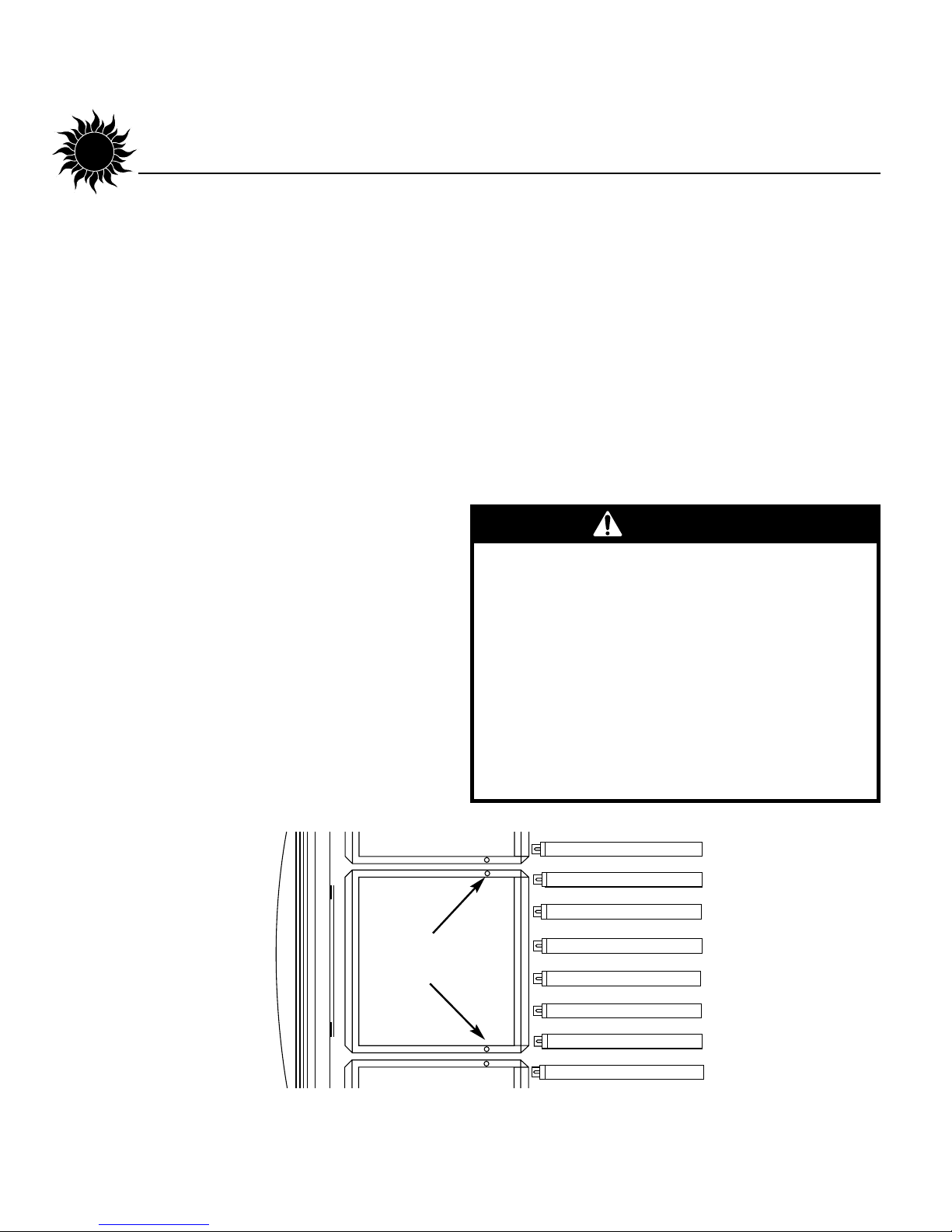

Opening/Replacing Acrylic Shields

The acrylic shields are secured in place by turn latches along the front edge. Use a flat-bladed screwdriver to turn the latches a quarter turn to open the acrylic. The acrylics swing open on a hinge. On the inside of the bench, along the front, are two supports for the bench acrylic. Swing them up to hold the bench acrylic open. Both acrylics may be removed by lifting them out of the channel along the back edge.

When you are finished, simply reverse the above directions to secure the acrylic shields.

WARNING

Shock hazard. Disconnect power before removing

any protective covers.

CAUTION

Be careful. The edges of the acrylic shield may be sharp.

Page 27

26868-01A

Care and Maintenance - Lamp and Acrylic Replacement

Removing/Replacing Lamps

After opening the acrylic shield, replace lamps as follows.

Step 1 Grasp the lamp at one end and

at the middle and turn the lamp one quarter turn. Gently remove the lamp from its holders.

Step 2 Reinstall the lamp by inserting

the pins located on the ends of the lamp into the slots on top of the lamp holders and turn the lamp a quarter turn. It should click in place.

Recommended Replacement Lamps

We recommend using the lamps specified below. Use of uncertified lamps is a violation of Federal regulations and will void your warranty. These lamps have an average life of 800-1000 hours of effective tanning use. Lamps used longer than that begin to lose their effectiveness even though they continue to light.

Recommended Replacement Acrylics

Acrylics vary greatly over time in their ability to effectively transmit UV light. Acrylics sold by ETS have been life tested to ensure proper transmission throughout their useful life.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT:

DARK TAN™ PLUS Wolff® Model DTP71-T12-100W BI-PIN

SolarMax™ IFT facial unit

Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045

Page 28

26868-01A

Care and Maintenance - Lamp and Acrylic Replacement

Removing/Replacing Face Tanner Lamp

After removing the canopy acrylic shield, replace the face tanner lamp as follows:

Step 1 Support the face tanner assembly

with your hand while unscrewing the two retaining screws. The face tanner glass casing will swing downward.

Step 2 The lamp can now be

exchanged. The lamp holders are equipped with spring contacts which enable the lamp to be removed easily. Remove the old lamp and discard. Install the new lamp, using a clean cloth or paper towel. Ensure that the lamp is firmly seated in the lamp holders.

Note! Never take hold of the lamp such that your fingers are in contact with the lamp glass. Finger oils will greatly reduce the lamp’s operational life.

Step 3 Gently close the face tanner

glass casing and lock it closed with the screws. Ensure that the screws firmly secure the glass casing.

RETAINING

SCREWS

DANGER

Unfiltered light from face tanner can cause severe burns. Never turn sunbed on while face tanner is disassembled or when glass filters are removed. Immediately discontinue use of this equipment if face tanner glass is broken or any unfiltered light can be seen escaping face tanner assembly.

Page 29

26868-01A

roubleshooting

Problem Solution

Sunbed not tanning

Lamps fail to light and timer display is blank

One or more lamps fail to light

The canopy will not stay up

The face tanners will not come on

The last minute of tanning time does not count down from 59 seconds, but some time less than 59 seconds

I forgot what address, or “id”, I set my sunbed to

1. Clean sunbed, see Thorough Periodic Cleaning.

2. Ensure supply voltage is between 208 and 230V AC.

3. Replace lamps if lamp hours are greater than 800hrs.

4. Replace acrylic.

1. Make sure the unit is connected to a power source.

2. Check source of AC power. Reset circuit breaker or replace fuse.

1. Check that lamp is installed correctly.

2. Switch unlit lamp with a lamp that lights, if new lamp lights and old lamp still does not, replace old lamp.

NOTE: Gas springs are manufactured to hold the canopy in its

fully open position as well as allow it to rest fully closed. If left open for an extended period of time some creep down may occur. This is considered normal. Keep the unit closed when not in use. If the canopy will not stay fully open when raised...

1. Raise and lower the canopy a few times to lubricate gas spring internal seals.

2. Replace gas springs.

1. Face tanner operation is initially delayed by 5 seconds.

2. Face tanners will not relight for 1 minute if turned off.

3. Replace face tanner lamp, see Removing/Replacing Face Tanner Lamp.

If the timer button has been pressed to decrease tanning time during the session, the time expired in the current minute is subtracted from the last minute.

By holding the body fan button for 3 seconds the timer display will briefly display three numbers; the installed timer software version, a factory set timer code and then the sunbed’s “id” number.

Page 30

Troubleshooting

26868-01A

Problem Solution

Timer display is indicating Er 91

Timer display is indicating Er 92

Timer display is indicating Er 93

Timer display is indicating Er 94

Timer display changes to indicate a tanning time after the timer button is pressed but lamps do not come on

My bed is connected to the TMax® Manager remote system and when the delay time has expired the timer display starts counting down but the bed lights do not come on

My bed won’t work with the TMax® Manager remote system

Timer display continues to show a 0 after the timer button is pressed

Timer software error. Disconnect and reapply power to the unit.

Current sensor indicating unit is off when it should be on. Contact servicer.

Current sensor indicating unit is on when it should be off. Contact servicer.

Requested session time exceeds maximum time allowed.

1. Bypass plug is not installed, see Electrical Connections.

2. A non-SunStar® bypass has been used. See Electrical Connections.

3. If remote is being used, other than T-Max® Manager, the external timer may not be activated.

4. Remote wiring is incorrect, see the instructions provided with the remote interface kit.

The auto start feature of the remote system is disabled, see the instructions provided with your remote system.

1. The sunbed must first be set to a unique address, see Remote Connections.

2. The bypass or terminator plug may be installed in the series in an inappropriate location. Plug the bypass plug only into the bed at the end of the series.

1. T-Max® Manager remote system has not yet been set.

2. Sunbed address is not set correctly, see Remote Connections.

Page 31

Troubleshooting

26868-01A

Problem Solution

My bed is connected to a T-Max® remote system but I am having trouble getting into “id” mode

My bed, connected to a T-Max® Manager, did not display “dL” but does indicate:

“0”

a tanning time and the lamps have come on a tanning time but the lamps have not come on

When auto-addressing the first bed does not register an “id”

When using a T-Max® 1A my sunbed won’t function properly

My salon suffers frequent, short power outages and clients complain about losing session time

You have probably attempted to connect your sunbed to the remote system already. Disconnect the remote plug(s) from the ports at the back of the sunbed, wait 90 seconds and try again.

1. Remote device has not been set.

2. The sunbed has not been connected to the remote system, see Remote Connections.

1. Delay time of T-Max® Manager has not been set.

2. Delay time has expired and session has begun. Auto start function of T-Max® Manager has been turned off. Press the timer button to turn on lamps.

When using the auto address feature of the T-Max® Manager you must wait 10 seconds from the time you start the auto address function before addressing the first bed.

SunStar® Bypass plugs or terminator plugs may be needed if the T-Max® 1A and the sunbed are over 100 feet apart. Install the plugs in the open remote port in the sunbed and the TMax® 1A.

If you have a T-Max® Manager, changing parameter 23 from “0” to “1” will allow the tanning bed to remember how much time was left when power goes out and resume its session after power is restored. Consult your T-Max® Manager manual for information on setting parameters.

Page 32

26868-01A

P-332ST-3F

Page 33

26868-01A

Ballast Tray

Page 34

26868-01A

Record this information for ease of service:

Date of purchase:

Bench serial number:

Canopy serial number:

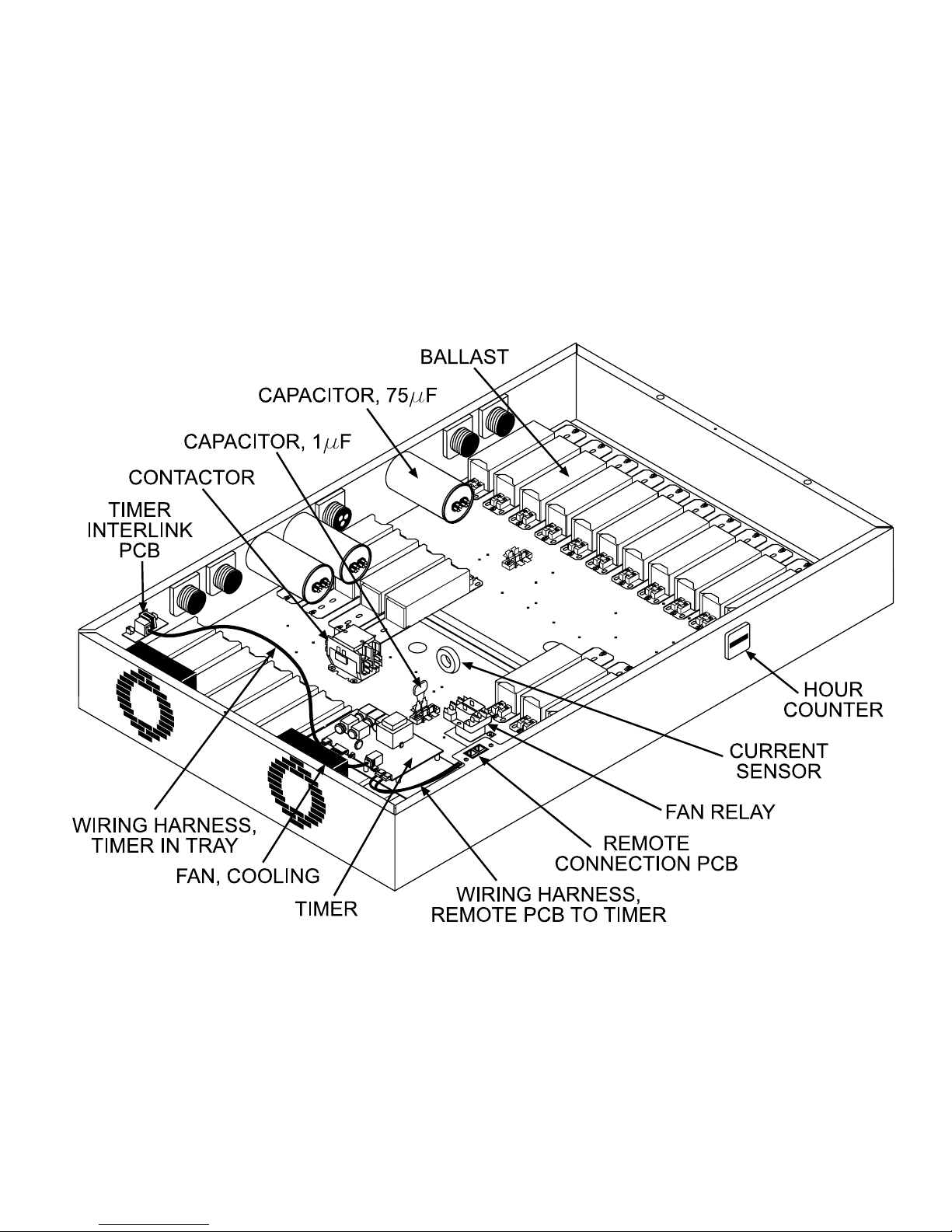

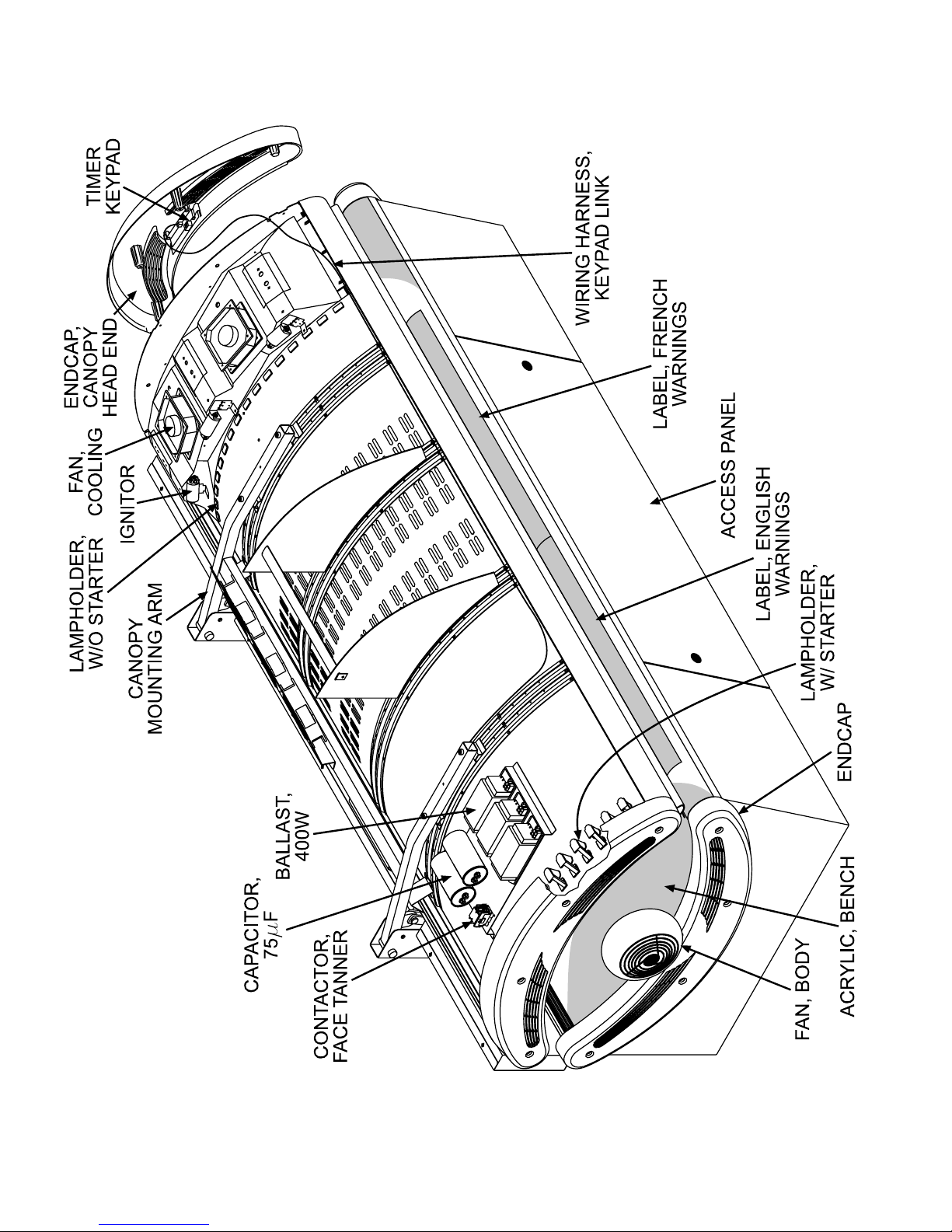

Parts List

This is a list of parts which may be replaced by the consumer. Care should be taken when replacing anything related to electrical wiring. We recommend contacting a professional electrician. When calling for parts, first state your bed model as P332ST-3F. Then refer to this list and preceding

illustrations for proper part identification.

Access Panel Access Panel Key* Acrylic, Bench Acrylic, Canopy* Acrylic Edge Trim, Canopy* Acrylic Protector Strip*

(on bench support rail)

Ballast, 100W Ballast, Face Tanner 400W Bearing, Nylon Floating* Bushing, Bronze 10mm* Canopy Mounting Arm

Capacitor, 1µF Capacitor, 75µF

Contactor Contactor for Face Tanner Cover, Canopy* Current Sensor Endcap Endcap, Canopy Head End Endcap, with Body Fan Cut-outs Face Tanner Assembly, Center* Face Tanner Assembly, Outer* Fan, Body Fan, 4” Fan Grill, Plastic* Filter* Gas Springs*

Hardware Kit, Complete* Hardware Kit, Assembly* Hour Counter* Ignitor Label, English Warnings Label, French Warnings Lamp Holder w/ Starter Lamp Holder w/o Starter Lamp Holder, Face Tanner* Lamps* Manual* Paint, Champagne Touch-up* Pillow* Relay Remote Connection PCB Remote Control Bypass Plug* Schematic Packet* Starter, K-12

(main lamps)

Support, Bench Acrylic* Thermostat*

(for face tanner)

Timer Timer Interlink PCB Timer Keypad Timer Keypad Pushbuttons* Trim Profile

(grey)

Wiring Harness, Keypad Link Wiring Harness, Remote PCB to Timer Wiring Harness, Timer in Tray Wiring Harness, RJ-11 Canopy to Tray*

* Not shown

Page 35

26868-01A

WHEN

What to do

After each use Monthly 400-500hrs 800-1000hrs

A. Clean/Disinfect Interior Surfaces* ✘ B. Clean Lamps* ✘ C. Clean Reflectors* ✘ D. Clean Exterior ✘ E. Check/Clean Fans† ✘ F. Change Lamps and Starters** ✘

H. Check Fasteners

(nuts, bolts, etc.)*

✘

I. Check Power Cords* ✘ J. Change Filter* ✘

* See Care and Maintenance ** See Lamp and Grill Replacement † Fans are located on top of the canopy, under the bench and at the side of the ballast drawer. Use a vacuum to clean.

MAINTENANCE LOG

What When What When What When

example B C D E 4/15/04

Page 36

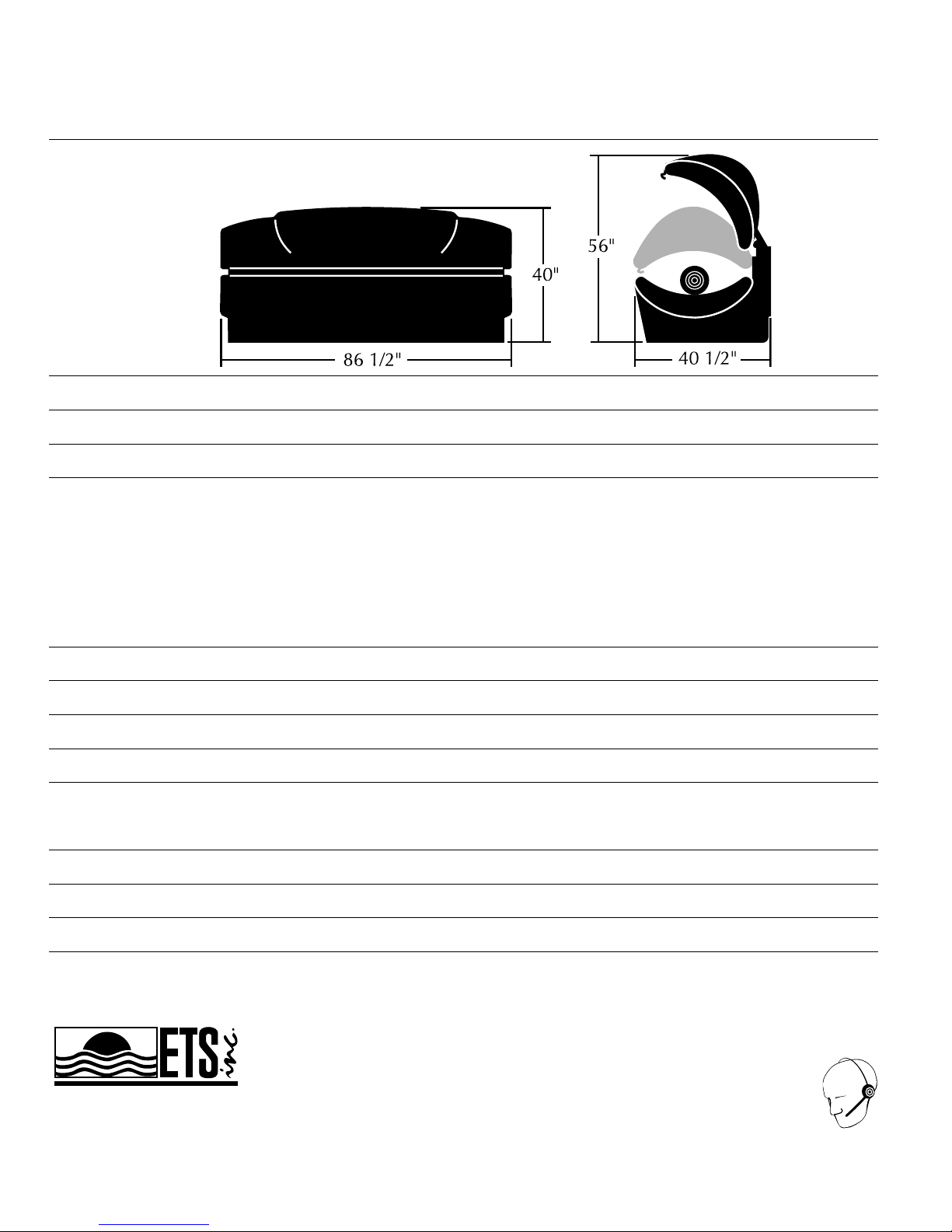

332ST 3F

Size

Weight (Pounds) 530 Minimum Room Size 6’ x 8’-3” Recommended Room Size 7’ x 9’ Electrical -

Voltage (AC) 220 Amperage 23A Circuit Breaker (Recommended min.) 30A Outlet Hardwire

Main Lamps DARK TAN™ PLUS Ballasts 100W Face Tanner SolarMax™ IFT FT Ballasts 400W Body Cooling System Full side fan panel

plus 230cfm “Turbo”

Timer System Digital Max. Exposure Time 10minutes Back-up Timer On-board “Watchdog” Remote Capability T-Max® compatible

Proudly manufactured in the U.S.A.
