ETS STARPOWER 548 User Manual

27330-01A

i

27330-01A

STANDARD 48 MONTH WARRANTY

Your ETS Distributor (including ETS, Inc. if purchased directly), through a manufacturer’s warranty, warrants
your tanning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime.
Your ETS Distributor will, at its discretion, repair any structural defect which materially affects the performance
of the tanning unit, or replace the tanning unit.

For forty-eight (48) months following the shipping date of your tanning unit, your ETS Distributor will provide
replacements for parts that prove to be defective in material or workmanship. Fluorescent lamps, and lamp starters
are warranted against manufacturer’s defects for a period of ninety (90) days following the shipping date of your
tanning unit. Acrylics will be warranted against manufacturer’s defects for a period of 2 years (prorated).

Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or
replacement work required to be performed for a period of one (1) year following the shipping date of your tan­ning unit. Normal wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting
from unauthorized repairs or modifications are not covered by this warranty. Warranty coverage does not include
cosmetic abnormalities such as scratches, nicks, dents, or other cosmetic changes that do not materially interfere
with the function of the tanning unit.

THIS STANDARD 48 MONTH WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or
modify this Standard 48 Month Warranty in any respect. To obtain service under this Standard 48 Month
Warranty, contact your authorized ETS Distributor (or ETS, Inc. if purchased directly). Proof of purchase, includ­ing serial number, is required.

IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUI­TY FOR ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE
PRICE RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR
SUBSTITUTE PRODUCTS, LOSS OF BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDI­RECT, SPECIAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of
incidental or consequential damages, and the above limitation or exclusion will not apply to residents of some
states. This Standard 48 Month Warranty gives you specific, legal rights and you may have other rights which may
vary from state to state.

All warranty service must be performed by an authorized service person. All labor charges must be authorized by
your ETS Distributor prior to the start of repairs and must not exceed the established rates and time allotment
policies established by your ETS Distributor. If your tanning unit must be returned for service, all freight charges
shall be at your expense. Contact your ETS Distributor for the authorized Service Center nearest you. This war­ranty is serial number specific and only applies to tanning units purchased through an authorized ETS Distributor.
This warranty is extended to the individual or legal entity whose name appears on the original sales document and
may not be transferred to any other individual or legal entity. This warranty is void if the tanning unit is modified
in any manner from its original design.

To obtain warranty service, contact your place of purchase. Proof of purchase, including serial num­ber, is required for verification. Contact ETS, Inc. onl

y if you purchased your equipment directly.

ETS, Inc. 7445 Company Drive, Indianapolis, IN 46237-9296

1-800-449-3605

In Canada call 1-800-661-6292 or 519-421-1212

27330-01A

ii

Welcome

Congratulations on your purchase of this technologically advanced sun tanning unit. It has been
designed to provide years of dependable service for you.

Please read all the instructions in this booklet before installing and using the unit. Always be sure to
observe all safety precautions.

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

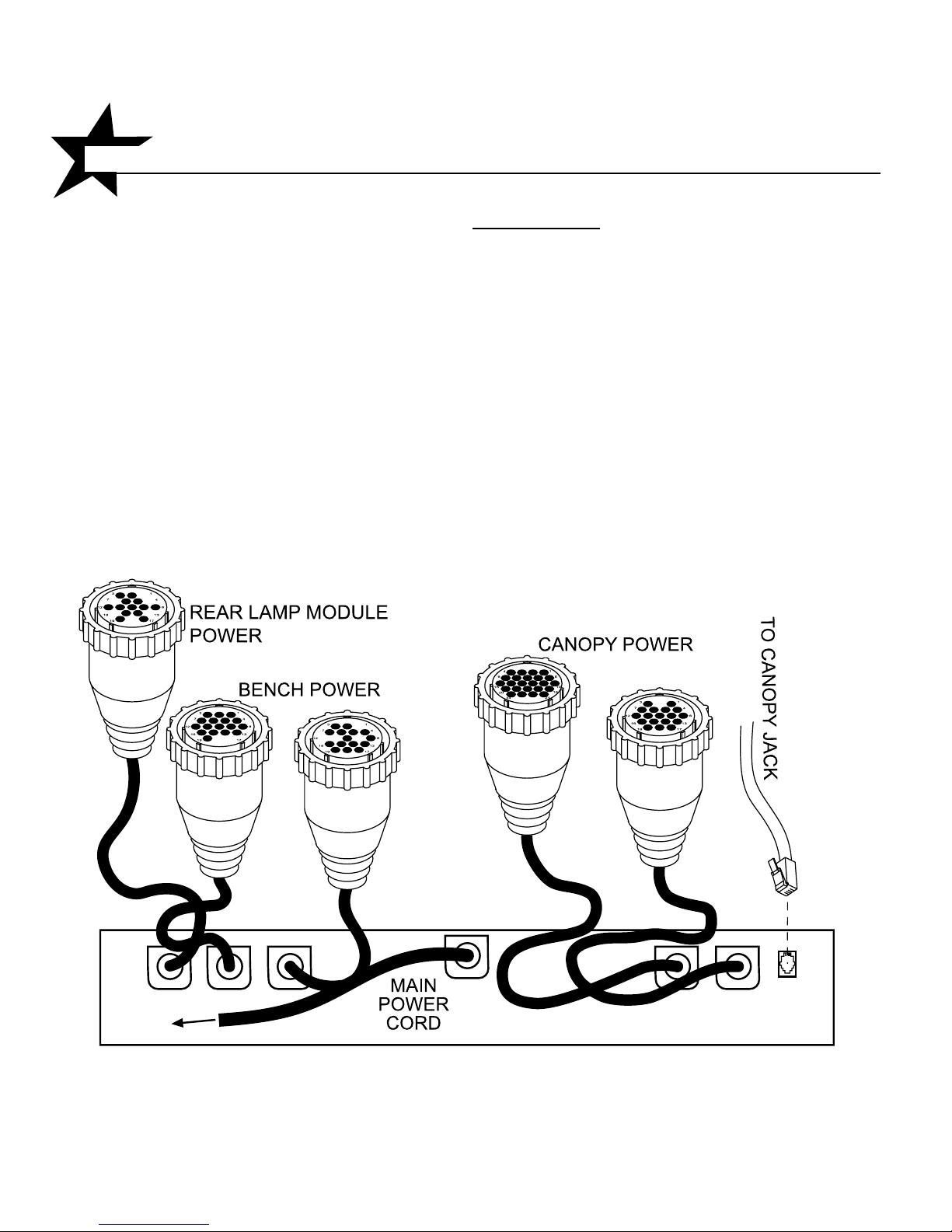

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Final Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

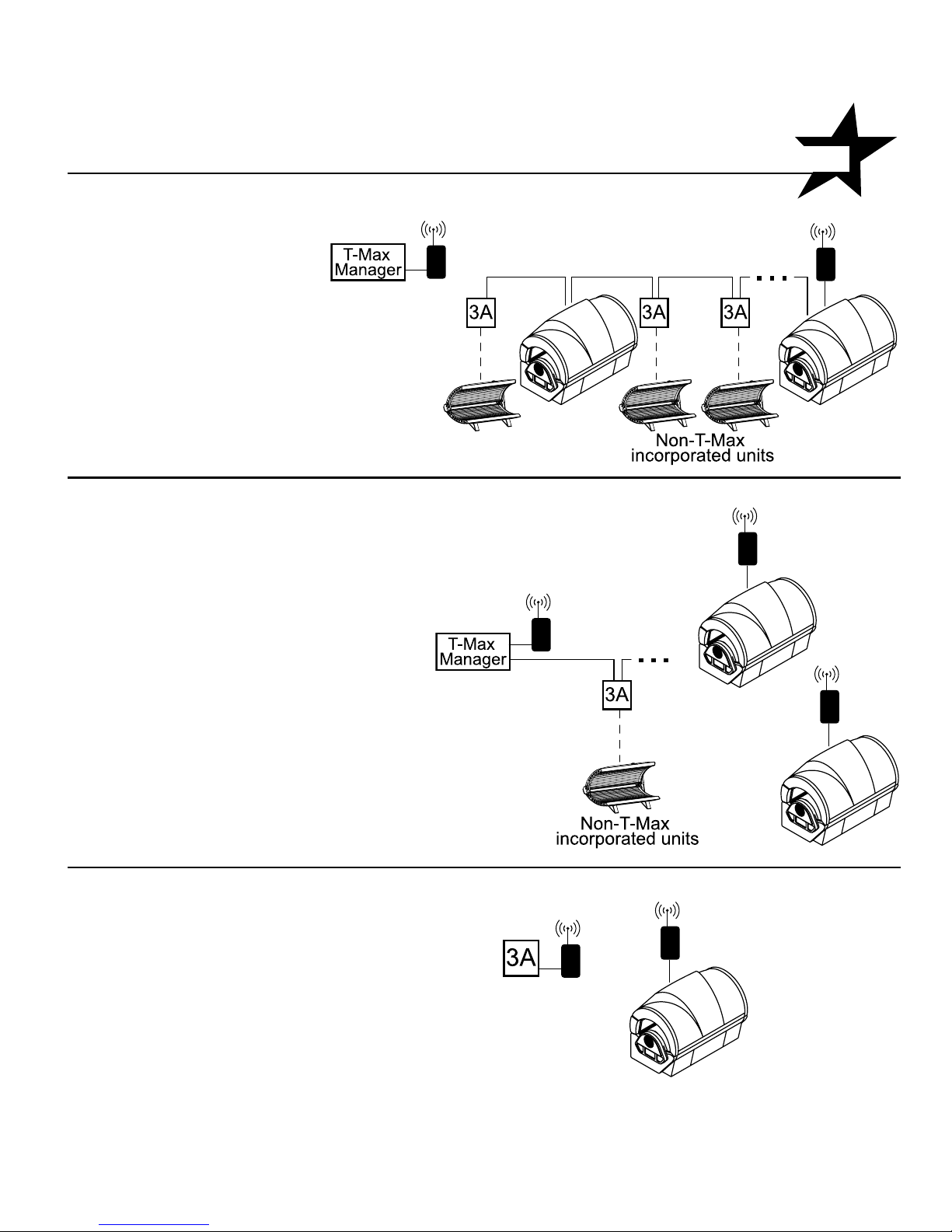

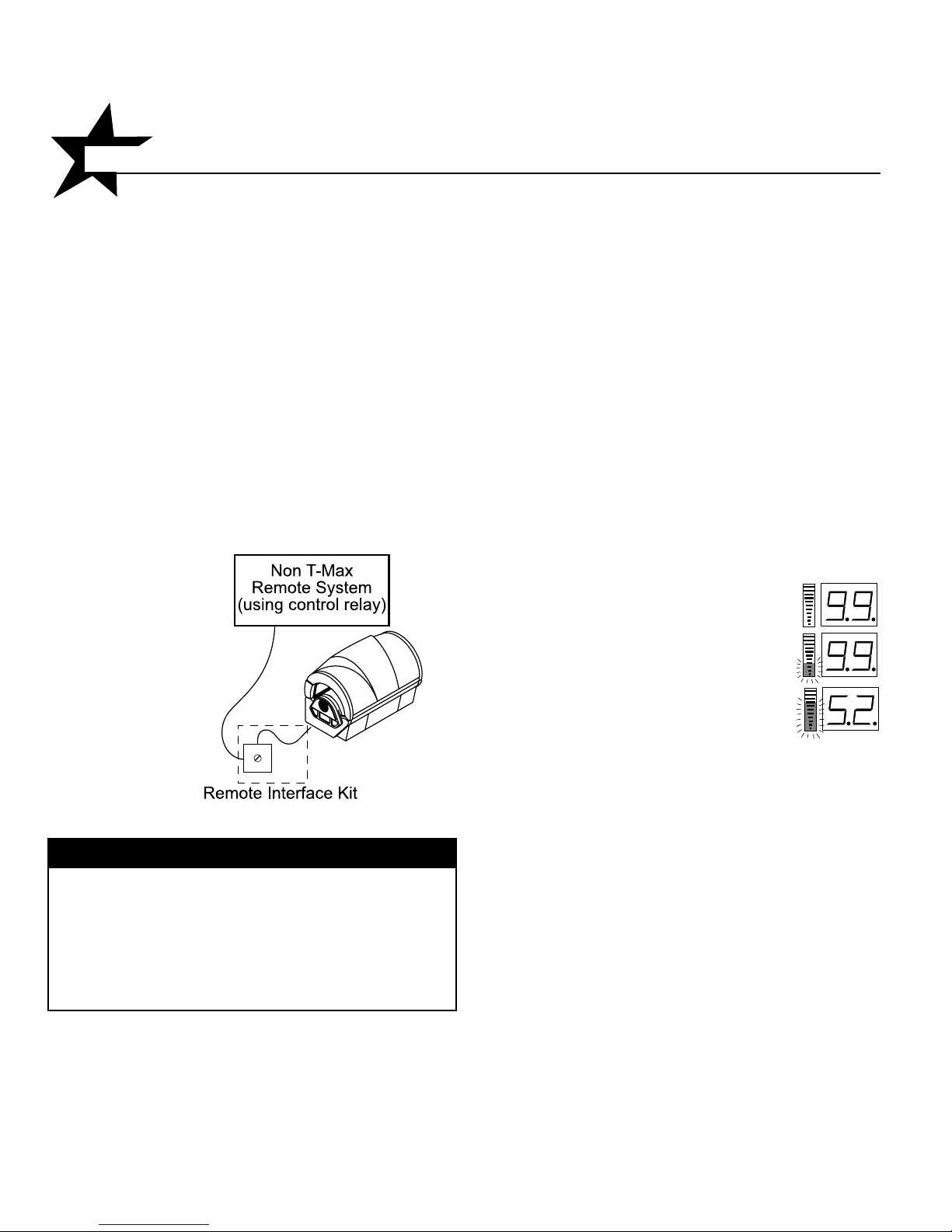

Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

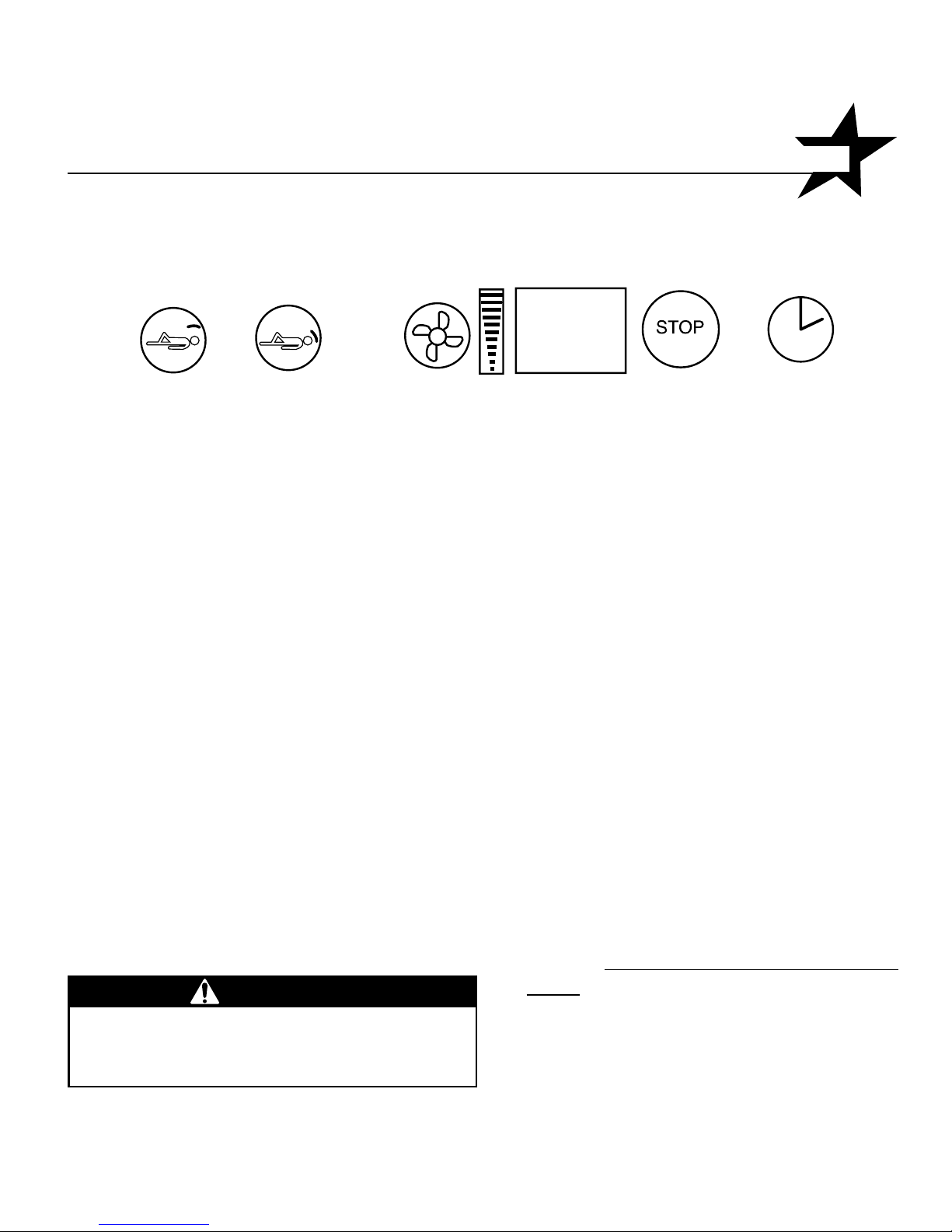

Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

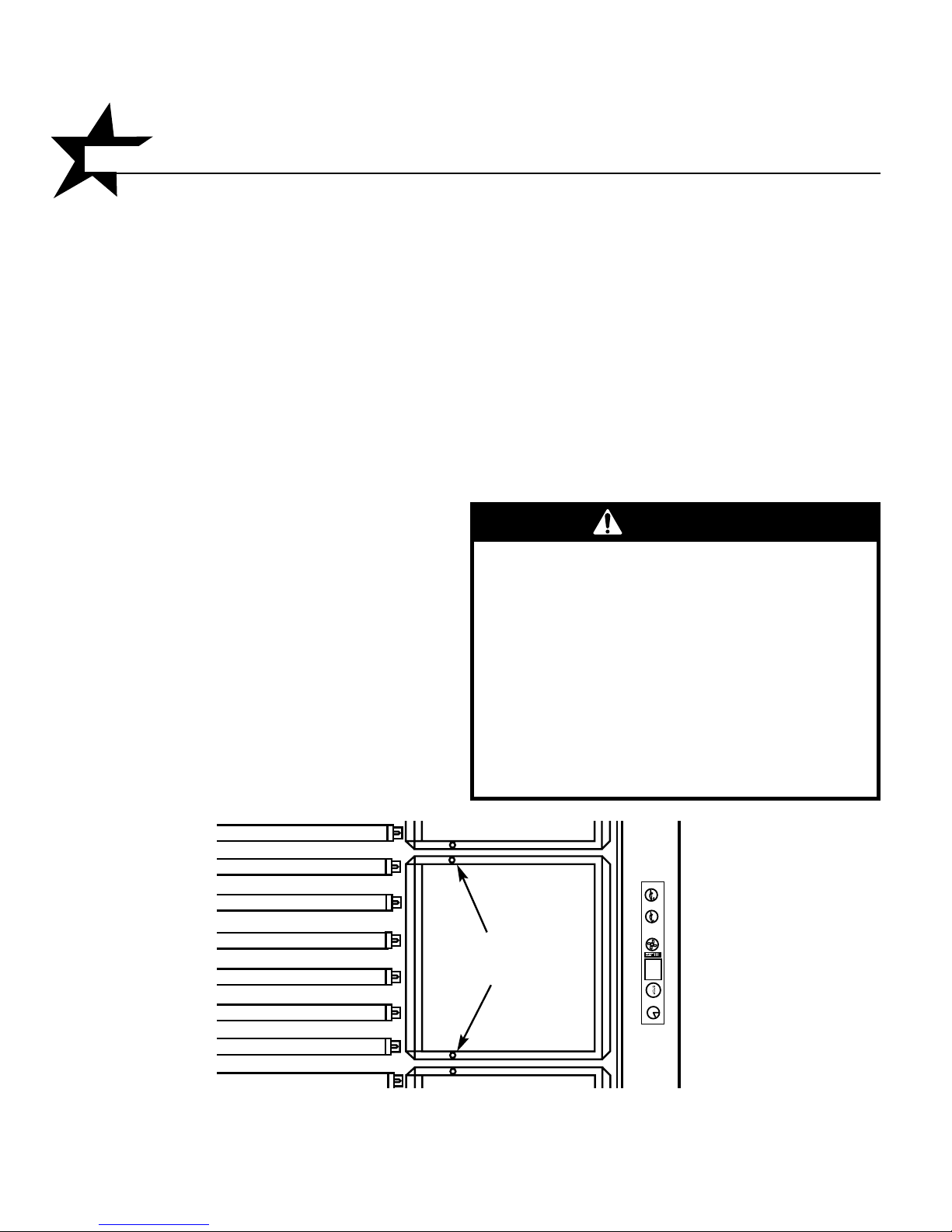

Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . .22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Contents

27330-01A

iii

Safety Information

Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause

eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are
using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you
are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan
or tan minimally should not use this equipment.

To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 3 inches (7.6 centimeters) between your
body and canopy clear plastic panel and side tanner clear plastic panel, otherwise overexposure may occur. Minimum use distance else­where is touching the clear plastic panels. Do not use without clear plastic panels in place. Untanned persons should not tan on con­secutive days during their first week of tanning. Never tan more than once a day. Tanning normally appears after the first few sessions
and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having
a base tan may begin at advanced levels corresponding to the extent of their base tan.

New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should
therefore be reduced by approximately 10% during that period.

WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear
when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types
of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If dis­comfort develops, discontinue use and consult a physician.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE 548:

BRONZING SUN™ PLUS Wolff® Model BSP 71-T12-100WR BI-PIN -or- SPEED® 225R Wolff® Model SPD71-T12-225R Bi-Pin (Bench lamps)
Velocity® VS-R™ Wolff® Model VEL71-T12-160W VS-R Bi-Pin -or- SPEED® 315VS-R Wolff® Model SPD75-T12-315VS-R VS-R Bi-Pin

(Canopy and side tanner lamps)

Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045 (SolarMax™ IFT facial unit)
COSMOLUX® RA plus 15504/40W (Shoulder unit)

THIS EQUIPMENT MUST BE EARTH GROUNDED.

This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.

88465

DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 12 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4

Subsequent

Skin Type:

1st-3rd Sessions Maximum

I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 2471012
III Normal (Burns moderately and tans average.) 3691212
IV Dark (Burns minimally, tans easily and above average.) 4 7 10 12 12

DANGER

27330-01A

iv

Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les

rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réac­tions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ
DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES
BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre
sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous
souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il
est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire
qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.

Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace d’au
moins 3 pouces (7,60 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure, afin d’éviter une expo­sition excessive. Les autres parties du corps peuvent toucher les panneaux de plastique transparents. N’utilisez pas la lampe sans les
panneaux de plastique transparents. La première semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se
faire bronzer tous les jours. Ne vous faites jamais bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître
après les premières séances : il atteint son apogée au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peu­vent commencer à des niveaux plus élevés, selon l’importance de leur hâle initial.

Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonction­nement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.

AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce
doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées: Les
coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes protectrices
peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices,ce produit peut causer des brûlures ou lésions oculaires
graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.

SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :

BRONZING SUN™ PLUS Wolff® Modèle BSP 71-T12-100WR BI-PIN -ou- SPEED® 225R Wolff® Modèle SPD71-T12-225R Bi-Pin (banc seulement)
Velocity® VS-R™ Wolff® Modèle VEL71-T12-160W VS-R Bi-Pin -ou- SPEED® 315VS-R Wolff® Modèle SPD75-T12-315VS-R VS-R Bi-Pin

(partie supérieure et appareil de bronzage à lampes latérales)

Heraeus E400 HPT -ou- Philips

Modèle

HPA 400/30s -ou- CosmoTech

Modèle

23045 (unité faciale)

COSMOLUX® RA plus 15504/40W (unité en bandoulière)

Cet équipement doit être mis à la terre.
Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie

1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.

88465

TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 12 MINUTES

Élevé 1/Semaine 1

Élevé 2 Élevé 3 Élevé 4

Sem. suivantes

Type de peau:

1

ere-3e

Temps maximal

I Peau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 2471012
III Peau normale (brûle et bronze de façon modérée) 3691212
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4 7 10 12 12

Débrancher l’alimentation électrique avant de nettoyer l’appareil ,

d’en faire l’entretien ou de changer les lampes.

DANGER

Renseignements sur la Sécurité

1

27330-01A

Installation

Unpacking and Inspection

The bench and canopy are each wrapped
in plastic. Remove the plastic and, with a
helper or two, grasp the canopy and pull
it from the carton bottom. Do the same for
the bench. Do not attempt to lift either

unit with the plastic still on as it may slip.
The endcaps on the canopy should not be
used to lift the unit. The ballast tray is

secured to the carton bottom with brack­ets. Remove these brackets from the bal­last tray with a Phillips screwdriver.

Note! The cartons are reusable. You may
wish to save them for future use.

After unpacking the unit, check to make
sure you have received the following:

• Canopy unit

• Bench unit

• Rear lamp module

• Ballast tray

• Access panel

• Two large bench endcaps

• Body fan kit

• Shoulder tanner kit

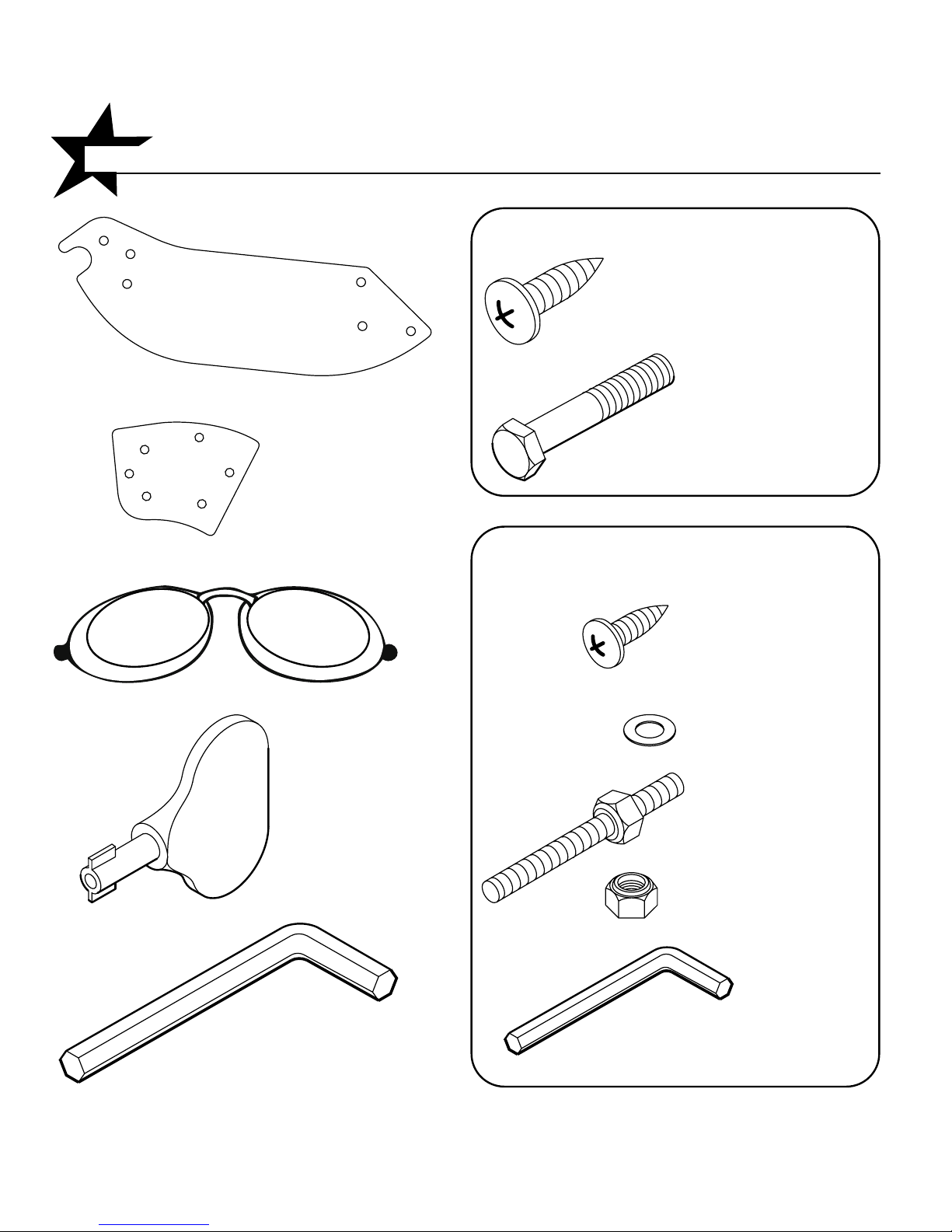

• Two bags containing necessary
assembly hardware, safety goggles, a
pillow and a tube of touch-up paint.

Inspect these items, including the canopy
and bench, to make sure they are free
from any visible damage. Report the
extent of any damage to the transportation
company.

Record the serial number of the unit in the
area provided at the back of this manual.
This information will be required whenev­er you call customer service.

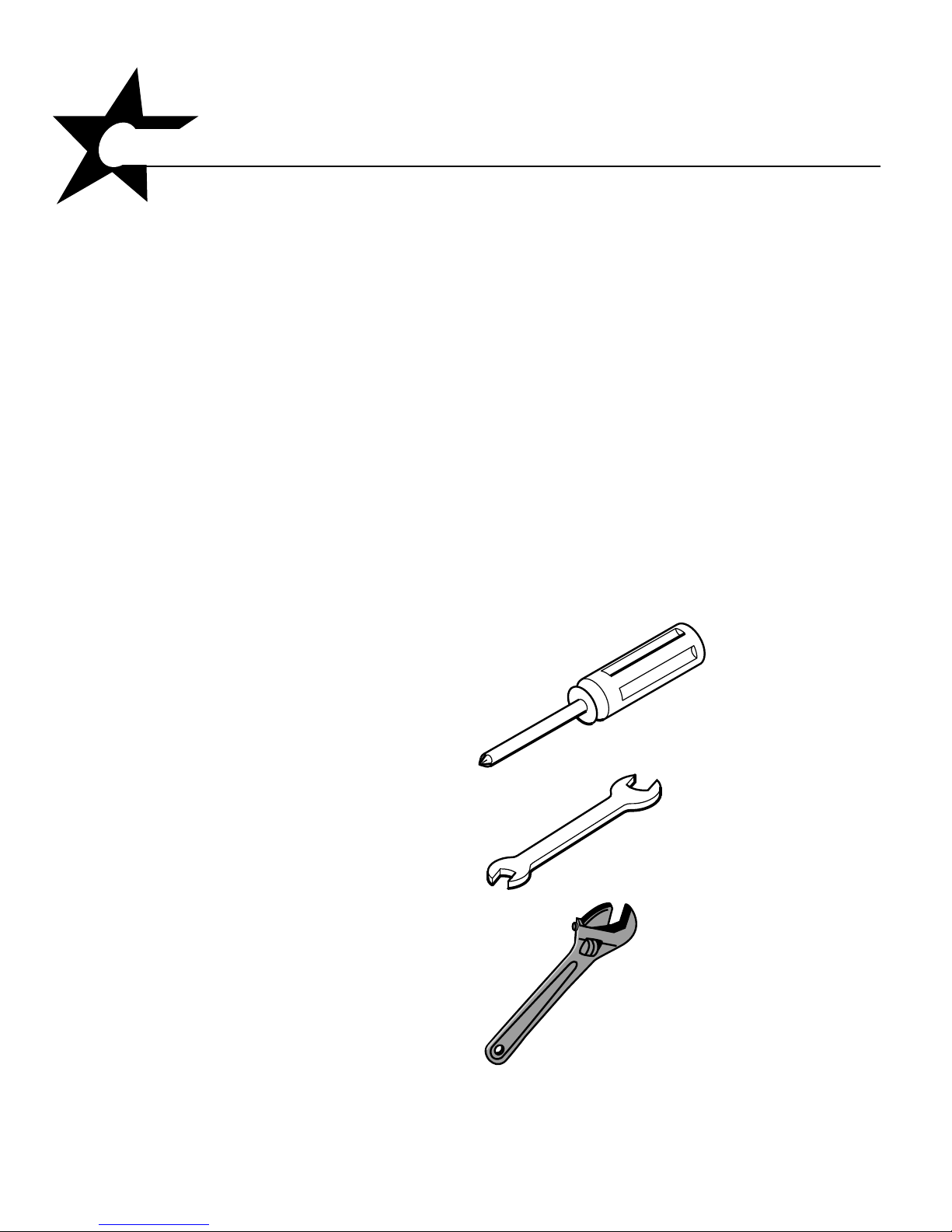

Tools Required

You will need the following tools to
assemble your sunbed.

#2 Phillips Screwdriver

-AND-

9/16” and 7/16” Wrenches

-OR-

Adjustable Wrench

2

Installation - Pre-Installation Planning

27330-01A

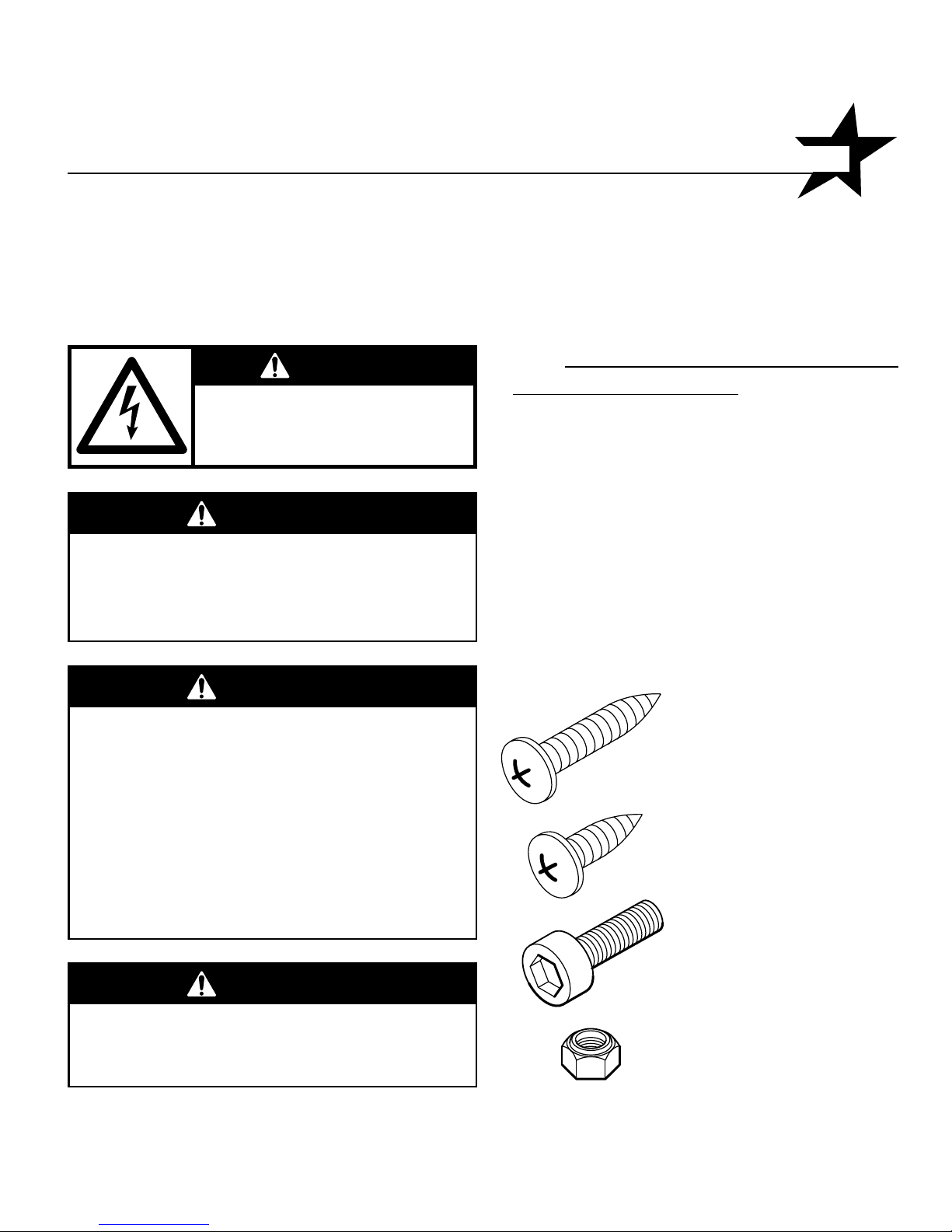

Pre-Installation Planning

Before you begin to assemble your
sunbed, you should observe the following
considerations.

WARNING

Shock hazard.
Disconnect power before

servicing.

Air from the room is used to cool the
sunbed. Maximum ambient room tem­perature should be 80°F. Place your
sunbed no closer than 6” from any wall.
Make sure nothing obstructs the airflow
into or out of the fan openings. A poorly
ventilated room may cause the unit to
become hot and cause discomfort to
the user.

CAUTION

Use of a voltage source above 230V AC
may prevent proper operation of the
sunbed and could cause damage and
void the warranty.

CAUTION

Proper assembly of your sunbed
requires four people. Plan to have a
few helpers assist you.

CAUTION

• The STARPOWER® 548 operates from a
220V AC power source. The unit should
be wired to a dedicated circuit capable
of providing 60 Amp service. This unit
must be hardwired directly to a junction
box. W

e recommend connection b

y a

professional electrician.

• IMPORTANT! Voltage must be below
230V AC or may require a Buck Booster.

Hardware Inventory

Open the hardware bags and remove the
hardware. In addition to a pillow, an RJ­11 (phone type) cable and touch-up paint,
make sure you have the following hard­ware items.

#10 x 1” Phillips

Pan Head Screw

Quantity 14

3/8-16 x 1 1/4”

Hex Socket Bolt

Quantity 18

3/8-16 Self-locking

Hex Nut

Quantity 18

#10 x 1/2” Phillips

Pan Head Screw

Quantity 12

3

27330-01A

Installation - Hardware Inventory

Safety Goggles

Quantity 1

Access Panel Key

Quantity 1

5/16” Allen Wrench

Quantity 1

Additional hardware in Body Fan box

#10 x 1/2” Phillips

Pan Head Screw

Quantity 5

1/4-20 x 1 1/2”

Hex Head Bolt

Quantity 4

Hardware in Shoulder Tanner box

#10 x 1/2” Phillips

Pan Head Screw

Quantity 4

5/16” Washer

Quantity 4

5/16-18 Stud

Quantity 4

5/16-18 Self-locking

Hex Nut

Quantity 4

1/4” Allen Wrench

Quantity 1

Canopy Adapter Arm

Quantity 2

Adapter Gusset

Quantity 4

4

Installation - Assembly Procedures

27330-01A

Assembly Procedures

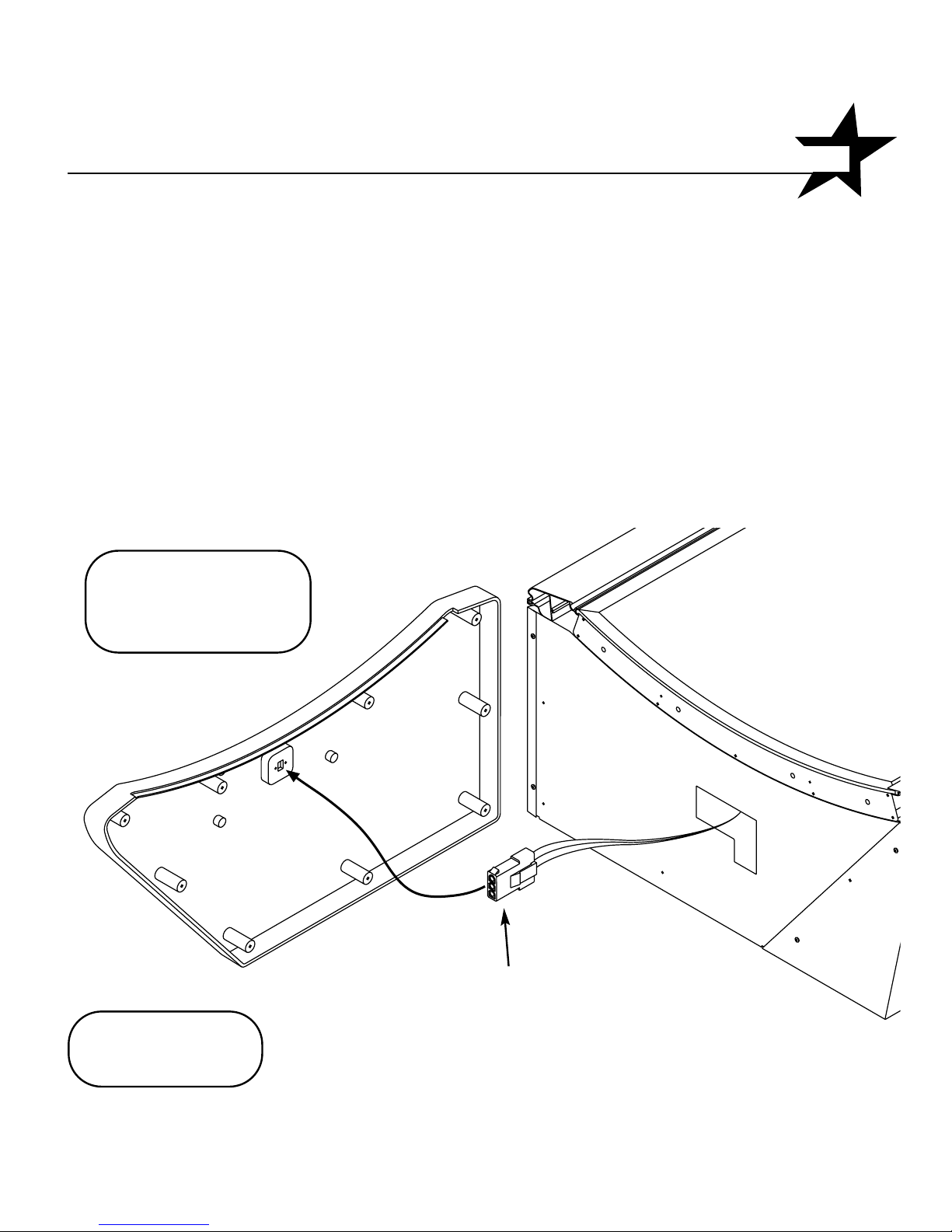

Before installing the bench endcaps you
must install the body fan power cord into
the foot end endcap, as shown below, and
the shoulder tanning unit power cord into
the head end endcap. The connector will
snap securely into the endcap.

BODY FAN POWER CORD

Snap body fan power
cord into hole in foot
end endcap.

Foot end endcap
shown.

5

27330-01A

Installation - Assembly Procedures

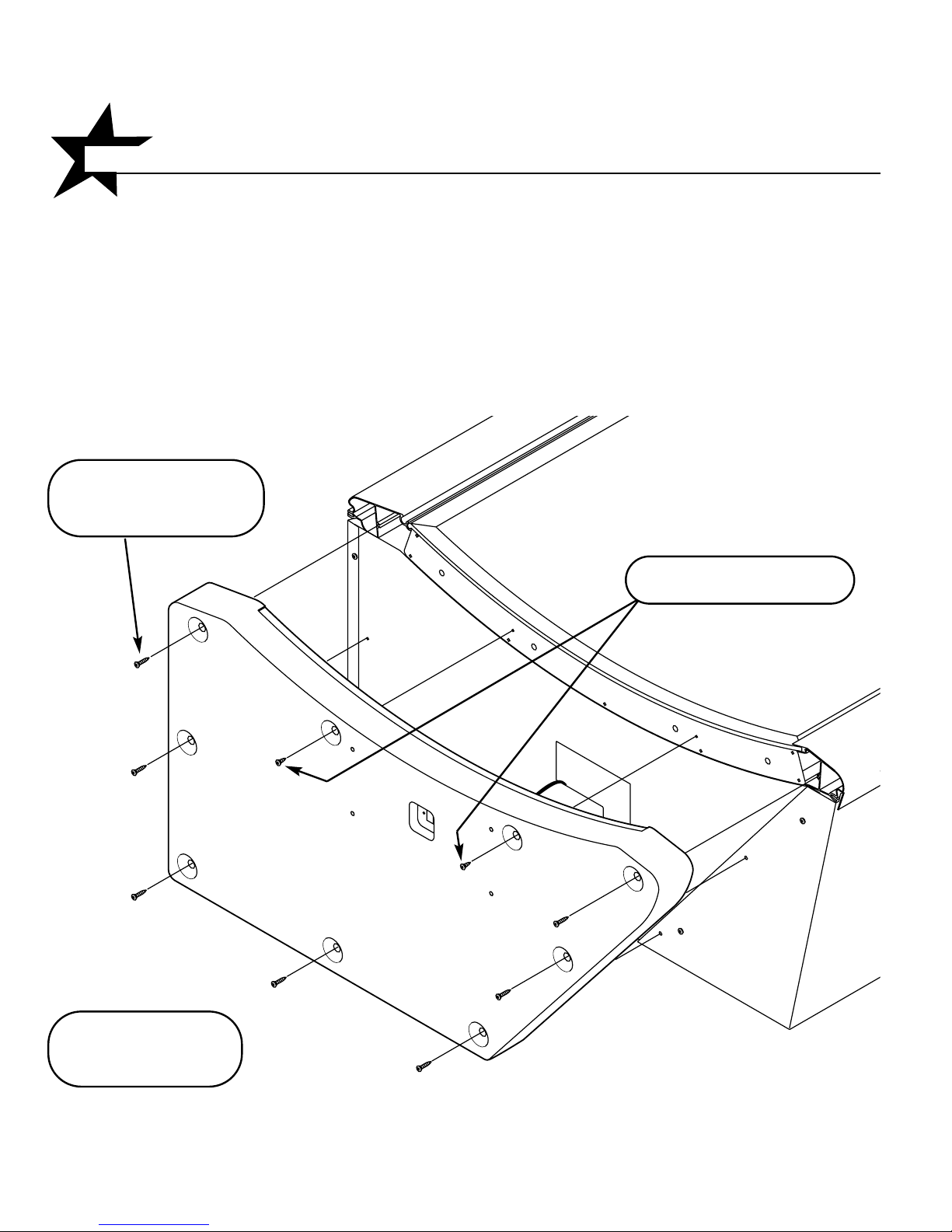

Parts needed:
Foot end endcap
Head end endcap
14 - #10 x 1” Phillips pan-head screws
4 - #10 x 1/2” Phillips pan-head screws

Attach endcap with
1” screws as shown.

Foot end endcap
shown.

Use 1/2” screws here.

6

Installation - Assembly Procedures

27330-01A

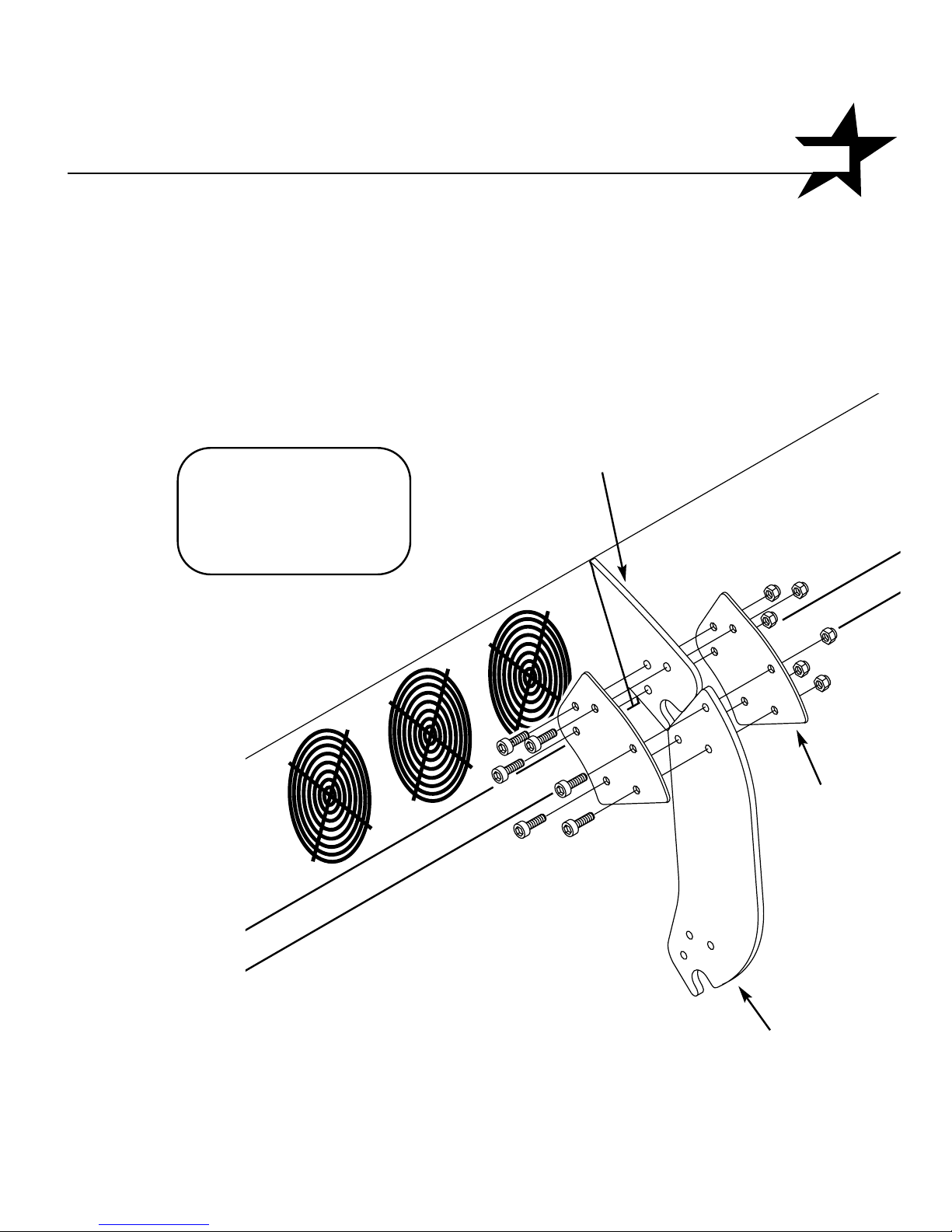

Attach adapter arms
to canopy arms using
two adapter gussets
and six bolts and nuts.

Parts needed:
Canopy
2 - Canopy Adapter Arms
4 - Adapter Gussets
12 - 3/8 x 1 1/4” hex-socket bolts
12 - 3/8” self-locking hex nuts

ADAPTER ARM

ADAPTER

GUSSET

CANOPY ARM

7

27330-01A

Installation - Assembly Procedures

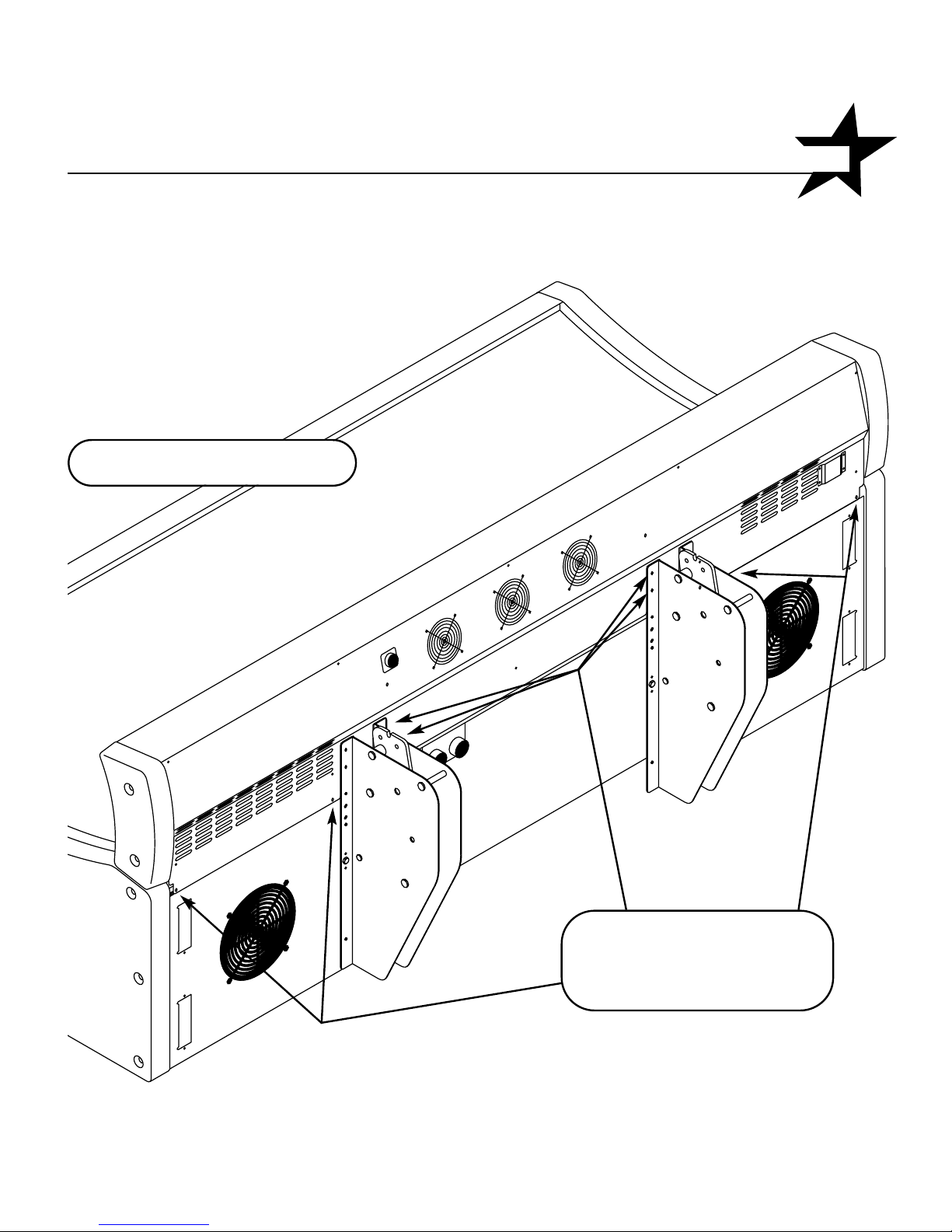

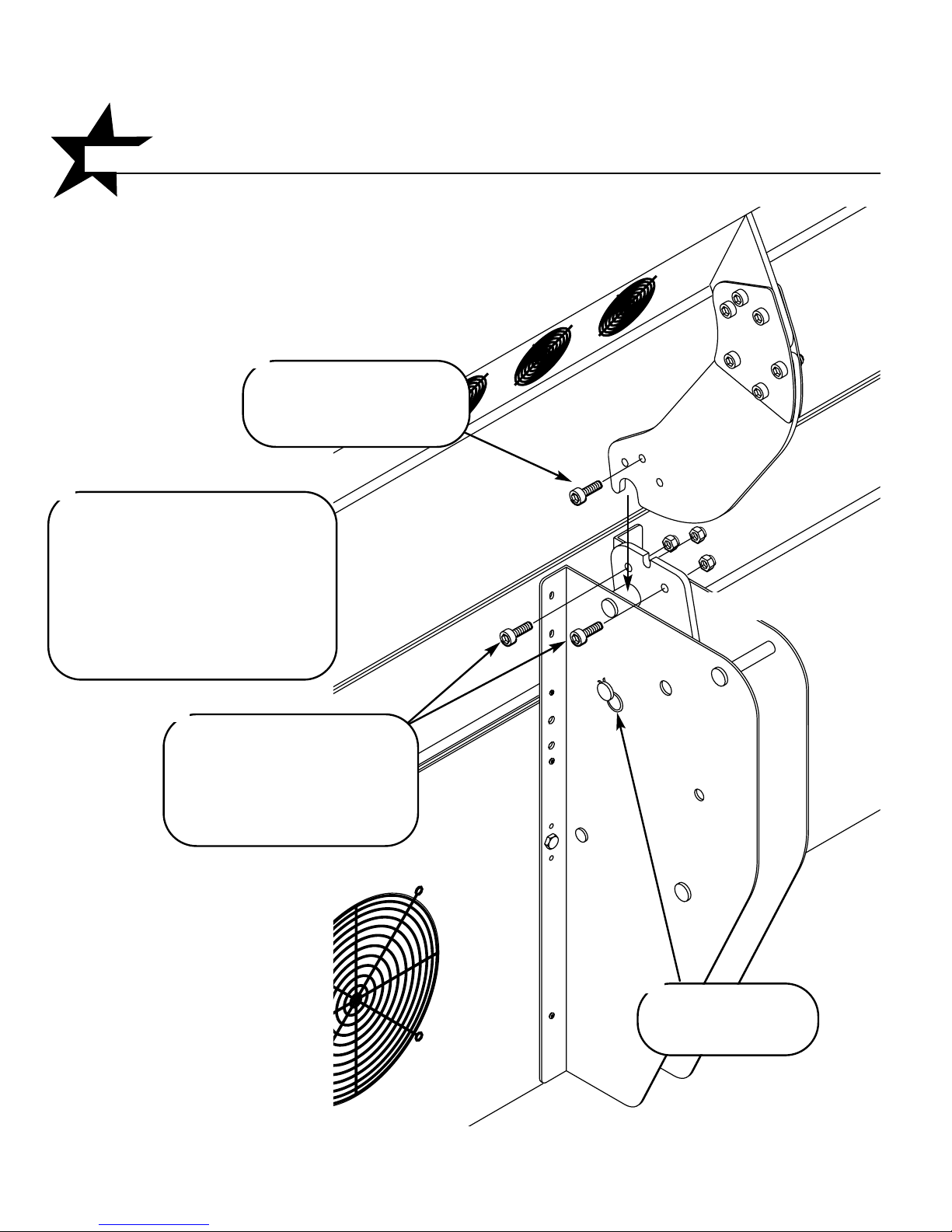

Install this bolt as a
positioning aide.

Slip canopy arm onto hinge
arm. Positioning bolt will
engage the slot on top of
hinge arm and hold canopy
up while the other bolts are
installed.

Install other bolts as
shown. Secure all six
bolts in place with self­locking nuts.

Parts needed:
6 - 3/8 x 1 1/4” hex-socket bolts
6 - 3/8” self-locking hex nuts

CANOPY

HINGE ARM

Remove this pin
and discard.

3

1

2

4

8

Installation - Assembly Procedures

27330-01A

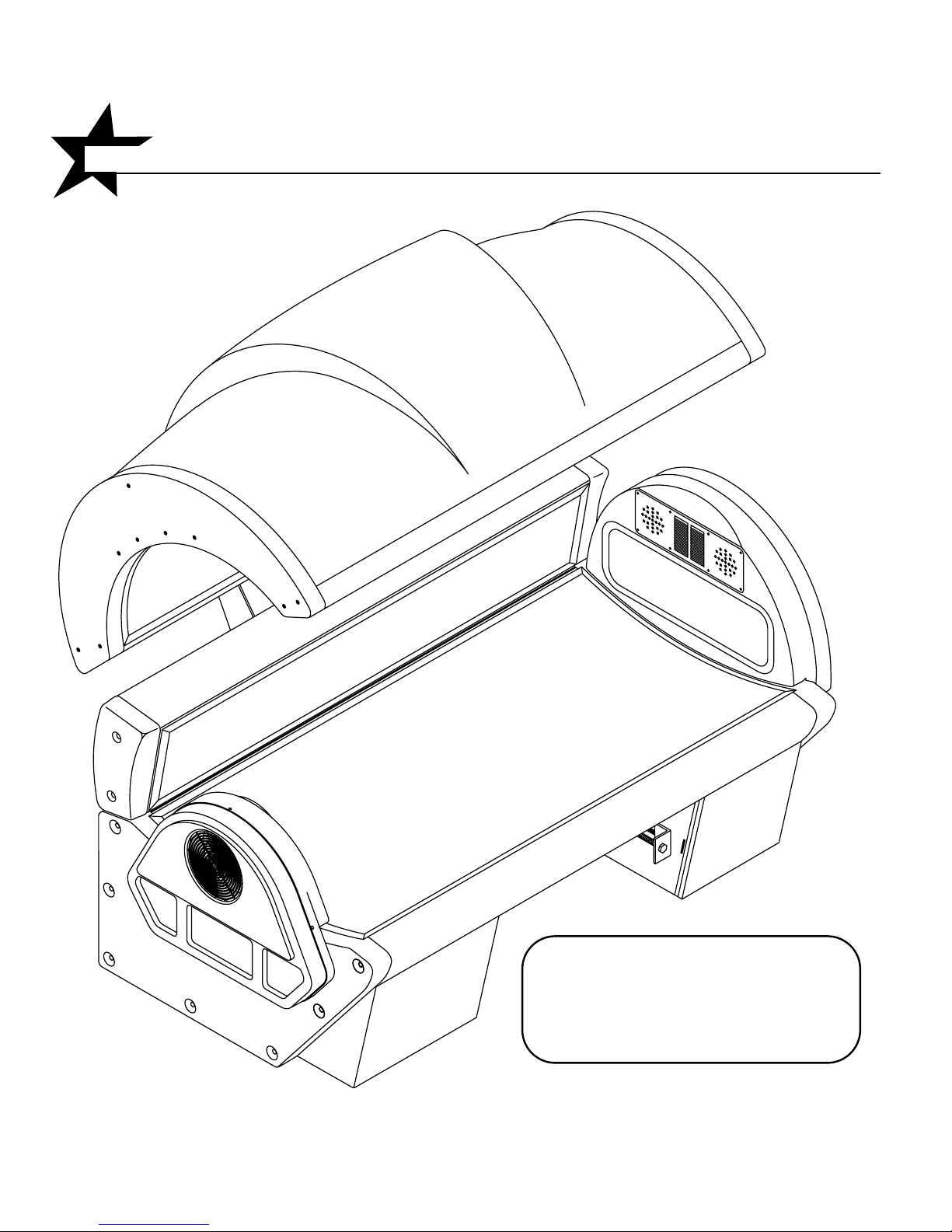

Parts needed:
Rear lamp module
8 - #10 x 1/2” Phillips pan-head screws

Secure rear lamp module
in place with 8 screws
where shown.

Canopy removed for clarity.

Installation - Assembly Procedures

9

27330-01A

Parts needed:
Body fan kit
Shoulder tanner kit

Install the body fan and shoulder
tanner as described in the
instruction sheets included in
their respective boxes.

10

27330-01A

Installation - Assembly Procedures

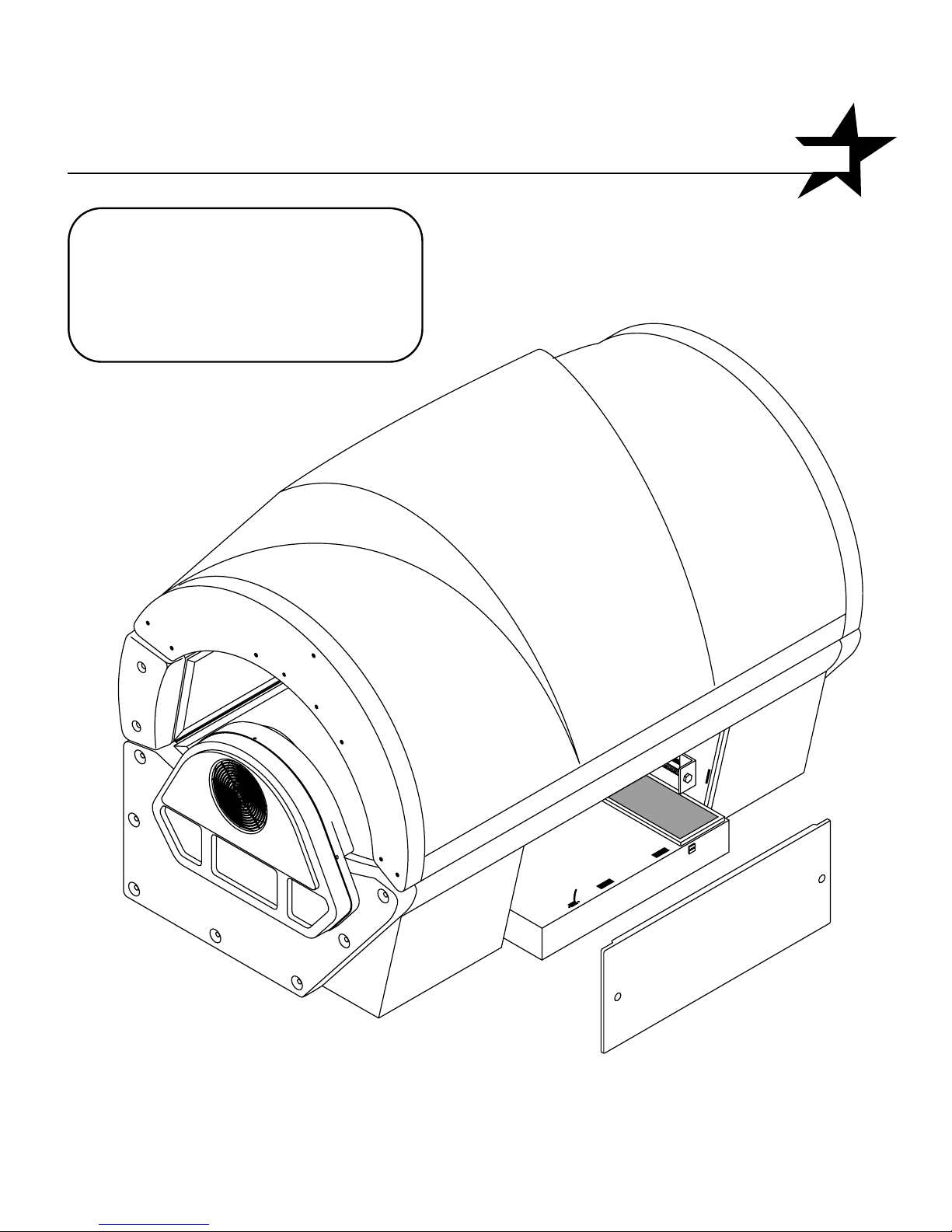

Slide the ballast tray under the unit
and pull the cords through to the
rear. Install the access panel by
putting it in place and locking
with the access panel key.

11

27330-01A

Installation - Electrical Connections

Electrical Connections

At the rear of the sunbed, connect the two
canopy power cords, two bench power
cords and rear lamp module cord from the
ballast tray to their respective power recep­tacles. Simply match the plug to the recep­tacle, push on firmly and secure by twisting
the threaded locking ring.

PIN CONFIGURATIONS MAY VARY FROM SHOWN

(Rear of ballast tray shown)

Connect the RJ-11 (phone type) cable
between the canopy and rear jack on the
ballast tray. The three jacks on the front of
the tray are for remote connections.
Connect main power cord as described in
Pre-Installation Planning.

Helpful Hint

: Line up the plug with the
proper receptacle and push in. Apply
pressure to the plug and twist the locking
ring counter-clockwise until you feel the
plug click into place. Then turn the lock­ing ring clockwise to secure it. The ring
will click when fully engaged.

12

27330-01A

Installation - Final Adjustments

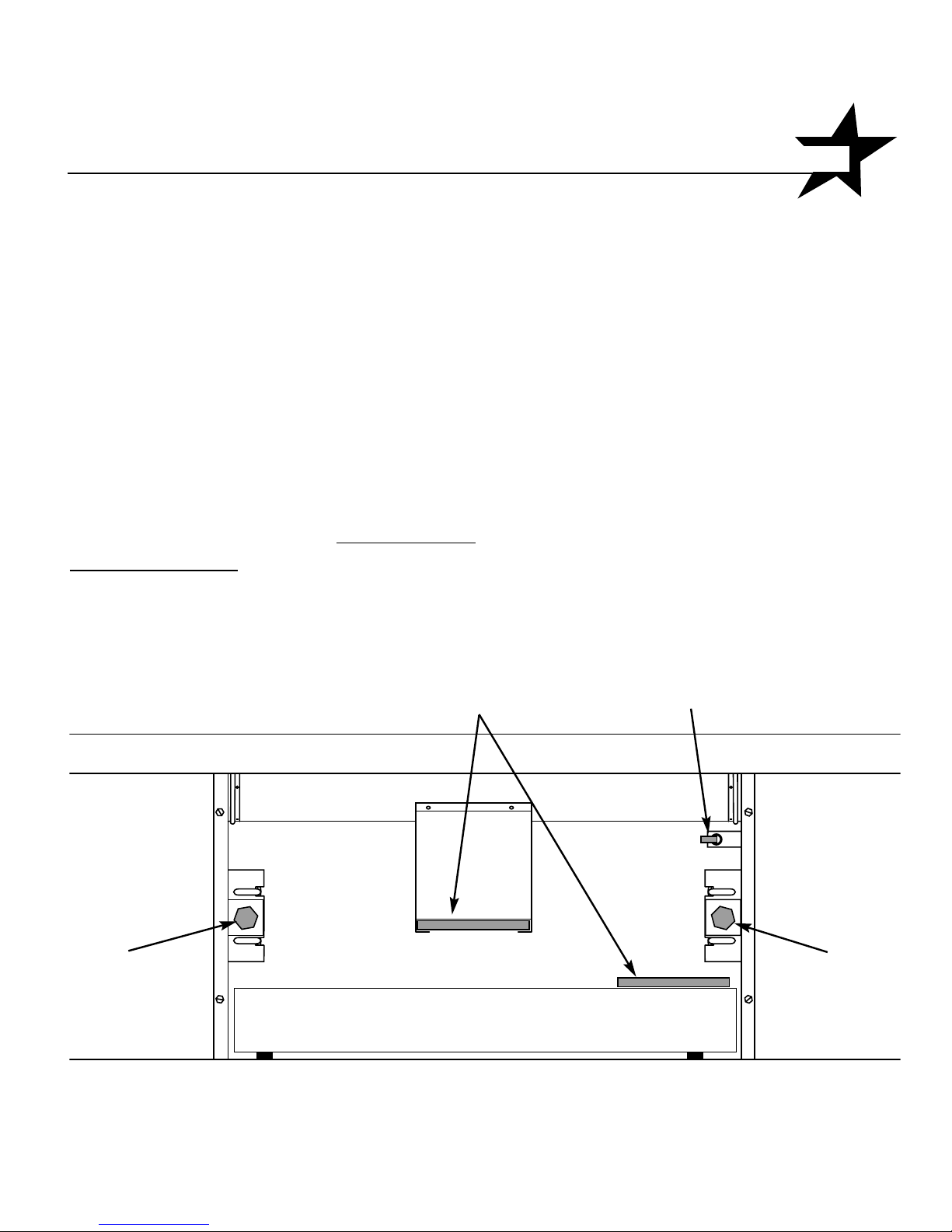

LIFT
ADJUSTMENT

MAINTENANCE HEIGHT

RELEASE HANDLE

AIR FILTERS

Final Adjustments

Your sunbed uses a smooth gliding spring
lift system to raise the canopy. This lift sys­tem may need to be adjusted slightly due
to shipment. Remove the front access
panel. Use a wrench to turn the hex
shaped Lift Adjustment lugs (shown
below), clockwise for more lift and coun­terclockwise for less. When adjusted
properly, the canopy should raise easily as
well as rest fully closed. Alw

ays adjust

both lugs equally.

Make sure the air filters are in place. The
filter on top of the ballast tray simply sits
over the vent holes. Airflow holds it in
place when the unit is on. The airflow
arrow on the side of this filter should point
down. The filter hanging under the bench
should be installed with the arrow point­ing up.

LIFT

ADJUSTMENT

27330-01A

Installation - Remote Connections

13

Remote Connections

Your sunbed incorporates advanced cir­cuitry allowing it to connect and commu­nicate with most remote control systems.
If a remote system is to be used, first
determine whether the remote system is a
T-Max® System or a standard remote sys­tem operating with a control relay. The
following pages outline many different
remote connection scenarios. Find the
scenario that best fits your application.

Three remote ports are located on top of
the ballast drawer at the front, two RJ-22
(4-wire) ports and one RJ-11 (6-wire)
port. A Remote Control Bypass plug is
already installed in one of the RJ-22
remote control ports. Your sunbed will not
operate without the Remote Control Bypass
plug or a remote system connected.

ATTENTION: Although the Remote
Control Bypass plug provided with your
sunbed will work wherever a T-Max® ter­minator is called for in the series, the T­Max® terminator will not work as a
bypass plug. Normally, a bypass plug is
needed only when your sunbed is operat­ed without a remote system connected.

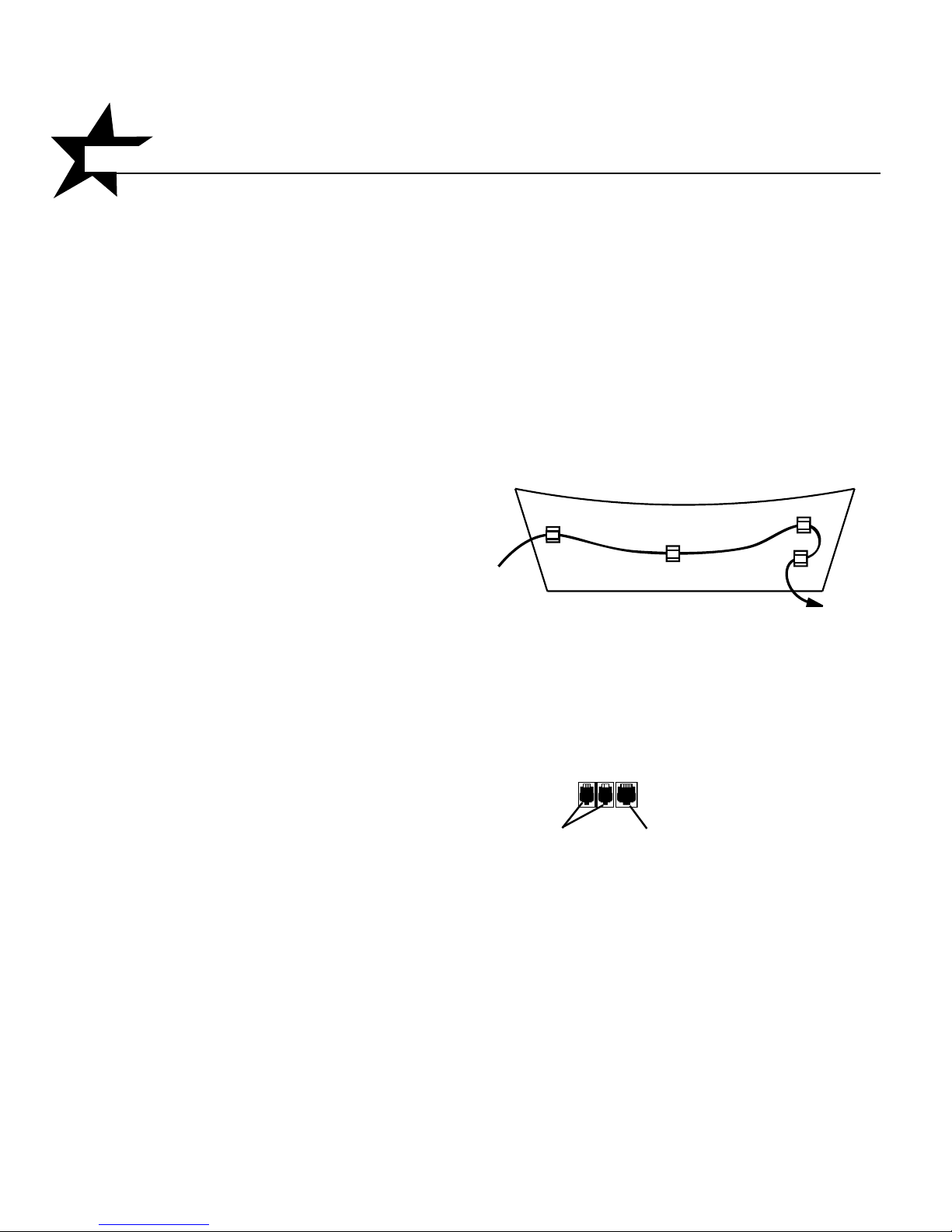

You will notice some wire clamps along
the side of the fan housing under the
bench. These are for the remote cables to
keep them out from under the ballast
drawer when rolling the drawer in and
out of the unit. Route the remote cables
as shown below, leaving some slack for
the drawer to roll out.

REAR

TO REMOTE
PORT

FAN HOUSING UNDER BENCH

REMOTE PORTS

WIRED

REMOTE

PORTS (RJ-22)

WIRELESS

REMOTE

PORT (RJ-11)

14

27330-01A

Installation - Remote Connections

CAUTION

The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The sunbed’s remote inter­face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
sunbed as well as void your warranty.

T-Max® Products

The T-Max® remote systems offer the ultimate
in sunbed control, while allowing the tanner
easy straightforward operation. Your sunbed is
configured to directly connect to this system,
including the new wireless remote system.
The circuitry inside your sunbed eliminates
the need for the T-Max® 1A or 3A when con­necting to the T-Max® Manager series. Your
sunbed supports the auto addressing feature
of the latest T-Max® Manager models and the
following parameters: 5, 6, 7, 8, 9, 10, 15 and

23. See your T-Max® manual for descriptions
of these parameters and how they function.

REMOTE PORTS

WIRED

REMOTE

PORTS (RJ-22)

WIRELESS

REMOTE

PORT (RJ-11)

T-Max® Wireless Remote System

The T-Max® AP-900 eliminates wires in your
salon, allowing easy setup without hiring an
electrician to run wires. It also protects your
investment from damage by isolating each
unit from one another. Your sunbed arrives
“wireless ready”, which means it connects
directly to the T-Max® wireless system.

The T-Max® wireless system is available in
two configurations: AP-900 Retail and AP-900
OEM. The Retail version contains a power
adapter which plugs into a standard 110V
outlet. The OEM version gets power from the
tanning bed through the same RJ-11 cable it
uses to communicate, eliminating the need
for an outlet. Tanning beds labelled “wireless
ready” use the AP-900 OEM.

Remote System Hook-up Scenarios

Follow the diagrams on the next page to see
the many different scenarios for hooking up
your salon. If you need further assistance, call
T-Max® directly at [phone].

15

27330-01A

Installation - Remote Connections

Scenario 1 - T-Max® Manager Series with wires

This system is ideal for multiple sunbed installa­tions. Simply connect the RJ-22 modu­lar cable(s), described in the T-Max®
Manager manual, into the remote
port(s) located on the ballast drawer and follow
the instructions that came with your remote
system. If you have an older T-Max® Manager
that does not support auto addressing, set
the address of each sunbed manually as
described in Setting the address manually.
You can place your sunbed at any location in
the series.

Scenario 2 - Single Bed wired to T-Max® 3A

In single sunbed installations, the T-Max® 1A and
3A can offer the same control as the T-Max®
Manager, eliminating the need for a Manager. If
you’re using a 1A in this manner, it must

have a
chip labelled “master” installed on its circuit
board. The remote control bypass plug must not

be
used in this configuration. The 3A may be used as
a “master” with no modification.

NOTE: A T-Max® 1A with a

“master” chip can be substituted

for a 3A.

Scenario 3 - T-Max® Manager
Series with Complete Wireless

Connect one AP-900 Retail to the
Manager and one AP-900 OEM
to each of the tanning beds.
Install as many beds as you like
with this configuration. Units that
do not communicate with T-Max
will need an AP-900 Retail and
an additional 3A to operate.

After you have set the T-Max® 1A’s, or 3A’s, address
to “0” (refer to your T-Max® user’s guide) and the
sunbed’s address to “1”, simply connect the RJ-22
modular cables, described in the T-Max® user’s
guide, directly into either of the smaller ports locat­ed on the ballast drawer and either port on the
back of the T-Max® 1A
or 3A.

16

27330-01A

Installation - Remote Connections

Scenario 4 - T-Max® Manager
Series with Wireless combo

Connect one AP-900 Retail to
the Manager and one AP-900
OEM to a wireless ready tanning bed. The rest
of the salon may be “daisy-chained” together
and connected to the wireless equipped tan­ning bed, eliminating the need to wire the
Manager to the tanning beds.

Scenario 5 - T-Max® Manager Series with
Wireless combo 2

Wireless can be easily added to an existing
salon already utilizing T-Max®. Connect one
AP-900 Retail to the Manager and one AP­900 OEM to each wireless ready tanning
bed. The rest of the salon may be “daisy­chained” together and connected to the
Manager.

Scenario 6 - T-Max 3A with Wireless

Connect one AP-900 Retail to the T-Max® 3A and
one AP-900 OEM to the tanning bed in single bed
installations.

17

27330-01A

Installation - Remote Connections

CAUTION

The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The sunbed’s remote inter­face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
sunbed as well as void your warranty.

Scenario 7 - Non T-Max® Remote System wired
to unit

Most non-T-Max® remote systems control the
sunbed by the use of a relay. The relay operates
the sunbed by connecting and disconnecting a
pair of wires leading from the sunbed. Refer to the
user’s manual provided with your remote system
to determine if it operates in this way. To connect
your sunbed to this type of system a remote inter­face kit is required. Contact your place of purchase
to obtain the kit. The illustration below details a
typical connection. Follow the instructions provid­ed with the kit and from the remote’s manual to
make the necessary connections.

Setting the sunbed address manually

Before connecting your sunbed to the T-Max®
Manager or T-Max® 1A or 3A, the address of
your sunbed must first be set. Set the “id” man­ually as described below.

Setting the “id”

1. Make sure no cables are plugged into
your sunbed’s remote ports.

2. Remove and reapply power to the unit.

3. Press and hold the stop button, located
on the sunbed display, for three seconds
and release. The display should indicate
an “id” number from “oF” to “252”.

4. If you are using a T-Max® 1A or 3A as a
“master” remote, the “id” of the sunbed
must be set to “1”. If you are using a T­Max® Manager each sunbed must be
assigned a different “id”. To set the “id”
press the timer button, to count up, or
the body fan control button, to count
down, until the desired number is
achieved.

5. Press the stop button to return to the
normal display mode.

1-99

100-199

200-252

27330-01A

18

Operation

RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 12 MINUTES

Level 1/Week 1

Level 2 Level 3 Level 4

Subsequent

Skin Type: 1st-3rd Sessions Maximum

I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 2 4 7 10 12
III Normal (Burns moderately and tans average.) 3 6 9 12 12
IV Dark (Burns minimally, tans easily and above average.) 4 7 10 12 12

Exposure Times

Follow the guidelines for skin type and
exposure times as shown in the table
below. Untanned persons should not tan
on consecutive days during their first week
of tanning. Never tan more than once a
day. Tanning normally appears after the first
few sessions and maximizes after approxi­mately four weeks. Tan once or twice per
week thereafter to maintain appearance.
Persons already having a base tan may
begin at advanced levels corresponding to
the extent of their base tan.

Before You Tan

Before using your sunbed, please note the
following important precautions.

• Your skin should be free of cosmetics,
oils, or other body lotions prior to tan­ning except for those specifically
made for use with tanning devices.
However, do not remove natural body
oils by bathing or showering immedi­ately before tanning.

• Your hair should be free of gels,
mousses, sprays, or other hair products
prior to tanning. These products can
cause damage to the sunbed acrylic.
As an alternative, a shower cap or
towel can be worn to keep treated hair
away from the sunbed surfaces.

• This unit intended for individual use.
Only one pair of eyewear is included.

DANGER

Some medication may increase your sensi­tivity to ultraviolet light. It is recommended
that you consult a physician before using
this sunbed if taking any medication or if
you suspect that your skin might be espe­cially sensitive to sunlight.

DANGER

Shock hazard.
Do not operate this device near water

or while you are wet.

19

27330-01A

Operation - Using Your Sunbed

1. Lift canopy, lie down on bench (face up),
lower canopy toward your body using
canopy handle. Maintain at least 3”
between your body and the canopy and
rear lamp module acrylics.

2. Put on your safety goggles.

3. Assuming the remote system has been set

to allow a pre-tanning delay time, the timer
display (E) will repeatedly flash the delay
symbol “dL” and then the remaining delay
time. Press the timer button (G) or wait
until the delay time has expired to begin
the tanning session. The lamps will turn on
and the timer will begin to count down.

4. When the timer reaches 0 the lamps turn off.
If you want to interrupt your session before
time expires, press the stop button (F).

5. Raise the canopy by using the canopy
handle, do not push up on the acrylic
shield. The cooling fans run for a period of
time after the lamps shut off to aid in cool­ing the sunbed. The timer will indicate “..”
as a reminder to clean the sunbed. After
the sunbed is cleaned press the timer but­ton and the display will return to “0”.

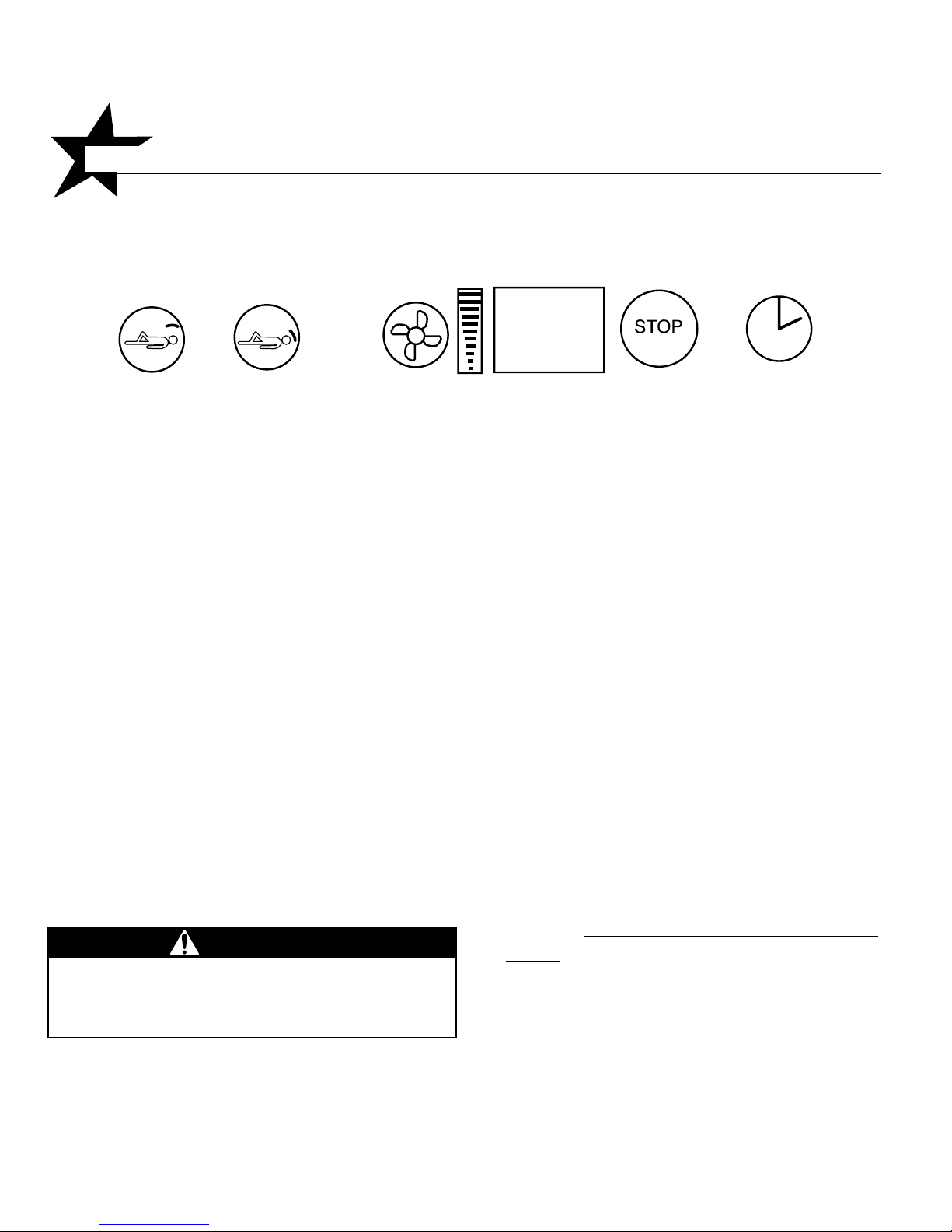

Using Your Sunbed

When connected to the T-Max® Manager or T-Max® 1A or 3A.

A Face tanner control - Turns face tanners

on and off during use. Face tanner
lamps require one minute to relight.

B Shoulder tanner control - Turns shoul-

der lamps on and off during use.

C Body fan control - Controls the speed of

the body fan during use. (At your feet)

D Body fan speed indicator - Indicates

speed of fan. (OFF - LOW - MED ­HIGH)

E Timer display - Displays remaining time.

F Stop button - Interrupts tanning session.

G Timer button - Turns bed on. Timer dis-

play shows remaining time.

AB CDEF G

WARNING

Wear protective eyewear.
Failure to may result in severe burns or

longterm injury to the eyes.

20

27330-01A

Using Your Sunbed

When used as a stand alone unit or when connected to a remote system using a control relay.

1. Lift canopy, lie down on the bench (face
up), lower the canopy toward your body
using the canopy handle. Maintain at least
3” between your body and the canopy
and rear lamp module acrylics.

2. Put on your safety goggles.

3. Press the timer button (G) to begin the tan-

ning session. The lamps will turn on and
the timer will begin to count down.

4. If a tanning time less than the displayed
time is desired, repeatedly press the timer
button (G) to decrease the remaining time.

5. When the timer reaches 0 the lamps turn
off. If you want to stop your session before
time expires, press the stop button (F). You
will have ten seconds to restart with the
remaining time, otherwise the timer will
reset to 0.

6. Raise the canopy by using the canopy
handle, do not push up on the acrylic
shield. The cooling fans run for a period of
time after the lamps shut off to aid in cool­ing the sunbed.

AB CDEF G

A Face tanner control - Turns face tanners

on and off during use. Face tanner
lamps require one minute to relight.

B Shoulder tanner control - Turns shoul-

der lamps on and off during use.

C Body fan control - Controls the speed of

the body fan during use. (At your feet)

D Body fan speed indicator - Indicates

speed of fan. (OFF - LOW - MED ­HIGH)

E Timer display - Displays remaining time.

F Stop button - Stops tanning session.

G Timer button - Turns bed on. Timer dis-

play shows remaining time. If a lesser
time is desired, press timer button until
desired time is displayed.

WARNING

Wear protective eyewear.
Failure to may result in severe burns or

longterm injury to the eyes.

Operation - Using Your Sunbed

27330-01A

21

Care and Maintenance

Cleaning After Use

Clean and disinfect your tanning bed’s
bench, canopy and rear lamp module after
each use. Use a non-abrasive disinfectant
cleaner that does not contain ammonia or
ammonia derivatives. Ammonia may dam­age the acrylic shield. Spray the acrylic
lightly with disinfectant and wipe dry with a
clean soft cloth. We recommend Australian
Gold® pH Neutral Disinfectant Cleaner.

Thorough Periodic Cleaning

Introduction

The cooling fans draw air through the bed
and over time will cause a dust buildup on
the lamps and reflectors. This will reduce
the tanning effectiveness of the bed. When
a dust buildup is observed, it is necessary to
thoroughly clean the inside of the unit.

Cleaning the Canopy and Bench

Step 1 Remove the acrylic shields and

lamps as described in Lamp and
Acrylic Replacement.

Step 2 With a soft cloth, wipe the entire

length of each lamp.

Step 3 Clean both sides of the acrylic

shields with a non-ammonia dis­infectant cleaner.

Step 4 Wipe the reflectors with a clean

damp cloth.

Step 5 Reinstall the lamps and acrylic

shields.

Step 6 Clean or replace air filters on top

of ballast tray and under bench
(see Final Adjustments). Replace
with 10” x 24” x 1” furnace filters.

Mechanical Inspection

Your tanning bed has been built for years of
service. To ensure trouble-free operation
throughout its life, inspect the unit’s
mechanical integrity every 400-500 hours
of use.

• Inspect the unit’s fasteners verifying
that all are firmly in place.

• Inspect lift adjustment. Adjust for prop­er lift if needed. See Final Adjustments.

• Inspect the AC power cord and its
connections.

• Inspect the acrylic. Broken, cracked

or
badly scratched acrylics should be
immediately replaced.

• Check damper operation. The
damper limits the canopy’s move­ment speed. Replace if canopy raises
and lowers too quickly.

WARNING

Shock hazard.
Disconnect power before removing

any protective covers.

22

27330-01A

Care and Maintenance - Lamp and Acrylic Replacement

Lamp and Acrylic Replacement

Introduction

To be assured of maximum tanning effec­tiveness, change 100W lamps after
approximately 800-1000 hours of use.
Change 160W lamps after 600-800 hours
of use. Tanning will continue after this
time but at a slower rate. To ensure trou­ble-free operation of your sunbed, replace
the lamp starters whenever the lamps are
replaced.

Maintenance Height Feature

The STARPOWER® 548 offers a conve-
nience feature when maintenance must
be performed. Behind the front access
panel is a release handle (see Final
Adjustments). With the canopy open, pull
this handle and raise the canopy to its
maintenance position, allowing easier
access to lamps, etc. When finished, sim­ply close the canopy to return to normal
operation.

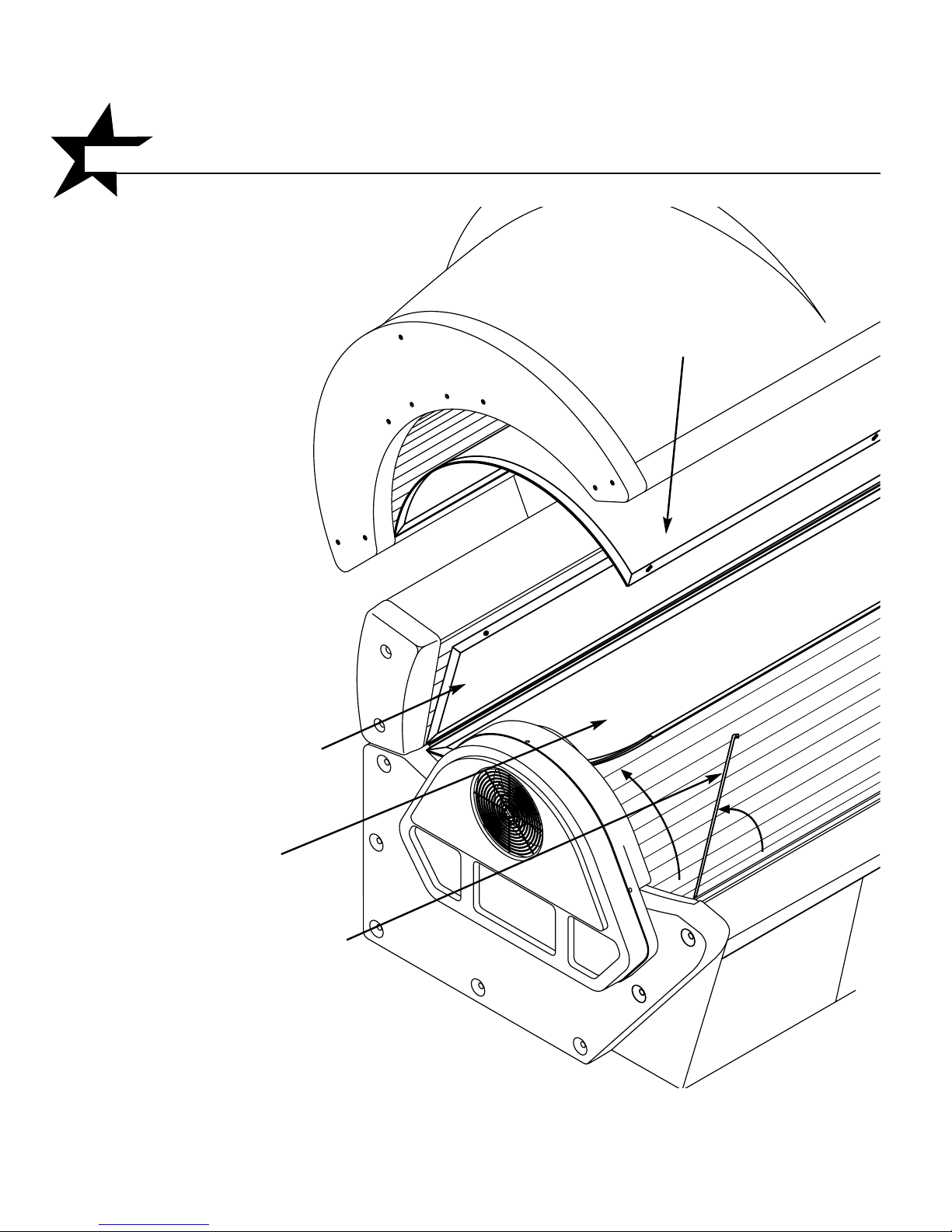

Opening/Replacing Acrylic Shields

Refer to the illustration on the next page
while reading this instruction. The acrylic
shield in the bench is secured in place by
two quarter-turn latches along the front
aluminum frame of the acrylic. The alu­minum frame around the acrylic offers
support as well as allowing the acrylic to
hinge open without removing it from the
bed. Use a coin or flat-bladed screwdriv­er to turn the latches a quarter turn to
open the acrylic. Standing in front of the
bed, lift the long edge of the acrylic. On
the inside of the bench, along the front,
are two supports for the bench acrylic.
Release them from their clips and swing
up to hold the acrylic open. You may
remove the acrylic by lifting it out of its
hinge channel along the back edge.

The other acrylics are held in place by
four quarter-turn latches each. The canopy
and rear lamp module acrylics also swing
open on a hinge and may be removed by
lifting out of the channel along the back
edge.

When you are finished, simply reverse the
above directions to secure the acrylic
shields.

WARNING

Shock hazard.
Disconnect power before removing

any protective covers.

23

27330-01A

Care and Maintenance - Lamp and Acrylic Replacement

CANOPY ACRYLIC

REAR LAMP MODULE
ACRYLIC

ACRYLIC SUPPORT

BENCH ACRYLIC

24

27330-01A

Care and Maintenance - Lamp and Acrylic Replacement

Removing/Replacing Lamps

After opening (or removing) the acrylic
shields, replace lamps as follows.

Step 1 Grasp a lamp at one end and at

the middle and turn the lamp
one quarter turn. Gently remove
the lamp from its holders.

Step 2 Reinstall the lamp by inserting

the pins located on the ends of
the lamp into the slots on top of
the lamp holders and turn the
lamp a quarter turn. It should
click in place.

Recommended Replacement Lamps

We recommend using the lamps specified
below. Use of uncertified lamps is a viola­tion of Federal regulations and will void
your warranty. The 100W lamps have an
average life of 800-1000 hours of effective
tanning use. The 160W lamps have an
average life of 600-800 hours. Lamps used
longer than that begin to lose their effec­tiveness even though they continue to light.

Recommended Replacement Acrylics

Acrylics vary greatly over time in their
ability to effectively transmit UV light.
Acrylics sold by ETS have been life tested
to ensure proper transmission throughout
their useful life.

ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT:

Bench lamps

BRONZING SUN™ PLUS Wolff® Model BSP 71-T12-100WR BI-PIN -or-
SPEED® 225R Wolff® Model SPD71-T12-225R Bi-Pin

Canopy and rear lamp module lamps

Velocity® VS-R™ Wolff® Model VEL71-T12-160W VS-R Bi-Pin -or-
SPEED® 315VS-R Wolff® Model SPD75-T12-315VS-R VS-R Bi-Pin

SolarMax™ IFT facial unit

Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045

Shoulder tanner

COSMOLUX® RA plus 15504/40W

27330-01A

25

Removing/Replacing Face Tanner
Lamps

After removing the canopy and/or rear
lamp module acrylic shields, replace the
face tanner lamps as follows:

Step 1 Support the face tanner assembly

with your hand while unscrew­ing the two retaining screws. The
face tanner glass casing will
swing downward.

Step 2 The lamp can now be

exchanged. The lamp holders
are equipped with spring con­tacts which enable the lamp to
be removed easily. Remove the
old lamp and discard. Install the
new lamp, using a clean cloth
or paper towel. Ensure that the
lamp is firmly seated in the
lamp holders.

Note! Never take hold of the lamp such
that your fingers are in contact with the
lamp glass. Finger oils will greatly reduce
the lamp’s operational life.

Step 3 Gently close the face tanner

glass casing and lock it closed
with the screws. Ensure that the
screws firmly secure the glass
casing.

RETAINING

SCREWS

DANGER

Unfiltered light from face tanner can
cause severe burns.
Never turn sunbed on while face
tanner is disassembled or when
glass filters are removed.
Immediately discontinue use of this
equipment if face tanner glass is
broken or any unfiltered light can be
seen escaping face tanner assembly.

Care and Maintenance - Lamp and Acrylic Replacement

27330-01A

26

Problem Solution

Sunbed not tanning

Lamps fail to light and timer dis­play is blank

The last minute of tanning time
does not count down from 59 sec­onds, but some time less than 59
seconds

One or more lamps fail to light

The face tanners will not
come on

The canopy will not stay up /
The canopy will not stay down

My canopy opens and closes too
fast (slamming, not enough resis­tance)

I forgot what address, or “id”, I set
my sunbed to

1. Clean sunbed, see Thorough Periodic Cleaning.

2. Ensure supply voltage is between 208 and 230V AC.

3. Replace lamps if lamp hours are greater than 800hrs.

4. Replace acrylic.

1. Make sure the unit is connected to a power source.

2. Check source of AC power. Reset circuit breaker or replace fuse.

If the timer button has been pressed to decrease tanning time
during the session, the time expired in the current minute is
subtracted from the last minute.

1. Check that lamp is installed correctly.

2. Switch unlit lamp with a lamp that lights, if new lamp lights
and old lamp still does not, replace old lamp.

1. Face tanner operation is initially delayed by 5 seconds.

2. Face tanners will not relight until cooled.

3. Replace face tanner lamp, see Removing/Replacing Face
Tanner Lamps.

Your sunbed uses a smooth gliding spring lift system to raise
the canopy. This lift system may need to be adjusted slightly
from time to time. See Final Adjustments for proper adjustment
procedures. The canopy should raise easily as well as rest fully
closed.

Your sunbed utilizes a damper which limits the canopy’s
movement speed. This also serves as a safety device in case of
spring lift failure as the canopy will not crash down. Replace
the damper on back of unit.

By holding the body fan button for 3 seconds the timer display
will briefly display three numbers; the installed timer software
version, a factory set timer code and then the sunbed’s “id”
number.

Troubleshooting

27330-01A

Troubleshooting

27

Problem Solution

Timer display is indicating Er 91

Timer display is indicating Er 92

Timer display is indicating Er 93

Timer display is indicating Er 94

Timer display changes to indicate
a tanning time after the timer but­ton is pressed but lamps do not
come on

My bed is connected to the T­Max® Manager remote system and
when the delay time has expired
the timer display starts counting
down but the bed lights do not
come on

My bed won’t work with the T­Max® Manager remote system

Timer display continues to show a
0 after the timer button is pressed

Timer software error. Disconnect and reapply power to the unit.

Current sensor indicating unit is off when it should be on.
Contact servicer.

Current sensor indicating unit is on when it should be off.
Contact servicer.

Requested session time exceeds maximum time allowed.

1. Bypass plug is not installed, see Remote Connections.

2. A non-SunStar® bypass has been used. See Remote
Connections.

3. If remote is being used, other than T-Max® Manager, the
external timer may not be activated.

4. Remote wiring is incorrect, see the instructions provided with
the remote interface kit.

The auto start feature of the remote system is disabled, see the
instructions provided with your remote system.

1. The sunbed must first be set to a unique address, see Remote
Connections.

2. The bypass or terminator plug may be installed in the series in
an inappropriate location. Plug the bypass plug only into the
bed at the end of the series.

1. T-Max® Manager remote system has not yet been set.

2. Sunbed address is not set correctly, see Remote Connections.

Troubleshooting

27330-01A

28

Problem Solution

My bed is connected to a T-Max®
remote system but I am having
trouble getting into “id” mode

My bed, connected to a T-Max®
Manager, did not display “dL” but
does indicate:

“0”

a tanning time and the lamps
have come on
a tanning time but the lamps
have not come on

When auto-addressing the first
bed does not register an “id”

When using a T-Max® 1A my
sunbed won’t function properly

My salon suffers frequent, short
power outages and clients com­plain about losing session time

You have probably attempted to connect your sunbed to the
remote system already. Disconnect the remote plug(s) from the
ports at the front of the ballast tray, wait 90 seconds and try again.

1. Remote device has not been set.

2. The sunbed has not been connected to the remote system, see
Remote Connections.

1. Delay time of T-Max® Manager has not been set.

2. Delay time has expired and session has begun.
Auto start function of T-Max® Manager has been turned off.
Press the timer button to turn on lamps.

When using the auto address feature of the T-Max® Manager
you must wait 10 seconds from the time you start the auto
address function before addressing the first bed.

SunStar® Bypass plugs or terminator plugs may be needed if
the T-Max® 1A and the sunbed are over 100 feet apart. Install
the plugs in the open remote port in the sunbed and the T­Max® 1A.

If you have a T-Max® Manager, changing parameter 23 from
“0” to “1” will allow the tanning bed to remember how much
time was left when power goes out and resume its session after
power is restored. Consult your T-Max® Manager manual for
information on setting parameters.

27330-01A

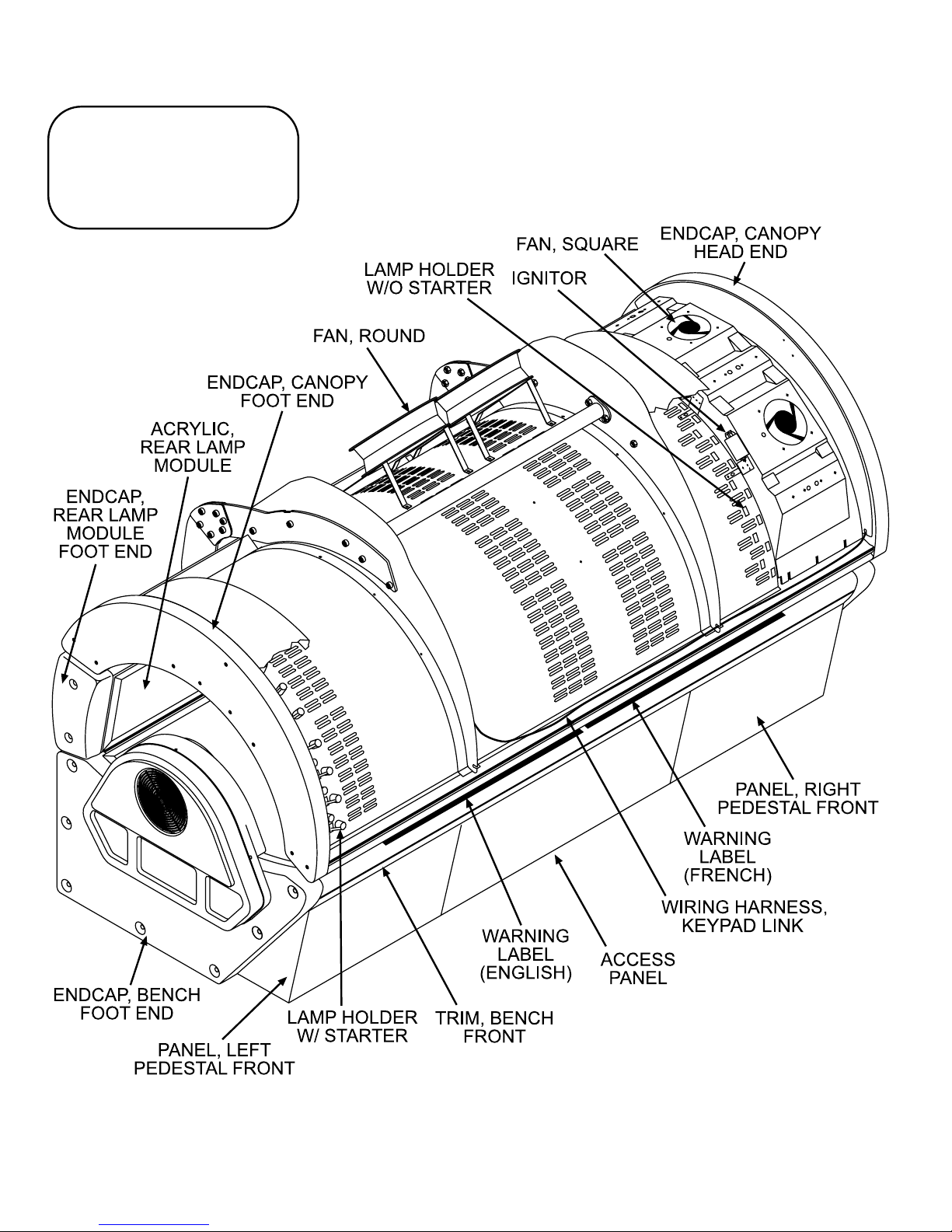

E548R

(canopy cover removed

and electrical shields

cut back)

27330-01A

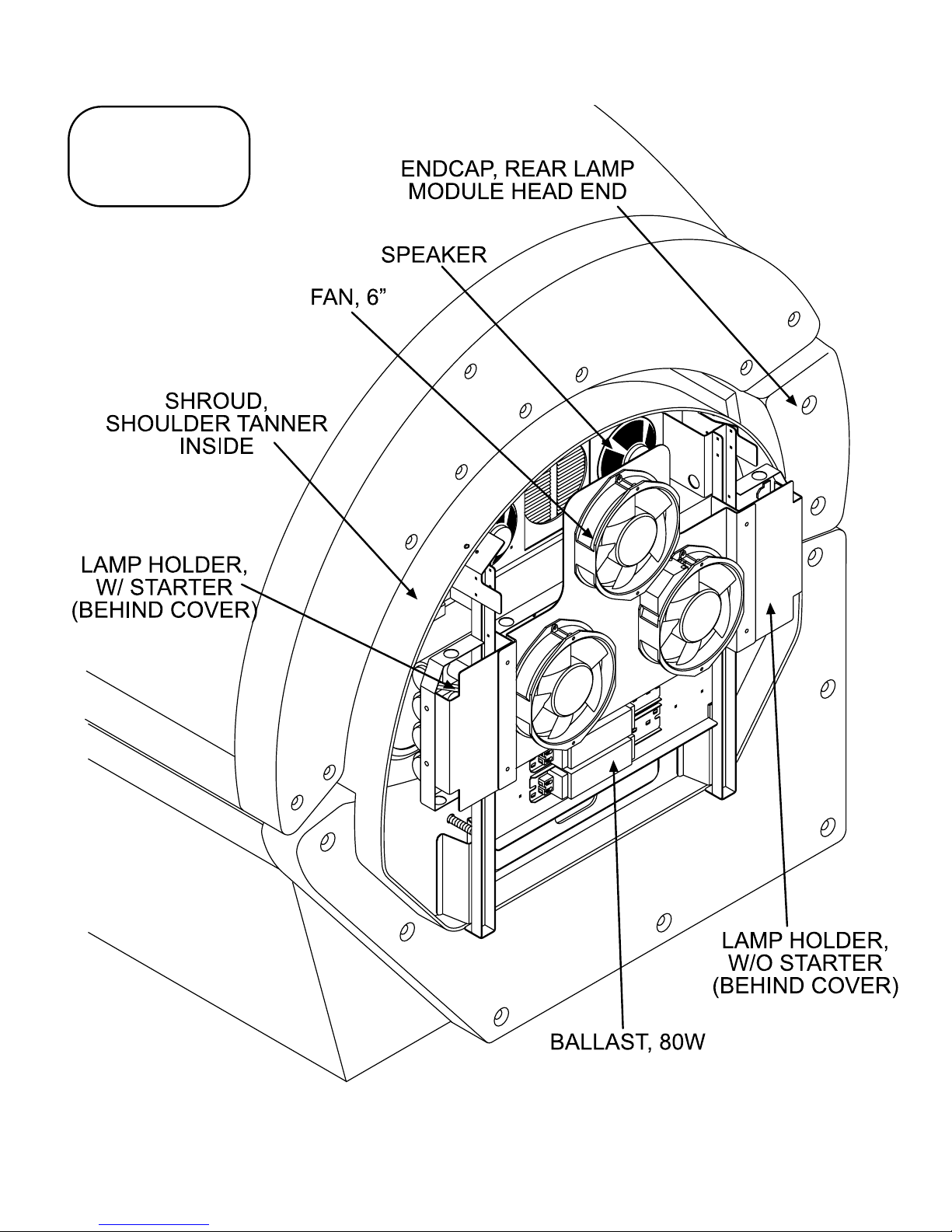

Shoulder Tanner

(outside shroud

removed)

27330-01A

Body Fan

27330-01A

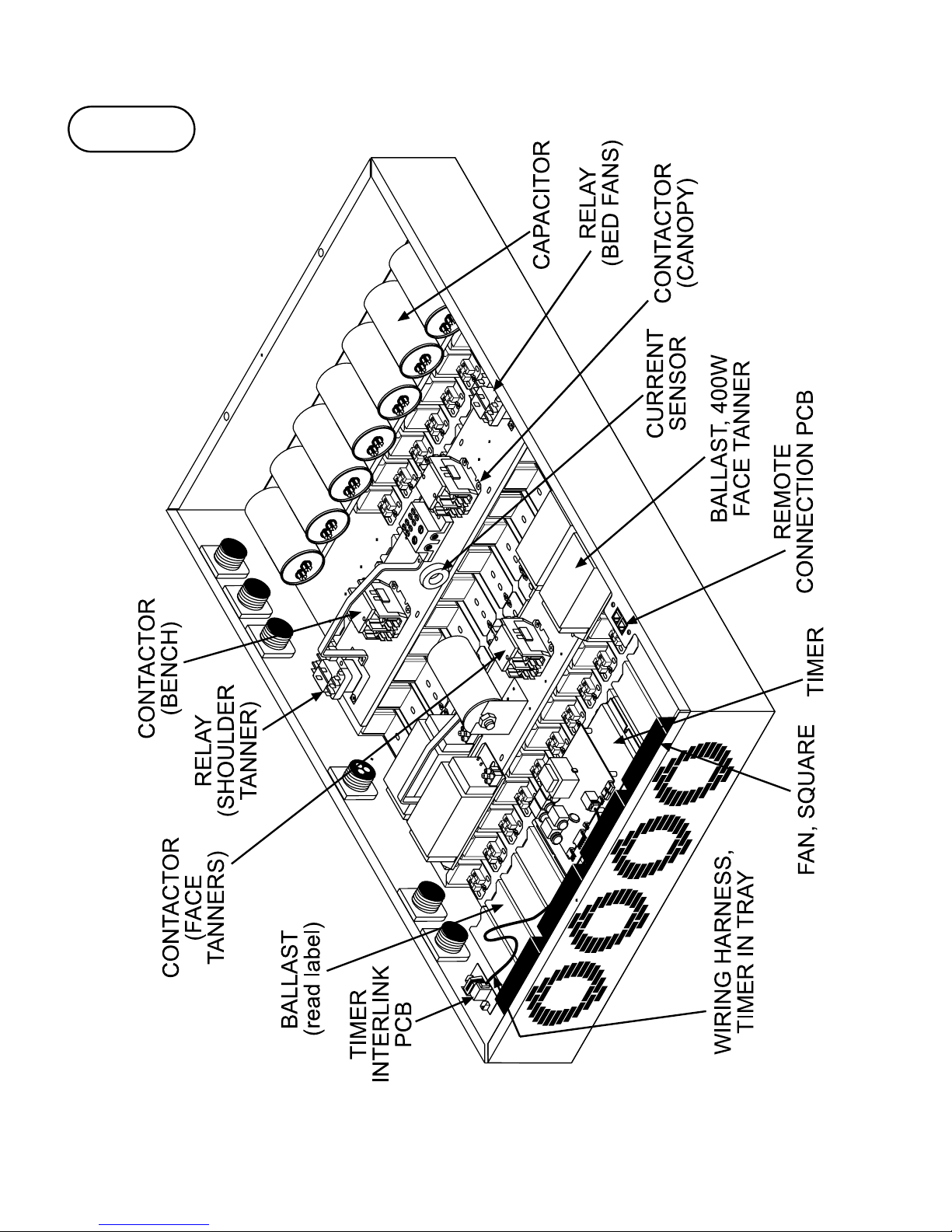

Ballast Tray

27330-01A

Parts List

This is a list of parts which may be replaced by the

consumer. When calling for parts, first state your

bed model as E548R. Then refer to this list and
preceding illustrations for proper identification.

Access Panel
Access Panel Key*
Acrylic, Bench*

(with aluminum frame)

Acrylic, Canopy* (with aluminum frame)
Acrylic, Rear Lamp Module
Acrylic, Shoulder Tanner*
Ballast, 100W

(bench lamps)

Ballast, 160W (canopy lamps)
Ballast, 80W (shoulder tanner lamps)
Ballast, 400W (face tanner lamps)
Body Fan

(complete kit)

Capacitor, 75uF
Contactor
Cover, Canopy*
Current Sensor
Damper*
Endcap, Bench Foot End
Endcap, Bench Head End*
Endcap, Canopy Foot End
Endcap, Canopy Head End
Endcap, Rear Lamp Module Foot End
Endcap, Rear Lamp Module Head End
Fan, 6”
Fan, Round
Fan, Square
Filter*
Handle Kit*
Hardware Kit, Assembly*
Hardware Kit, Canopy*
Hour Counter*

Ignitor
Lamp Holder w/ Starter
Lamp Holder w/o Starter
Lamp Holder, Face Tanner*
Lamps*
Panel, Left Pedestal Front
Panel, Right Pedestal Front
Pillow*
Relay
Remote Connection PCB
Remote Control Bypass Plug*
Schematic Packet*
Shoulder Tanner

(complete kit)

Shroud, Body Fan Inside
Shroud, Body Fan Outside
Shroud, Shoulder Tanner Inside
Shroud, Shoulder Tanner Outside*
Speakers

(pair)

Starter, K-12* (main lamps)
Starter, S-2* (shoulder lamps)
Support, Bench Acrylic* (“kickstand”)
Thermostat* (for face tanner)
Timer
Timer Interlink PCB
Timer Keypad Kit*

(circuit board)

Timer Keypad Pushbuttons*
Trim, Bench Front
Trim, Canopy Front*
Warning Label

(English)

Warning Label (French)
Wiring Harness, Keypad Link
Wiring Harness, Remote PCB to Timer*
Wiring Harness, Resistor Code*
Wiring Harness, Timer in Tray
Wiring Harness, RJ-11 Canopy to Bench*

*

Not shown

27330-01A

WHEN

What to do

After each use Monthly 400-500hrs 600-800hrs

A. Clean/Disinfect Interior Surfaces* ✘
B. Clean Lamps* ✘
C. Clean Reflectors* ✘
D. Clean Exterior ✘
E. Check/Clean Fans† ✘
F. Change Lamps and Starters** ✘

H. Check Fasteners

(nuts, bolts, etc.)*

✘

I. Check Power Cords* ✘
J. Change Filters*** ✘

* See Care and Maintenance
** See Lamp and Grill Replacement
*** See Final Adjustments
† Fans are located on top of the canopy, under the bench, in the shoulder tanner and body fan, and
at the side of the ballast drawer. Use a vacuum to clean.

MAINTENANCE LOG

What When What When What When

example B C D E 4/15/04

Record this information for ease of service:

Date of purchase:

Serial number:

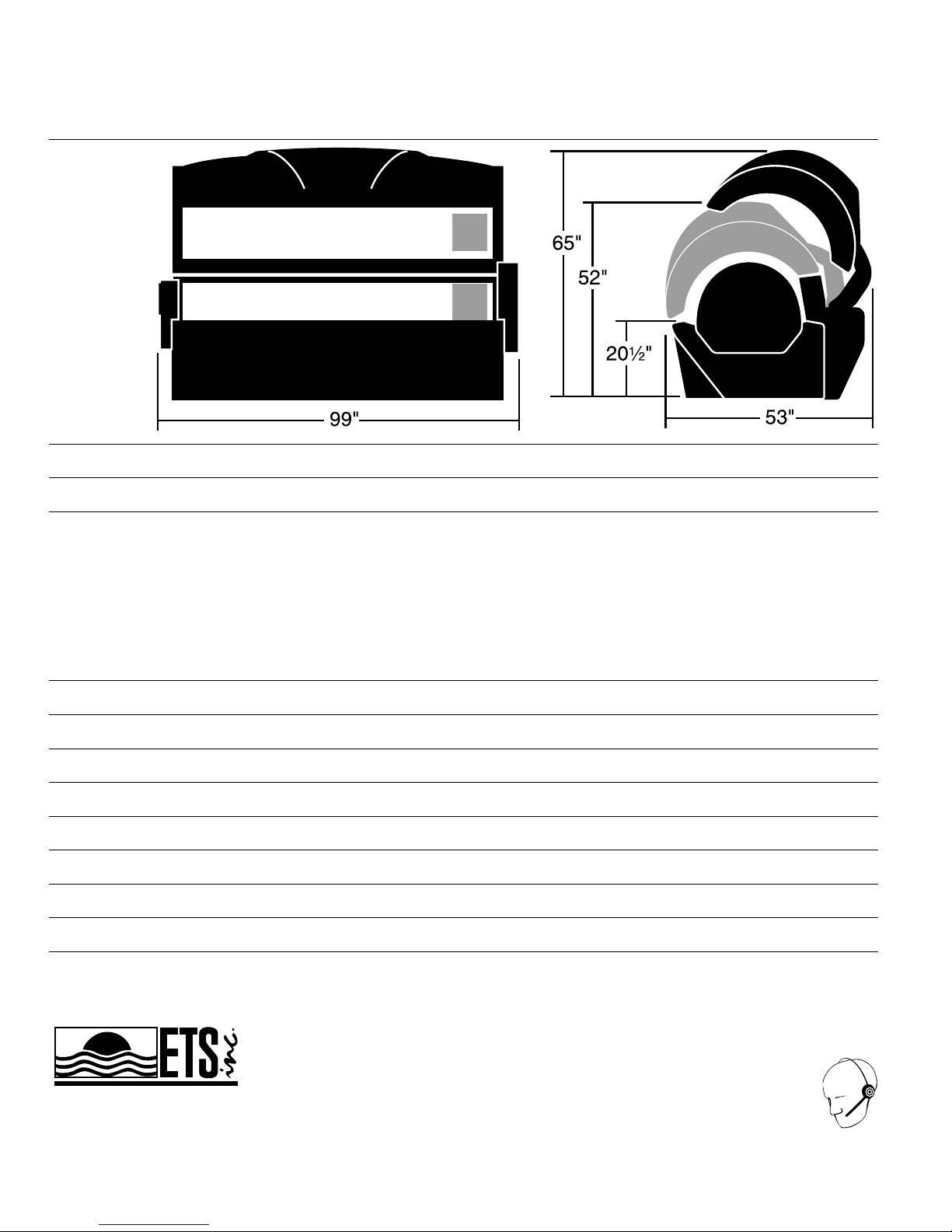

STARPOWER 548

Size

Weight (Pounds) 1050
Recommended Room Size 10’D x 10’W
Electrical -

Voltage (AC) 220
Amperage 46
Circuit Breaker (Amps) 60
Outlet Hardwire

Main Lamps (see page iii) BRONZING SUN™ PLUS / Velocity® VS-R™
Ballasts 100W (bench) / 160W (canopy)
Face Tanner SolarMax™ IFT
FT Ballasts 400W
Cooling System 825cfm body fan at foot end / 220cfm fan at head end
Timer System Digital
Max. Exposure Time 12minutes
Back-up Timer Digital “watchdog” circuitry
Remote Capability T-Max® compatible

U.S. Patent 6,660,025 B2

Proudly manufactured
in the U.S.A.
